LiFi/CAMCOM Technology for Autonomous Electric Vehicle Charging
Introducing a V2I LiFi/CAMCOM technology solution for electric vehicle charging automation and operation of various application services on the road. The proposed solution utilizes light communication for seamless connectivity between EVs and charging infrastructure.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

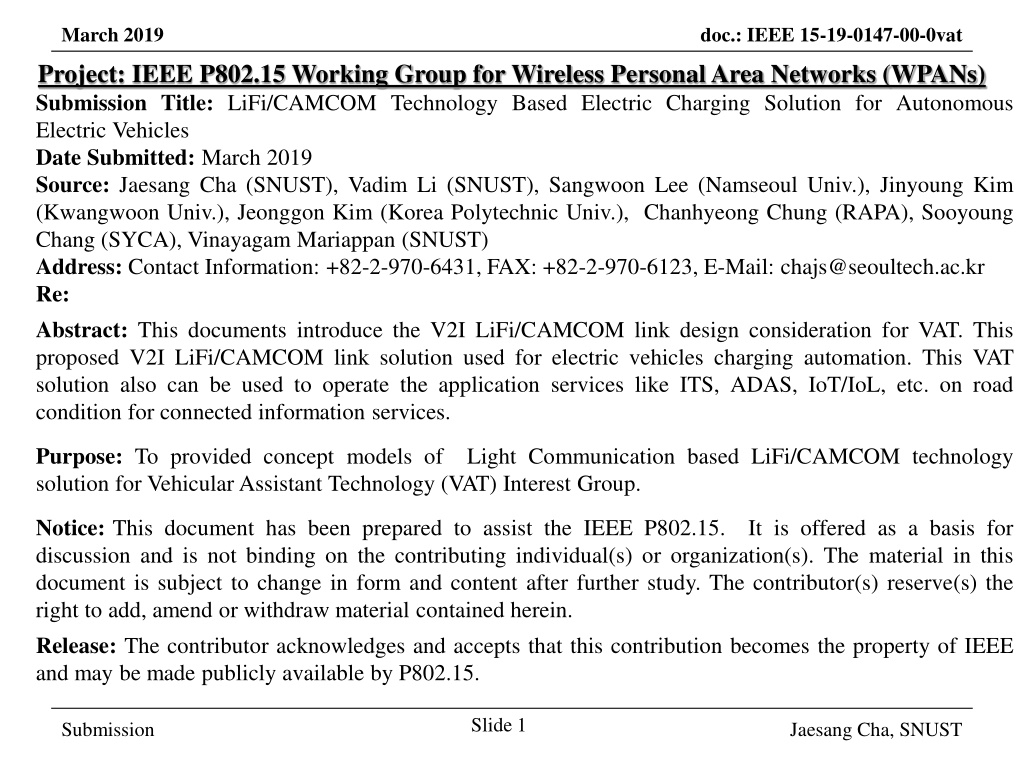

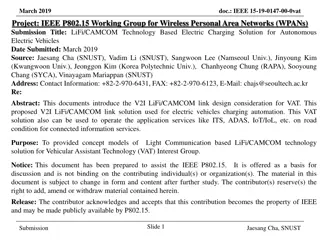

March 2019 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: LiFi/CAMCOM Technology Based Electric Charging Solution for Autonomous Electric Vehicles Date Submitted: March 2019 Source: Jaesang Cha (SNUST), Vadim Li (SNUST), Sangwoon Lee (Namseoul Univ.), Jinyoung Kim (Kwangwoon Univ.), Jeonggon Kim (Korea Polytechnic Univ.), Chanhyeong Chung (RAPA), Sooyoung Chang (SYCA), Vinayagam Mariappan (SNUST) Address: Contact Information: +82-2-970-6431, FAX: +82-2-970-6123, E-Mail: chajs@seoultech.ac.kr Re: Abstract: This documents introduce the V2I LiFi/CAMCOM link design consideration for VAT. This proposed V2I LiFi/CAMCOM link solution used for electric vehicles charging automation. This VAT solution also can be used to operate the application services like ITS, ADAS, IoT/IoL, etc. on road condition for connected information services. doc.: IEEE 15-19-0147-00-0vat Purpose: To provided concept models of Light Communication based LiFi/CAMCOM technology solution for Vehicular Assistant Technology (VAT) Interest Group. Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Slide 1 Submission Jaesang Cha, SNUST

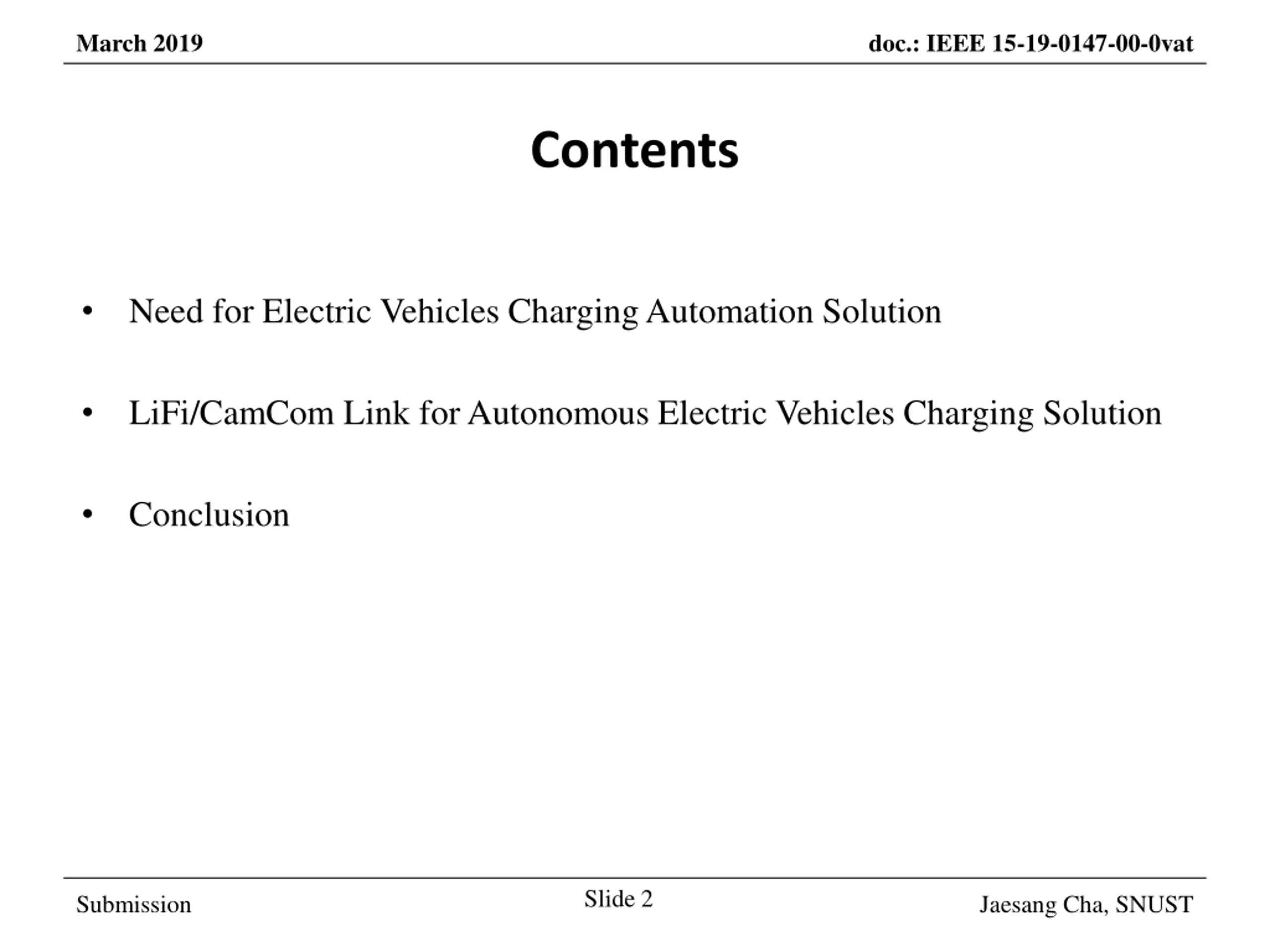

March 2019 doc.: IEEE 15-19-0147-00-0vat Contents Need for Electric Vehicles Charging Automation Solution LiFi/CamCom Link for Autonomous Electric Vehicles Charging Solution Conclusion Slide 2 Submission Jaesang Cha, SNUST

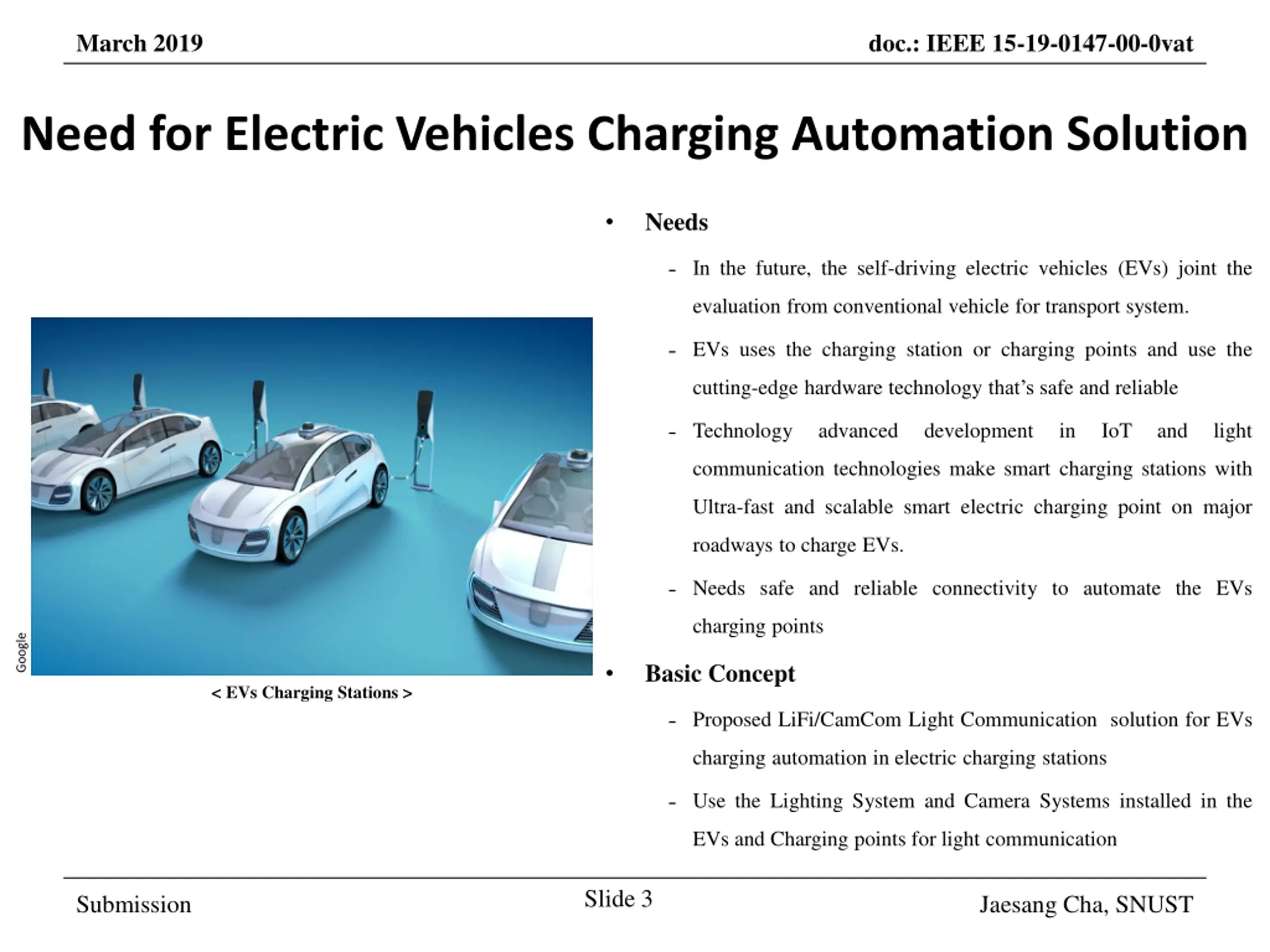

March 2019 doc.: IEEE 15-19-0147-00-0vat Need for Electric Vehicles Charging Automation Solution Needs In the future, the self-driving electric vehicles (EVs) joint the evaluation from conventional vehicle for transport system. EVs uses the charging station or charging points and use the cutting-edge hardware technology that s safe and reliable Technology advanced development in IoT and light communication technologies make smart charging stations with Ultra-fast and scalable smart electric charging point on major roadways to charge EVs. Needs safe and reliable connectivity to automate the EVs charging points Google Basic Concept < EVs Charging Stations > Proposed LiFi/CamCom Light Communication solution for EVs charging automation in electric charging stations Use the Lighting System and Camera Systems installed in the EVs and Charging points for light communication Slide 3 Submission Jaesang Cha, SNUST

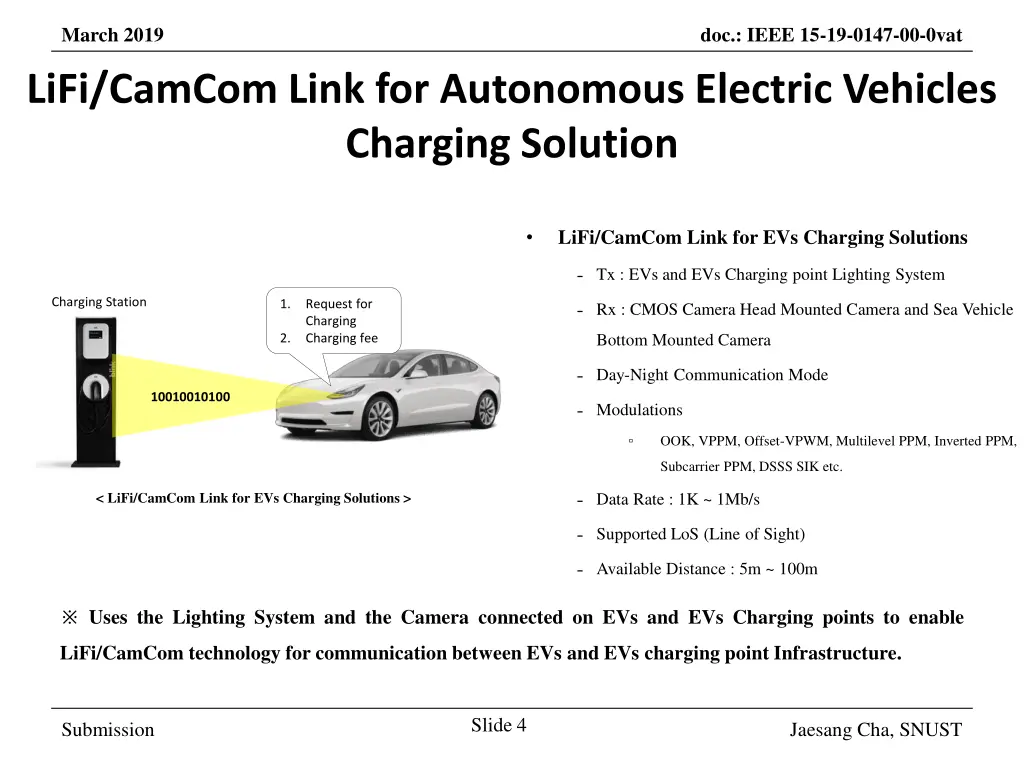

March 2019 doc.: IEEE 15-19-0147-00-0vat LiFi/CamCom Link for Autonomous Electric Vehicles Charging Solution LiFi/CamCom Link for EVs Charging Solutions Tx : EVs and EVs Charging point Lighting System Charging Station 1. Request for Charging Charging fee Rx : CMOS Camera Head Mounted Camera and Sea Vehicle Bottom Mounted Camera 2. Day-Night Communication Mode 10010010100 Modulations OOK, VPPM, Offset-VPWM, Multilevel PPM, Inverted PPM, Subcarrier PPM, DSSS SIK etc. Data Rate : 1K ~ 1Mb/s < LiFi/CamCom Link for EVs Charging Solutions > Supported LoS (Line of Sight) Available Distance : 5m ~ 100m Uses the Lighting System and the Camera connected on EVs and EVs Charging points to enable LiFi/CamCom technology for communication between EVs and EVs charging point Infrastructure. Slide 4 Submission Jaesang Cha, SNUST

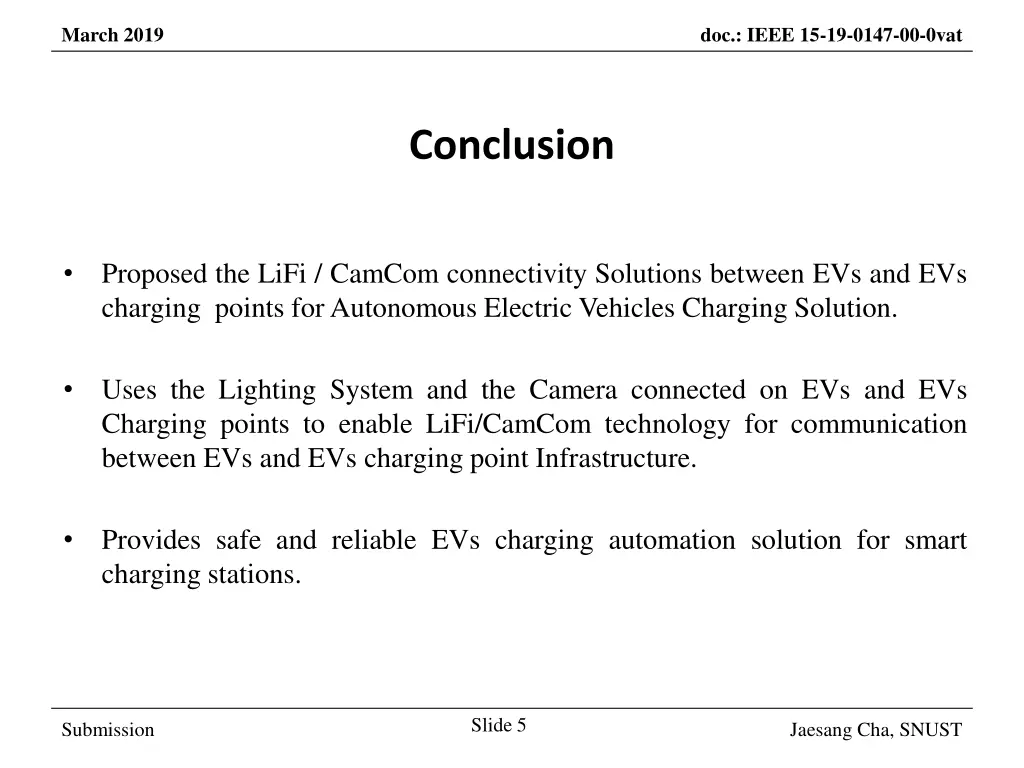

March 2019 doc.: IEEE 15-19-0147-00-0vat Conclusion Proposed the LiFi / CamCom connectivity Solutions between EVs and EVs charging points for Autonomous Electric Vehicles Charging Solution. Uses the Lighting System and the Camera connected on EVs and EVs Charging points to enable LiFi/CamCom technology for communication between EVs and EVs charging point Infrastructure. Provides safe and reliable EVs charging automation solution for smart charging stations. Slide 5 Submission Jaesang Cha, SNUST
