Ligand-Receptor Interactions in Cell Biology

Signal Transduction: Ligand-Receptor Interactions Cell and Developmental Biology Group

Goals Integration of quantitative skills in cell biology Modeling cellular responses

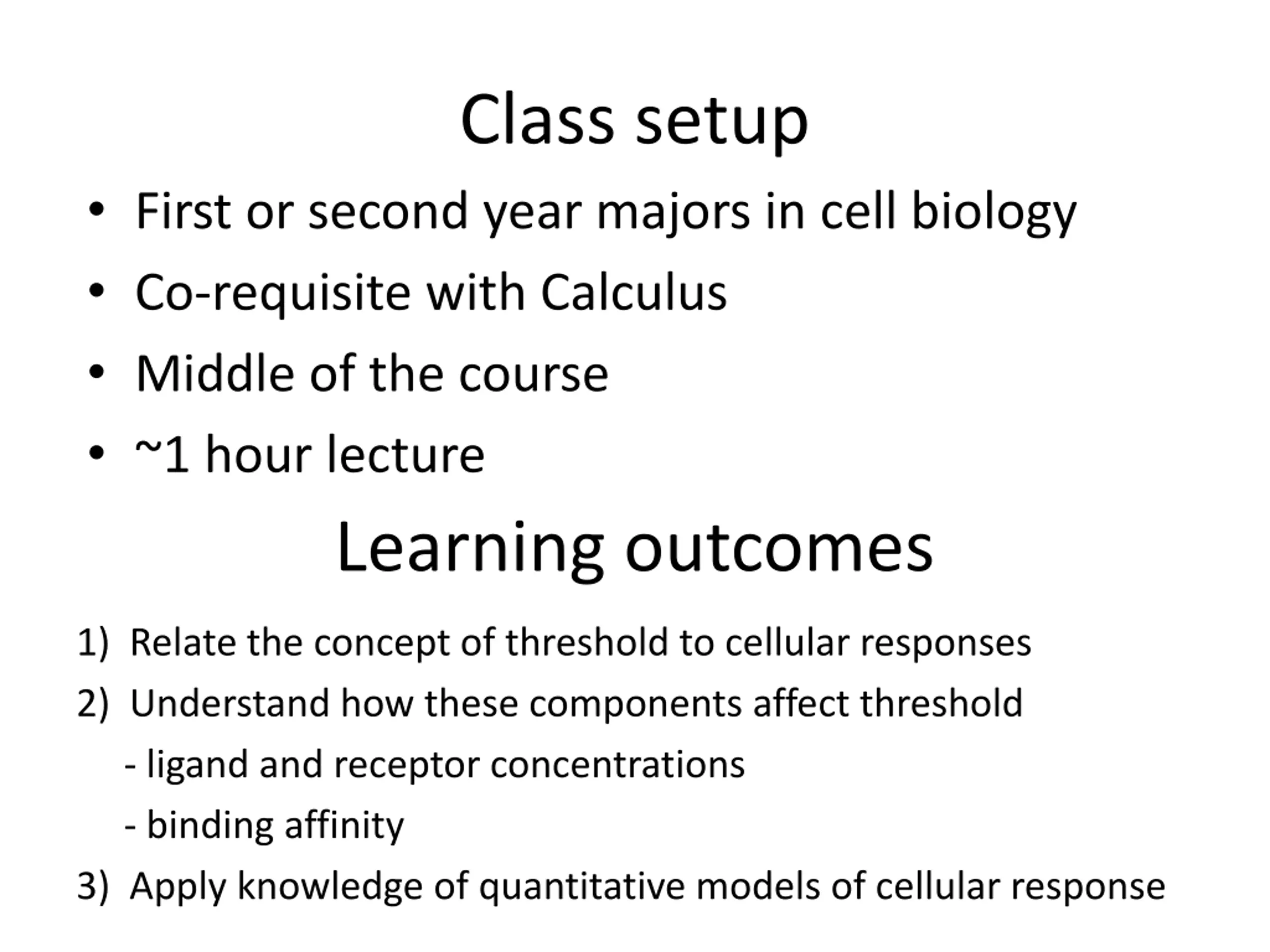

Class setup First or second year majors in cell biology Co-requisite with Calculus Middle of the course ~1 hour lecture Learning outcomes 1) Relate the concept of threshold to cellular responses 2) Understand how these components affect threshold - ligand and receptor concentrations - binding affinity 3) Apply knowledge of quantitative models of cellular response

A driver returned to his car after a 3 hour shopping spree to see the following sight. His car would not start. Why?

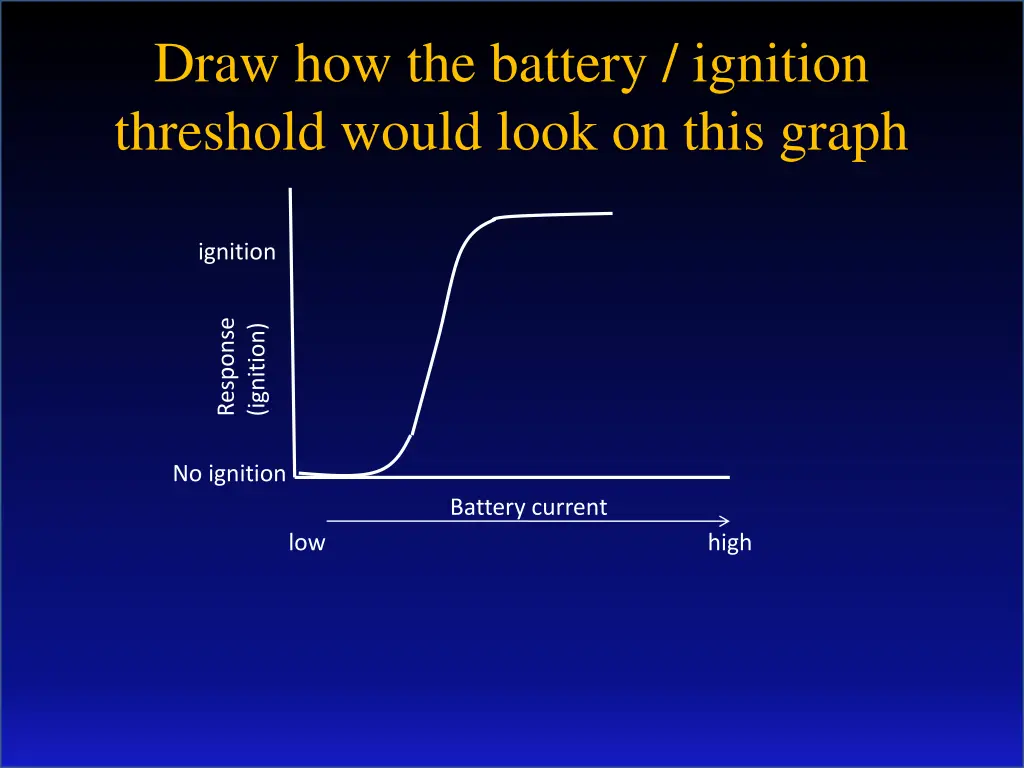

Draw how the battery / ignition threshold would look on this graph ignition Response (ignition) No ignition Battery current low high

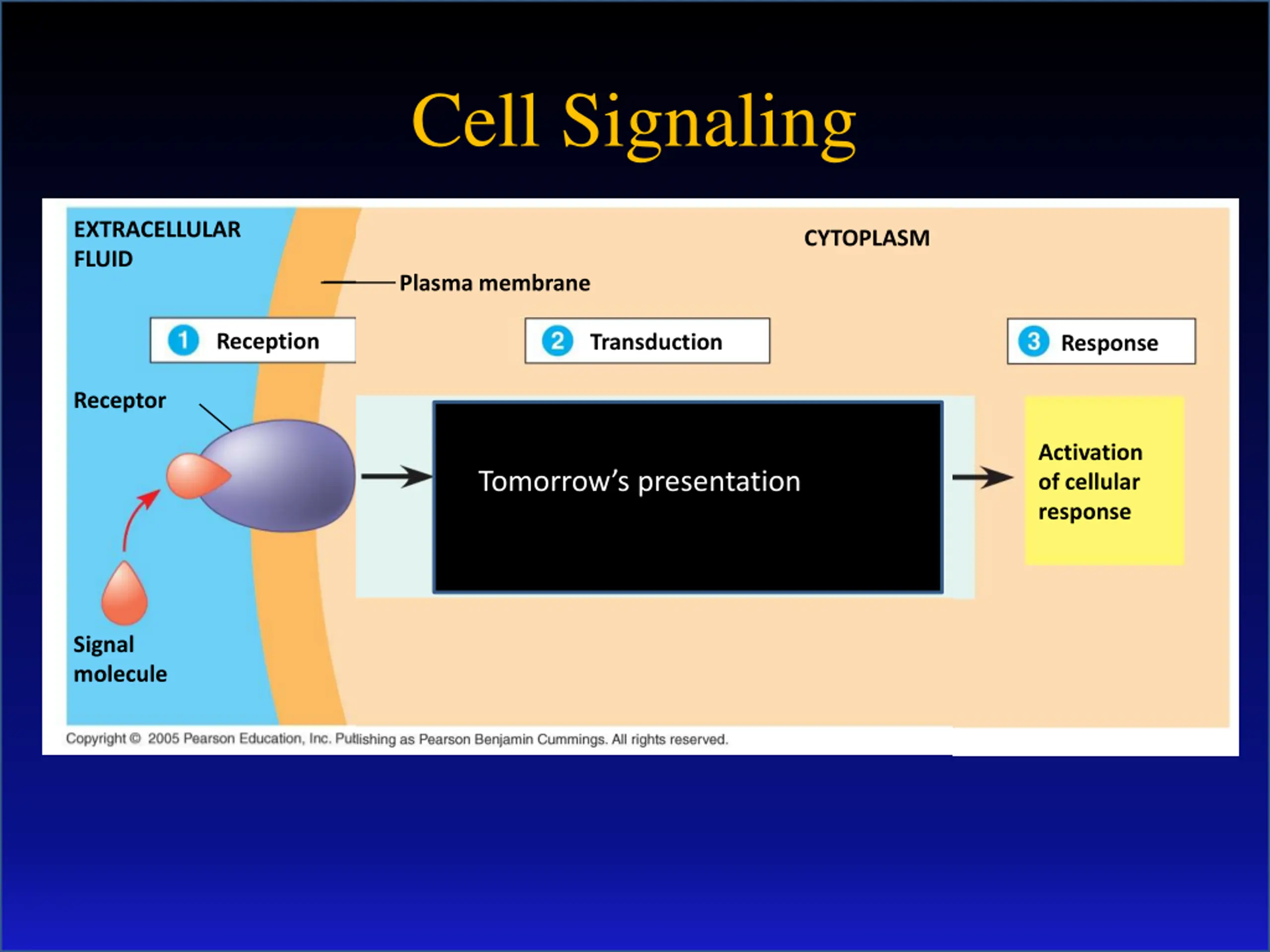

Cell Signaling EXTRACELLULAR FLUID CYTOPLASM Plasma membrane Reception Transduction Response Receptor Activation of cellular response Tomorrow s presentation Relay molecules in a signal transduction pathway Signal molecule

What happens when you see this?

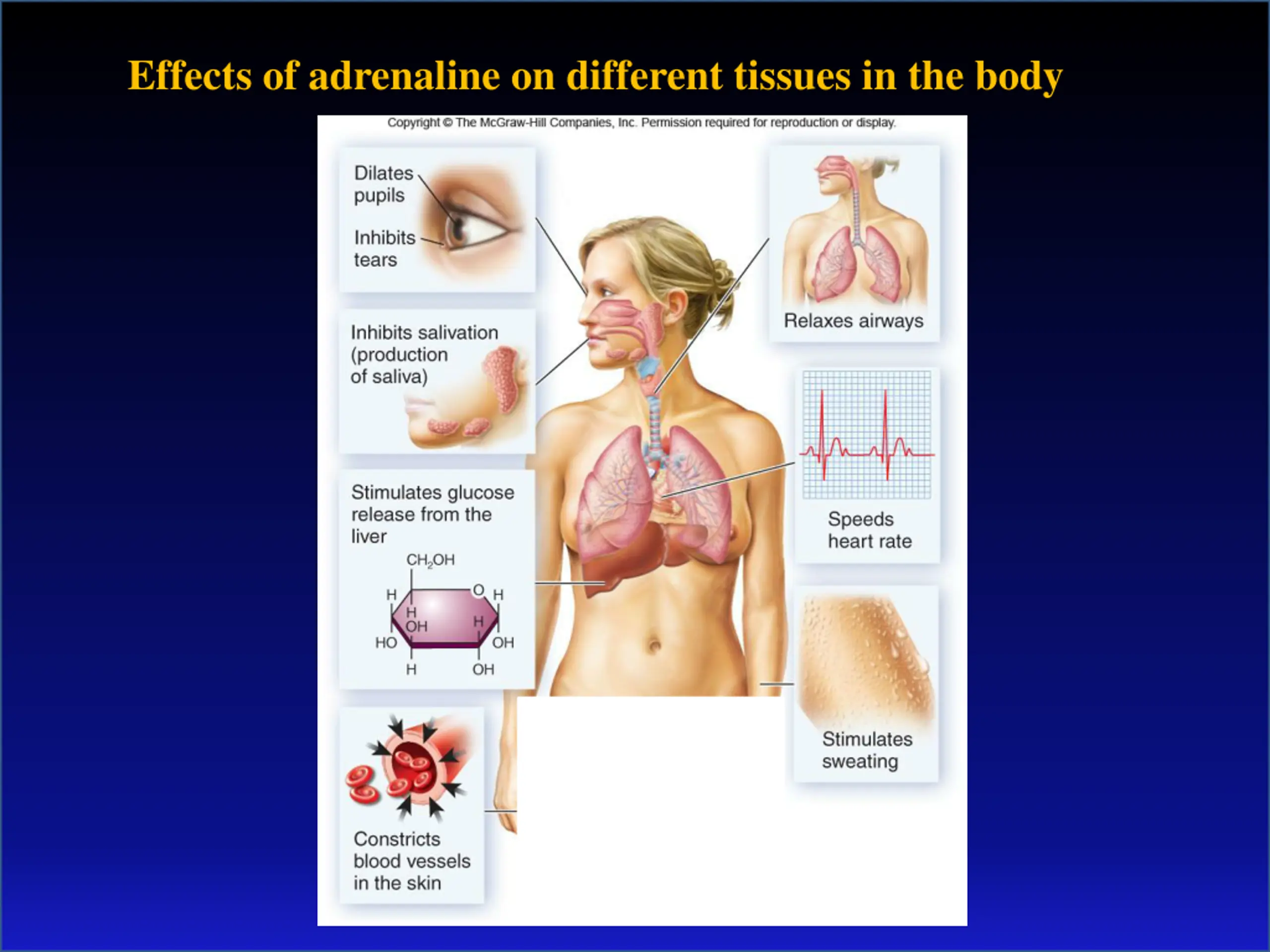

Effects of adrenaline on different tissues in the body

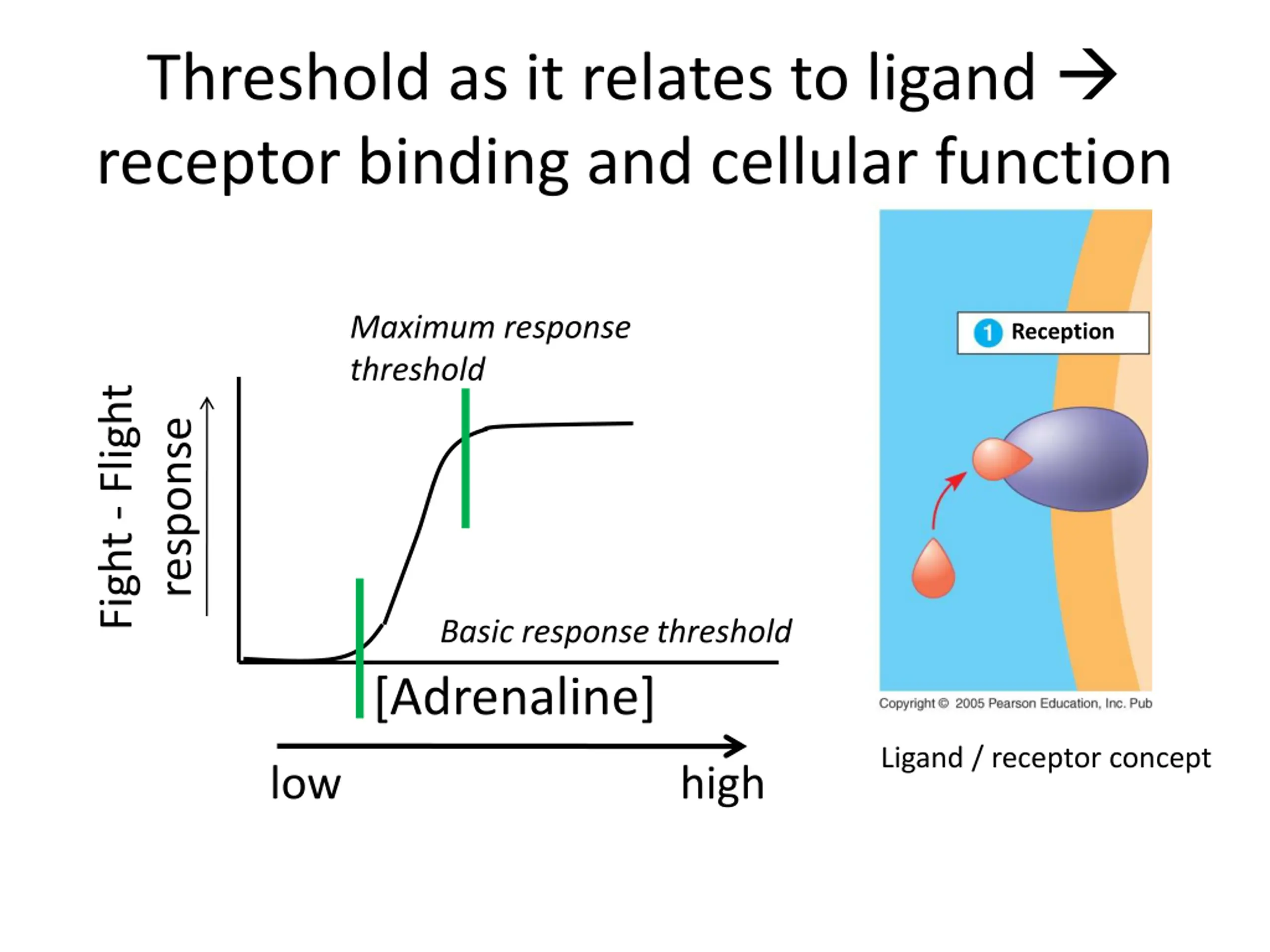

Threshold as it relates to ligand receptor binding and cellular function Maximum response threshold Reception Fight - Flight response Basic response threshold [Adrenaline] Ligand / receptor concept low high

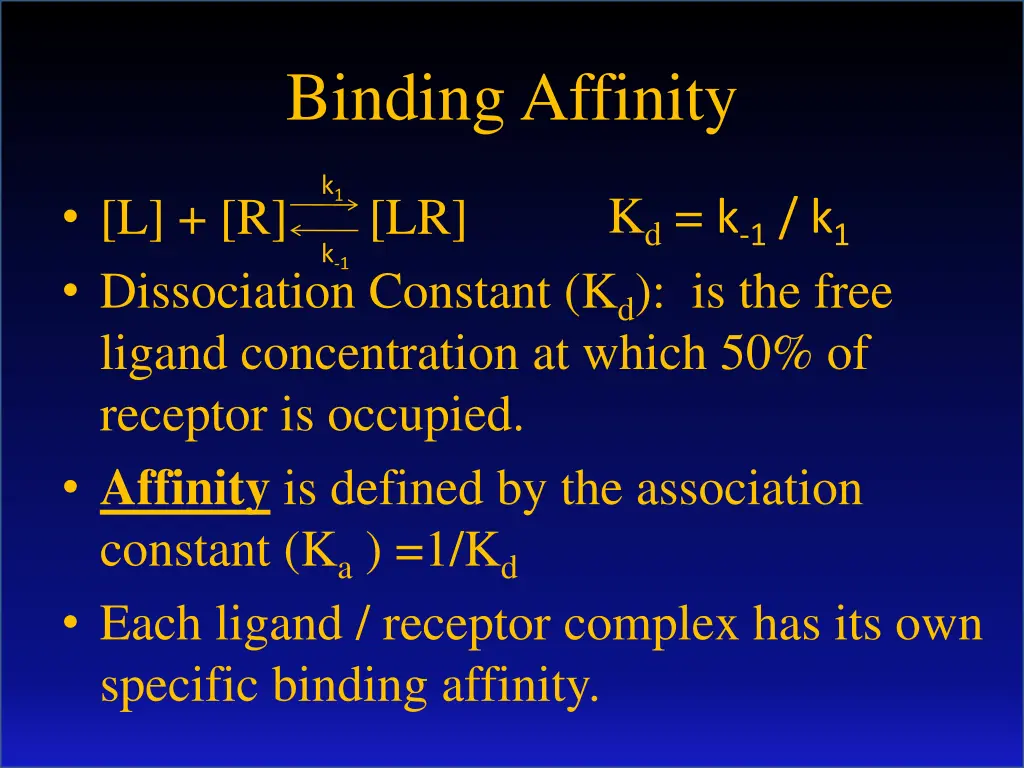

Binding Affinity k1 Kd = k-1 / k1 [L] + [R] Dissociation Constant (Kd): is the free ligand concentration at which 50% of receptor is occupied. Affinity is defined by the association constant (Ka ) =1/Kd Each ligand / receptor complex has its own specific binding affinity. [LR] k-1

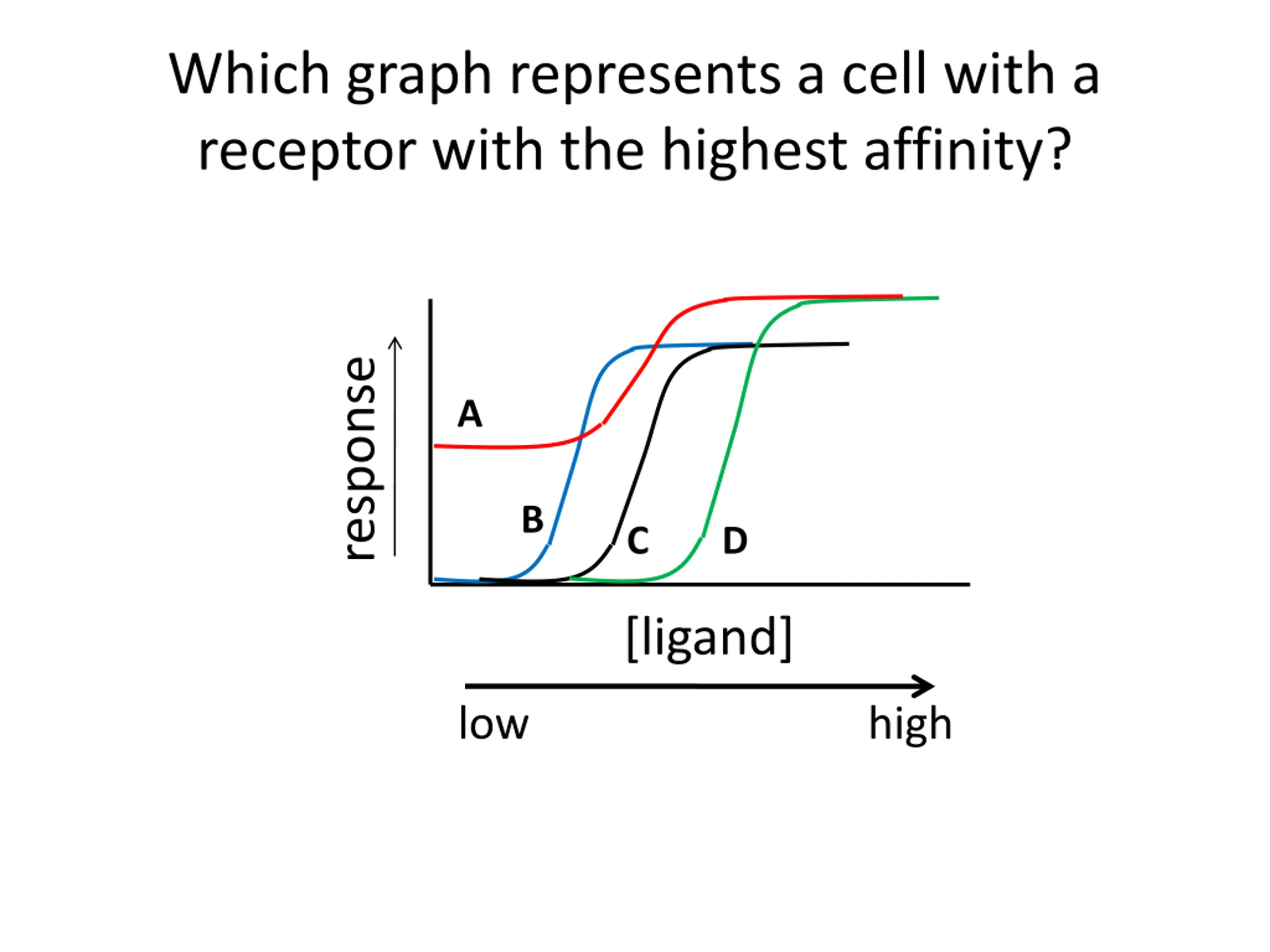

Which graph represents a cell with a receptor with the highest affinity? response A B C D [ligand] low high

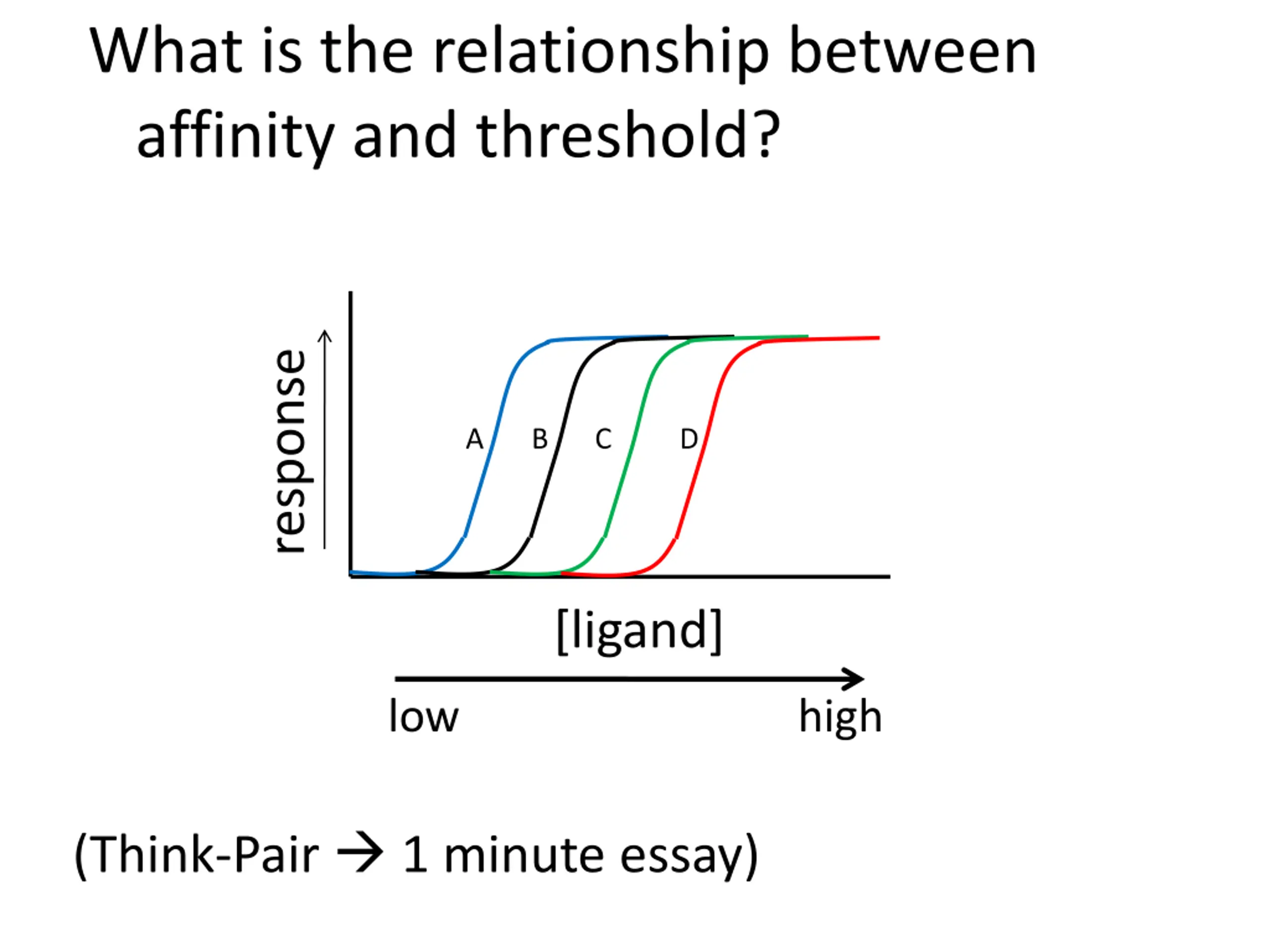

What is the relationship between affinity and threshold? response A B C D [ligand] low high (Think-Pair 1 minute essay)

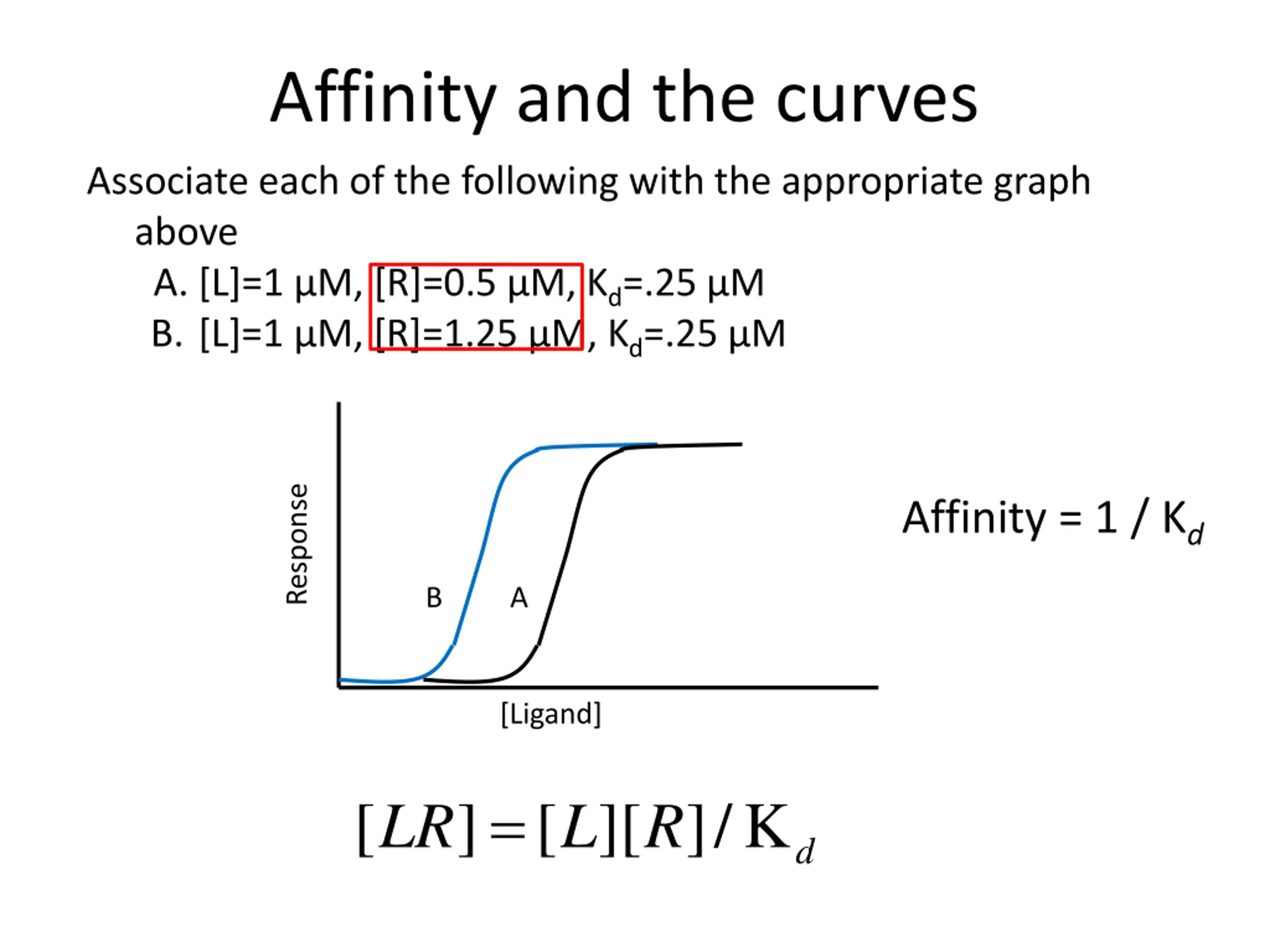

Affinity and the curves Associate each of the following with the appropriate graph above A. [L]=1 M, [R]=0.5 M, Kd=.25 M B. [L]=1 M, [R]=1.25 M, Kd=.25 M Response Affinity = 1 / Kd B A [Ligand] = [ ] [ ][ / ] K LR L R d

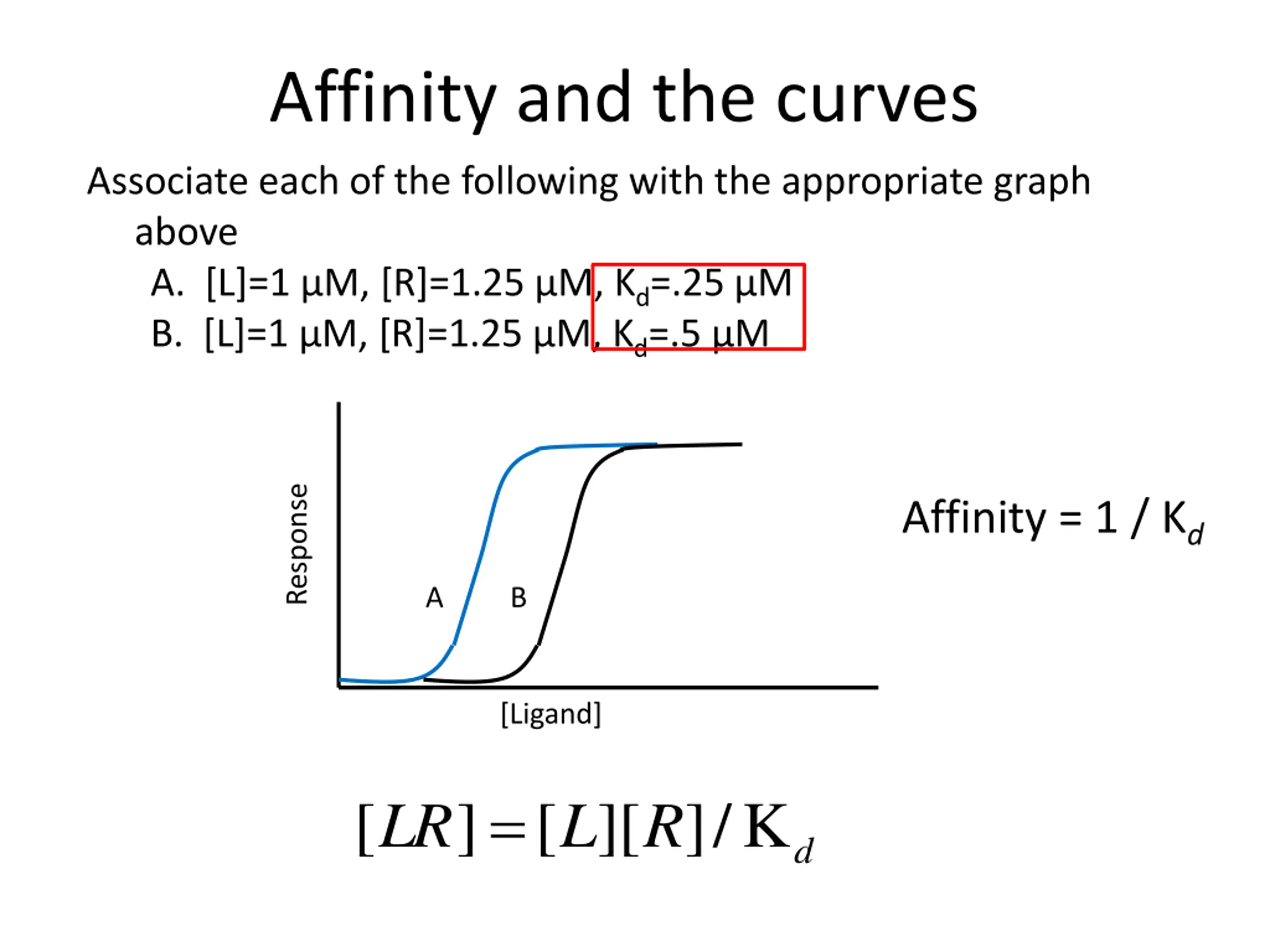

Affinity and the curves Associate each of the following with the appropriate graph above A. [L]=1 M, [R]=1.25 M, Kd=.25 M B. [L]=1 M, [R]=1.25 M, Kd=.5 M Response Affinity = 1 / Kd A B [Ligand] = [ ] [ ][ / ] K LR L R d

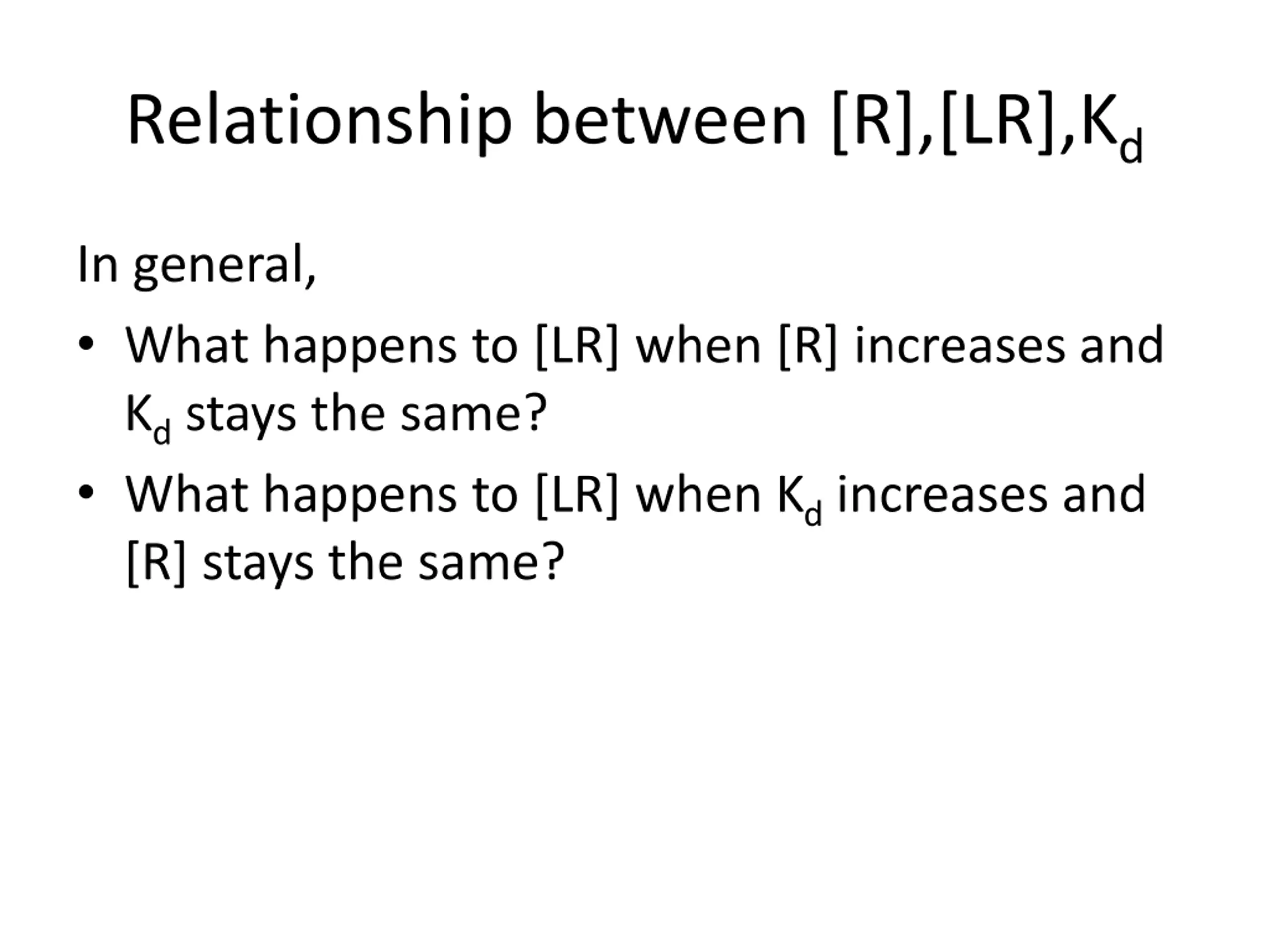

Relationship between [R],[LR],Kd In general, What happens to [LR] when [R] increases and Kd stays the same? What happens to [LR] when Kd increases and [R] stays the same?

What happens when your adrenaline rush goes away??

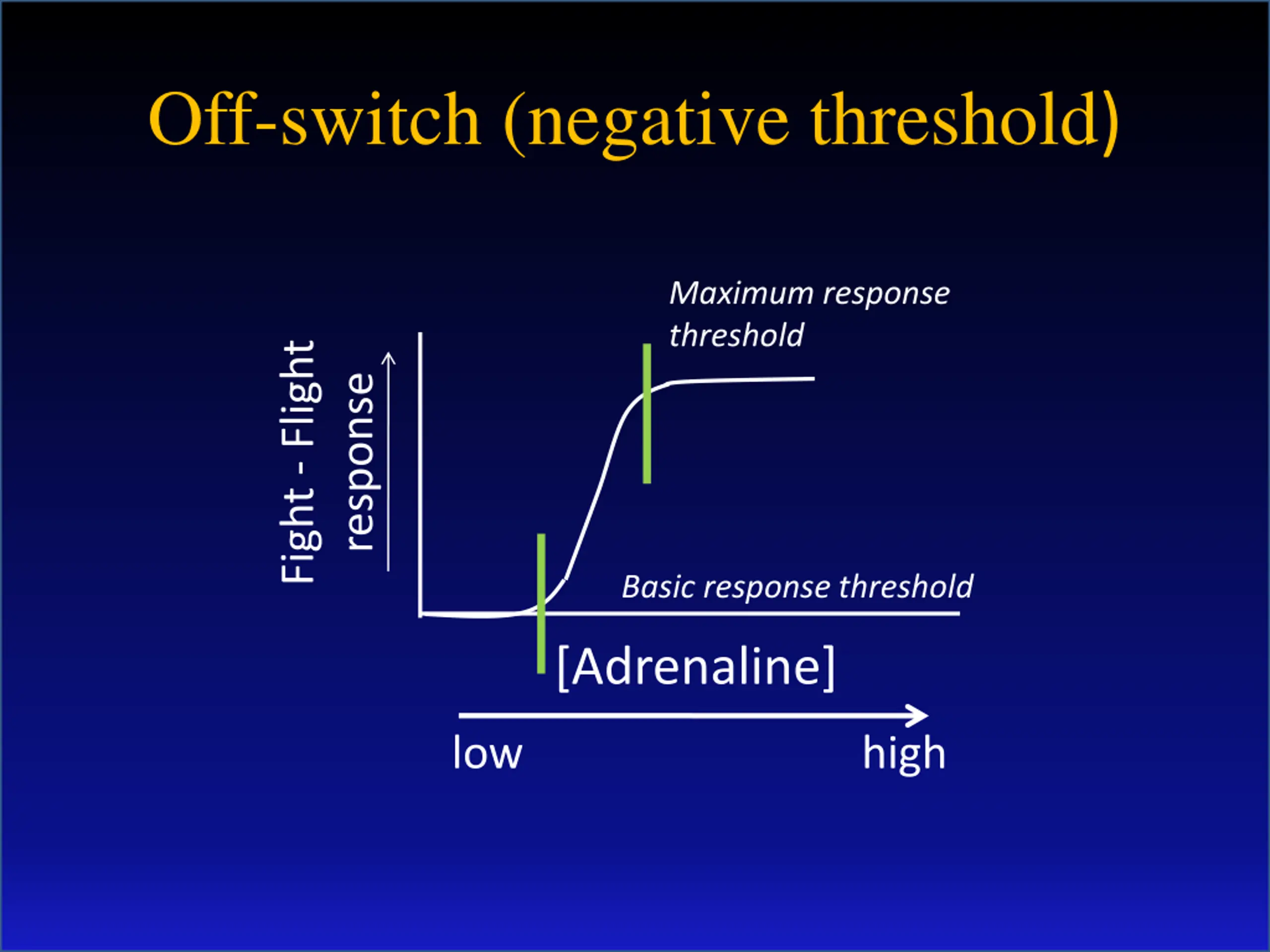

Off-switch (negative threshold) Maximum response threshold Fight - Flight response Basic response threshold [Adrenaline] low high

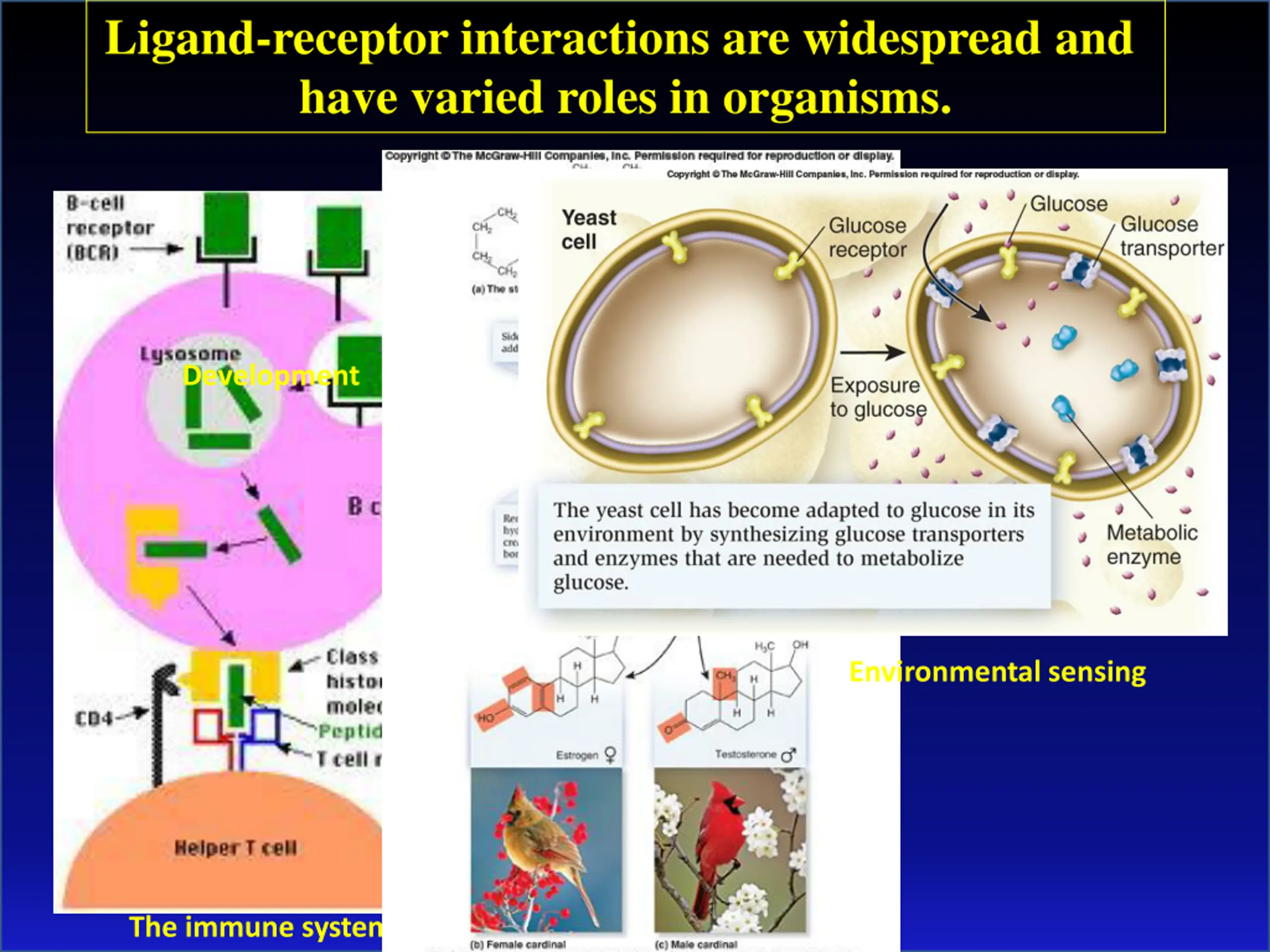

Ligand-receptor interactions are widespread and have varied roles in organisms. Development Environmental sensing The immune system

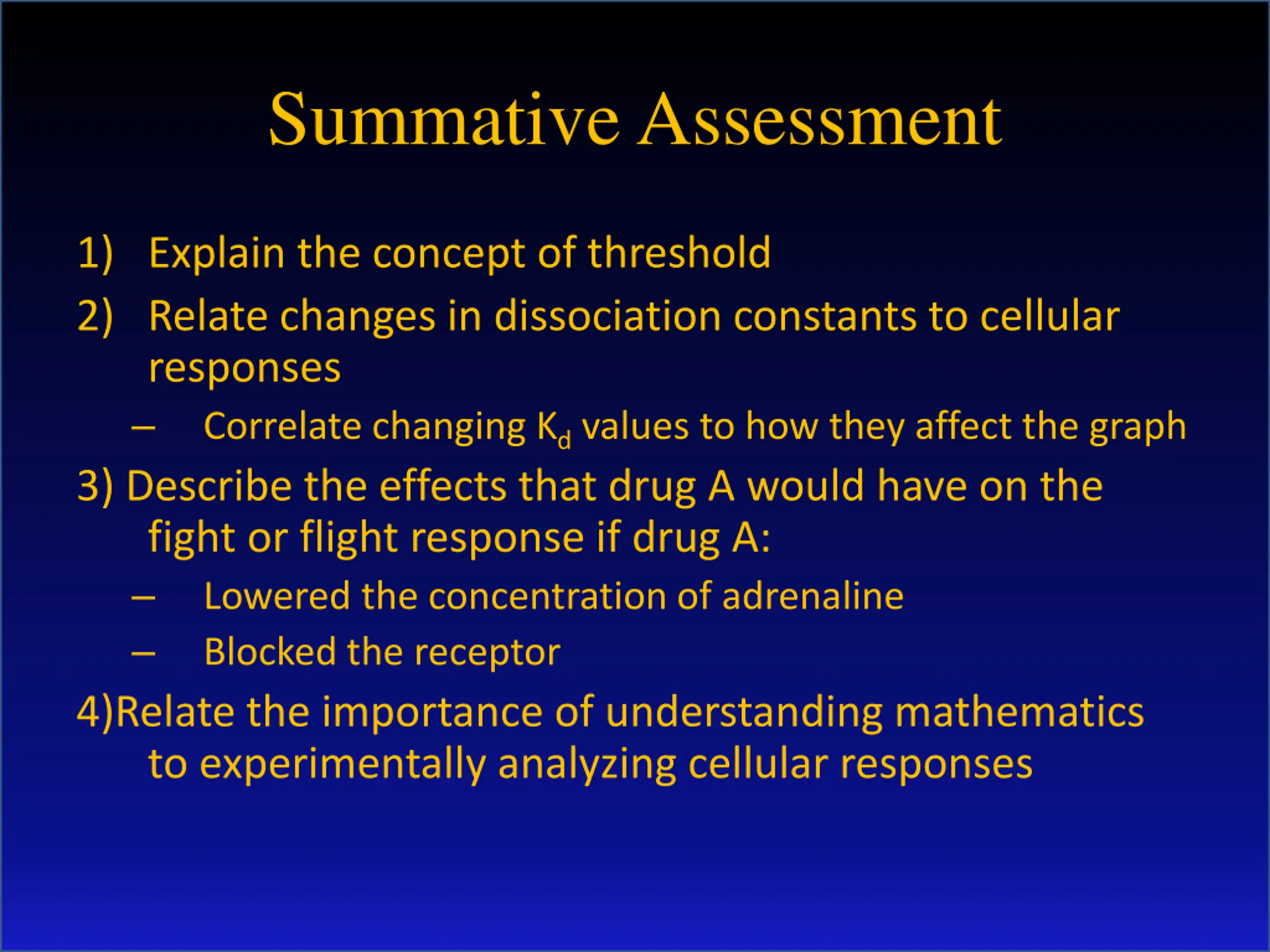

Summative Assessment 1) Explain the concept of threshold 2) Relate changes in dissociation constants to cellular responses Correlate changing Kd values to how they affect the graph 3) Describe the effects that drug A would have on the fight or flight response if drug A: Lowered the concentration of adrenaline Blocked the receptor 4)Relate the importance of understanding mathematics to experimentally analyzing cellular responses
