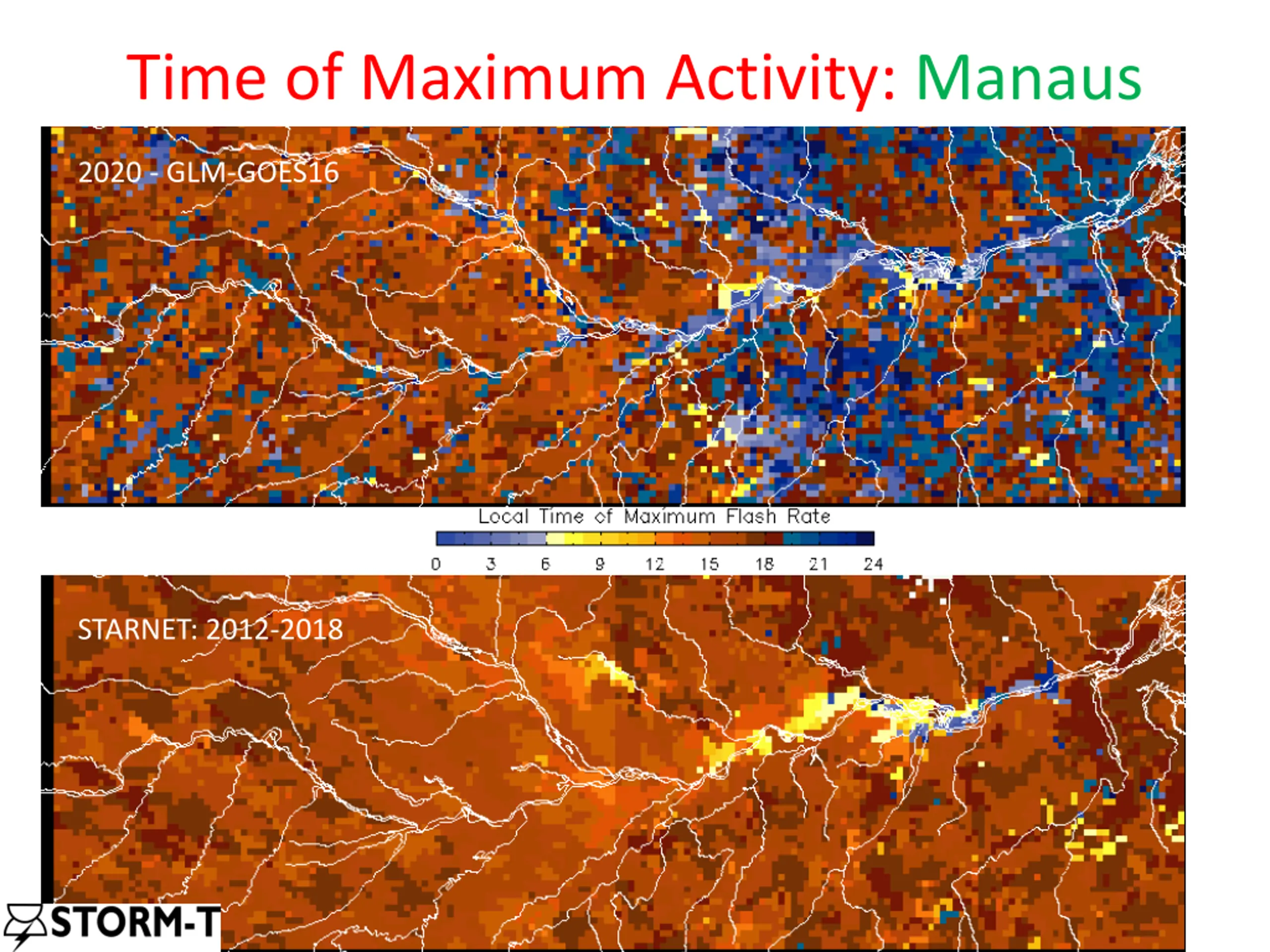

Explore the ground validation dataset of STARNET and LINET in Brazil, showcasing the lightning detection network's accuracy, efficiency, and annual activity. Dive into time and location analysis, diurnal cycles, and maximum lightning activity in areas like Manaus and Maracaibo.

mole_aa Follow

Uploaded on Jun 08, 2025 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

Download Presentation

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

E N D

Presentation Transcript

GLM and STARNET & LINET in Brazil Carlos Augusto Morales Universidade de S o Paulo http://www.starnet.iag.usp.br carlos.morales@iag.usp.br 2021 GLM Science Meeting Sept 22 2021

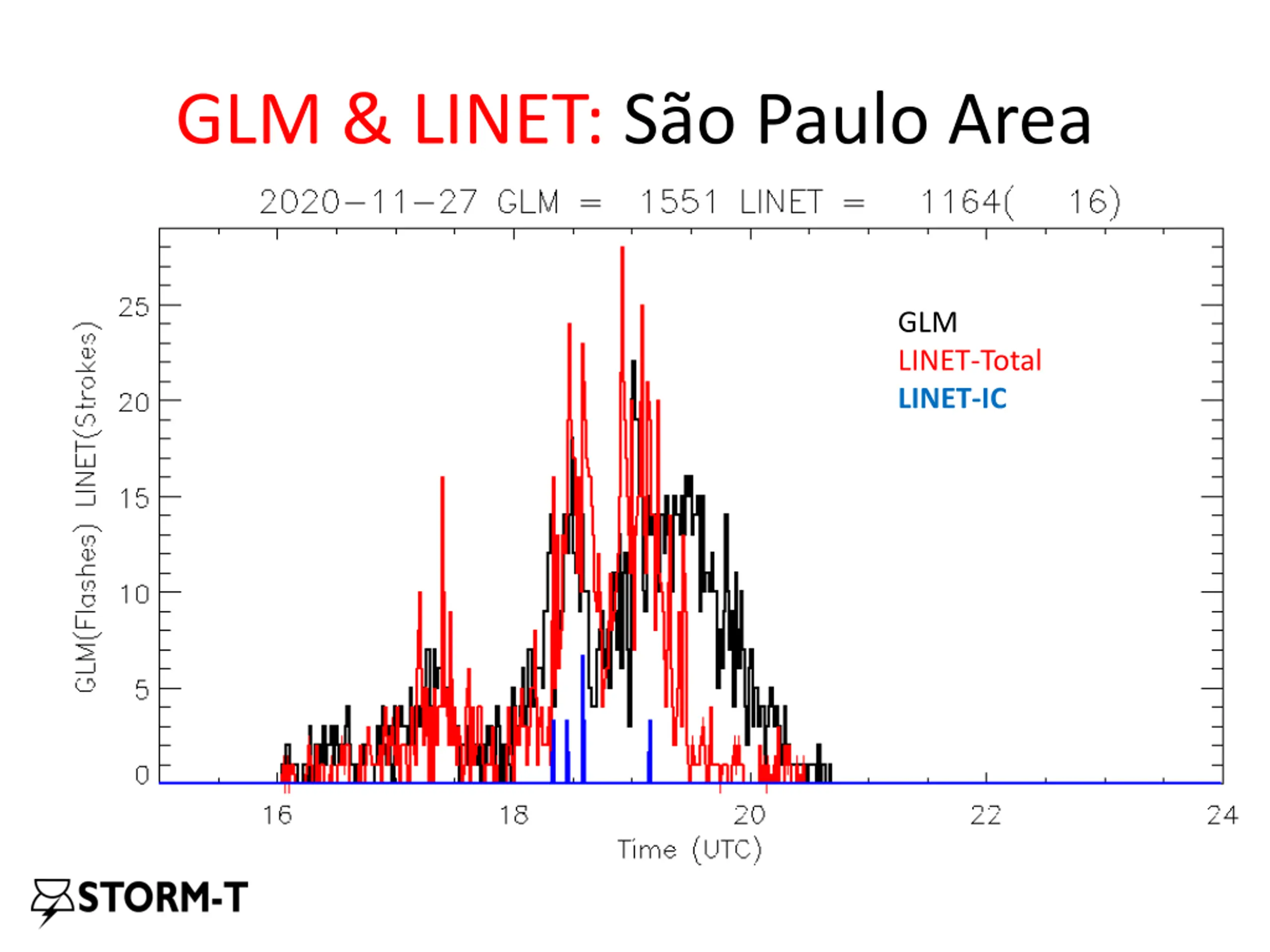

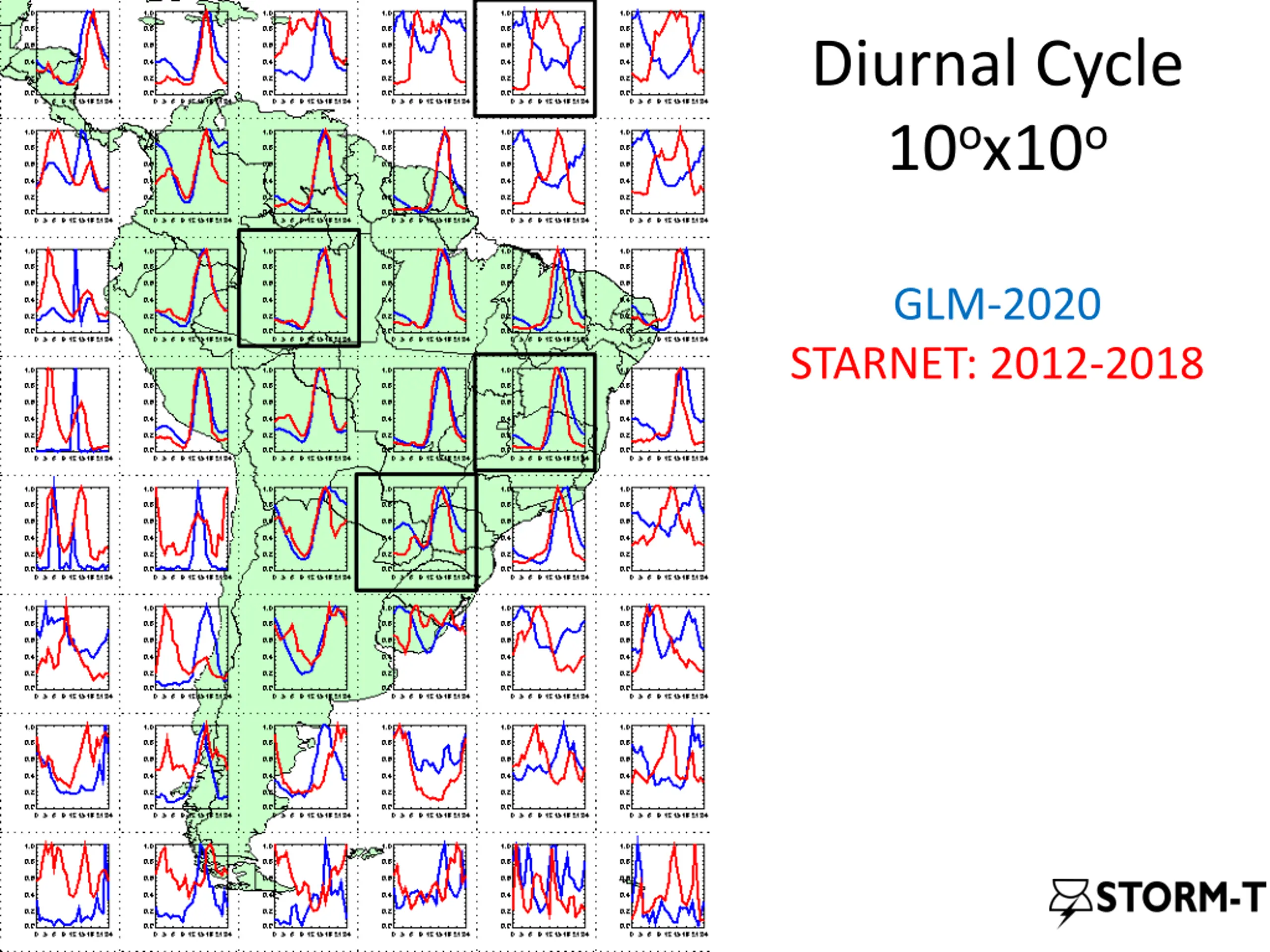

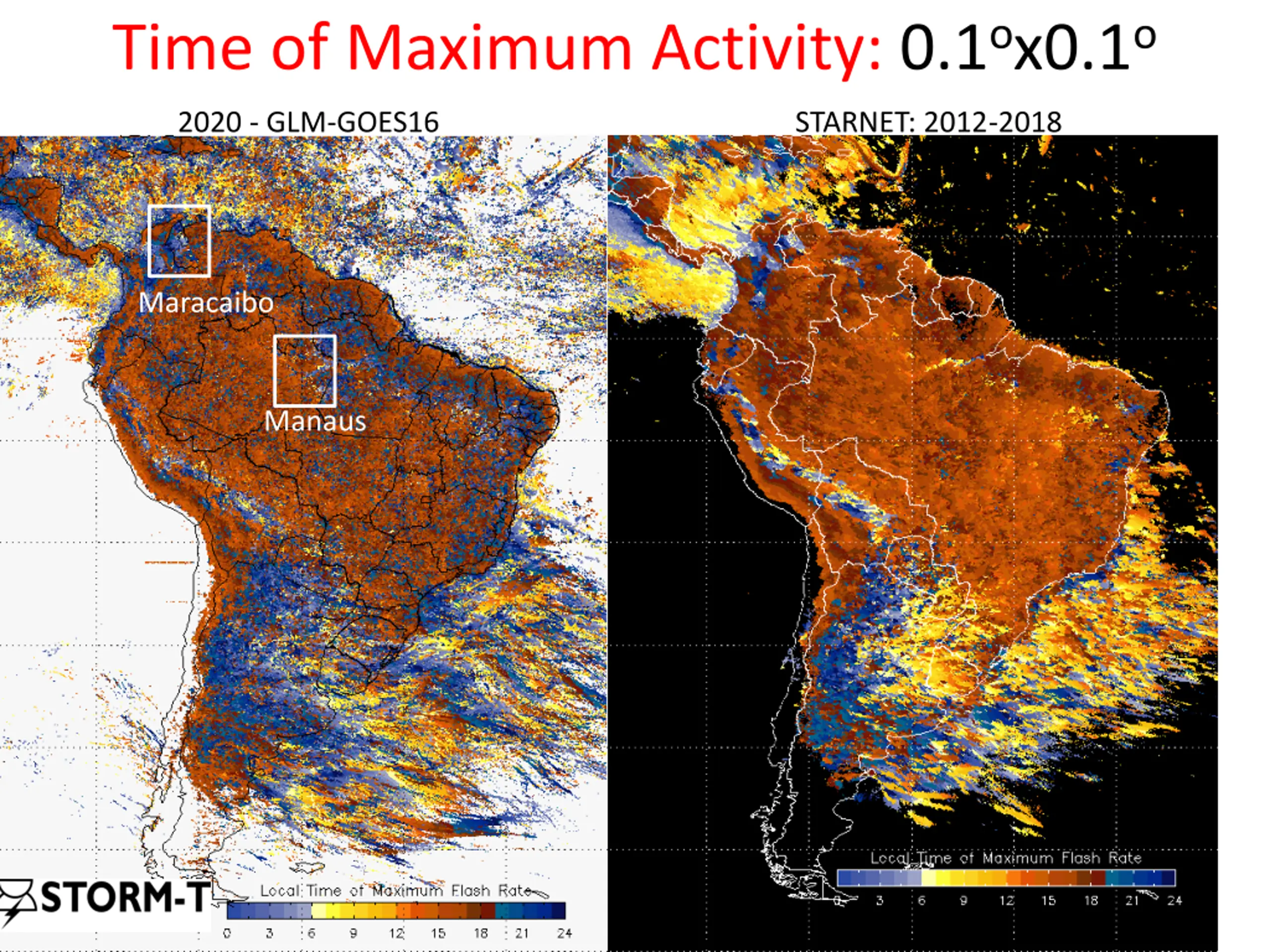

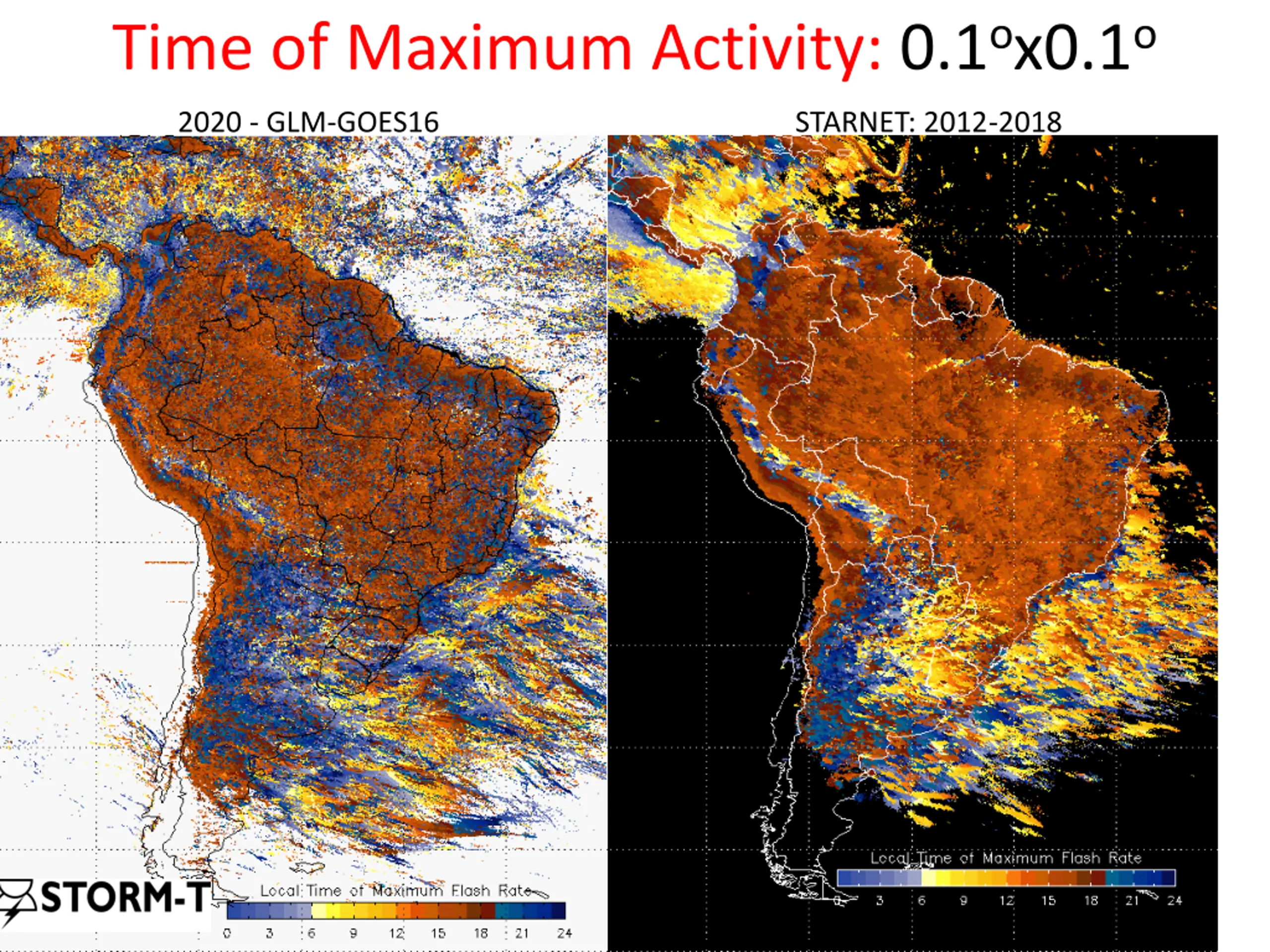

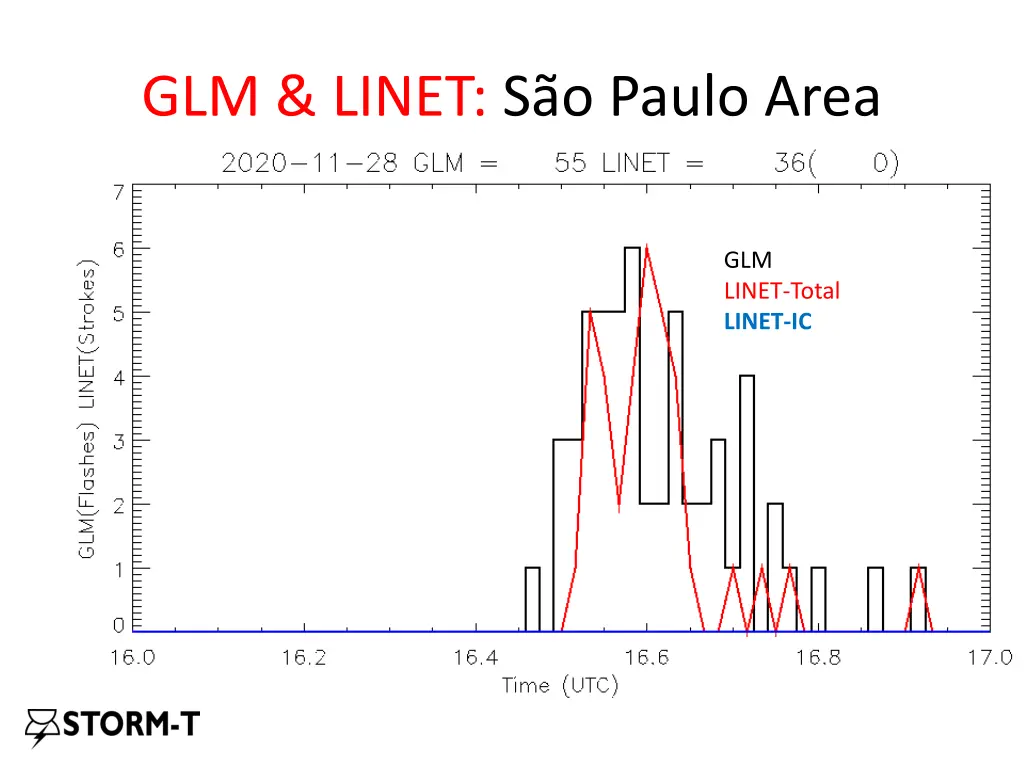

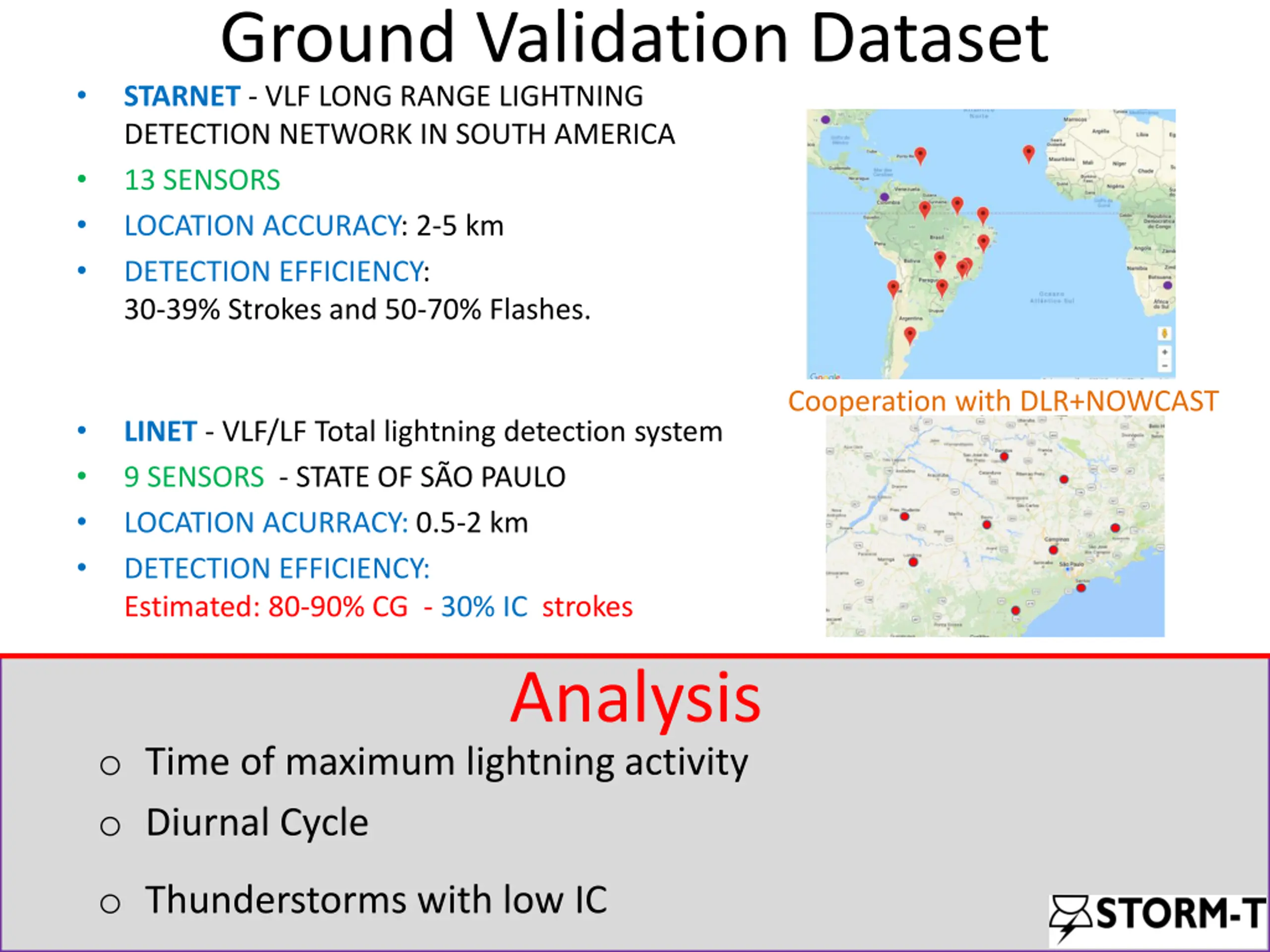

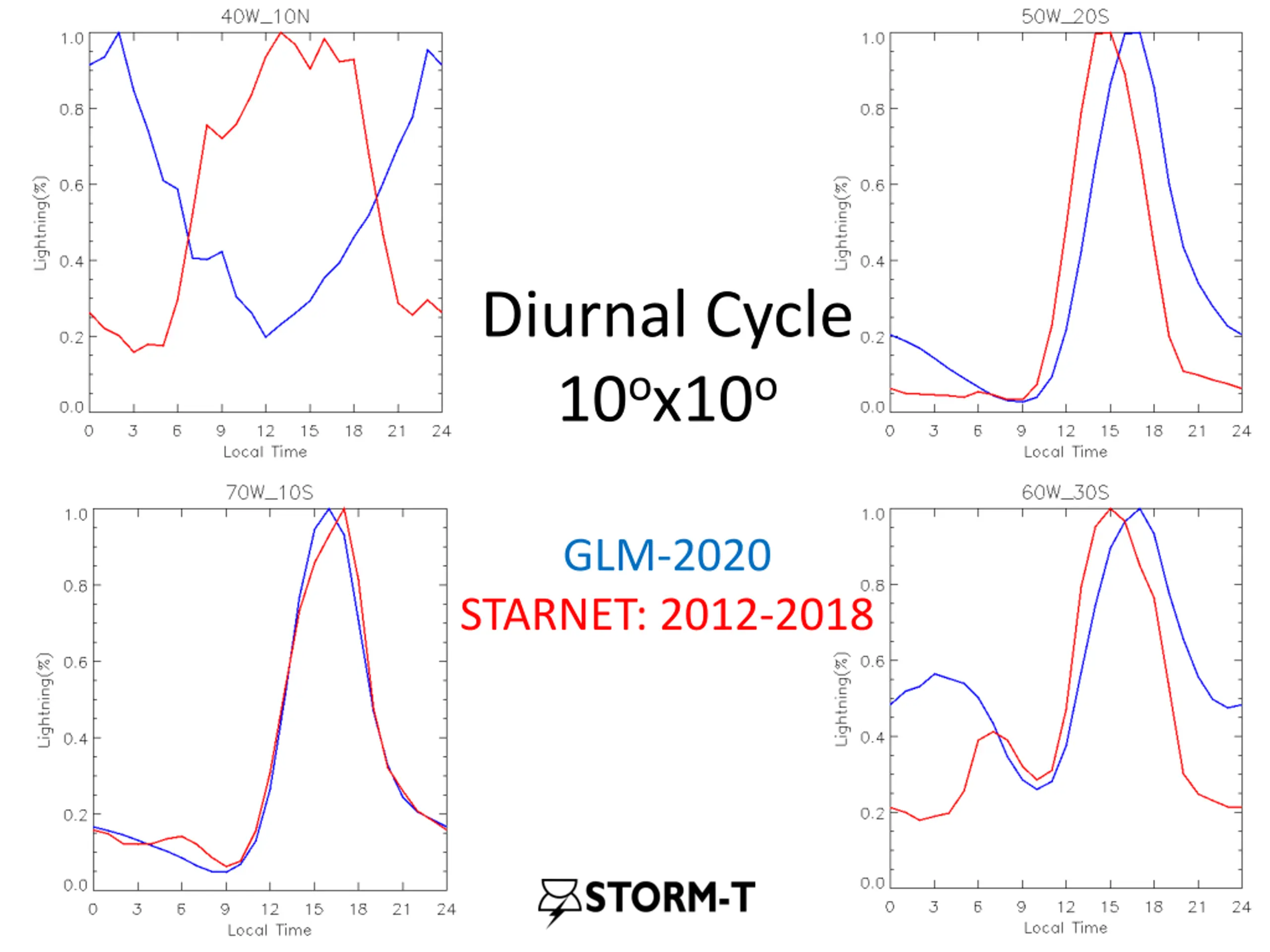

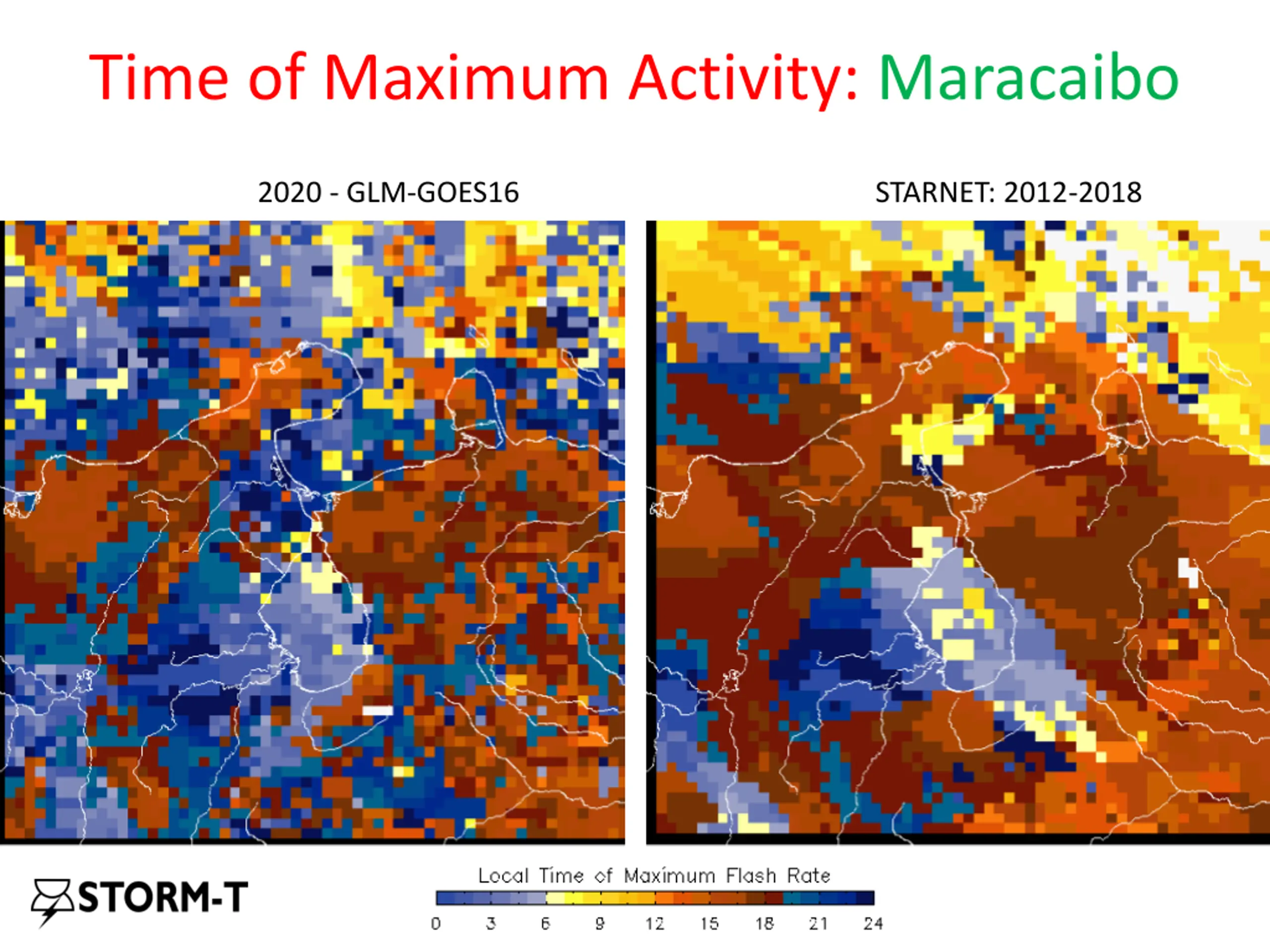

Ground Validation Dataset STARNET - VLF LONG RANGE LIGHTNING DETECTION NETWORK IN SOUTH AMERICA 13 SENSORS LOCATION ACCURACY: 2-5 km DETECTION EFFICIENCY: 30-39% Strokes and 50-70% Flashes. Cooperation with DLR+NOWCAST LINET - VLF/LF Total lightning detection system 9 SENSORS - STATE OF S O PAULO LOCATION ACURRACY: 0.5-2 km DETECTION EFFICIENCY: Estimated: 80-90% CG - 30% IC strokes Analysis o Time of maximum lightning activity o Diurnal Cycle o Thunderstorms with low IC
