ETN LM2500 users conference Feedback on questions Ron van Gestel June 7, 2016 | Feedback to questions | Company Confidential
ALTERNATE PARTS June 7, 2016 | Feedback to questions | Company Confidential

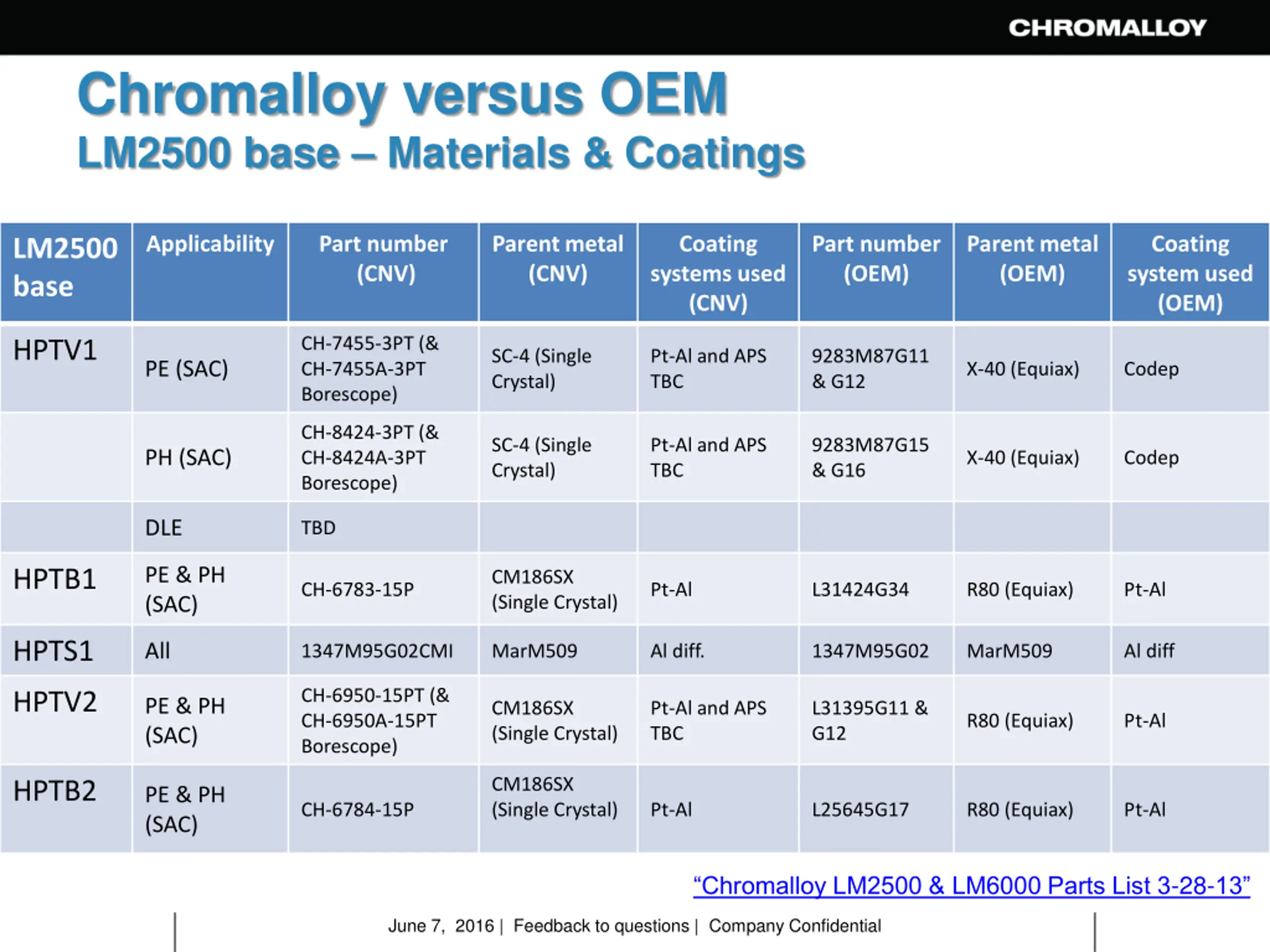

Chromalloy versus OEM LM2500 base Materials & Coatings Applicability Part number (CNV) Parent metal (CNV) Coating systems used (CNV) Part number (OEM) Parent metal (OEM) Coating system used (OEM) LM2500 base CH-7455-3PT (& CH-7455A-3PT Borescope) HPTV1 SC-4 (Single Crystal) Pt-Al and APS TBC 9283M87G11 & G12 PE (SAC) X-40 (Equiax) Codep CH-8424-3PT (& CH-8424A-3PT Borescope) SC-4 (Single Crystal) Pt-Al and APS TBC 9283M87G15 & G16 PH (SAC) X-40 (Equiax) Codep DLE TBD PE & PH (SAC) HPTB1 CM186SX (Single Crystal) CH-6783-15P Pt-Al L31424G34 R80 (Equiax) Pt-Al HPTS1 All 1347M95G02CMI MarM509 Al diff. 1347M95G02 MarM509 Al diff CH-6950-15PT (& CH-6950A-15PT Borescope) HPTV2 PE & PH (SAC) CM186SX (Single Crystal) Pt-Al and APS TBC L31395G11 & G12 R80 (Equiax) Pt-Al CM186SX (Single Crystal) HPTB2 PE & PH (SAC) CH-6784-15P Pt-Al L25645G17 R80 (Equiax) Pt-Al Chromalloy LM2500 & LM6000 Parts List 3-28-13 June 7, 2016 | Feedback to questions | Company Confidential

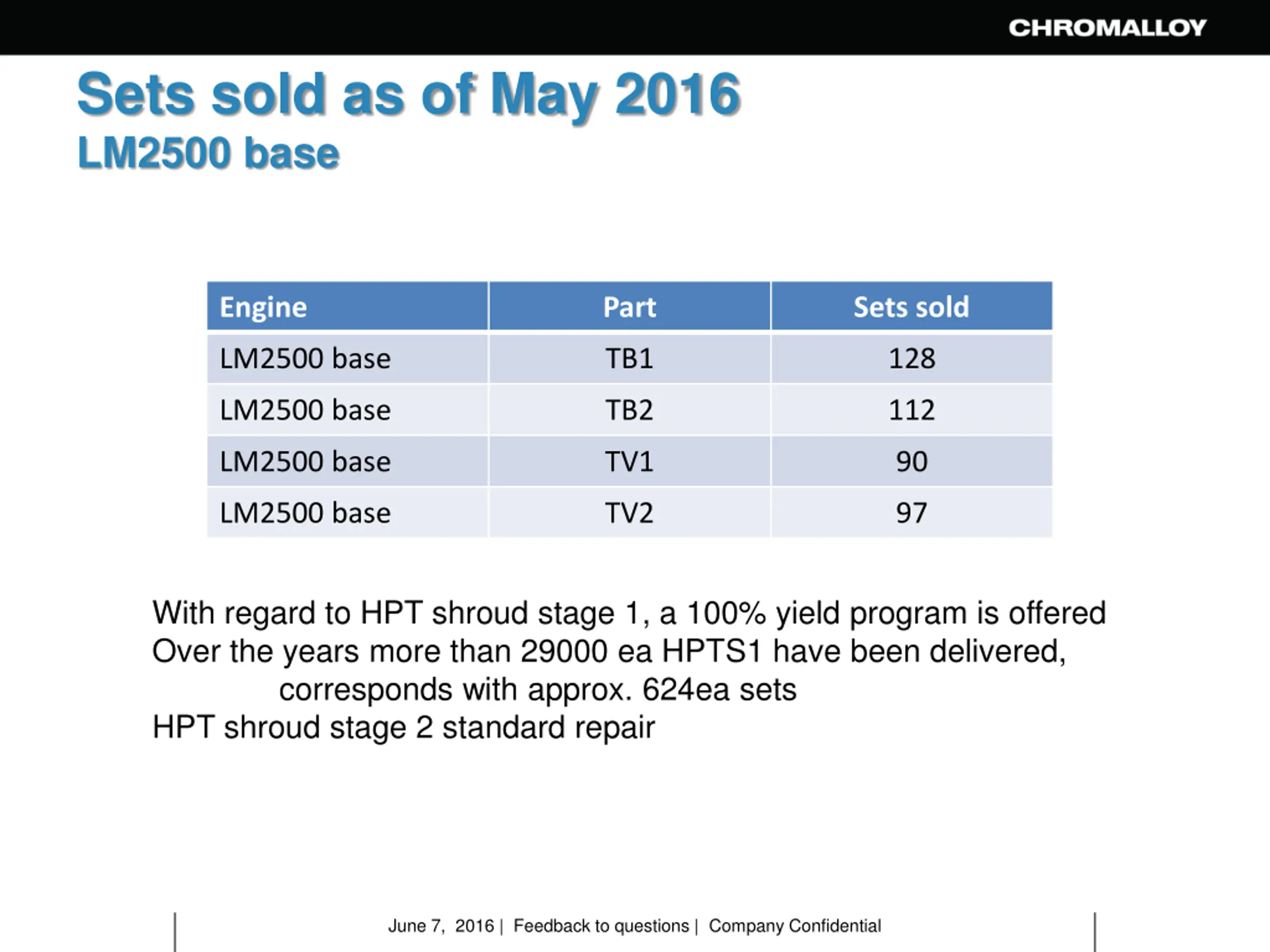

Sets sold as of May 2016 LM2500 base Engine Part Sets sold LM2500 base TB1 128 LM2500 base TB2 112 LM2500 base TV1 90 LM2500 base TV2 97 With regard to HPT shroud stage 1, a 100% yield program is offered Over the years more than 29000 ea HPTS1 have been delivered, corresponds with approx. 624ea sets HPT shroud stage 2 standard repair June 7, 2016 | Feedback to questions | Company Confidential

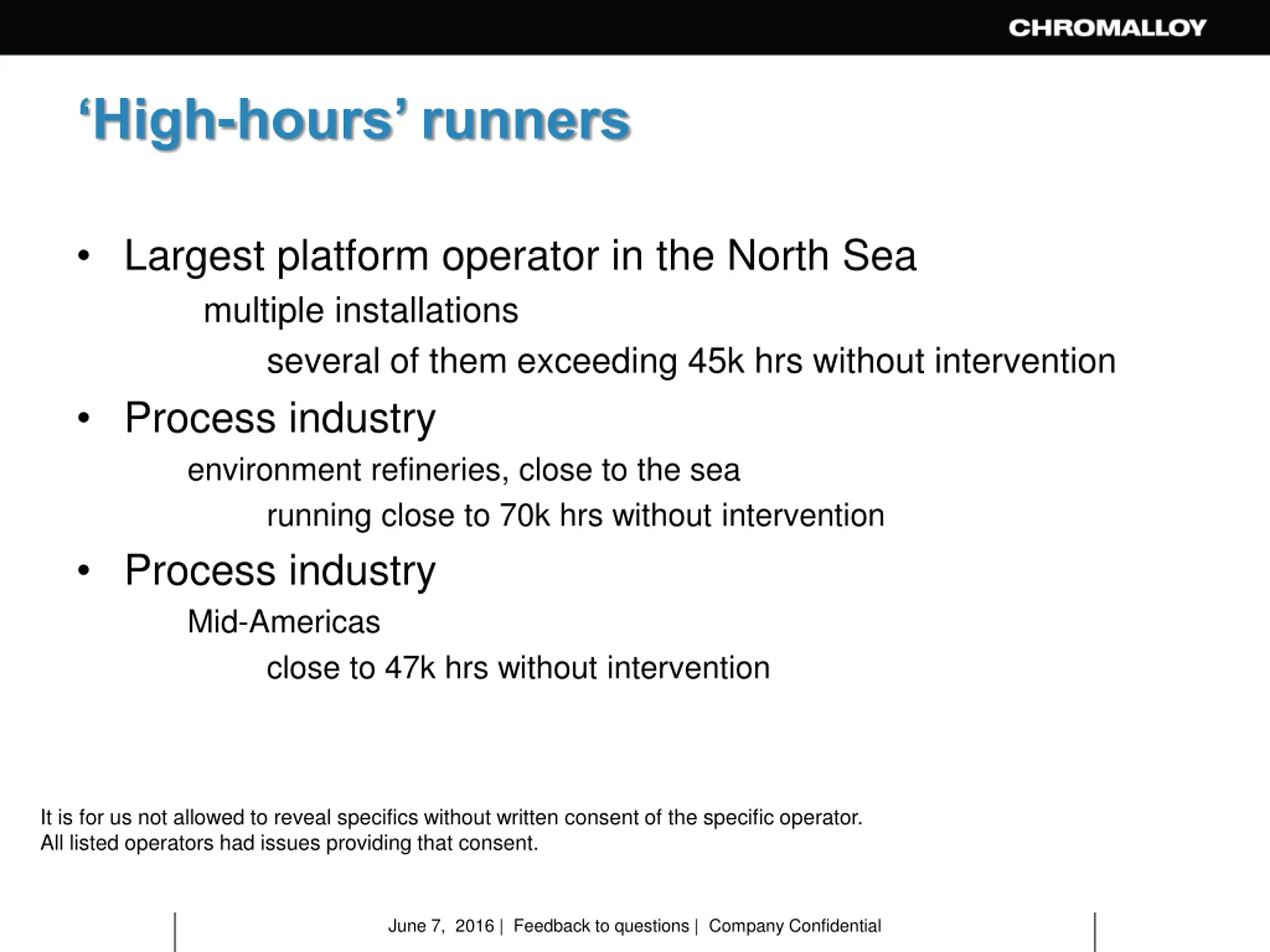

High-hours runners Largest platform operator in the North Sea multiple installations several of them exceeding 45k hrs without intervention Process industry environment refineries, close to the sea running close to 70k hrs without intervention Process industry Mid-Americas close to 47k hrs without intervention It is for us not allowed to reveal specifics without written consent of the specific operator. All listed operators had issues providing that consent. June 7, 2016 | Feedback to questions | Company Confidential

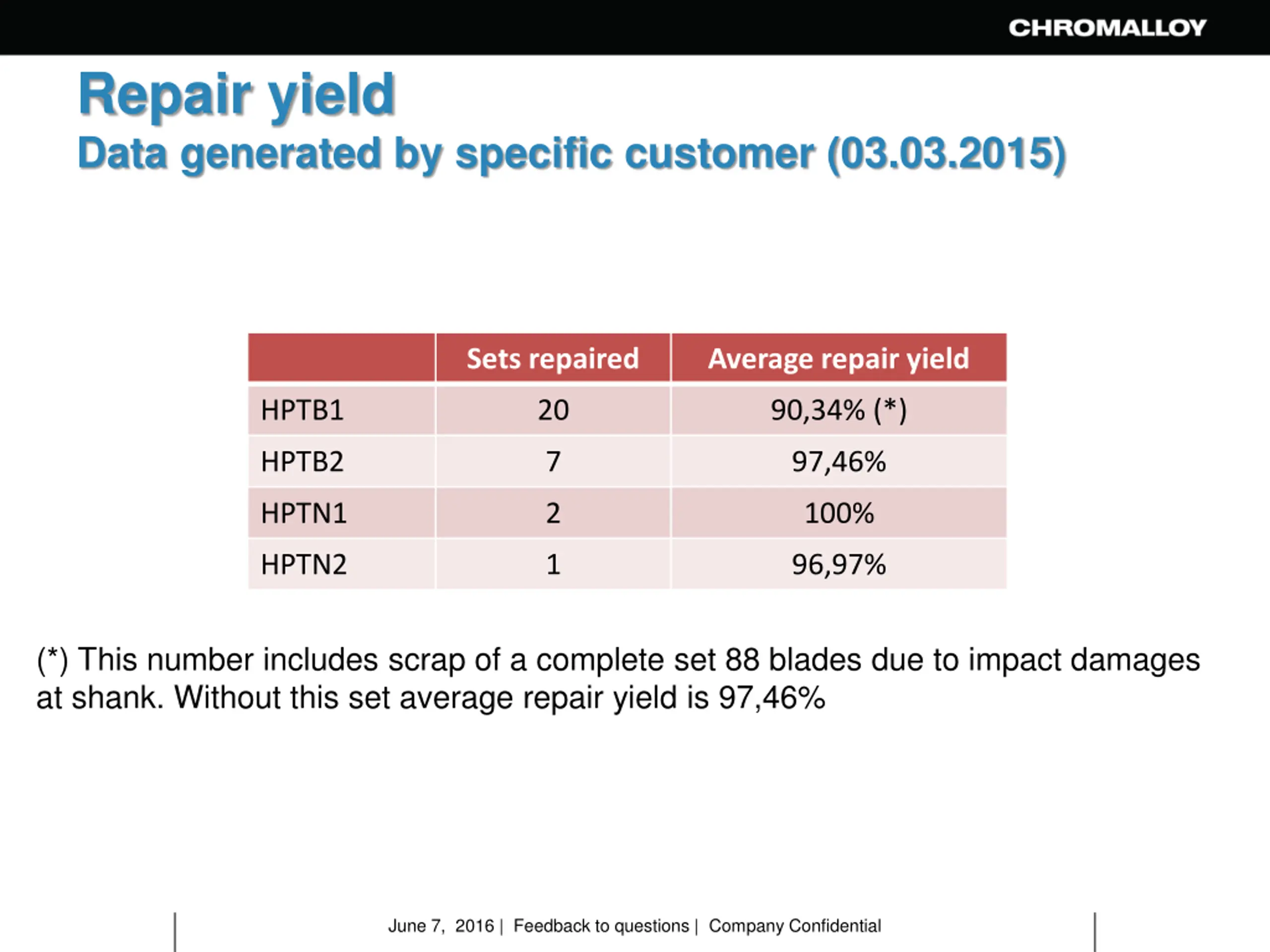

Repair yield Data generated by specific customer (03.03.2015) Sets repaired Average repair yield HPTB1 20 90,34% (*) HPTB2 7 97,46% HPTN1 2 100% HPTN2 1 96,97% (*) This number includes scrap of a complete set 88 blades due to impact damages at shank. Without this set average repair yield is 97,46% June 7, 2016 | Feedback to questions | Company Confidential

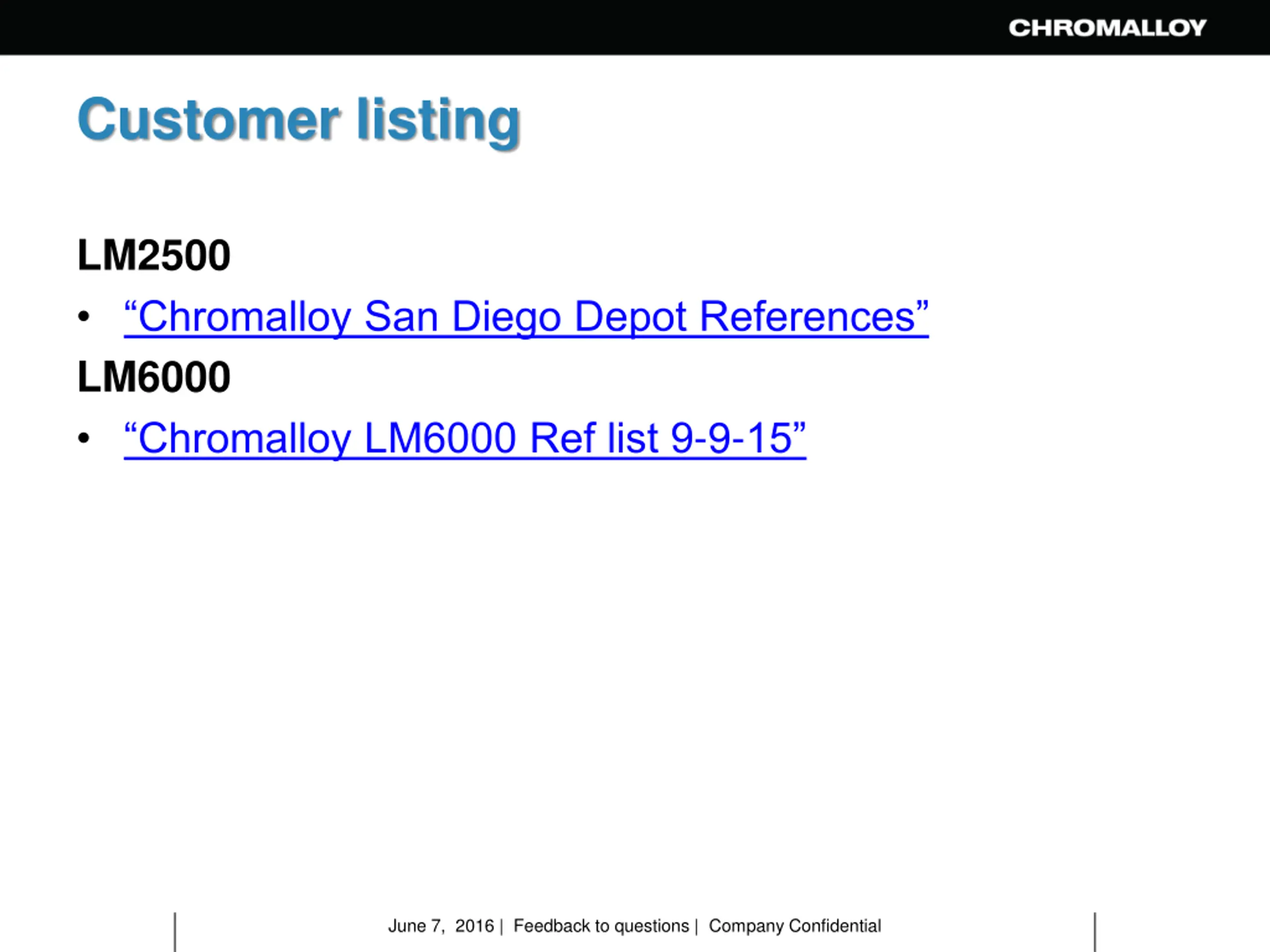

Customer listing LM2500 Chromalloy San Diego Depot References LM6000 Chromalloy LM6000 Ref list 9-9-15 June 7, 2016 | Feedback to questions | Company Confidential

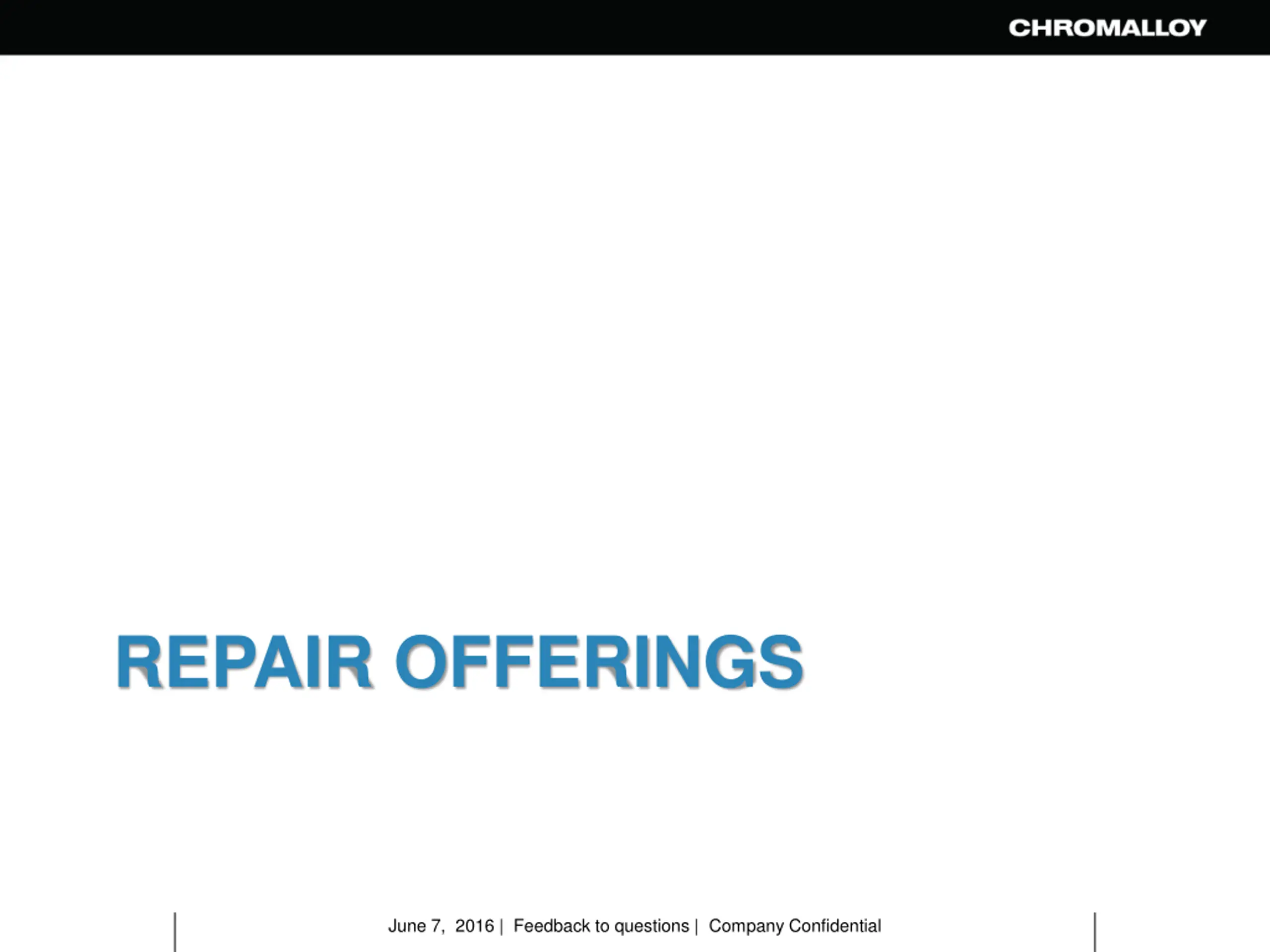

REPAIR OFFERINGS June 7, 2016 | Feedback to questions | Company Confidential

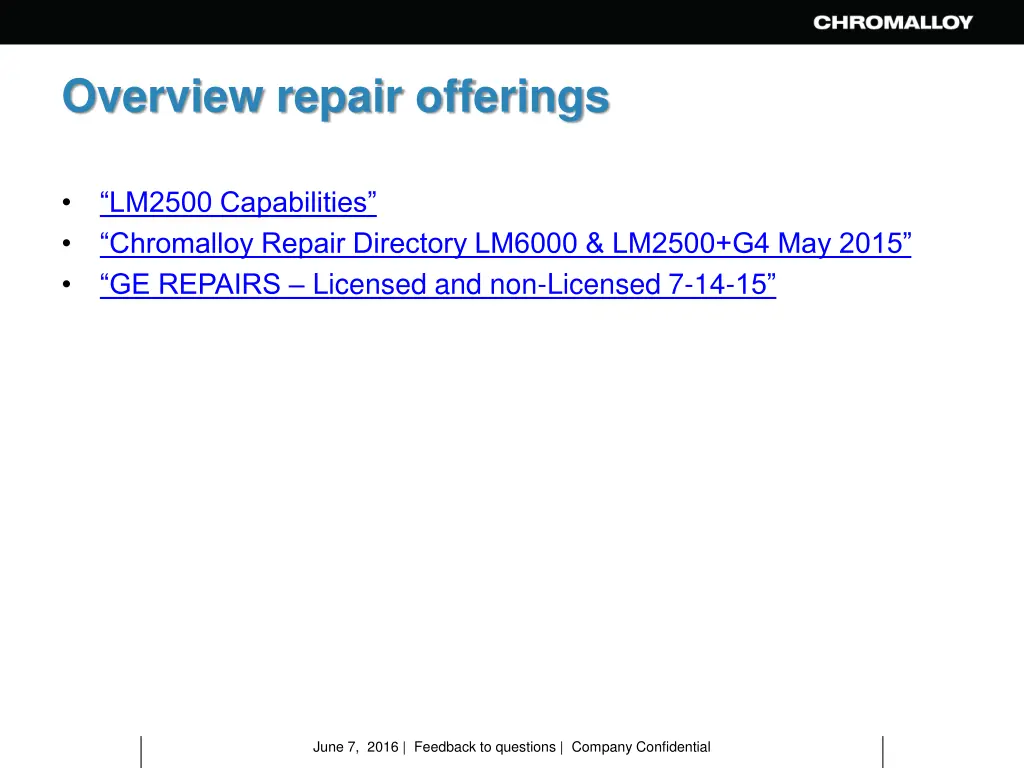

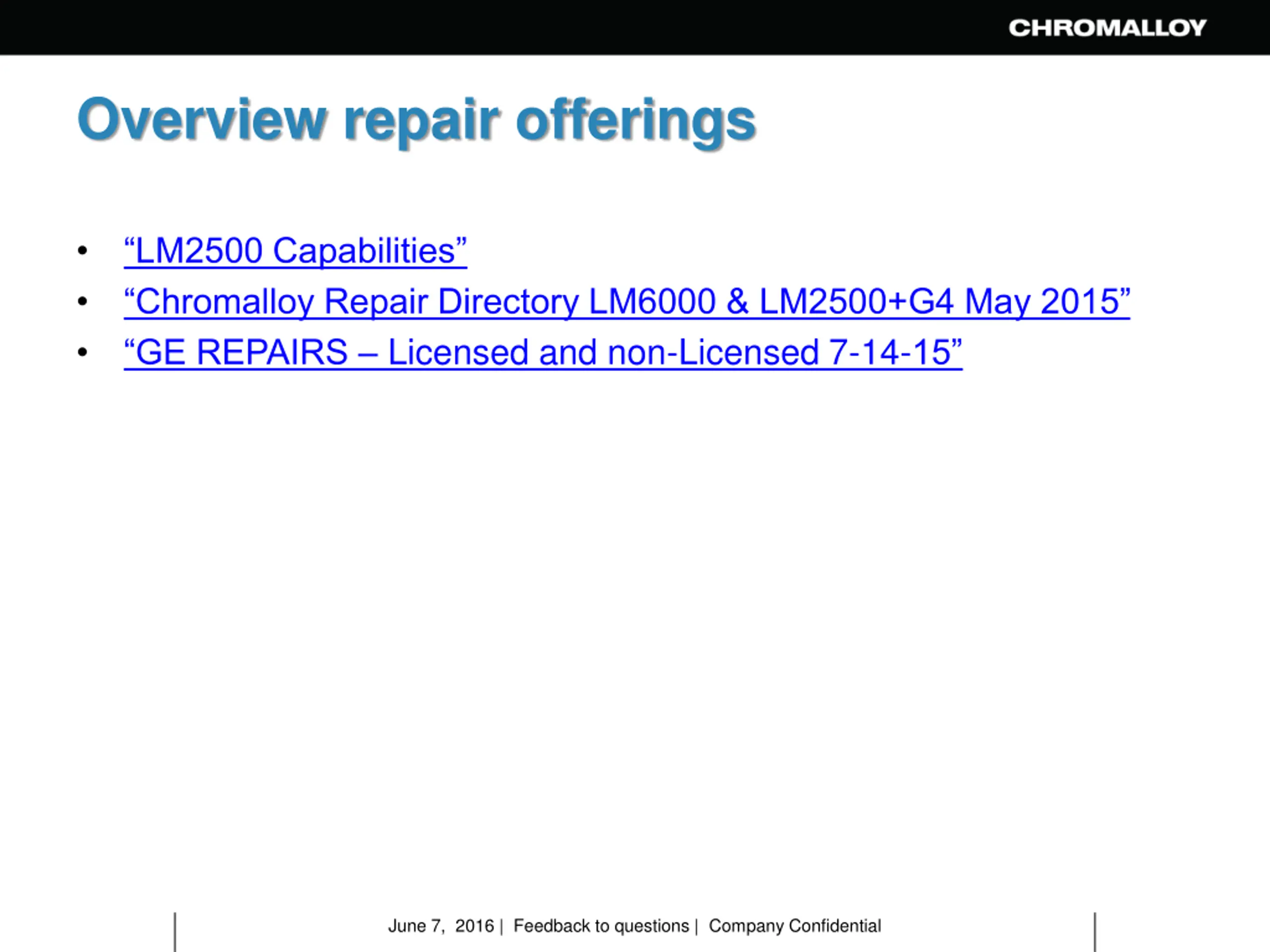

Overview repair offerings LM2500 Capabilities Chromalloy Repair Directory LM6000 & LM2500+G4 May 2015 GE REPAIRS Licensed and non-Licensed 7-14-15 June 7, 2016 | Feedback to questions | Company Confidential

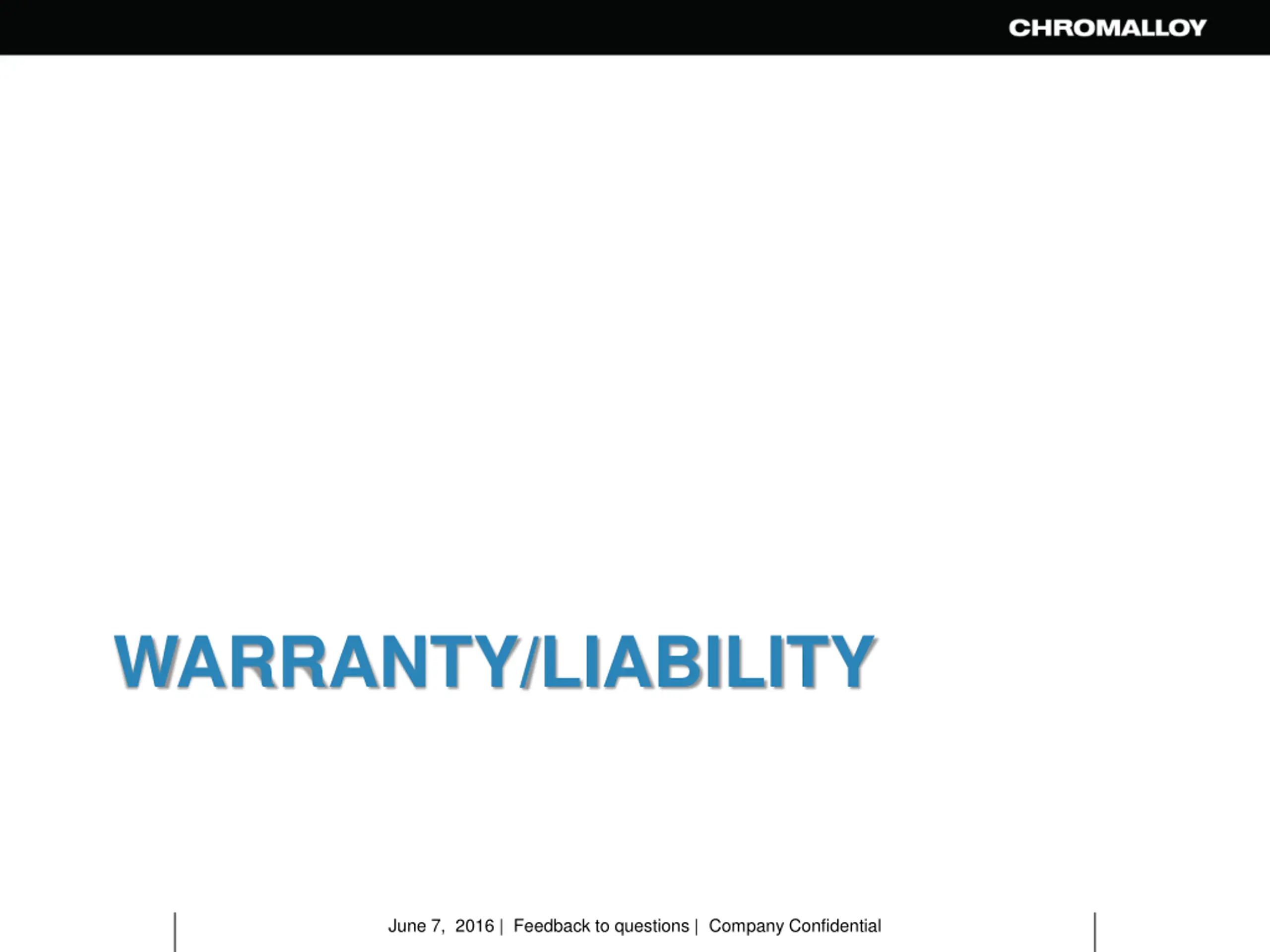

WARRANTY/LIABILITY June 7, 2016 | Feedback to questions | Company Confidential

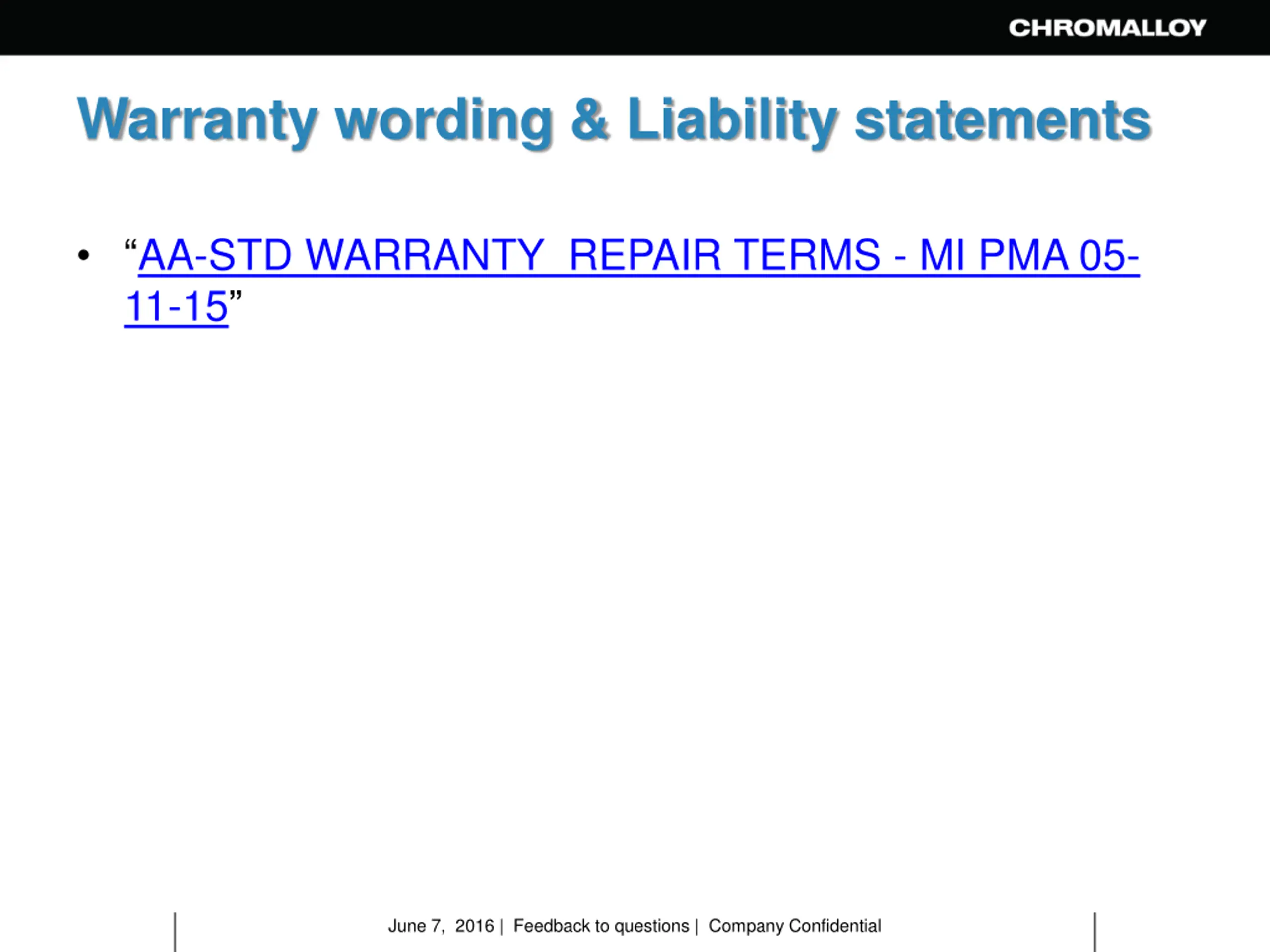

Warranty wording & Liability statements AA-STD WARRANTY REPAIR TERMS - MI PMA 05- 11-15 June 7, 2016 | Feedback to questions | Company Confidential

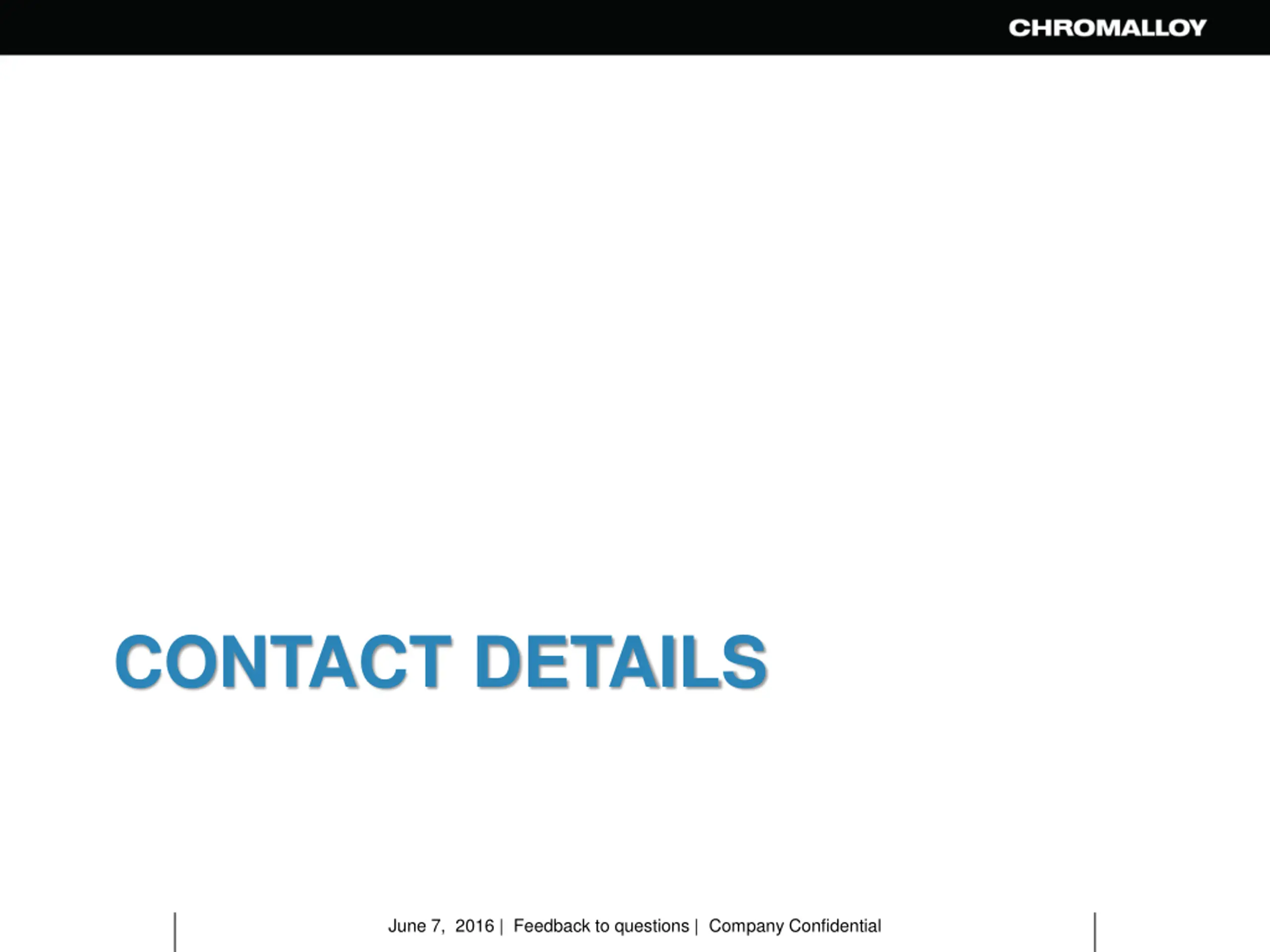

CONTACT DETAILS June 7, 2016 | Feedback to questions | Company Confidential

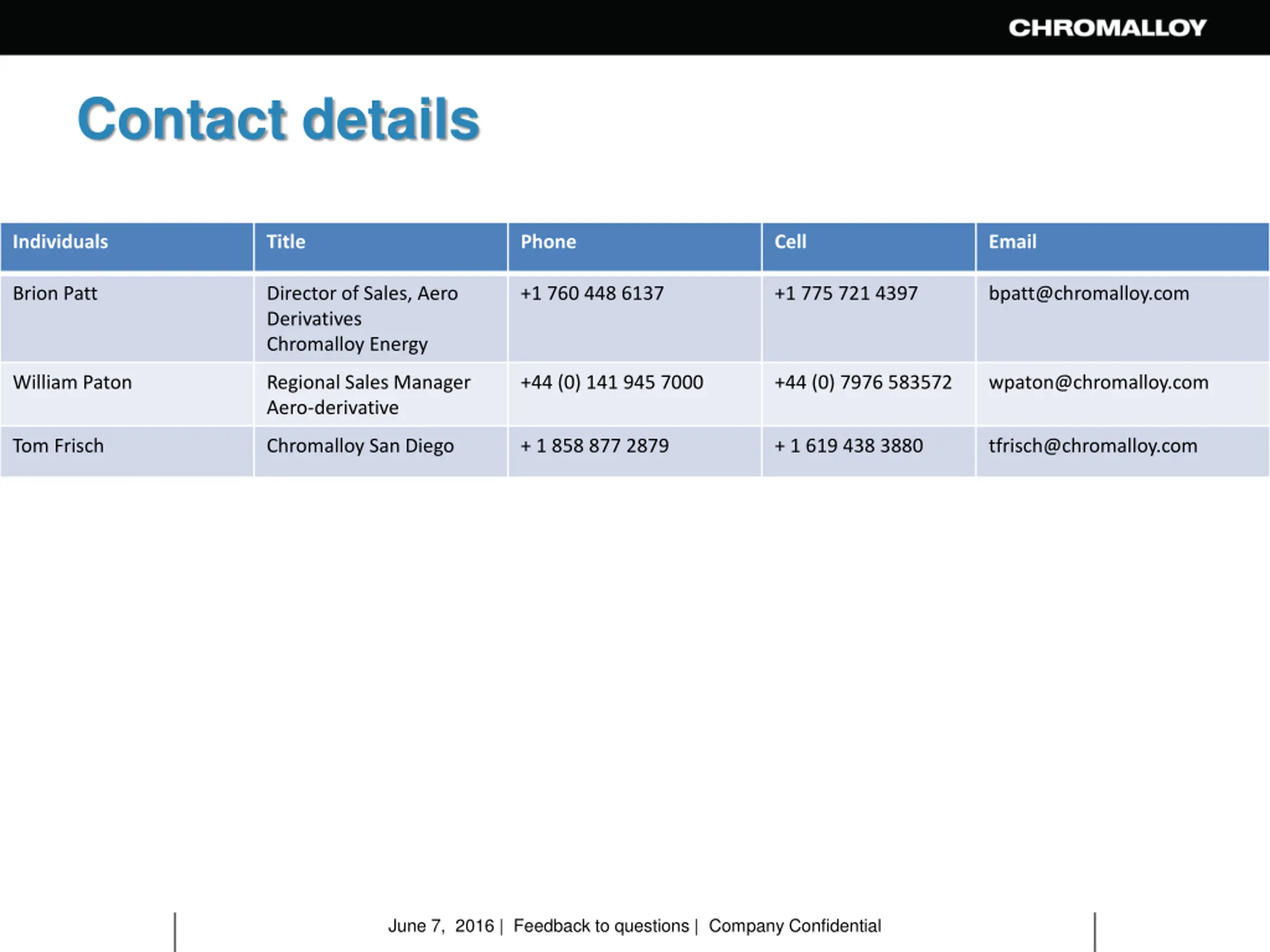

Contact details Individuals Title Phone Cell Email Brion Patt Director of Sales, Aero Derivatives Chromalloy Energy +1 760 448 6137 +1 775 721 4397 bpatt@chromalloy.com William Paton Regional Sales Manager Aero-derivative +44 (0) 141 945 7000 +44 (0) 7976 583572 wpaton@chromalloy.com Tom Frisch Chromalloy San Diego + 1 858 877 2879 + 1 619 438 3880 tfrisch@chromalloy.com June 7, 2016 | Feedback to questions | Company Confidential
