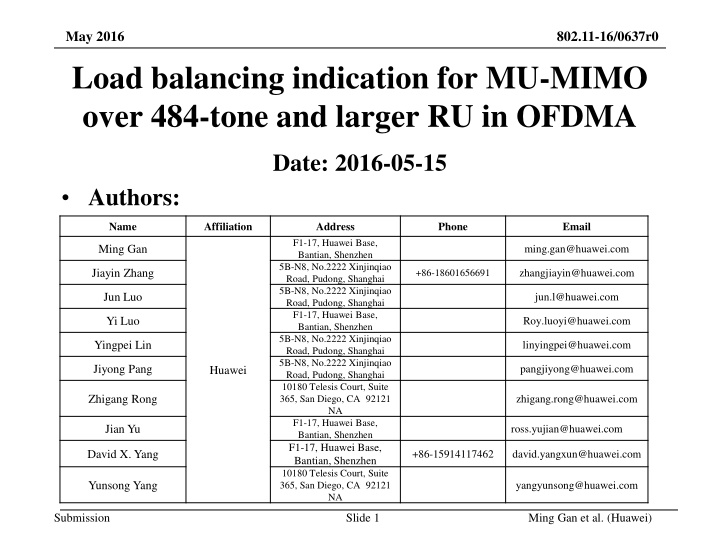

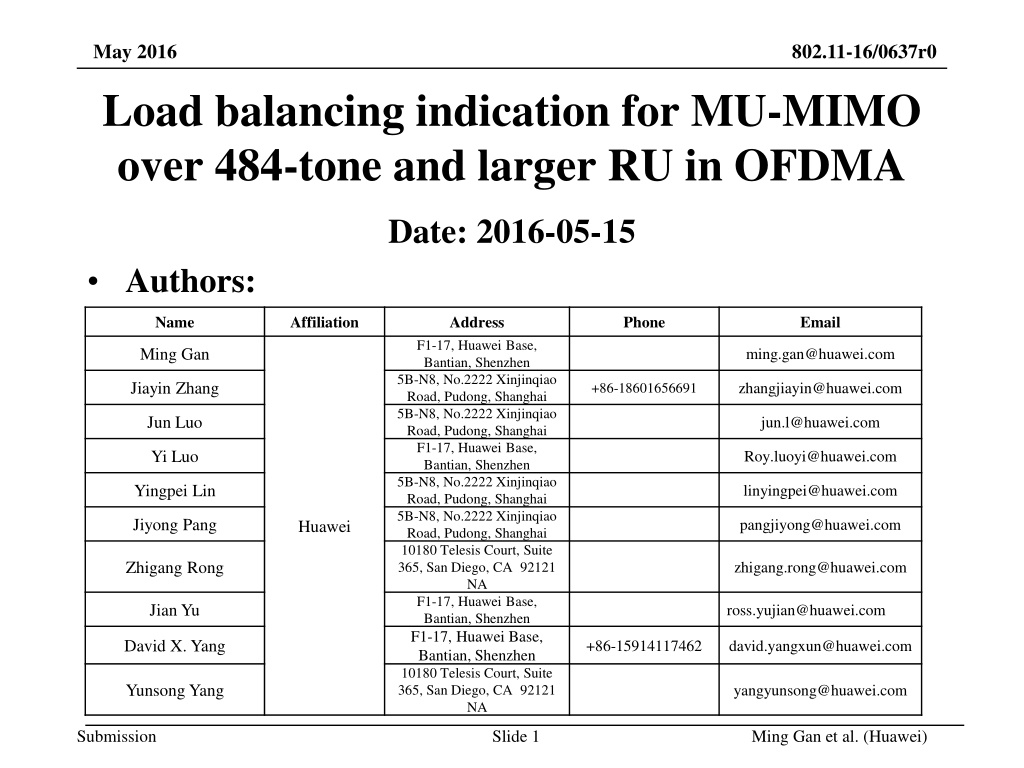

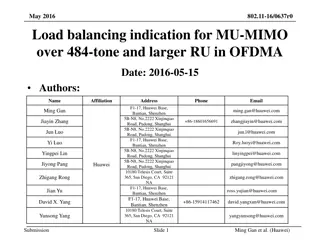

May 2016 Load balancing indication for MU-MIMO over 484-tone and larger RU in OFDMA 802.11-16/0637r0 Date: 2016-05-15 Authors: Name Affiliation Address Phone Email F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai F1-17, Huawei Base, Bantian, Shenzhen 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 5B-N8, No.2222 Xinjinqiao Road, Pudong, Shanghai 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA F1-17, Huawei Base, Bantian, Shenzhen F1-17, Huawei Base, Bantian, Shenzhen 10180 Telesis Court, Suite 365, San Diego, CA 92121 NA Ming Gan ming.gan@huawei.com Jiayin Zhang zhangjiayin@huawei.com +86-18601656691 Jun Luo jun.l@huawei.com Yi Luo Roy.luoyi@huawei.com Yingpei Lin linyingpei@huawei.com Jiyong Pang pangjiyong@huawei.com Huawei Zhigang Rong zhigang.rong@huawei.com Jian Yu ross.yujian@huawei.com David X. Yang +86-15914117462 david.yangxun@huawei.com Yunsong Yang yangyunsong@huawei.com Submission Slide 1 Ming Gan et al. (Huawei)

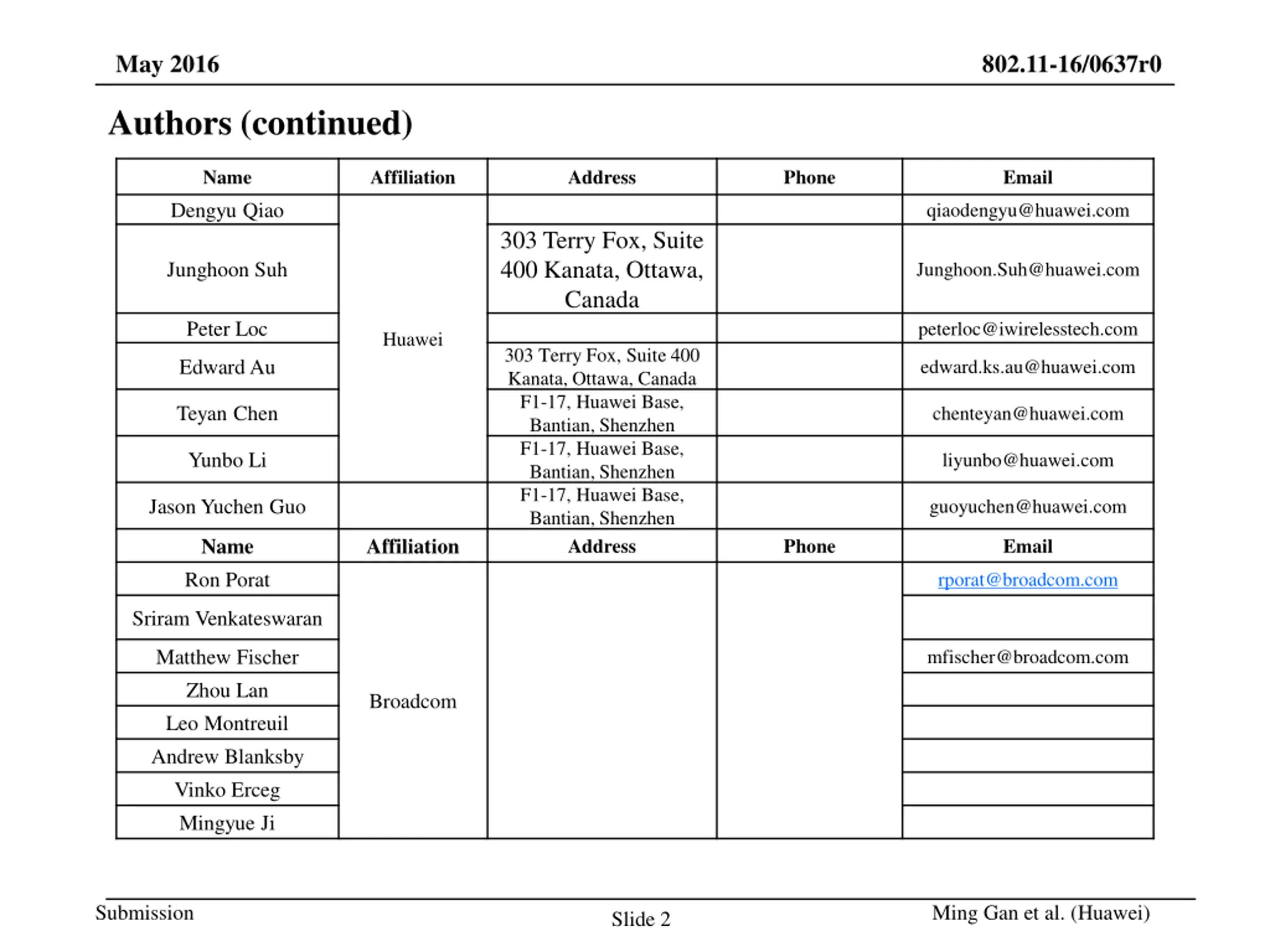

May 2016 802.11-16/0637r0 Authors (continued) Name Affiliation Address Phone Email Dengyu Qiao qiaodengyu@huawei.com 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada Junghoon Suh Junghoon.Suh@huawei.com Peter Loc peterloc@iwirelesstech.com Huawei 303 Terry Fox, Suite 400 Kanata, Ottawa, Canada F1-17, Huawei Base, Bantian, Shenzhen F1-17, Huawei Base, Bantian, Shenzhen F1-17, Huawei Base, Bantian, Shenzhen Address Edward Au edward.ks.au@huawei.com Teyan Chen chenteyan@huawei.com Yunbo Li liyunbo@huawei.com Jason Yuchen Guo guoyuchen@huawei.com Name Ron Porat Affiliation Phone Email rporat@broadcom.com Sriram Venkateswaran Matthew Fischer Zhou Lan Leo Montreuil Andrew Blanksby Vinko Erceg Mingyue Ji mfischer@broadcom.com Broadcom Submission Ming Gan et al. (Huawei) Slide 2

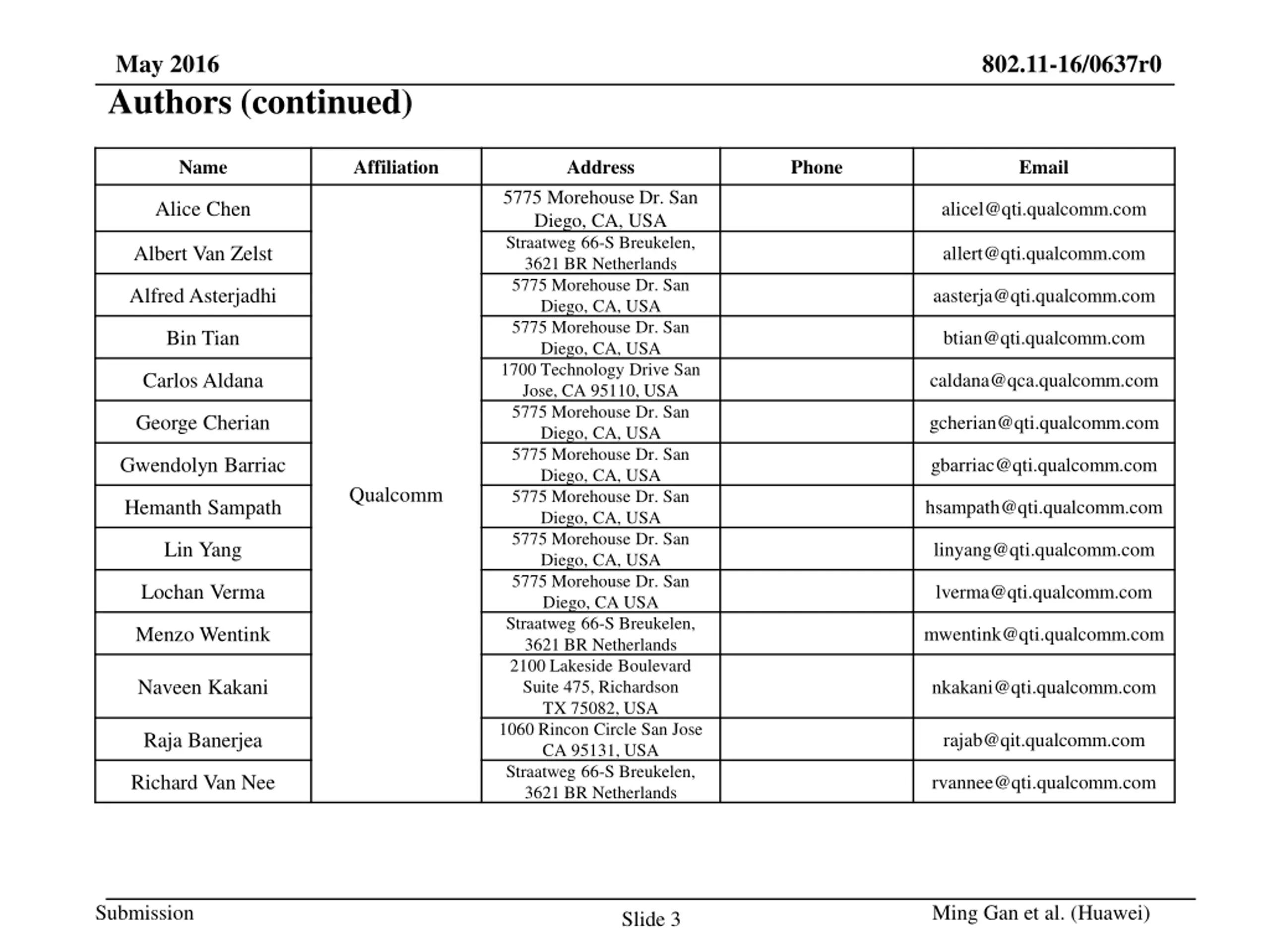

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Address Phone Email 5775 Morehouse Dr. San Diego, CA, USA Straatweg 66-S Breukelen, 3621 BR Netherlands 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA USA Straatweg 66-S Breukelen, 3621 BR Netherlands 2100 Lakeside Boulevard Suite 475, Richardson TX 75082, USA 1060 Rincon Circle San Jose CA 95131, USA Straatweg 66-S Breukelen, 3621 BR Netherlands Alice Chen alicel@qti.qualcomm.com Albert Van Zelst allert@qti.qualcomm.com Alfred Asterjadhi aasterja@qti.qualcomm.com Bin Tian btian@qti.qualcomm.com Carlos Aldana caldana@qca.qualcomm.com George Cherian gcherian@qti.qualcomm.com Gwendolyn Barriac gbarriac@qti.qualcomm.com Qualcomm Hemanth Sampath hsampath@qti.qualcomm.com Lin Yang linyang@qti.qualcomm.com Lochan Verma lverma@qti.qualcomm.com Menzo Wentink mwentink@qti.qualcomm.com Naveen Kakani nkakani@qti.qualcomm.com Raja Banerjea rajab@qit.qualcomm.com Richard Van Nee rvannee@qti.qualcomm.com Submission Ming Gan et al. (Huawei) Slide 3

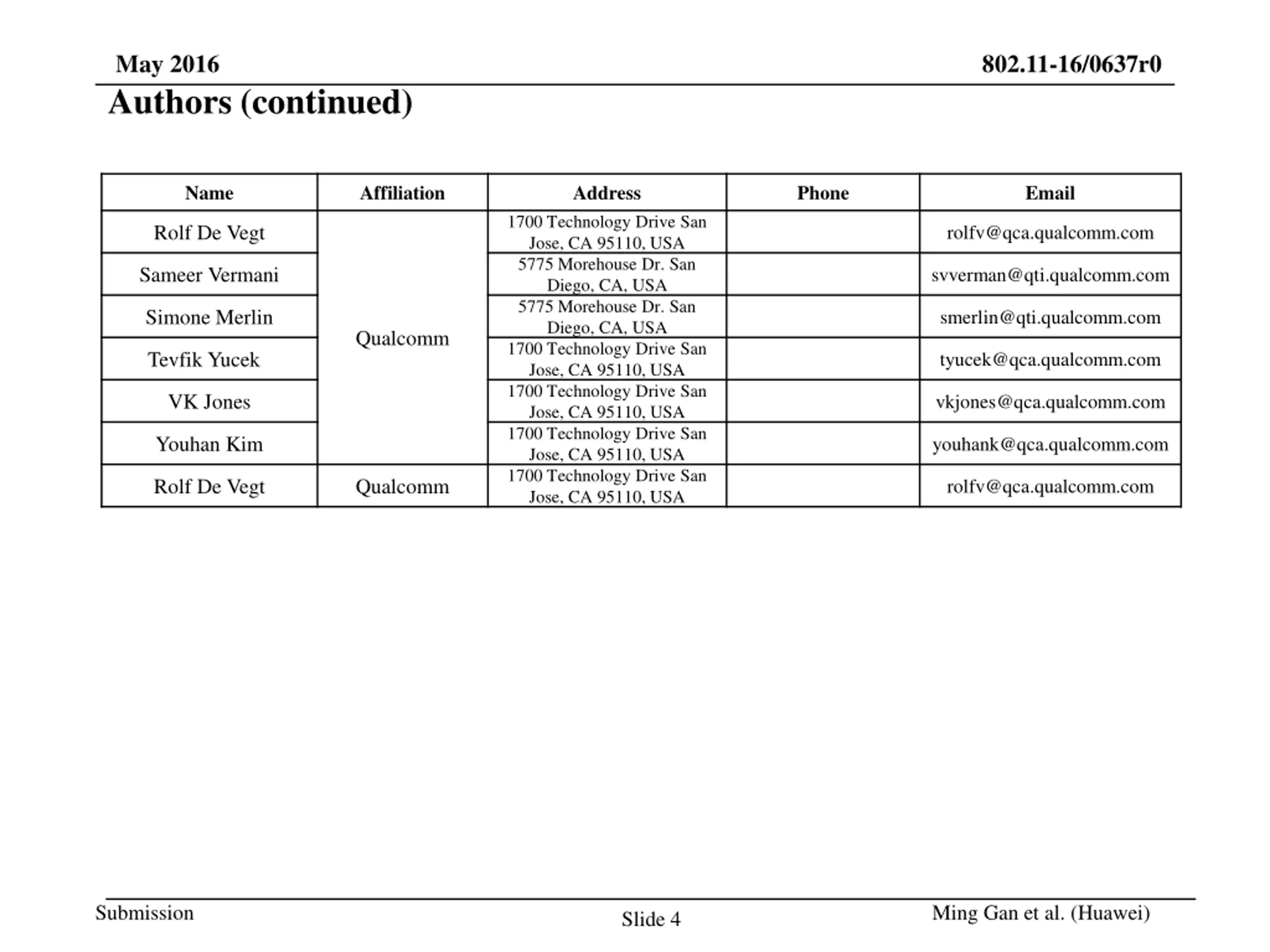

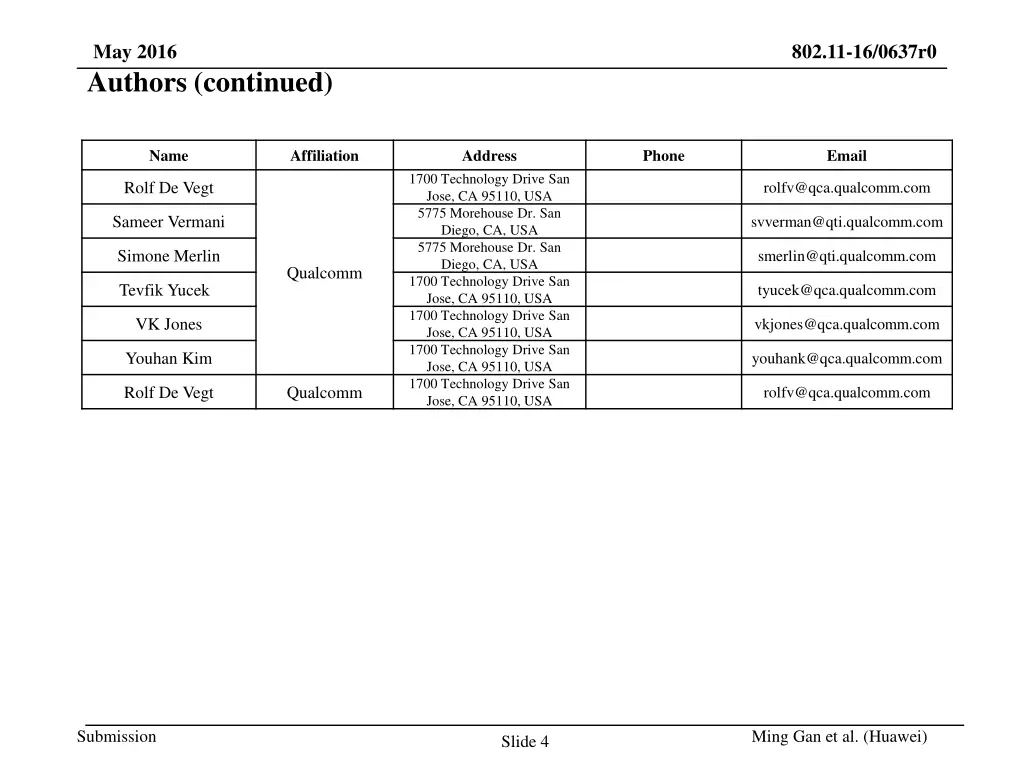

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Address Phone Email 1700 Technology Drive San Jose, CA 95110, USA 5775 Morehouse Dr. San Diego, CA, USA 5775 Morehouse Dr. San Diego, CA, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA 1700 Technology Drive San Jose, CA 95110, USA Rolf De Vegt rolfv@qca.qualcomm.com Sameer Vermani svverman@qti.qualcomm.com Simone Merlin smerlin@qti.qualcomm.com Qualcomm Tevfik Yucek tyucek@qca.qualcomm.com VK Jones vkjones@qca.qualcomm.com Youhan Kim youhank@qca.qualcomm.com Rolf De Vegt Qualcomm rolfv@qca.qualcomm.com Submission Ming Gan et al. (Huawei) Slide 4
May 2016 802.11-16/0637r0 Authors (continued) Name Affiliation Address Phone Email Robert Stacey robert.stacey@intel.com Shahrnaz Azizi shahrnaz.azizi@intel.com Po-Kai Huang po-kai.huang@intel.com Qinghua Li quinghua.li@intel.com 2111 NE 25th Ave, Hillsboro OR 97124, USA Xiaogang Chen xiaogang.c.chen@intel.com +1-503-724-893 Intel Chitto Ghosh chittabrata.ghosh@intel.com Laurent Cariou laurent.cariou@intel.com Yaron Alpert yaron.alpert@intel.com Assaf Gurevitz Ilan Sutskover Feng Jiang assaf.gurevitz@intel.com ilan.sutskover@intel.com feng1.jiang@intel.com Submission Ming Gan et al. (Huawei) Slide 5

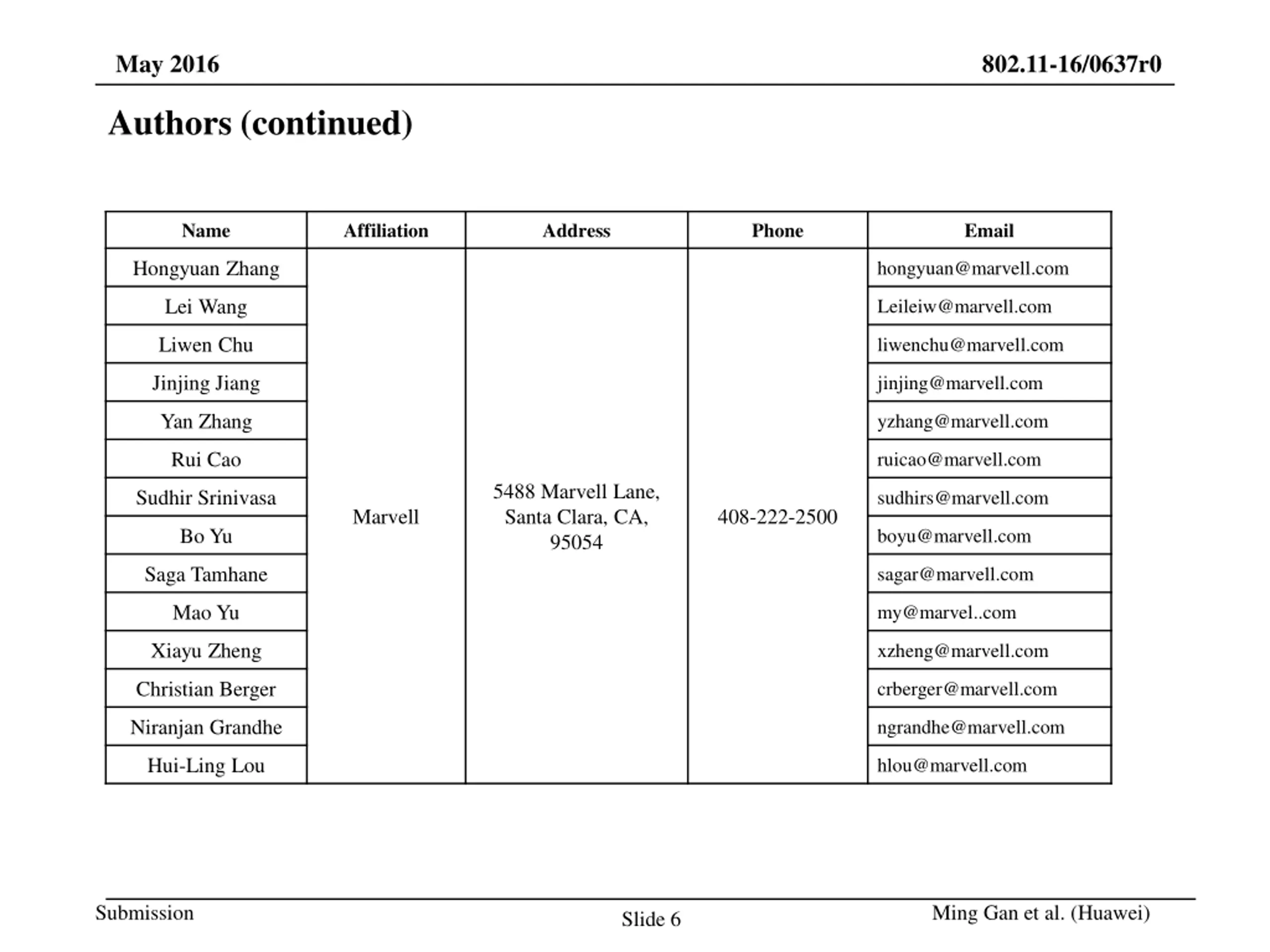

May 2016 802.11-16/0637r0 Authors (continued) Name Affiliation Address Phone Email Hongyuan Zhang hongyuan@marvell.com Lei Wang Leileiw@marvell.com Liwen Chu liwenchu@marvell.com Jinjing Jiang jinjing@marvell.com Yan Zhang yzhang@marvell.com Rui Cao ruicao@marvell.com 5488 Marvell Lane, Santa Clara, CA, 95054 Sudhir Srinivasa sudhirs@marvell.com Marvell 408-222-2500 Bo Yu boyu@marvell.com Saga Tamhane sagar@marvell.com Mao Yu my@marvel..com Xiayu Zheng xzheng@marvell.com Christian Berger crberger@marvell.com Niranjan Grandhe ngrandhe@marvell.com Hui-Ling Lou hlou@marvell.com Submission Ming Gan et al. (Huawei) Slide 6

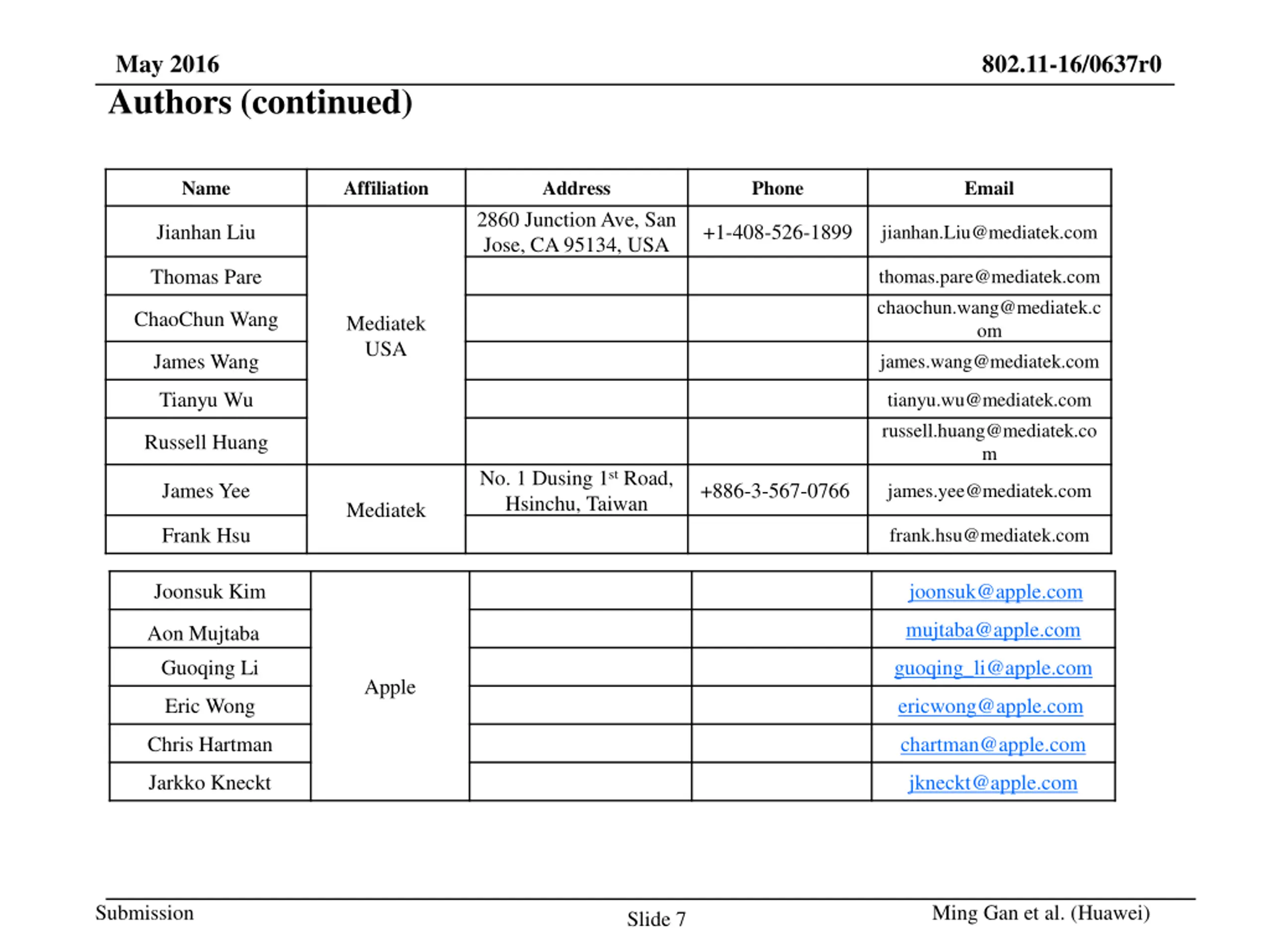

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Address Phone Email 2860 Junction Ave, San Jose, CA 95134, USA Jianhan Liu +1-408-526-1899 jianhan.Liu@mediatek.com Thomas Pare thomas.pare@mediatek.com chaochun.wang@mediatek.c om james.wang@mediatek.com ChaoChun Wang Mediatek USA James Wang Tianyu Wu tianyu.wu@mediatek.com russell.huang@mediatek.co m Russell Huang No. 1 Dusing 1st Road, Hsinchu, Taiwan James Yee +886-3-567-0766 james.yee@mediatek.com Mediatek Frank Hsu frank.hsu@mediatek.com Joonsuk Kim joonsuk@apple.com mujtaba@apple.com Aon Mujtaba Guoqing Li guoqing_li@apple.com Apple Eric Wong ericwong@apple.com Chris Hartman chartman@apple.com Jarkko Kneckt jkneckt@apple.com Submission Ming Gan et al. (Huawei) Slide 7

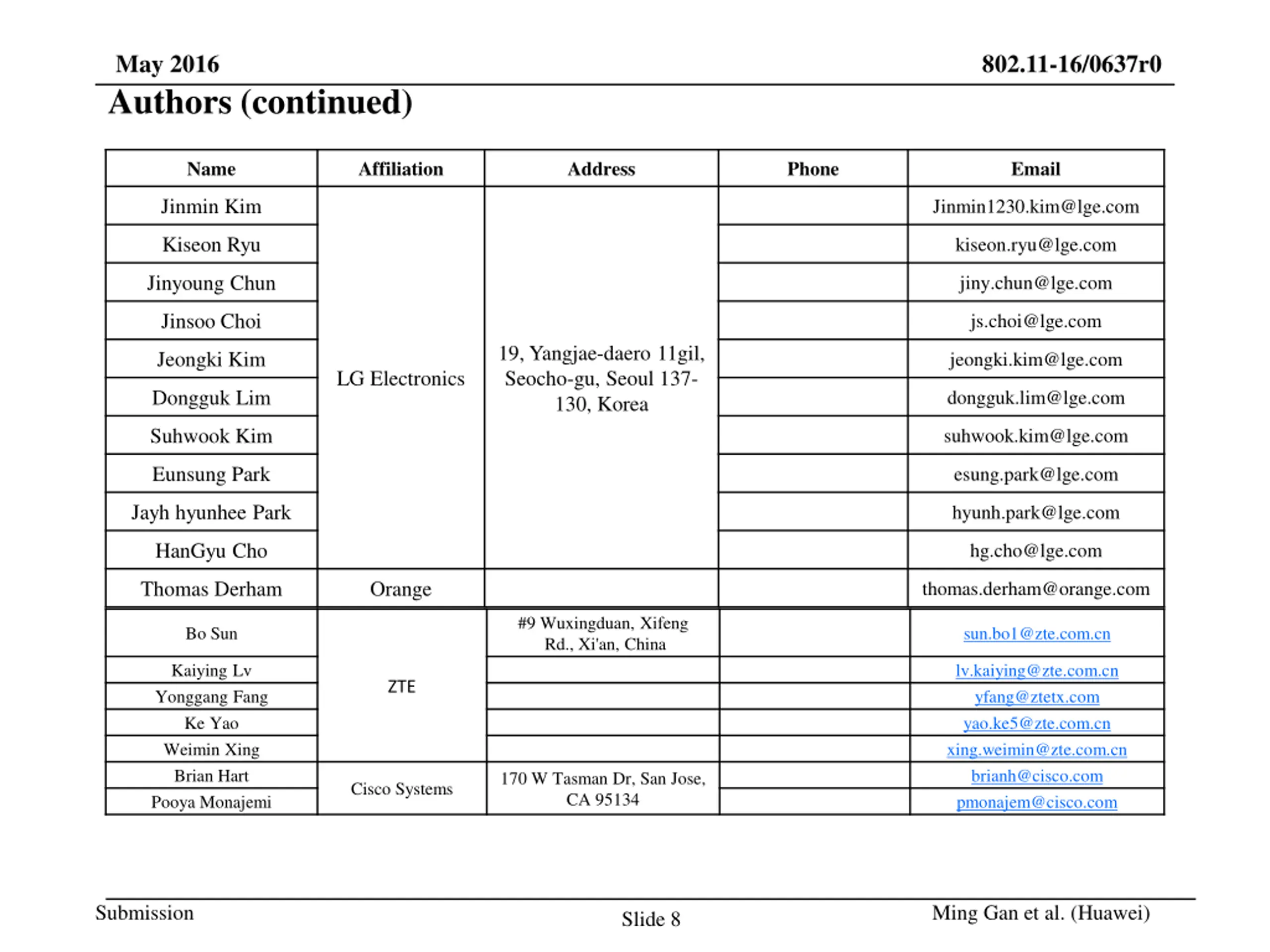

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Address Phone Email Jinmin Kim Jinmin1230.kim@lge.com Kiseon Ryu kiseon.ryu@lge.com Jinyoung Chun jiny.chun@lge.com Jinsoo Choi js.choi@lge.com 19, Yangjae-daero 11gil, Seocho-gu, Seoul 137- 130, Korea Jeongki Kim jeongki.kim@lge.com LG Electronics Dongguk Lim dongguk.lim@lge.com Suhwook Kim suhwook.kim@lge.com Eunsung Park esung.park@lge.com Jayh hyunhee Park hyunh.park@lge.com HanGyu Cho hg.cho@lge.com Thomas Derham Orange thomas.derham@orange.com #9 Wuxingduan, Xifeng Rd., Xi'an, China Bo Sun sun.bo1@zte.com.cn Kaiying Lv Yonggang Fang Ke Yao Weimin Xing Brian Hart Pooya Monajemi lv.kaiying@zte.com.cn yfang@ztetx.com yao.ke5@zte.com.cn xing.weimin@zte.com.cn brianh@cisco.com pmonajem@cisco.com ZTE 170 W Tasman Dr, San Jose, CA 95134 Cisco Systems Submission Ming Gan et al. (Huawei) Slide 8

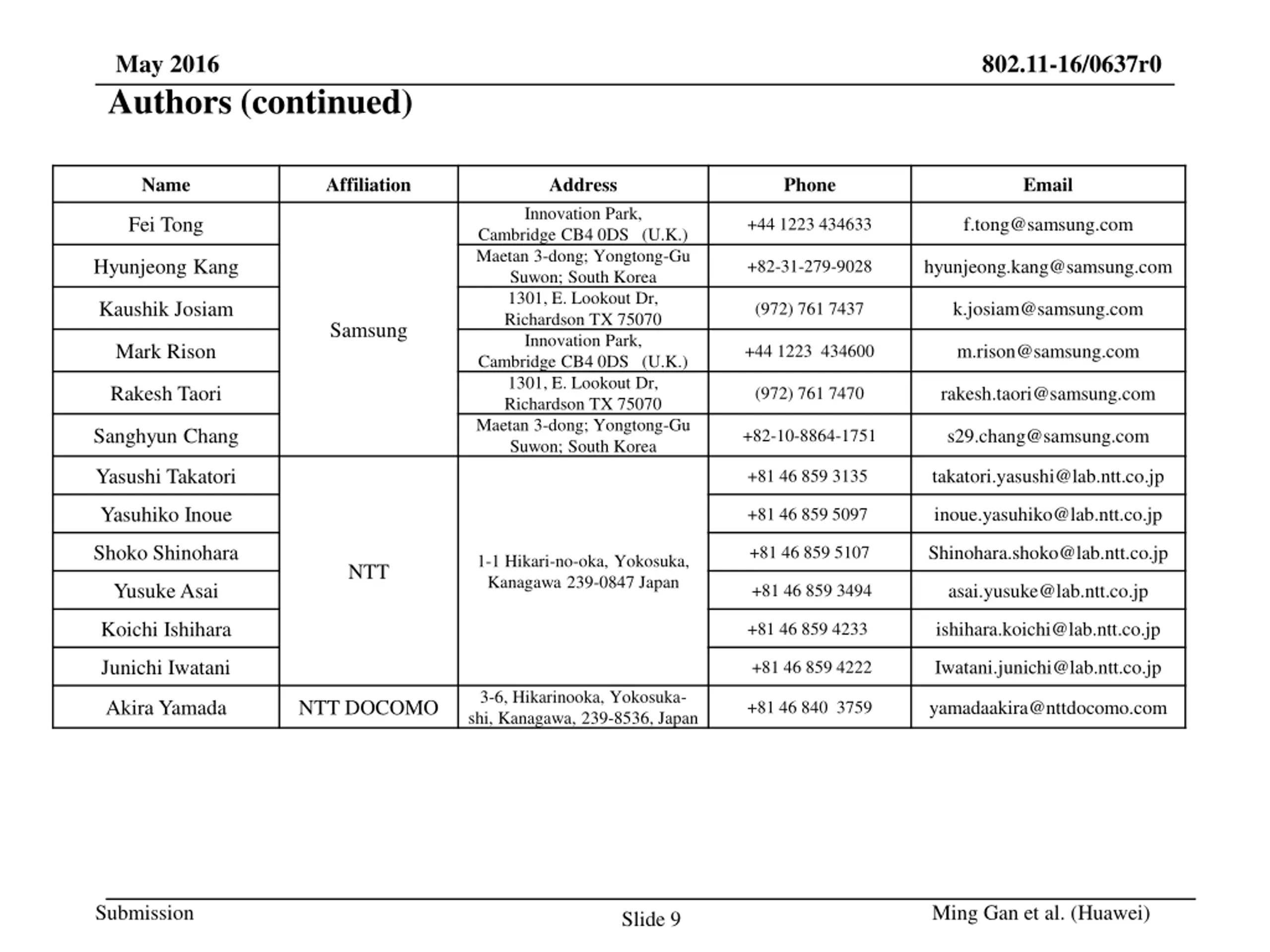

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Address Innovation Park, Cambridge CB4 0DS (U.K.) Maetan 3-dong; Yongtong-Gu Suwon; South Korea 1301, E. Lookout Dr, Richardson TX 75070 Innovation Park, Cambridge CB4 0DS (U.K.) 1301, E. Lookout Dr, Richardson TX 75070 Maetan 3-dong; Yongtong-Gu Suwon; South Korea Phone Email Fei Tong f.tong@samsung.com +44 1223 434633 Hyunjeong Kang hyunjeong.kang@samsung.com +82-31-279-9028 Kaushik Josiam k.josiam@samsung.com (972) 761 7437 Samsung Mark Rison m.rison@samsung.com +44 1223 434600 Rakesh Taori rakesh.taori@samsung.com (972) 761 7470 Sanghyun Chang s29.chang@samsung.com +82-10-8864-1751 Yasushi Takatori takatori.yasushi@lab.ntt.co.jp +81 46 859 3135 Yasuhiko Inoue inoue.yasuhiko@lab.ntt.co.jp +81 46 859 5097 Shoko Shinohara Shinohara.shoko@lab.ntt.co.jp +81 46 859 5107 1-1 Hikari-no-oka, Yokosuka, Kanagawa 239-0847 Japan NTT Yusuke Asai asai.yusuke@lab.ntt.co.jp +81 46 859 3494 Koichi Ishihara ishihara.koichi@lab.ntt.co.jp +81 46 859 4233 Junichi Iwatani Iwatani.junichi@lab.ntt.co.jp +81 46 859 4222 3-6, Hikarinooka, Yokosuka- shi, Kanagawa, 239-8536, Japan Akira Yamada NTT DOCOMO yamadaakira@nttdocomo.com +81 46 840 3759 Submission Ming Gan et al. (Huawei) Slide 9

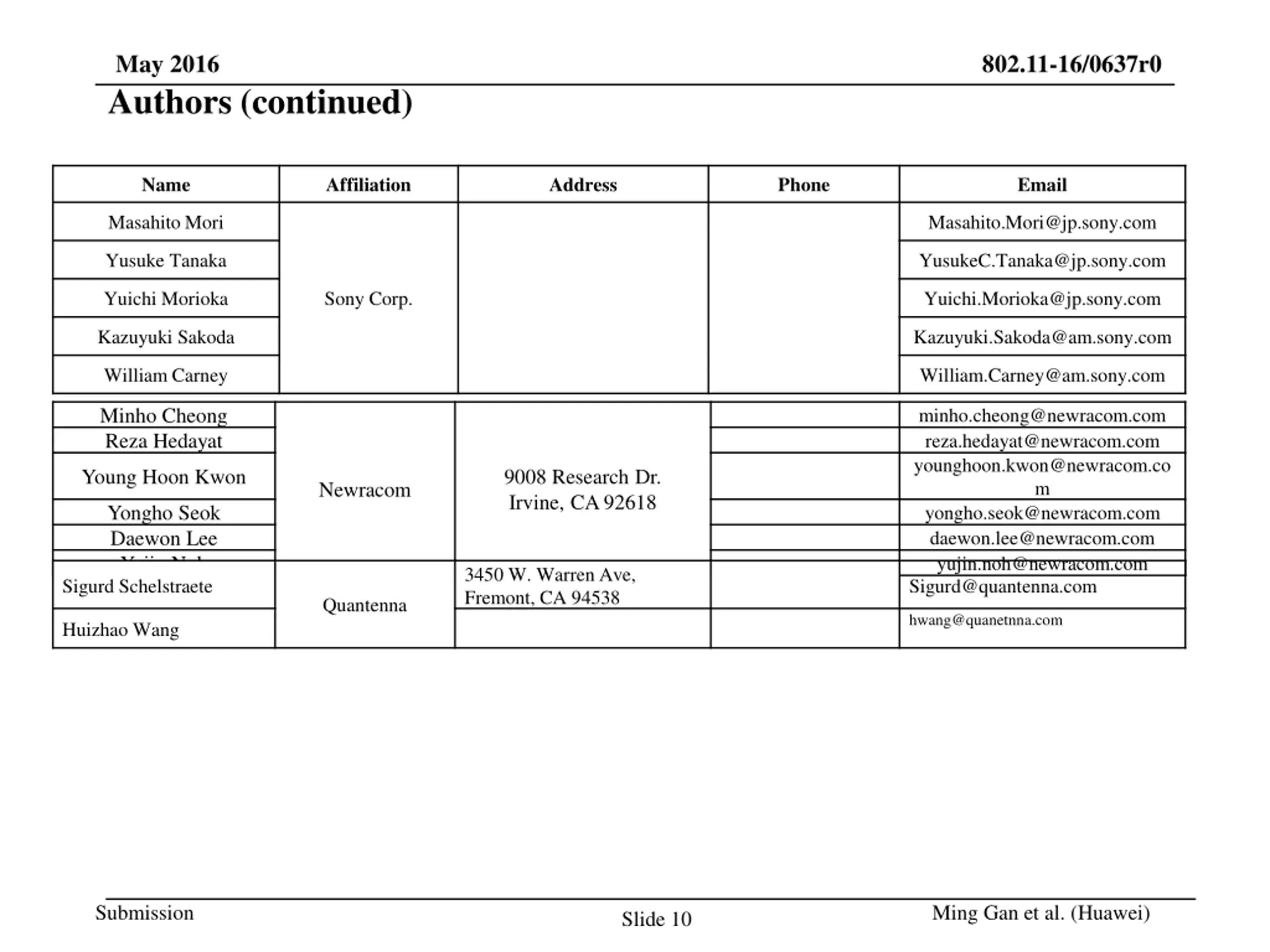

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Address Phone Email Masahito Mori Masahito.Mori@jp.sony.com Yusuke Tanaka YusukeC.Tanaka@jp.sony.com Yuichi Morioka Sony Corp. Yuichi.Morioka@jp.sony.com Kazuyuki Sakoda Kazuyuki.Sakoda@am.sony.com William Carney William.Carney@am.sony.com Minho Cheong Reza Hedayat minho.cheong@newracom.com reza.hedayat@newracom.com younghoon.kwon@newracom.co m yongho.seok@newracom.com daewon.lee@newracom.com yujin.noh@newracom.com Sigurd@quantenna.com Young Hoon Kwon 9008 Research Dr. Irvine, CA 92618 Newracom Yongho Seok Daewon Lee Yujin Noh Sigurd Schelstraete 3450 W. Warren Ave, Fremont, CA 94538 Quantenna hwang@quanetnna.com Huizhao Wang Submission Ming Gan et al. (Huawei) Slide 10

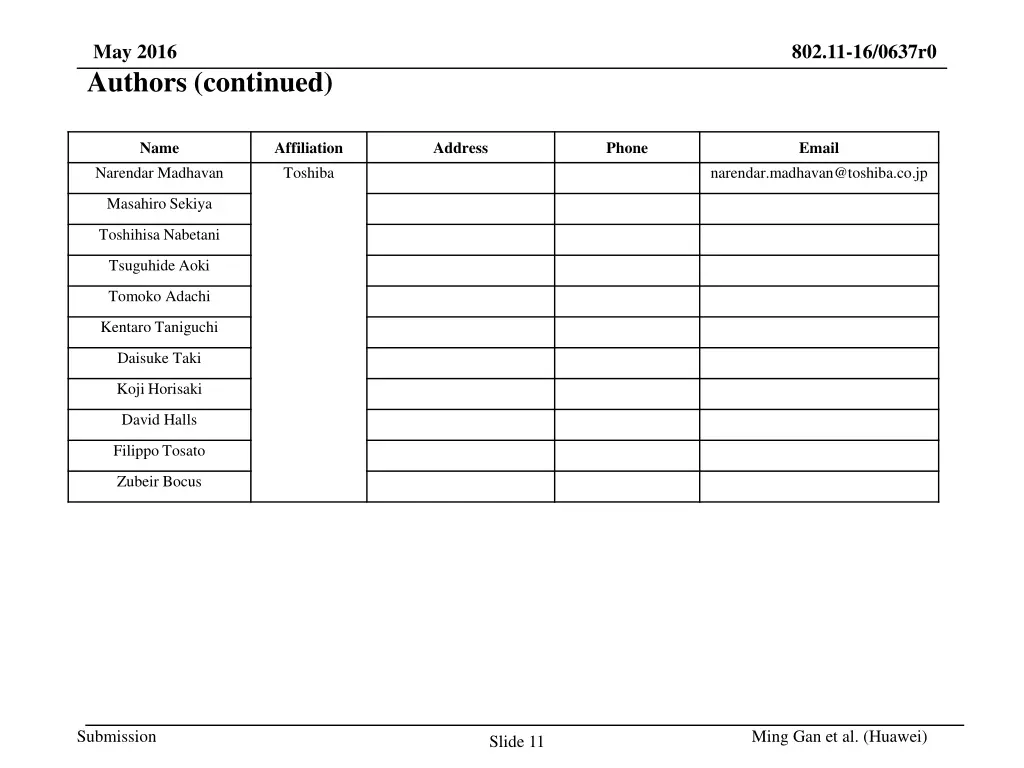

May 2016 Authors (continued) 802.11-16/0637r0 Name Affiliation Toshiba Address Phone Email Narendar Madhavan narendar.madhavan@toshiba.co.jp Masahiro Sekiya Toshihisa Nabetani Tsuguhide Aoki Tomoko Adachi Kentaro Taniguchi Daisuke Taki Koji Horisaki David Halls Filippo Tosato Zubeir Bocus Submission Ming Gan et al. (Huawei) Slide 11

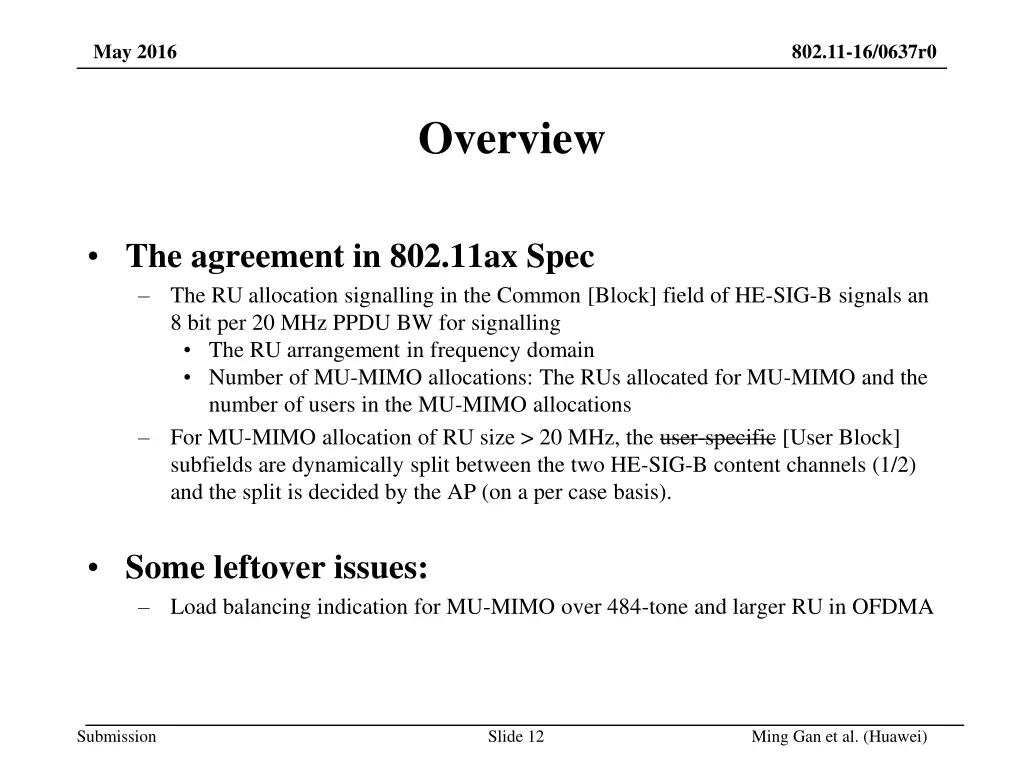

May 2016 802.11-16/0637r0 Overview The agreement in 802.11ax Spec The RU allocation signalling in the Common [Block] field of HE-SIG-B signals an 8 bit per 20 MHz PPDU BW for signalling The RU arrangement in frequency domain Number of MU-MIMO allocations: The RUs allocated for MU-MIMO and the number of users in the MU-MIMO allocations For MU-MIMO allocation of RU size > 20 MHz, the user-specific [User Block] subfields are dynamically split between the two HE-SIG-B content channels (1/2) and the split is decided by the AP (on a per case basis). Some leftover issues: Load balancing indication for MU-MIMO over 484-tone and larger RU in OFDMA Submission Slide 12 Ming Gan et al. (Huawei)

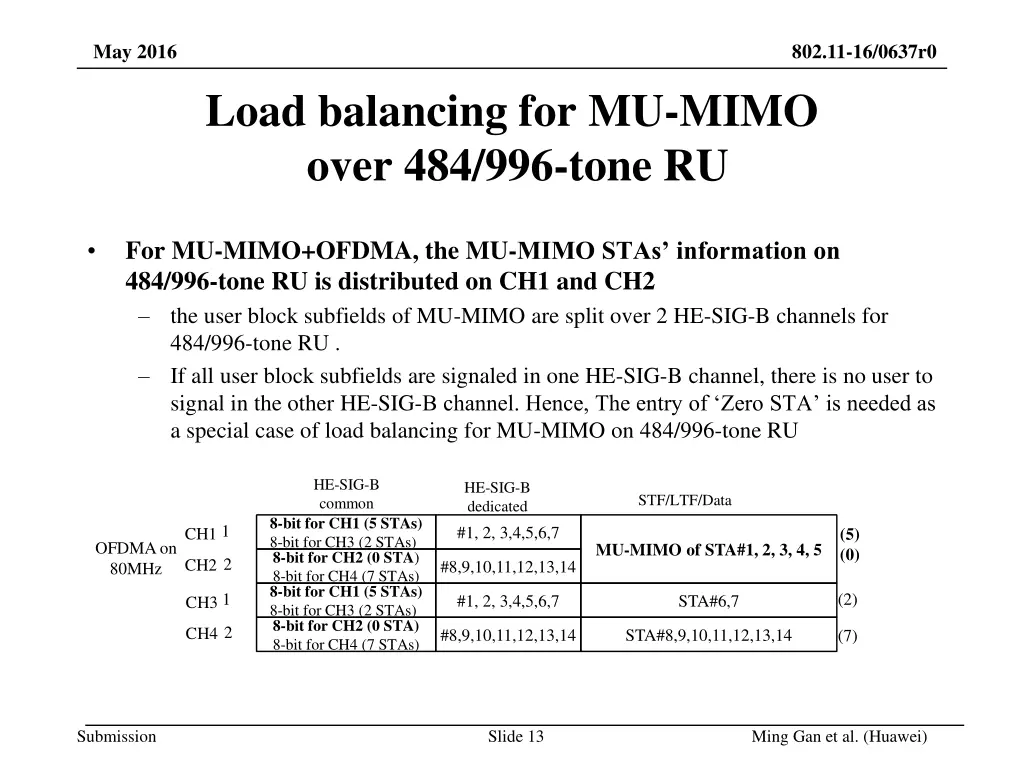

May 2016 802.11-16/0637r0 Load balancing for MU-MIMO over 484/996-tone RU For MU-MIMO+OFDMA, the MU-MIMO STAs information on 484/996-tone RU is distributed on CH1 and CH2 the user block subfields of MU-MIMO are split over 2 HE-SIG-B channels for 484/996-tone RU . If all user block subfields are signaled in one HE-SIG-B channel, there is no user to signal in the other HE-SIG-B channel. Hence, The entry of Zero STA is needed as a special case of load balancing for MU-MIMO on 484/996-tone RU HE-SIG-B common HE-SIG-B dedicated STF/LTF/Data 8-bit for CH1 (5 STAs) 8-bit for CH3 (2 STAs) 8-bit for CH2 (0 STA) 8-bit for CH4 (7 STAs) 8-bit for CH1 (5 STAs) 8-bit for CH3 (2 STAs) 8-bit for CH2 (0 STA) 8-bit for CH4 (7 STAs) 1 #1, 2, 3,4,5,6,7 (5) (0) CH1 OFDMA on 80MHz MU-MIMO of STA#1, 2, 3, 4, 5 2 CH2 #8,9,10,11,12,13,14 1 (2) #1, 2, 3,4,5,6,7 STA#6,7 CH3 2 CH4 #8,9,10,11,12,13,14 STA#8,9,10,11,12,13,14 (7) Submission Slide 13 Ming Gan et al. (Huawei)

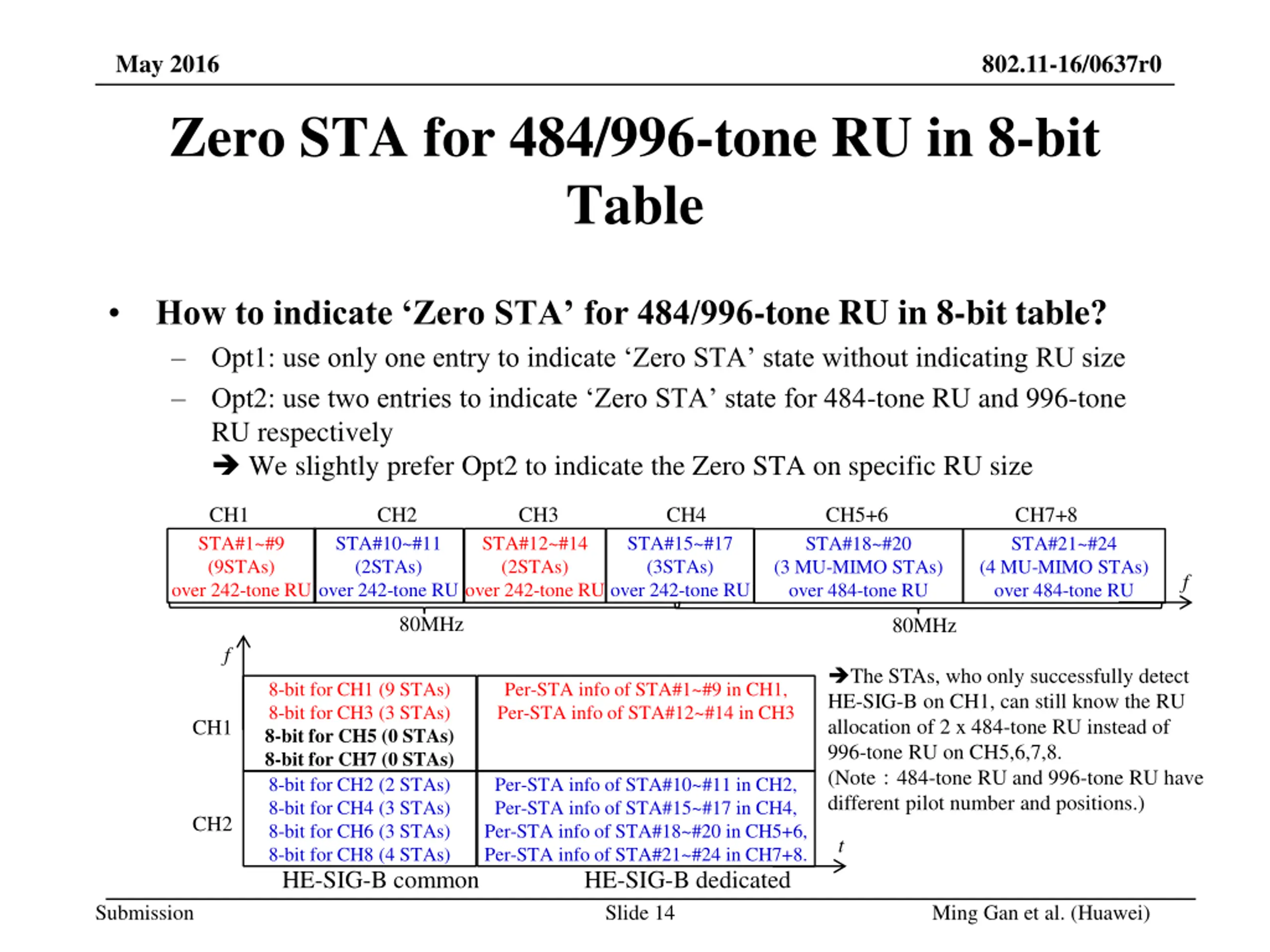

May 2016 802.11-16/0637r0 Zero STA for 484/996-tone RU in 8-bit Table How to indicate Zero STA for 484/996-tone RU in 8-bit table? Opt1: use only one entry to indicate Zero STA state without indicating RU size Opt2: use two entries to indicate Zero STA state for 484-tone RU and 996-tone RU respectively We slightly prefer Opt2 to indicate the Zero STA on specific RU size CH1 CH2 CH3 CH4 CH5+6 CH7+8 STA#1~#9 (9STAs) over 242-tone RU STA#10~#11 (2STAs) over 242-tone RU STA#12~#14 (2STAs) over 242-tone RU STA#15~#17 (3STAs) over 242-tone RU STA#18~#20 (3 MU-MIMO STAs) over 484-tone RU STA#21~#24 (4 MU-MIMO STAs) over 484-tone RU f 80MHz 80MHz f The STAs, who only successfully detect HE-SIG-B on CH1, can still know the RU allocation of 2 x 484-tone RU instead of 996-tone RU on CH5,6,7,8. (Note 484-tone RU and 996-tone RU have different pilot number and positions.) 8-bit for CH1 (9 STAs) 8-bit for CH3 (3 STAs) 8-bit for CH5 (0 STAs) 8-bit for CH7 (0 STAs) 8-bit for CH2 (2 STAs) 8-bit for CH4 (3 STAs) 8-bit for CH6 (3 STAs) 8-bit for CH8 (4 STAs) HE-SIG-B common Per-STA info of STA#1~#9 in CH1, Per-STA info of STA#12~#14 in CH3 CH1 Per-STA info of STA#10~#11 in CH2, Per-STA info of STA#15~#17 in CH4, Per-STA info of STA#18~#20 in CH5+6, Per-STA info of STA#21~#24 in CH7+8. HE-SIG-B dedicated CH2 t Submission Slide 14 Ming Gan et al. (Huawei)

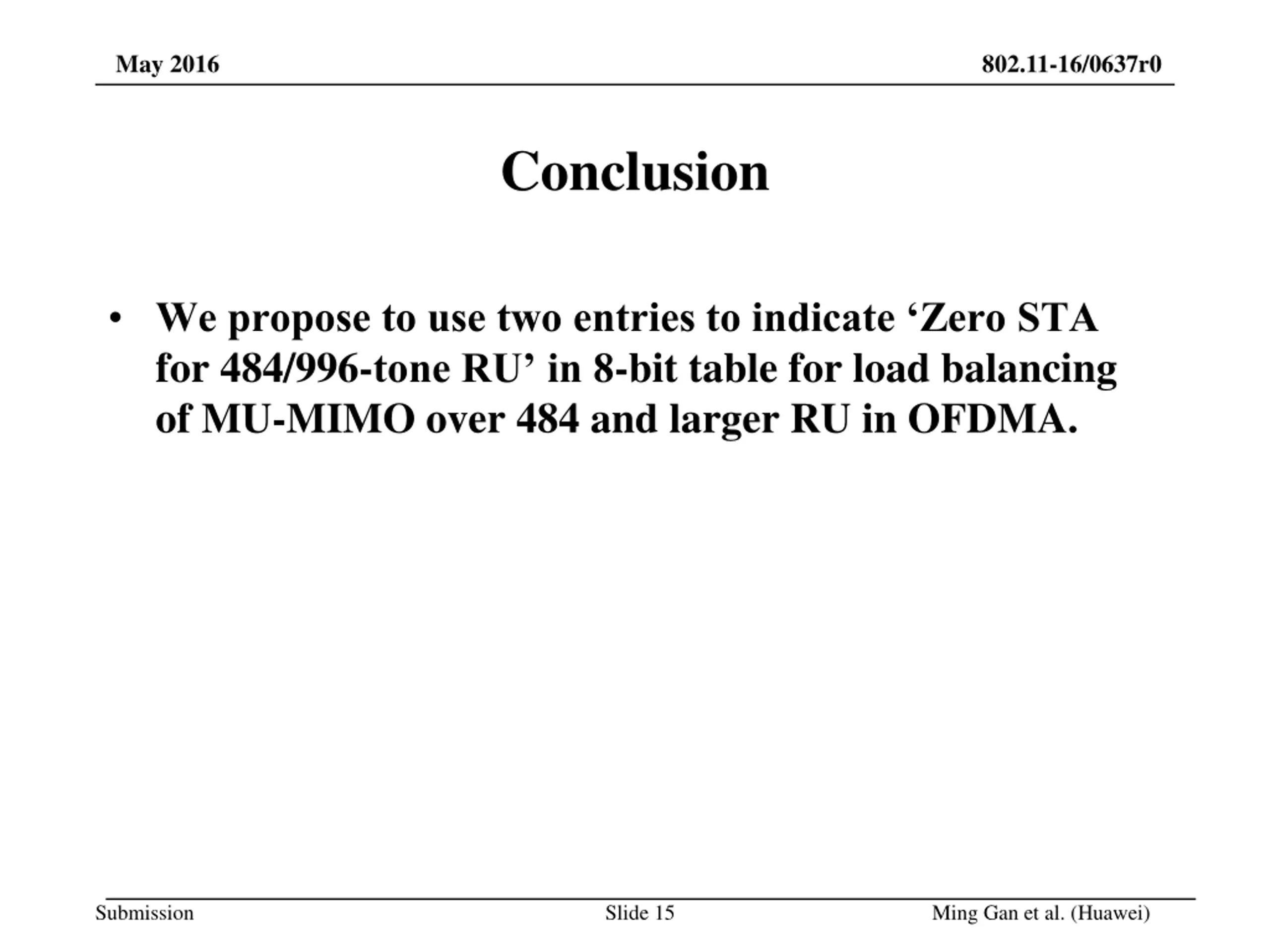

May 2016 802.11-16/0637r0 Conclusion We propose to use two entries to indicate Zero STA for 484/996-tone RU in 8-bit table for load balancing of MU-MIMO over 484 and larger RU in OFDMA. Submission Slide 15 Ming Gan et al. (Huawei)
May 2016 802.11-16/0637r0 References [1] 11-15-0132-16-00ax-spec-framework.docx [2] 11-15-1335-02-00ax-he-sig-b-contents Submission Slide 16 Ming Gan et al. (Huawei)

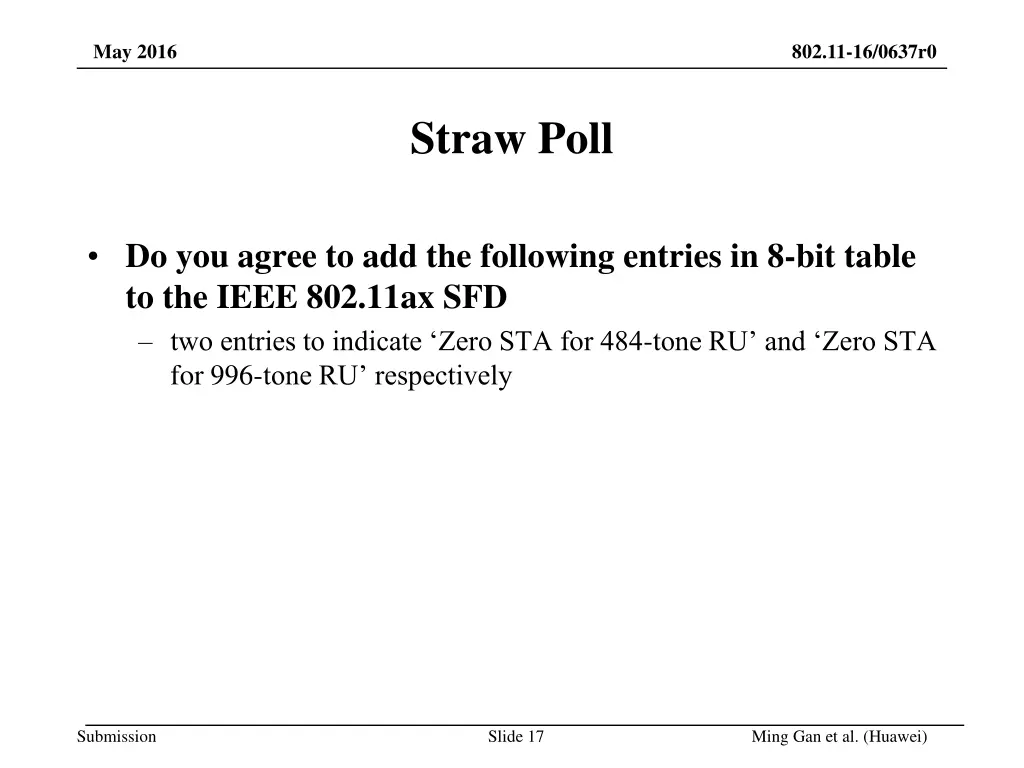

May 2016 802.11-16/0637r0 Straw Poll Do you agree to add the following entries in 8-bit table to the IEEE 802.11ax SFD two entries to indicate Zero STA for 484-tone RU and Zero STA for 996-tone RU respectively Submission Slide 17 Ming Gan et al. (Huawei)
