A Lock-free Multi-threaded Algorithm for the Max-flow Problem Bo Hong Electrical and Computer Engineering Department Drexel University bohong@coe.drexel.edu http://www.ece.drexel.edu/faculty/bohong

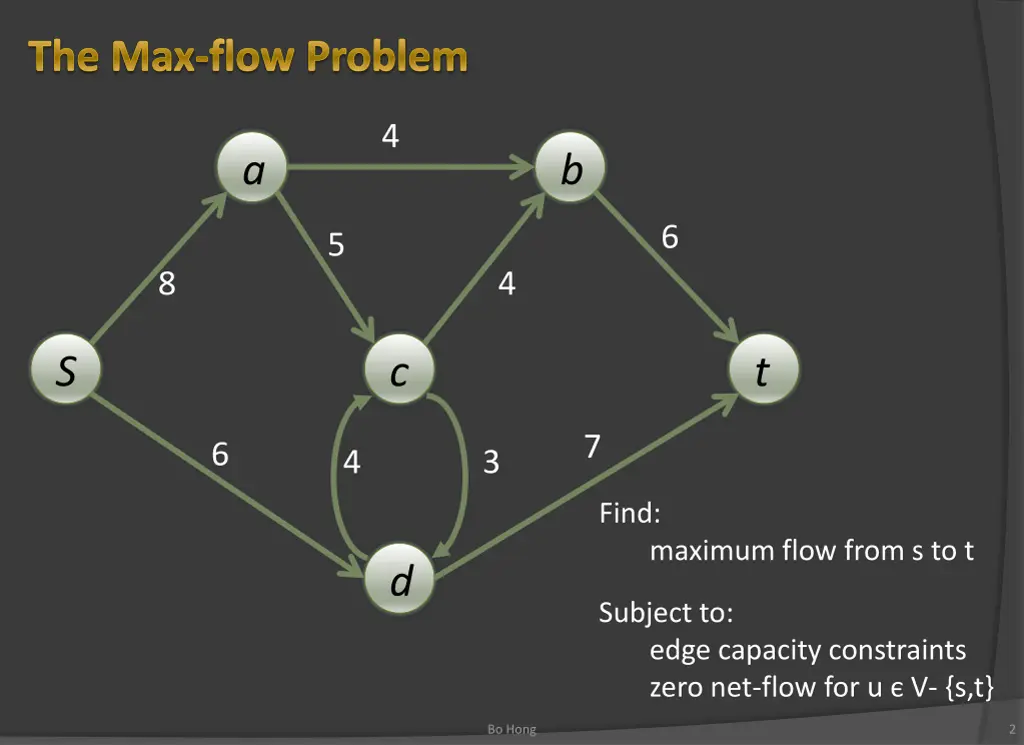

The Max-flow Problem 4 a b 6 5 8 4 S c t 7 6 4 3 Find: maximum flow from s to t d Subject to: edge capacity constraints zero net-flow for u V- {s,t} Bo Hong 2

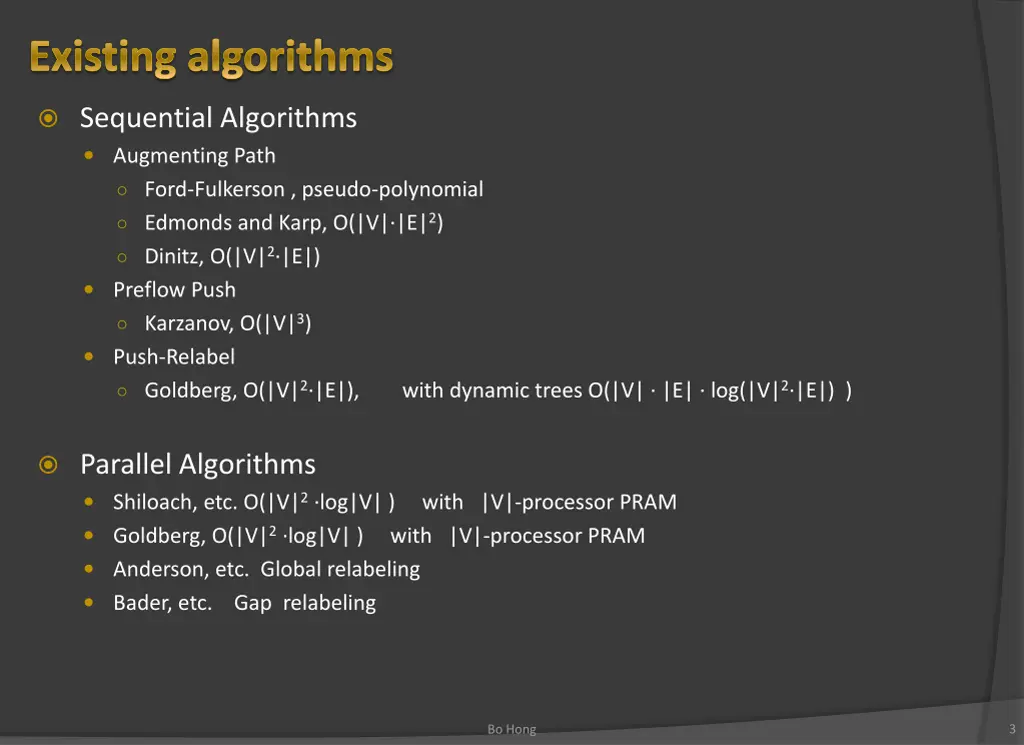

Existing algorithms Sequential Algorithms Augmenting Path Ford-Fulkerson , pseudo-polynomial Edmonds and Karp, O(|V| |E|2) Dinitz, O(|V|2 |E|) Preflow Push Karzanov, O(|V|3) Push-Relabel Goldberg, O(|V|2 |E|), with dynamic trees O(|V| |E| log(|V|2 |E|) ) Parallel Algorithms Shiloach, etc. O(|V|2 log|V| ) with |V|-processor PRAM Goldberg, O(|V|2 log|V| ) with |V|-processor PRAM Anderson, etc. Global relabeling Bader, etc. Gap relabeling 3 Bo Hong

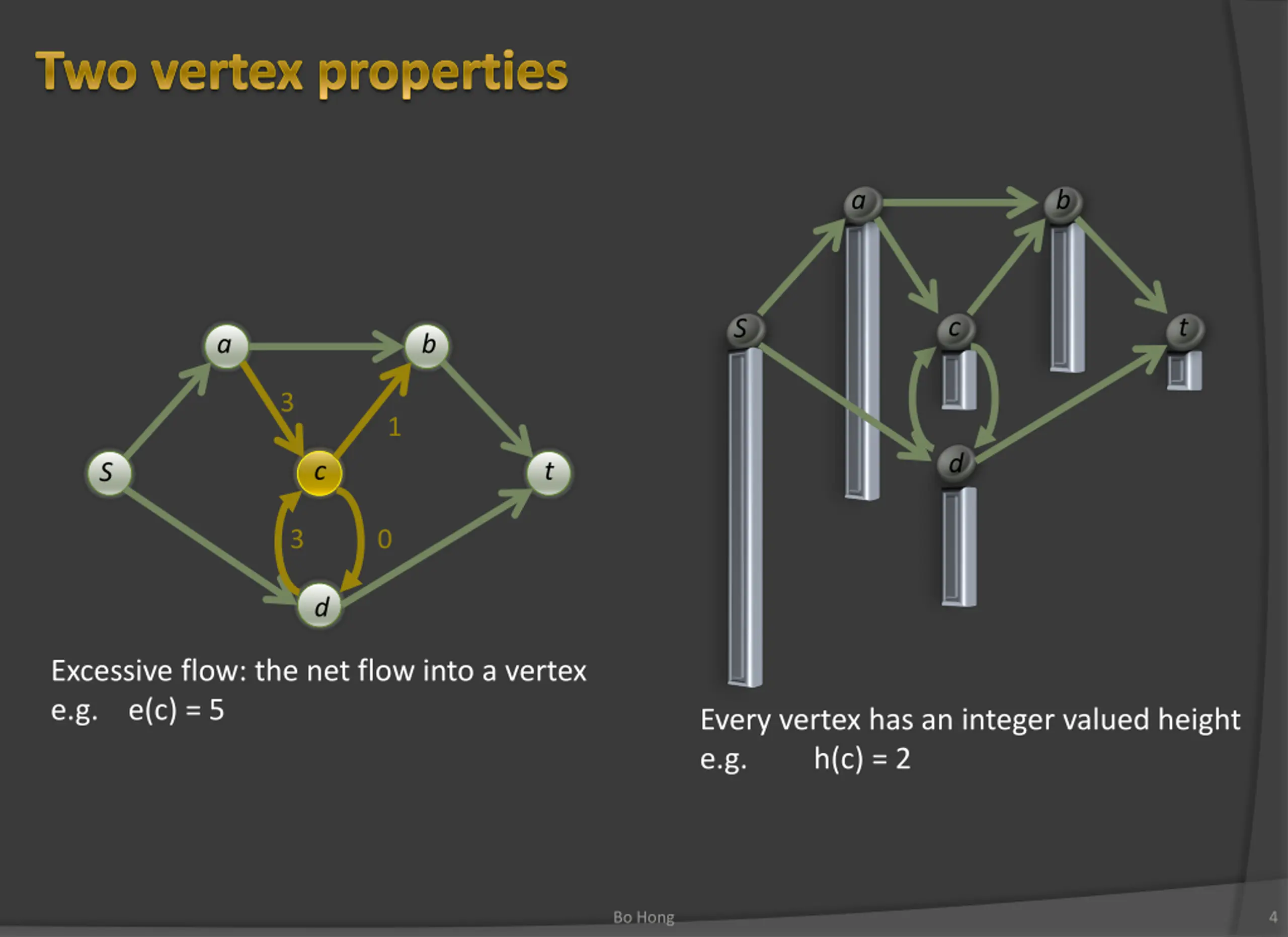

Two vertex properties a b c t S a b 3 1 d c t S 3 0 d Excessive flow: the net flow into a vertex e.g. e(c) = 5 Every vertex has an integer valued height e.g. h(c) = 2 Bo Hong 4

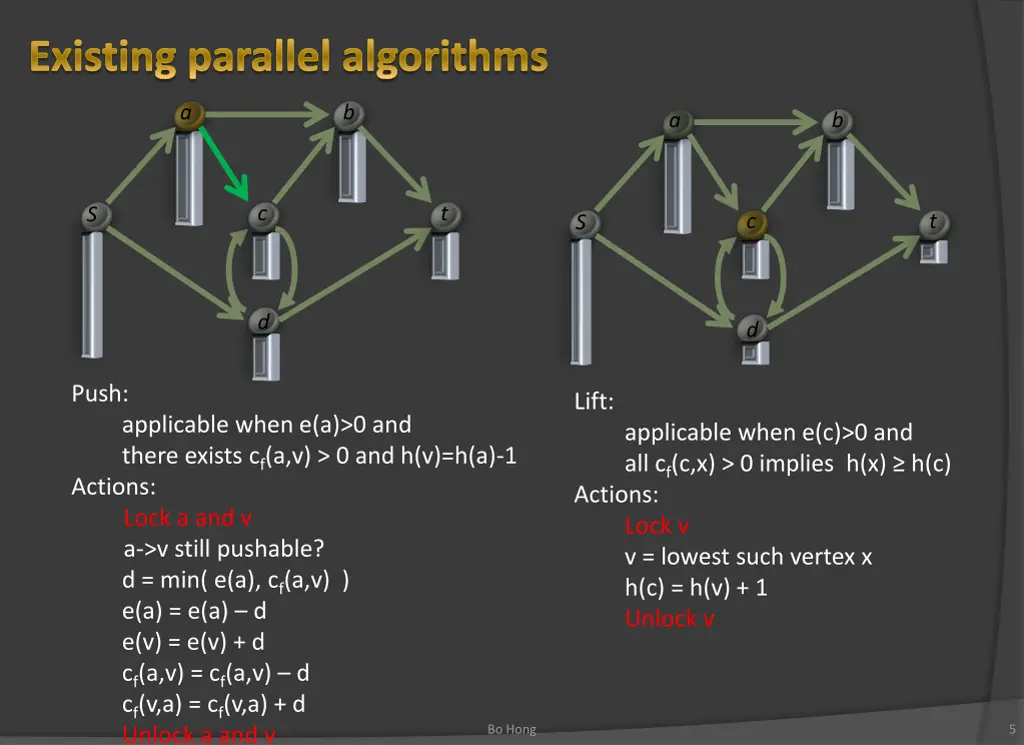

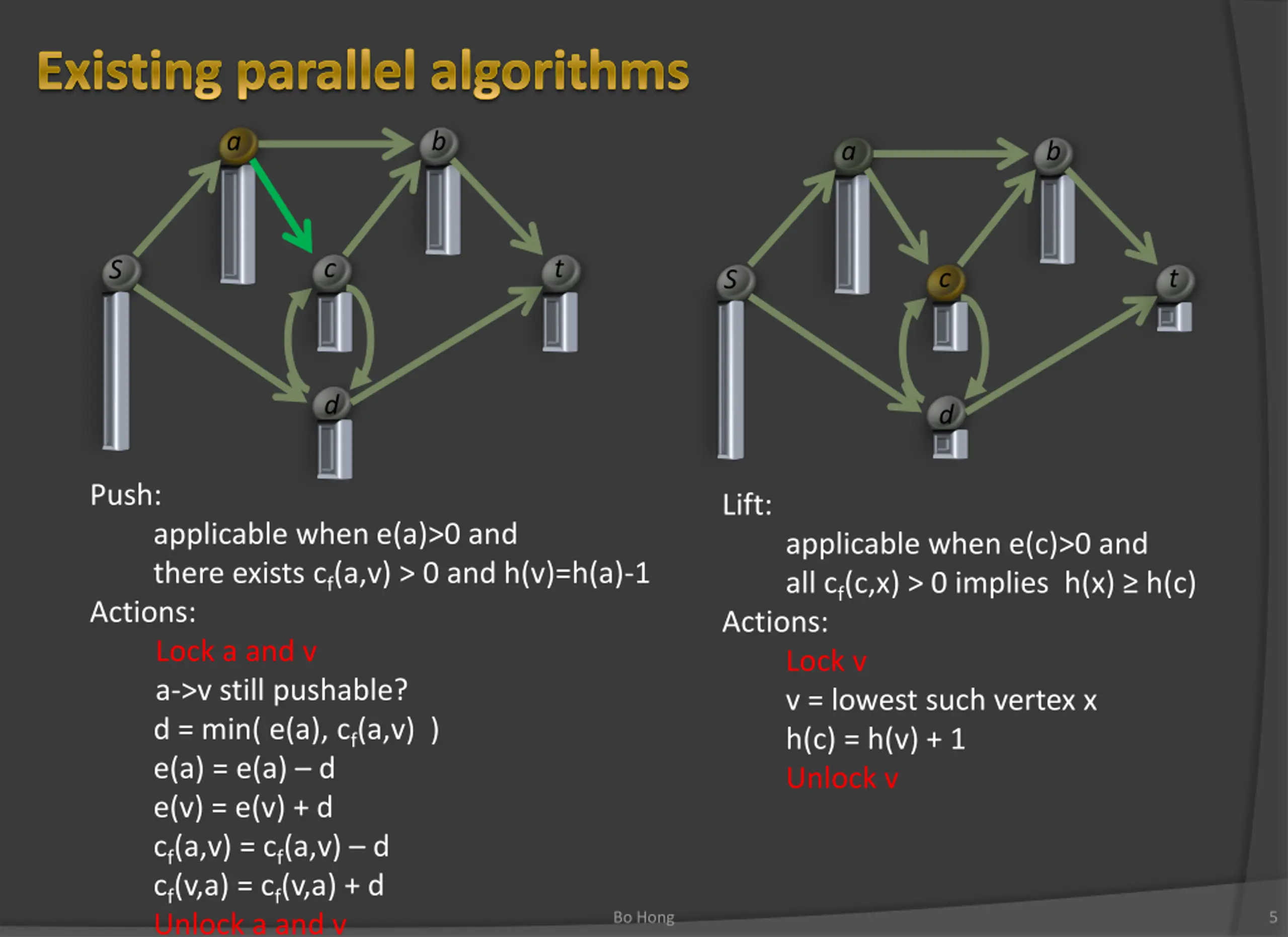

Existing parallel algorithms a b a b c t S c t S d d Push: Lift: applicable when e(a)>0 and there exists cf(a,v) > 0 and h(v)=h(a)-1 Actions: Lock a and v a->v still pushable? d = min( e(a), cf(a,v) ) e(a) = e(a) d e(v) = e(v) + d cf(a,v) = cf(a,v) d cf(v,a) = cf(v,a) + d Unlock a and v applicable when e(c)>0 and all cf(c,x) > 0 implies h(x) h(c) Actions: Lock v v = lowest such vertex x h(c) = h(v) + 1 Unlock v Bo Hong 5

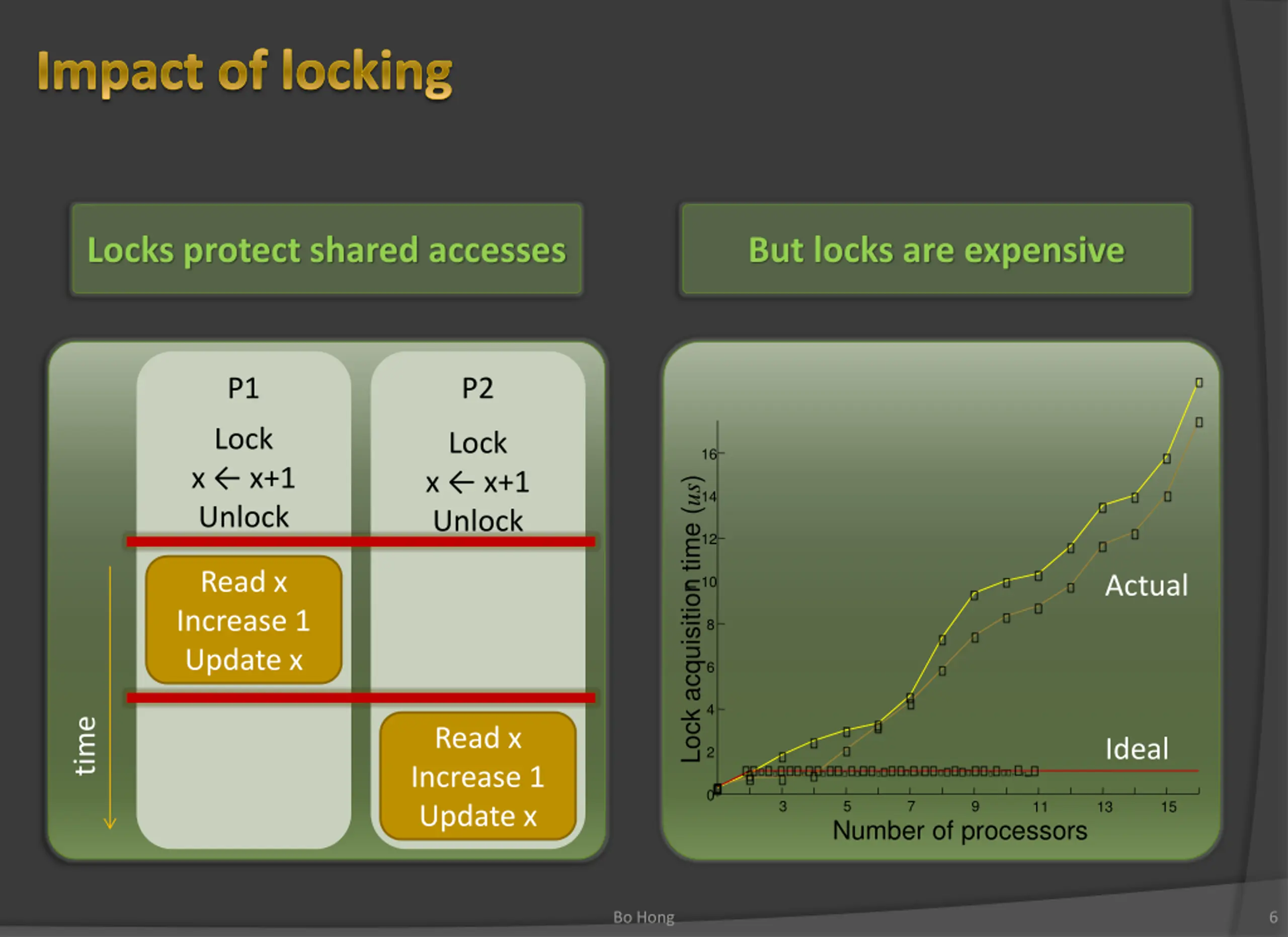

Impact of locking Locks protect shared accesses But locks are expensive P1 P2 Lock x x+1 Unlock Lock x x+1 Unlock 16 Lock acquisition time (us) 14 12 Read x Increase 1 Update x Actual 10 T 8 6 4 time Read x Increase 1 Update x Ideal 2 0 3 5 7 9 11 13 15 Number of processors Bo Hong 6

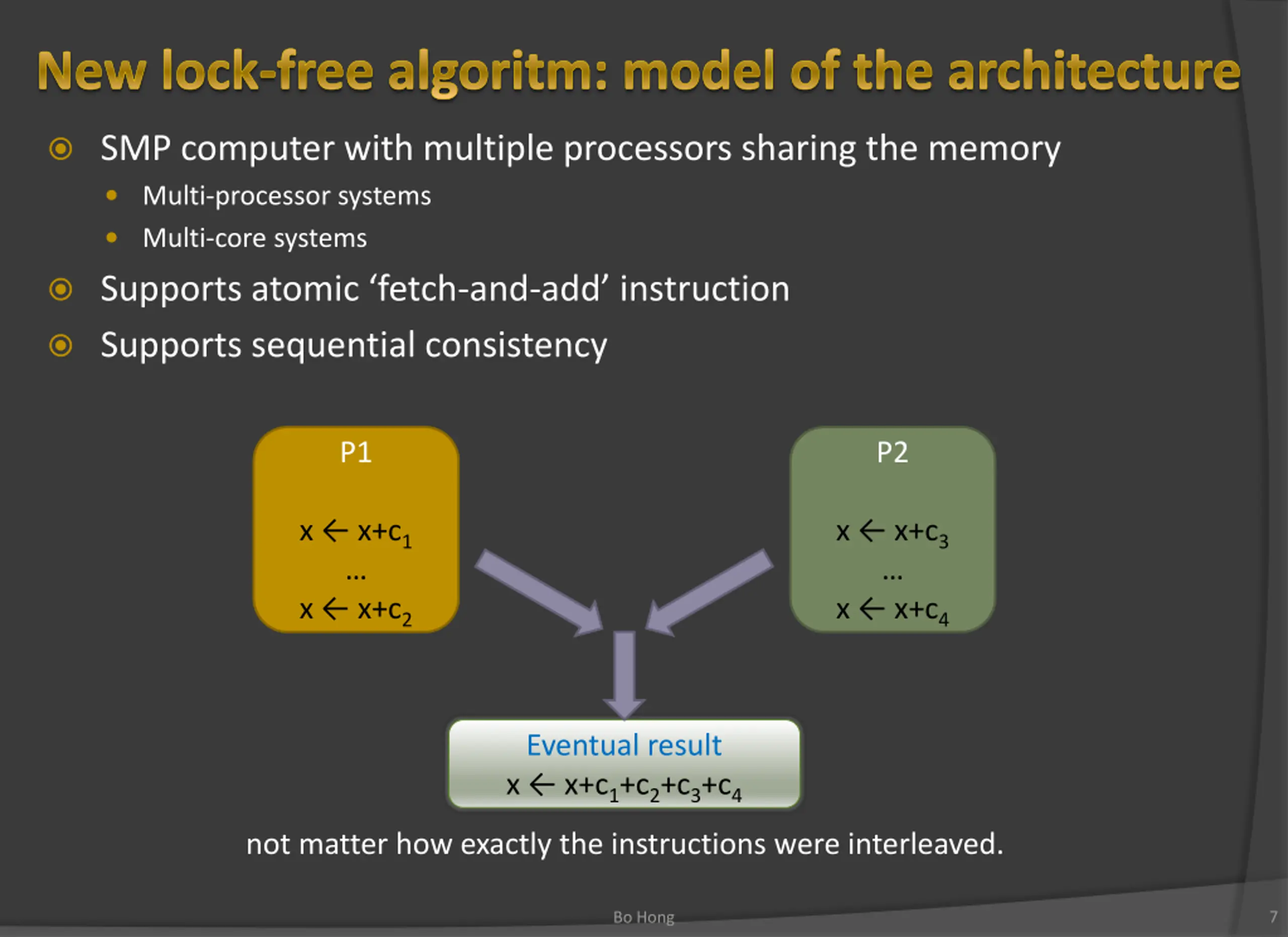

New lock-free algoritm: model of the architecture SMP computer with multiple processors sharing the memory Multi-processor systems Multi-core systems Supports atomic fetch-and-add instruction Supports sequential consistency P1 P2 x x+c1 x x+c2 x x+c3 x x+c4 Eventual result x x+c1+c2+c3+c4 not matter how exactly the instructions were interleaved. 7 Bo Hong

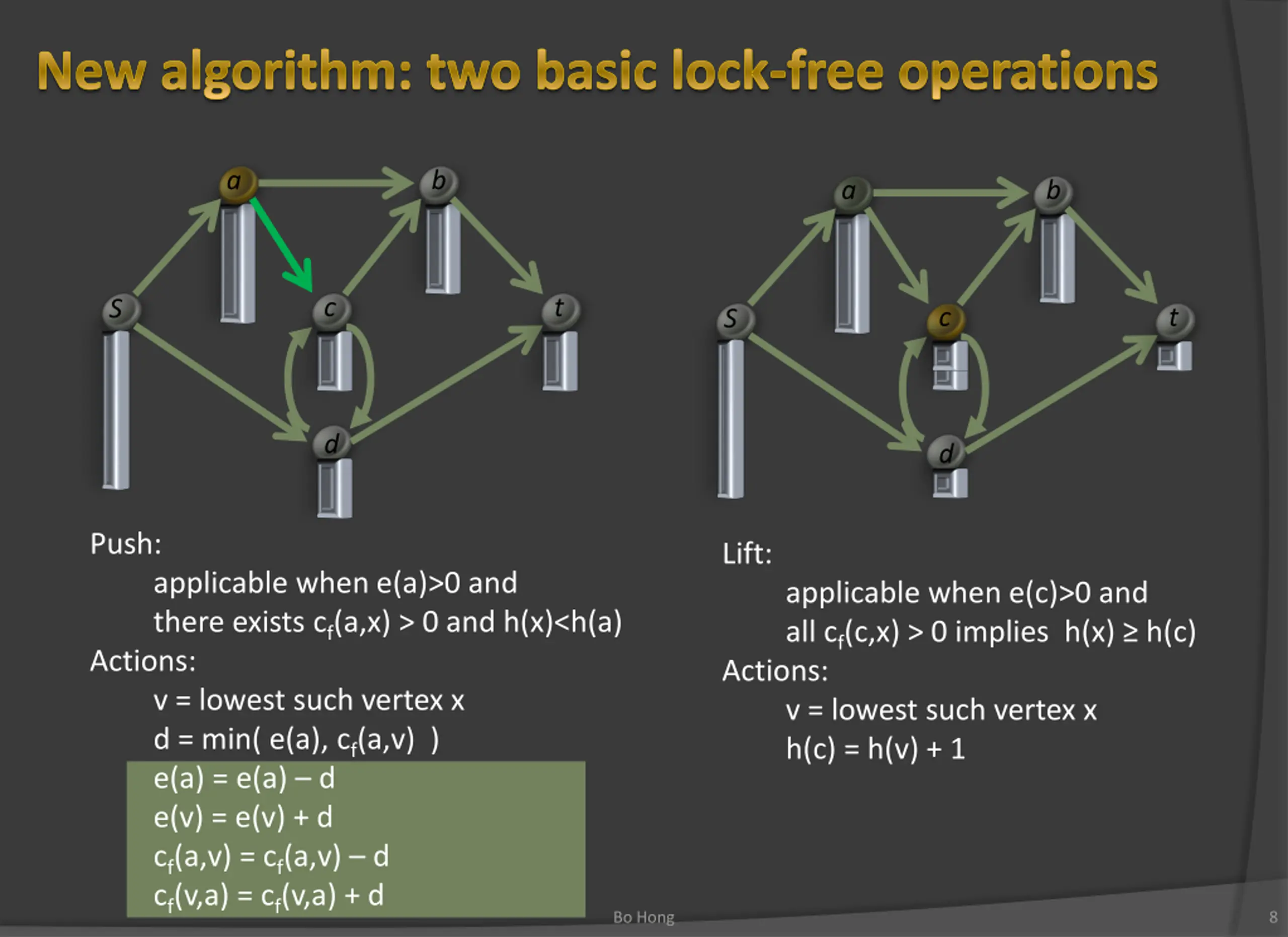

New algorithm: two basic lock-free operations a b a b c t S c t S d d Push: Lift: applicable when e(a)>0 and there exists cf(a,x) > 0 and h(x)<h(a) Actions: v = lowest such vertex x d = min( e(a), cf(a,v) ) e(a) = e(a) d e(v) = e(v) + d cf(a,v) = cf(a,v) d cf(v,a) = cf(v,a) + d applicable when e(c)>0 and all cf(c,x) > 0 implies h(x) h(c) Actions: v = lowest such vertex x h(c) = h(v) + 1 Bo Hong 8

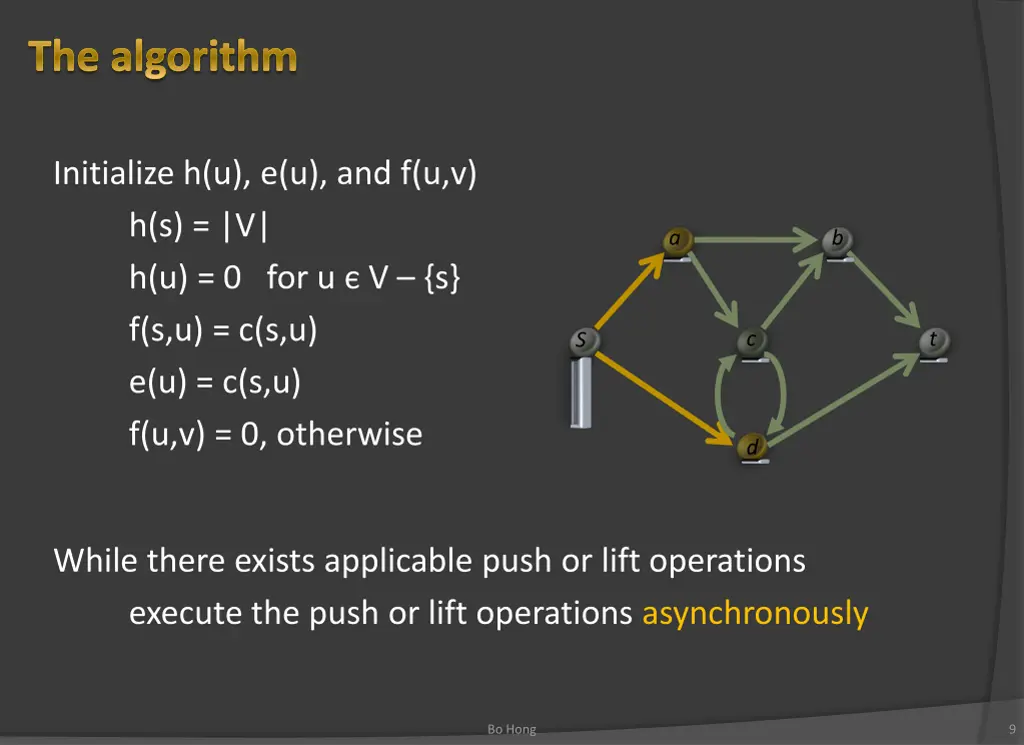

The algorithm Initialize h(u), e(u), and f(u,v) h(s) = |V| h(u) = 0 for u V {s} f(s,u) = c(s,u) e(u) = c(s,u) f(u,v) = 0, otherwise a b c t S d While there exists applicable push or lift operations execute the push or lift operations asynchronously Bo Hong 9

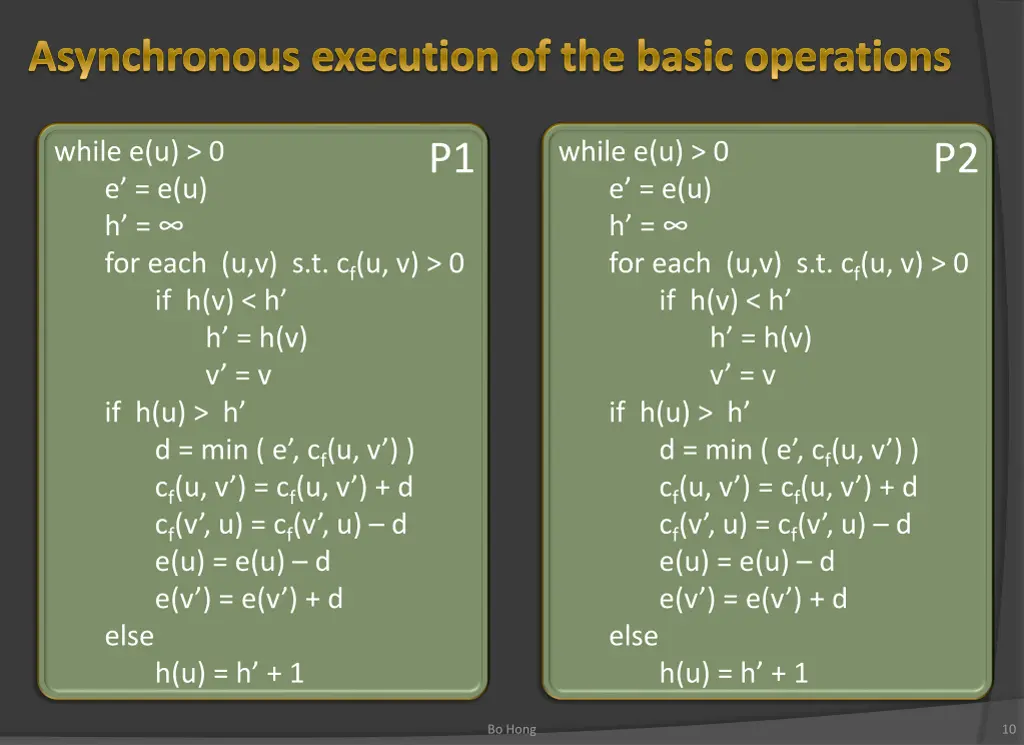

Asynchronous execution of the basic operations P1 P2 while e(u) > 0 e = e(u) h = for each (u,v) s.t. cf(u, v) > 0 if h(v) < h h = h(v) v = v if h(u) > h d = min ( e , cf(u, v ) ) cf(u, v ) = cf(u, v ) + d cf(v , u) = cf(v , u) d e(u) = e(u) d e(v ) = e(v ) + d else h(u) = h + 1 while e(u) > 0 e = e(u) h = for each (u,v) s.t. cf(u, v) > 0 if h(v) < h h = h(v) v = v if h(u) > h d = min ( e , cf(u, v ) ) cf(u, v ) = cf(u, v ) + d cf(v , u) = cf(v , u) d e(u) = e(u) d e(v ) = e(v ) + d else h(u) = h + 1 Bo Hong 10

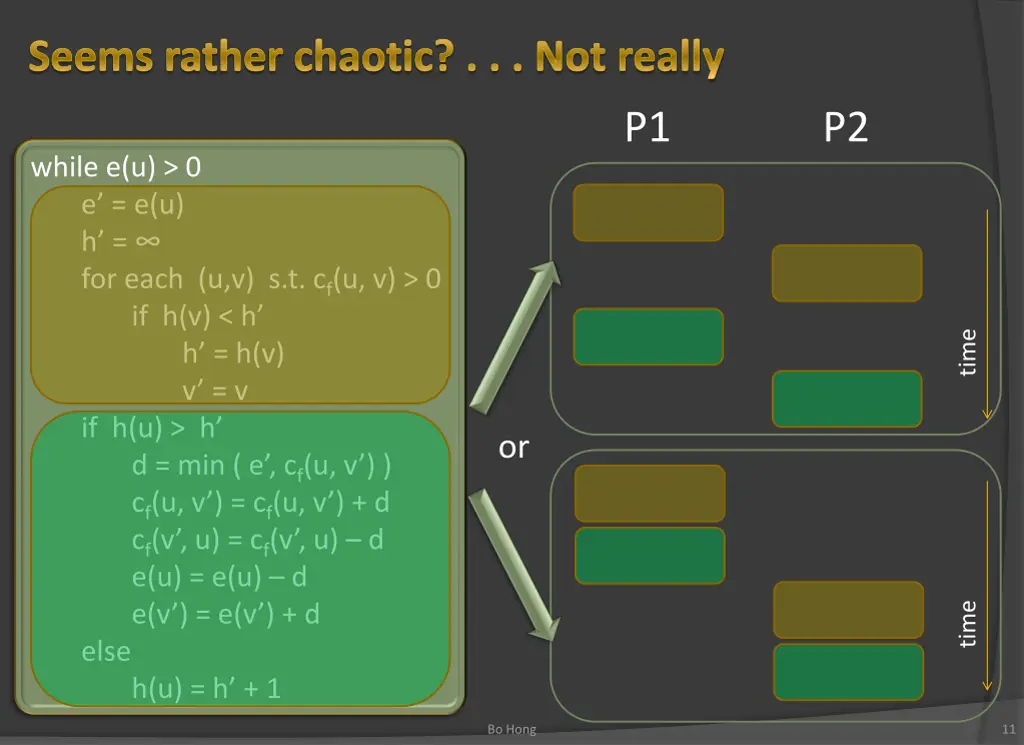

Seems rather chaotic? . . . Not really P1 P2 while e(u) > 0 e = e(u) h = for each (u,v) s.t. cf(u, v) > 0 if h(v) < h h = h(v) v = v if h(u) > h d = min ( e , cf(u, v ) ) cf(u, v ) = cf(u, v ) + d cf(v , u) = cf(v , u) d e(u) = e(u) d e(v ) = e(v ) + d else h(u) = h + 1 time or time Bo Hong 11

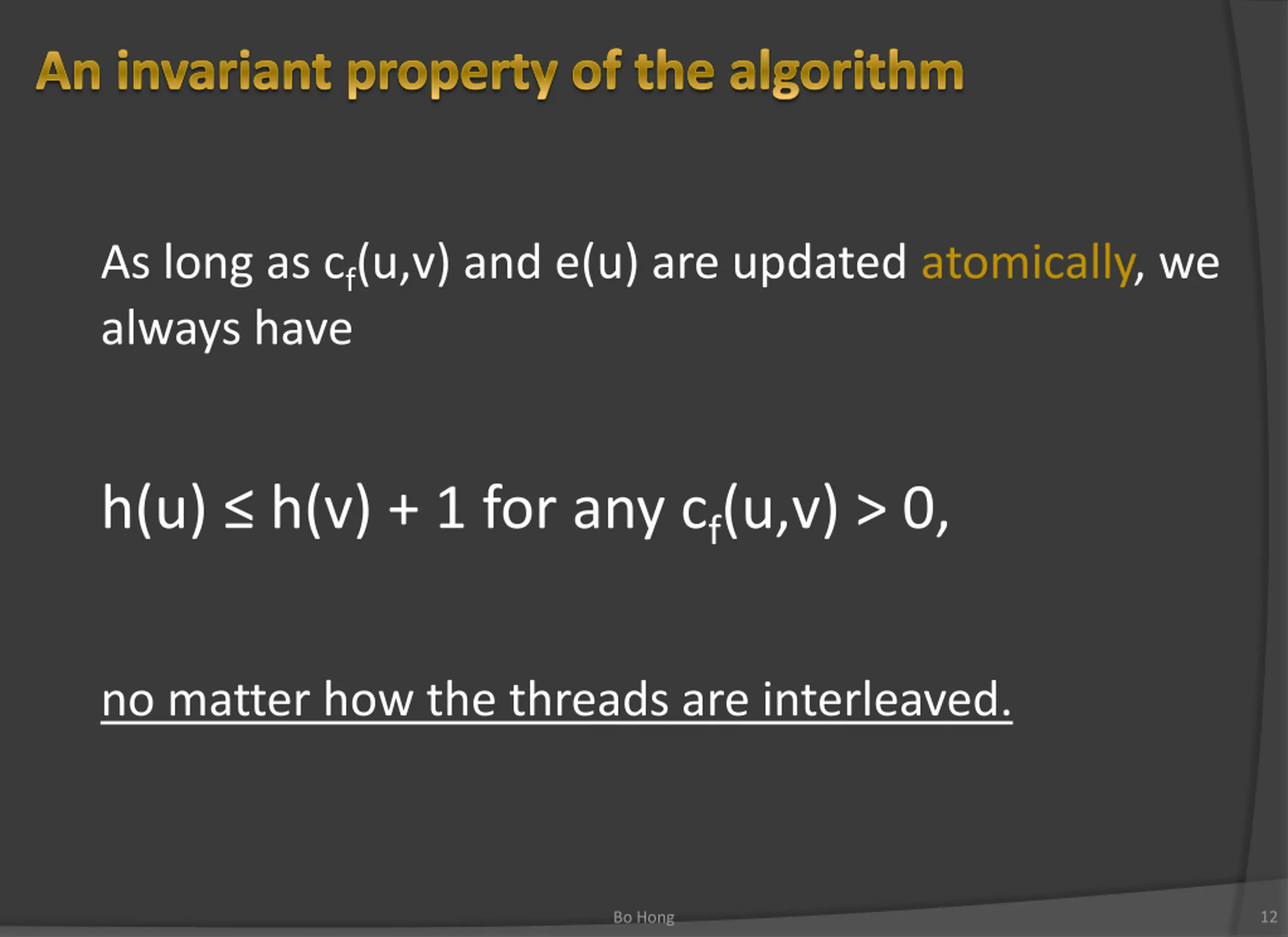

An invariant property of the algorithm As long as cf(u,v) and e(u) are updated atomically, we always have h(u) h(v) + 1 for any cf(u,v) > 0, no matter how the threads are interleaved. 12 Bo Hong

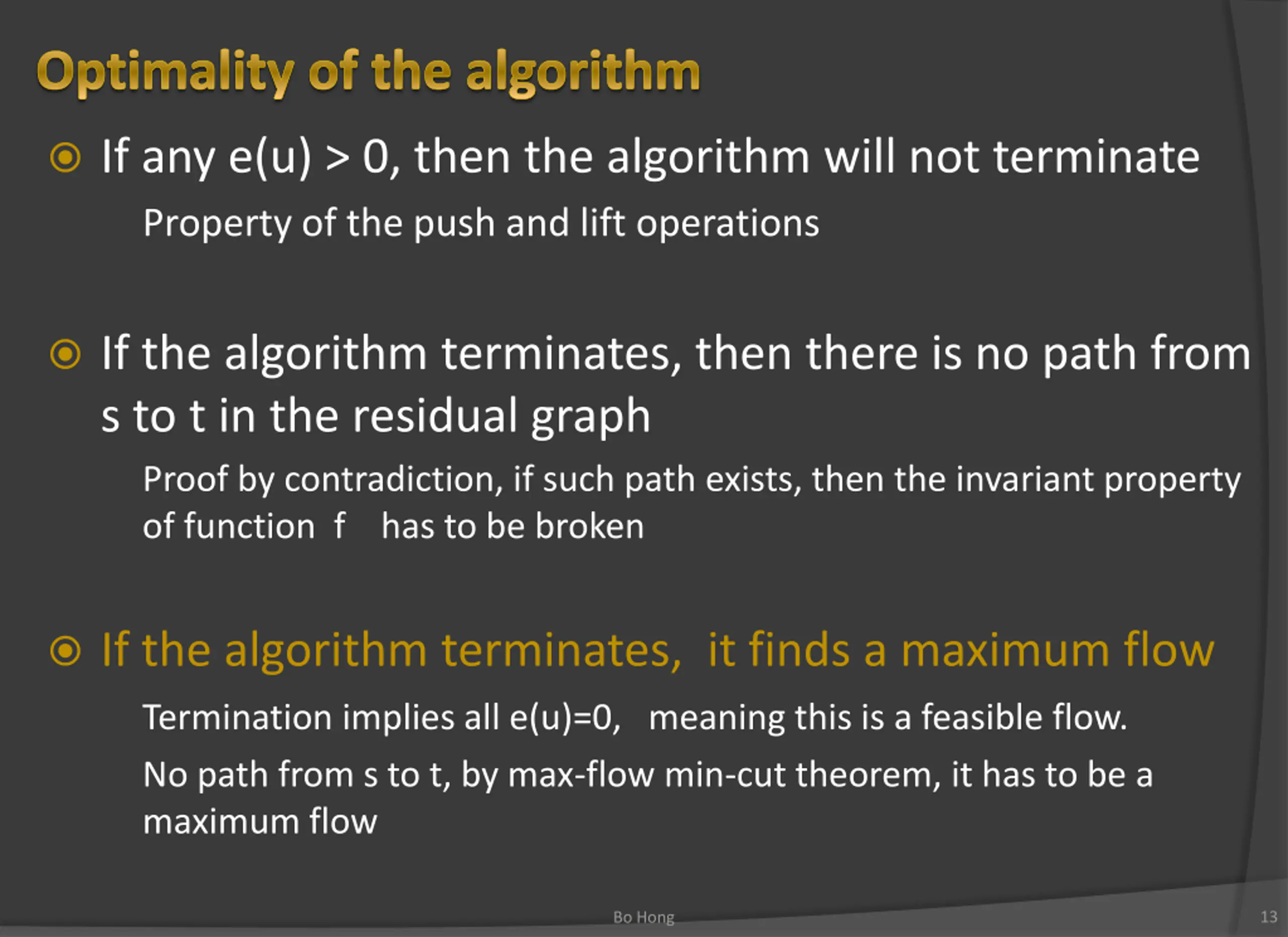

Optimality of the algorithm If any e(u) > 0, then the algorithm will not terminate Property of the push and lift operations If the algorithm terminates, then there is no path from s to t in the residual graph Proof by contradiction, if such path exists, then the invariant property of function f has to be broken If the algorithm terminates, it finds a maximum flow Termination implies all e(u)=0, meaning this is a feasible flow. No path from s to t, by max-flow min-cut theorem, it has to be a maximum flow 13 Bo Hong

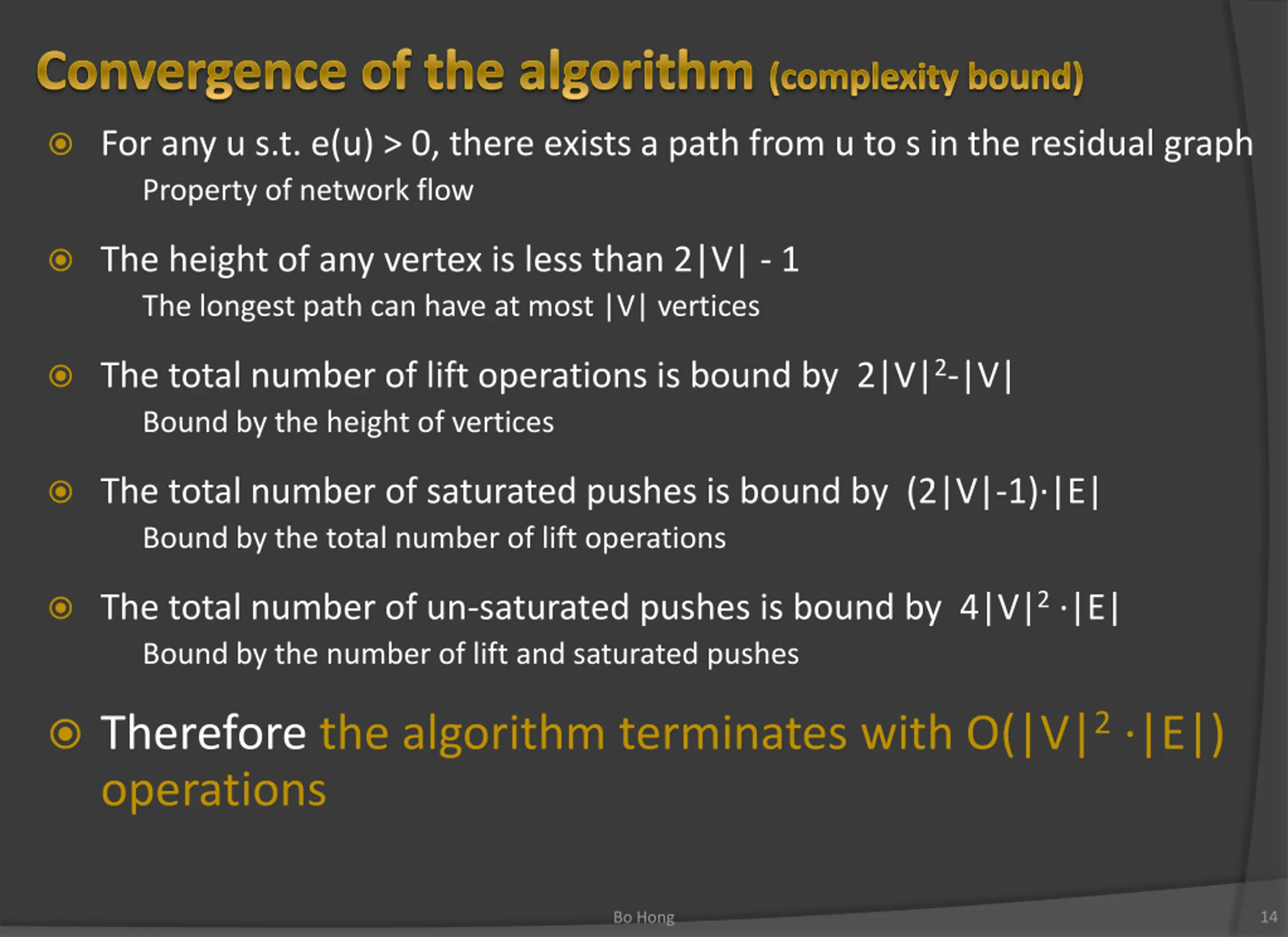

Convergence of the algorithm (complexity bound) For any u s.t. e(u) > 0, there exists a path from u to s in the residual graph Property of network flow The height of any vertex is less than 2|V| - 1 The longest path can have at most |V| vertices The total number of lift operations is bound by 2|V|2-|V| Bound by the height of vertices The total number of saturated pushes is bound by (2|V|-1) |E| Bound by the total number of lift operations The total number of un-saturated pushes is bound by 4|V|2 |E| Bound by the number of lift and saturated pushes Therefore the algorithm terminates with O(|V|2 |E|) operations 14 Bo Hong

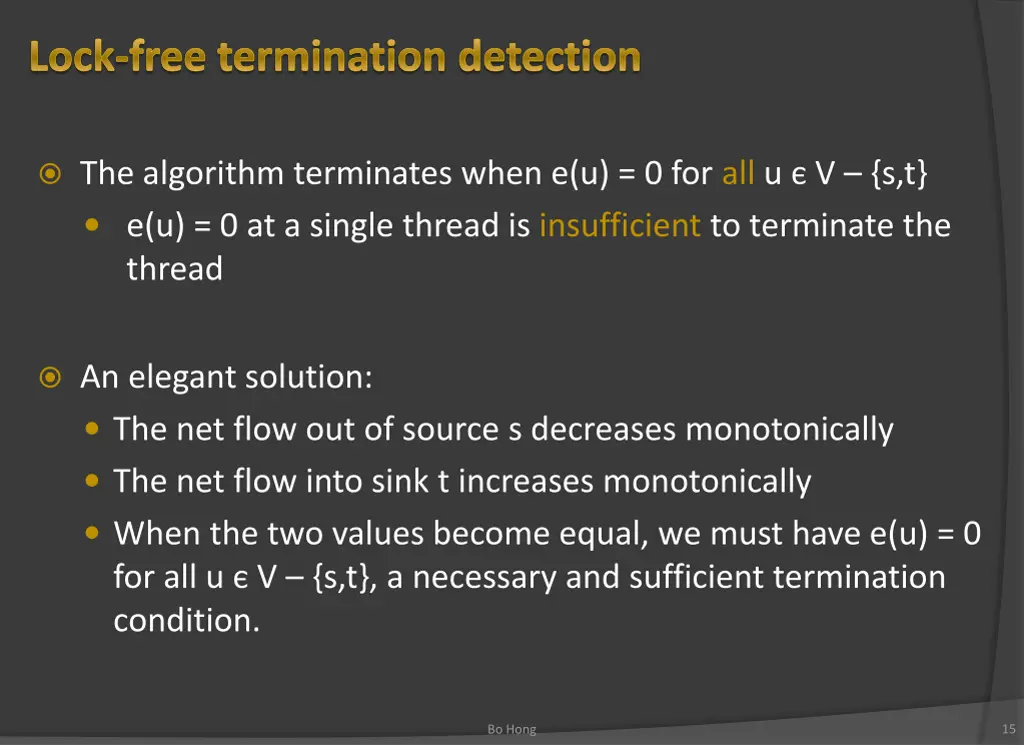

Lock-free termination detection The algorithm terminates when e(u) = 0 for all u V {s,t} e(u) = 0 at a single thread is insufficient to terminate the thread An elegant solution: The net flow out of source s decreases monotonically The net flow into sink t increases monotonically When the two values become equal, we must have e(u) = 0 for all u V {s,t}, a necessary and sufficient termination condition. 15 Bo Hong

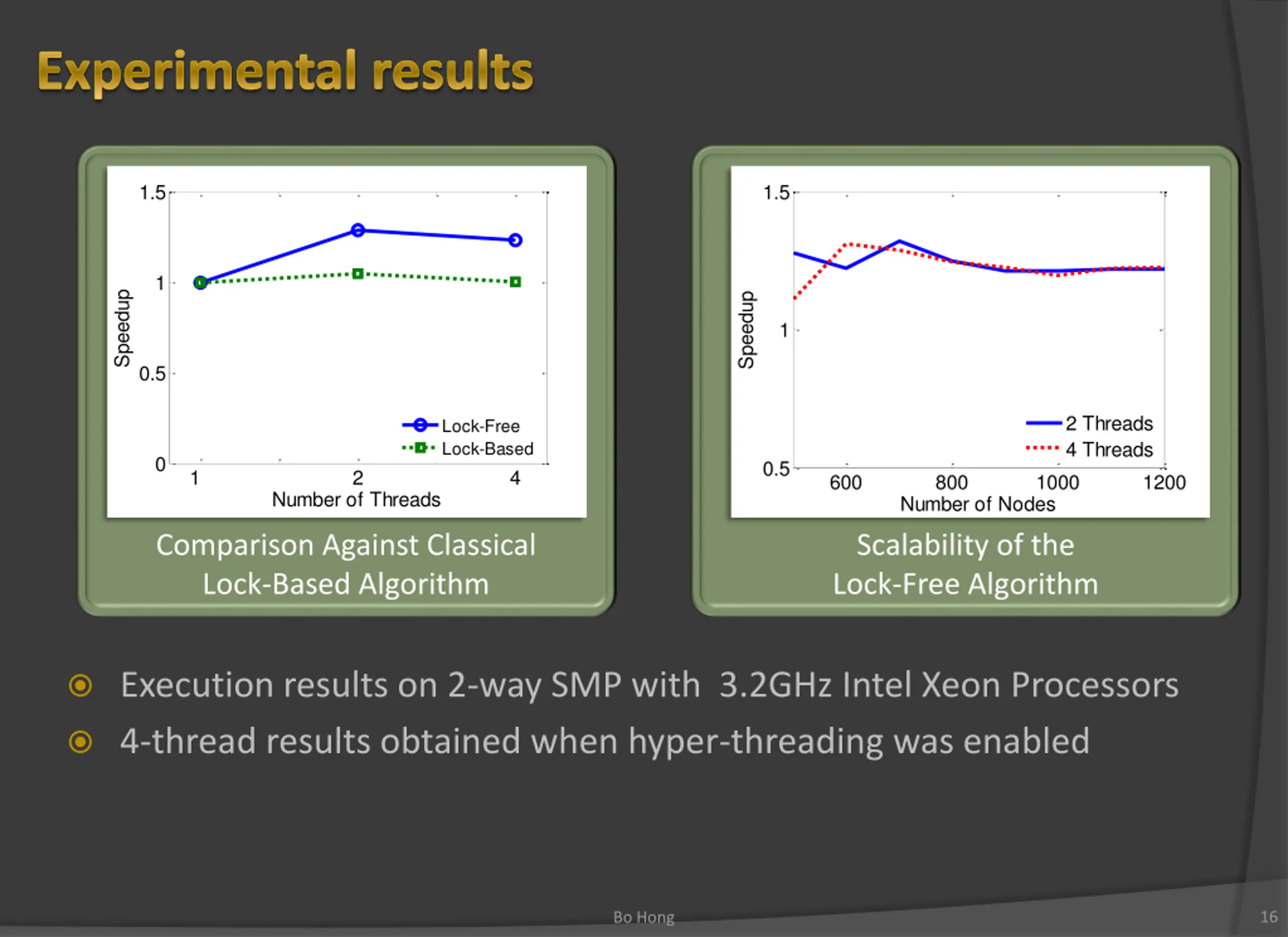

Experimental results 1.5 1.5 1 Speedup Speedup 1 0.5 2 Threads 4 Threads Lock-Free Lock-Based 0 0.5 1 2 4 600 800 1000 1200 Number of Threads Number of Nodes Comparison Against Classical Lock-Based Algorithm Scalability of the Lock-Free Algorithm Execution results on 2-way SMP with 3.2GHz Intel Xeon Processors 4-thread results obtained when hyper-threading was enabled 16 Bo Hong

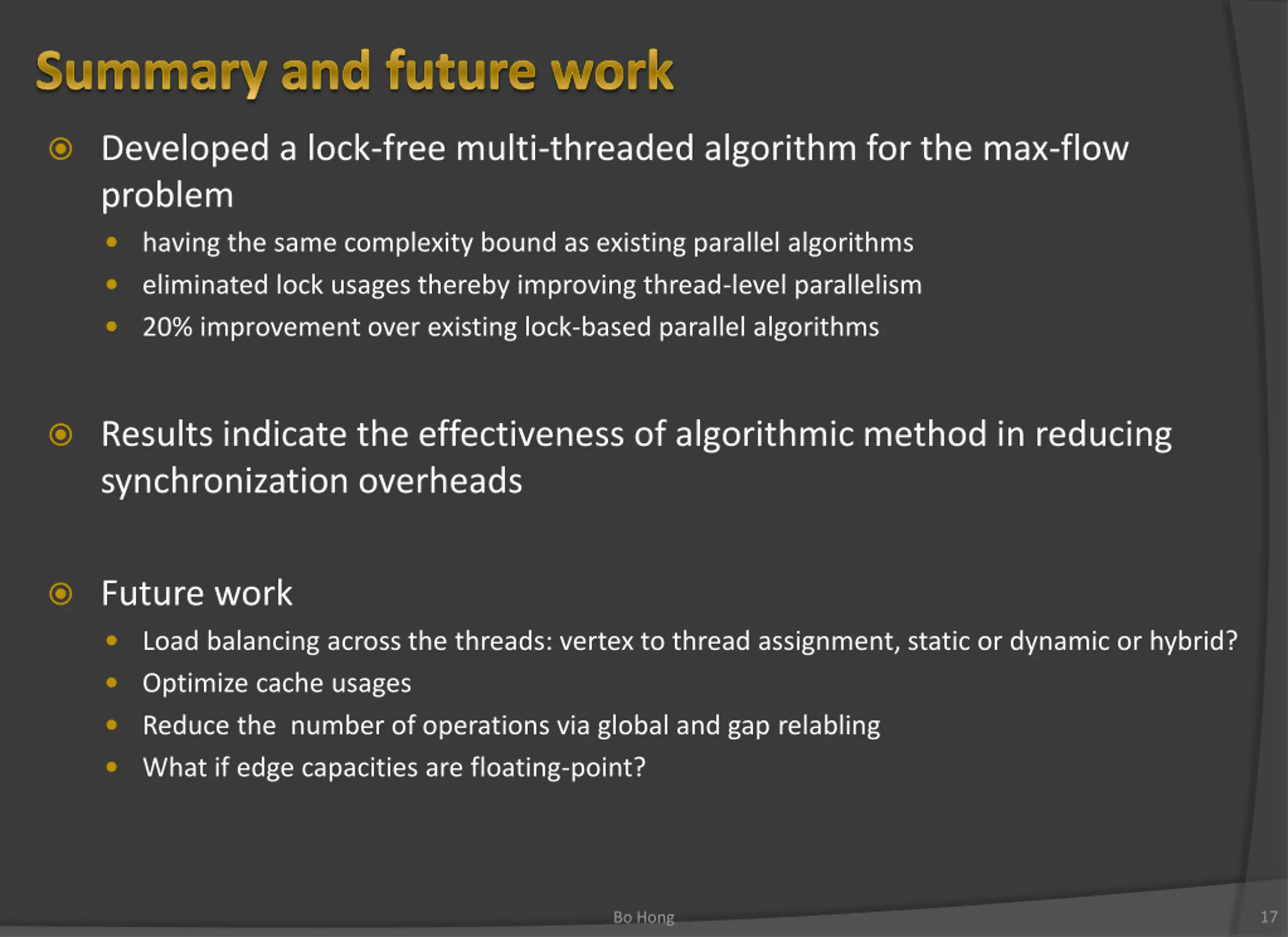

Summary and future work Developed a lock-free multi-threaded algorithm for the max-flow problem having the same complexity bound as existing parallel algorithms eliminated lock usages thereby improving thread-level parallelism 20% improvement over existing lock-based parallel algorithms Results indicate the effectiveness of algorithmic method in reducing synchronization overheads Future work Load balancing across the threads: vertex to thread assignment, static or dynamic or hybrid? Optimize cache usages Reduce the number of operations via global and gap relabling What if edge capacities are floating-point? 17 Bo Hong
