Machine Learning Approach for Thread Mapping in Transactional Memory Applications

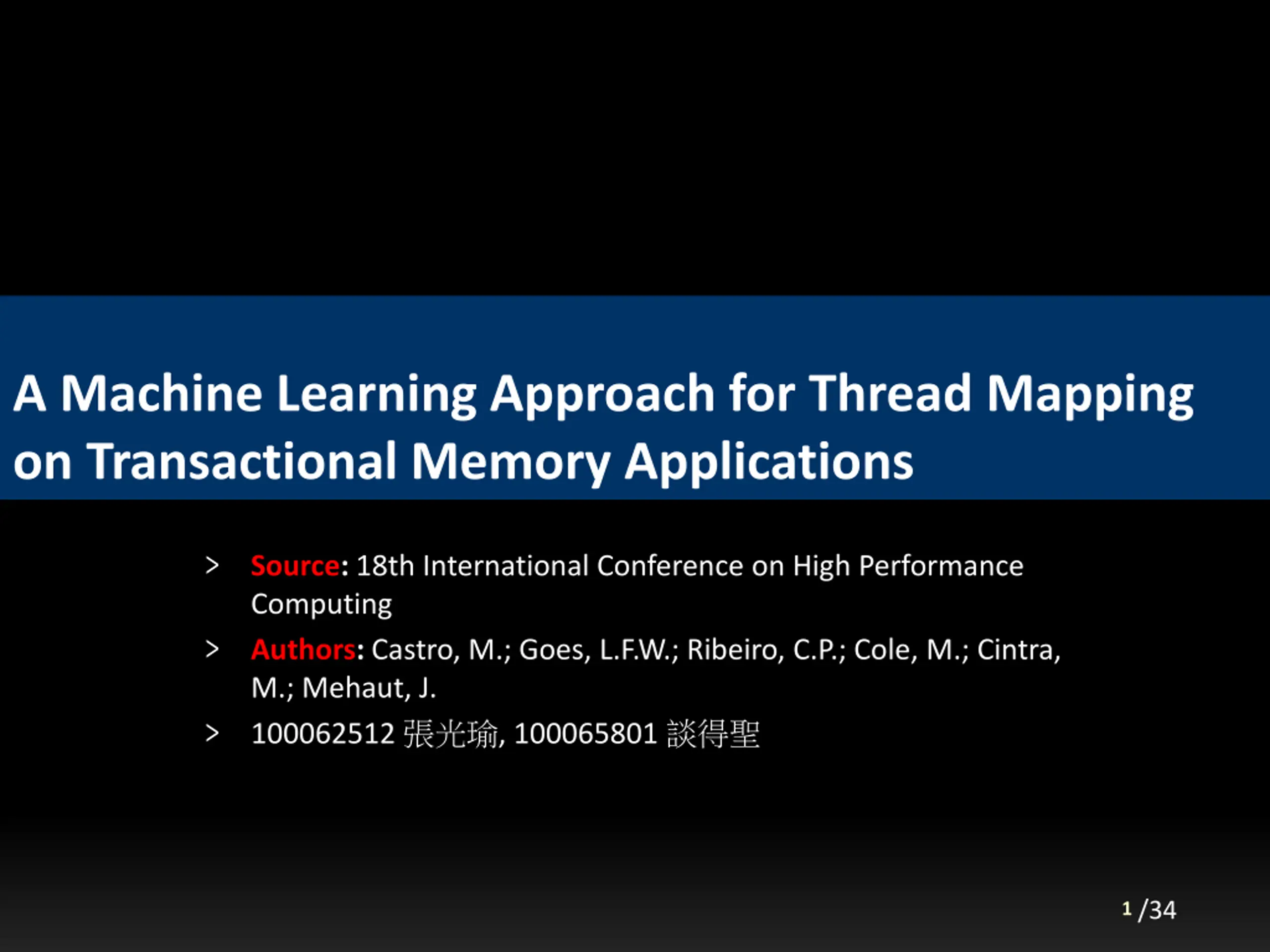

A Machine Learning Approach for Thread Mapping on Transactional Memory Applications > Source: 18th International Conference on High Performance Computing Authors: Castro, M.; Goes, L.F.W.; Ribeiro, C.P.; Cole, M.; Cintra, M.; Mehaut, J. > 100062512 , 100065801 > /34 1

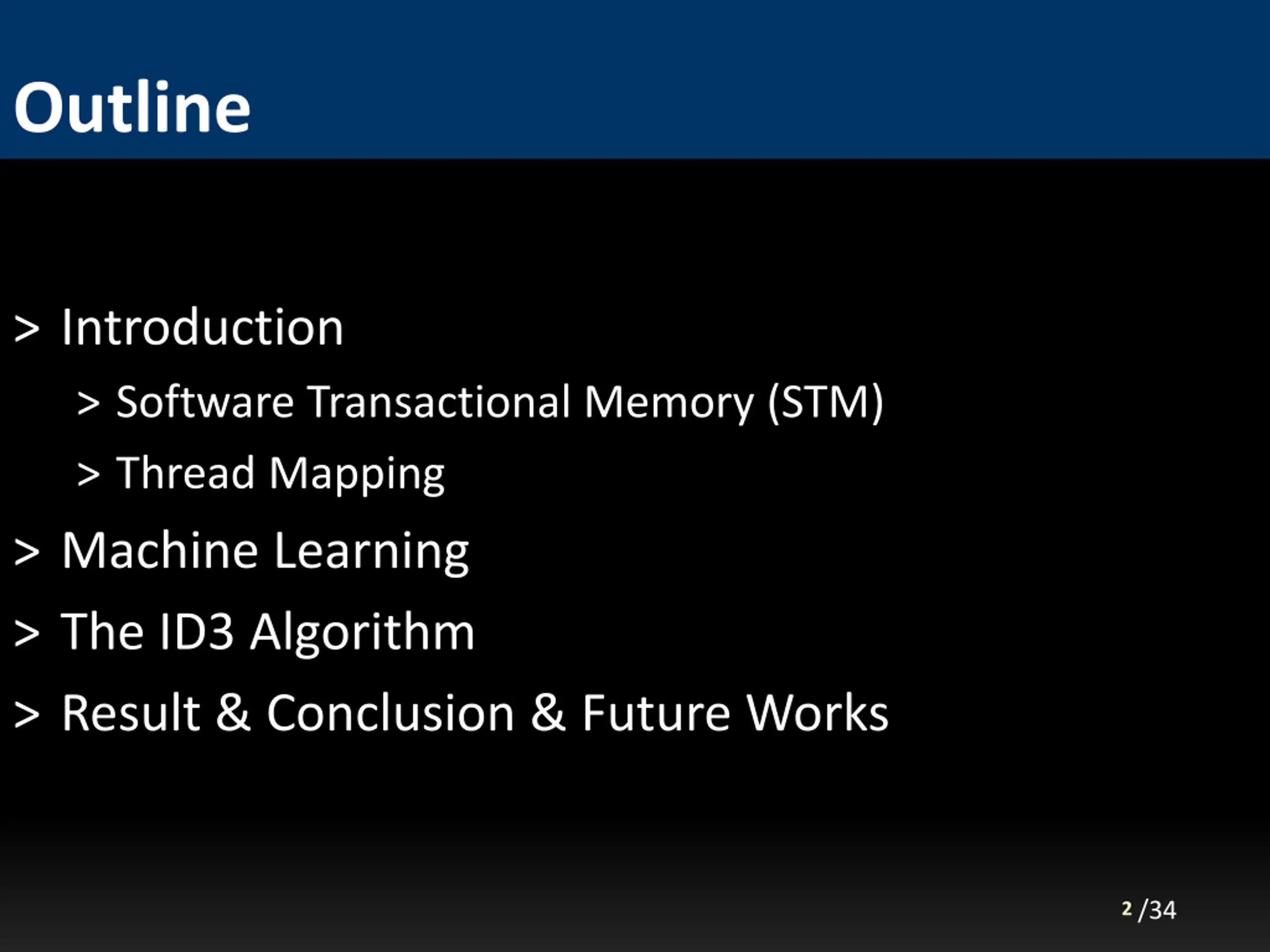

Outline > Introduction > Software Transactional Memory (STM) > Thread Mapping > Machine Learning > The ID3 Algorithm > Result & Conclusion & Future Works /34 2

Part 1 Introduction /34 3

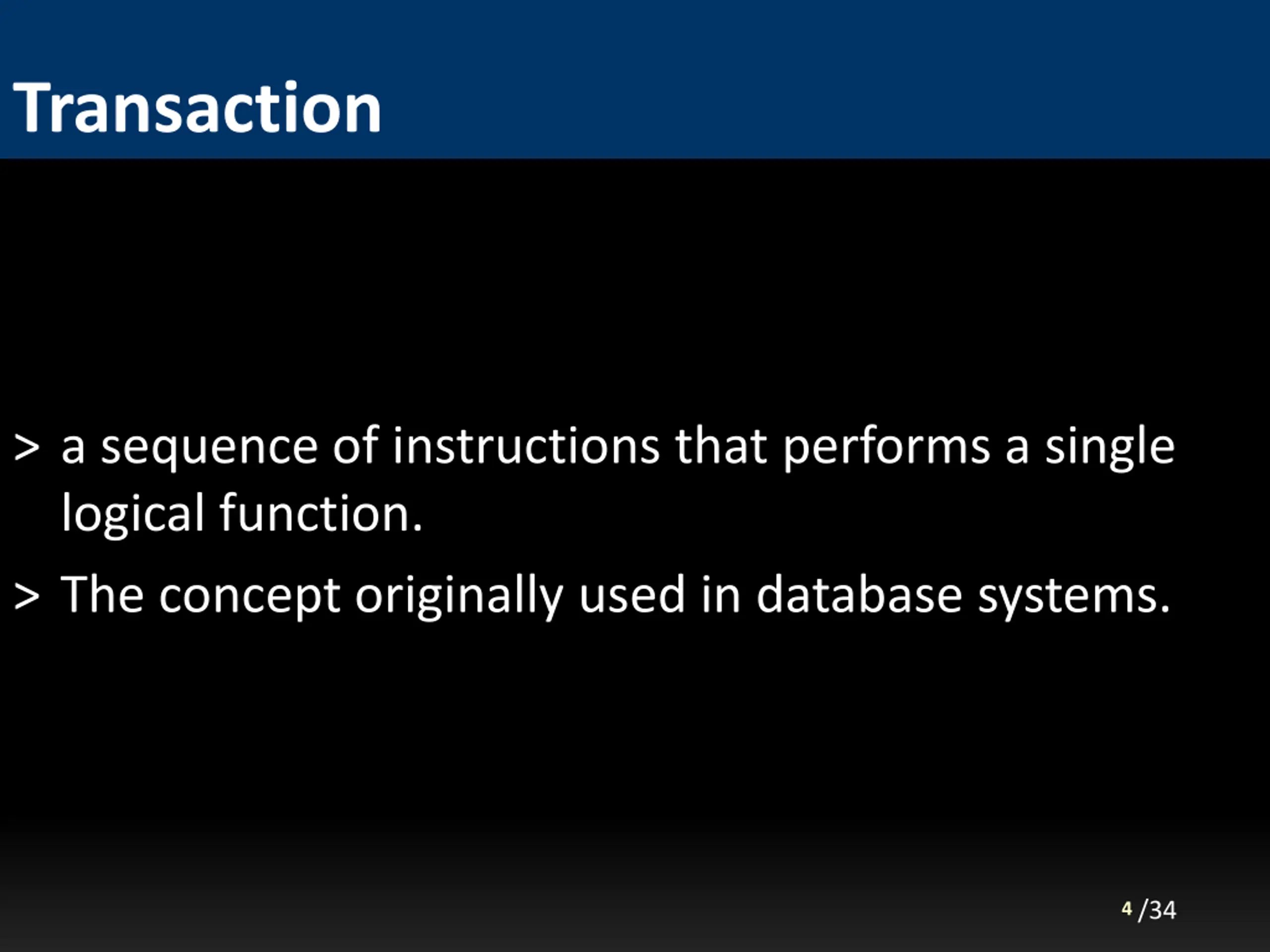

Transaction > a sequence of instructions that performs a single logical function. > The concept originally used in database systems. /34 4

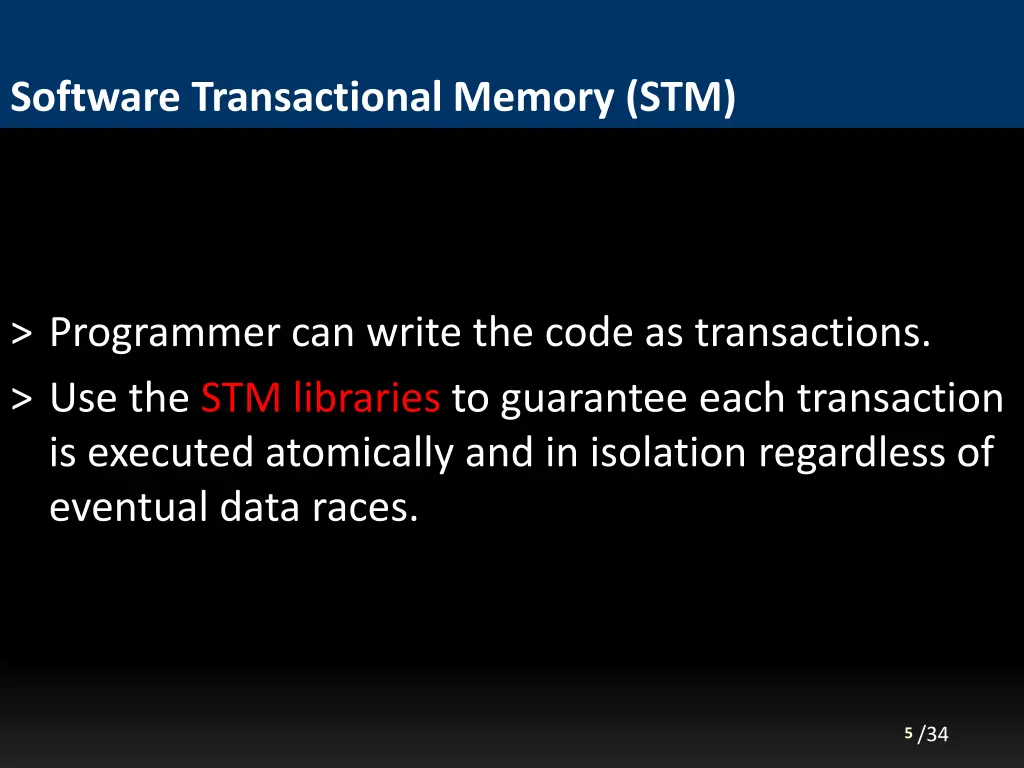

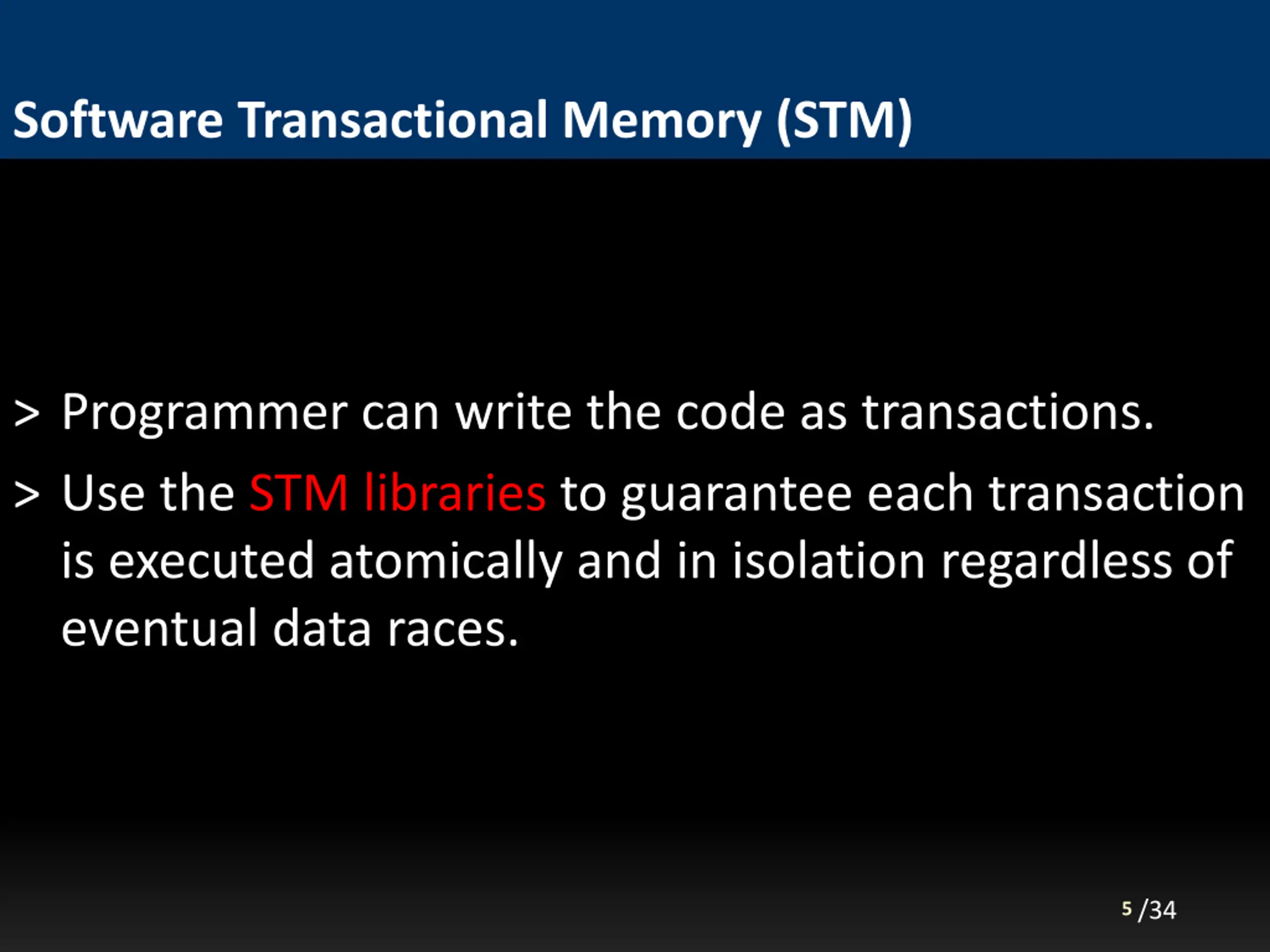

Software Transactional Memory (STM) > Programmer can write the code as transactions. > Use the STM libraries to guarantee each transaction is executed atomically and in isolation regardless of eventual data races. /34 5

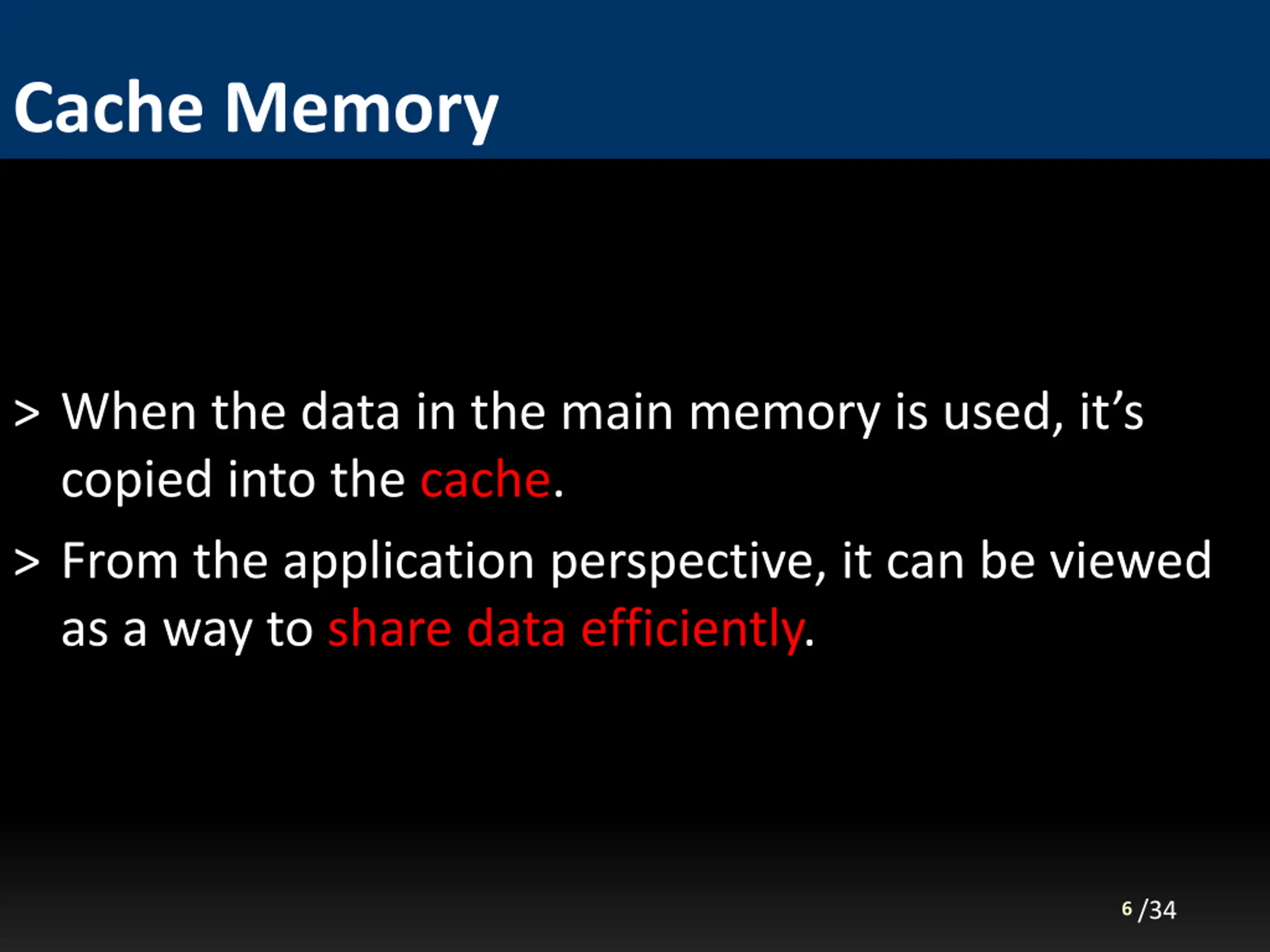

Cache Memory > When the data in the main memory is used, it s copied into the cache. > From the application perspective, it can be viewed as a way to share data efficiently. /34 6

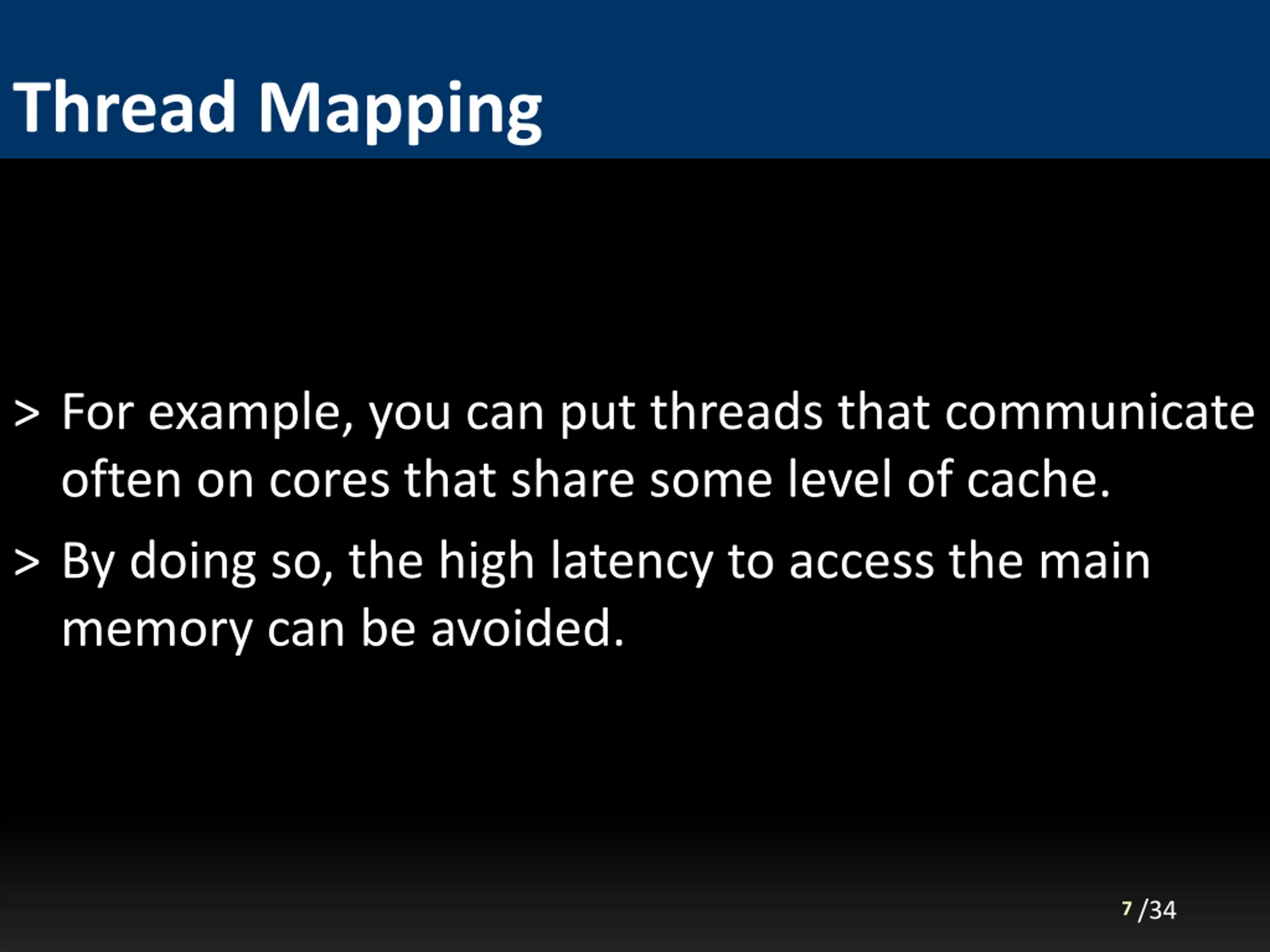

Thread Mapping > For example, you can put threads that communicate often on cores that share some level of cache. > By doing so, the high latency to access the main memory can be avoided. /34 7

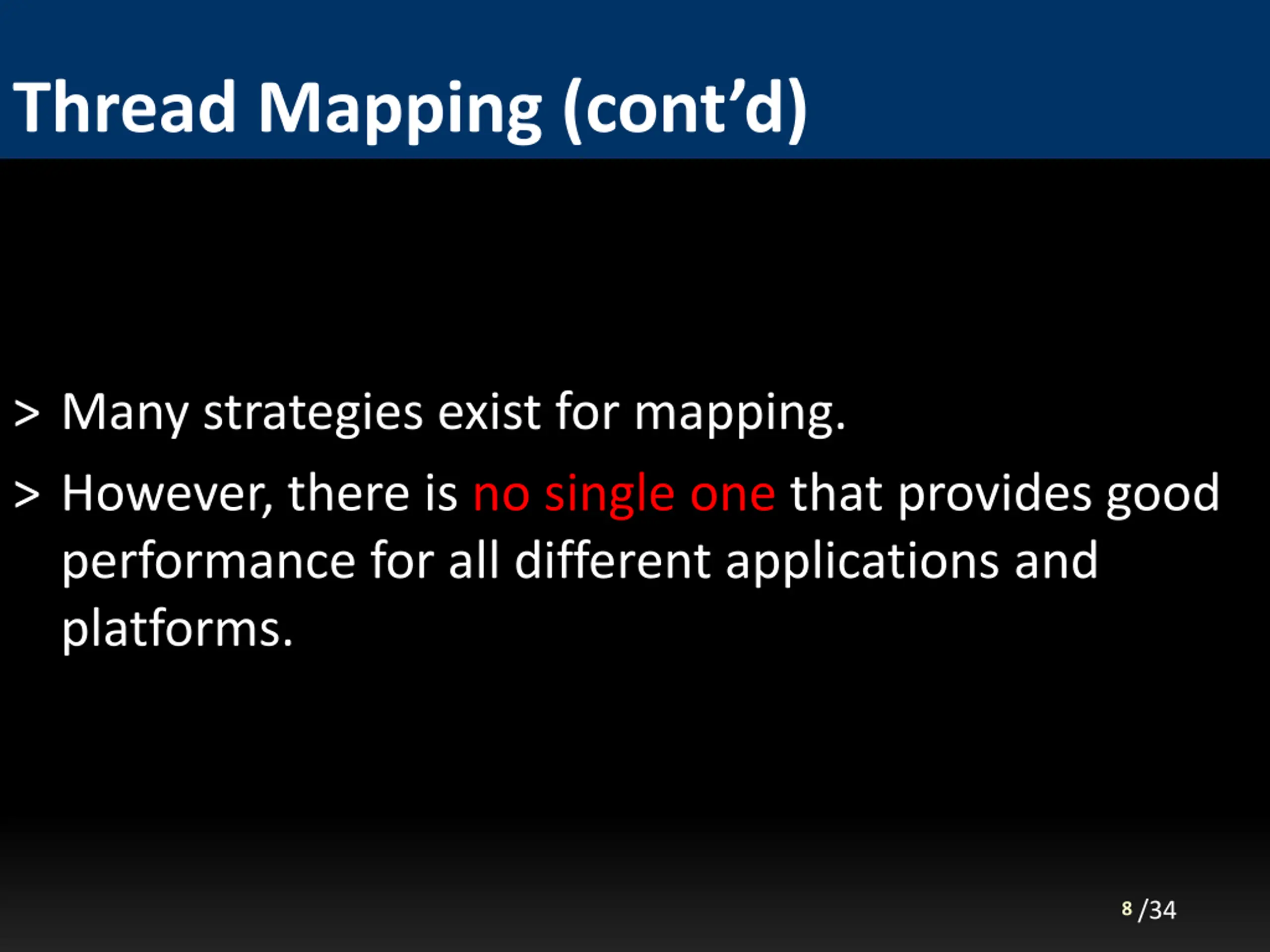

Thread Mapping (contd) > Many strategies exist for mapping. > However, there is no single one that provides good performance for all different applications and platforms. /34 8

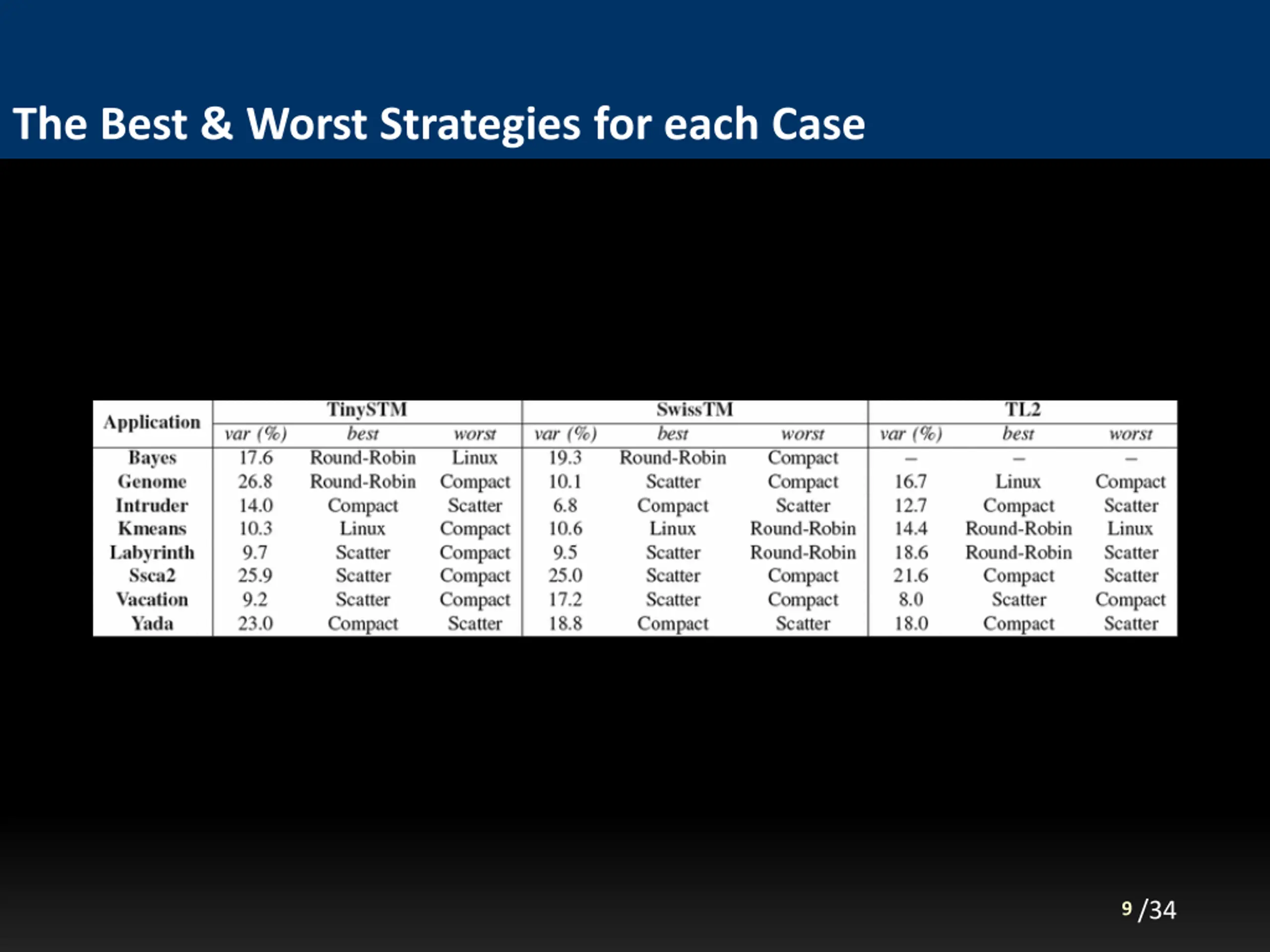

The Best & Worst Strategies for each Case /34 9

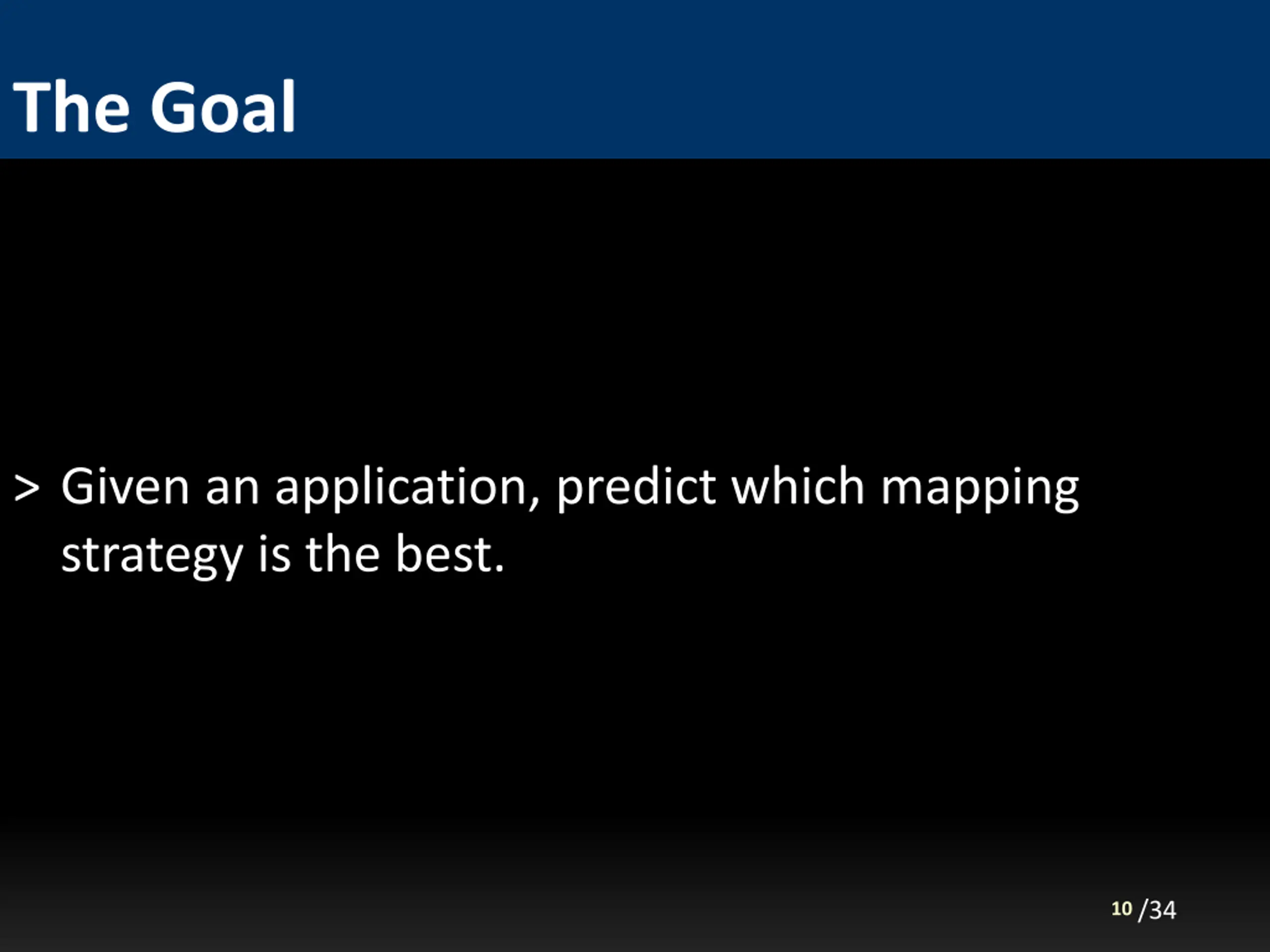

The Goal > Given an application, predict which mapping strategy is the best. /34 10

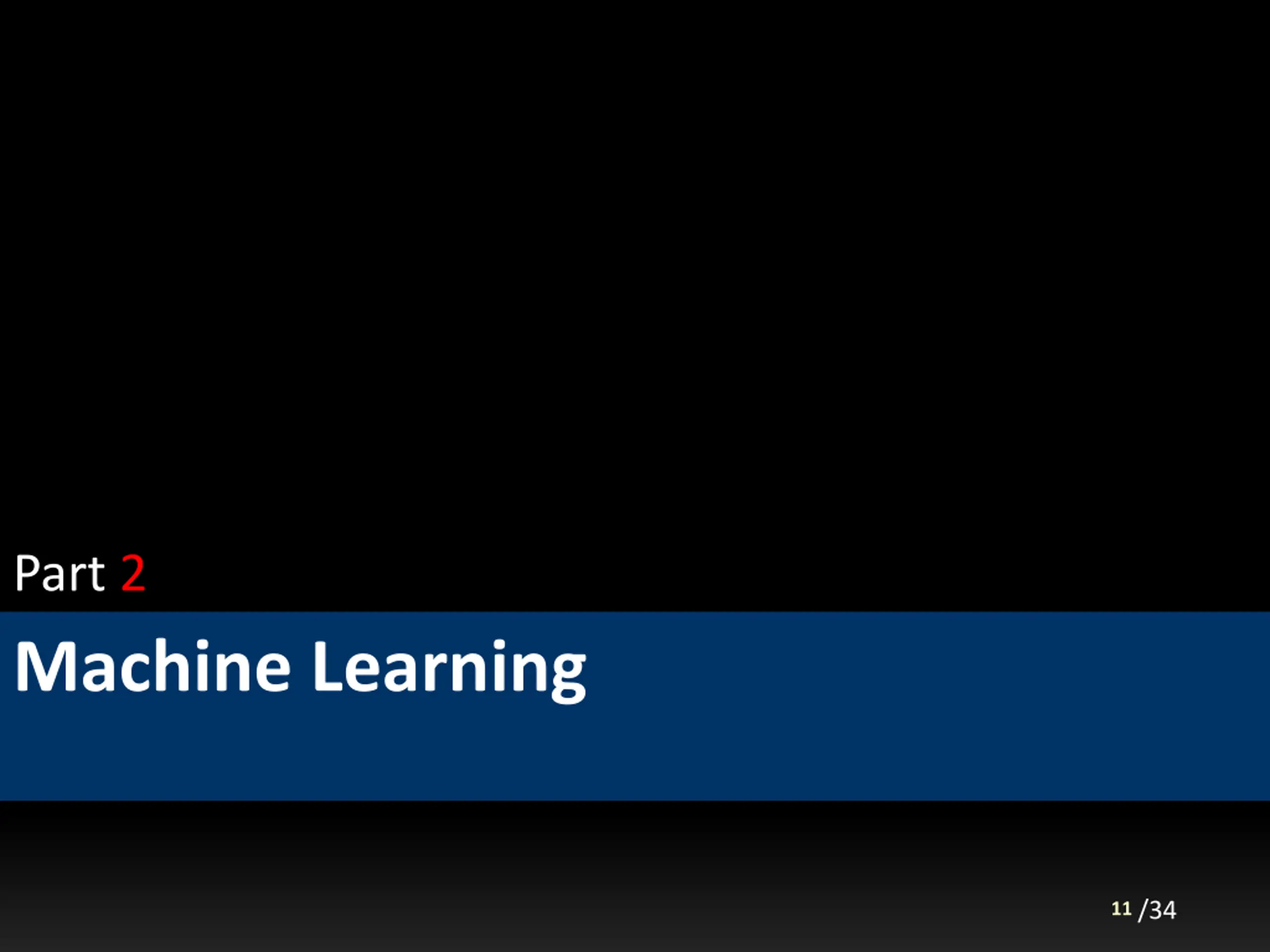

Part 2 Machine Learning /34 11

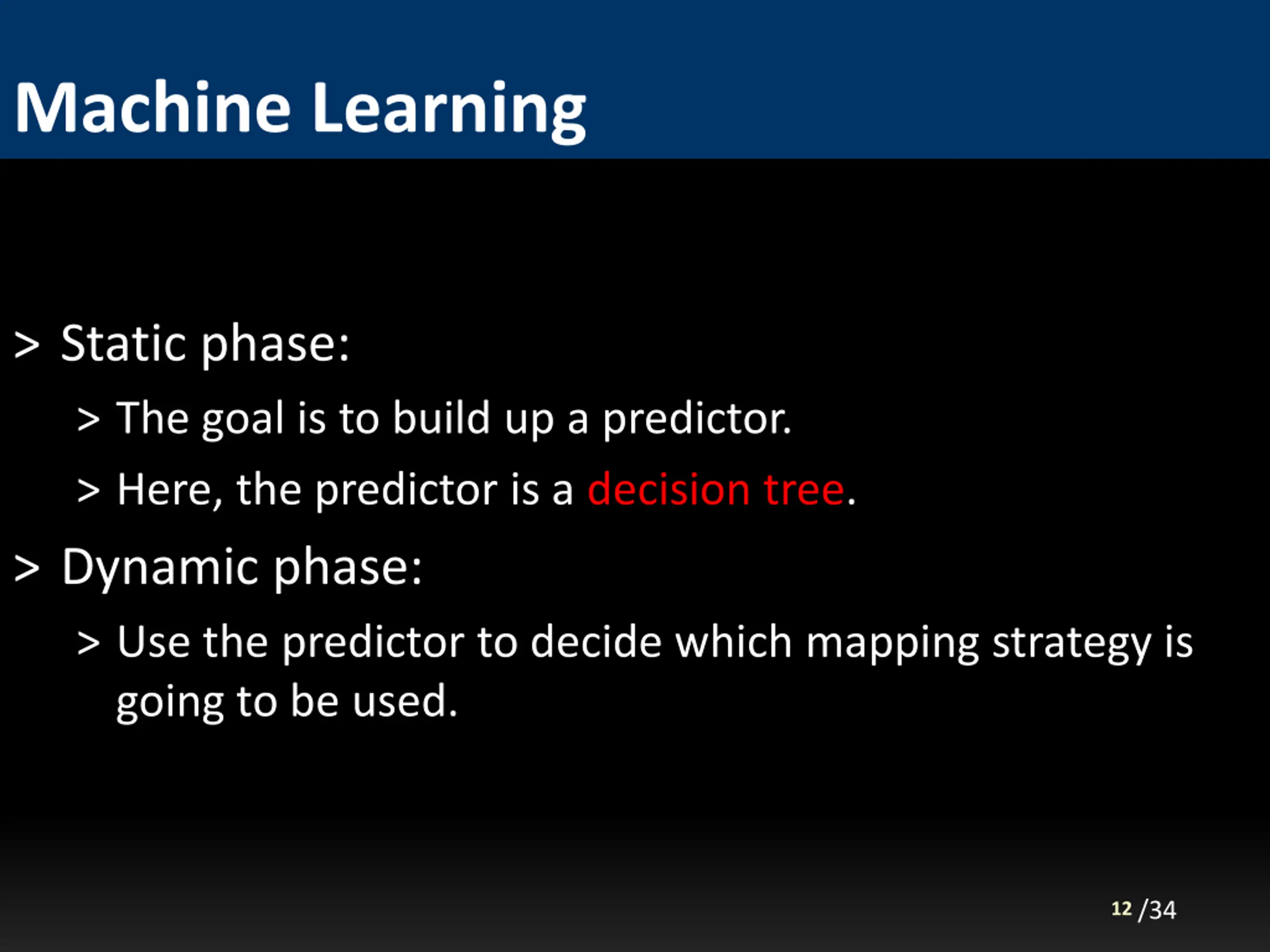

Machine Learning > Static phase: > The goal is to build up a predictor. > Here, the predictor is a decision tree. > Dynamic phase: > Use the predictor to decide which mapping strategy is going to be used. /34 12

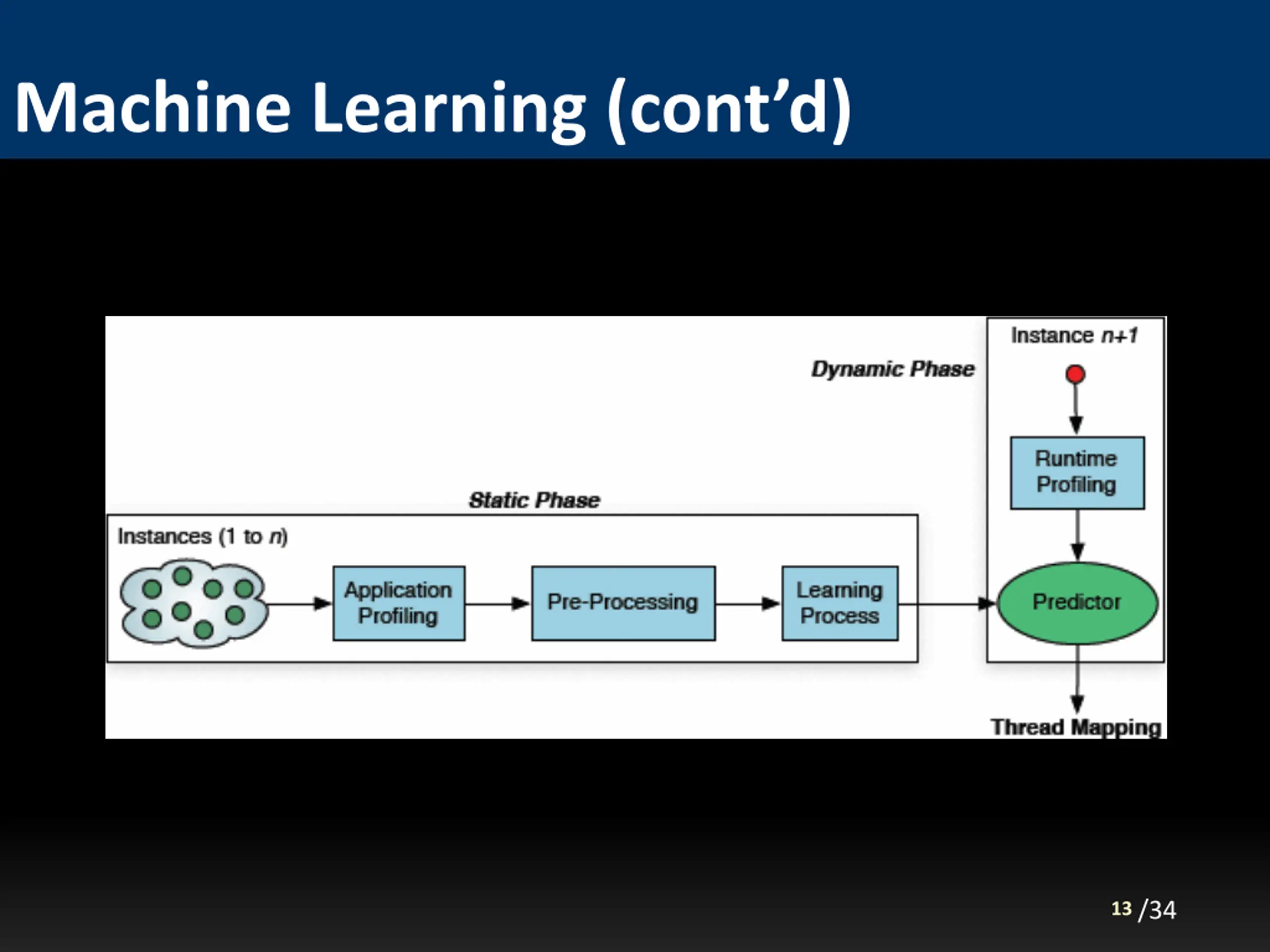

Machine Learning (contd) /34 13

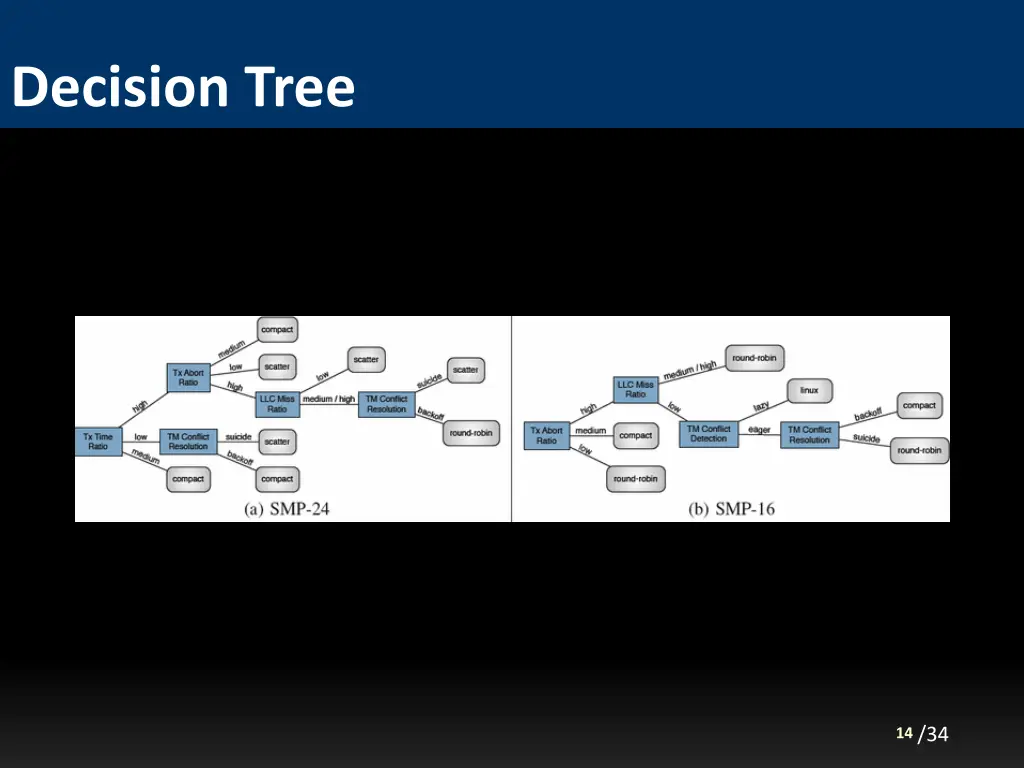

Decision Tree /34 14

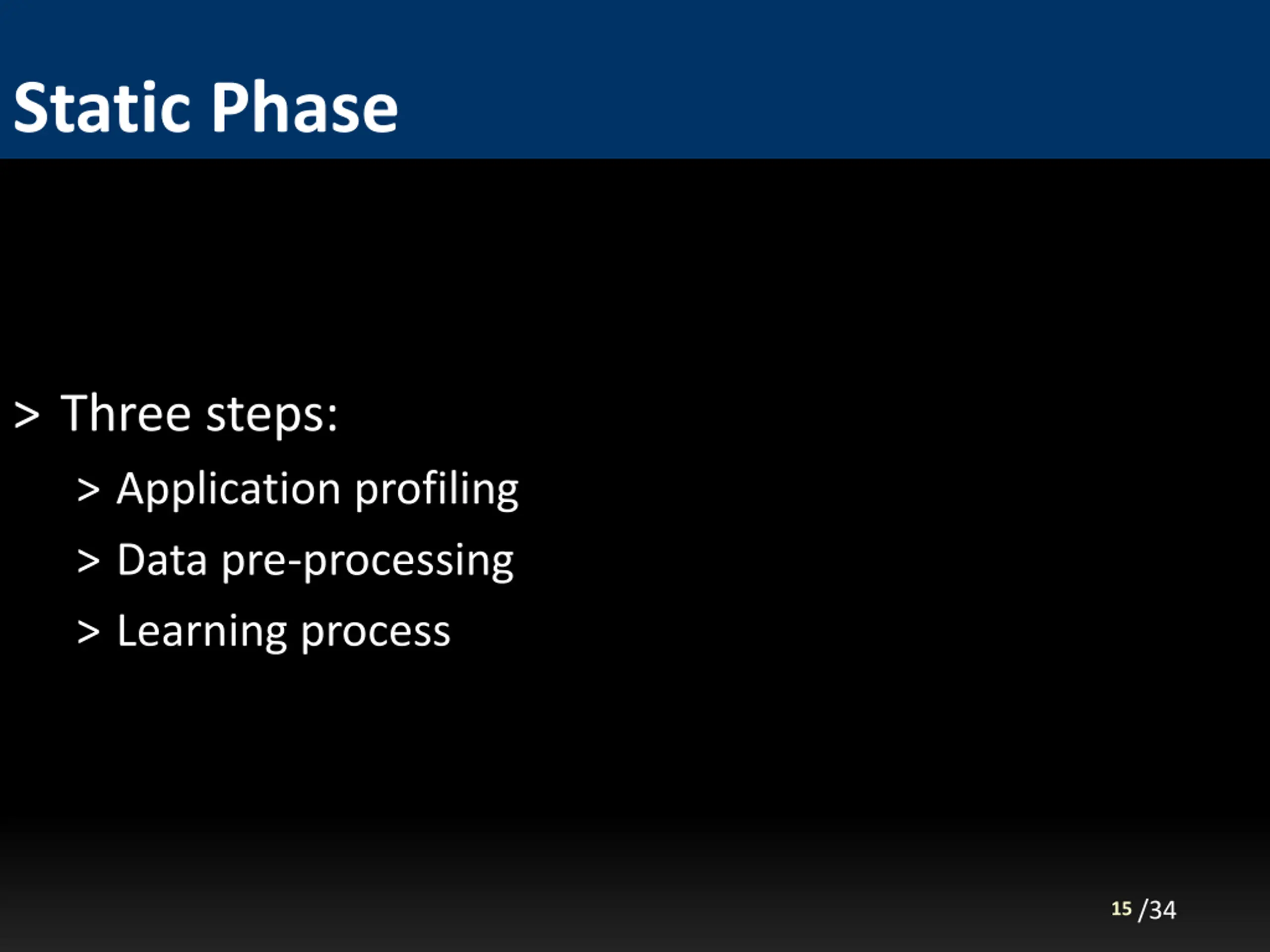

Static Phase > Three steps: > Application profiling > Data pre-processing > Learning process /34 15

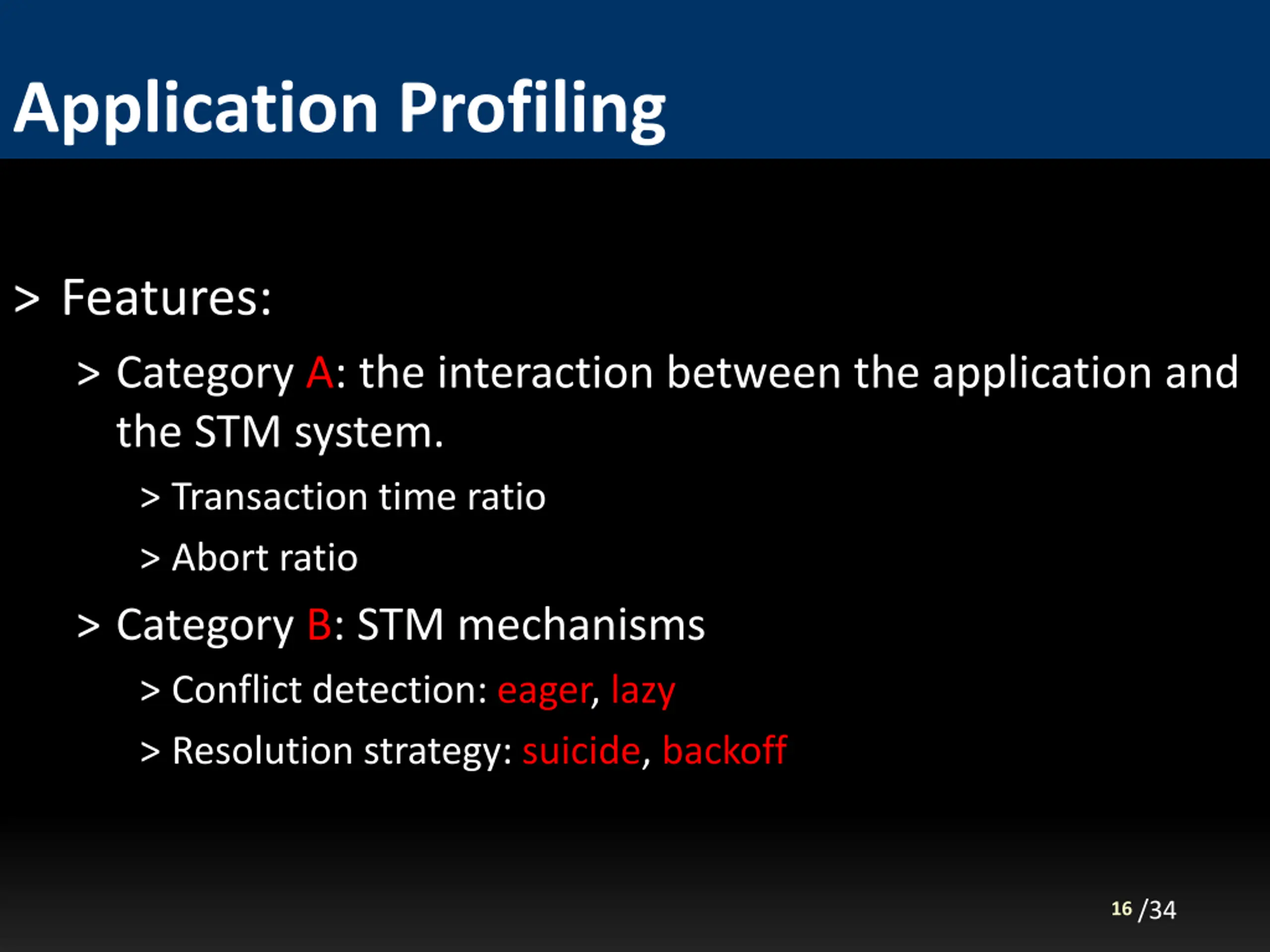

Application Profiling > Features: > Category A: the interaction between the application and the STM system. > Transaction time ratio > Abort ratio > Category B: STM mechanisms > Conflict detection: eager, lazy > Resolution strategy: suicide, backoff /34 16

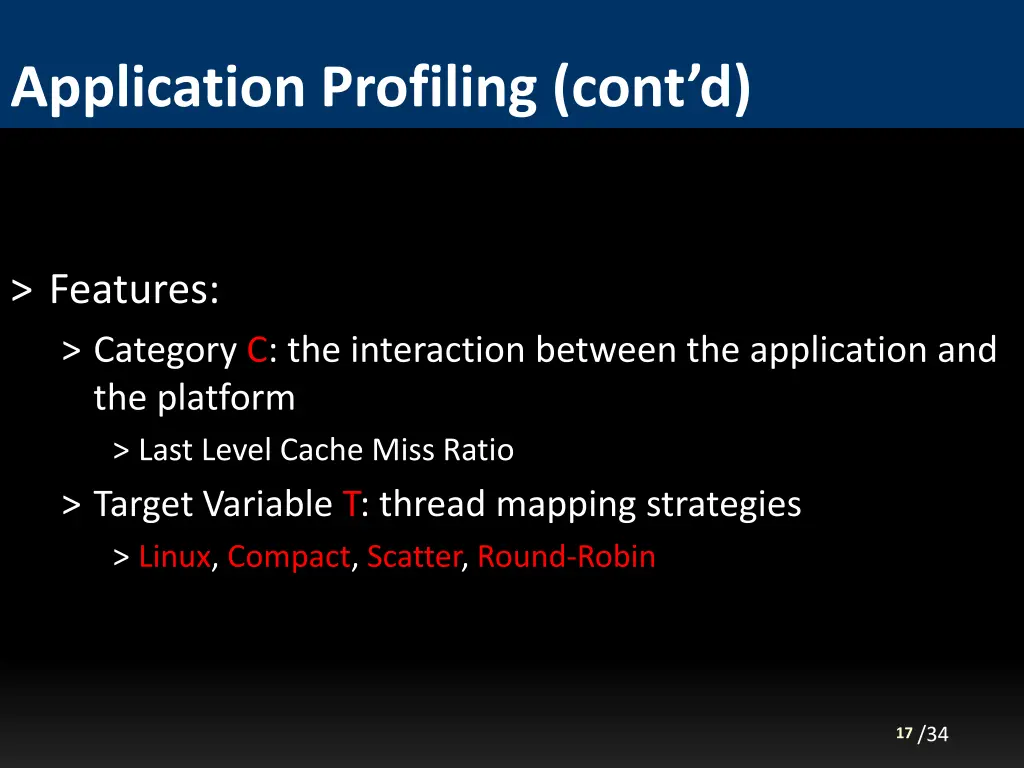

Application Profiling (contd) > Features: > Category C: the interaction between the application and the platform > Last Level Cache Miss Ratio > Target Variable T: thread mapping strategies > Linux, Compact, Scatter, Round-Robin /34 17

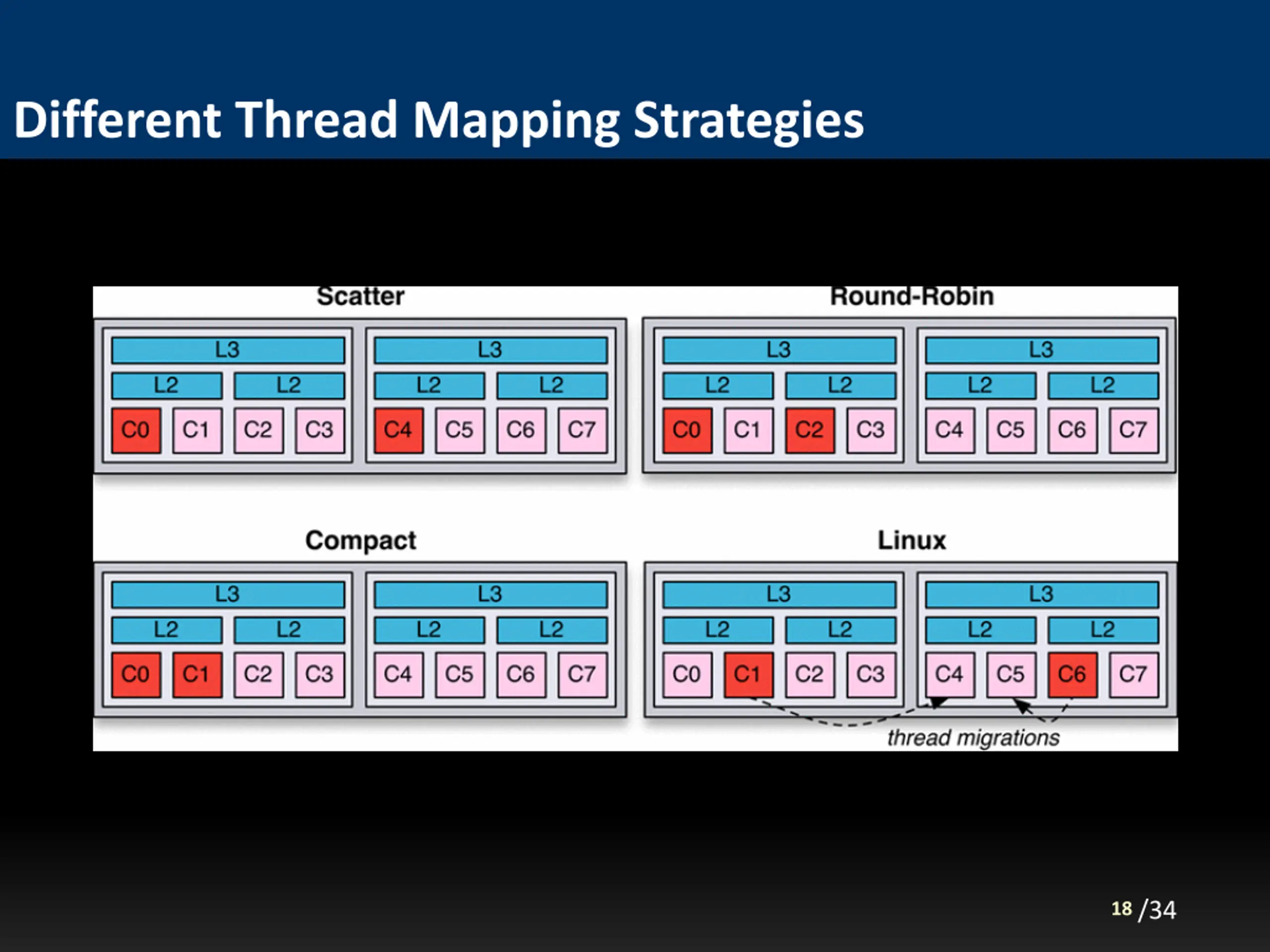

Different Thread Mapping Strategies /34 18

Data Pre-Processing > Since we are building a decision tree, the features must be categorical or discrete. > Features in categories A & C are converted into: > Low (0.0; 0.33) > Medium (0.33; 0.66) > High (0.66l 1.0) /34 19

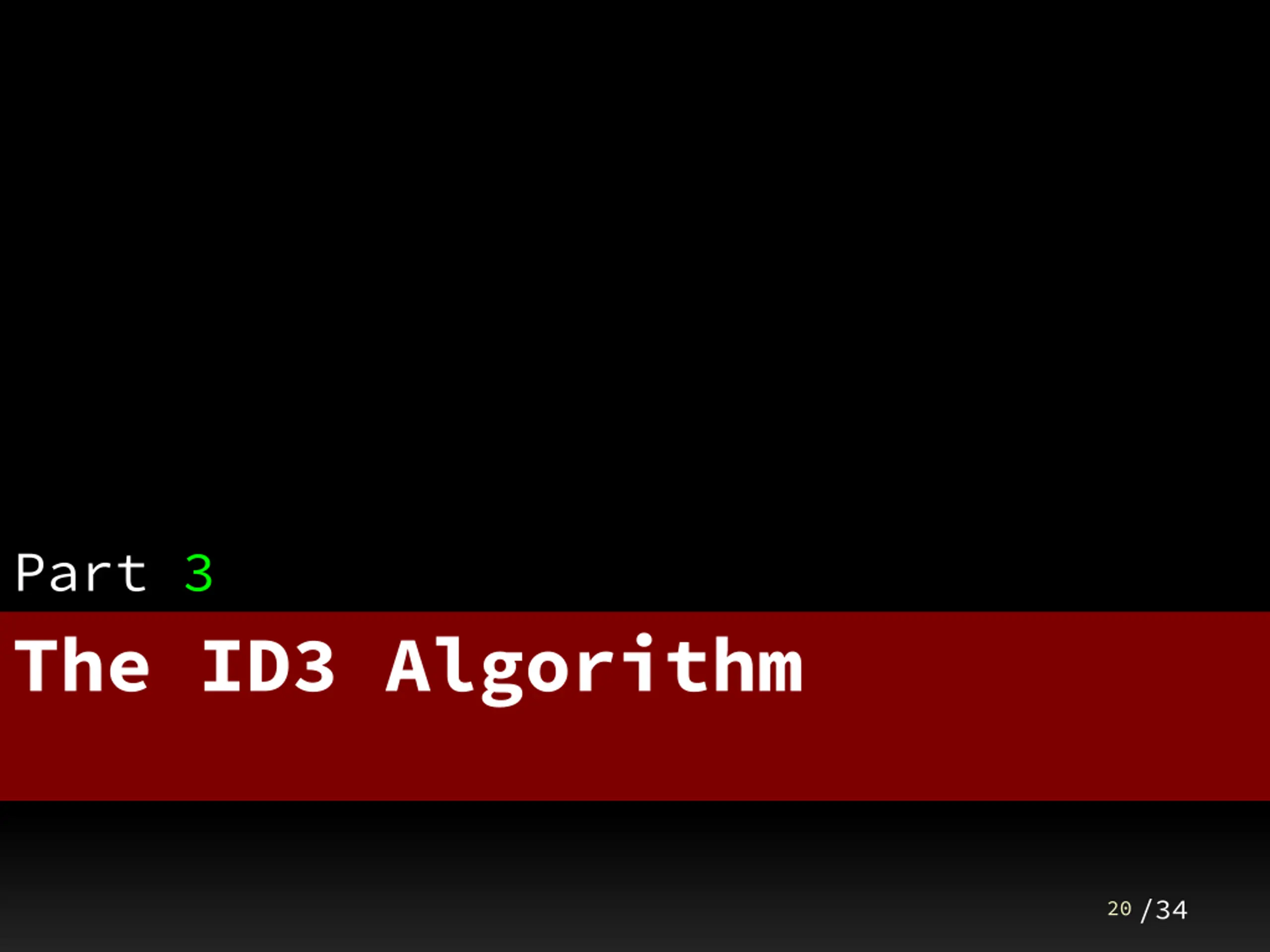

Part 3 The ID3 Algorithm /34 20

Using Game-Based Cooperative Learning to Improve Learning Motivation: A Study of Online Game Use in an Operating Systems Course IEEE TRANSACTIONS ON EDUCATION, VOL. 56, NO. 2, MAY 2013 /34 21

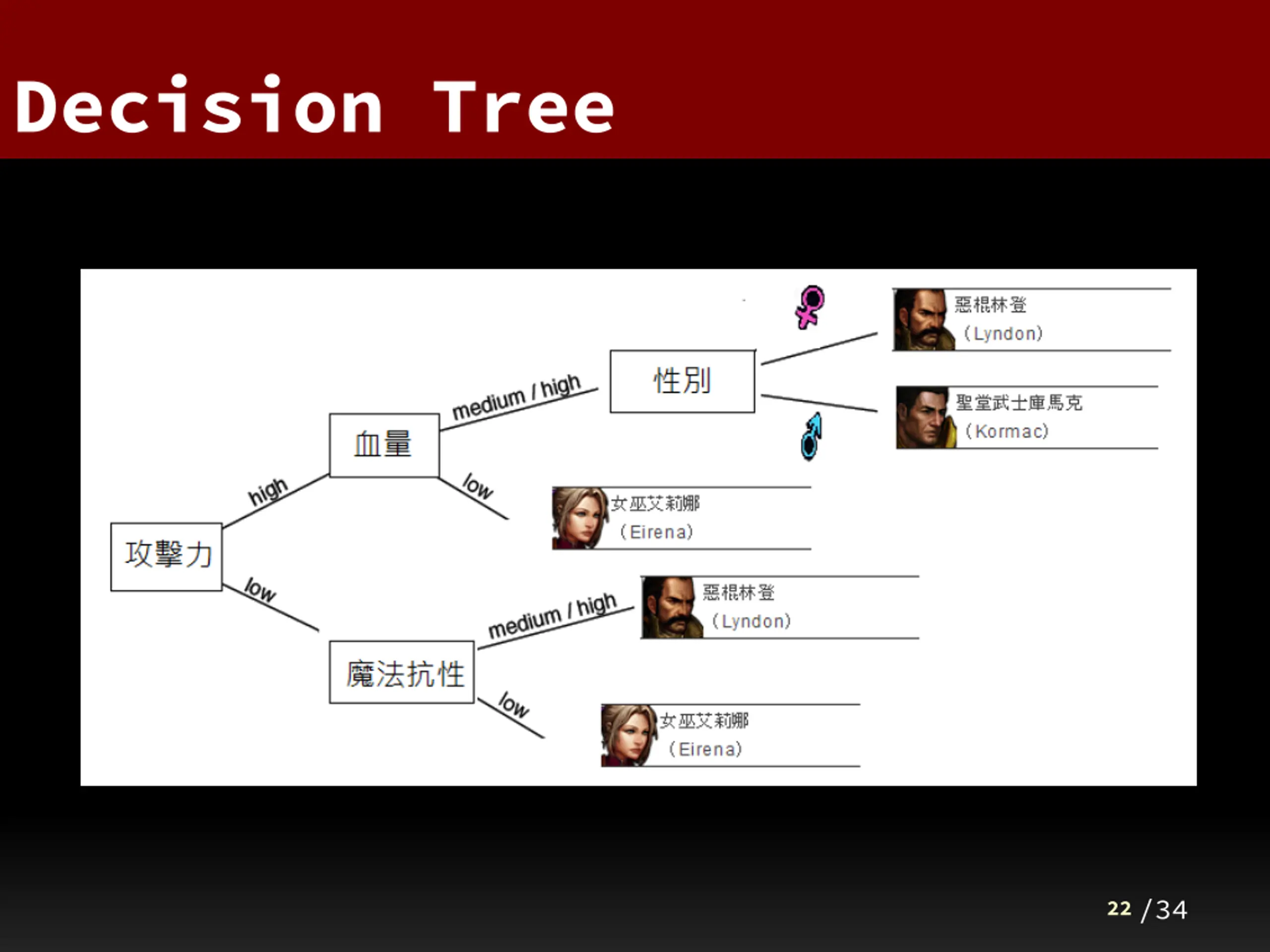

Decision Tree /34 22

ID3 (Iterative Dichotomiser 3) > Quinlan(1979) > Base on Shannon(1949) Information theory /34 23

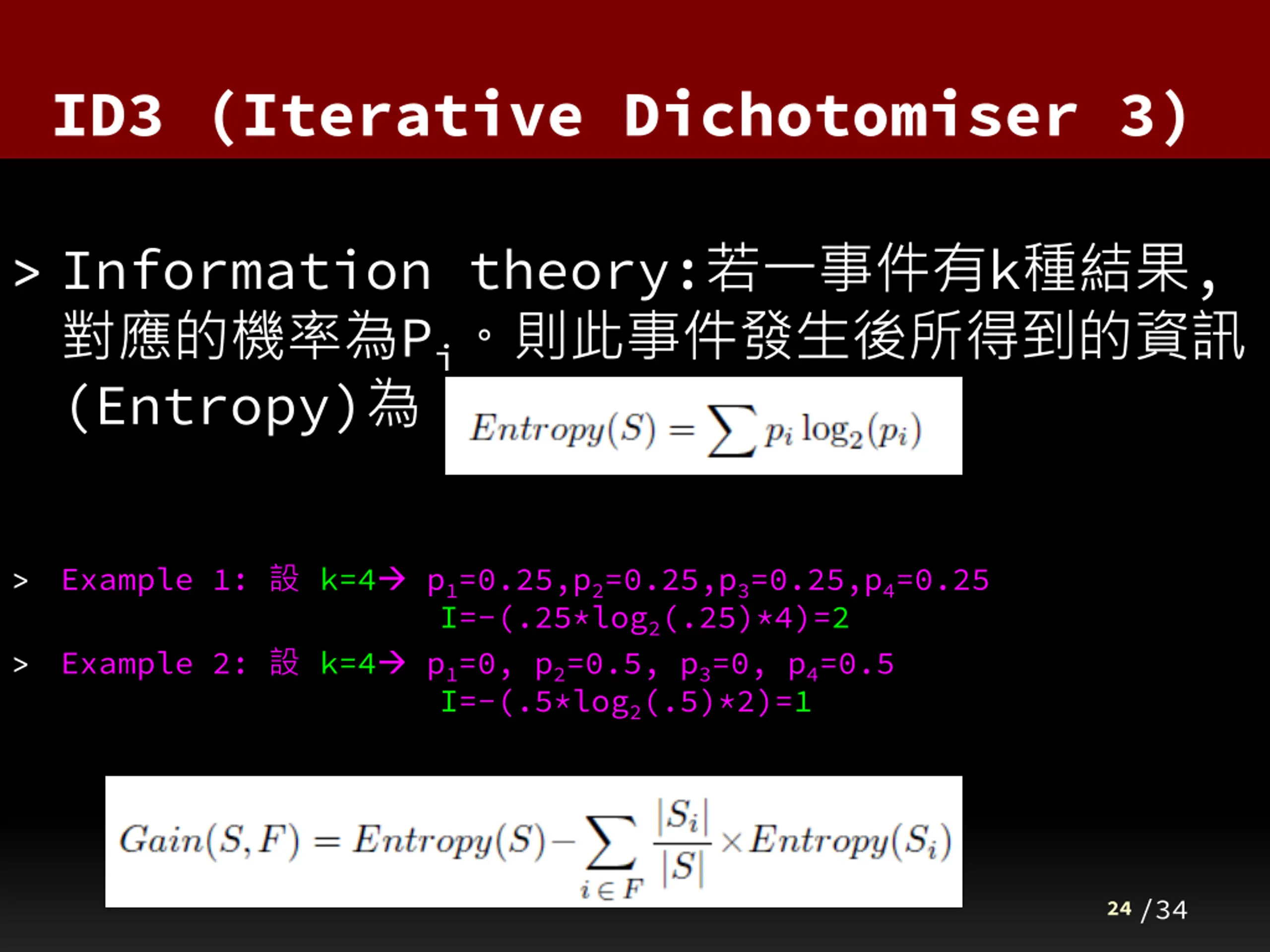

ID3 (Iterative Dichotomiser 3) > Information theory: k , Pi (Entropy) Example 1: k=4 p1=0.25,p2=0.25,p3=0.25,p4=0.25 I=-(.25*log2(.25)*4)=2 Example 2: k=4 p1=0, p2=0.5, p3=0, p4=0.5 I=-(.5*log2(.5)*2)=1 > > /34 24

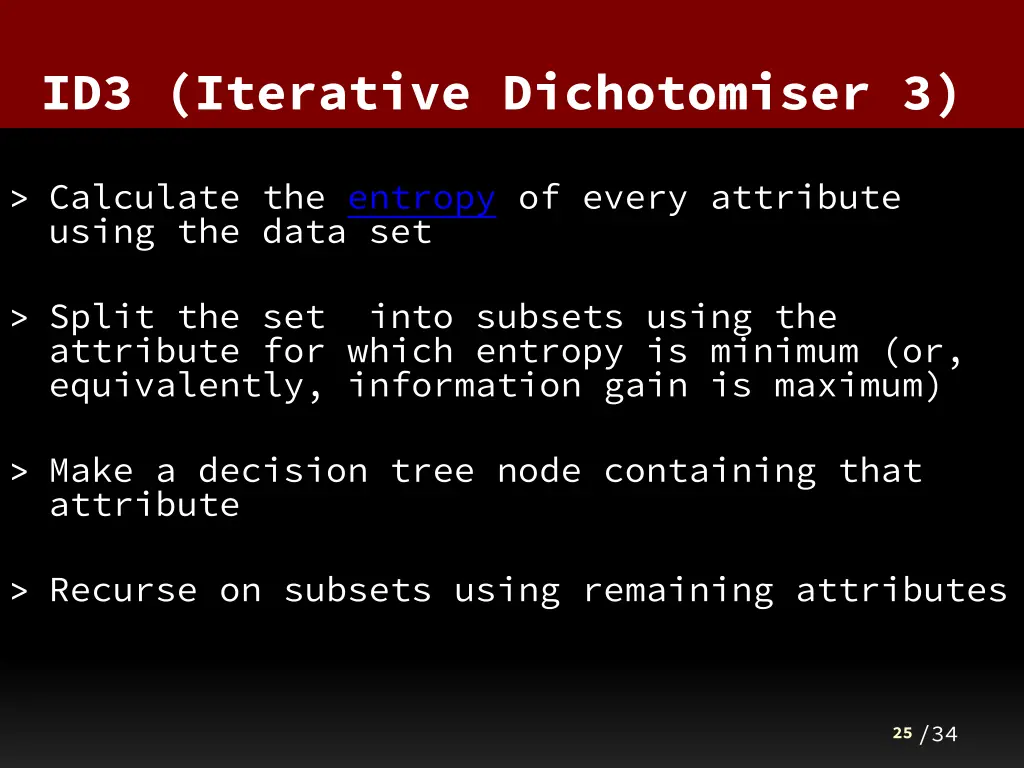

ID3 (Iterative Dichotomiser 3) > Calculate the entropy of every attribute using the data set > Split the set attribute for which entropy is minimum (or, equivalently, information gain is maximum) into subsets using the > Make a decision tree node containing that attribute > Recurse on subsets using remaining attributes /34 25

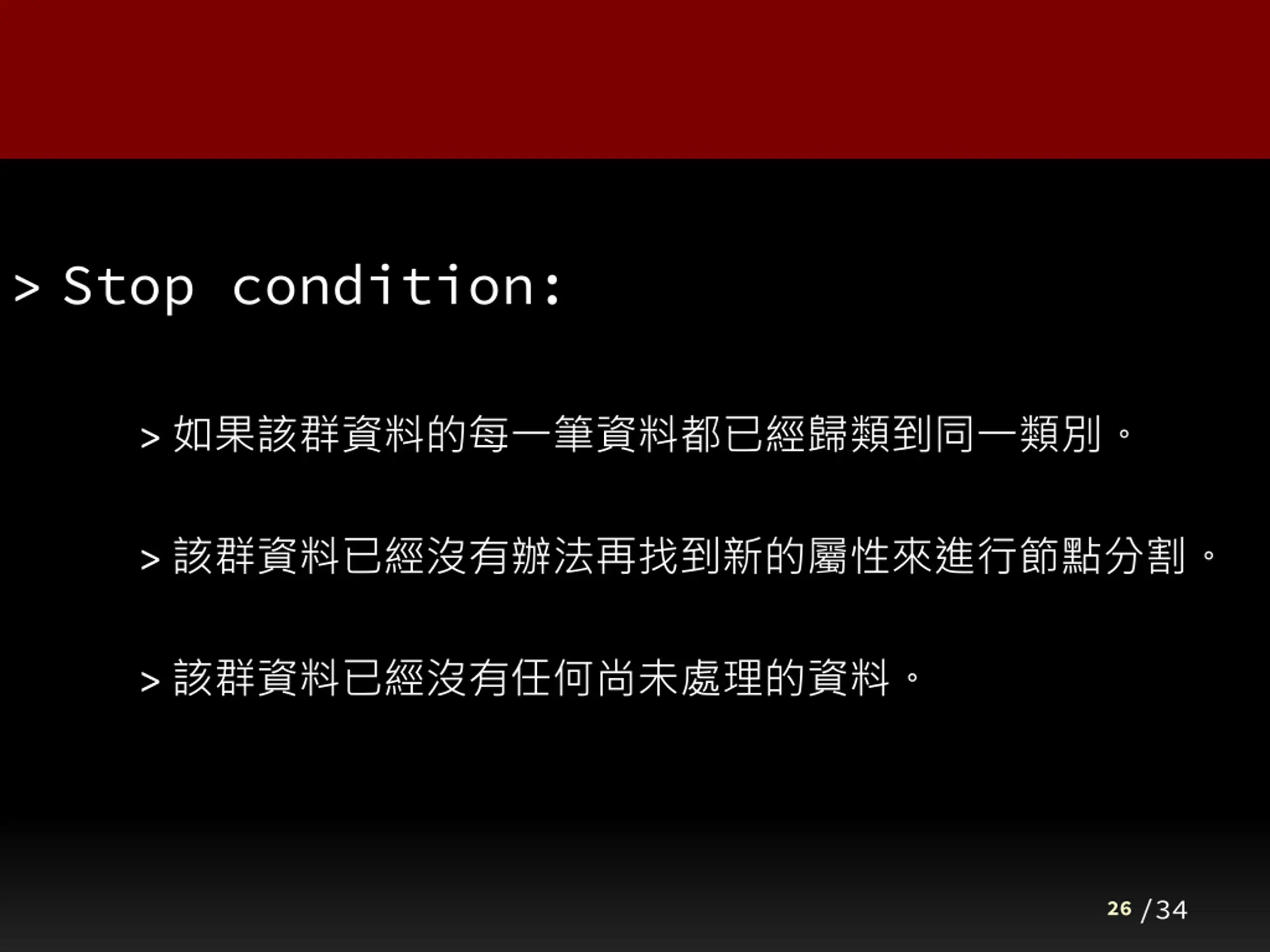

> Stop condition: > > > /34 26

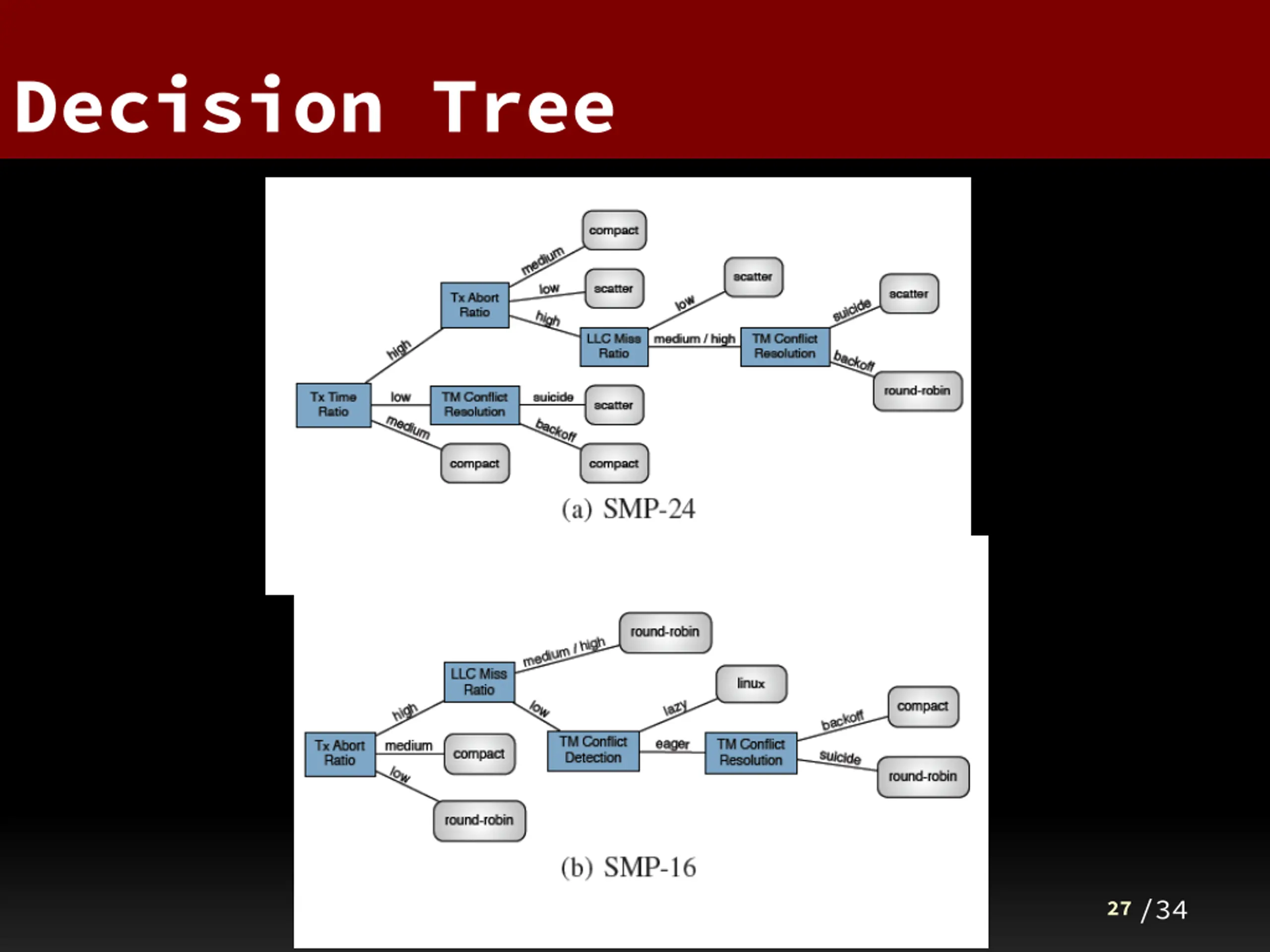

Decision Tree /34 27

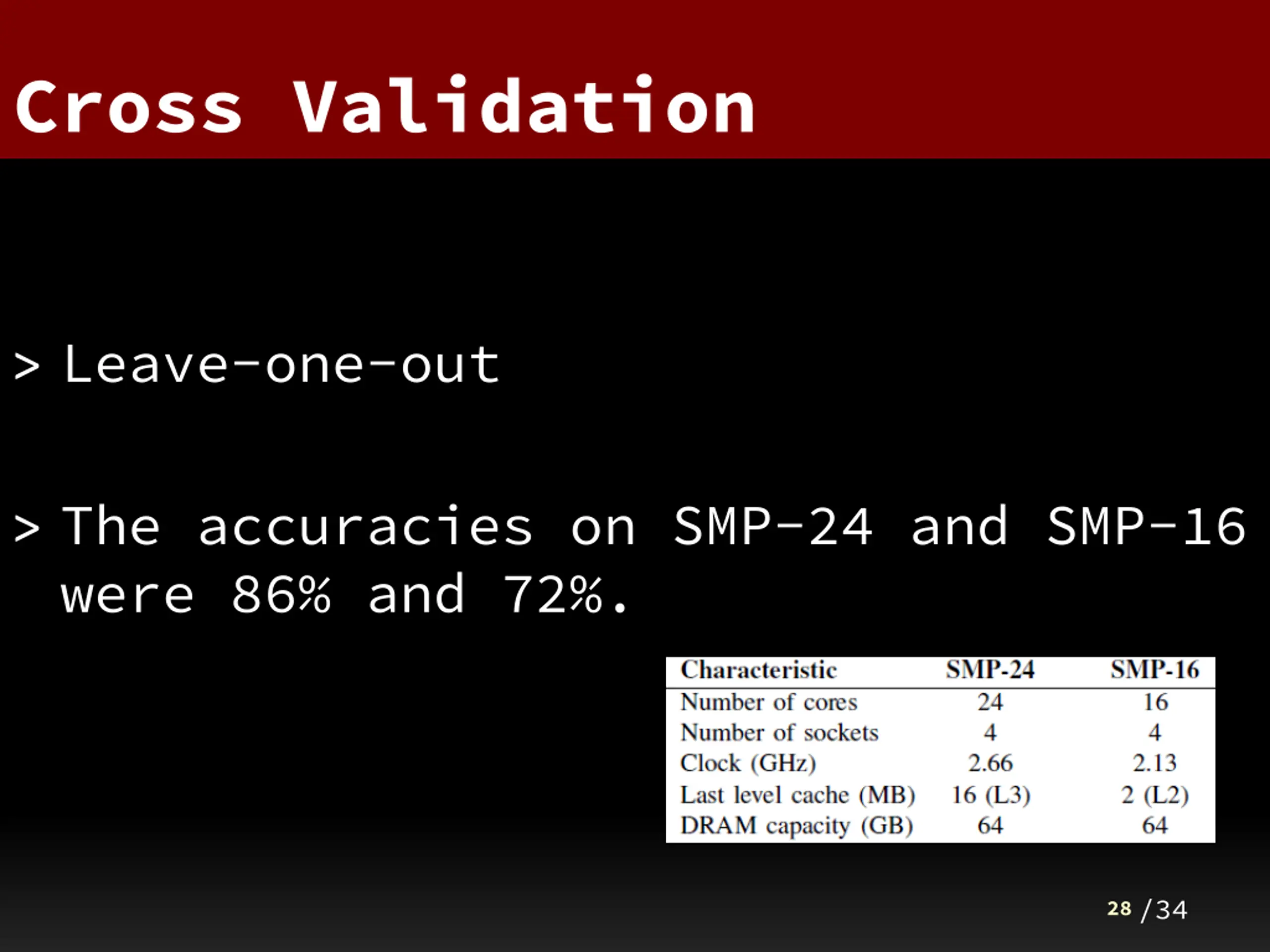

Cross Validation > Leave-one-out > The accuracies on SMP-24 and SMP-16 were 86% and 72%. /34 28

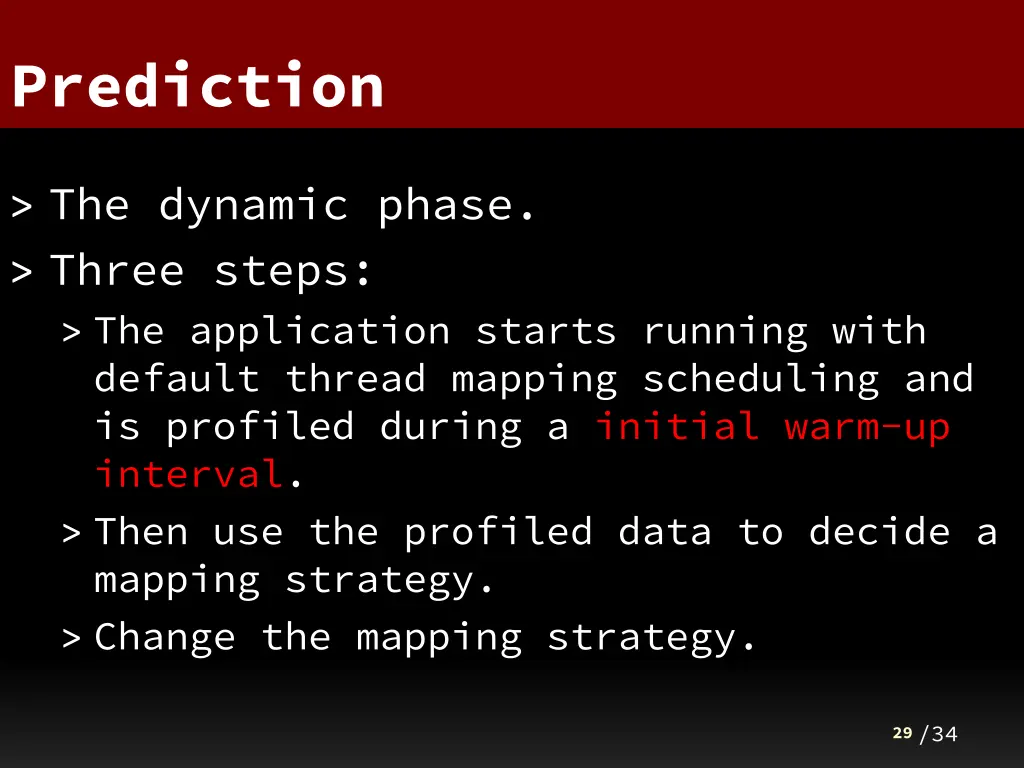

Prediction > The dynamic phase. > Three steps: > The application starts running with default thread mapping scheduling and is profiled during a initial warm-up interval. > Then use the profiled data to decide a mapping strategy. > Change the mapping strategy. /34 29

Part 4 Result & Conclusion & Future Works /34 30

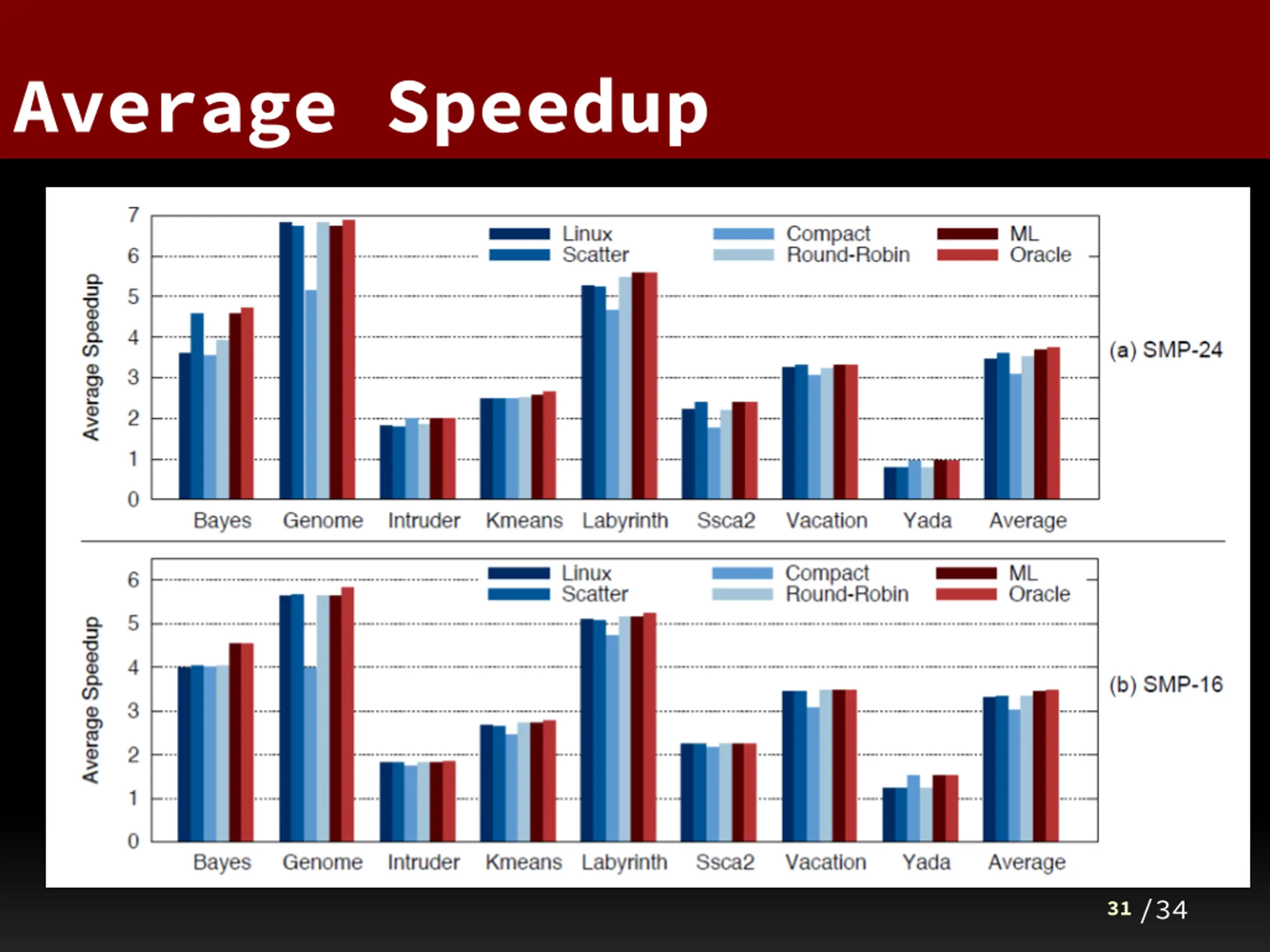

Average Speedup /34 31

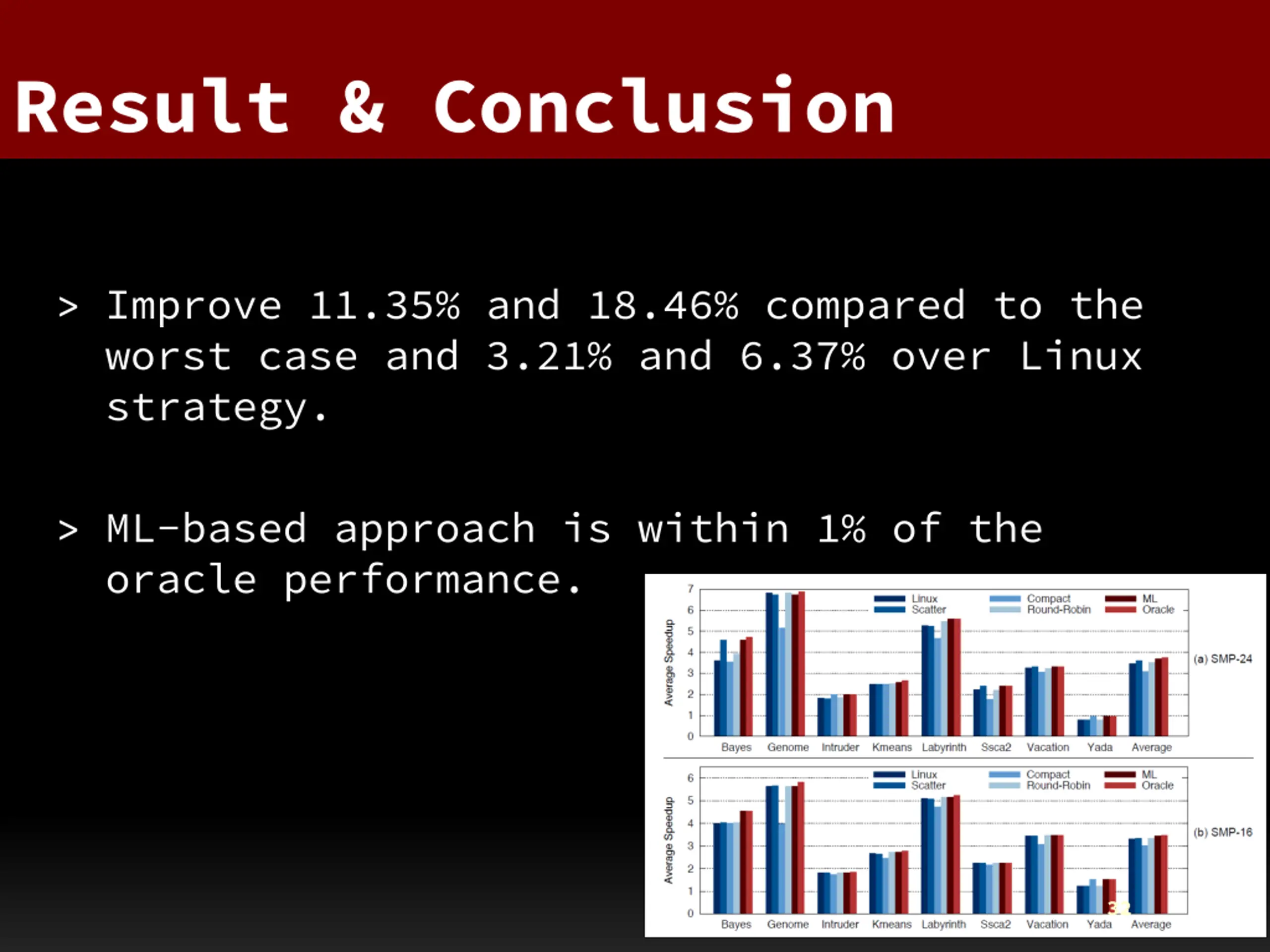

Result & Conclusion > Improve 11.35% and 18.46% compared to the worst case and 3.21% and 6.37% over Linux strategy. > ML-based approach is within 1% of the oracle performance. /34 32

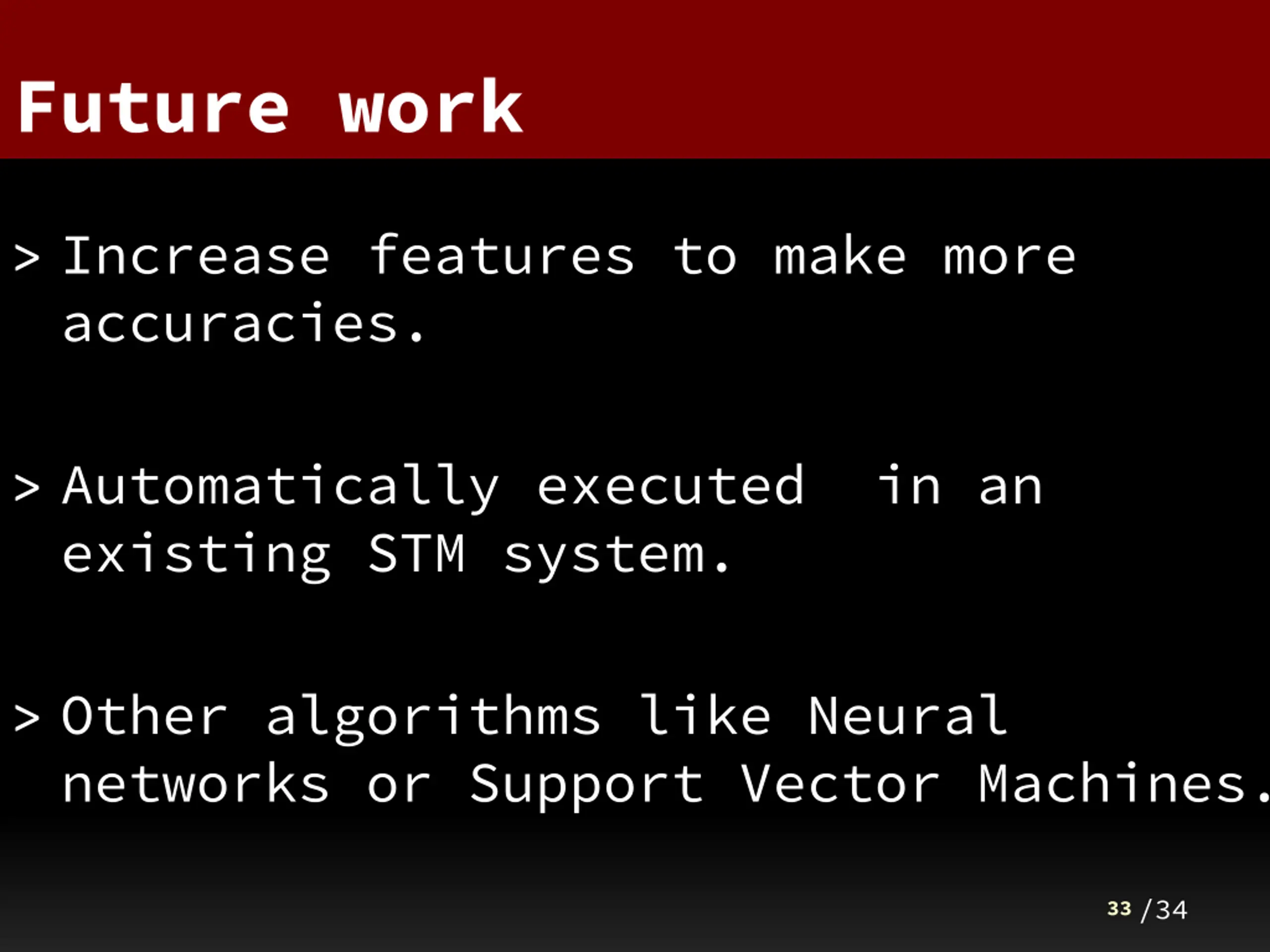

Future work > Increase features to make more accuracies. > Automatically executed in an existing STM system. > Other algorithms like Neural networks or Support Vector Machines. /34 33

Thanks for your attention. /34 34
