Macromechanical Analysis of Laminate Modulus - Dr. Autar Kaw
Explore the macromechanical analysis of laminate modulus as discussed by Dr. Autar Kaw, a professor at the University of South Florida. This chapter delves into laminate properties, compliance matrices, modulus calculations, and effective moduli for various planes. Gain insights into the extensional, coupling, and bending compliance matrices for symmetric laminates. Understand the effective longitudinal and transverse moduli, shear modulus, and Poisson's ratio in plane. Delve into the intricate mechanics of composite materials through this comprehensive analysis.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Chapter 4 MacromechanicalAnalysis of a Laminate Laminate Modulus Dr. Autar Kaw Department of Mechanical Engineering University of South Florida, Tampa, FL 33620 Courtesy of the Textbook Mechanics of Composite Materials by Kaw

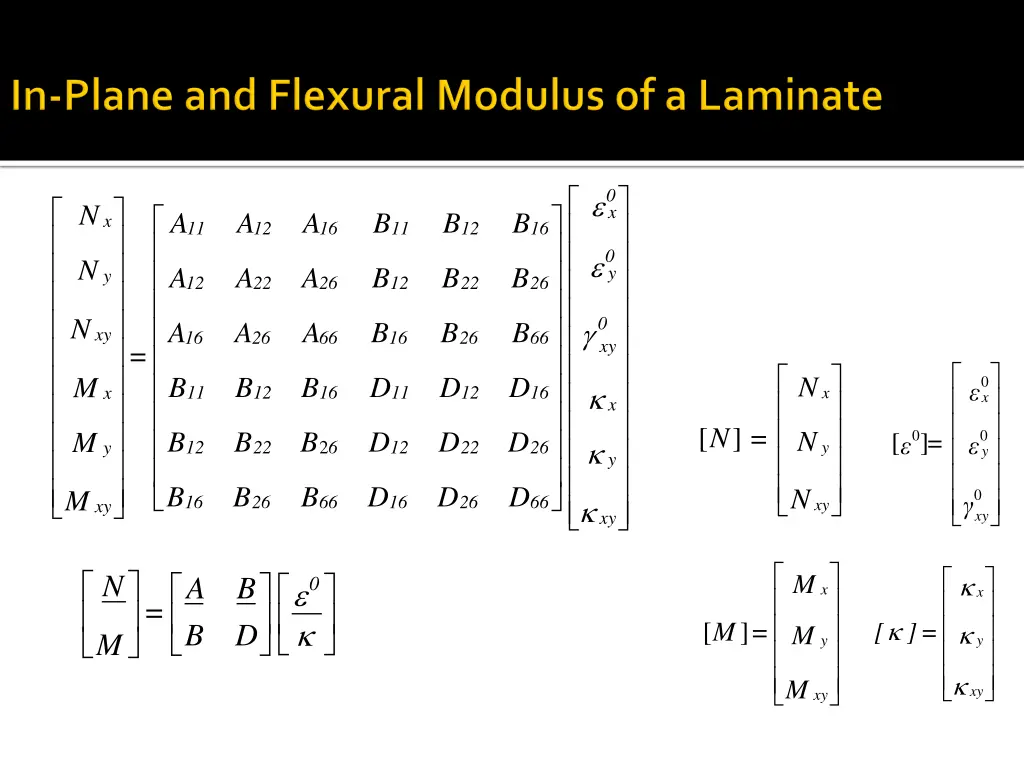

0 x N A A A B B B x 11 12 16 11 12 16 0 y N A A A B B B y 12 22 26 12 22 26 N 0 xy A A A B B B xy 16 26 66 16 26 66 = N B B B D D D M 0 11 12 16 11 12 16 x x x x [ = ] N N B B B D D D M 0] 0 [ = 2 12 22 6 12 22 26 y y y y B B B D D D N M 0 16 26 66 16 26 66 xy xy xy xy = N M A B 0 x x [ = ] M [ ] = B D M M y y M xy xy

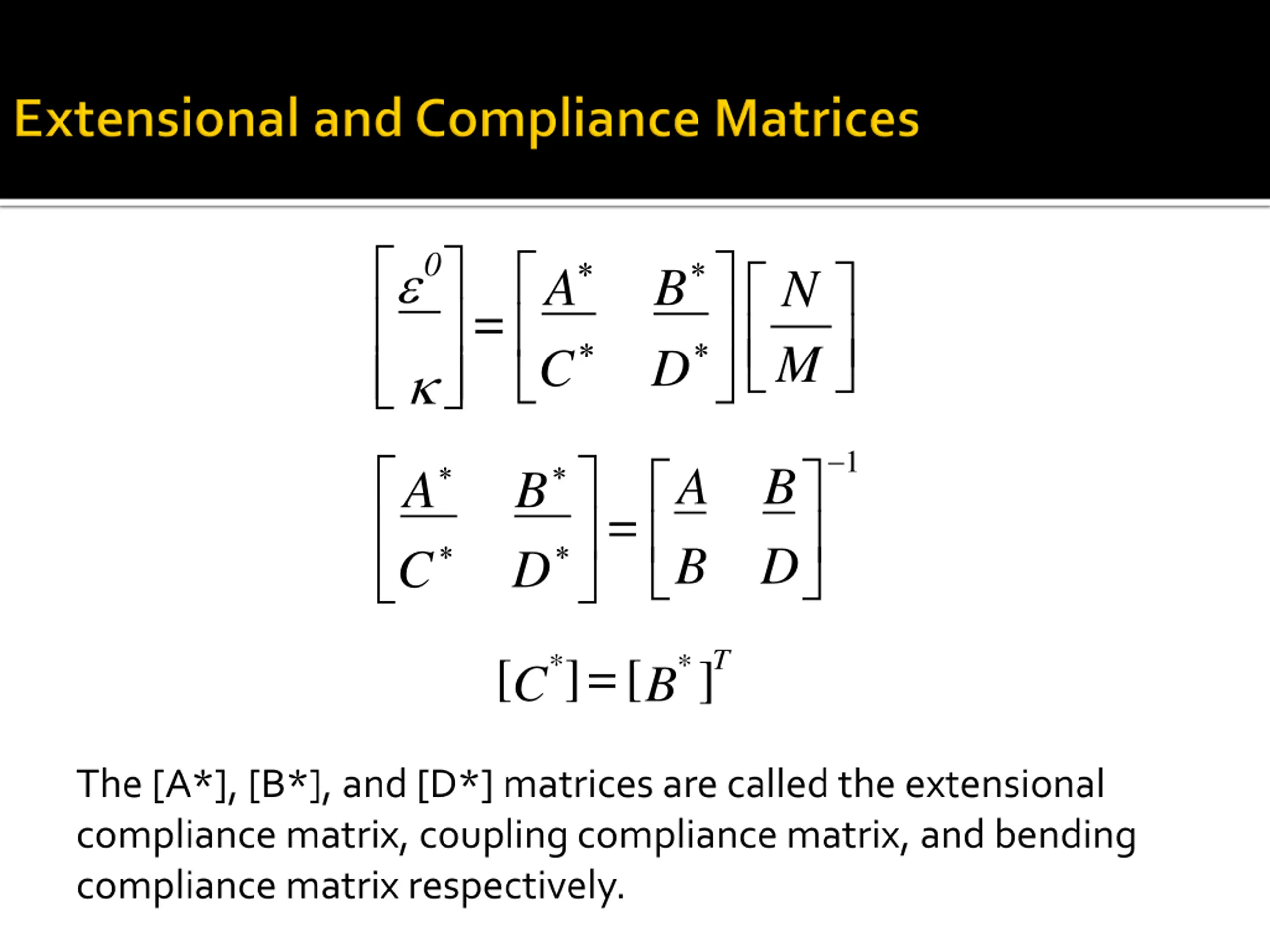

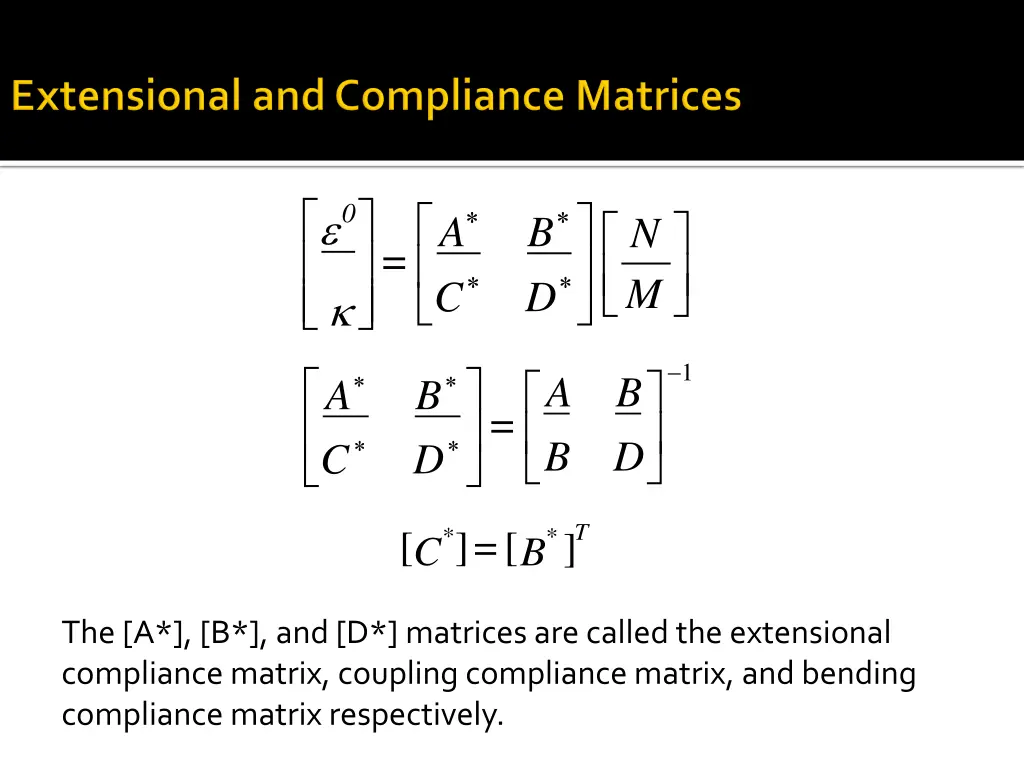

0 A B N = M C D 1 = A B A B B D C D T * [ ] = [ * ] C B The [A*], [B*], and [D*] matrices are called the extensional compliance matrix, coupling compliance matrix, and bending compliance matrix respectively.

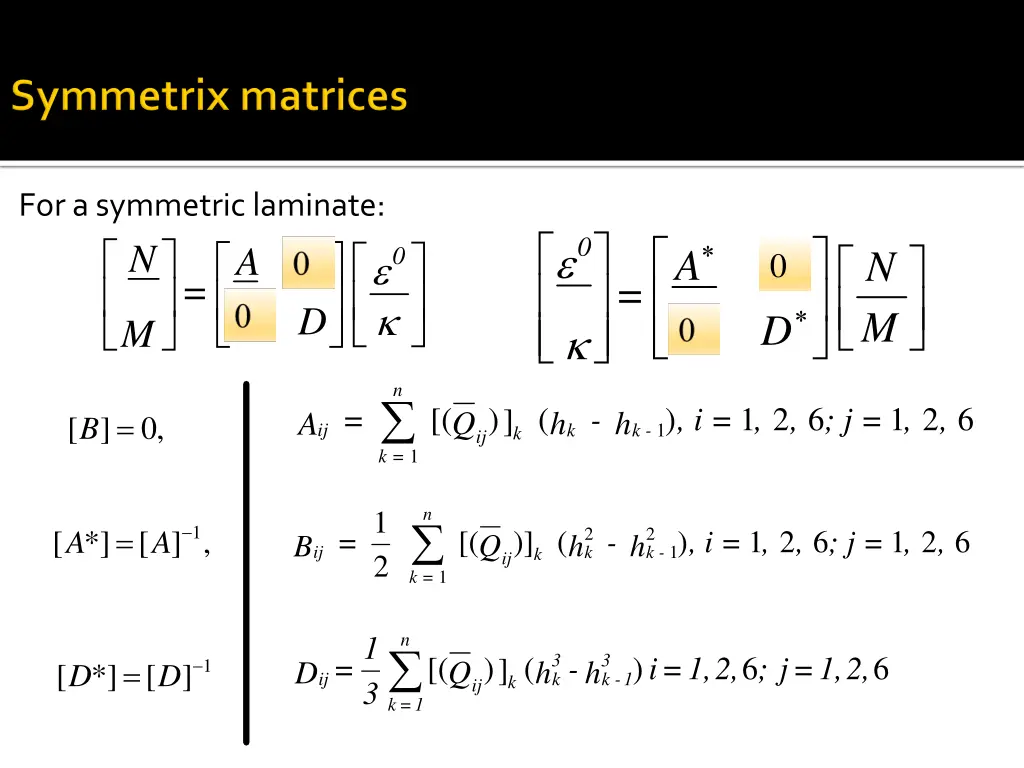

For a symmetric laminate: M 0 N A B A B 0 0 N = = B D M C D n [( ] ) ij ( ) 1 2 6 1 2 6 = - , i = , , ; j = , , Q h h A = [ ] , 0 B ij 1 k k - k 1 k = n 1 = A 1 2 k 2 k - [ *] [ ] , [( )] ( ) 1 2 6 1 2 6 A = - , i = , , ; j = , , Q h h B ij 1 k ij 2 1 k = n 1 3 3 1 - k [( ] ) ij ( ) = i 6 6 = ij h - k 1, 2, ; = j 1, 2, Q = D h D 1 [ *] [ ] D k 3 1 = k

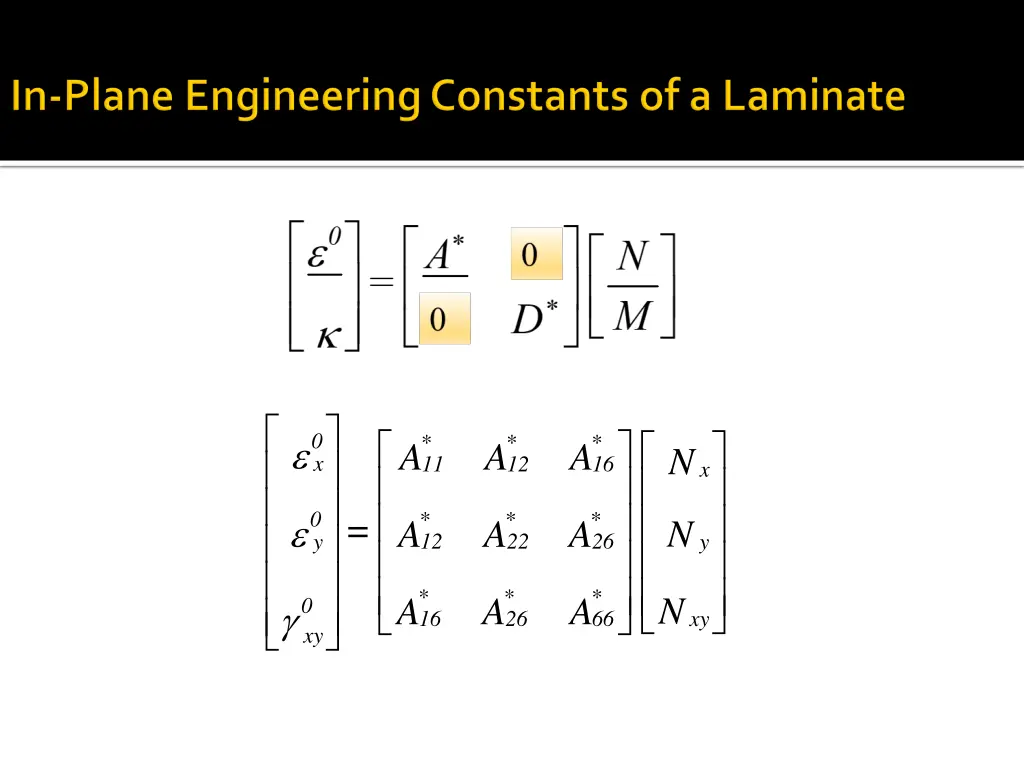

0 x * 11 * 12 * 16 A A A N x = 0 y * 12 * 22 * 26 N A A A y * 16 * 26 * 66 N A A A 0 xy xy

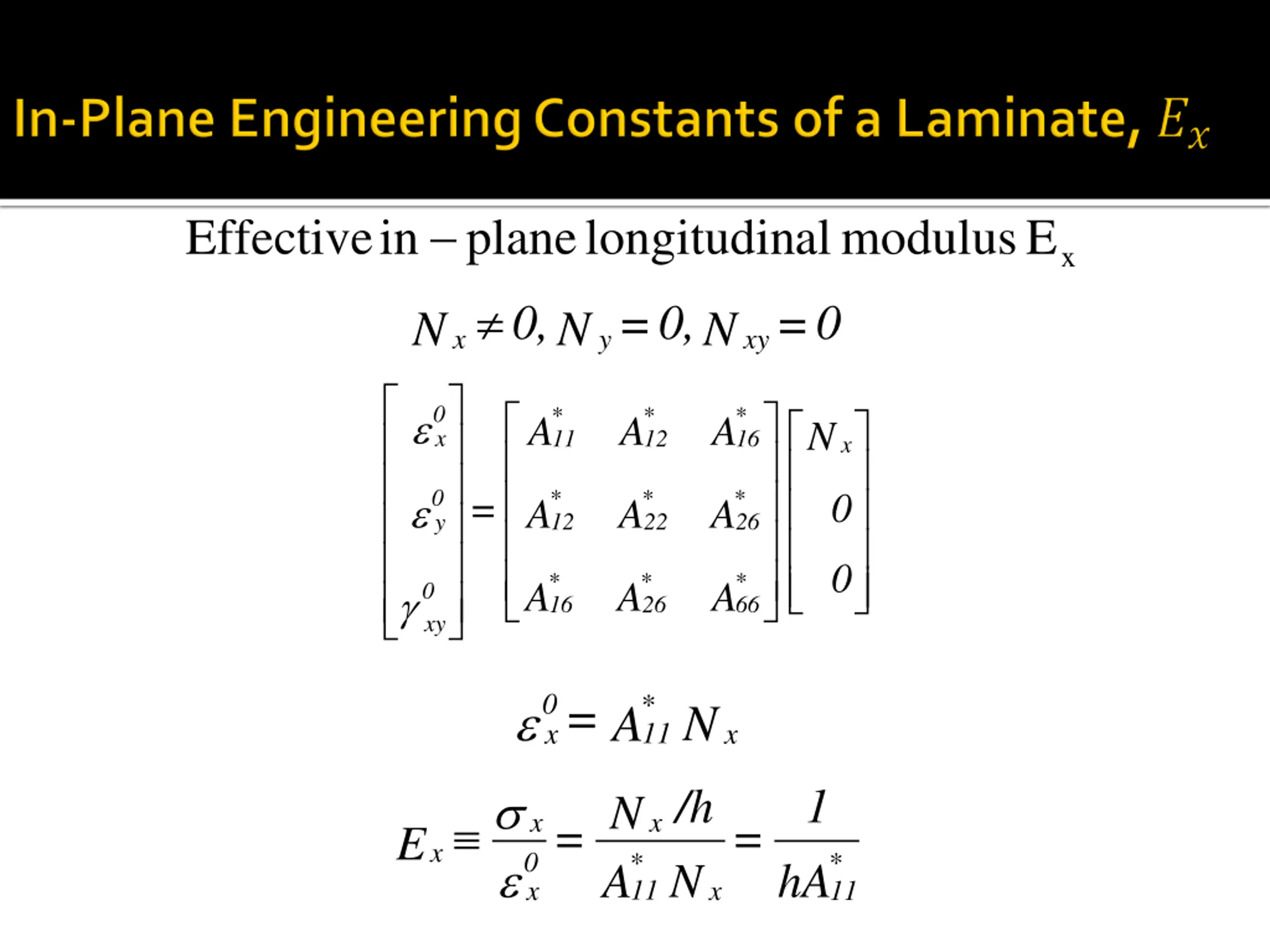

Effective in longitudin plane modulus al E x x 0, = y 0, 0 = xy N N N 0 x * 11 * 12 * 16 A A A N x = 0 y * 12 * 22 * 26 0 A A A 0 * 16 * 26 * 66 A A A 0 xy 0 * 11 = x N A x /h 1 N x x = 0 x = x E x * 11 * 11 N hA A

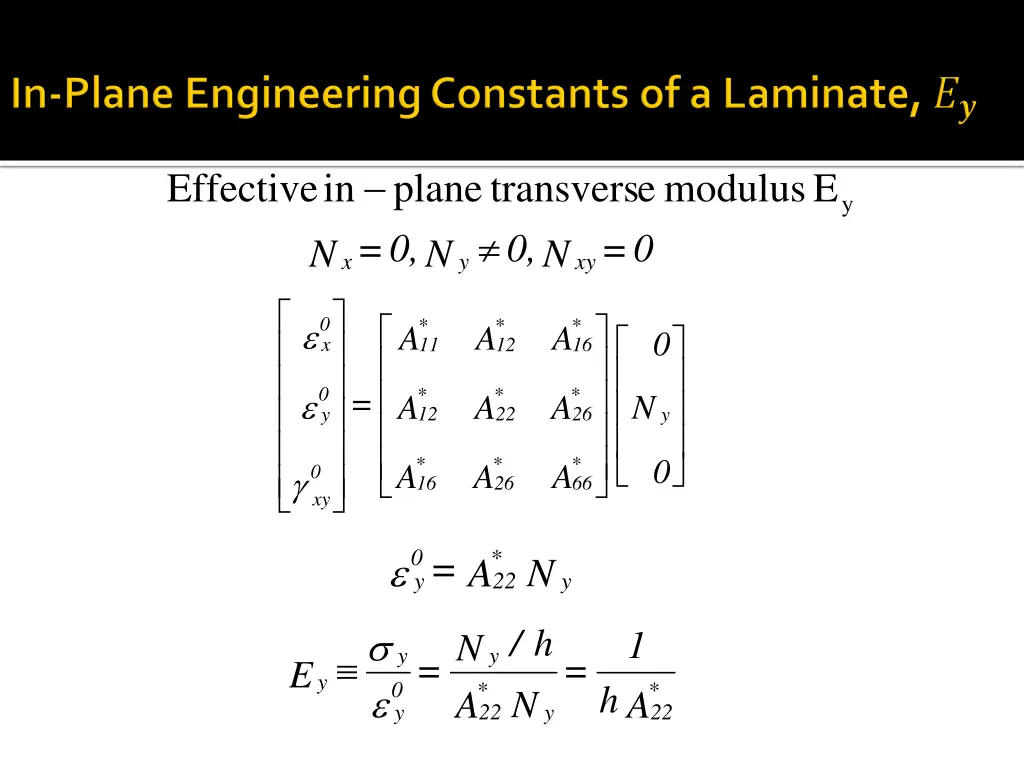

Effective in plane transvers modulus e E y 0, = x 0, 0 = xy N N N y 0 x * 11 * 12 * 16 A A A 0 = 0 y * 12 * 22 * 26 N A A A y * 16 * 26 * 66 0 A A A 0 xy 0 * 22 = y N A y h / y 1 N y = y = y E y 0 * 22 * 22 h N A A

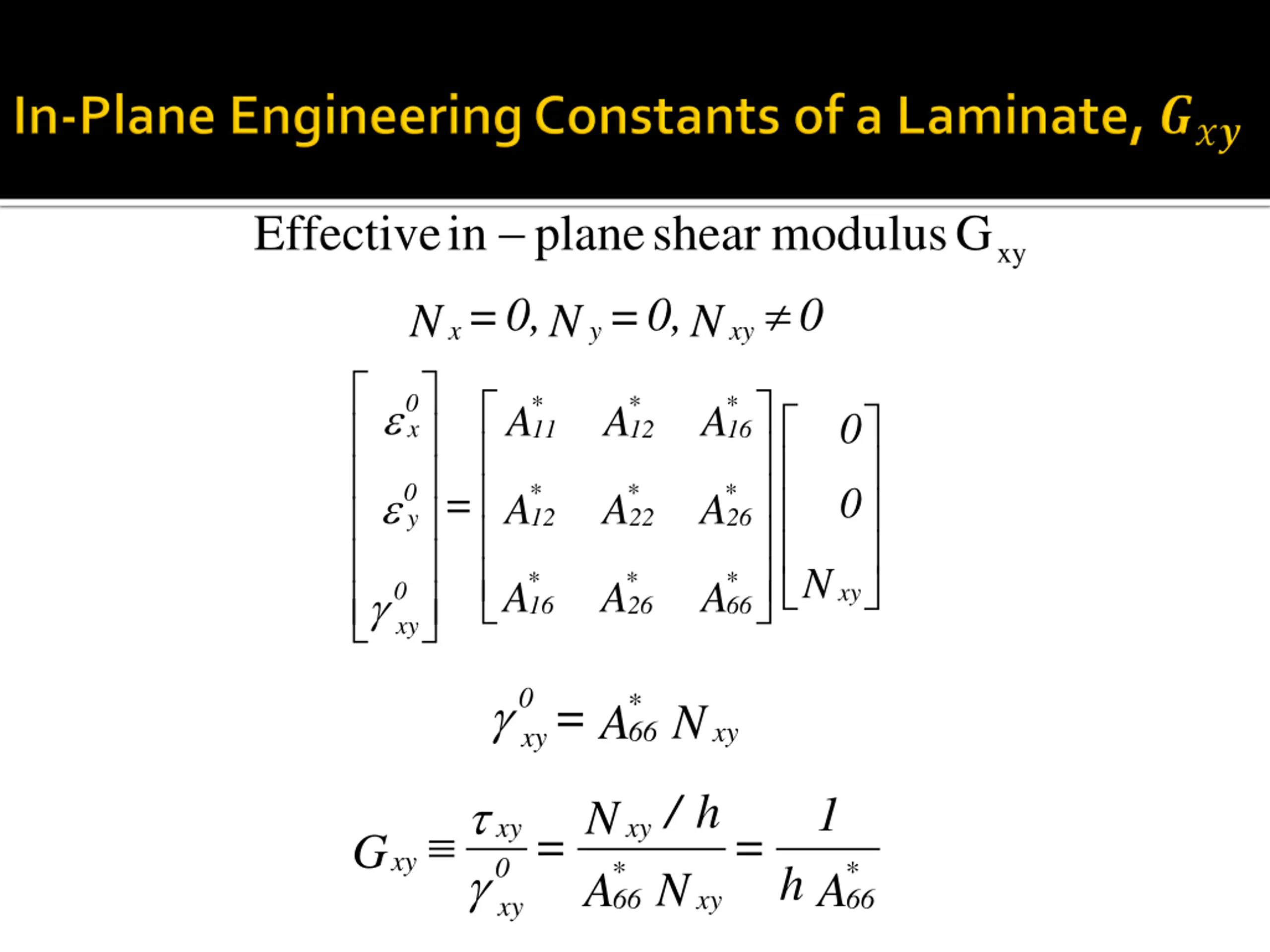

Effective in plane shear modulus G xy 0 = x 0, = y 0, N 0 x N N xy * 11 * 12 * 16 A A A 0 = 0 y * 12 * 22 * 26 0 A A A N * 16 * 26 * 66 A A A 0 xy xy 0 = xy * 66 N A xy h / xy 1 N xy = = xy G xy 0 xy * 66 * 66 h N A A

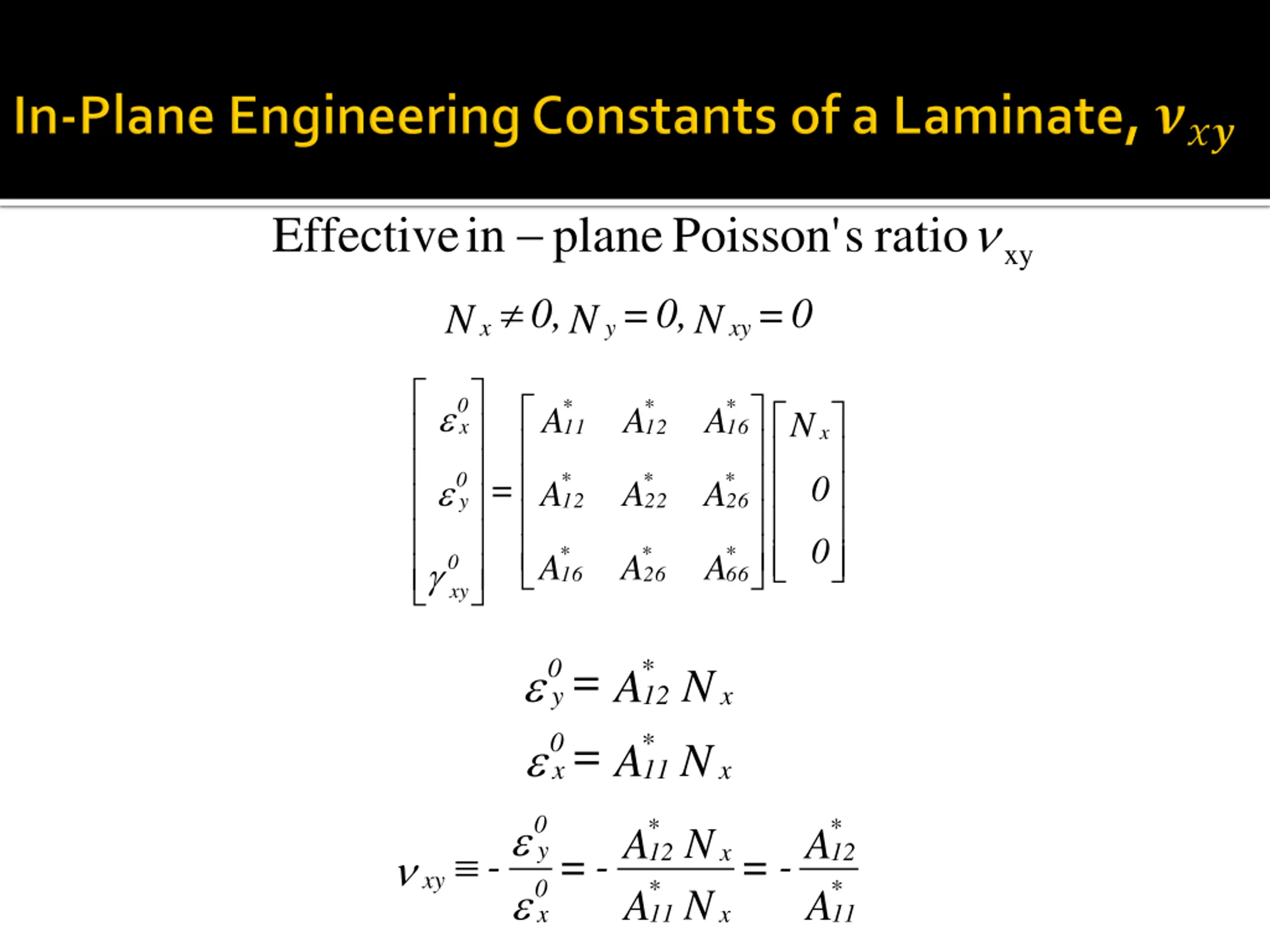

Effective in plane Poisson' ratio s xy x 0, = y 0, 0 = xy N N N 0 x * 11 * 12 * 16 A A A N x = 0 y * 12 * 22 * 26 0 A A A 0 * 16 * 26 * 66 A A A 0 xy 0 * 12 = = y N N A A x 0 * 11 x x 0 y * 12 * 12 N A A - x - = 0 x = x - xy * 11 * 11 N A A

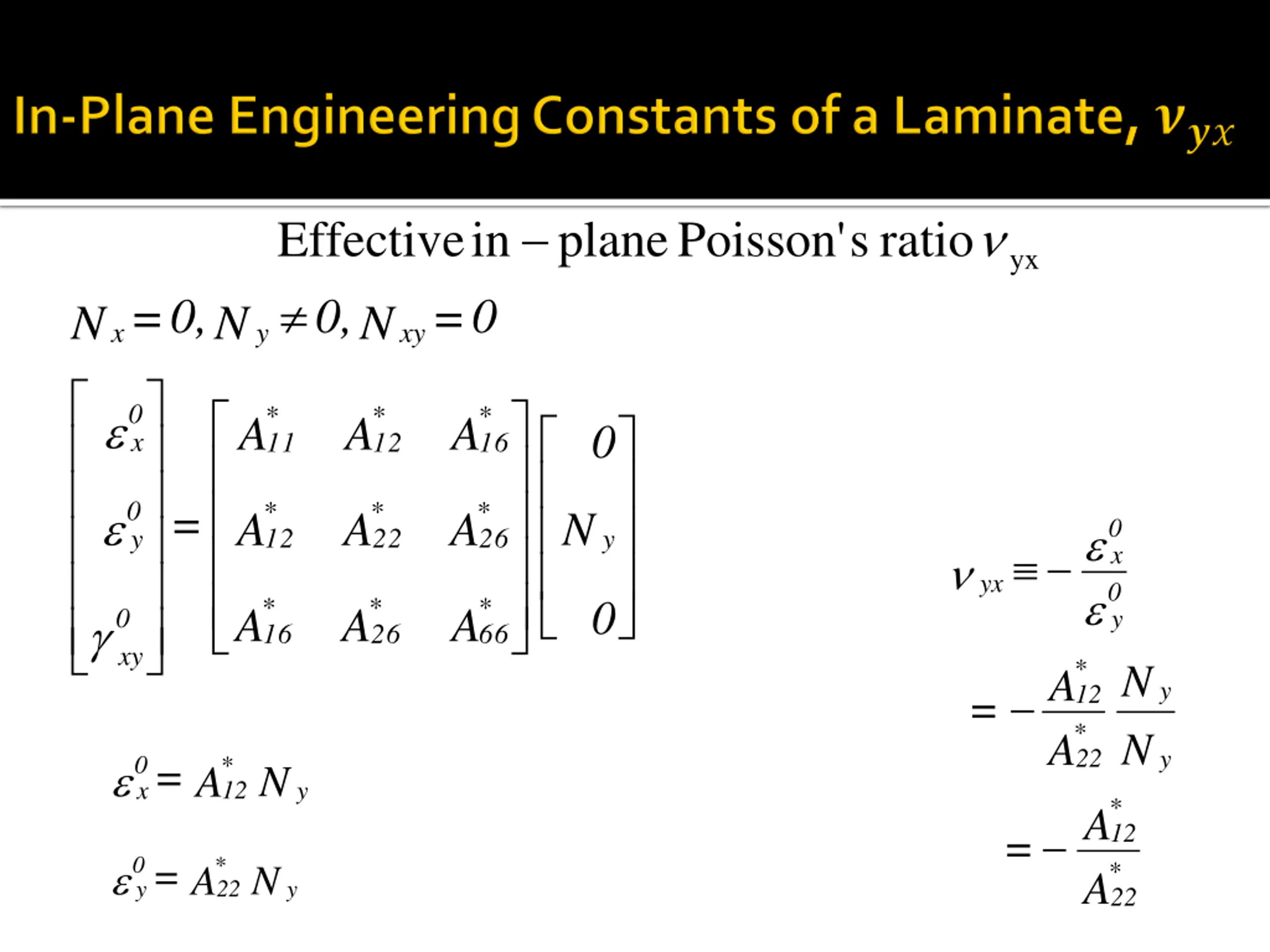

Effective in plane Poisson' ratio s yx 0, = x 0, 0 = xy N N N y 0 x * 11 * 12 * 16 A A A 0 = 0 y * 12 * 22 * 26 N A A A 0 x y yx 0 y * 16 * 26 * 66 0 A A A 0 xy * 12 N A y = * 22 N A y 0 * 12 = x N A y * 12 A = 0 * 22 = y * 22 N A A y

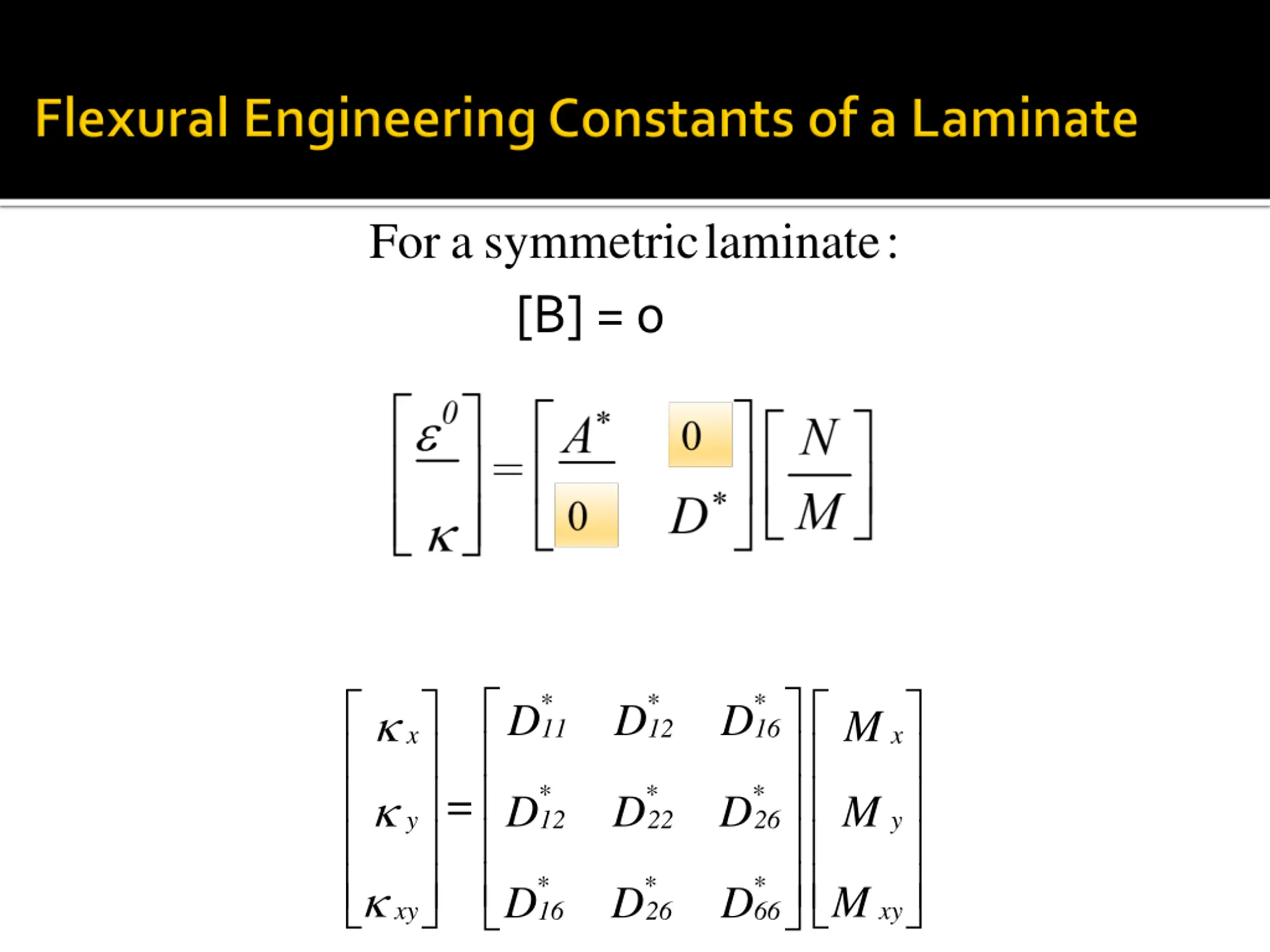

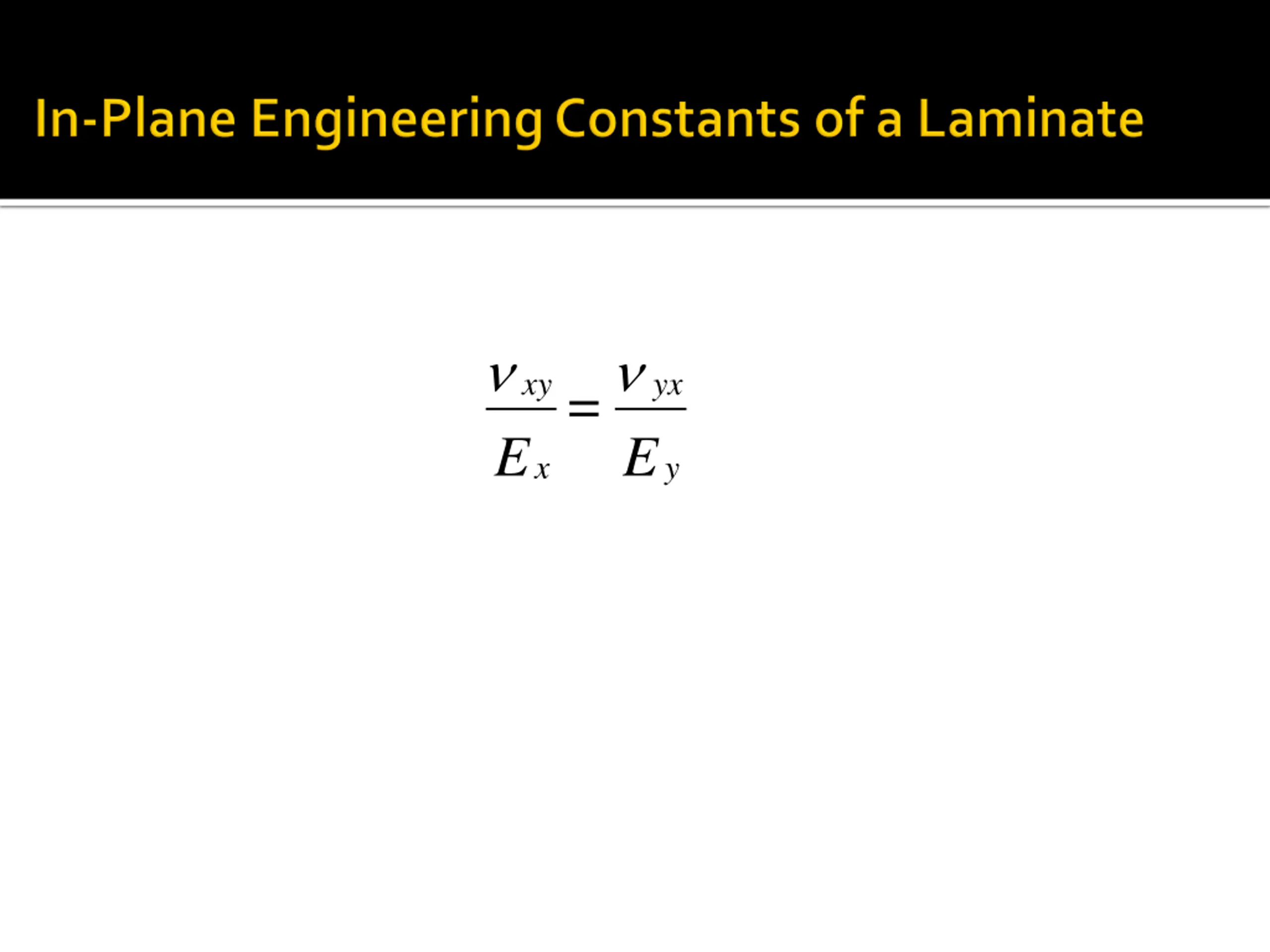

symmetric a For laminate : [B] = 0 * 11 * 12 * 16 D D D M x x = * 12 * 22 * 26 D D D M y y * 16 * 26 * 66 M D D D xy xy

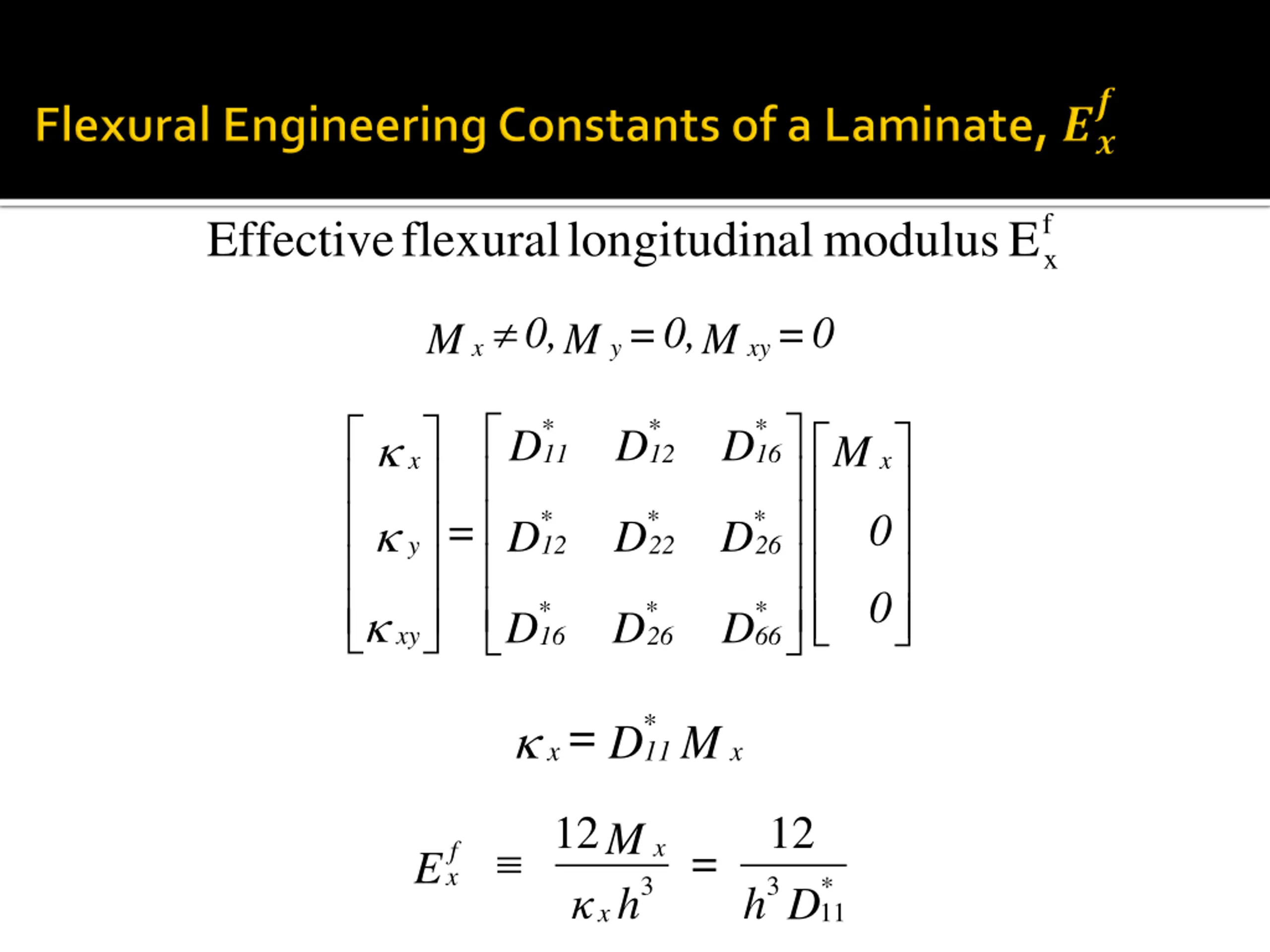

f x Effective flexural longitudin modulus al E x 0, = y 0, 0 = xy M M M * 11 * 12 * 16 D D D M x x = * 12 * 22 * 26 0 D D D y 0 * 16 * 26 * 66 D D D xy * = x M 11 D x 12 12 M x f x = E 3 3 * 11 h h D x

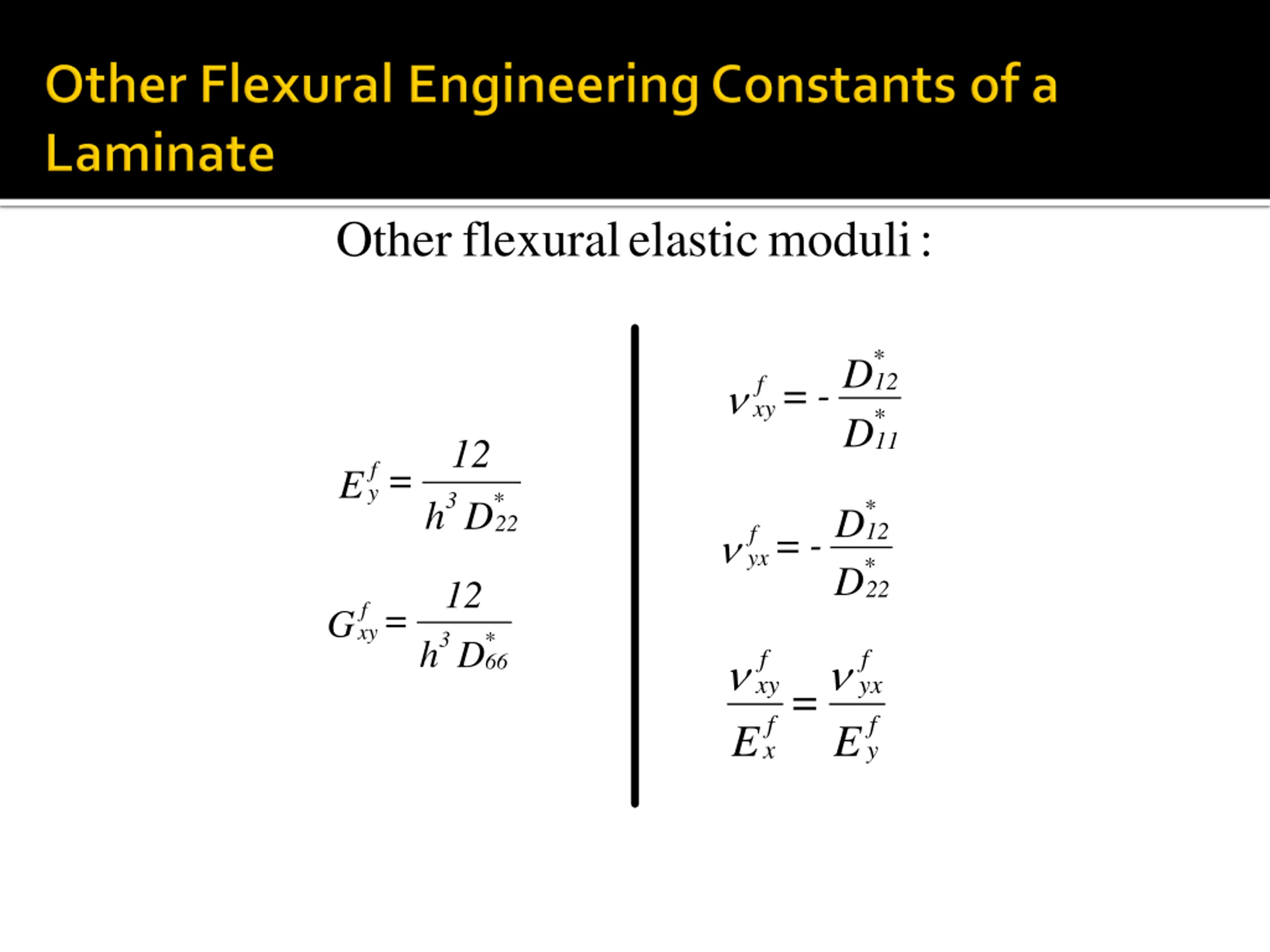

Other flexural elastic moduli : * 12 D f - = xy * 11 D 12 3 f = y E * 22 h D * 12 D f - = yx * 22 D 12 3 f = xy G * 66 h D f xy f yx = f x f y E E
