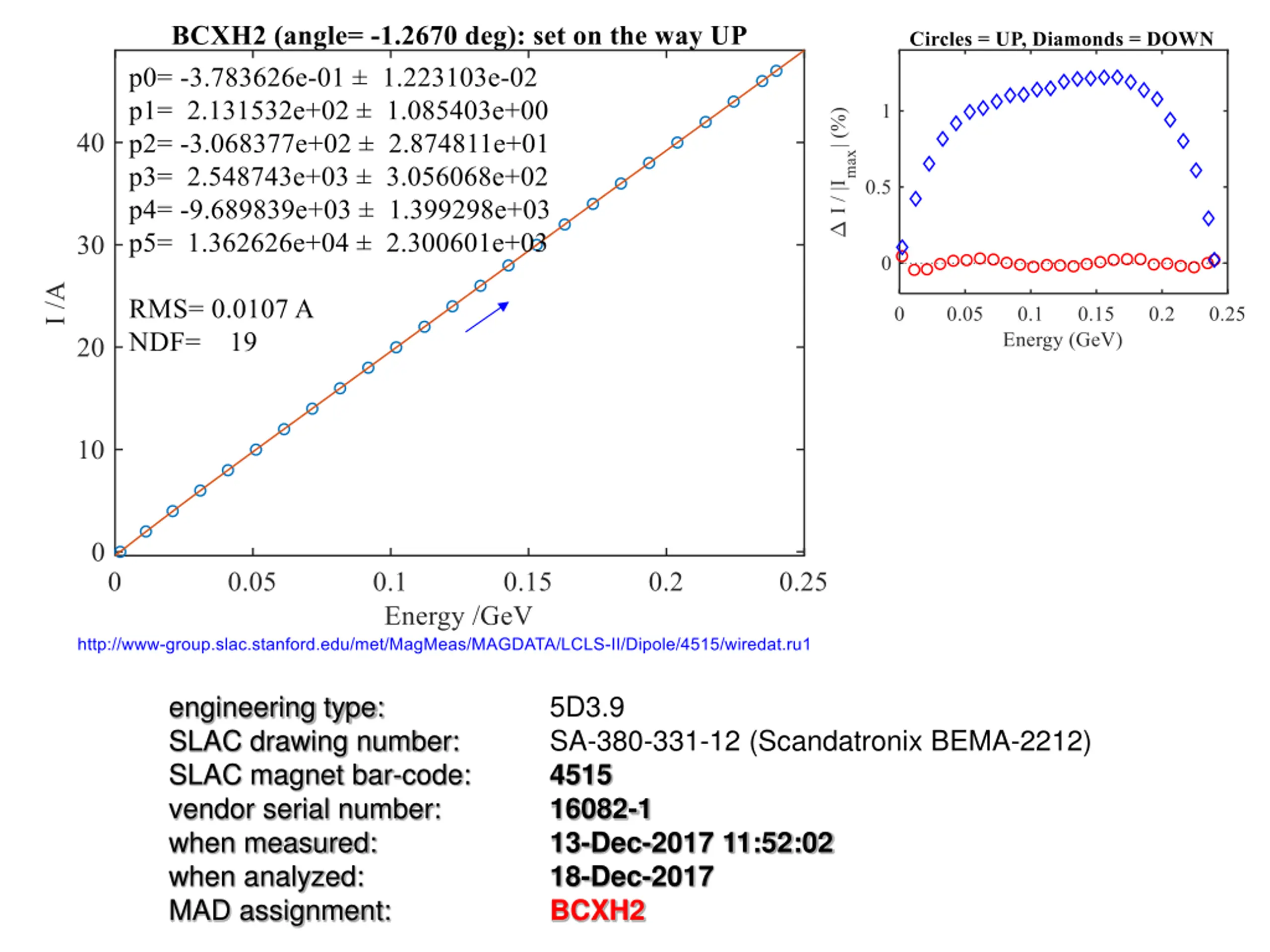

engineering type: SLAC drawing number: SLAC magnet bar-code: vendor serial number: when measured: when analyzed: MAD assignment: 5D3.9 SA-380-331-12 (Scandatronix BEMA-2212) 4515 16082-1 13-Dec-2017 11:52:02 18-Dec-2017 BCXH2

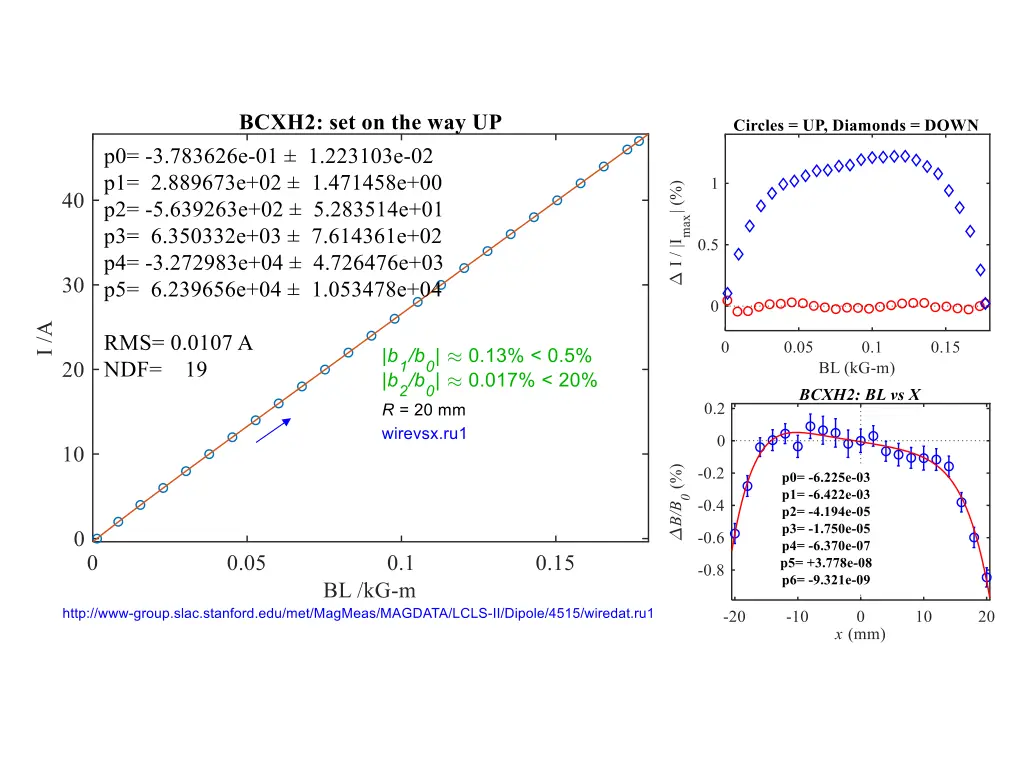

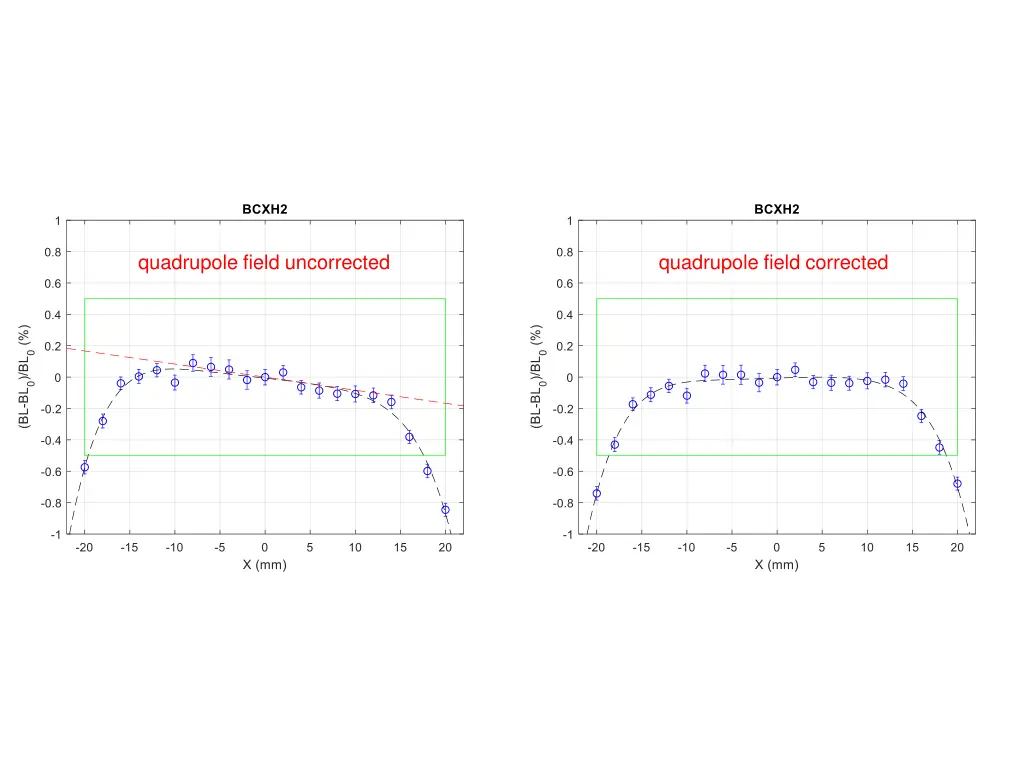

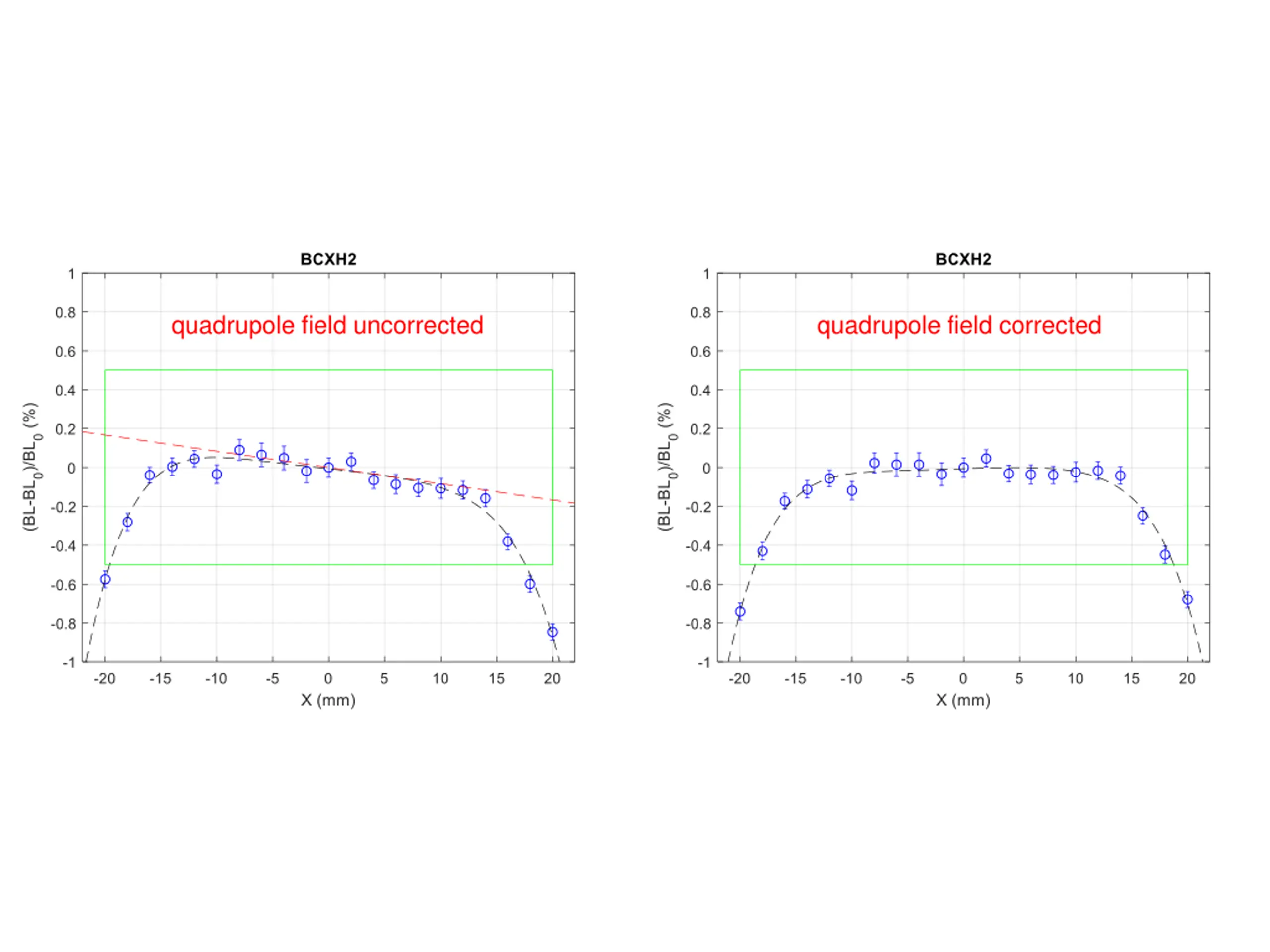

quadrupole field uncorrected quadrupole field corrected

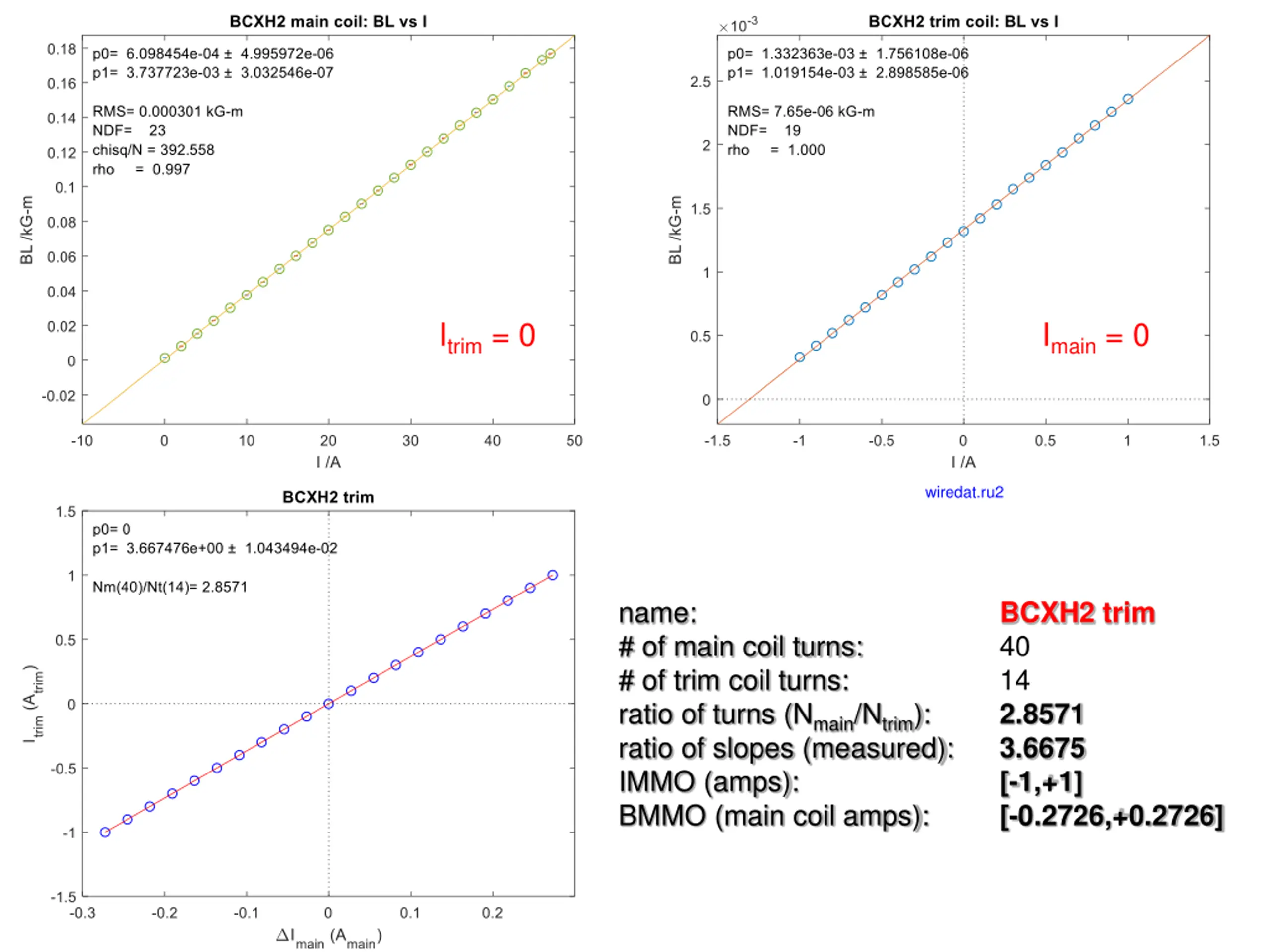

Itrim = 0 Imain = 0 wiredat.ru2 name: # of main coil turns: # of trim coil turns: ratio of turns (Nmain/Ntrim): ratio of slopes (measured): IMMO (amps): BMMO (main coil amps): BCXH2 trim 40 14 2.8571 3.6675 [-1,+1] [-0.2726,+0.2726]

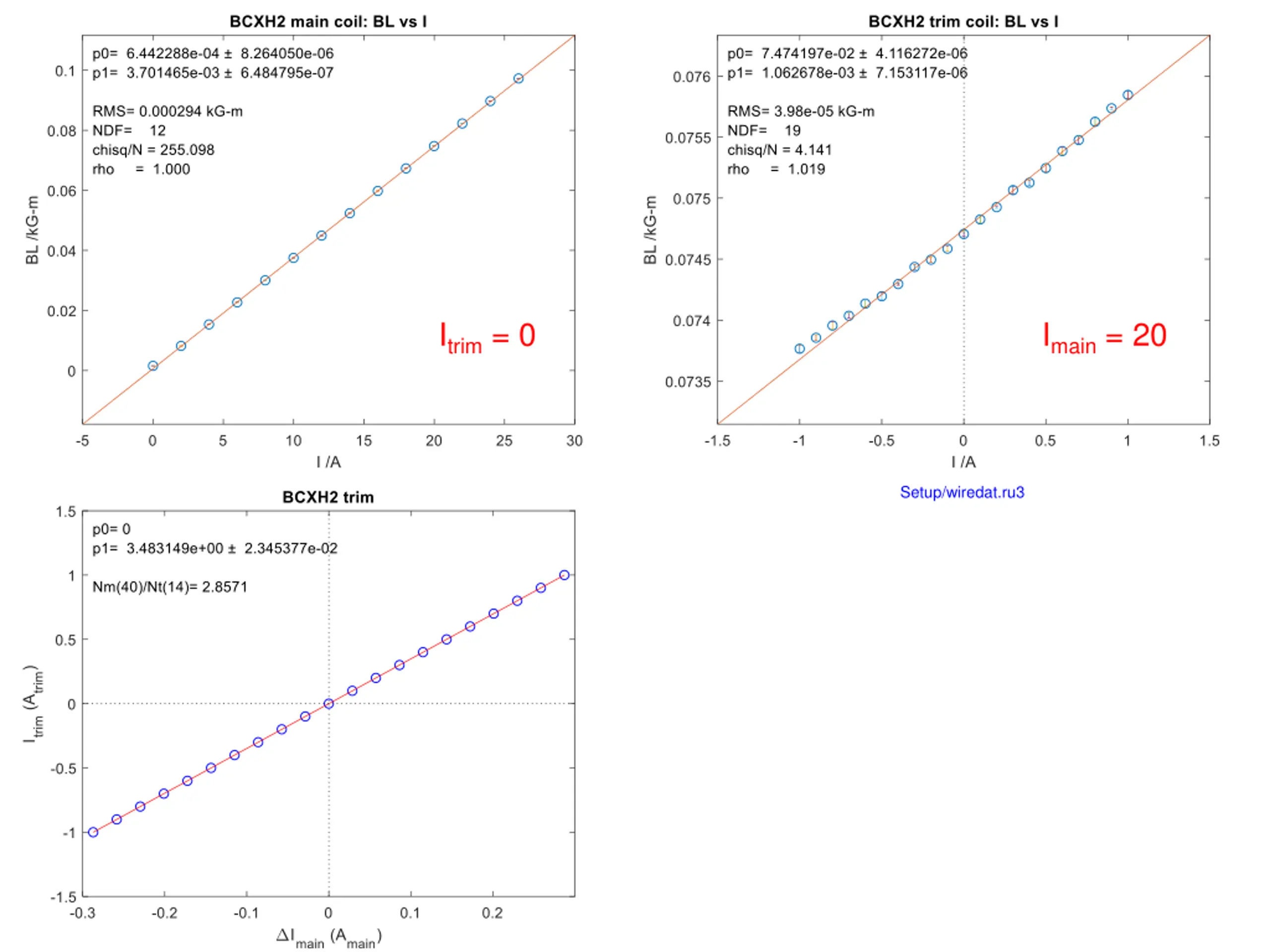

Itrim = 0 Imain = 20 Setup/wiredat.ru3
