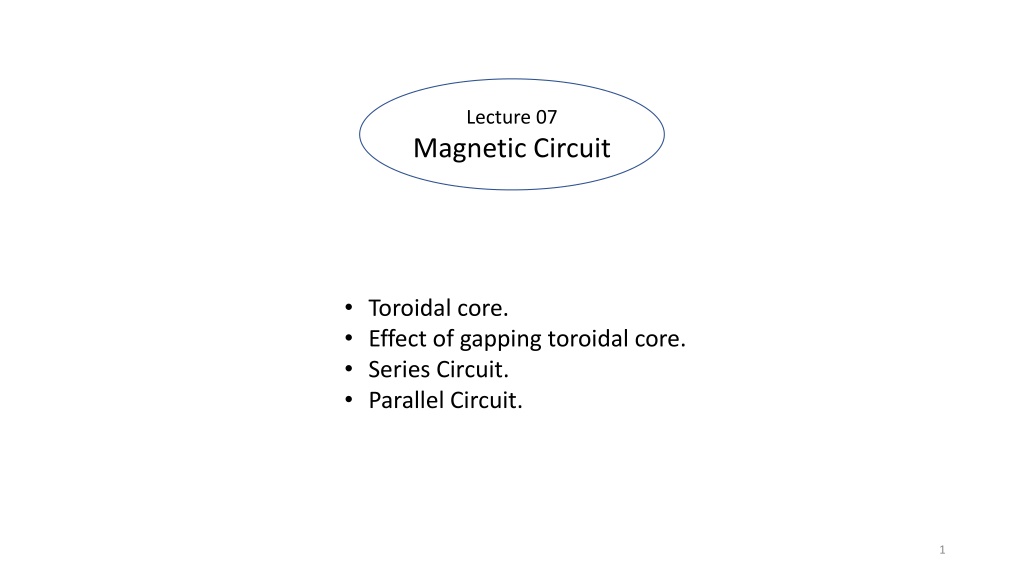

Lecture 07 Magnetic Circuit Toroidal core. Effect of gapping toroidal core. Series Circuit. Parallel Circuit. 1

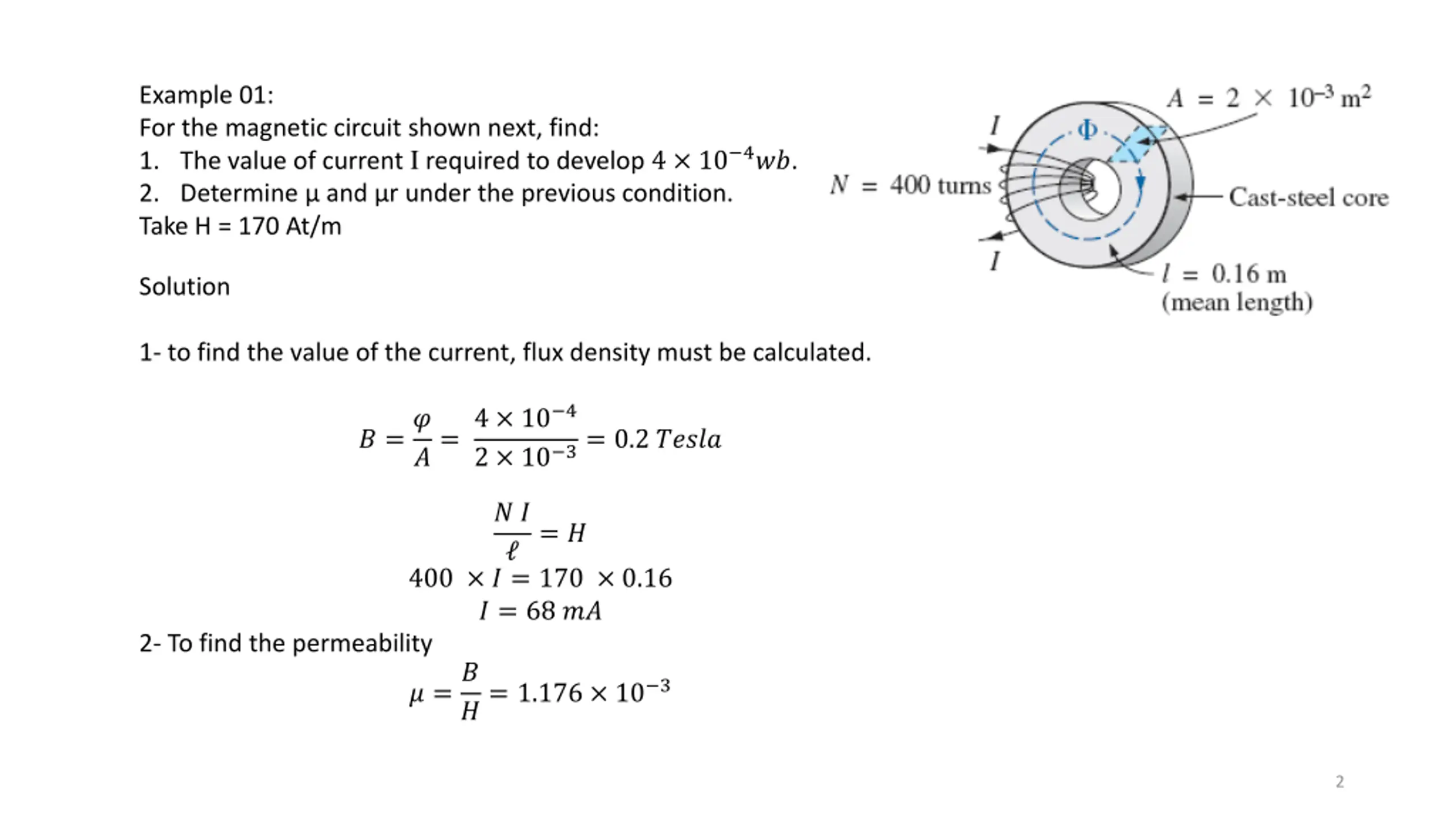

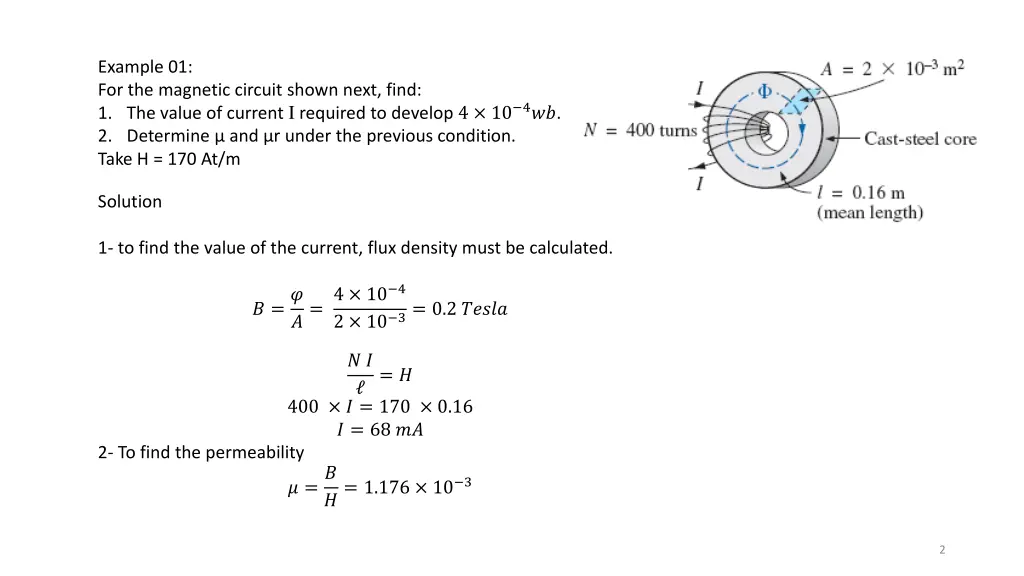

Example 01: For the magnetic circuit shown next, find: 1. The value of current I required to develop 4 10 4??. 2. Determine and r under the previous condition. Take H = 170 At/m Solution 1- to find the value of the current, flux density must be calculated. 4 10 4 2 10 3= 0.2 ????? ? =? ?= ? ? = ? 400 ? = 170 0.16 ? = 68 ?? 2- To find the permeability ? =? ?= 1.176 10 3 2

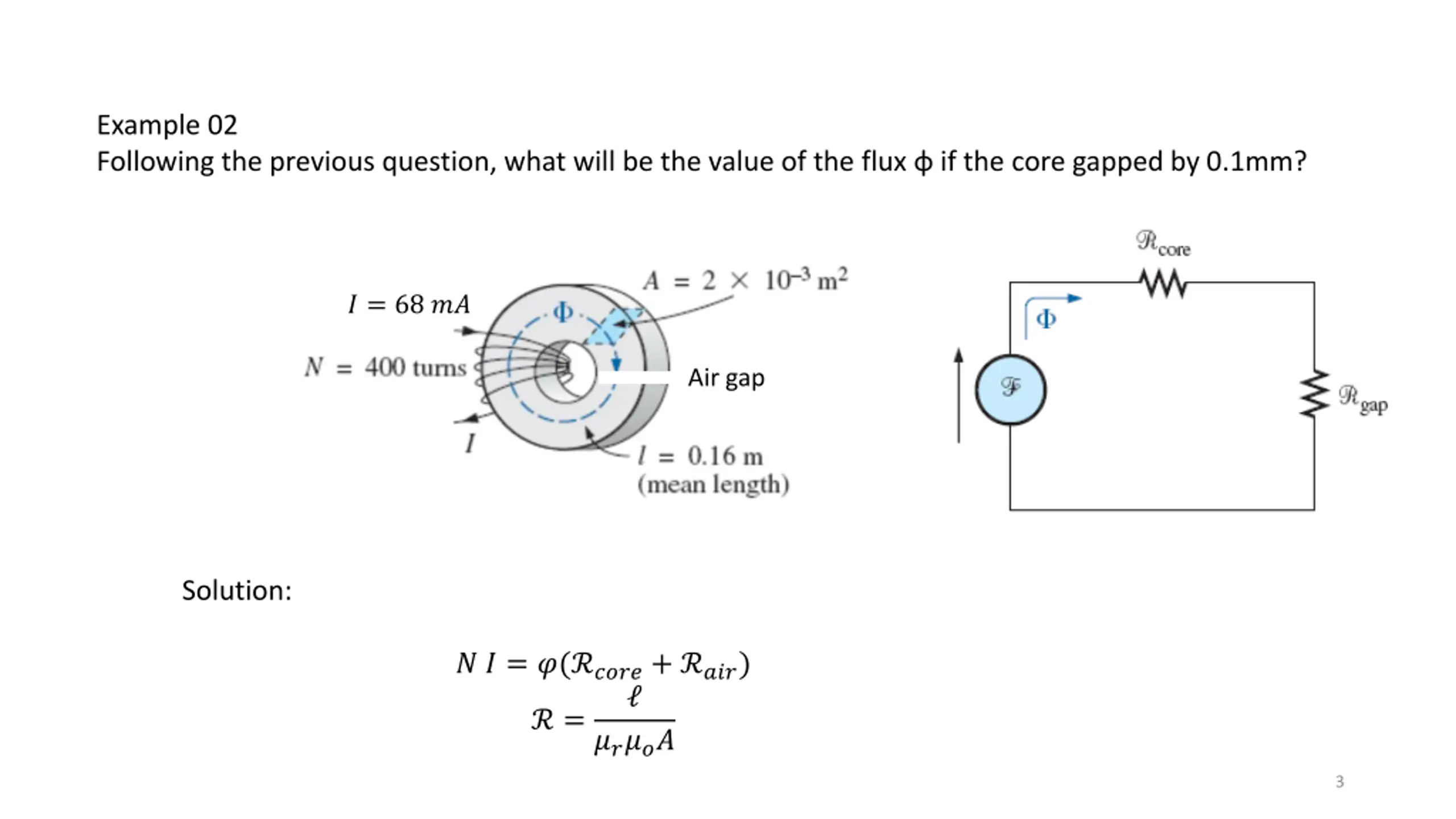

Example 02 Following the previous question, what will be the value of the flux if the core gapped by 0.1mm? ? = 68 ?? Air gap Solution: ? ? = ?( ????+ ???) = ????? 3

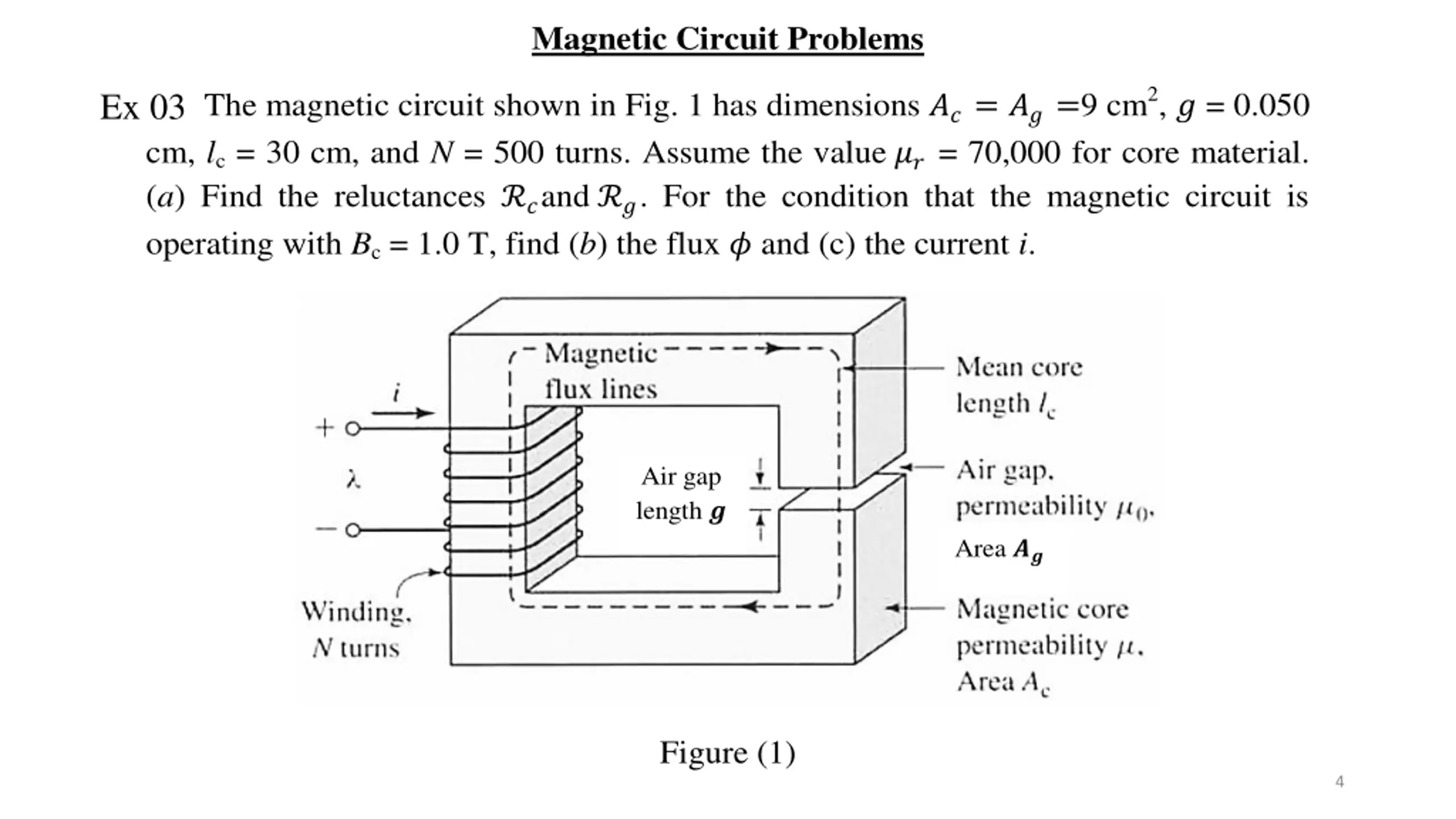

Magnetic Circuit Problems Q1:The magnetic circuit shown in Fig. 1 has dimensions??= ??=9 cm2, ? = 0.050 cm, lc = 30 cm, and N = 500 turns. Assume the value?? = 70,000 for core material. (a) Find the reluctances ?and ?. For the condition that the magnetic circuit is operating with Bc = 1.0 T, find (b) the flux ? and (c) the current i. Ex 03 Air gap length Area Figure (1) 4

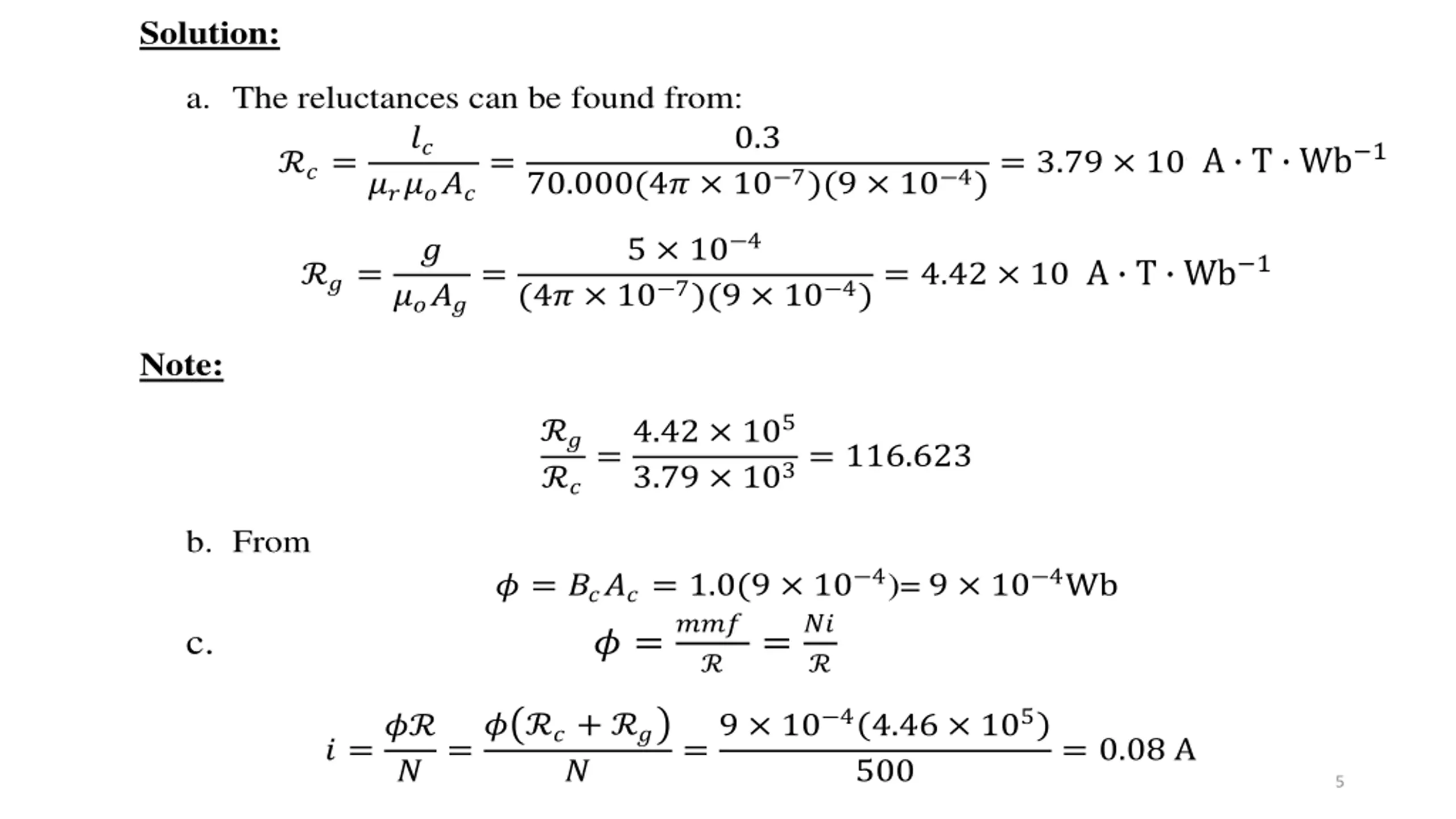

Solution: a.The reluctances can be found from: ?? ?????? 70.000(4? 10 7)(9 10 4)= 3.79 103A.Turns 0.3 A T Wb 1 ?= = Wb 5 10 4 ? (4? 10 7)(9 10 4)= 4.42 105A.Turns A T Wb 1 ?= = ???? Wb Note: =4.42 105 3.79 103= 116.623 ? ? b.From ? = ????= 1.0(9 10 4)= 9 10 4Wb c.? =??? =?? =9 10 4(4.46 105) 500 =? ?+ ? ? =? = 0.08 A ? ? 5

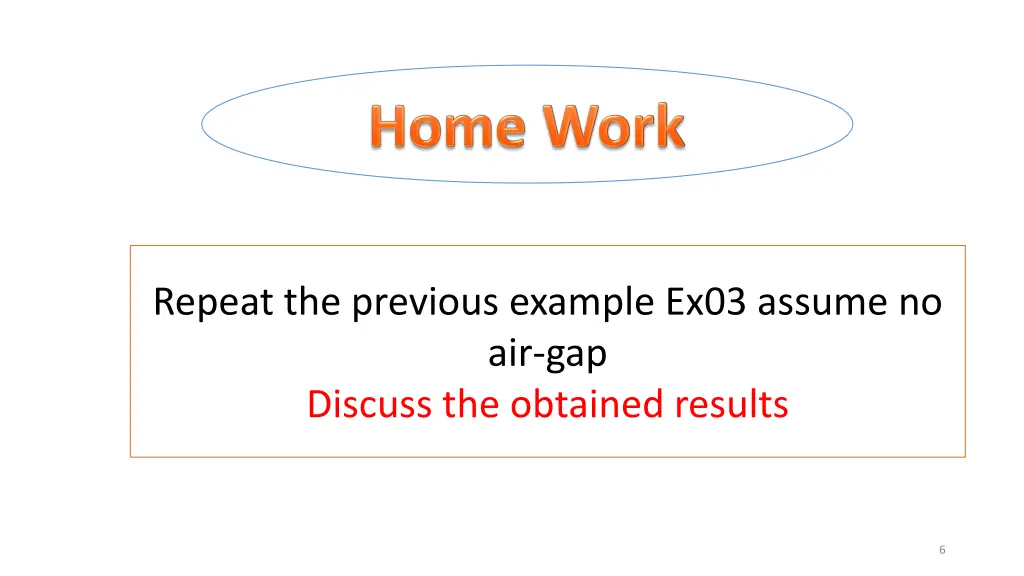

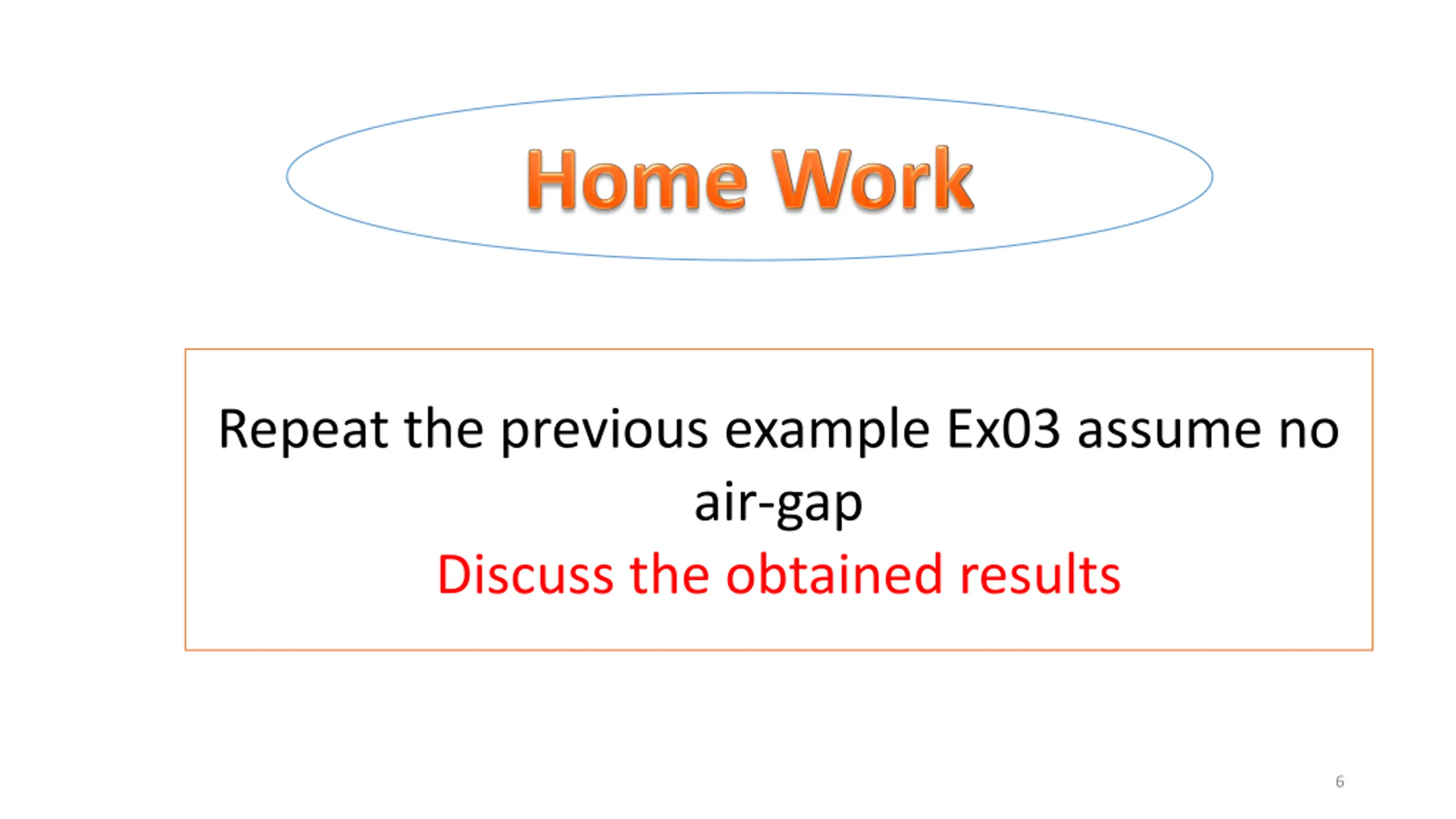

Repeat the previous example Ex03 assume no air-gap Discuss the obtained results 6

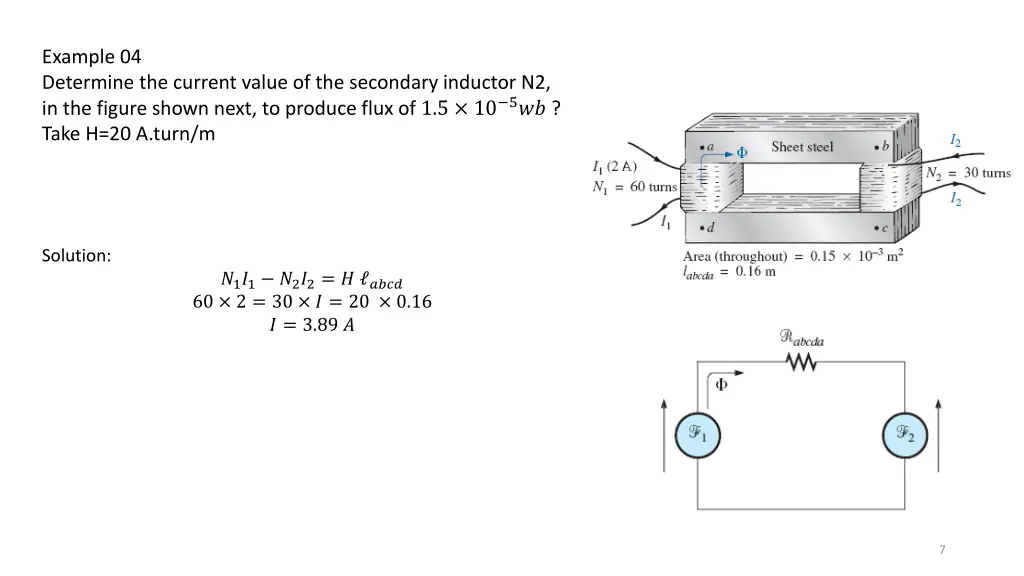

Example 04 Determine the current value of the secondary inductor N2, in the figure shown next, to produce flux of 1.5 10 5?? ? Take H=20 A.turn/m Solution: ?1?1 ?2?2= ? ???? 60 2 = 30 ? = 20 0.16 ? = 3.89 ? 7

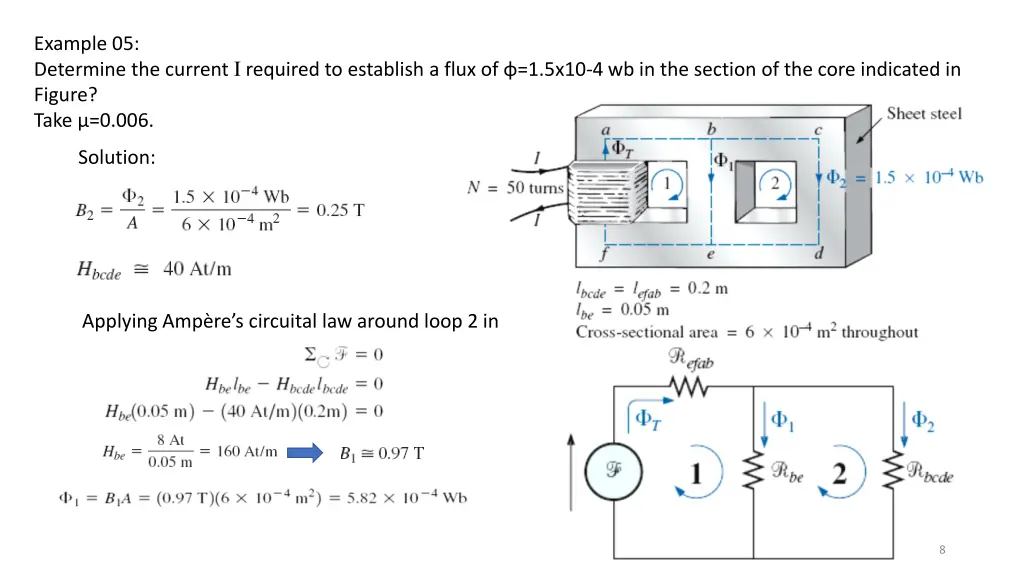

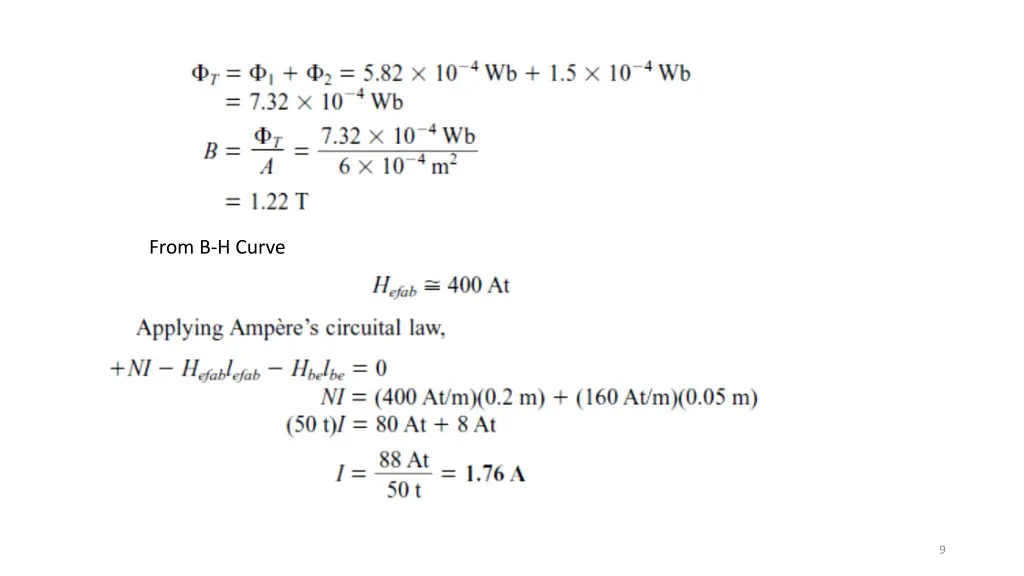

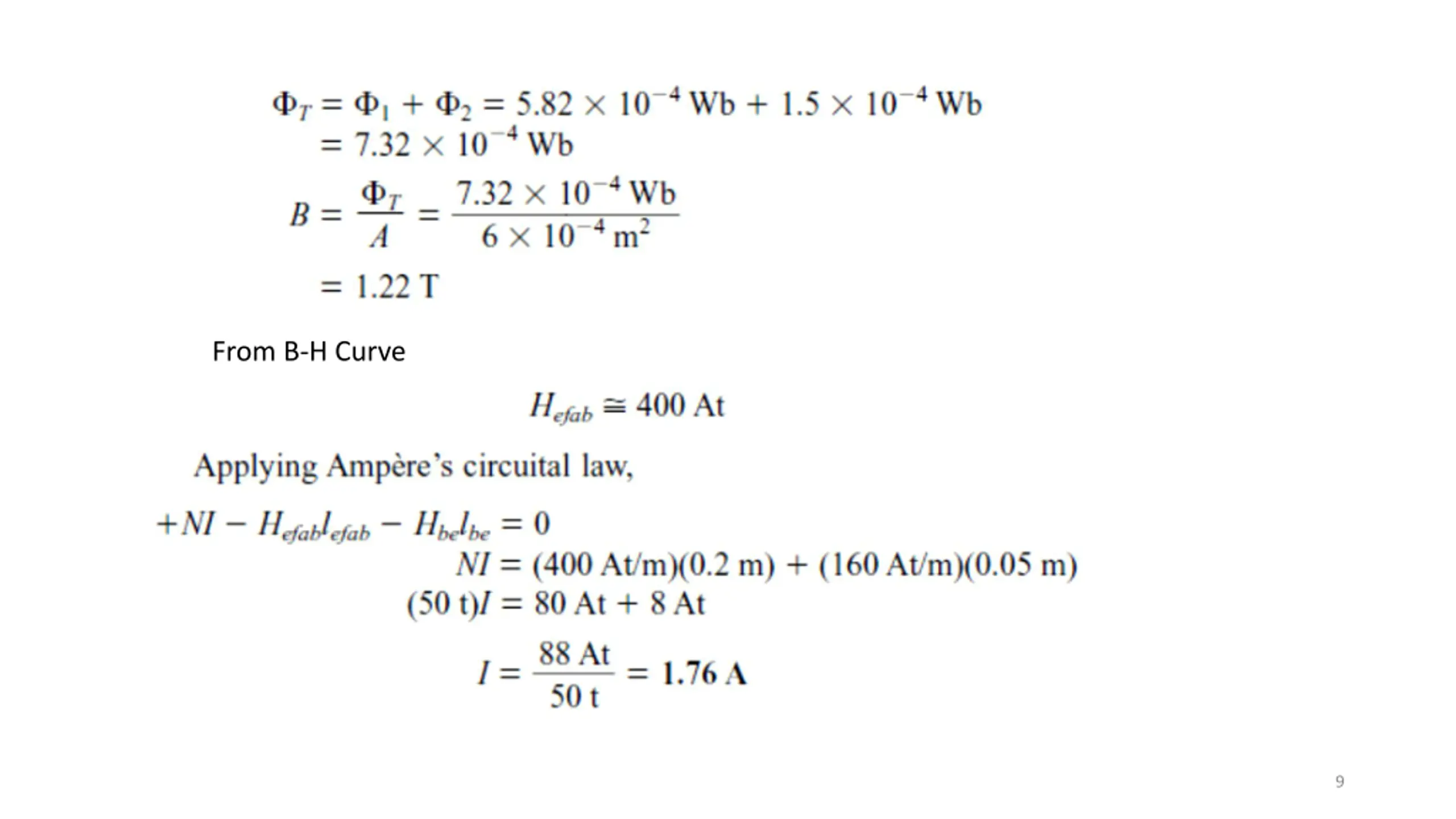

Example 05: Determine the current I required to establish a flux of =1.5x10-4 wb in the section of the core indicated in Figure? Take =0.006. Solution: Applying Amp re s circuital law around loop 2 in 8
