Magnetic Fields and Forces
the behavior of magnetic fields and forces on charged particles, current-carrying wires, and segments in a magnetic field. Determine force direction, current flow, and wire interactions in varying scenarios.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

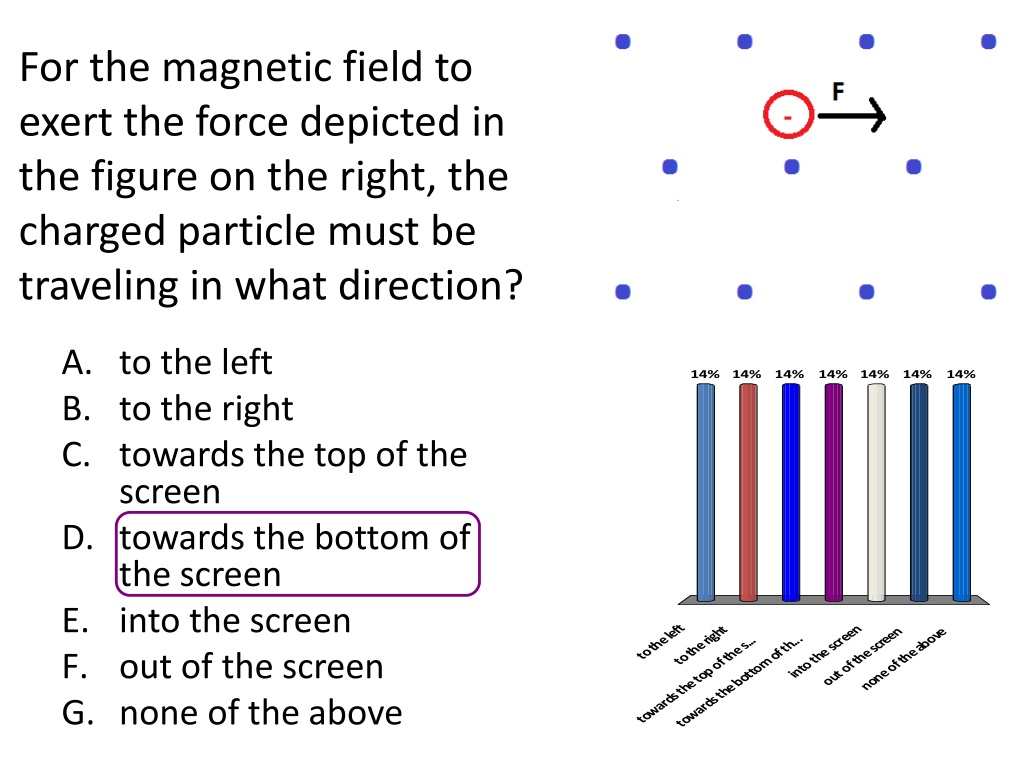

For the magnetic field to exert the force depicted in the figure on the right, the charged particle must be traveling in what direction? A. to the left B. to the right C. towards the top of the screen D. towards the bottom of the screen E. into the screen F. out of the screen G. none of the above 14% 14% 14% 14% 14% 14% 14% to the left into the screen to the right out of the screen none of the above towards the bottom of th... towards the top of the s...

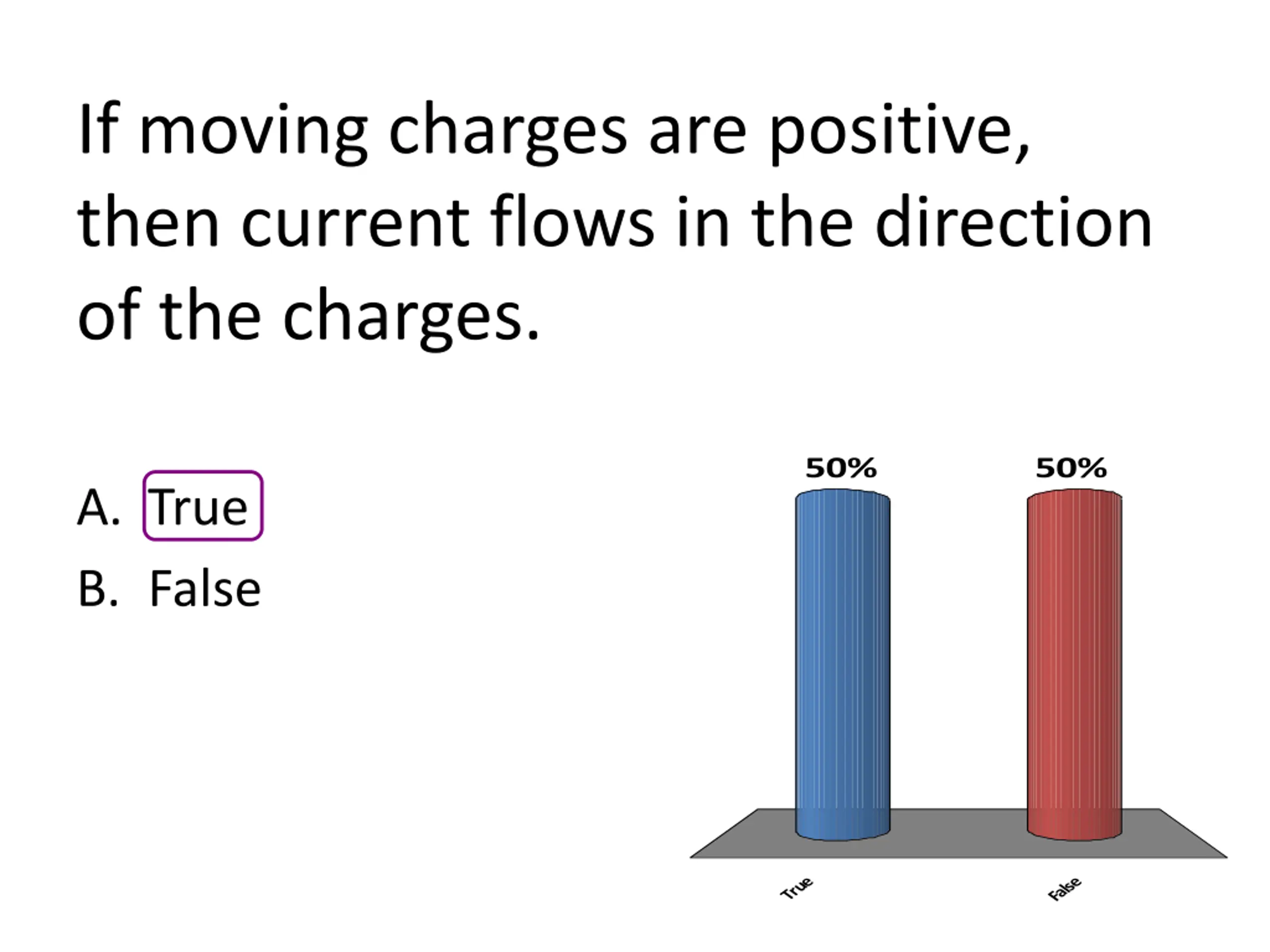

If moving charges are positive, then current flows in the direction of the charges. 50% 50% A. True B. False True False
If moving charges are negative, then current flows in the direction of the charges. 50% 50% A. True B. False True False

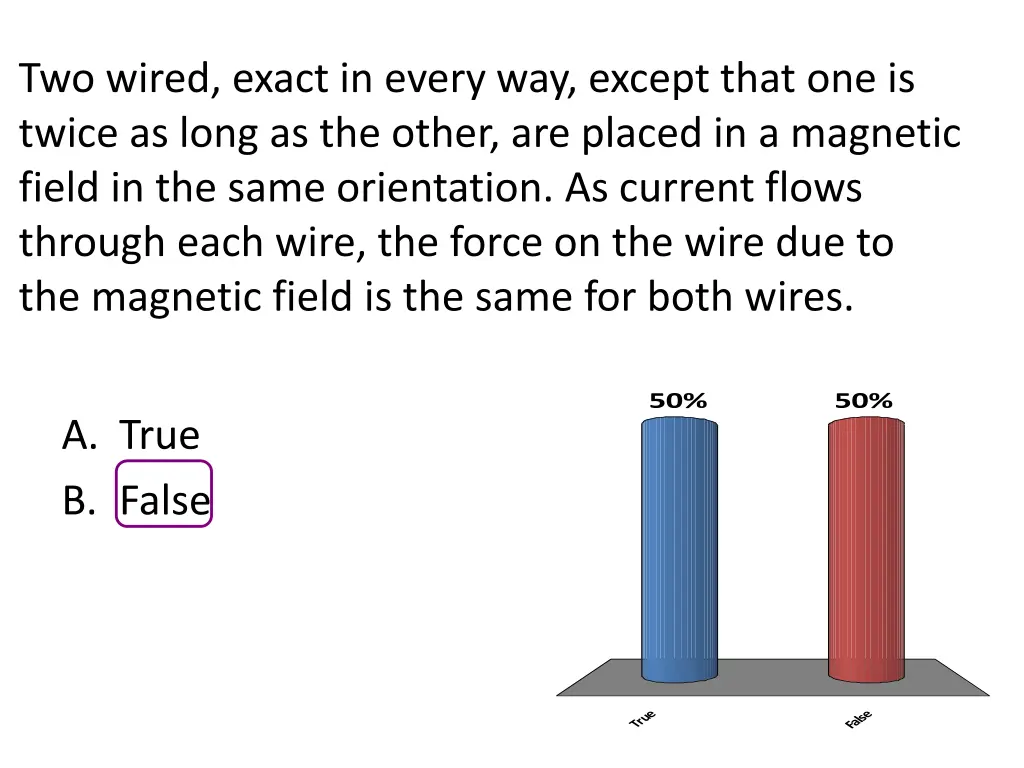

Two wired, exact in every way, except that one is twice as long as the other, are placed in a magnetic field in the same orientation. As current flows through each wire, the force on the wire due to the magnetic field is the same for both wires. 50% 50% A. True B. False True False

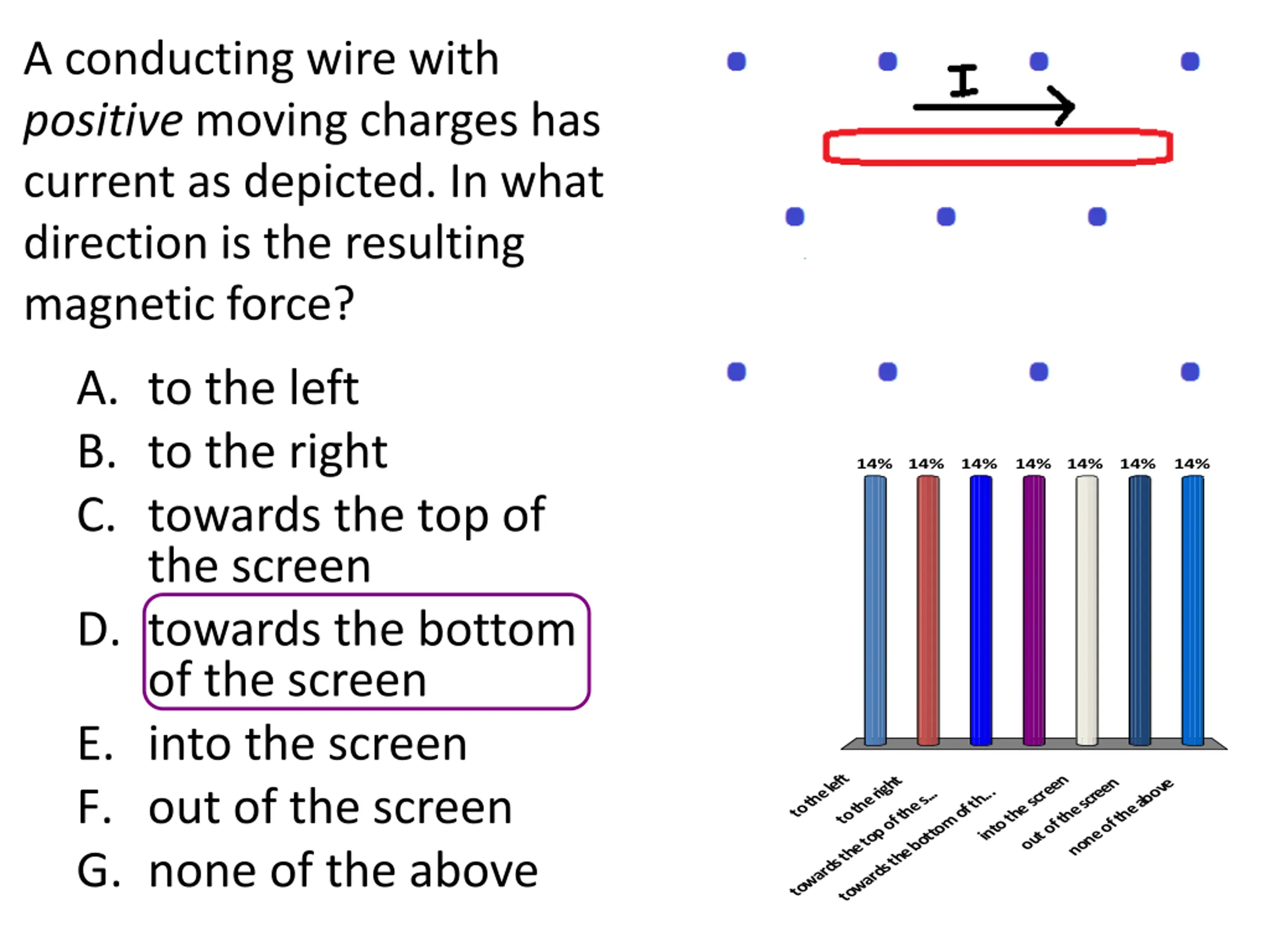

A conducting wire with positive moving charges has current as depicted. In what direction is the resulting magnetic force? A. to the left B. to the right C. towards the top of the screen D. towards the bottom of the screen E. into the screen F. out of the screen G. none of the above 14% 14% 14% 14% 14% 14% 14% to the left into the screen to the right out of the screen none of the above towards the bottom of th... towards the top of the s...

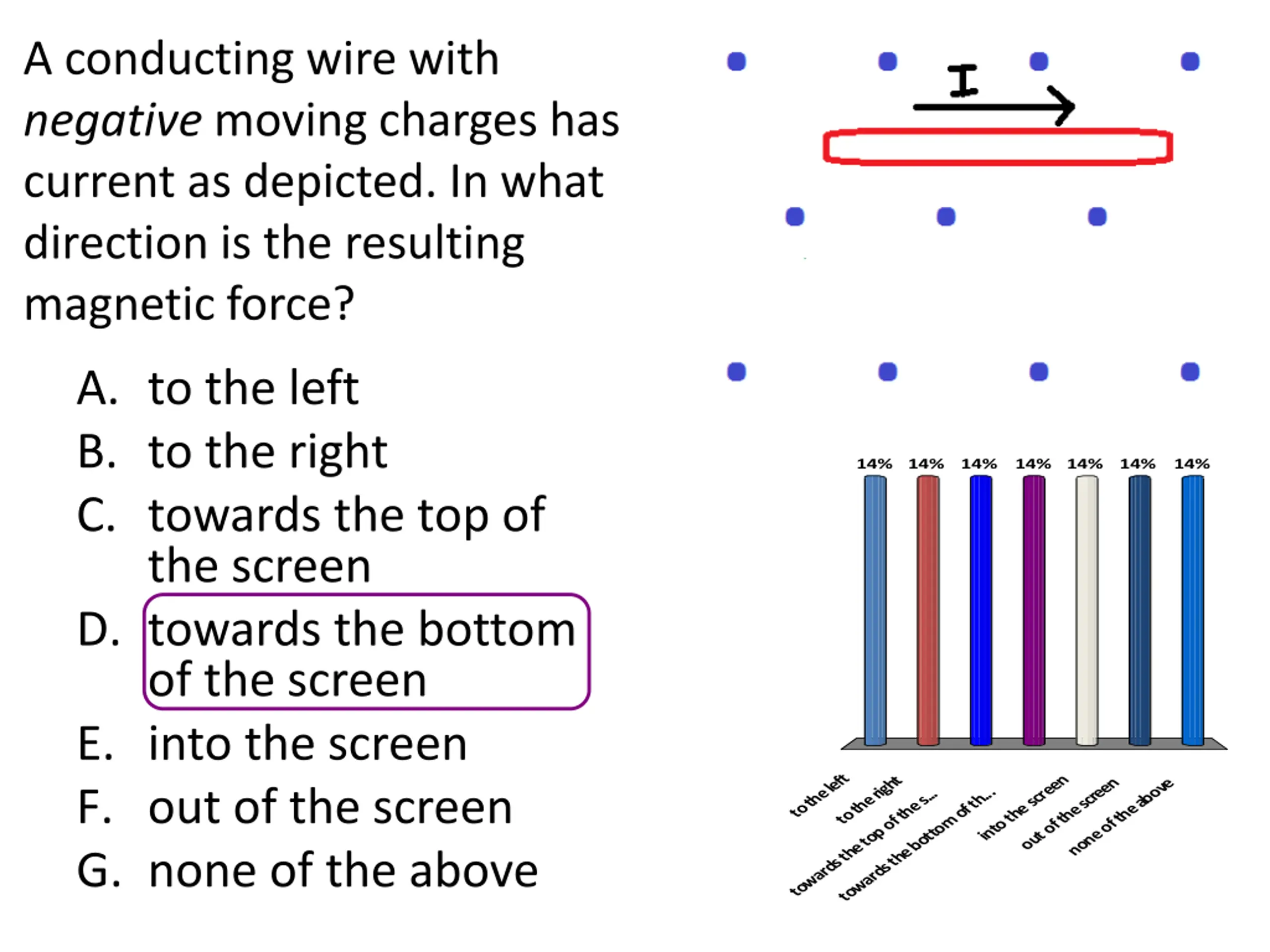

A conducting wire with negative moving charges has current as depicted. In what direction is the resulting magnetic force? A. to the left B. to the right C. towards the top of the screen D. towards the bottom of the screen E. into the screen F. out of the screen G. none of the above 14% 14% 14% 14% 14% 14% 14% to the left into the screen to the right out of the screen none of the above towards the bottom of th... towards the top of the s...

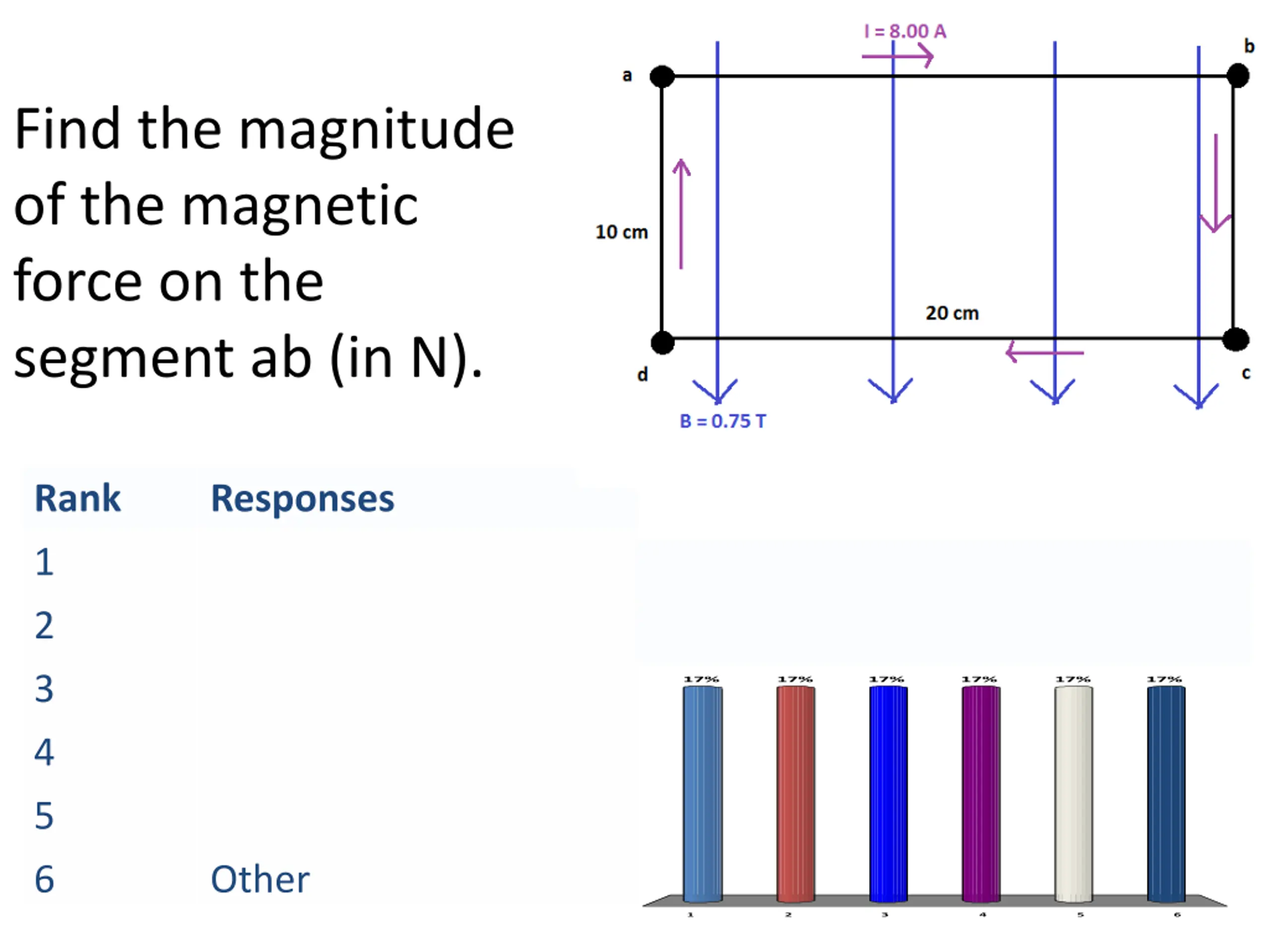

Find the magnitude of the magnetic force on the segment ab (in N). Rank Responses 1 2 3 17% 17% 17% 17% 17% 17% 4 5 6 Other 1 2 3 4 5 6

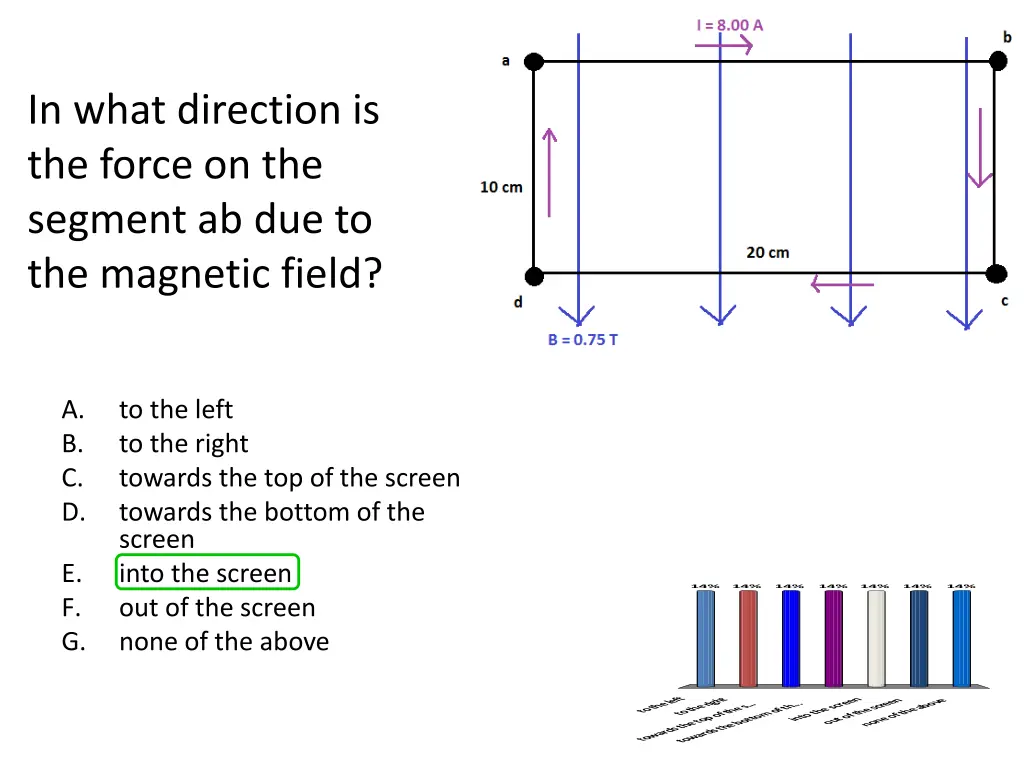

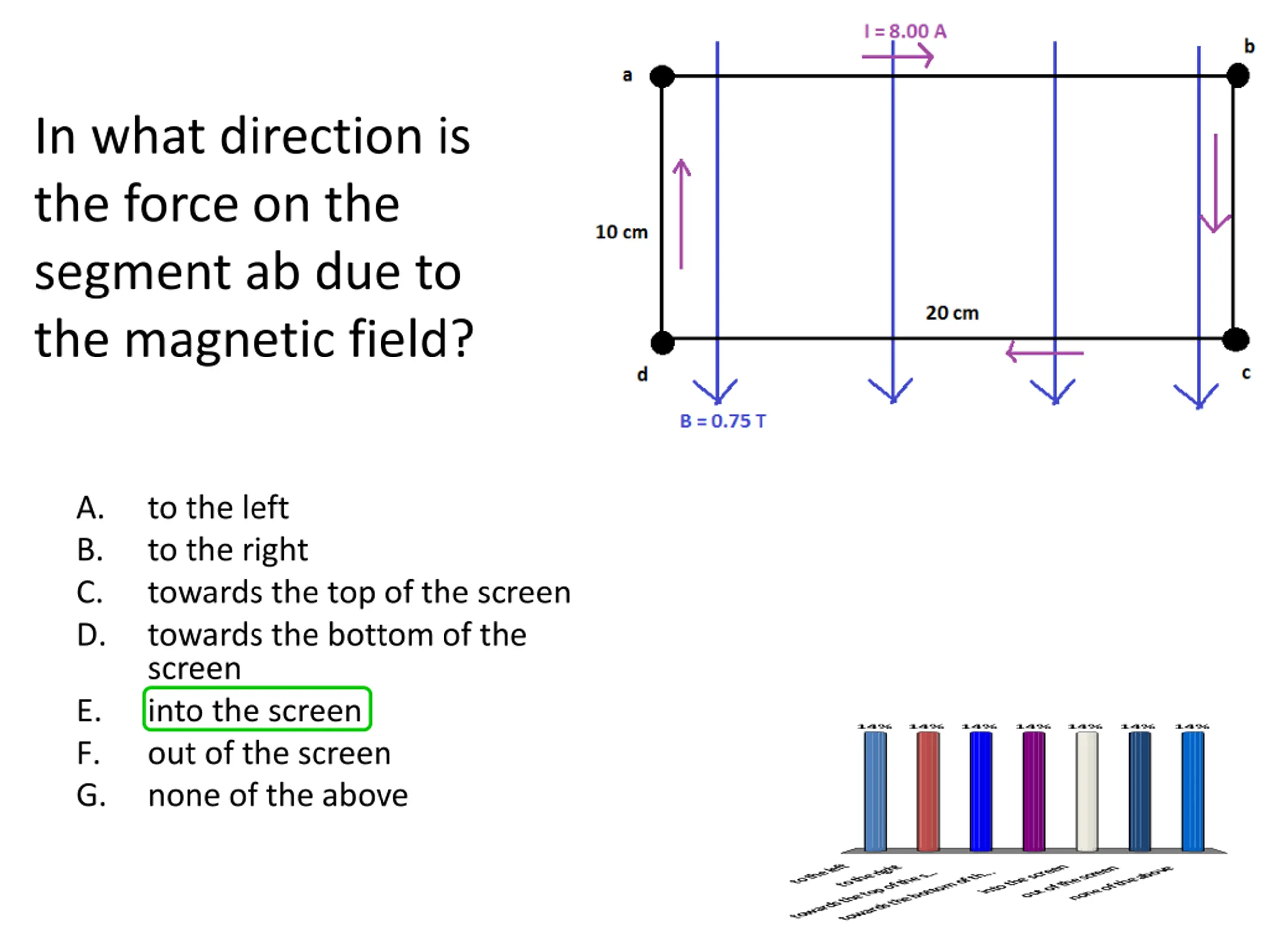

In what direction is the force on the segment ab due to the magnetic field? A. B. C. D. to the left to the right towards the top of the screen towards the bottom of the screen into the screen out of the screen none of the above E. F. G. 14% 14% 14% 14% 14% 14% 14% to the left towards the top of the s... into the screen to the right out of the screen none of the above towards the bottom of th...

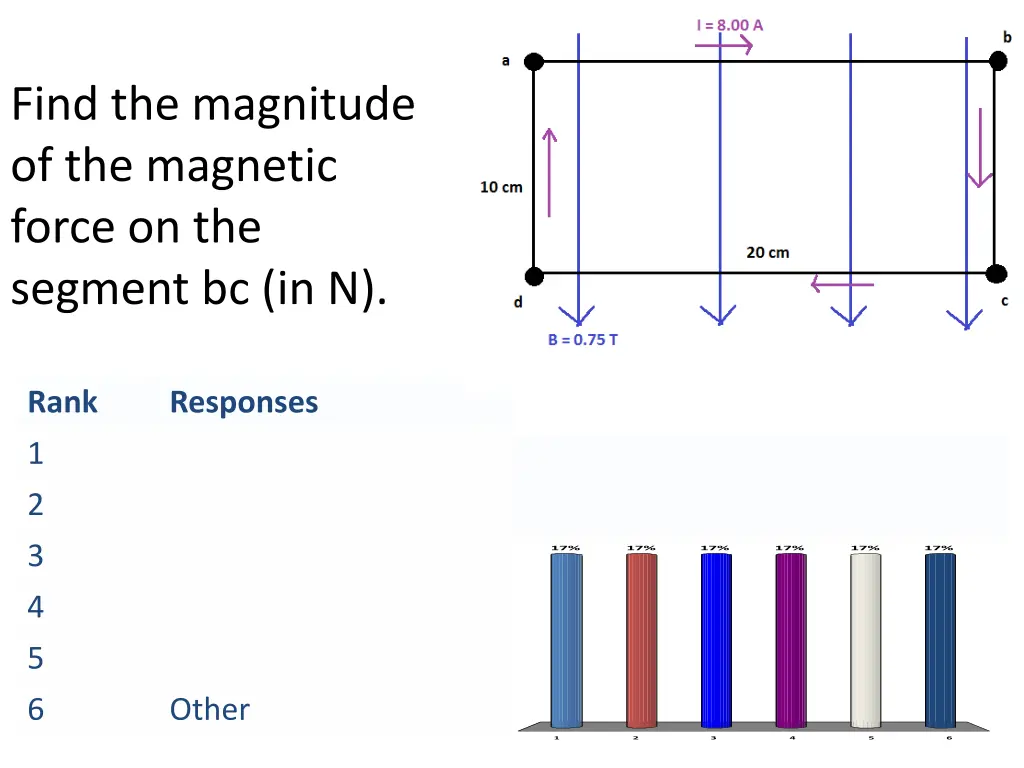

Find the magnitude of the magnetic force on the segment bc (in N). Rank Responses 1 2 3 17% 17% 17% 17% 17% 17% 4 5 6 Other 1 2 3 4 5 6
In what direction is the force on the segment bc due to the magnetic field? A. B. C. D. to the left to the right towards the top of the screen towards the bottom of the screen into the screen out of the screen none of the above E. F. G. 14% 14% 14% 14% 14% 14% 14% to the left towards the top of the s... into the screen to the right out of the screen none of the above towards the bottom of th...
Find the magnitude of the magnetic force on the segment cd (in N). Rank Responses 1 2 3 17% 17% 17% 17% 17% 17% 4 5 6 Other 1 2 3 4 5 6

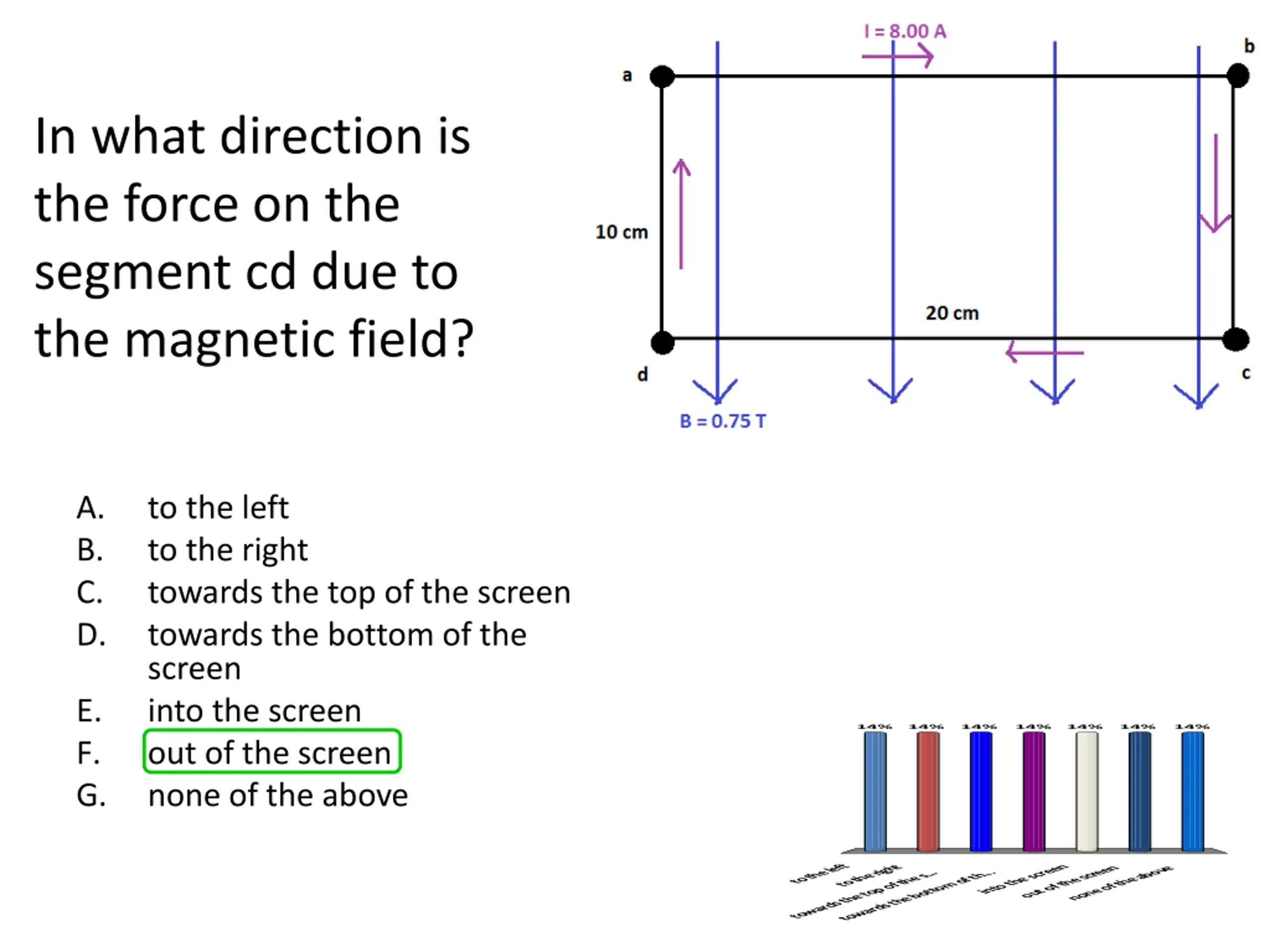

In what direction is the force on the segment cd due to the magnetic field? A. B. C. D. to the left to the right towards the top of the screen towards the bottom of the screen into the screen out of the screen none of the above E. F. G. 14% 14% 14% 14% 14% 14% 14% to the left towards the top of the s... into the screen to the right out of the screen none of the above towards the bottom of th...

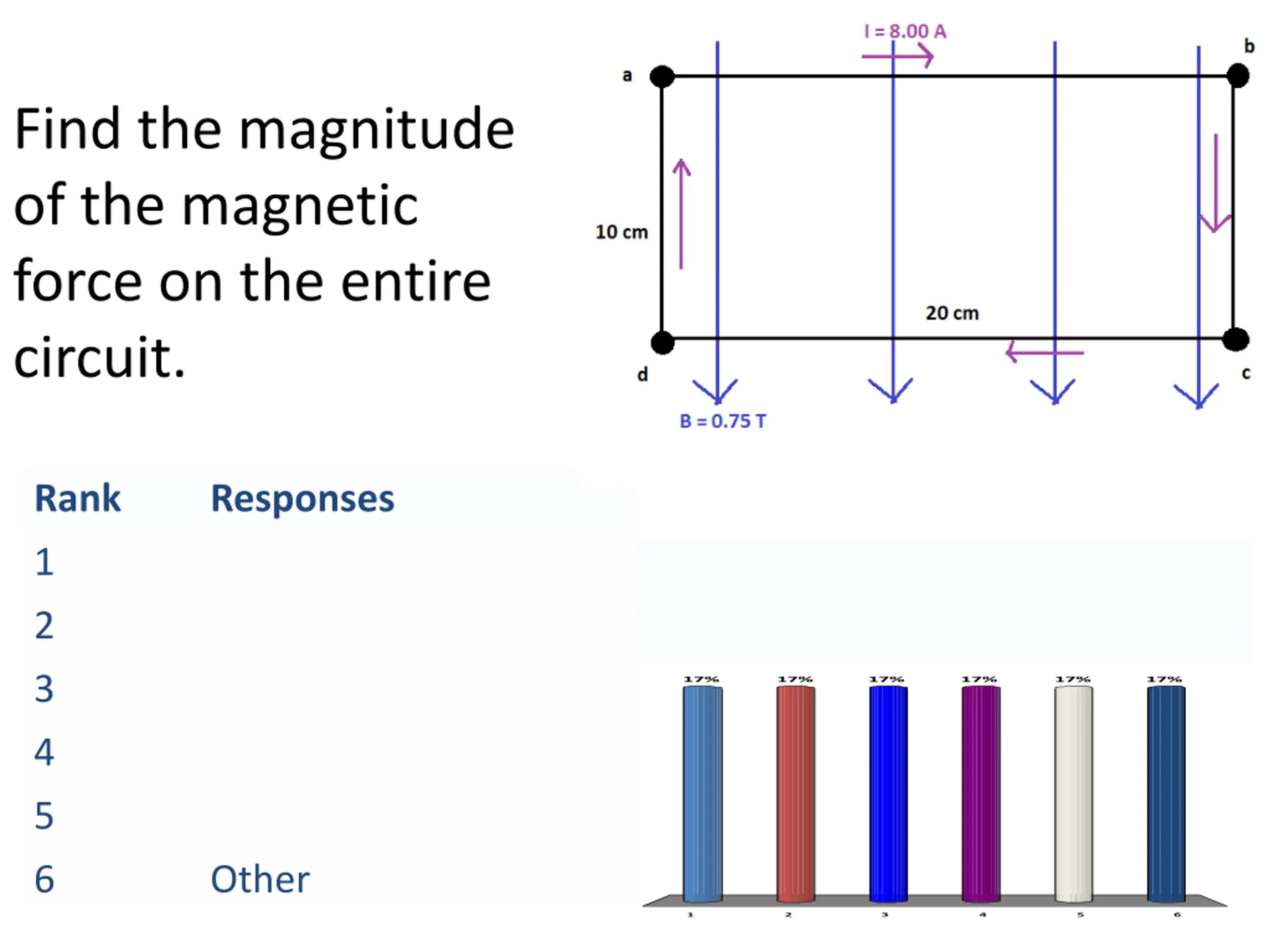

Find the magnitude of the magnetic force on the entire circuit. Rank Responses 1 2 3 17% 17% 17% 17% 17% 17% 4 5 6 Other 1 2 3 4 5 6
