Magnetic Properties of Semi-Hard Spinel Ferrite Nanoparticles Synthesized by Hydrothermal Method
"Explore the magnetic properties of Ni0.5Co0.5Fe2O4 nanoparticles through hydrothermal synthesis, including XRD analysis, SEM images, and magnetic measurements. Discover potential applications in materials science. Presented by LAMOURI RACHIDA at Yeungnam University Fall Meeting 2021."
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Magnetic properties of semi-hard spinel ferrite nanoparticles synthesized by hydrothermal method Presented by Presented by LAMOURI RACHIDA LAMOURI RACHIDA Department of physics, Department of physics, Yeungnam Yeungnam University rlamouri@yu.ac.kr rlamouri@yu.ac.kr University Fall Meeting 2021 Fall Meeting 2021 - - Daegu Daegu- -Gyeongbuk GyeongbukBranch of the Korean Society of Physics Branch of the Korean Society of Physics

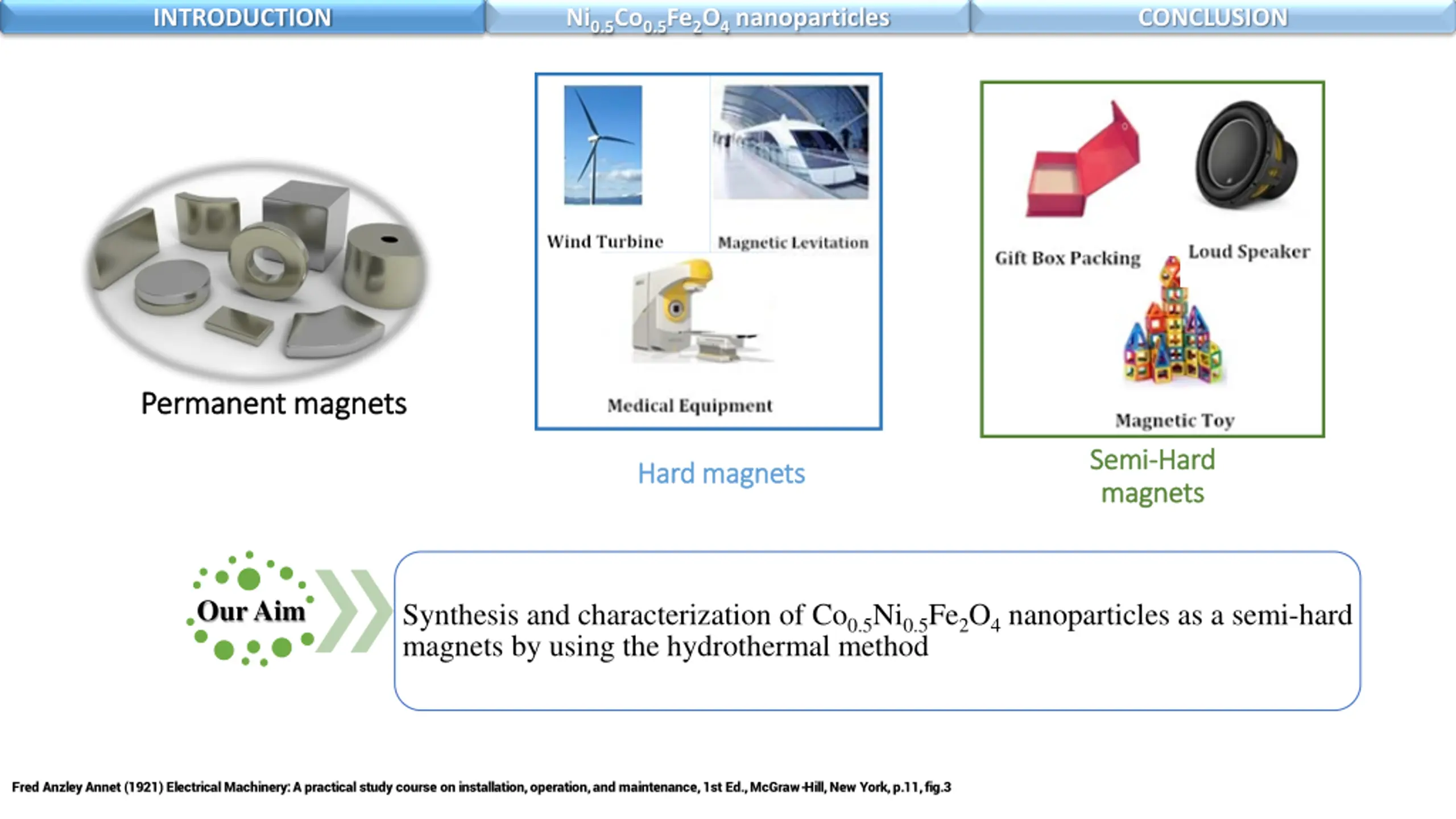

Ni0.5Co0.5Fe2O4nanoparticles CONCLUSION INTRODUCTION Permanent magnets Permanent magnets Semi Semi- -Hard magnets magnets Hard Hard magnets Hard magnets Our Aim Synthesis and characterization of Co0.5Ni0.5Fe2O4nanoparticles as a semi-hard magnets by using the hydrothermal method Fred AnzleyAnnet (1921) Electrical Machinery: A practical study course on installation, operation, and maintenance, 1st Ed., McGraw-Hill, New York, p.11, fig.3

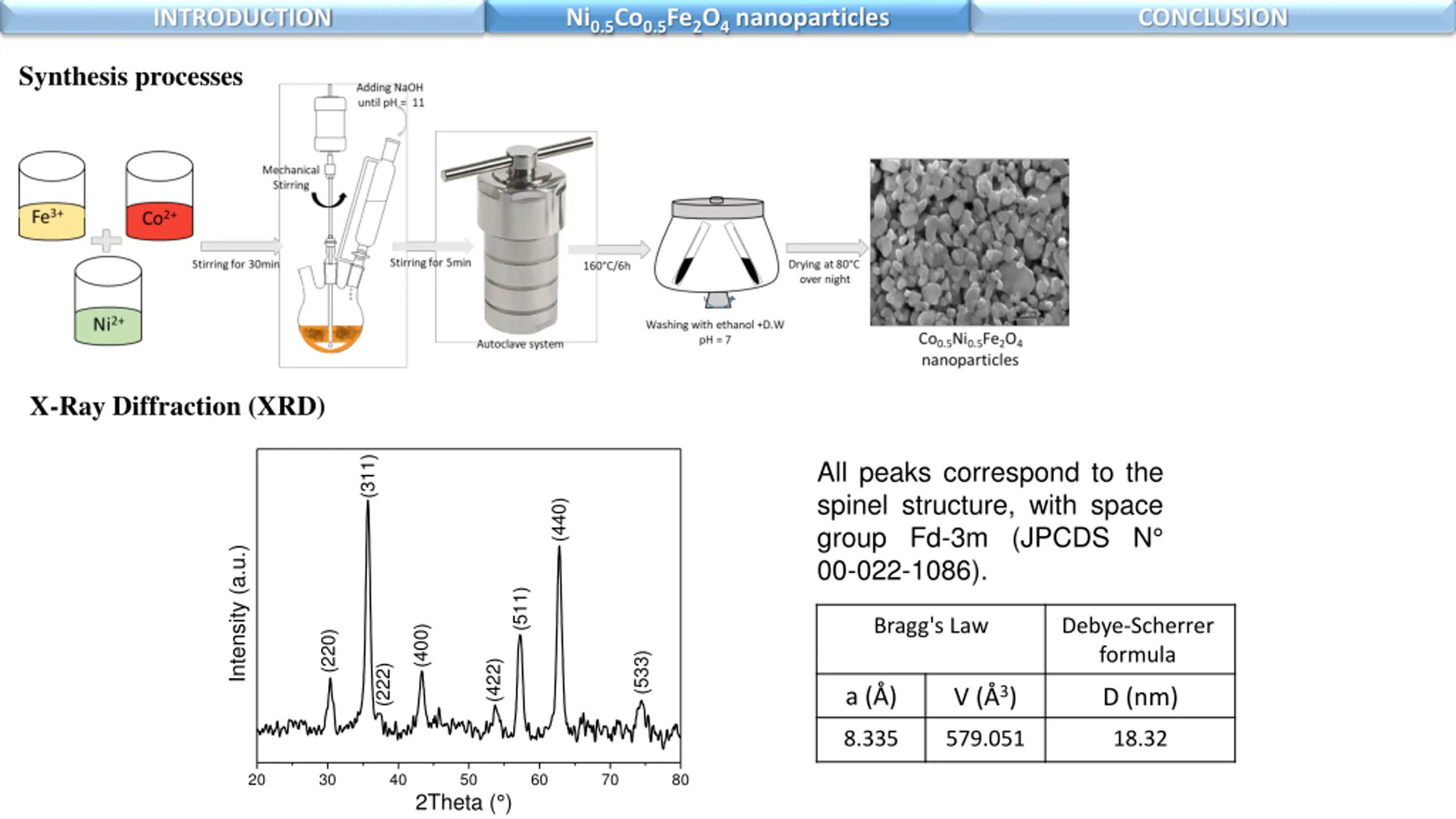

Ni0.5Co0.5Fe2O4nanoparticles CONCLUSION INTRODUCTION Synthesis processes X-Ray Diffraction (XRD) (311) All peaks correspond to the spinel structure, with space group Fd-3m (JPCDS N 00-022-1086). (440) Intensity (a.u.) (511) Bragg's Law Debye-Scherrer formula (400) (220) (533) (422) (222) V ( 3) a ( ) D (nm) 8.335 579.051 18.32 20 30 40 50 60 70 80 2Theta ( )

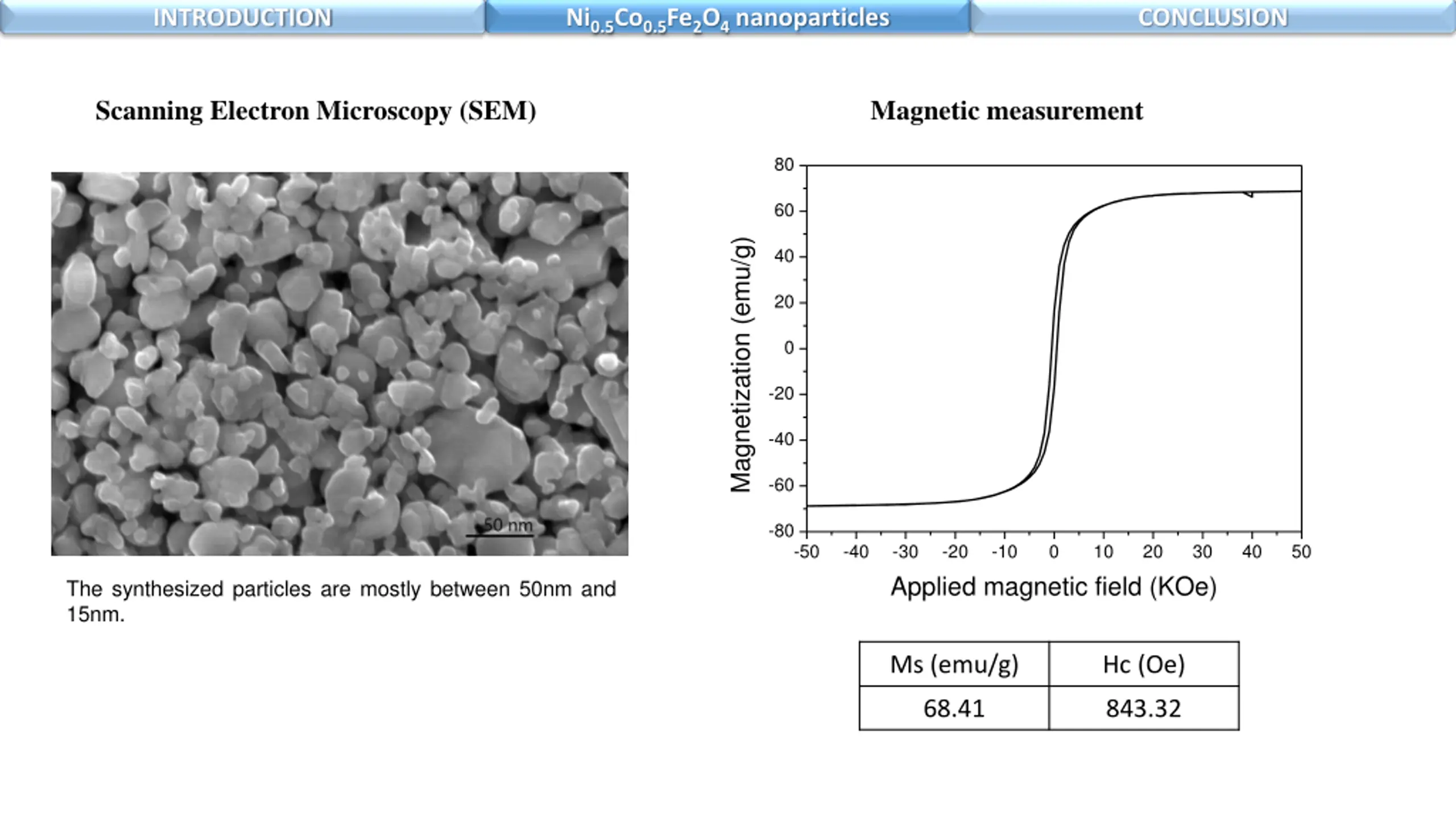

Ni0.5Co0.5Fe2O4nanoparticles CONCLUSION INTRODUCTION Scanning Electron Microscopy (SEM) Magnetic measurement 80 60 Magnetization (emu/g) 40 20 0 -20 -40 -60 -80 -50 -40 -30 Applied magnetic field (KOe) -20 -10 0 10 20 30 40 50 The synthesized particles are mostly between 50nm and 15nm. Ms (emu/g) Hc (Oe) 68.41 843.32
Ni0.5Co0.5Fe2O4nanoparticles CONCLUSION INTRODUCTION The never ending question in Materials science APPLICATIONS PROPERTIES
Ni0.5Co0.5Fe2O4nanoparticles CONCLUSION INTRODUCTION Thank you
