TTC MILAN Welcome Intro Hasan Padamsee TTC Chair

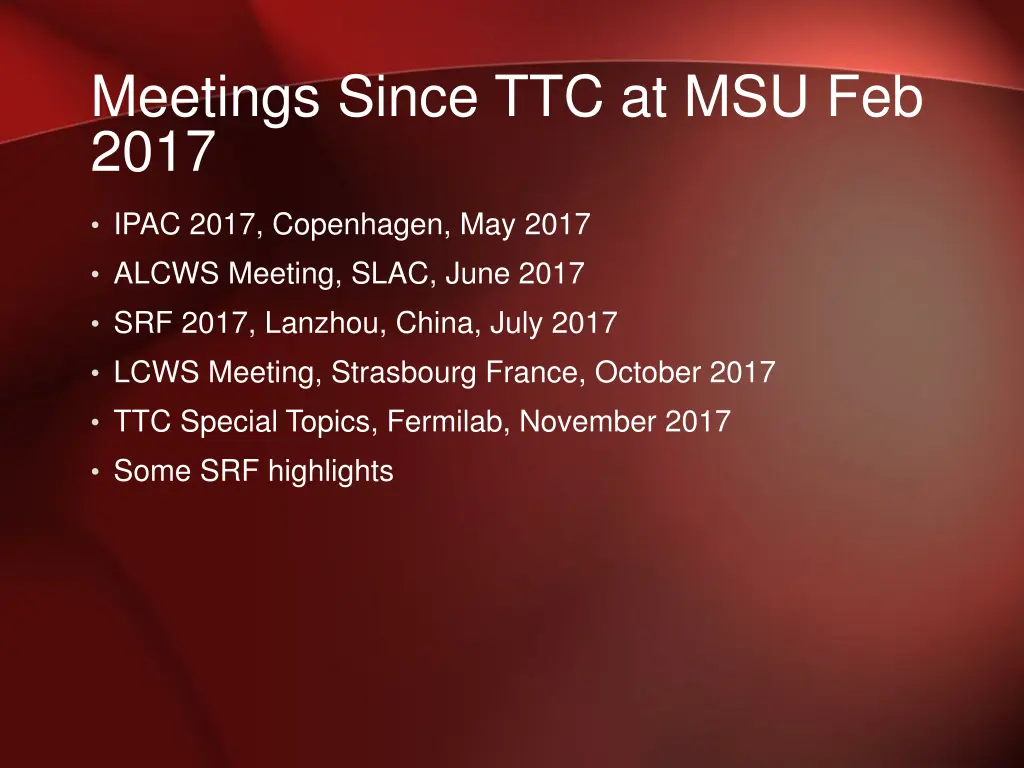

Meetings Since TTC at MSU Feb 2017 IPAC 2017, Copenhagen, May 2017 ALCWS Meeting, SLAC, June 2017 SRF 2017, Lanzhou, China, July 2017 LCWS Meeting, Strasbourg France, October 2017 TTC Special Topics, Fermilab, November 2017 Some SRF highlights

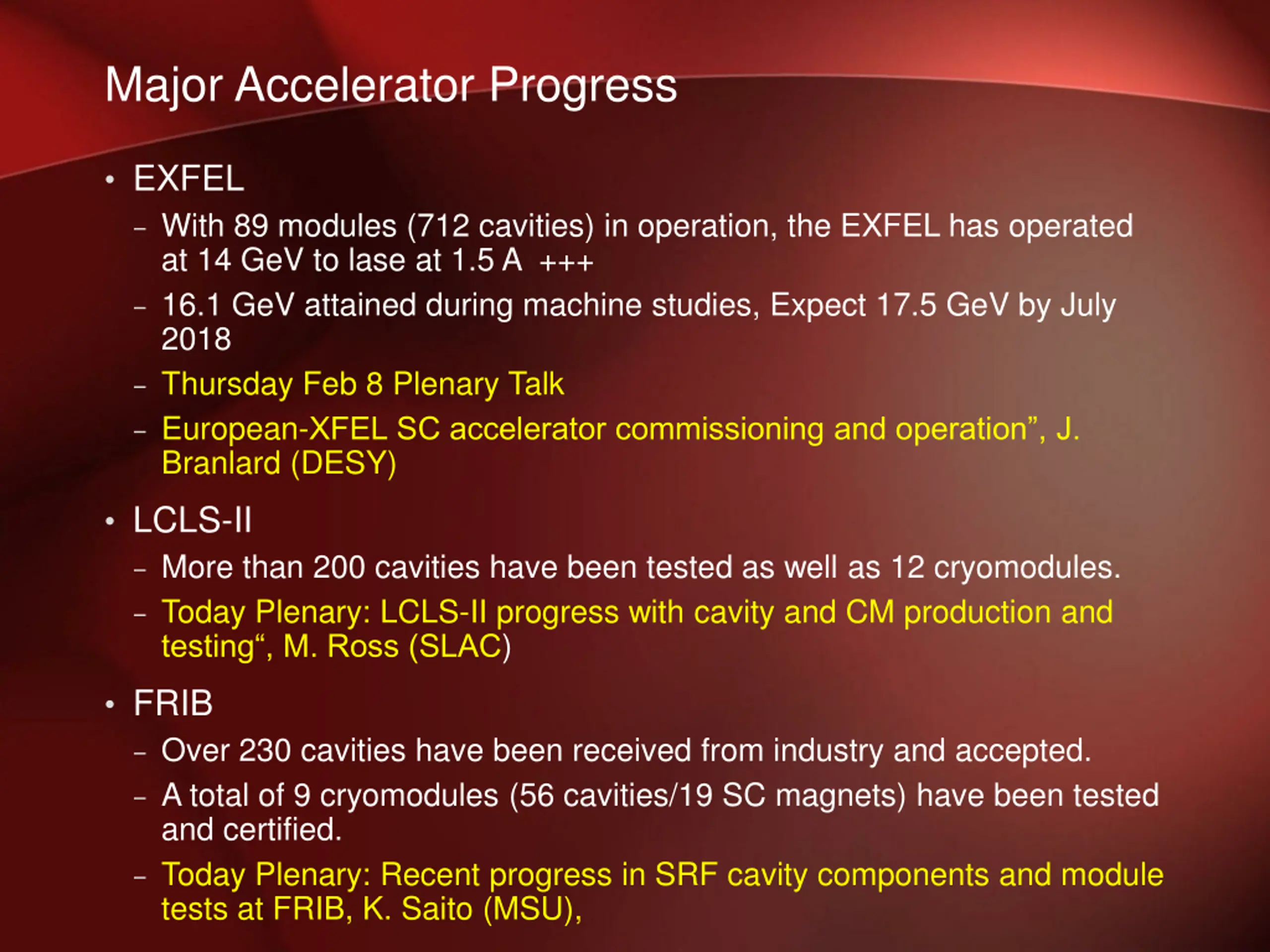

Major Accelerator Progress EXFEL With 89 modules (712 cavities) in operation, the EXFEL has operated at 14 GeV to lase at 1.5 A +++ 16.1 GeV attained during machine studies, Expect 17.5 GeV by July 2018 Thursday Feb 8 Plenary Talk European-XFEL SC accelerator commissioning and operation , J. Branlard (DESY) LCLS-II More than 200 cavities have been tested as well as 12 cryomodules. Today Plenary: LCLS-II progress with cavity and CM production and testing , M. Ross (SLAC) FRIB Over 230 cavities have been received from industry and accepted. A total of 9 cryomodules (56 cavities/19 SC magnets) have been tested and certified. Today Plenary: Recent progress in SRF cavity components and module tests at FRIB, K. Saito (MSU),

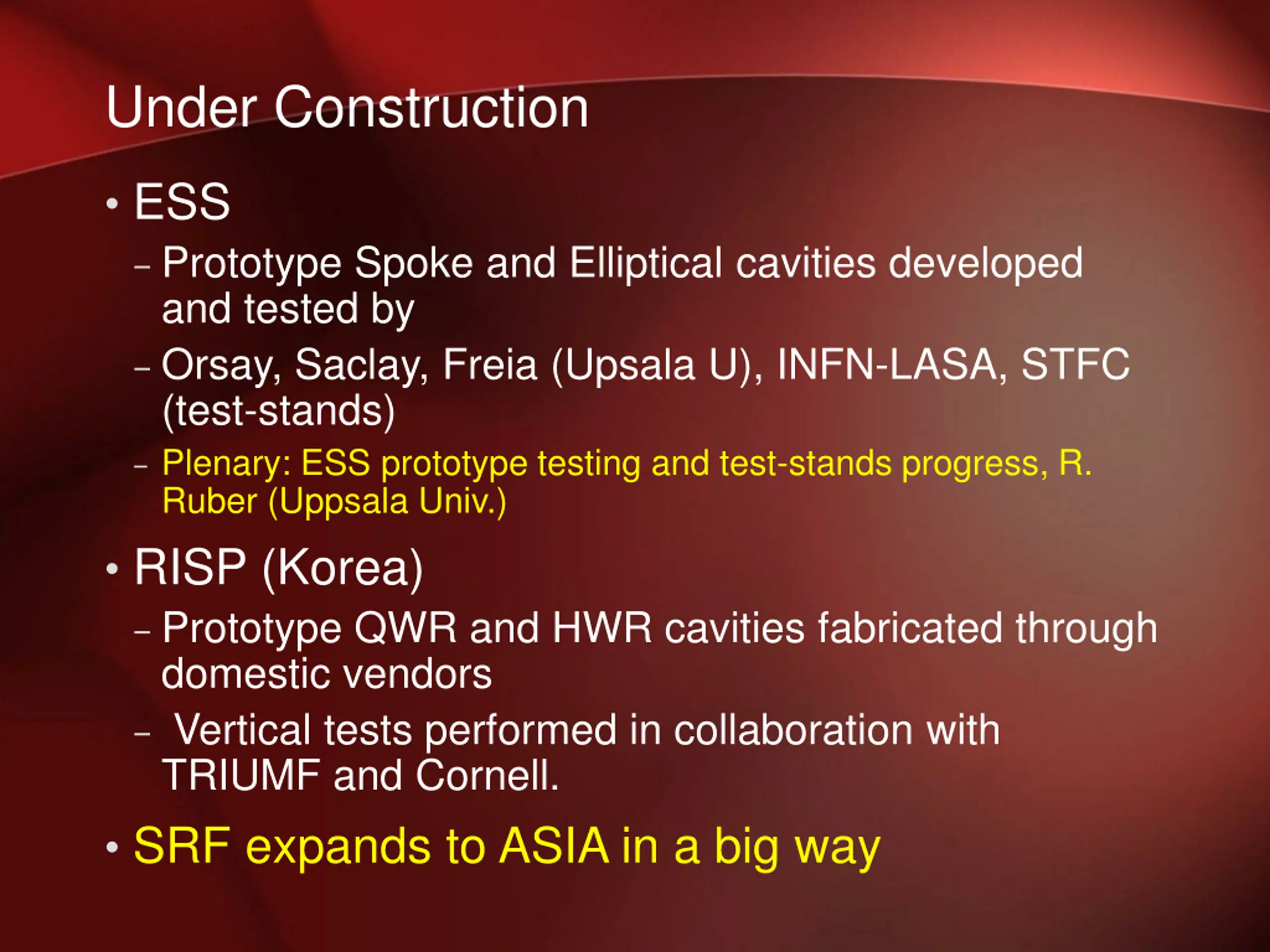

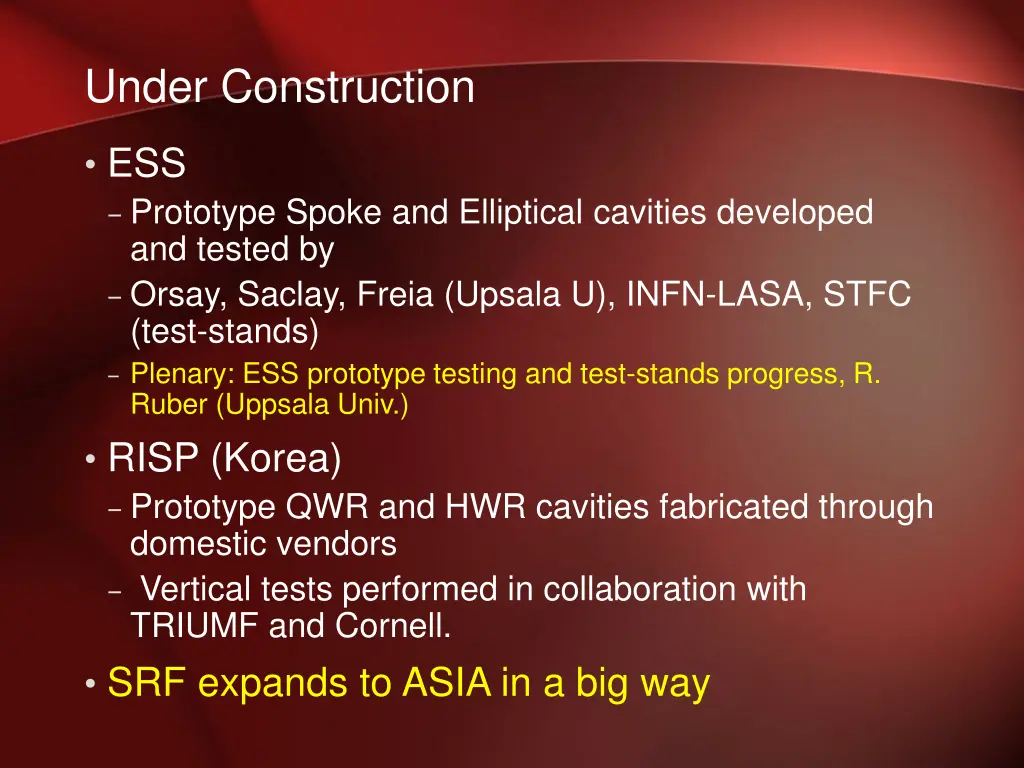

Under Construction ESS Prototype Spoke and Elliptical cavities developed and tested by Orsay, Saclay, Freia (Upsala U), INFN-LASA, STFC (test-stands) Plenary: ESS prototype testing and test-stands progress, R. Ruber (Uppsala Univ.) RISP (Korea) Prototype QWR and HWR cavities fabricated through domestic vendors Vertical tests performed in collaboration with TRIUMF and Cornell. SRF expands to ASIA in a big way

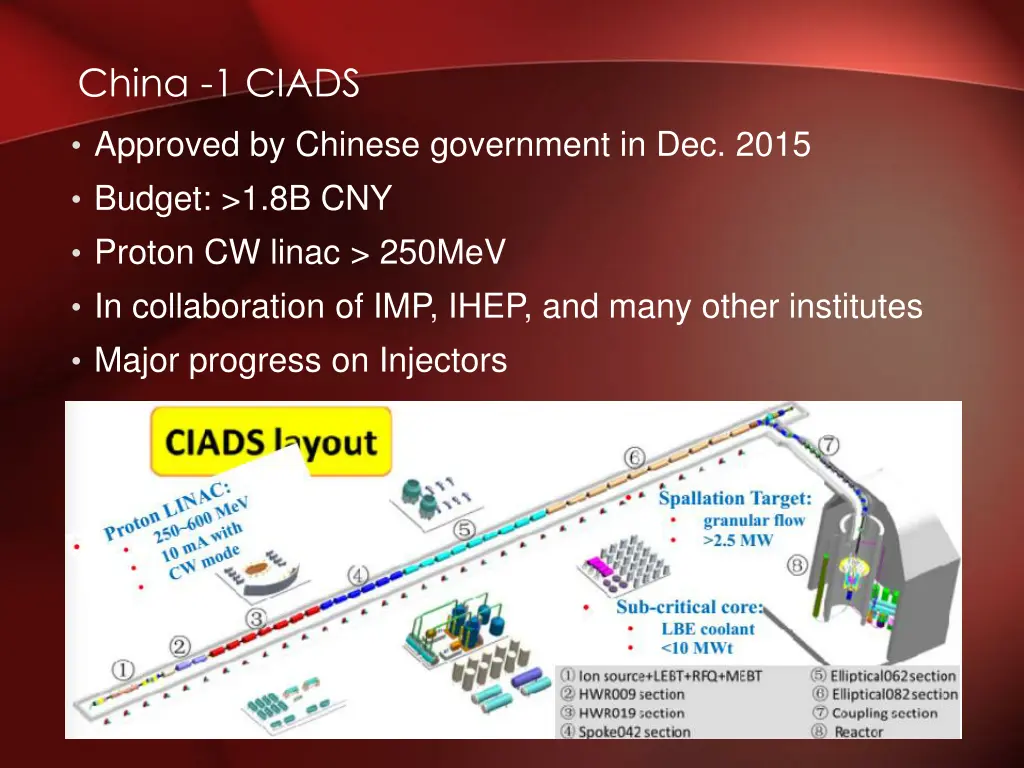

China -1 CIADS Approved by Chinese government in Dec. 2015 Budget: >1.8B CNY Proton CW linac > 250MeV In collaboration of IMP, IHEP, and many other institutes Major progress on Injectors

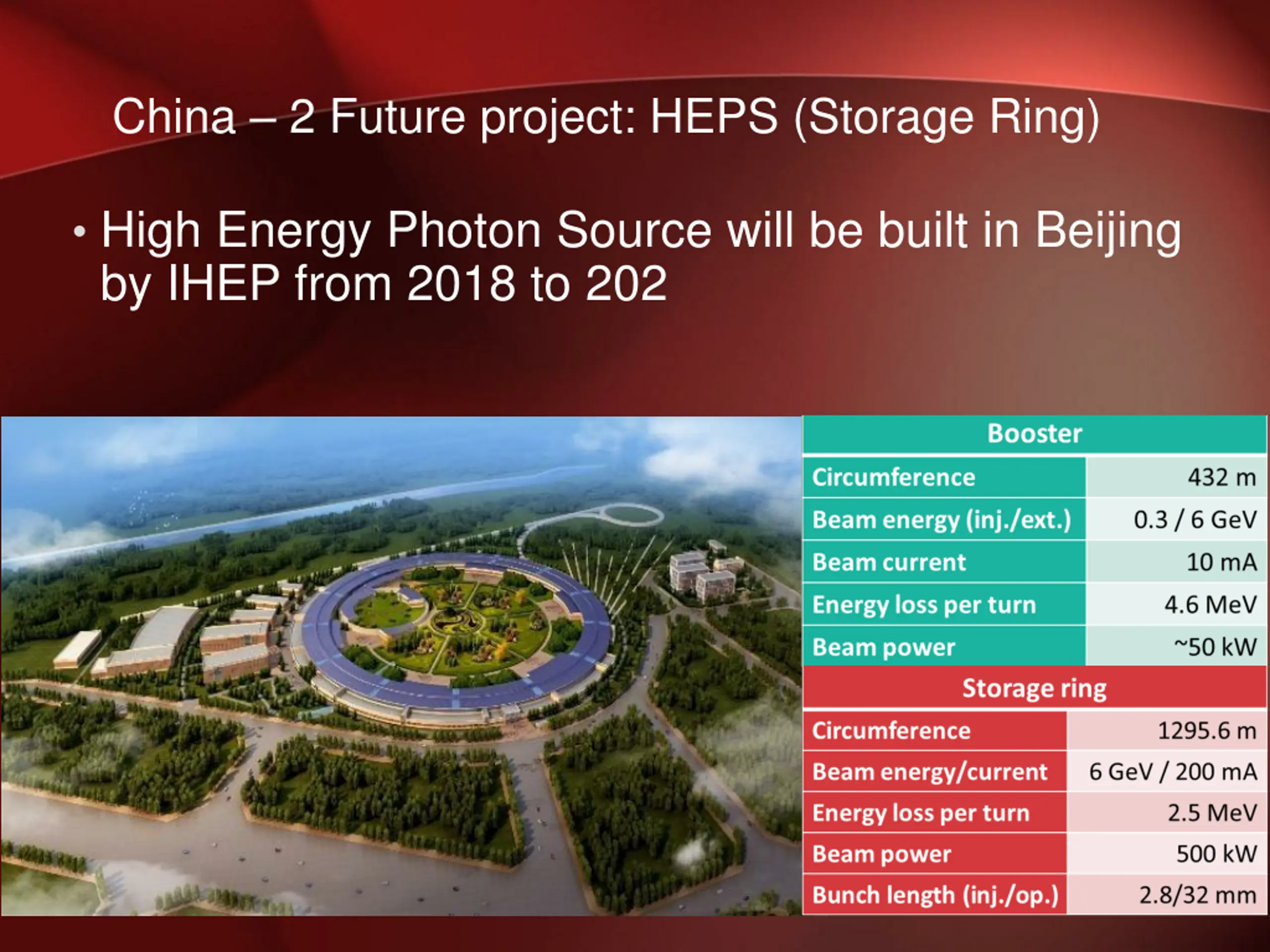

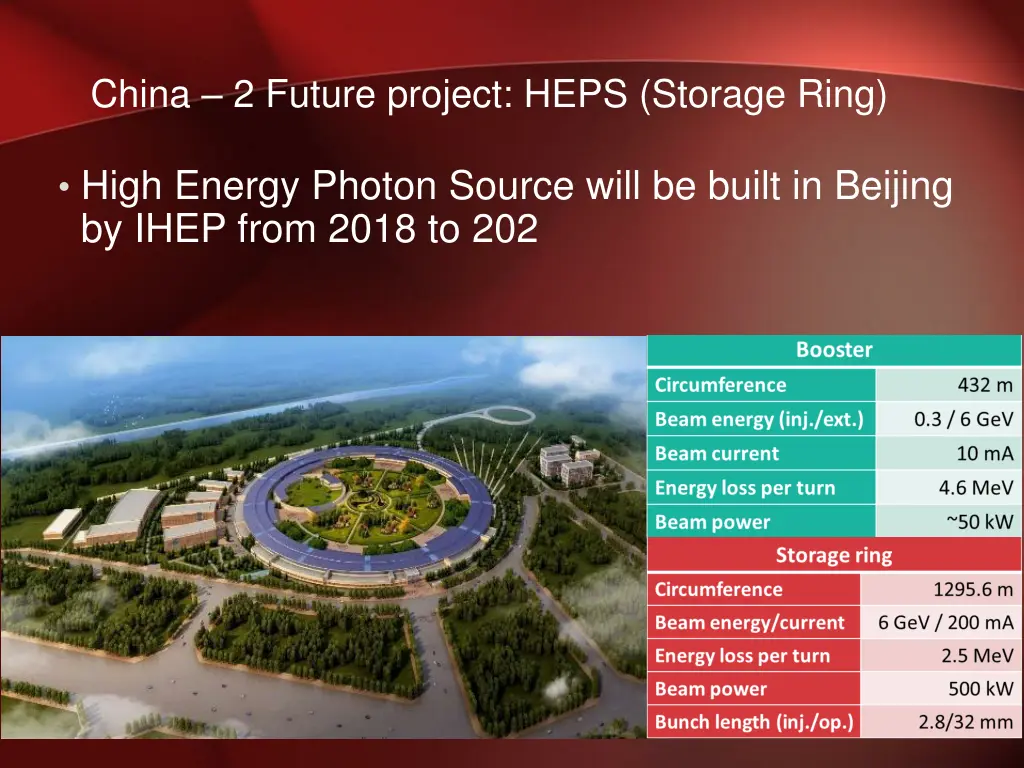

China 2 Future project: HEPS (Storage Ring) High Energy Photon Source will be built in Beijing by IHEP from 2018 to 202

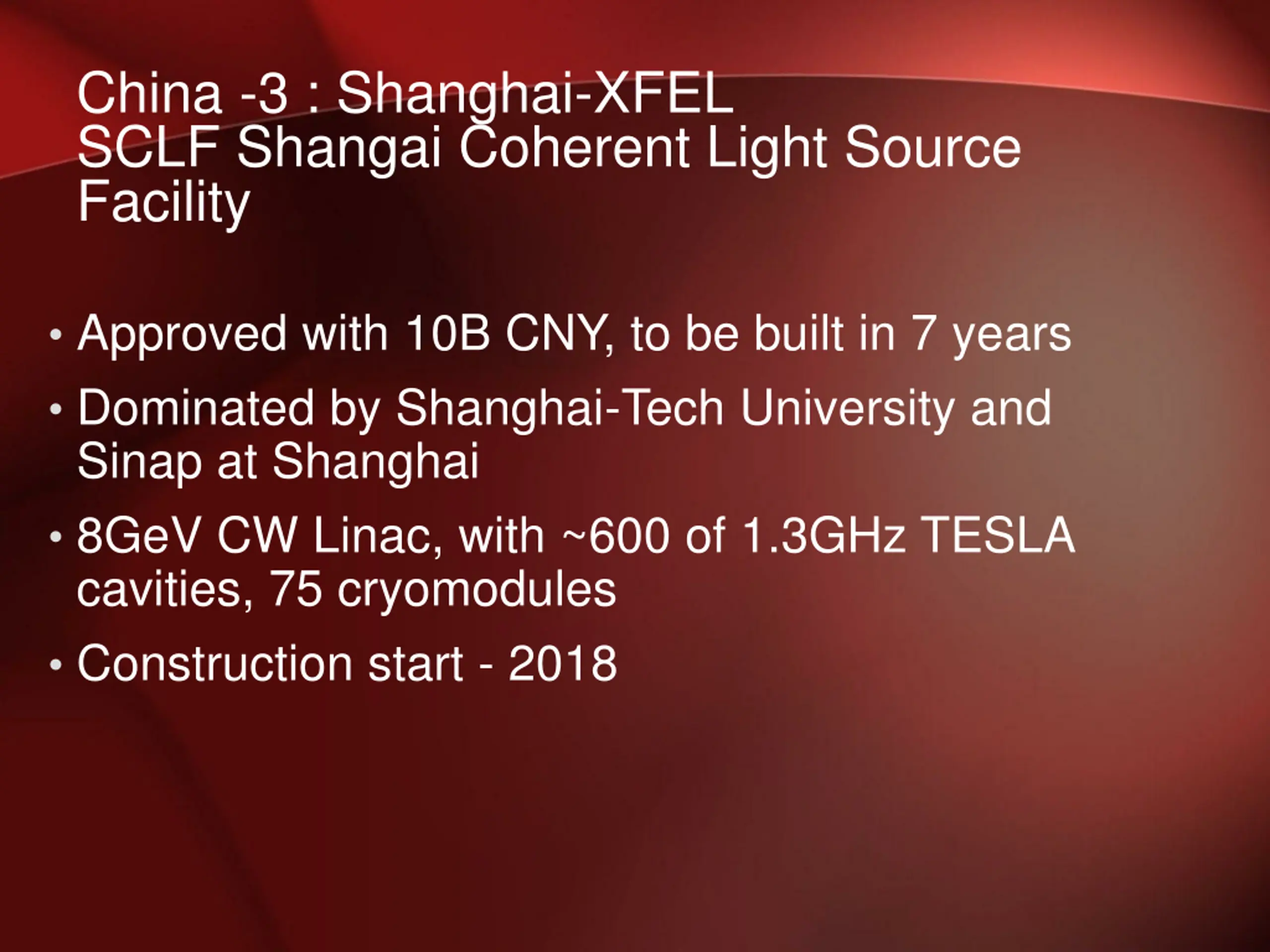

China -3 : Shanghai-XFEL SCLF Shangai Coherent Light Source Facility Approved with 10B CNY, to be built in 7 years Dominated by Shanghai-Tech University and Sinap at Shanghai 8GeV CW Linac, with ~600 of 1.3GHz TESLA cavities, 75 cryomodules Construction start - 2018
PAPS SRF Facility, Beijing, China 4500 m2 SRF lab in the Platform of Advanced Photon Source Technology R&D (PAPS), Huairou Science Park, Beijing. Construction and facility commissioning: 2017 - 2020 Jiyuan Zhai (IHEP, China), LCWS2017, Strasbourg, France 2017/10/24 8

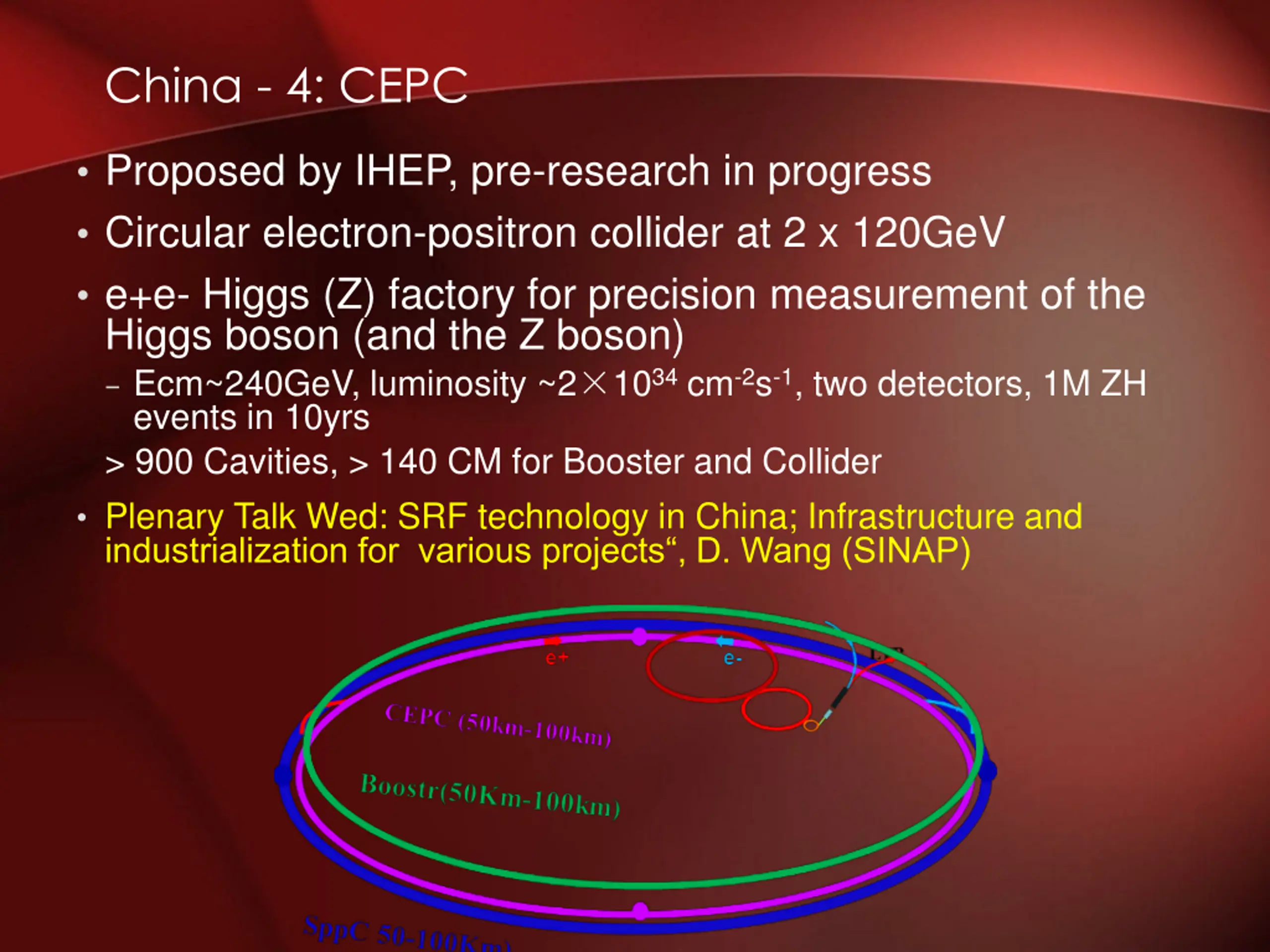

China - 4: CEPC Proposed by IHEP, pre-research in progress Circular electron-positron collider at 2 x 120GeV e+e- Higgs (Z) factory for precision measurement of the Higgs boson (and the Z boson) Ecm~240GeV, luminosity ~2 1034 cm-2s-1, two detectors, 1M ZH events in 10yrs > 900 Cavities, > 140 CM for Booster and Collider Plenary Talk Wed: SRF technology in China; Infrastructure and industrialization for various projects , D. Wang (SINAP)

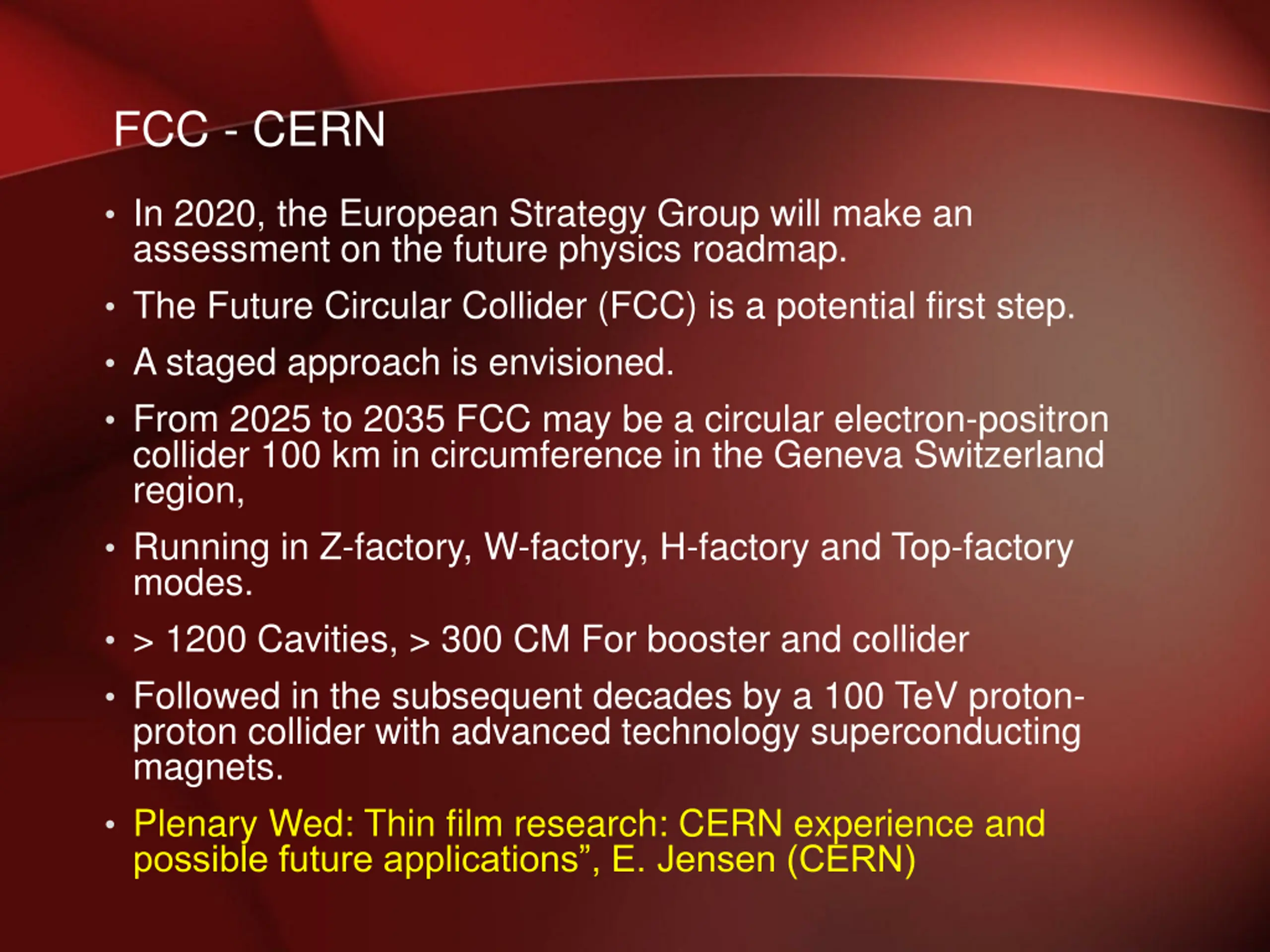

FCC - CERN In 2020, the European Strategy Group will make an assessment on the future physics roadmap. The Future Circular Collider (FCC) is a potential first step. A staged approach is envisioned. From 2025 to 2035 FCC may be a circular electron-positron collider 100 km in circumference in the Geneva Switzerland region, Running in Z-factory, W-factory, H-factory and Top-factory modes. > 1200 Cavities, > 300 CM For booster and collider Followed in the subsequent decades by a 100 TeV proton- proton collider with advanced technology superconducting magnets. Plenary Wed: Thin film research: CERN experience and possible future applications , E. Jensen (CERN)

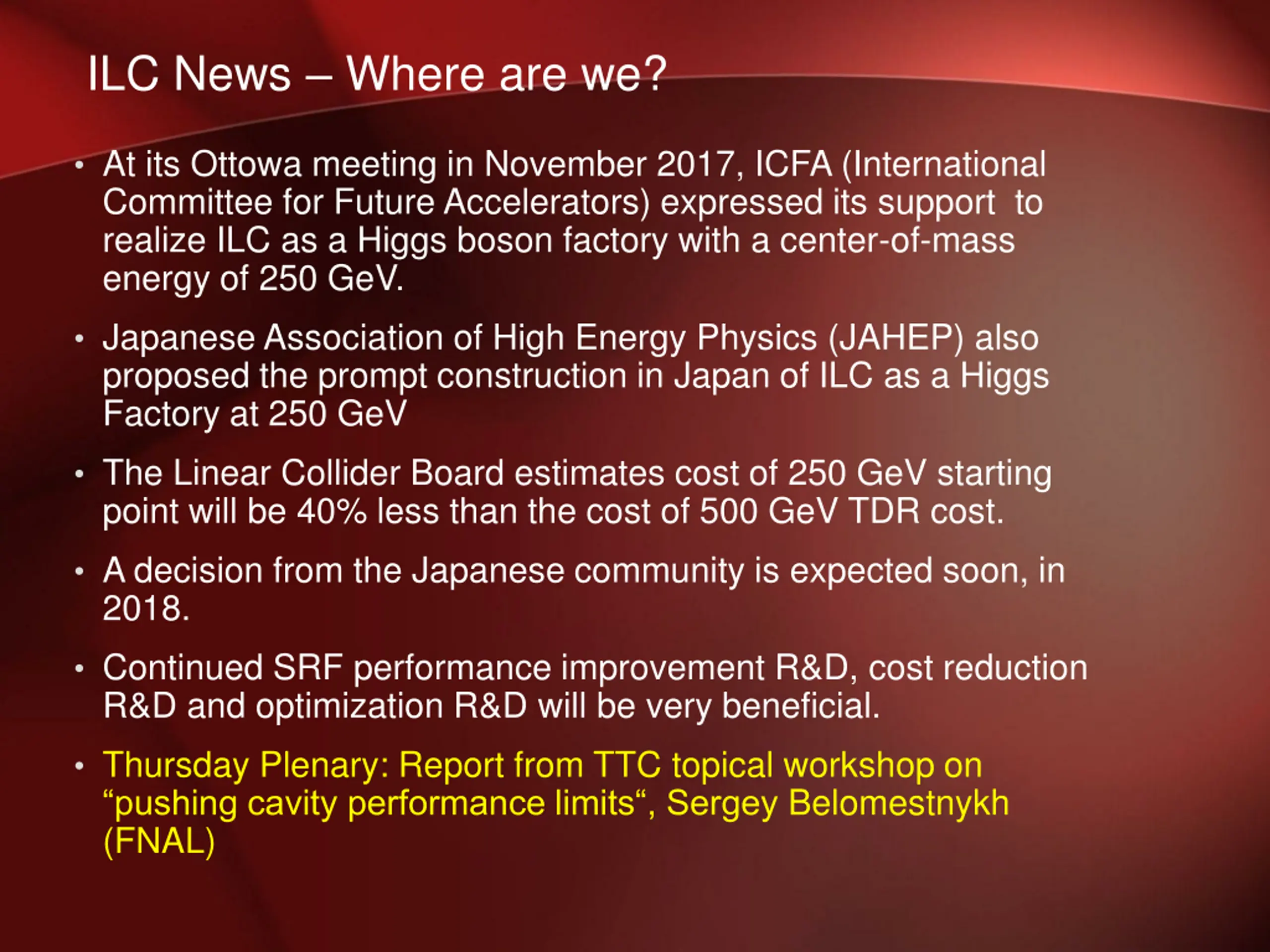

ILC News Where are we? At its Ottowa meeting in November 2017, ICFA (International Committee for Future Accelerators) expressed its support to realize ILC as a Higgs boson factory with a center-of-mass energy of 250 GeV. Japanese Association of High Energy Physics (JAHEP) also proposed the prompt construction in Japan of ILC as a Higgs Factory at 250 GeV The Linear Collider Board estimates cost of 250 GeV starting point will be 40% less than the cost of 500 GeV TDR cost. A decision from the Japanese community is expected soon, in 2018. Continued SRF performance improvement R&D, cost reduction R&D and optimization R&D will be very beneficial. Thursday Plenary: Report from TTC topical workshop on pushing cavity performance limits , Sergey Belomestnykh (FNAL)

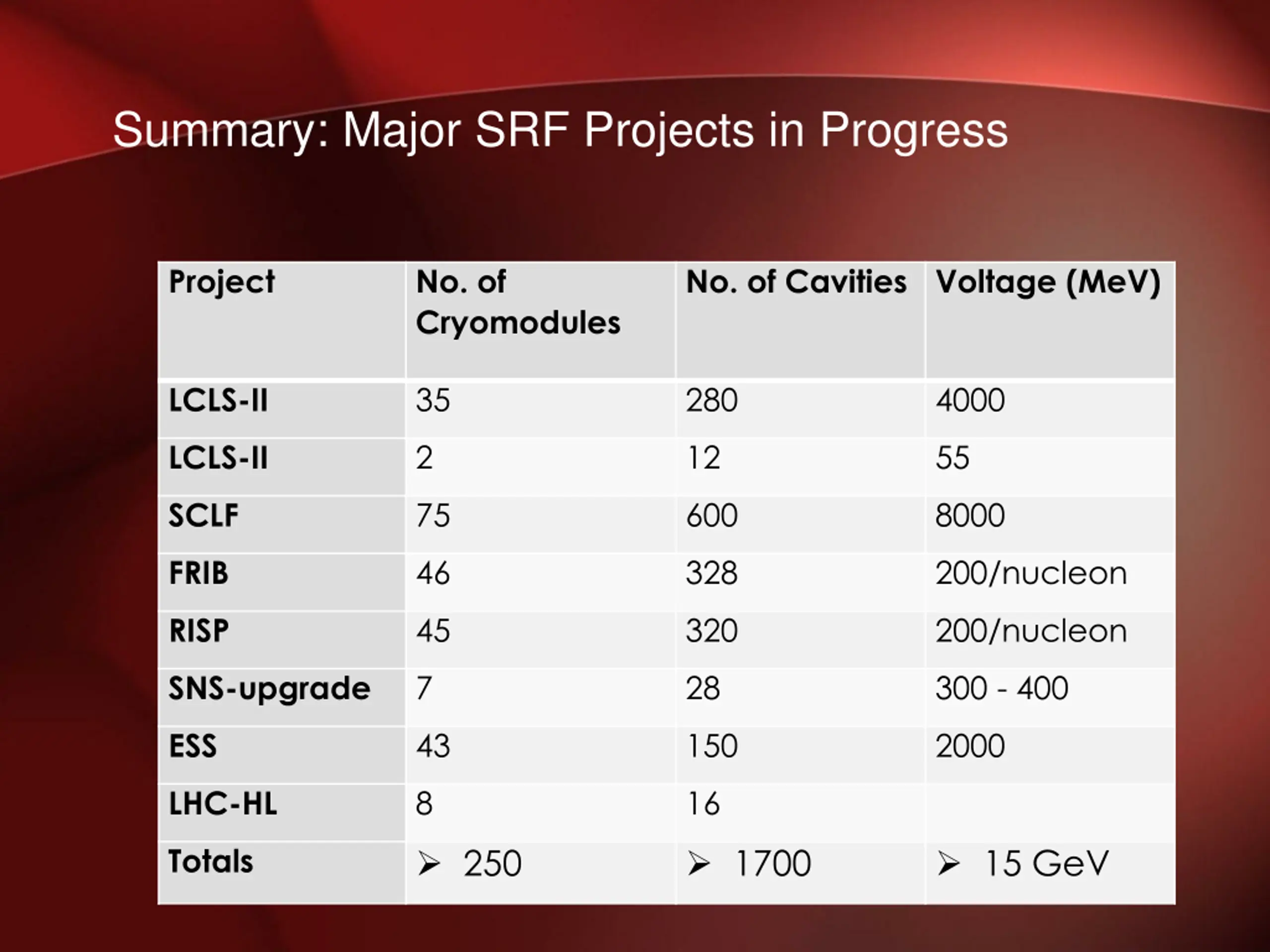

Summary: Major SRF Projects in Progress Project No. of Cryomodules No. of Cavities Voltage (MeV) LCLS-II 35 280 4000 LCLS-II 2 12 55 SCLF 75 600 8000 FRIB 46 328 200/nucleon RISP 45 320 200/nucleon SNS-upgrade 7 28 300 - 400 ESS 43 150 2000 LHC-HL 8 16 250 1700 15 GeV Totals

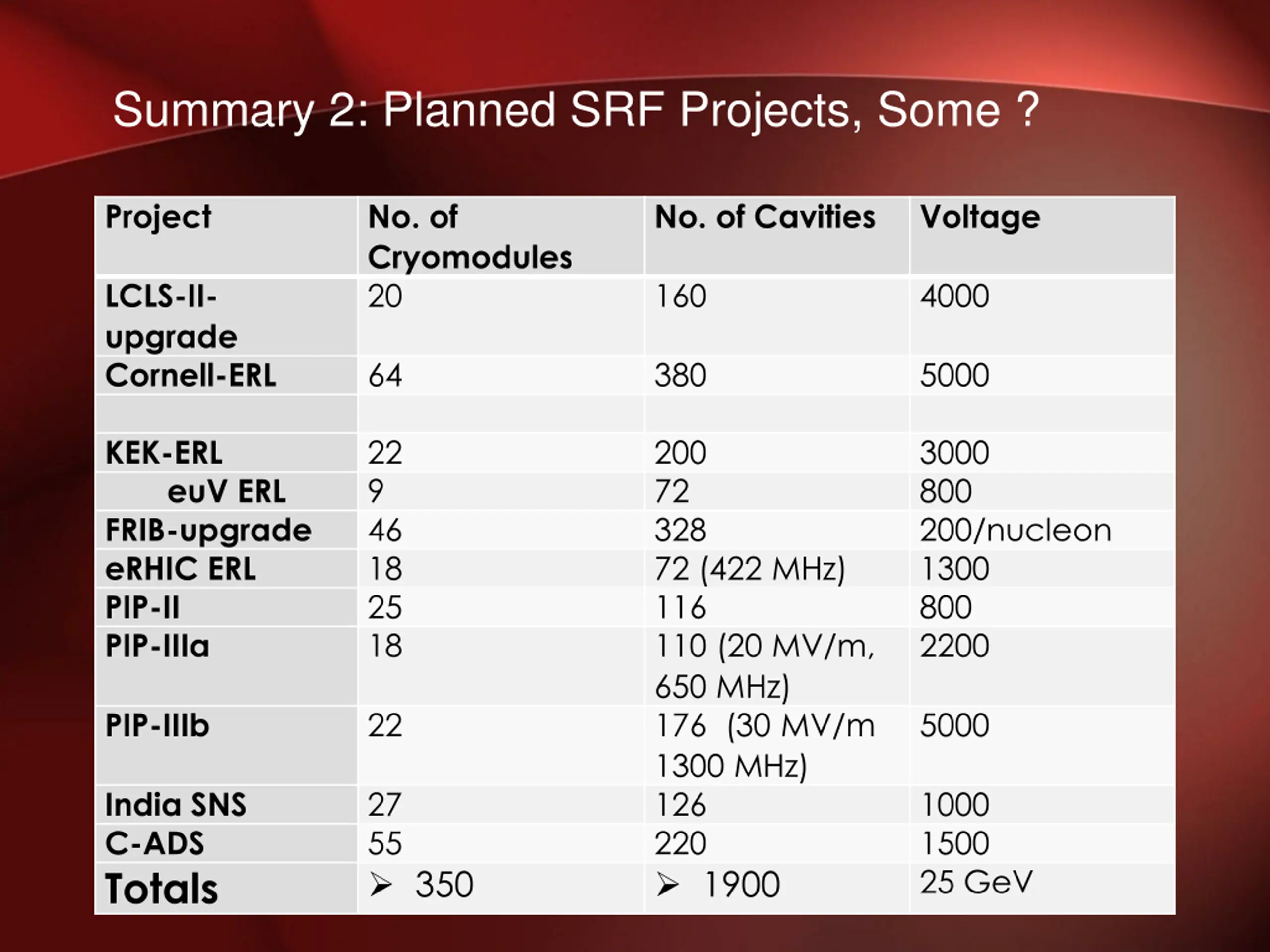

Summary 2: Planned SRF Projects, Some ? Project No. of Cryomodules 20 No. of Cavities Voltage LCLS-II- upgrade Cornell-ERL 160 4000 64 380 5000 KEK-ERL 22 9 46 18 25 18 200 72 328 72 (422 MHz) 116 110 (20 MV/m, 650 MHz) 176 (30 MV/m 1300 MHz) 126 220 1900 3000 800 200/nucleon 1300 800 2200 euV ERL FRIB-upgrade eRHIC ERL PIP-II PIP-IIIa PIP-IIIb 22 5000 India SNS C-ADS Totals 27 55 350 1000 1500 25 GeV
Ask Questions Have strong disussions Unleash your creativity Have a Great Meeting!
