Making and Breaking Redox Couples
This guide illustrates the process of creating and manipulating redox couples in chemical reactions. Learn how to convert a basis species into a redox couple, fill in the template for the new redox coupling reaction, and adjust stoichiometric coefficients. Discover how to change a redox species back to a basis species if needed. The tutorial provides step-by-step instructions with visual aids to enhance understanding.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Making and breaking redox couples

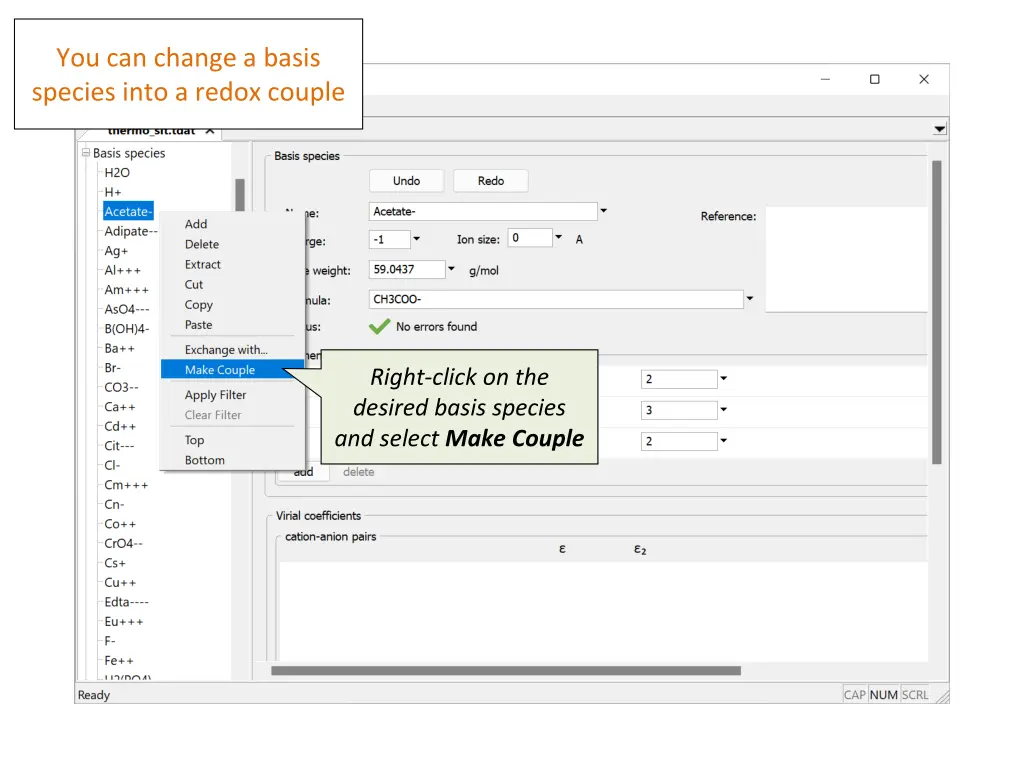

You can change a basis species into a redox couple Right-click on the desired basis species and select Make Couple

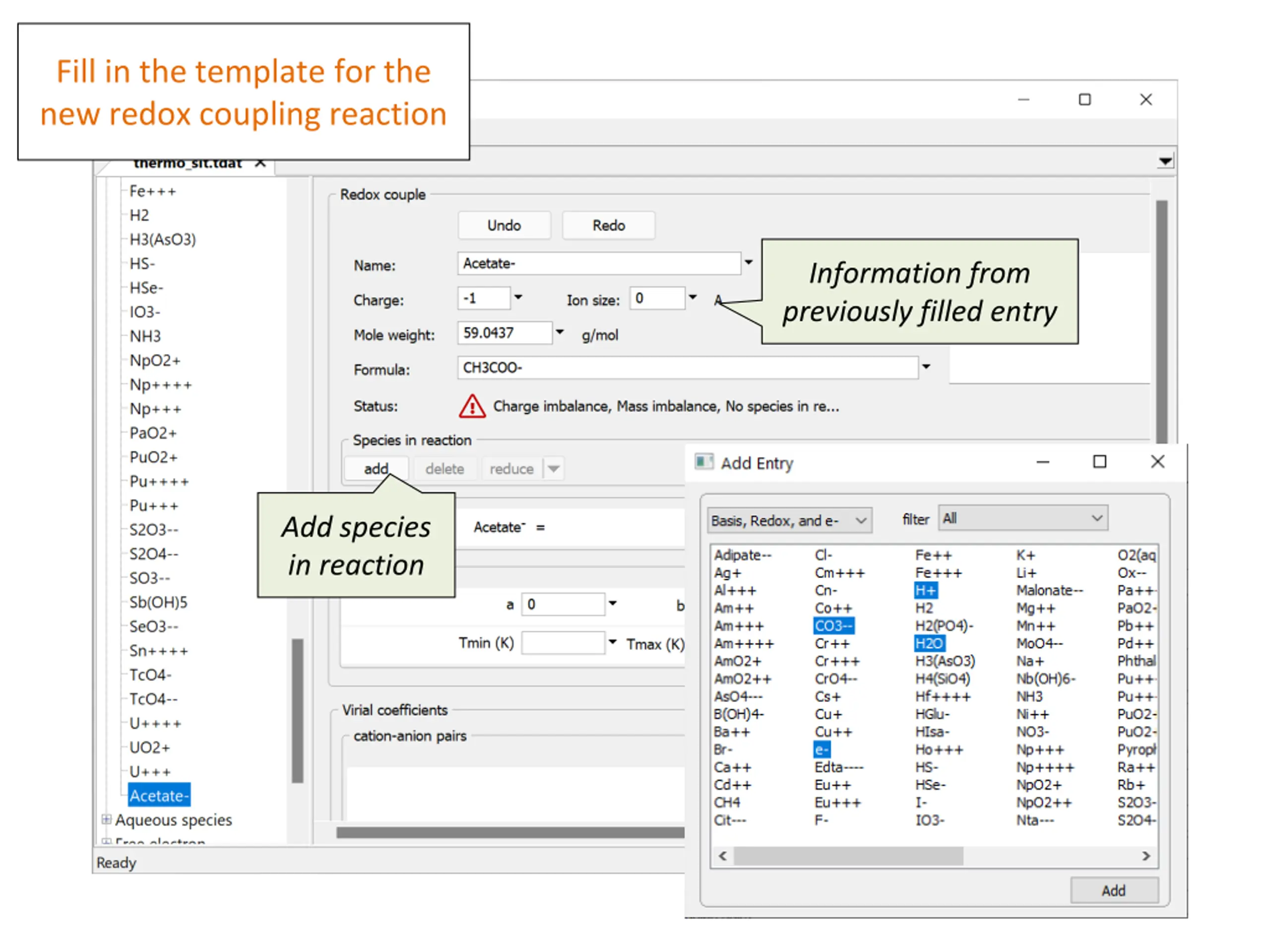

Fill in the template for the new redox coupling reaction Information from previously filled entry Add species in reaction
Supply stoichiometric coefficients Negative coefficients indicate species is on the left-hand side of the equation Supply Log Ks or polynomial coefficients

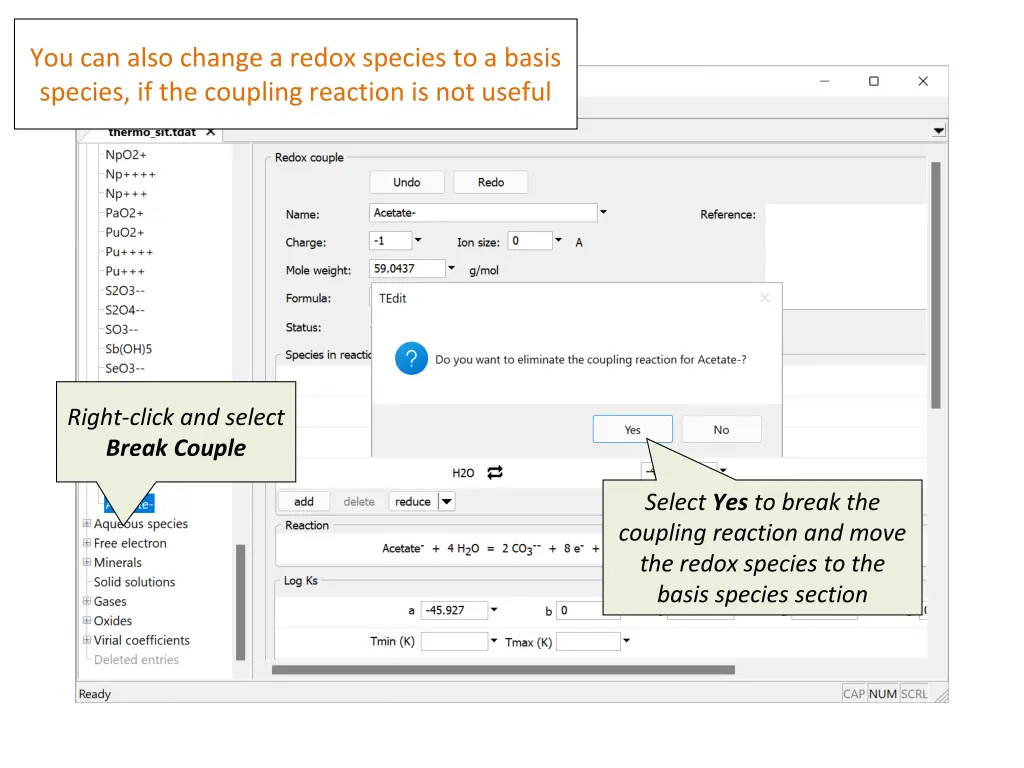

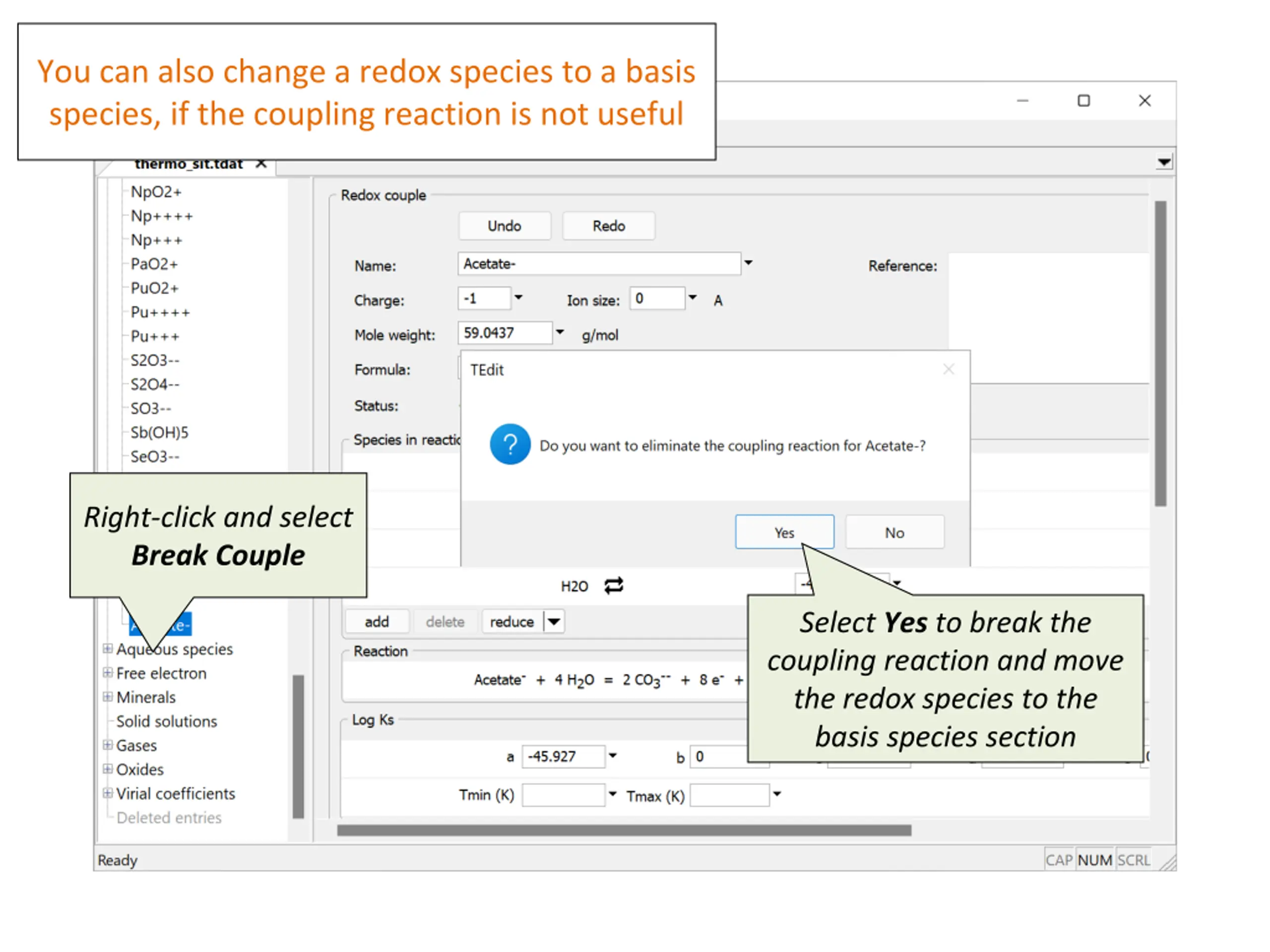

You can also change a redox species to a basis species, if the coupling reaction is not useful Right-click and select Break Couple Select Yes to break the coupling reaction and move the redox species to the basis species section

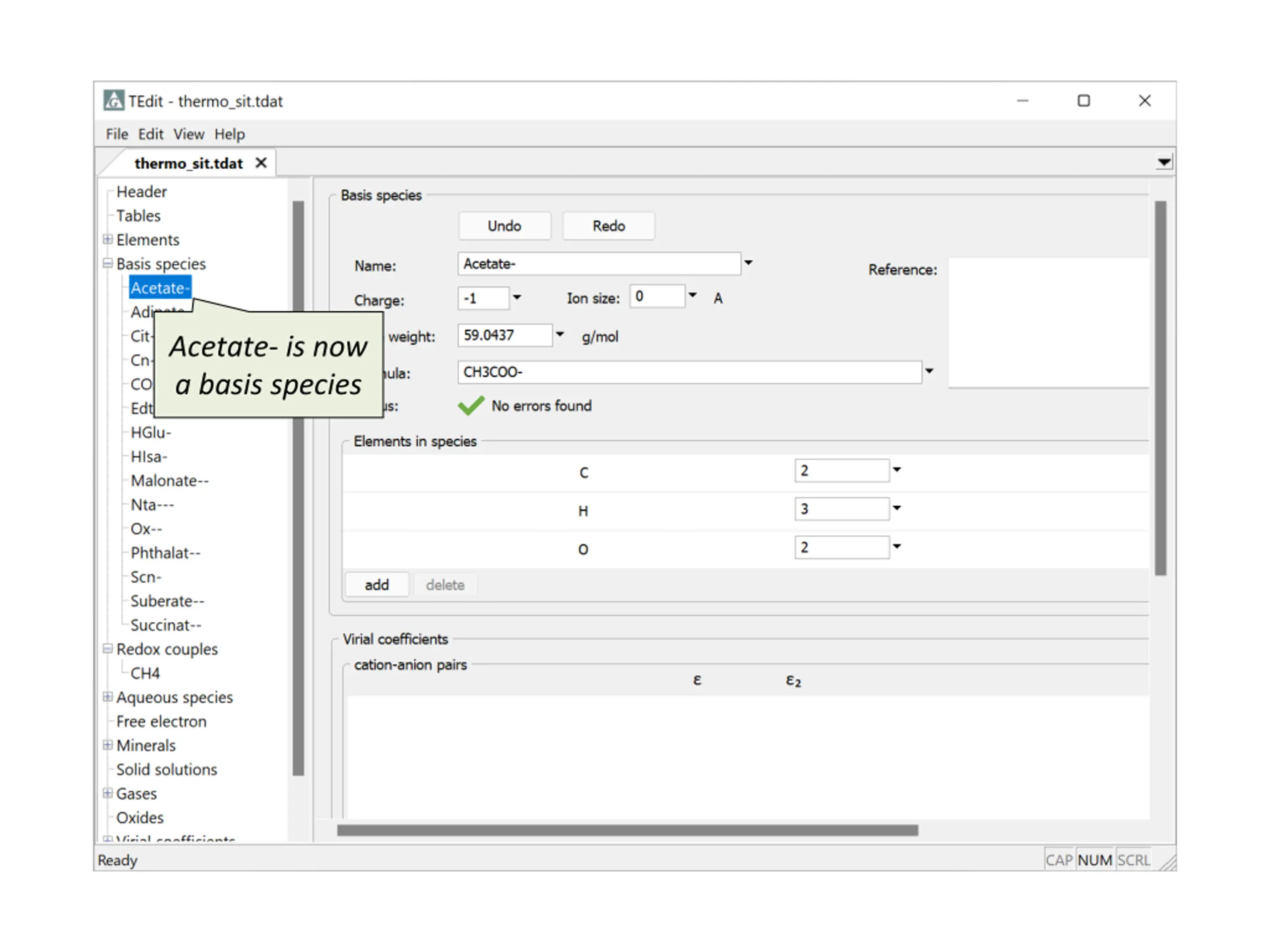

Acetate- is now a basis species
