Two OIDC clients To provide use-cases for OIDC/fed Marcus Hardt KIT University of the State of Baden-W rttemberg and National Laboratory of the Helmholtz Association www.kit.edu

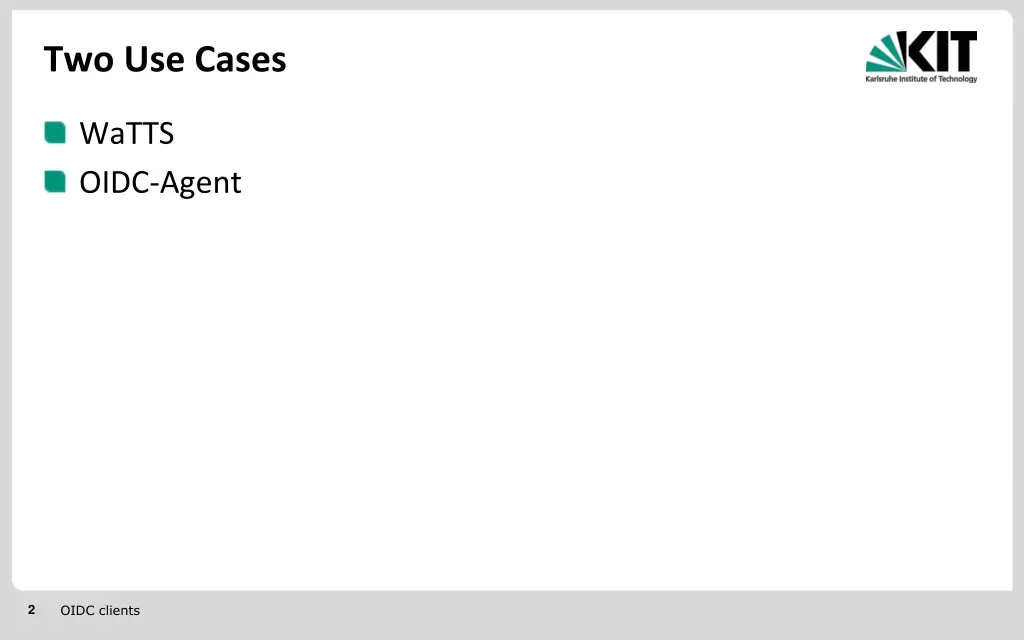

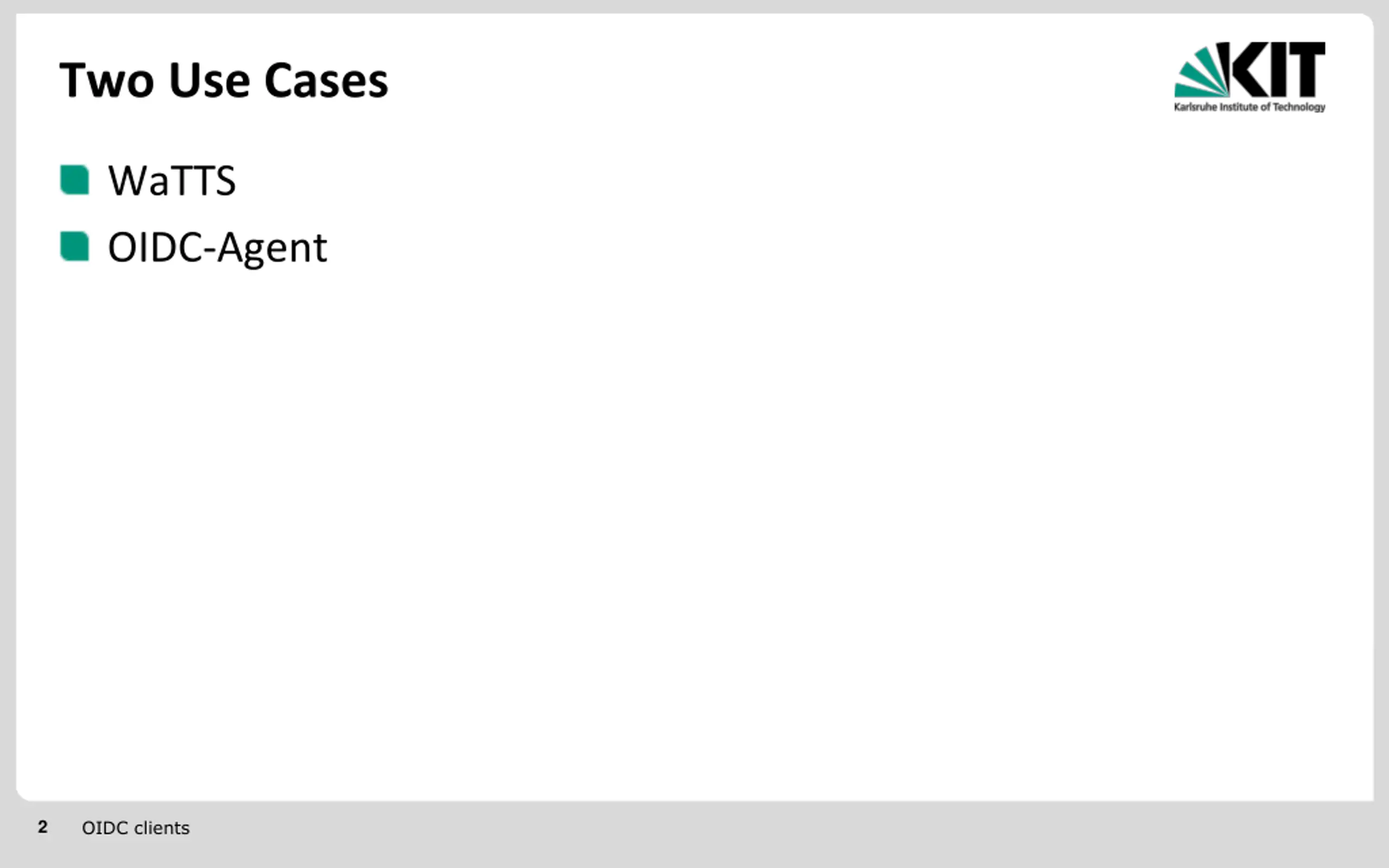

Two Use Cases WaTTS OIDC-Agent 2 OIDC clients

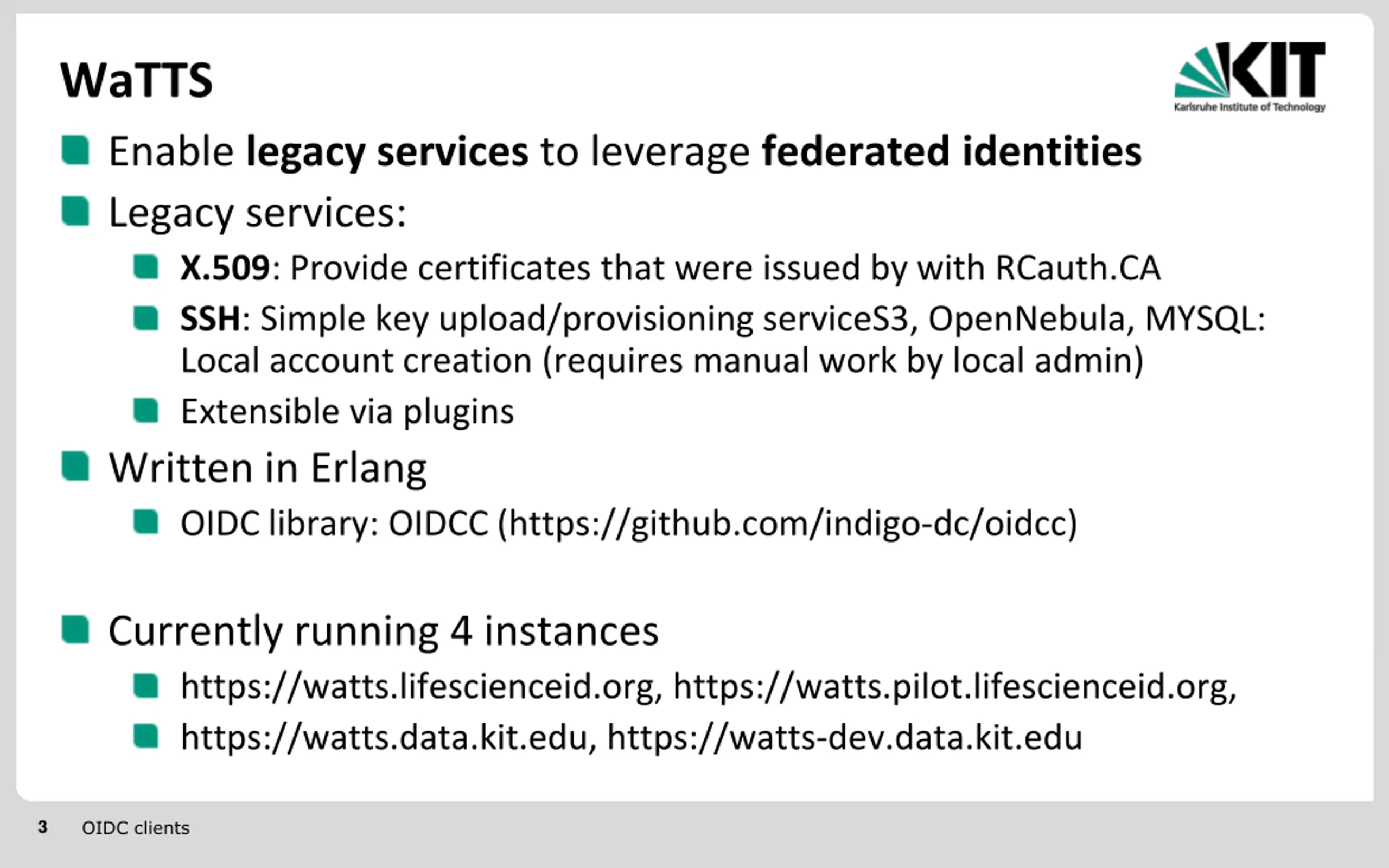

WaTTS Enable legacy services to leverage federated identities Legacy services: X.509: Provide certificates that were issued by with RCauth.CA SSH: Simple key upload/provisioning serviceS3, OpenNebula, MYSQL: Local account creation (requires manual work by local admin) Extensible via plugins Written in Erlang OIDC library: OIDCC (https://github.com/indigo-dc/oidcc) Currently running 4 instances https://watts.lifescienceid.org, https://watts.pilot.lifescienceid.org, https://watts.data.kit.edu, https://watts-dev.data.kit.edu 3 OIDC clients

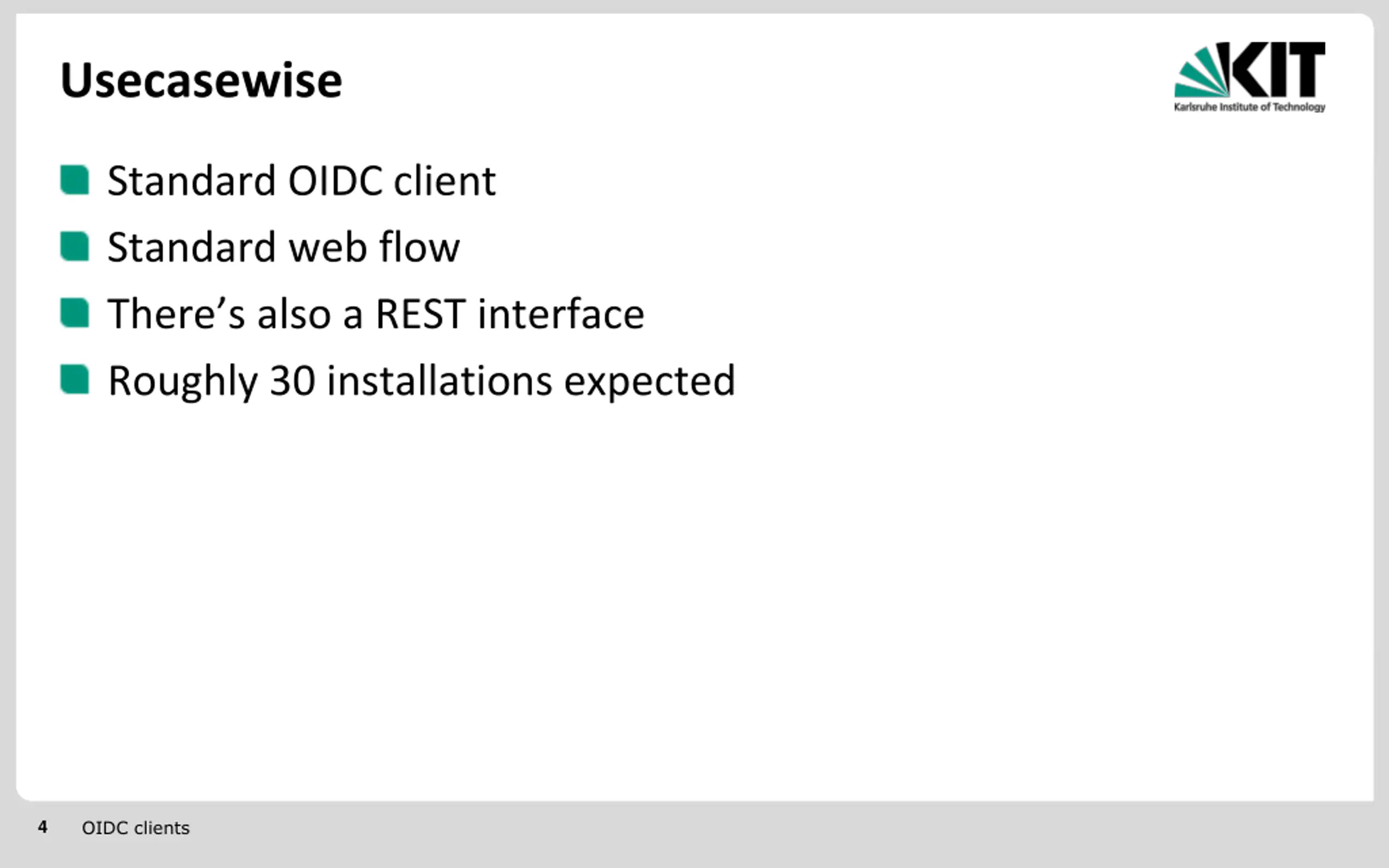

Usecasewise Standard OIDC client Standard web flow There s also a REST interface Roughly 30 installations expected 4 OIDC clients

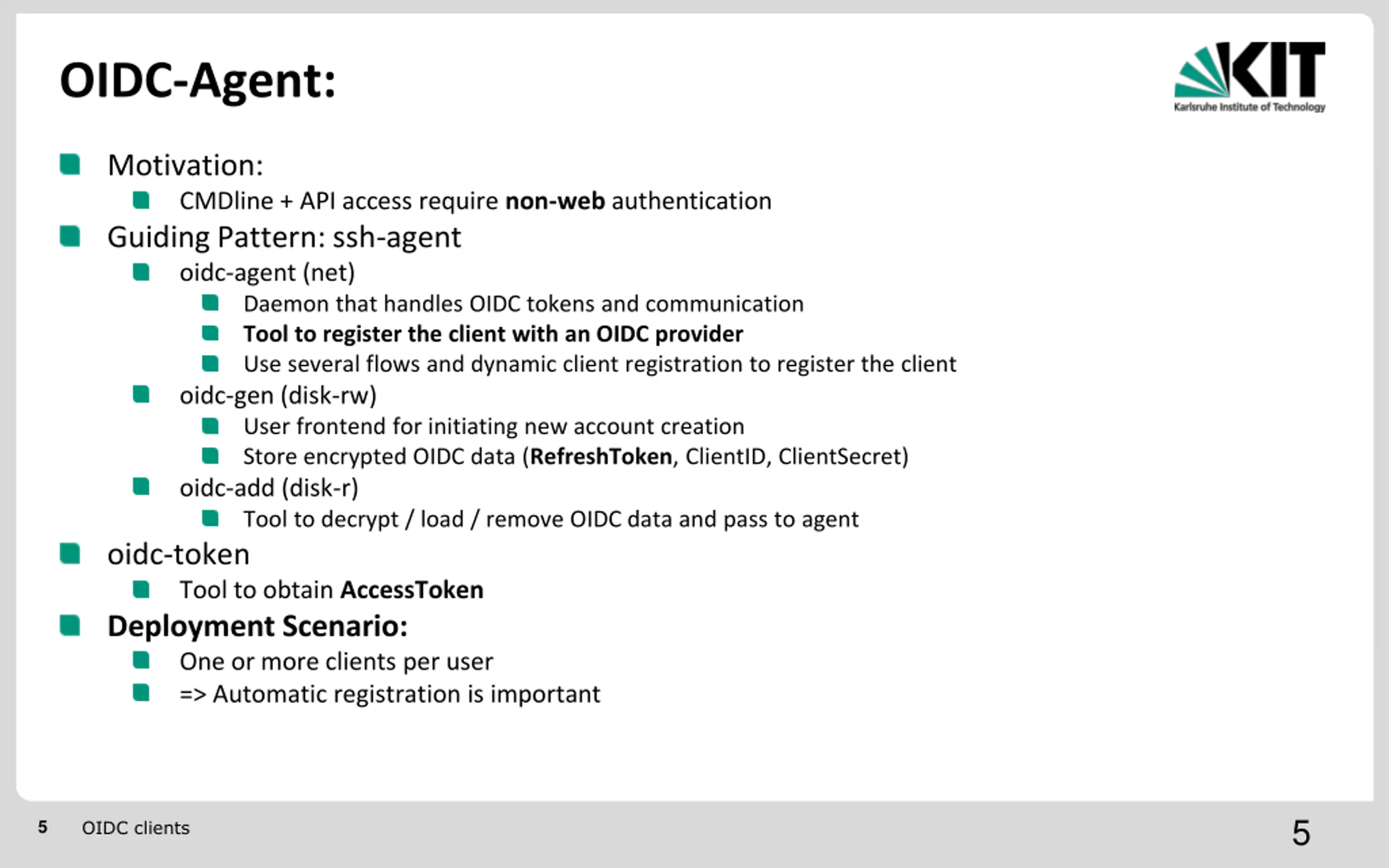

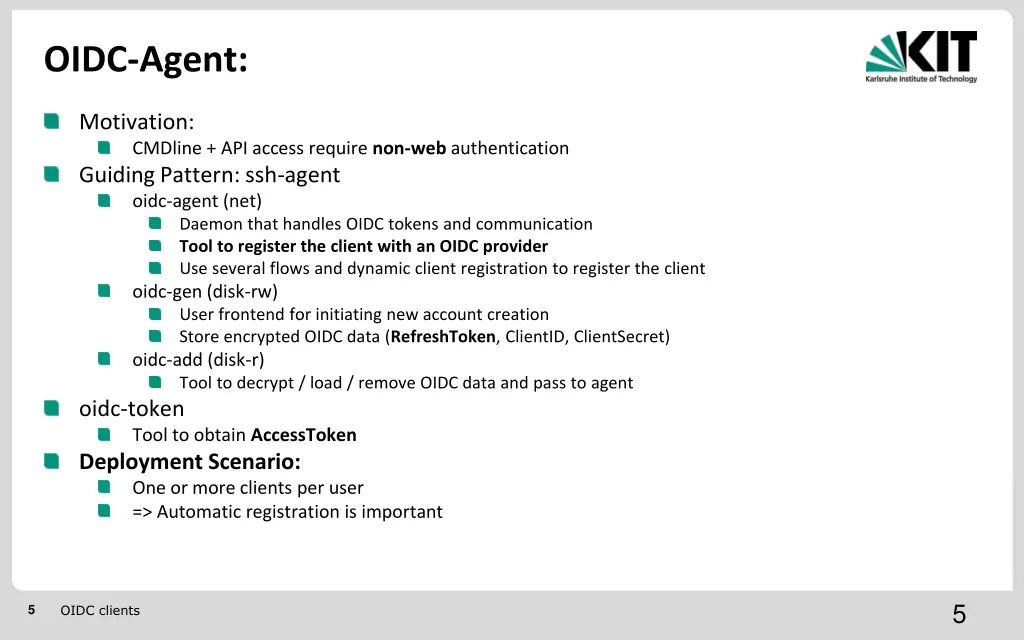

OIDC-Agent: Motivation: CMDline + API access require non-web authentication Guiding Pattern: ssh-agent oidc-agent (net) Daemon that handles OIDC tokens and communication Tool to register the client with an OIDC provider Use several flows and dynamic client registration to register the client oidc-gen (disk-rw) User frontend for initiating new account creation Store encrypted OIDC data (RefreshToken, ClientID, ClientSecret) oidc-add (disk-r) Tool to decrypt / load / remove OIDC data and pass to agent oidc-token Tool to obtain AccessToken Deployment Scenario: One or more clients per user => Automatic registration is important 5 5 OIDC clients

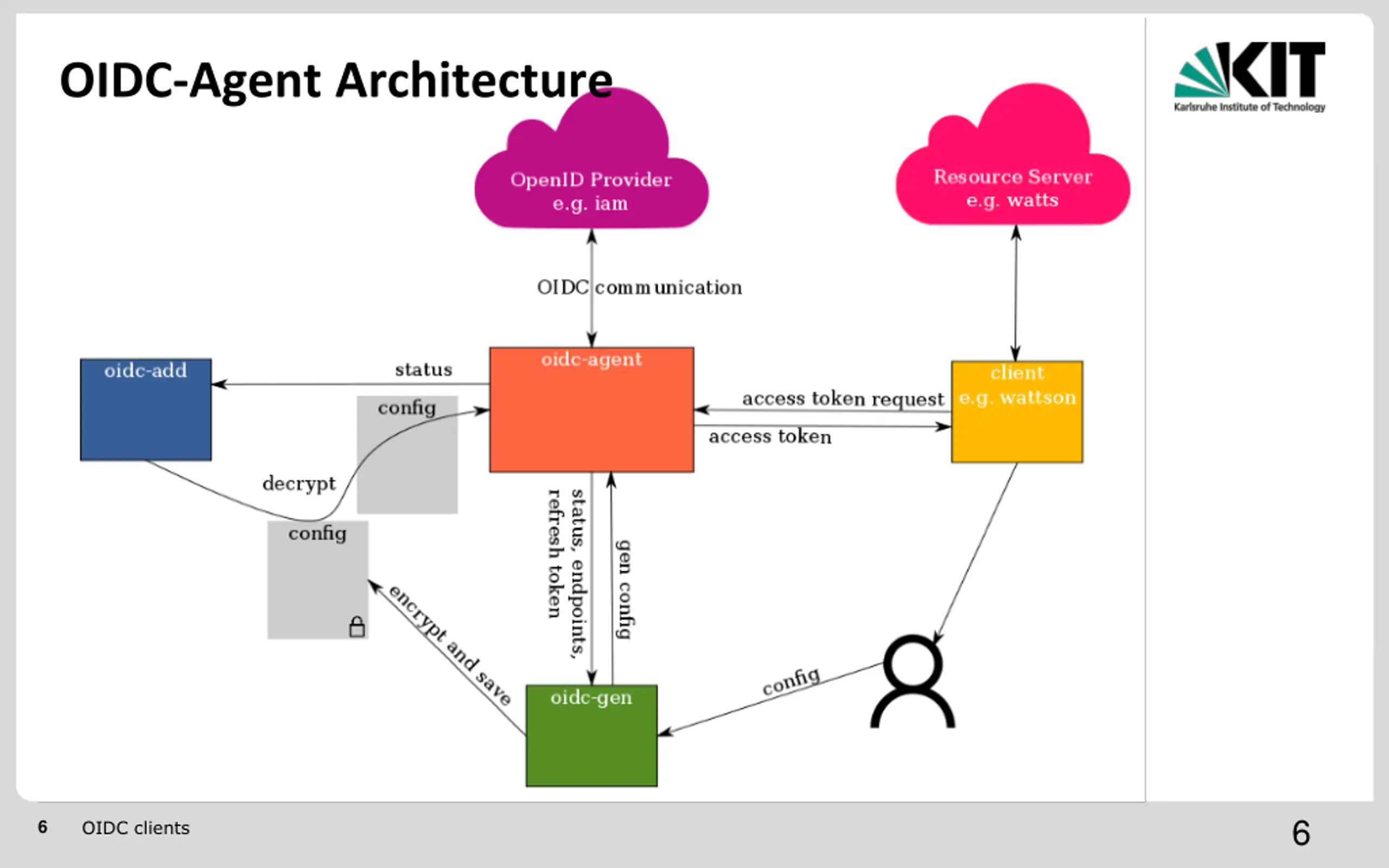

OIDC-Agent Architecture 6 6 OIDC clients

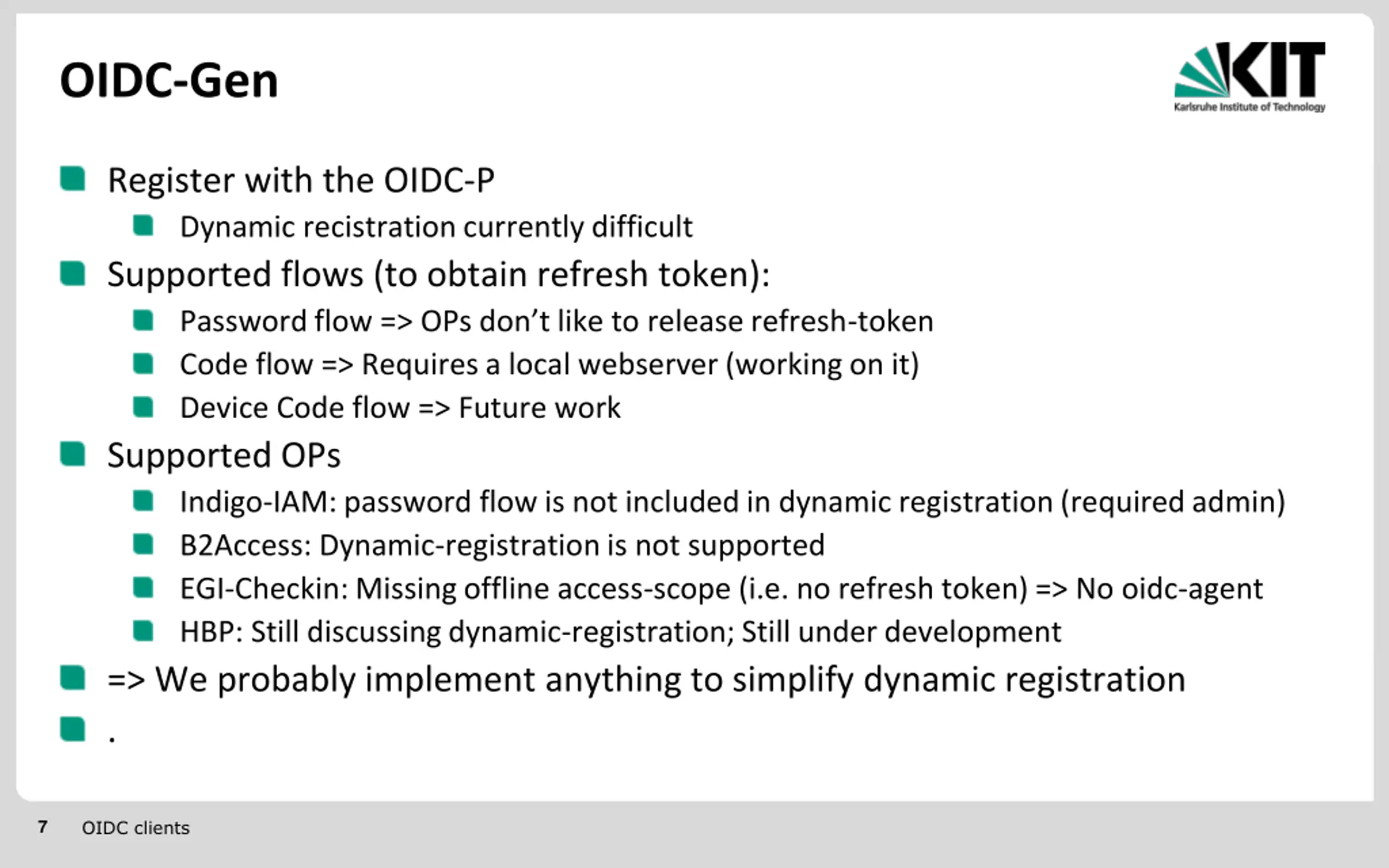

OIDC-Gen Register with the OIDC-P Dynamic recistration currently difficult Supported flows (to obtain refresh token): Password flow => OPs don t like to release refresh-token Code flow => Requires a local webserver (working on it) Device Code flow => Future work Supported OPs Indigo-IAM: password flow is not included in dynamic registration (required admin) B2Access: Dynamic-registration is not supported EGI-Checkin: Missing offline access-scope (i.e. no refresh token) => No oidc-agent HBP: Still discussing dynamic-registration; Still under development => We probably implement anything to simplify dynamic registration . 7 OIDC clients

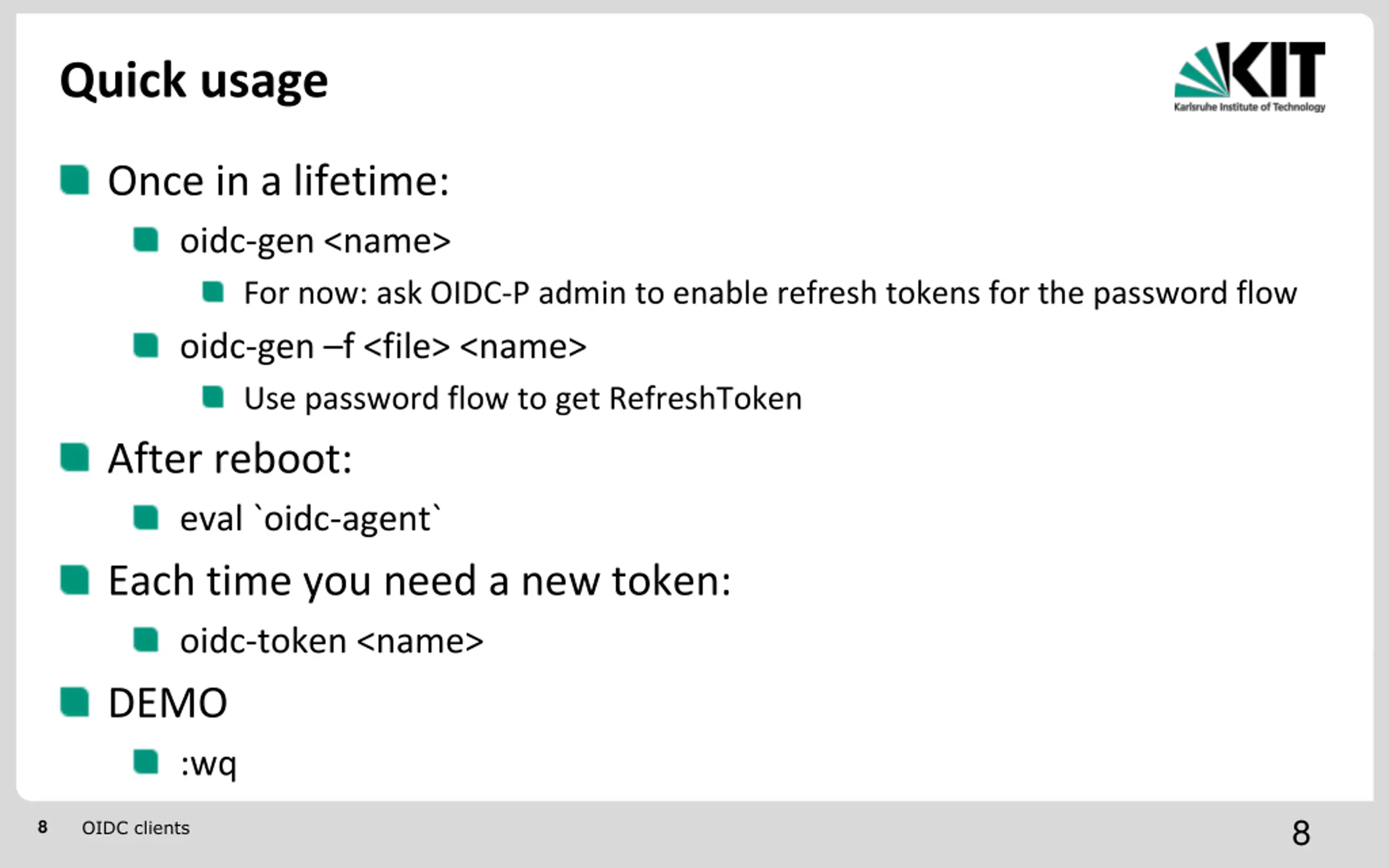

Quick usage Once in a lifetime: oidc-gen <name> For now: ask OIDC-P admin to enable refresh tokens for the password flow oidc-gen f <file> <name> Use password flow to get RefreshToken After reboot: eval `oidc-agent` Each time you need a new token: oidc-token <name> DEMO :wq 8 8 OIDC clients

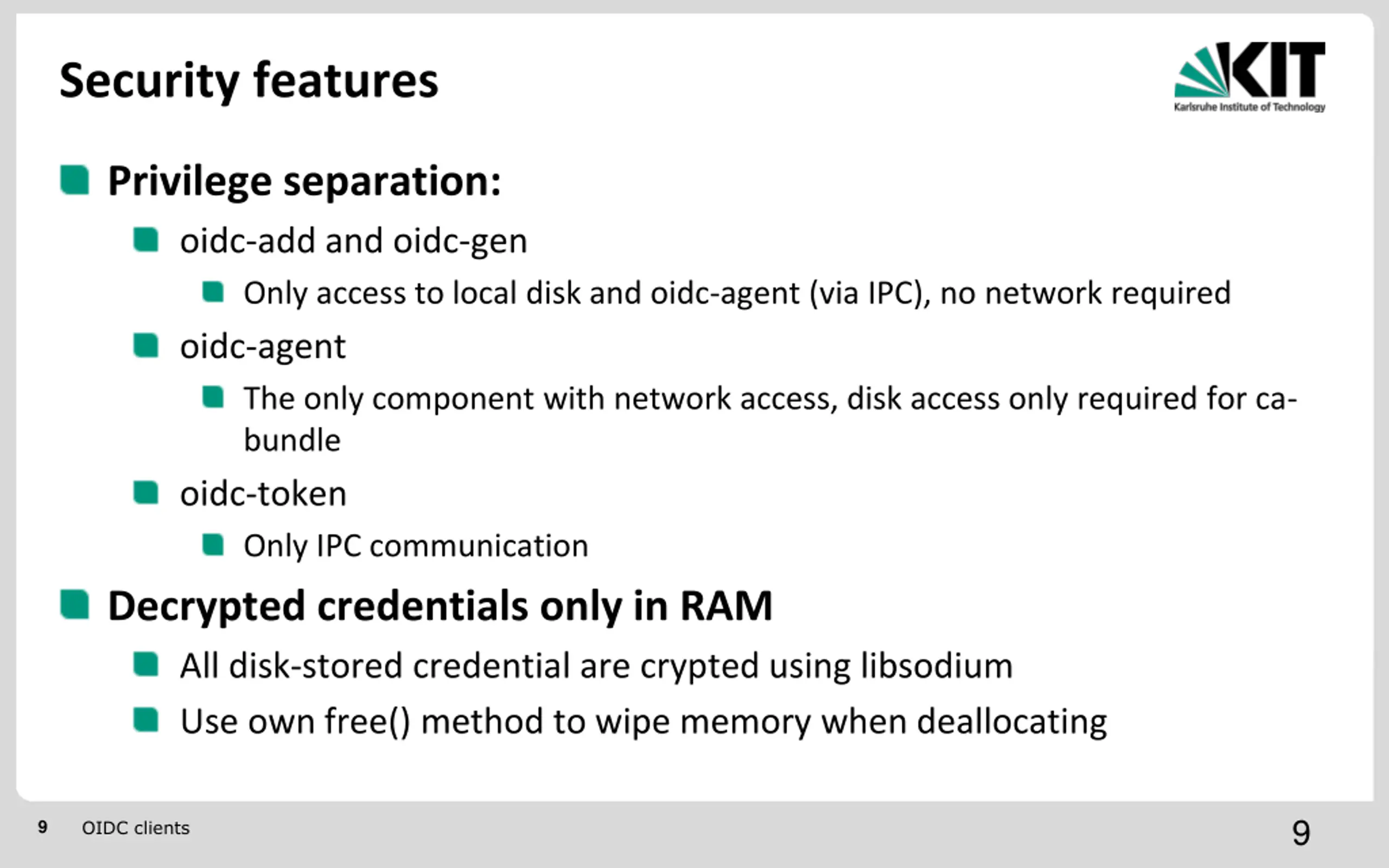

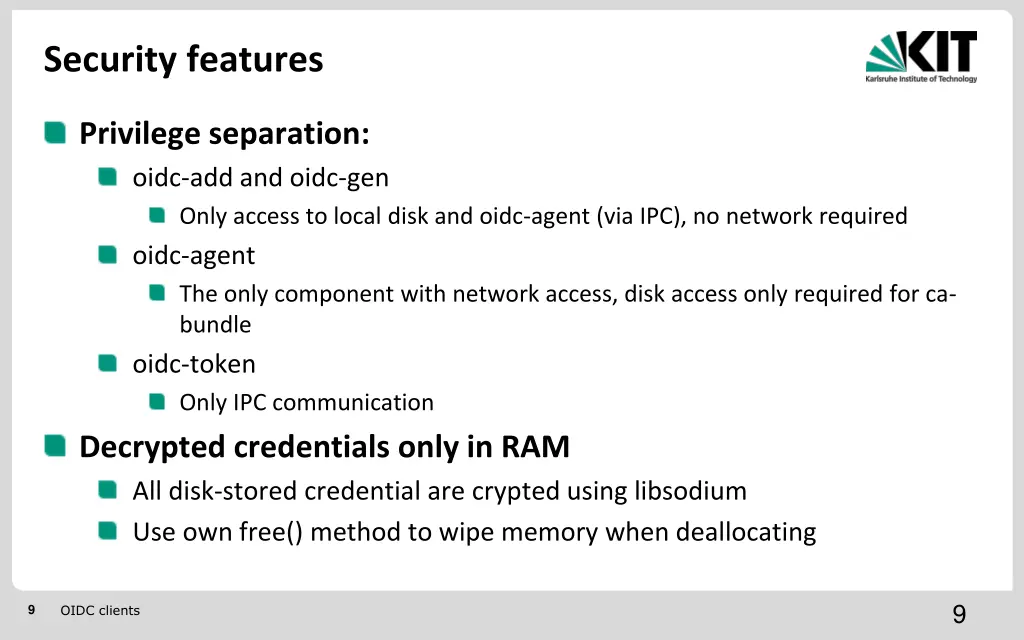

Security features Privilege separation: oidc-add and oidc-gen Only access to local disk and oidc-agent (via IPC), no network required oidc-agent The only component with network access, disk access only required for ca- bundle oidc-token Only IPC communication Decrypted credentials only in RAM All disk-stored credential are crypted using libsodium Use own free() method to wipe memory when deallocating 9 9 OIDC clients

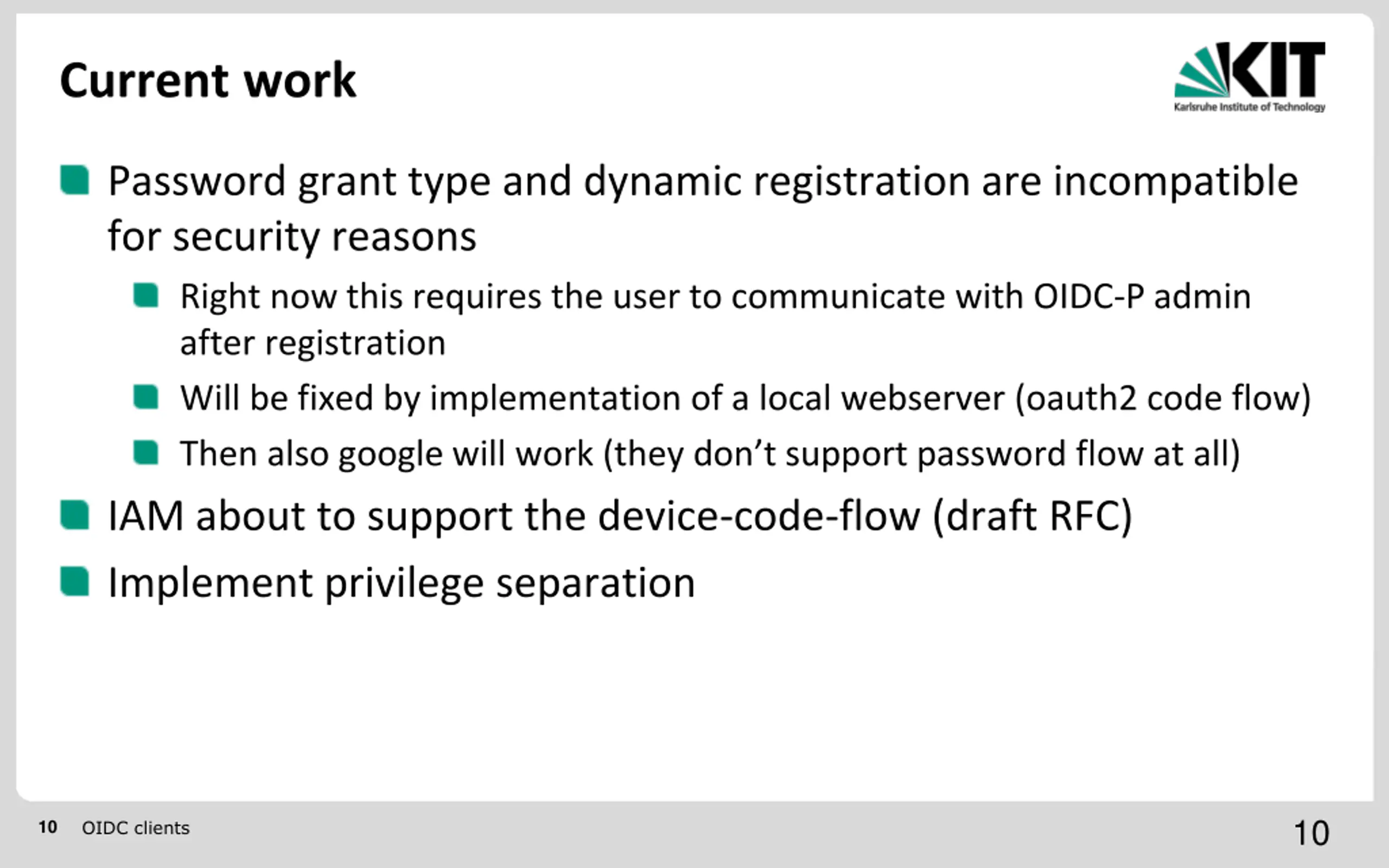

Current work Password grant type and dynamic registration are incompatible for security reasons Right now this requires the user to communicate with OIDC-P admin after registration Will be fixed by implementation of a local webserver (oauth2 code flow) Then also google will work (they don t support password flow at all) IAM about to support the device-code-flow (draft RFC) Implement privilege separation 10 10 OIDC clients

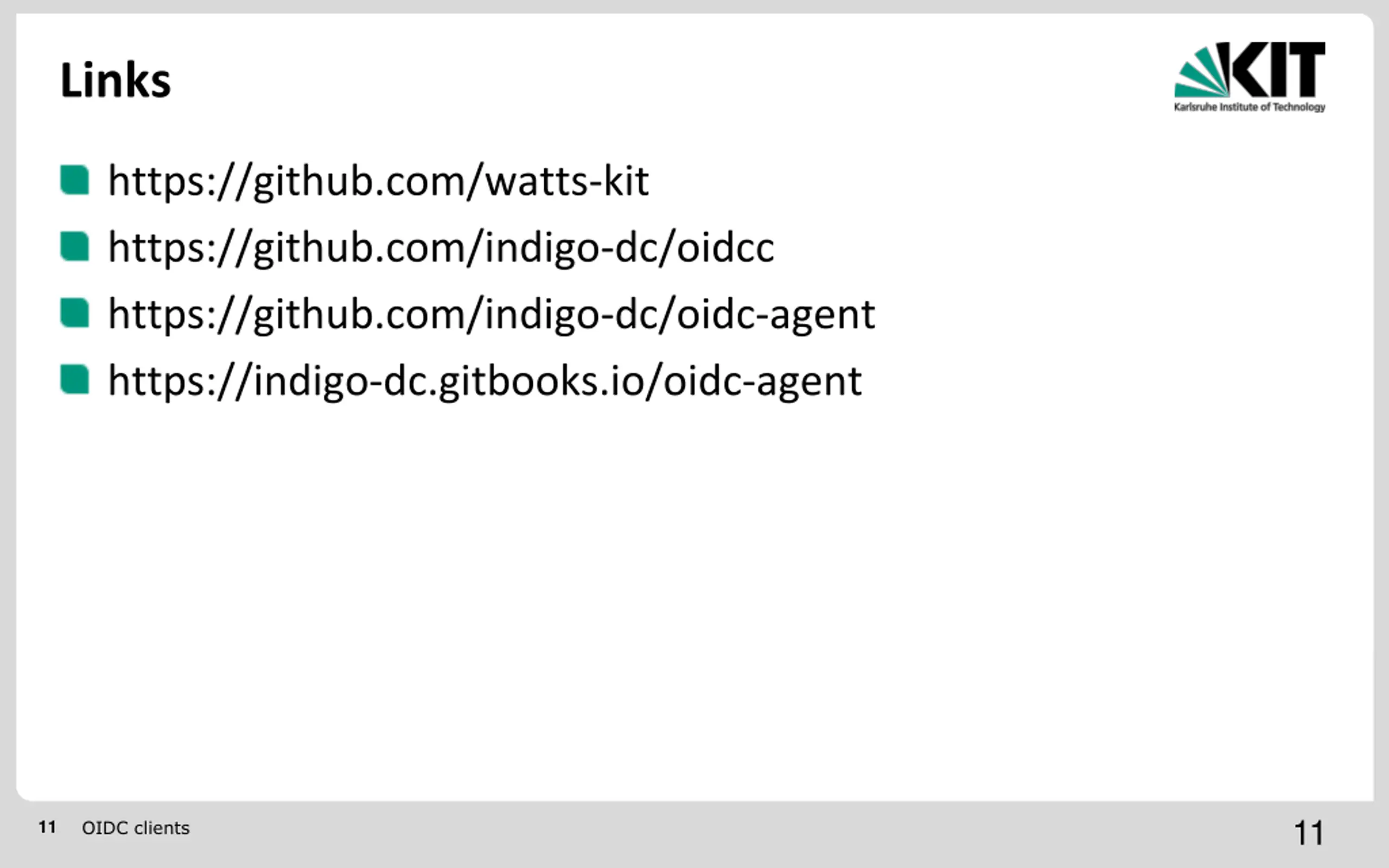

Links https://github.com/watts-kit https://github.com/indigo-dc/oidcc https://github.com/indigo-dc/oidc-agent https://indigo-dc.gitbooks.io/oidc-agent 11 11 OIDC clients
