Manoj Industries Action Plan for Ather Front Holder Bracket Slot Distance Oversize Issue
Manoj Industries identified an oversize issue with the slot distance on the Ather front holder bracket. The non-conformance was observed at 19.32 +/- 0.1 mm, and actions taken include planning slotting operations on a VMC machine, creating a new hydraulic clamping fixture, providing training to operators, and planning to introduce an attribute gauge for 100% dimension checks. Modifications were made to the machining fixture, and new practices aim to ensure quality control. Q-Alerts were displayed, and improvements were implemented to address the issue effectively.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

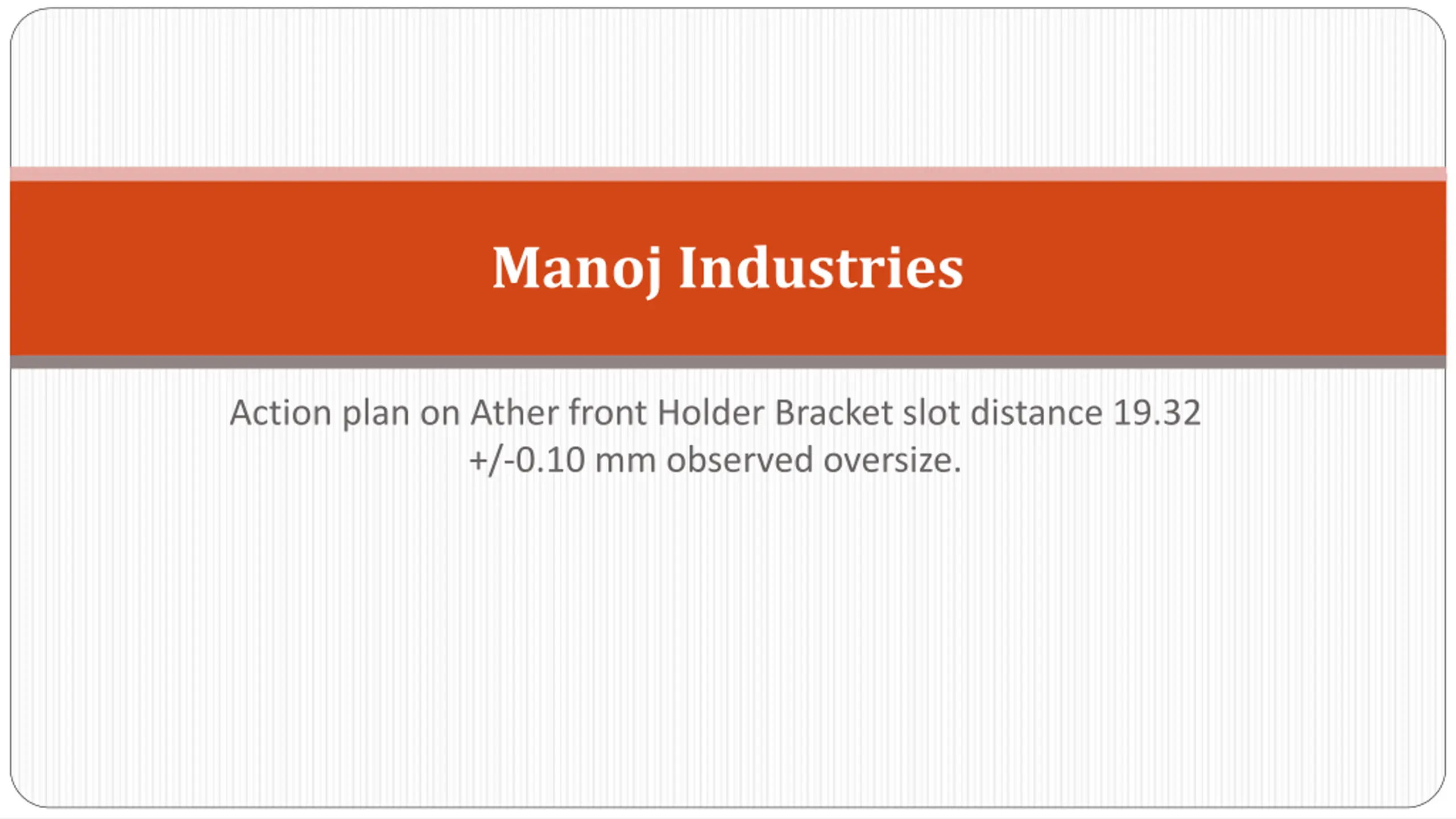

Manoj Industries Action plan on Ather front Holder Bracket slot distance 19.32 +/-0.10 mm observed oversize.

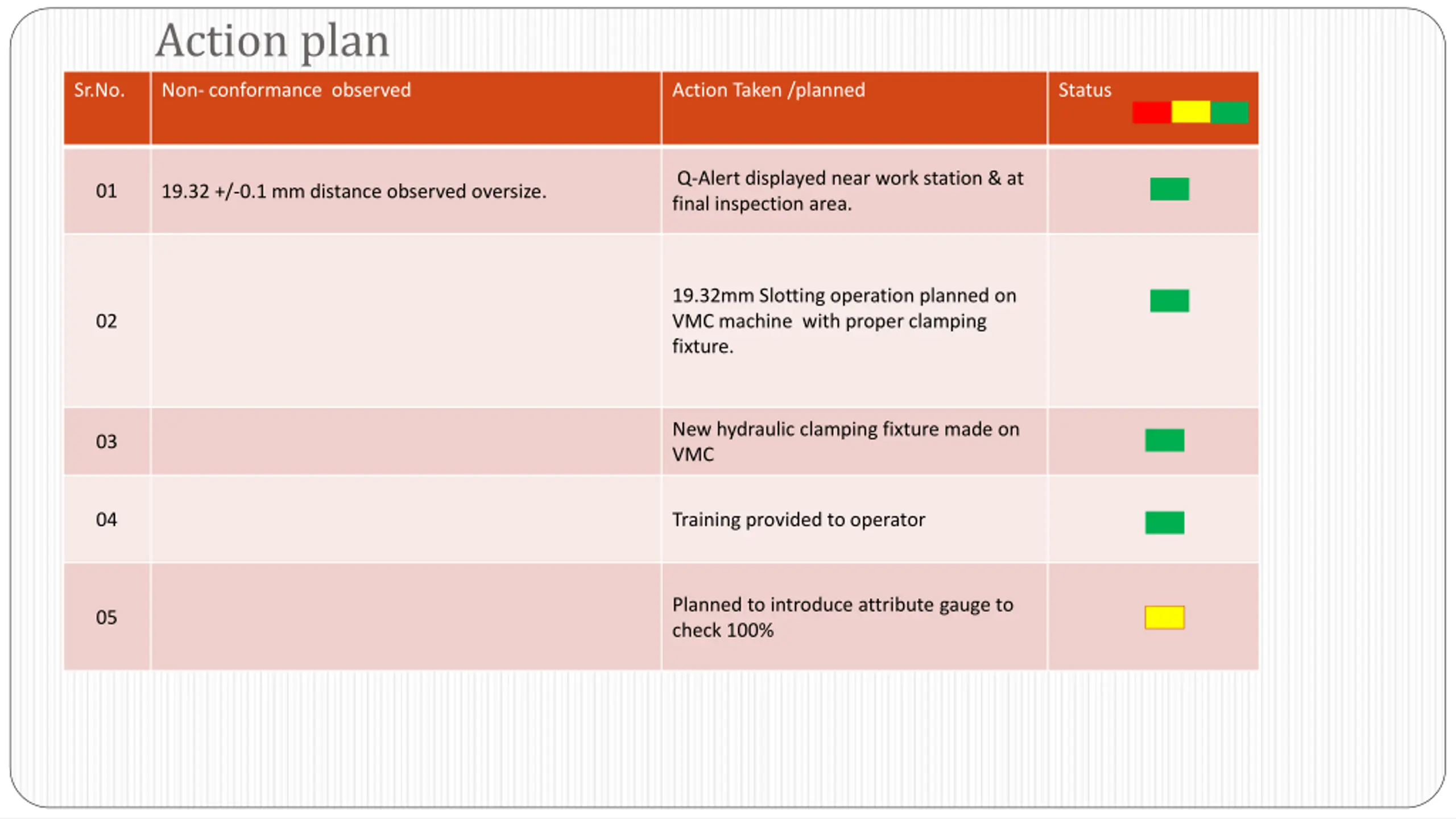

Action plan Sr.No. Non- conformance observed Action Taken /planned Status Q-Alert displayed near work station & at final inspection area. 01 19.32 +/-0.1 mm distance observed oversize. 19.32mm Slotting operation planned on VMC machine with proper clamping fixture. 02 New hydraulic clamping fixture made on VMC 03 04 Training provided to operator Planned to introduce attribute gauge to check 100% 05

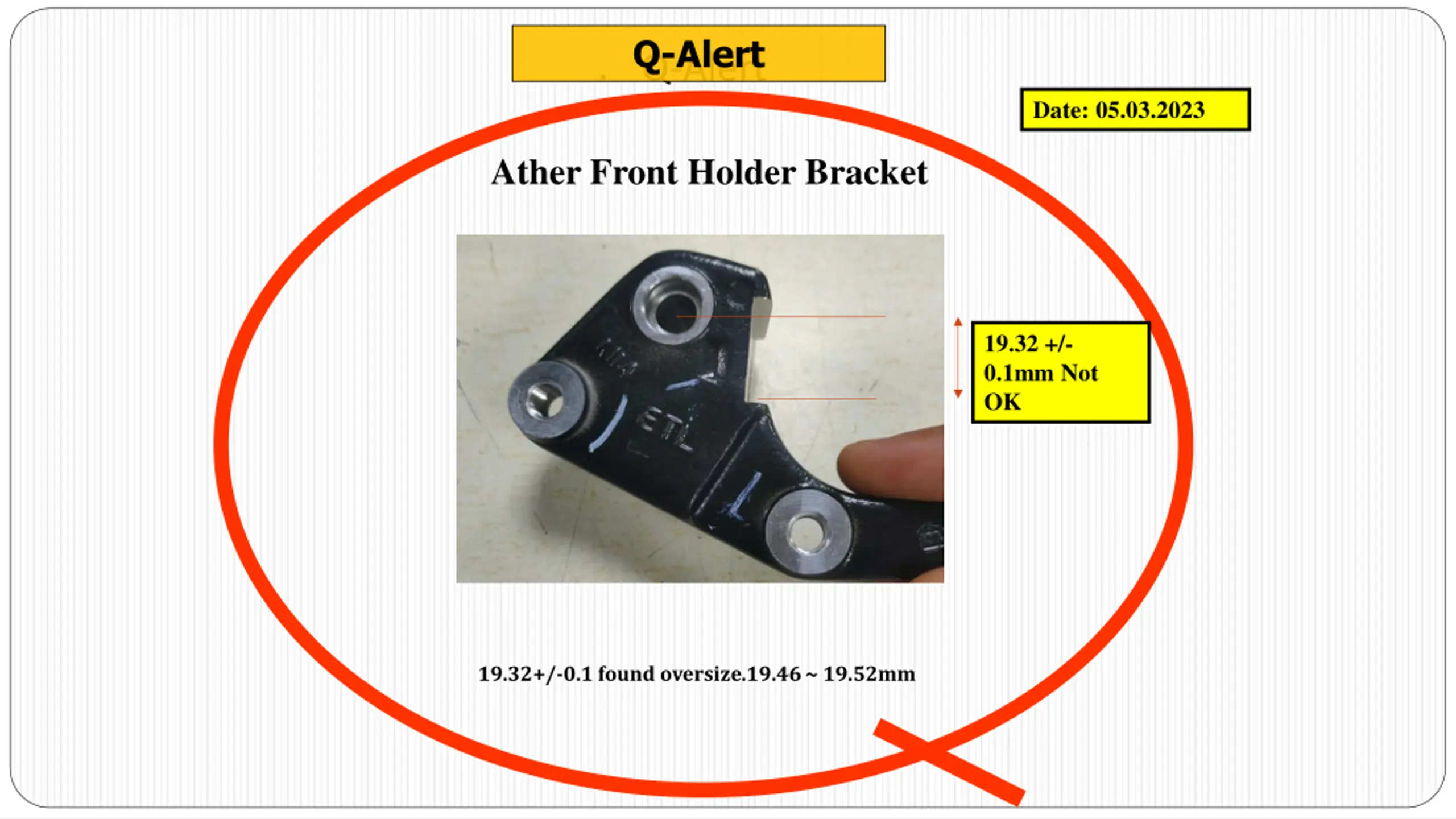

Q-Alert . Q-Alert Date: 05.03.2023 Ather Front Holder Bracket 19.32 +/- 0.1mm Not OK 19.32+/-0.1 found oversize.19.46 ~ 19.52mm

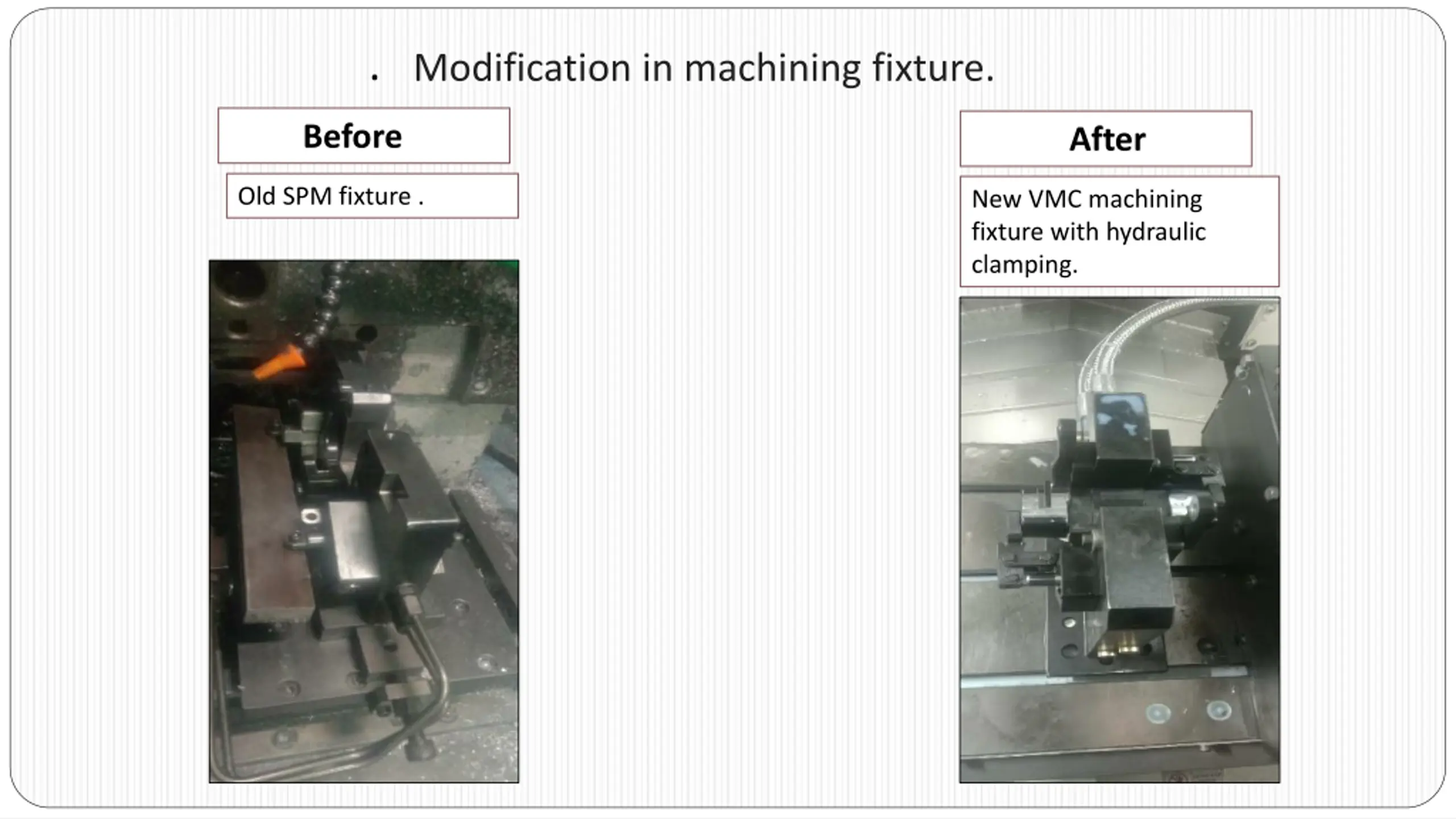

. Modification in machining fixture. Before After Old SPM fixture . New VMC machining fixture with hydraulic clamping.

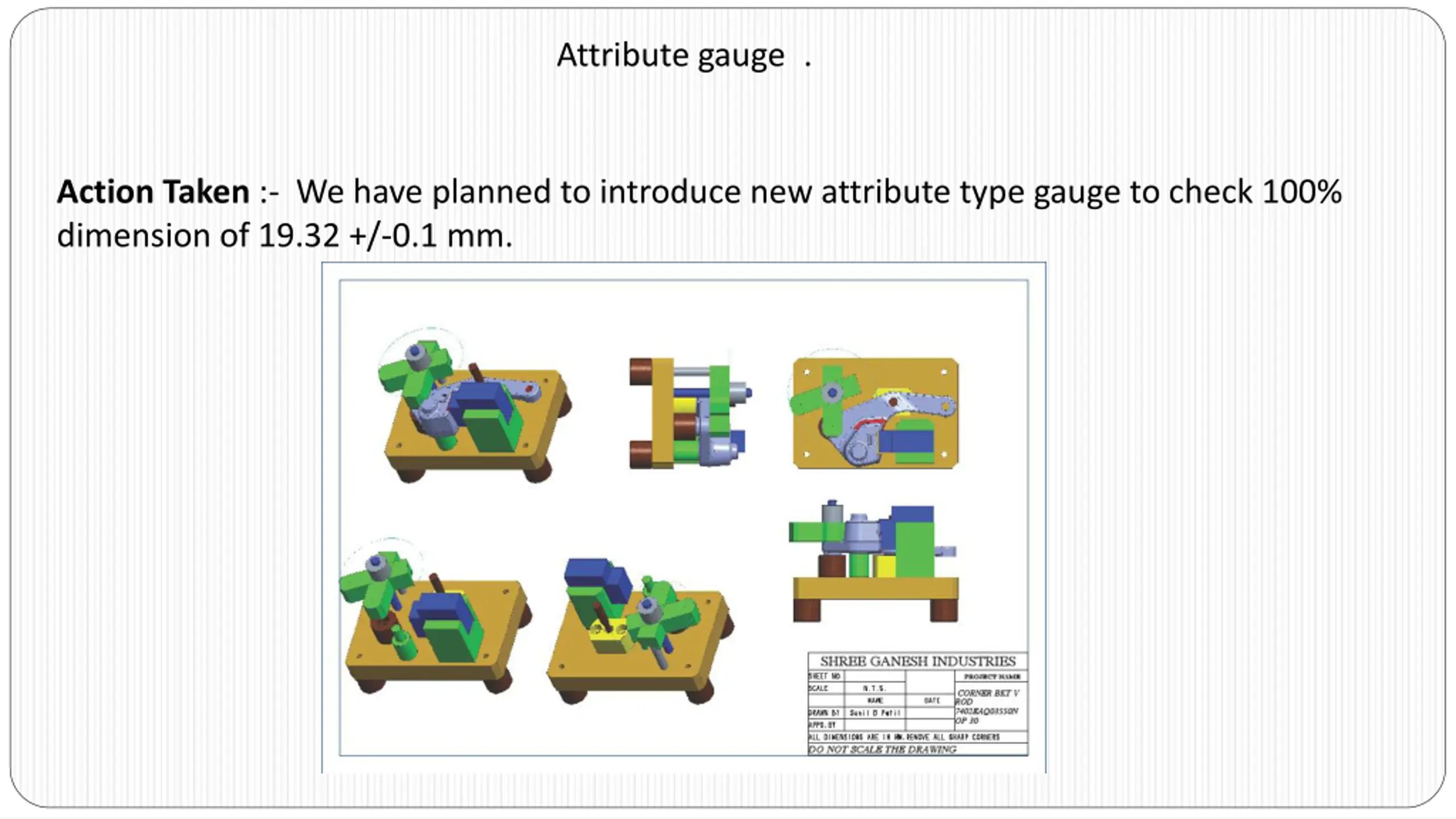

Attribute gauge . Action Taken :- We have planned to introduce new attribute type gauge to check 100% dimension of 19.32 +/-0.1 mm.
