Maskote Zinc Stop-Off: High-Temperature Protection for Galvanizing Process
Discover how Maskote Zinc Stop-Off by ZYP Coatings provides exceptional high-temperature protection for steel during galvanizing. This specially formulated solvent-based paint prevents zinc-steel alloying and toe crack formation, ensuring a durable finish. Learn about the innovative mechanism behind Maskote's ability to form a protective carbon char layer, safeguarding the metal substrate from molten zinc. Contact ZYP Coatings for technical support and inquiries in Oak Ridge, TN.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

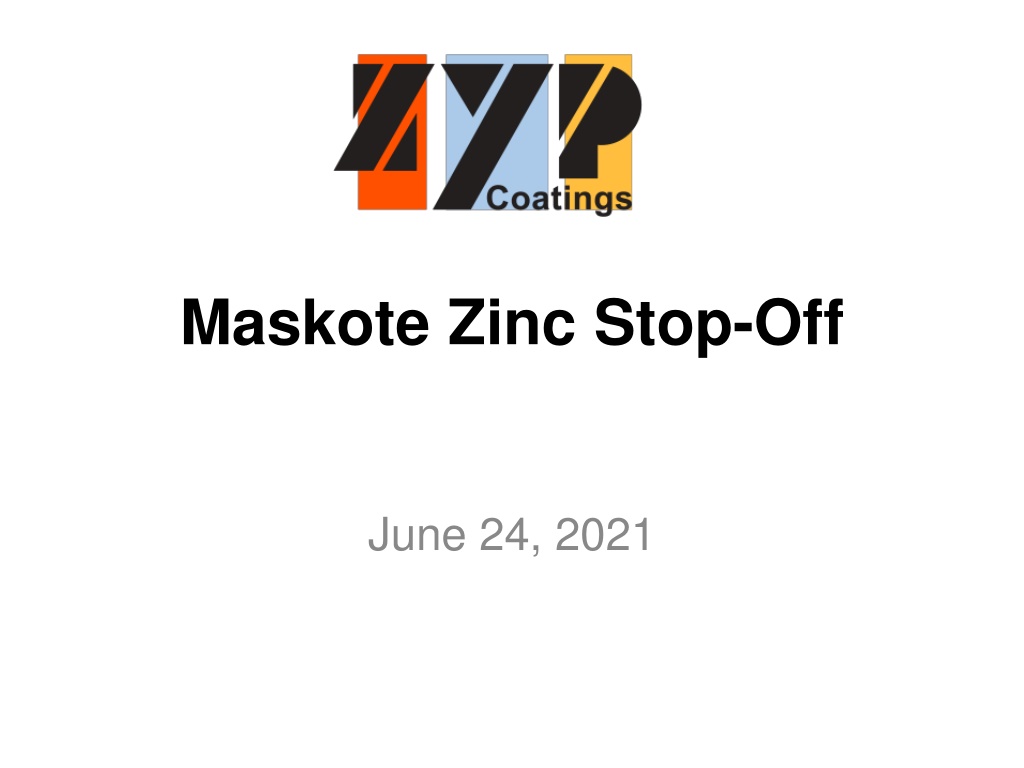

Maskote Zinc Stop-Off June 24, 2021

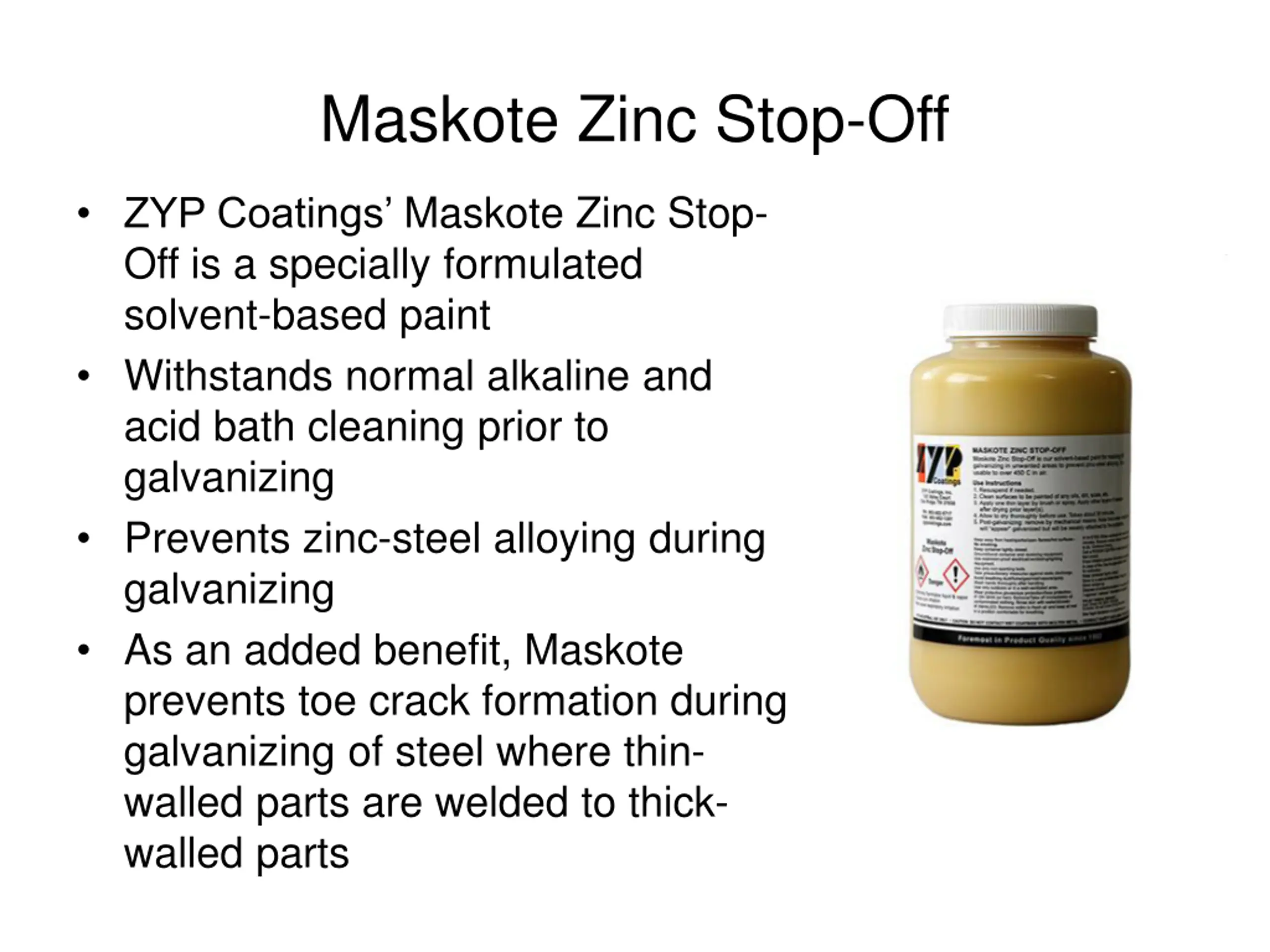

Maskote Zinc Stop-Off ZYP Coatings Maskote Zinc Stop- Off is a specially formulated solvent-based paint Withstands normal alkaline and acid bath cleaning prior to galvanizing Prevents zinc-steel alloying during galvanizing As an added benefit, Maskote prevents toe crack formation during galvanizing of steel where thin- walled parts are welded to thick- walled parts

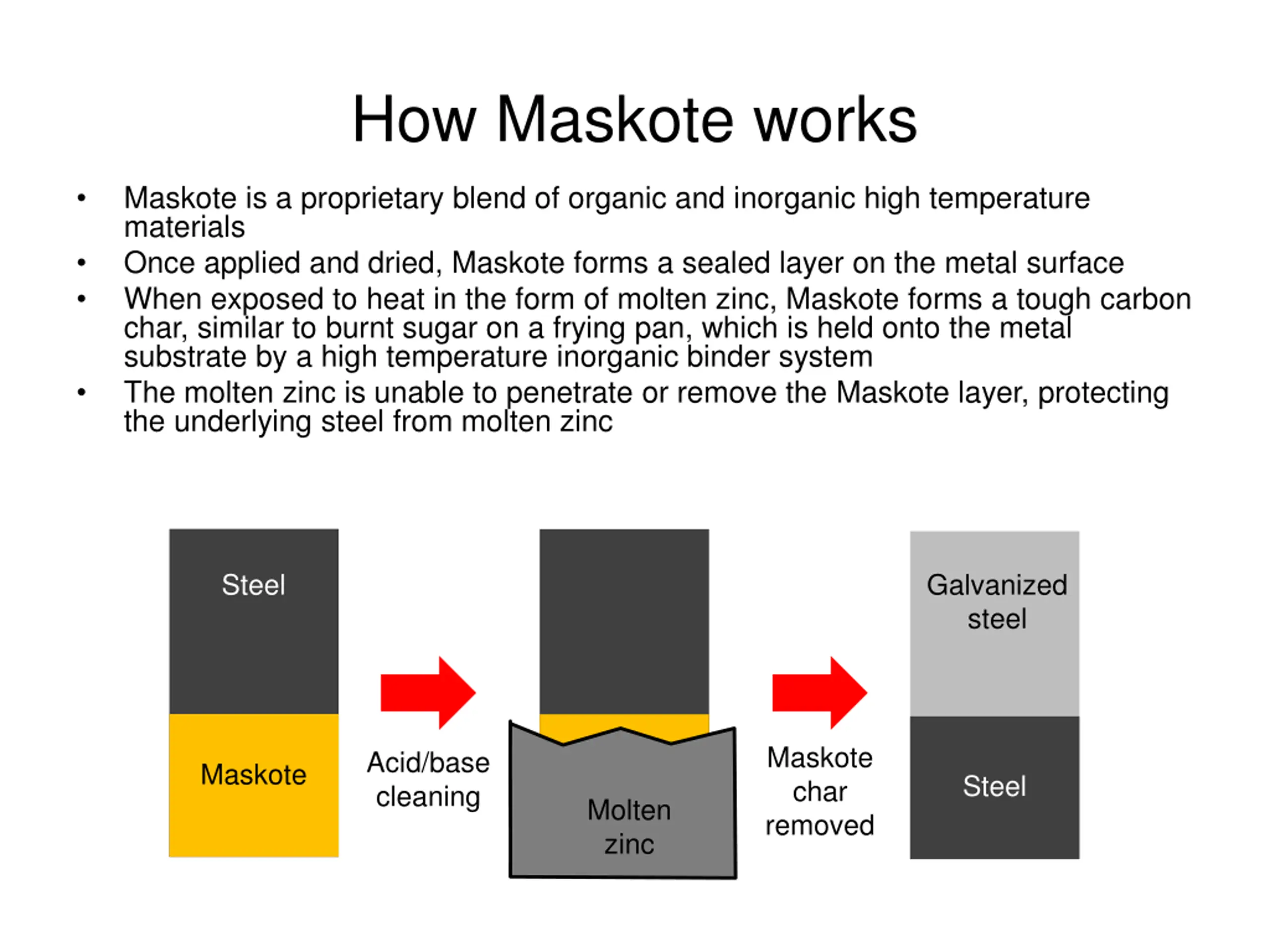

How Maskote works Maskote is a proprietary blend of organic and inorganic high temperature materials Once applied and dried, Maskote forms a sealed layer on the metal surface When exposed to heat in the form of molten zinc, Maskote forms a tough carbon char, similar to burnt sugar on a frying pan, which is held onto the metal substrate by a high temperature inorganic binder system The molten zinc is unable to penetrate or remove the Maskote layer, protecting the underlying steel from molten zinc Steel Galvanized steel Maskote char removed Acid/base cleaning Maskote Steel Molten zinc

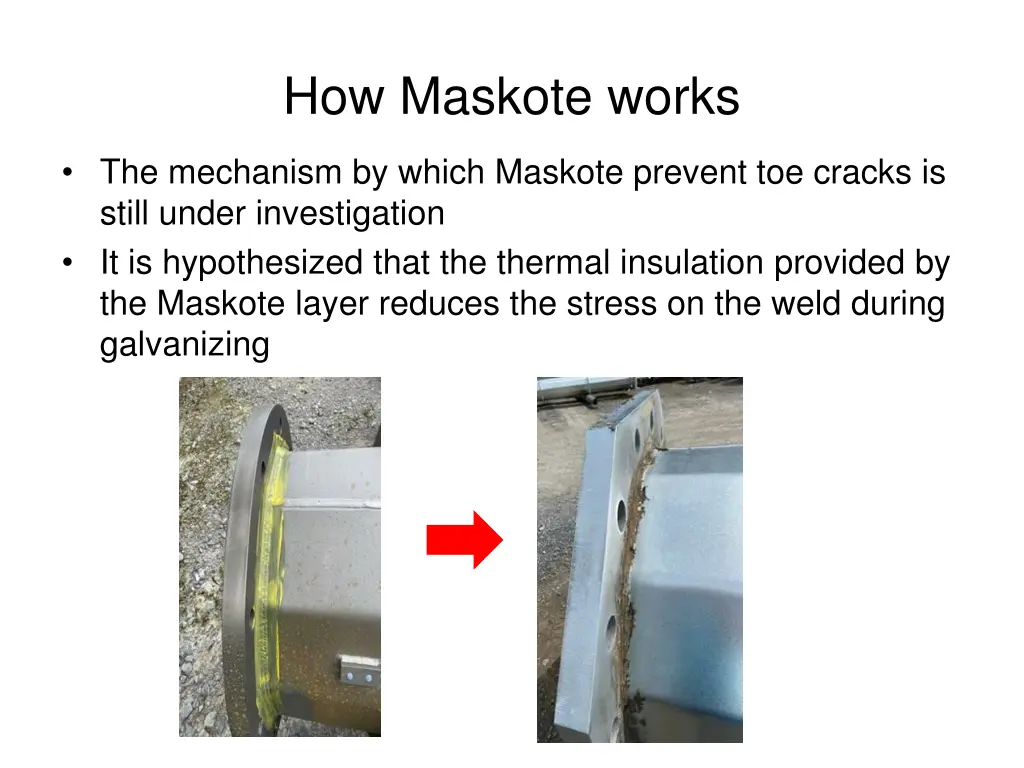

How Maskote works The mechanism by which Maskote prevent toe cracks is still under investigation It is hypothesized that the thermal insulation provided by the Maskote layer reduces the stress on the weld during galvanizing

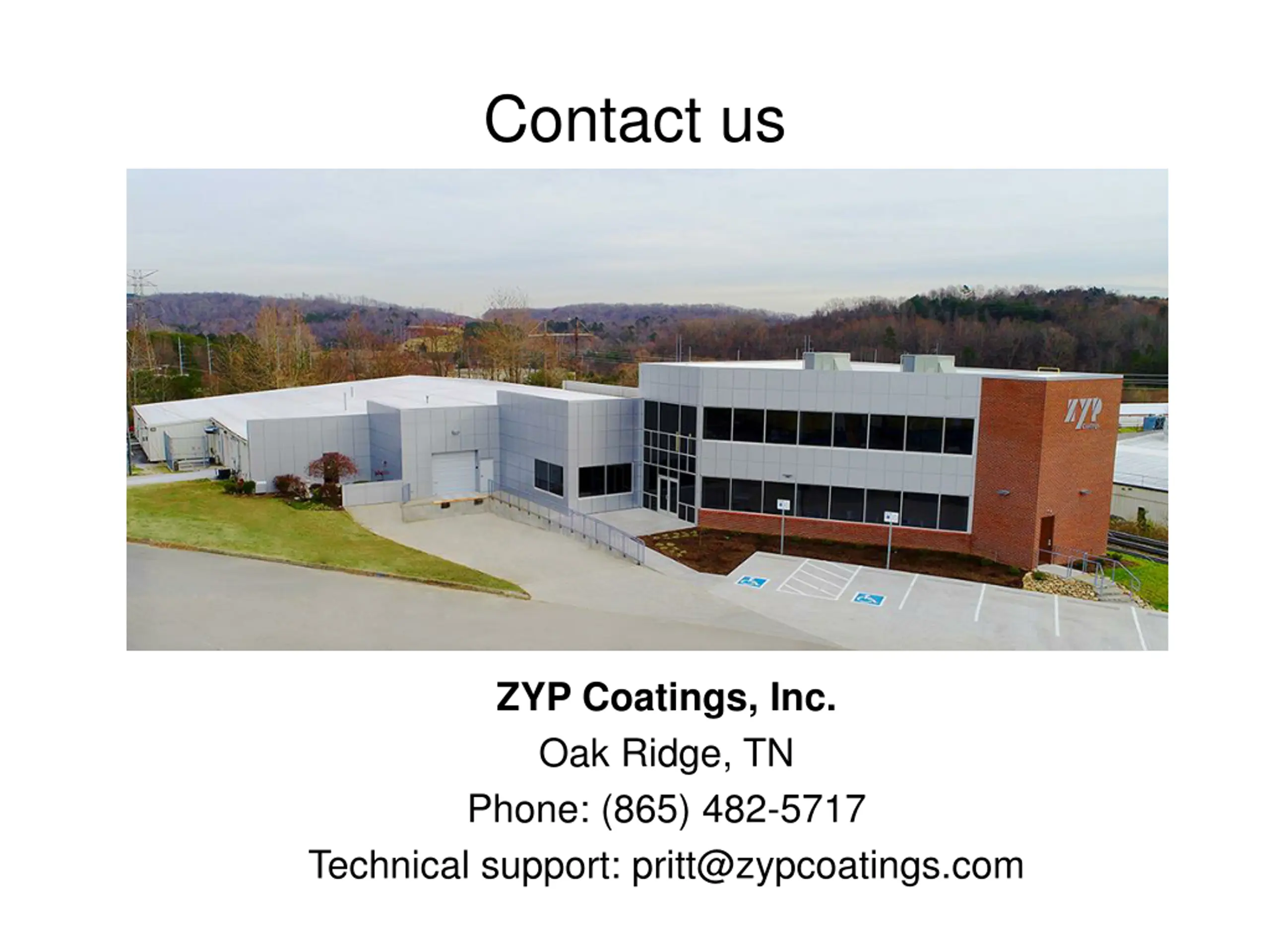

Contact us ZYP Coatings, Inc. Oak Ridge, TN Phone: (865) 482-5717 Technical support: pritt@zypcoatings.com
