Schema a blocchiMaster Panel INFN Ferrara 17/06/2025 1

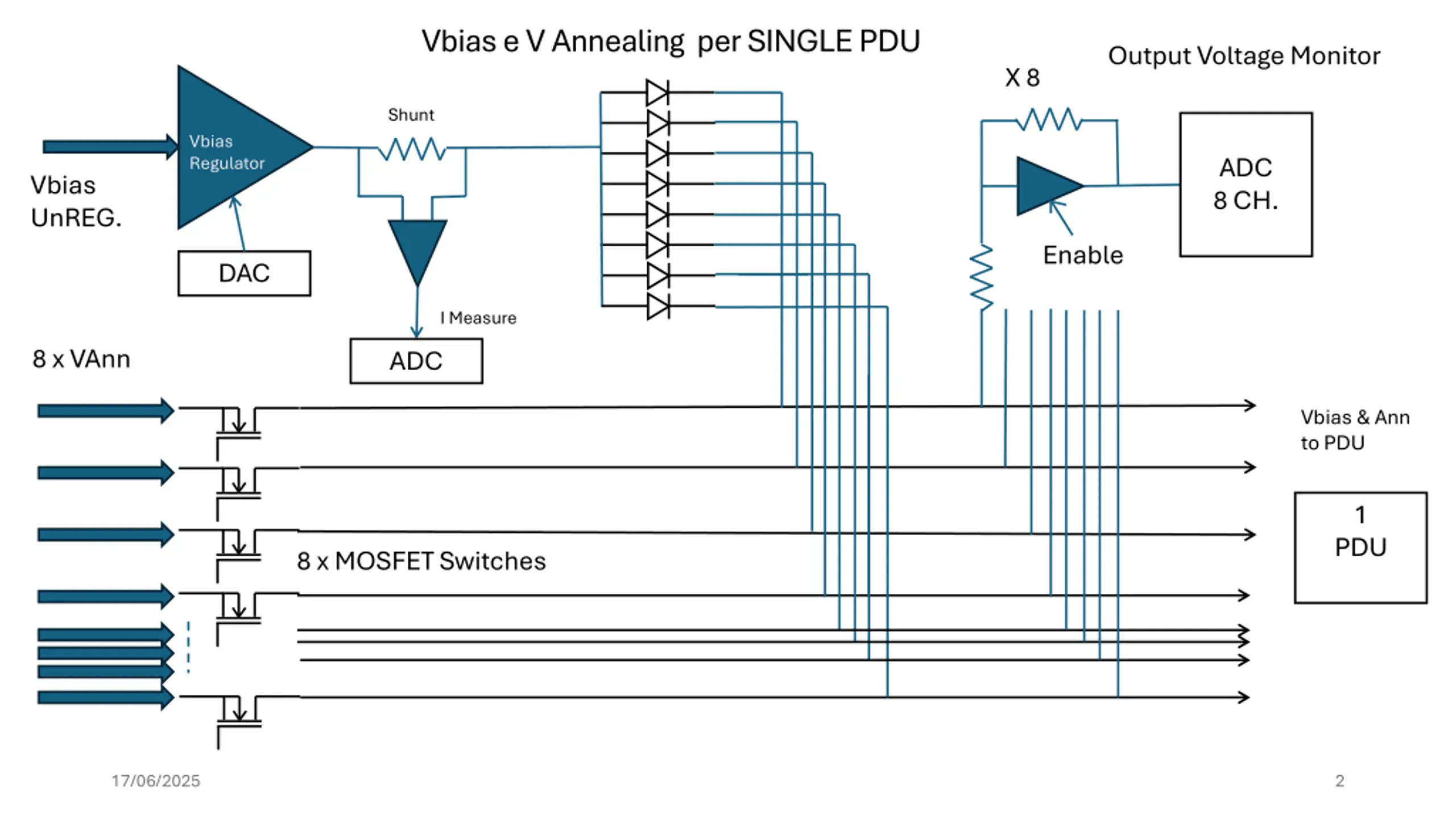

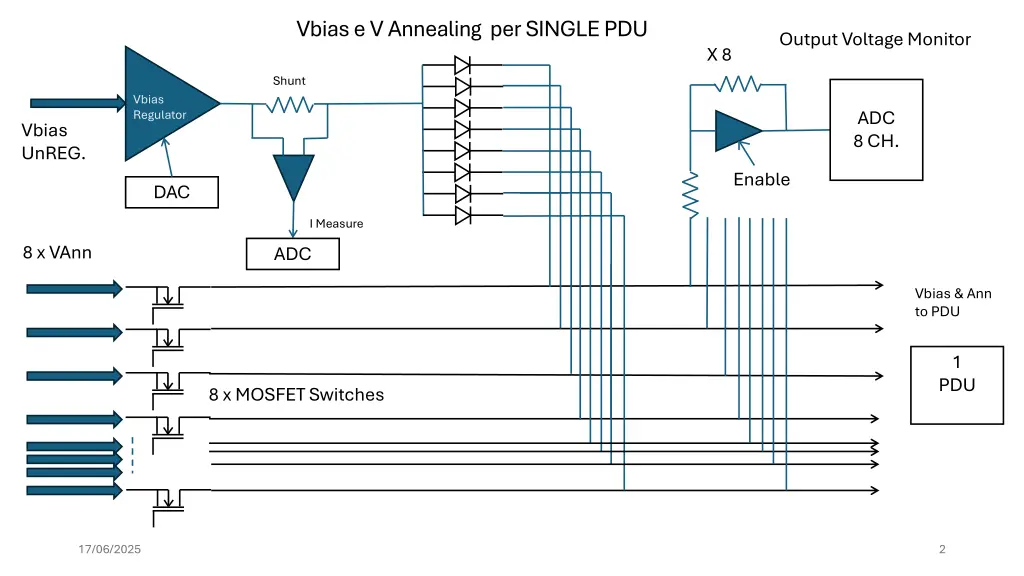

Vbiase V Annealing per SINGLE PDU Output Voltage Monitor X 8 Shunt Vbias Regulator ADC 8 CH. Vbias UnREG. Enable DAC I Measure 8 x VAnn ADC Vbias & Ann to PDU 1 PDU 8 x MOSFET Switches 17/06/2025 2

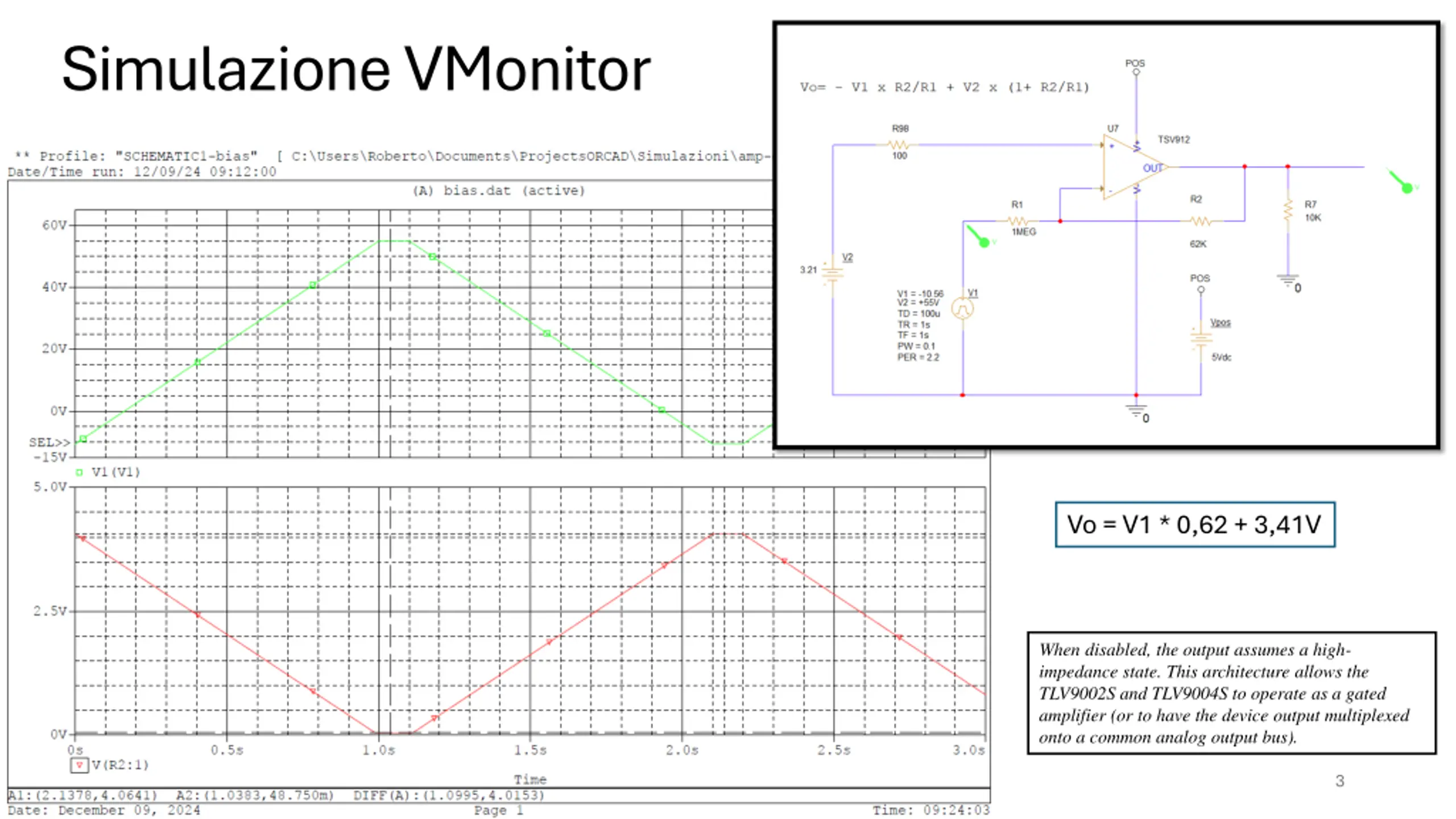

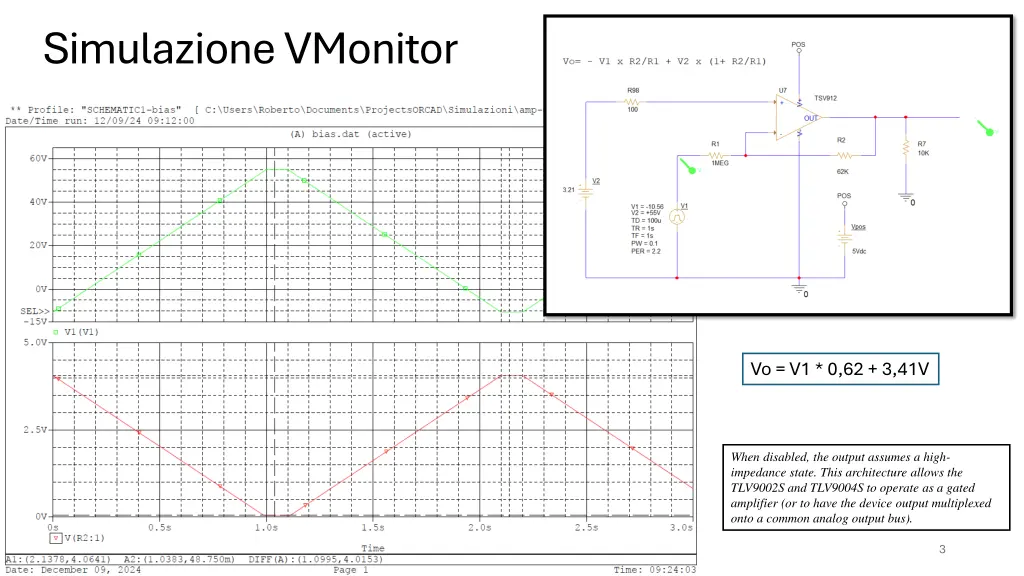

SimulazioneVMonitor Vo = V1 * 0,62 + 3,41V When disabled, the output assumes a high- impedance state. This architecture allows the TLV9002S and TLV9004S to operate as a gated amplifier (or to have the device output multiplexed onto a common analog output bus). 17/06/2025 3

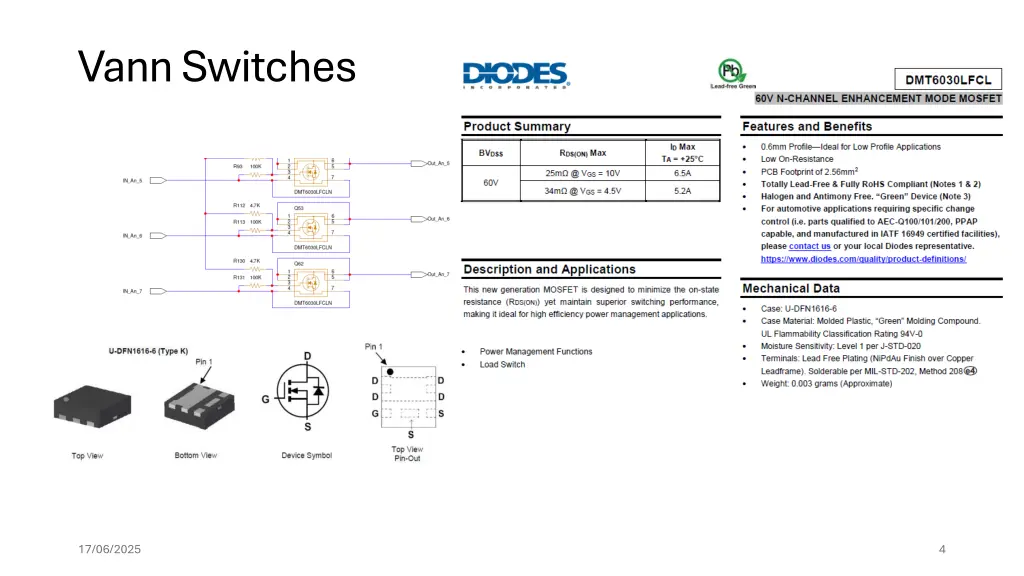

Vann Switches 17/06/2025 4

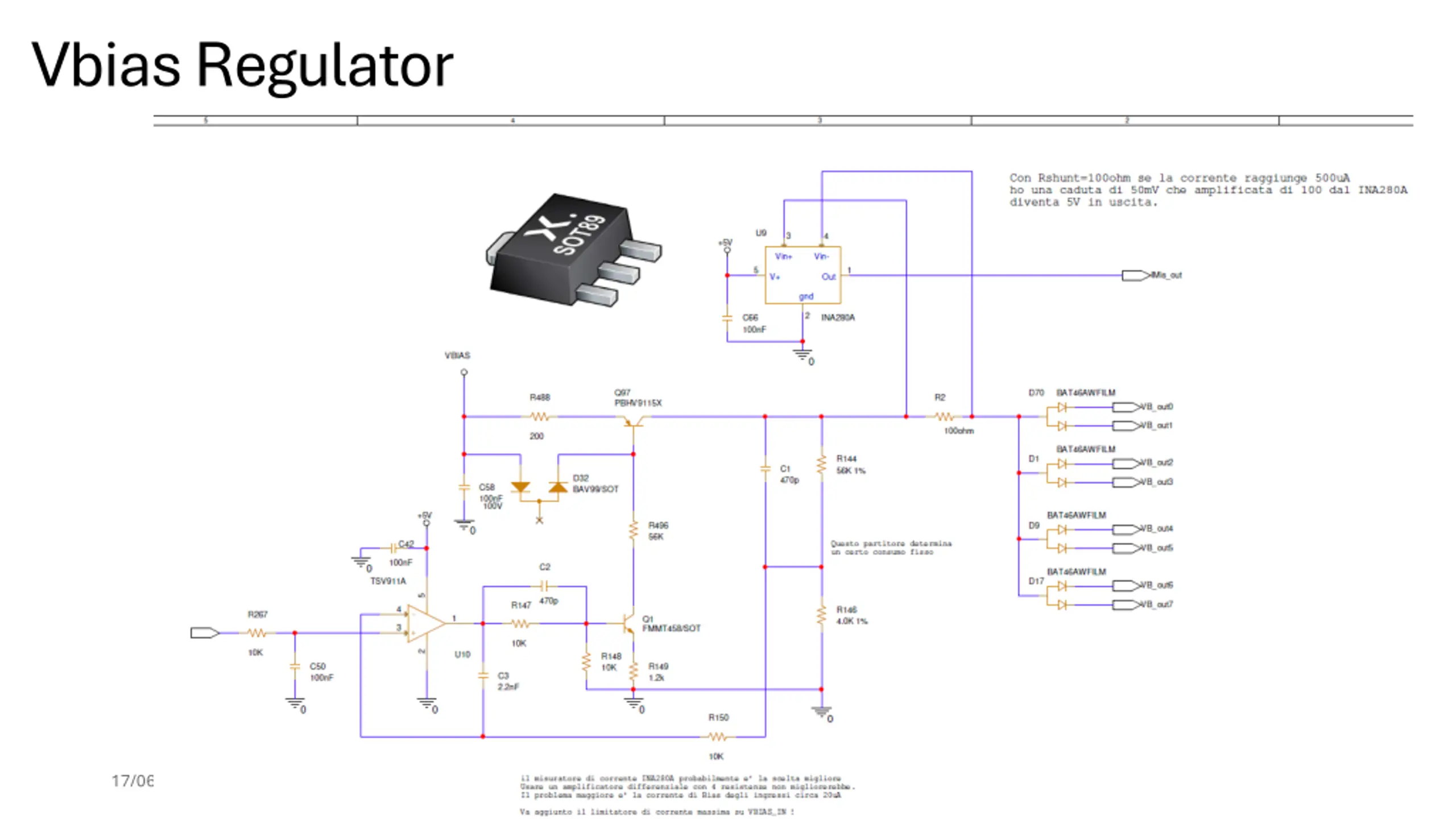

VbiasRegulator 17/06/2025 5

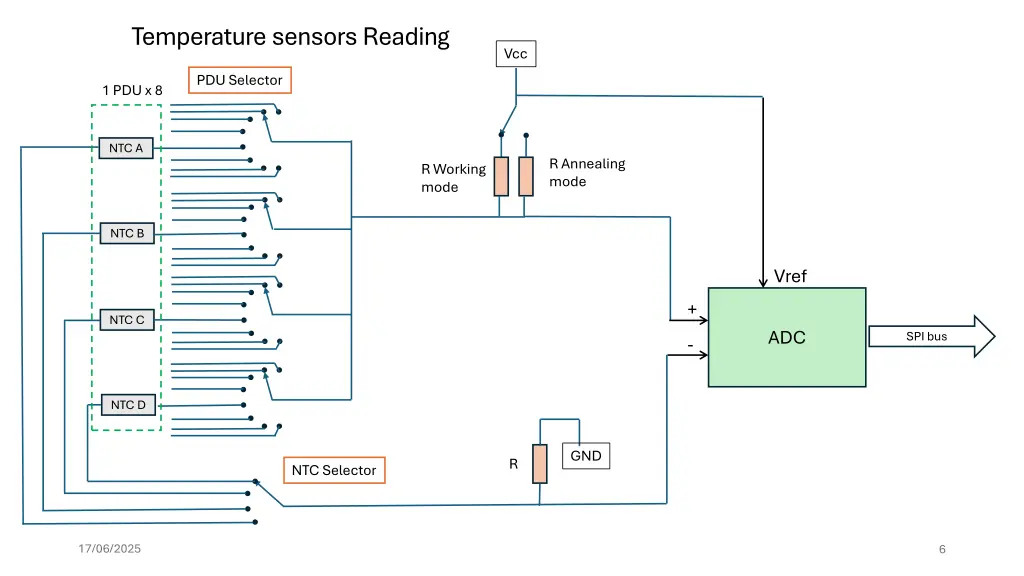

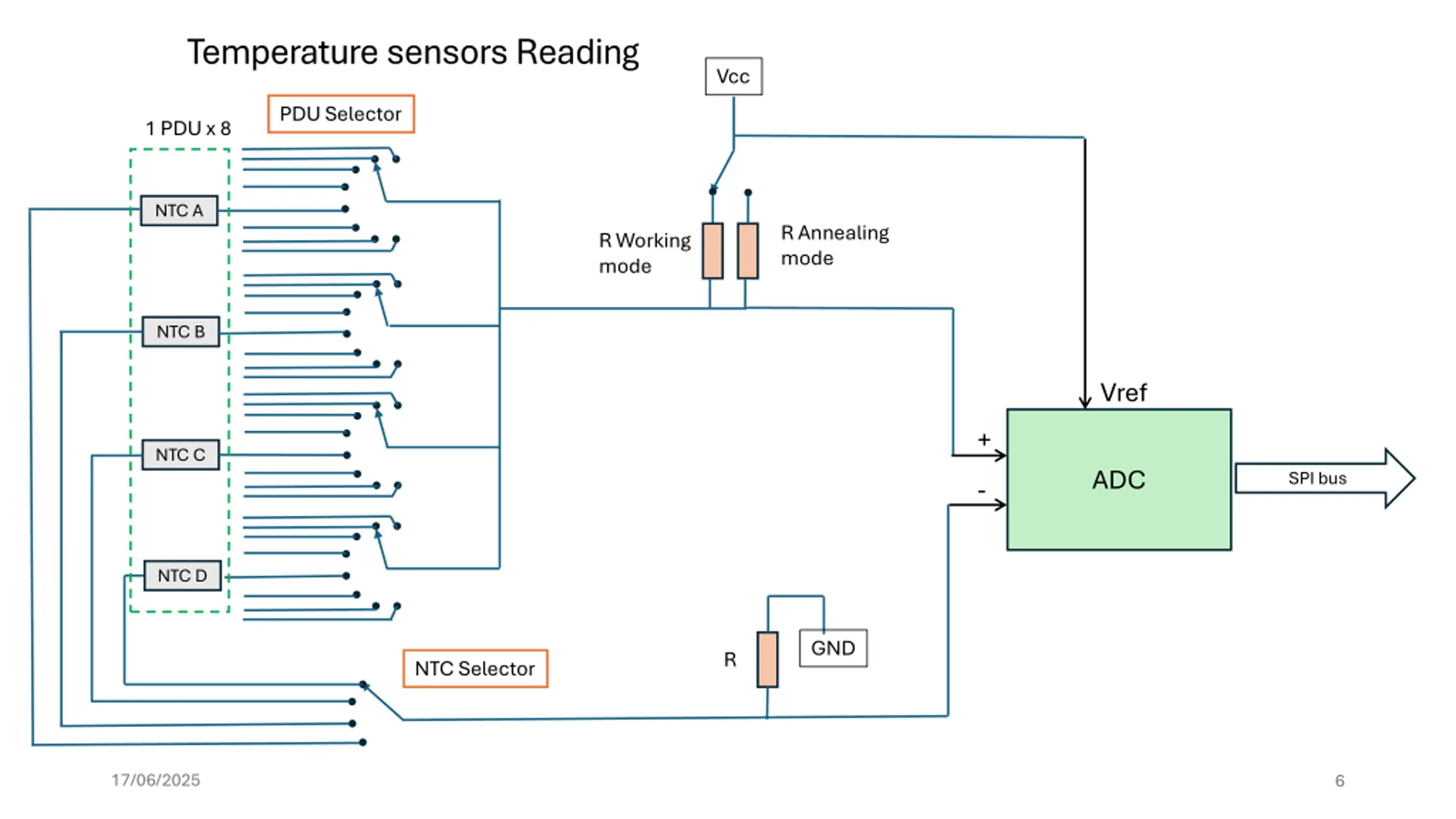

Temperature sensors Reading Vcc PDU Selector 1 PDU x 8 NTC A R Annealing mode R Working mode NTC B Vref + NTC C ADC SPI bus - NTC D GND R NTC Selector 17/06/2025 6
