Materials Science - Torsional Stress and Angle of Twist
Explore the concept of torsional stress and angle of twist in strength of materials. Learn about torsion, torsional shearing stress, and how different factors affect the behavior of materials under torsional loads. Gain insights into calculating torsional shearing stress, angle of twist, and the significance of polar moment of inertia.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Strength of Materials Tenth

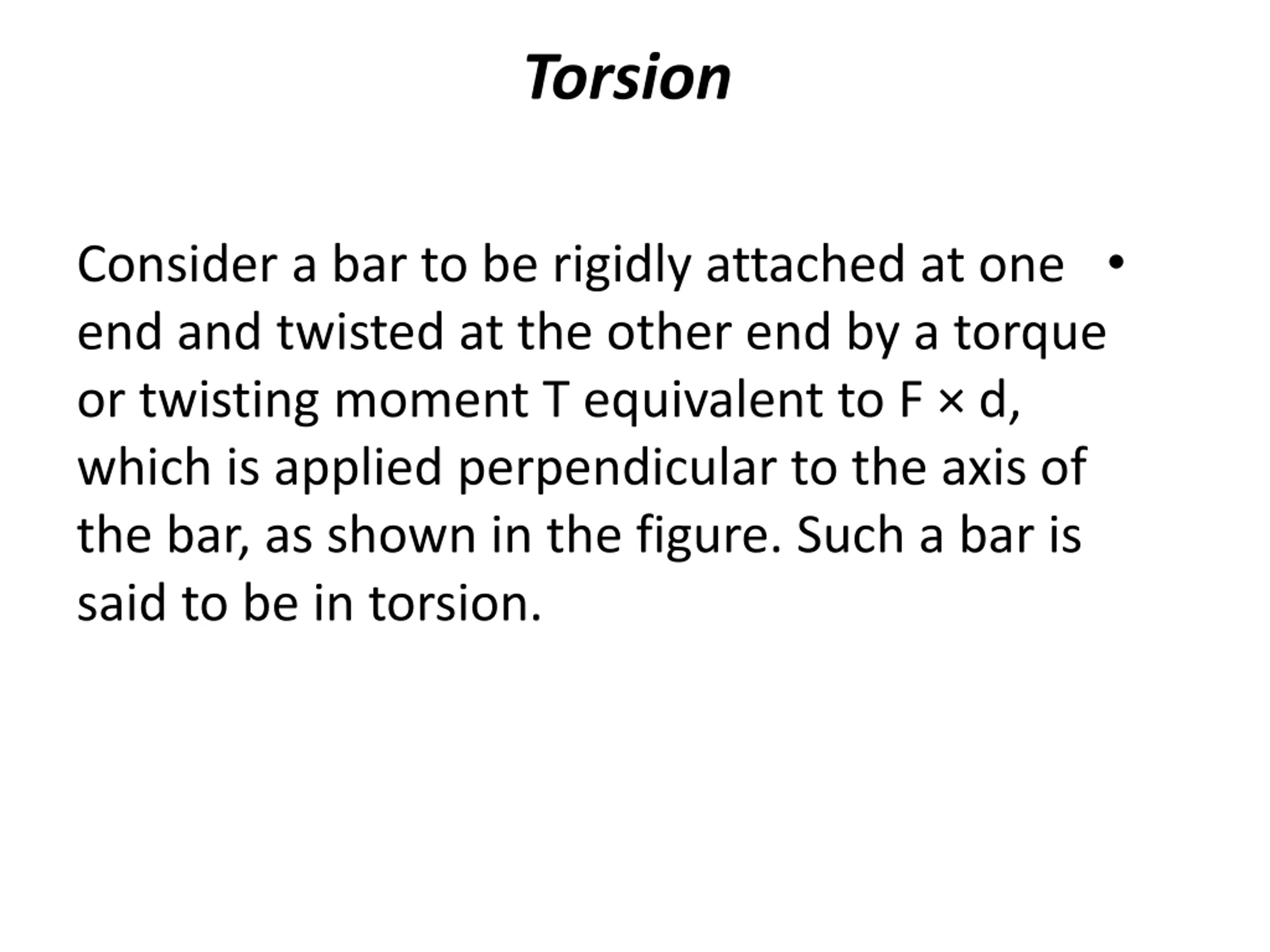

Torsion Consider a bar to be rigidly attached at one end and twisted at the other end by a torque or twisting moment T equivalent to F d, which is applied perpendicular to the axis of the bar, as shown in the figure. Such a bar is said to be in torsion.

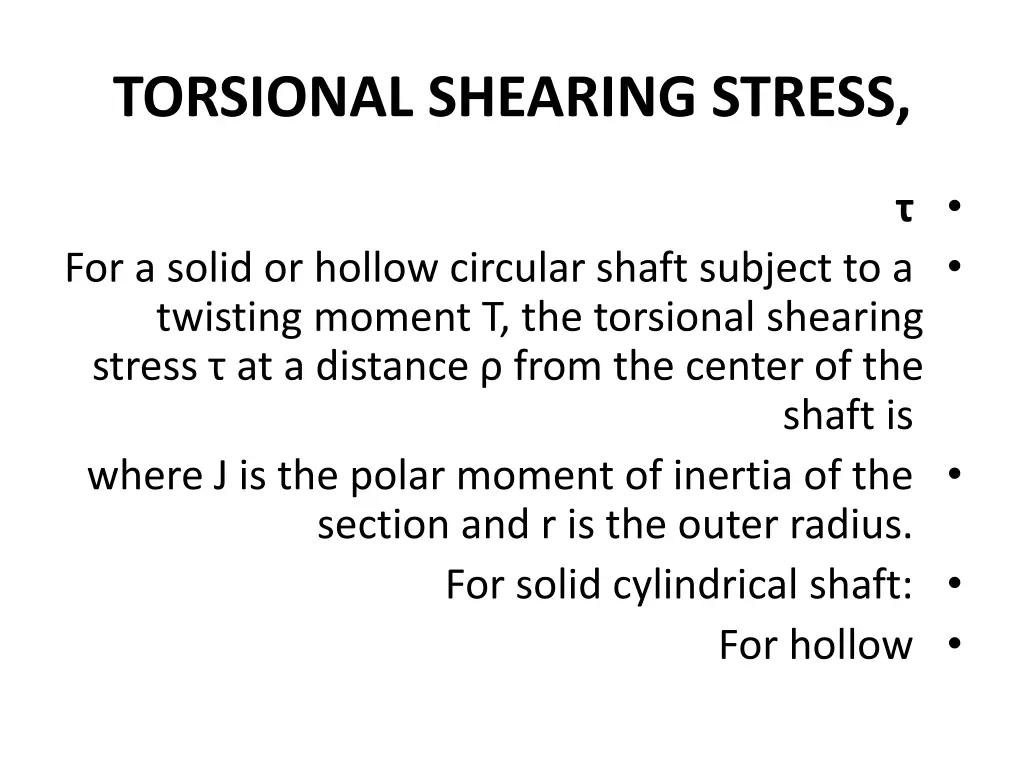

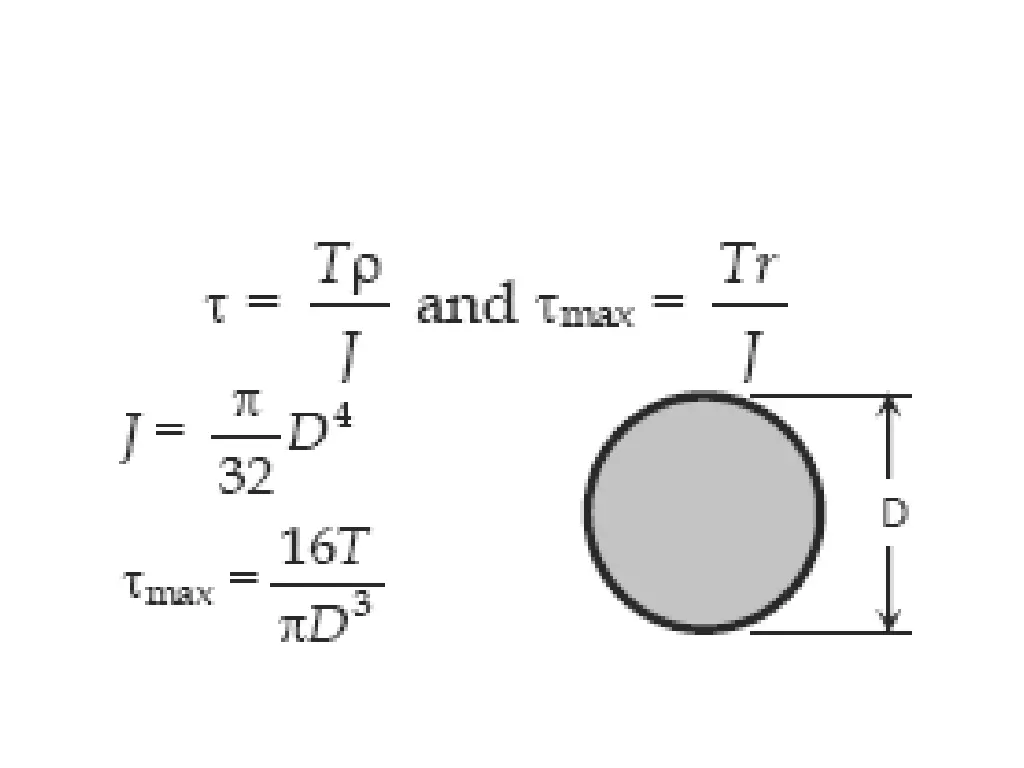

TORSIONAL SHEARING STRESS, For a solid or hollow circular shaft subject to a twisting moment T, the torsional shearing stress at a distance from the center of the shaft is where J is the polar moment of inertia of the section and r is the outer radius. For solid cylindrical shaft: For hollow

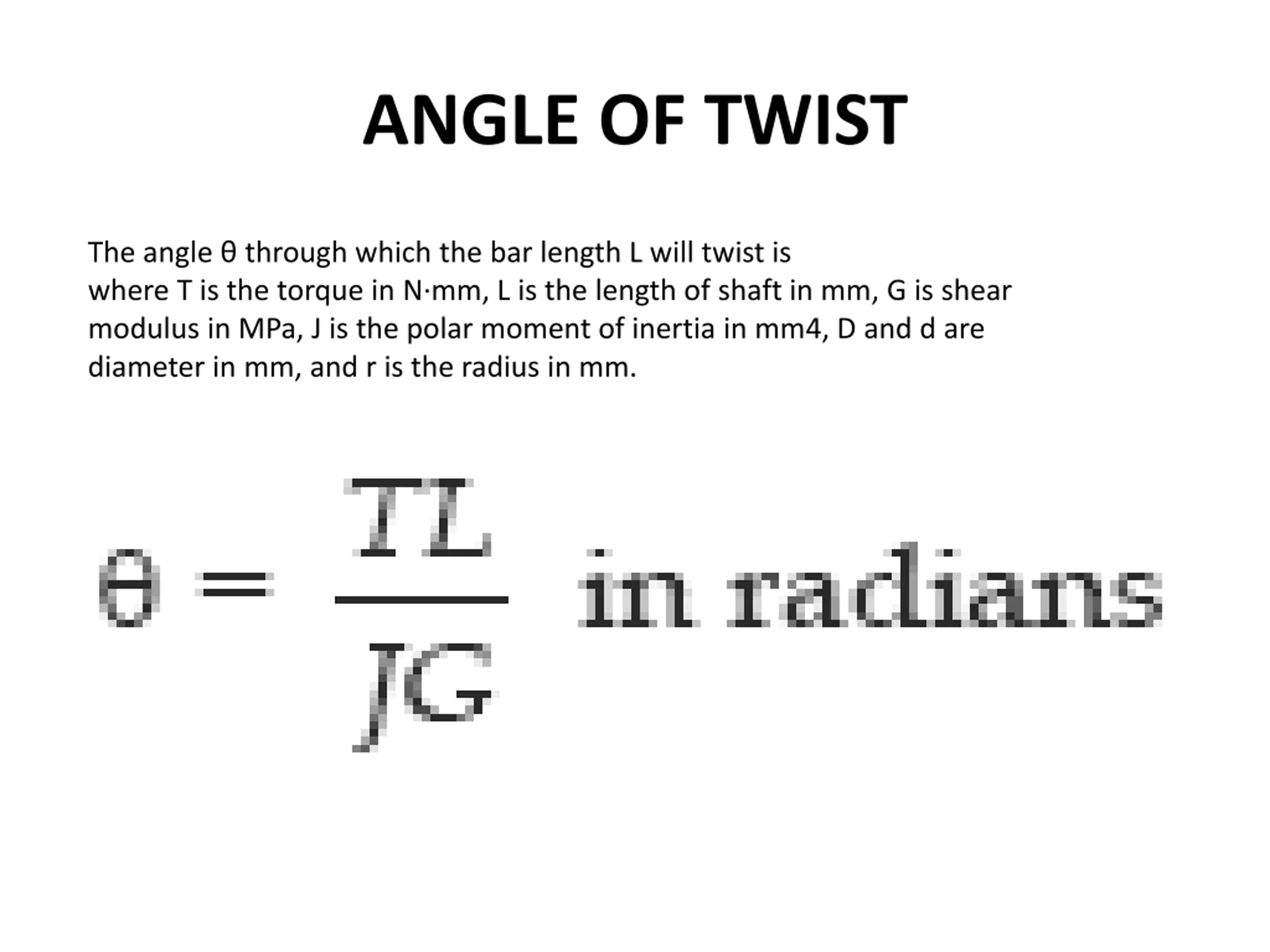

ANGLE OF TWIST The angle through which the bar length L will twist is where T is the torque in N mm, L is the length of shaft in mm, G is shear modulus in MPa, J is the polar moment of inertia in mm4, D and d are diameter in mm, and r is the radius in mm.
