MATRUSRI ENGINEERING COLLEGE MATRUSRI ENGINEERING COLLEGE DEPARTMENT OF COMPUTER SCIENCE AND ENGINEERING SUBJECT NAME: COMPUTER ORGRANIZATION(PC 232 CS) UNIT-V FACULTY NAME: Mr. B.J.Praveena Assistant Professor Dept. of CSE

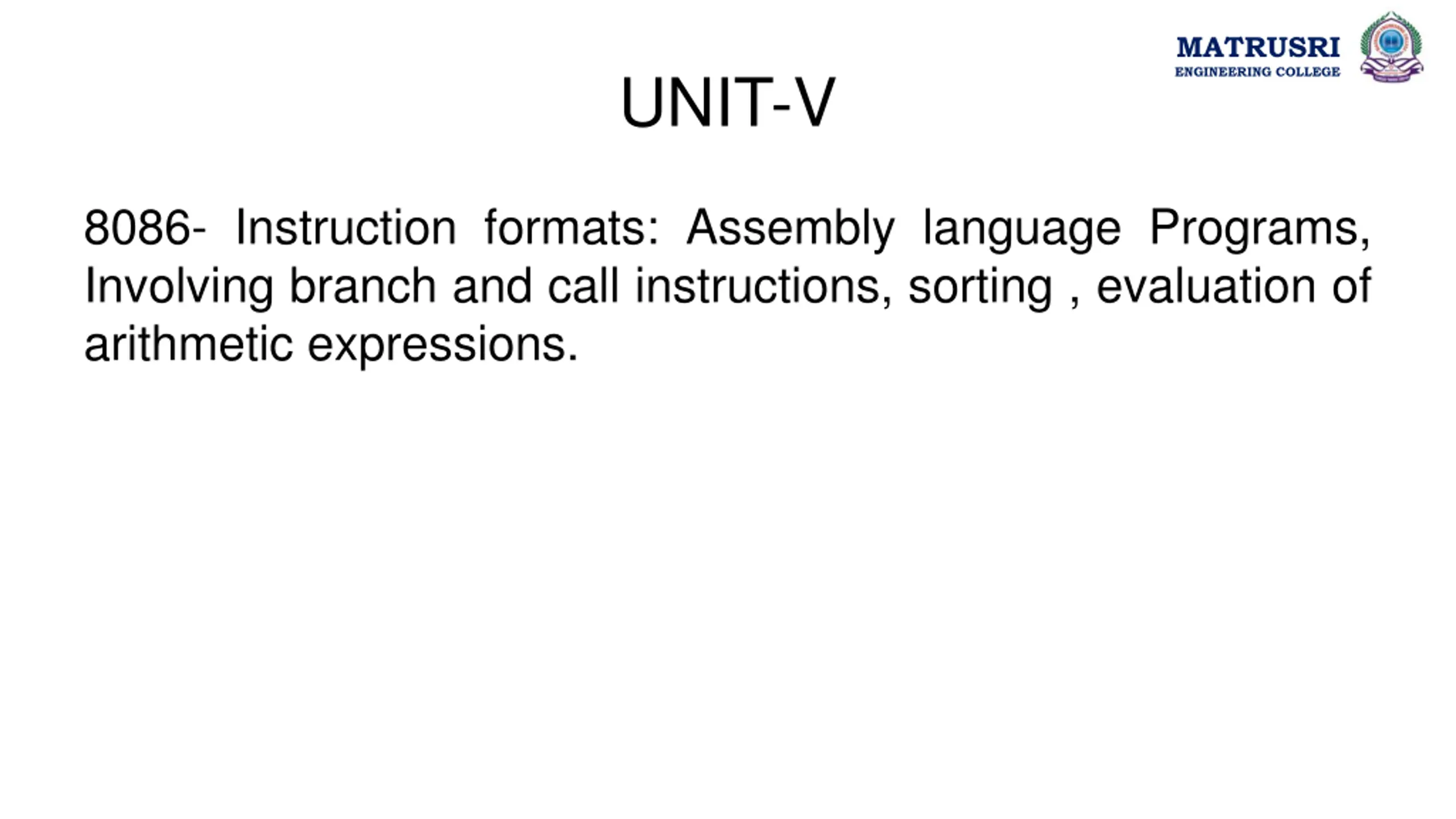

MATRUSRI ENGINEERING COLLEGE UNIT-V 8086- Instruction formats: Assembly language Programs, Involving branch and call instructions, sorting , evaluation of arithmetic expressions.

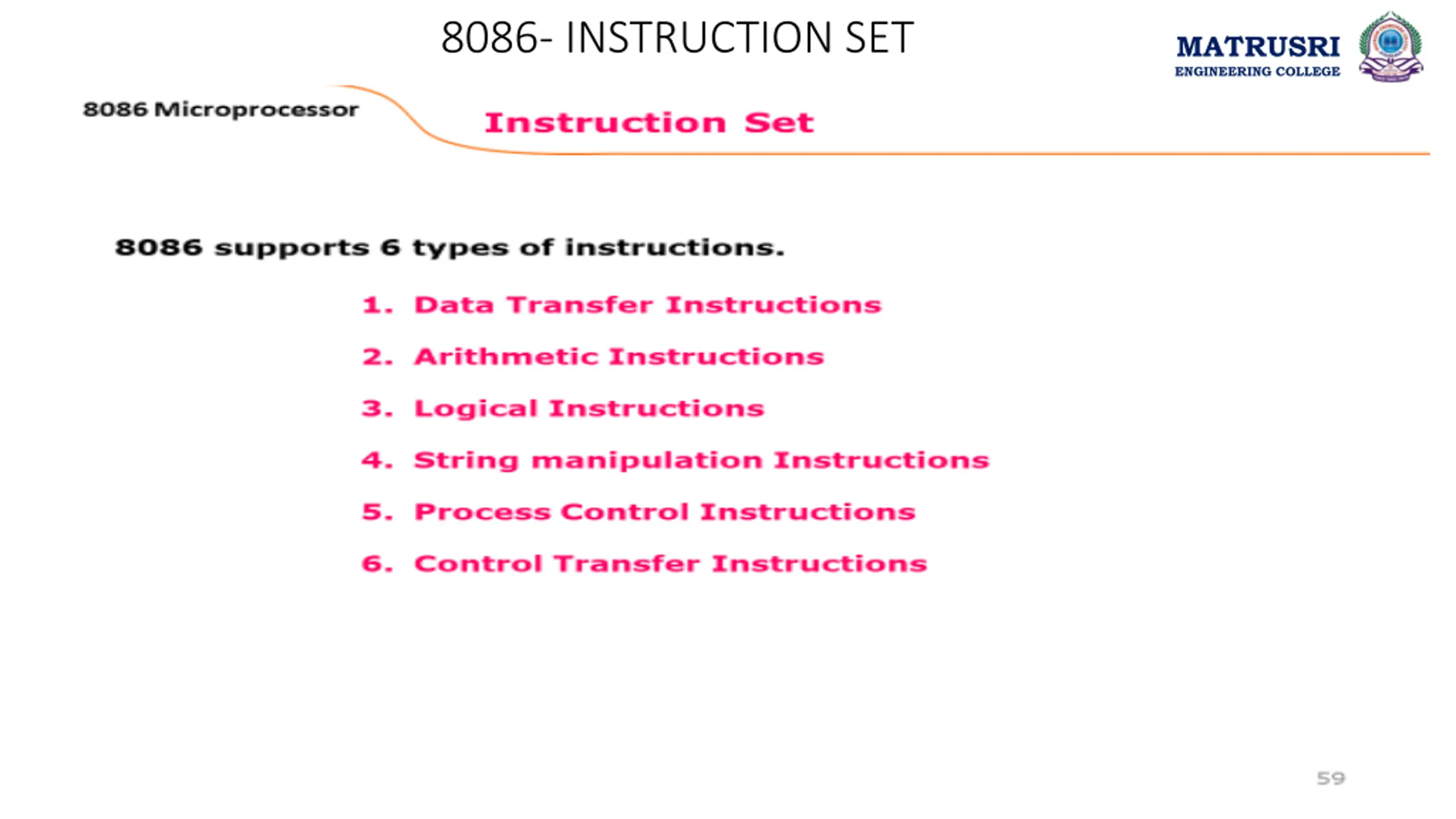

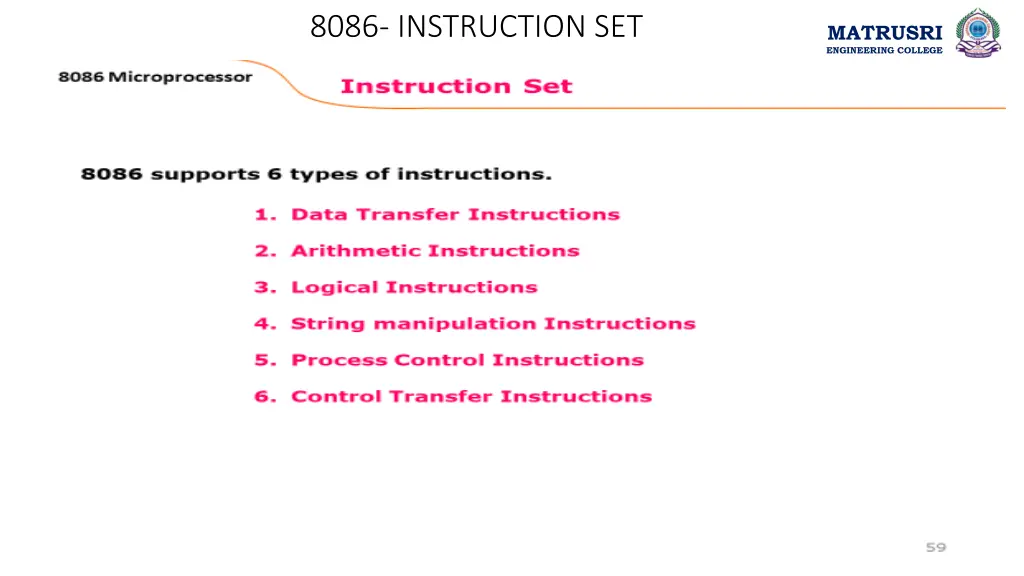

8086- INSTRUCTION SET MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE

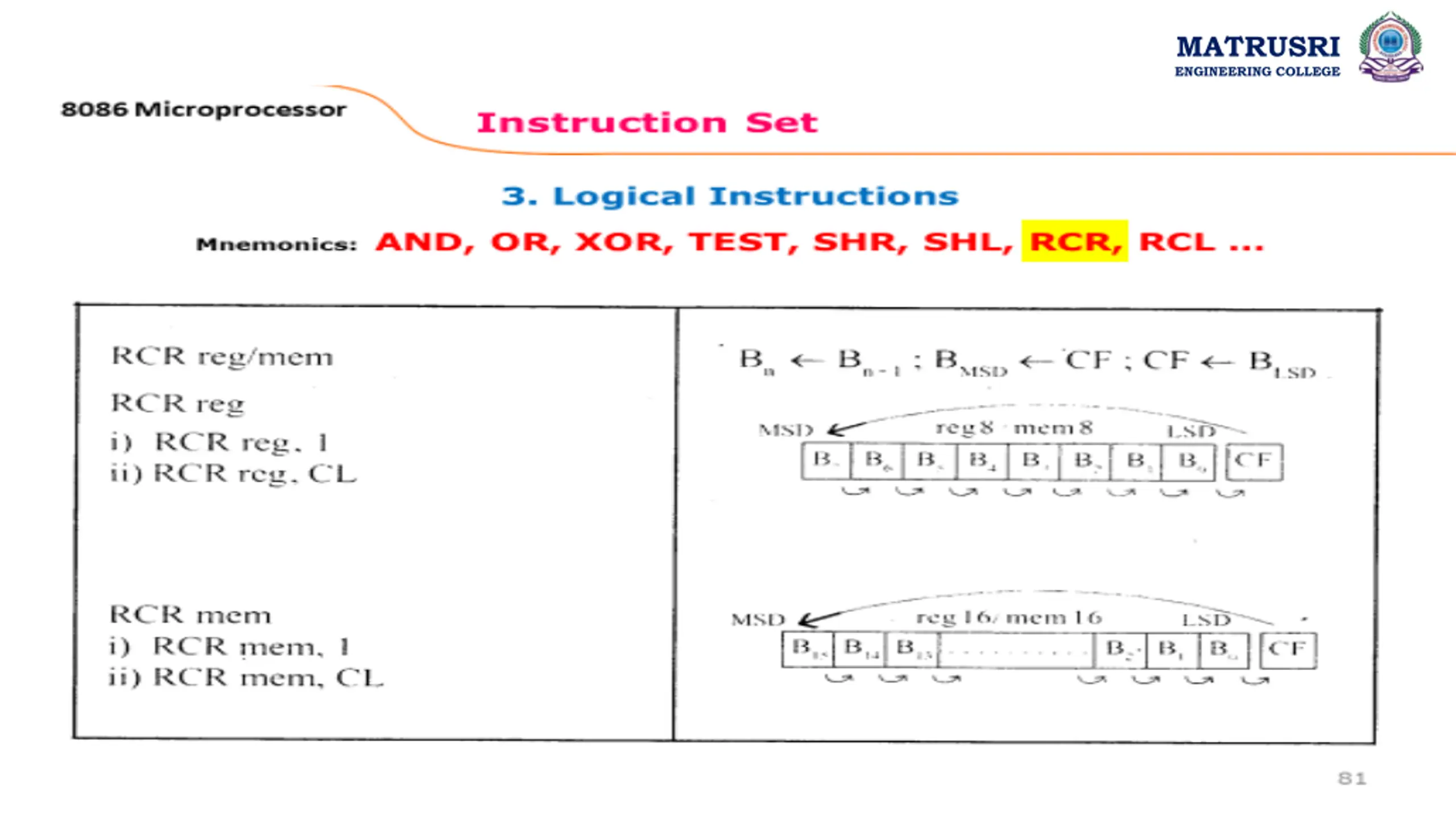

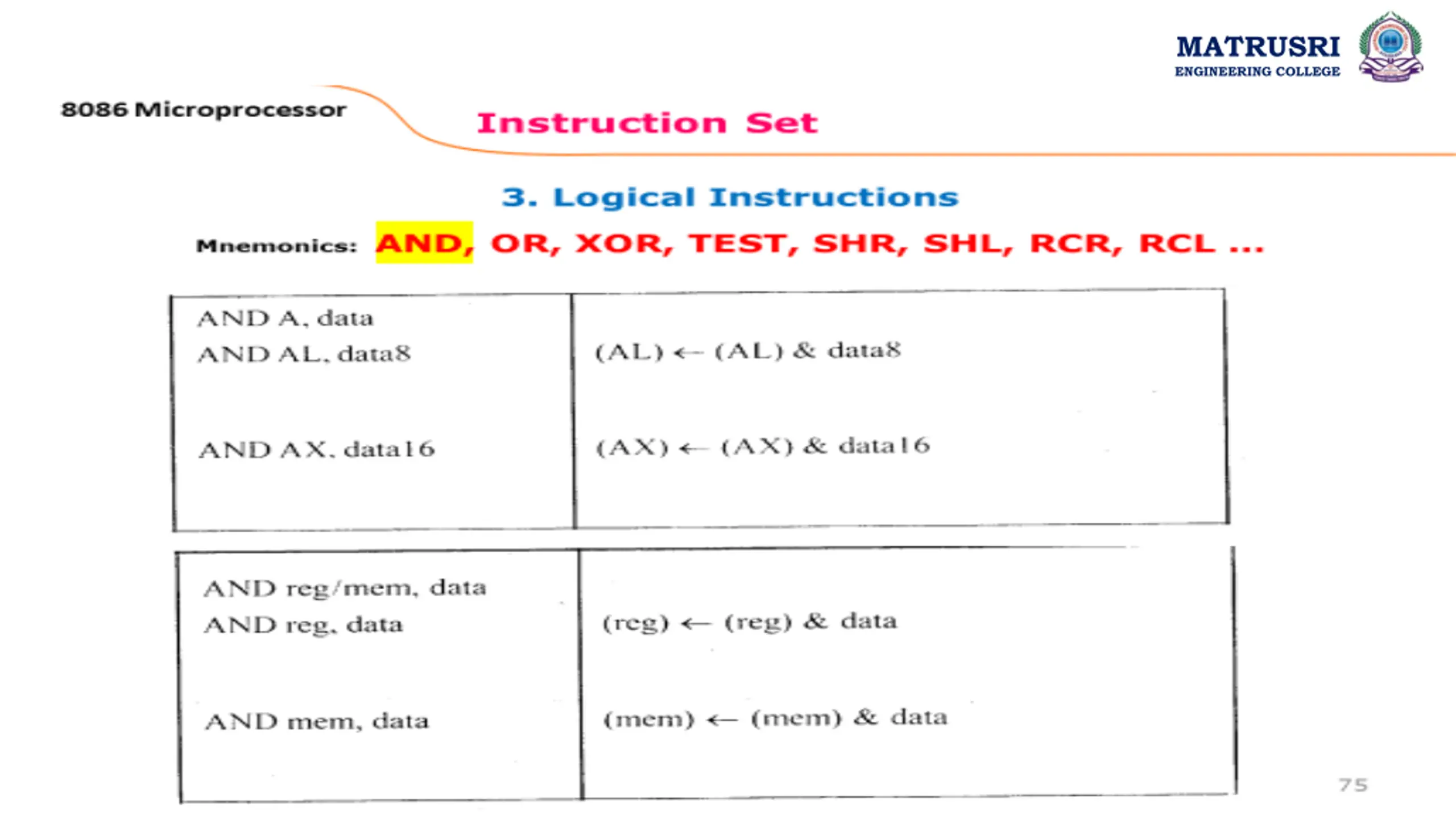

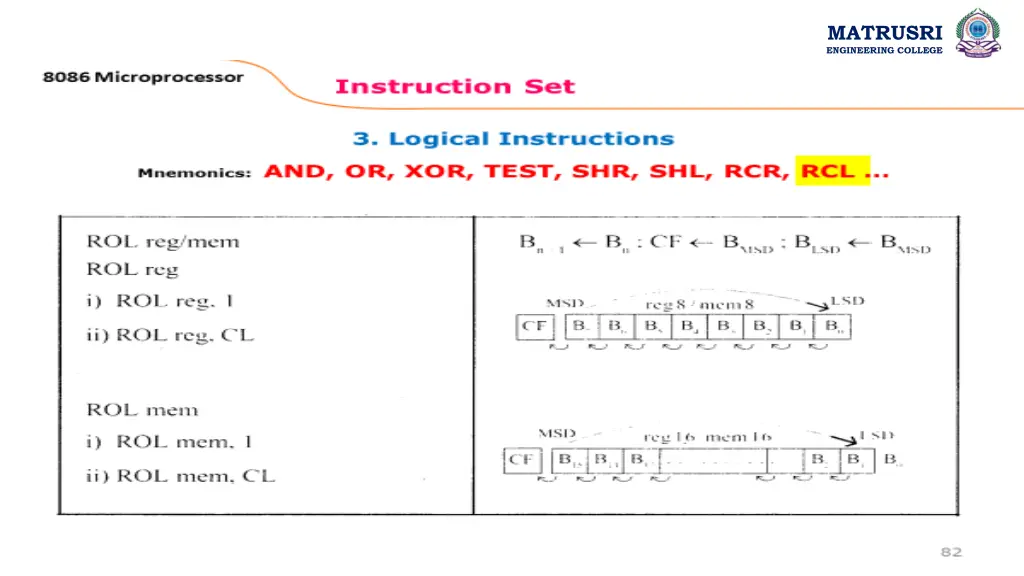

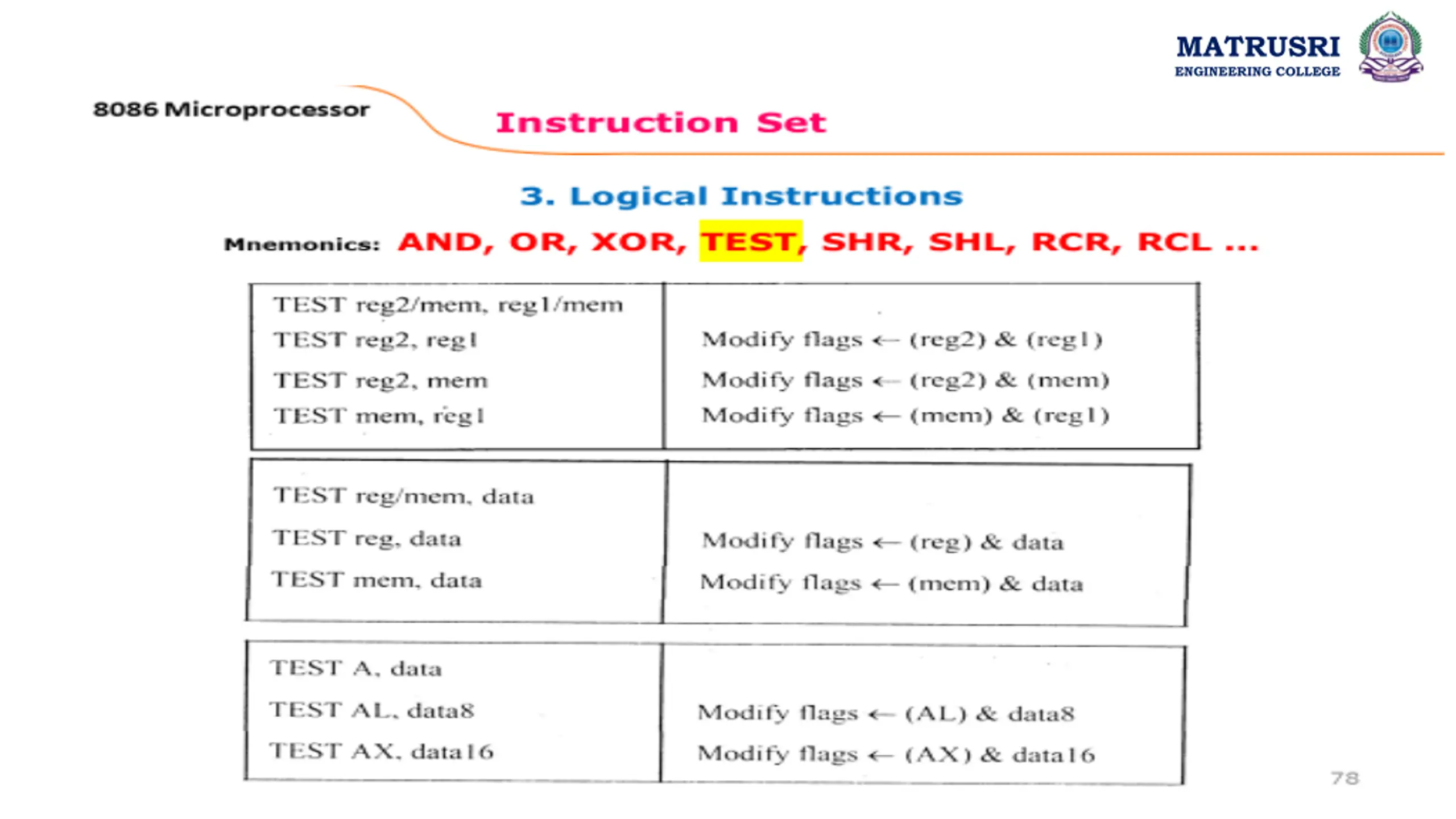

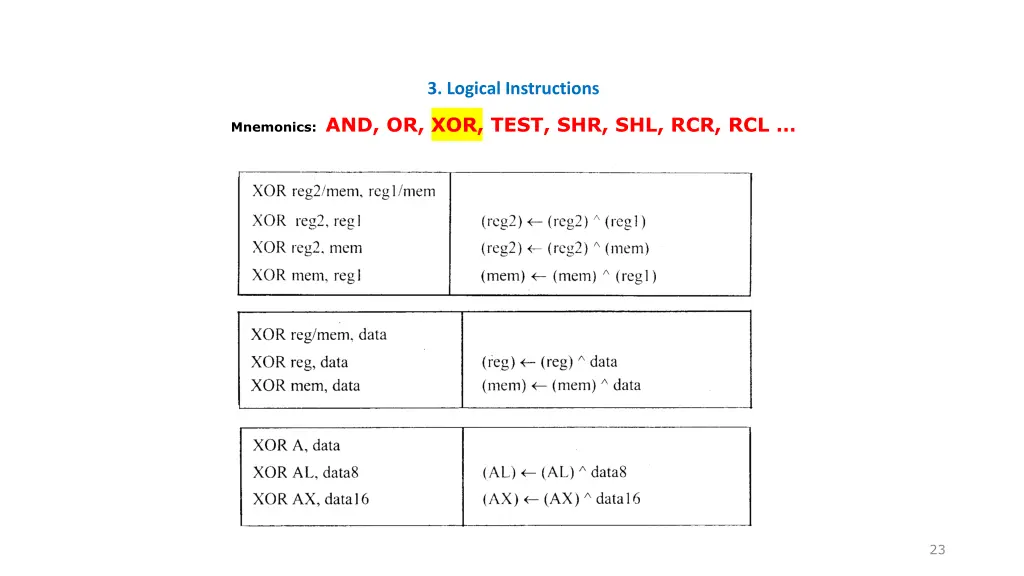

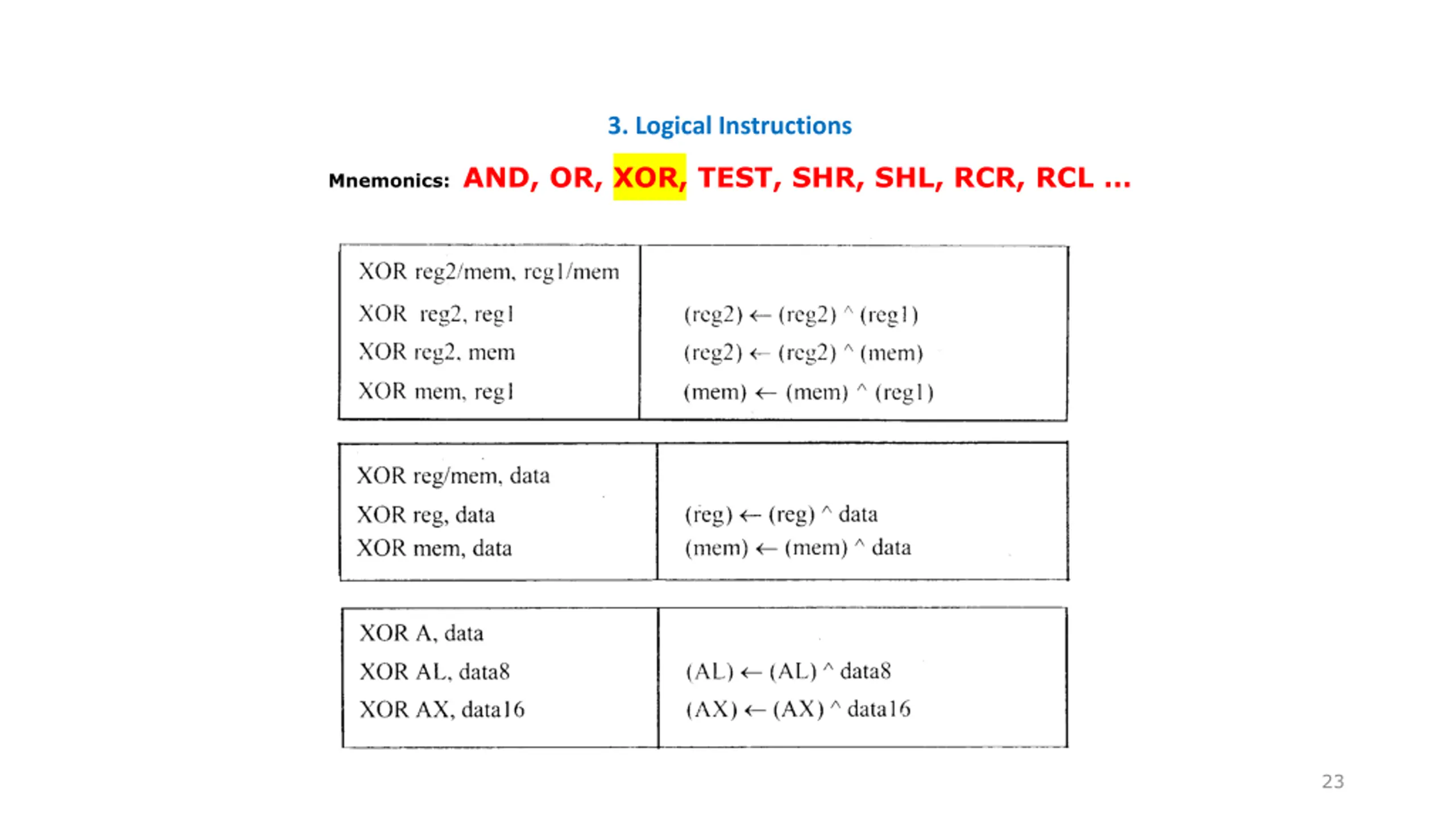

3. Logical Instructions Mnemonics: AND, OR, XOR, TEST, SHR, SHL, RCR, RCL 23
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE

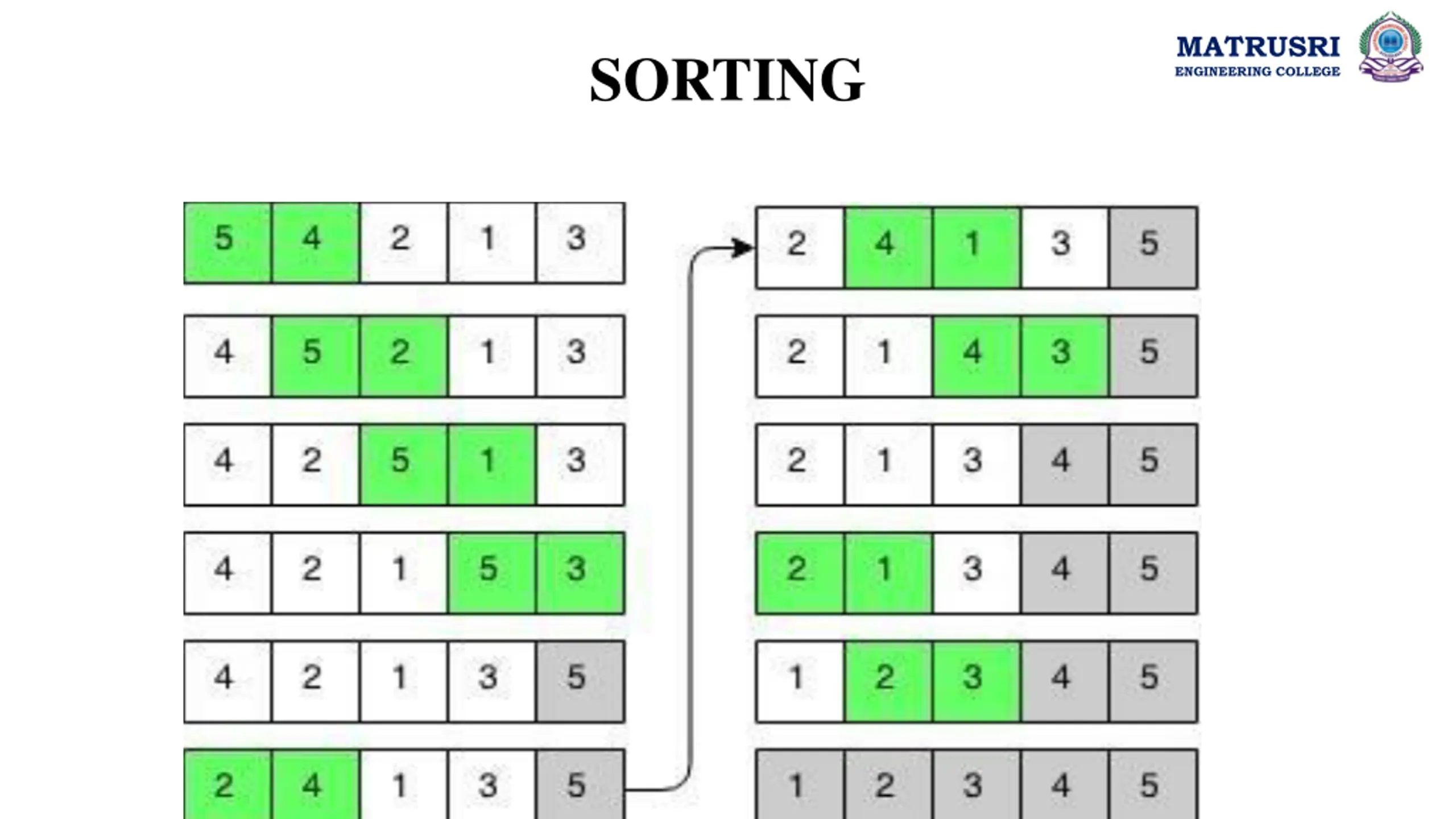

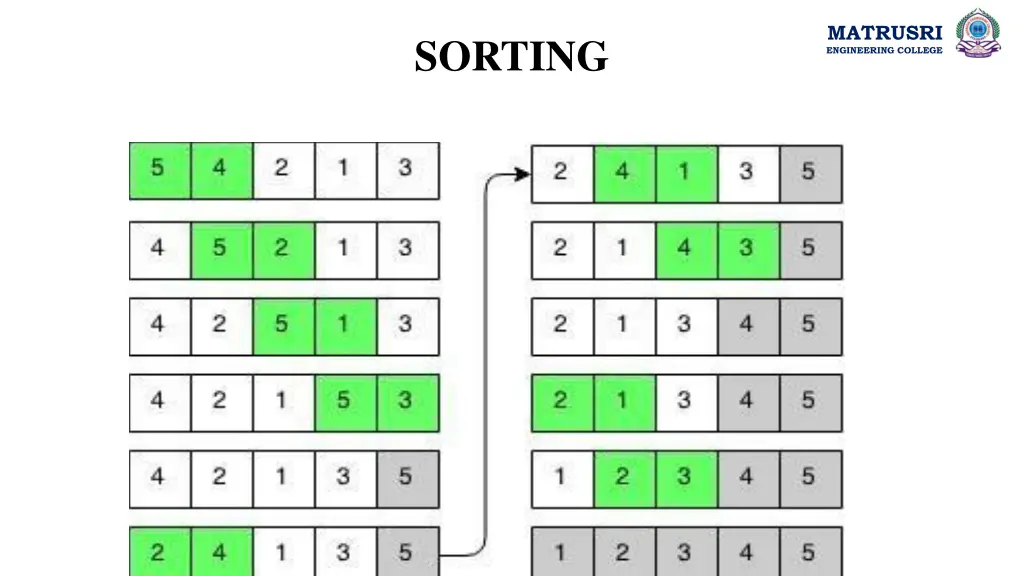

MATRUSRI ENGINEERING COLLEGE SORTING

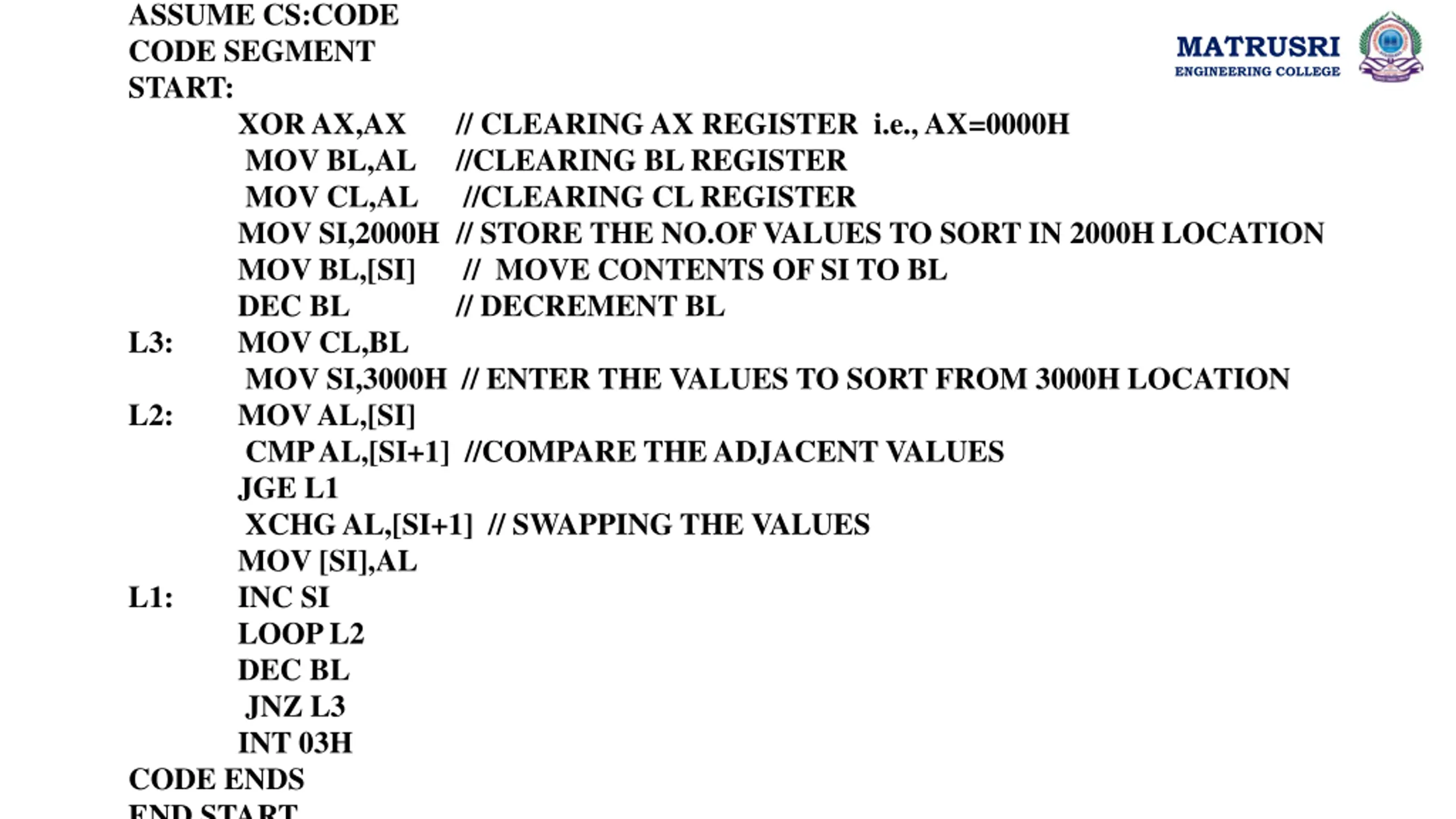

ASSUME CS:CODE CODE SEGMENT START: XOR AX,AX MOV BL,AL //CLEARING BL REGISTER MOV CL,AL //CLEARING CL REGISTER MOV SI,2000H // STORE THE NO.OF VALUES TO SORT IN 2000H LOCATION MOV BL,[SI] // MOVE CONTENTS OF SI TO BL DEC BL // DECREMENT BL L3: MOV CL,BL MOV SI,3000H // ENTER THE VALUES TO SORT FROM 3000H LOCATION L2: MOV AL,[SI] CMP AL,[SI+1] //COMPARE THE ADJACENT VALUES JGE L1 XCHG AL,[SI+1] // SWAPPING THE VALUES MOV [SI],AL L1: INC SI LOOP L2 DEC BL JNZ L3 INT 03H CODE ENDS END START MATRUSRI ENGINEERING COLLEGE // CLEARING AX REGISTER i.e., AX=0000H
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
MATRUSRI ENGINEERING COLLEGE
