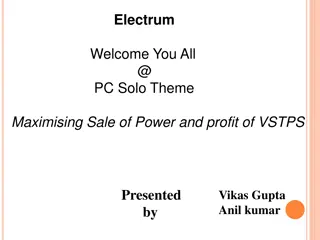

Electrum Welcome You All @ PC Solo Theme Maximising Sale of Power and profit of VSTPS Presented by Vikas Gupta Anil kumar

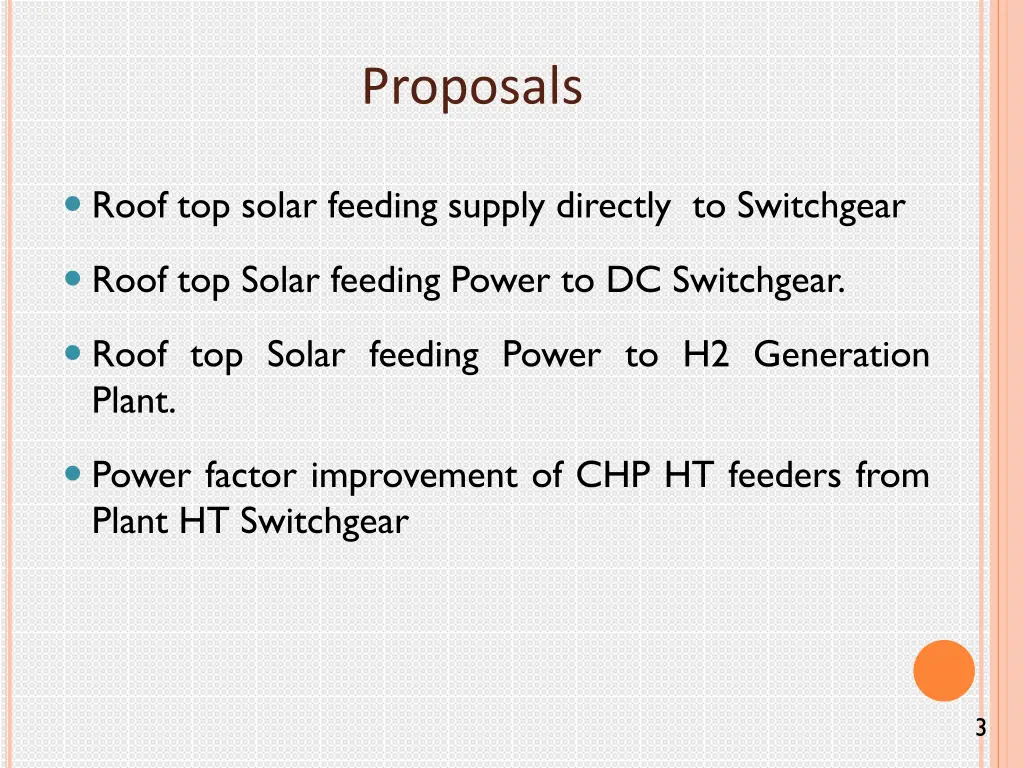

Proposals Roof top solar feeding supply directly to Switchgear Roof top Solar feeding Power to DC Switchgear. Roof top Solar feeding Power to H2 Generation Plant. Power factor improvement of CHP HT feeders from Plant HT Switchgear 3

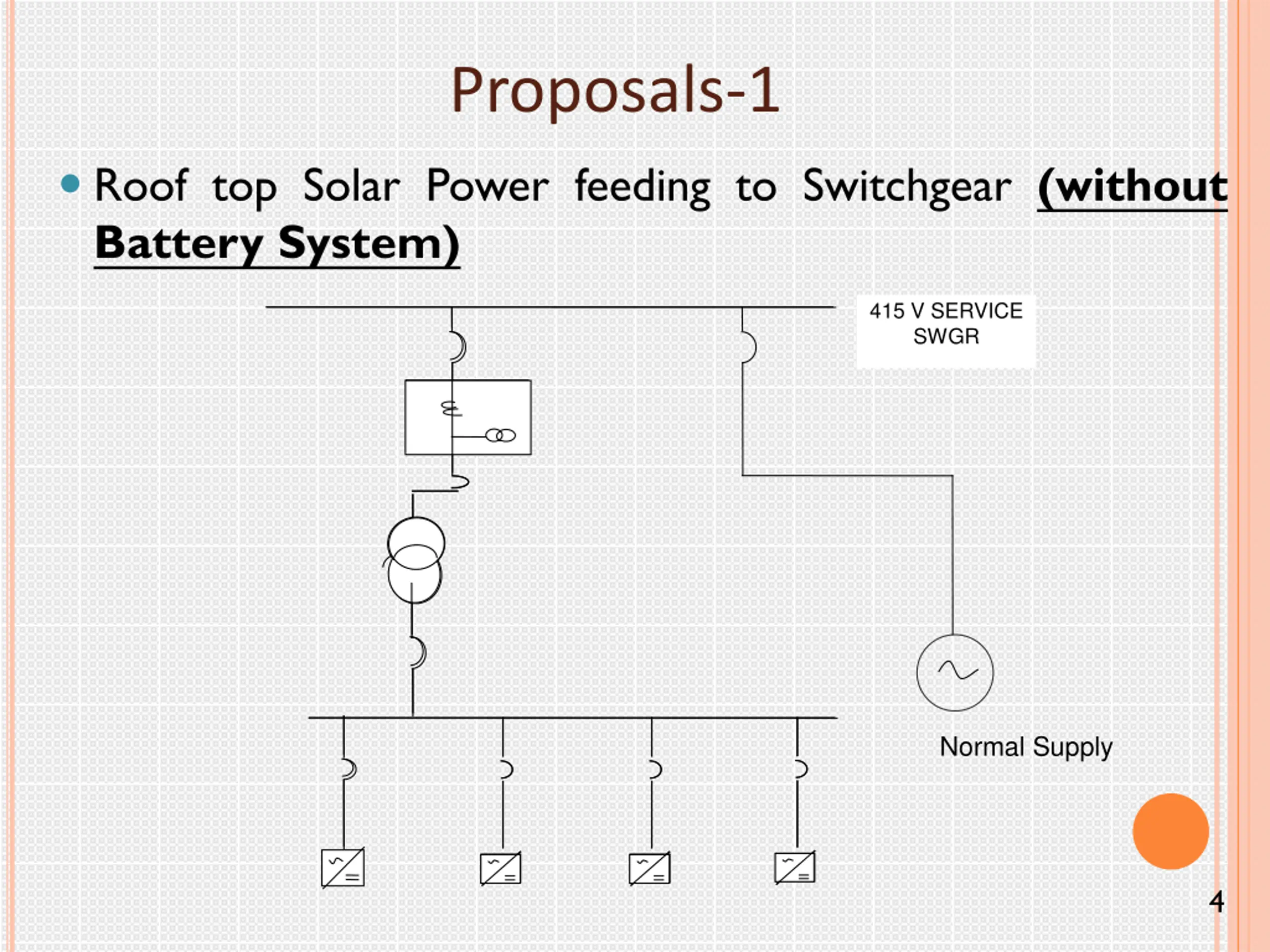

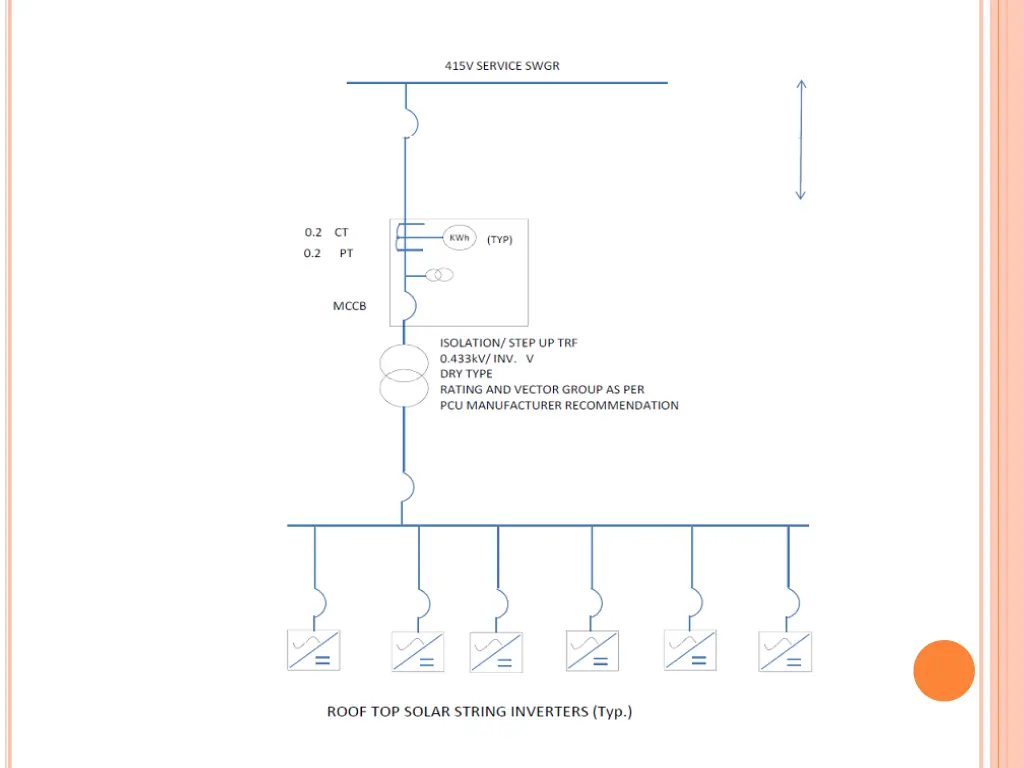

Proposals-1 Roof top Solar Power feeding to Switchgear (without Battery System) 415 V SERVICE SWGR Normal Supply 4

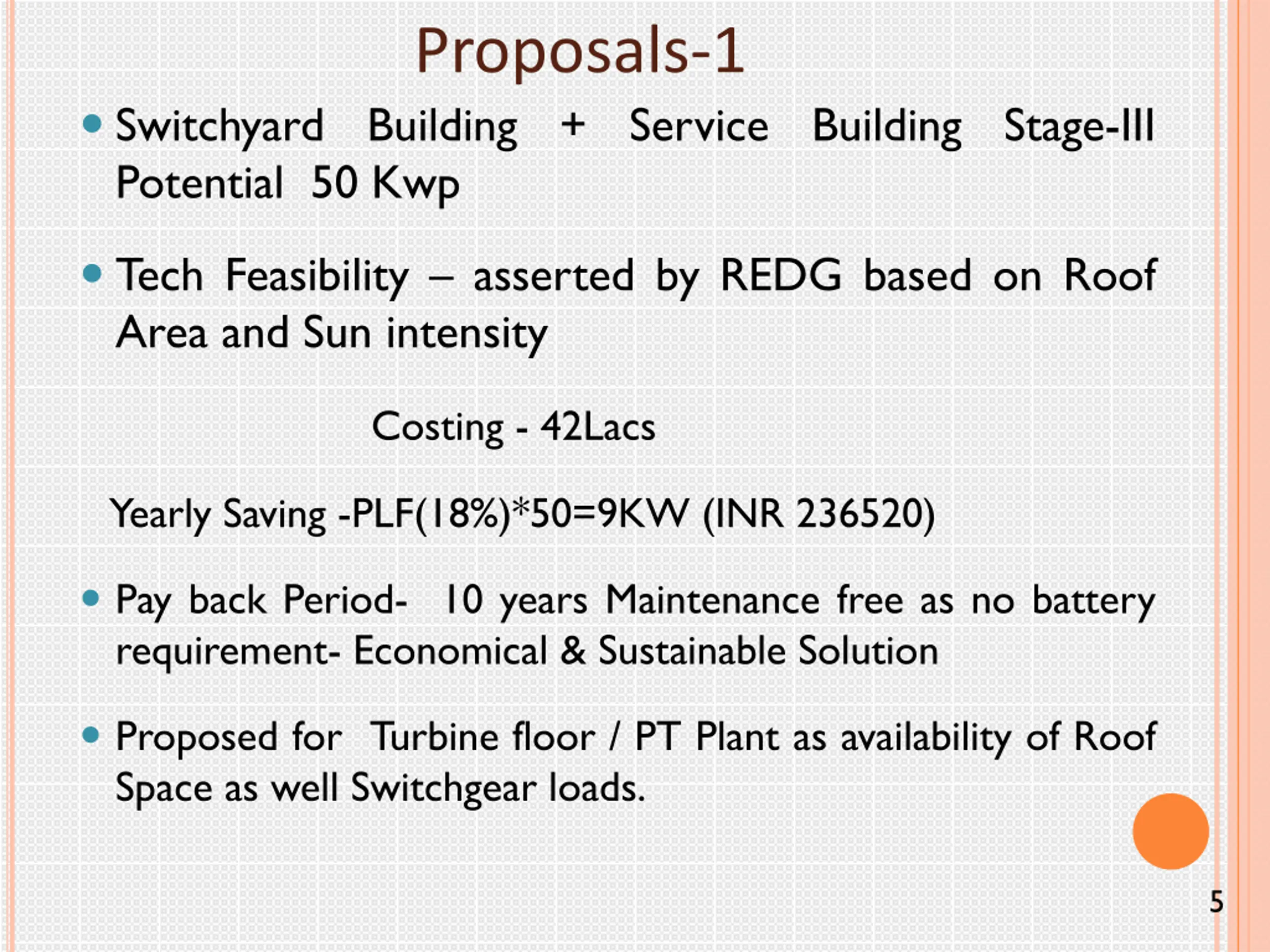

Proposals-1 Switchyard Building + Service Building Stage-III Potential 50 Kwp Tech Feasibility asserted by REDG based on Roof Area and Sun intensity Costing - 42Lacs Yearly Saving -PLF(18%)*50=9KW (INR 236520) Pay back Period- 10 years Maintenance free as no battery requirement- Economical & Sustainable Solution Proposed for Turbine floor / PT Plant as availability of Roof Space as well Switchgear loads. 5

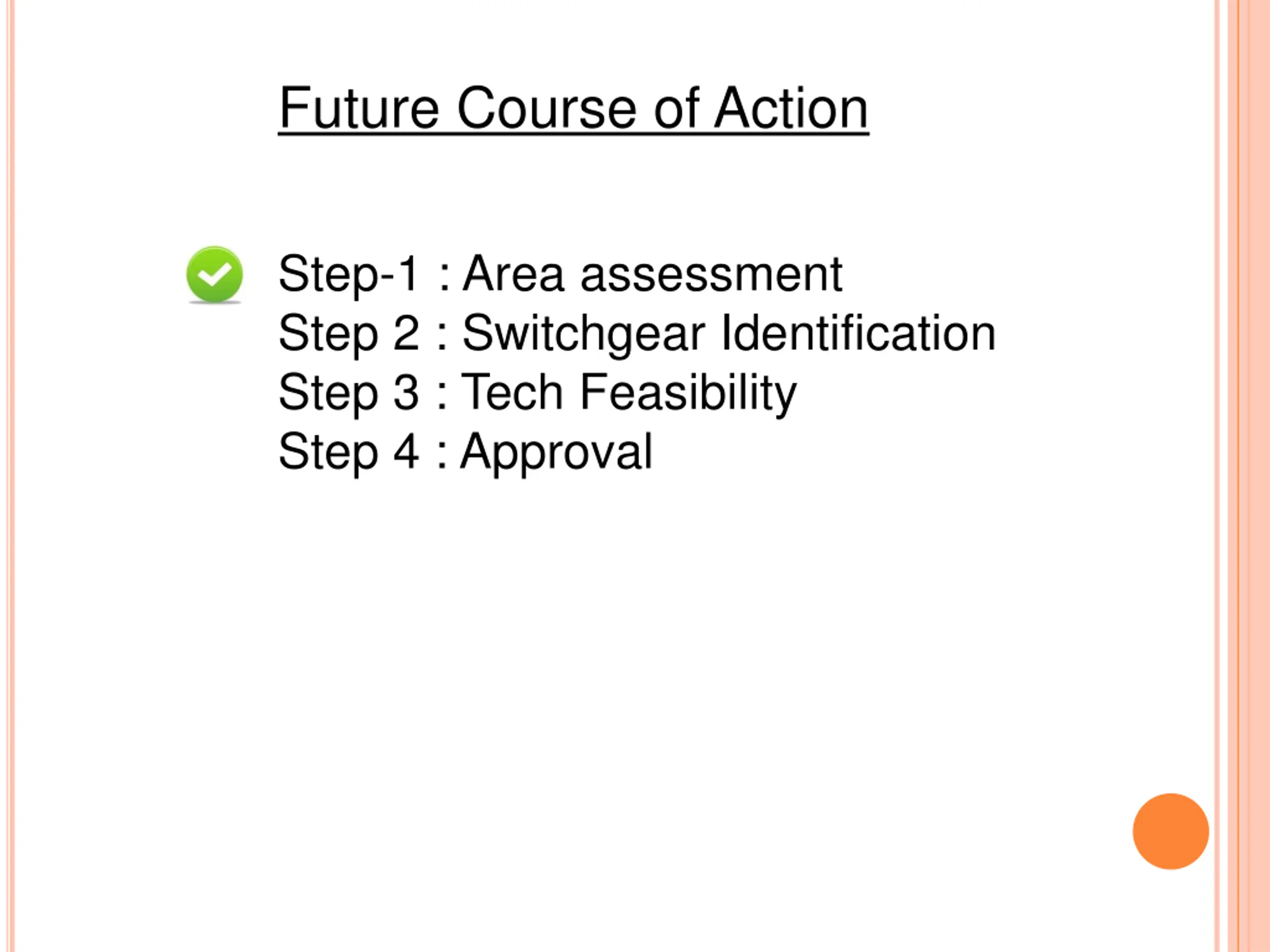

Future Course of Action Step-1 : Area assessment Step-2 : Switchgear Identification Step 3 : Tech Feasibility Step 4 : Approval

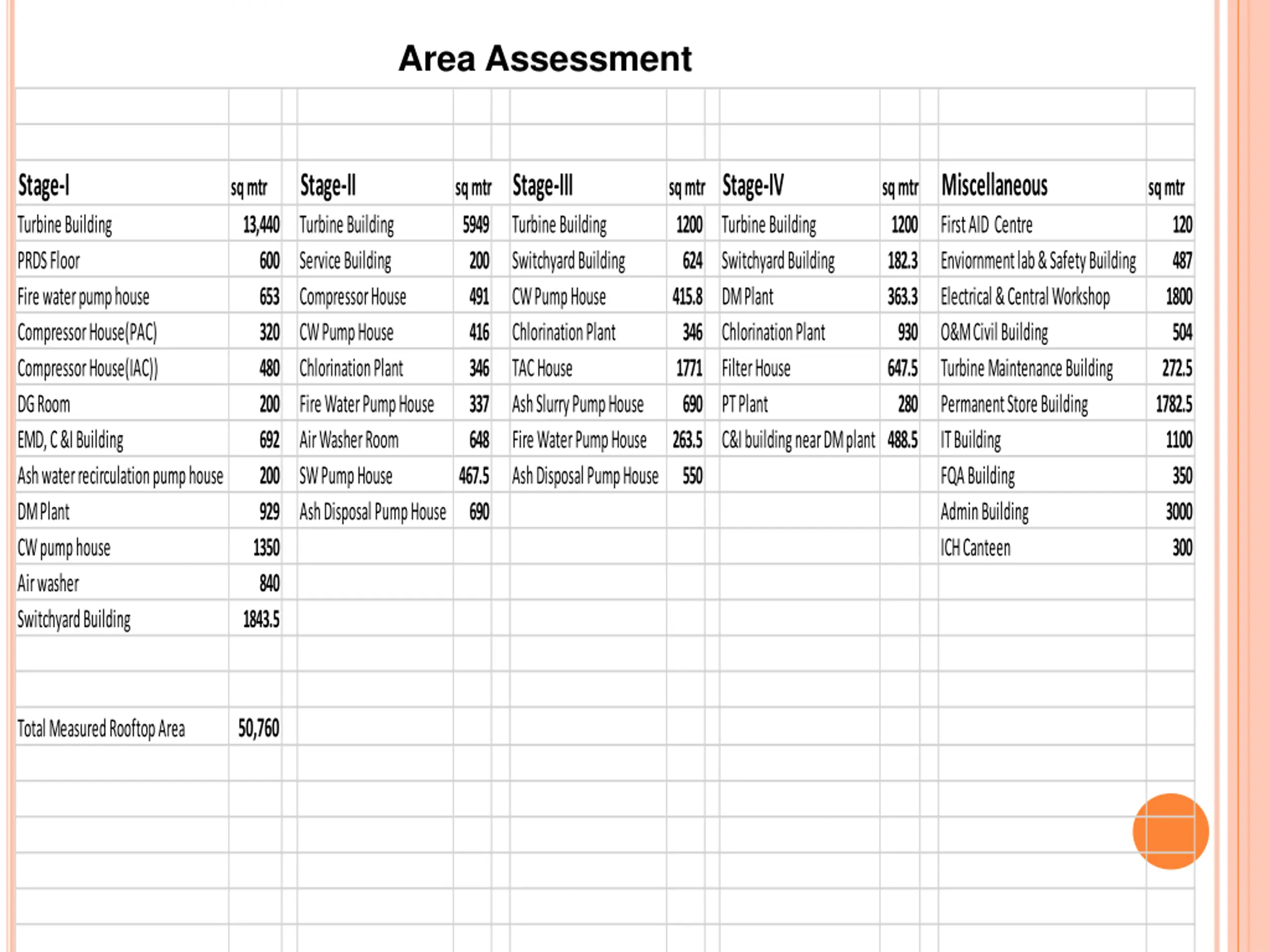

Area Assessment Stage-I Turbine Building PRDS Floor Fire water pump house Compressor House(PAC) Compressor House(IAC)) DG Room EMD, C &I Building Ash water recirculation pump house DM Plant CW pump house Air washer Switchyard Building Stage-II Turbine Building Service Building Compressor House CW Pump House Chlorination Plant Fire Water Pump House Air Washer Room SW Pump House Ash Disposal Pump House sq mtr Stage-III 5949 Turbine Building 200 Switchyard Building 491 CW Pump House 416 Chlorination Plant 346 TAC House 337 Ash Slurry Pump House 648 Fire Water Pump House 467.5 Ash Disposal Pump House 690 sq mtr Stage-IV 1200 Turbine Building 624 Switchyard Building 415.8 DM Plant 346 Chlorination Plant 1771 Filter House 690 PT Plant 263.5 C&I building near DM plant 488.5 550 Miscellaneous First AID Centre Enviornment lab & Safety Building Electrical & Central Workshop O&M Civil Building Turbine Maintenance Building Permanent Store Building IT Building FQA Building Admin Building ICH Canteen sq mtr sq mtr sq mtr 13,440 600 653 320 480 200 692 200 929 1350 840 1843.5 1200 182.3 363.3 930 647.5 280 120 487 1800 504 272.5 1782.5 1100 350 3000 300 50,760 Total Measured Rooftop Area ##### Total Rooftop Area

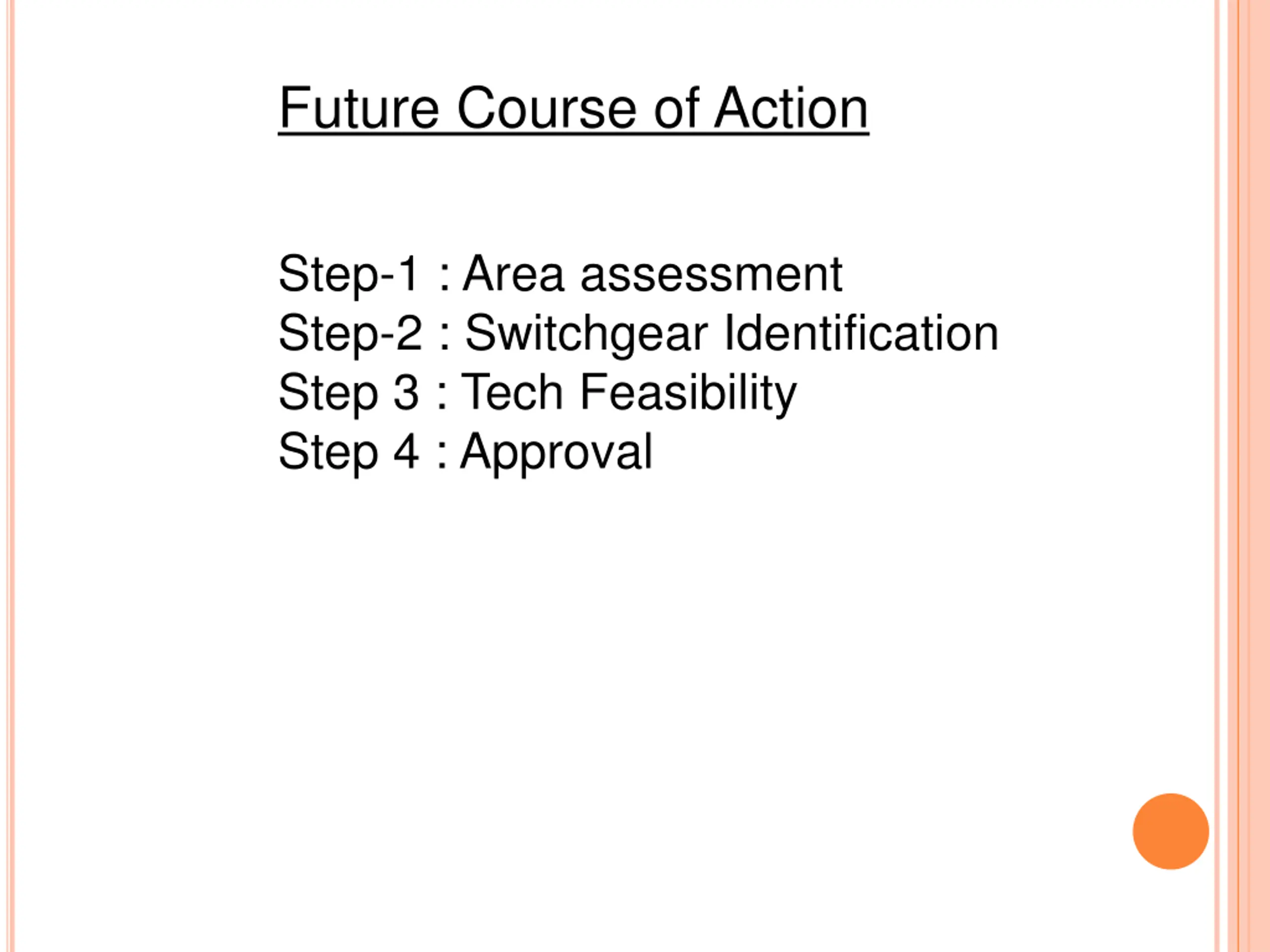

Future Course of Action Step-1 : Area assessment Step 2 : Switchgear Identification Step 3 : Tech Feasibility Step 4 : Approval

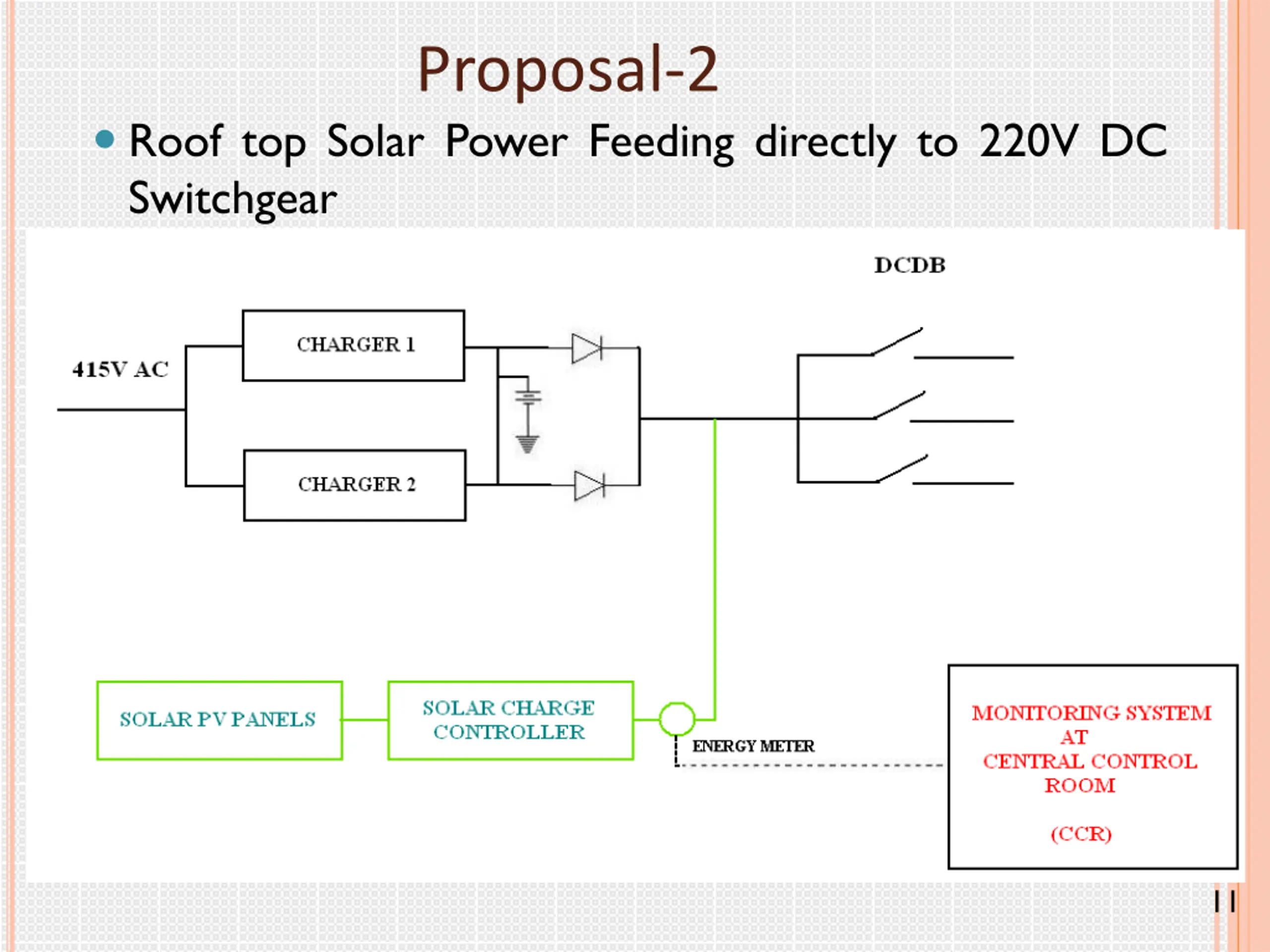

Proposal-2 Roof top Solar Power Feeding directly to 220V DC Switchgear 11

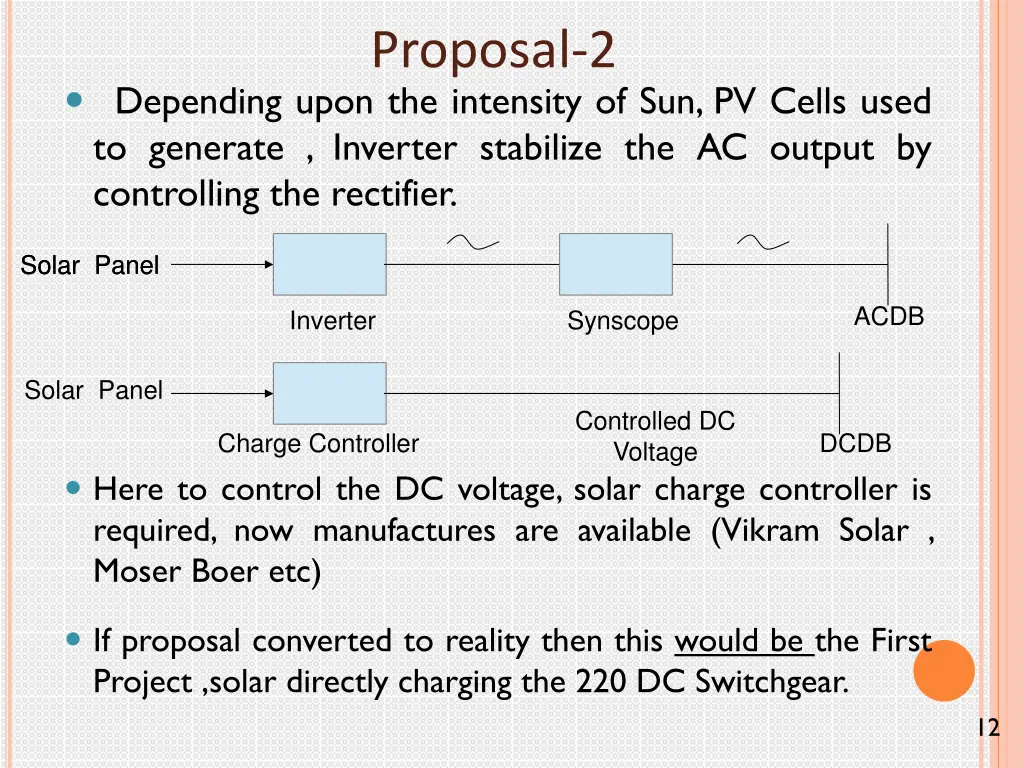

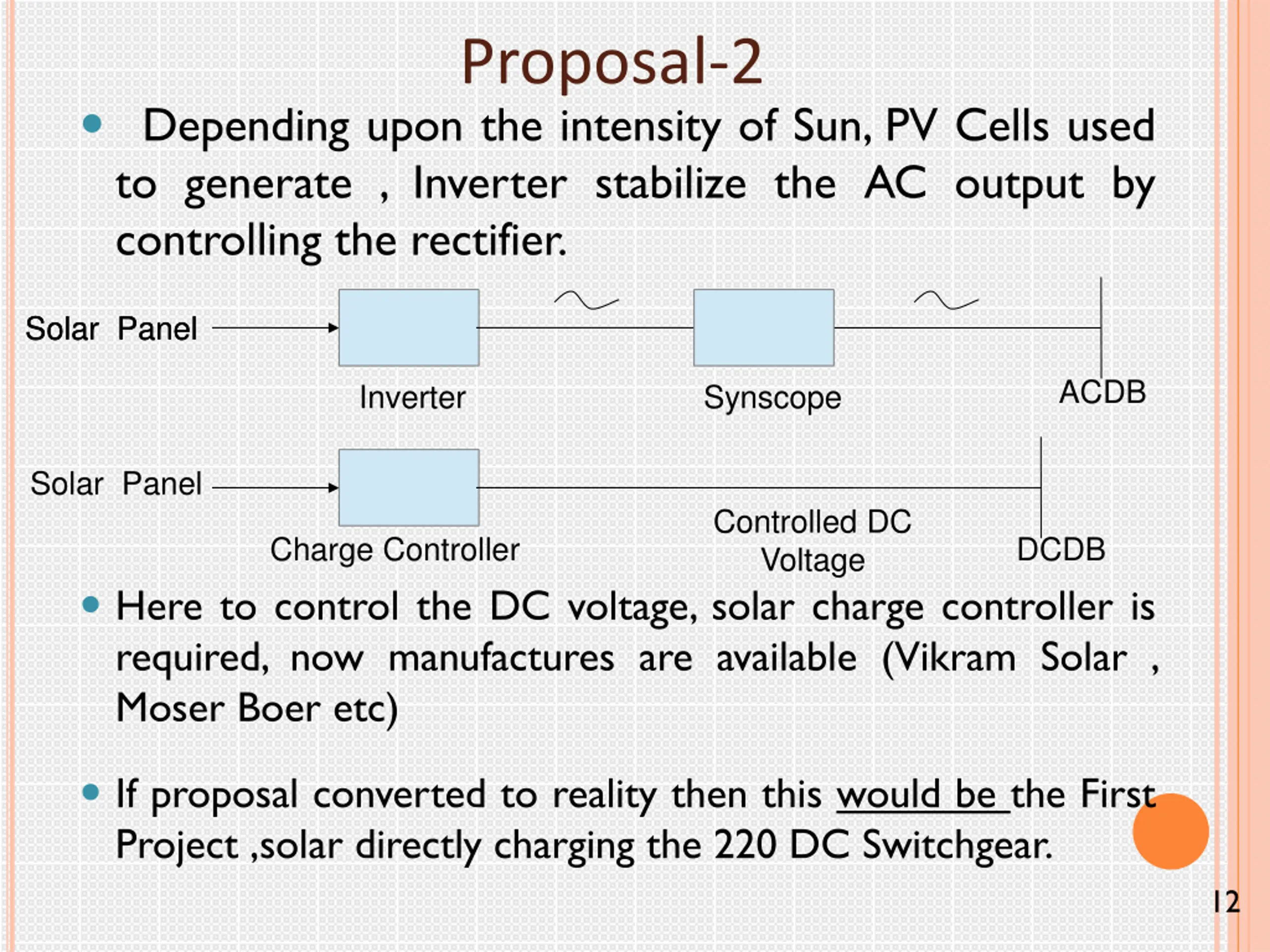

Proposal-2 Depending upon the intensity of Sun, PV Cells used to generate , Inverter stabilize the AC output by controlling the rectifier. Solar Panel Solar Panel ACDB Inverter Synscope Solar Panel Controlled DC Voltage Charge Controller DCDB Here to control the DC voltage, solar charge controller is required, now manufactures are available (Vikram Solar , Moser Boer etc) If proposal converted to reality then this would be the First Project ,solar directly charging the 220 DC Switchgear. 12

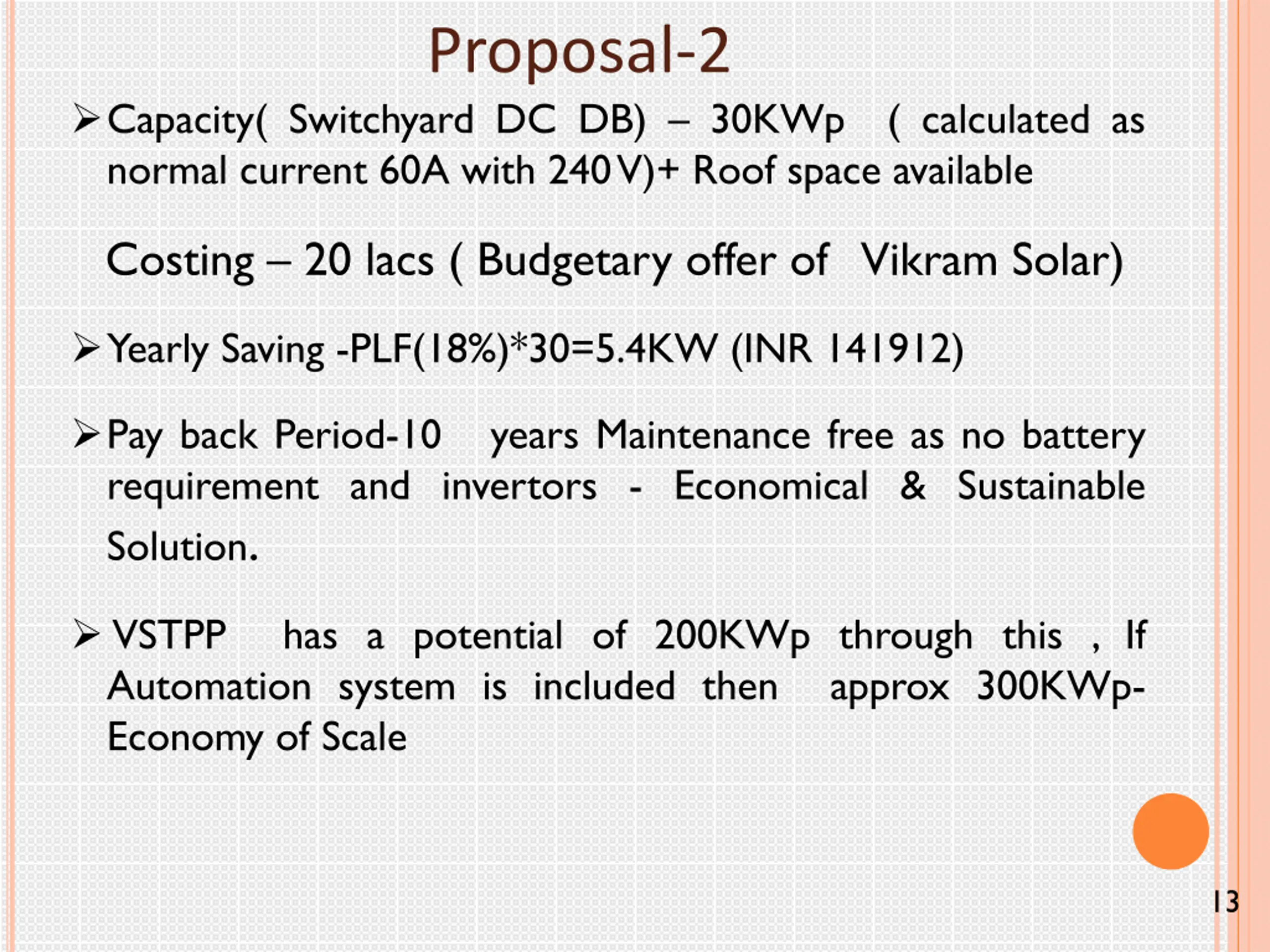

Proposal-2 Capacity( Switchyard DC DB) 30KWp ( calculated as normal current 60A with 240 V)+ Roof space available Costing 20 lacs ( Budgetary offer of Vikram Solar) Yearly Saving -PLF(18%)*30=5.4KW (INR 141912) Pay back Period-10 years Maintenance free as no battery requirement and invertors - Economical & Sustainable Solution. VSTPP has a potential of 200KWp through this , If Automation system is included then approx 300KWp- Economy of Scale 13

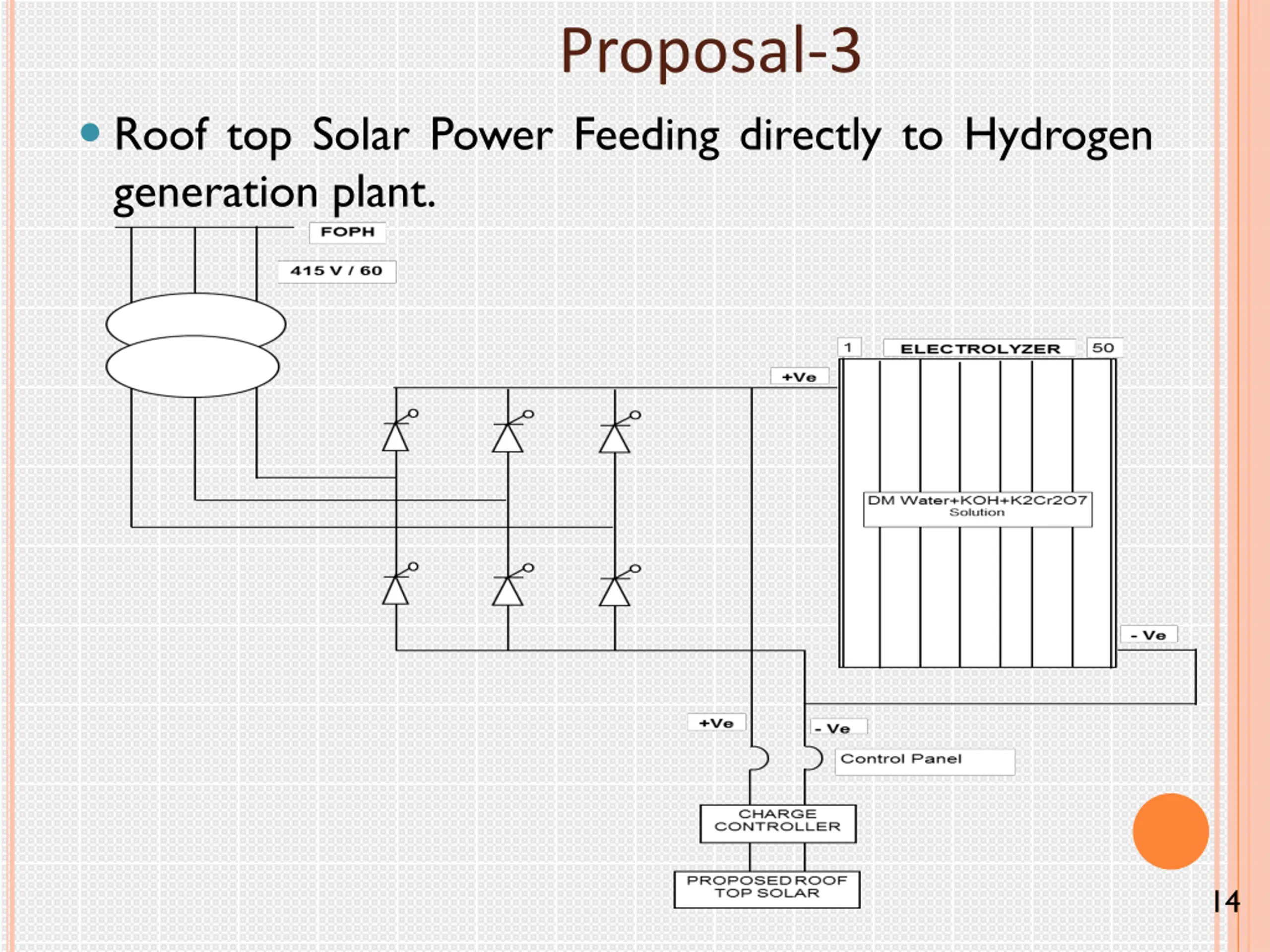

Proposal-3 Roof top Solar Power Feeding directly to Hydrogen generation plant. 14

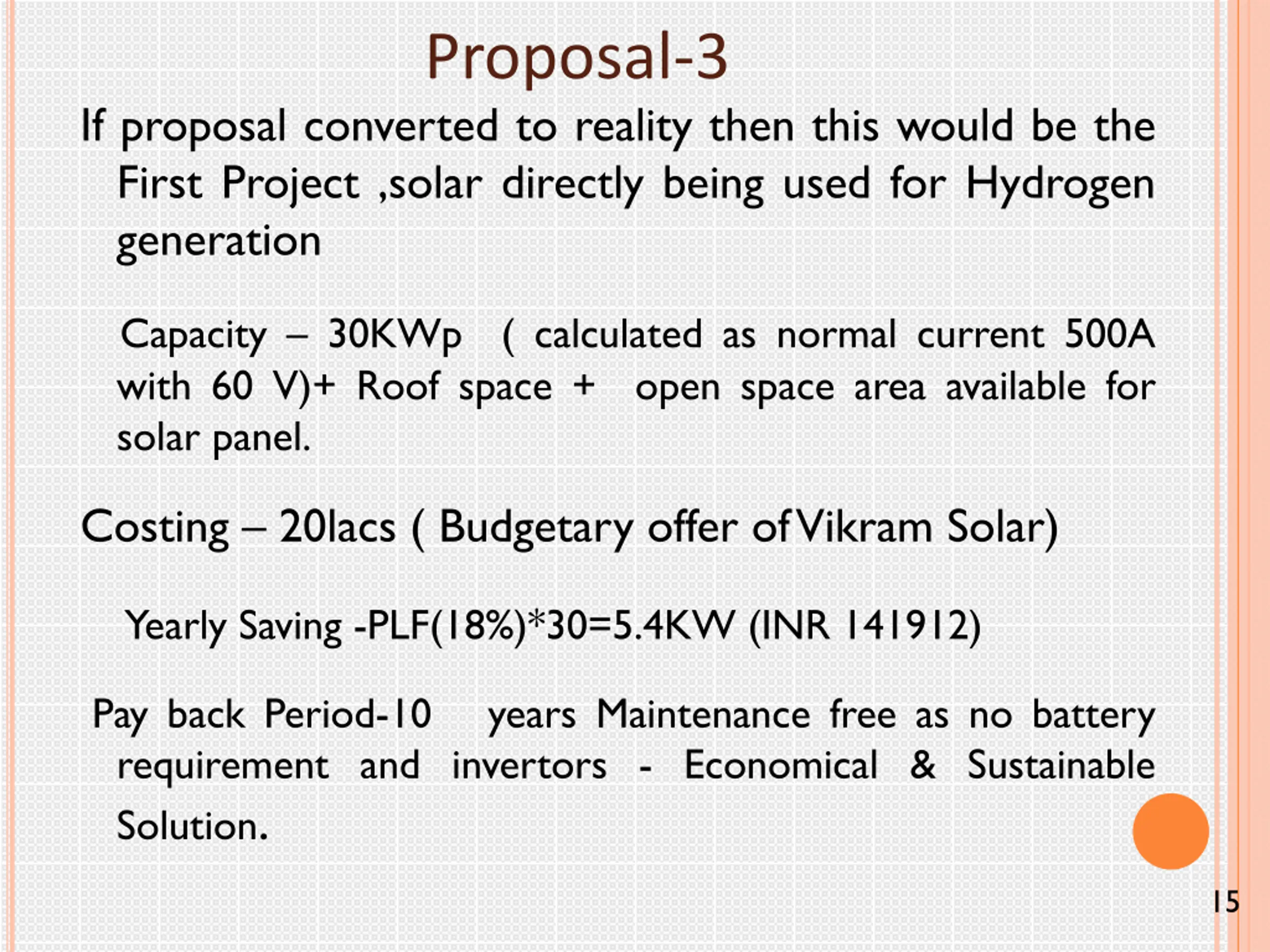

Proposal-3 If proposal converted to reality then this would be the First Project ,solar directly being used for Hydrogen generation Capacity 30KWp ( calculated as normal current 500A with 60 V)+ Roof space + open space area available for solar panel. Costing 20lacs ( Budgetary offer of Vikram Solar) Yearly Saving -PLF(18%)*30=5.4KW (INR 141912) Pay back Period-10 years Maintenance free as no battery requirement and invertors - Economical & Sustainable Solution. 15

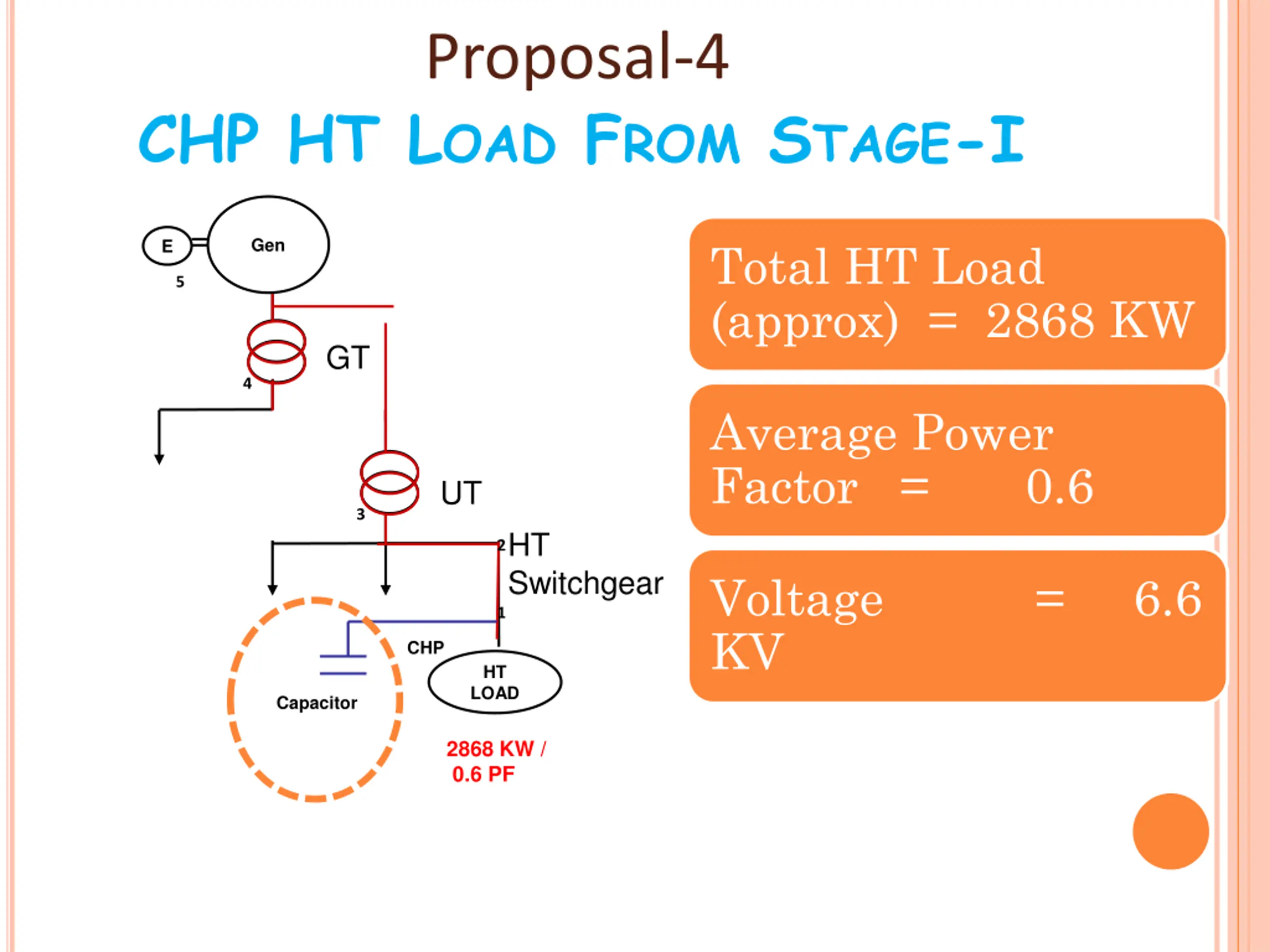

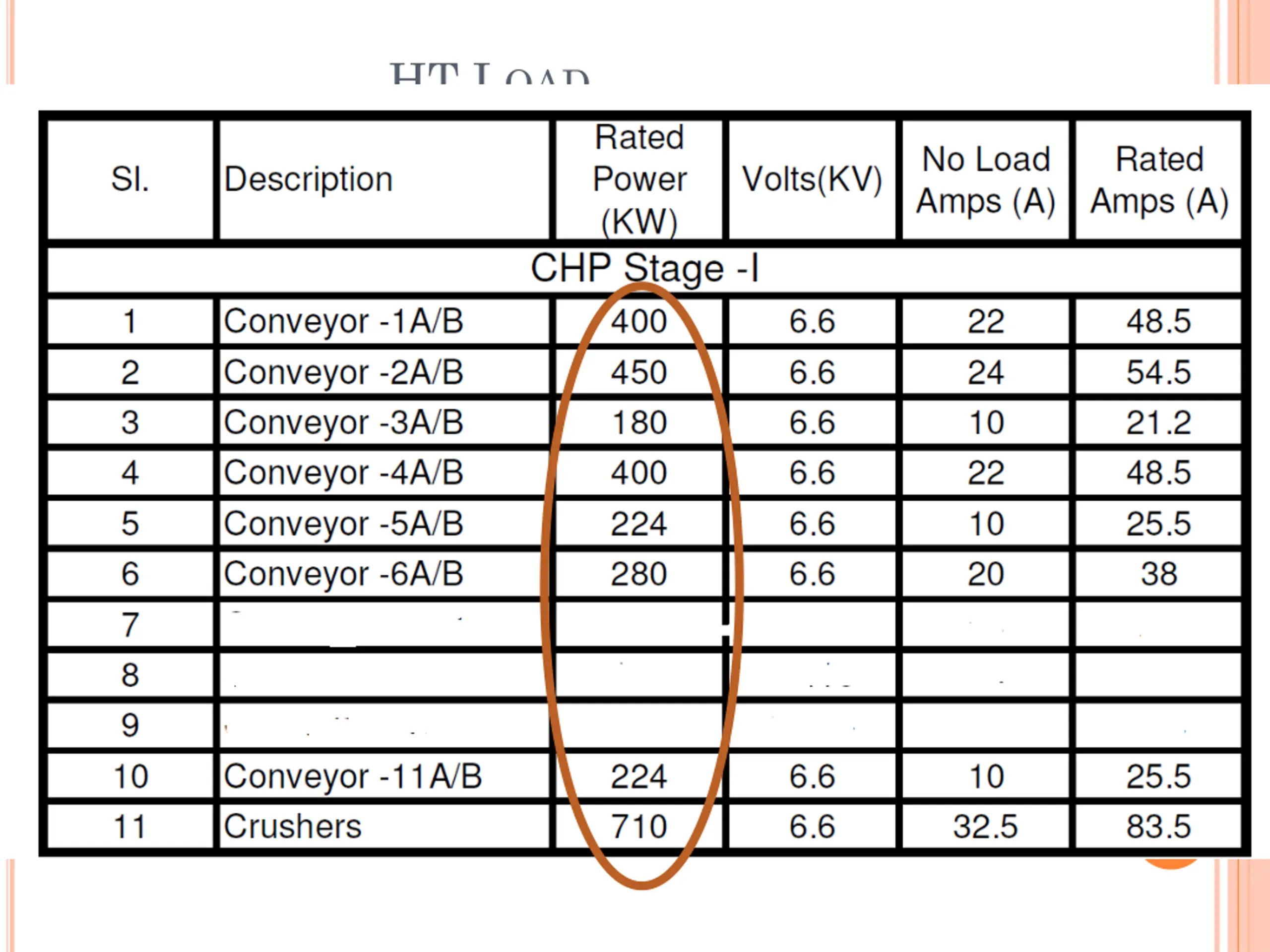

Proposal-4 CHP HT LOAD FROM STAGE-I Gen Total HT Load (approx) = 2868 KW E 5 GT 4 Average Power Factor = 0.6 UT 3 HT Switchgear 2 Voltage = 6.6 KV 1 CHP HT LOAD Capacitor 2868 KW / 0.6 PF

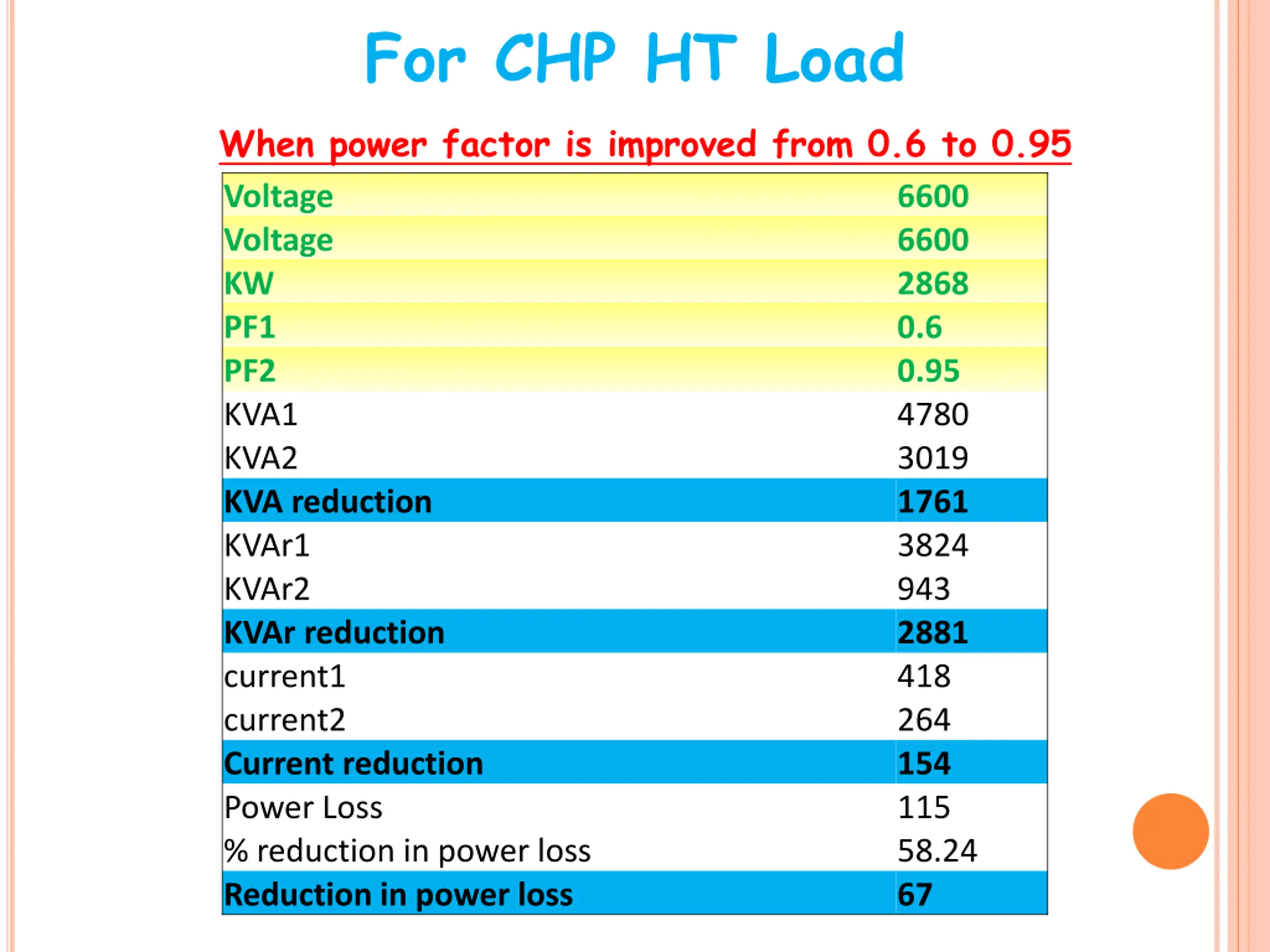

For CHP HT Load When power factor is improved from 0.6 to 0.95 Voltage Voltage KW PF1 PF2 KVA1 KVA2 KVA reduction KVAr1 KVAr2 KVAr reduction current1 current2 Current reduction Power Loss 115 % reduction in power loss Reduction in power loss 6600 6600 2868 0.6 0.95 4780 3019 1761 3824 943 2881 418 264 154 58.24 67

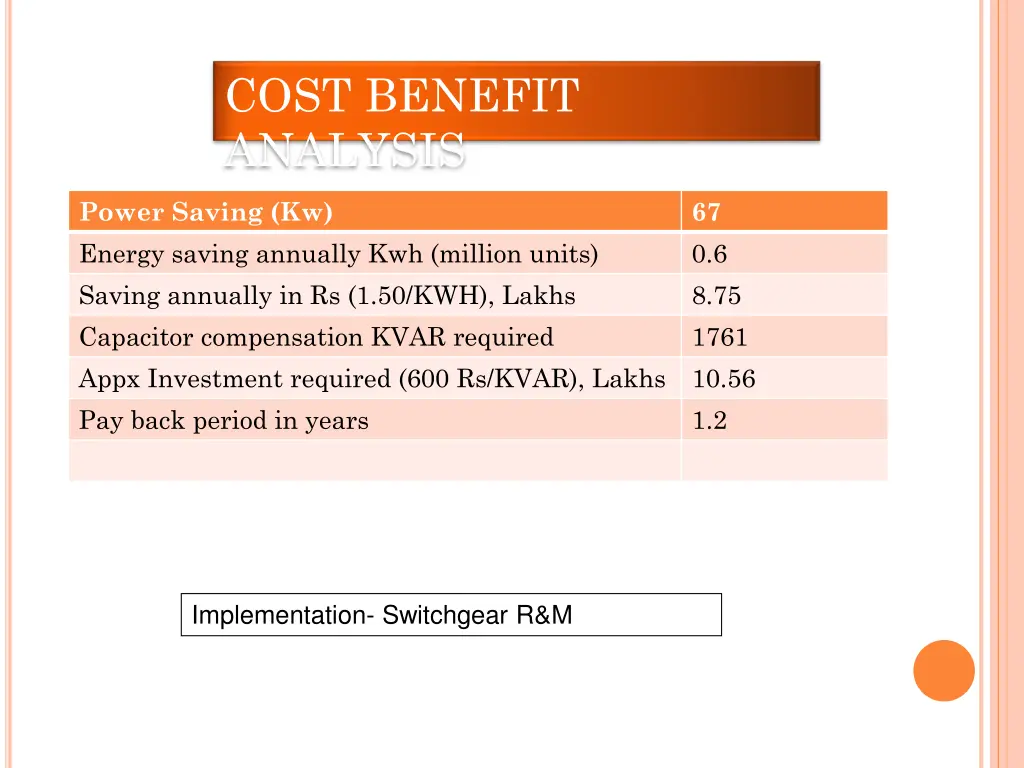

COST BENEFIT ANALYSIS Power Saving (Kw) Energy saving annually Kwh (million units) Saving annually in Rs (1.50/KWH), Lakhs Capacitor compensation KVAR required Appx Investment required (600 Rs/KVAR), Lakhs Pay back period in years 67 0.6 8.75 1761 10.56 1.2 Implementation- Switchgear R&M

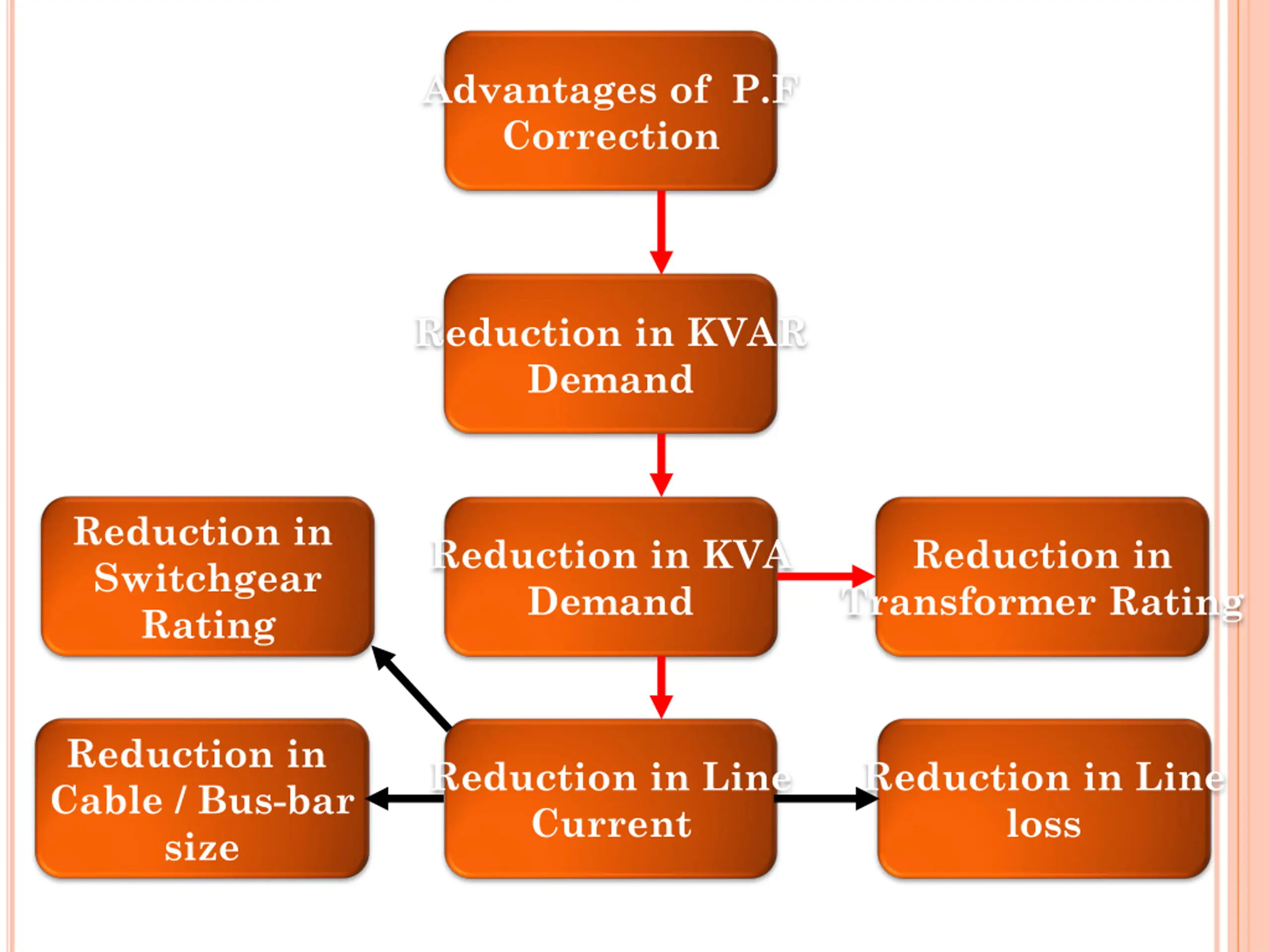

Advantages of P.F Correction Reduction in KVAR Demand Reduction in Switchgear Rating Reduction in KVA Demand Reduction in Transformer Rating Reduction in Cable / Bus-bar size Reduction in Line Current Reduction in Line loss
