Maximum Fanout-Free Window Enumeration

Maximum Fanout-Free Window Enumeration: Towards the Local Multi-Output Sub-structure Synthesis Ruofei Tang*, Xuliang Zhu, Lei Chen, Xing Li, Xin Huang, Mingxuan Yuan, Weihua Sheng and Jianliang Xu 17/3/2025

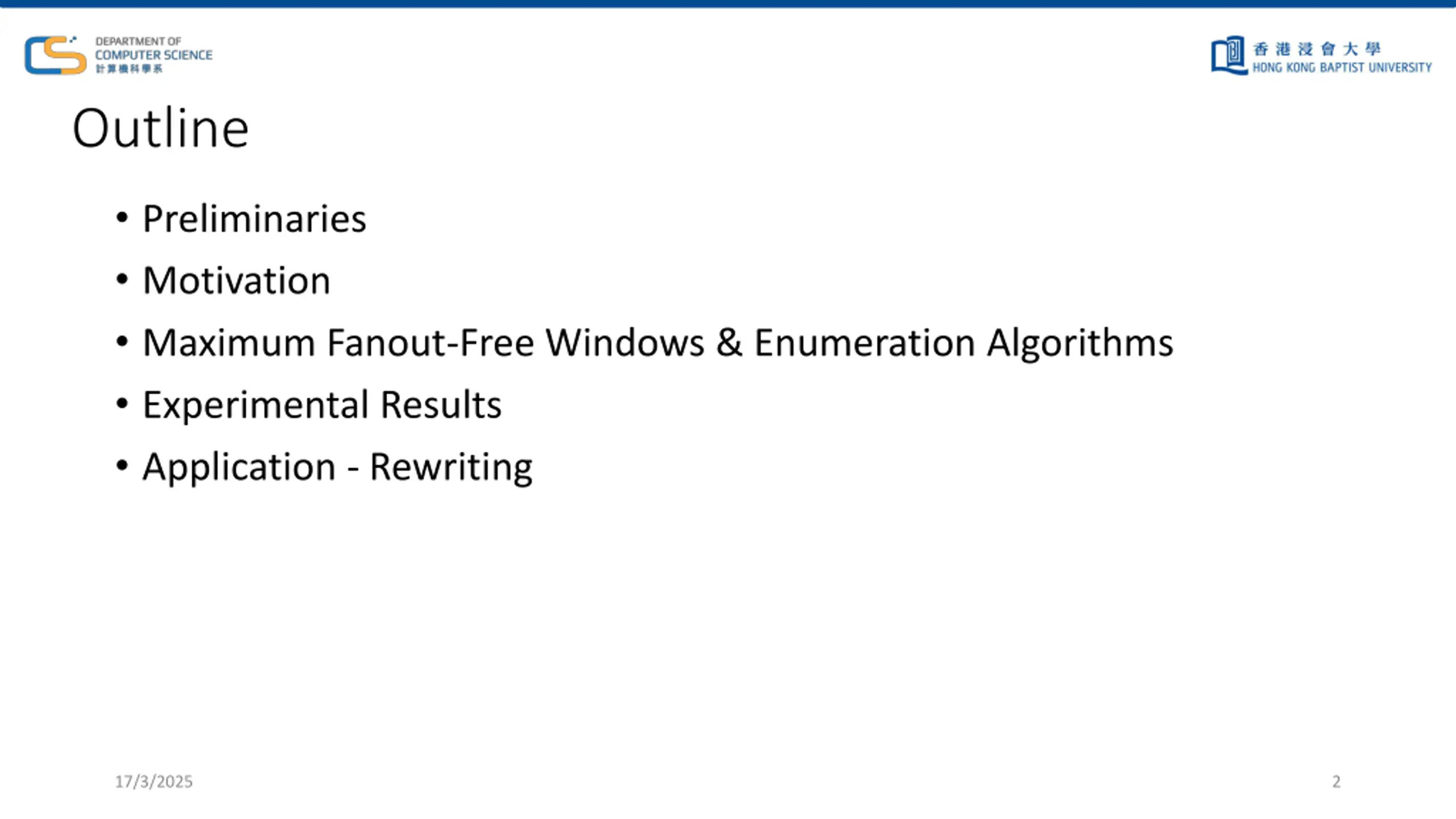

Outline Preliminaries Motivation Maximum Fanout-Free Windows & Enumeration Algorithms Experimental Results Application - Rewriting 17/3/2025 2

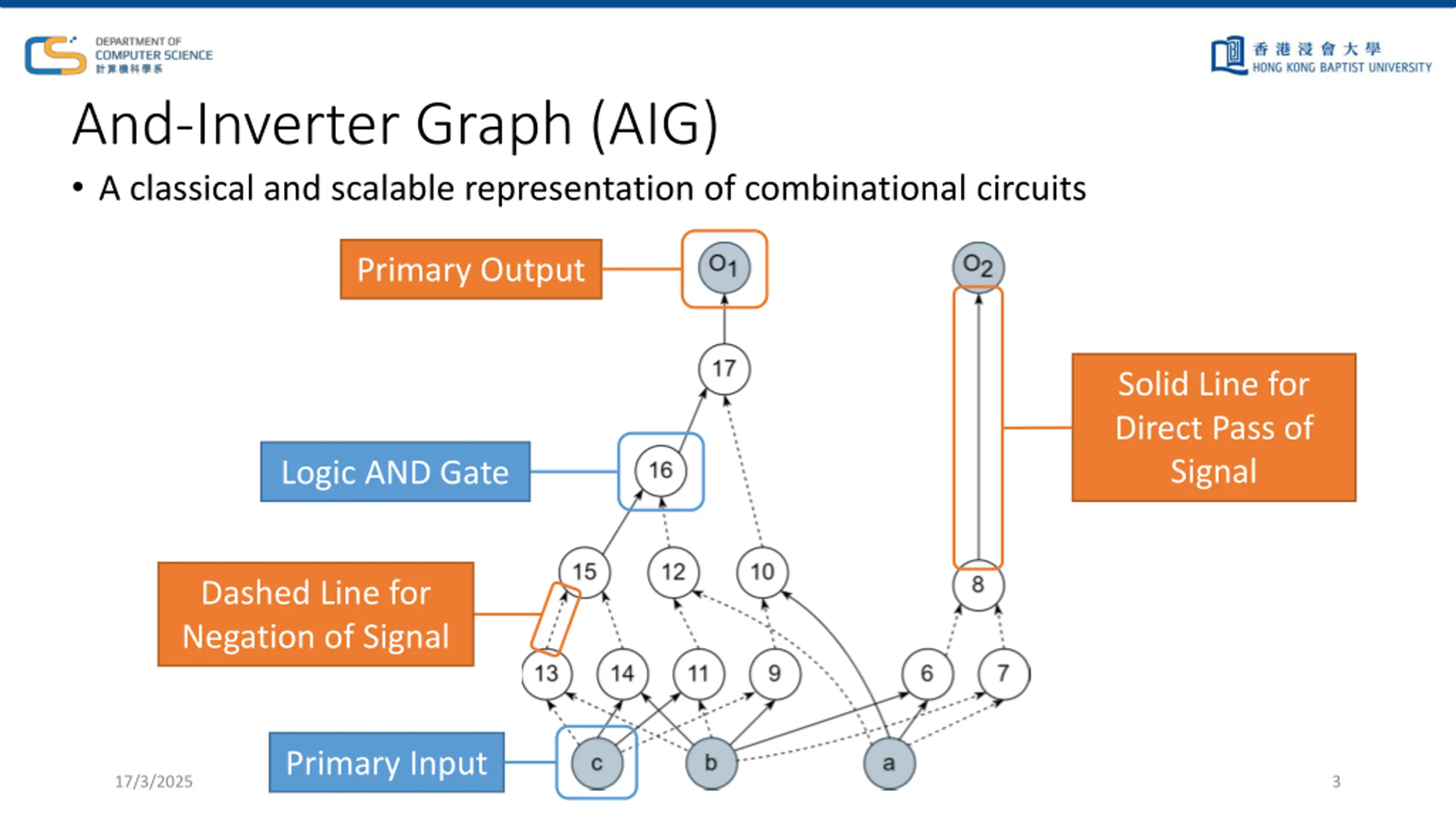

And-Inverter Graph (AIG) A classical and scalable representation of combinational circuits Primary Output Solid Line for Direct Pass of Signal Logic AND Gate Dashed Line for Negation of Signal Primary Input 17/3/2025 3

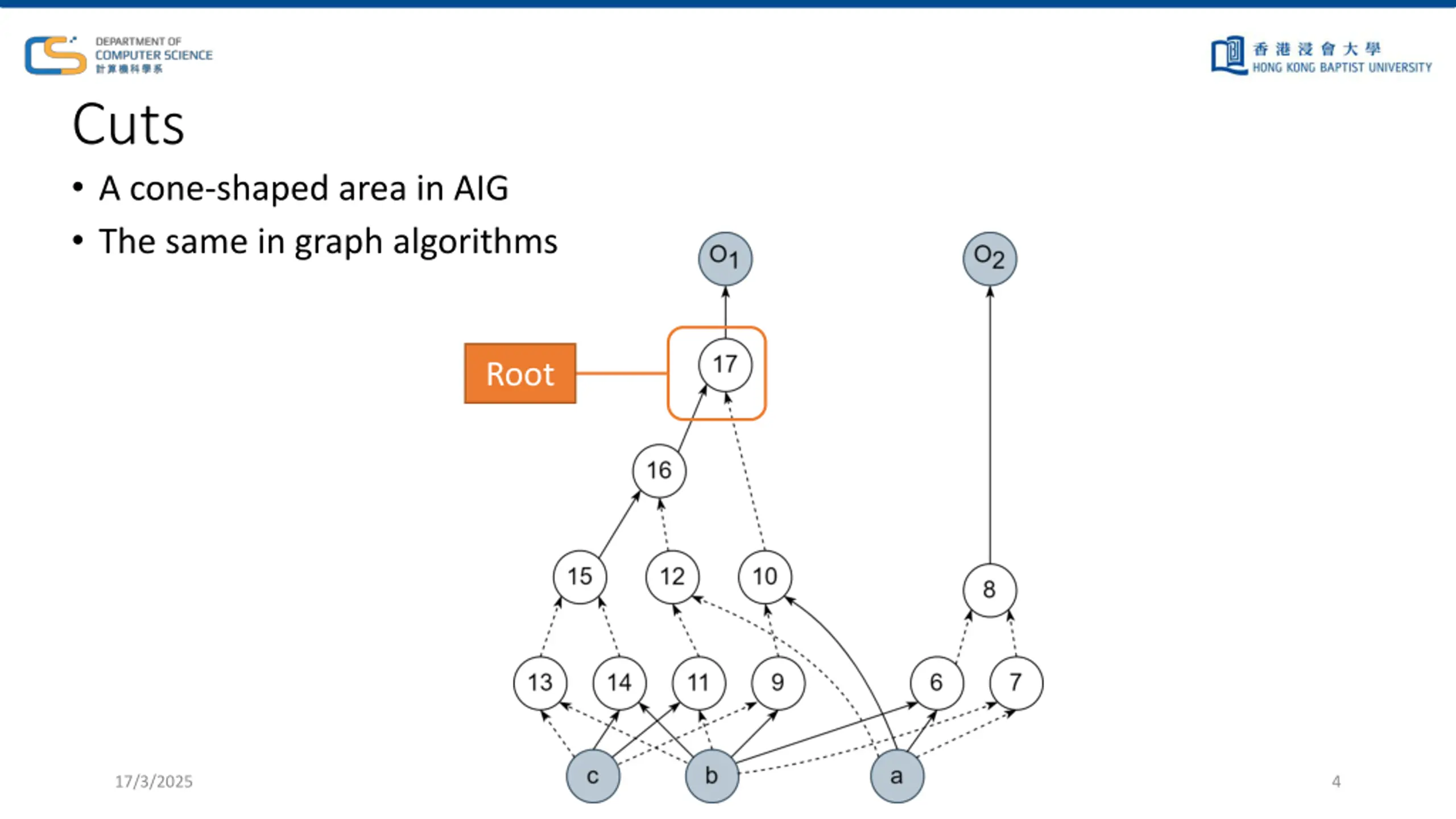

Cuts A cone-shaped area in AIG The same in graph algorithms Root 17/3/2025 4

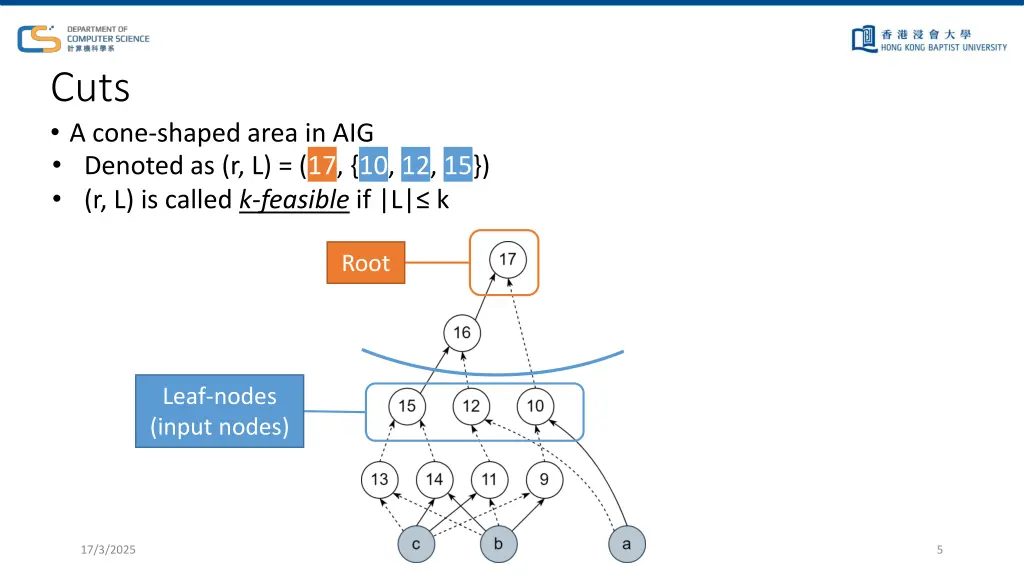

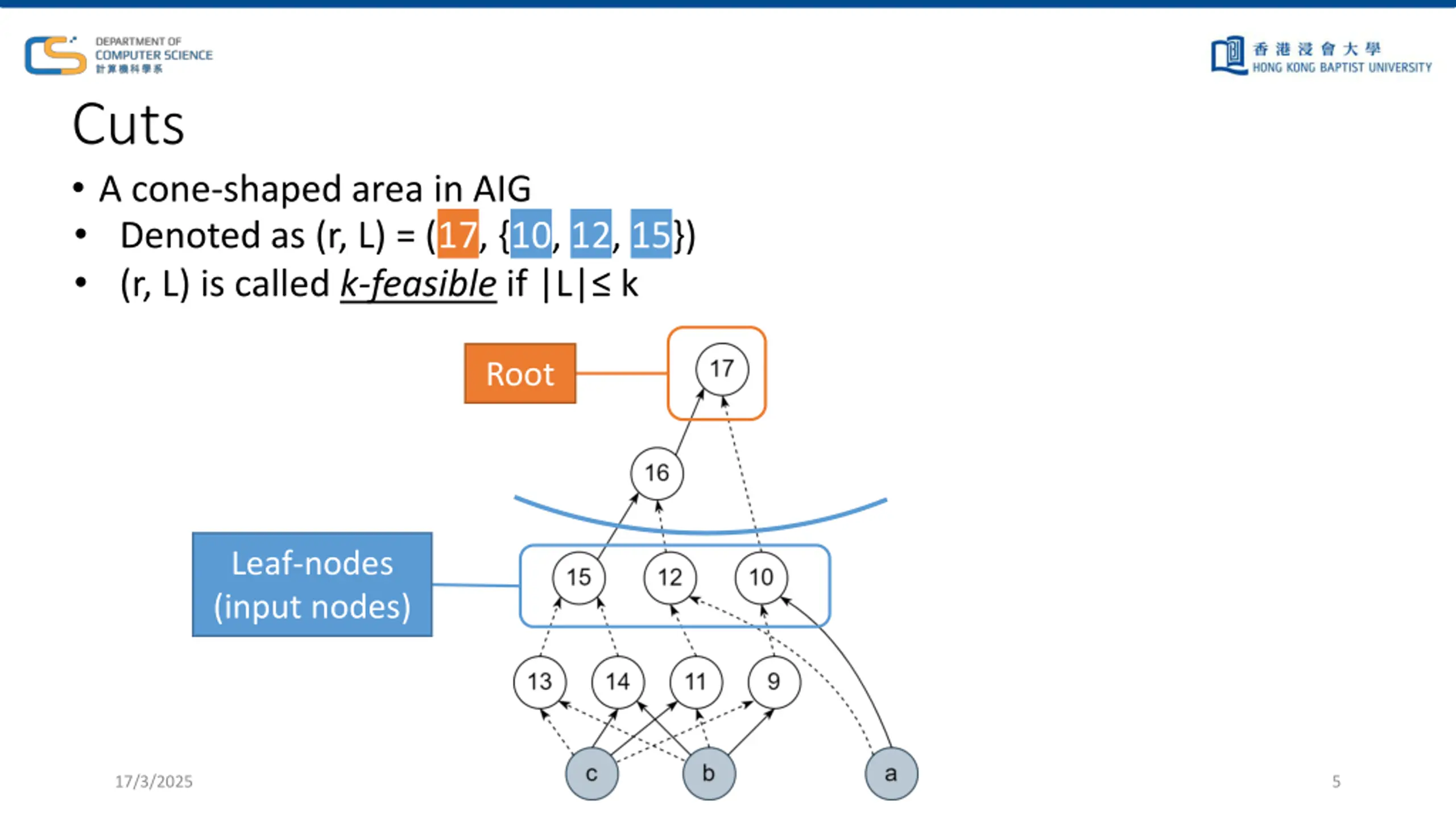

Cuts A cone-shaped area in AIG Denoted as (r, L) = (17, {10, 12, 15}) (r, L) is called k-feasible if |L| k Root Leaf-nodes (input nodes) 17/3/2025 5

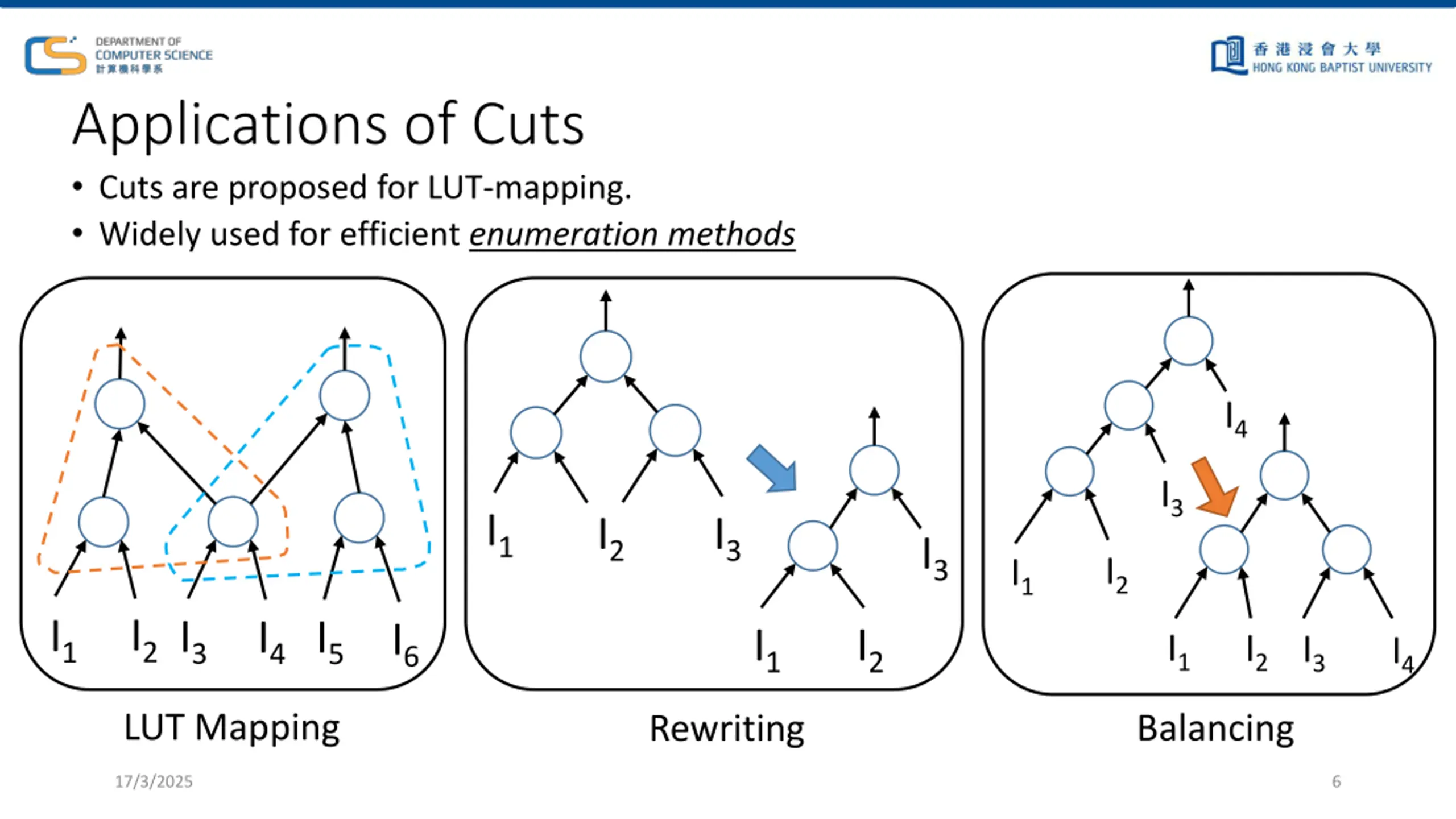

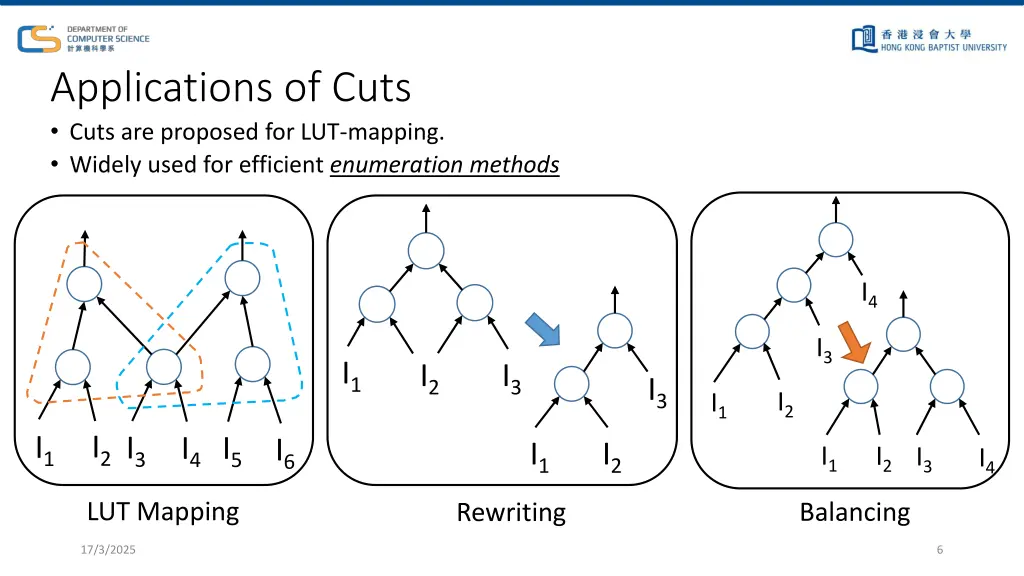

Applications of Cuts Cuts are proposed for LUT-mapping. Widely used for efficient enumeration methods I4 I3 I1 I2 I3 I3 I2 I1 I2I3 I1 I4I5 I6 I1 I2 I1 I2 I3 I4 LUT Mapping Balancing Rewriting 17/3/2025 6

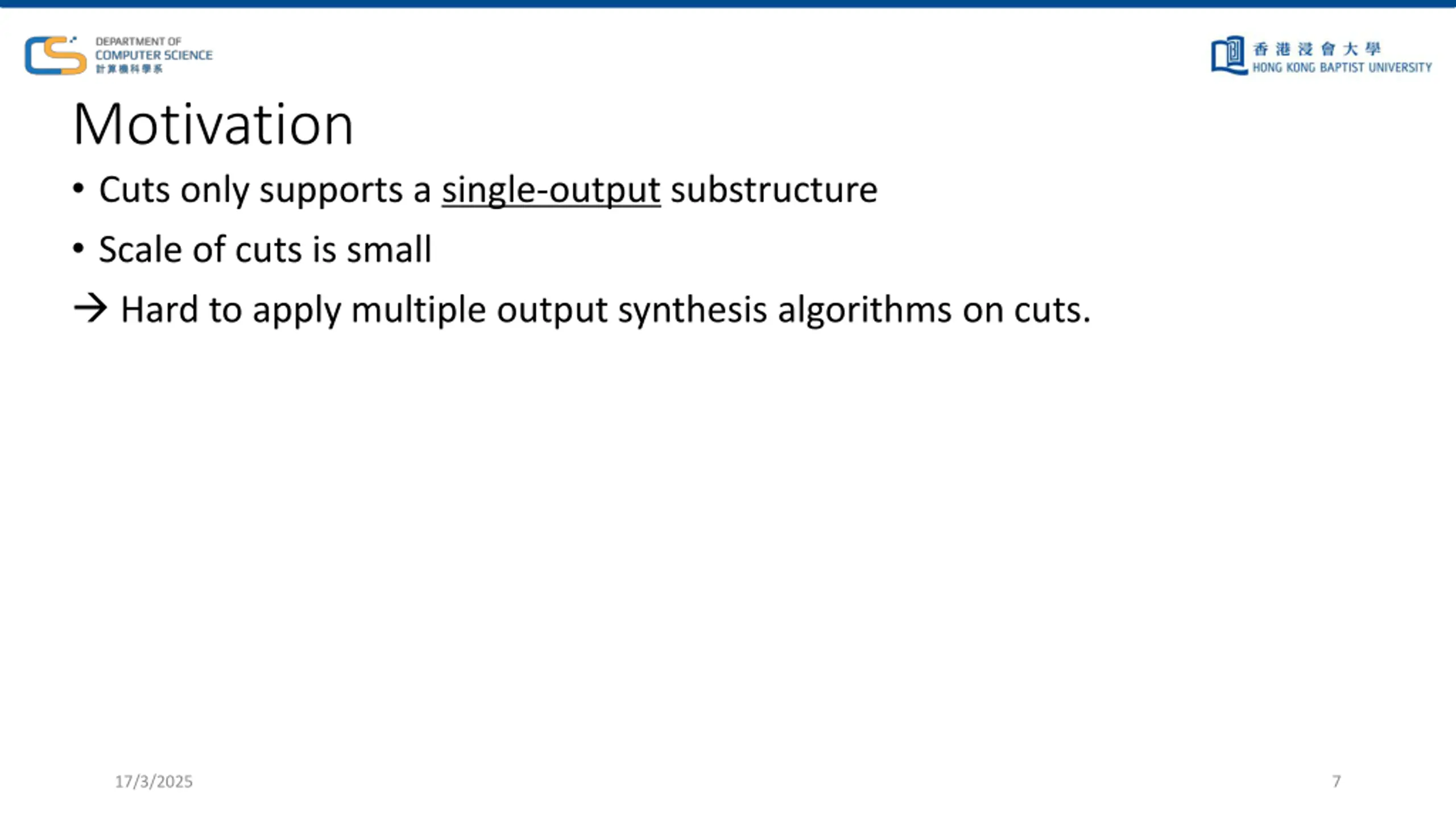

Motivation Cuts only supports a single-output substructure Scale of cuts is small Hard to apply multiple output synthesis algorithms on cuts. 17/3/2025 7

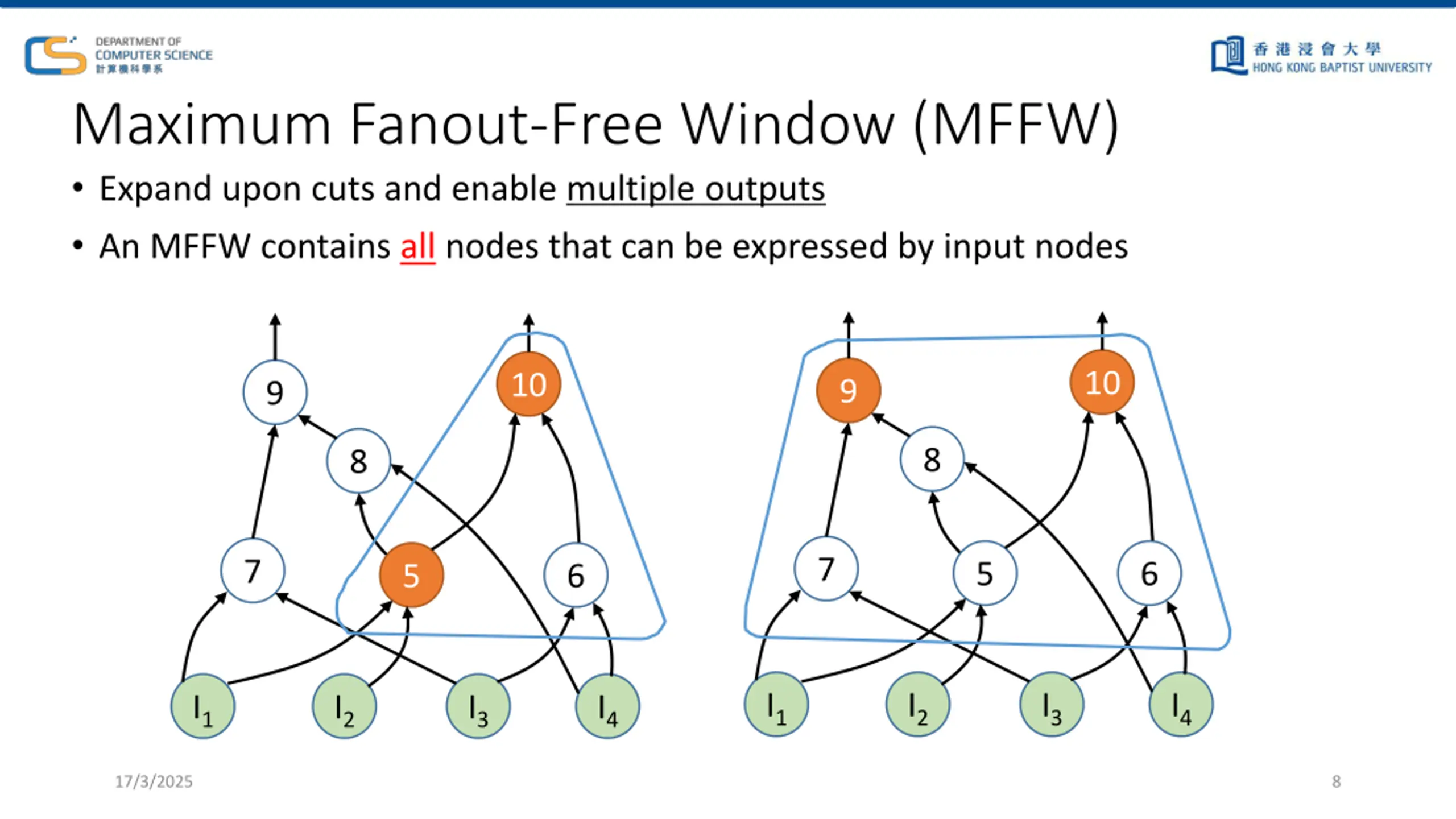

Maximum Fanout-Free Window (MFFW) Expand upon cuts and enable multiple outputs An MFFW contains all nodes that can be expressed by input nodes 10 10 9 9 8 8 7 7 5 6 5 6 I1 I2 I3 I4 I1 I2 I3 I4 17/3/2025 8

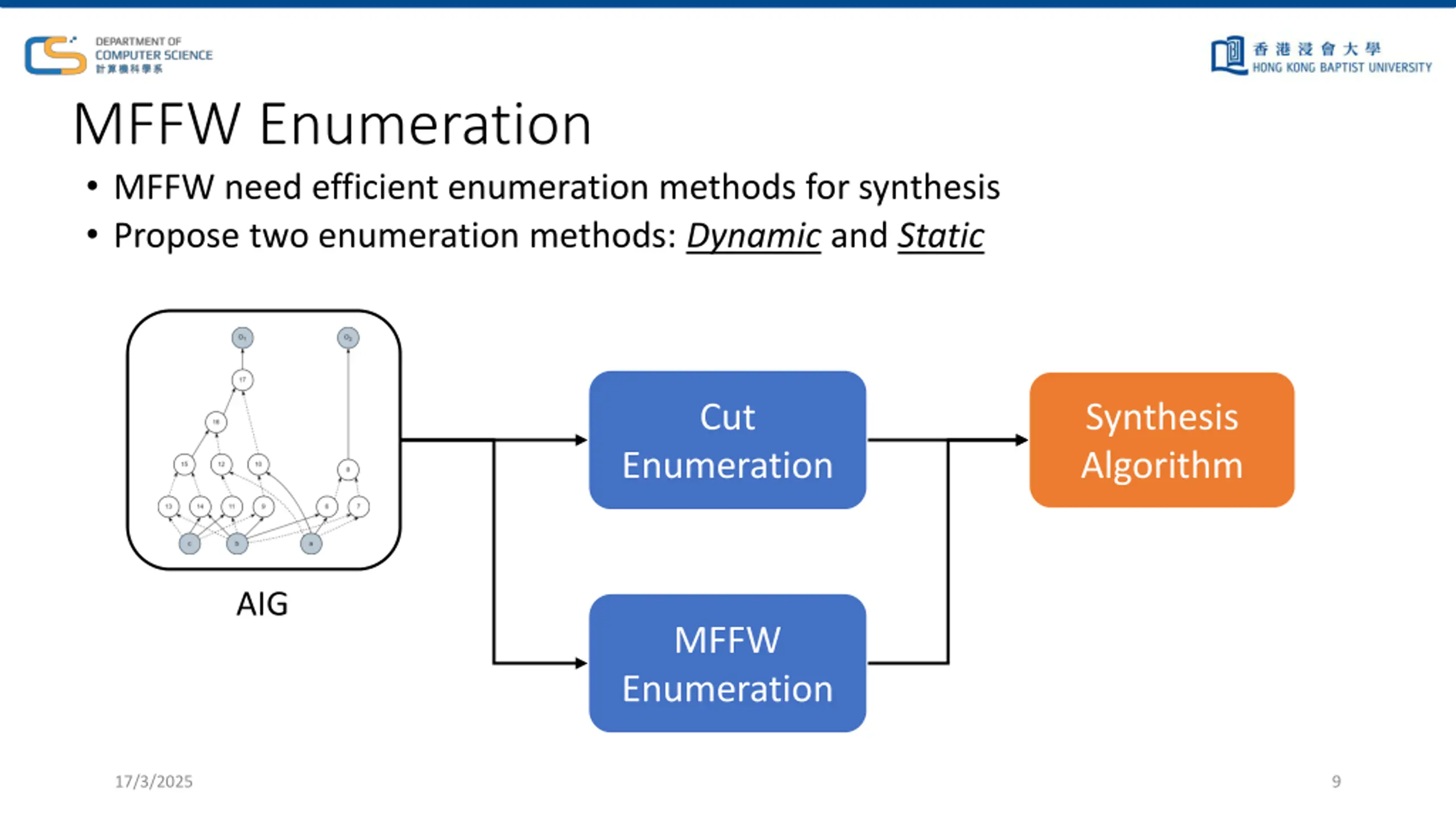

MFFW Enumeration MFFW need efficient enumeration methods for synthesis Propose two enumeration methods: Dynamic and Static Cut Synthesis Algorithm Enumeration AIG MFFW Enumeration 17/3/2025 9

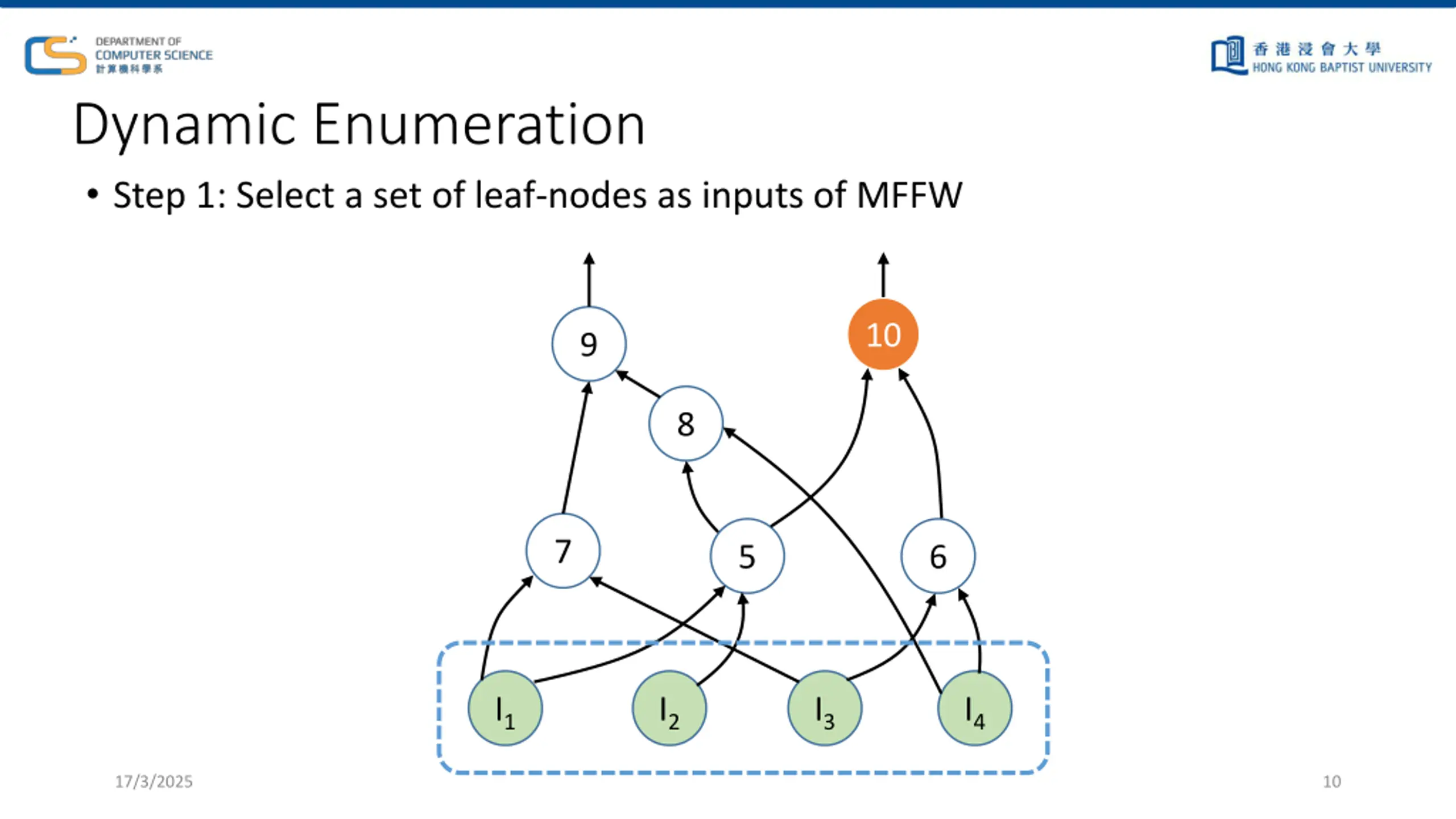

Dynamic Enumeration Step 1: Select a set of leaf-nodes as inputs of MFFW 10 9 8 7 5 6 I1 I2 I3 I4 17/3/2025 10

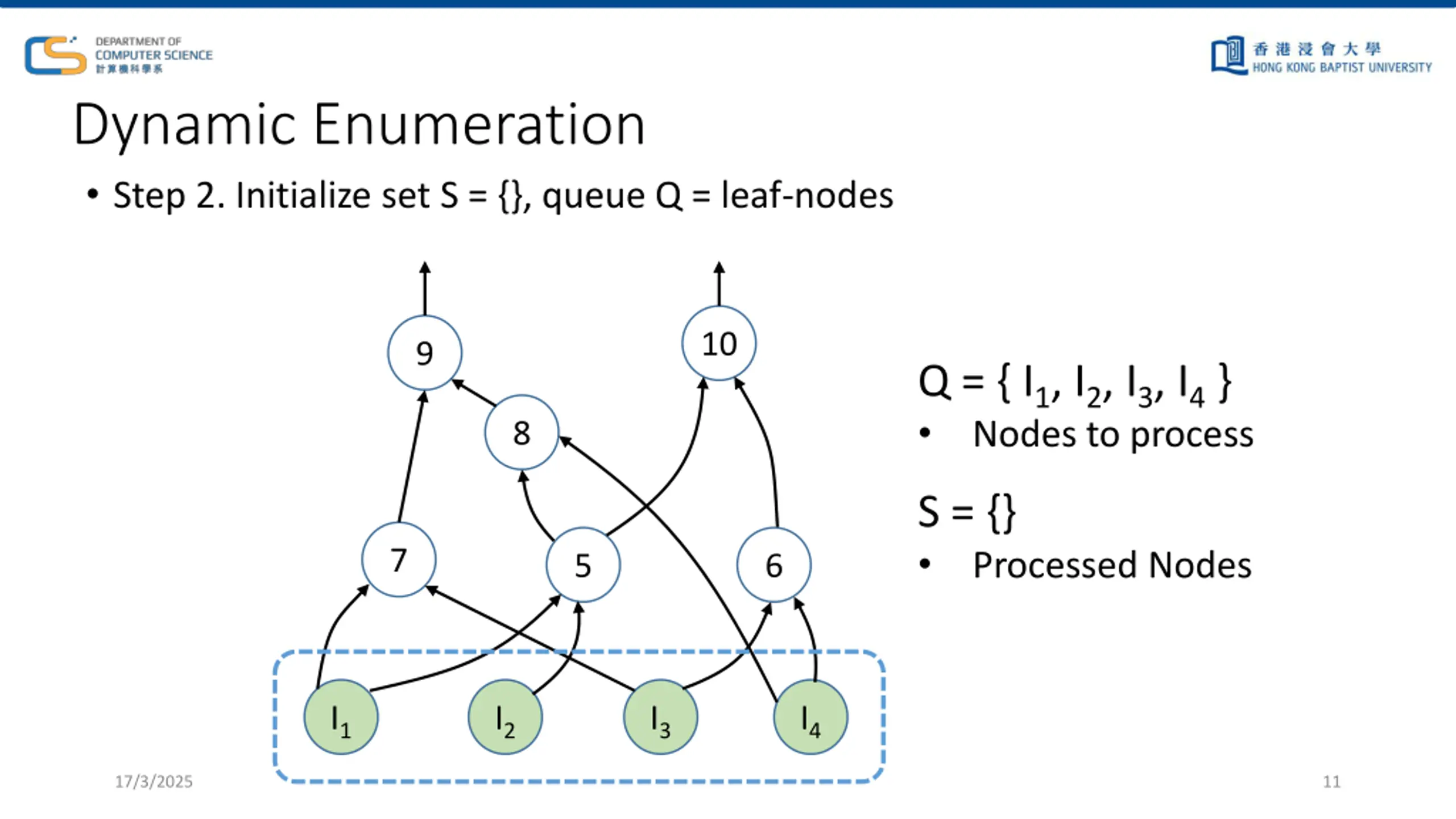

Dynamic Enumeration Step 2. Initialize set S = {}, queue Q = leaf-nodes 10 9 Q = { I1, I2, I3, I4 } Nodes to process 8 S = {} 7 Processed Nodes 5 6 I1 I2 I3 I4 17/3/2025 11

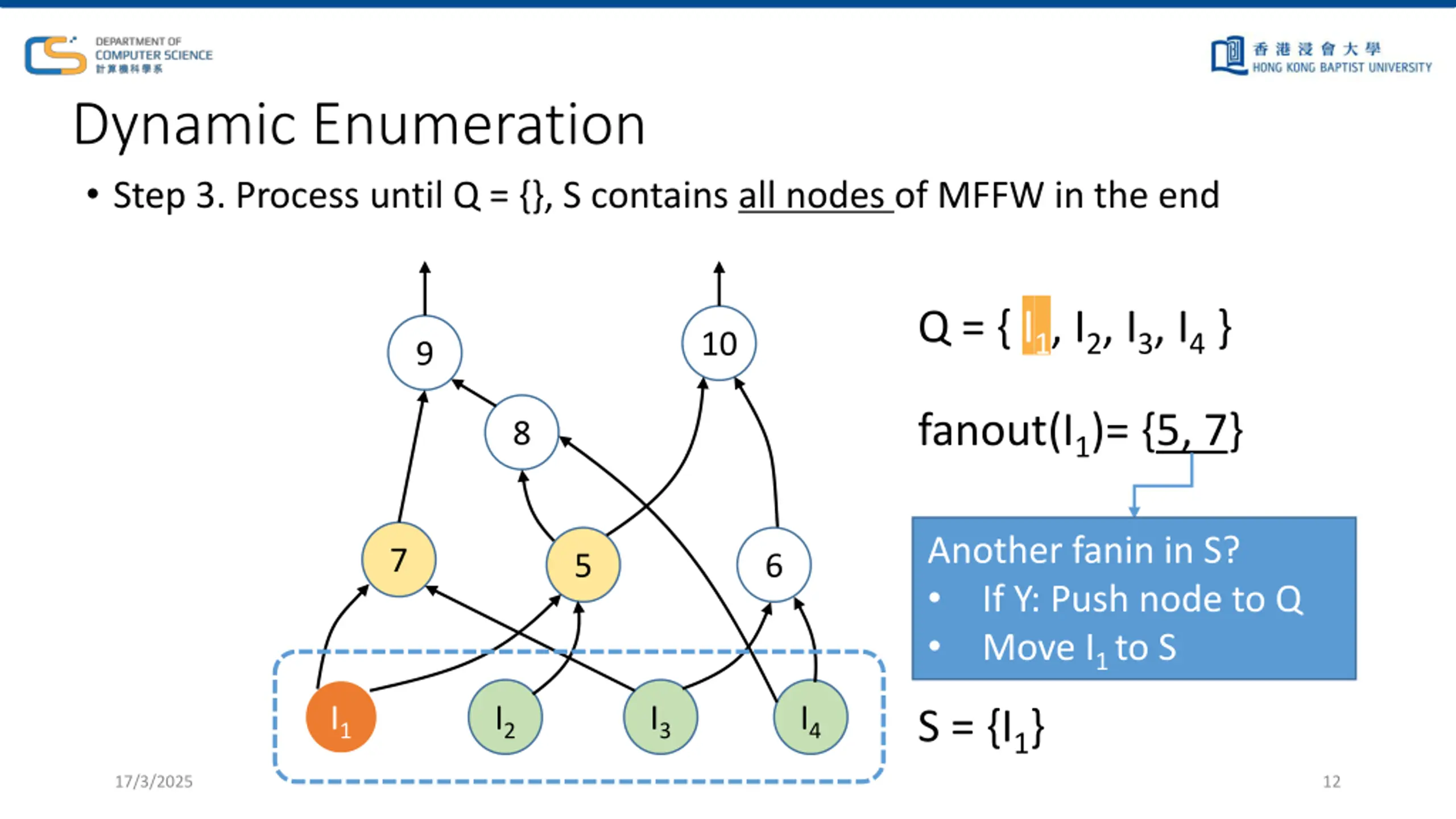

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end Q = { I1, I2, I3, I4 } 10 9 fanout(I1)= {5, 7} 8 Another fanin in S? If Y: Push node to Q Move I1 to S 7 5 6 I1 I2 I3 I4 S = {I1} 17/3/2025 12

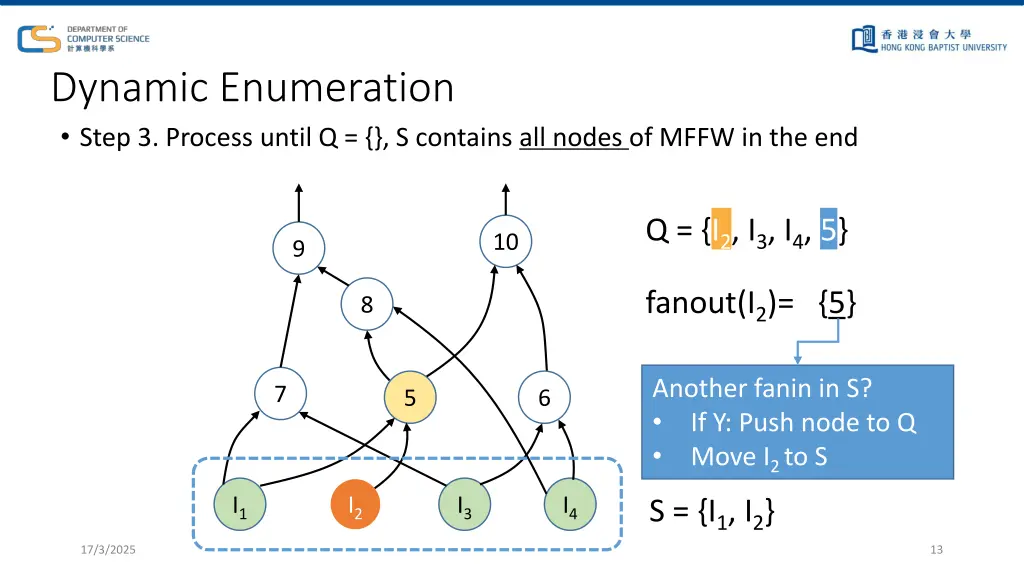

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end Q = {I2, I3, I4, 5} 10 9 fanout(I2)= {5} 8 Another fanin in S? If Y: Push node to Q Move I2 to S 7 5 6 I1 I2 I3 I4 S = {I1, I2} 17/3/2025 13

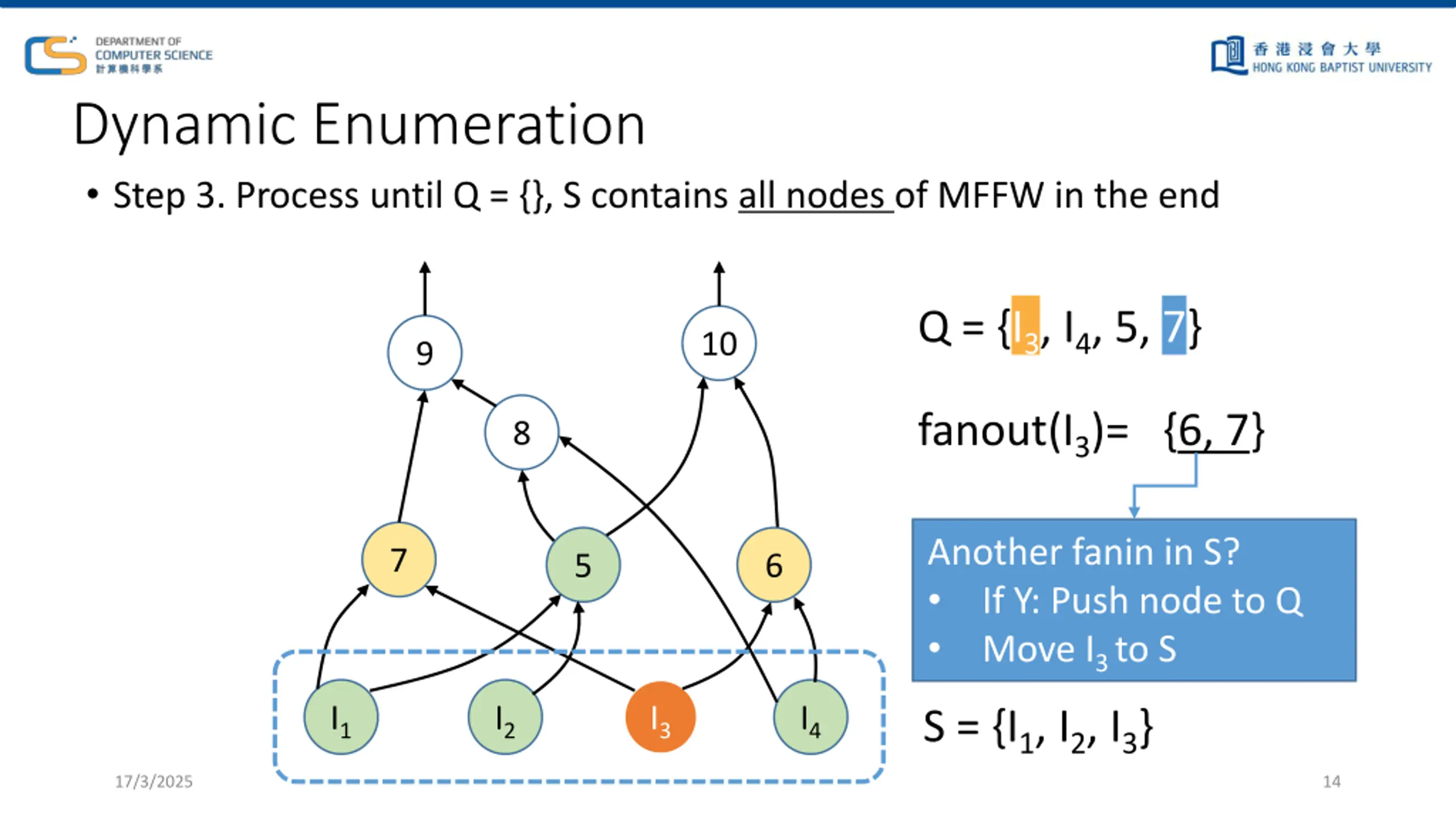

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end Q = {I3, I4, 5, 7} 10 9 fanout(I3)= {6, 7} 8 Another fanin in S? If Y: Push node to Q Move I3 to S 7 5 6 I1 I2 I3 I4 S = {I1, I2, I3} 17/3/2025 14

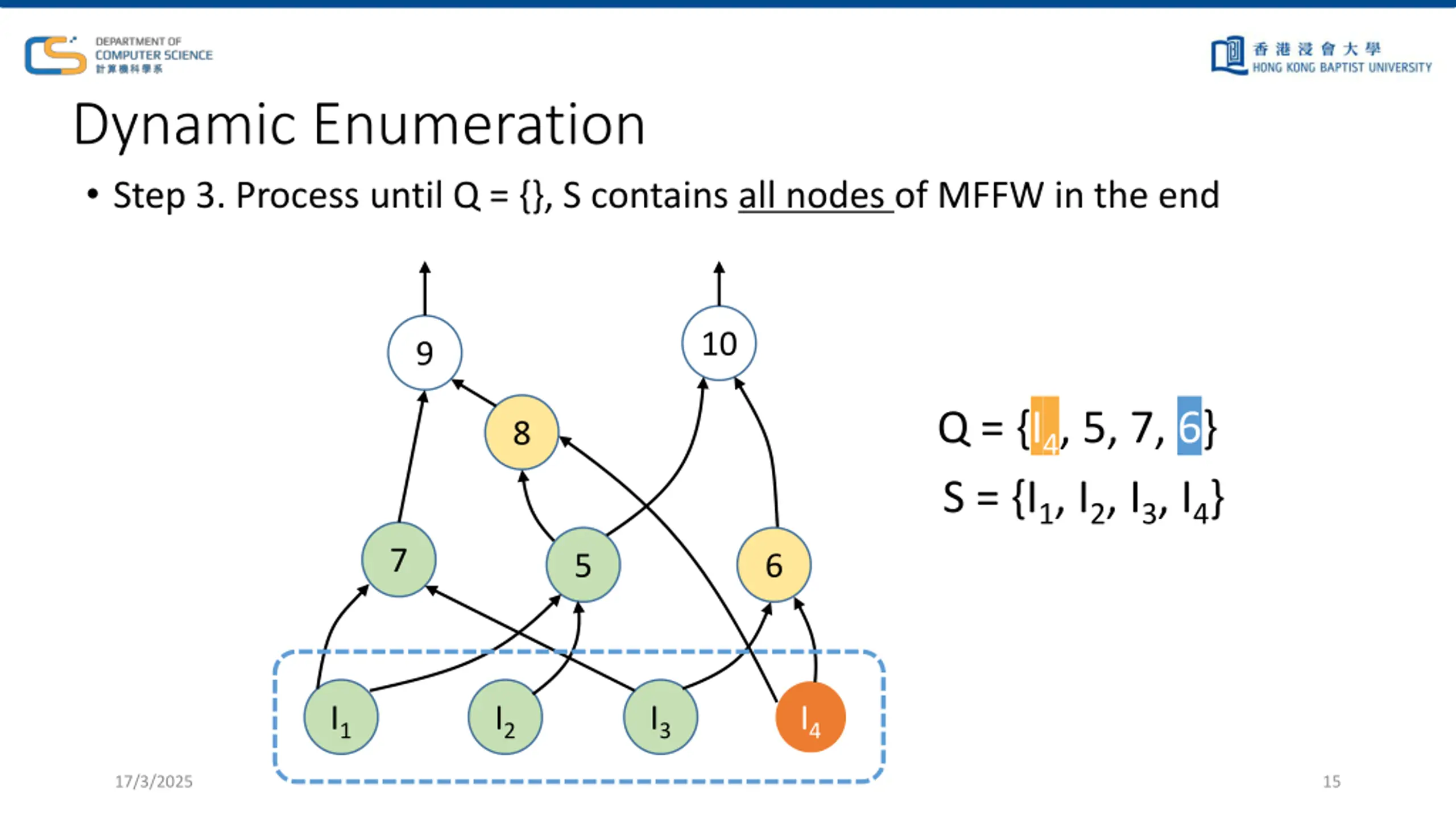

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {I4, 5, 7, 6} S = {I1, I2, I3, I4} 8 7 5 6 I1 I2 I3 I4 17/3/2025 15

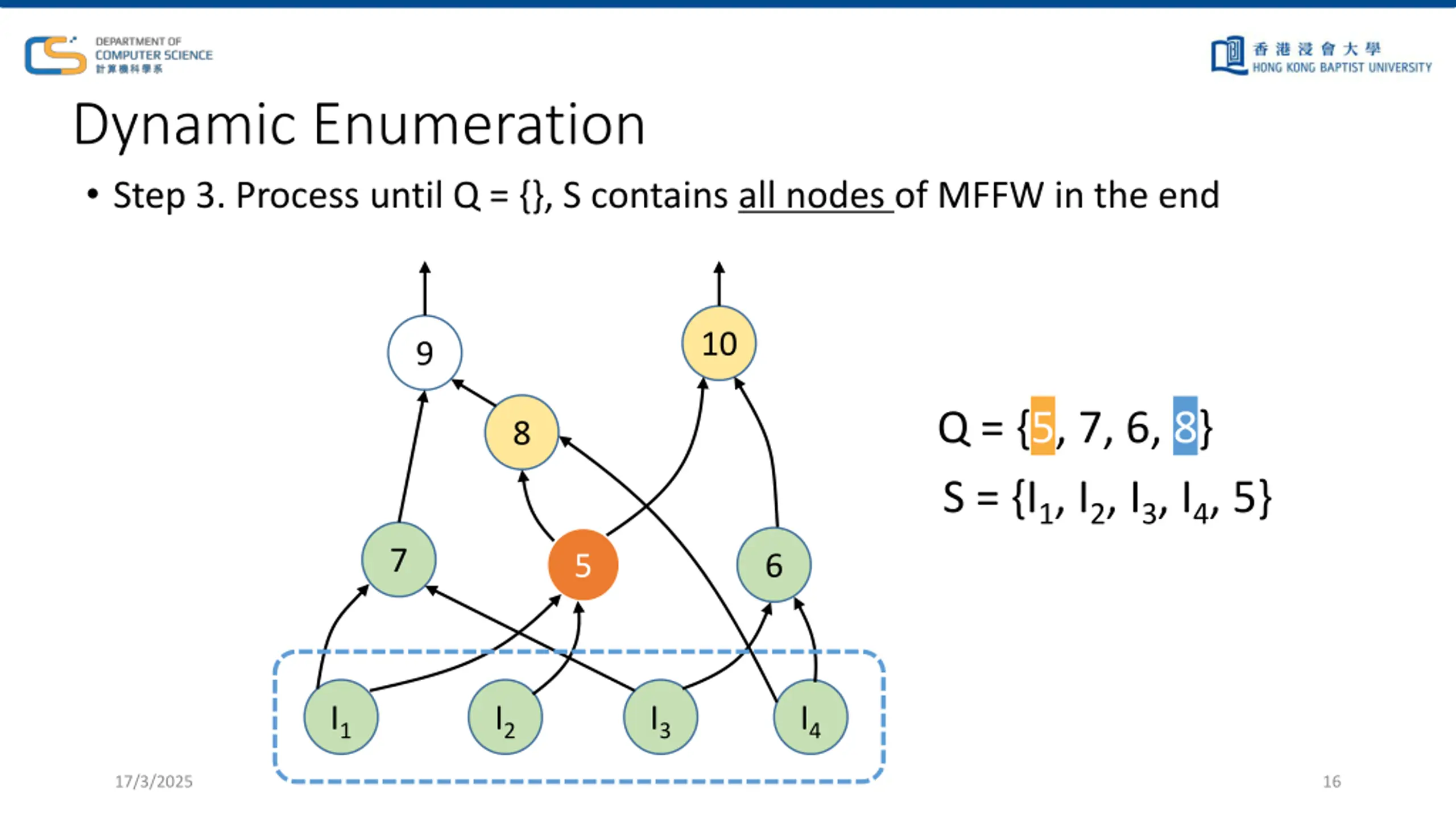

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {5, 7, 6, 8} S = {I1, I2, I3, I4, 5} 8 7 5 6 I1 I2 I3 I4 17/3/2025 16

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {7, 6, 8} S = {I1, I2, I3, I4, 5, 7} 8 7 5 6 I1 I2 I3 I4 17/3/2025 17

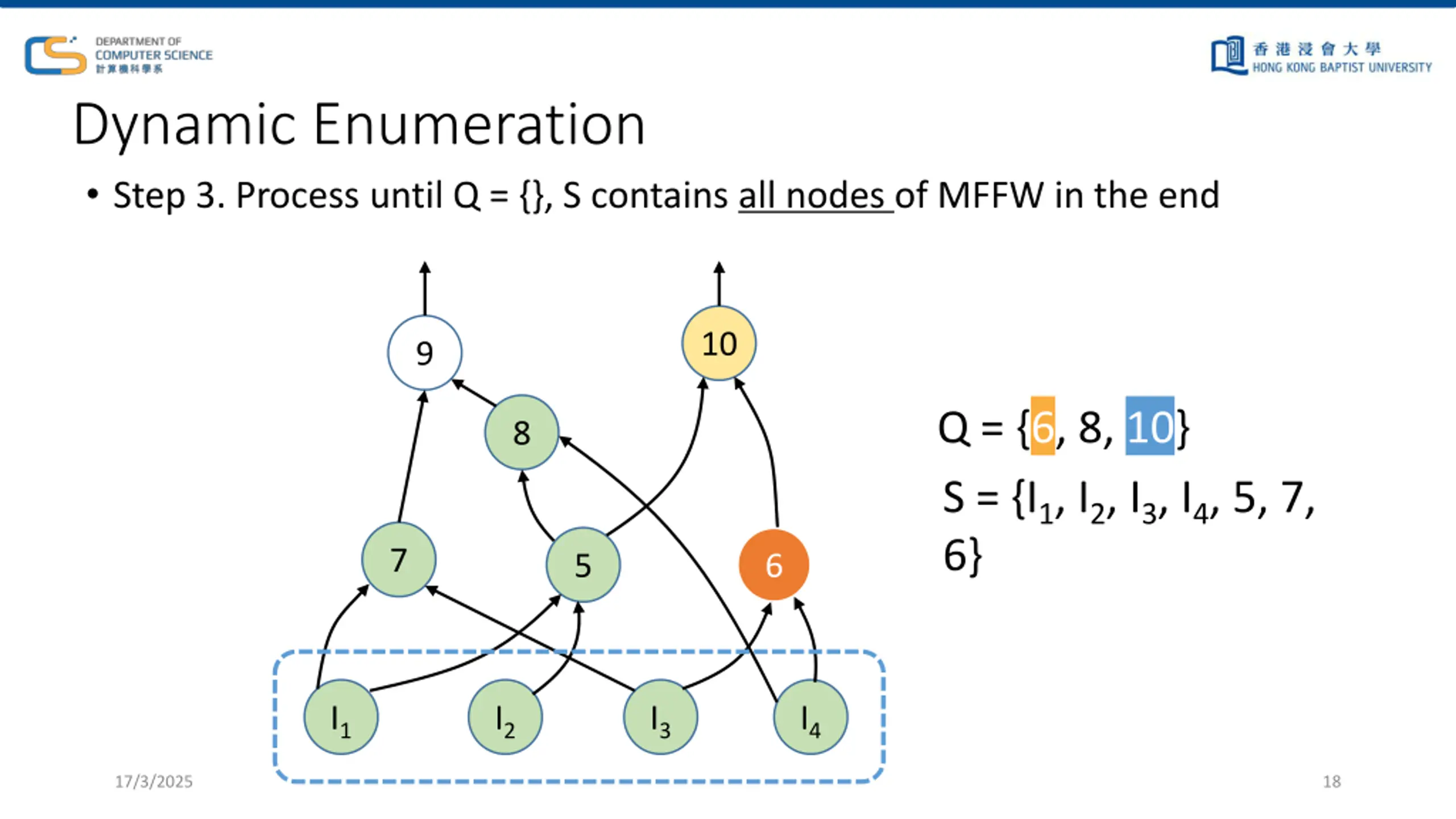

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {6, 8, 10} S = {I1, I2, I3, I4, 5, 7, 6} 8 7 5 6 I1 I2 I3 I4 17/3/2025 18

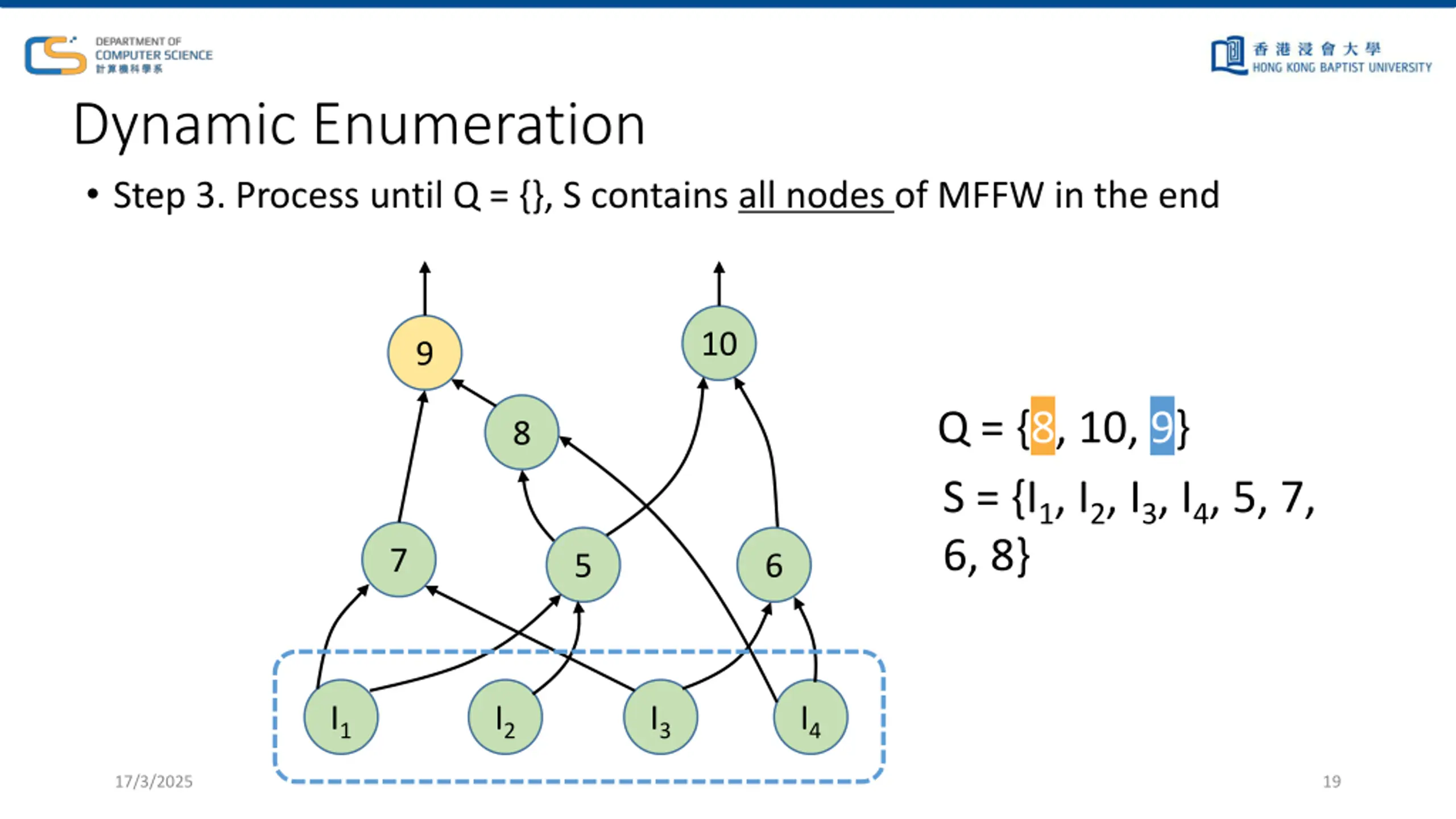

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {8, 10, 9} S = {I1, I2, I3, I4, 5, 7, 6, 8} 8 7 5 6 I1 I2 I3 I4 17/3/2025 19

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {10, 9} S = {I1, I2, I3, I4, 5, 7, 6, 8} 8 7 5 6 I1 I2 I3 I4 17/3/2025 20

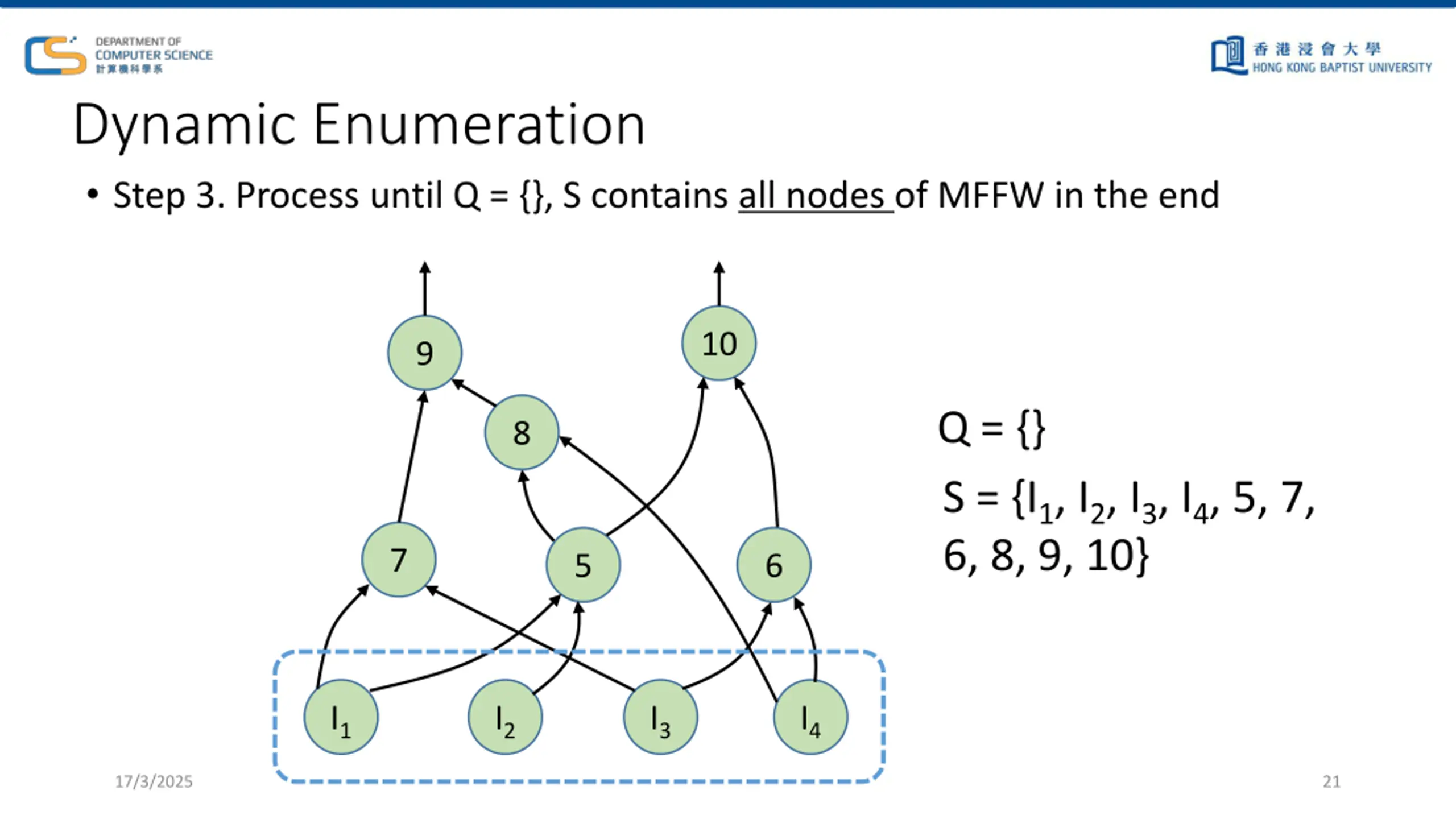

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end 10 9 Q = {} 8 S = {I1, I2, I3, I4, 5, 7, 6, 8, 9, 10} 7 5 6 I1 I2 I3 I4 17/3/2025 21

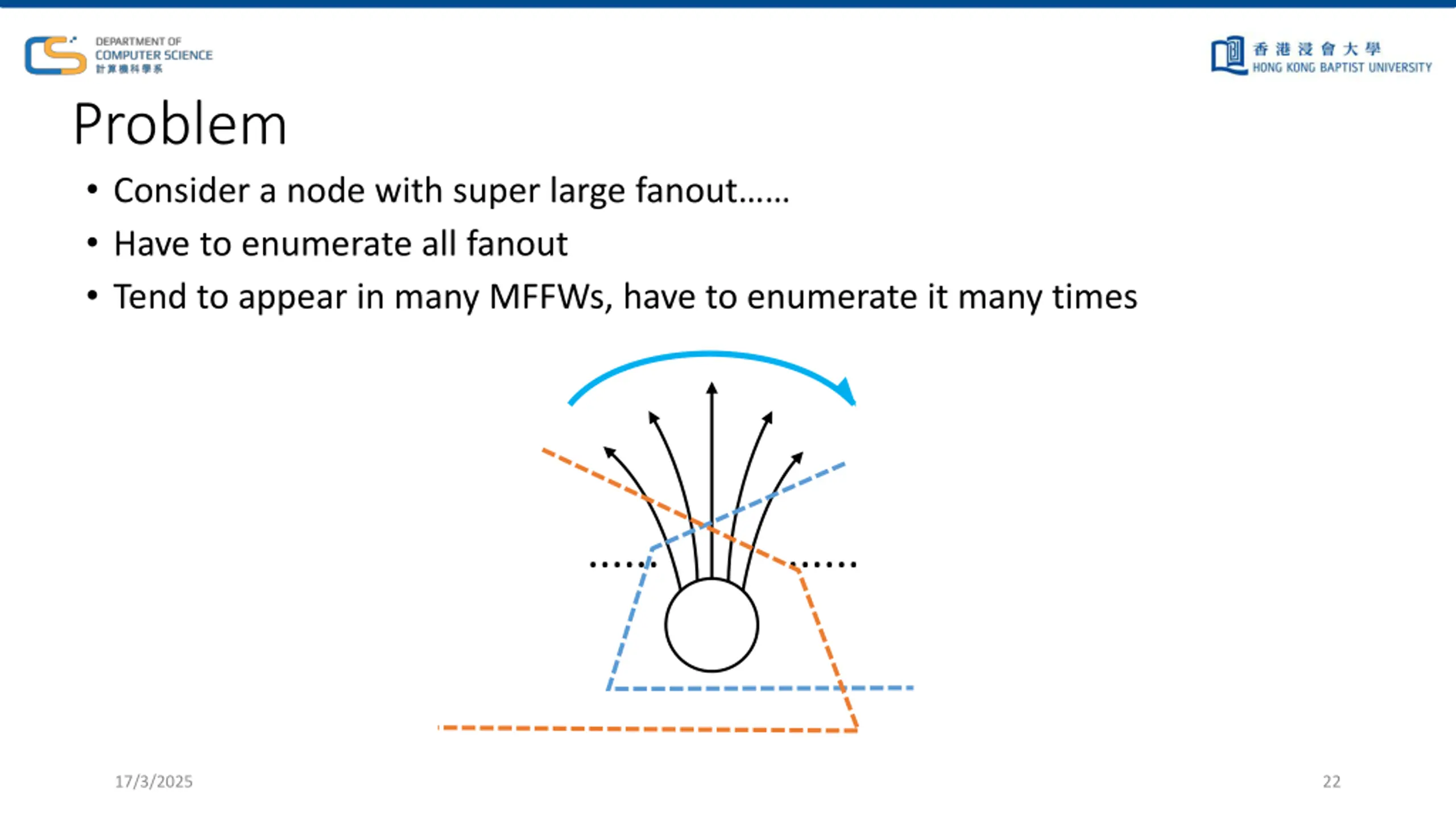

Problem Consider a node with super large fanout Have to enumerate all fanout Tend to appear in many MFFWs, have to enumerate it many times 17/3/2025 22

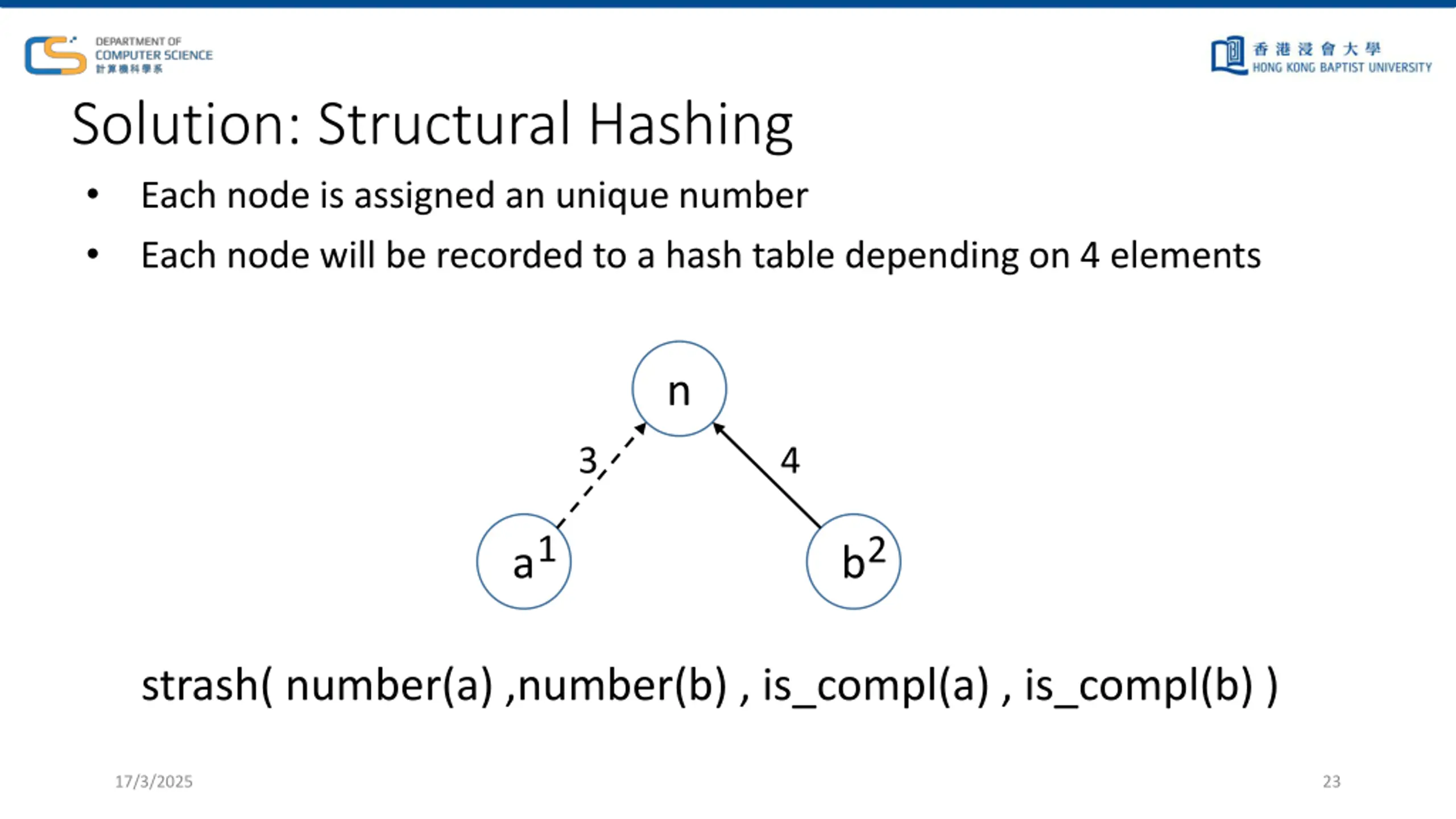

Solution: Structural Hashing Each node is assigned an unique number Each node will be recorded to a hash table depending on 4 elements n 3 4 1 2 a b strash( number(a) ,number(b) , is_compl(a) , is_compl(b) ) 17/3/2025 23

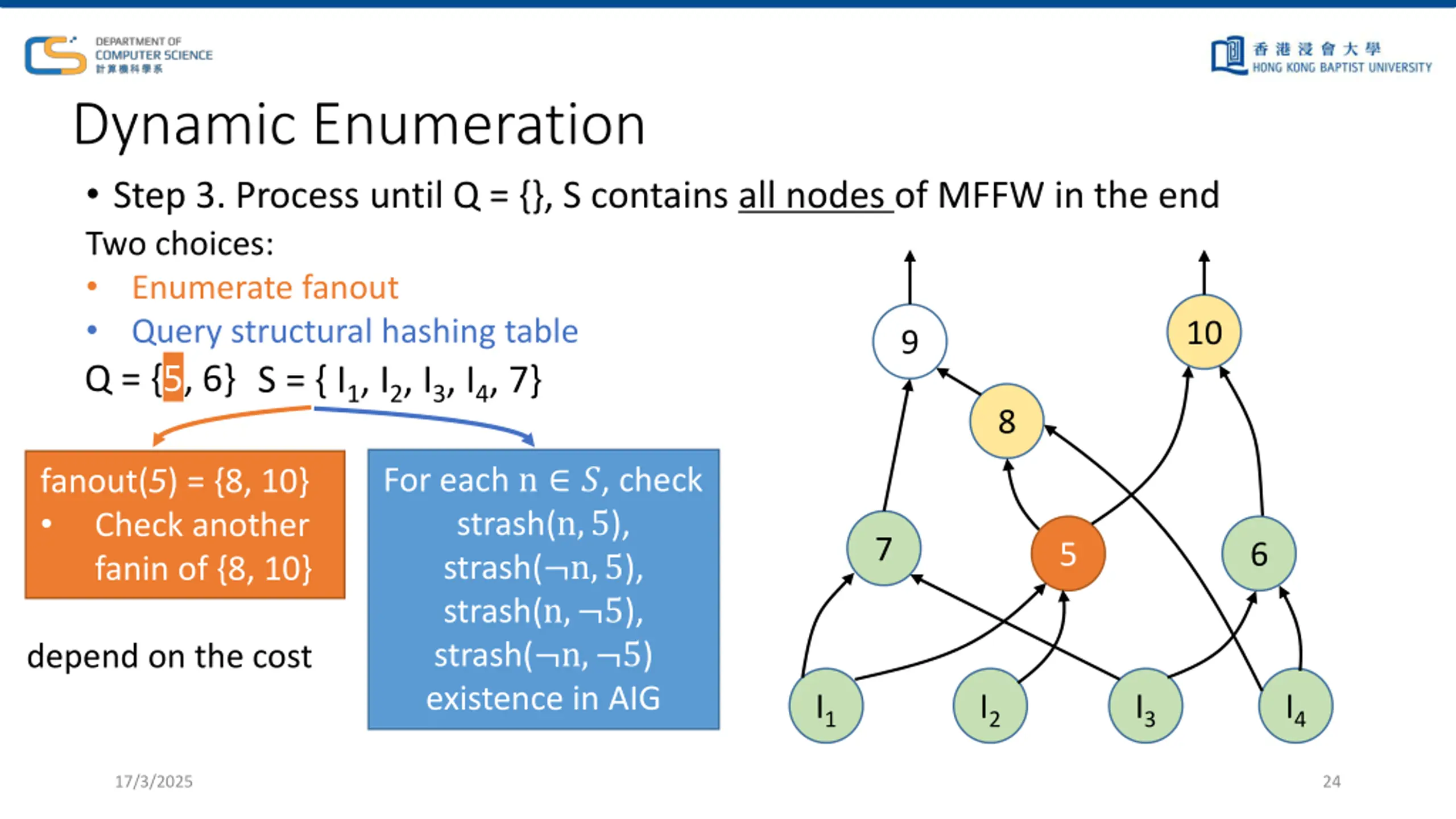

Dynamic Enumeration Step 3. Process until Q = {}, S contains all nodes of MFFW in the end Two choices: Enumerate fanout Query structural hashing table S = { I1, I2, I3, I4, 7} Q = {5, 6} 10 9 8 For each n ?, check strash(n,5), strash( n,5), strash(n, 5), strash( n, 5) existence in AIG fanout(5) = {8, 10} Check another fanin of {8, 10} 7 5 6 depend on the cost I1 I2 I3 I4 17/3/2025 24

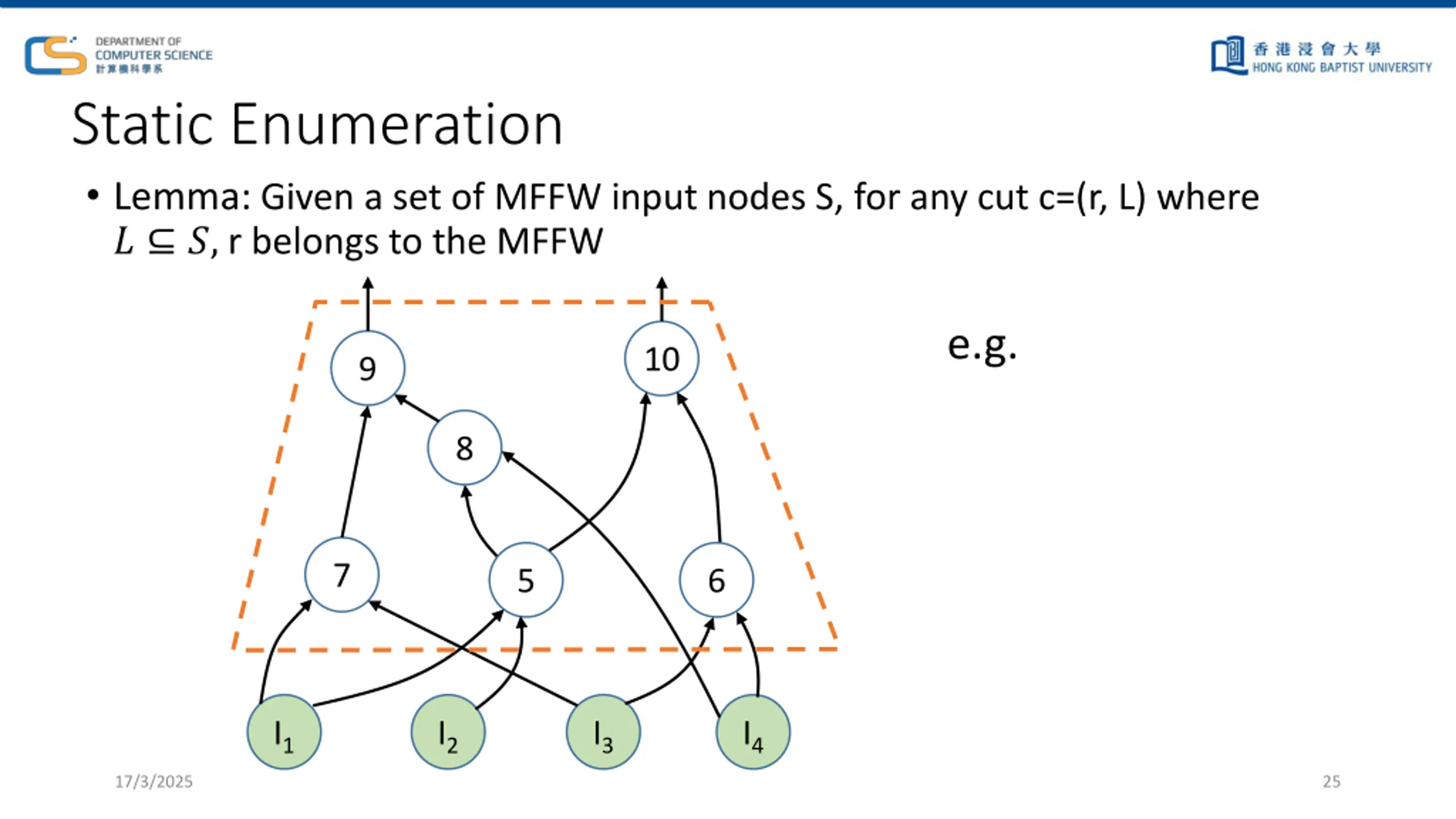

Static Enumeration Lemma: Given a set of MFFW input nodes S, for any cut c=(r, L) where ? ?, r belongs to the MFFW e.g. 10 9 8 7 5 6 I1 I2 I3 I4 17/3/2025 25

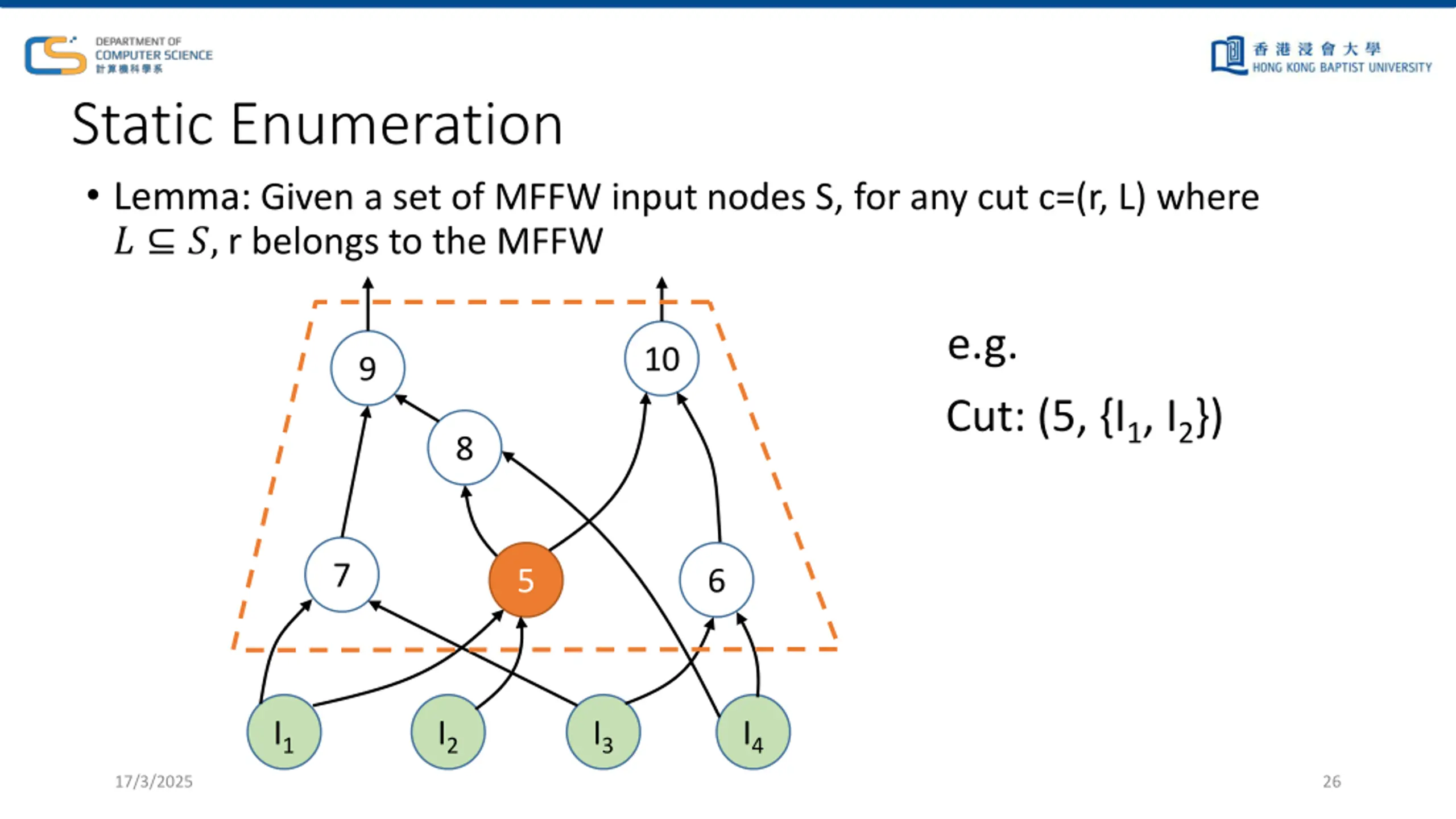

Static Enumeration Lemma: Given a set of MFFW input nodes S, for any cut c=(r, L) where ? ?, r belongs to the MFFW e.g. 10 9 Cut: (5, {I1, I2}) 8 7 5 6 I1 I2 I3 I4 17/3/2025 26

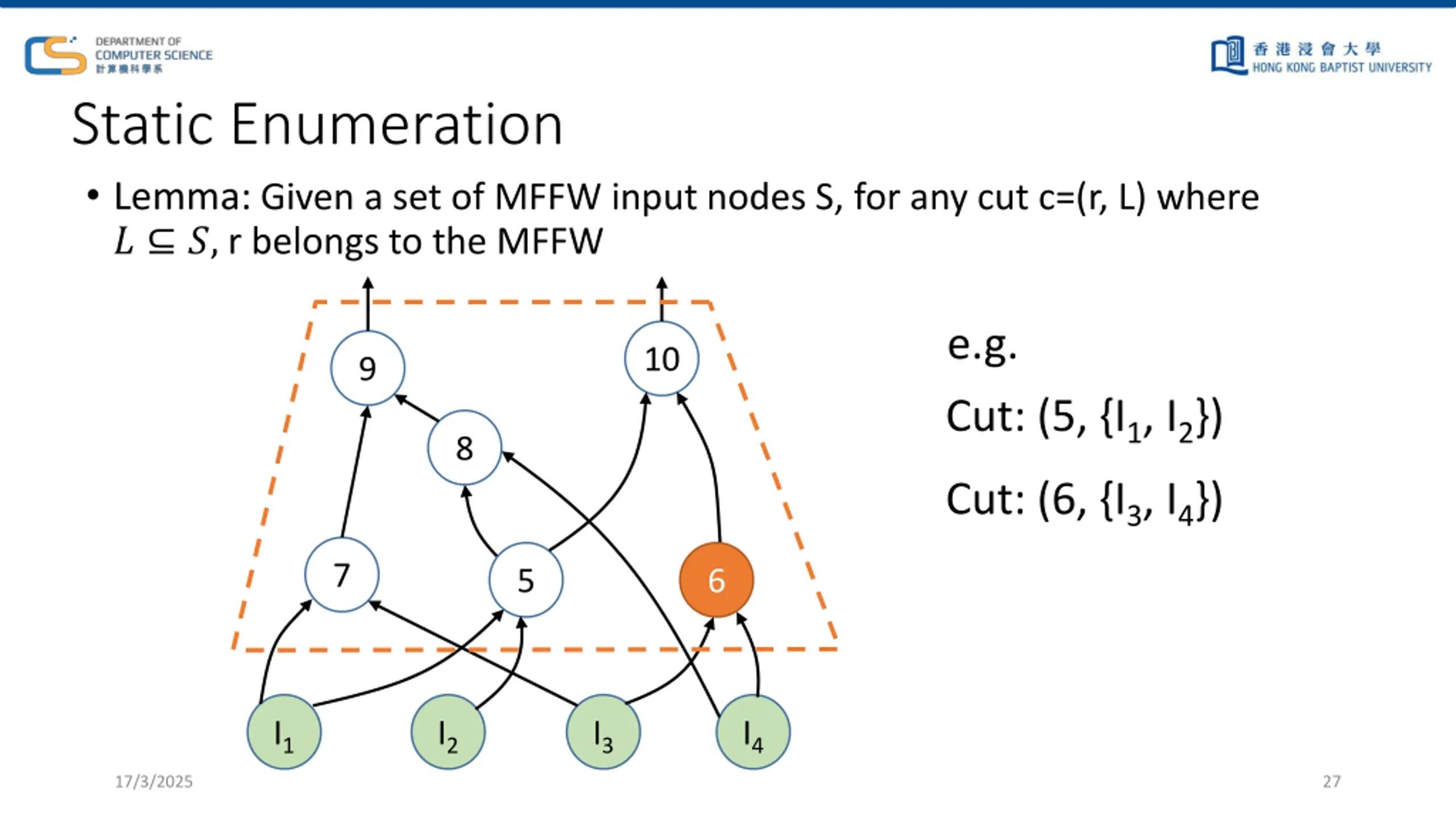

Static Enumeration Lemma: Given a set of MFFW input nodes S, for any cut c=(r, L) where ? ?, r belongs to the MFFW e.g. 10 9 Cut: (5, {I1, I2}) 8 Cut: (6, {I3, I4}) 7 5 6 I1 I2 I3 I4 17/3/2025 27

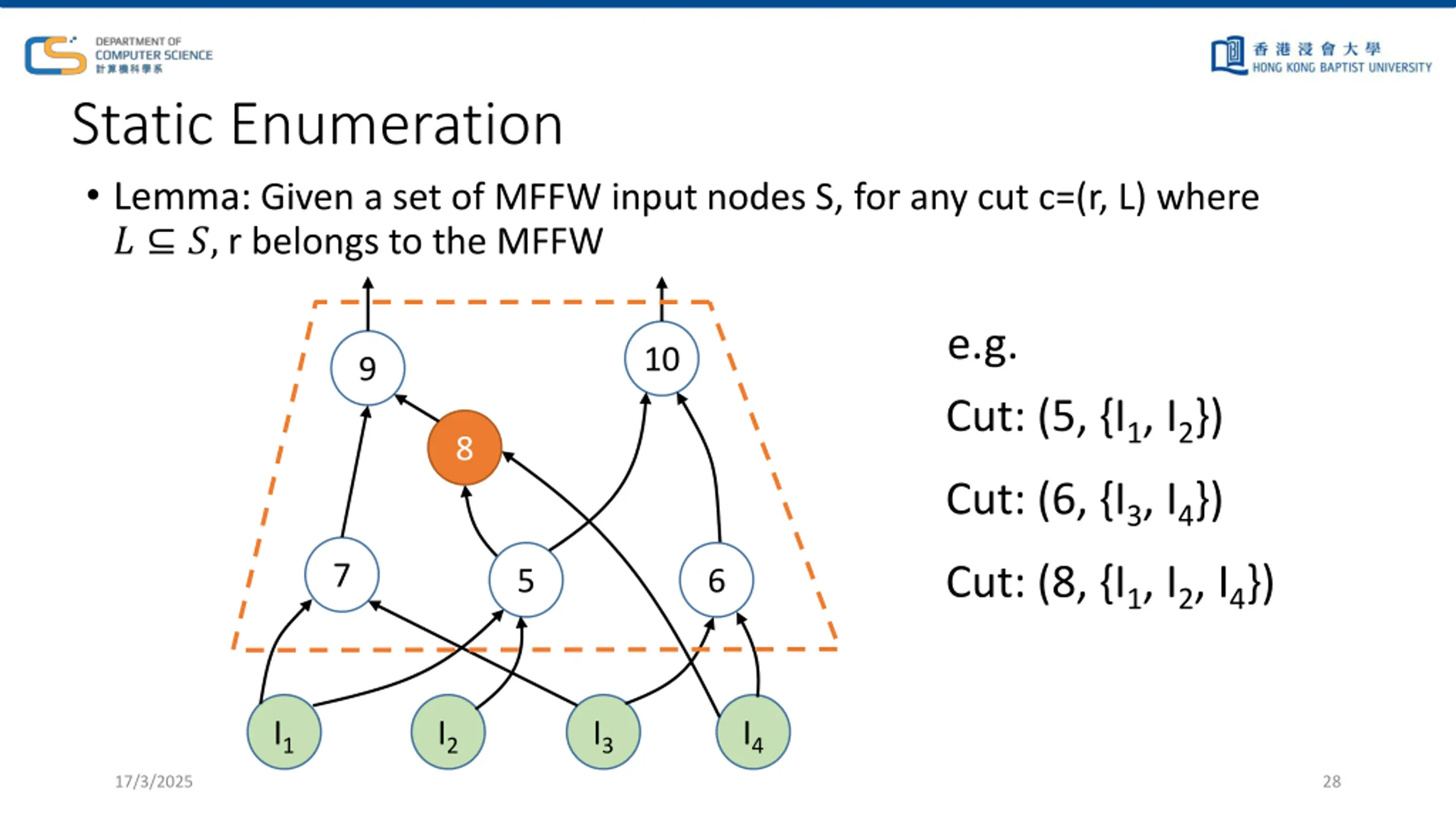

Static Enumeration Lemma: Given a set of MFFW input nodes S, for any cut c=(r, L) where ? ?, r belongs to the MFFW e.g. 10 9 Cut: (5, {I1, I2}) 8 Cut: (6, {I3, I4}) 7 Cut: (8, {I1, I2, I4}) 5 6 I1 I2 I3 I4 17/3/2025 28

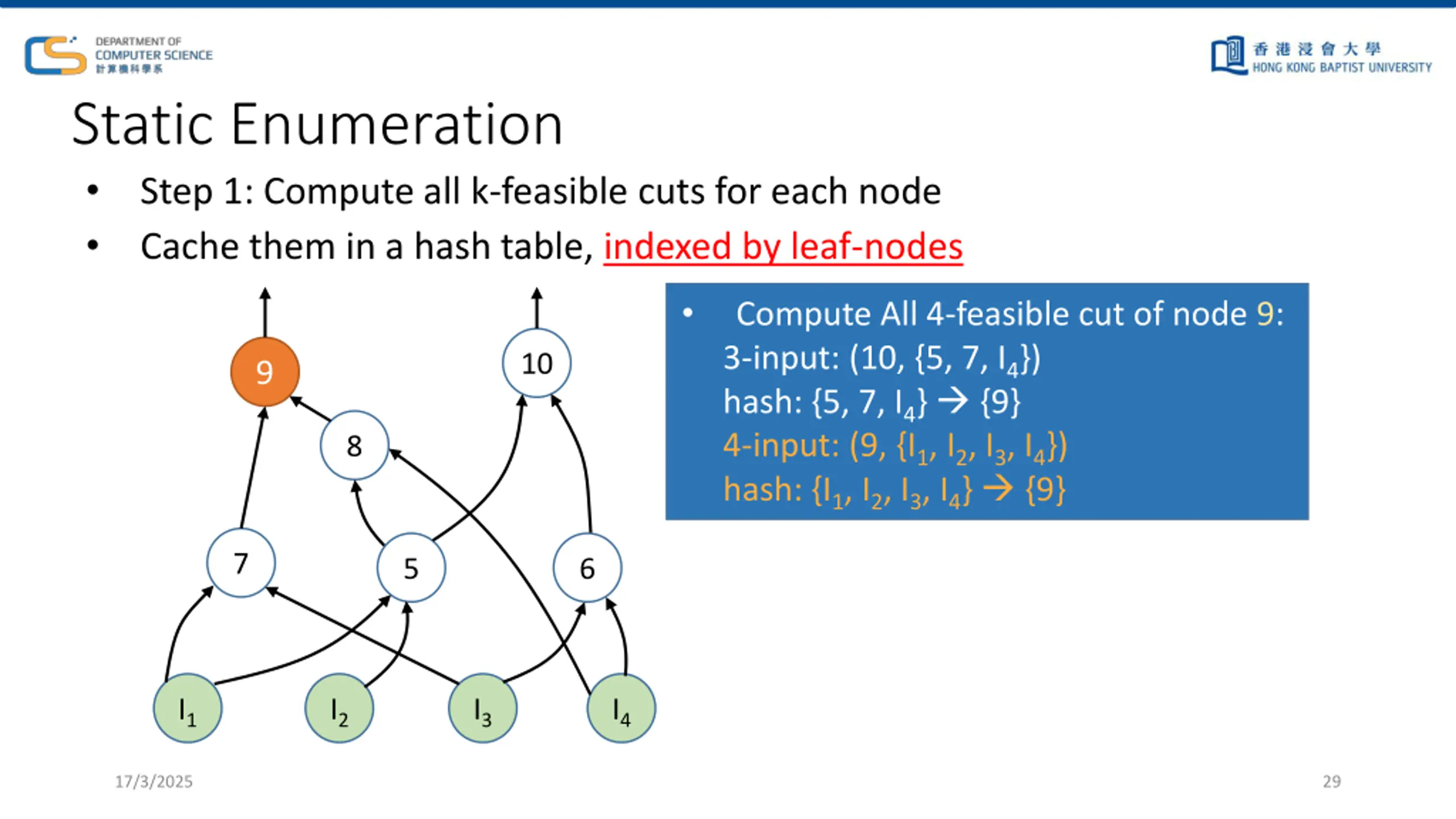

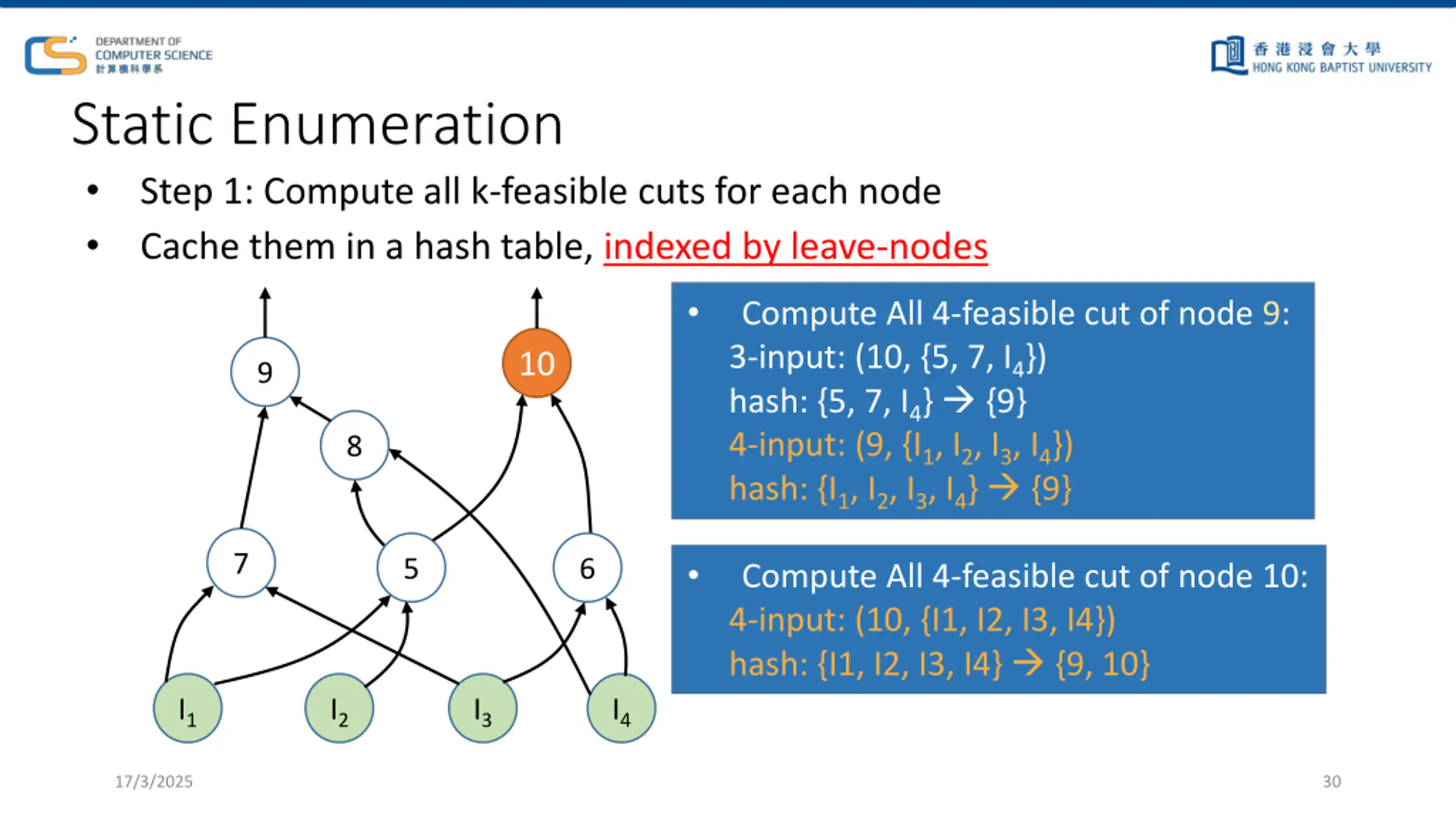

Static Enumeration Step 1: Compute all k-feasible cuts for each node Cache them in a hash table, indexed by leaf-nodes 3-input: (10, {5, 7, I4}) hash: {5, 7, I4} {9} 4-input: (9, {I1, I2, I3, I4}) hash: {I1, I2, I3, I4} {9} Compute All 4-feasible cut of node 9: 10 9 8 7 5 6 I1 I2 I3 I4 17/3/2025 29

Static Enumeration Step 1: Compute all k-feasible cuts for each node Cache them in a hash table, indexed by leave-nodes 3-input: (10, {5, 7, I4}) hash: {5, 7, I4} {9} 4-input: (9, {I1, I2, I3, I4}) hash: {I1, I2, I3, I4} {9} Compute All 4-feasible cut of node 9: 10 9 8 7 4-input: (10, {I1, I2, I3, I4}) hash: {I1, I2, I3, I4} {9, 10} 5 6 Compute All 4-feasible cut of node 10: I1 I2 I3 I4 17/3/2025 30

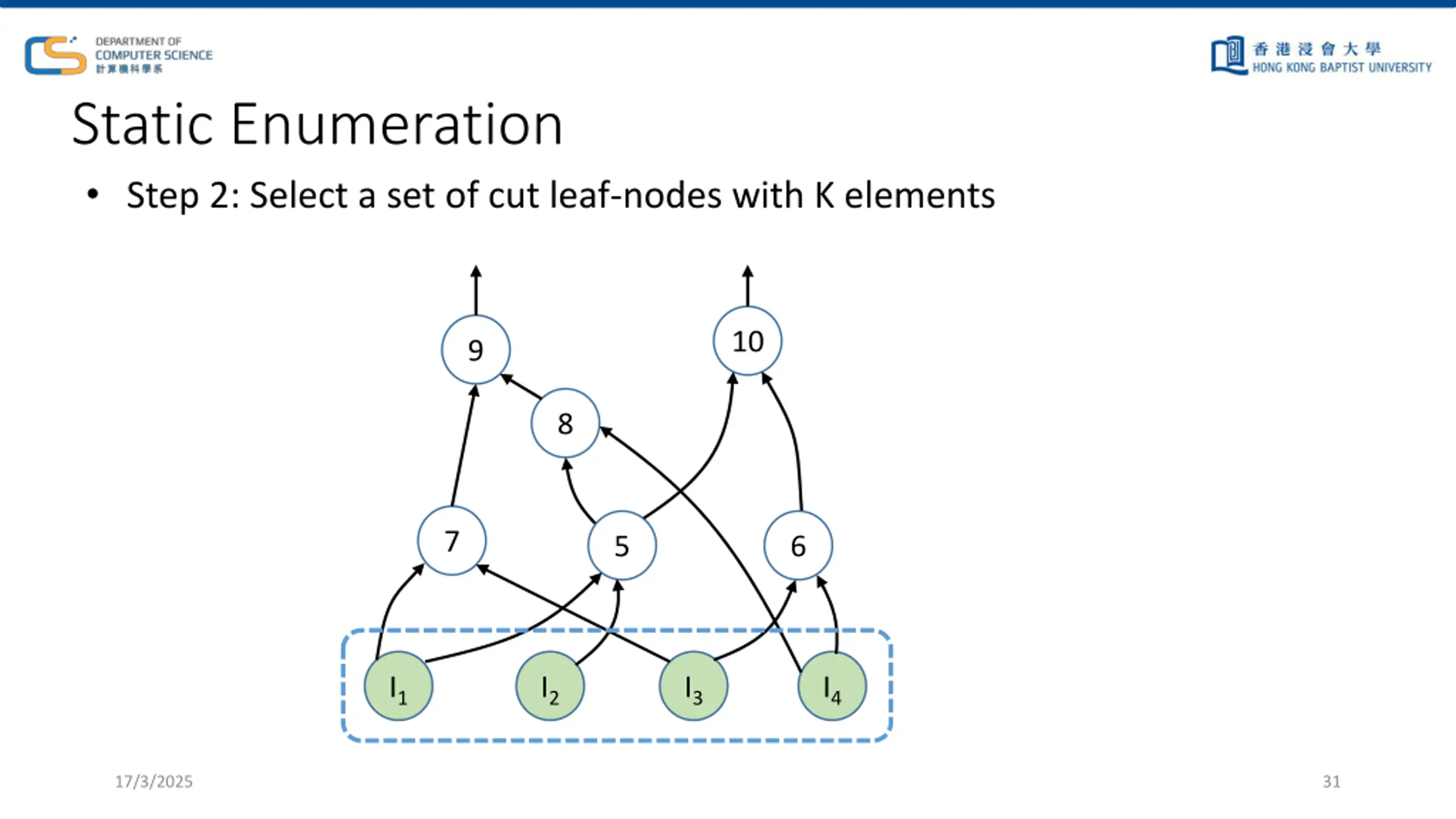

Static Enumeration Step 2: Select a set of cut leaf-nodes with K elements 10 9 8 7 5 6 I1 I2 I3 I4 17/3/2025 31

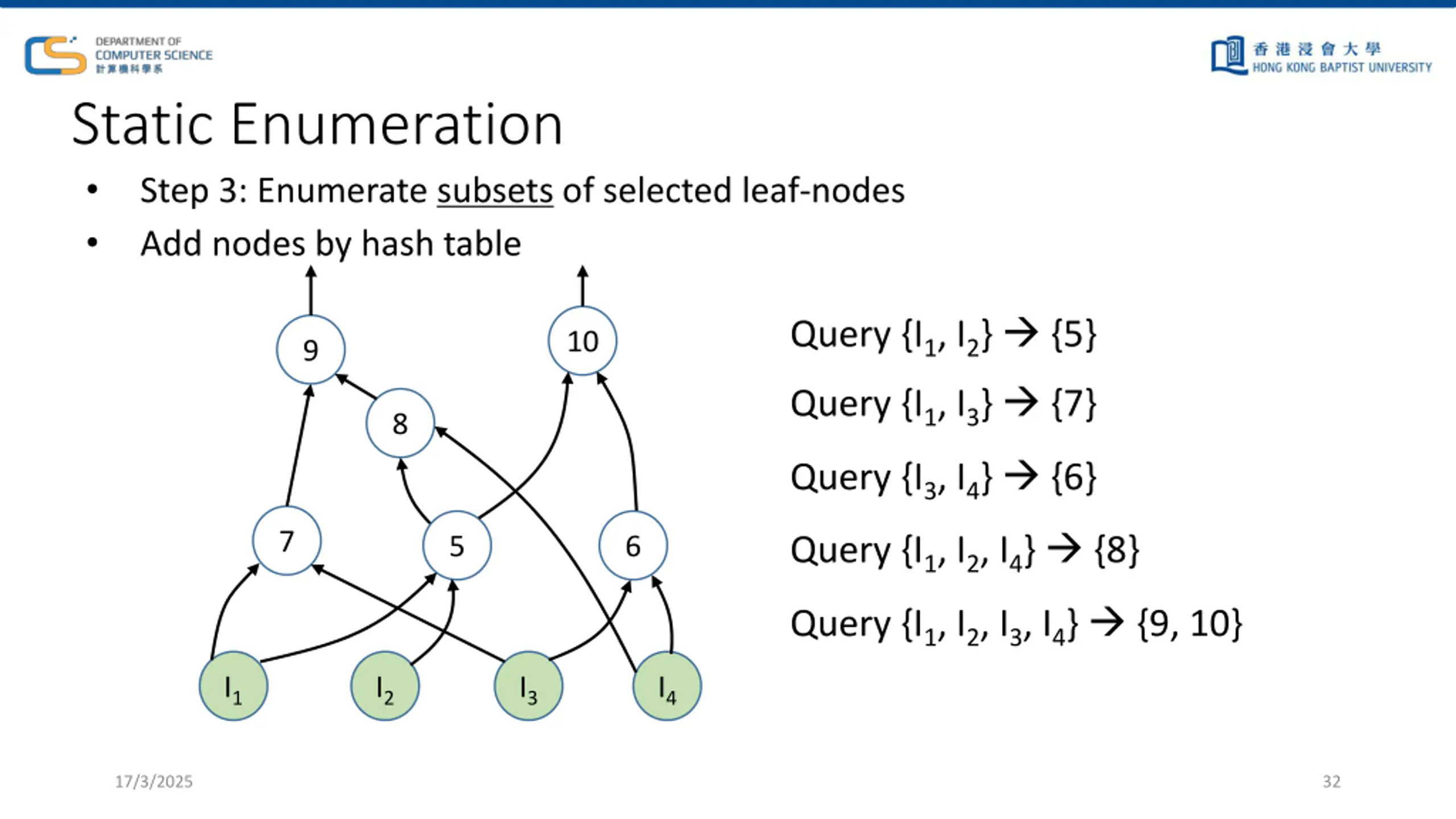

Static Enumeration Step 3: Enumerate subsets of selected leaf-nodes Add nodes by hash table Query {I1, I2} {5} Query {I1, I3} {7} 10 9 8 Query {I3, I4} {6} Query {I1, I2, I4} {8} 7 5 6 Query {I1, I2, I3, I4} {9, 10} I1 I2 I3 I4 17/3/2025 32

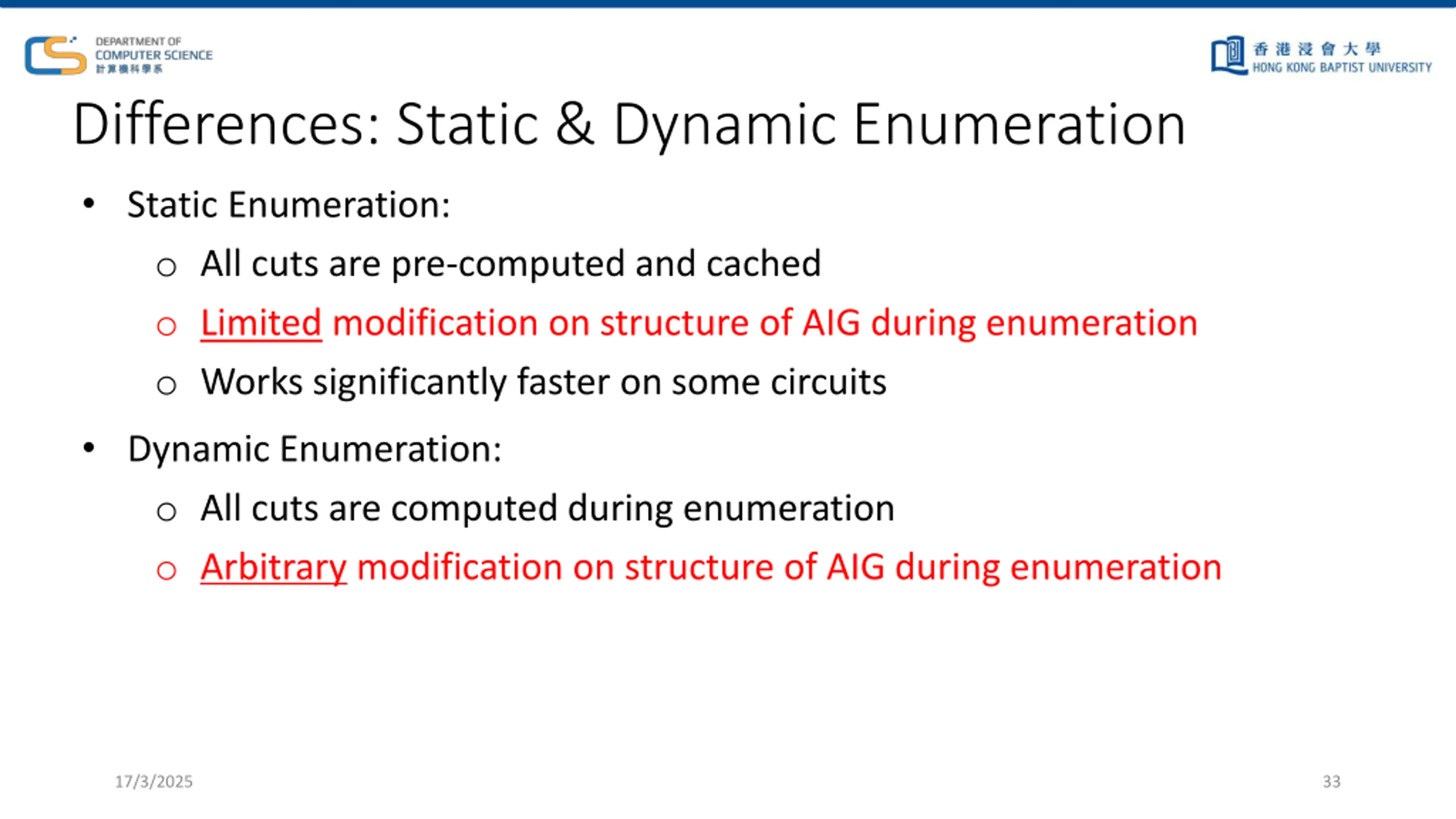

Differences: Static & Dynamic Enumeration Static Enumeration: o All cuts are pre-computed and cached o Limited modification on structure of AIG during enumeration o Works significantly faster on some circuits Dynamic Enumeration: o All cuts are computed during enumeration o Arbitrary modification on structure of AIG during enumeration 17/3/2025 33

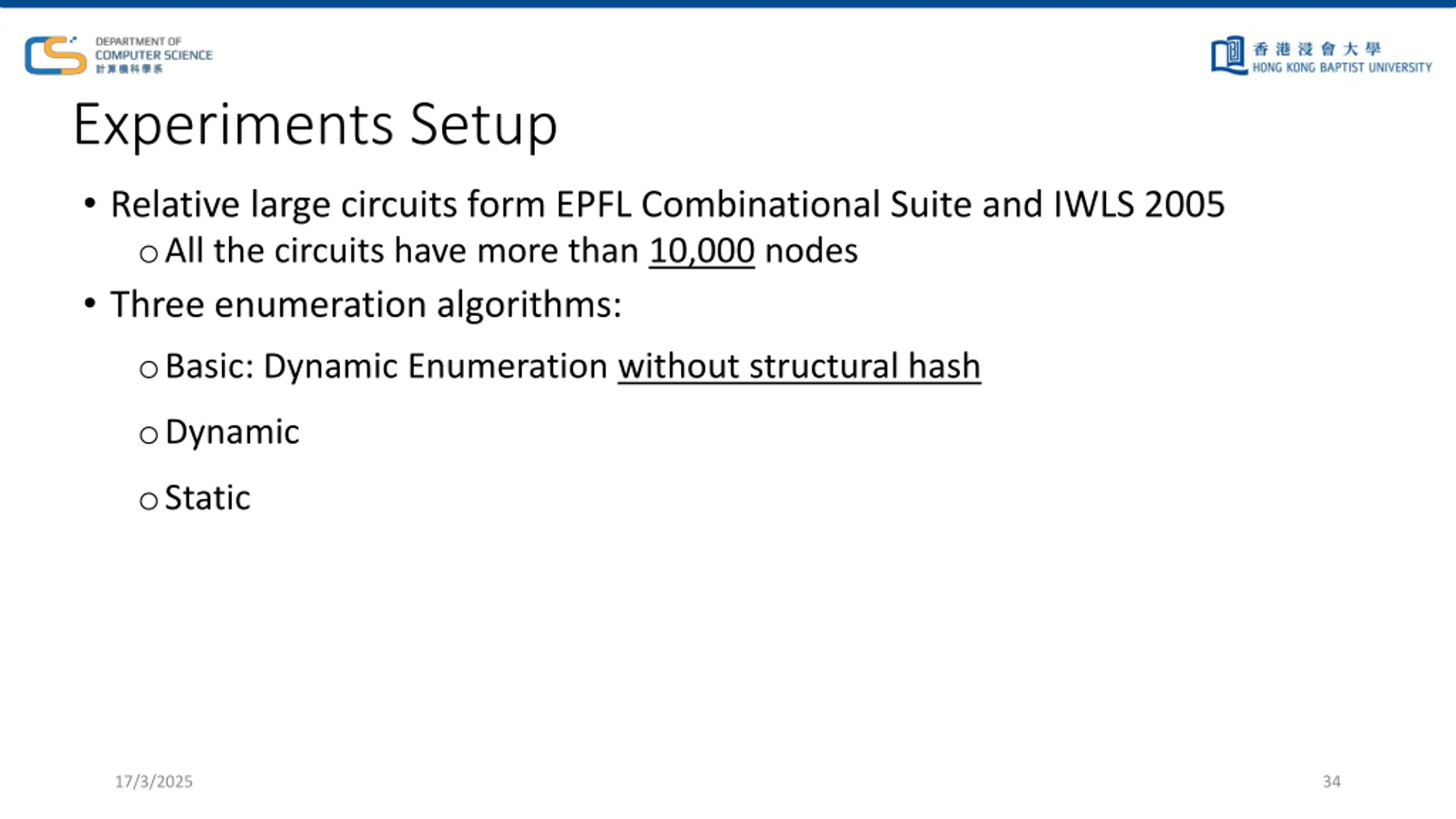

Experiments Setup Relative large circuits form EPFL Combinational Suite and IWLS 2005 oAll the circuits have more than 10,000 nodes Three enumeration algorithms: oBasic: Dynamic Enumeration without structural hash oDynamic oStatic 17/3/2025 34

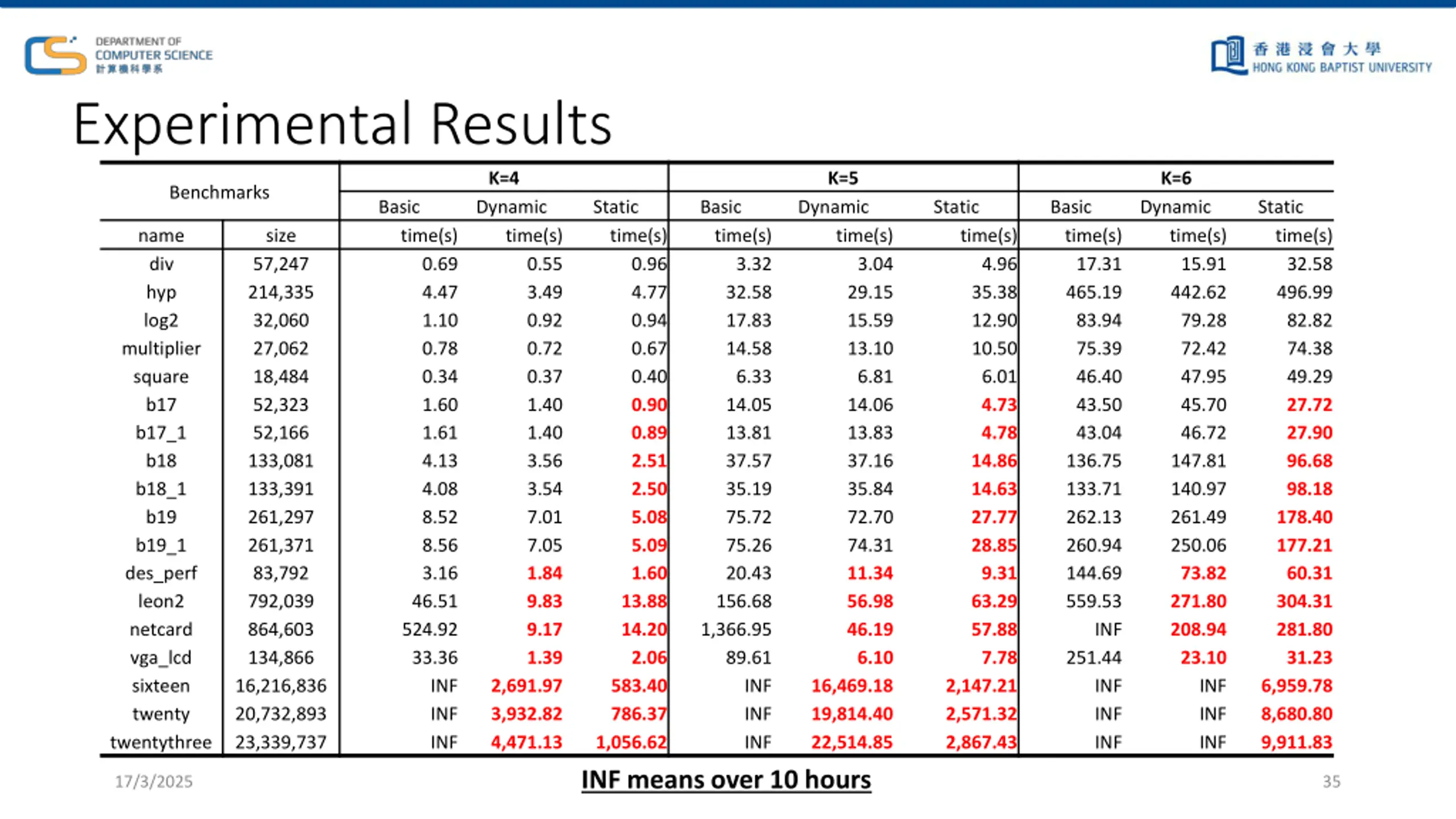

Experimental Results K=4 Dynamic time(s) K=5 K=6 Benchmarks Basic Static time(s) Basic time(s) Dynamic Static Basic time(s) 17.31 465.19 83.94 75.39 46.40 43.50 43.04 136.75 133.71 262.13 260.94 144.69 559.53 Dynamic time(s) 15.91 442.62 79.28 72.42 47.95 45.70 46.72 147.81 140.97 261.49 250.06 73.82 271.80 208.94 23.10 Static time(s) 32.58 496.99 82.82 74.38 49.29 27.72 27.90 96.68 98.18 178.40 177.21 60.31 304.31 281.80 31.23 6,959.78 8,680.80 9,911.83 name div hyp log2 multiplier square b17 b17_1 b18 b18_1 b19 b19_1 des_perf leon2 netcard vga_lcd sixteen twenty twentythree size 57,247 214,335 32,060 27,062 18,484 52,323 52,166 133,081 133,391 261,297 261,371 83,792 792,039 864,603 134,866 16,216,836 20,732,893 23,339,737 time(s) 0.69 4.47 1.10 0.78 0.34 1.60 1.61 4.13 4.08 8.52 8.56 3.16 46.51 524.92 33.36 time(s) 3.04 29.15 15.59 13.10 6.81 14.06 13.83 37.16 35.84 72.70 74.31 11.34 56.98 46.19 6.10 16,469.18 19,814.40 22,514.85 time(s) 4.96 35.38 12.90 10.50 6.01 4.73 4.78 14.86 14.63 27.77 28.85 9.31 63.29 57.88 7.78 2,147.21 2,571.32 2,867.43 0.55 3.49 0.92 0.72 0.37 1.40 1.40 3.56 3.54 7.01 7.05 1.84 9.83 9.17 1.39 0.96 4.77 0.94 0.67 0.40 0.90 0.89 2.51 2.50 5.08 5.09 1.60 13.88 14.20 2.06 583.40 786.37 1,056.62 INF means over 10 hours 3.32 32.58 17.83 14.58 6.33 14.05 13.81 37.57 35.19 75.72 75.26 20.43 156.68 1,366.95 89.61 INF 251.44 INF INF INF 2,691.97 3,932.82 4,471.13 INF INF INF INF INF INF INF INF INF 17/3/2025 35

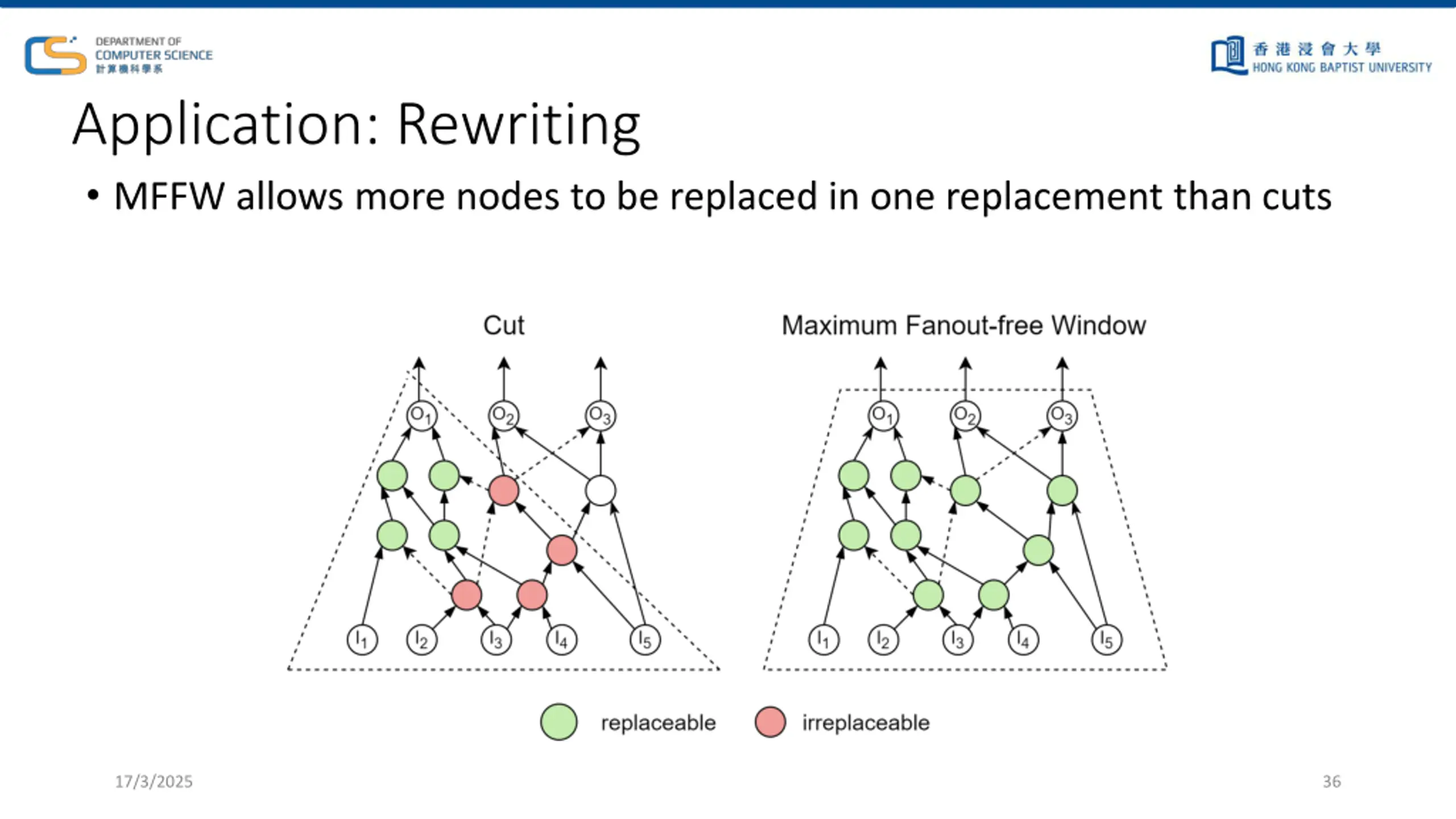

Application: Rewriting MFFW allows more nodes to be replaced in one replacement than cuts 17/3/2025 36

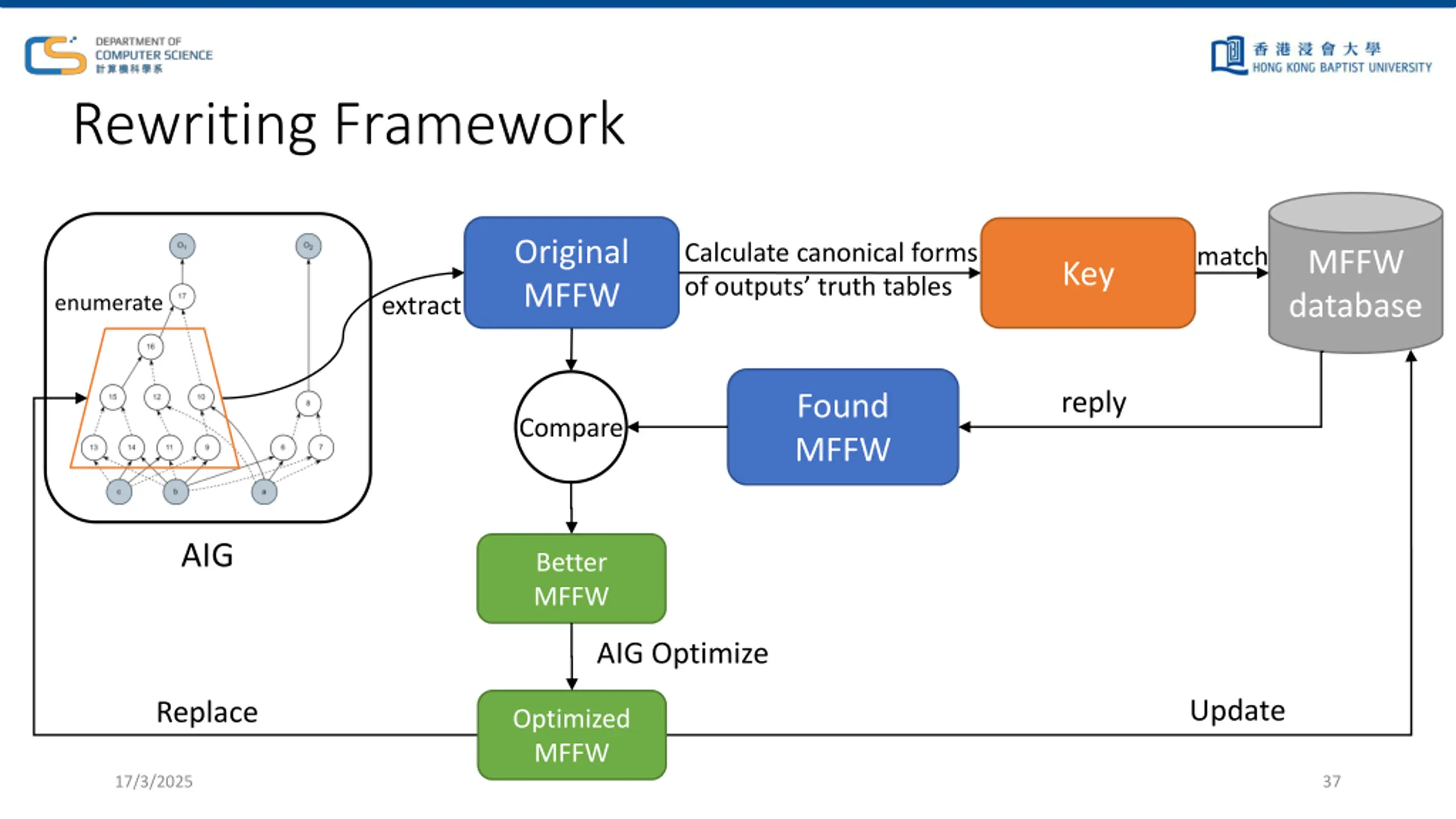

Rewriting Framework Original MFFW Calculate canonical forms of outputs truth tables match MFFW database Key enumerate extract reply Found MFFW Compare AIG Better MFFW AIG Optimize Update Replace Optimized MFFW 17/3/2025 37

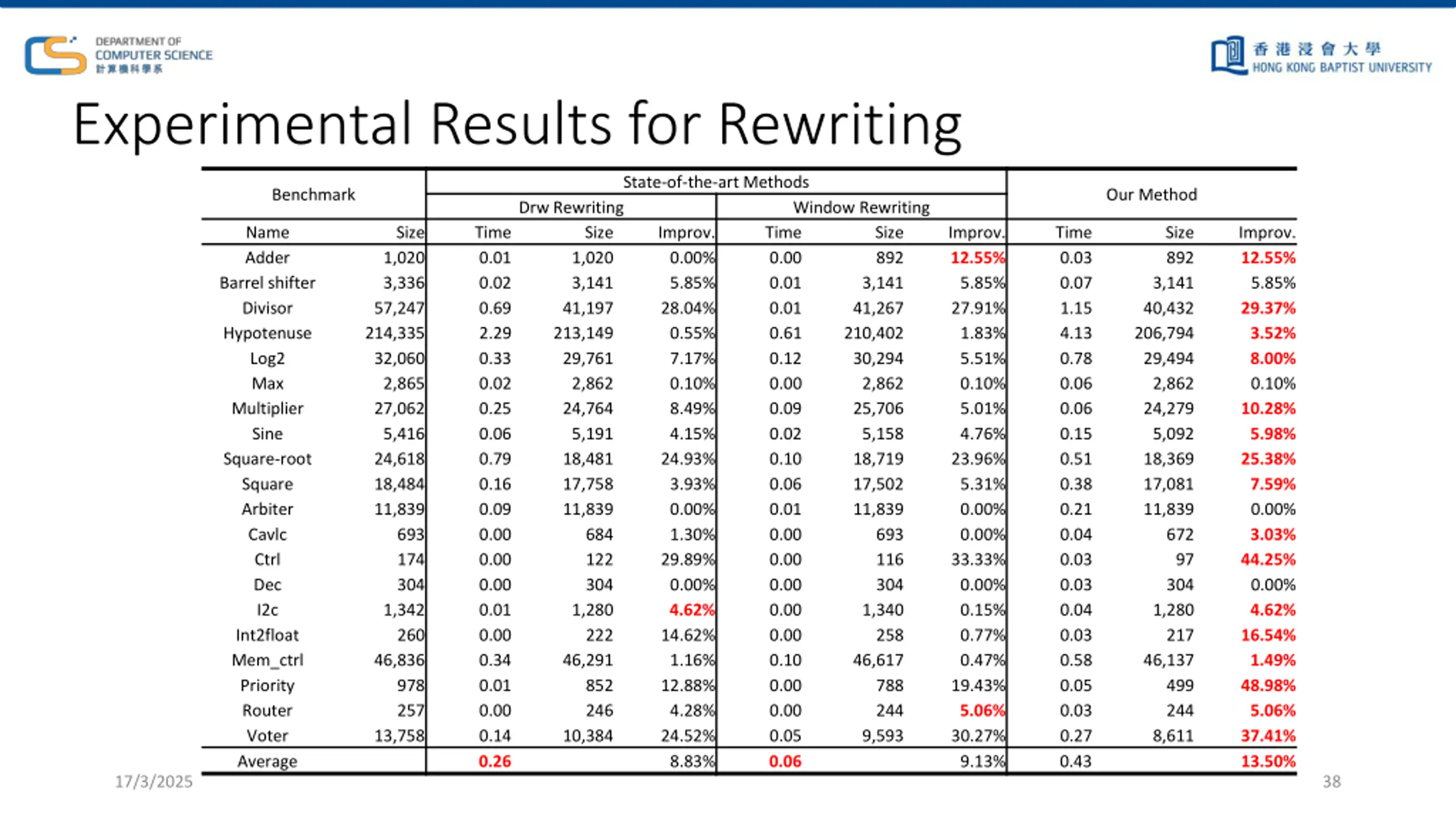

Experimental Results for Rewriting State-of-the-art Methods Benchmark Our Method Drw Rewriting Window Rewriting Time 0.00 0.01 0.01 0.61 210,402 0.12 0.00 0.09 0.02 0.10 0.06 0.01 0.00 0.00 0.00 0.00 0.00 0.10 0.00 0.00 0.05 0.06 Name Adder Size 1,020 3,336 57,247 214,335 32,060 2,865 27,062 5,416 24,618 18,484 11,839 Time 0.01 0.02 0.69 2.29 0.33 0.02 0.25 0.06 0.79 0.16 0.09 0.00 0.00 0.00 0.01 0.00 0.34 0.01 0.00 0.14 0.26 Size 1,020 3,141 41,197 213,149 29,761 2,862 24,764 5,191 18,481 17,758 11,839 Improv. 0.00% 5.85% 28.04% 0.55% 7.17% 0.10% 8.49% 4.15% 24.93% 3.93% 0.00% 1.30% 29.89% 0.00% 4.62% 14.62% 1.16% 12.88% 4.28% 24.52% 8.83% Size 892 3,141 41,267 Improv. 12.55% 5.85% 27.91% 1.83% 5.51% 0.10% 5.01% 4.76% 23.96% 5.31% 0.00% 0.00% 33.33% 0.00% 0.15% 0.77% 0.47% 19.43% 5.06% 30.27% 9.13% Time 0.03 0.07 1.15 4.13 0.78 0.06 0.06 0.15 0.51 0.38 0.21 0.04 0.03 0.03 0.04 0.03 0.58 0.05 0.03 0.27 0.43 Size 892 3,141 40,432 206,794 29,494 2,862 24,279 5,092 18,369 17,081 11,839 Improv. 12.55% 5.85% 29.37% 3.52% 8.00% 0.10% 10.28% 5.98% 25.38% 7.59% 0.00% 3.03% 44.25% 0.00% 4.62% 16.54% 1.49% 48.98% 5.06% 37.41% 13.50% Barrel shifter Divisor Hypotenuse Log2 Max Multiplier Sine Square-root Square Arbiter Cavlc Ctrl Dec I2c Int2float Mem_ctrl Priority Router Voter Average 30,294 2,862 25,706 5,158 18,719 17,502 11,839 693 116 304 1,340 258 46,617 788 244 9,593 693 174 304 1,342 260 46,836 978 257 13,758 684 122 304 1,280 222 46,291 852 246 10,384 672 97 304 1,280 217 46,137 499 244 8,611 17/3/2025 38

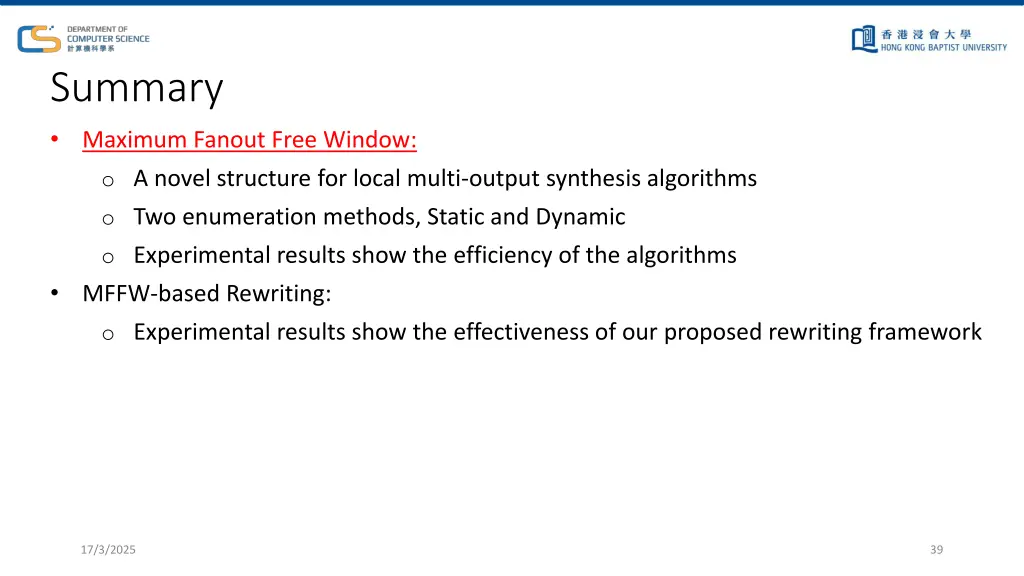

Summary Maximum Fanout Free Window: o A novel structure for local multi-output synthesis algorithms o Two enumeration methods, Static and Dynamic o Experimental results show the efficiency of the algorithms MFFW-based Rewriting: o Experimental results show the effectiveness of our proposed rewriting framework 17/3/2025 39

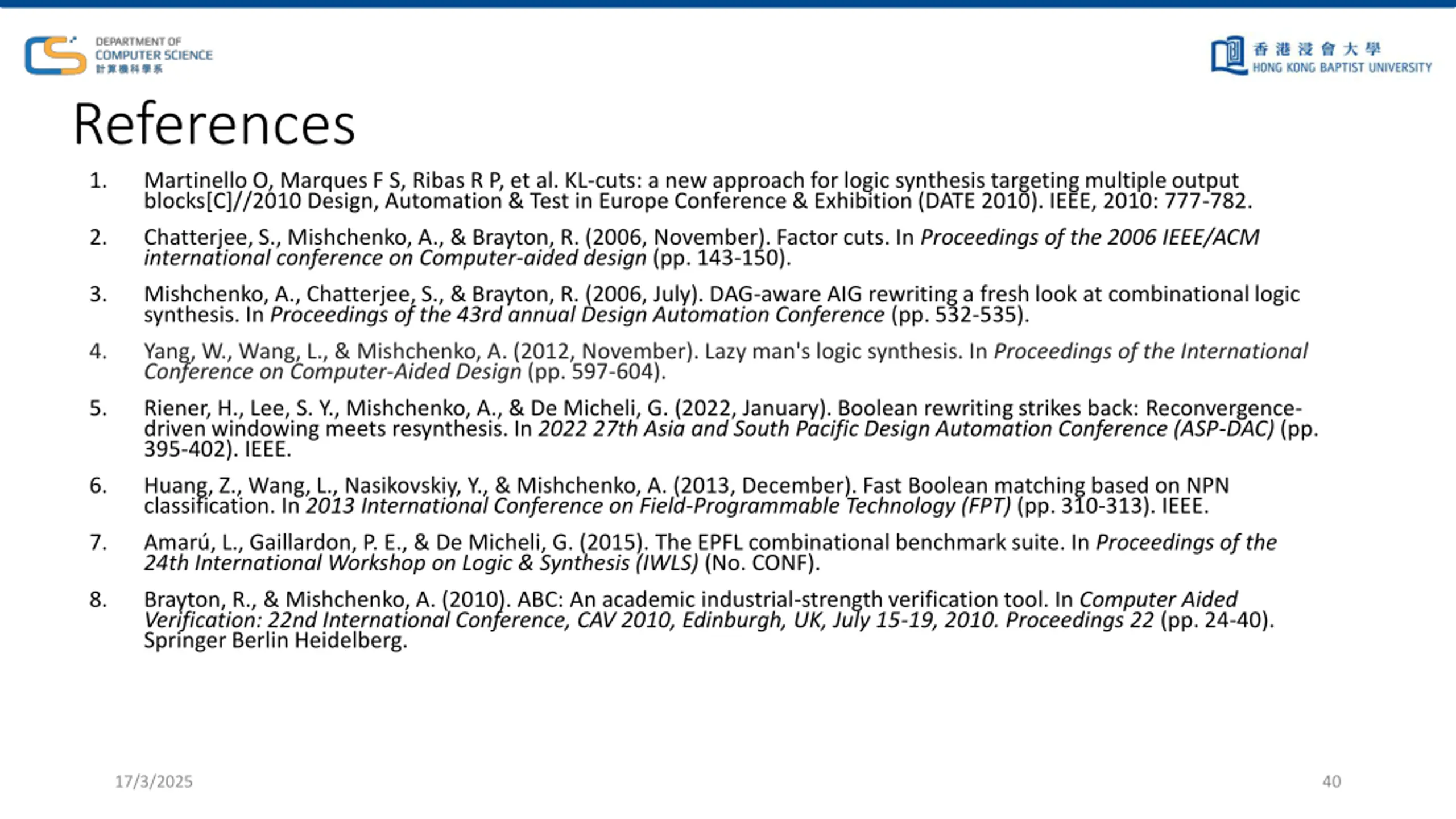

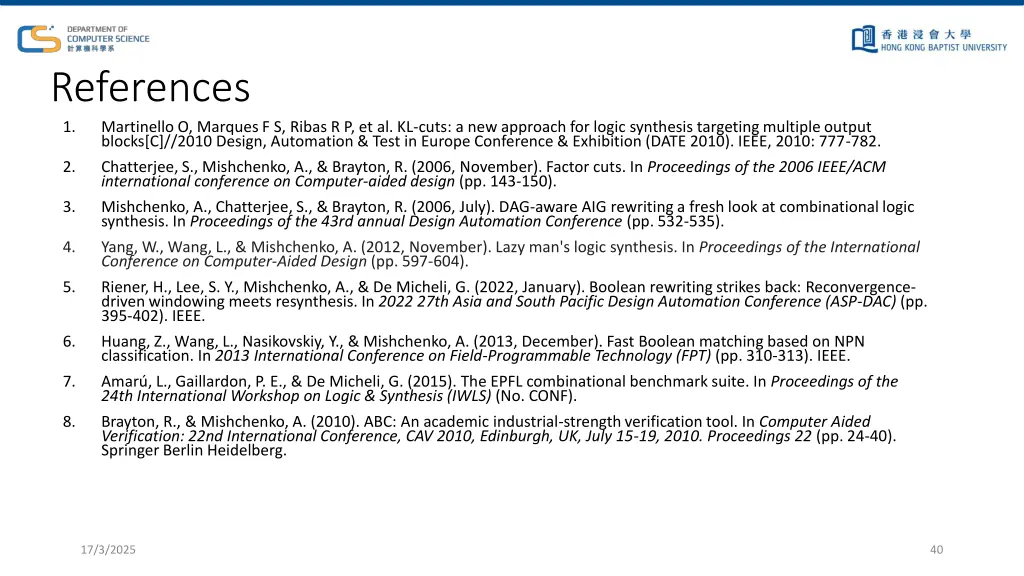

References 1. Martinello O, Marques F S, Ribas R P, et al. KL-cuts: a new approach for logic synthesis targeting multiple output blocks[C]//2010 Design, Automation & Test in Europe Conference & Exhibition (DATE 2010). IEEE, 2010: 777-782. 2. Chatterjee, S., Mishchenko, A., & Brayton, R. (2006, November). Factor cuts. In Proceedings of the 2006 IEEE/ACM international conference on Computer-aided design (pp. 143-150). Mishchenko, A., Chatterjee, S., & Brayton, R. (2006, July). DAG-aware AIG rewriting a fresh look at combinational logic synthesis. In Proceedings of the 43rd annual Design Automation Conference (pp. 532-535). 3. 4. Yang, W., Wang, L., & Mishchenko, A. (2012, November). Lazy man's logic synthesis. In Proceedings of the International Conference on Computer-Aided Design (pp. 597-604). 5. Riener, H., Lee, S. Y., Mishchenko, A., & De Micheli, G. (2022, January). Boolean rewriting strikes back: Reconvergence- driven windowing meets resynthesis. In 2022 27th Asia and South Pacific Design Automation Conference (ASP-DAC) (pp. 395-402). IEEE. 6. Huang, Z., Wang, L., Nasikovskiy, Y., & Mishchenko, A. (2013, December). Fast Boolean matching based on NPN classification. In 2013 International Conference on Field-Programmable Technology (FPT) (pp. 310-313). IEEE. 7. Amar , L., Gaillardon, P. E., & De Micheli, G. (2015). The EPFL combinational benchmark suite. In Proceedings of the 24th International Workshop on Logic & Synthesis (IWLS) (No. CONF). 8. Brayton, R., & Mishchenko, A. (2010). ABC: An academic industrial-strength verification tool. In Computer Aided Verification: 22nd International Conference, CAV 2010, Edinburgh, UK, July 15-19, 2010. Proceedings 22 (pp. 24-40). Springer Berlin Heidelberg. 17/3/2025 40

Thank you! 17/3/2025 41

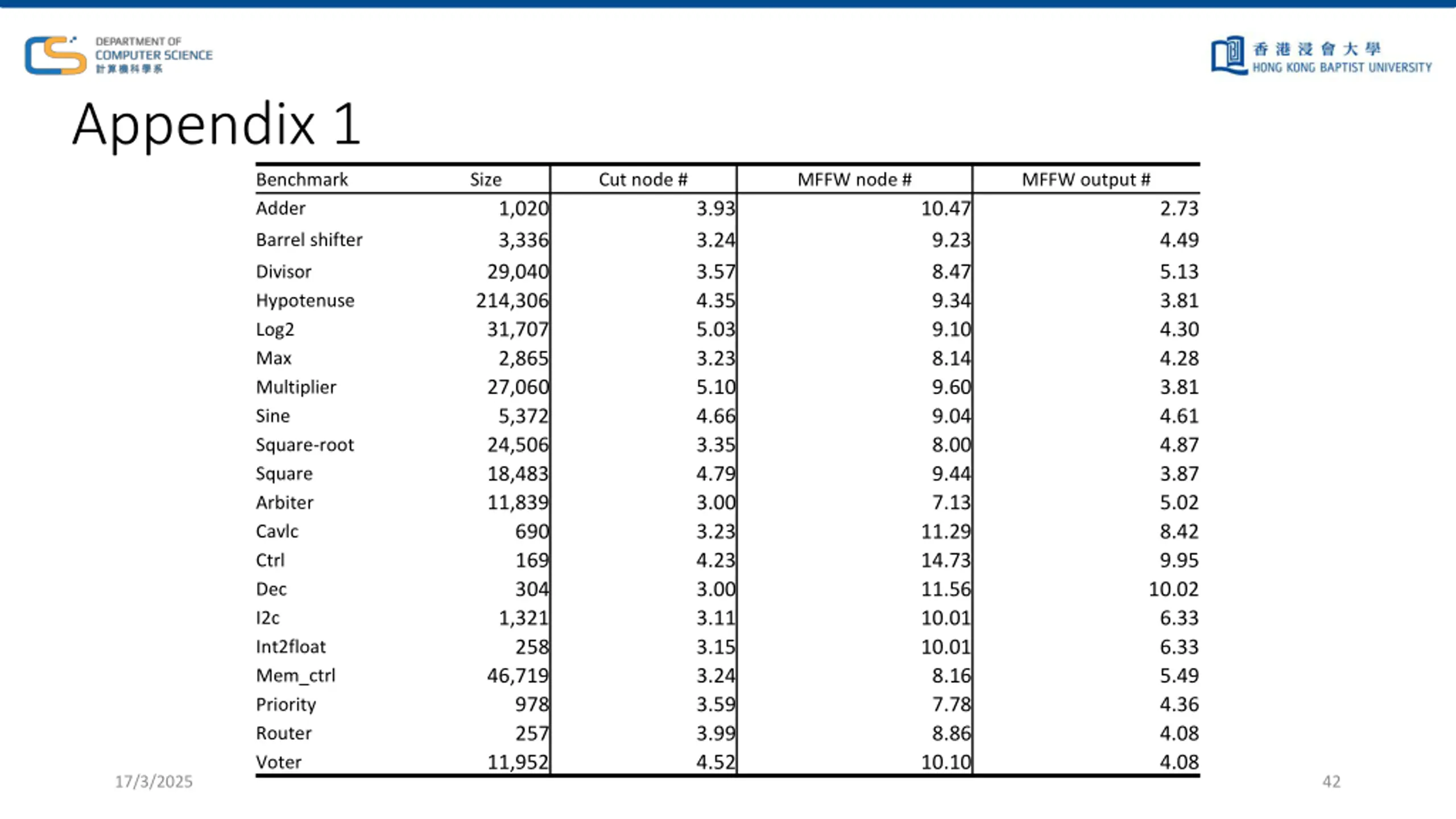

Appendix 1 Benchmark Adder Size Cut node # MFFW node # MFFW output # 1,020 3,336 29,040 214,306 31,707 2,865 27,060 5,372 24,506 18,483 11,839 3.93 3.24 3.57 4.35 5.03 3.23 5.10 4.66 3.35 4.79 3.00 3.23 4.23 3.00 3.11 3.15 3.24 3.59 3.99 4.52 10.47 9.23 8.47 9.34 9.10 8.14 9.60 9.04 8.00 9.44 7.13 11.29 14.73 11.56 10.01 10.01 8.16 7.78 8.86 10.10 2.73 4.49 5.13 3.81 4.30 4.28 3.81 4.61 4.87 3.87 5.02 8.42 9.95 10.02 6.33 6.33 5.49 4.36 4.08 4.08 Barrel shifter Divisor Hypotenuse Log2 Max Multiplier Sine Square-root Square Arbiter Cavlc Ctrl Dec I2c Int2float Mem_ctrl Priority Router Voter 690 169 304 1,321 258 46,719 978 257 11,952 17/3/2025 42

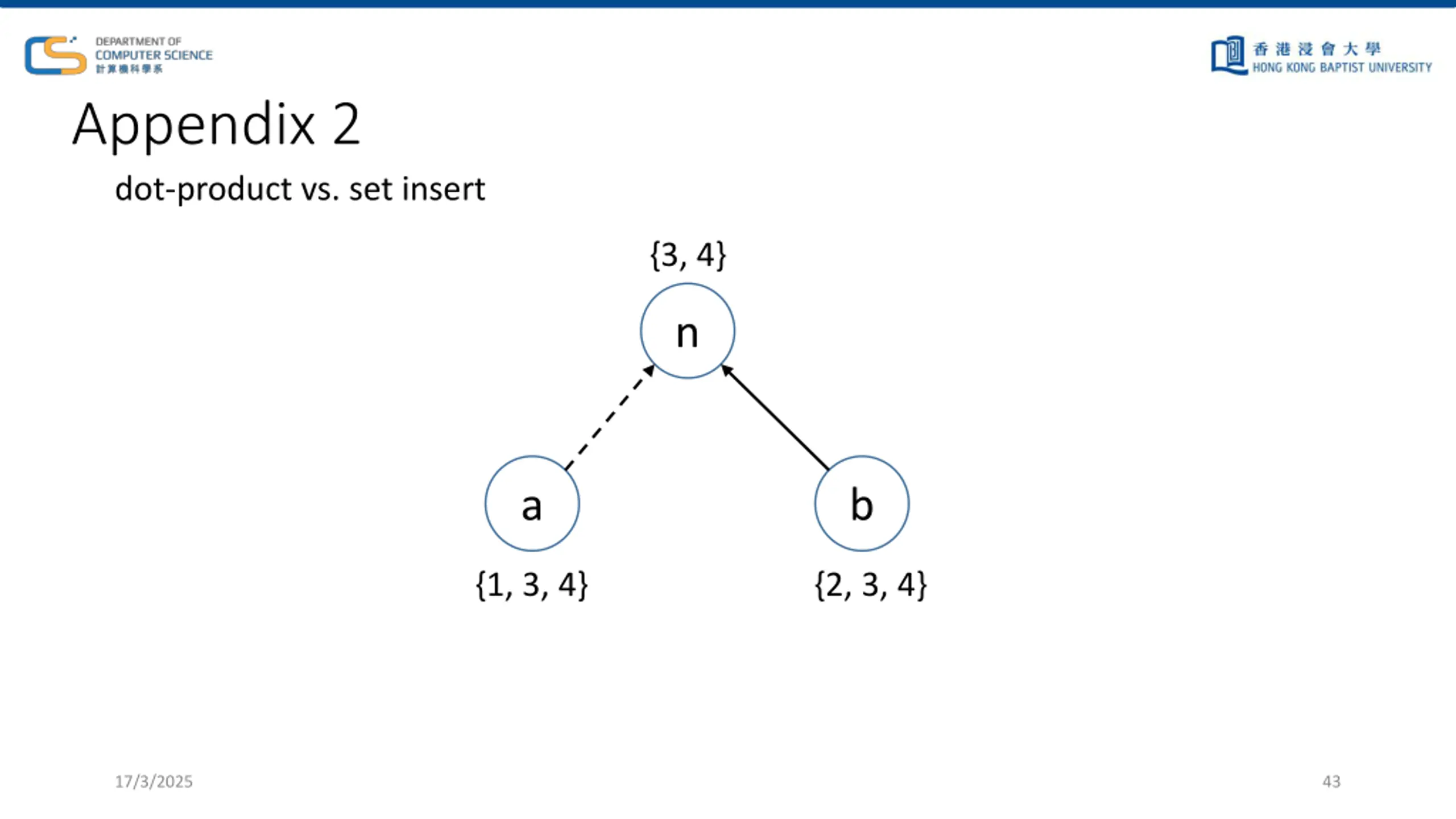

Appendix 2 dot-product vs. set insert {3, 4} n a b {1, 3, 4} {2, 3, 4} 17/3/2025 43

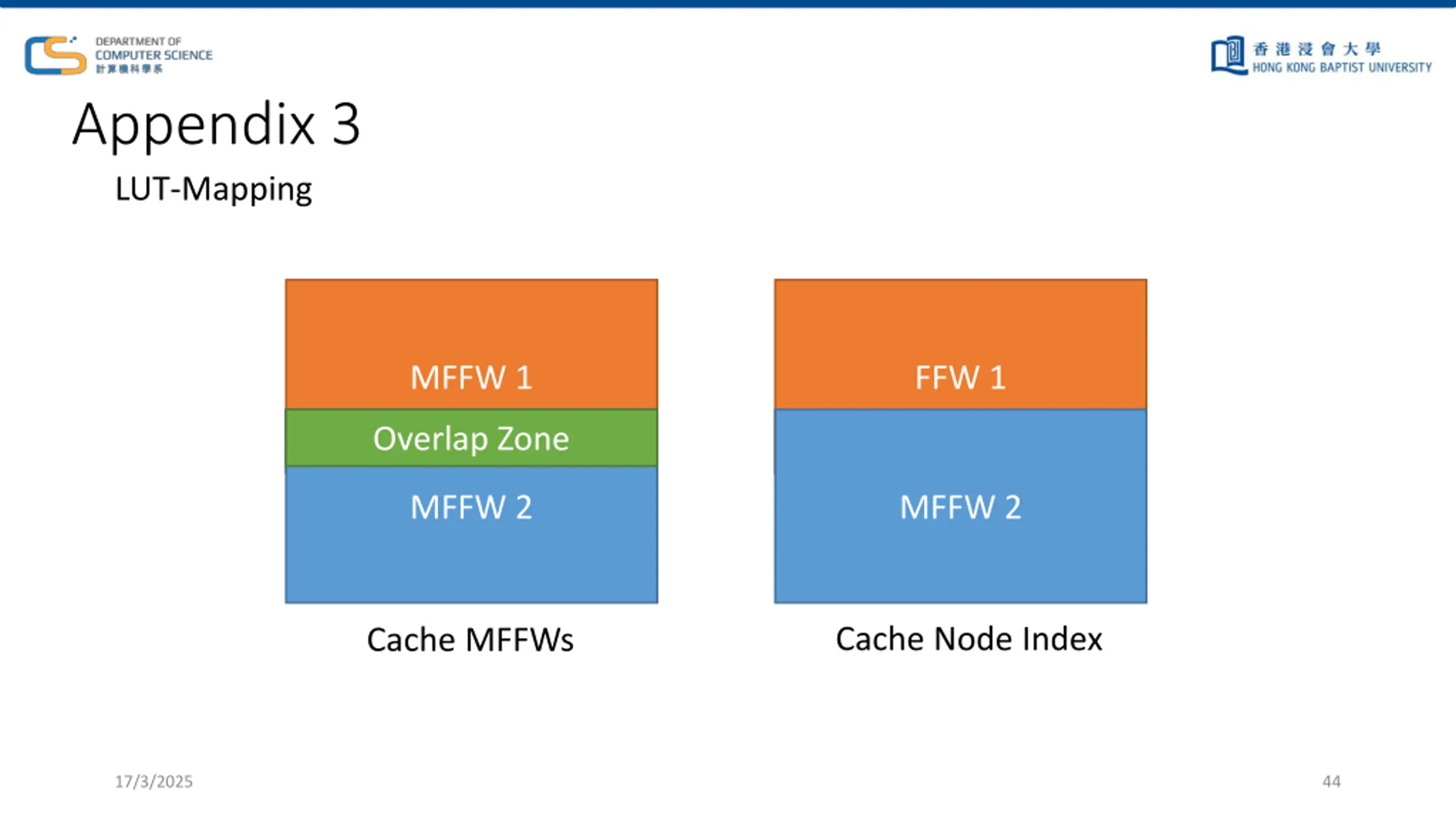

Appendix 3 LUT-Mapping MFFW 1 FFW 1 Overlap Zone MFFW 2 MFFW 2 Cache Node Index Cache MFFWs 17/3/2025 44
