DESIGN CONSIDERATIONS Lec.6 Prod.Eng.& Mech. Design Dept. Faculty of Engineering

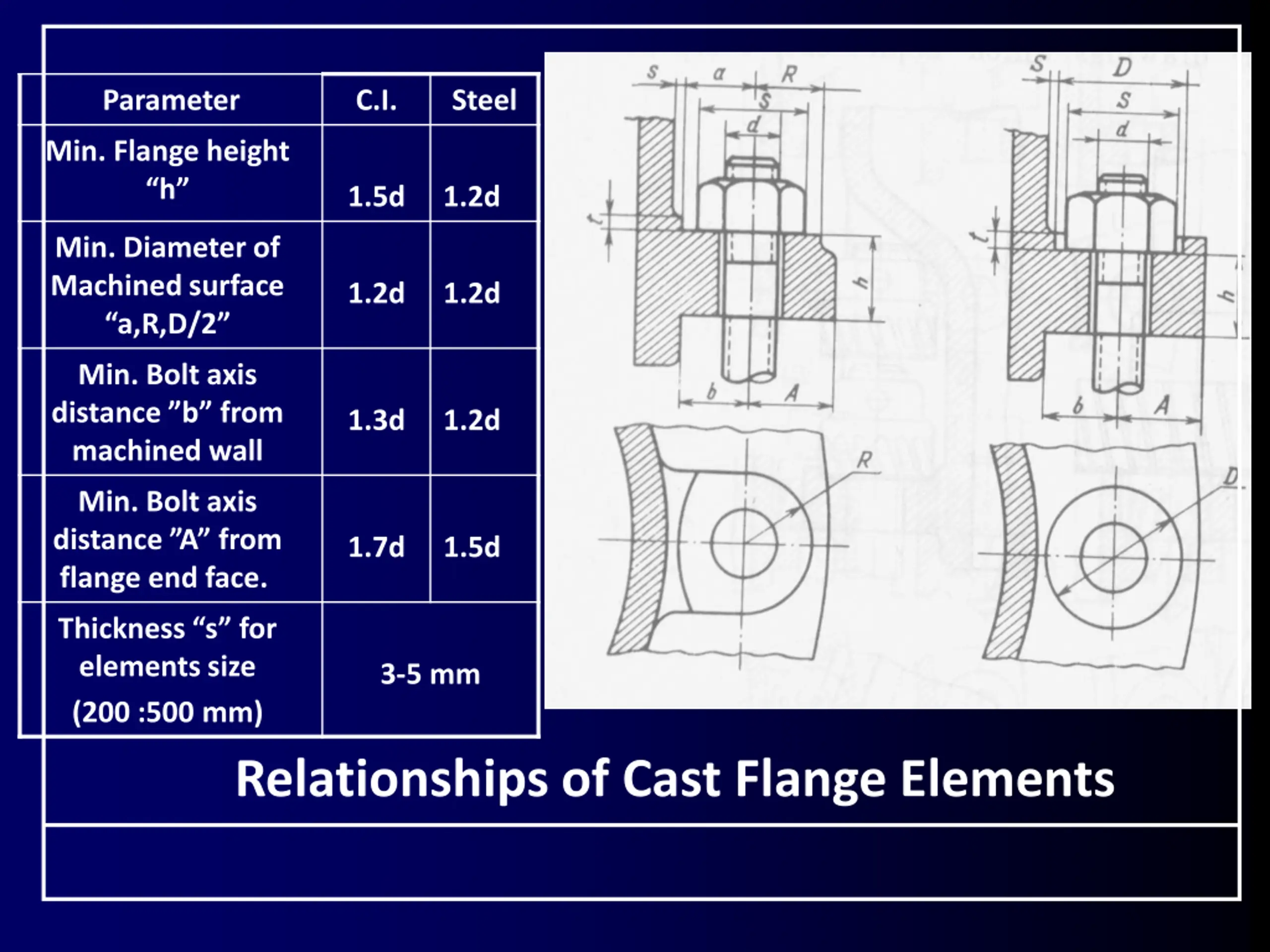

Parameter C.I. Steel Min. Flange height h 1.5d 1.2d Min. Diameter of Machined surface a,R,D/2 1.2d 1.2d Min. Bolt axis distance b from machined wall 1.3d 1.2d Min. Bolt axis distance A from flange end face. 1.7d 1.5d Thickness s for elements size (200 :500 mm) 3-5 mm Relationships of Cast Flange Elements

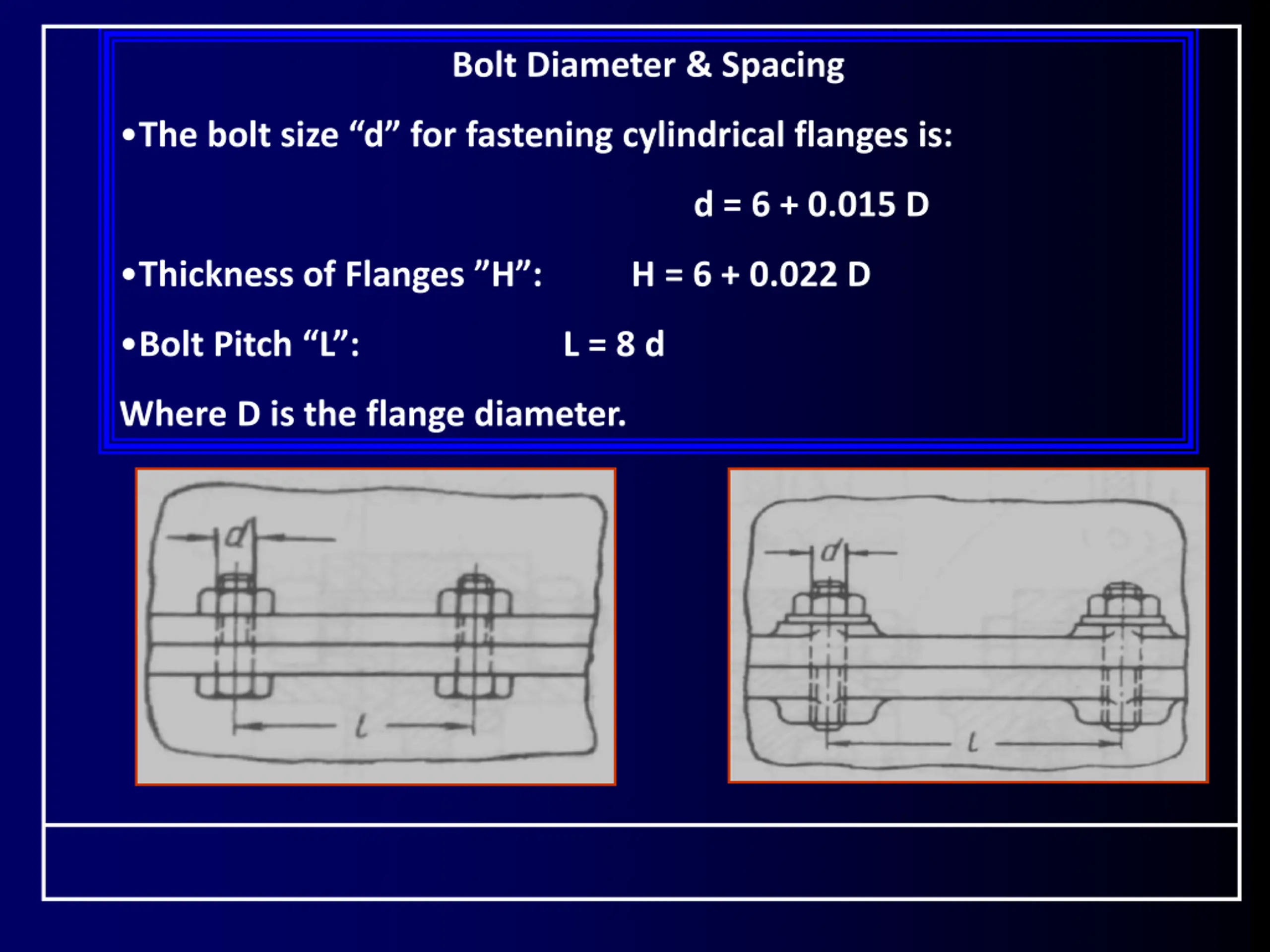

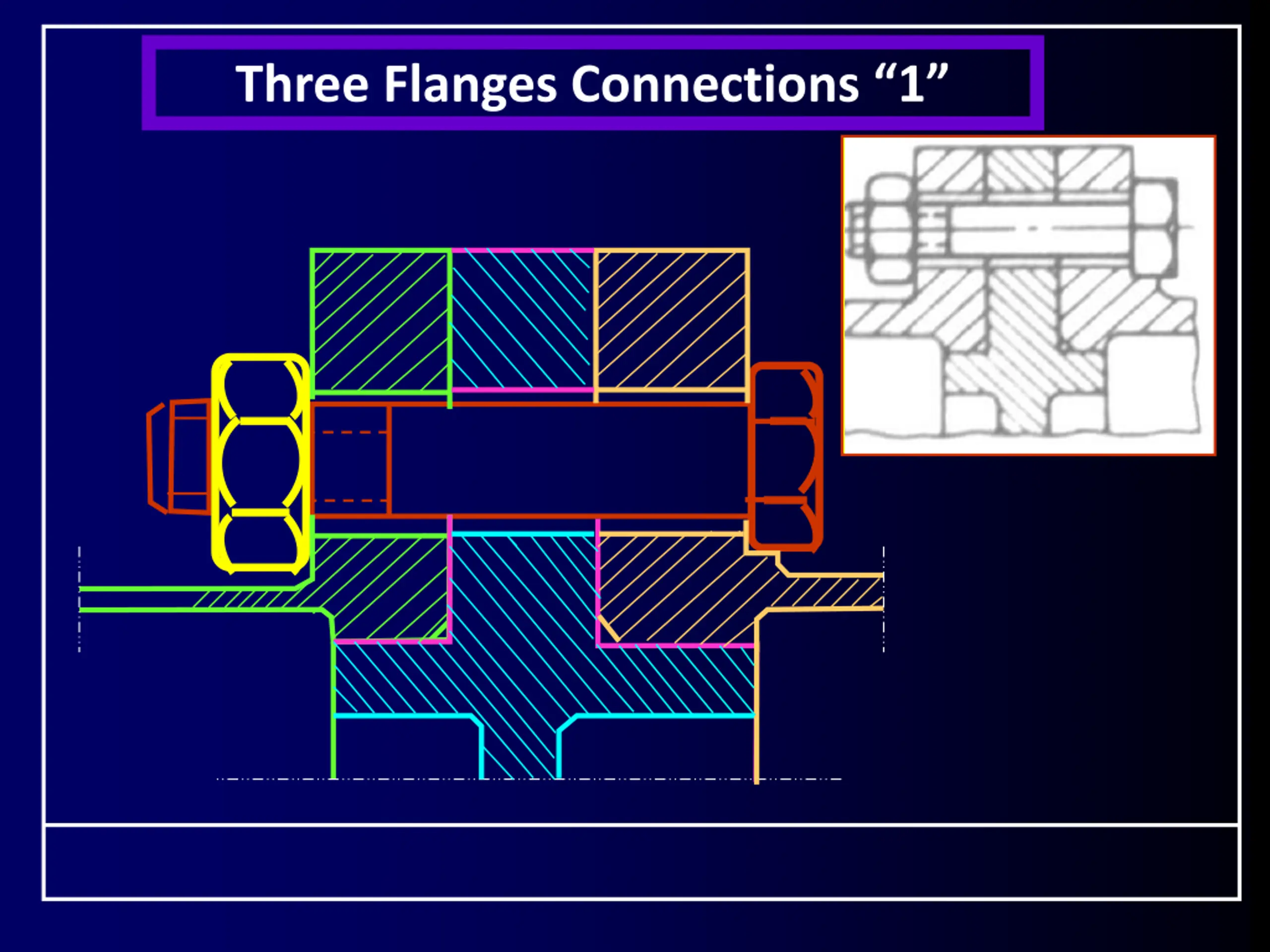

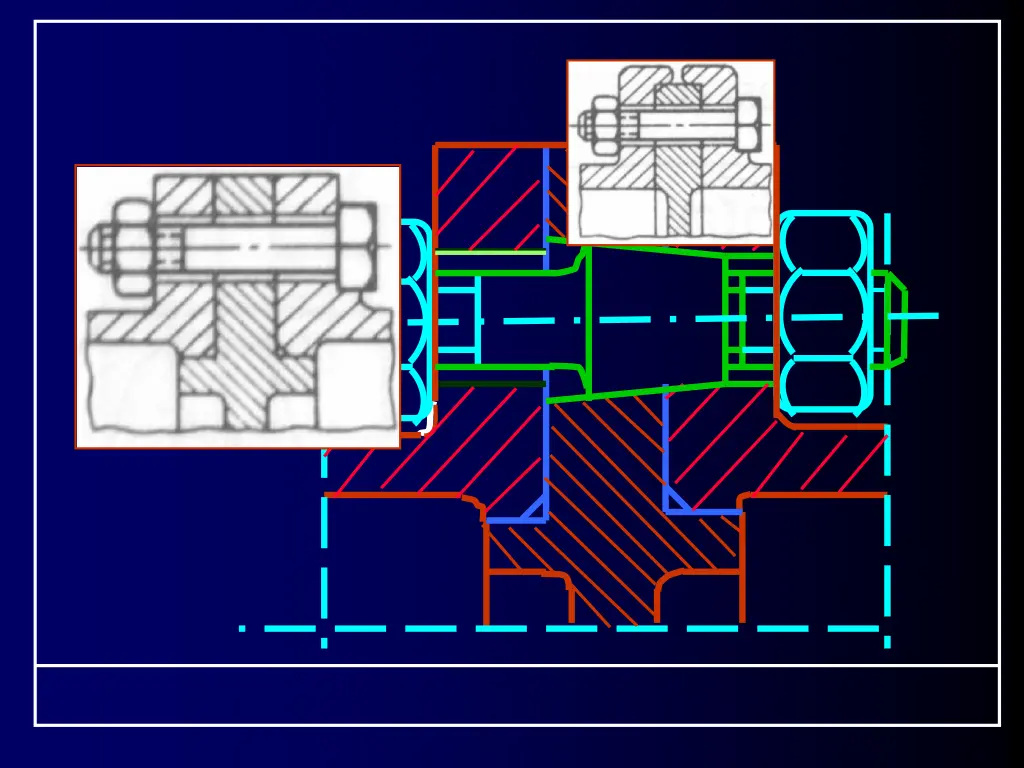

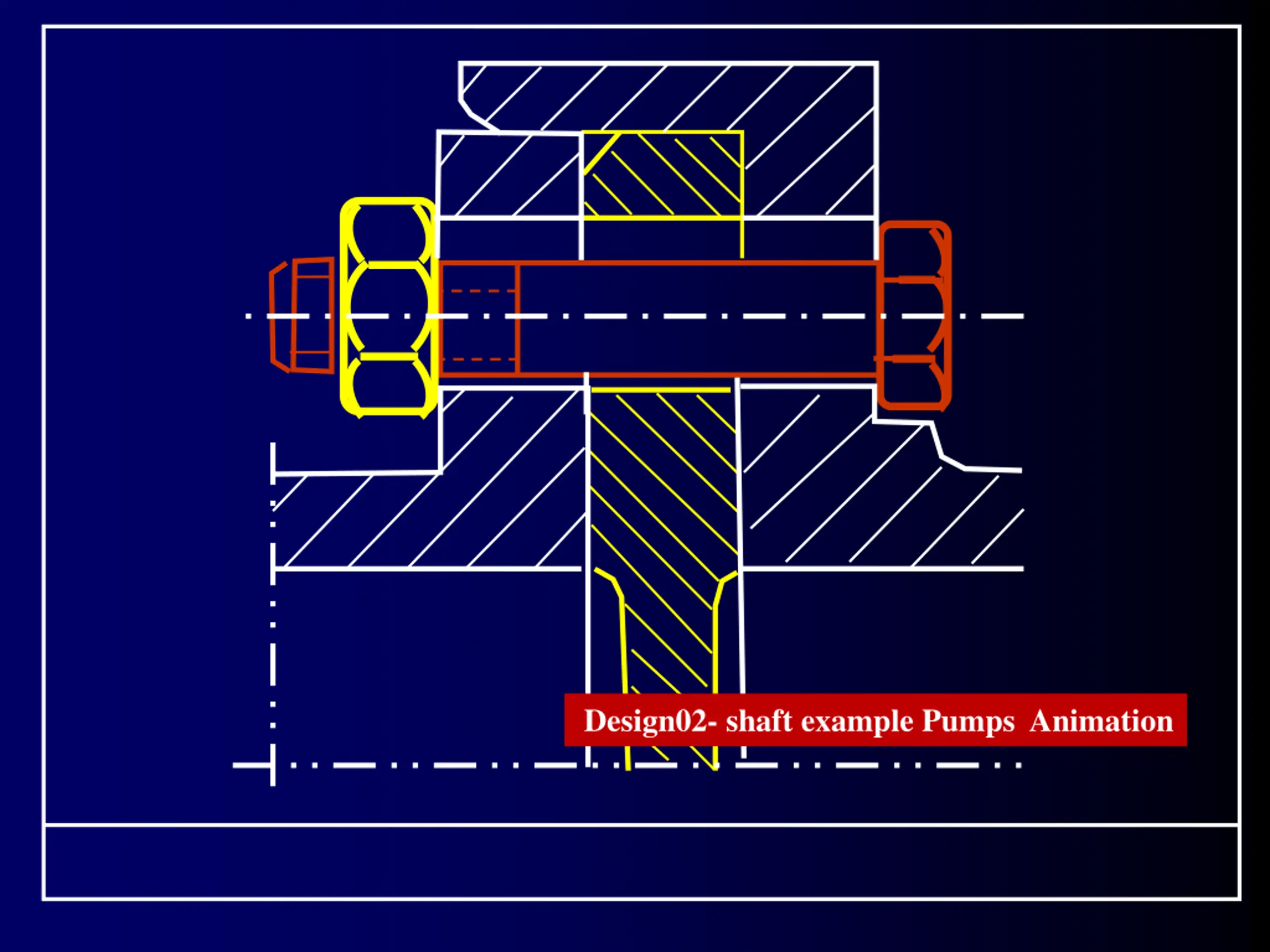

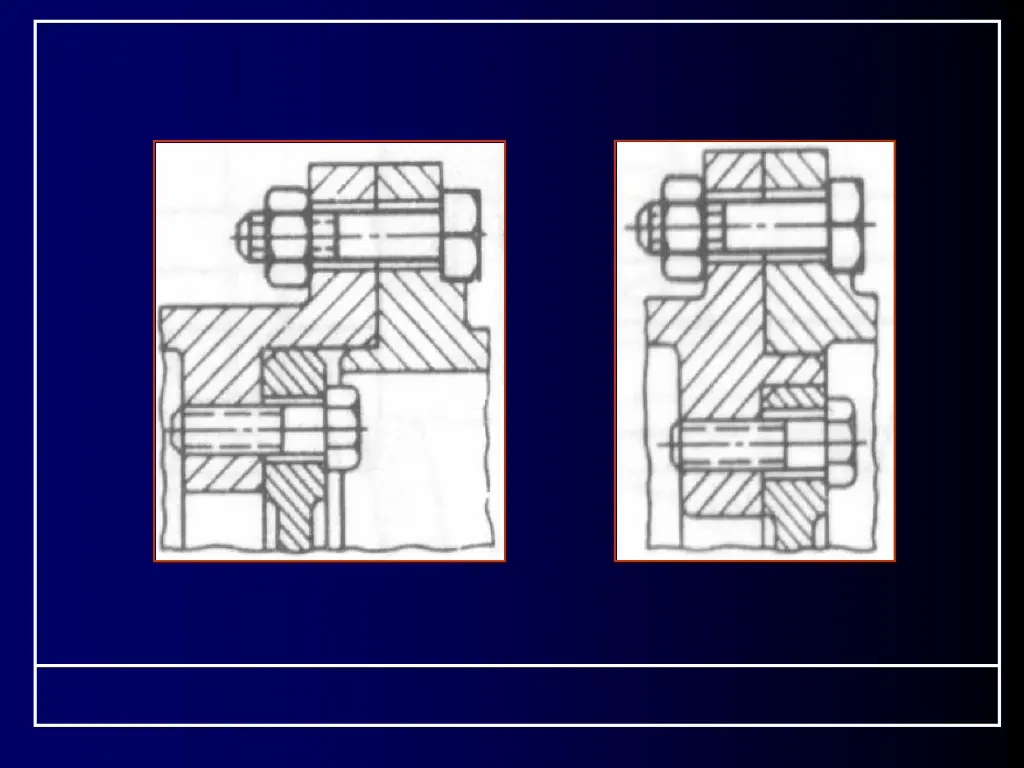

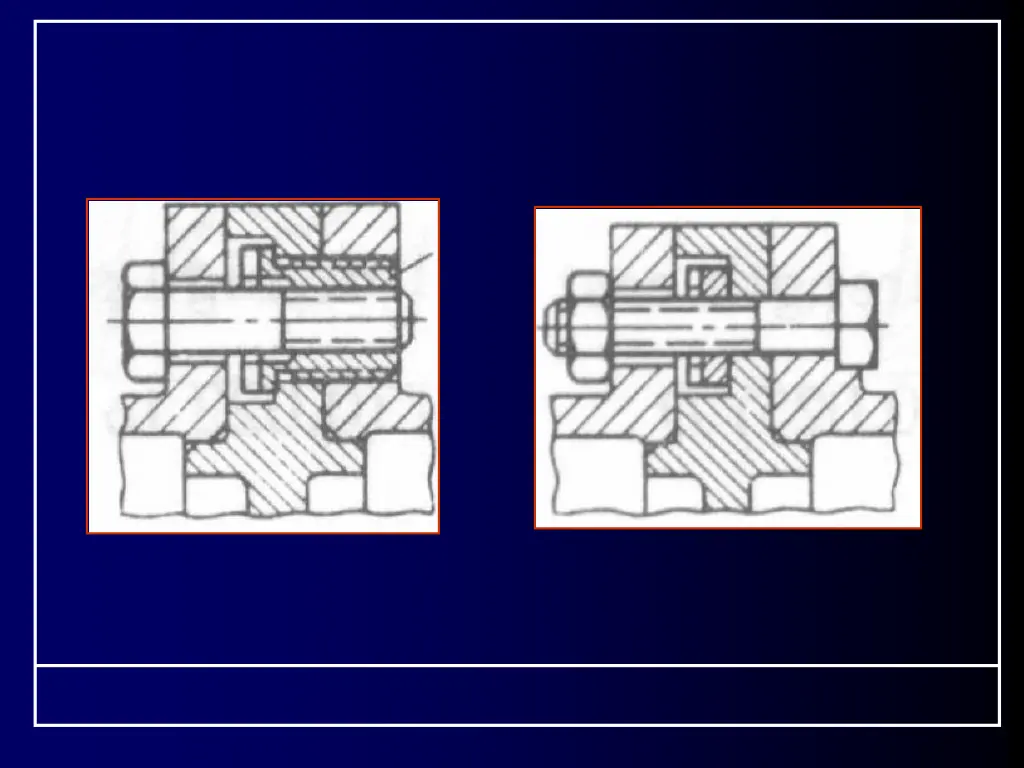

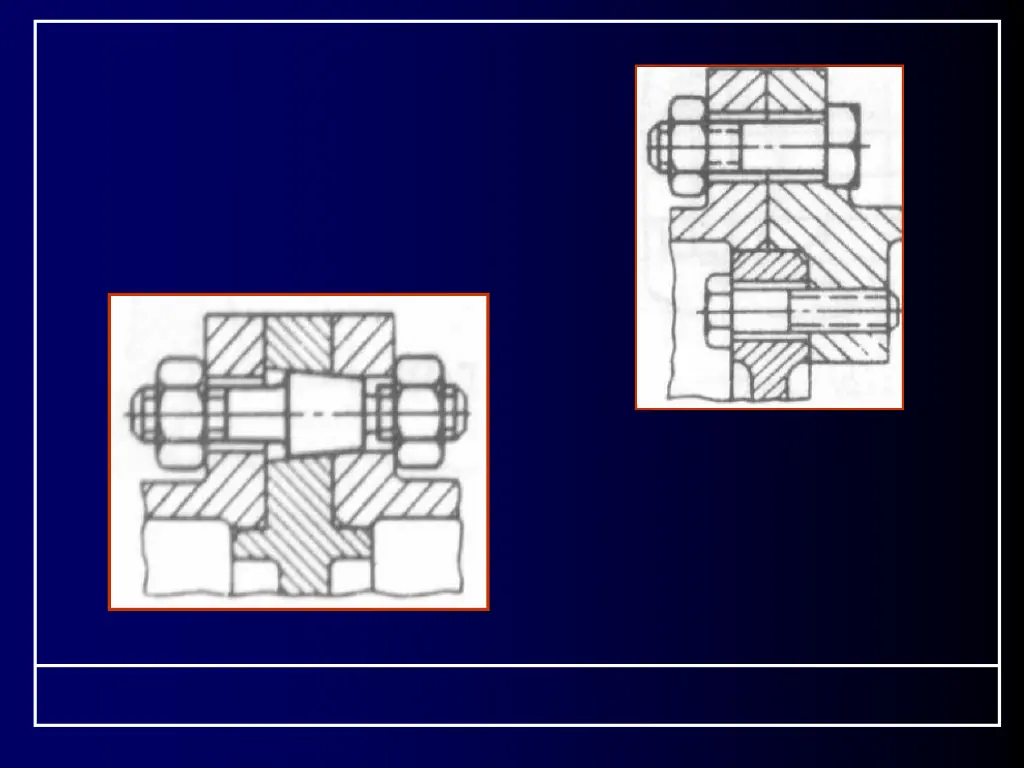

Bolt Diameter & Spacing The bolt size d for fastening cylindrical flanges is: d = 6 + 0.015 D Thickness of Flanges H : H = 6 + 0.022 D Bolt Pitch L : L = 8 d Where D is the flange diameter.

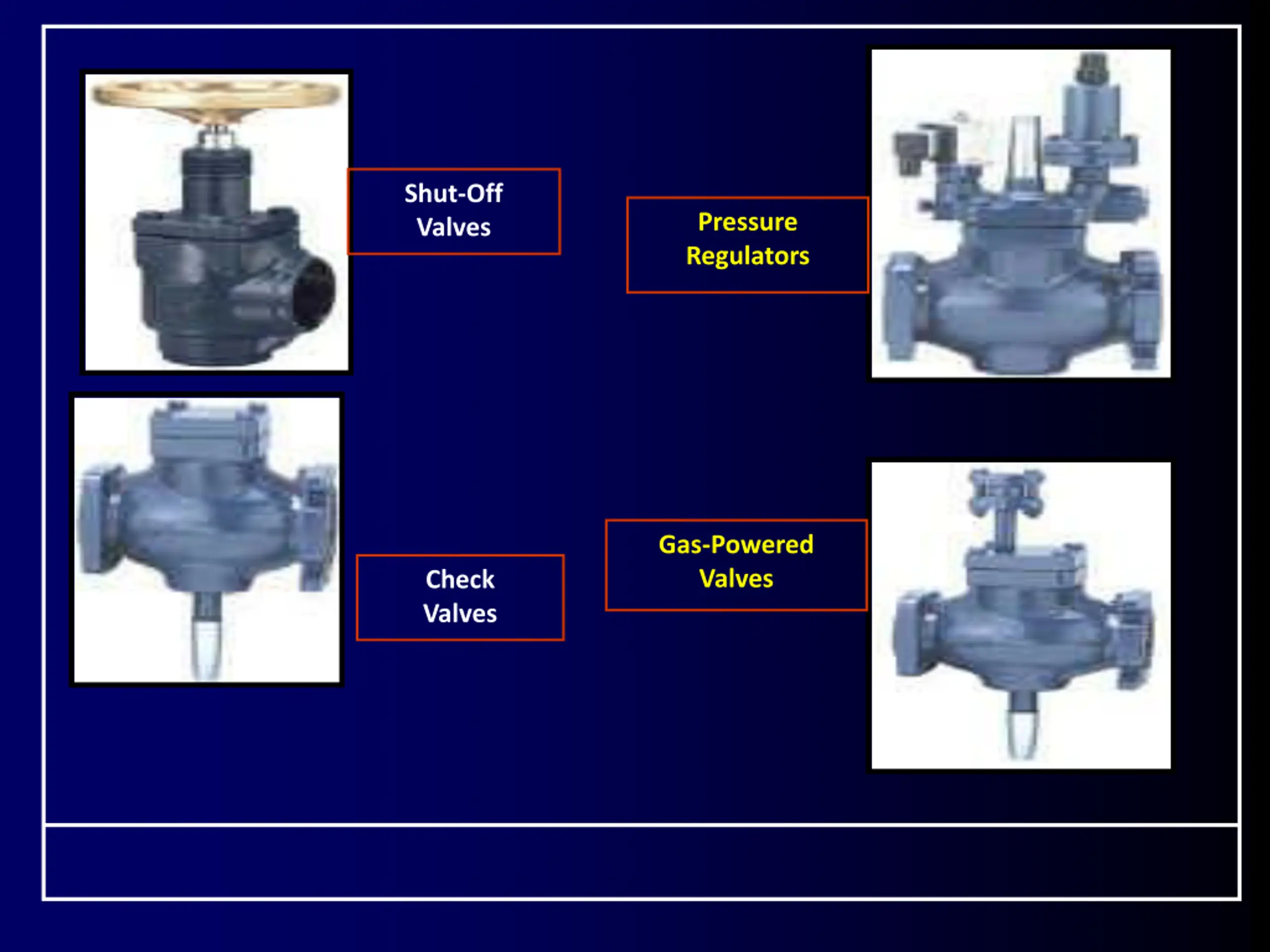

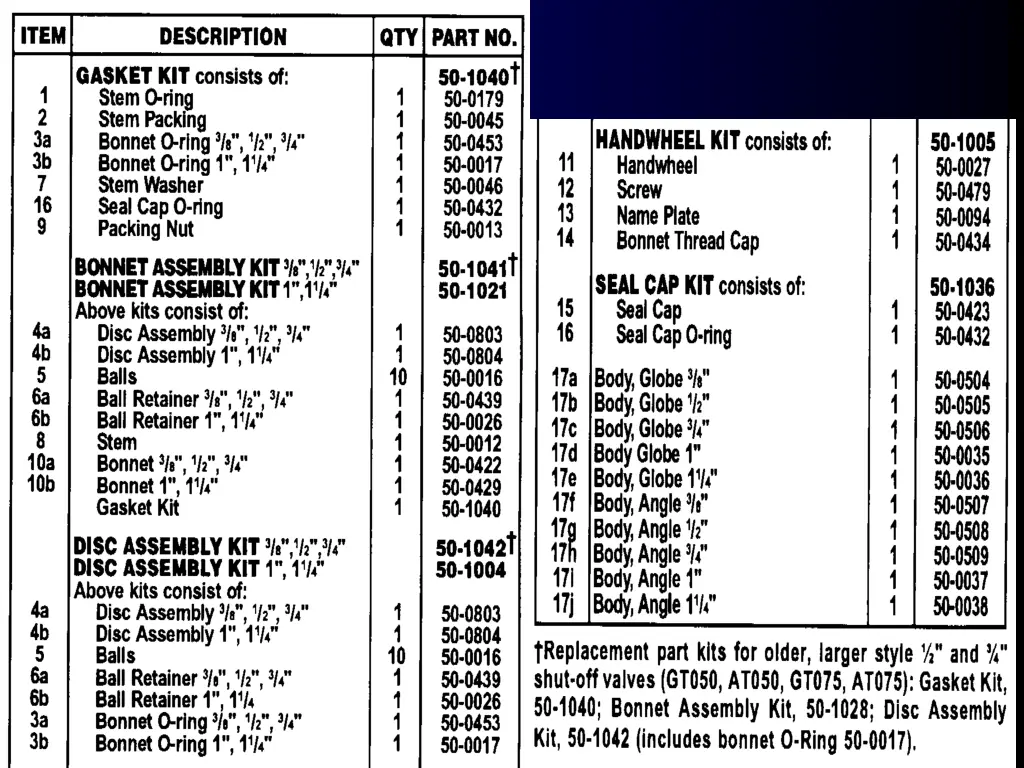

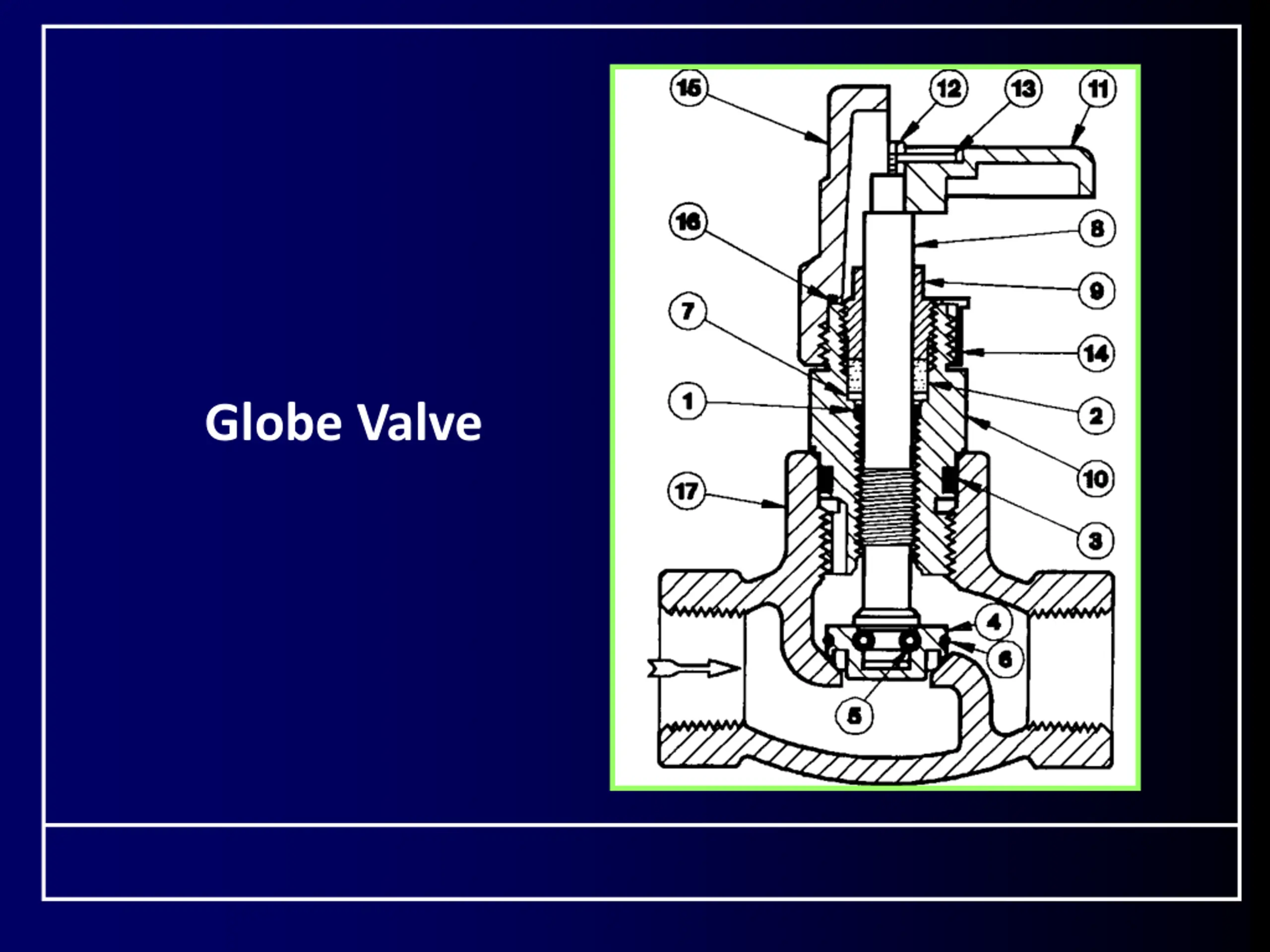

Shut-Off Valves Pressure Regulators Gas-Powered Valves Check Valves

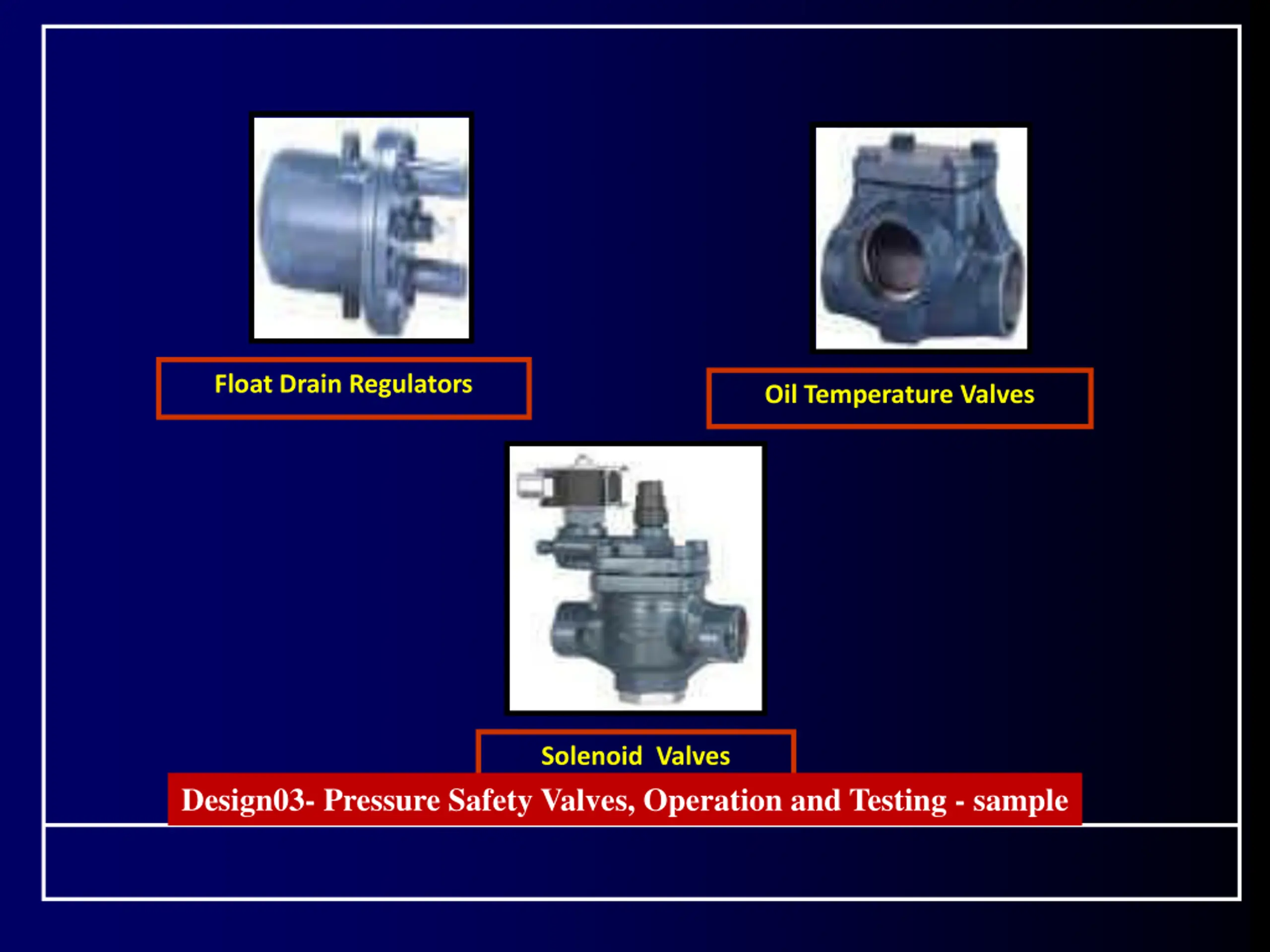

Float Drain Regulators Oil Temperature Valves Solenoid Valves Design03- Pressure Safety Valves, Operation and Testing - sample
