SR Products Sales Training Conference Rio Mar Resort, Puerto Rico New Product Presentation SR MB Systems Charles Heidler AIA Tuesday 4/16 8:00 am 9:45 and 10:15 - Noon
Today's Discussion Why more membranes? New systems available Configuration of the membrane systems Cost of membrane systems

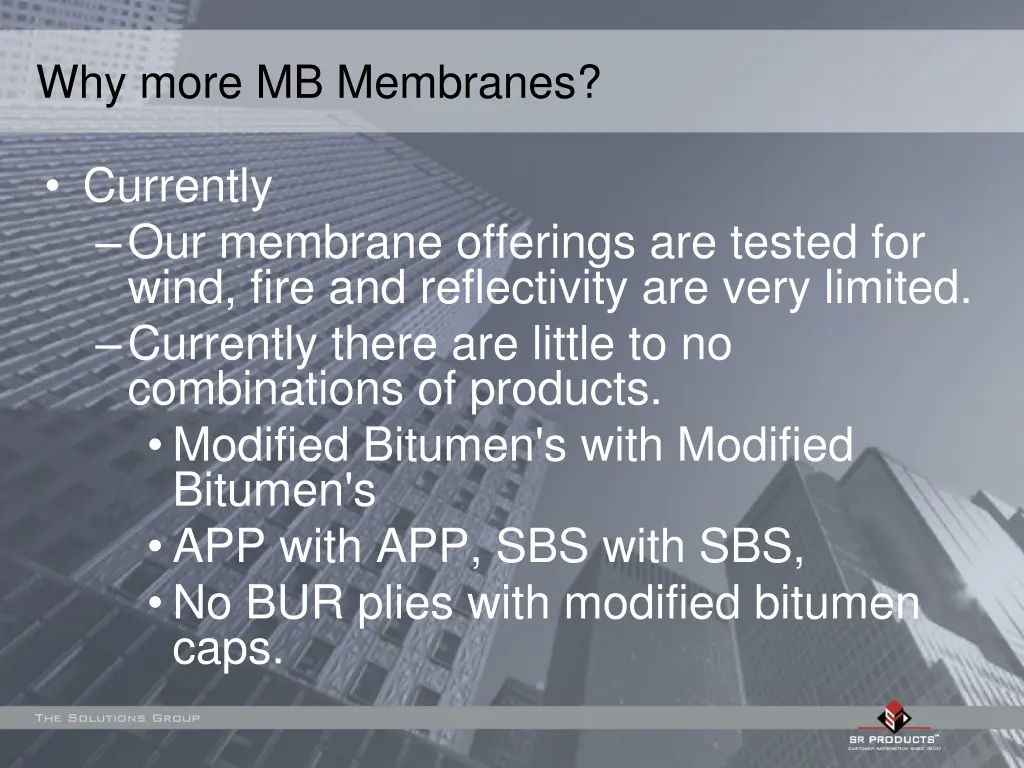

Why more MB Membranes? Currently Our membrane offerings are tested for wind, fire and reflectivity are very limited. Currently there are little to no combinations of products. Modified Bitumen's with Modified Bitumen's APP with APP, SBS with SBS, No BUR plies with modified bitumen caps.

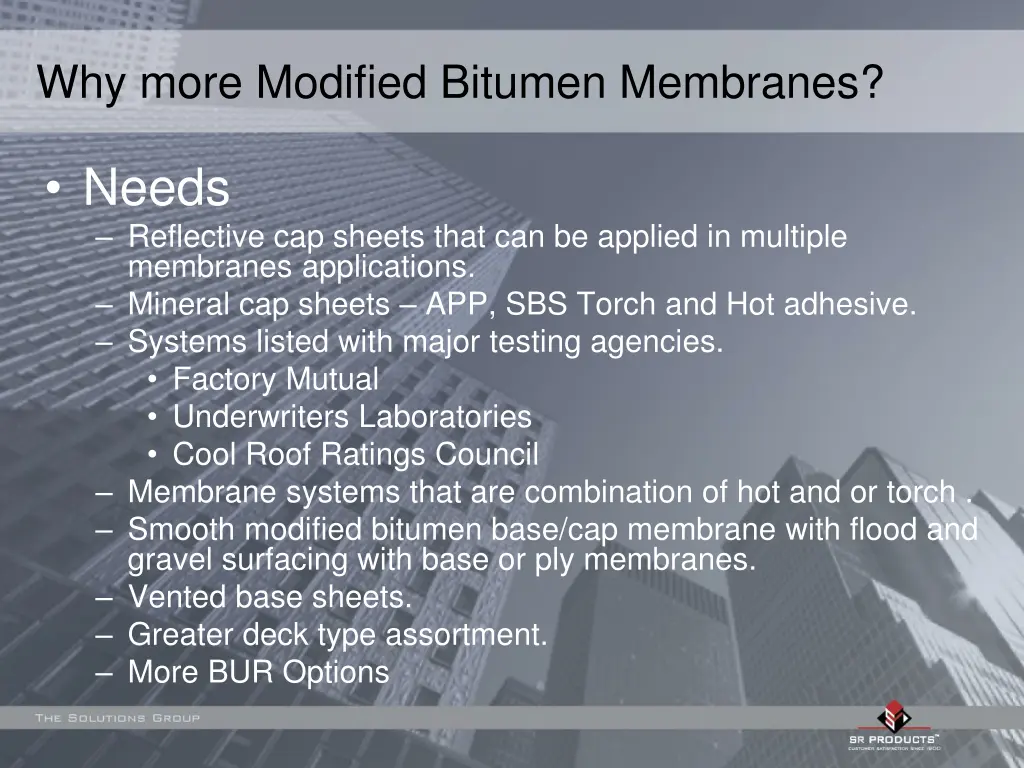

Why more Modified Bitumen Membranes? Needs Reflective cap sheets that can be applied in multiple membranes applications. Mineral cap sheets APP, SBS Torch and Hot adhesive. Systems listed with major testing agencies. Factory Mutual Underwriters Laboratories Cool Roof Ratings Council Membrane systems that are combination of hot and or torch . Smooth modified bitumen base/cap membrane with flood and gravel surfacing with base or ply membranes. Vented base sheets. Greater deck type assortment. More BUR Options

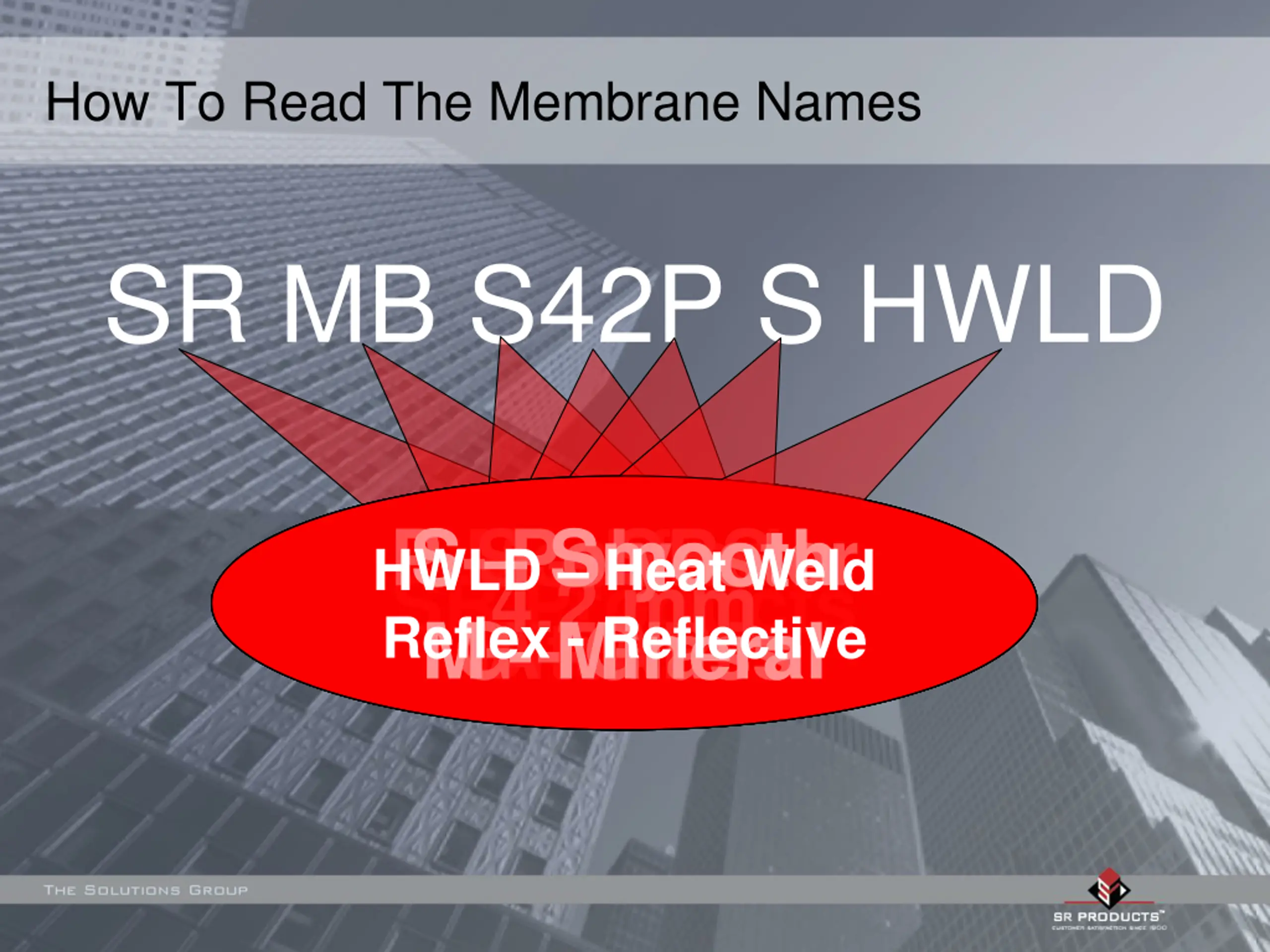

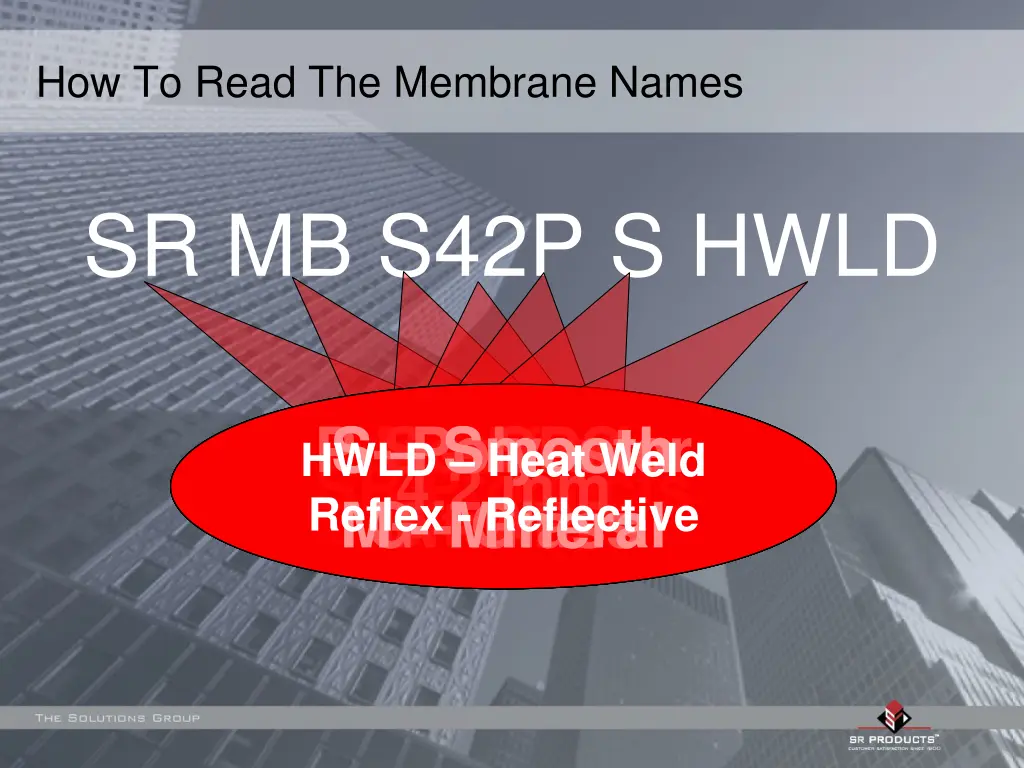

How To Read The Membrane Names SR MB S42P S HWLD P - Polyester S Smooth HWLD Heat Weld Modified S SBS 4.2 mm Reflex - Reflective SR Products Bitumen A - APP G - Glass M - Mineral

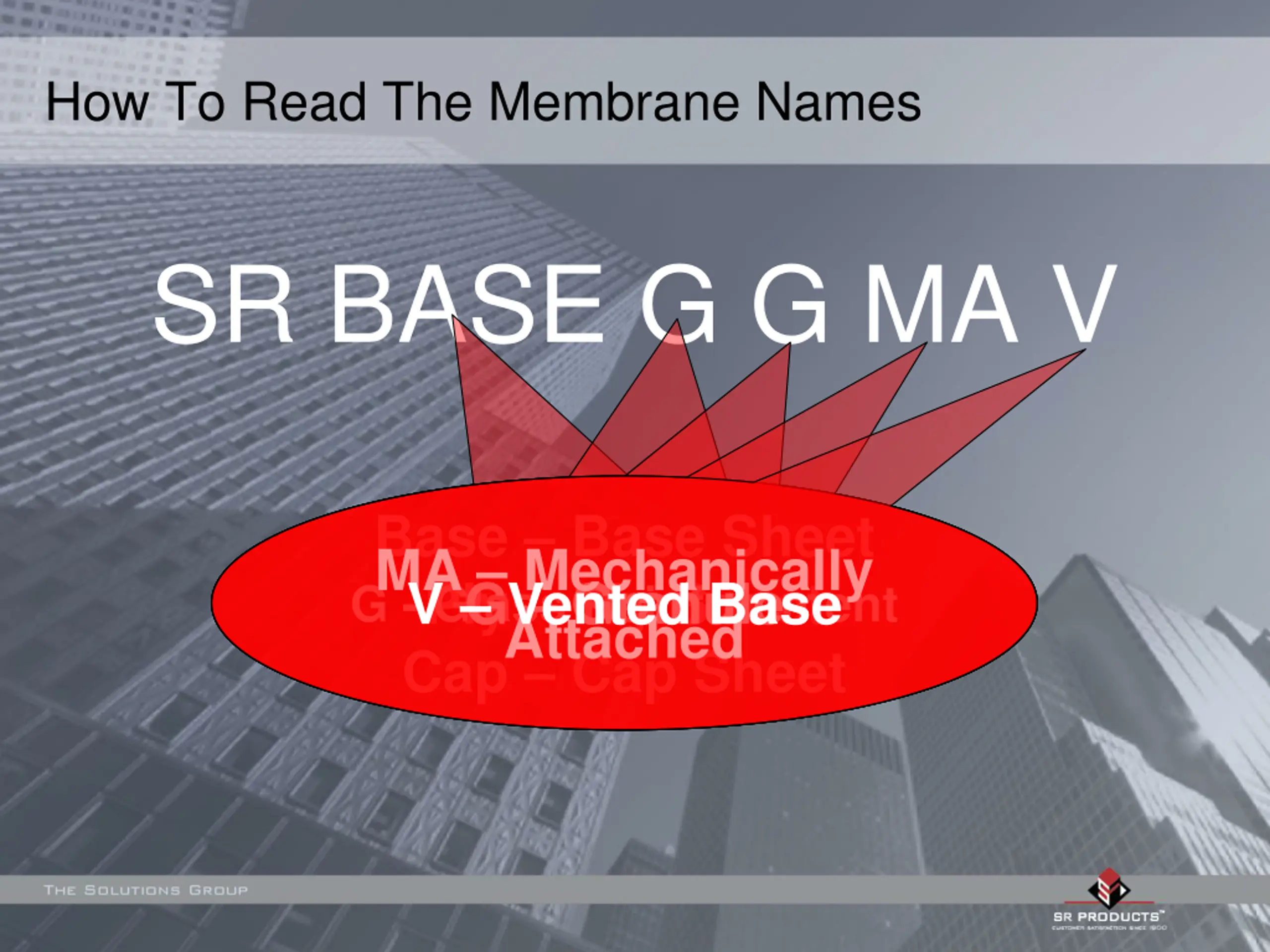

How To Read The Membrane Names SR BASE G G MA V Base Base Sheet Ply Ply Sheet Cap Cap Sheet MA Mechanically V Vented Base G - Glass Reinforcment G Granule Attached
New Systems Available Cap Sheets Mineral, smooth (F&G) and white reflective surfaced In hot SBS, torch APP and SBS Polyester and glass reinforcements
New Systems Available Ply and Base Sheets Smooth modified bitumen, G2 base sheets, Type IV glass and vented base sheets Polyester and glass reinforcements Insulation attachment Mechanical, hot and/ or cold adhesive All of these systems are compatible with the Wite Brite Hi Bild Flashing System

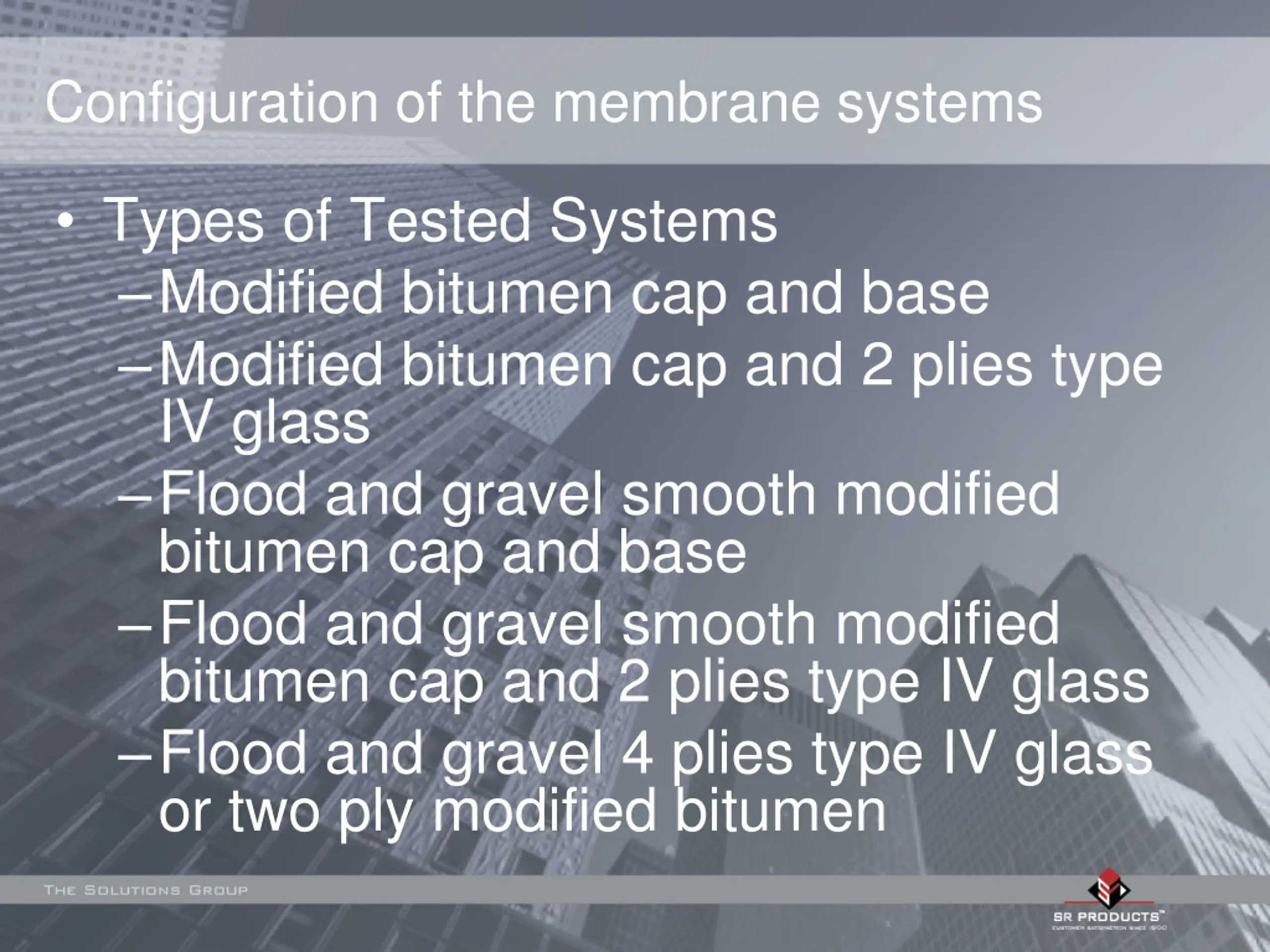

Configuration of the membrane systems Types of Tested Systems Modified bitumen cap and base Modified bitumen cap and 2 plies type IV glass Flood and gravel smooth modified bitumen cap and base Flood and gravel smooth modified bitumen cap and 2 plies type IV glass Flood and gravel 4 plies type IV glass or two ply modified bitumen

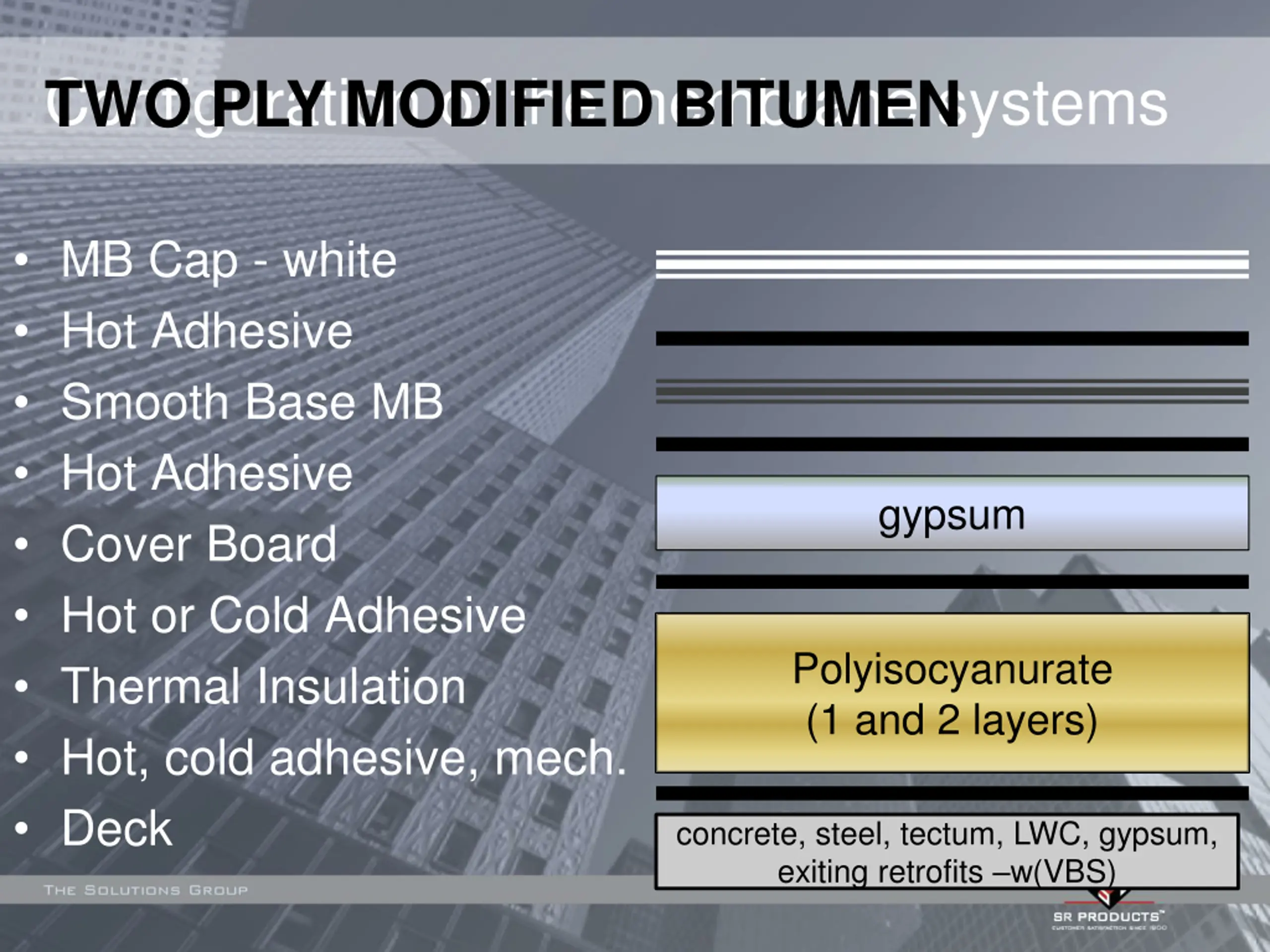

Configuration of the membrane systems TWO PLY MODIFIED BITUMEN MB Cap - white Hot Adhesive Smooth Base MB Hot Adhesive Cover Board Hot or Cold Adhesive Thermal Insulation Hot, cold adhesive, mech. Deck gypsum Polyisocyanurate (1 and 2 layers) concrete, steel, tectum, LWC, gypsum, exiting retrofits w(VBS)

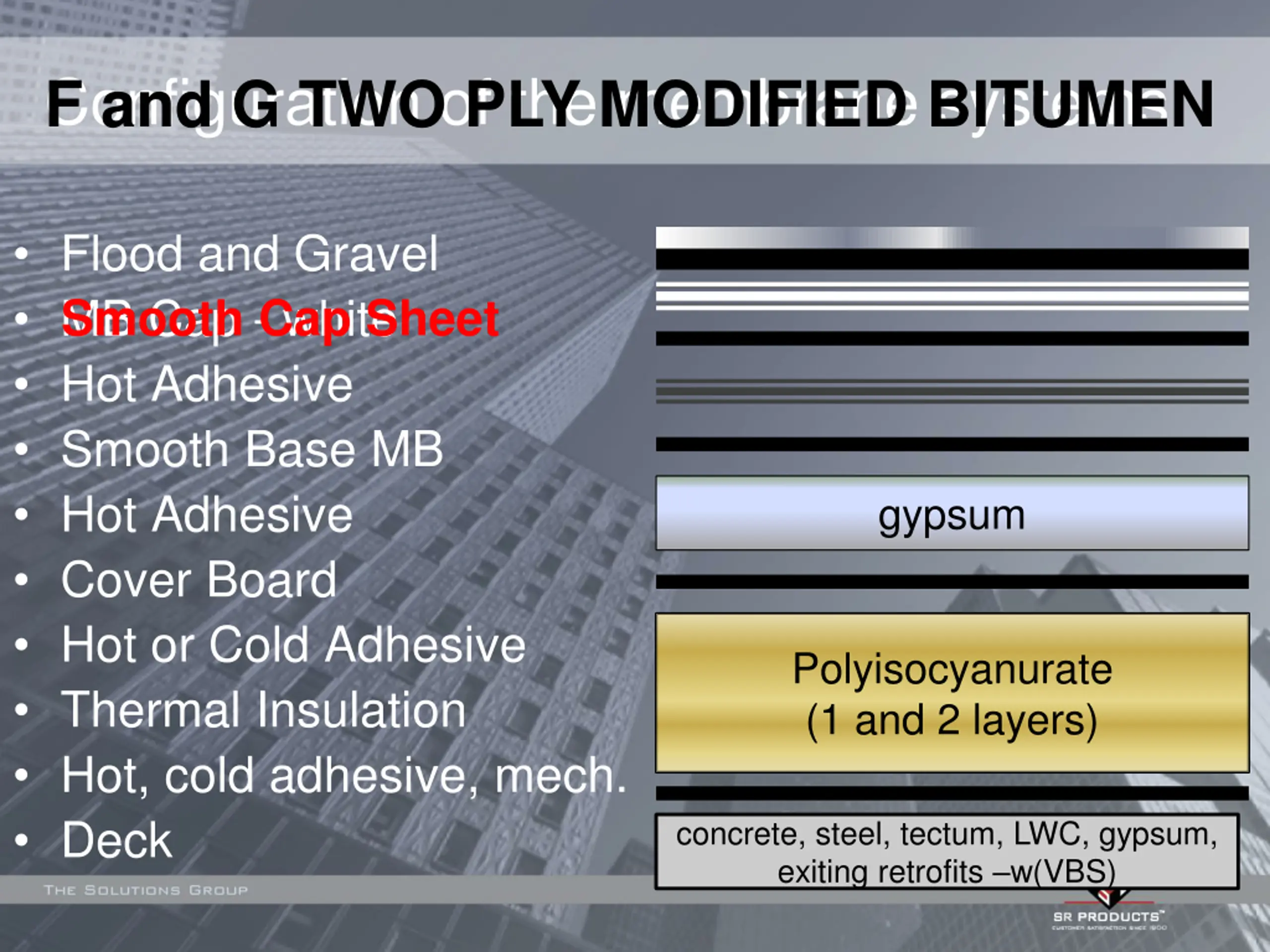

Configuration of the membrane systems F and G TWO PLY MODIFIED BITUMEN Flood and Gravel MB Cap - white Hot Adhesive Smooth Base MB Hot Adhesive Cover Board Hot or Cold Adhesive Thermal Insulation Hot, cold adhesive, mech. Deck Smooth Cap Sheet gypsum Polyisocyanurate (1 and 2 layers) concrete, steel, tectum, LWC, gypsum, exiting retrofits w(VBS)

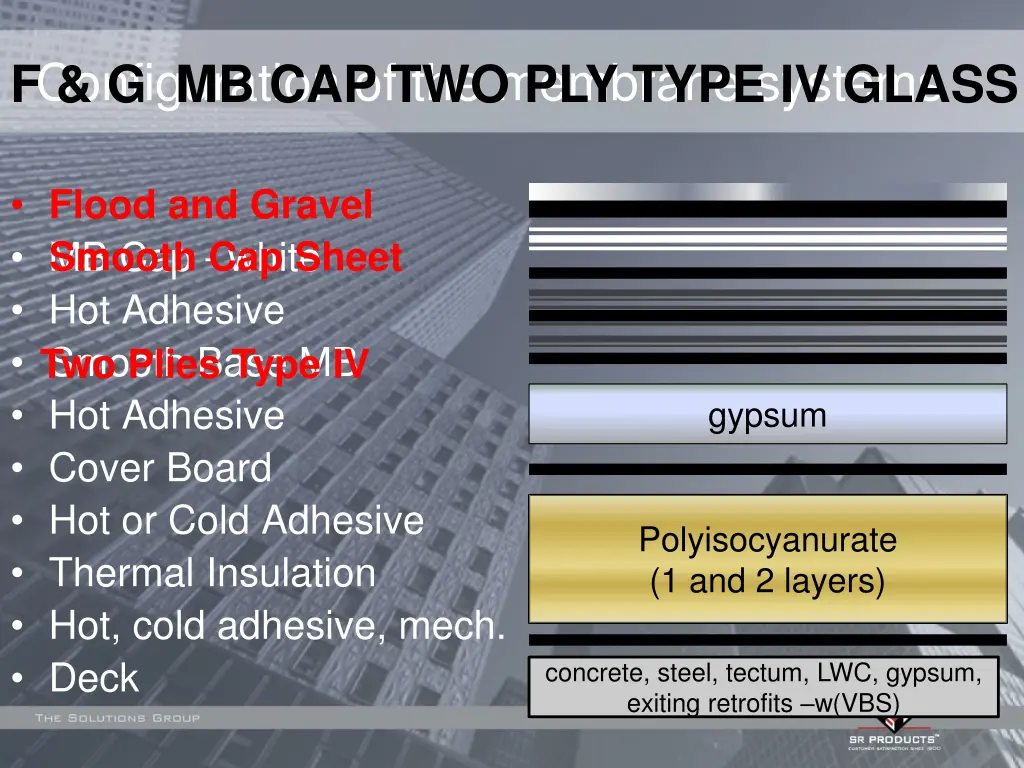

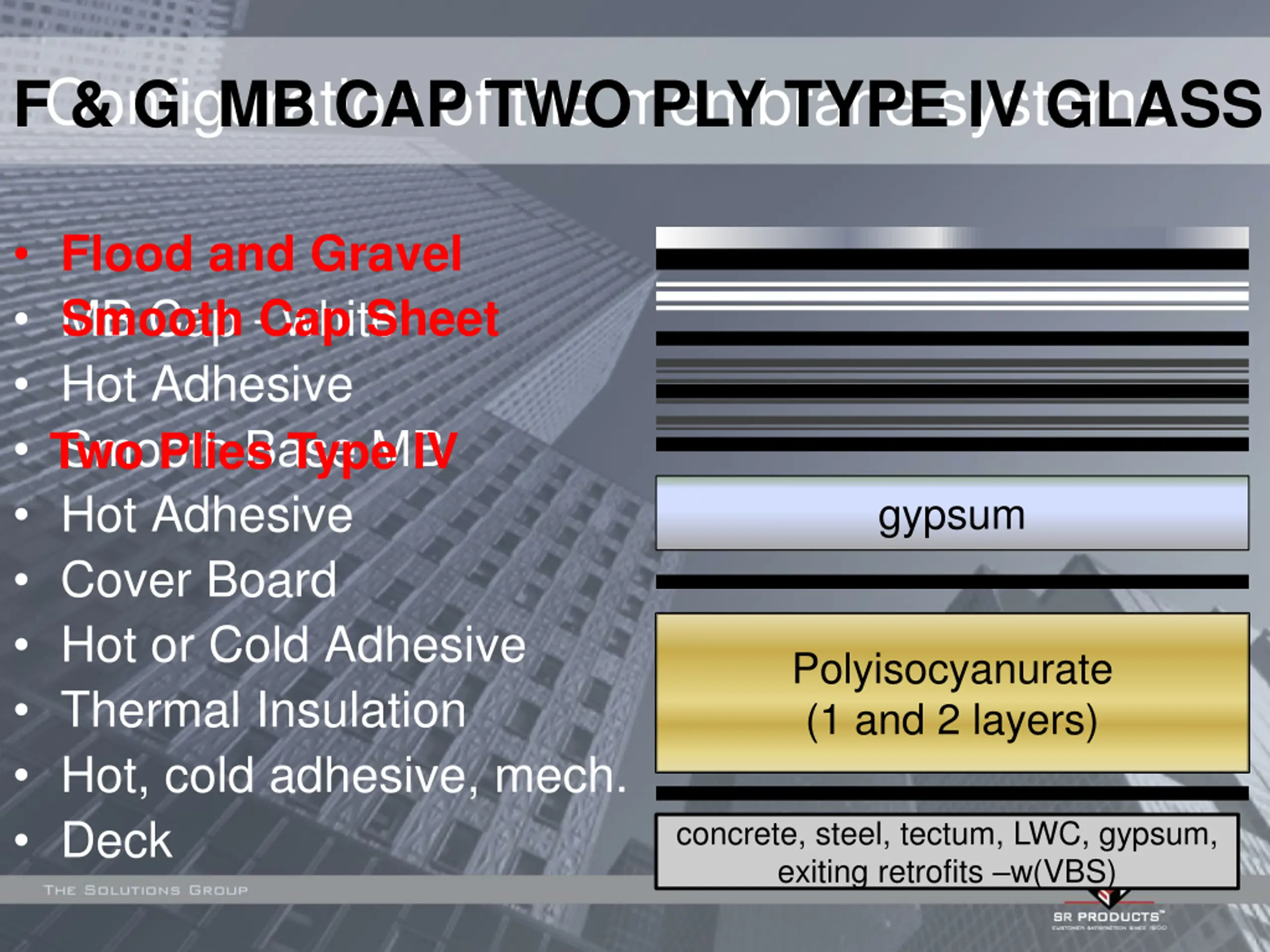

Configuration of the membrane systems F & G MB CAP TWO PLY TYPE IV GLASS Flood and Gravel MB Cap - white Hot Adhesive Smooth Base MB Hot Adhesive Cover Board Hot or Cold Adhesive Thermal Insulation Hot, cold adhesive, mech. Deck Smooth Cap Sheet Two Plies Type IV gypsum Polyisocyanurate (1 and 2 layers) concrete, steel, tectum, LWC, gypsum, exiting retrofits w(VBS)

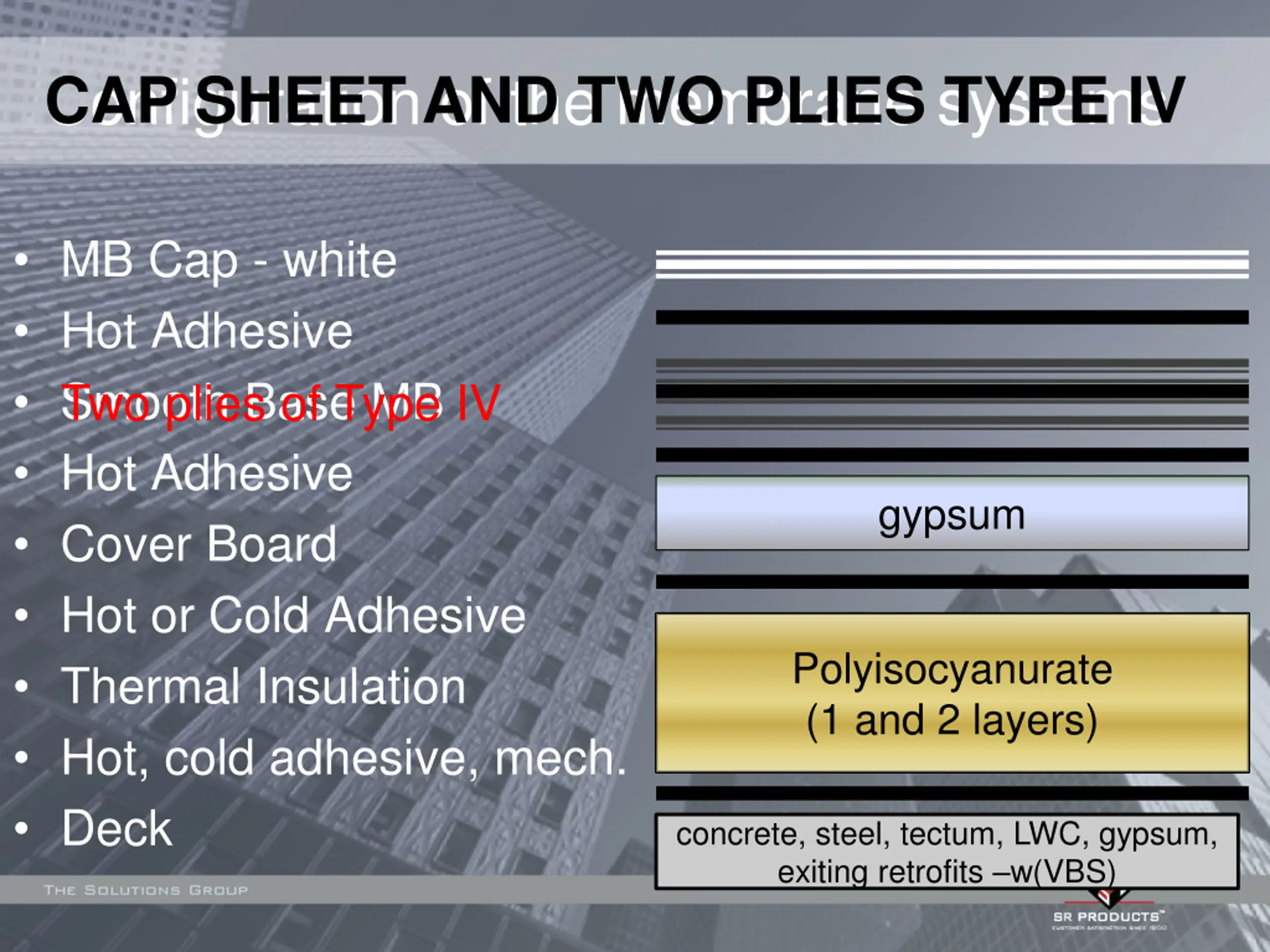

Configuration of the membrane systems CAP SHEET AND TWO PLIES TYPE IV MB Cap - white Hot Adhesive Smooth Base MB Hot Adhesive Cover Board Hot or Cold Adhesive Thermal Insulation Hot, cold adhesive, mech. Deck Two plies of Type IV gypsum Polyisocyanurate (1 and 2 layers) concrete, steel, tectum, LWC, gypsum, exiting retrofits w(VBS)

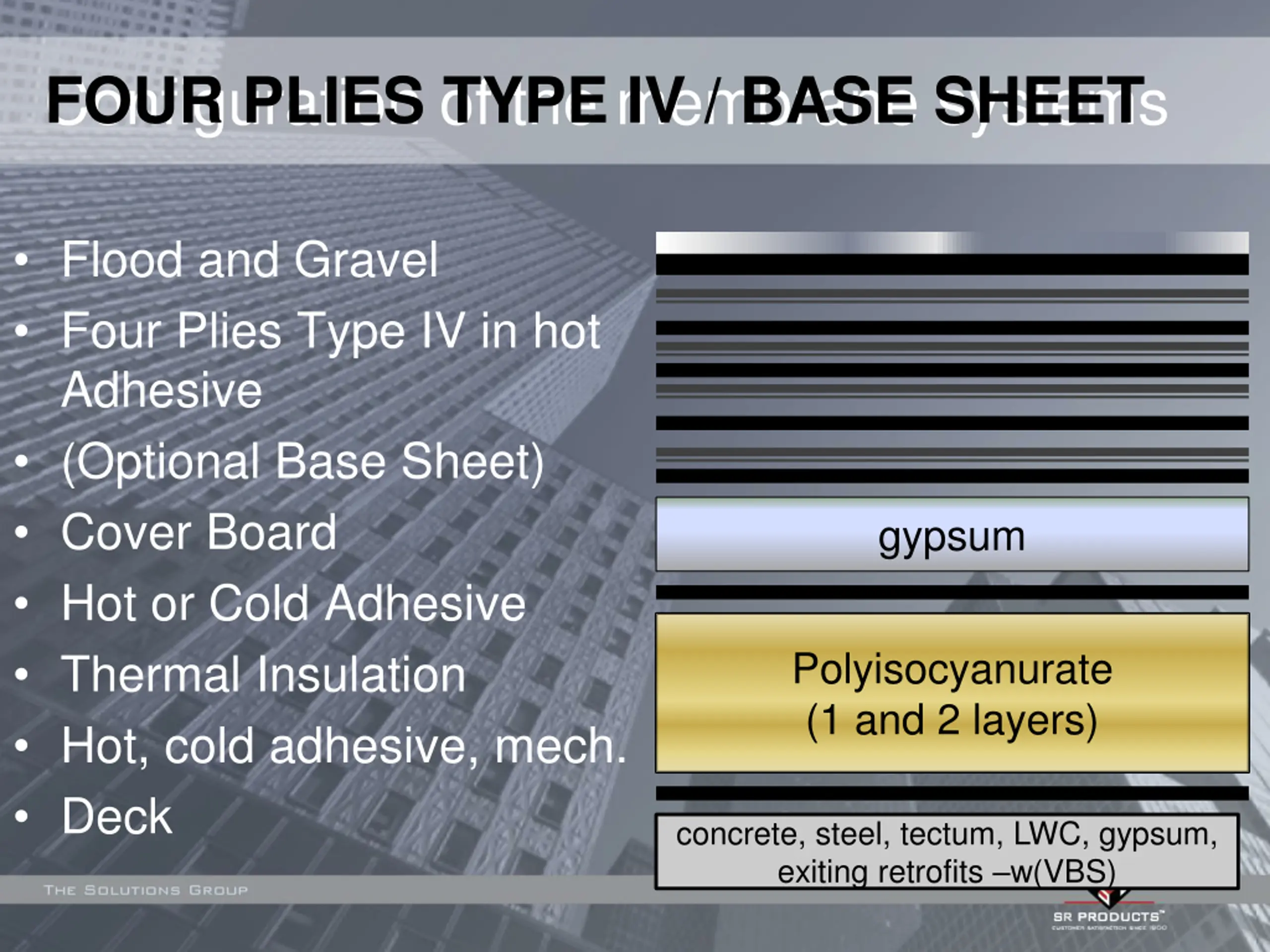

Configuration of the membrane systems FOUR PLIES TYPE IV / BASE SHEET Flood and Gravel Four Plies Type IV in hot Adhesive (Optional Base Sheet) Cover Board Hot or Cold Adhesive Thermal Insulation Hot, cold adhesive, mech. Deck gypsum Polyisocyanurate (1 and 2 layers) concrete, steel, tectum, LWC, gypsum, exiting retrofits w(VBS)

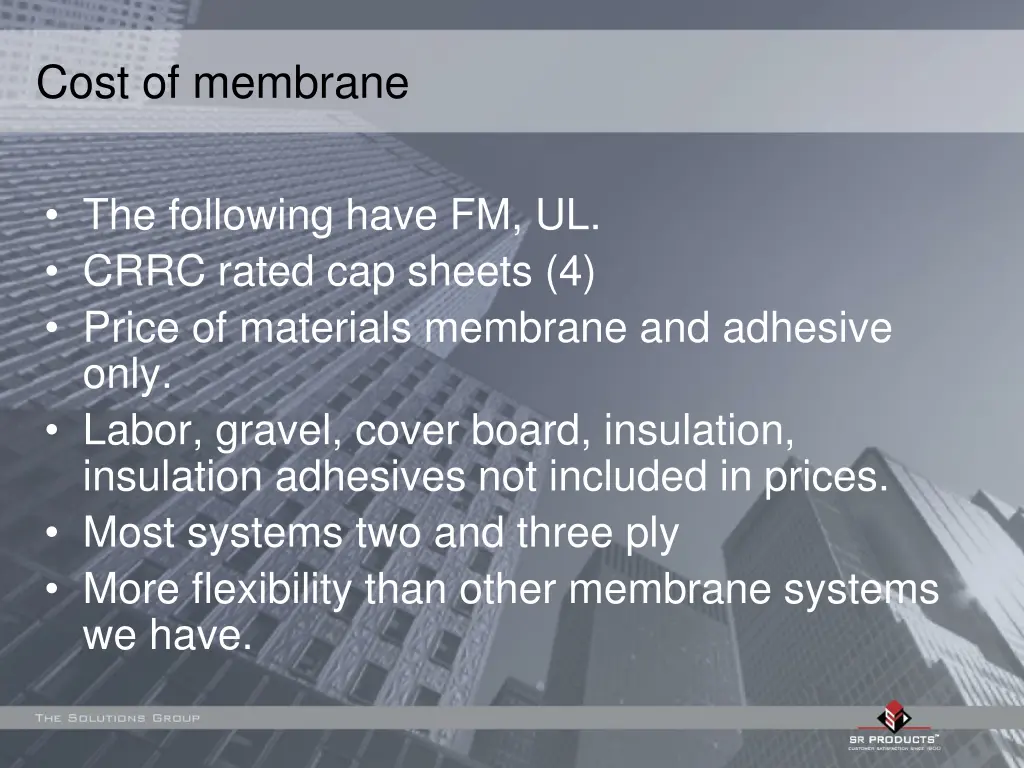

Cost of membrane The following have FM, UL. CRRC rated cap sheets (4) Price of materials membrane and adhesive only. Labor, gravel, cover board, insulation, insulation adhesives not included in prices. Most systems two and three ply More flexibility than other membrane systems we have.

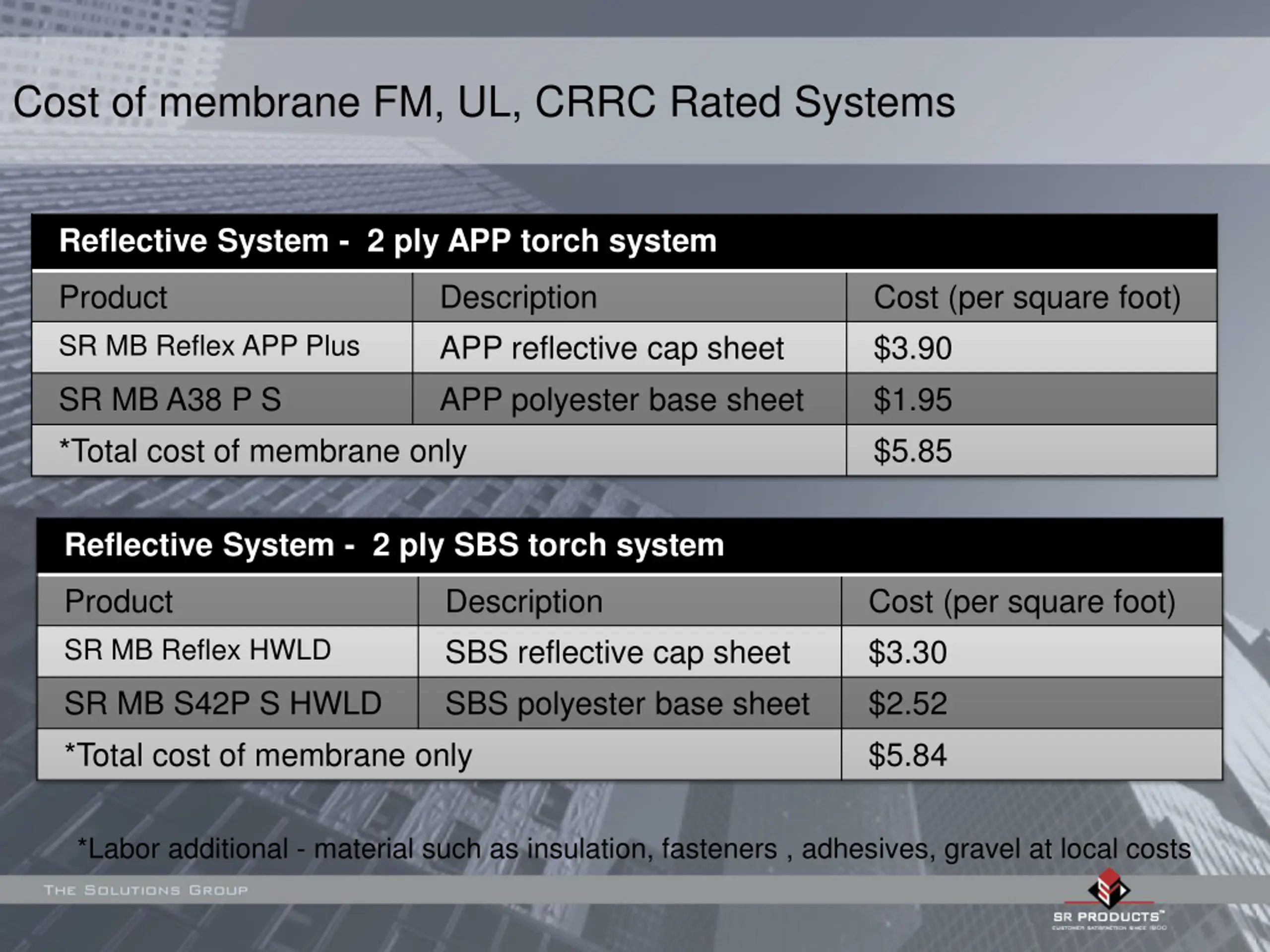

Cost of membrane FM, UL, CRRC Rated Systems Reflective System - 2 ply APP torch system Product SR MB Reflex APP Plus Description APP reflective cap sheet APP polyester base sheet Cost (per square foot) $3.90 $1.95 $5.85 SR MB A38 P S *Total cost of membrane only Reflective System - 2 ply SBS torch system Product SR MB Reflex HWLD Description SBS reflective cap sheet SBS polyester base sheet Cost (per square foot) $3.30 $2.52 $5.84 SR MB S42P S HWLD *Total cost of membrane only *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

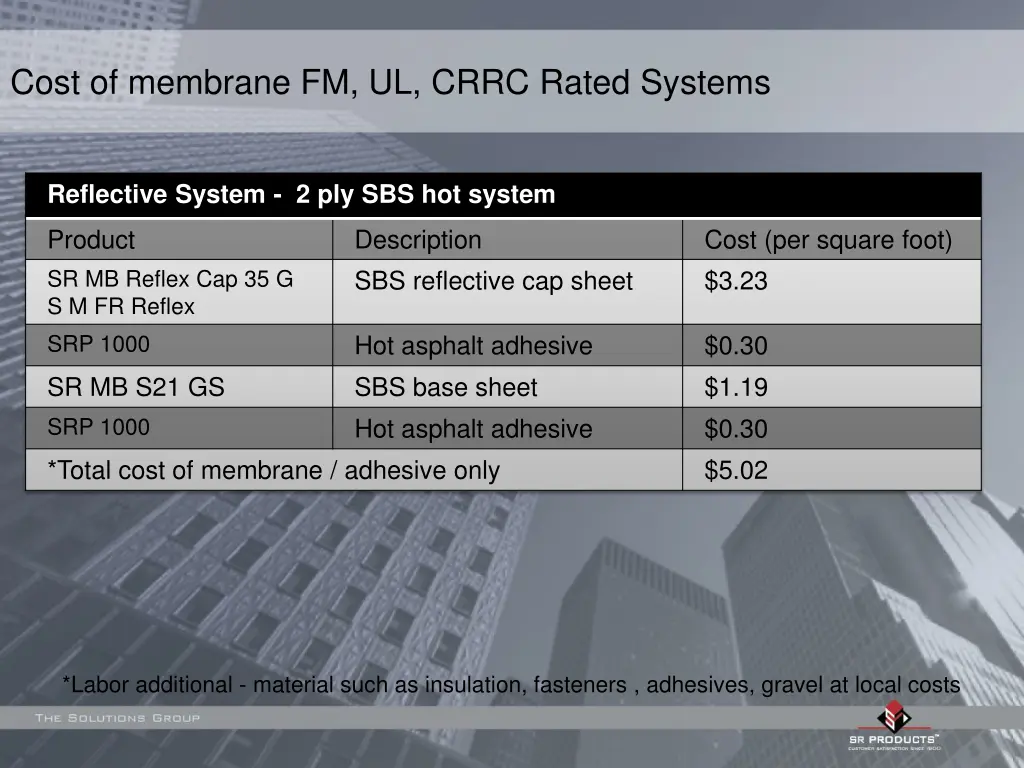

Cost of membrane FM, UL, CRRC Rated Systems Reflective System - 2 ply SBS hot system Product SR MB Reflex Cap 35 G S M FR Reflex SRP 1000 Description SBS reflective cap sheet Cost (per square foot) $3.23 Hot asphalt adhesive SBS base sheet Hot asphalt adhesive $0.30 $1.19 $0.30 $5.02 SR MB S21 GS SRP 1000 *Total cost of membrane / adhesive only *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

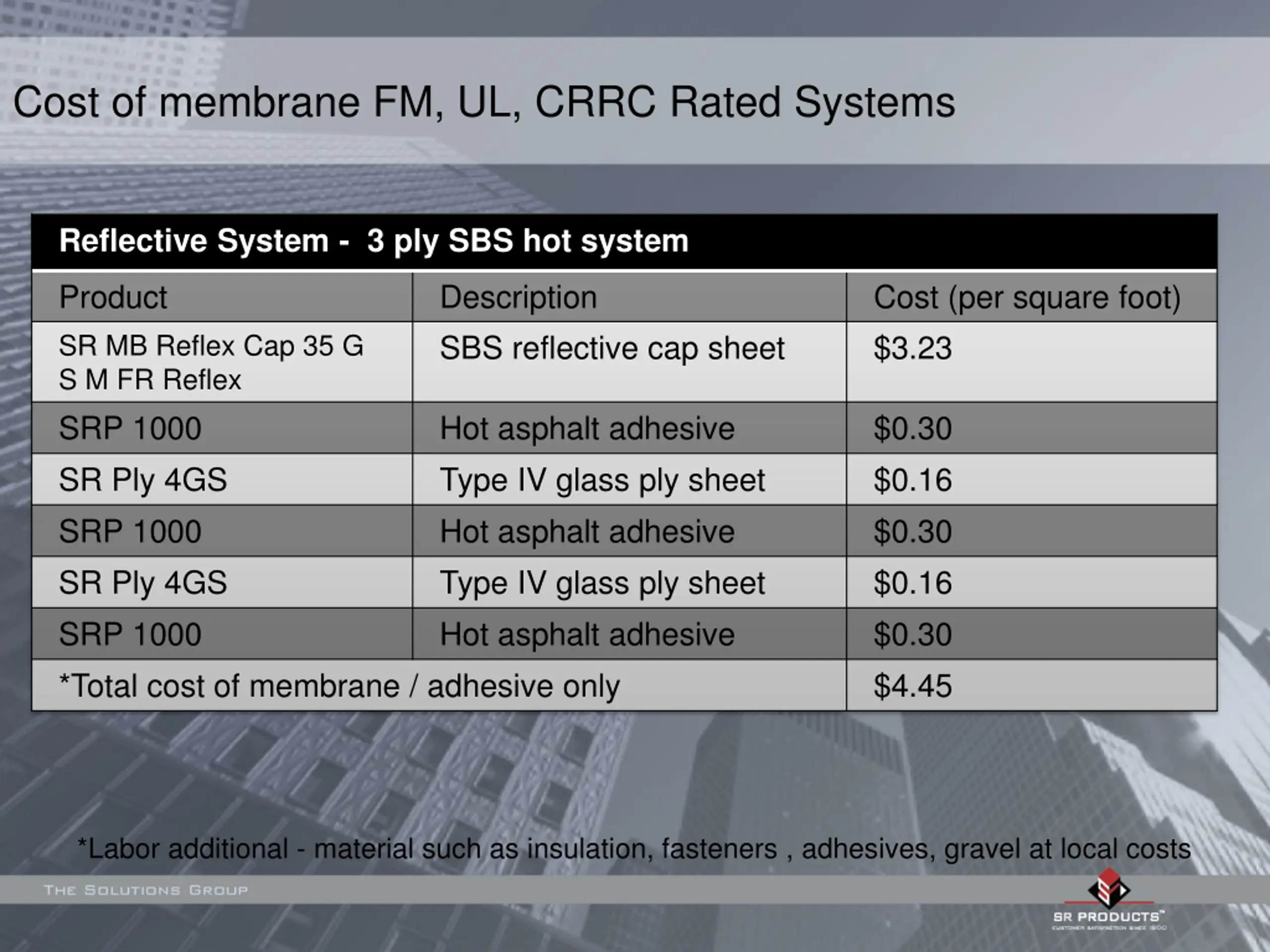

Cost of membrane FM, UL, CRRC Rated Systems Reflective System - 3 ply SBS hot system Product SR MB Reflex Cap 35 G S M FR Reflex SRP 1000 SR Ply 4GS SRP 1000 SR Ply 4GS SRP 1000 *Total cost of membrane / adhesive only Description SBS reflective cap sheet Cost (per square foot) $3.23 Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive $0.30 $0.16 $0.30 $0.16 $0.30 $4.45 *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

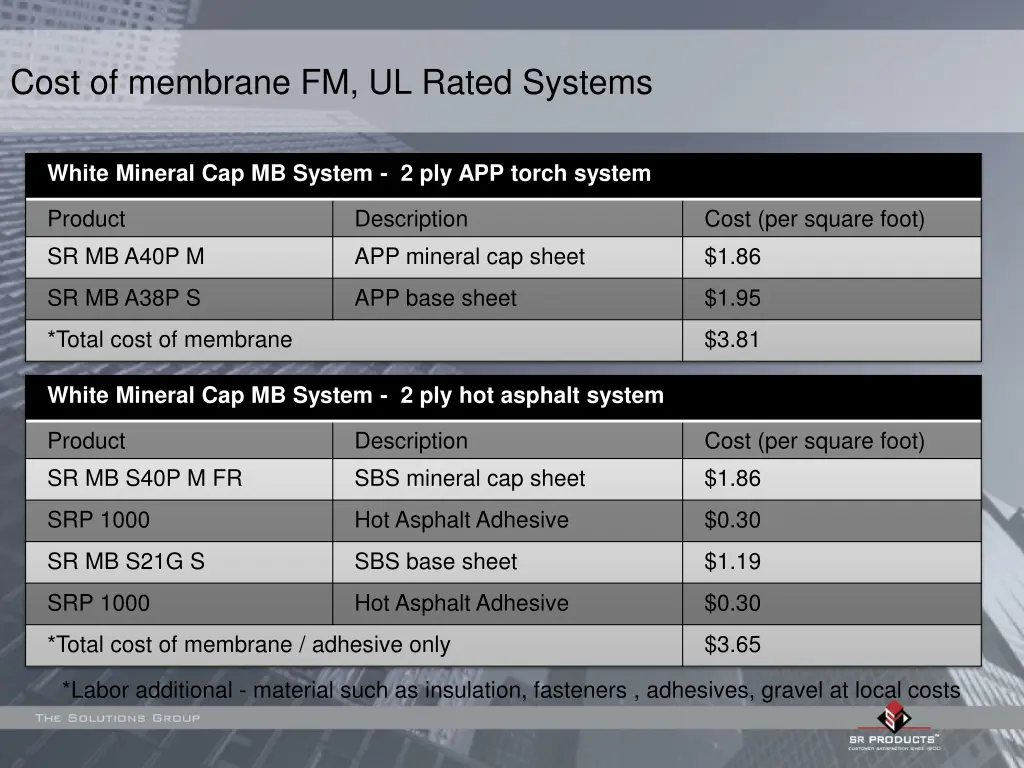

Cost of membrane FM, UL Rated Systems White Mineral Cap MB System - 2 ply APP torch system Product SR MB A40P M Description APP mineral cap sheet Cost (per square foot) $1.86 SR MB A38P S APP base sheet $1.95 *Total cost of membrane $3.81 White Mineral Cap MB System - 2 ply hot asphalt system Product SR MB S40P M FR Description SBS mineral cap sheet Cost (per square foot) $1.86 SRP 1000 Hot Asphalt Adhesive $0.30 SR MB S21G S SBS base sheet $1.19 SRP 1000 Hot Asphalt Adhesive $0.30 *Total cost of membrane / adhesive only $3.65 *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

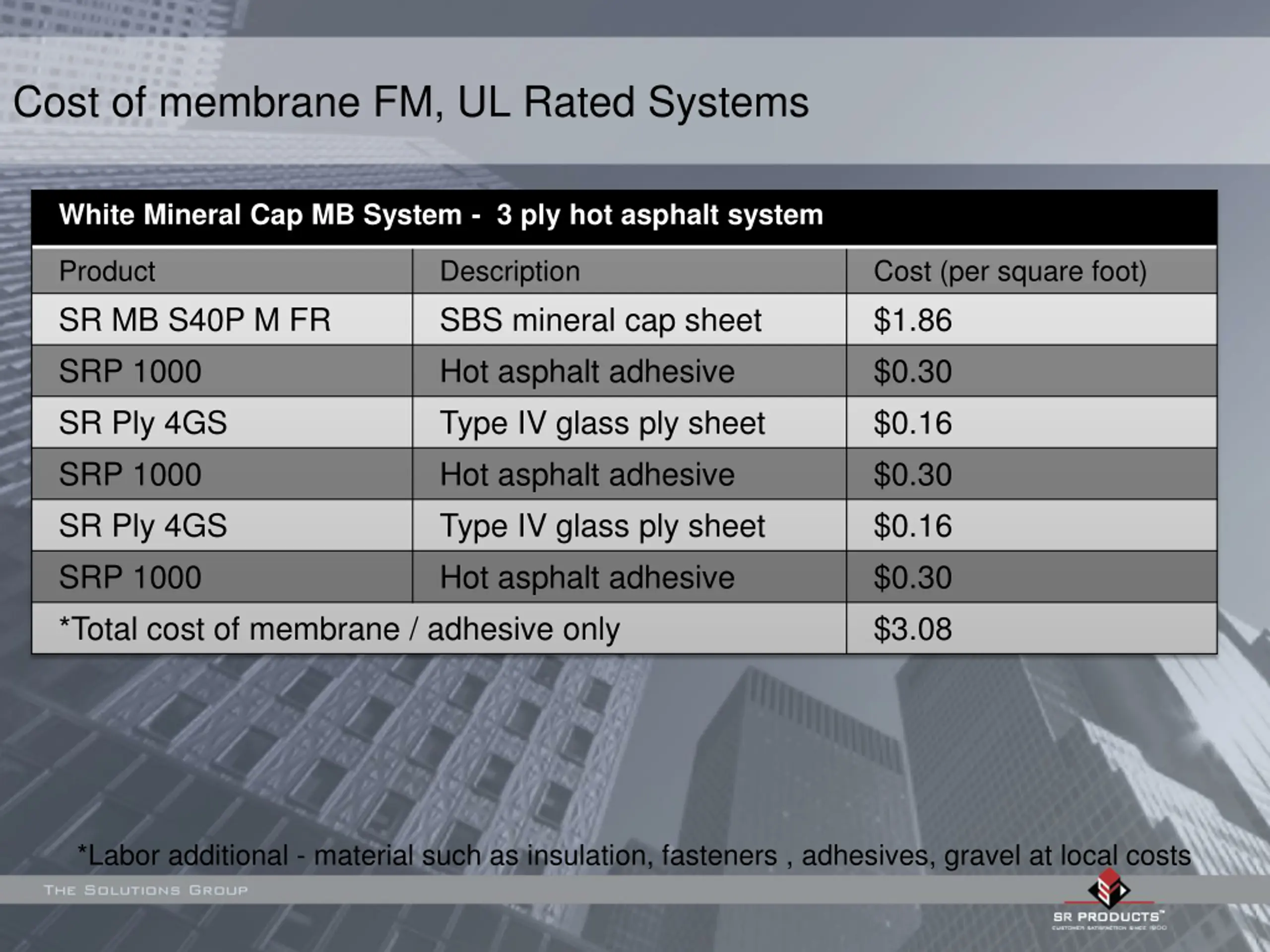

Cost of membrane FM, UL Rated Systems White Mineral Cap MB System - 3 ply hot asphalt system Product SR MB S40P M FR SRP 1000 SR Ply 4GS SRP 1000 SR Ply 4GS SRP 1000 *Total cost of membrane / adhesive only Description SBS mineral cap sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Cost (per square foot) $1.86 $0.30 $0.16 $0.30 $0.16 $0.30 $3.08 *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

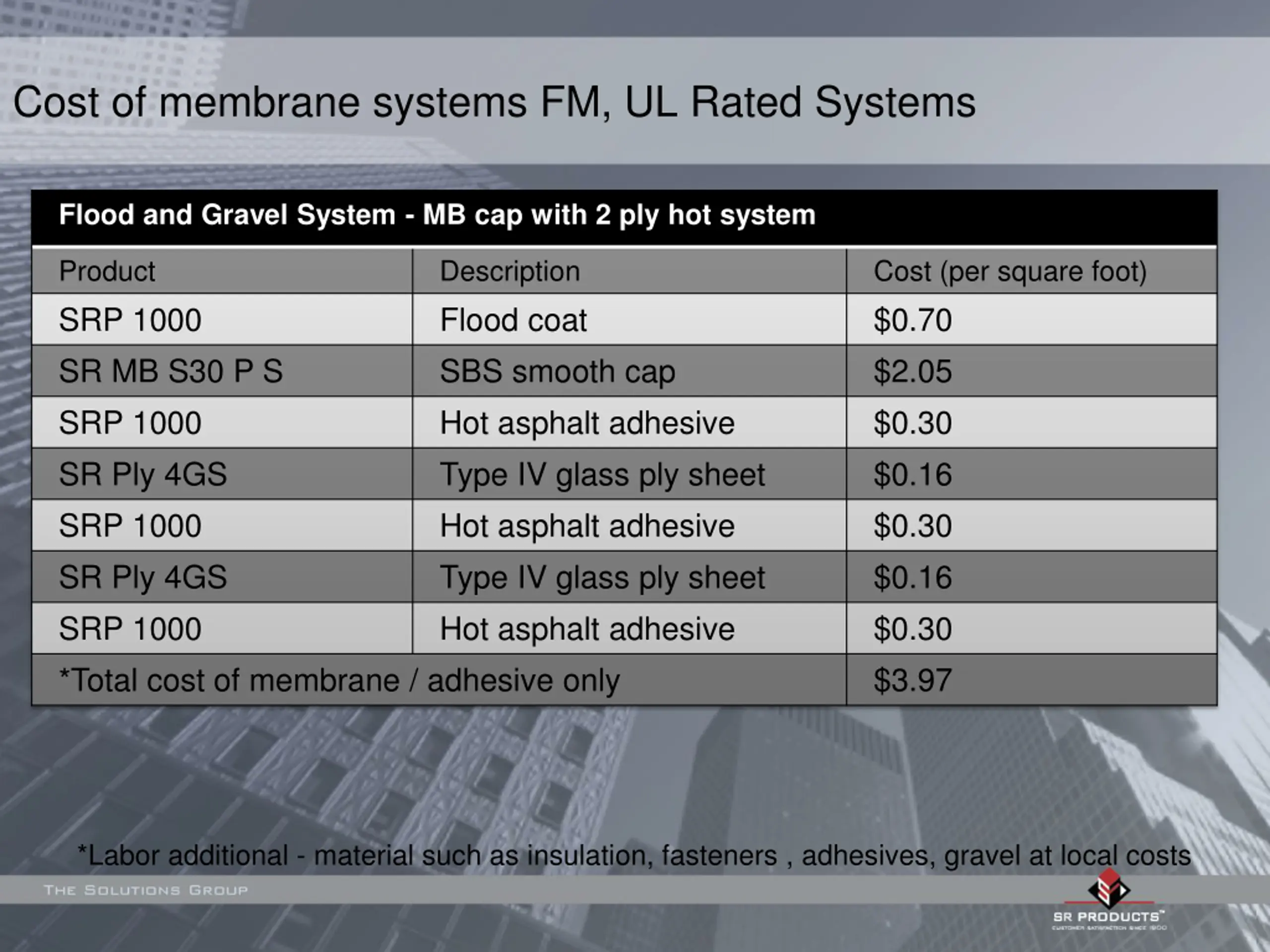

Cost of membrane systems FM, UL Rated Systems Flood and Gravel System - MB cap with 2 ply hot system Product SRP 1000 SR MB S30 P S SRP 1000 SR Ply 4GS SRP 1000 SR Ply 4GS SRP 1000 *Total cost of membrane / adhesive only Description Flood coat SBS smooth cap Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Cost (per square foot) $0.70 $2.05 $0.30 $0.16 $0.30 $0.16 $0.30 $3.97 *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

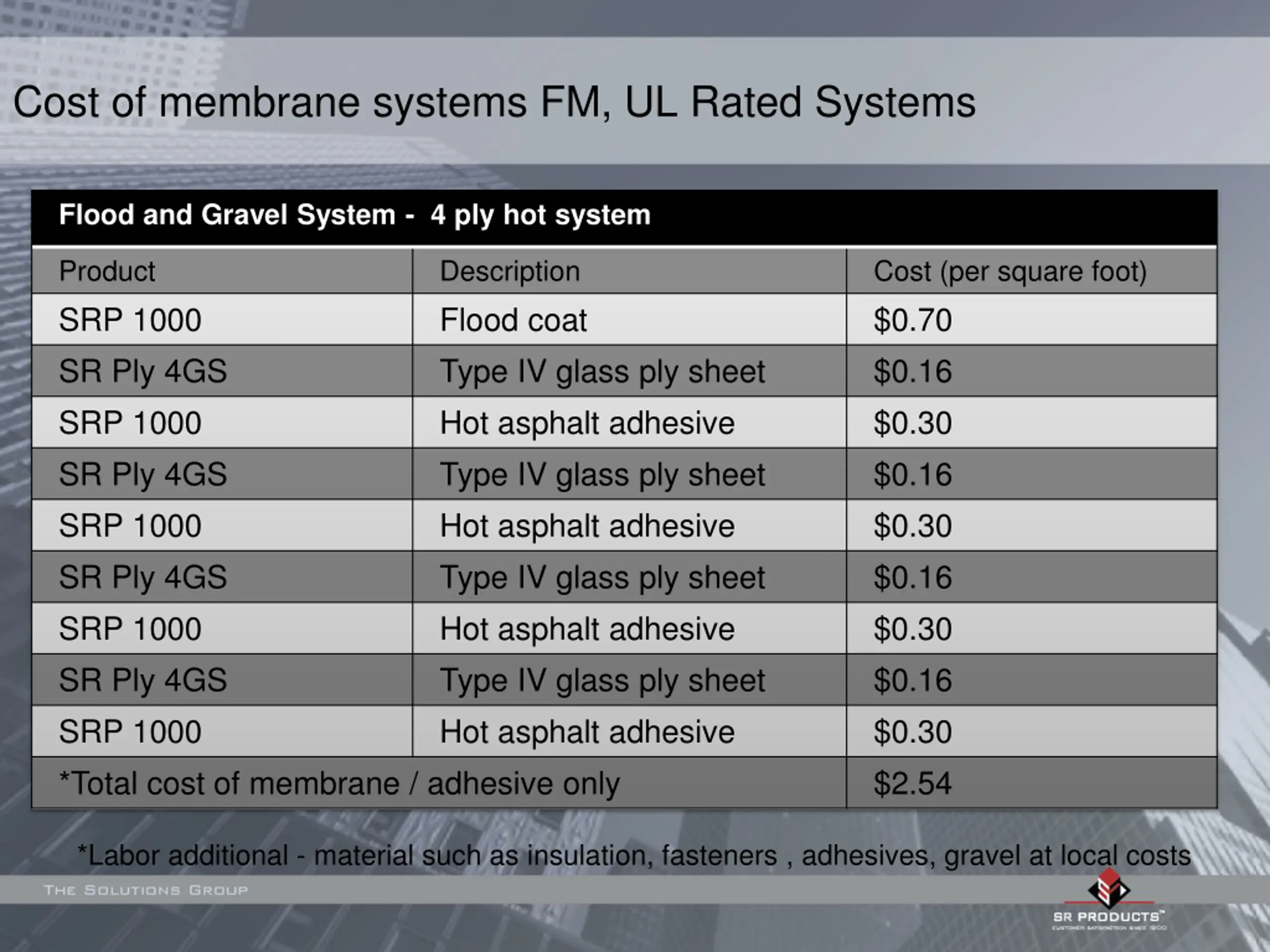

Cost of membrane systems FM, UL Rated Systems Flood and Gravel System - 4 ply hot system Product SRP 1000 SR Ply 4GS SRP 1000 SR Ply 4GS SRP 1000 SR Ply 4GS SRP 1000 SR Ply 4GS SRP 1000 *Total cost of membrane / adhesive only Description Flood coat Type IV glass ply sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Type IV glass ply sheet Hot asphalt adhesive Cost (per square foot) $0.70 $0.16 $0.30 $0.16 $0.30 $0.16 $0.30 $0.16 $0.30 $2.54 *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs

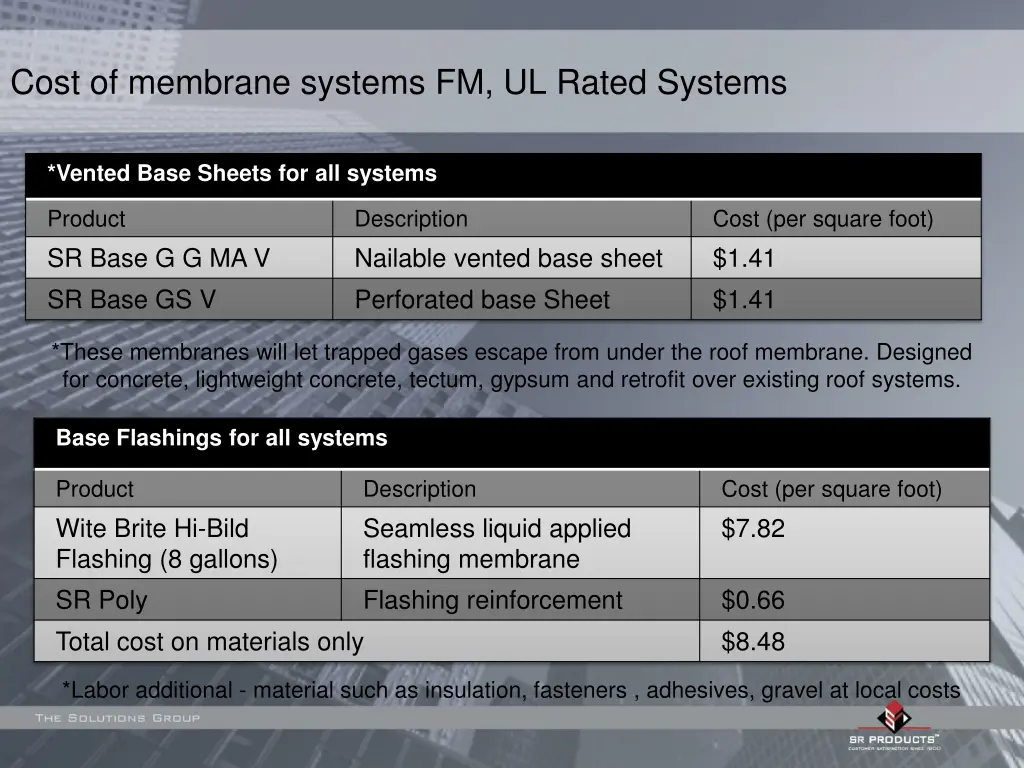

Cost of membrane systems FM, UL Rated Systems *Vented Base Sheets for all systems Product SR Base G G MA V SR Base GS V Description Nailable vented base sheet Perforated base Sheet Cost (per square foot) $1.41 $1.41 *These membranes will let trapped gases escape from under the roof membrane. Designed for concrete, lightweight concrete, tectum, gypsum and retrofit over existing roof systems. Base Flashings for all systems Product Wite Brite Hi-Bild Flashing (8 gallons) SR Poly Total cost on materials only Description Seamless liquid applied flashing membrane Flashing reinforcement Cost (per square foot) $7.82 $0.66 $8.48 *Labor additional - material such as insulation, fasteners , adhesives, gravel at local costs
QUESTIONS I will be available the rest of the day for questions.
