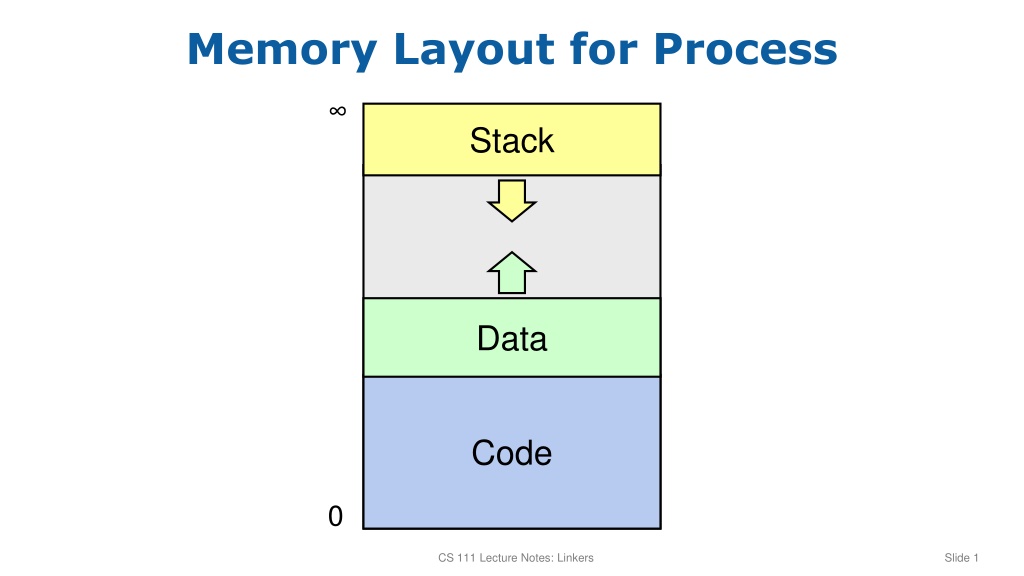

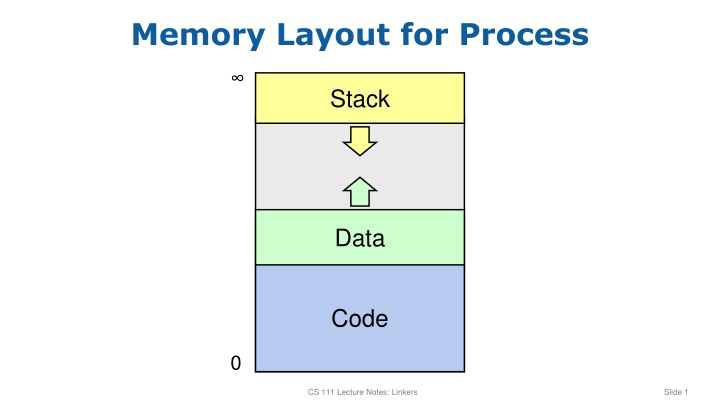

Memory Layout for Process Stack Data Code 0 CS 111 Lecture Notes: Linkers Slide 1
Creating a Process Source Code Assembly Code Object File Executable 10101010 10101010 10101010 10101010 10101010 10101010 x.o x.c gcc x.s as Stack 10101010 10101010 10101010 10101010 10101010 10101010 y.o 10101010 10101010 10101010 10101010 10101010 10101010 a.out OS Data y.c gcc y.s as ld Code 0 10101010 10101010 10101010 10101010 10101010 10101010 z.o z.c gcc z.s as Compiler Assembler Linker Loader CS 111 Lecture Notes: Linkers Slide 2

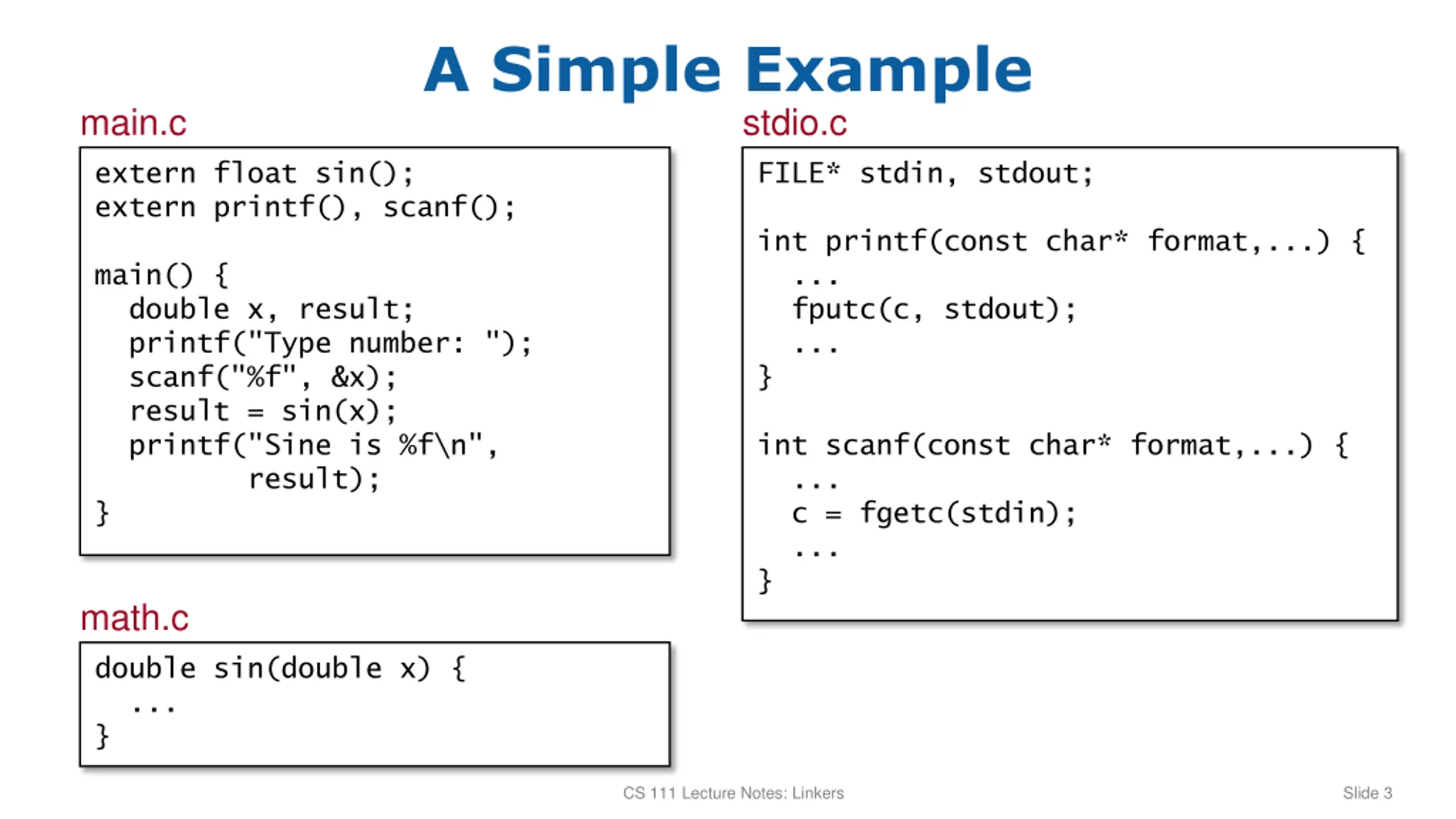

A Simple Example main.c stdio.c extern float sin(); extern printf(), scanf(); FILE* stdin, stdout; int printf(const char* format,...) { ... fputc(c, stdout); ... } main() { double x, result; printf("Type number: "); scanf("%f", &x); result = sin(x); printf("Sine is %f\n", result); } int scanf(const char* format,...) { ... c = fgetc(stdin); ... } math.c double sin(double x) { ... } CS 111 Lecture Notes: Linkers Slide 3

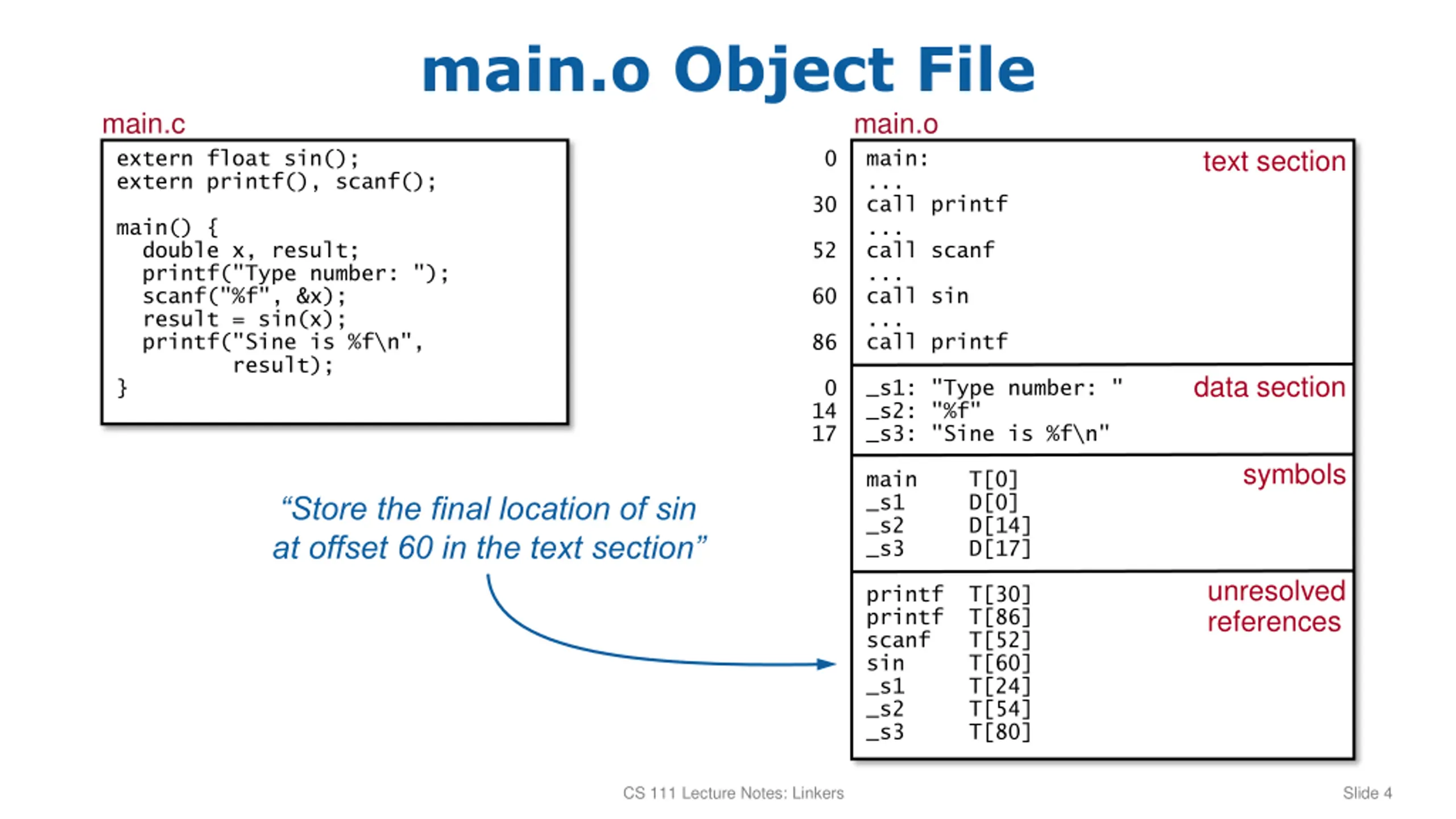

main.o Object File main.c main.o main: ... call printf ... call scanf ... call sin ... call printf text section extern float sin(); extern printf(), scanf(); 0 30 main() { double x, result; printf("Type number: "); scanf("%f", &x); result = sin(x); printf("Sine is %f\n", result); } 52 60 86 data section _s1: "Type number: " _s2: "%f" _s3: "Sine is %f\n" 0 14 17 symbols main T[0] _s1 D[0] _s2 D[14] _s3 D[17] Store the final location of sin at offset 60 in the text section unresolved references printf T[30] printf T[86] scanf T[52] sin T[60] _s1 T[24] _s2 T[54] _s3 T[80] CS 111 Lecture Notes: Linkers Slide 4

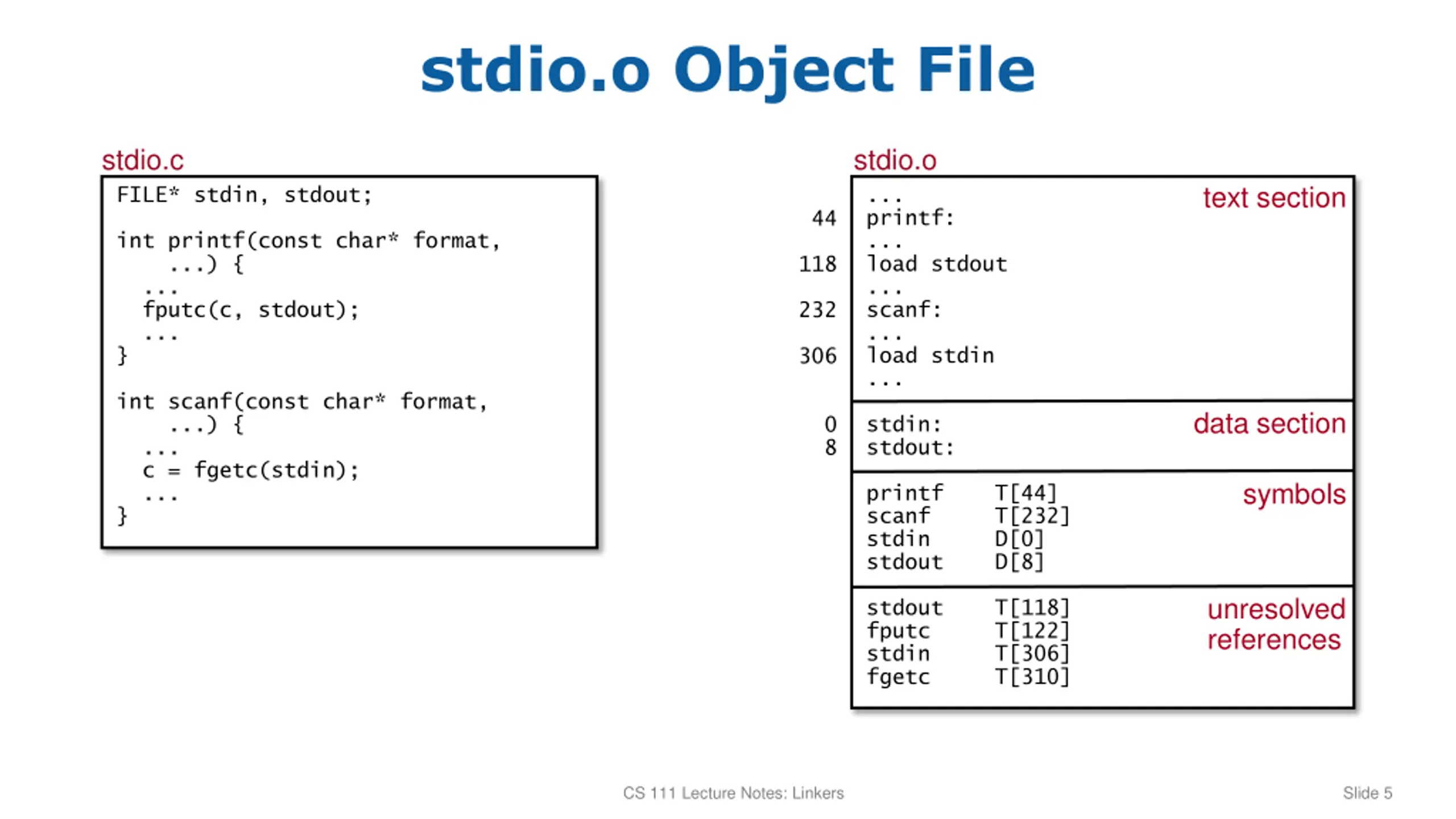

stdio.o Object File stdio.c FILE* stdin, stdout; stdio.o ... printf: ... load stdout ... scanf: ... load stdin ... text section 44 int printf(const char* format, ...) { ... fputc(c, stdout); ... } 118 232 306 int scanf(const char* format, ...) { ... c = fgetc(stdin); ... } data section stdin: stdout: 0 8 symbols printf T[44] scanf T[232] stdin D[0] stdout D[8] unresolved references stdout T[118] fputc T[122] stdin T[306] fgetc T[310] CS 111 Lecture Notes: Linkers Slide 5

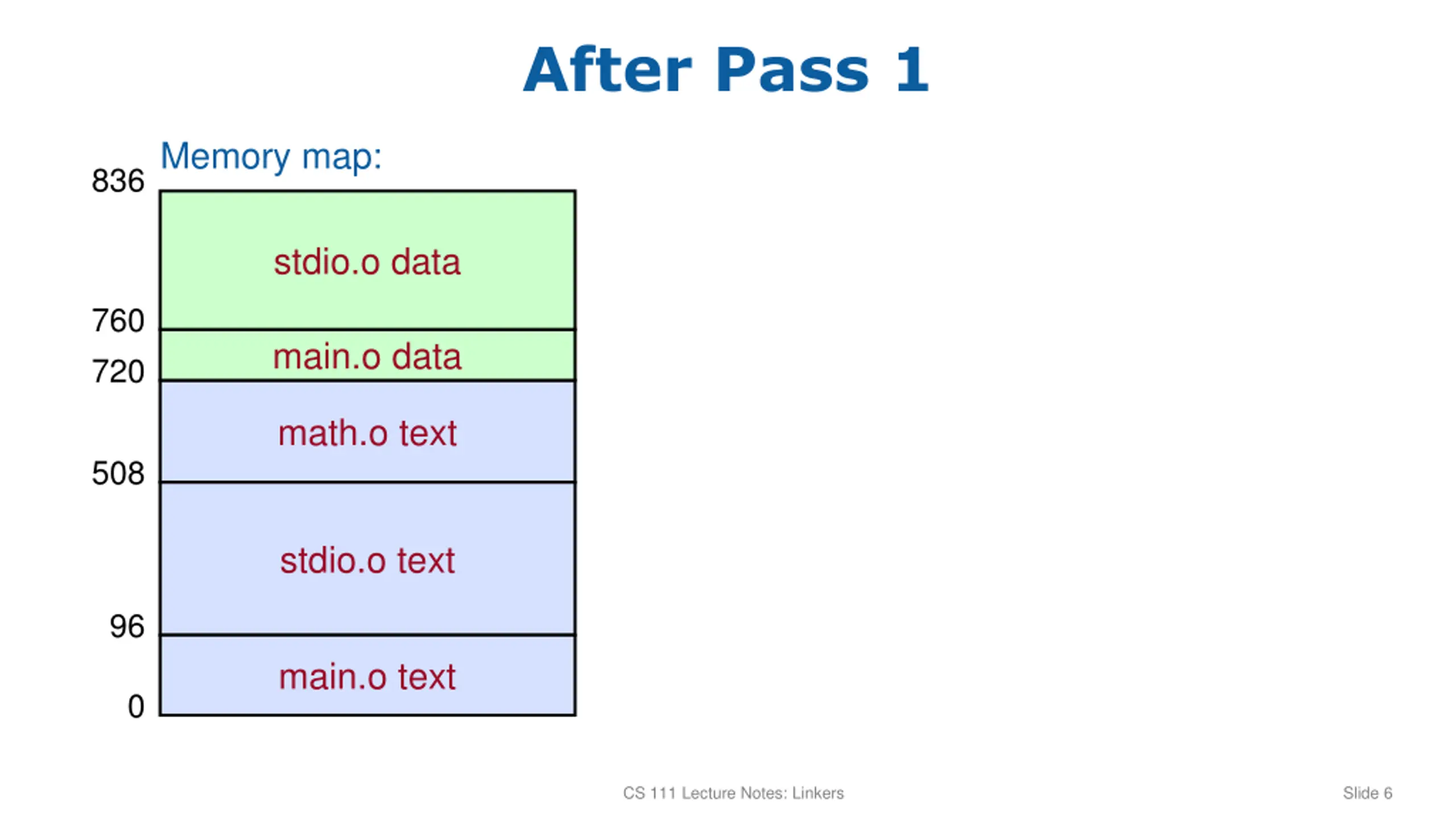

After Pass 1 Memory map: 836 stdio.o data 760 720 main.o data math.o text 508 stdio.o text 96 main.o text 0 CS 111 Lecture Notes: Linkers Slide 6

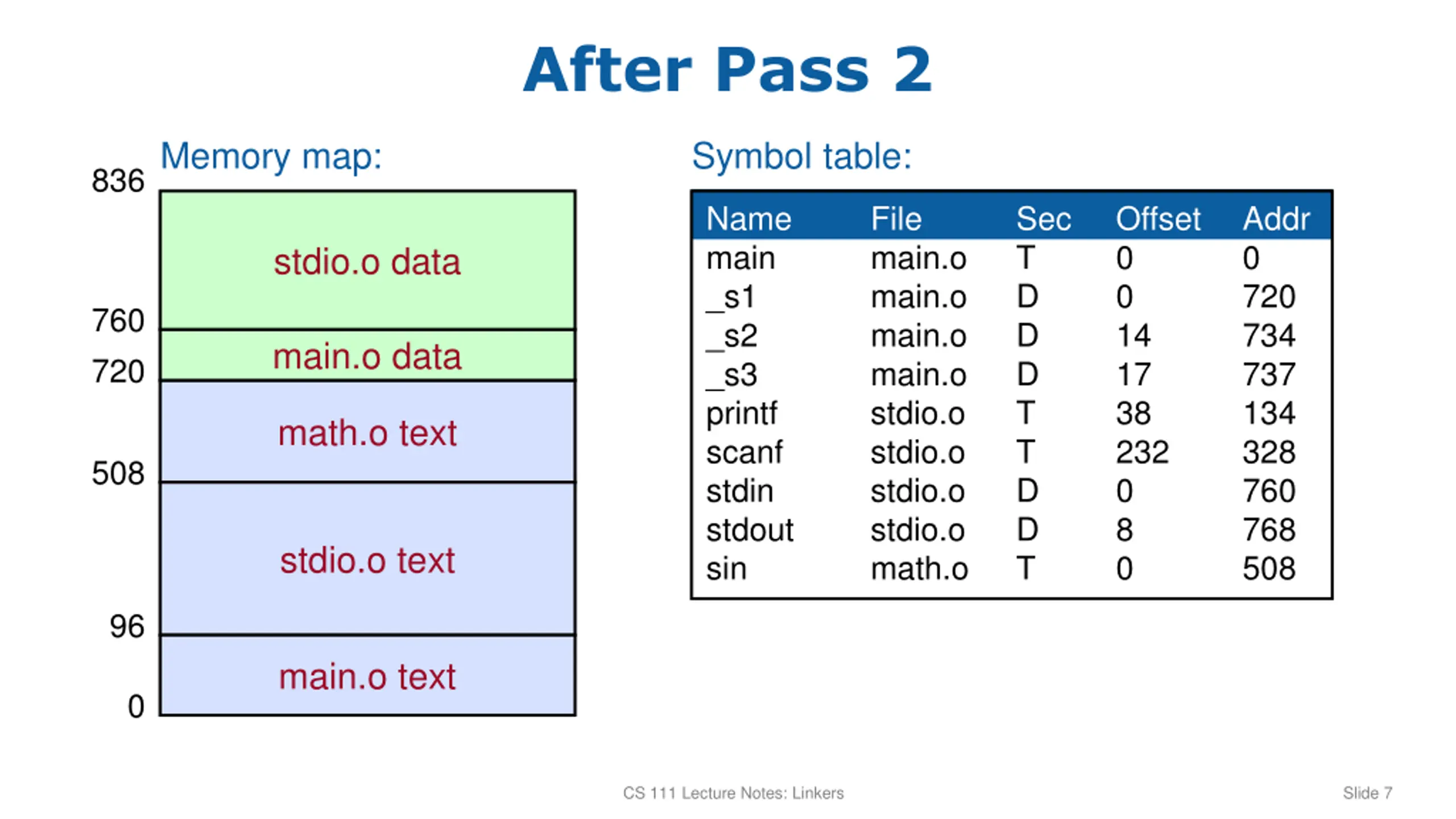

After Pass 2 Memory map: Symbol table: 836 Name main _s1 _s2 _s3 printf scanf stdin stdout sin File main.o main.o main.o main.o stdio.o stdio.o stdio.o stdio.o math.o Sec T D D D T T D D T Offset 0 0 14 17 38 232 0 8 0 Addr 0 720 734 737 134 328 760 768 508 stdio.o data 760 720 main.o data math.o text 508 stdio.o text 96 main.o text 0 CS 111 Lecture Notes: Linkers Slide 7

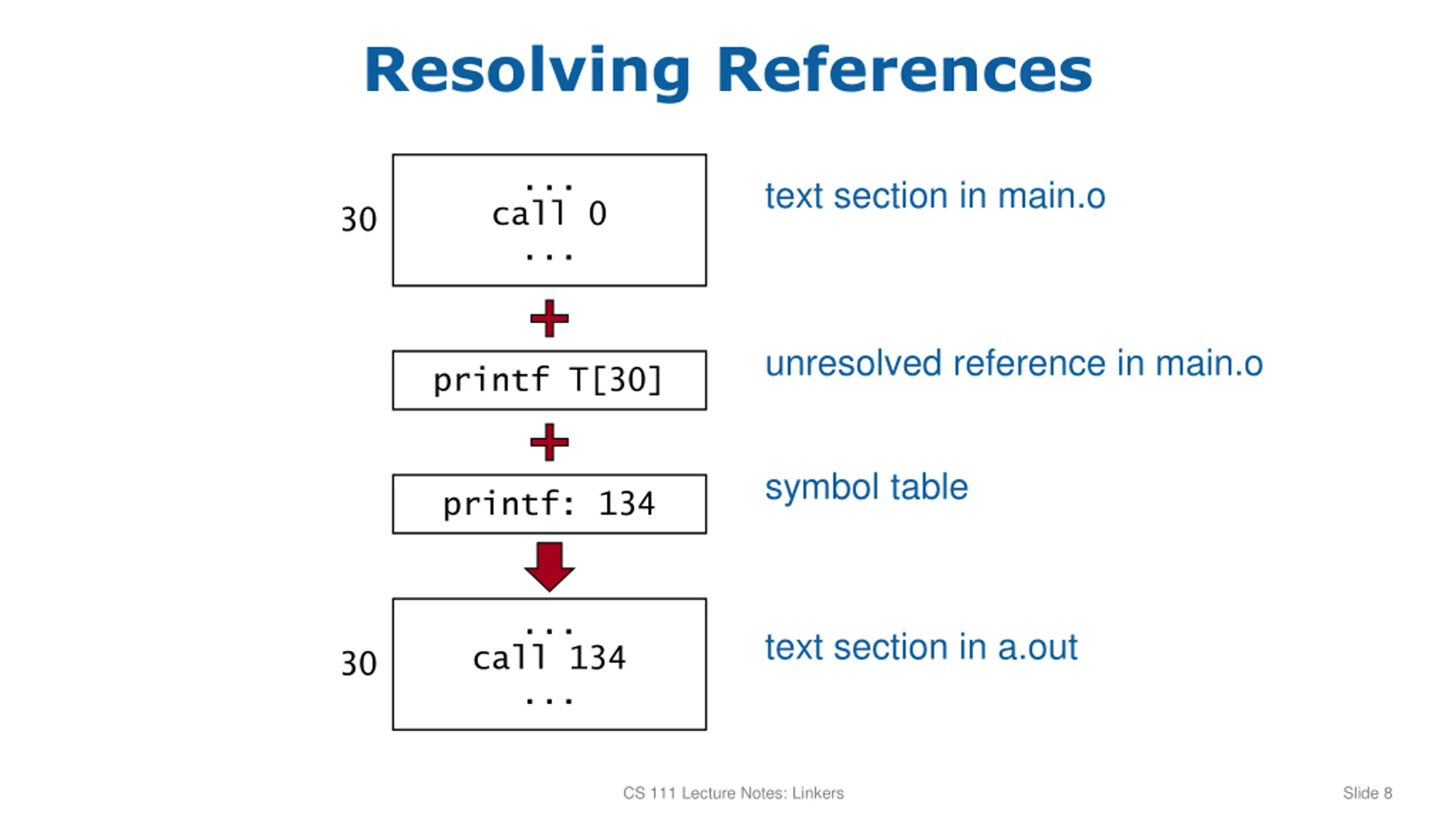

Resolving References ... call 0 ... text section in main.o 30 unresolved reference in main.o printf T[30] symbol table printf: 134 ... text section in a.out call 134 ... 30 CS 111 Lecture Notes: Linkers Slide 8
