MEMORY TYPES MEMORY TYPES and and ATTRIBUTES ATTRIBUTES

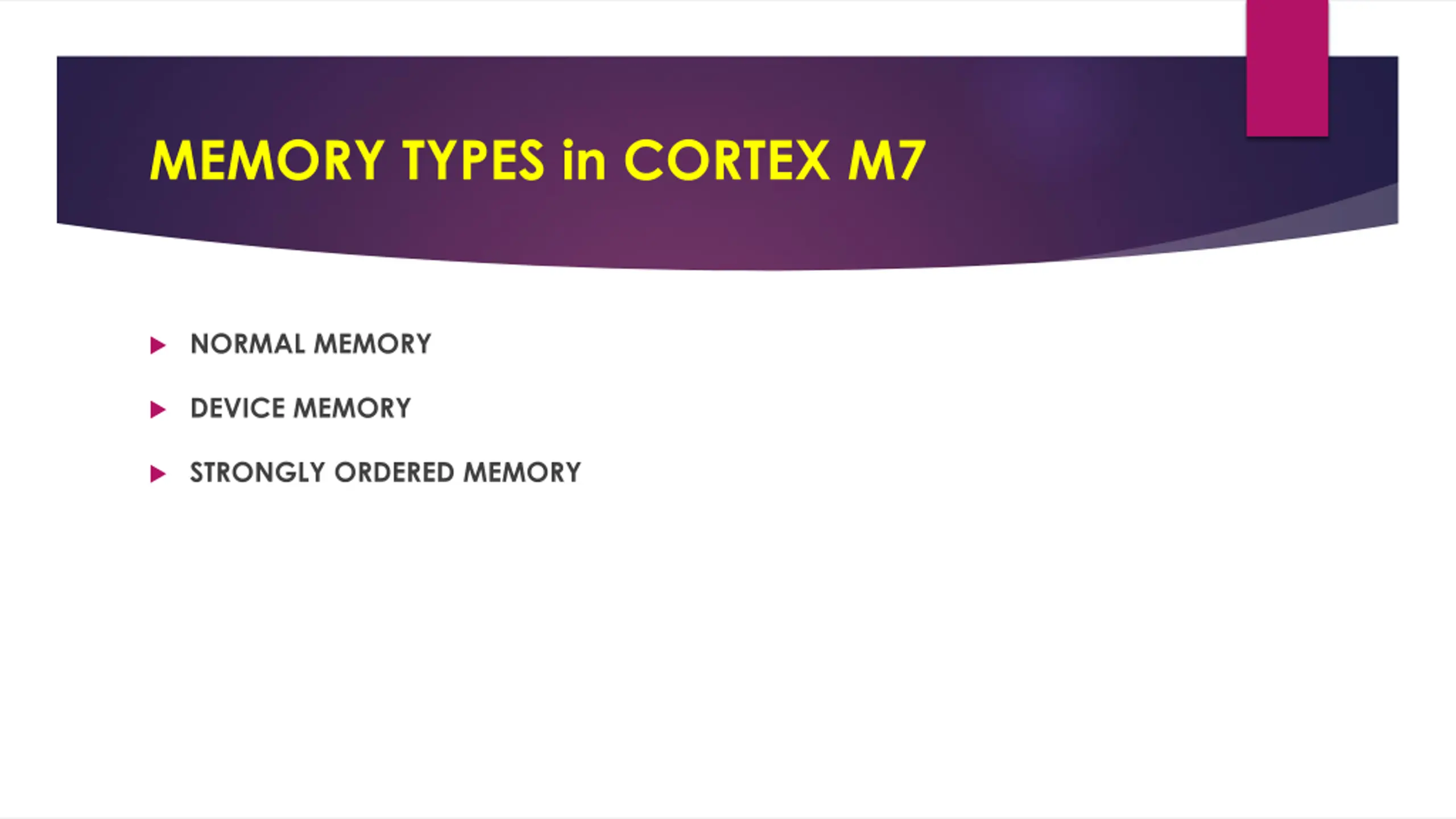

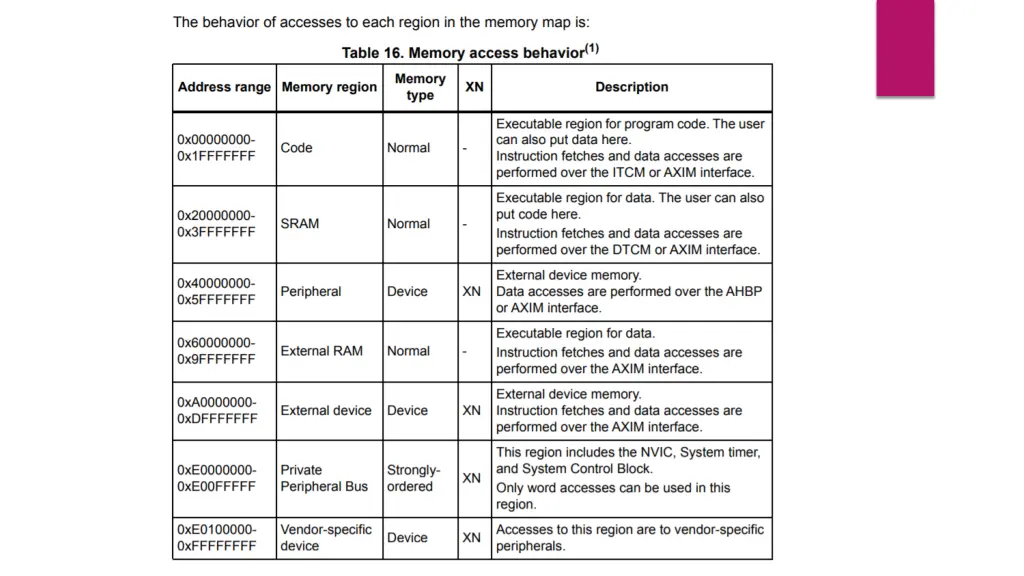

MEMORY TYPES in CORTEX M7 NORMAL MEMORY DEVICE MEMORY STRONGLY ORDERED MEMORY

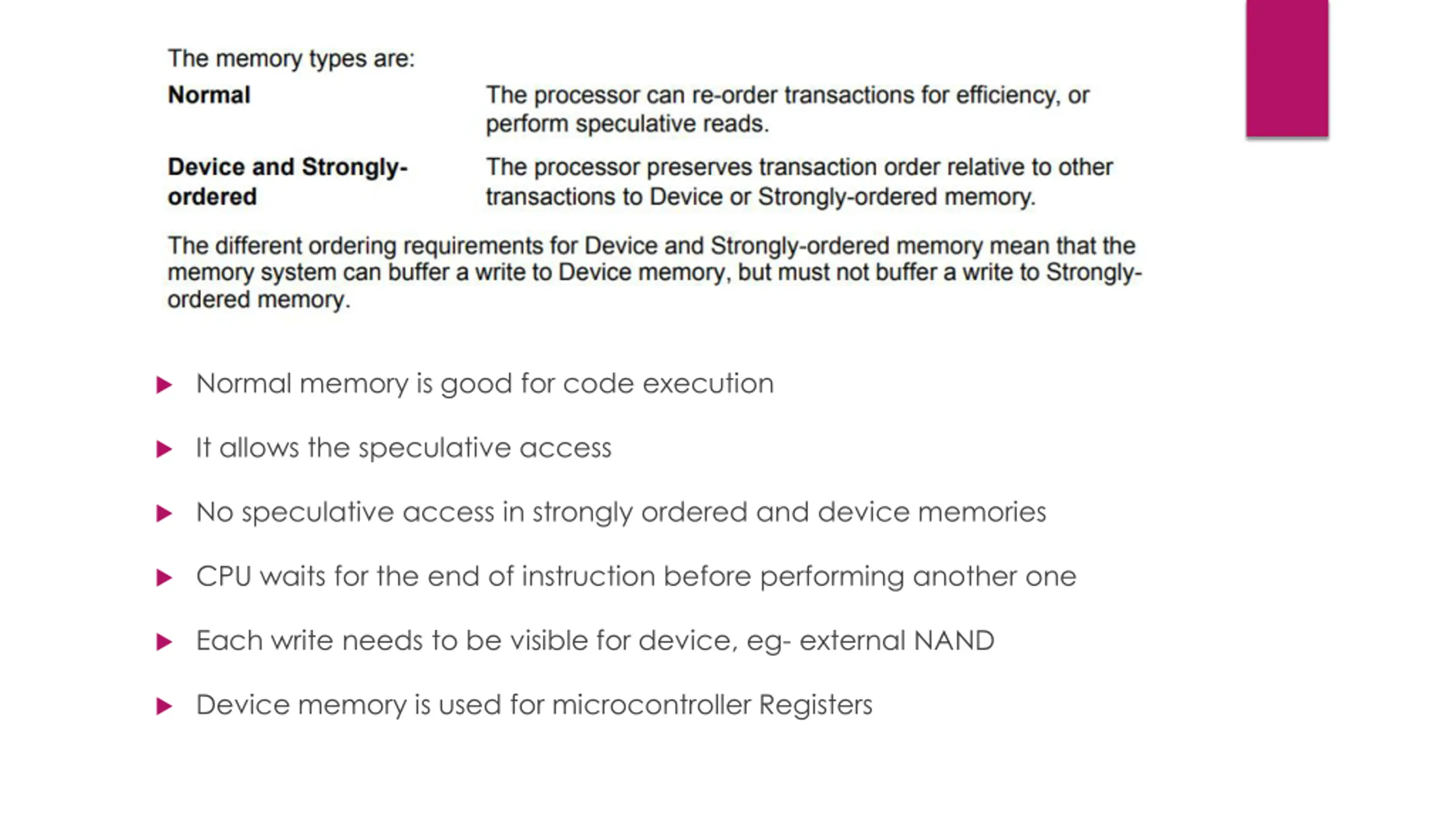

Normal memory is good for code execution It allows the speculative access No speculative access in strongly ordered and device memories CPU waits for the end of instruction before performing another one Each write needs to be visible for device, eg- external NAND Device memory is used for microcontroller Registers

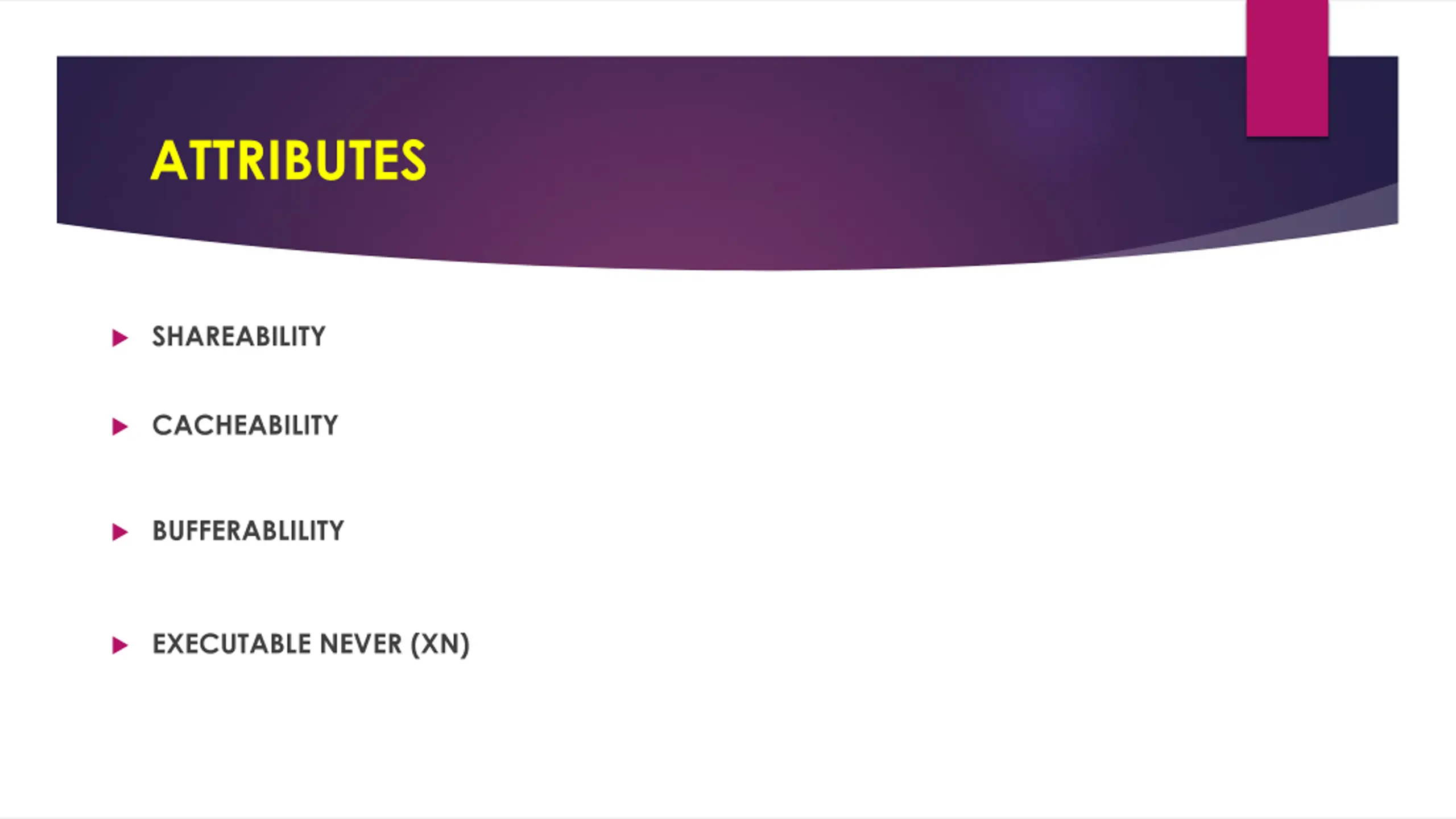

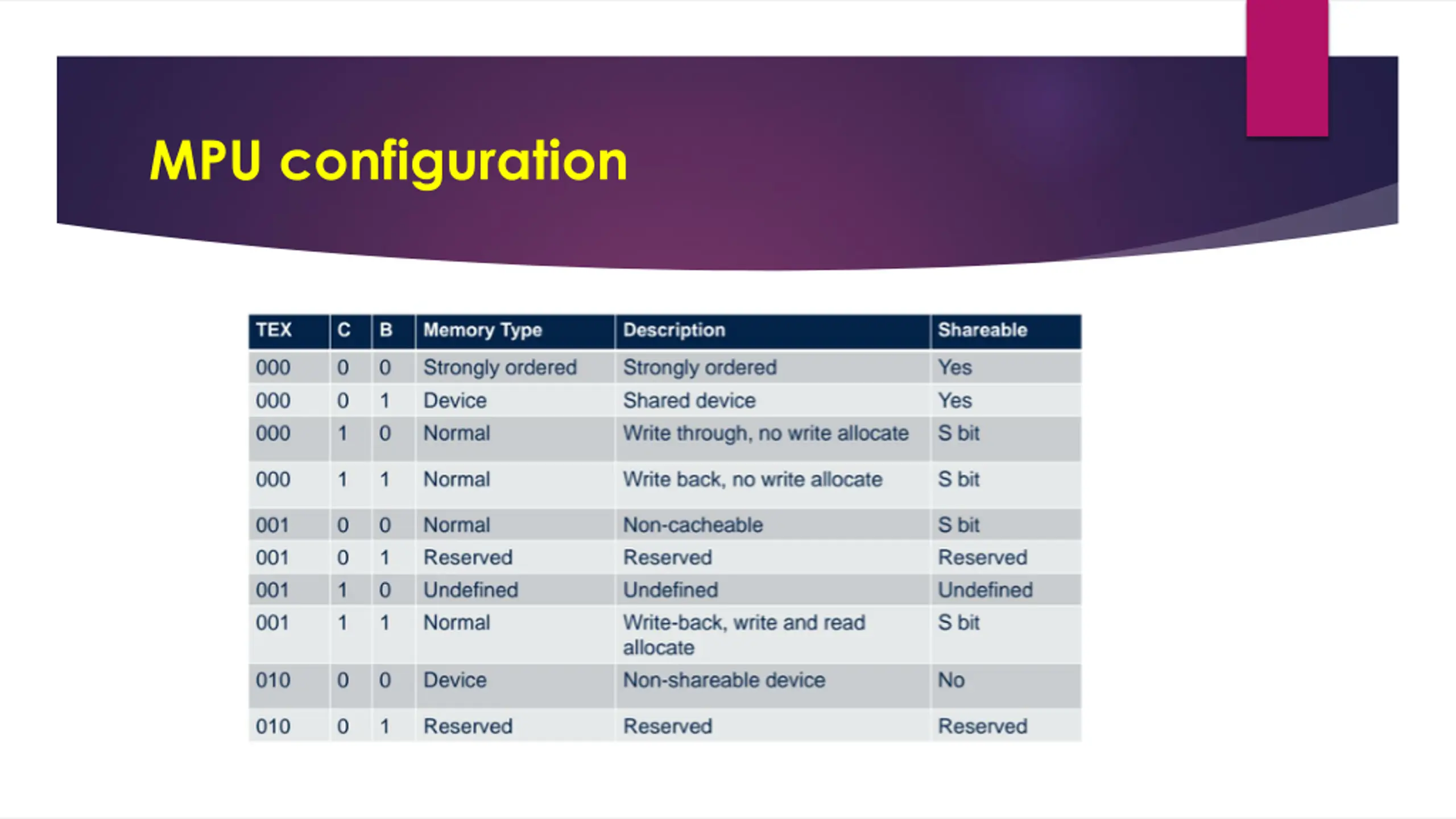

ATTRIBUTES SHAREABILITY CACHEABILITY BUFFERABLILITY EXECUTABLE NEVER (XN)
SHAREABLE REGION Shareable Region means multiple masters can access the memory For example, CPU and DMA accessing some region Strongly ordered memory is always shareable If some area Is cacheable and shareable, Data cache can t be used Instruction cache can be used though

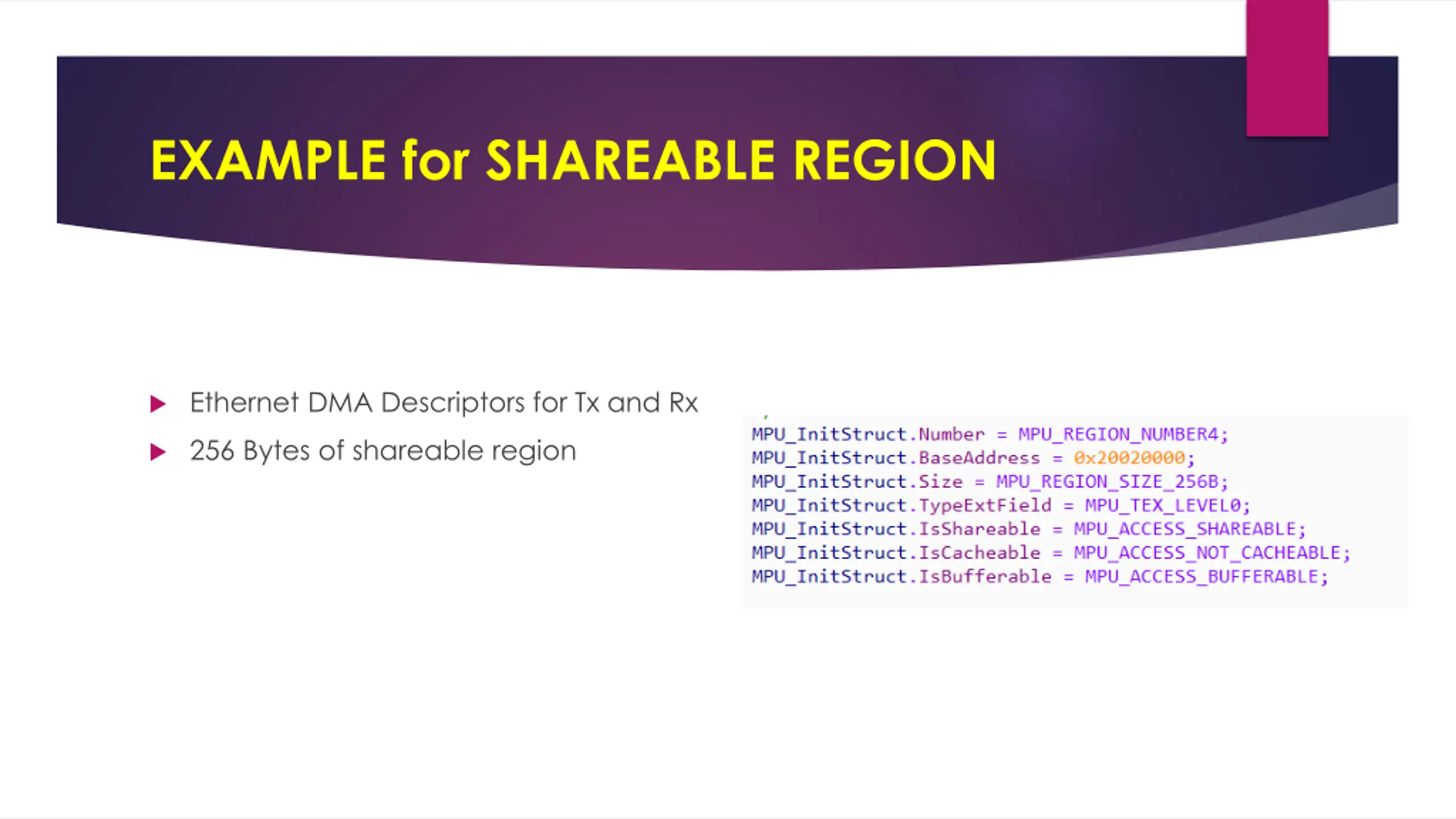

EXAMPLE for SHAREABLE REGION Ethernet DMA Descriptors for Tx and Rx 256 Bytes of shareable region

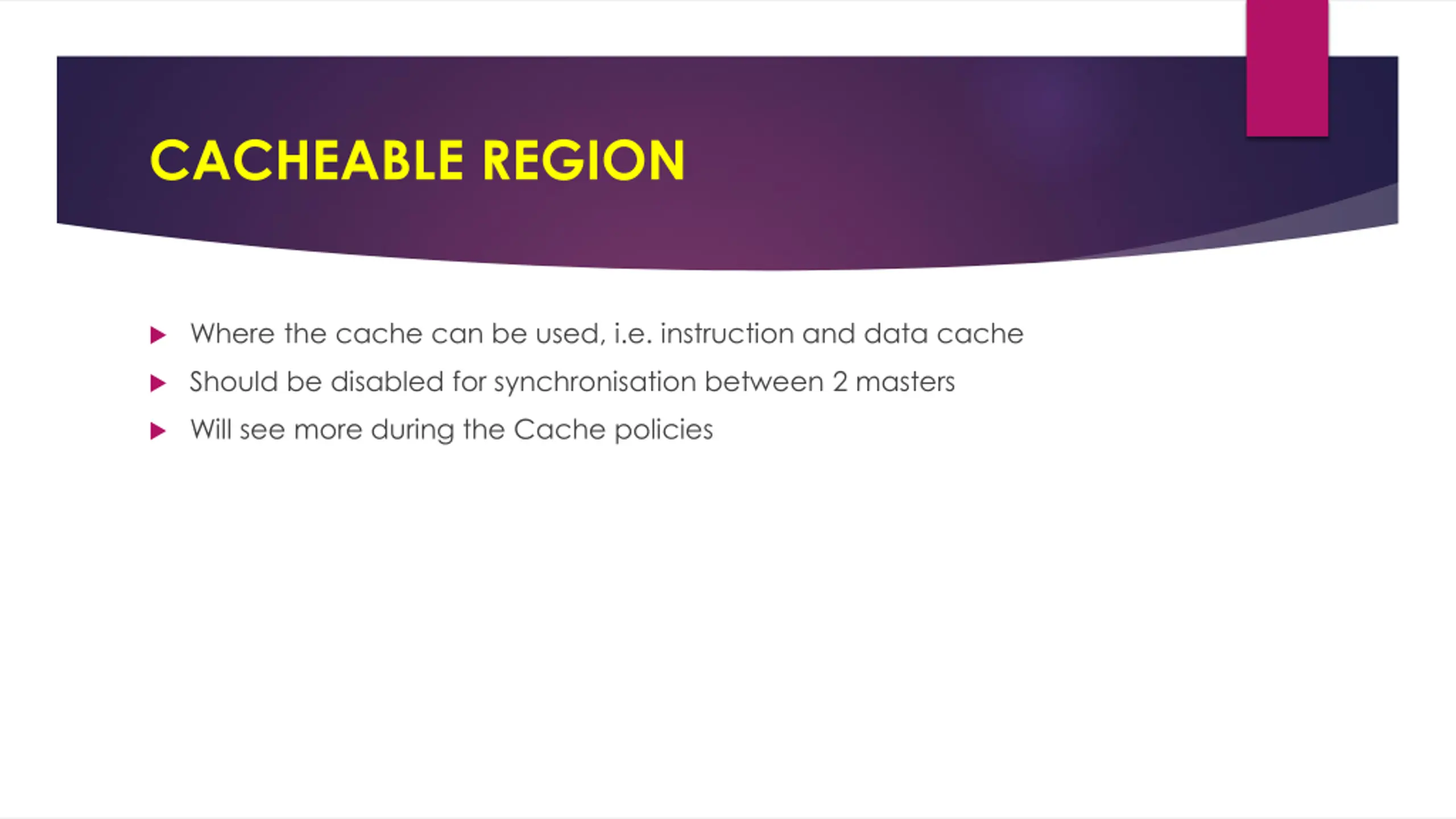

CACHEABLE REGION Where the cache can be used, i.e. instruction and data cache Should be disabled for synchronisation between 2 masters Will see more during the Cache policies

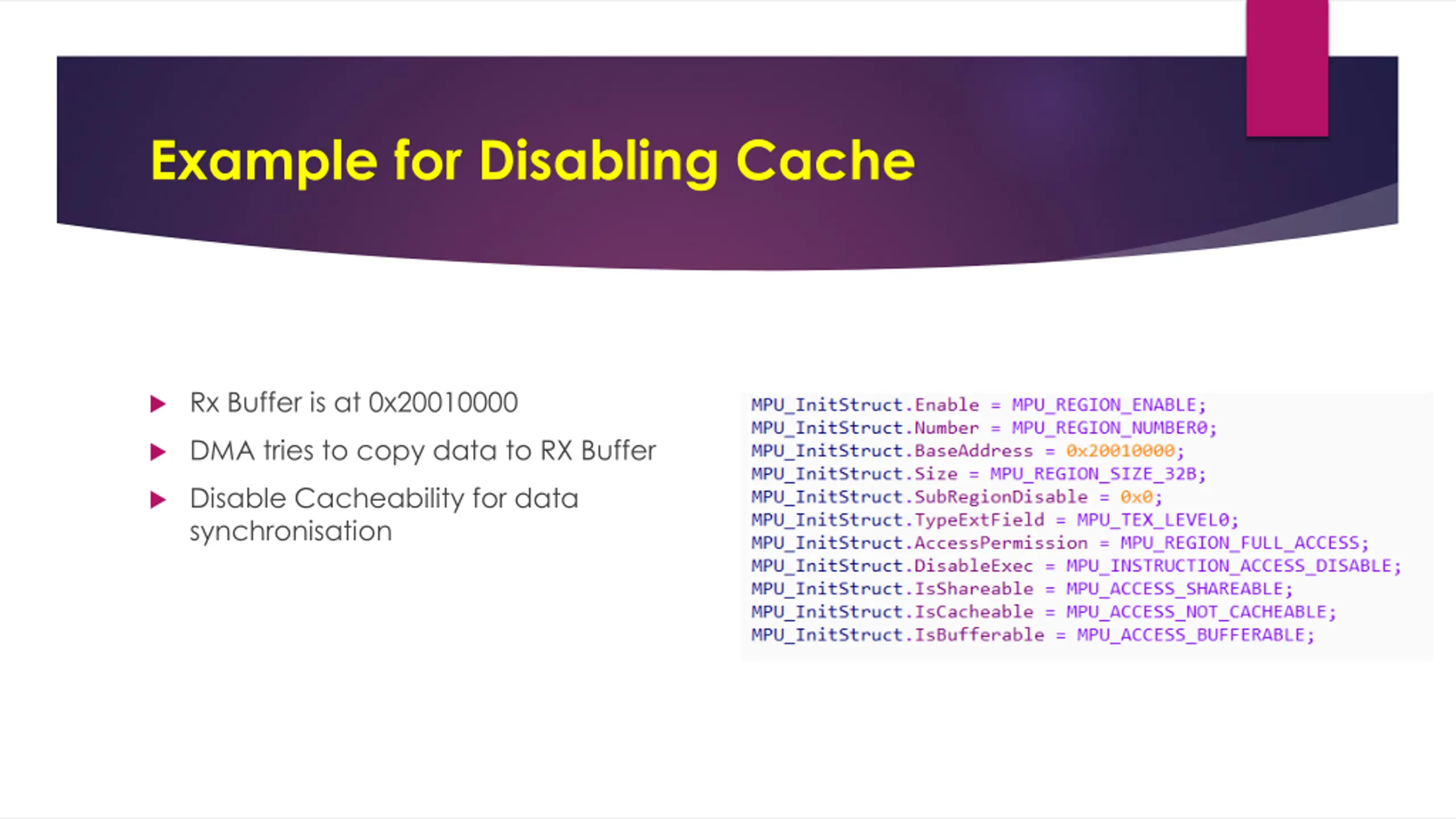

Example for Disabling Cache Rx Buffer is at 0x20010000 DMA tries to copy data to RX Buffer Disable Cacheability for data synchronisation

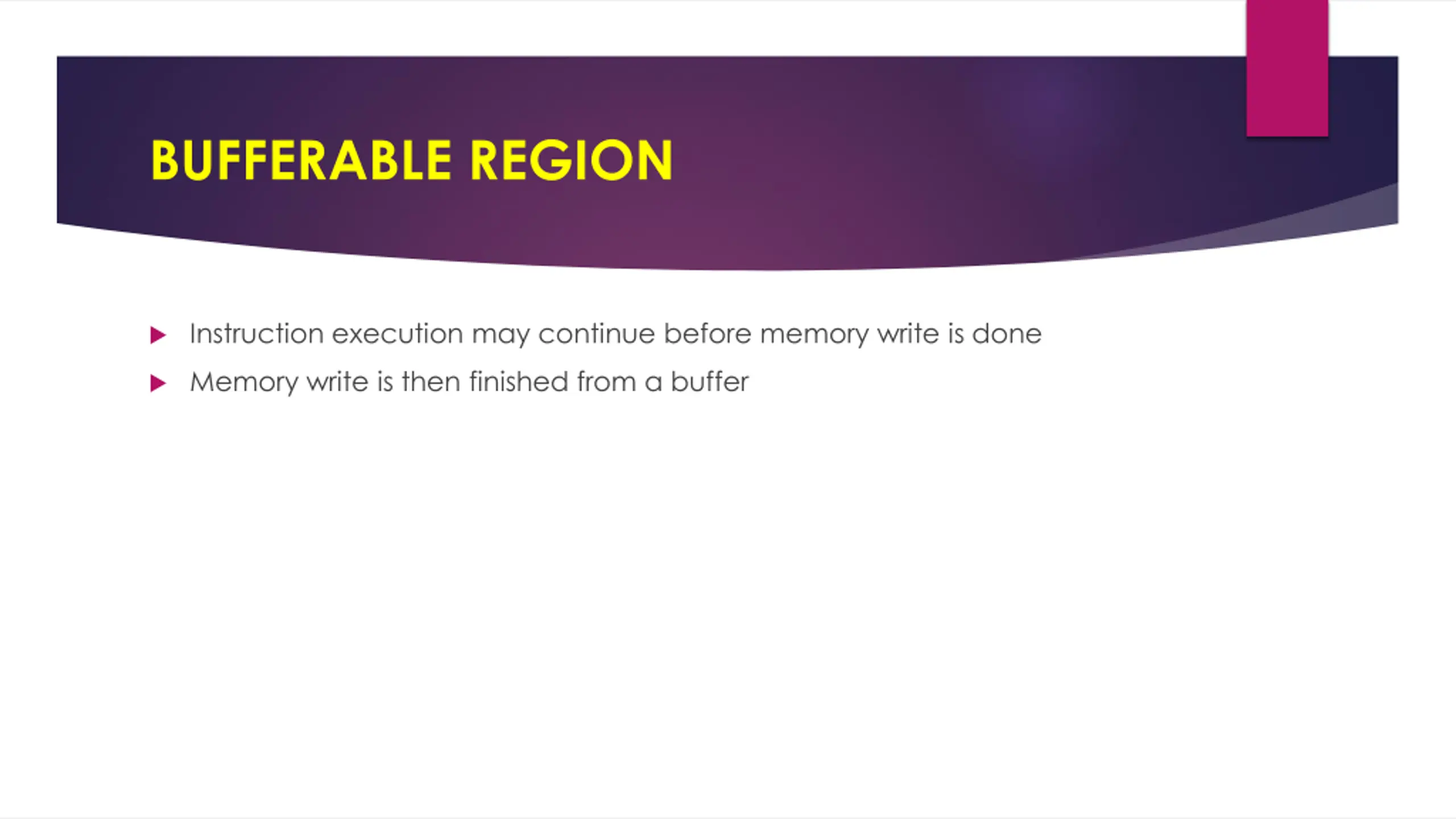

BUFFERABLE REGION Instruction execution may continue before memory write is done Memory write is then finished from a buffer

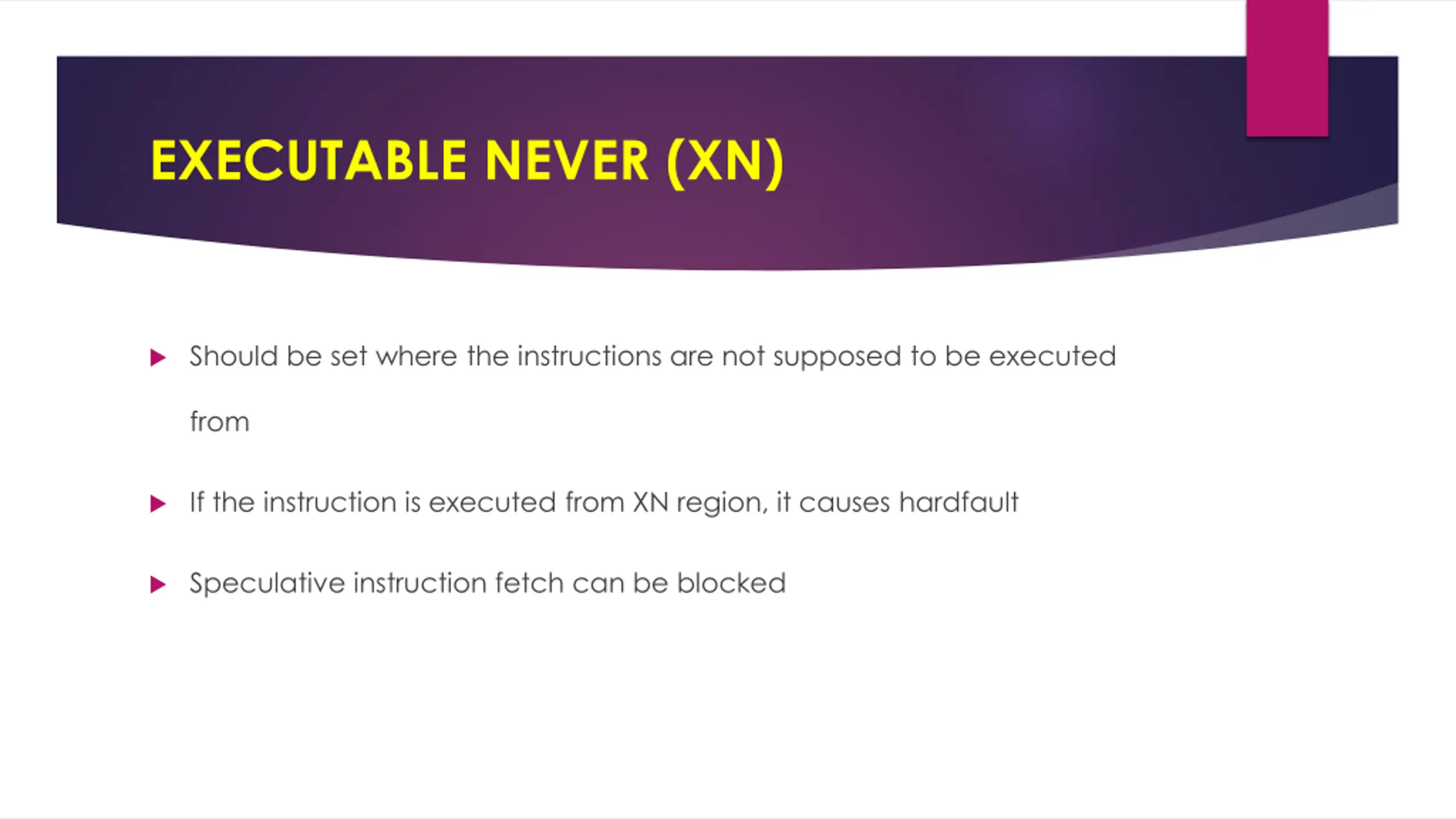

EXECUTABLE NEVER (XN) Should be set where the instructions are not supposed to be executed from If the instruction is executed from XN region, it causes hardfault Speculative instruction fetch can be blocked

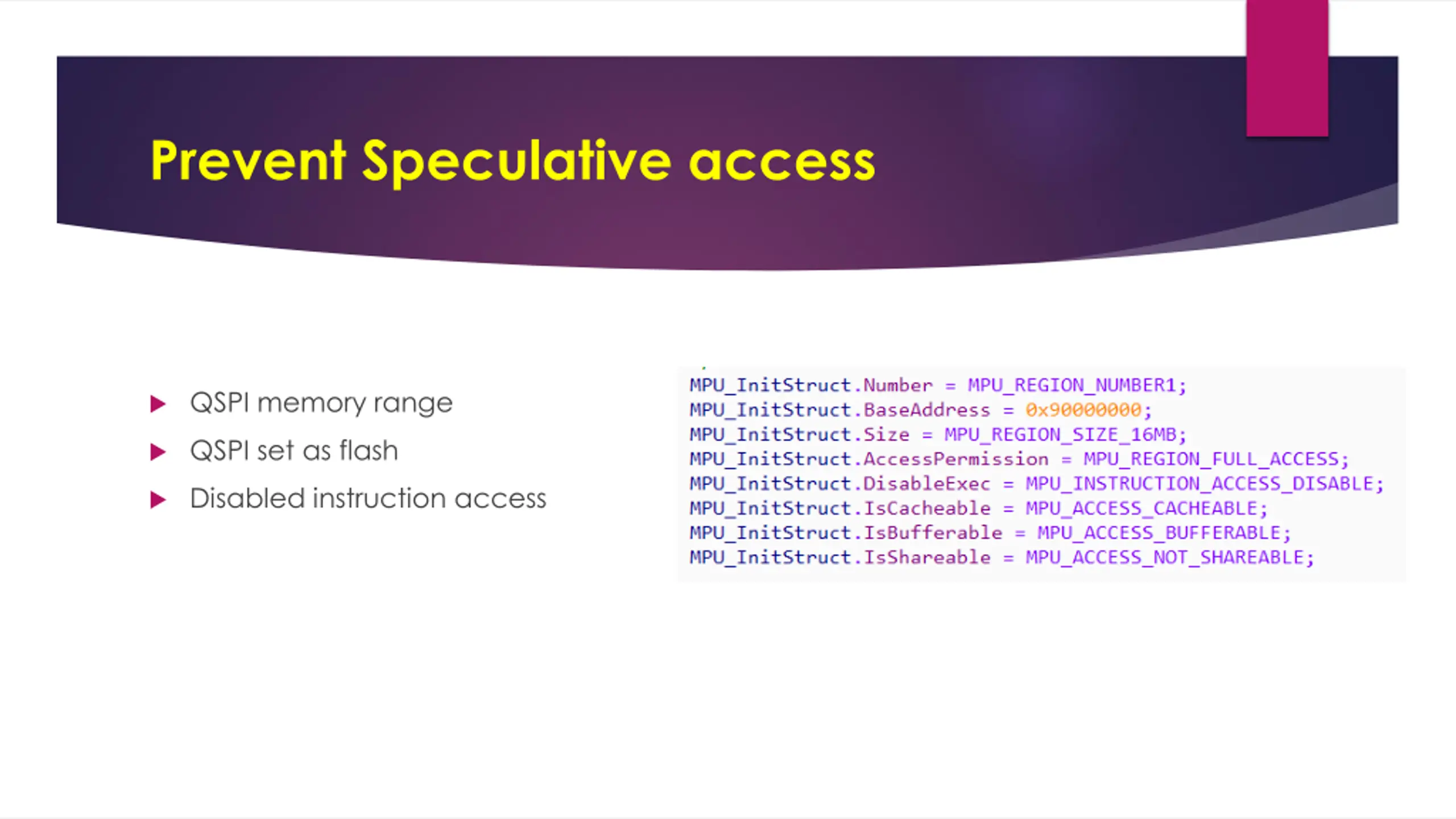

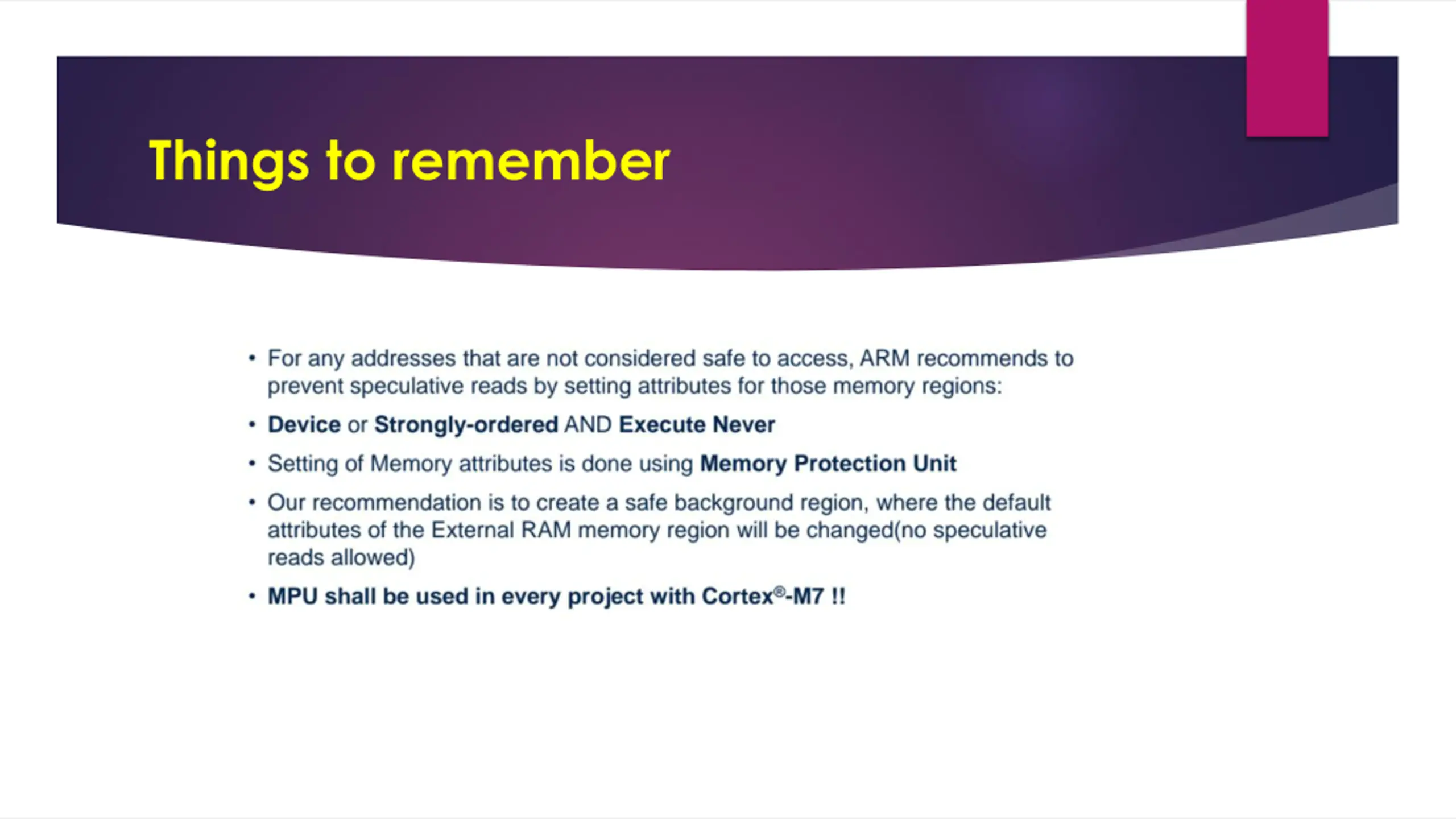

Prevent Speculative access QSPI memory range QSPI set as flash Disabled instruction access
