Microstructured Optimized Pyramid-Shaped Anti-Reflective Coatings
Bulk dielectric structures reflect infrared light, but adding microstructures can enhance transmittance. This model demonstrates gradient-free optimization to improve transmittance for infrared wavelengths using CZT pyramidal microstructures.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Microstructured Optimized Pyramid- Shape Antireflective Coatings for Infrared Wavelengths COMSOL

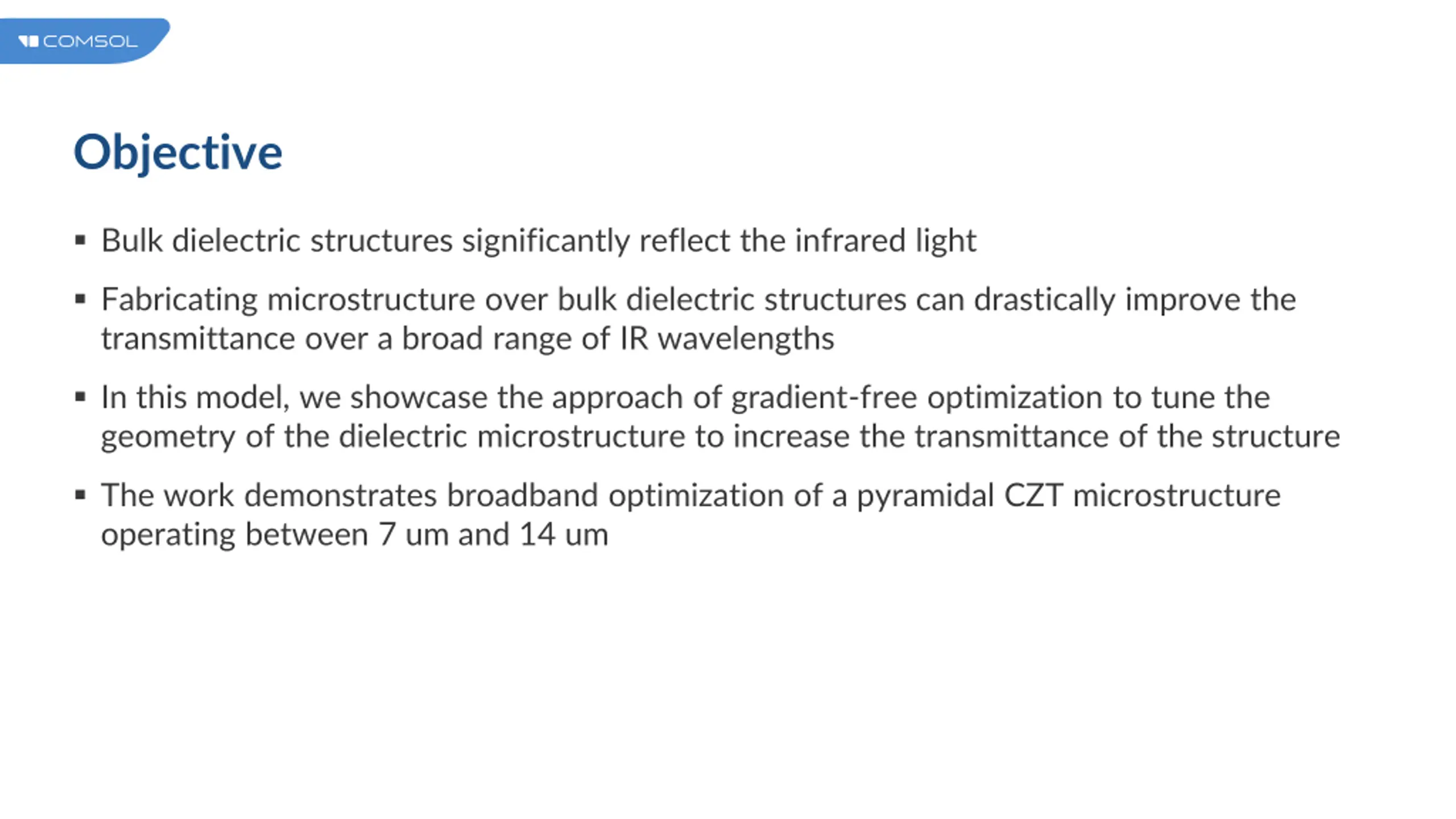

Objective Bulk dielectric structures significantly reflect the infrared light Fabricating microstructure over bulk dielectric structures can drastically improve the transmittance over a broad range of IR wavelengths In this model, we showcase the approach of gradient-free optimization to tune the geometry of the dielectric microstructure to increase the transmittance of the structure The work demonstrates broadband optimization of a pyramidal CZT microstructure operating between 7 um and 14 um

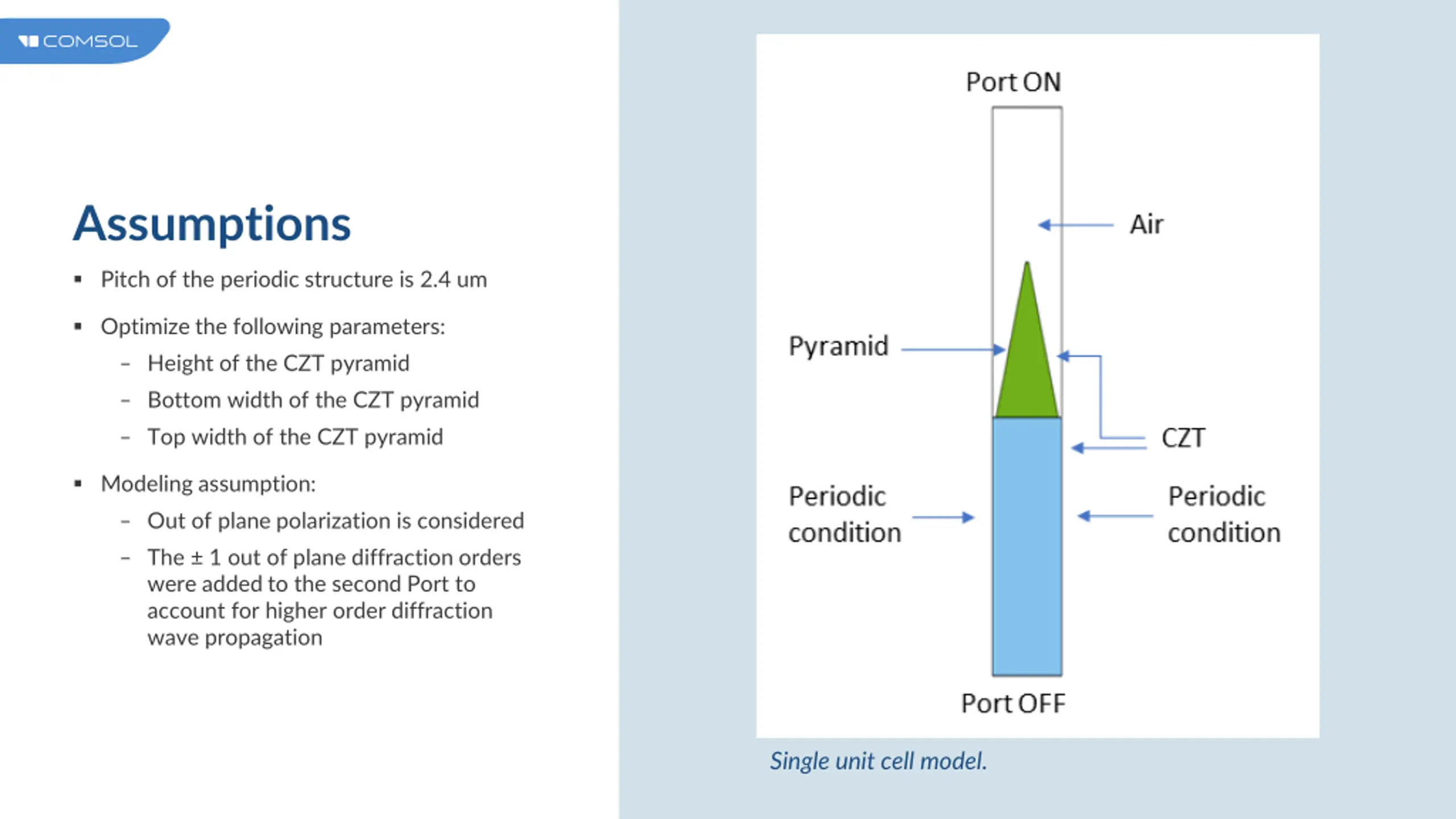

Assumptions Pitch of the periodic structure is 2.4 um Optimize the following parameters: Height of the CZT pyramid Bottom width of the CZT pyramid Top width of the CZT pyramid Modeling assumption: Out of plane polarization is considered The 1 out of plane diffraction orders were added to the second Port to account for higher order diffraction wave propagation Single unit cell model.

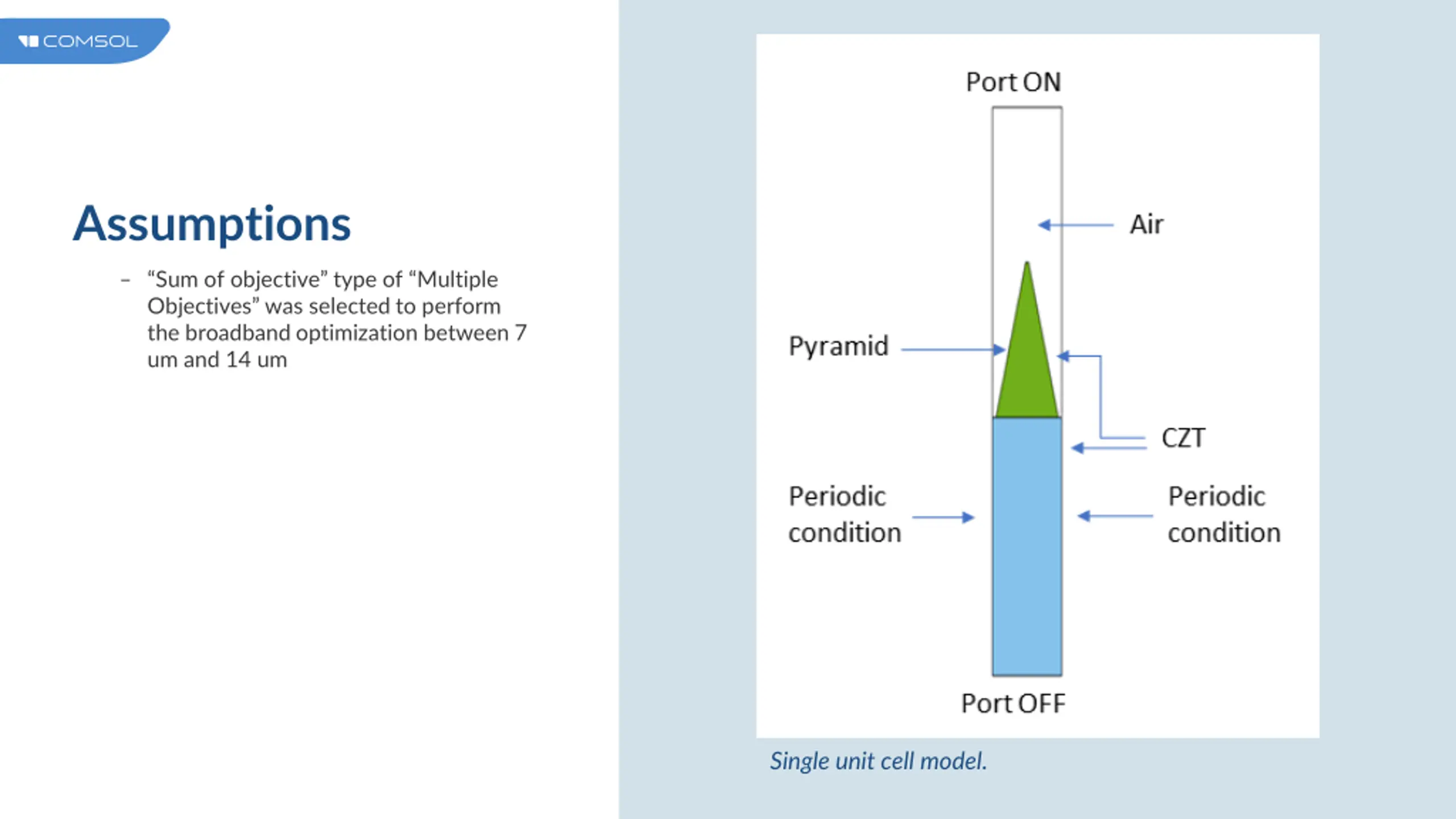

Assumptions Sum of objective type of Multiple Objectives was selected to perform the broadband optimization between 7 um and 14 um Single unit cell model.

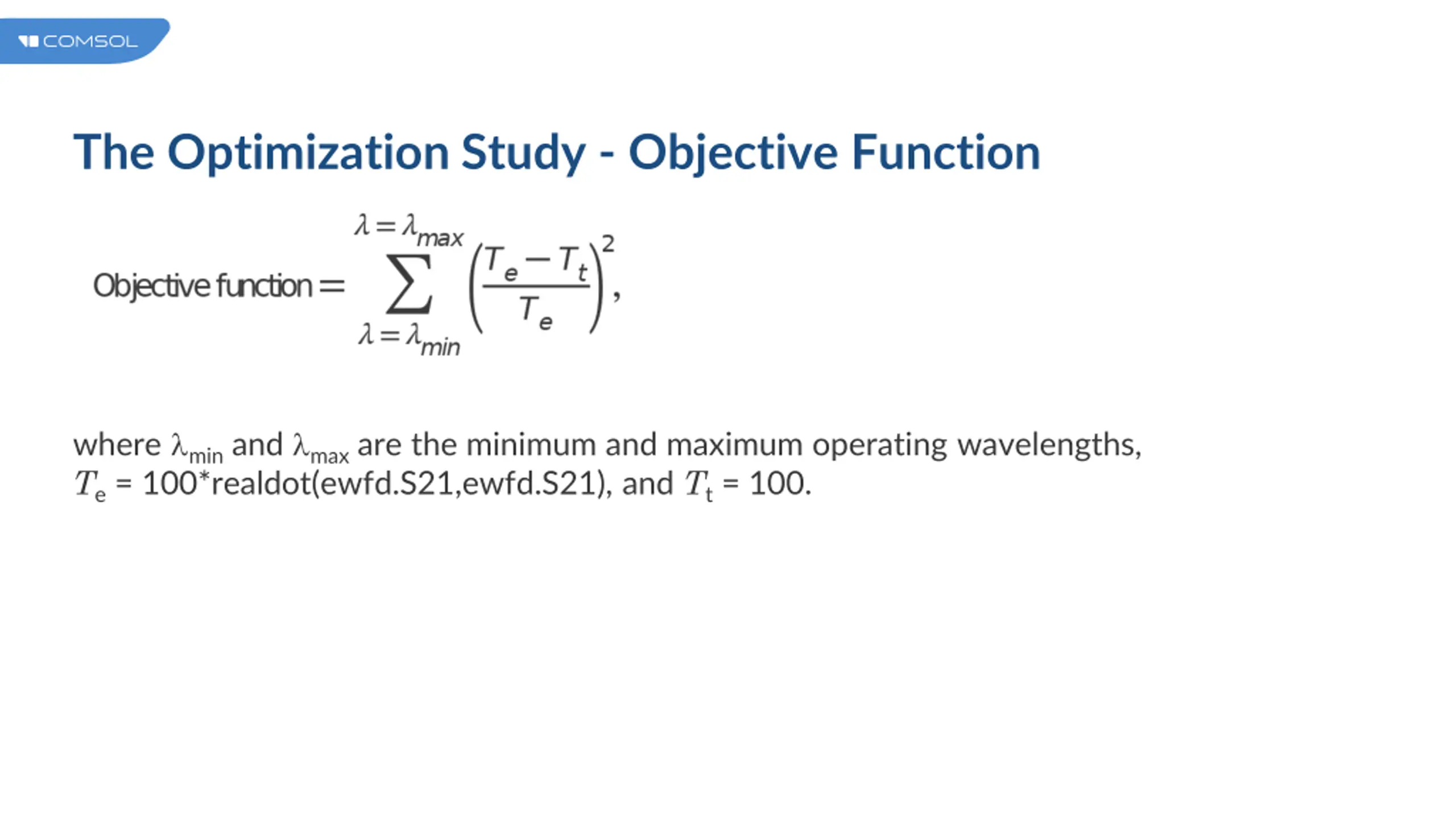

The Optimization Study - Objective Function where min and max are the minimum and maximum operating wavelengths, Te= 100*realdot(ewfd.S21,ewfd.S21), and Tt= 100.

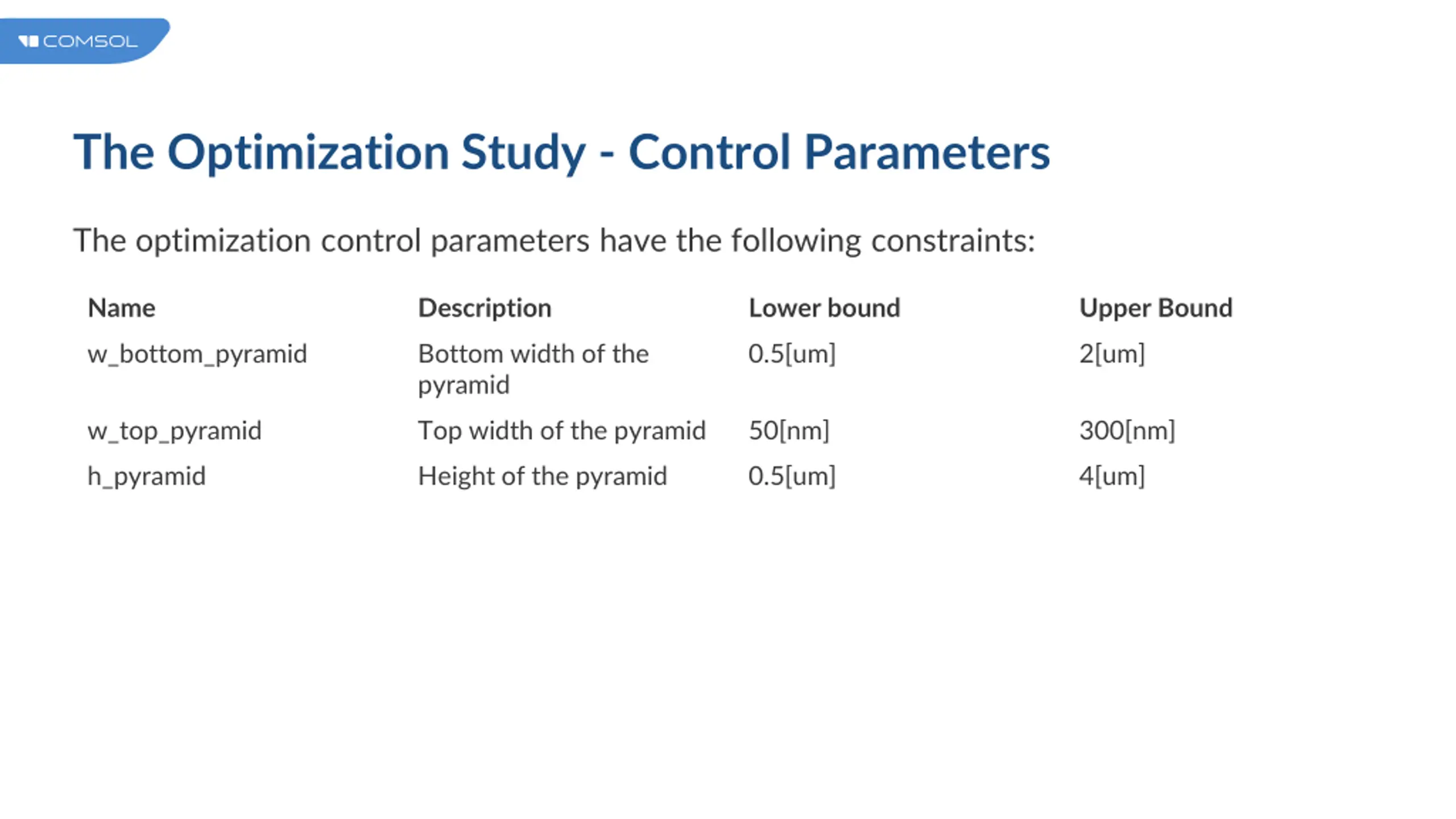

The Optimization Study - Control Parameters The optimization control parameters have the following constraints: Name Description Lower bound Upper Bound w_bottom_pyramid Bottom width of the pyramid 0.5[um] 2[um] w_top_pyramid Top width of the pyramid 50[nm] 300[nm] h_pyramid Height of the pyramid 0.5[um] 4[um]

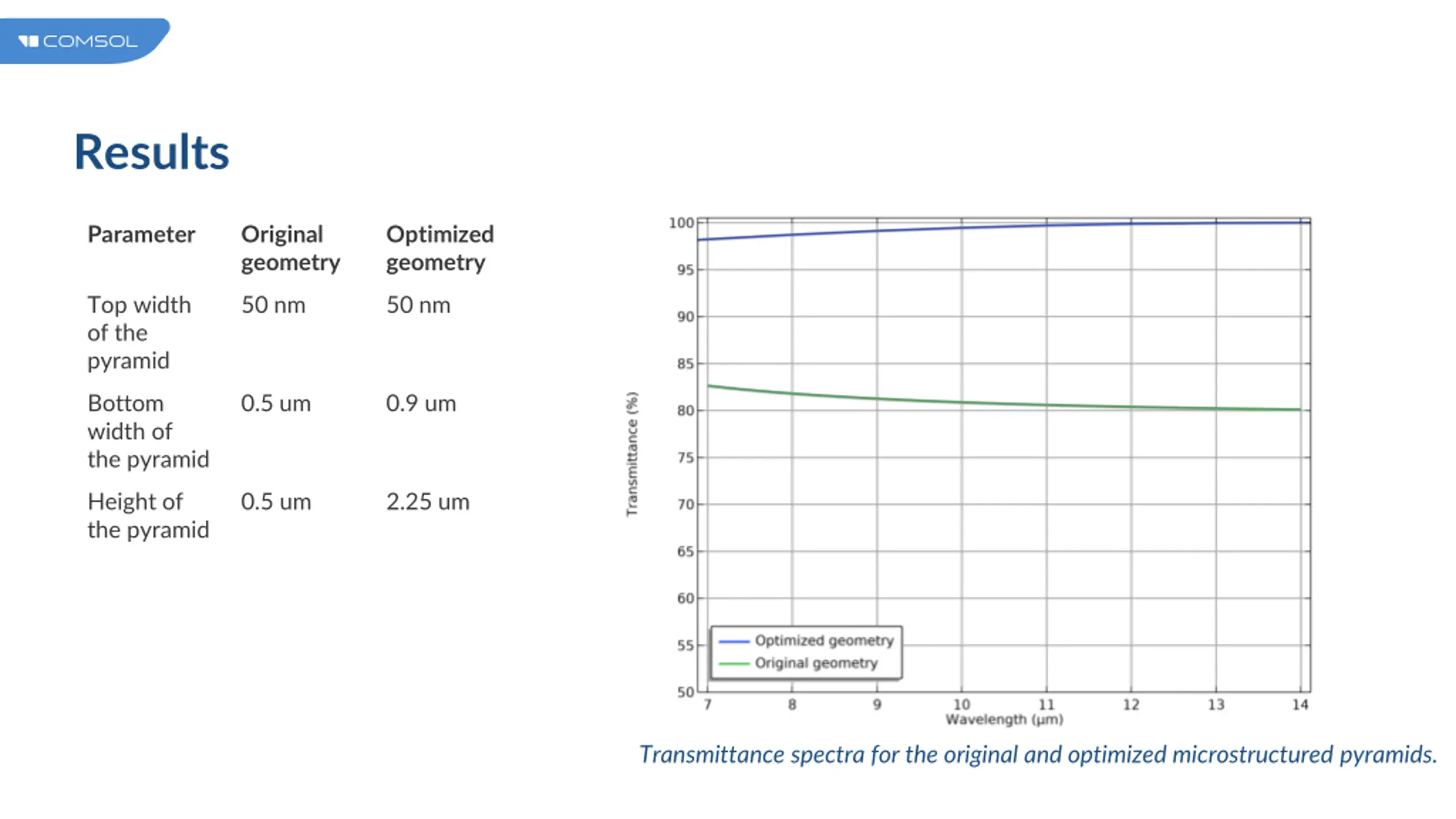

Results Parameter Original geometry Optimized geometry Top width of the pyramid 50 nm 50 nm Bottom width of the pyramid 0.5 um 0.9 um Height of the pyramid 0.5 um 2.25 um Transmittance spectra for the original and optimized microstructured pyramids.
