Life Cycle of Migration from Oracle DB2 to PostgreSQL Abhinav Sagar Premnath Jangam
WHY ? WHAT ? HOW ? WHEN ?

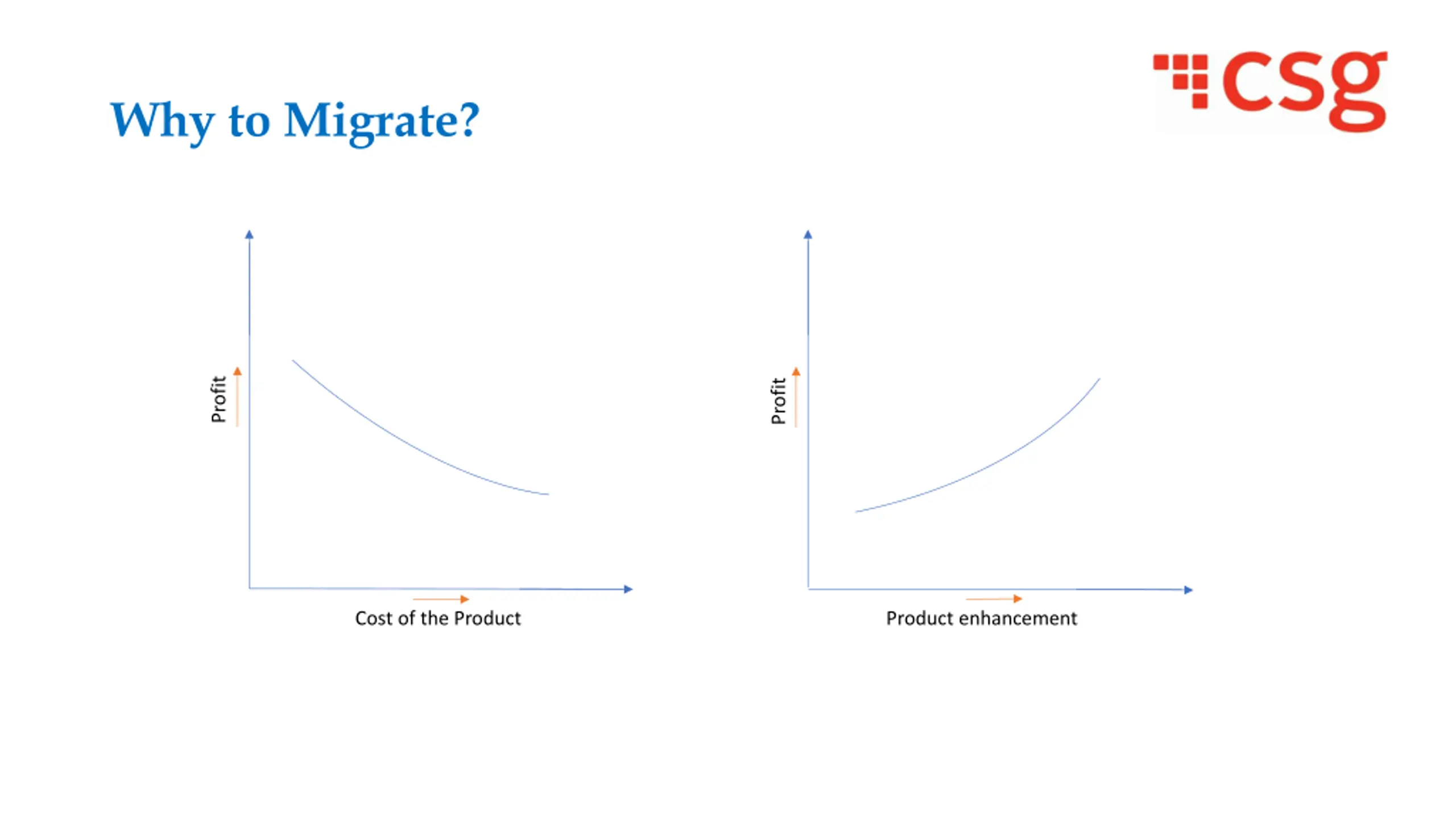

Why to Migrate? Profit Profit Cost of the Product Product enhancement
How to Migrate? Oracle /DB2 PostgreSQL Data Conversion/Loading
When to Migrate ? Enough time to migrate and validate Less business impact due to downtime. After data purge retention.

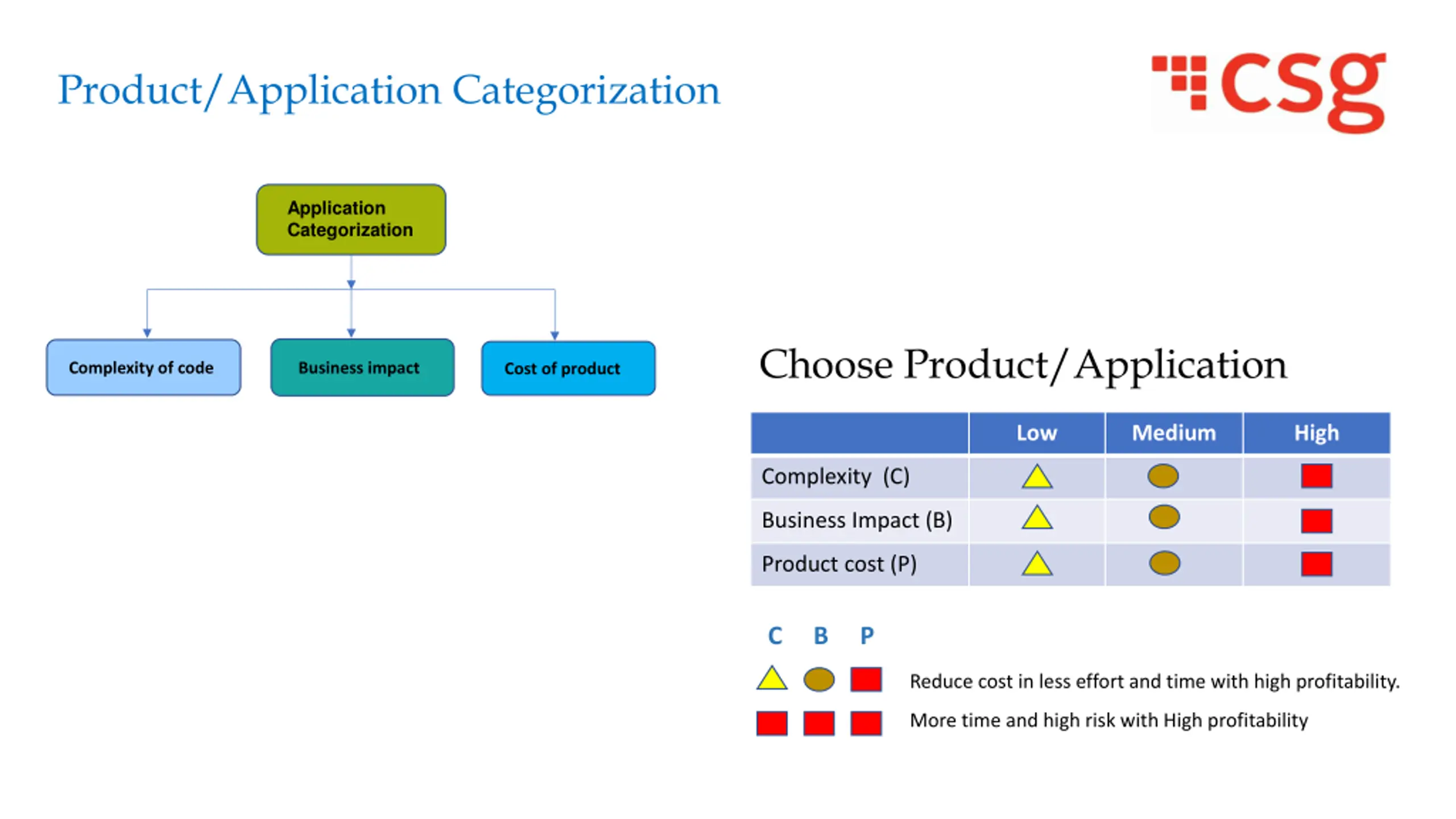

Product/Application Categorization Application Categorization Choose Product/Application Complexity of code Business impact Cost of product Low Medium High Complexity (C) Business Impact (B) Product cost (P) C B P Reduce cost in less effort and time with high profitability. More time and high risk with High profitability

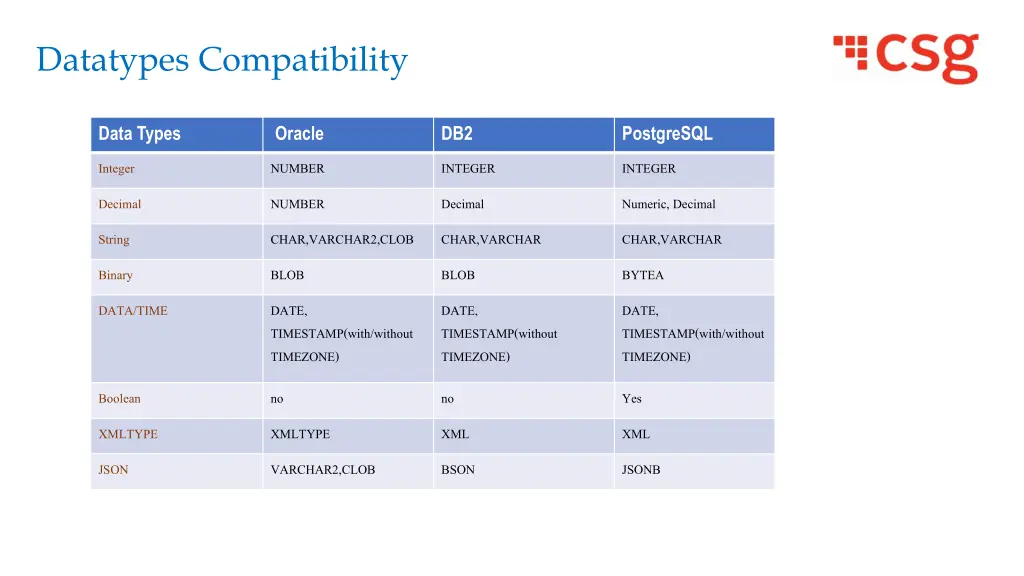

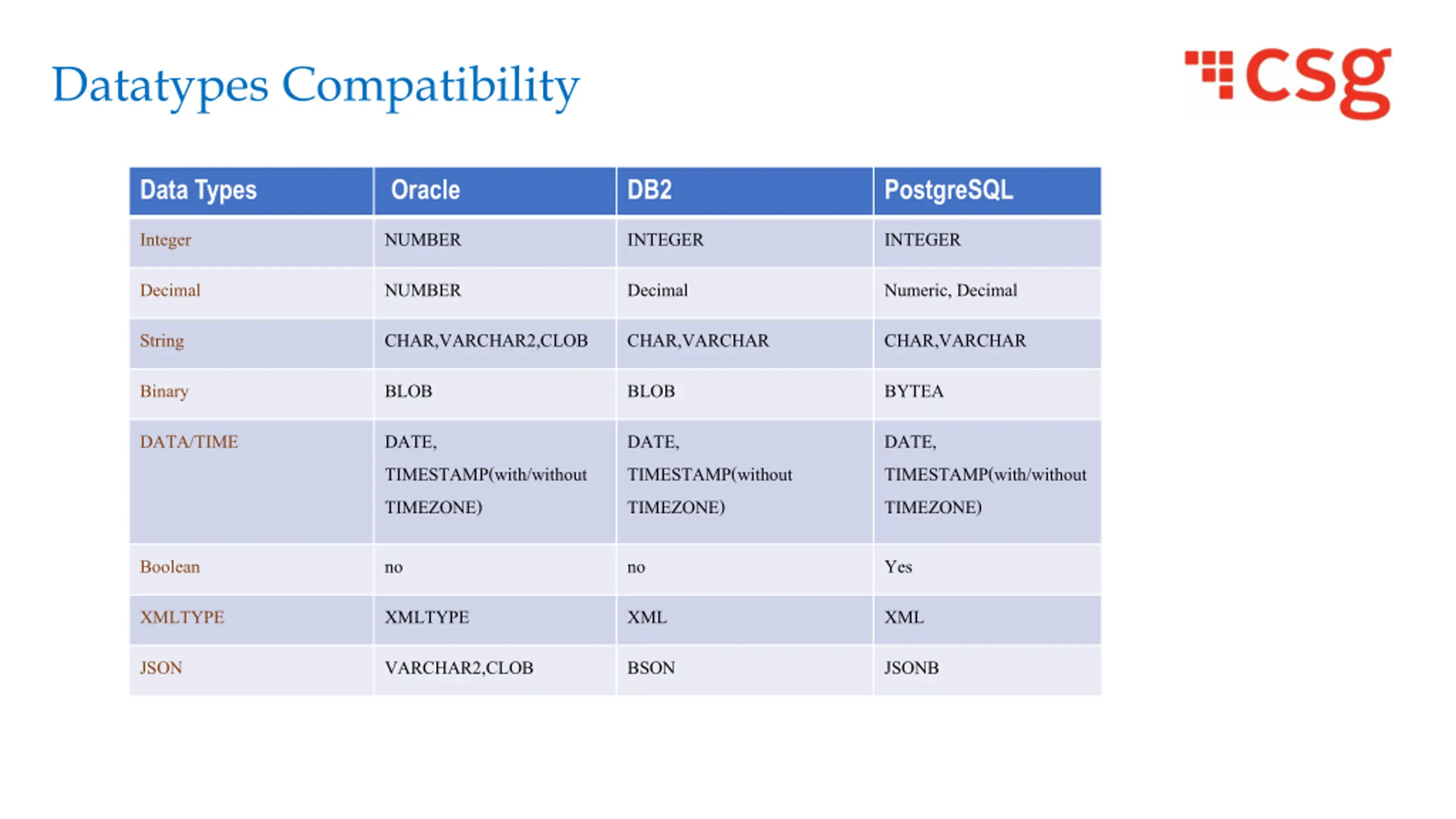

Datatypes Compatibility Data Types Oracle DB2 PostgreSQL Integer NUMBER INTEGER INTEGER Decimal NUMBER Decimal Numeric, Decimal String CHAR,VARCHAR2,CLOB CHAR,VARCHAR CHAR,VARCHAR Binary BLOB BLOB BYTEA DATA/TIME DATE, TIMESTAMP(with/without TIMEZONE) DATE, TIMESTAMP(without TIMEZONE) DATE, TIMESTAMP(with/without TIMEZONE) Boolean no no Yes XMLTYPE XMLTYPE XML XML JSON VARCHAR2,CLOB BSON JSONB

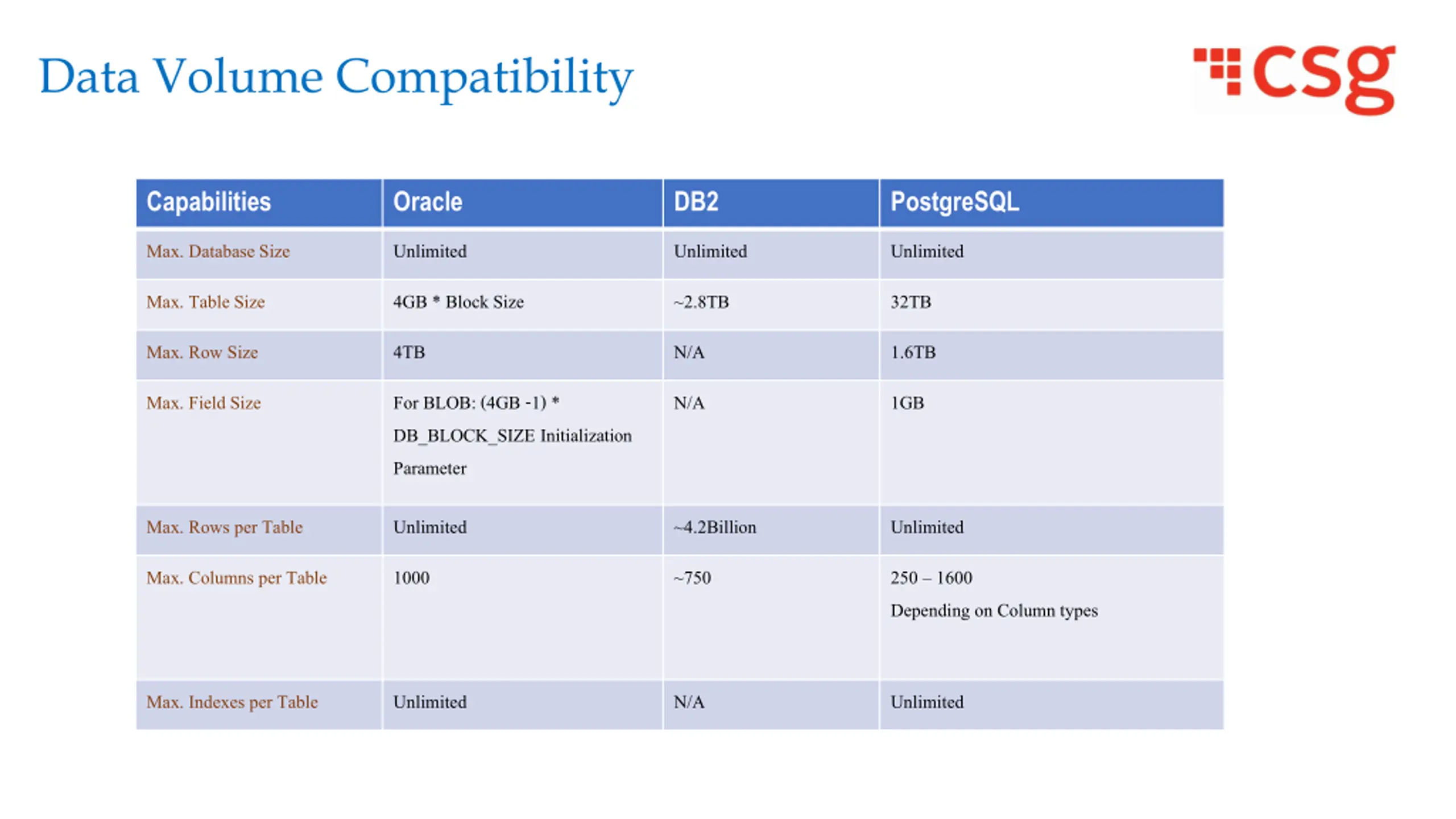

Data Volume Compatibility Capabilities Oracle DB2 PostgreSQL Max. Database Size Unlimited Unlimited Unlimited Max. Table Size 4GB * Block Size ~2.8TB 32TB Max. Row Size 4TB N/A 1.6TB Max. Field Size For BLOB: (4GB -1) * DB_BLOCK_SIZE Initialization Parameter N/A 1GB Max. Rows per Table Unlimited ~4.2Billion Unlimited Max. Columns per Table 1000 ~750 250 1600 Depending on Column types Max. Indexes per Table Unlimited N/A Unlimited

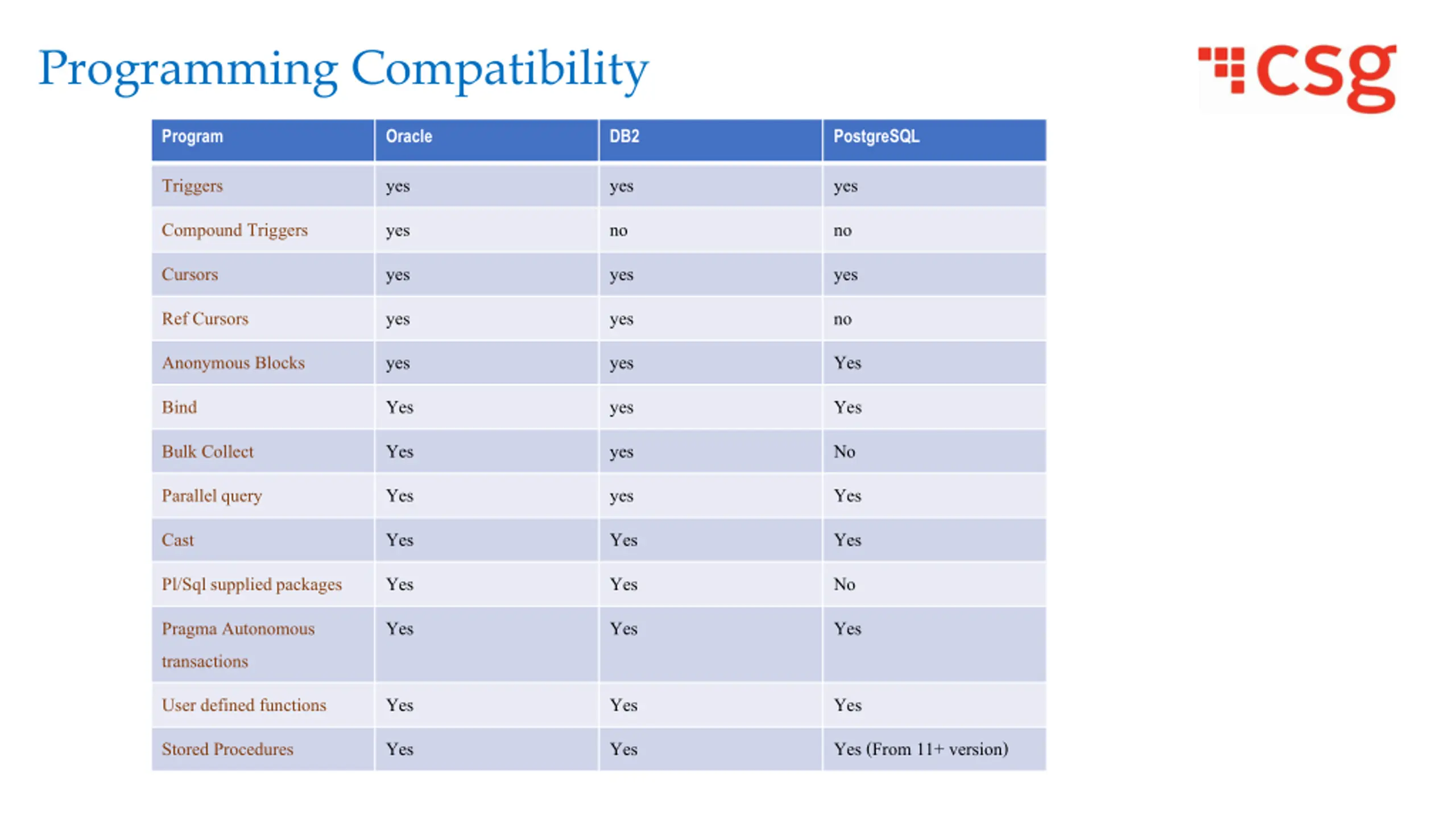

Programming Compatibility Program Oracle DB2 PostgreSQL Triggers Compound Triggers Cursors Ref Cursors Anonymous Blocks Bind Bulk Collect Parallel query Cast Pl/Sql supplied packages Pragma Autonomous transactions User defined functions Stored Procedures yes yes yes yes yes Yes Yes Yes Yes Yes Yes yes no yes yes yes yes yes yes Yes Yes Yes yes no yes no Yes Yes No Yes Yes No Yes Yes Yes Yes Yes Yes Yes (From 11+ version)

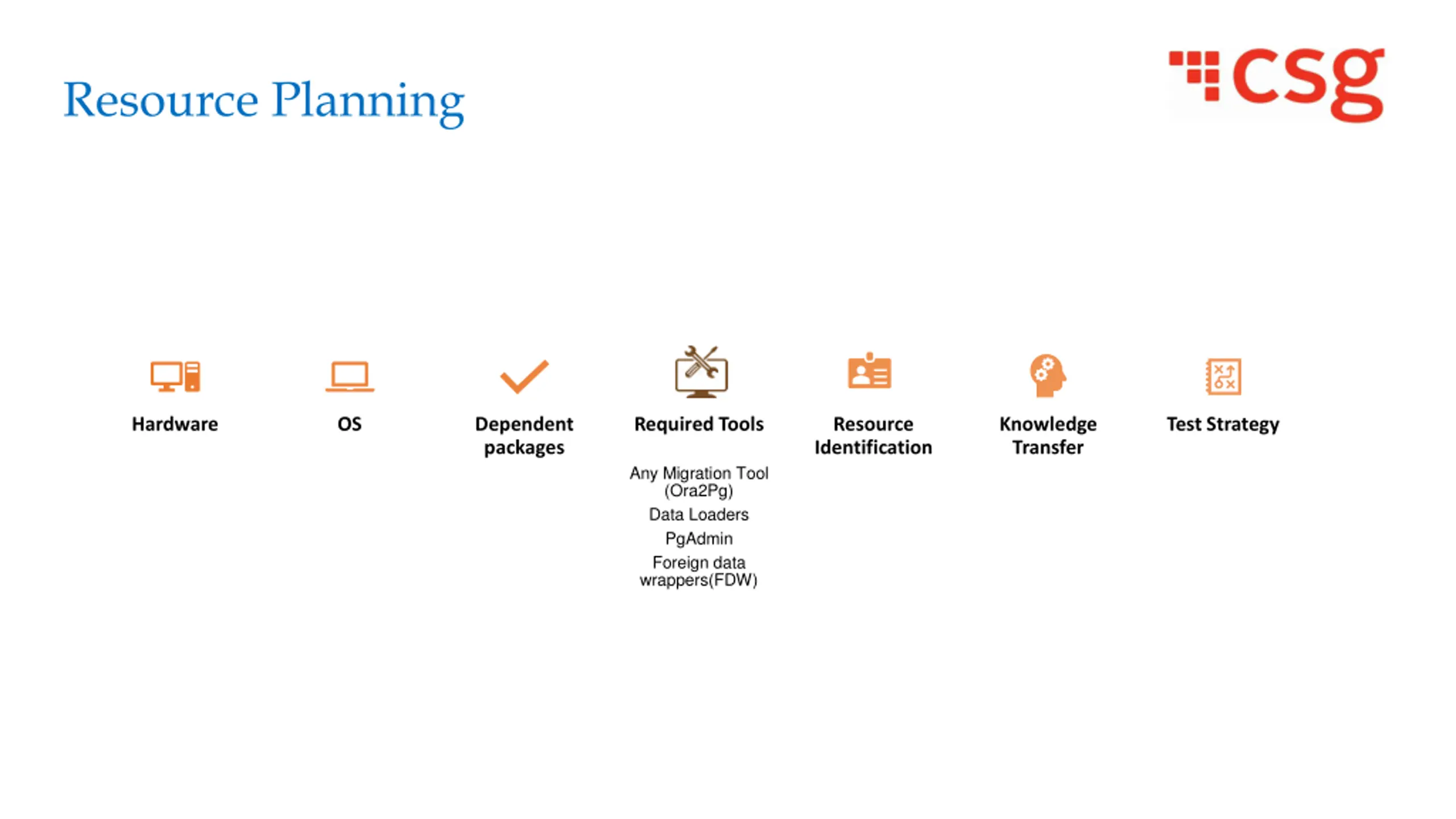

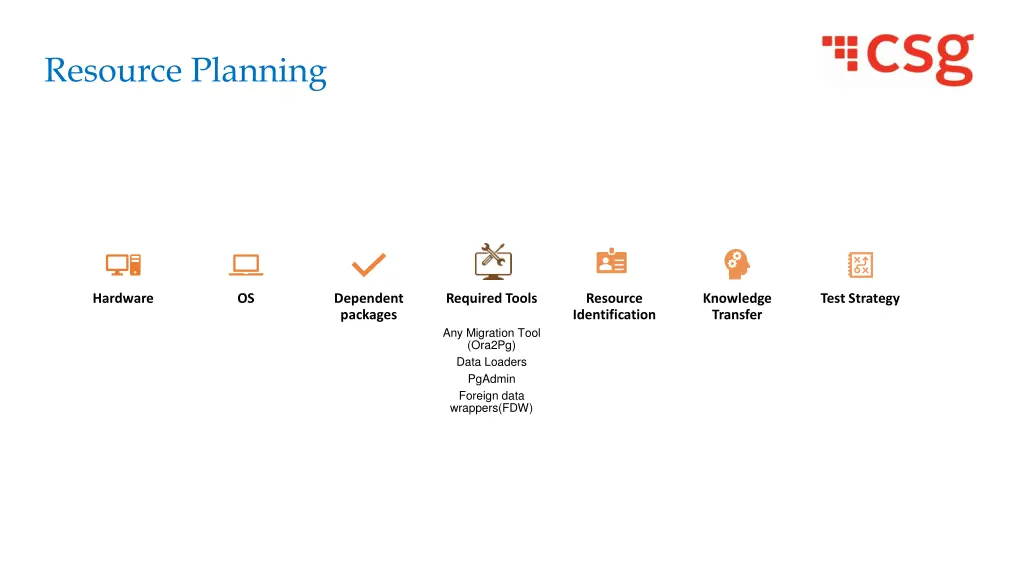

Resource Planning Hardware OS Dependent packages Required Tools Resource Identification Knowledge Transfer Test Strategy Any Migration Tool (Ora2Pg) Data Loaders PgAdmin Foreign data wrappers(FDW)

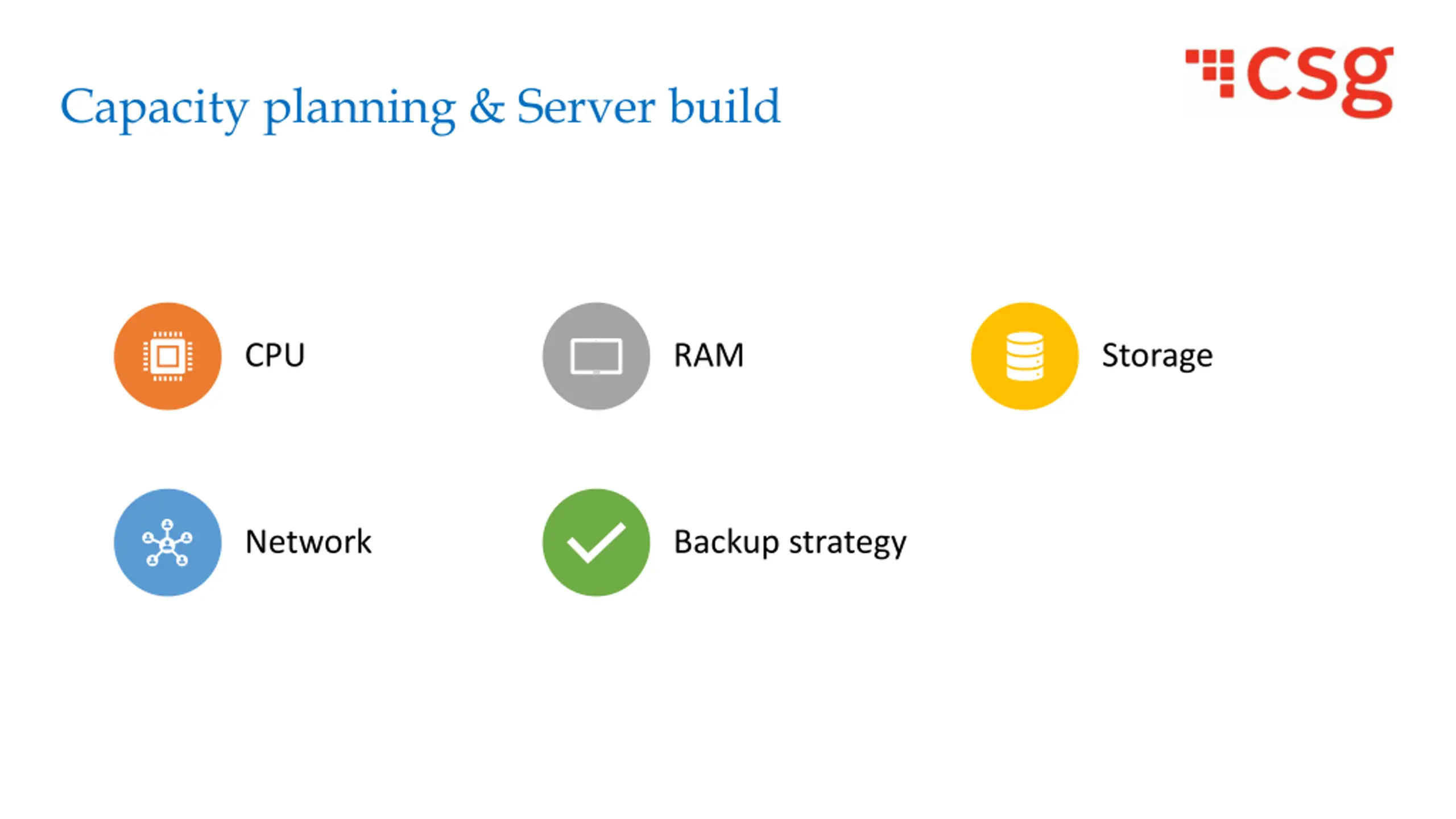

Capacity planning & Server build CPU RAM Storage Network Backup strategy

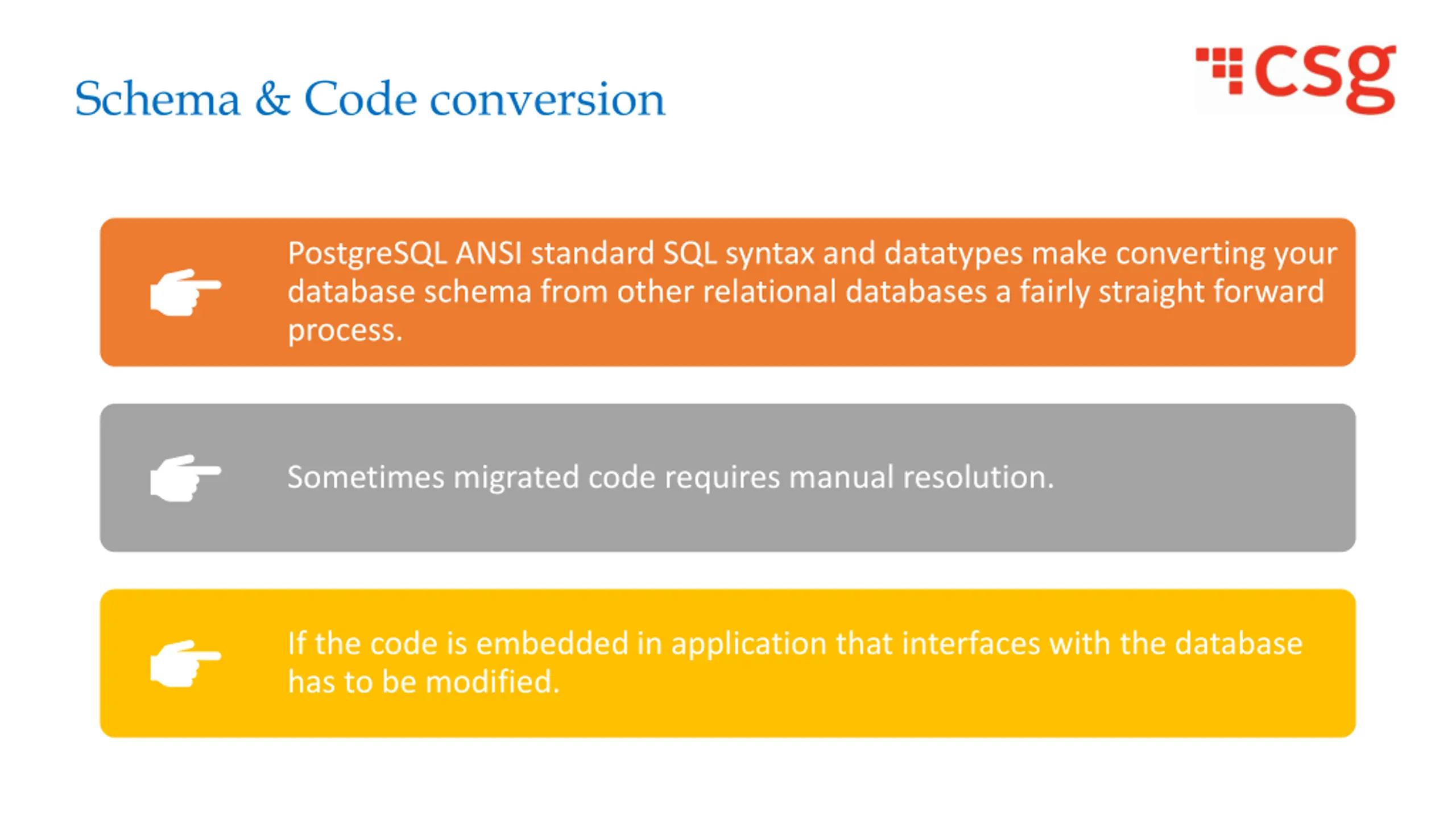

Schema & Code conversion PostgreSQL ANSI standard SQL syntax and datatypes make converting your database schema from other relational databases a fairly straight forward process. Sometimes migrated code requires manual resolution. If the code is embedded in application that interfaces with the database has to be modified.

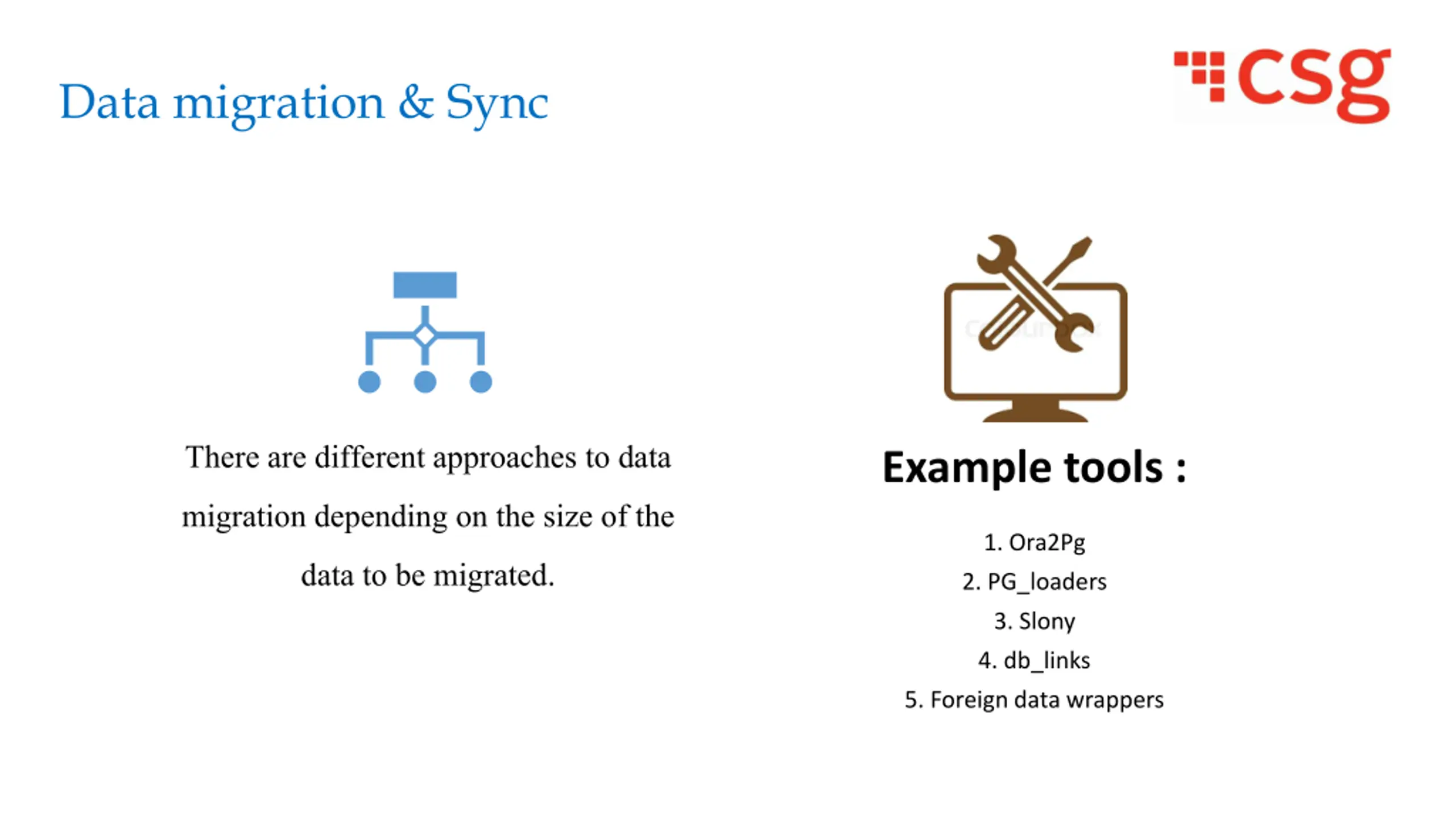

Data migration & Sync There are different approaches to data migration depending on the size of the data to be migrated. Example tools : 1. Ora2Pg 2. PG_loaders 3. Slony 4. db_links 5. Foreign data wrappers

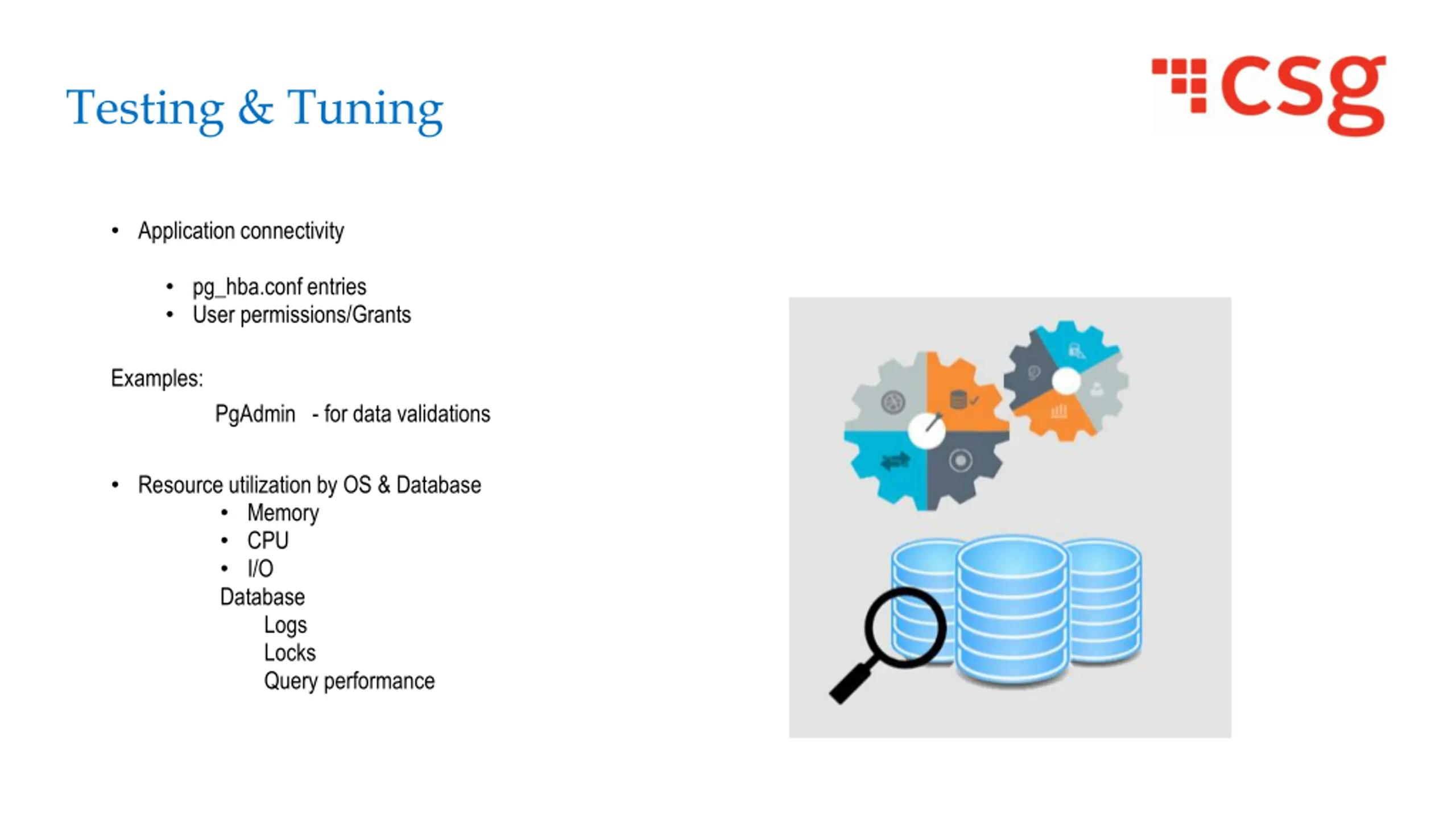

Testing & Tuning Application connectivity pg_hba.conf entries User permissions/Grants Examples: PgAdmin - for data validations Resource utilization by OS & Database Memory CPU I/O Database Logs Locks Query performance

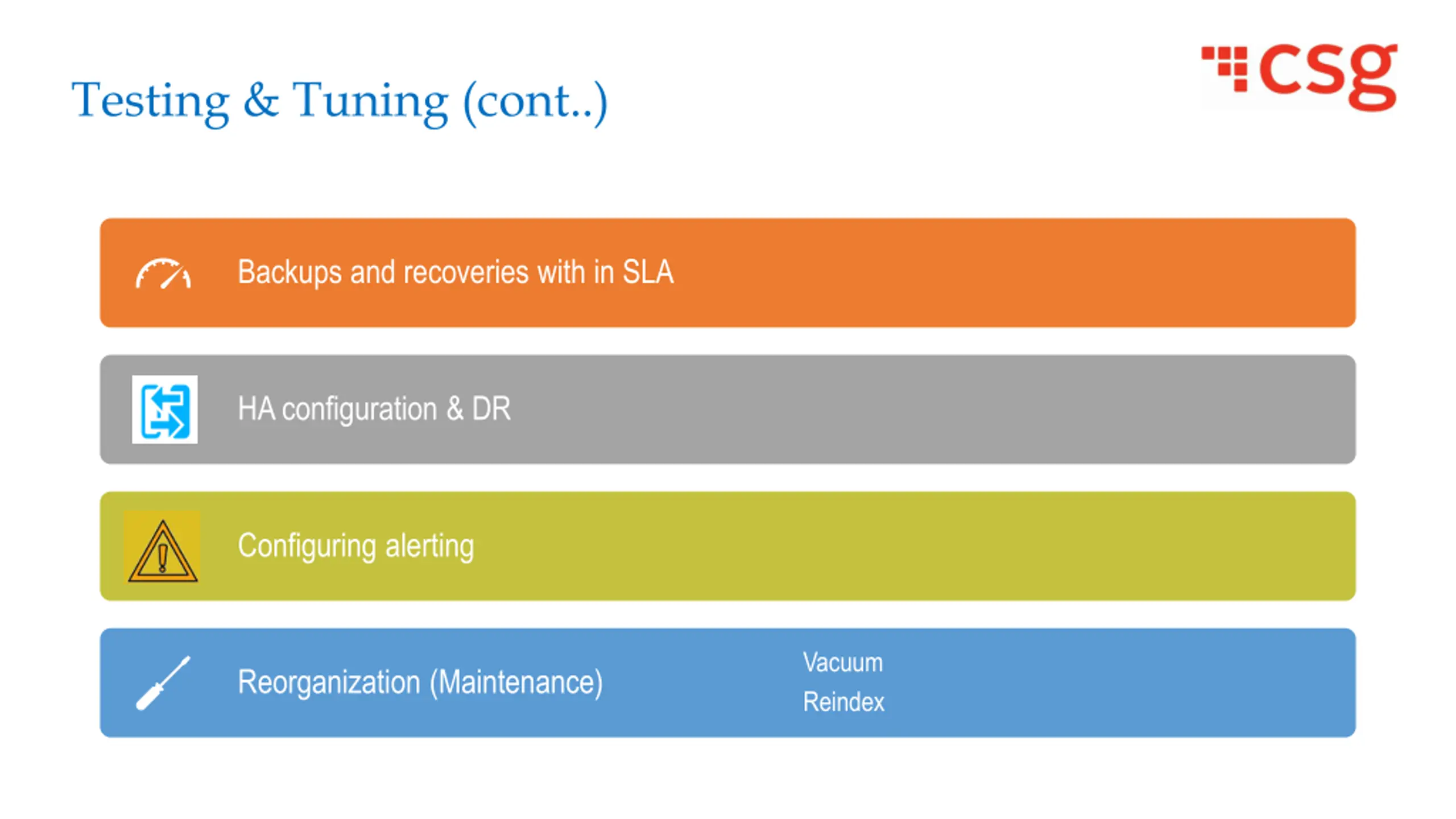

Testing & Tuning (cont..) Backups and recoveries with in SLA HA configuration & DR Configuring alerting Vacuum Reindex Reorganization (Maintenance)
Production Go-Live Pointing DNS entries First Steps connections (Read-only) Transactional part Reporting Application dashboards
Decommission of Oracle/DB2 servers Export code from Oracle/DB2 in to dump files. Backup DB/OS configuration. Decommission the Database.
