MIPS Processor Architecture and Instructions

EEL4712 Digital Design (MIPS Processor)

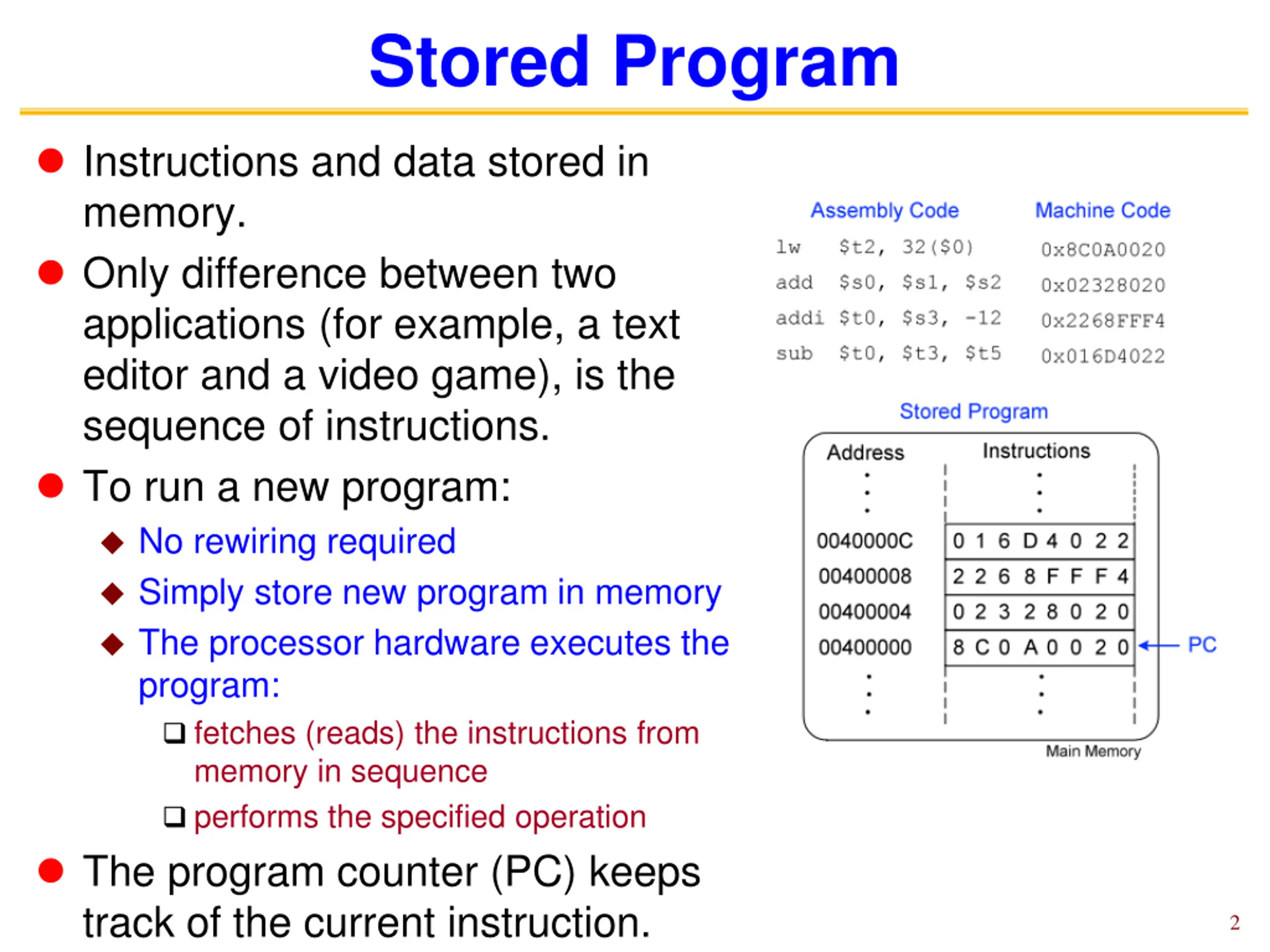

Stored Program Instructions and data stored in memory. Only difference between two applications (for example, a text editor and a video game), is the sequence of instructions. To run a new program: No rewiring required Simply store new program in memory The processor hardware executes the program: fetches (reads) the instructions from memory in sequence performs the specified operation The program counter (PC) keeps track of the current instruction. 2

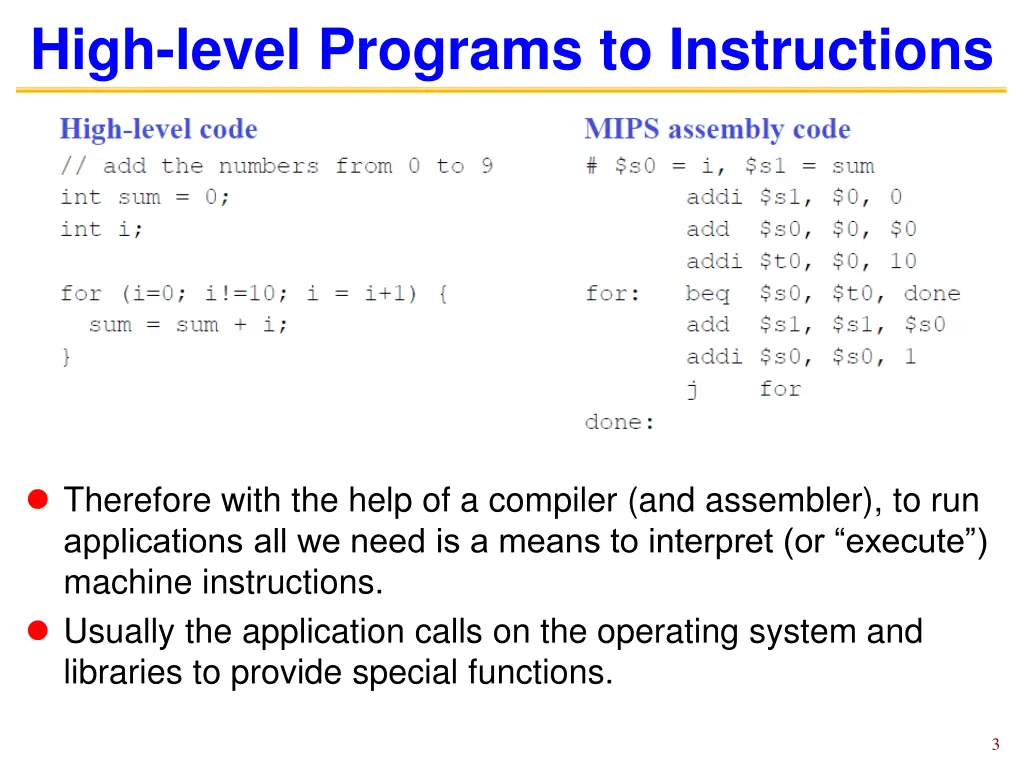

High-level Programs to Instructions Therefore with the help of a compiler (and assembler), to run applications all we need is a means to interpret (or execute ) machine instructions. Usually the application calls on the operating system and libraries to provide special functions. 3

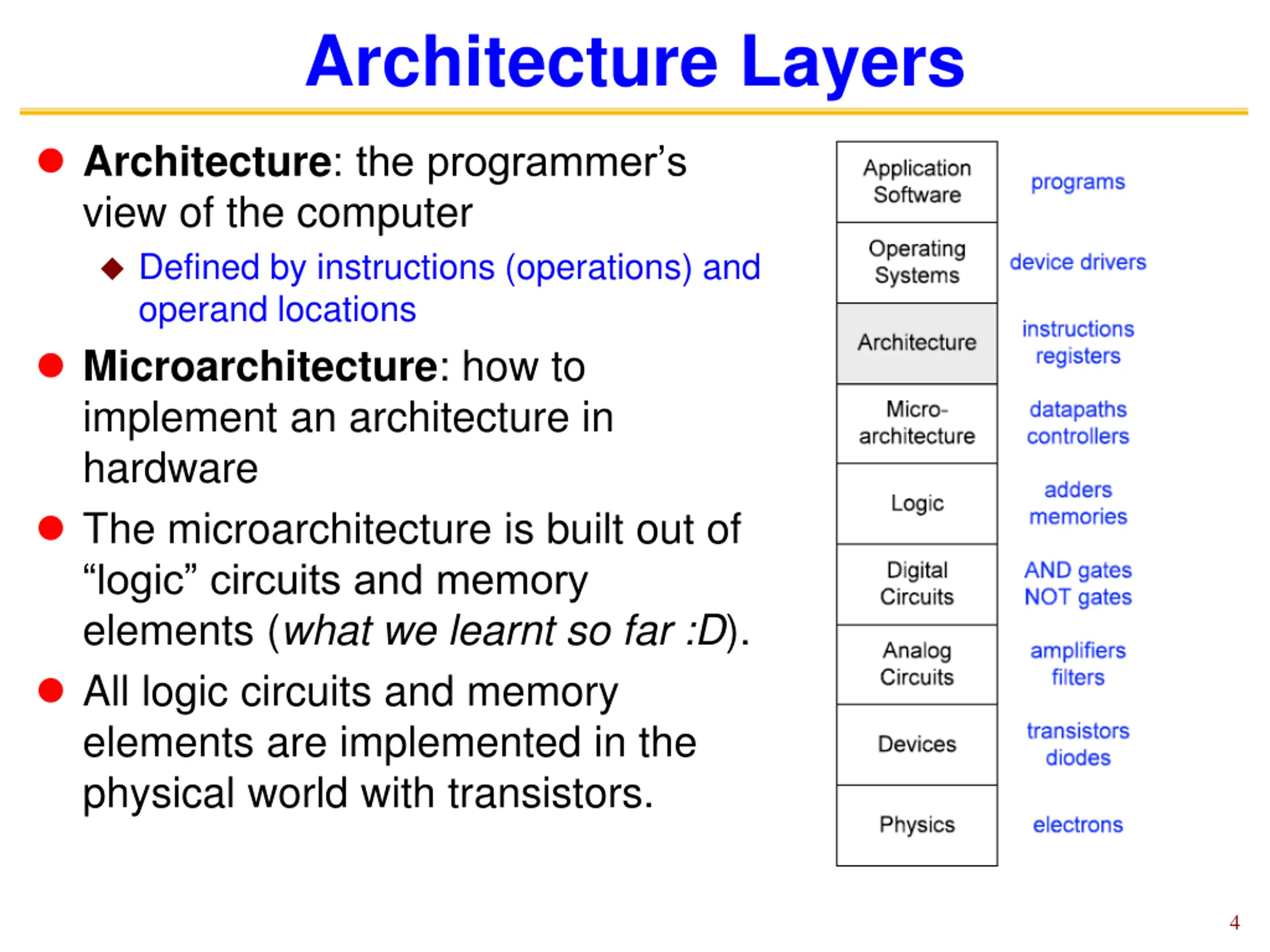

Architecture Layers Architecture: the programmer s view of the computer Defined by instructions (operations) and operand locations Microarchitecture: how to implement an architecture in hardware The microarchitecture is built out of logic circuits and memory elements (what we learnt so far :D). All logic circuits and memory elements are implemented in the physical world with transistors. 4

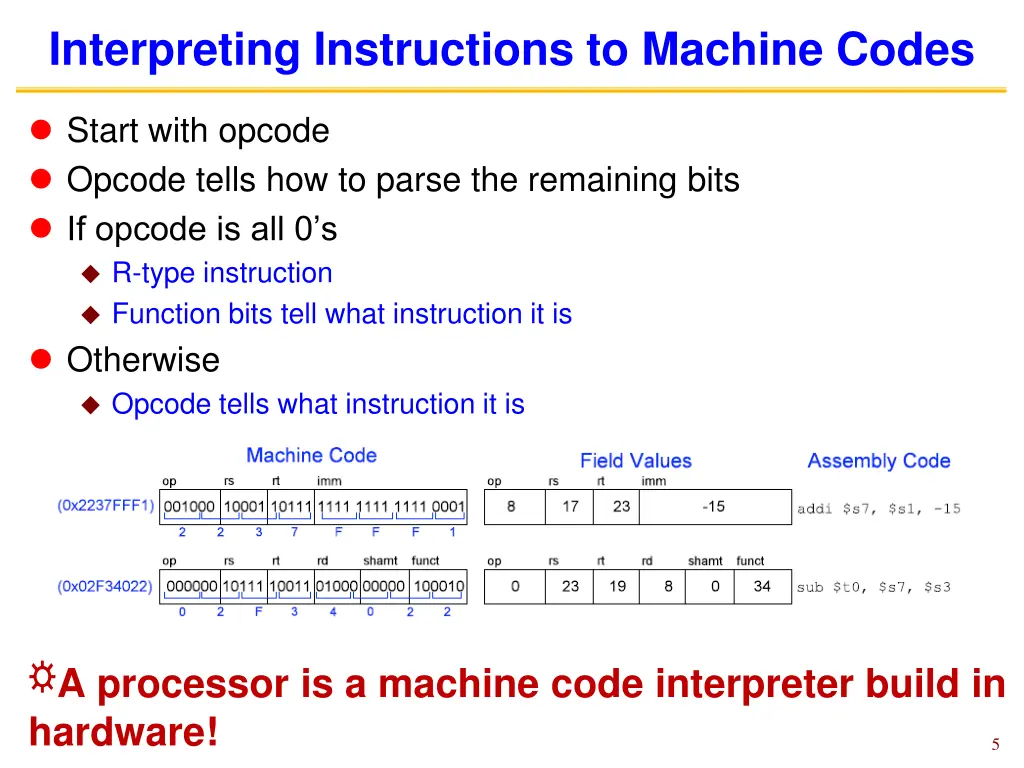

Interpreting Instructions to Machine Codes Start with opcode Opcode tells how to parse the remaining bits If opcode is all 0 s R-type instruction Function bits tell what instruction it is Otherwise Opcode tells what instruction it is A processor is a machine code interpreter build in hardware! 5

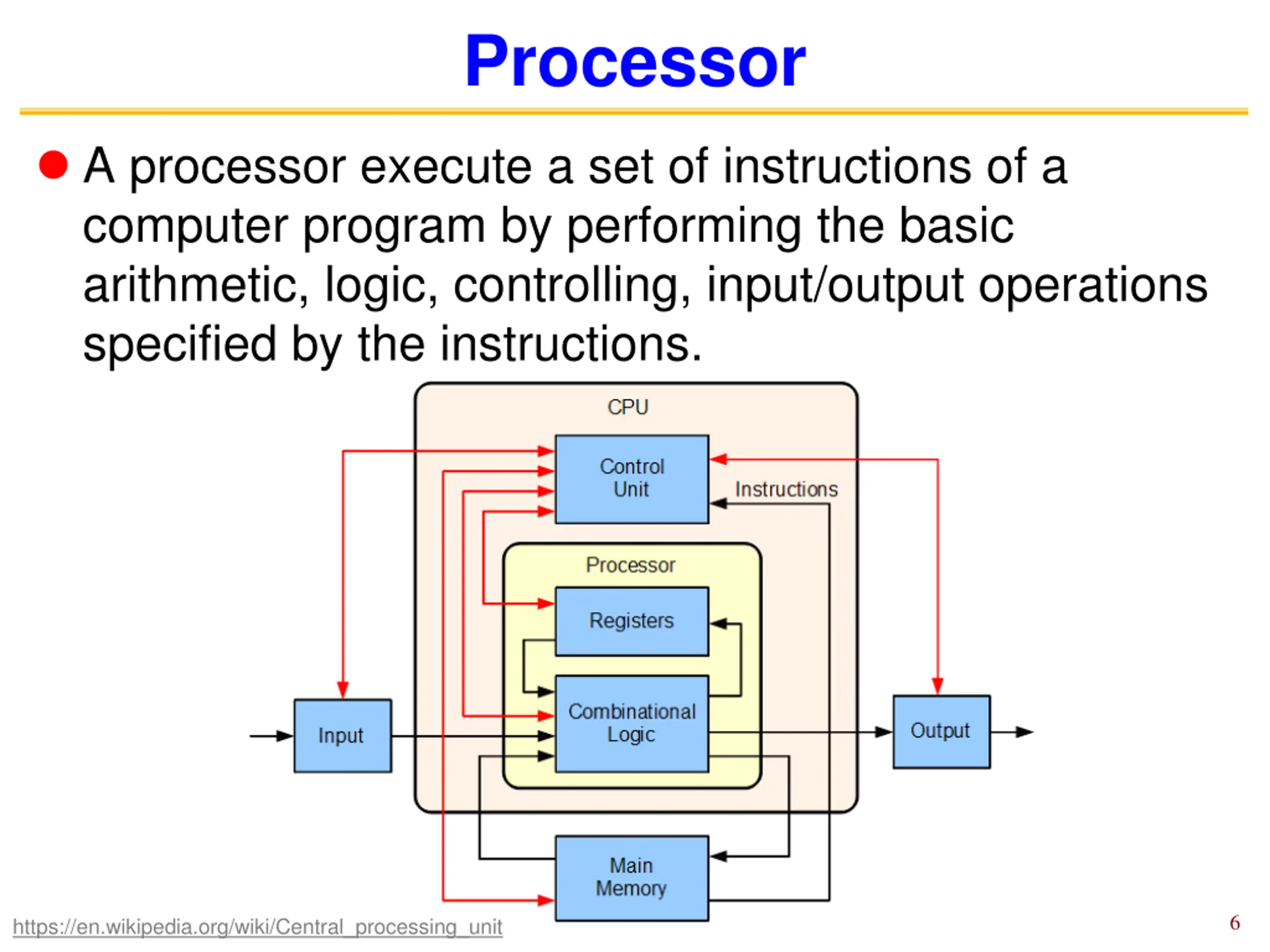

Processor A processor execute a set of instructions of a computer program by performing the basic arithmetic, logic, controlling, input/output operations specified by the instructions. 6 https://en.wikipedia.org/wiki/Central_processing_unit

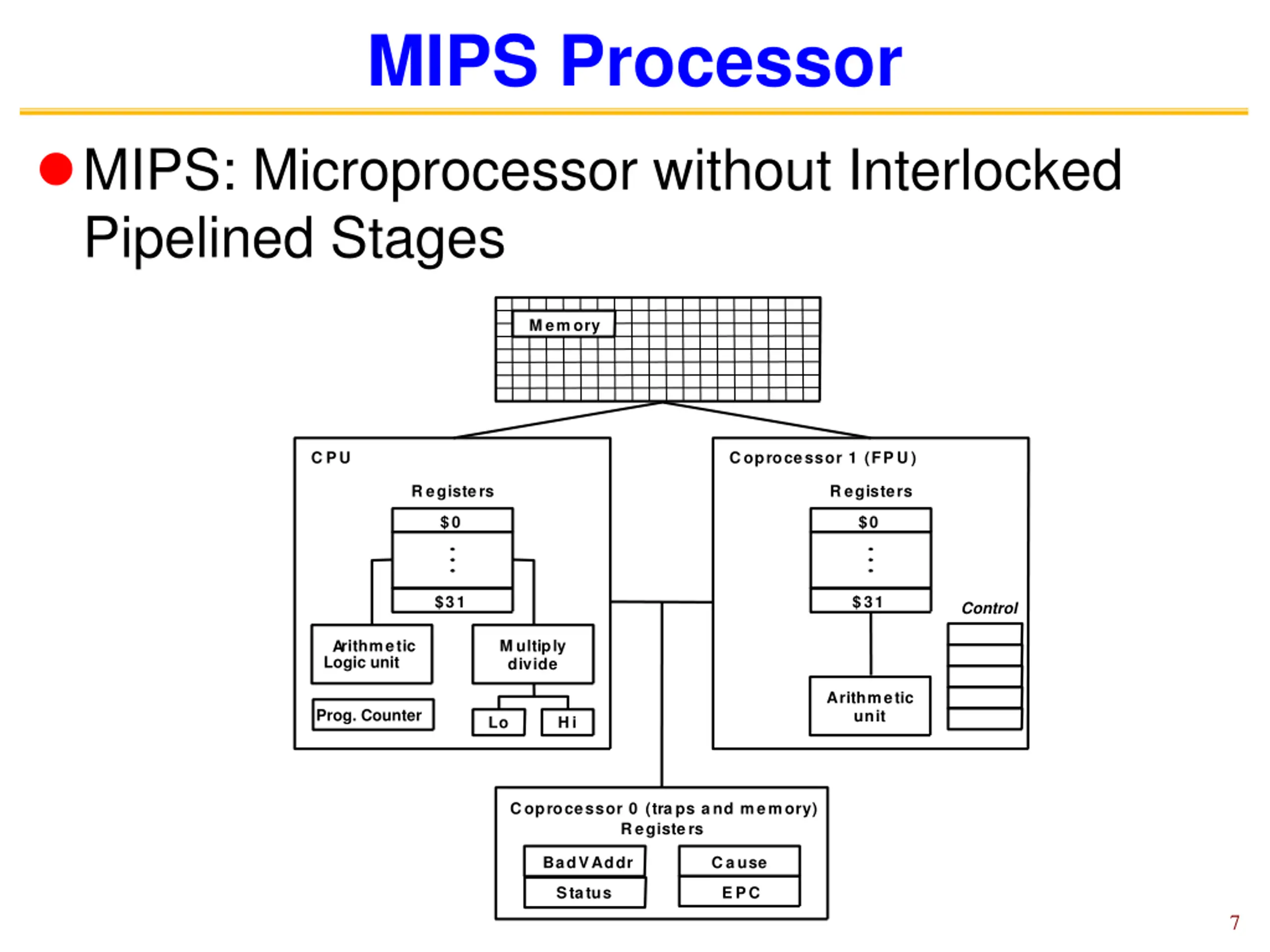

MIPS Processor MIPS: Microprocessor without Interlocked Pipelined Stages Memory C PU Coprocessor 1 (FPU) Registers Registers $0 $0 $31 $31 Control Arithmetic Logic unit M ultiply divide Arithmetic unit Prog. Counter Lo Hi Coprocessor 0 (traps and memory) Registers BadVAddr Cause Status EPC 7

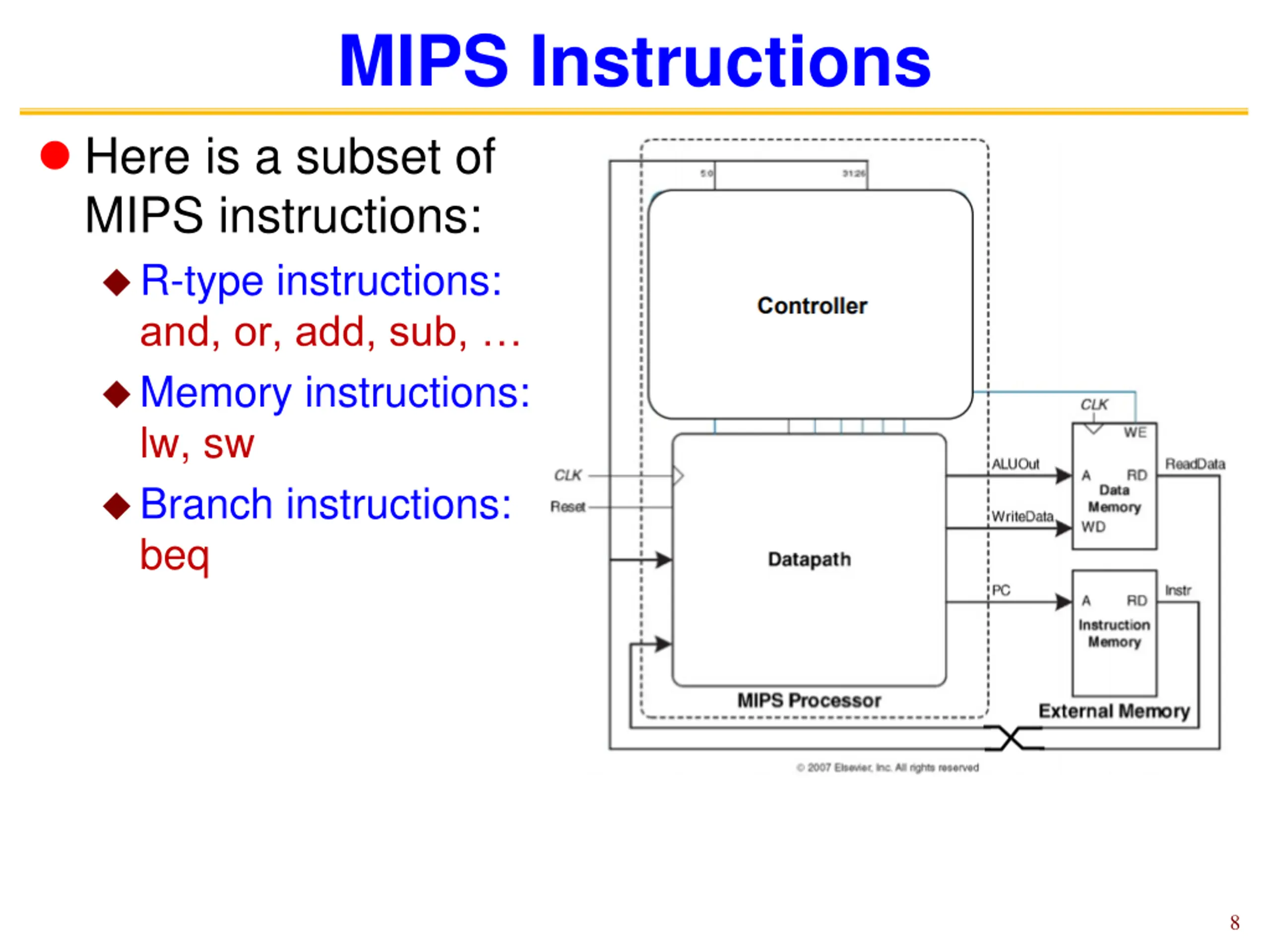

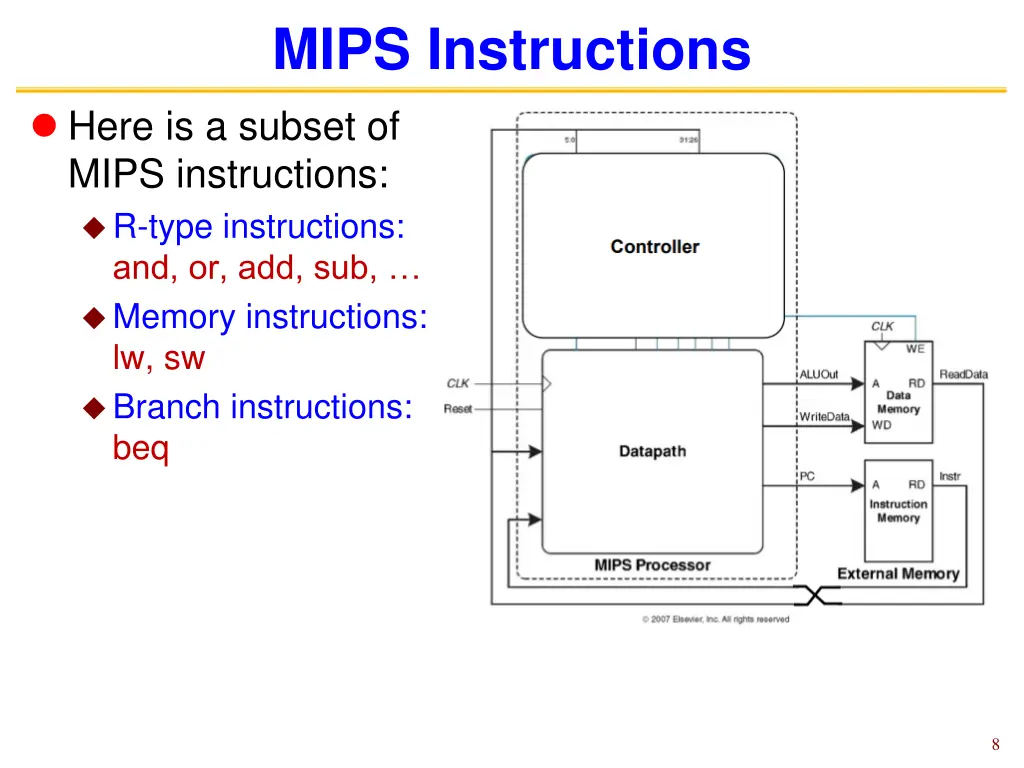

MIPS Instructions Here is a subset of MIPS instructions: R-type instructions: and, or, add, sub, Memory instructions: lw, sw Branch instructions: beq 8

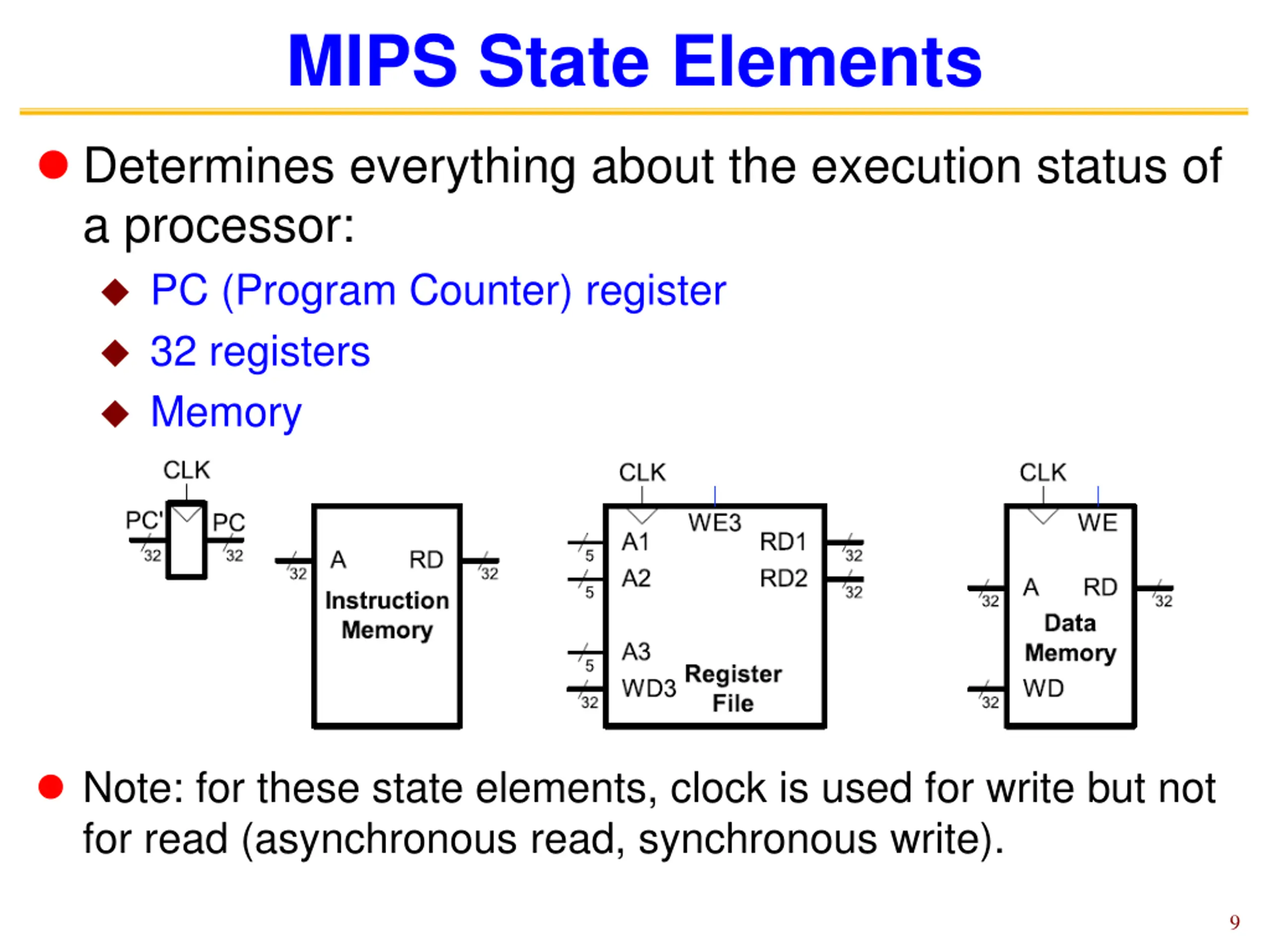

MIPS State Elements Determines everything about the execution status of a processor: PC (Program Counter) register 32 registers Memory Note: for these state elements, clock is used for write but not for read (asynchronous read, synchronous write). 9

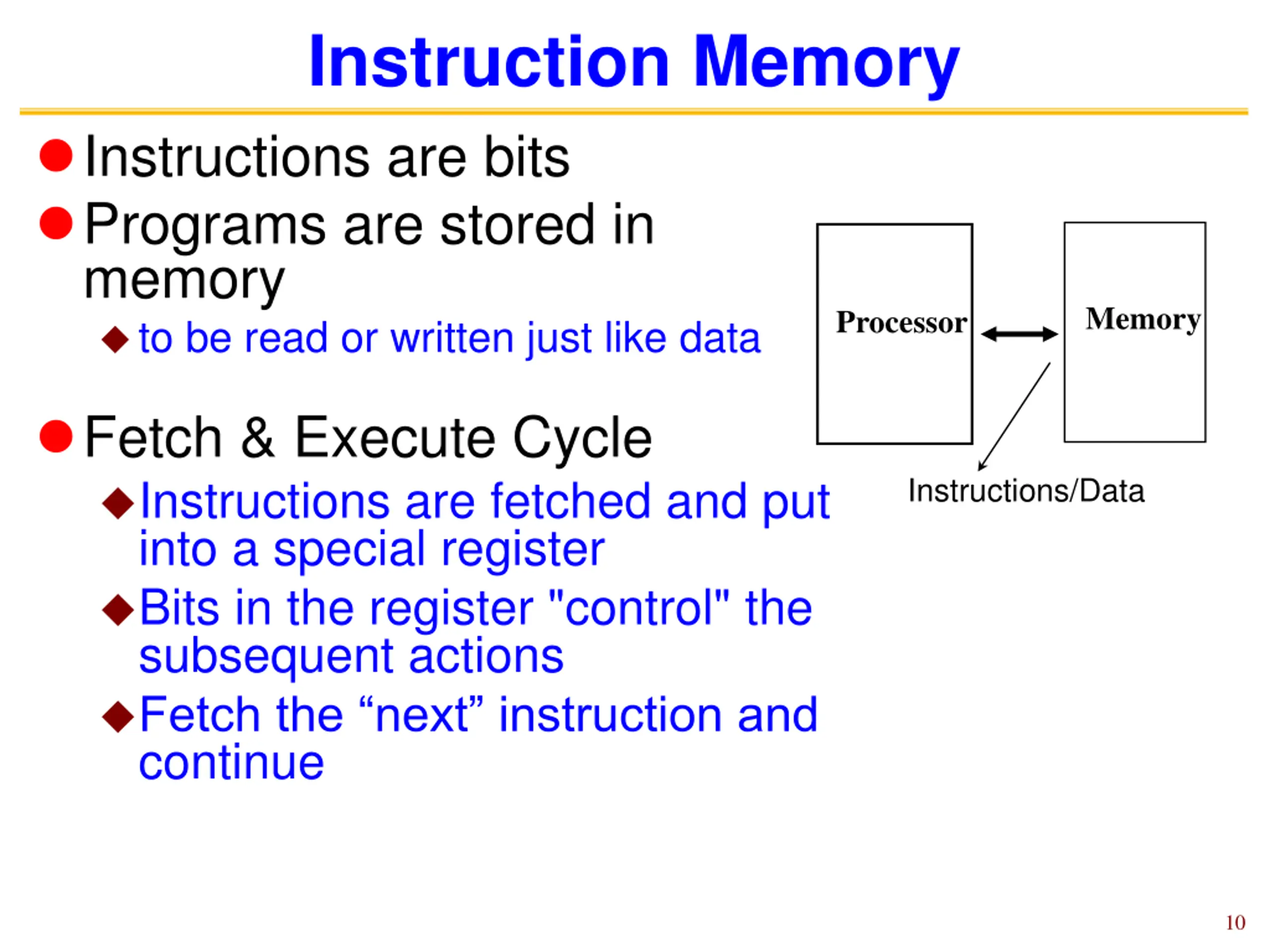

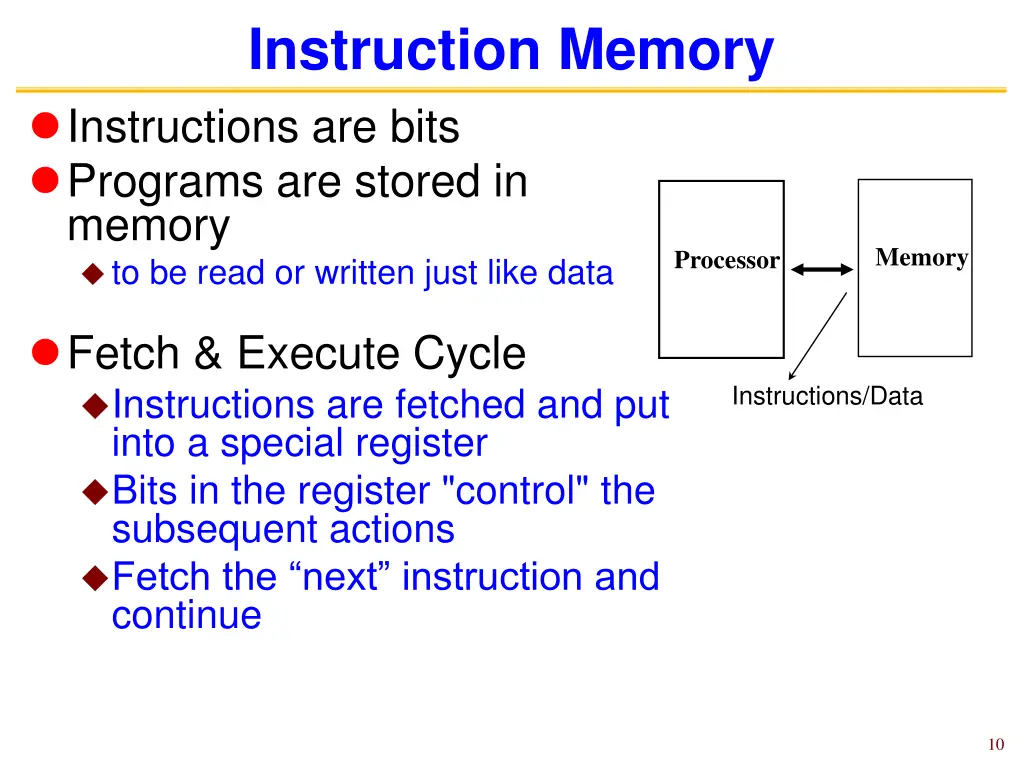

Instruction Memory Instructions are bits Programs are stored in memory to be read or written just like data Memory Processor Fetch & Execute Cycle Instructions are fetched and put into a special register Bits in the register "control" the subsequent actions Fetch the next instruction and continue Instructions/Data 10

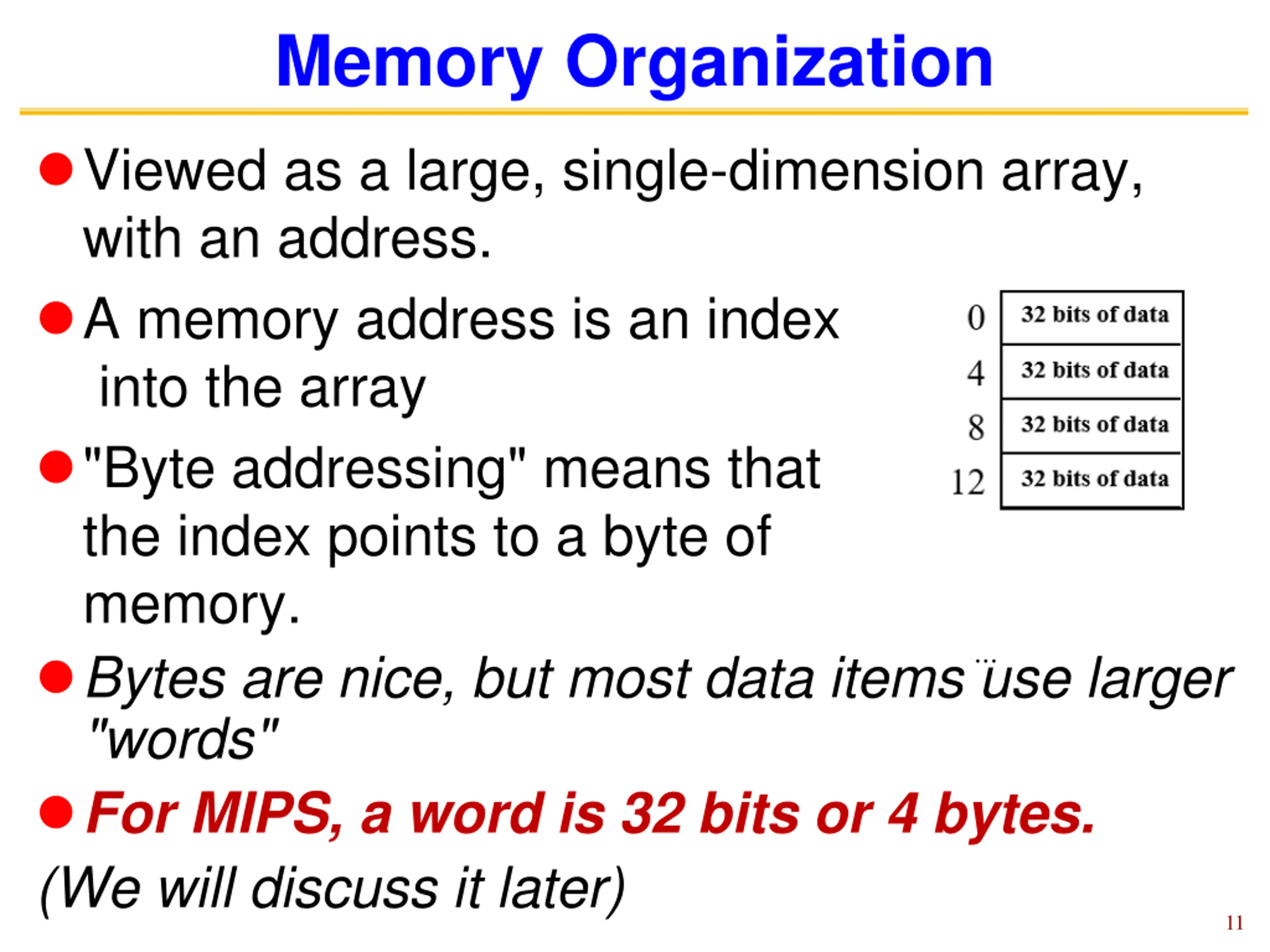

Memory Organization Viewed as a large, single-dimension array, with an address. A memory address is an index into the array "Byte addressing" means that the index points to a byte of memory. Bytes are nice, but most data items use larger "words" For MIPS, a word is 32 bits or 4 bytes. (We will discuss it later) 0 1 2 3 4 5 6 ... 8 bits of data 8 bits of data 8 bits of data 8 bits of data 8 bits of data 8 bits of data 8 bits of data 11

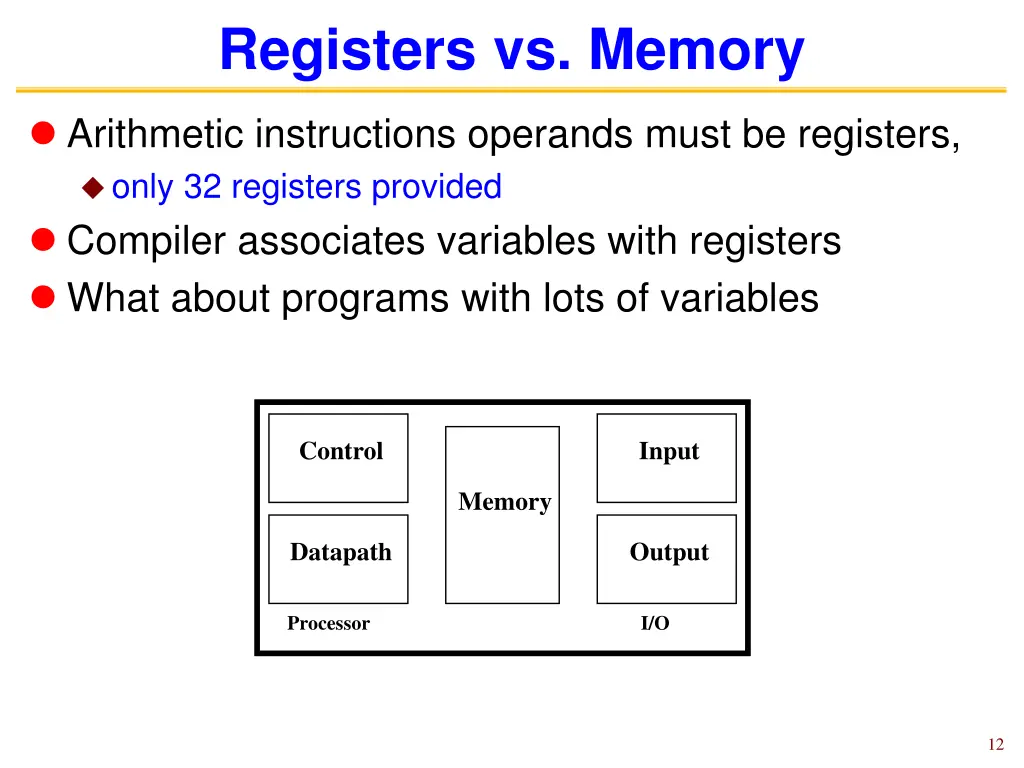

Registers vs. Memory Arithmetic instructions operands must be registers, only 32 registers provided Compiler associates variables with registers What about programs with lots of variables Control Input Memory Datapath Output Processor I/O 12

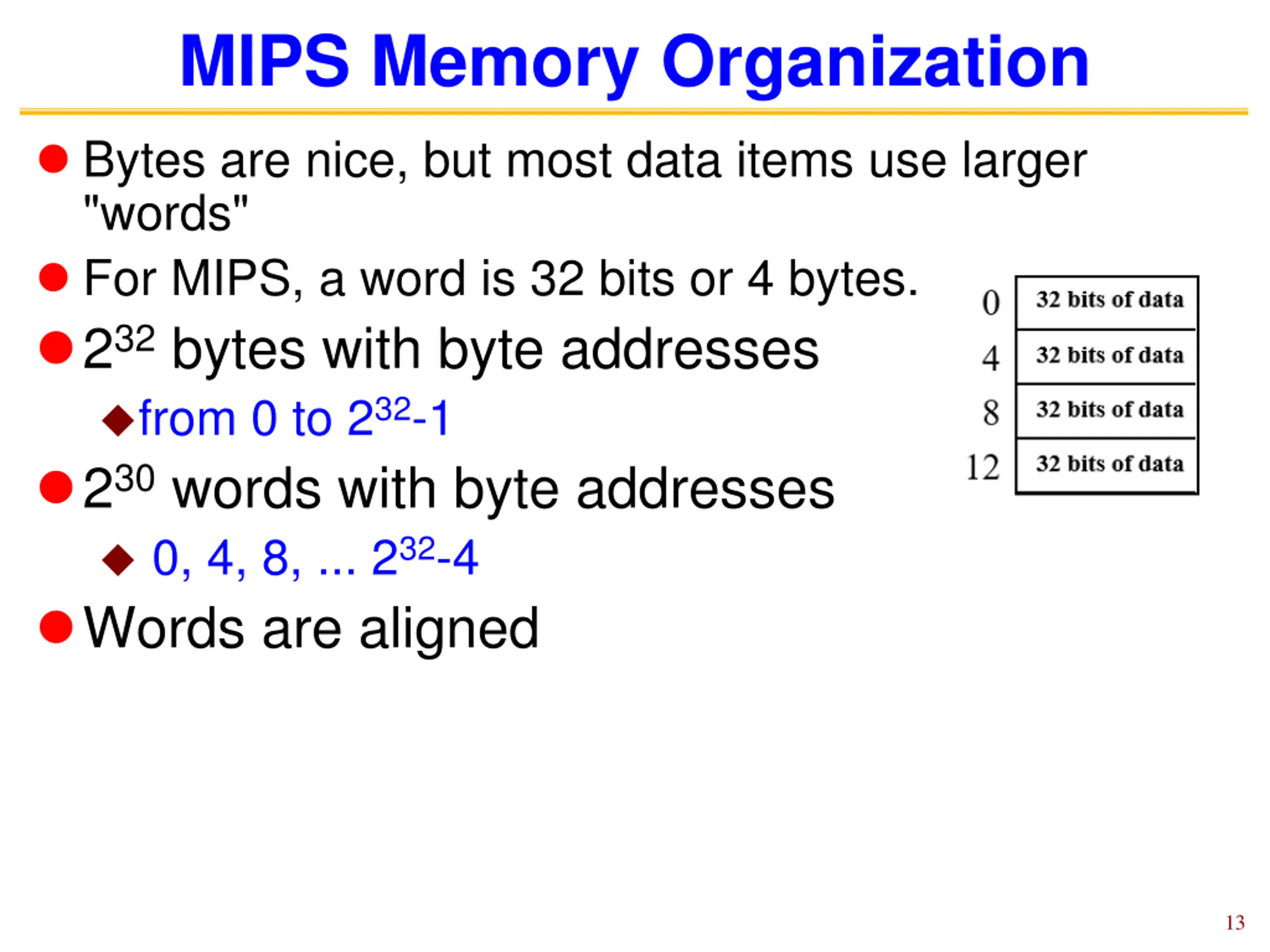

MIPS Memory Organization Bytes are nice, but most data items use larger "words" For MIPS, a word is 32 bits or 4 bytes. 232 bytes with byte addresses from 0 to 232-1 230 words with byte addresses 0, 4, 8, ... 232-4 Words are aligned 13

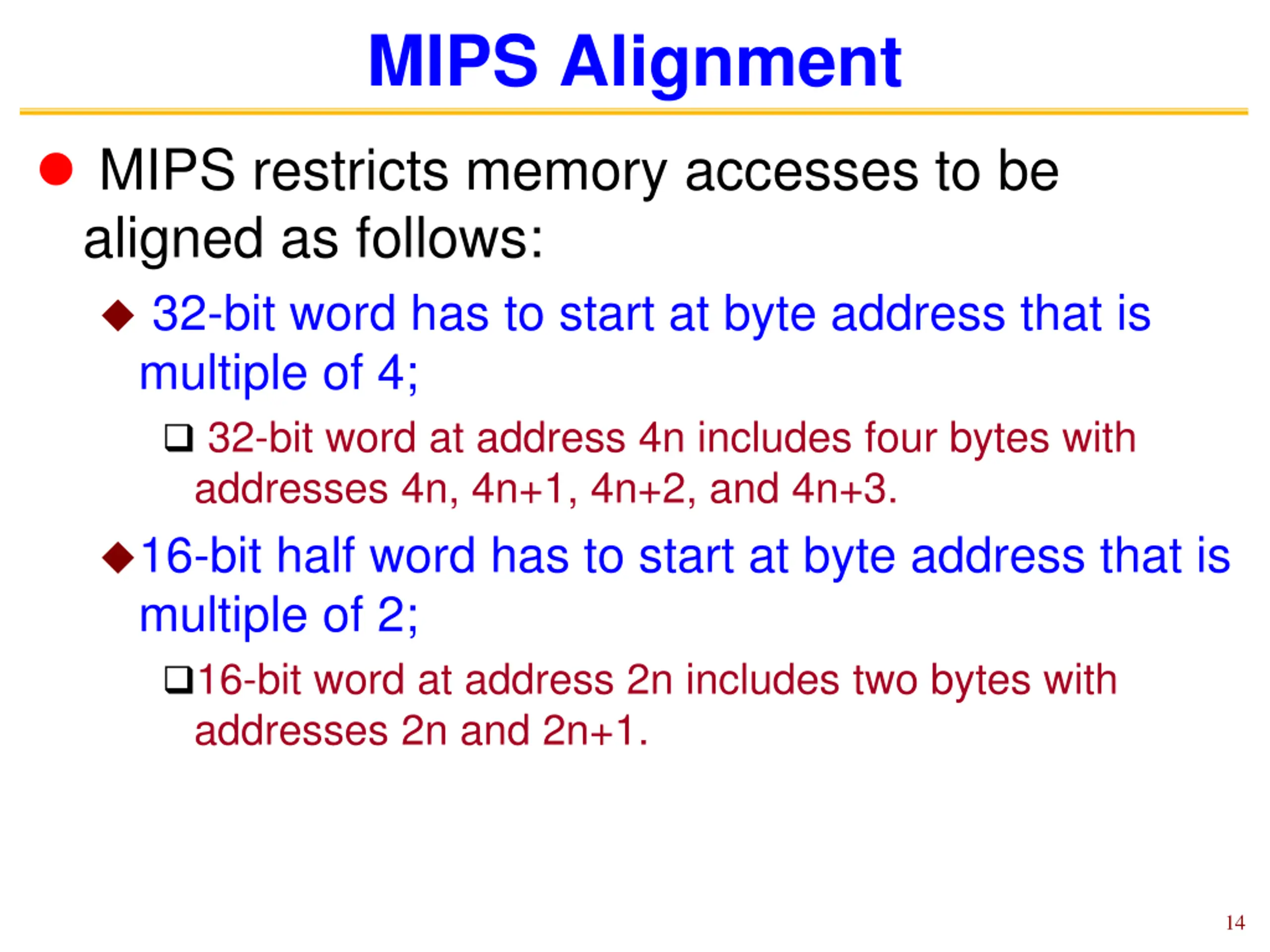

MIPS Alignment MIPS restricts memory accesses to be aligned as follows: 32-bit word has to start at byte address that is multiple of 4; 32-bit word at address 4n includes four bytes with addresses 4n, 4n+1, 4n+2, and 4n+3. 16-bit half word has to start at byte address that is multiple of 2; 16-bit word at address 2n includes two bytes with addresses 2n and 2n+1. 14

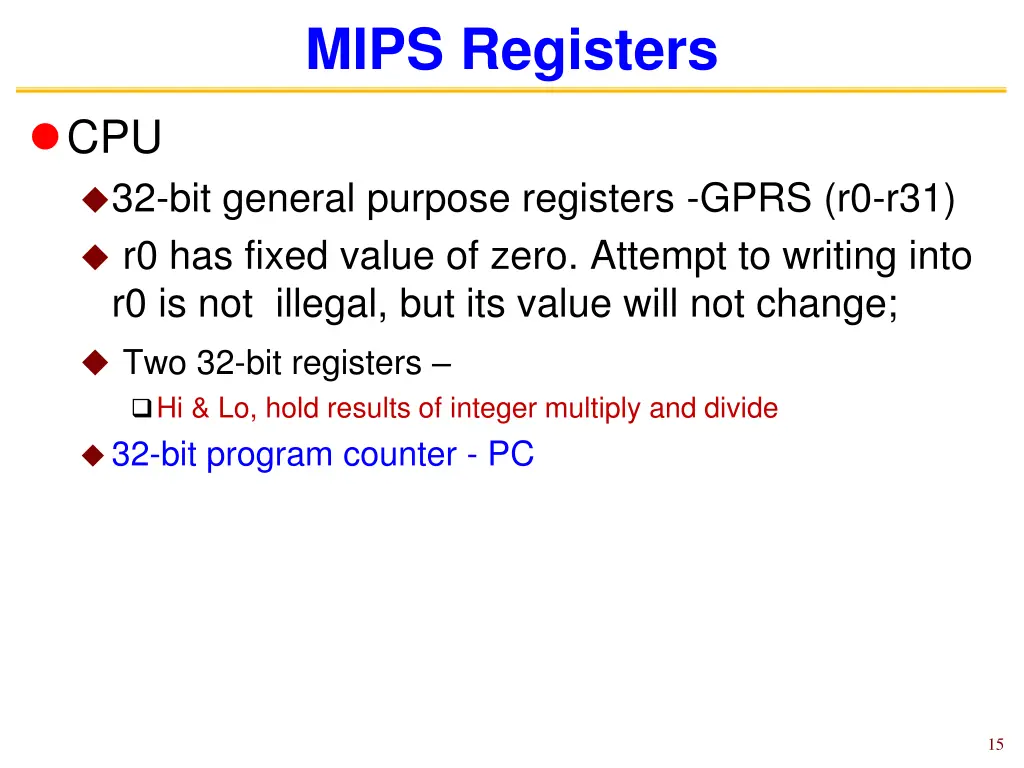

MIPS Registers CPU 32-bit general purpose registers -GPRS (r0-r31) r0 has fixed value of zero. Attempt to writing into r0 is not illegal, but its value will not change; Two 32-bit registers Hi & Lo, hold results of integer multiply and divide 32-bit program counter - PC 15

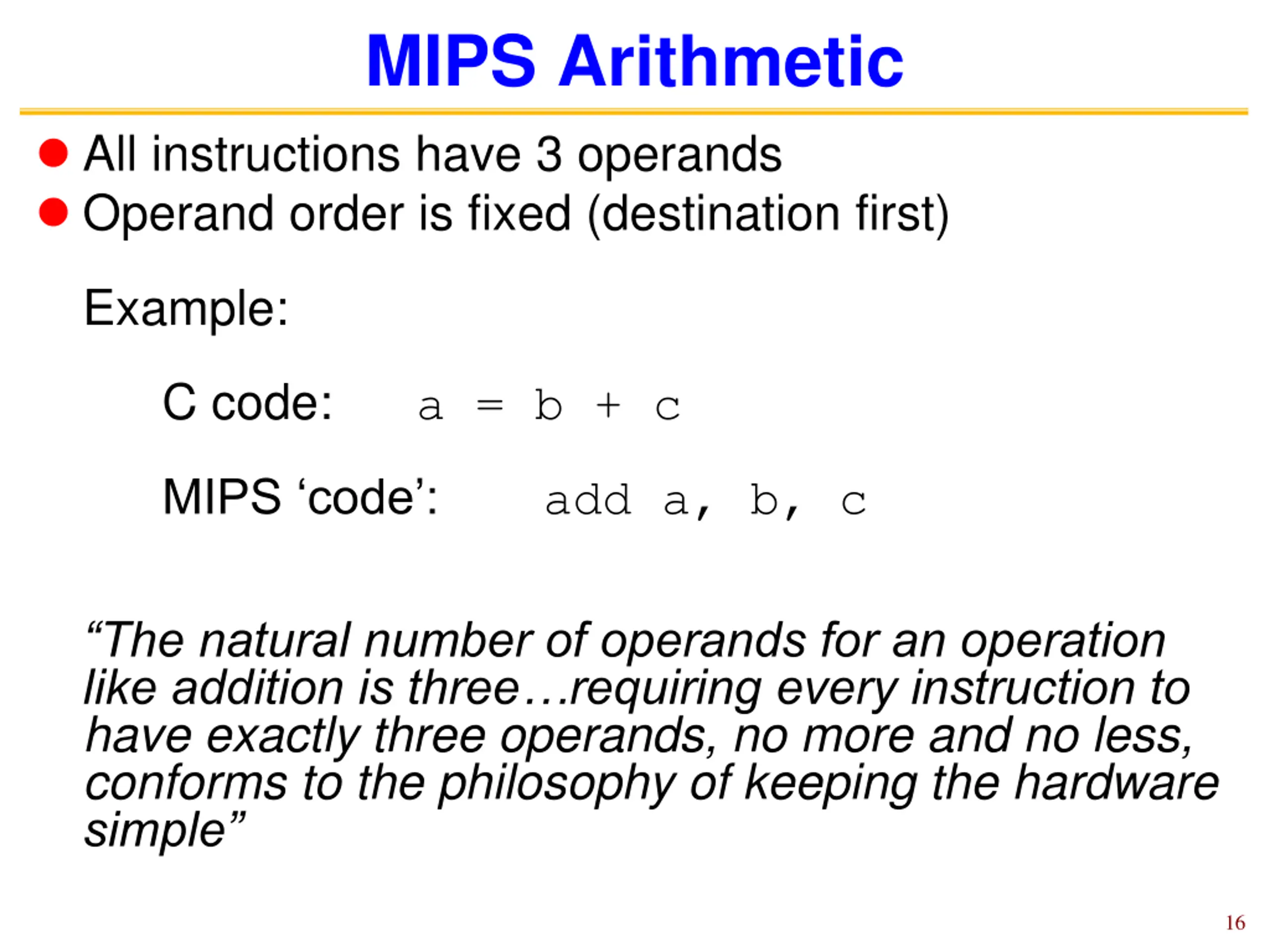

MIPS Arithmetic All instructions have 3 operands Operand order is fixed (destination first) Example: C code: a = b + c The natural number of operands for an operation like addition is three requiring every instruction to have exactly three operands, no more and no less, conforms to the philosophy of keeping the hardware simple MIPS code : add a, b, c 16

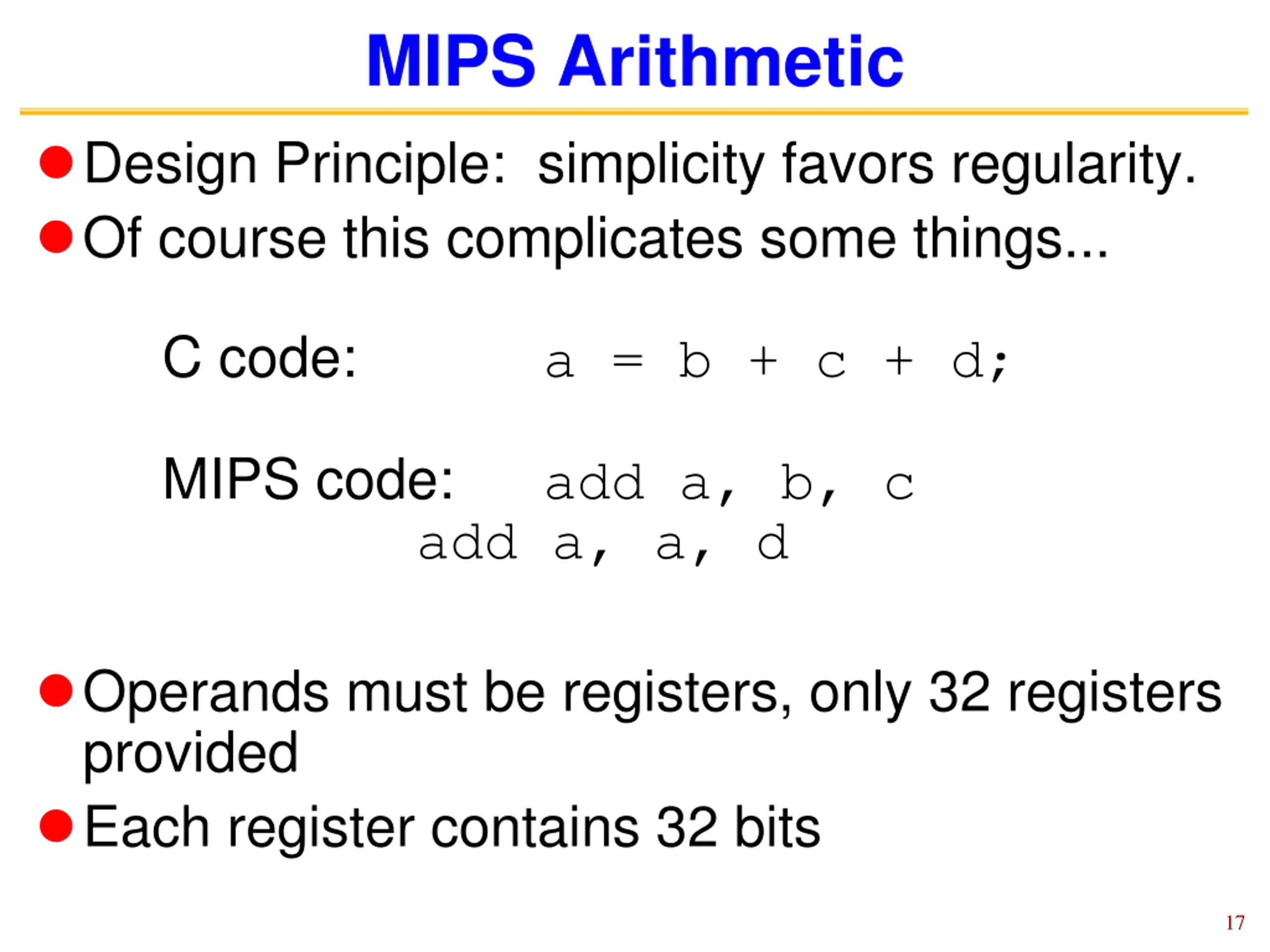

MIPS Arithmetic Design Principle: simplicity favors regularity. Of course this complicates some things... C code: a = b + c + d; MIPS code: add a, b, c add a, a, d Operands must be registers, only 32 registers provided Each register contains 32 bits 17

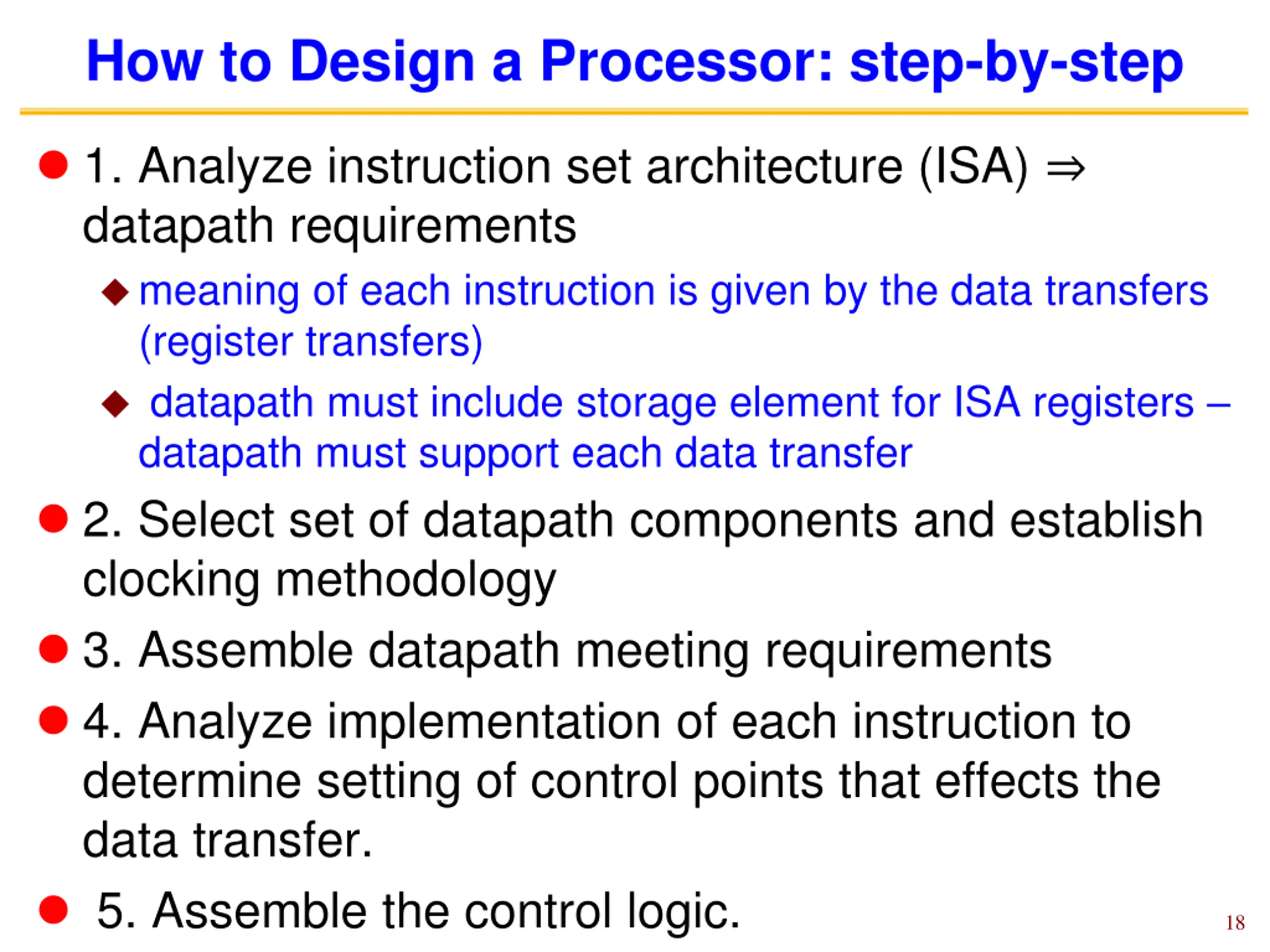

How to Design a Processor: step-by-step 1. Analyze instruction set architecture (ISA) datapath requirements meaning of each instruction is given by the data transfers (register transfers) datapath must include storage element for ISA registers datapath must support each data transfer 2. Select set of datapath components and establish clocking methodology 3. Assemble datapath meeting requirements 4. Analyze implementation of each instruction to determine setting of control points that effects the data transfer. 5. Assemble the control logic. 18

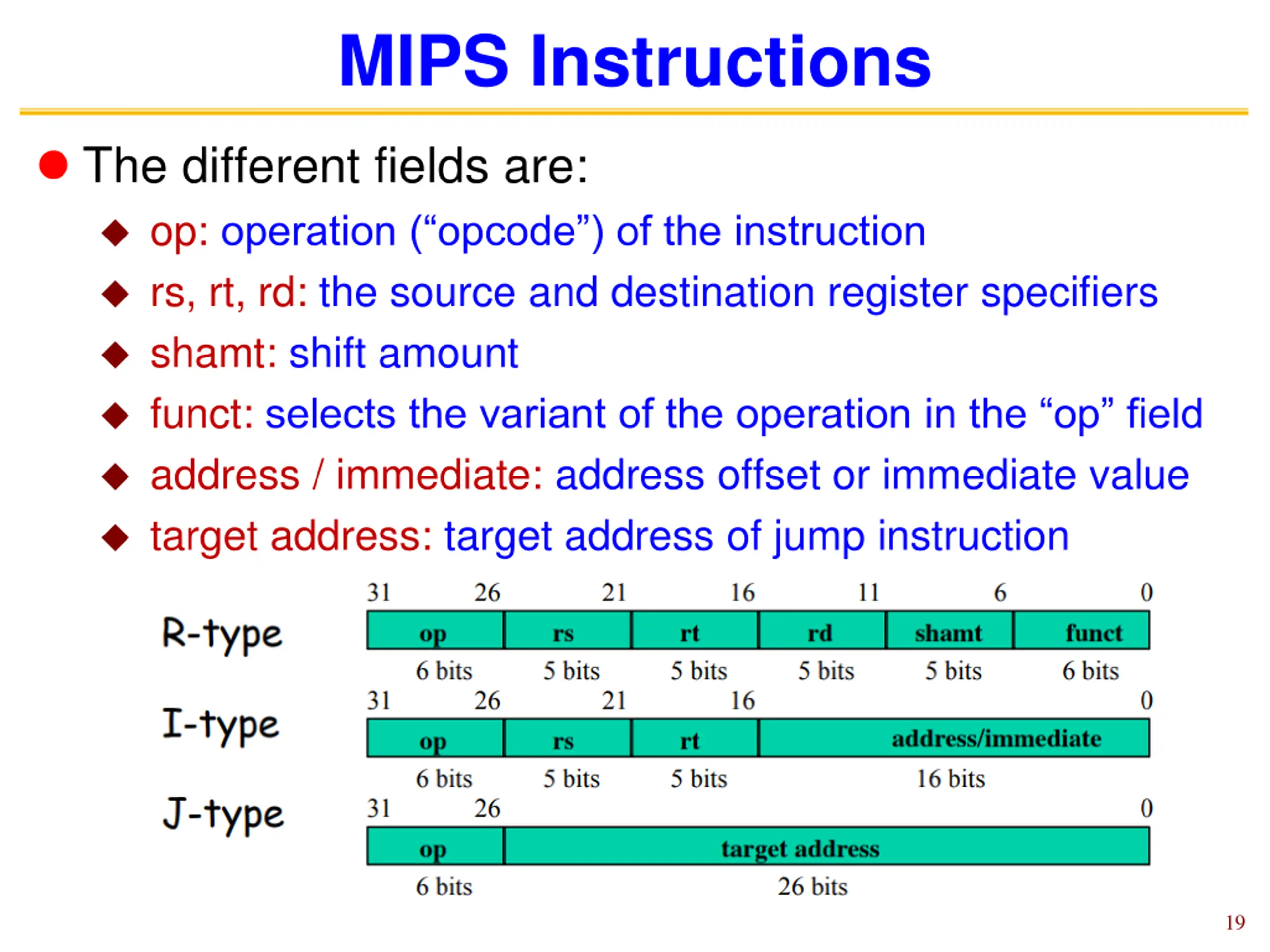

MIPS Instructions The different fields are: op: operation ( opcode ) of the instruction rs, rt, rd: the source and destination register specifiers shamt: shift amount funct: selects the variant of the operation in the op field address / immediate: address offset or immediate value target address: target address of jump instruction 19

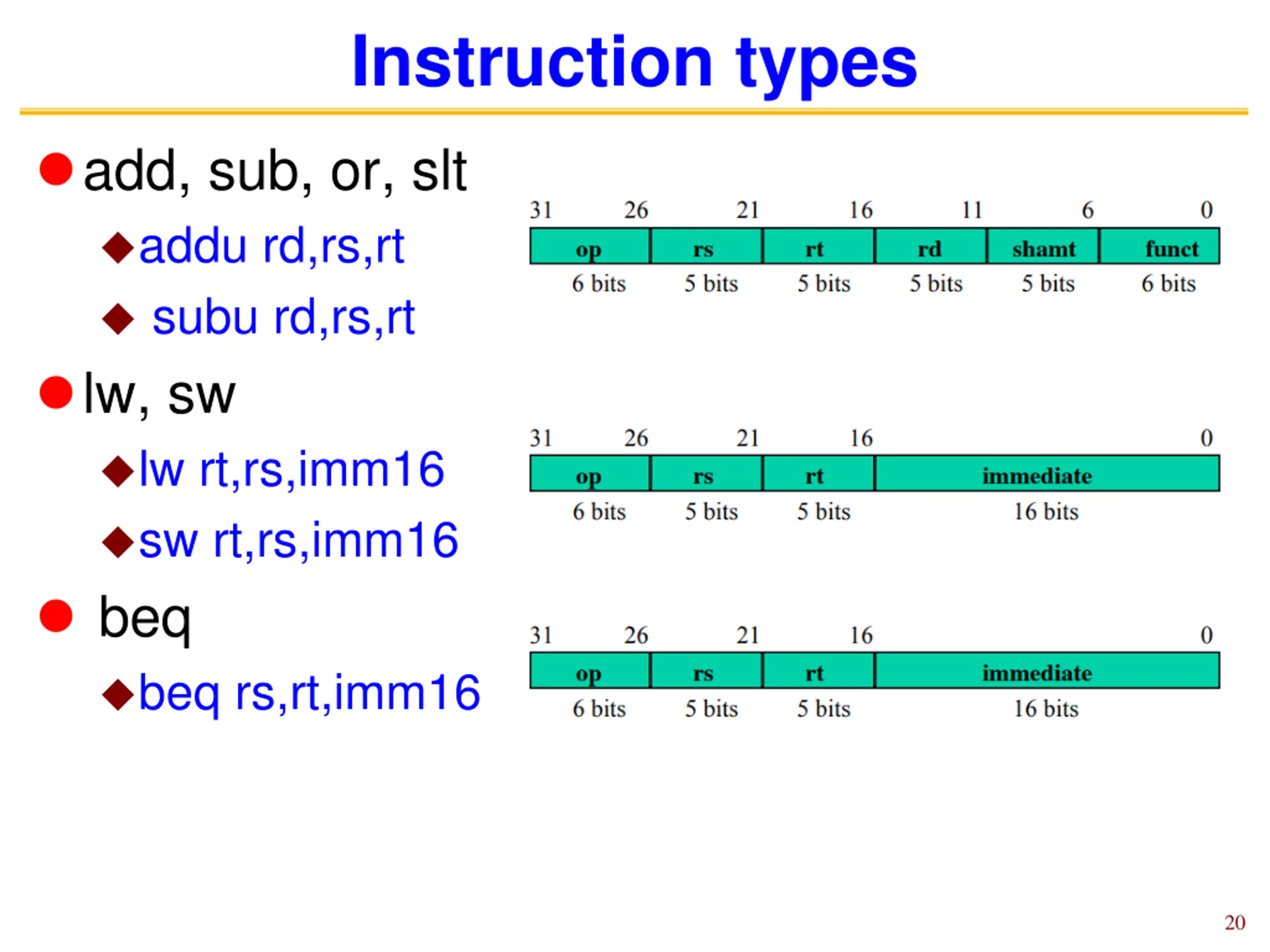

Instruction types add, sub, or, slt addu rd,rs,rt subu rd,rs,rt lw, sw lw rt,rs,imm16 sw rt,rs,imm16 beq beq rs,rt,imm16 20

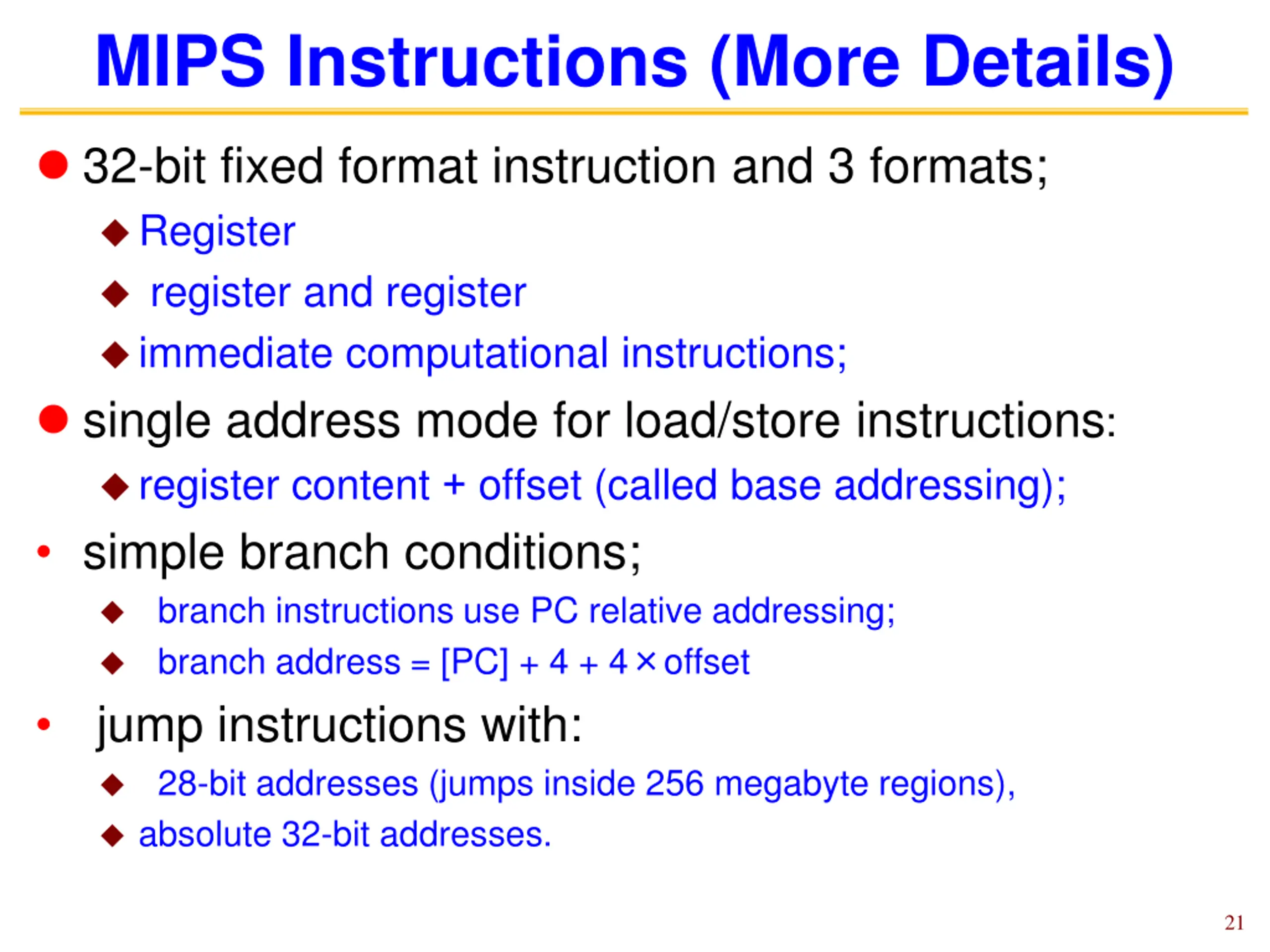

MIPS Instructions (More Details) 32-bit fixed format instruction and 3 formats; Register register and register immediate computational instructions; single address mode for load/store instructions: register content + offset (called base addressing); simple branch conditions; branch instructions use PC relative addressing; branch address = [PC] + 4 + 4 offset jump instructions with: 28-bit addresses (jumps inside 256 megabyte regions), absolute 32-bit addresses. 21

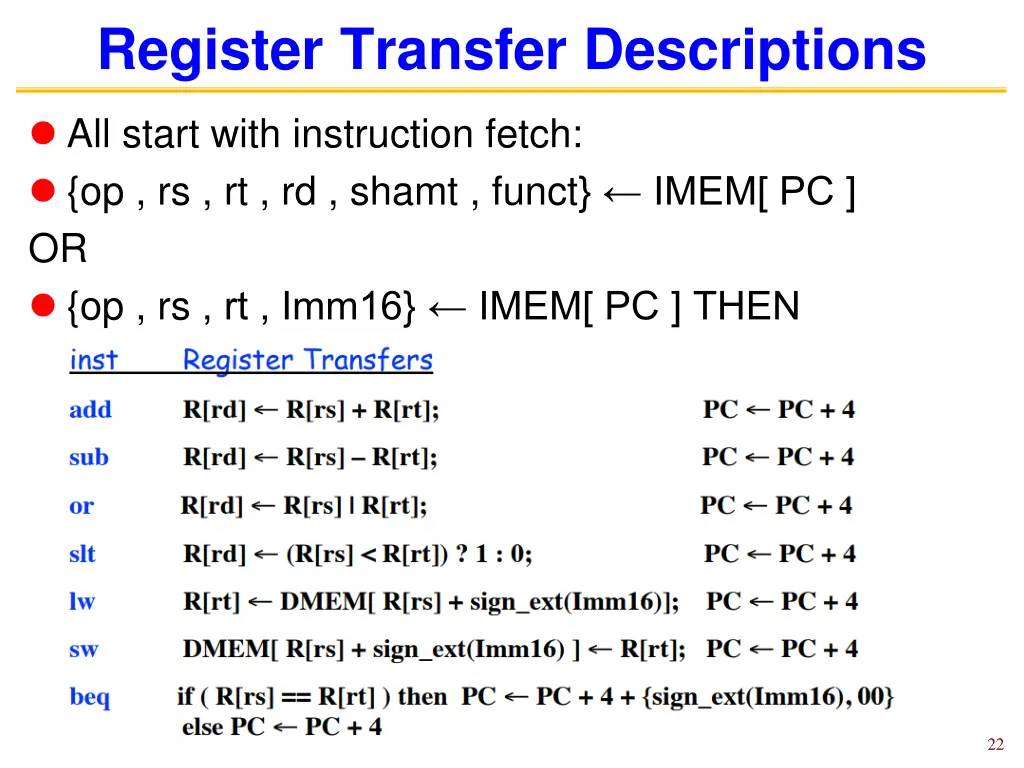

Register Transfer Descriptions All start with instruction fetch: {op , rs , rt , rd , shamt , funct} IMEM[ PC ] OR {op , rs , rt , Imm16} IMEM[ PC ] THEN 22

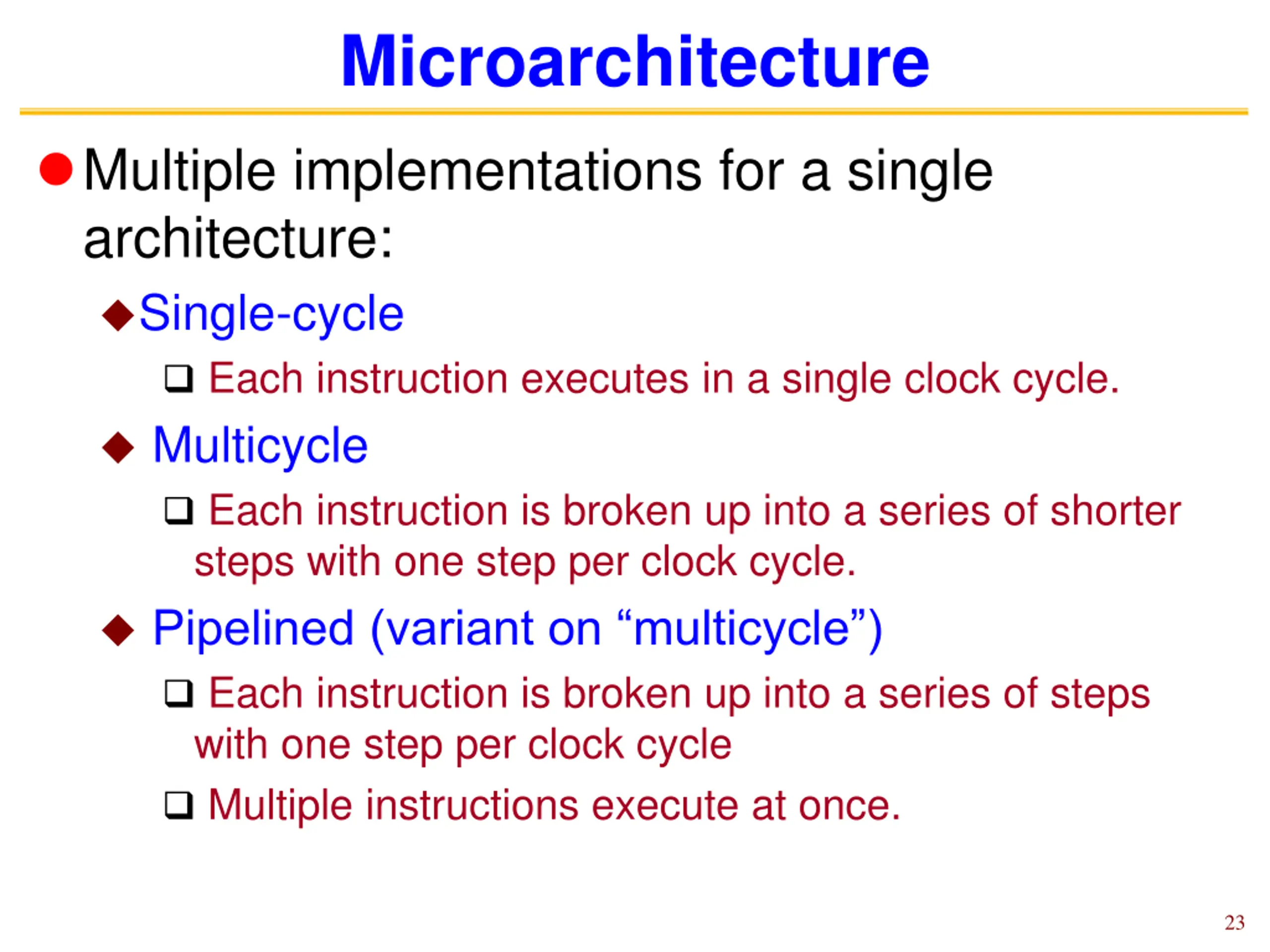

Microarchitecture Multiple implementations for a single architecture: Single-cycle Each instruction executes in a single clock cycle. Multicycle Each instruction is broken up into a series of shorter steps with one step per clock cycle. Pipelined (variant on multicycle ) Each instruction is broken up into a series of steps with one step per clock cycle Multiple instructions execute at once. 23

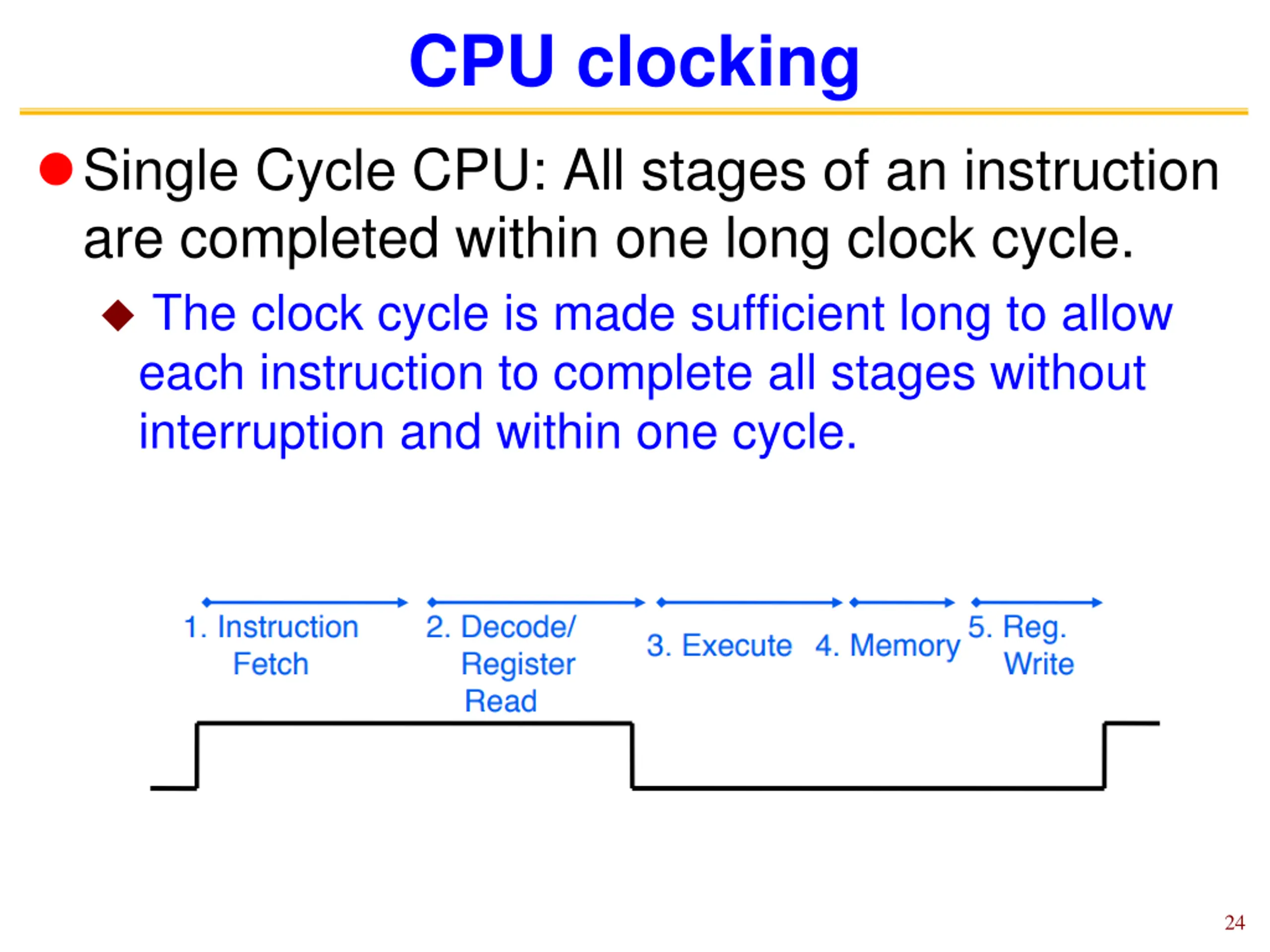

CPU clocking Single Cycle CPU: All stages of an instruction are completed within one long clock cycle. The clock cycle is made sufficient long to allow each instruction to complete all stages without interruption and within one cycle. 24

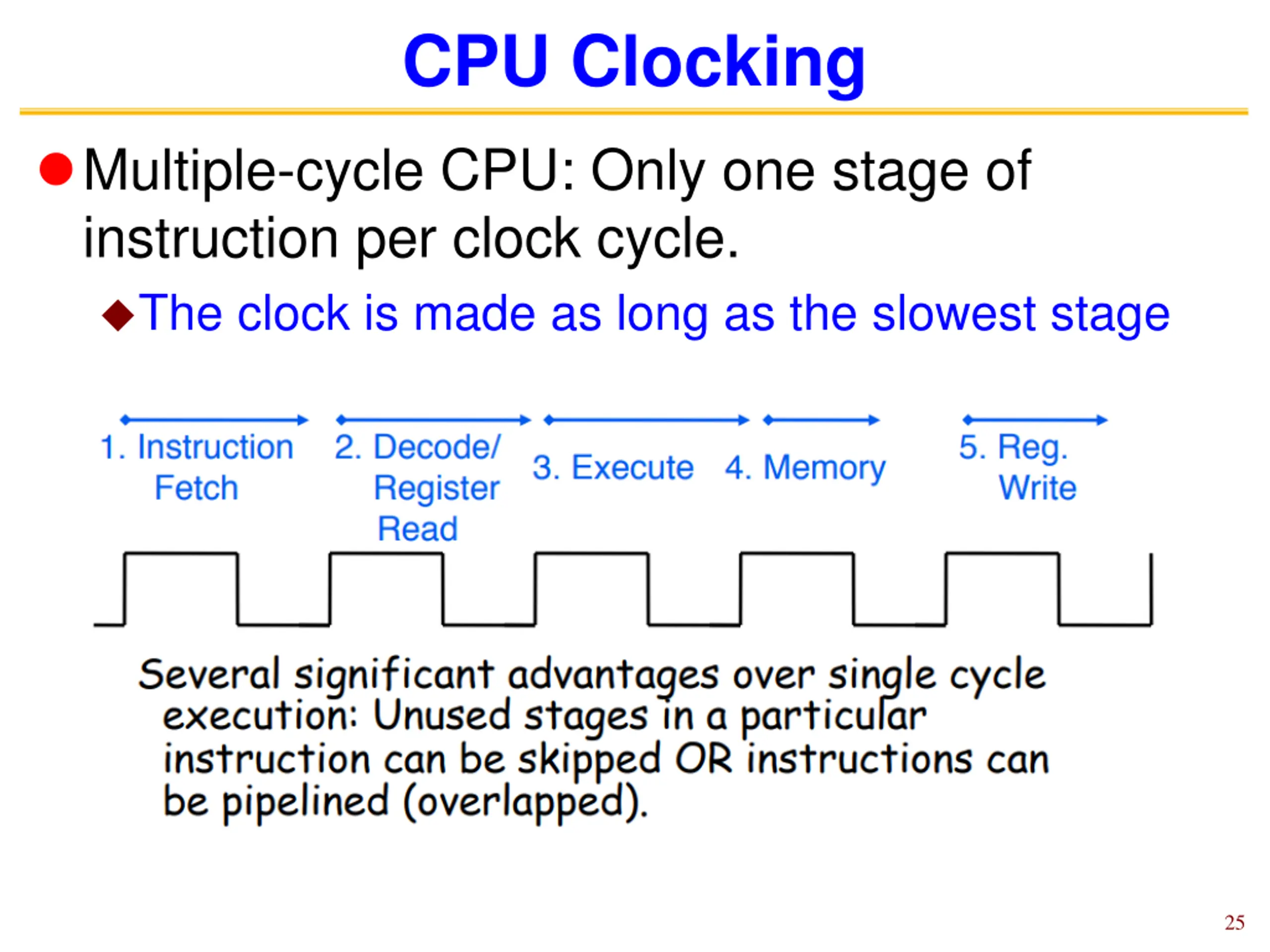

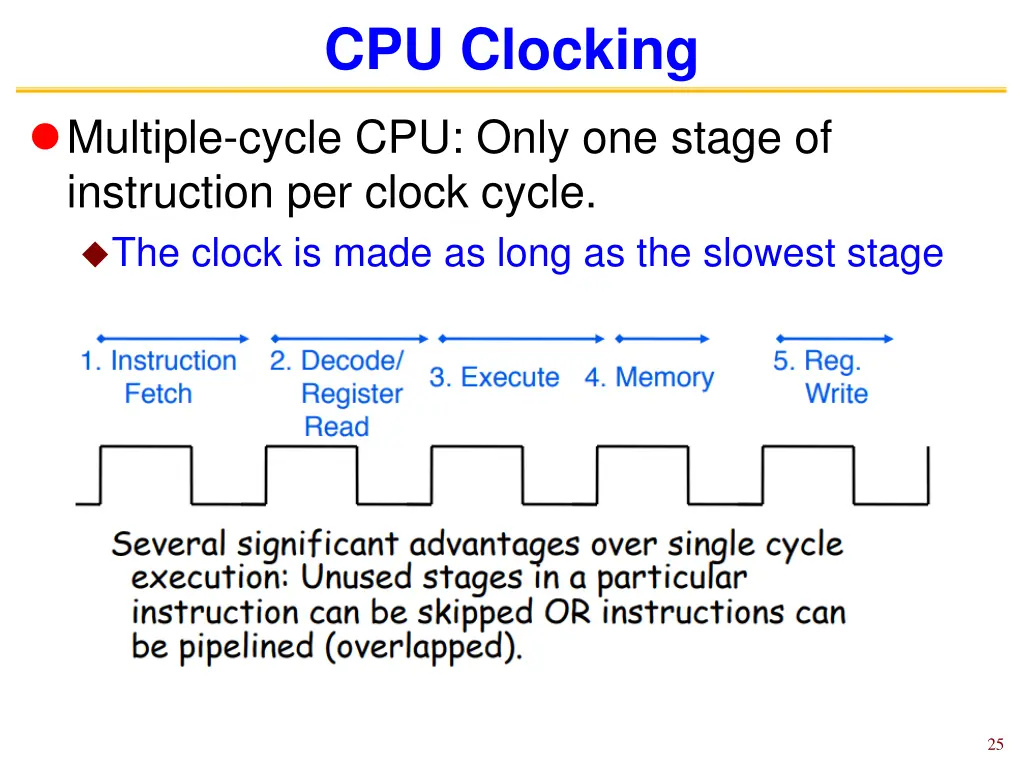

CPU Clocking Multiple-cycle CPU: Only one stage of instruction per clock cycle. The clock is made as long as the slowest stage 25

MIPS State Elements Determines everything about the execution status of a processor: PC (Program Counter) register 32 registers Memory Note: for these state elements, clock is used for write but not for read (asynchronous read, synchronous write). 26

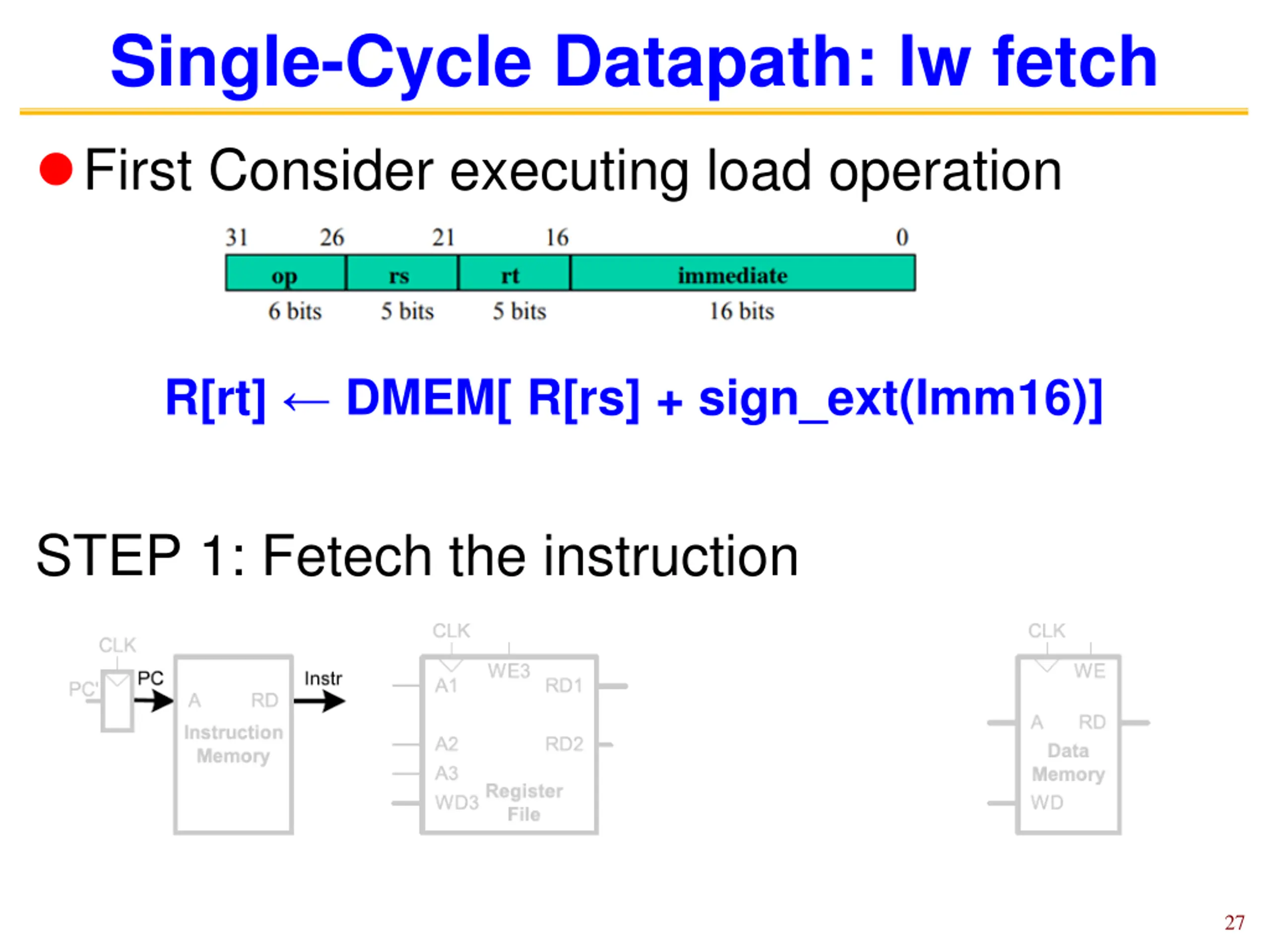

Single-Cycle Datapath: lw fetch First Consider executing load operation R[rt] DMEM[ R[rs] + sign_ext(Imm16)] STEP 1: Fetech the instruction 27

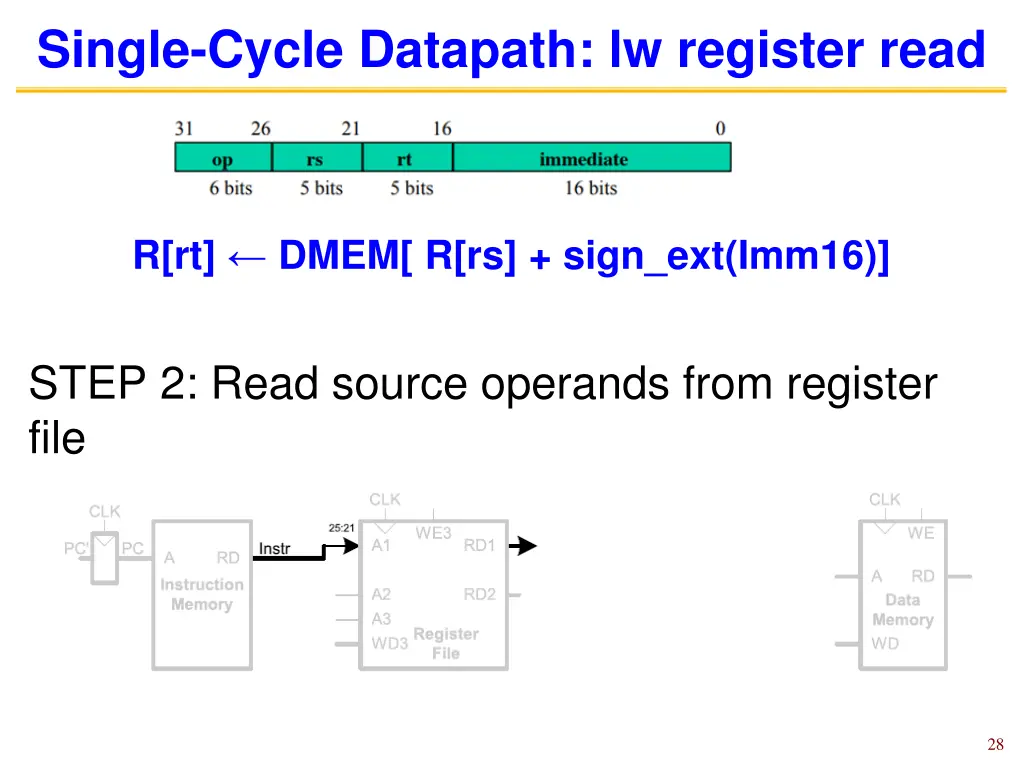

Single-Cycle Datapath: lw register read R[rt] DMEM[ R[rs] + sign_ext(Imm16)] STEP 2: Read source operands from register file 28

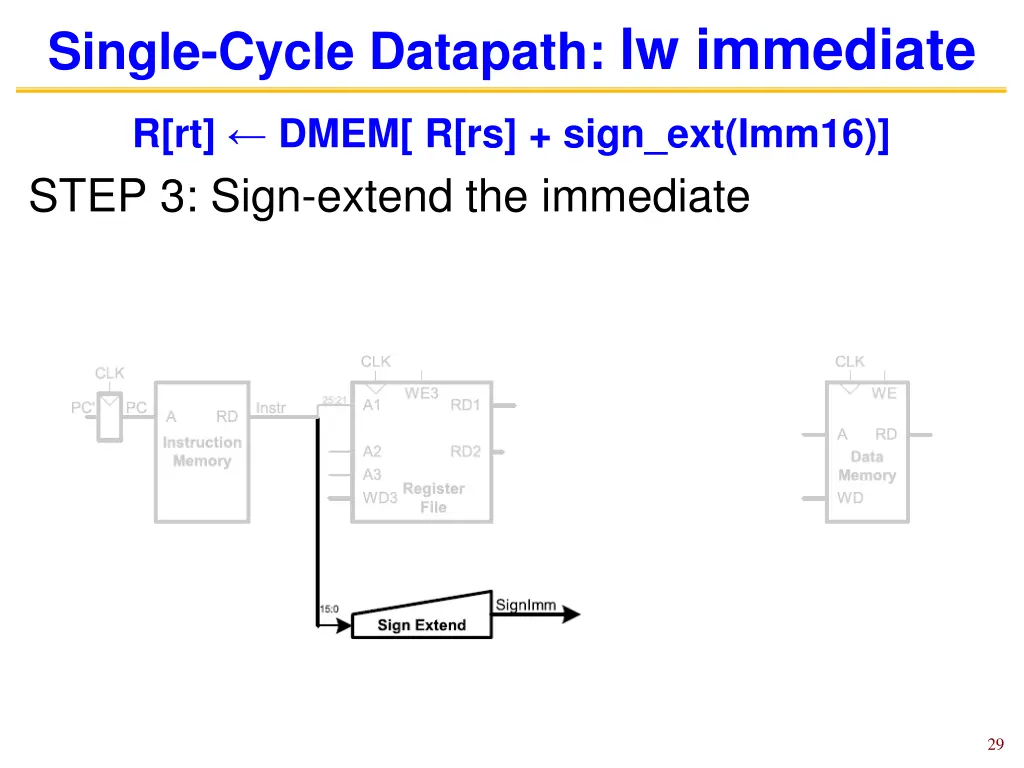

Single-Cycle Datapath: lw immediate R[rt] DMEM[ R[rs] + sign_ext(Imm16)] STEP 3: Sign-extend the immediate 29

Single-Cycle Datapath: lw address R[rt] DMEM[ R[rs] + sign_ext(Imm16)] STEP 4: Compute the memory address 30

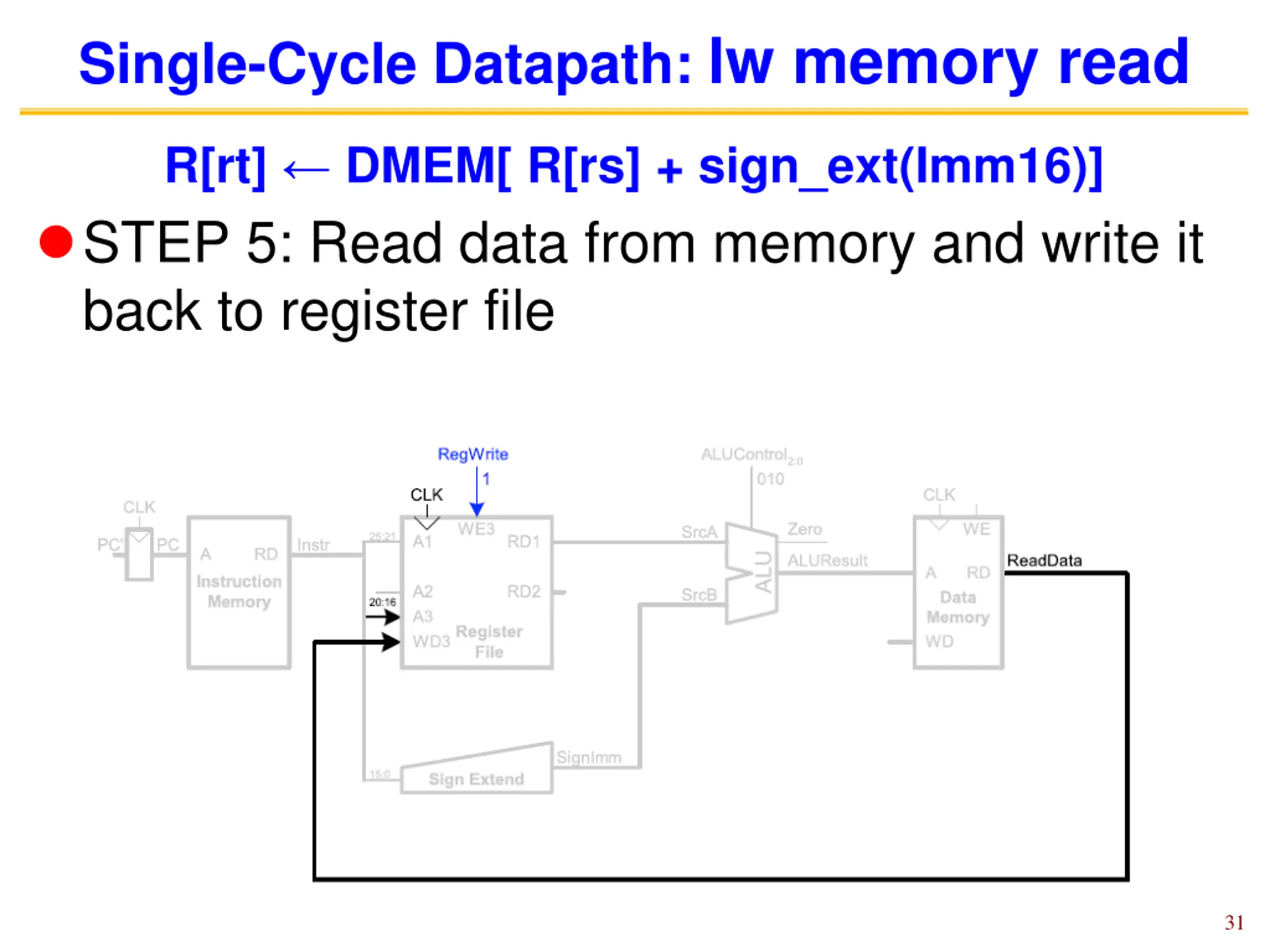

Single-Cycle Datapath: lw memory read R[rt] DMEM[ R[rs] + sign_ext(Imm16)] STEP 5: Read data from memory and write it back to register file 31

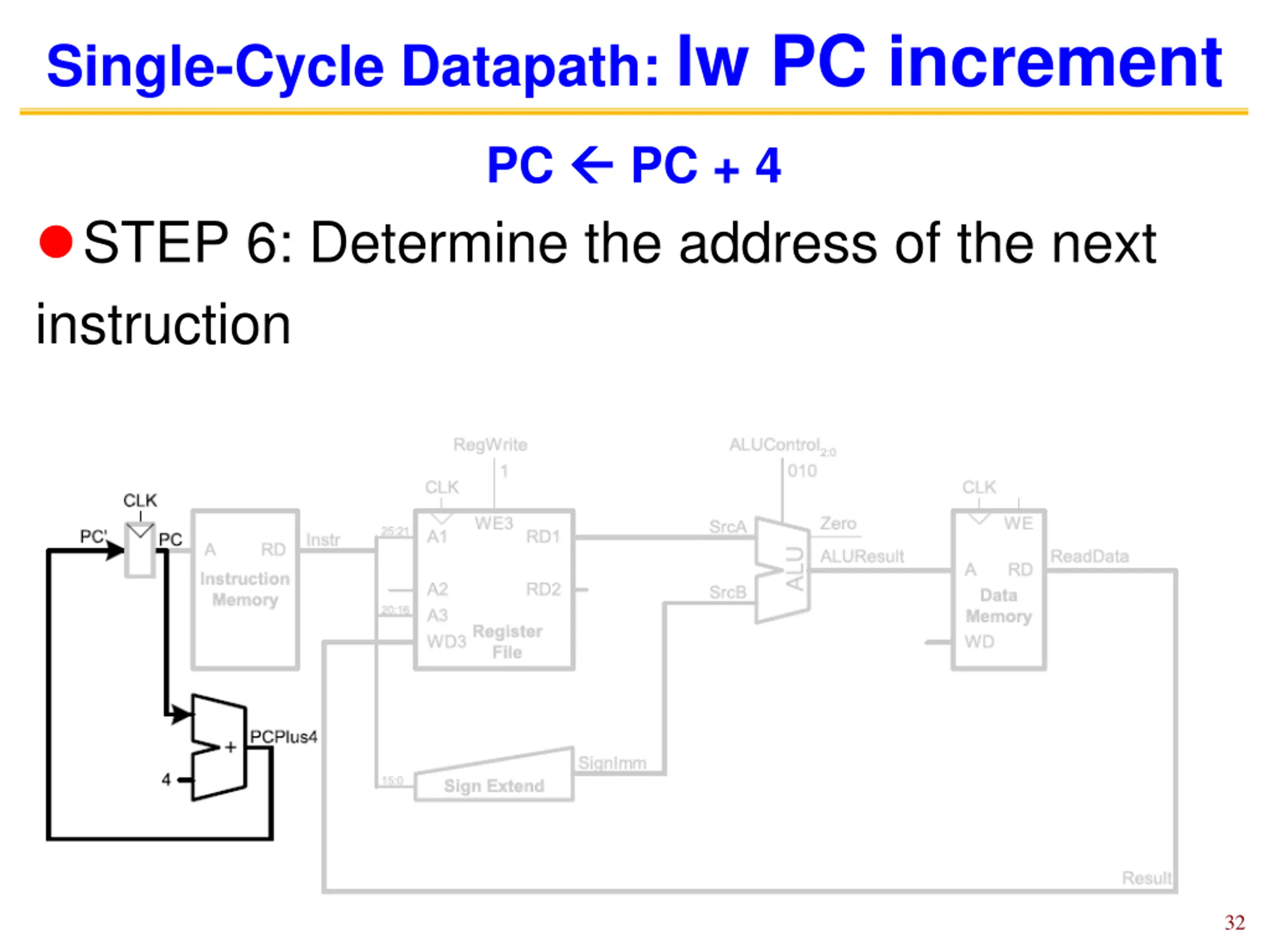

Single-Cycle Datapath: lw PC increment PC PC + 4 STEP 6: Determine the address of the next instruction 32

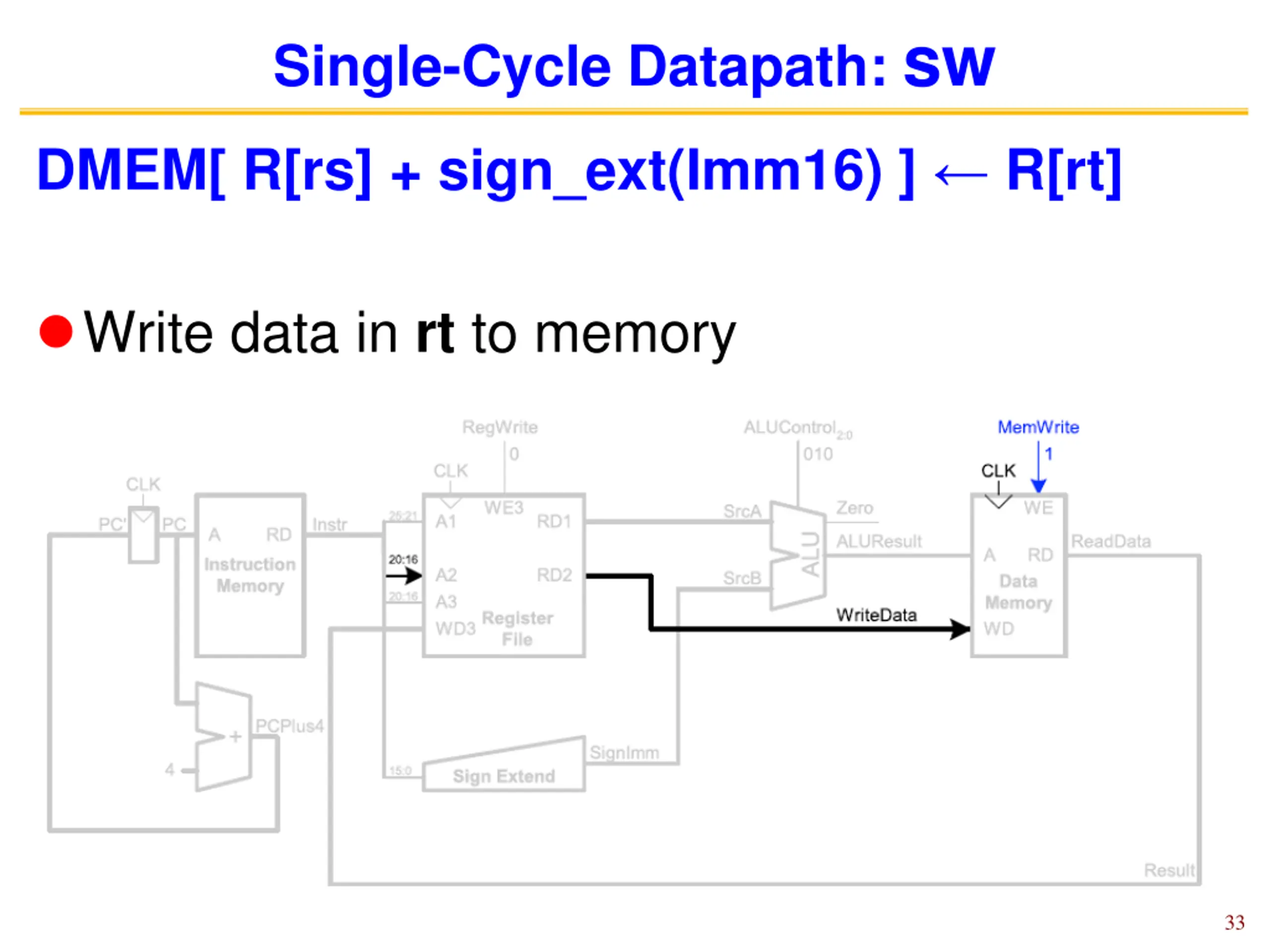

Single-Cycle Datapath: sw DMEM[ R[rs] + sign_ext(Imm16) ] R[rt] Write data in rt to memory 33

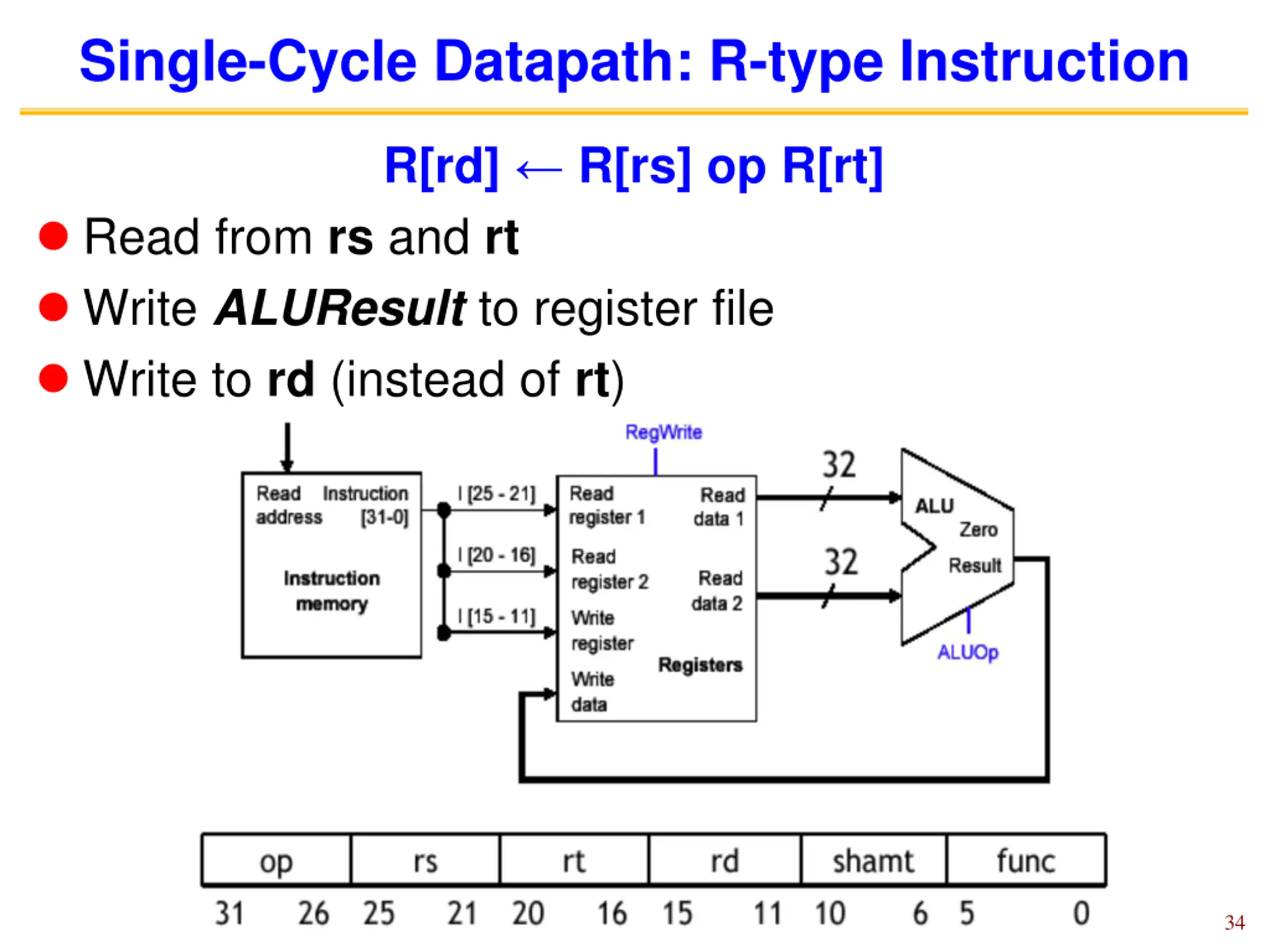

Single-Cycle Datapath: R-type Instruction R[rd] R[rs] op R[rt] Read from rs and rt Write ALUResult to register file Write to rd (instead of rt) 34

Single-Cycle Datapath: R-type instructions R[rd] R[rs] op R[rt] Read from rs and rt Write ALUResult to register file Write to rd (instead of rt) 35

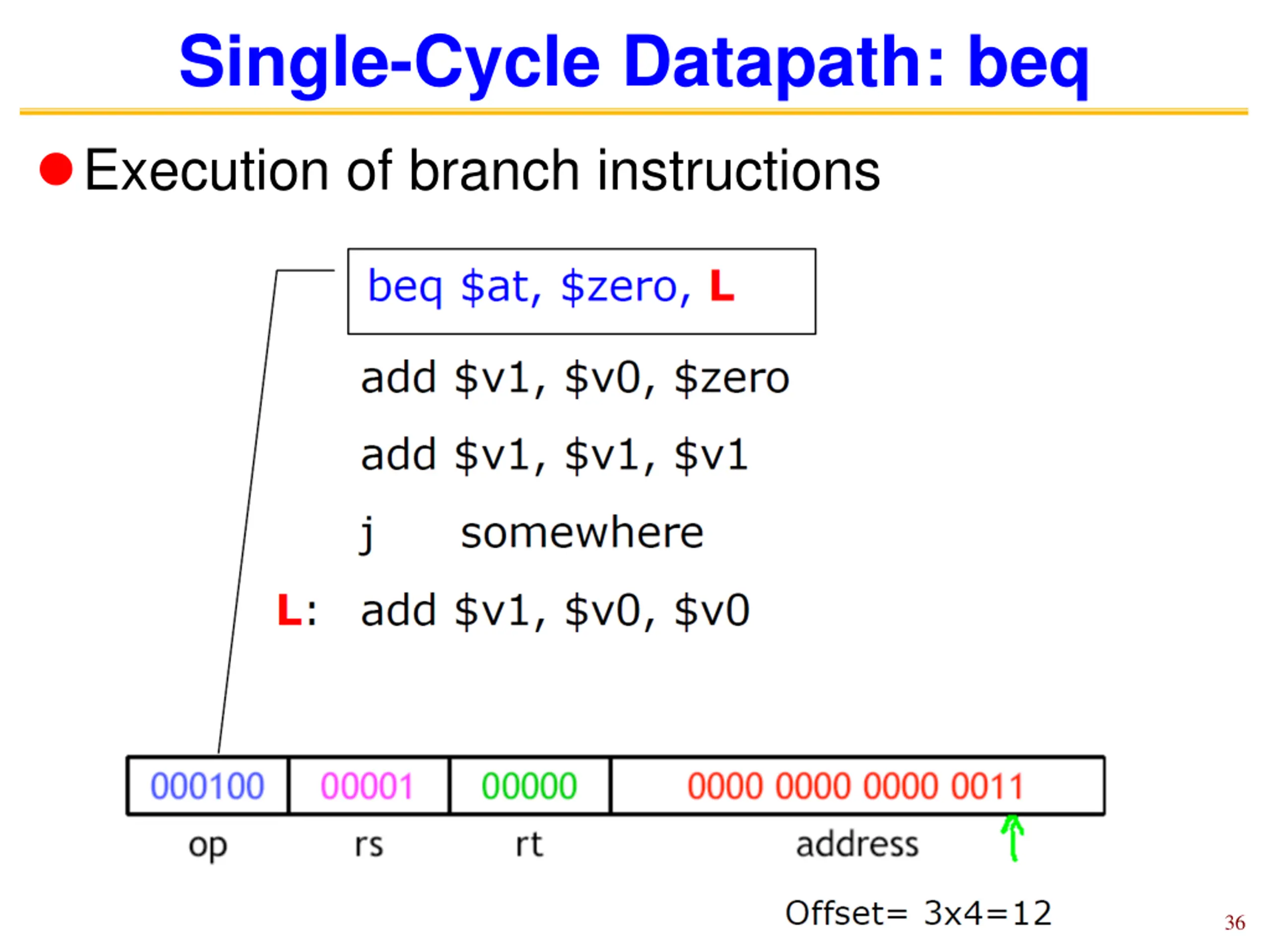

Single-Cycle Datapath: beq Execution of branch instructions 36

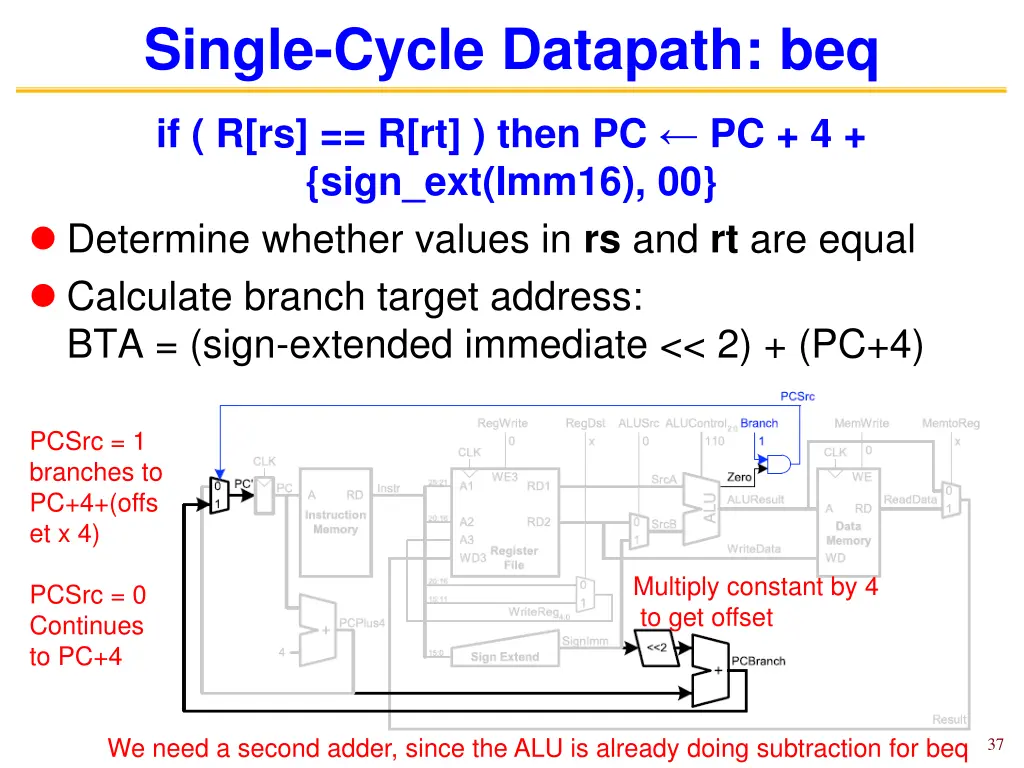

Single-Cycle Datapath: beq if ( R[rs] == R[rt] ) then PC PC + 4 + {sign_ext(Imm16), 00} Determine whether values in rs and rt are equal Calculate branch target address: BTA = (sign-extended immediate << 2) + (PC+4) PCSrc = 1 branches to PC+4+(offs et x 4) Multiply constant by 4 to get offset PCSrc = 0 Continues to PC+4 We need a second adder, since the ALU is already doing subtraction for beq 37

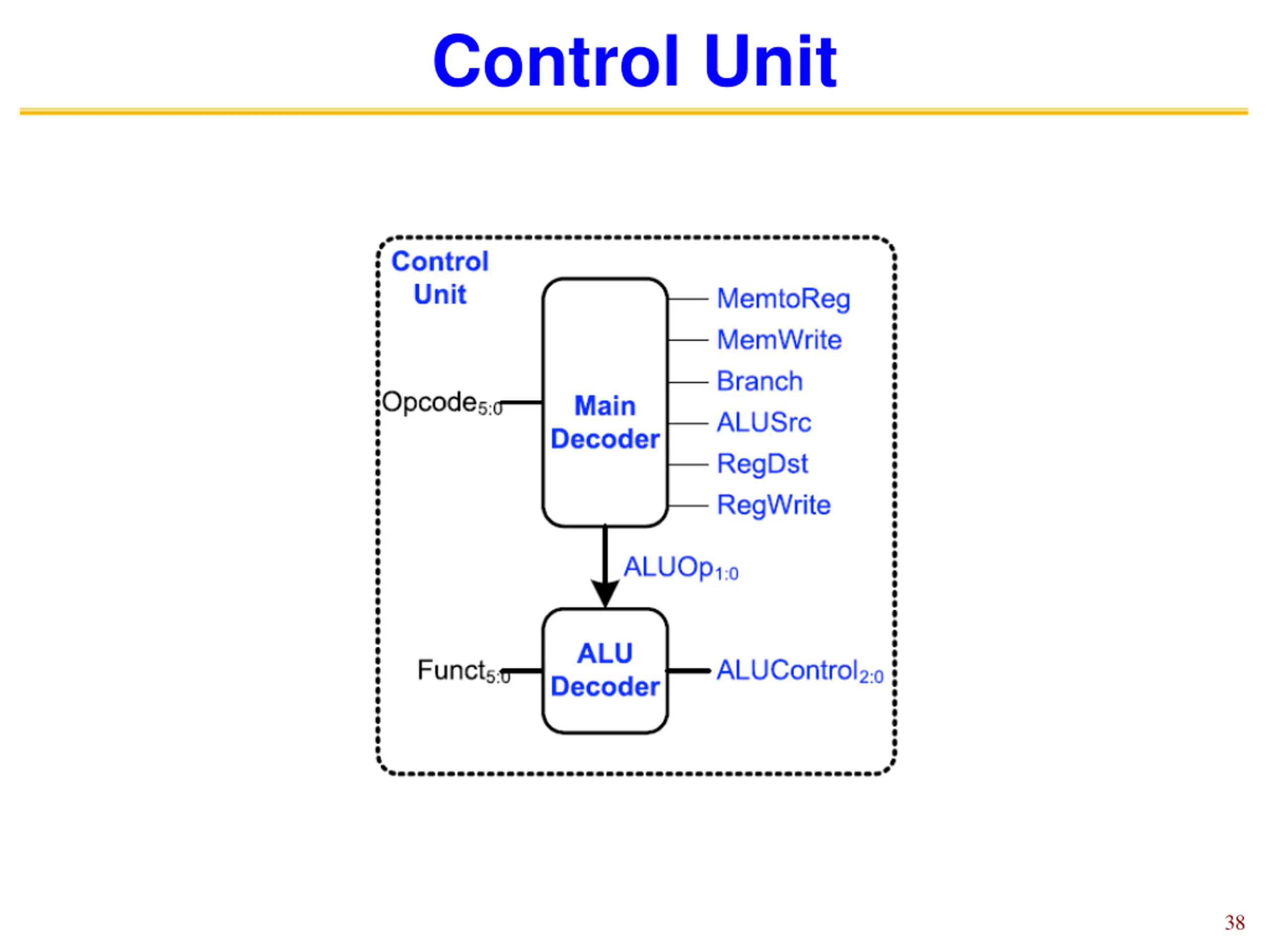

Control Unit 38

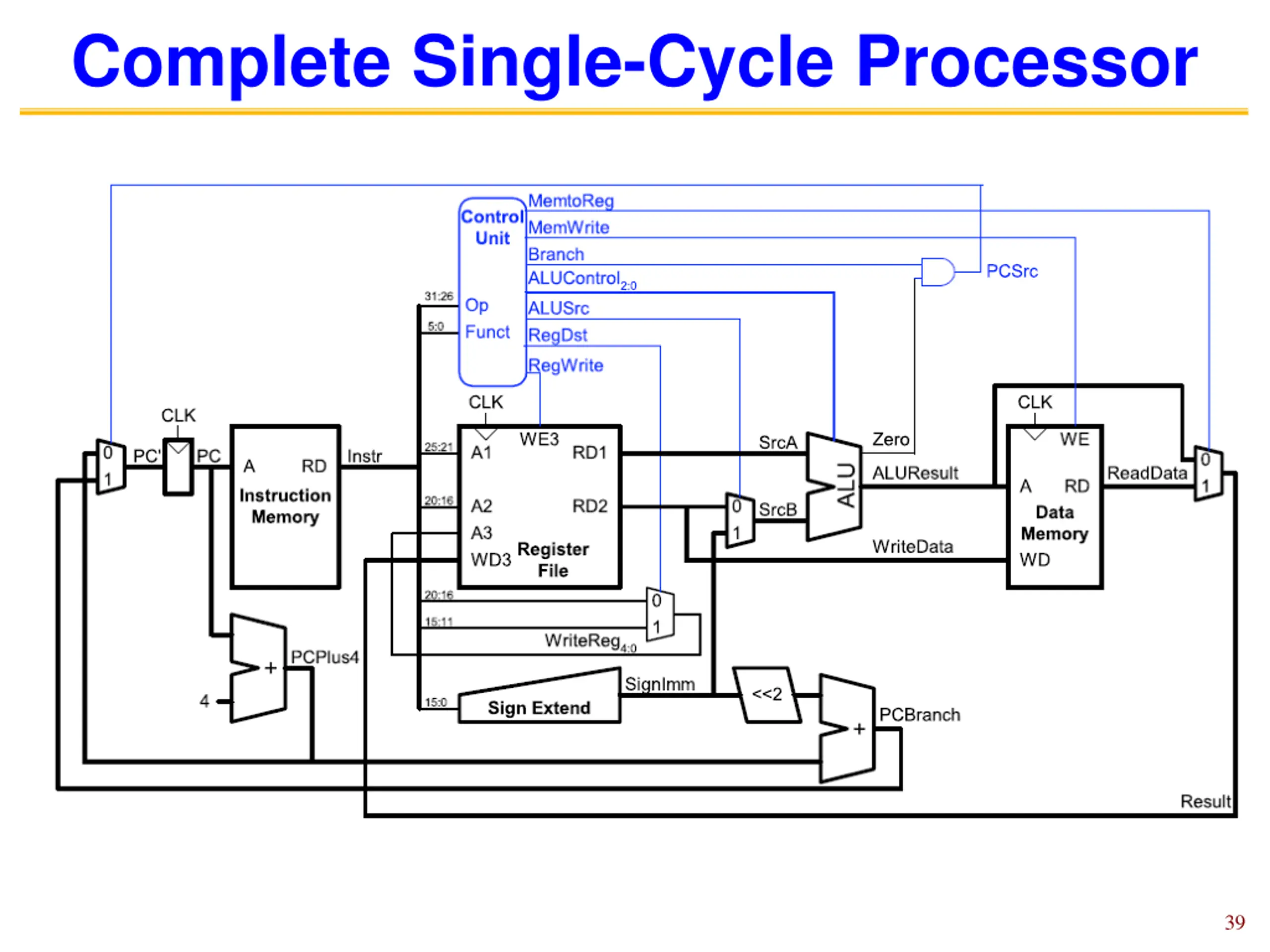

Complete Single-Cycle Processor 39

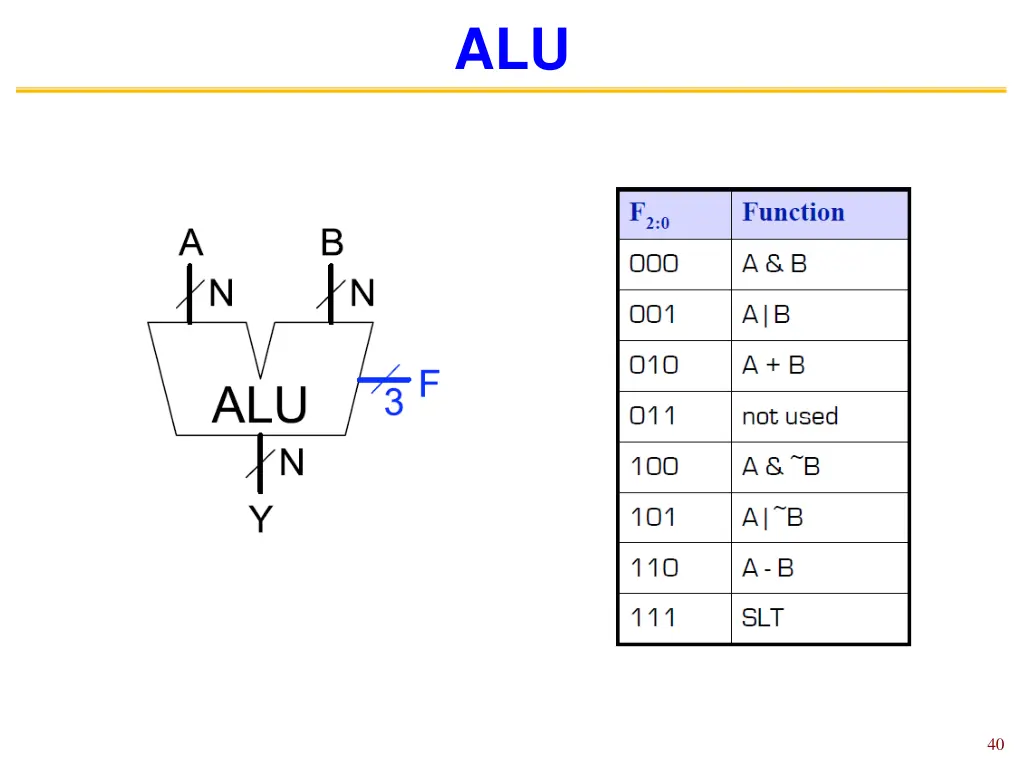

ALU 40

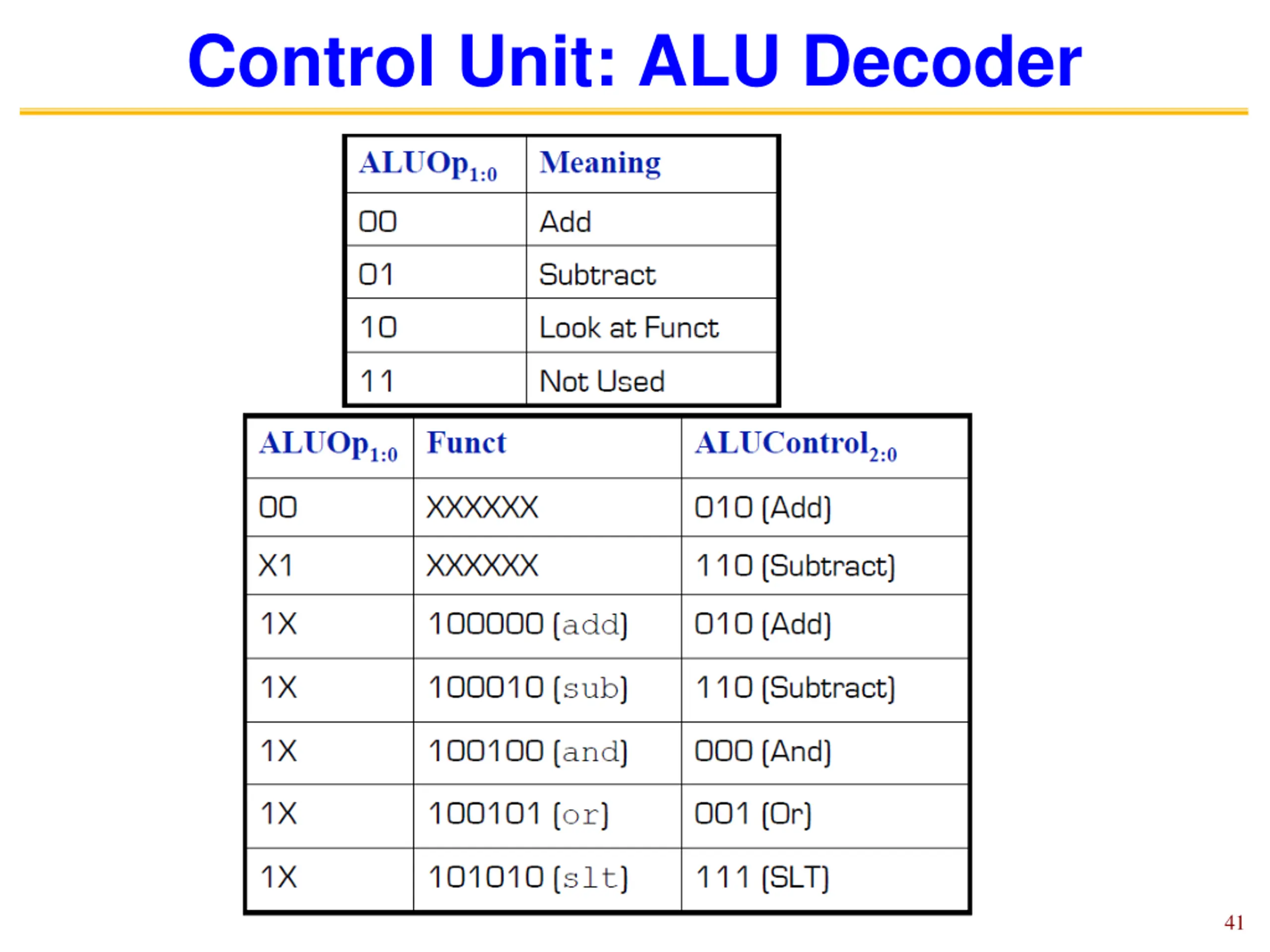

Control Unit: ALU Decoder 41

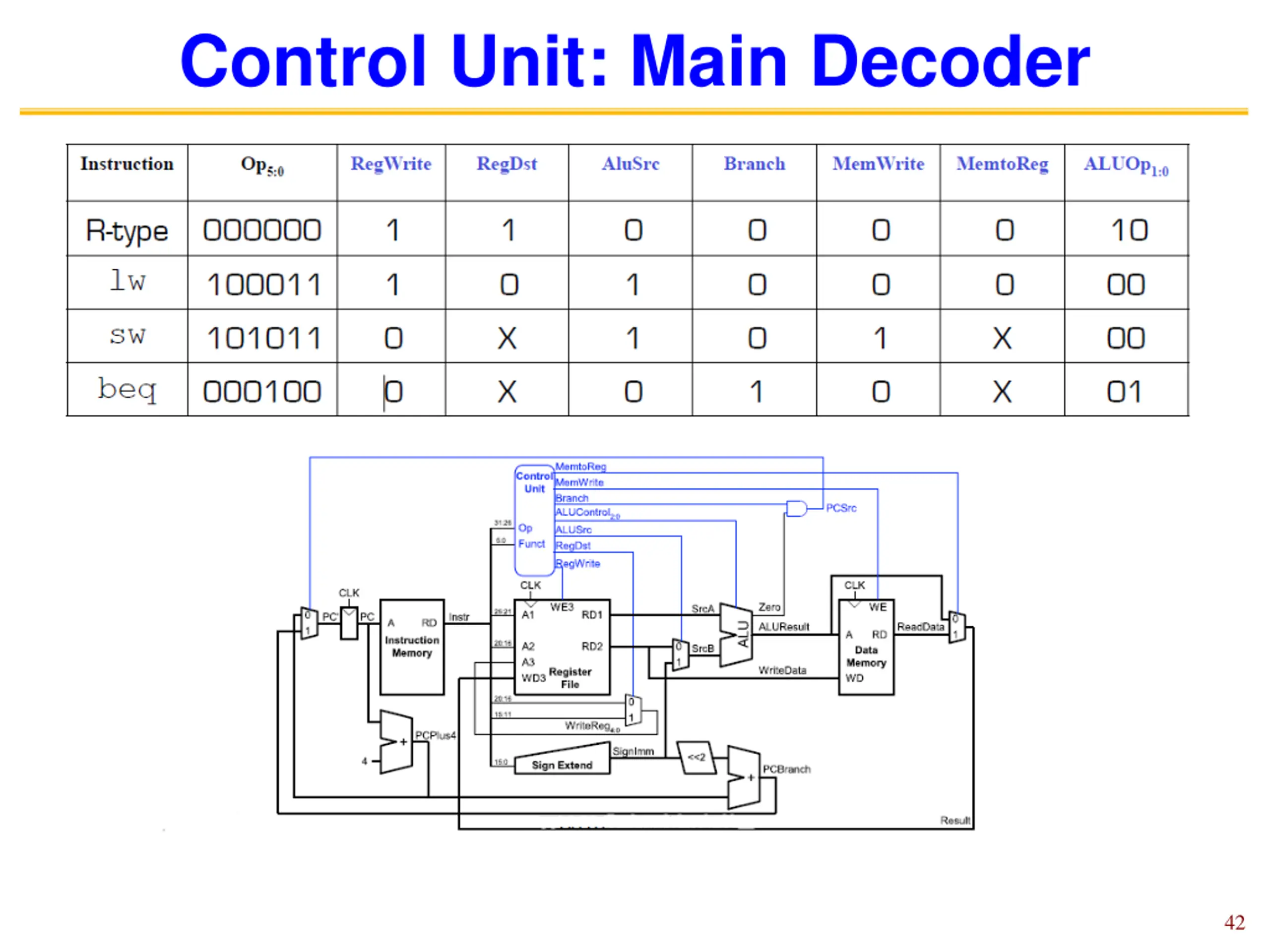

Control Unit: Main Decoder 42

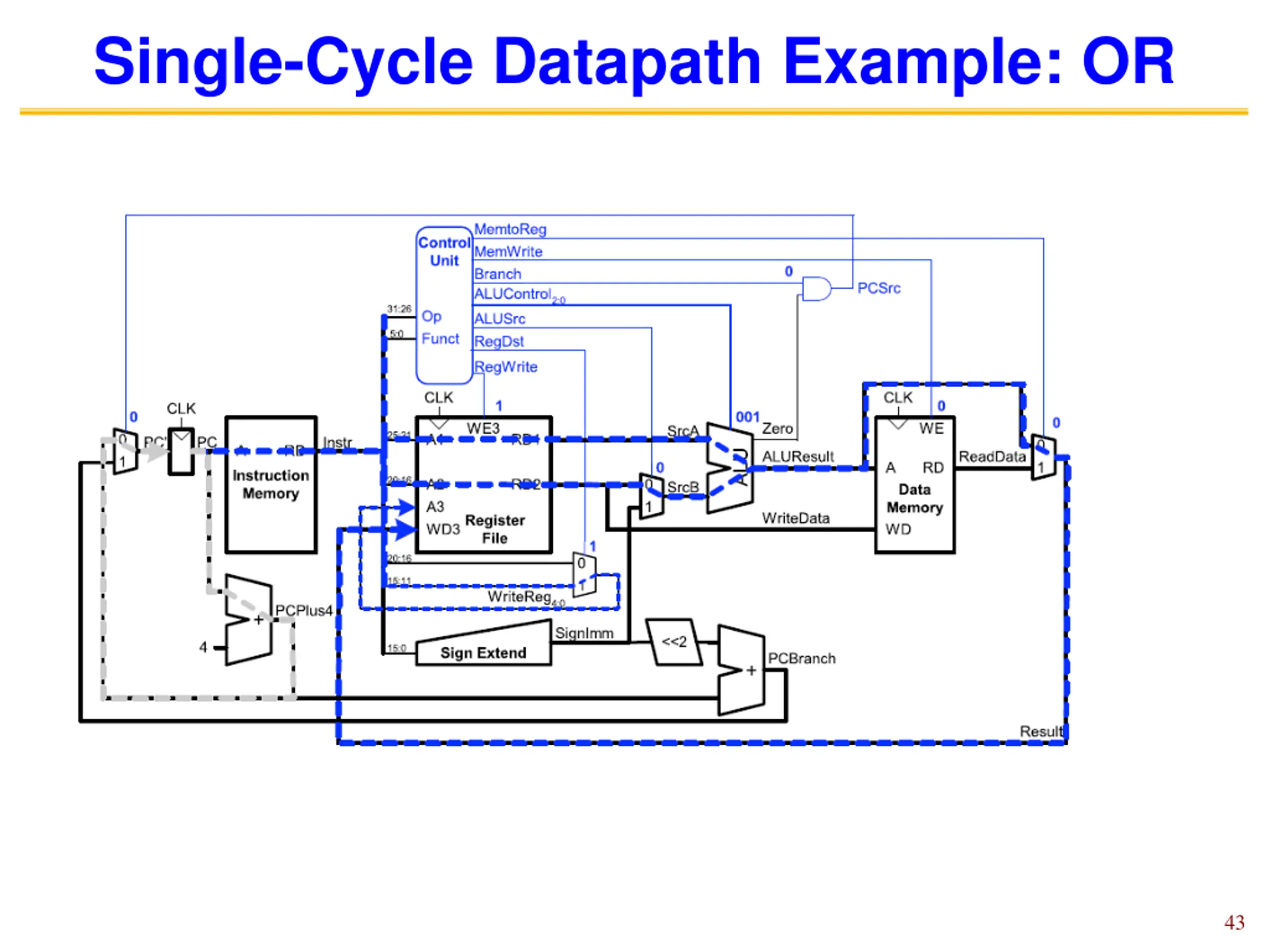

Single-Cycle Datapath Example: OR 43

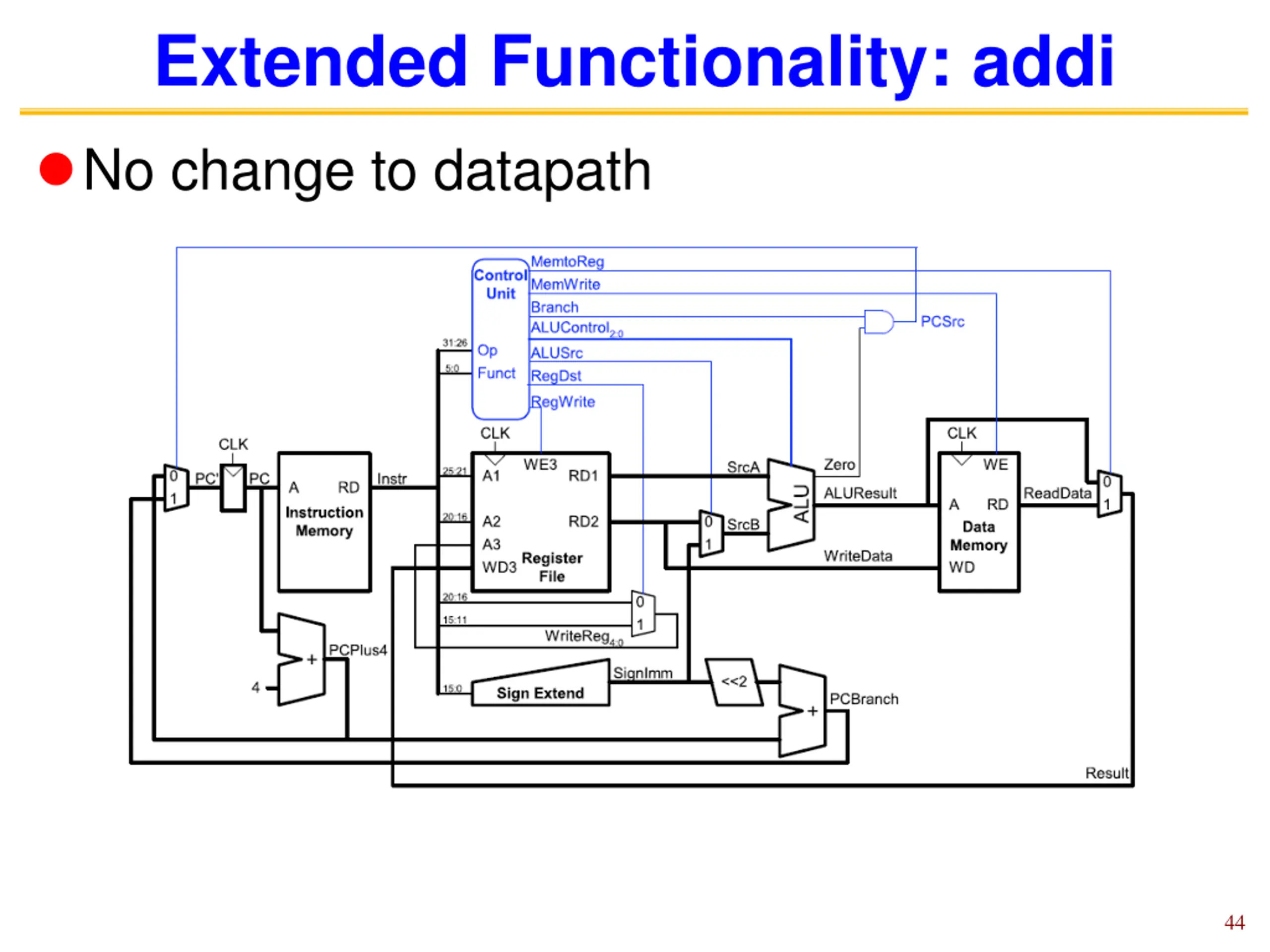

Extended Functionality: addi No change to datapath 44

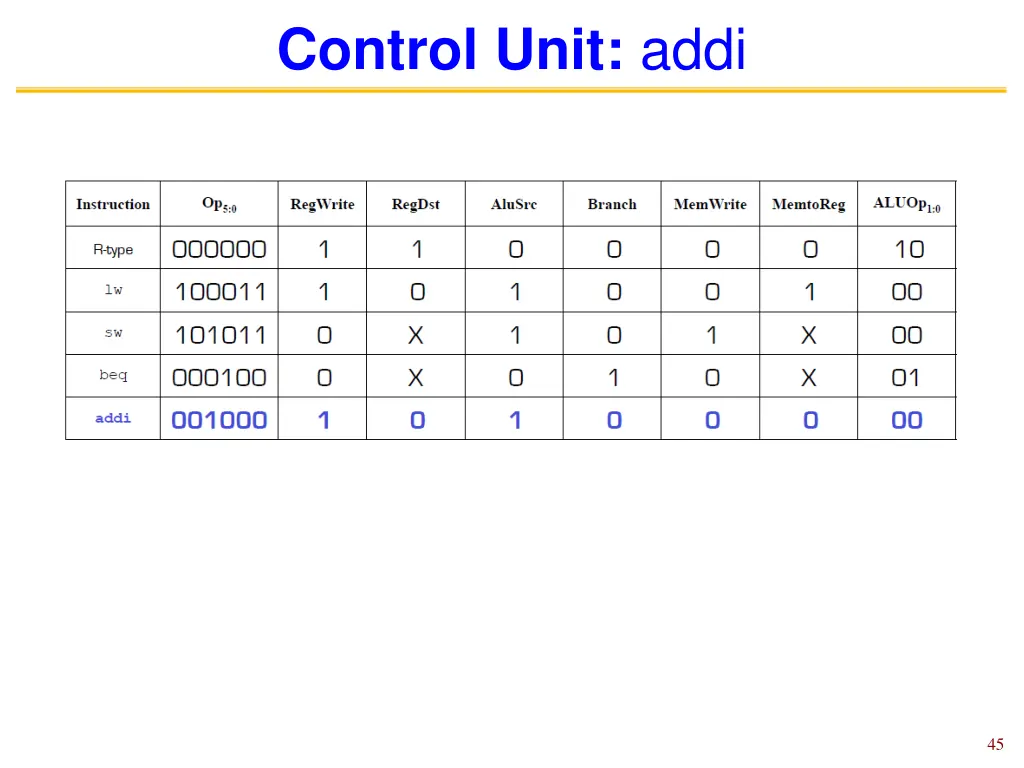

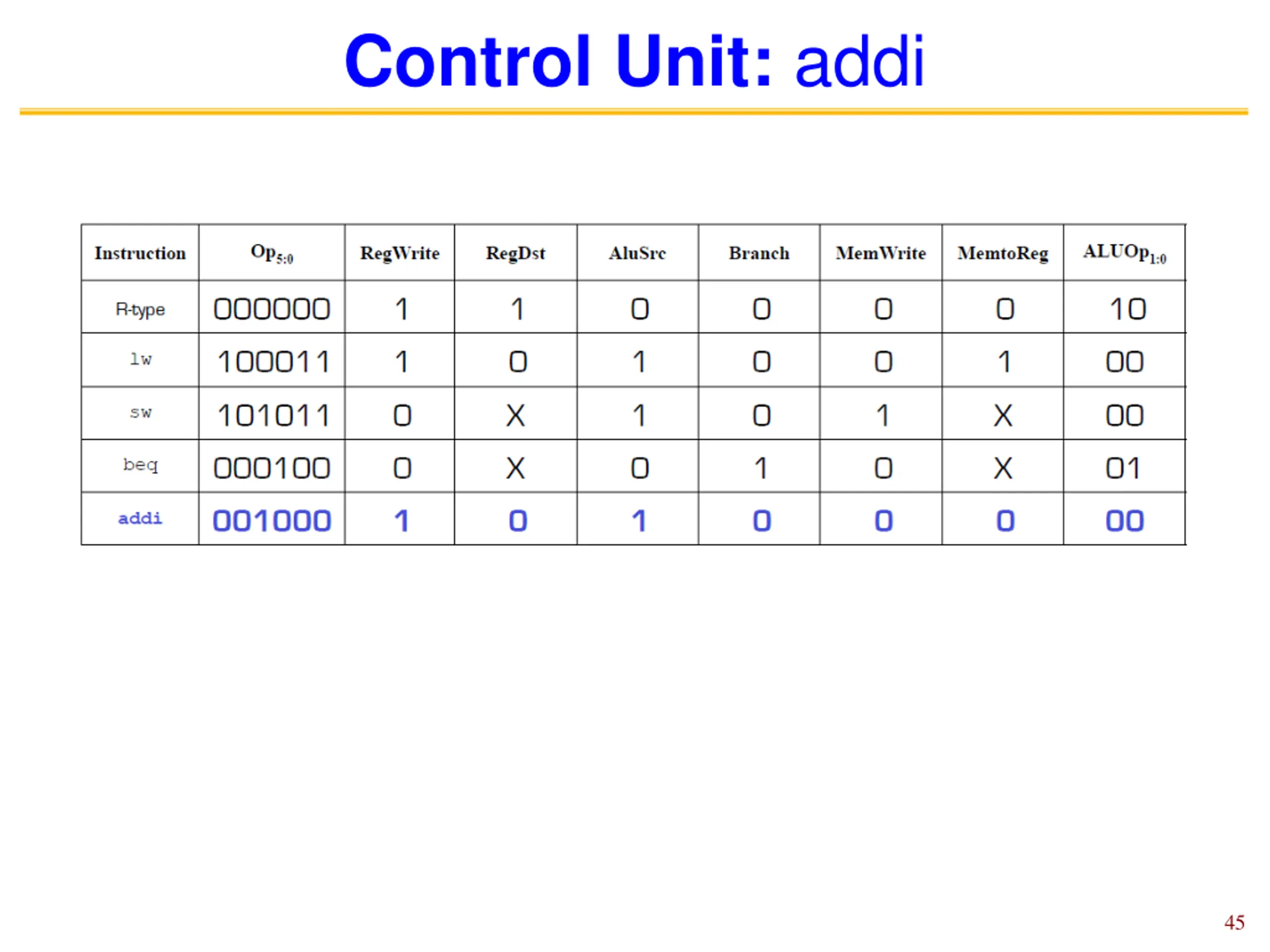

Control Unit: addi 45

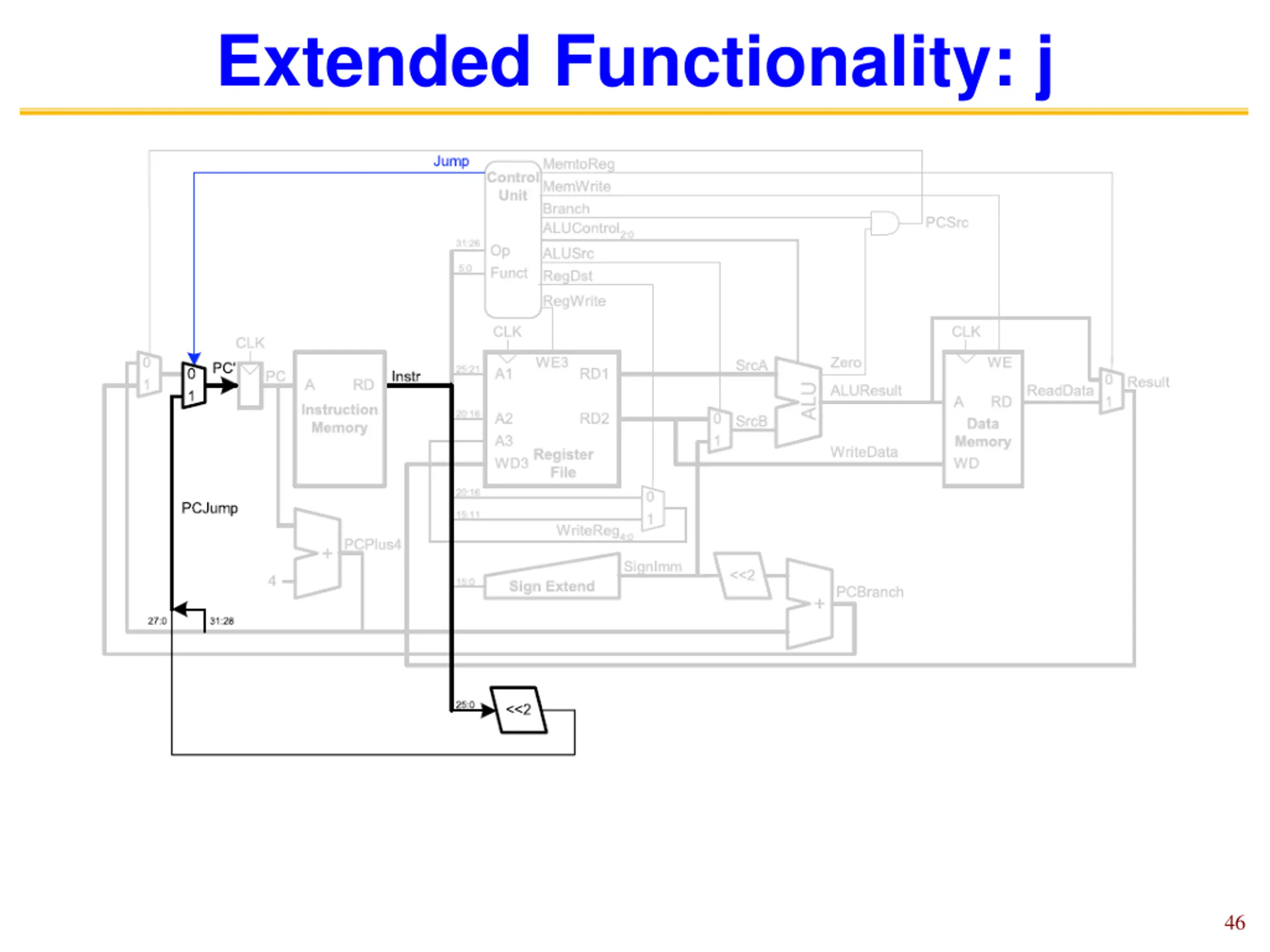

Extended Functionality: j 46

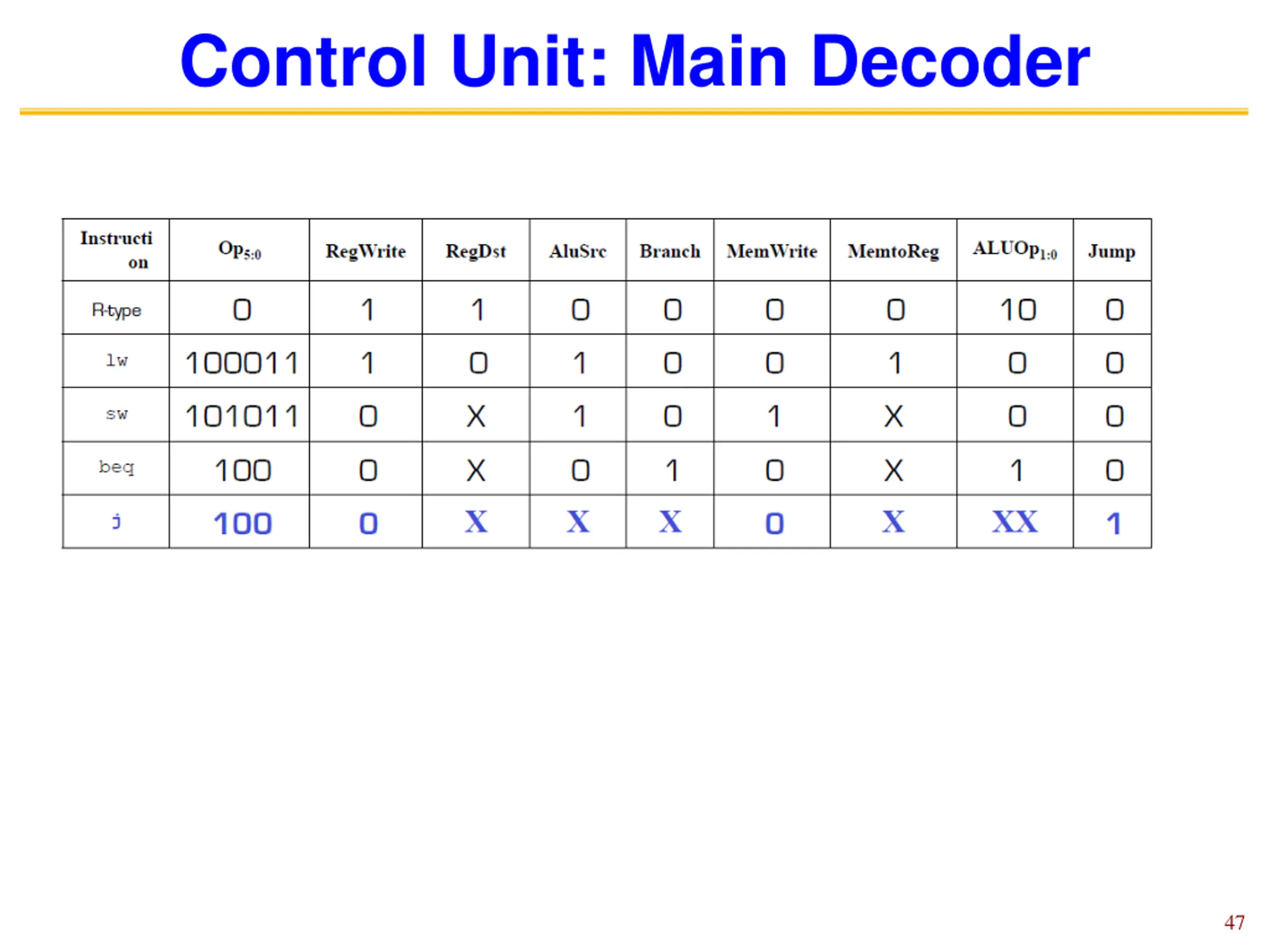

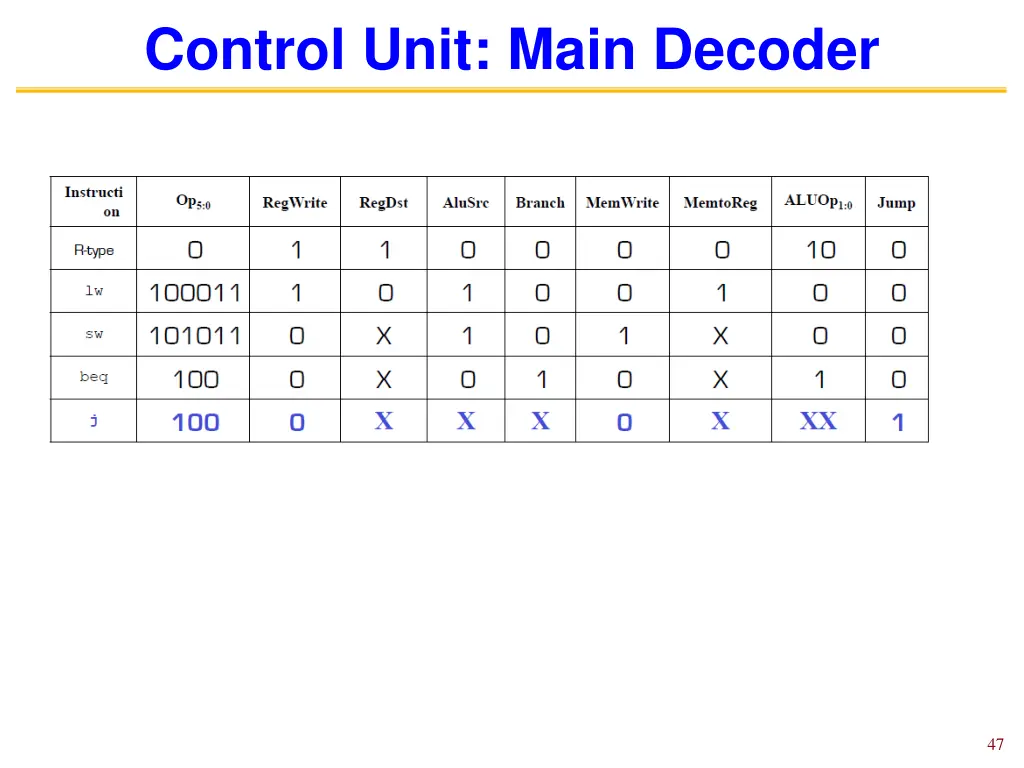

Control Unit: Main Decoder 47

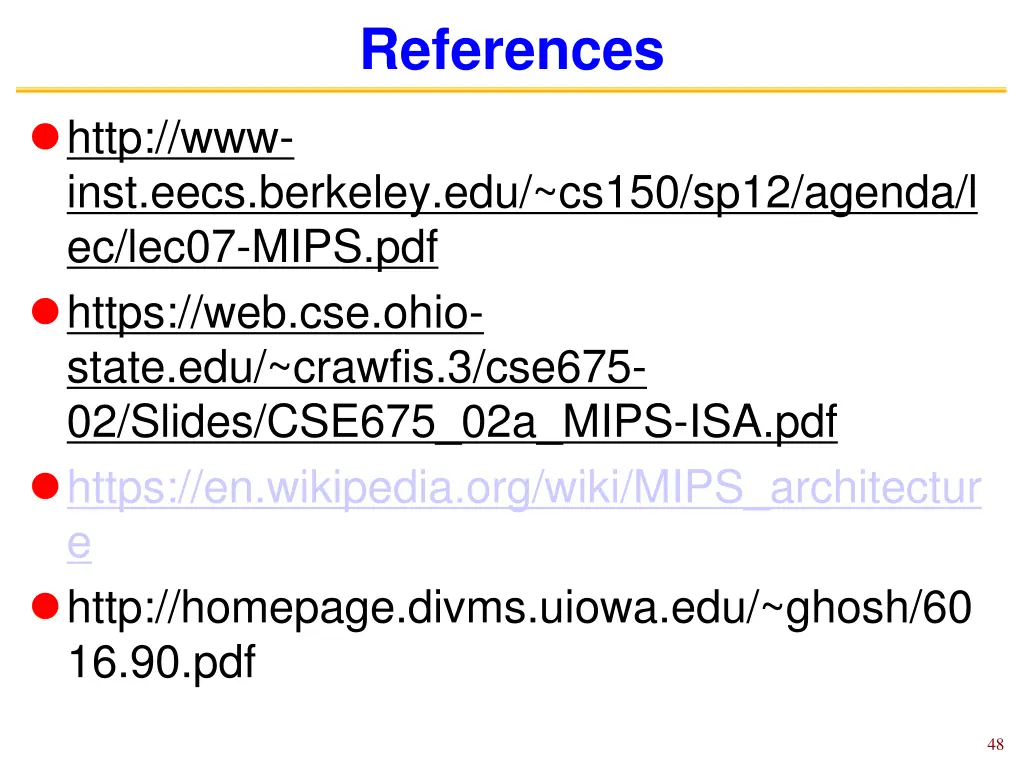

References http://www- inst.eecs.berkeley.edu/~cs150/sp12/agenda/l ec/lec07-MIPS.pdf https://web.cse.ohio- state.edu/~crawfis.3/cse675- 02/Slides/CSE675_02a_MIPS-ISA.pdf https://en.wikipedia.org/wiki/MIPS_architectur e http://homepage.divms.uiowa.edu/~ghosh/60 16.90.pdf 48
