Presentation Transcript

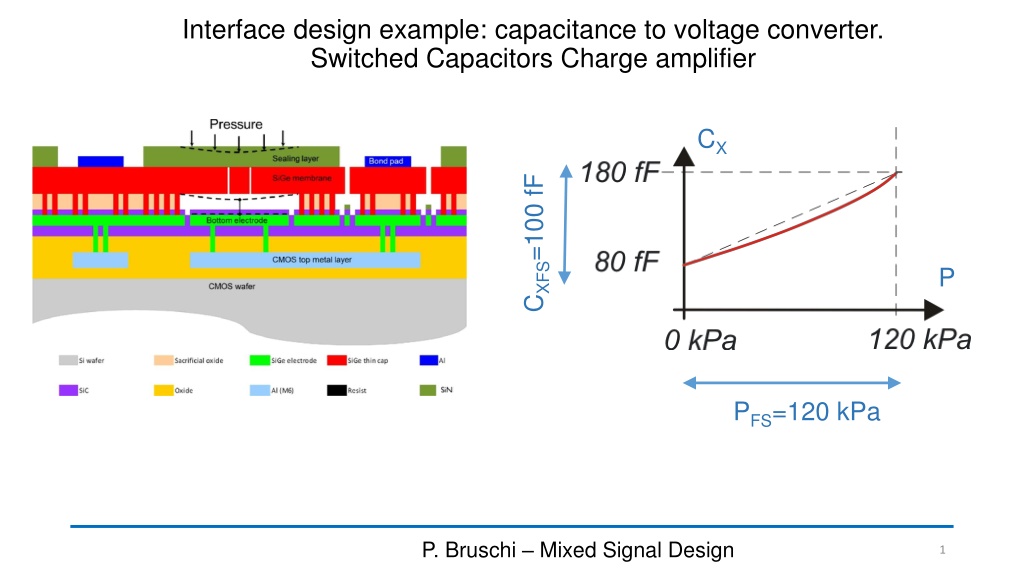

Interface design example: capacitance to voltage converter. Switched Capacitors Charge amplifier CX CXFS=100 fF P PFS=120 kPa P. Bruschi Mixed Signal Design 1

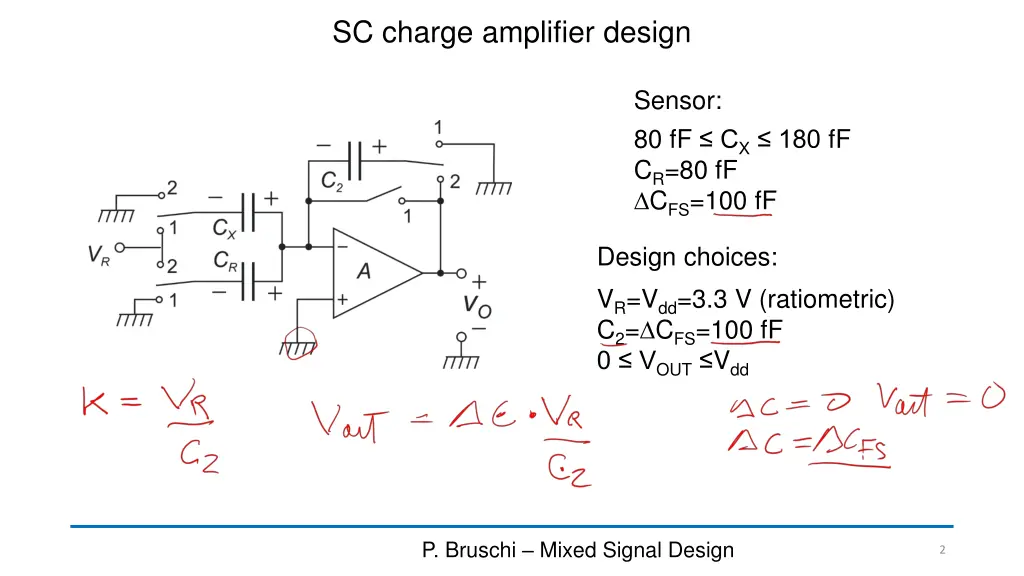

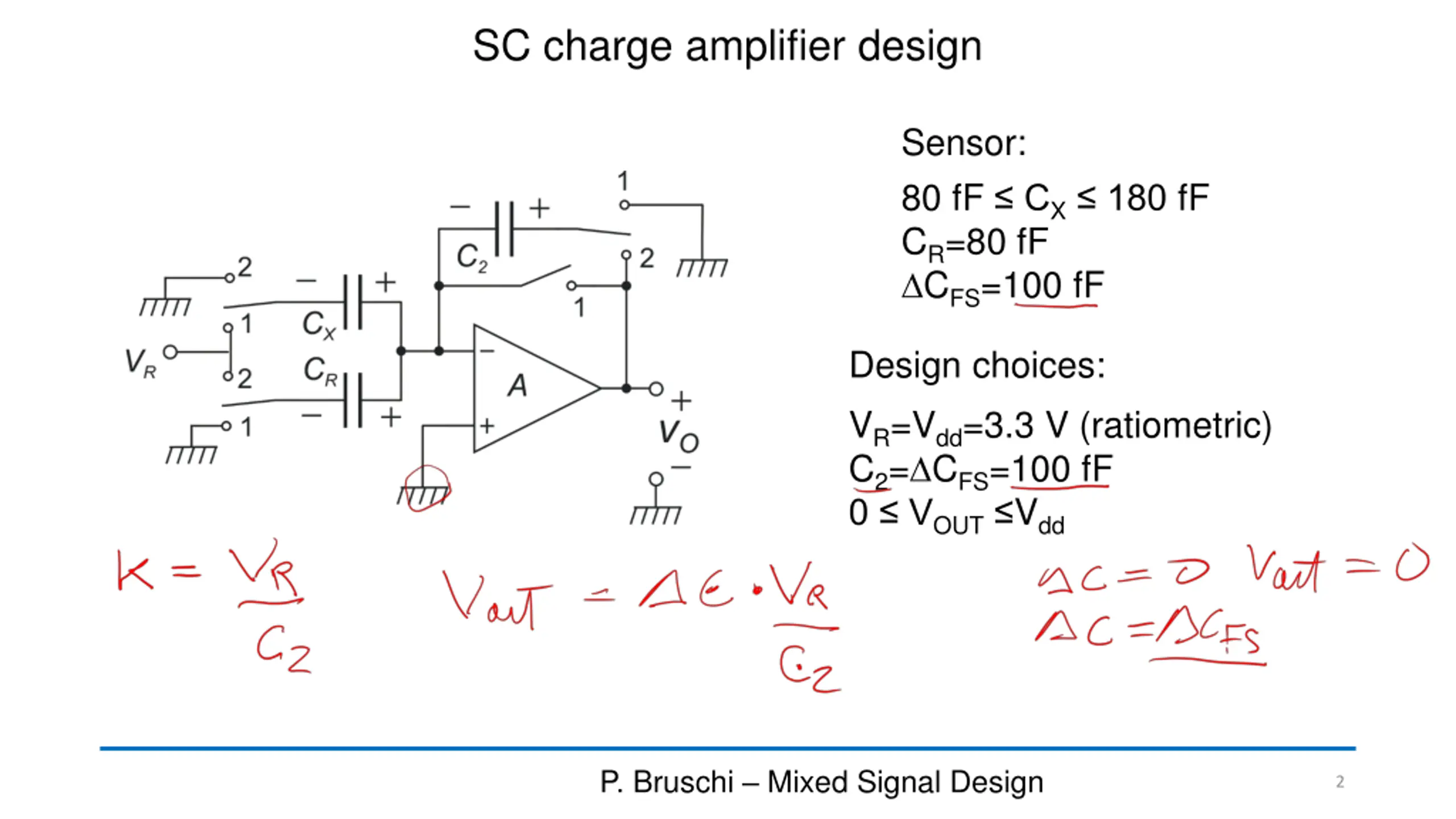

SC charge amplifier design Sensor: 80 fF CX 180 fF CR=80 fF CFS=100 fF Design choices: VR=Vdd=3.3 V (ratiometric) C2= CFS=100 fF 0 VOUT Vdd P. Bruschi Mixed Signal Design 2

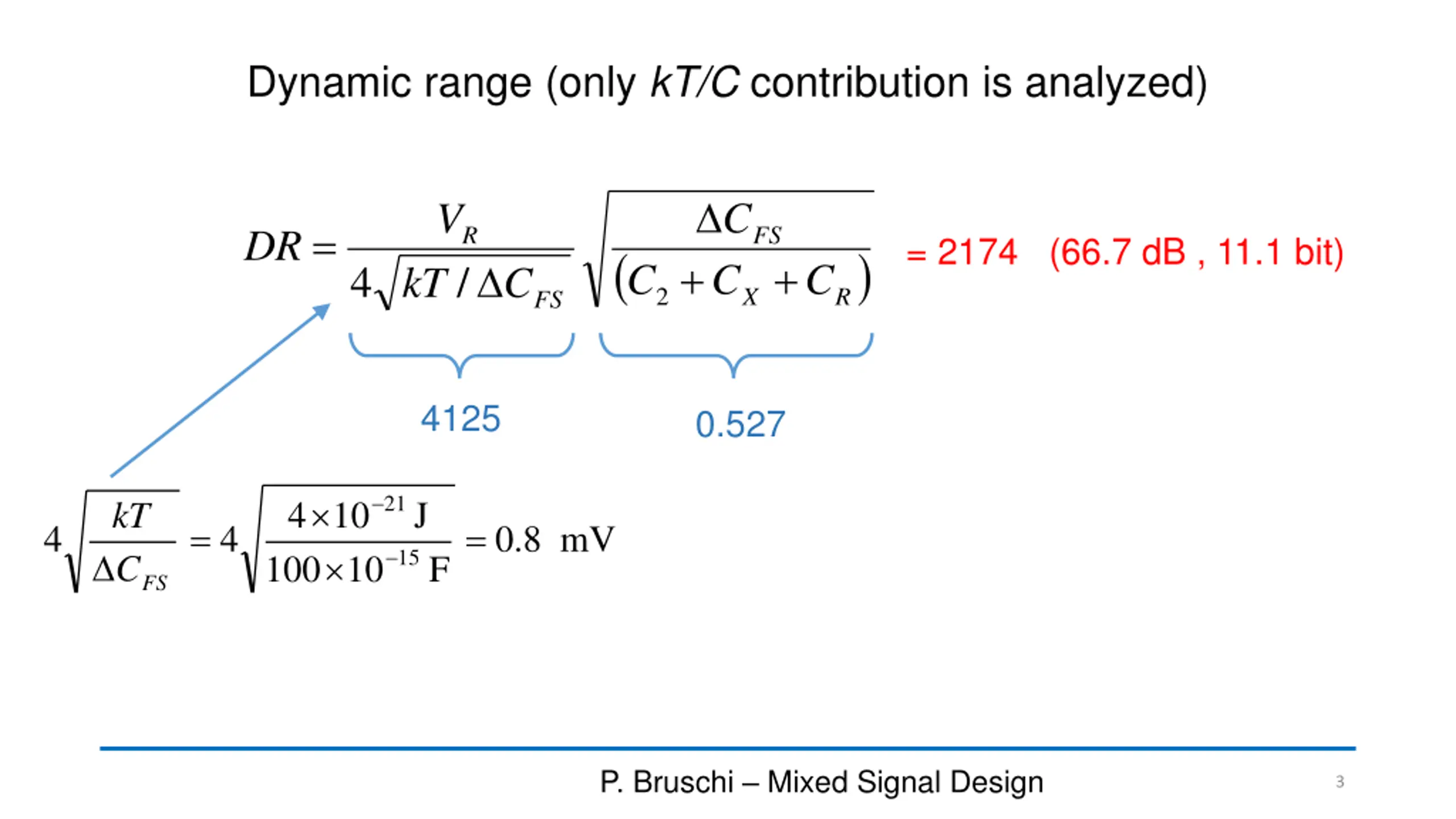

Dynamic range (only kT/C contribution is analyzed) C V = FS R / DR = 2174 (66.7 dB , 11.1 bit) ( ) + + C C C 4 kT C 2 X R FS 4125 0.527 21 4 10 J kT = = 4 4 8 . 0 mV 15 C 100 10 F FS P. Bruschi Mixed Signal Design 3

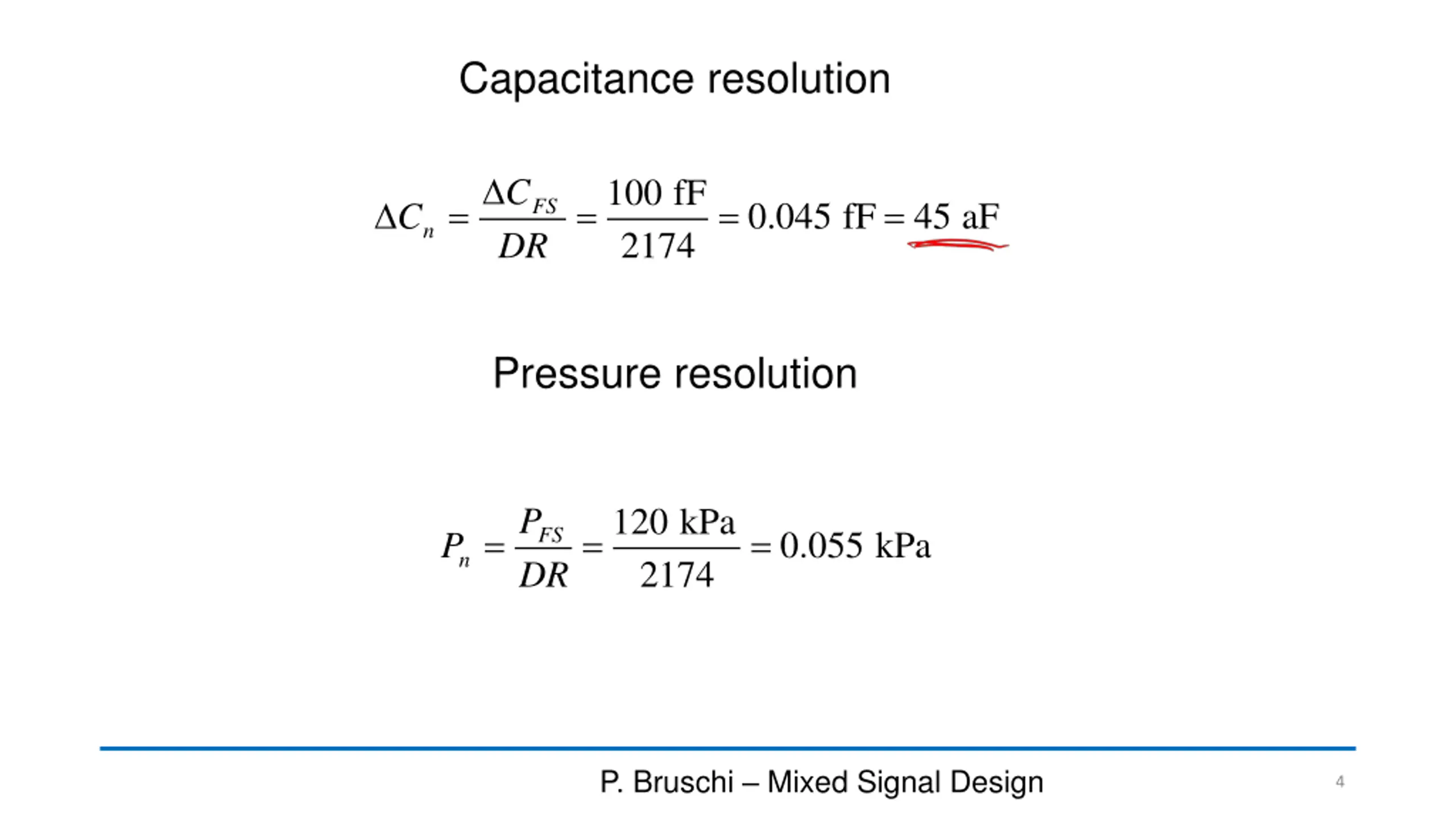

Capacitance resolution C 100 fF = = = = FS . 0 045 fF 45 aF C n 2174 DR Pressure resolution P 120 kPa =DR = = FS . 0 055 kPa P n 2174 P. Bruschi Mixed Signal Design 4

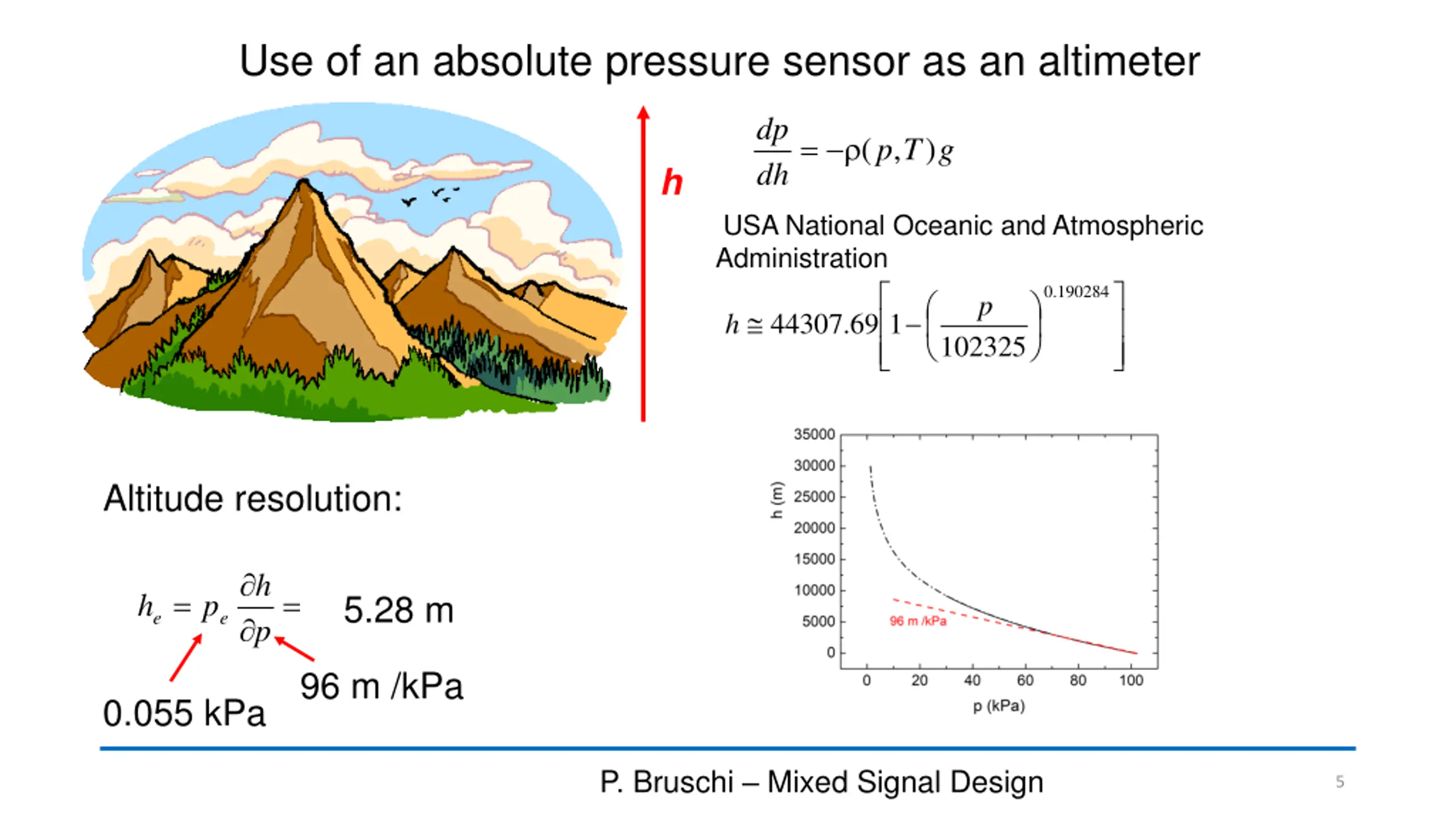

Use of an absolute pressure sensor as an altimeter dp = ( , ) p T g dh h USA National Oceanic and Atmospheric Administration . 0 190284 p 44307 69 . 1 h 102325 Altitude resolution: h = = h p 5.28 m e e p 96 m /kPa 0.055 kPa P. Bruschi Mixed Signal Design 5

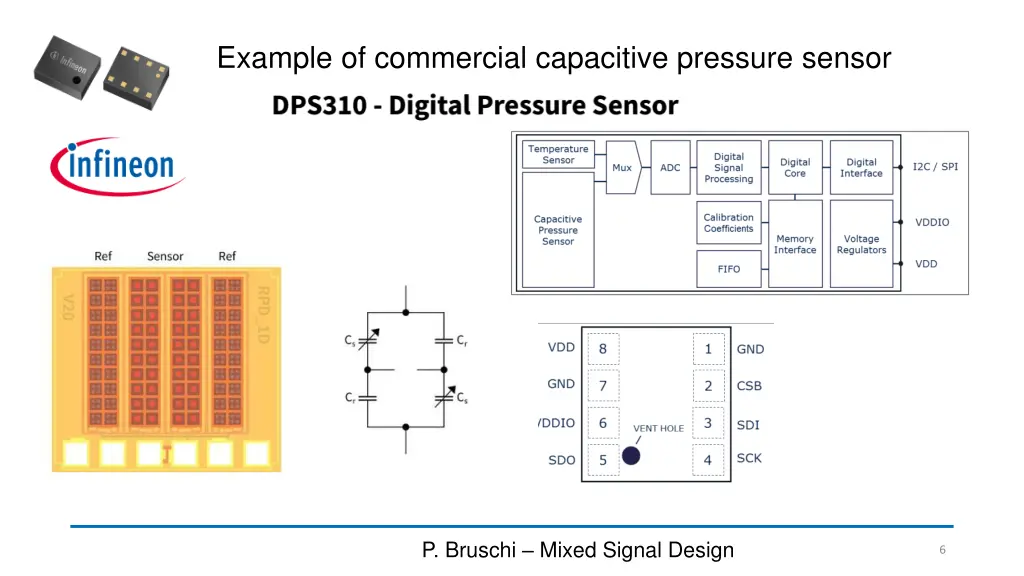

Example of commercial capacitive pressure sensor P. Bruschi Mixed Signal Design 6

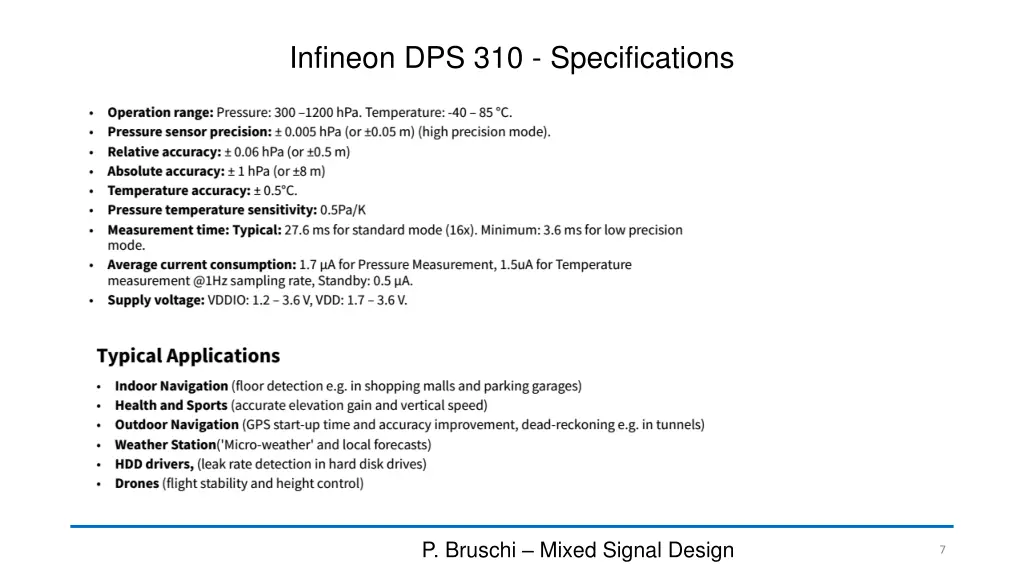

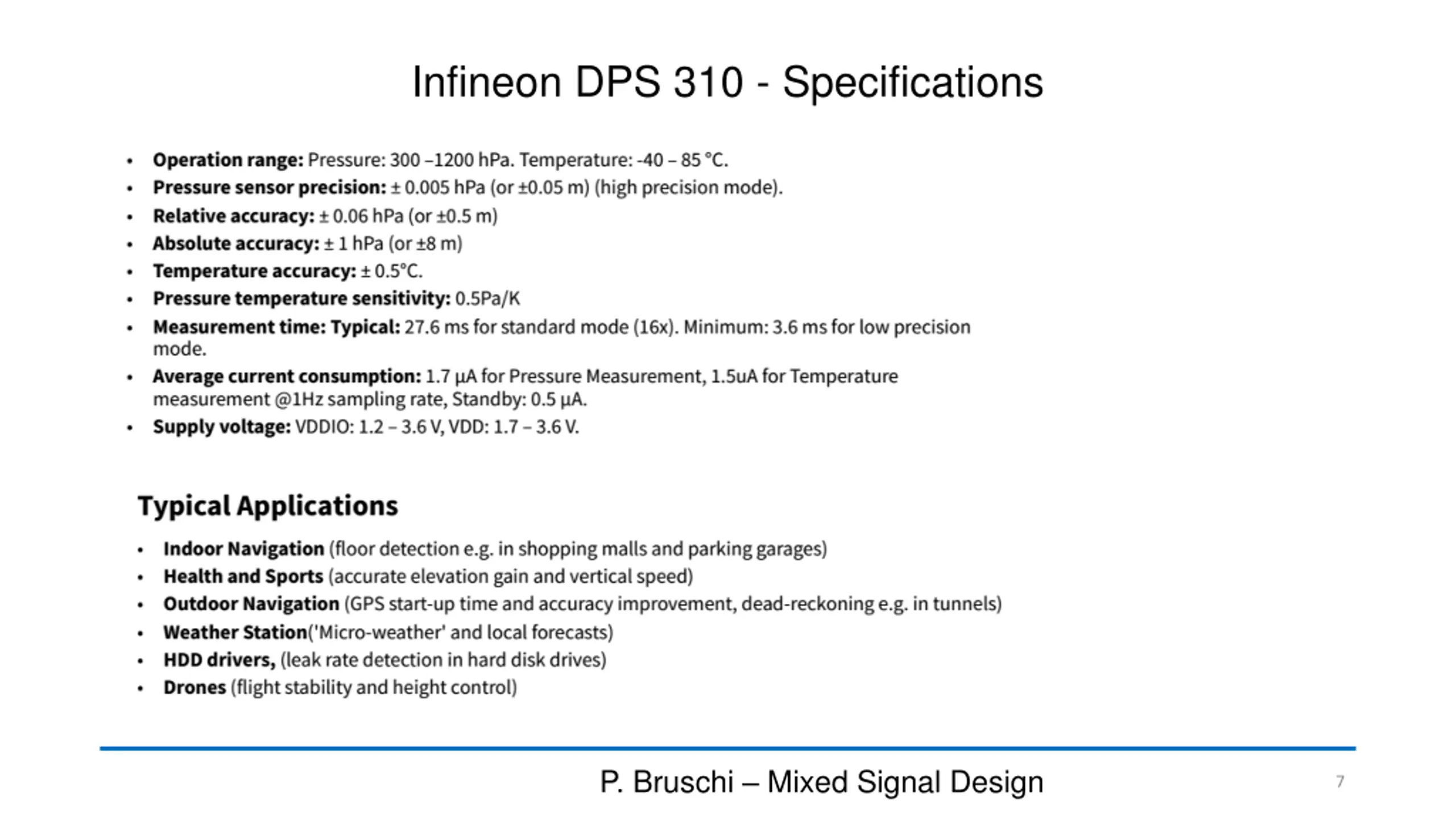

Infineon DPS 310 - Specifications P. Bruschi Mixed Signal Design 7

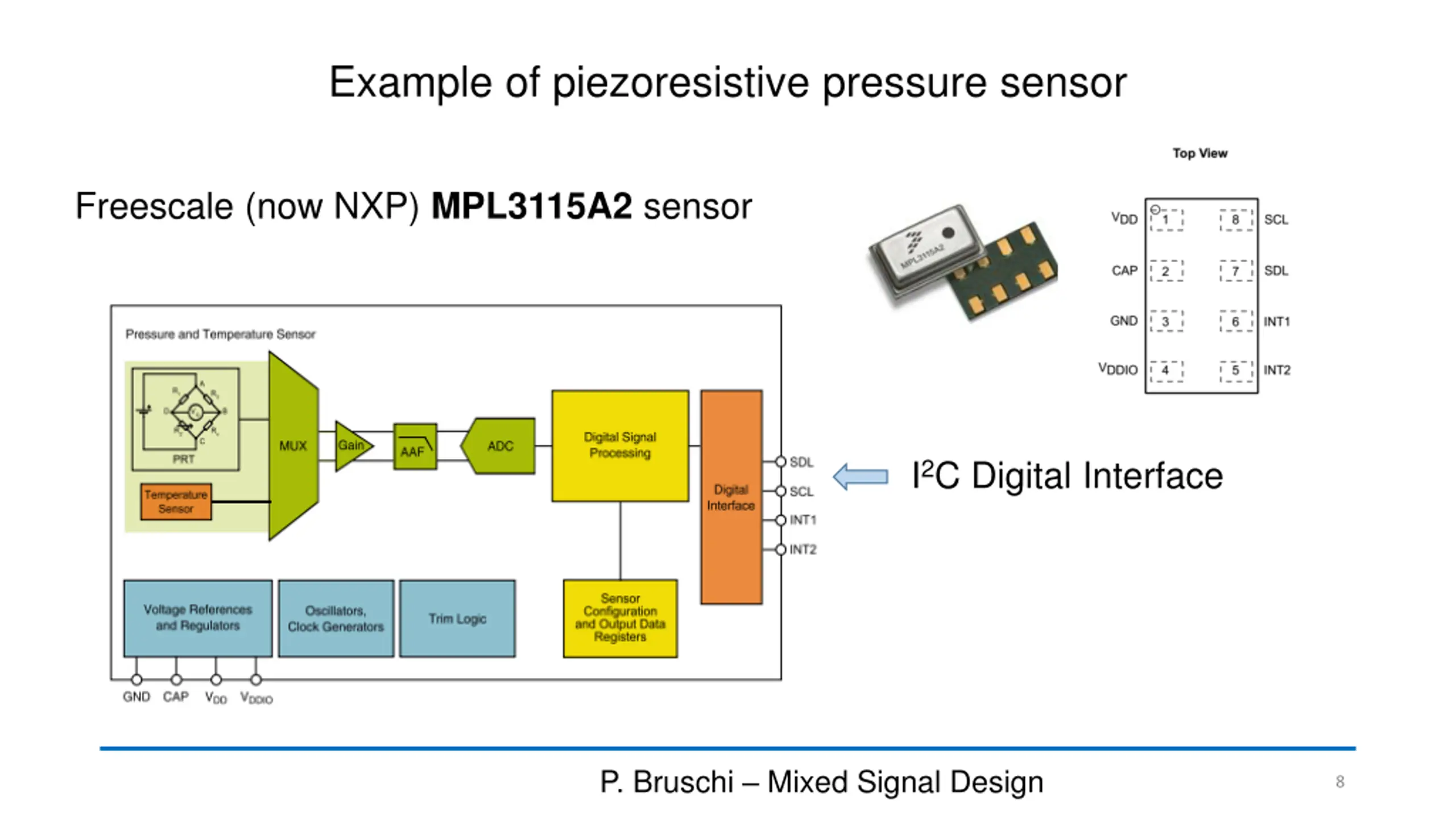

Example of piezoresistive pressure sensor Freescale (now NXP) MPL3115A2 sensor I2C Digital Interface P. Bruschi Mixed Signal Design 8

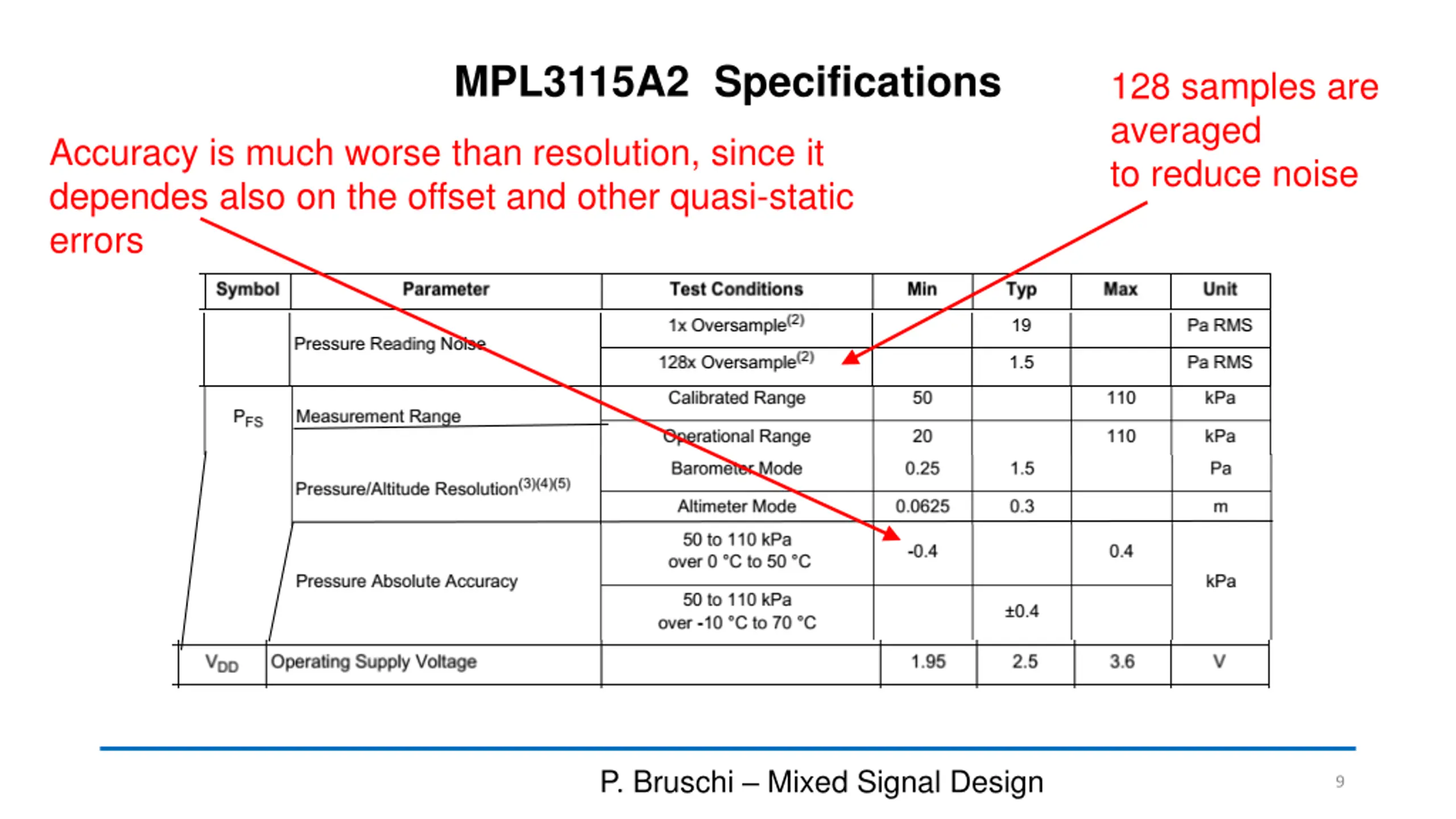

MPL3115A2 Specifications 128 samples are averaged to reduce noise Accuracy is much worse than resolution, since it dependes also on the offset and other quasi-static errors P. Bruschi Mixed Signal Design 9

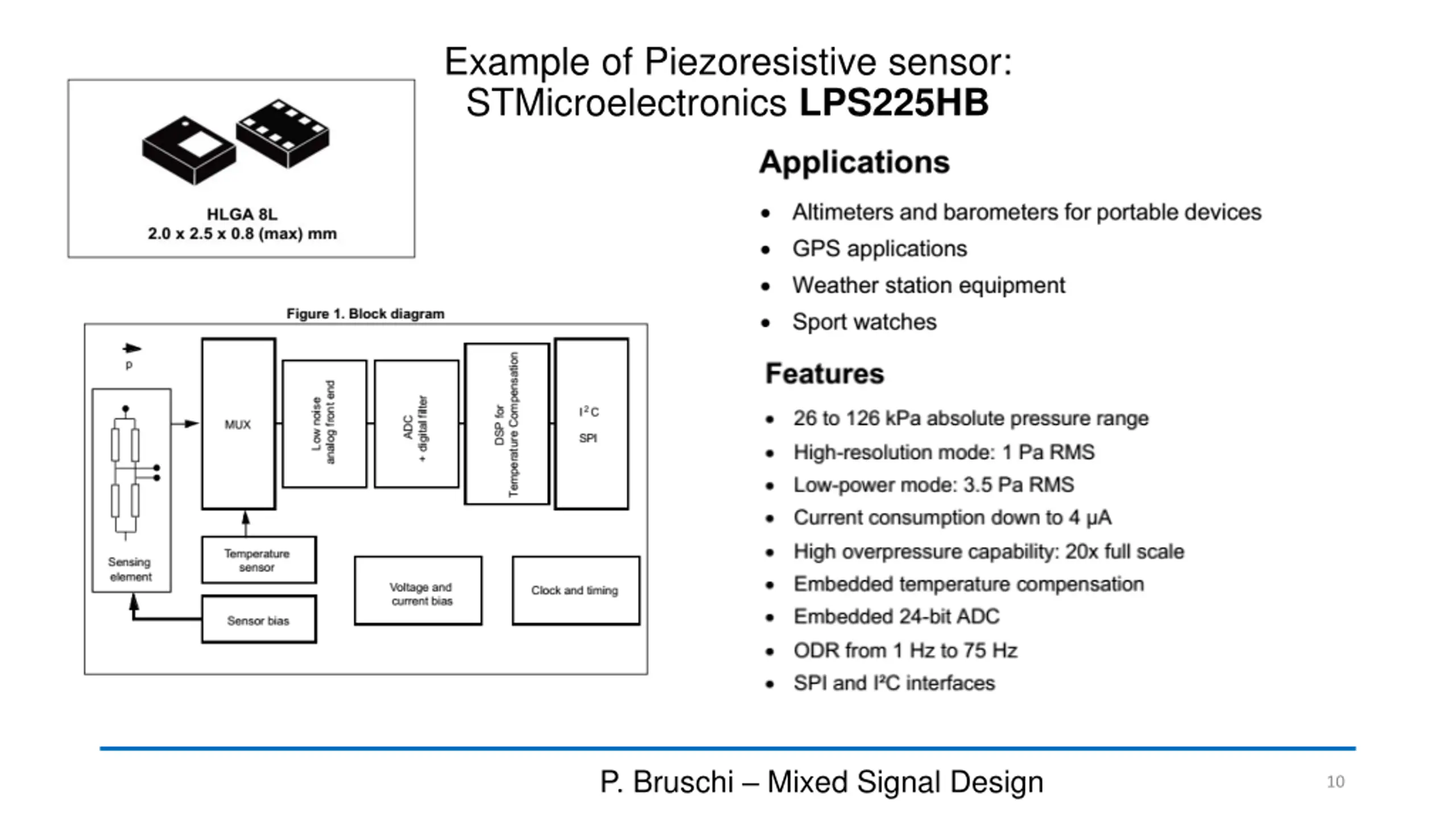

Example of Piezoresistive sensor: STMicroelectronics LPS225HB P. Bruschi Mixed Signal Design 10
