A JavaScript framework SE-2840 Dr. Mark L. Hornick 1

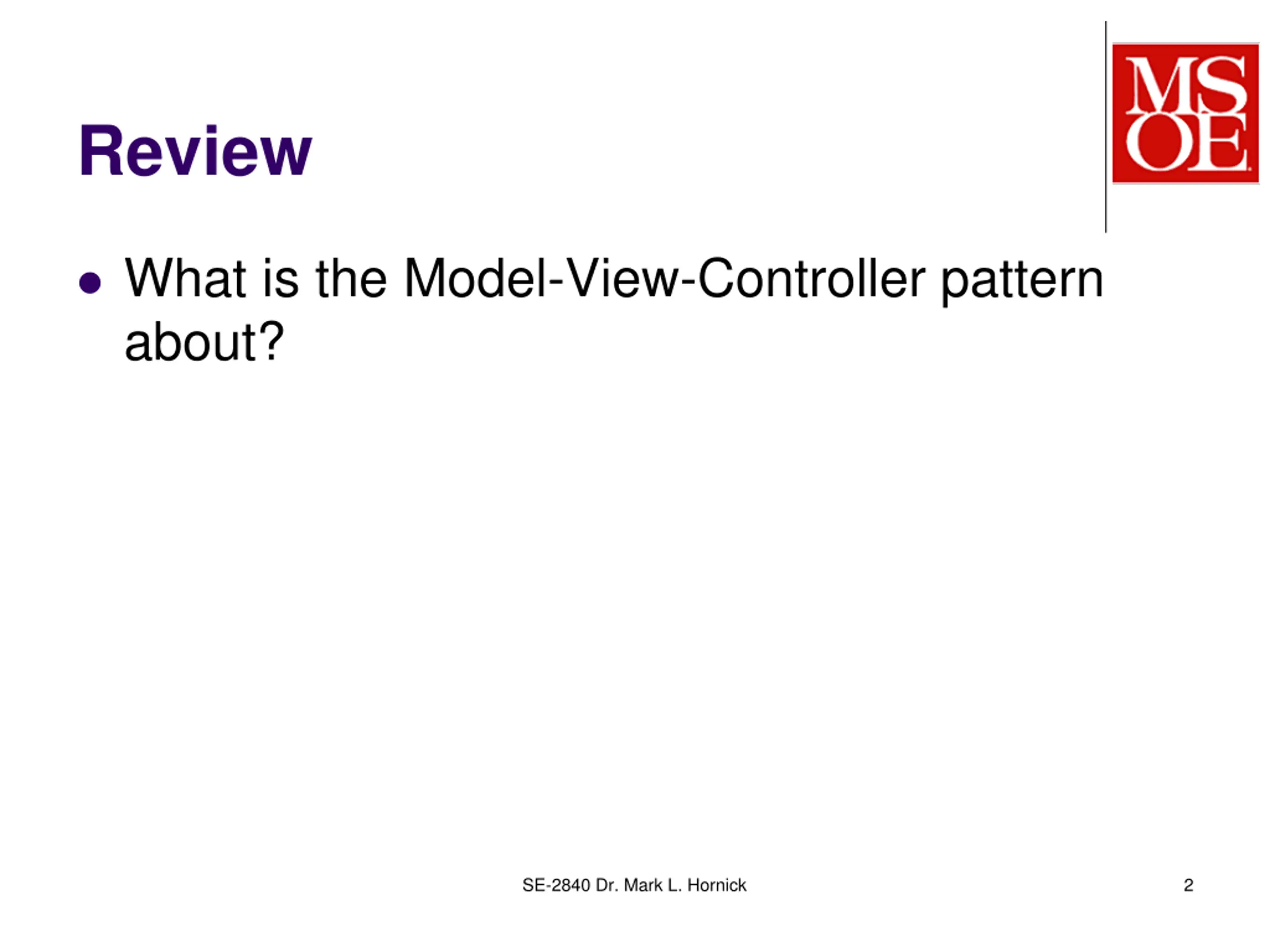

Review What is the Model-View-Controller pattern about? SE-2840 Dr. Mark L. Hornick 2

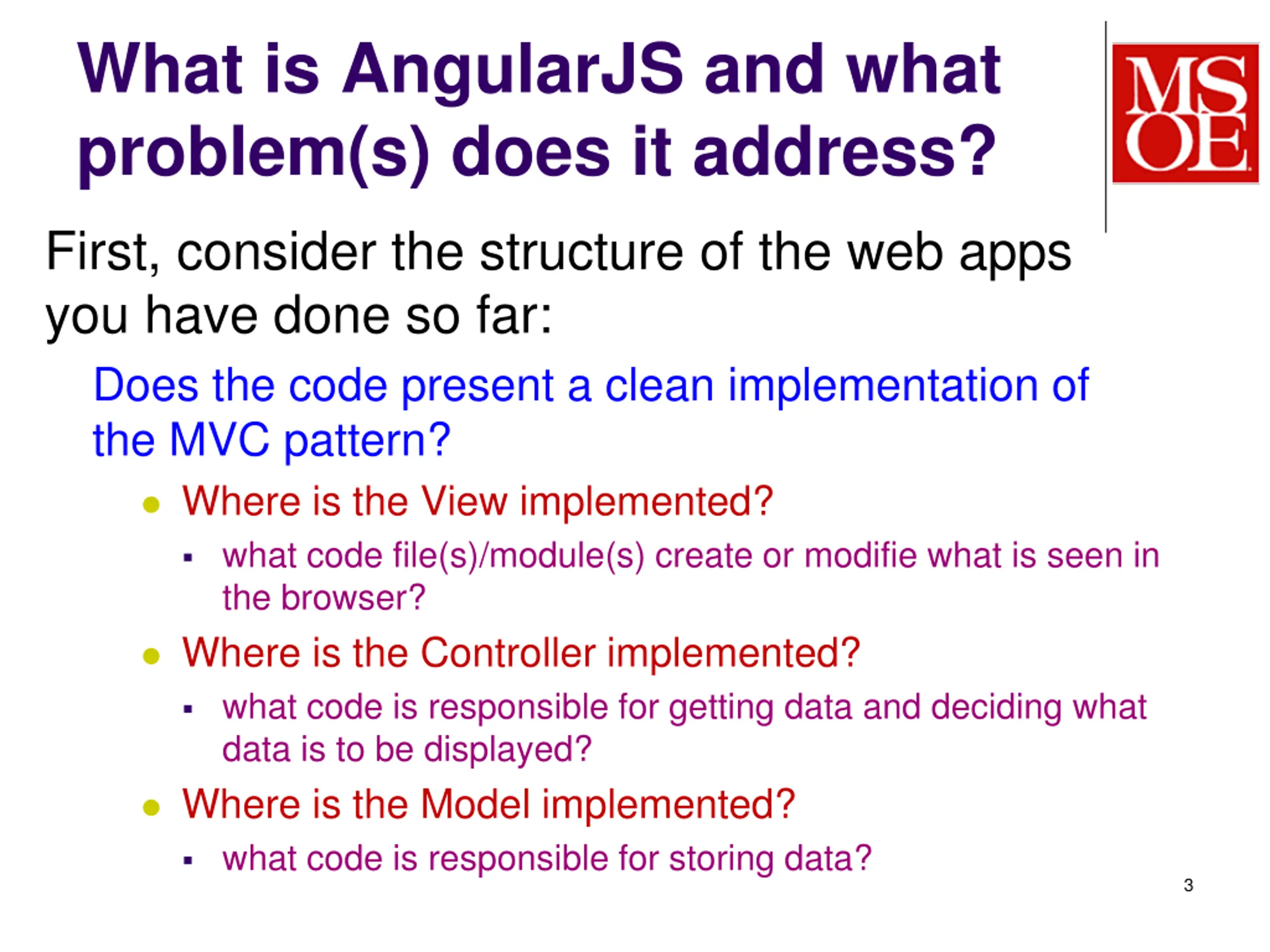

What is AngularJS and what problem(s) does it address? First, consider the structure of the web apps you have done so far: Does the code present a clean implementation of the MVC pattern? Where is the View implemented? what code file(s)/module(s) create or modifie what is seen in the browser? Where is the Controller implemented? what code is responsible for getting data and deciding what data is to be displayed? Where is the Model implemented? what code is responsible for storing data? 3

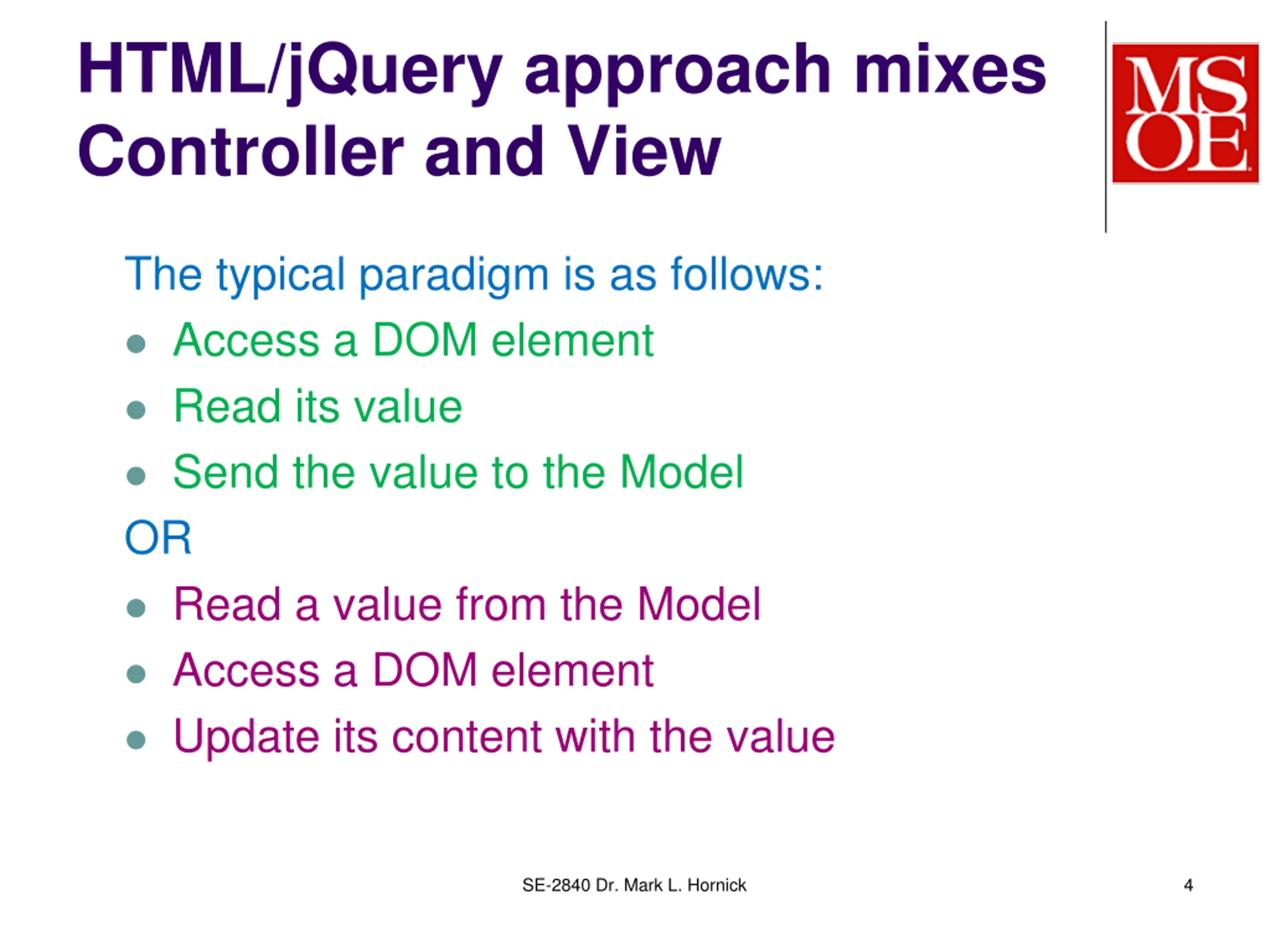

HTML/jQuery approach mixes Controller and View The typical paradigm is as follows: Access a DOM element Read its value Send the value to the Model OR Read a value from the Model Access a DOM element Update its content with the value SE-2840 Dr. Mark L. Hornick 4

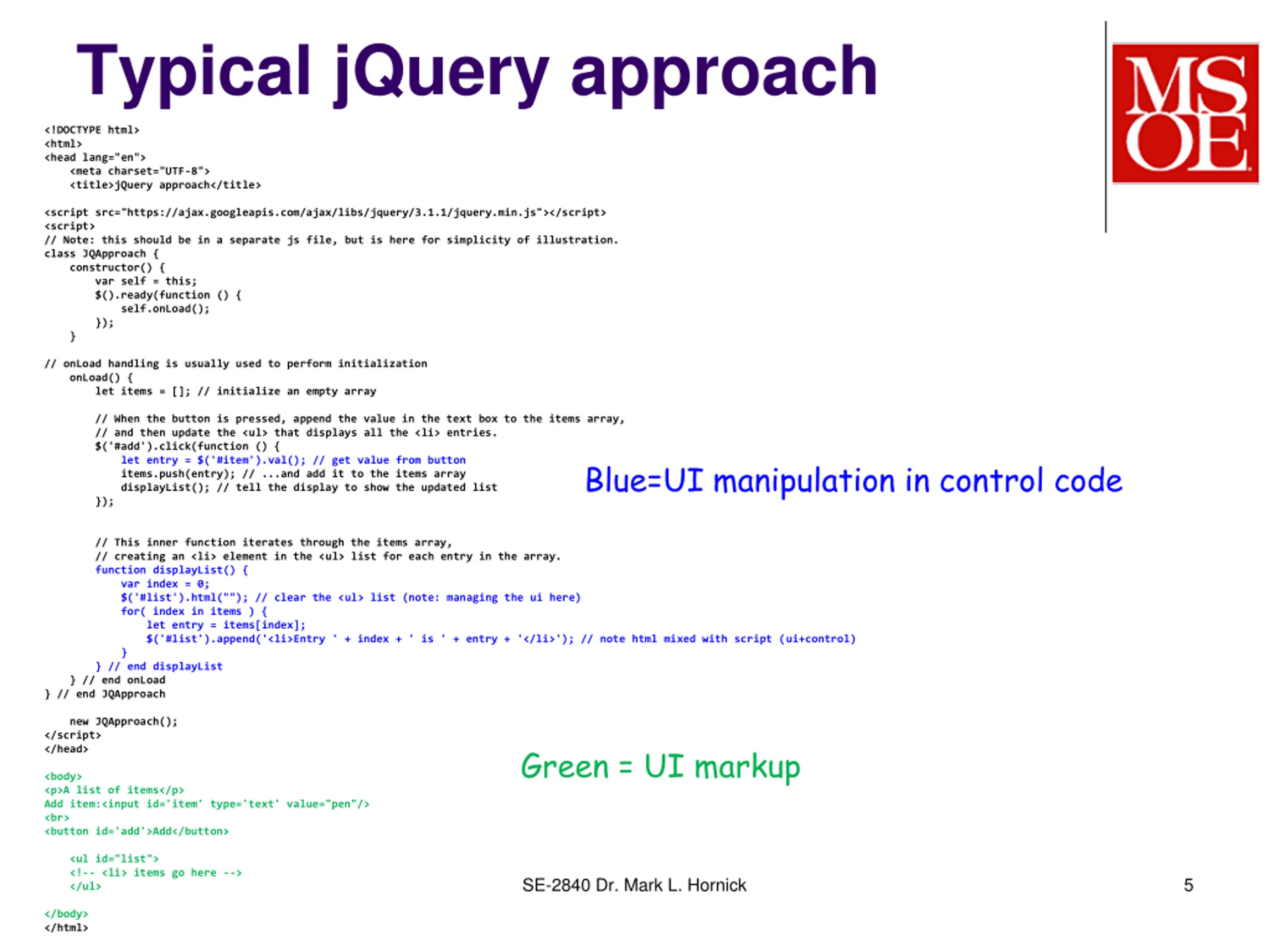

Typical jQuery approach <!DOCTYPE html> <html> <head lang="en"> <meta charset="UTF-8"> <title>jQuery approach</title> <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.1.1/jquery.min.js"></script> <script> // Note: this should be in a separate js file, but is here for simplicity of illustration. class JQApproach { constructor() { var self = this; $().ready(function () { self.onLoad(); }); } // onLoad handling is usually used to perform initialization onLoad() { let items = []; // initialize an empty array // When the button is pressed, append the value in the text box to the items array, // and then update the <ul> that displays all the <li> entries. $('#add').click(function () { let entry = $('#item').val(); // get value from button items.push(entry); // ...and add it to the items array displayList(); // tell the display to show the updated list }); Blue=UI manipulation in control code // This inner function iterates through the items array, // creating an <li> element in the <ul> list for each entry in the array. function displayList() { var index = 0; $('#list').html(""); // clear the <ul> list (note: managing the ui here) for( index in items ) { let entry = items[index]; $('#list').append('<li>Entry ' + index + ' is ' + entry + '</li>'); // note html mixed with script (ui+control) } } // end displayList } // end onLoad } // end JQApproach new JQApproach(); </script> </head> Green = UI markup <body> <p>A list of items</p> Add item:<input id='item' type='text' value="pen"/> <br> <button id='add'>Add</button> <ul id="list">  </ul> SE-2840 Dr. Mark L. Hornick 5 </body> </html>

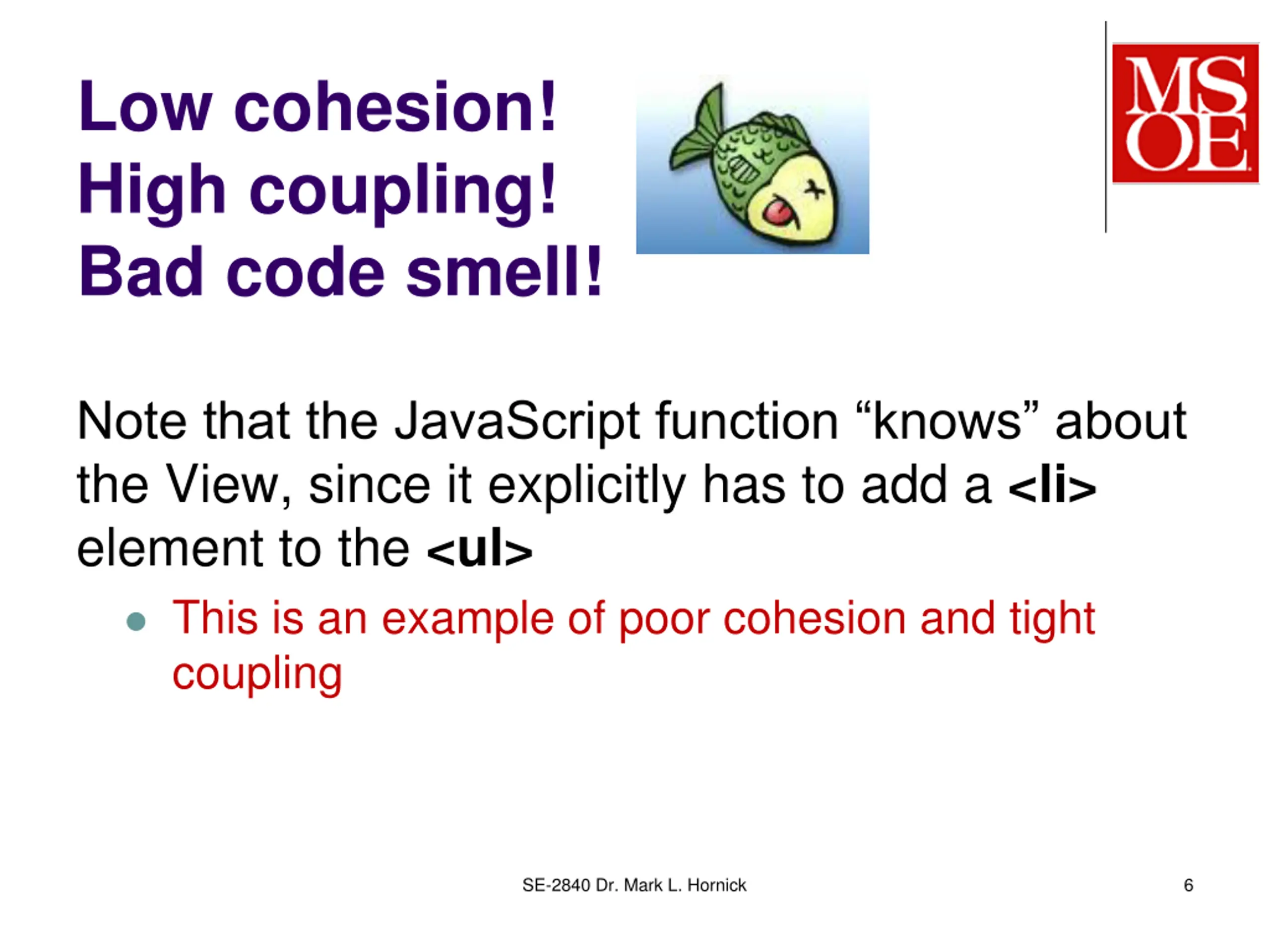

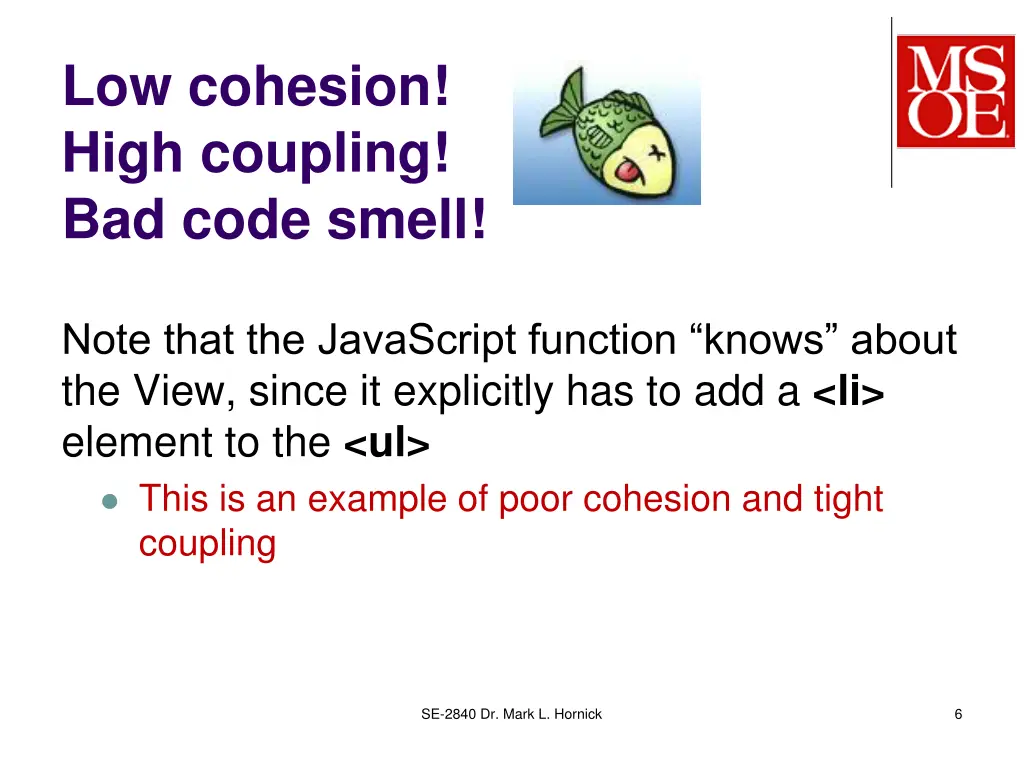

Low cohesion! High coupling! Bad code smell! Note that the JavaScript function knows about the View, since it explicitly has to add a <li> element to the <ul> This is an example of poor cohesion and tight coupling SE-2840 Dr. Mark L. Hornick 6

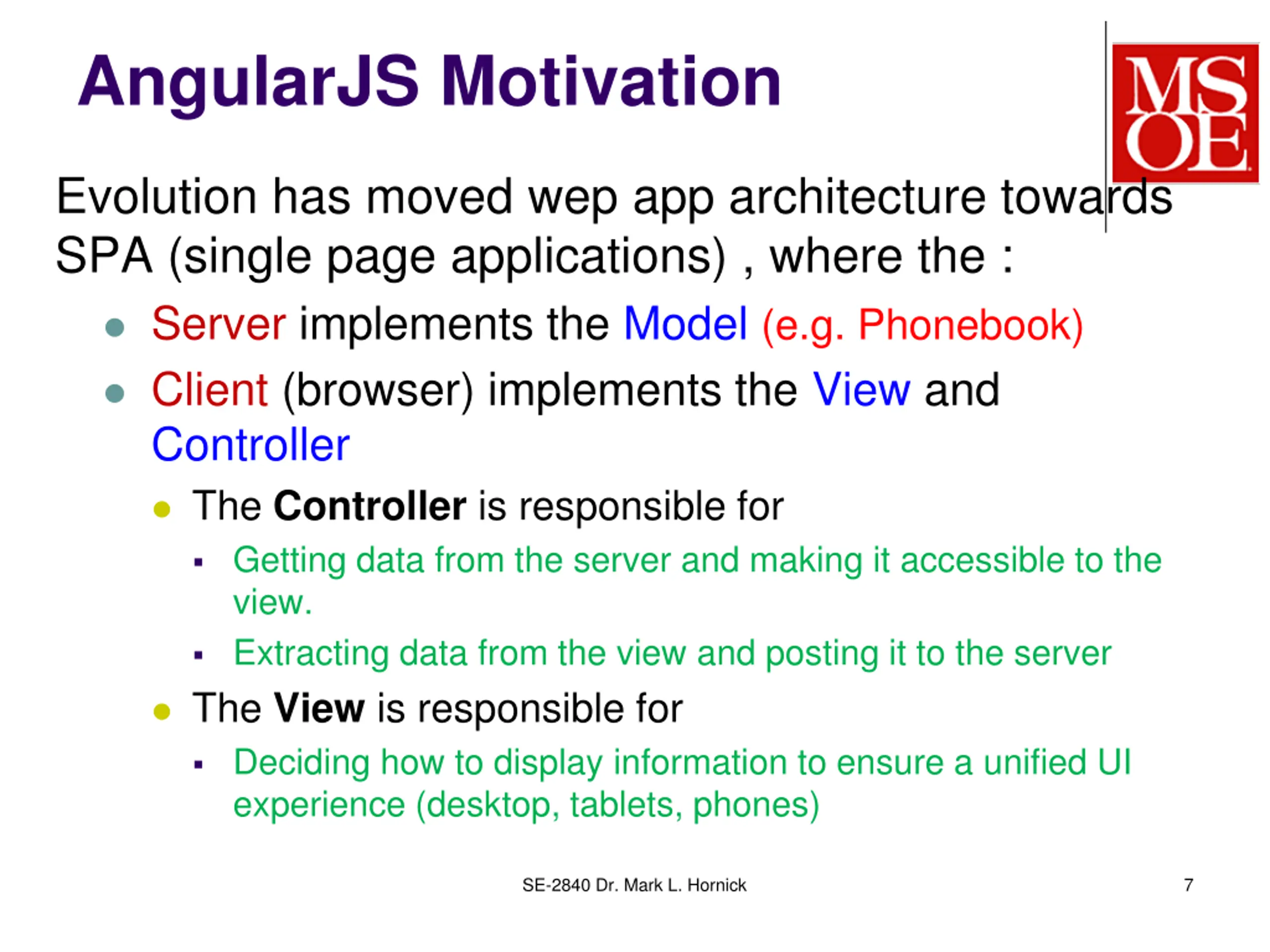

AngularJS Motivation Evolution has moved wep app architecture towards SPA (single page applications) , where the : Server implements the Model (e.g. Phonebook) Client (browser) implements the View and Controller The Controller is responsible for Getting data from the server and making it accessible to the view. Extracting data from the view and posting it to the server The View is responsible for Deciding how to display information to ensure a unified UI experience (desktop, tablets, phones) SE-2840 Dr. Mark L. Hornick 7

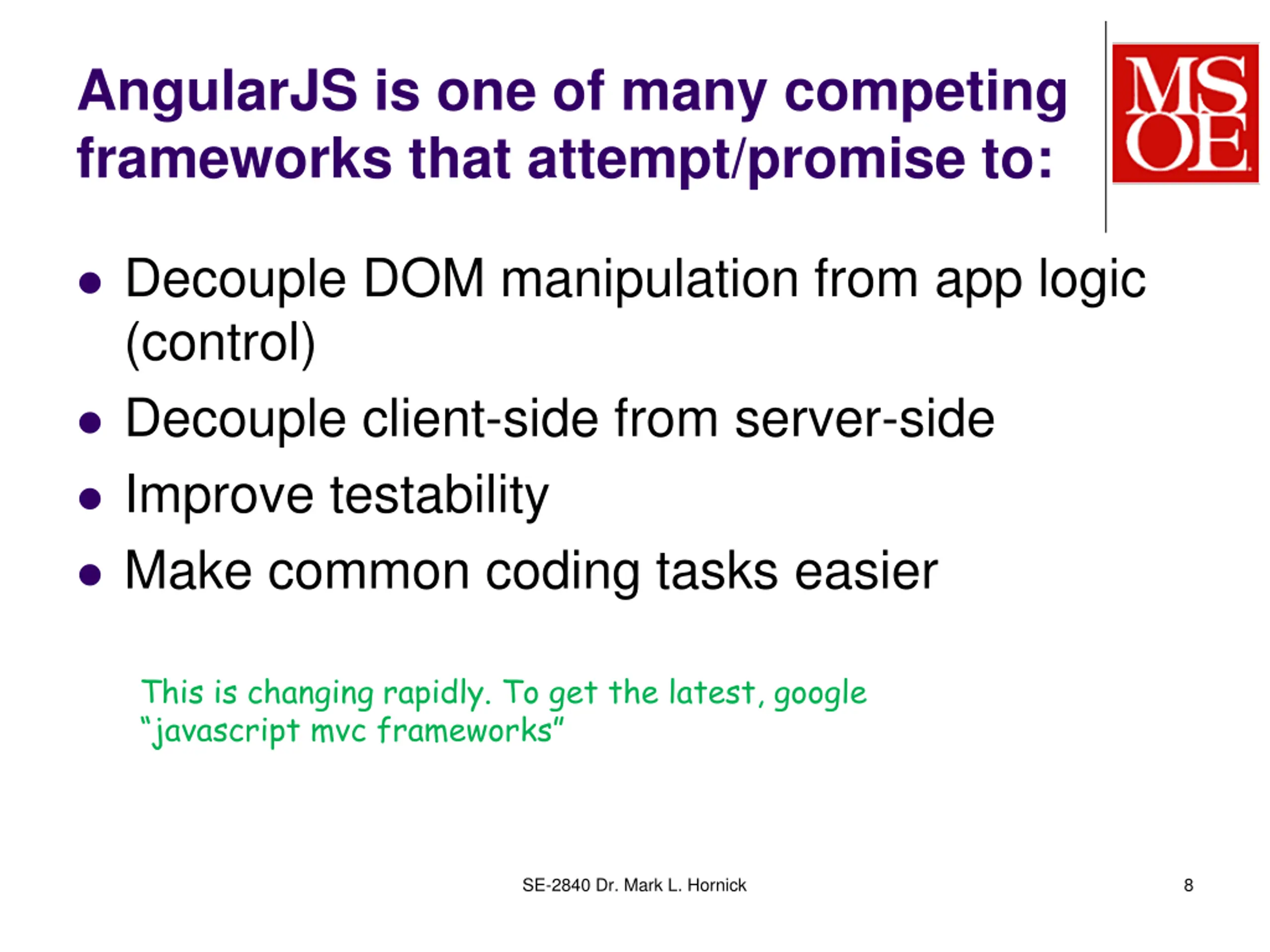

AngularJS is one of many competing frameworks that attempt/promise to: Decouple DOM manipulation from app logic (control) Decouple client-side from server-side Improve testability Make common coding tasks easier This is changing rapidly. To get the latest, google javascript mvc frameworks SE-2840 Dr. Mark L. Hornick 8

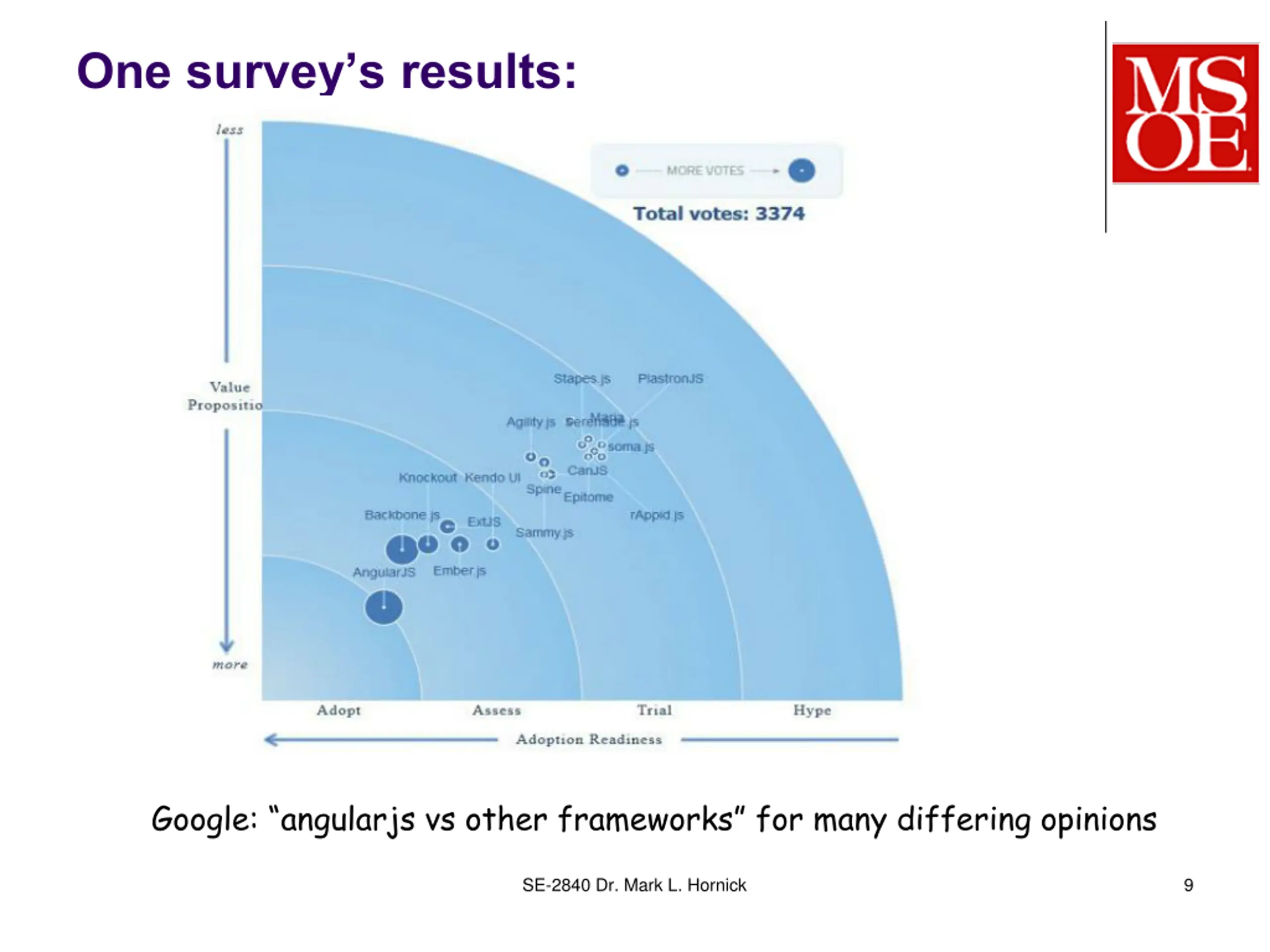

One surveys results: Google: angularjs vs other frameworks for many differing opinions SE-2840 Dr. Mark L. Hornick 9

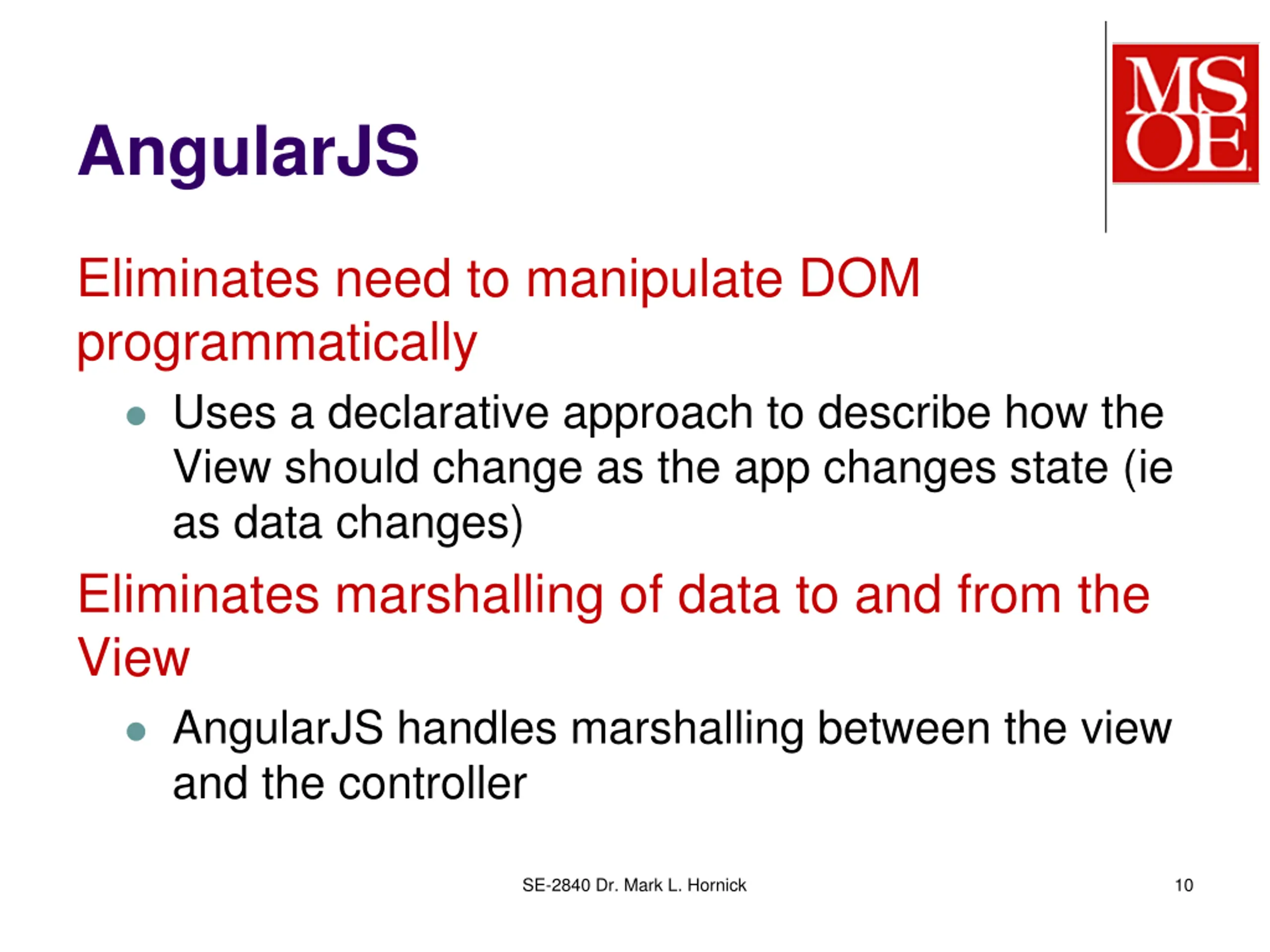

AngularJS Eliminates need to manipulate DOM programmatically Uses a declarative approach to describe how the View should change as the app changes state (ie as data changes) Eliminates marshalling of data to and from the View AngularJS handles marshalling between the view and the controller SE-2840 Dr. Mark L. Hornick 10

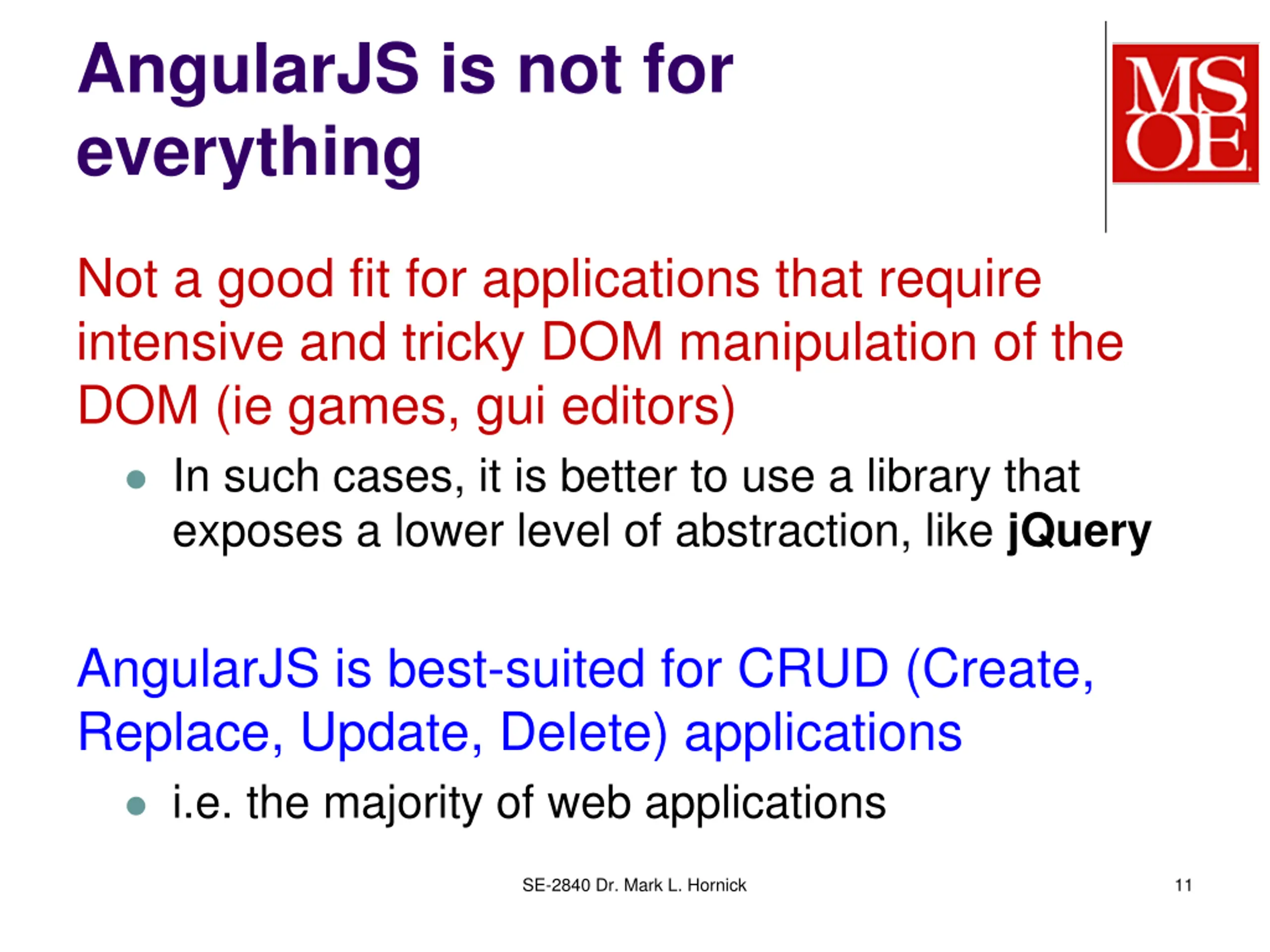

AngularJS is notfor everything Not a good fit for applications that require intensive and tricky DOM manipulation of the DOM (ie games, gui editors) In such cases, it is better to use a library that exposes a lower level of abstraction, like jQuery AngularJS is best-suited for CRUD (Create, Replace, Update, Delete) applications i.e. the majority of web applications SE-2840 Dr. Mark L. Hornick 11

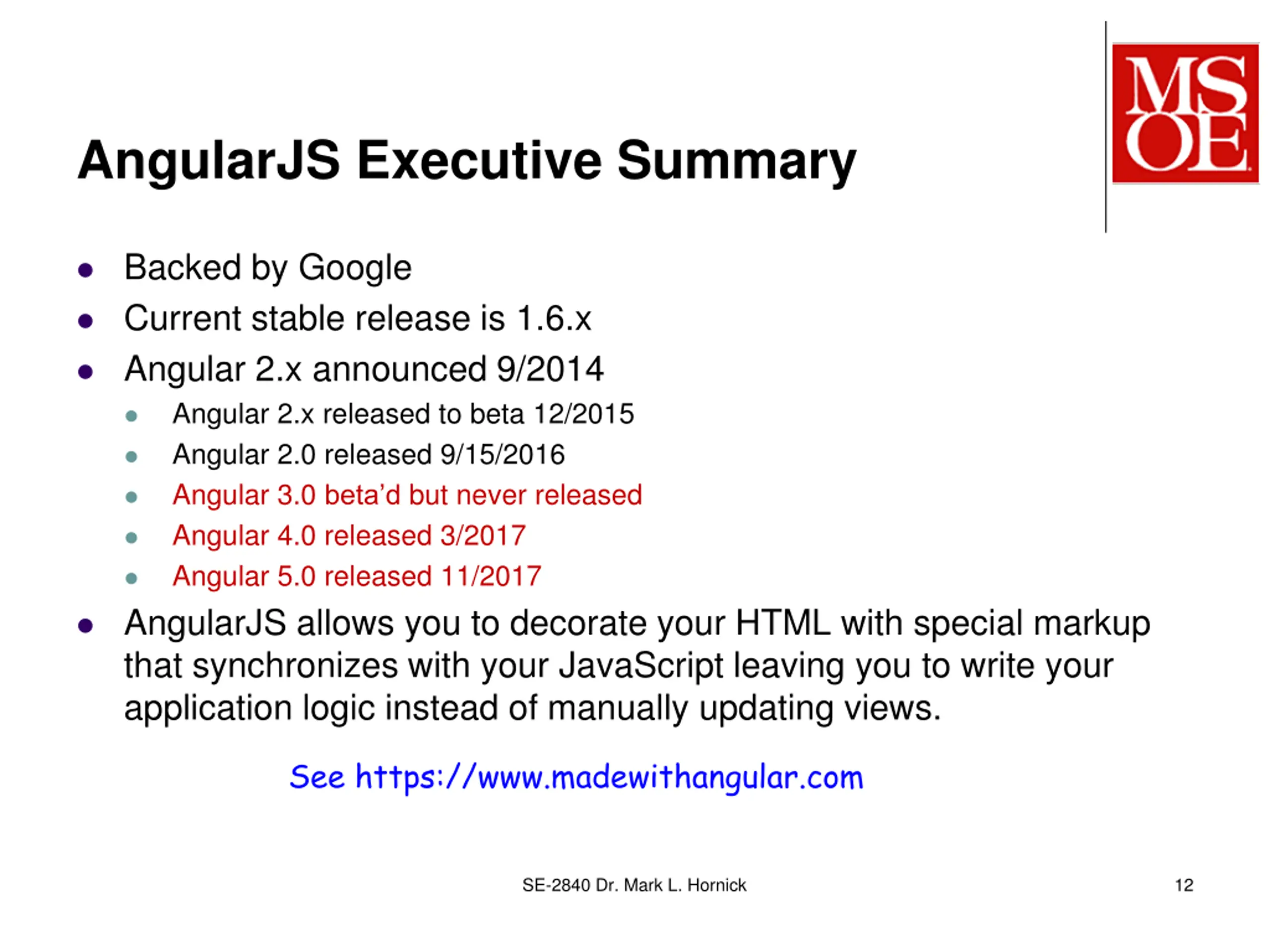

AngularJS Executive Summary Backed by Google Current stable release is 1.6.x Angular 2.x announced 9/2014 Angular 2.x released to beta 12/2015 Angular 2.0 released 9/15/2016 Angular 3.0 beta d but never released Angular 4.0 released 3/2017 Angular 5.0 released 11/2017 AngularJS allows you to decorate your HTML with special markup that synchronizes with your JavaScript leaving you to write your application logic instead of manually updating views. See https://www.madewithangular.com SE-2840 Dr. Mark L. Hornick 12

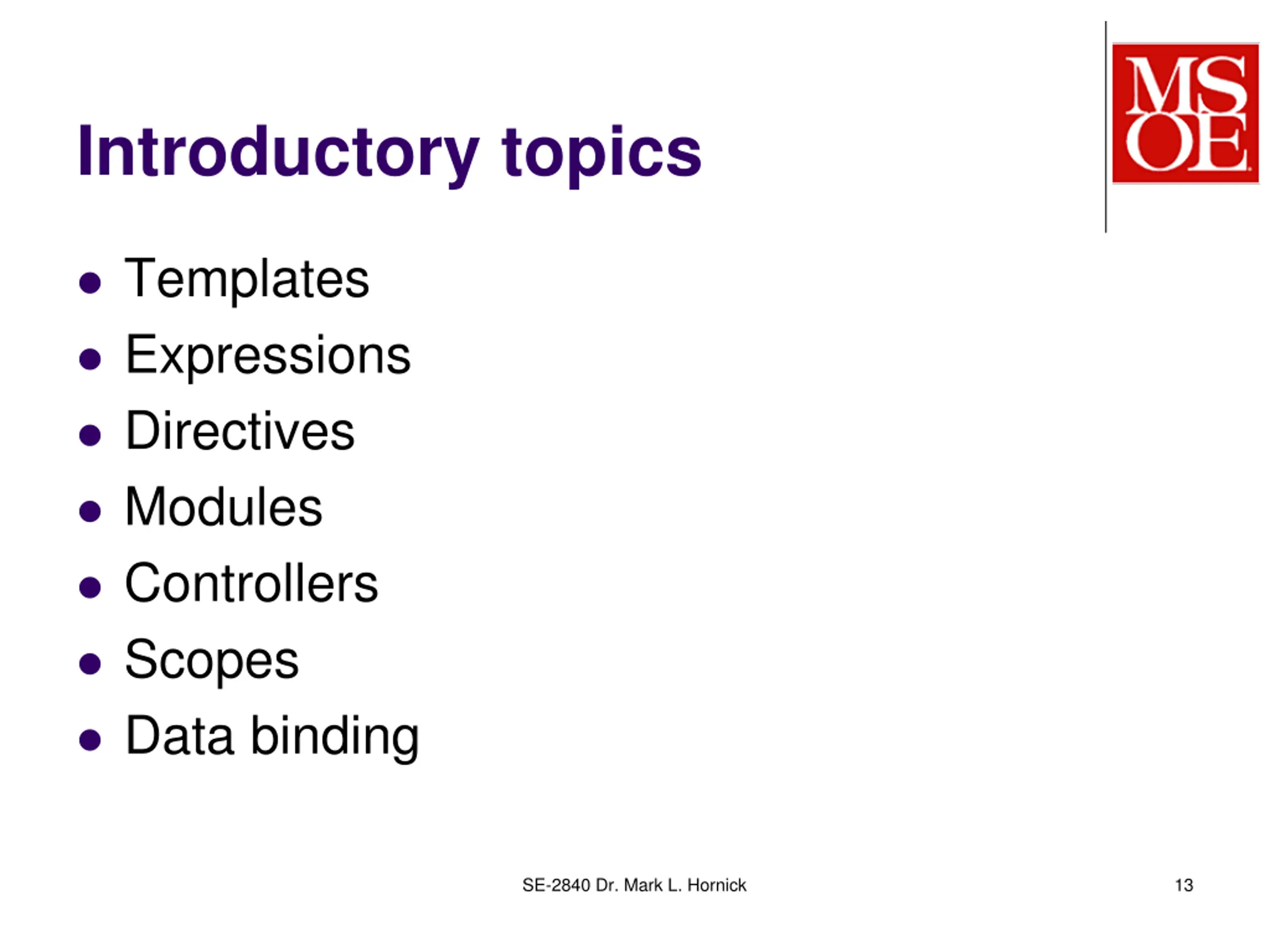

Introductory topics Templates Expressions Directives Modules Controllers Scopes Data binding SE-2840 Dr. Mark L. Hornick 13

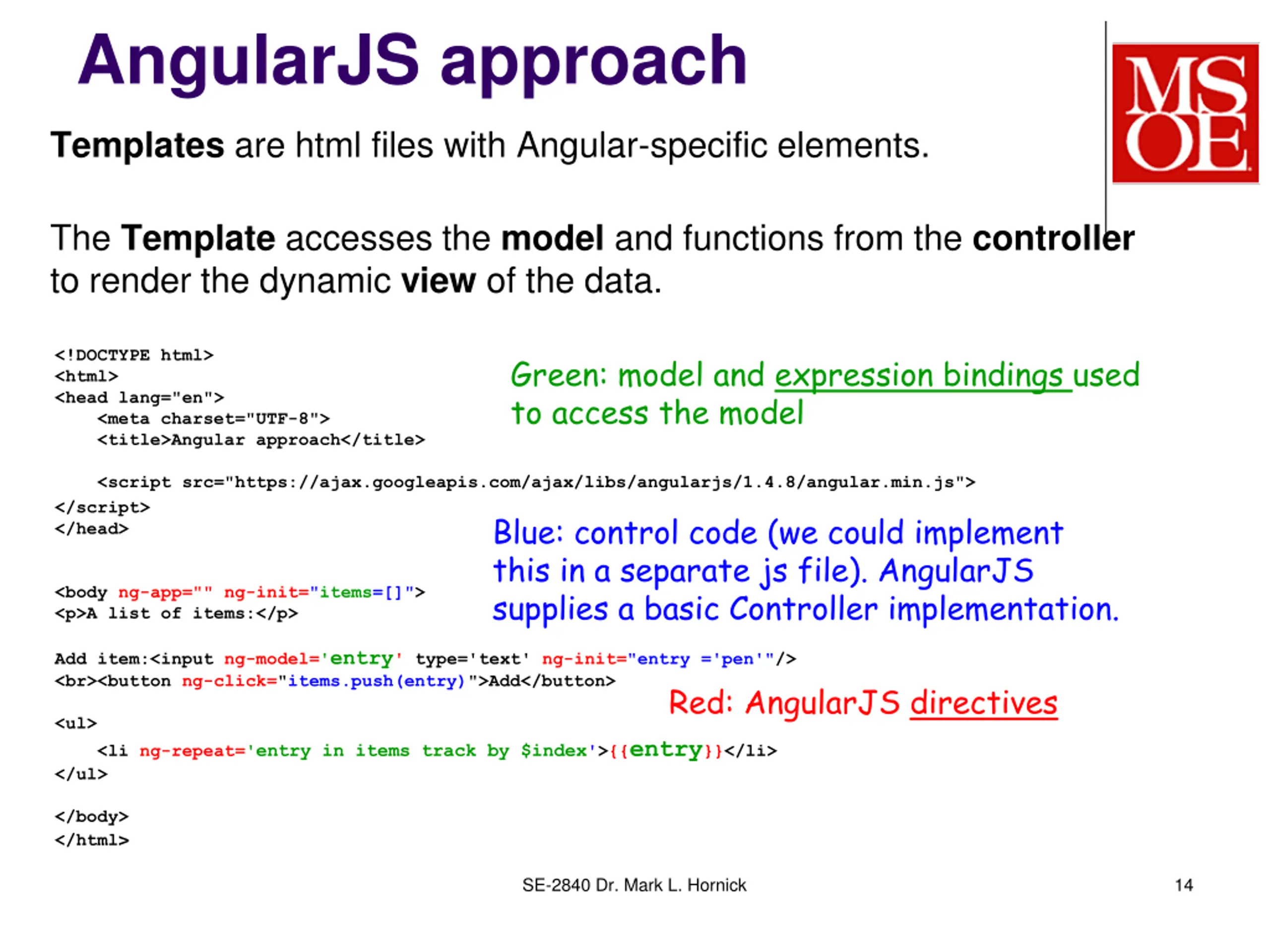

AngularJS approach Templates are html files with Angular-specific elements. The Template accesses the model and functions from the controller to render the dynamic view of the data. <!DOCTYPE html> <html> <head lang="en"> <meta charset="UTF-8"> <title>Angular approach</title> Green: model and expression bindings used to access the model <script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.4.8/angular.min.js"> </script> </head> Blue: control code (we could implement this in a separate js file). AngularJS supplies a basic Controller implementation. <body ng-app="" ng-init="items=[]"> <p>A list of items:</p> Add item:<input ng-model='entry' type='text' ng-init="entry ='pen'"/> <br><button ng-click="items.push(entry)">Add</button> Red: AngularJS directives <ul> <li ng-repeat='entry in items track by $index'>{{entry}}</li> </ul> </body> </html> SE-2840 Dr. Mark L. Hornick 14

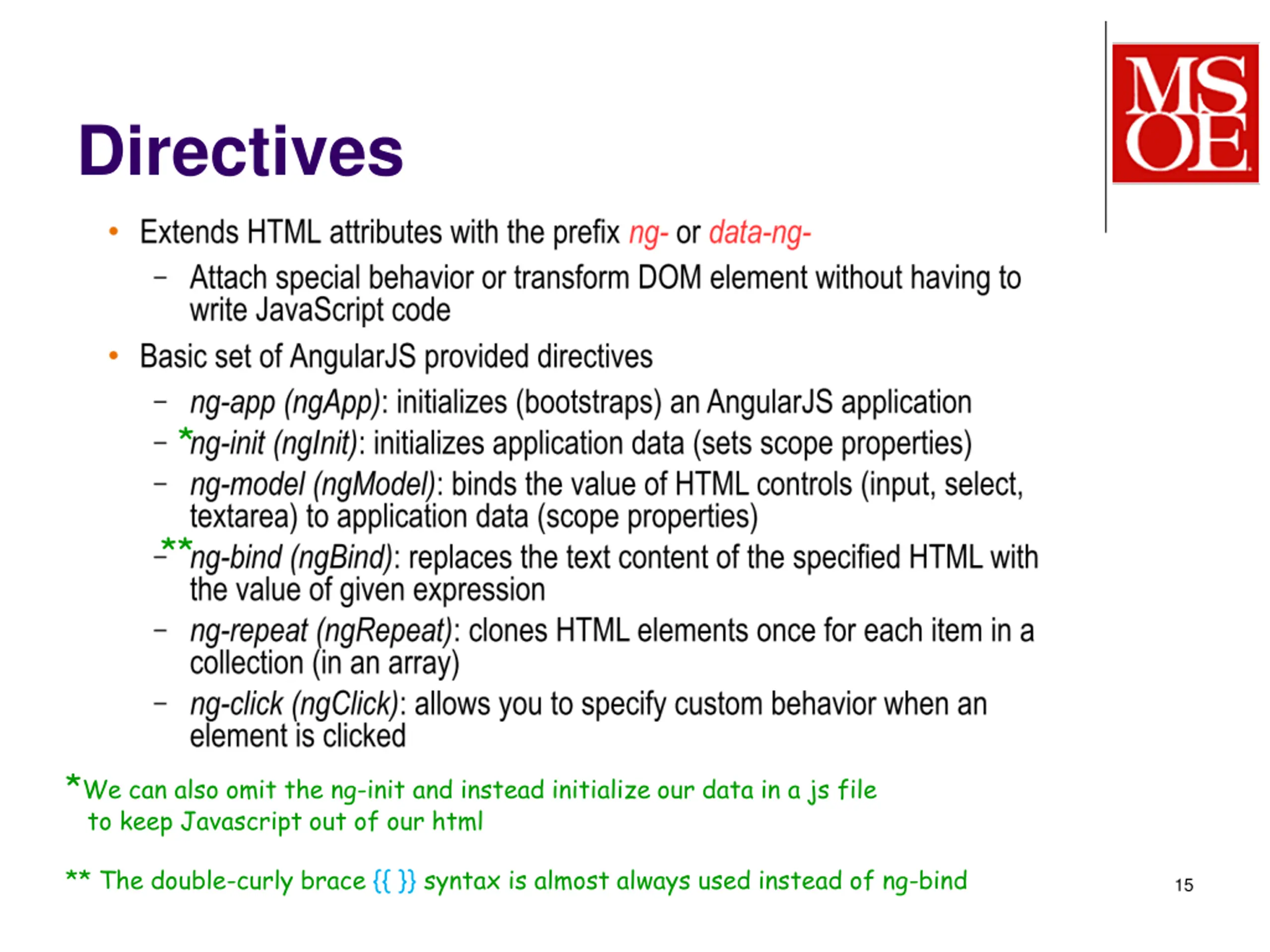

Directives * ** *We can also omit the ng-init and instead initialize our data in a js file to keep Javascript out of our html ** The double-curly brace {{ }} syntax is almost always used instead of ng-bind 15

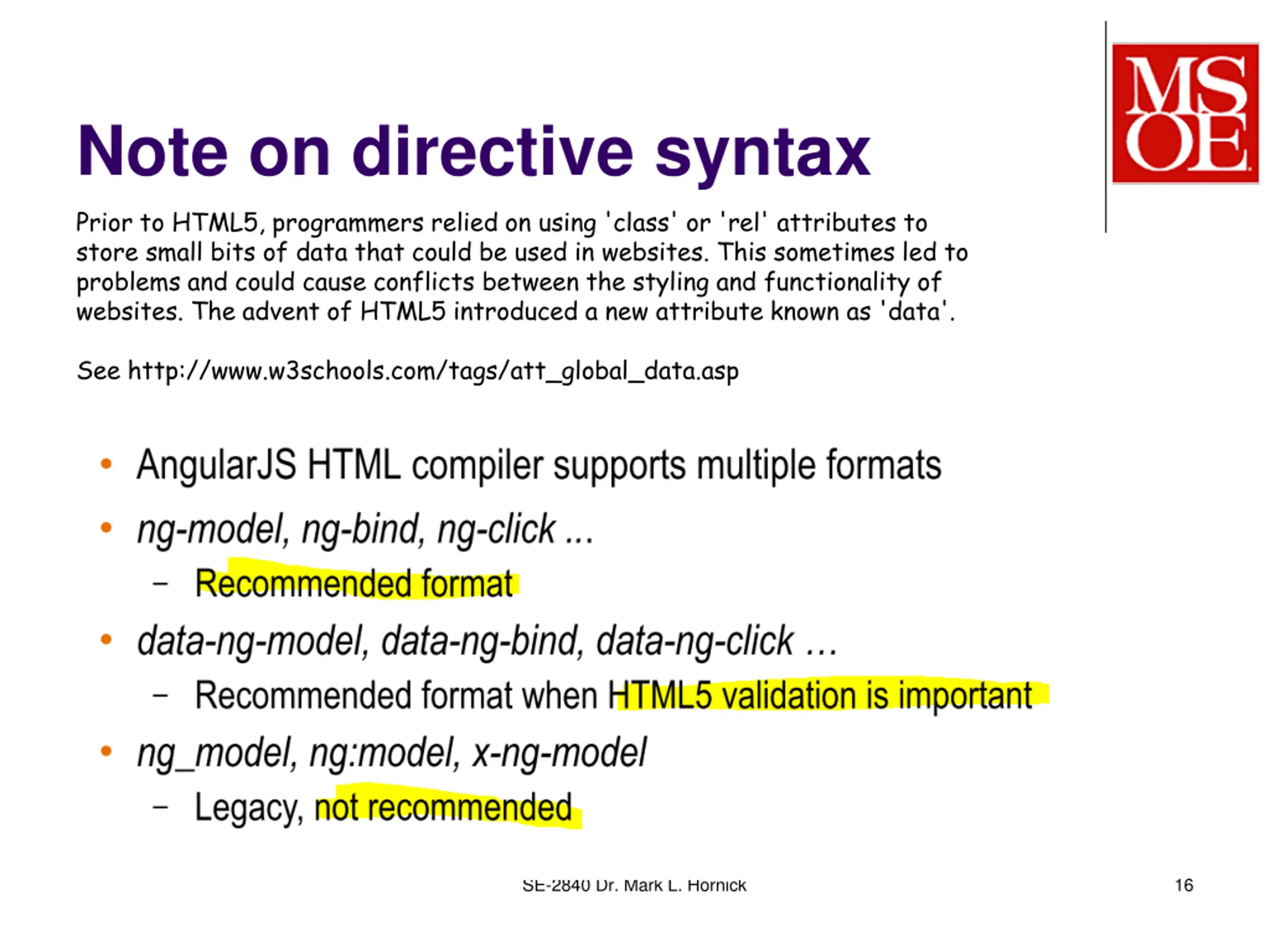

Note on directive syntax Prior to HTML5, programmers relied on using 'class' or 'rel' attributes to store small bits of data that could be used in websites. This sometimes led to problems and could cause conflicts between the styling and functionality of websites. The advent of HTML5 introduced a new attribute known as 'data'. See http://www.w3schools.com/tags/att_global_data.asp SE-2840 Dr. Mark L. Hornick 16

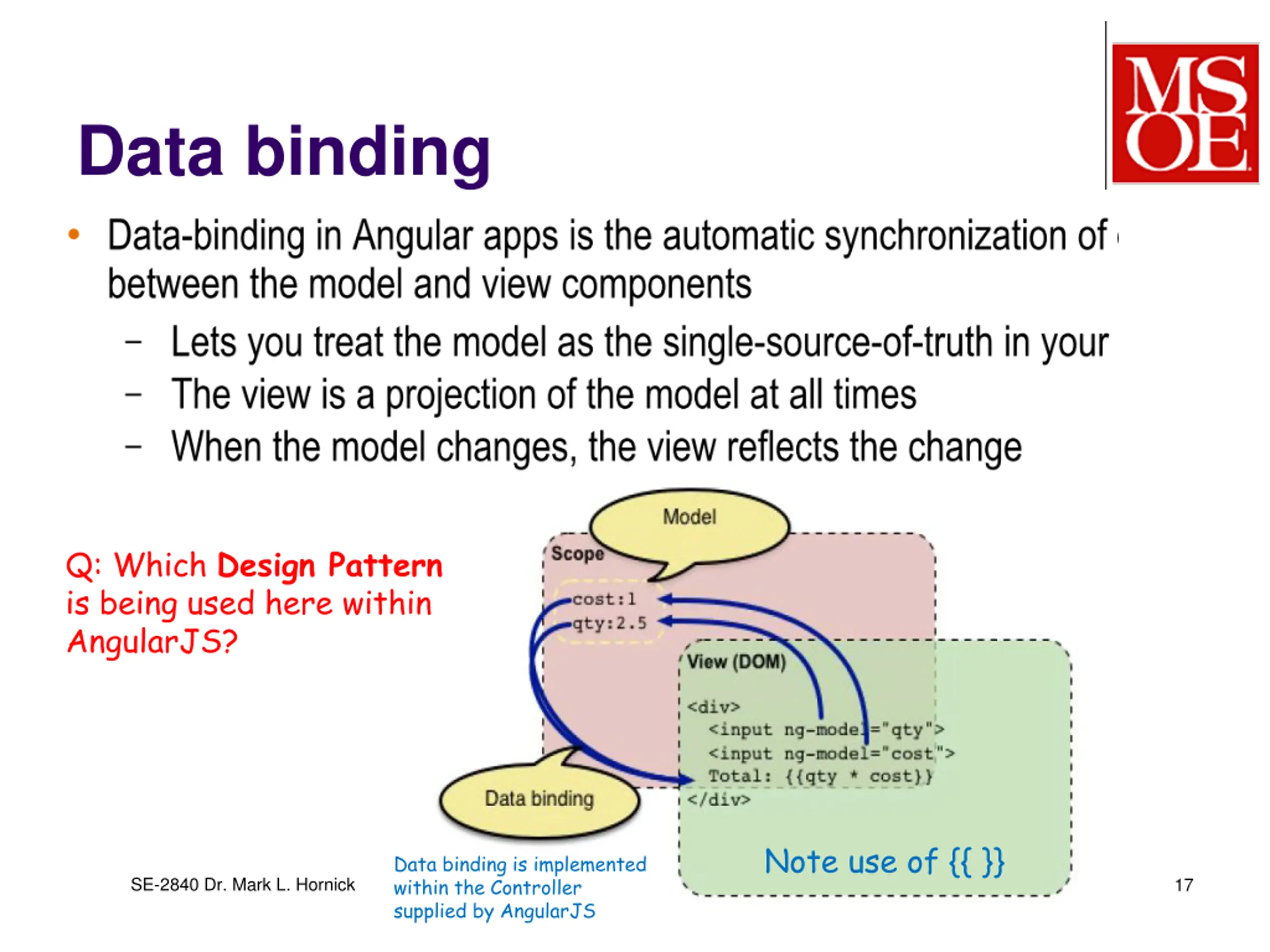

Data binding Q: Which Design Pattern is being used here within AngularJS? Note use of {{ }} Data binding is implemented within the Controller supplied by AngularJS SE-2840 Dr. Mark L. Hornick 17

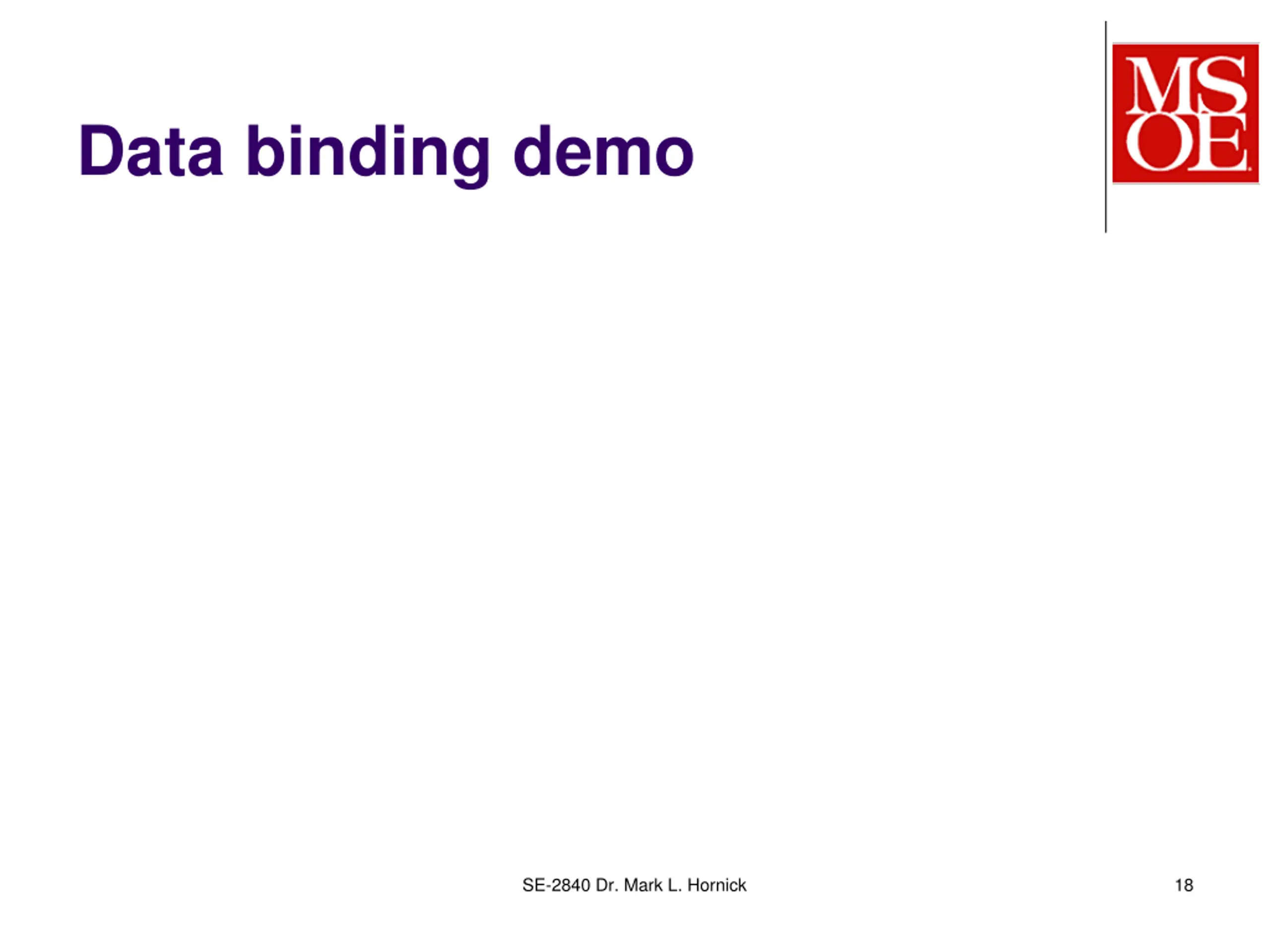

Data binding demo SE-2840 Dr. Mark L. Hornick 18

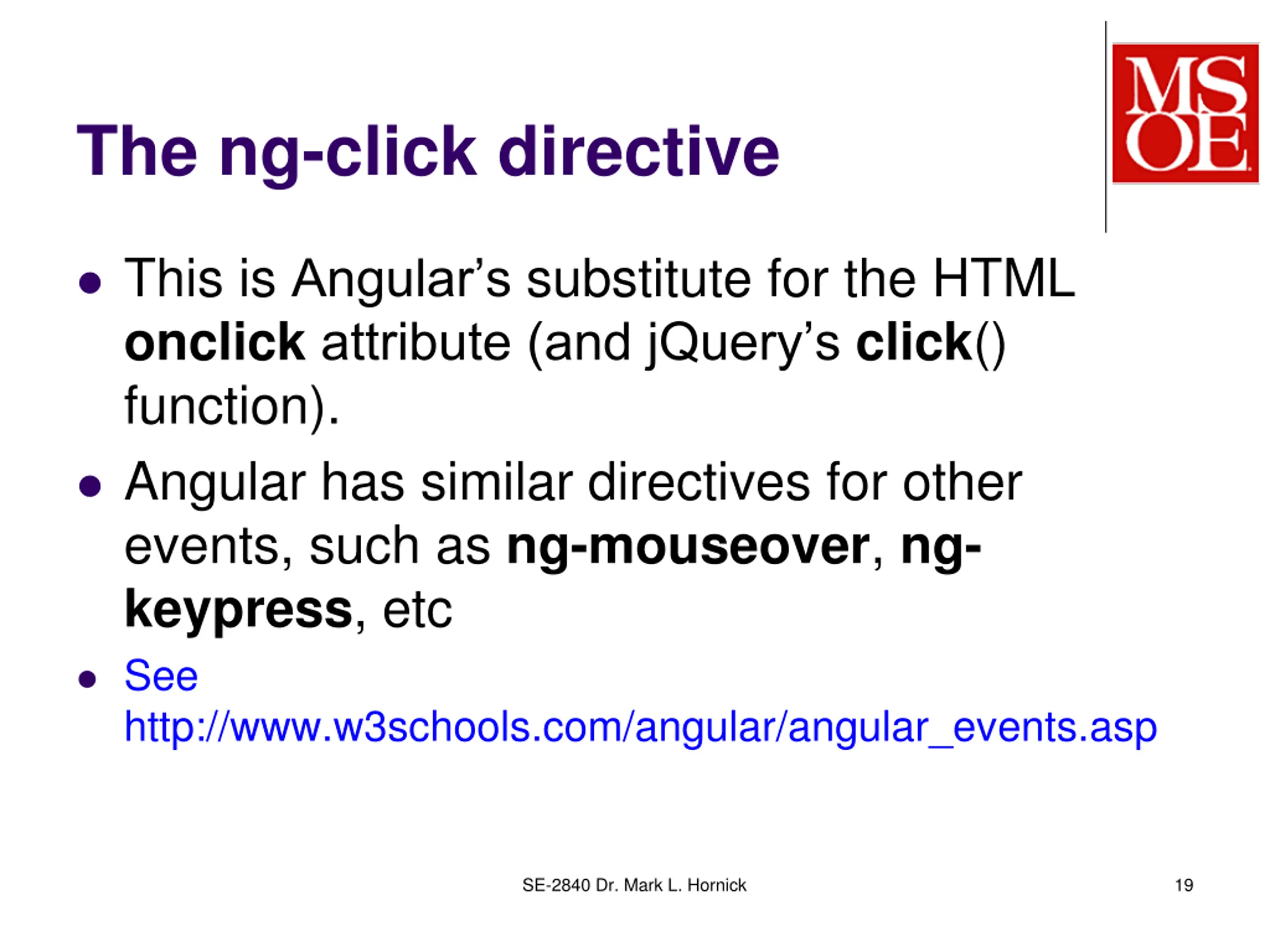

The ng-click directive This is Angular s substitute for the HTML onclickattribute (and jQuery s click() function). Angular has similar directives for other events, such as ng-mouseover, ng- keypress, etc See http://www.w3schools.com/angular/angular_events.asp SE-2840 Dr. Mark L. Hornick 19

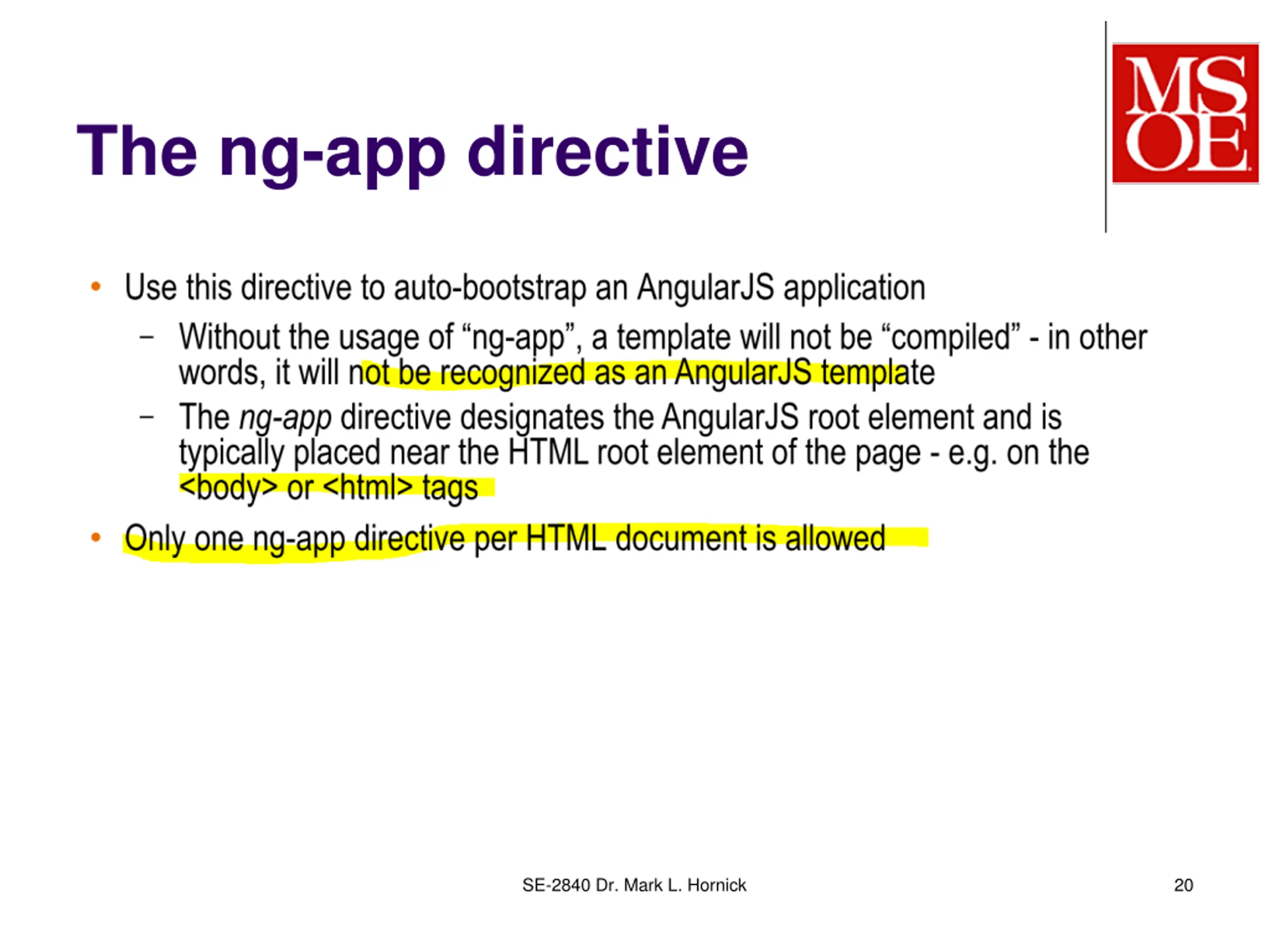

The ng-app directive SE-2840 Dr. Mark L. Hornick 20

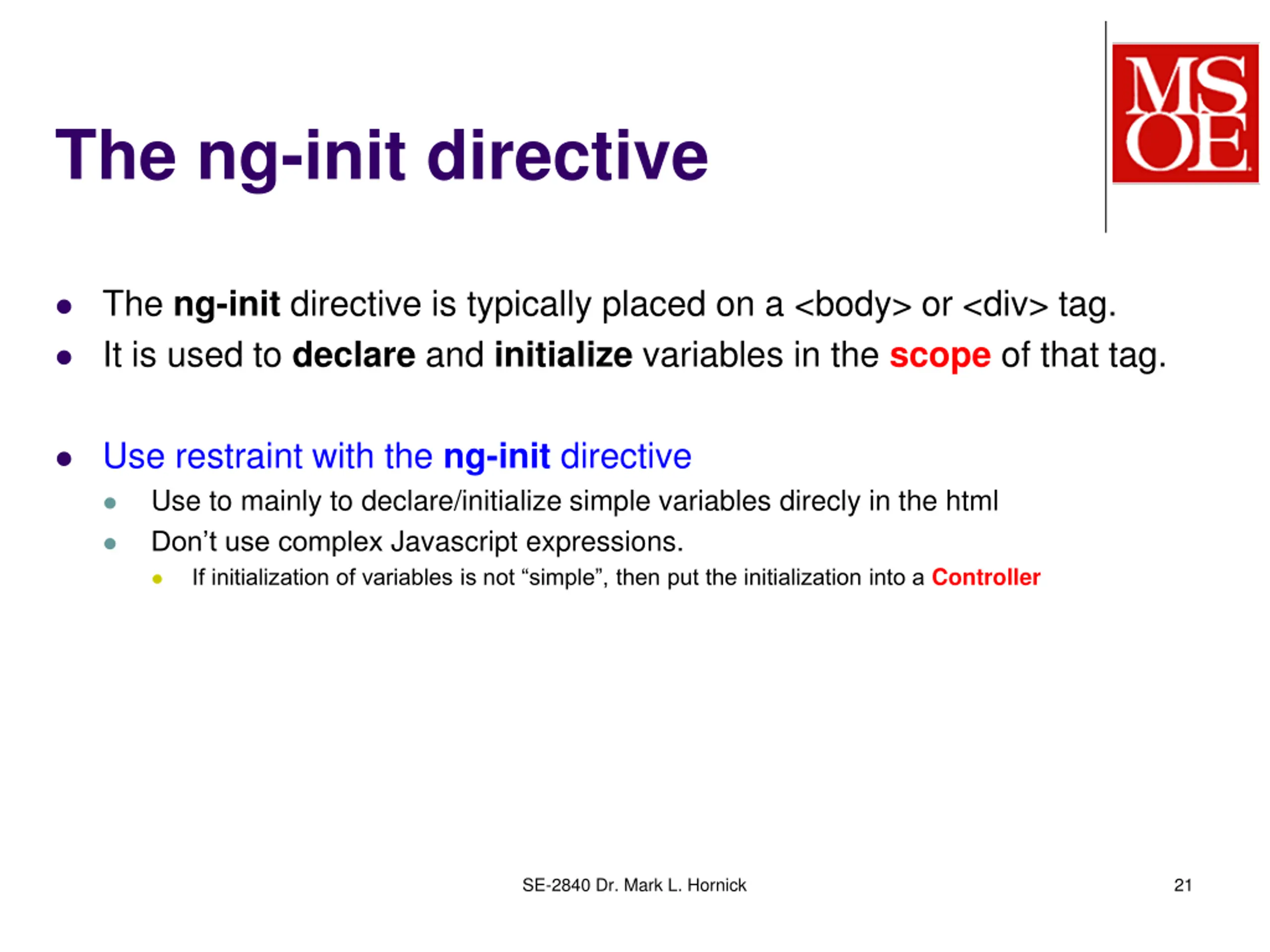

The ng-init directive The ng-init directive is typically placed on a <body> or <div> tag. It is used to declare and initialize variables in the scope of that tag. Use restraint with the ng-init directive Use to mainly to declare/initialize simple variables direcly in the html Don t use complex Javascript expressions. If initialization of variables is not simple , then put the initialization into a Controller SE-2840 Dr. Mark L. Hornick 21

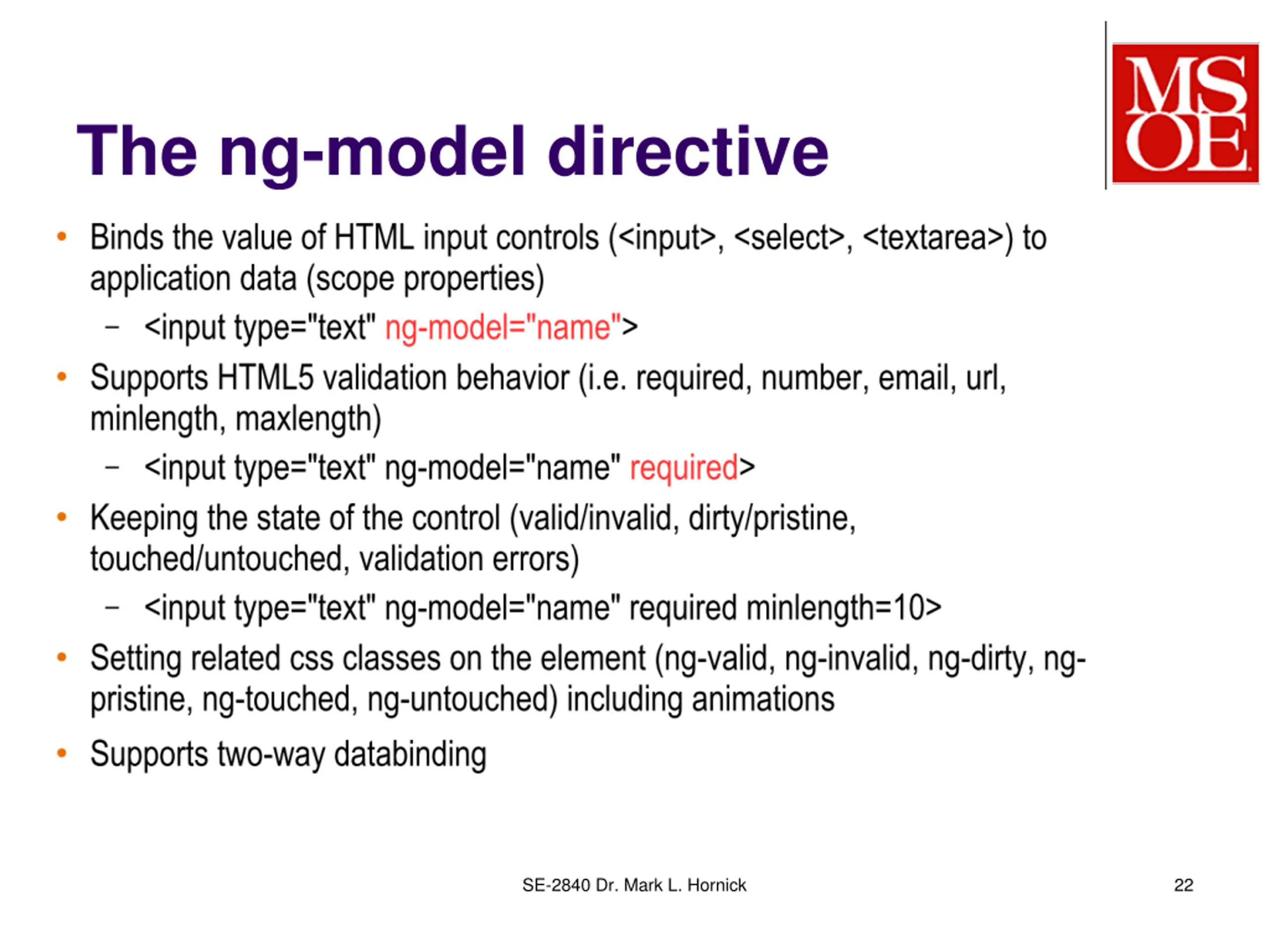

The ng-model directive SE-2840 Dr. Mark L. Hornick 22

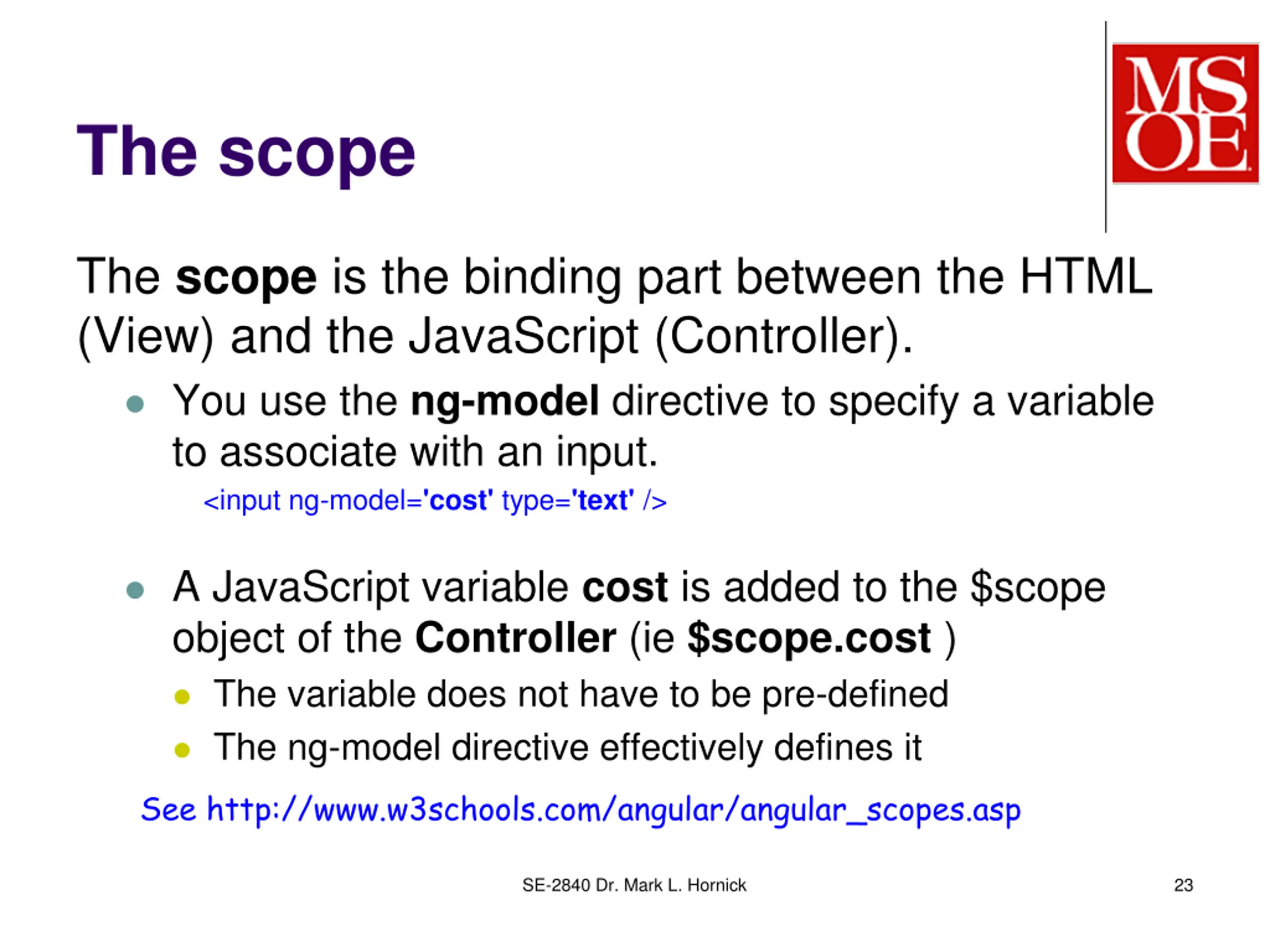

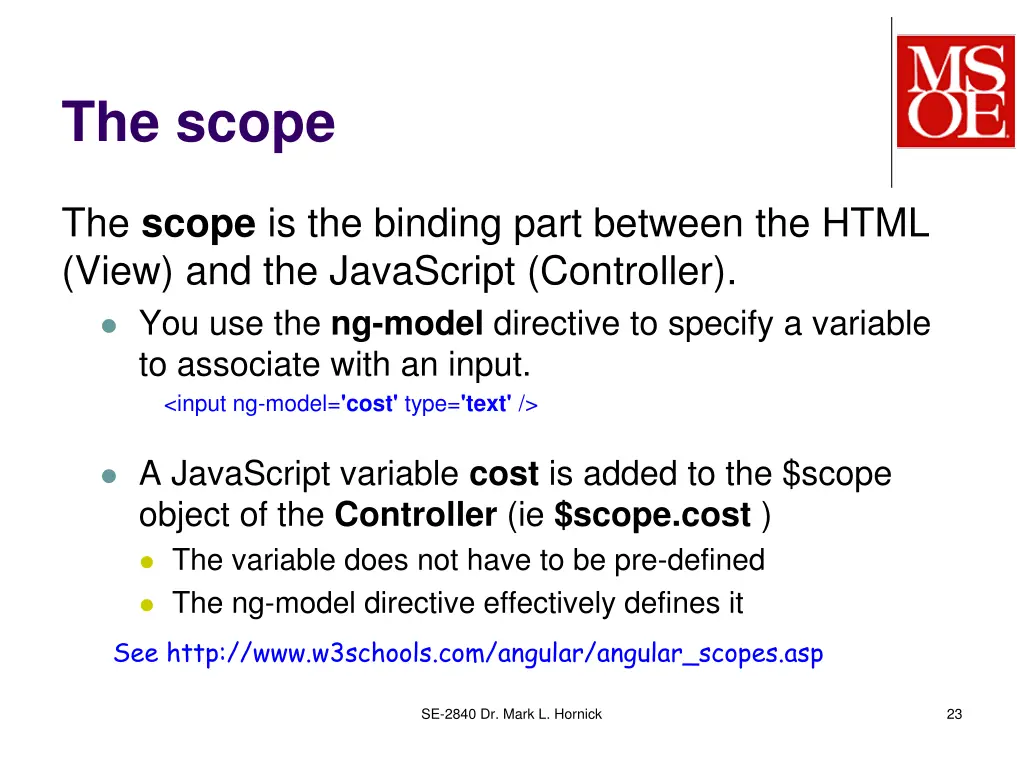

The scope The scope is the binding part between the HTML (View) and the JavaScript (Controller). You use the ng-model directive to specify a variable to associate with an input. <input ng-model='cost' type='text' /> A JavaScript variable cost is added to the $scope object of the Controller (ie $scope.cost ) The variable does not have to be pre-defined The ng-model directive effectively defines it See http://www.w3schools.com/angular/angular_scopes.asp SE-2840 Dr. Mark L. Hornick 23

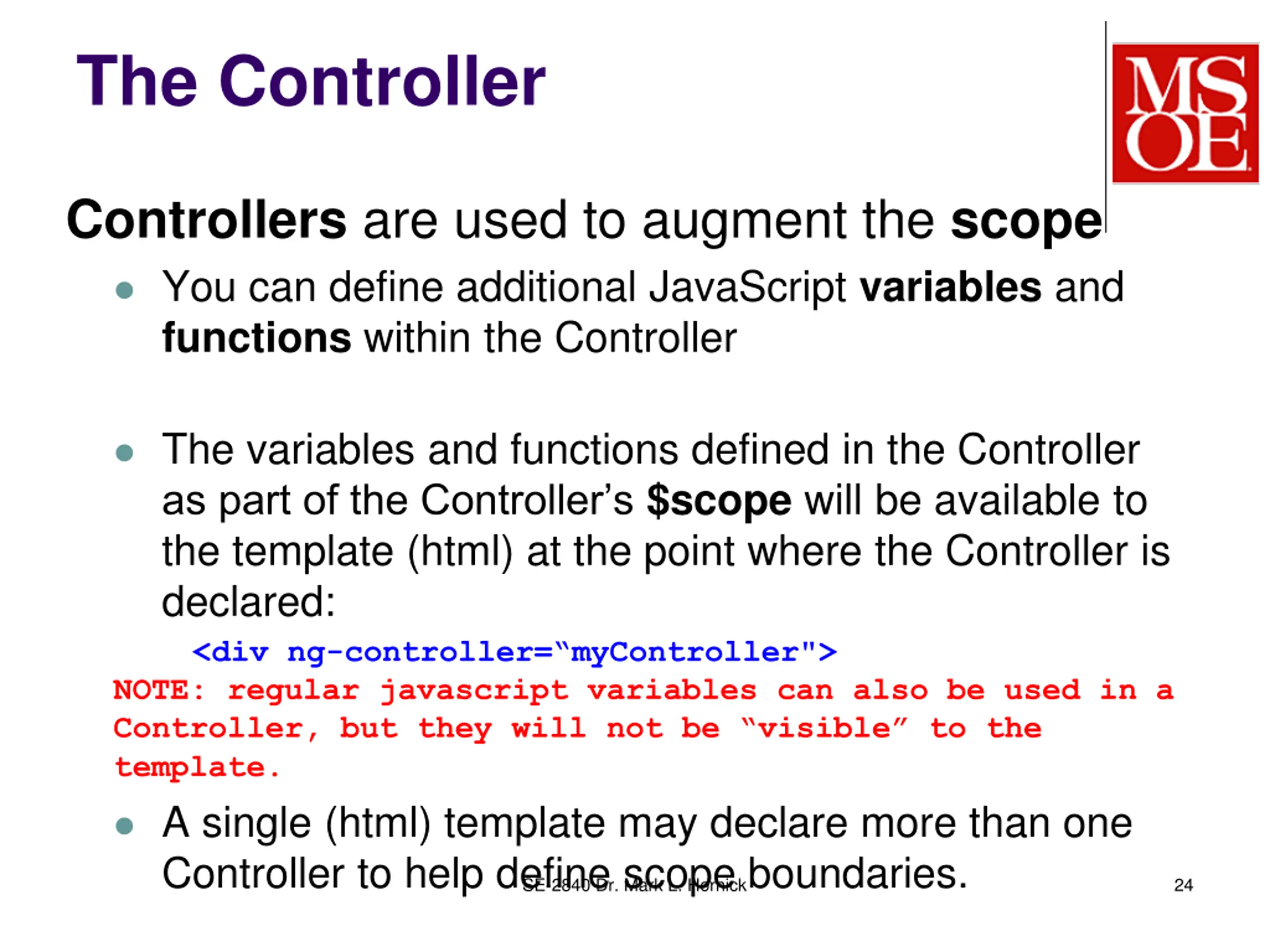

The Controller Controllers are used to augment the scope You can define additional JavaScript variables and functions within the Controller The variables and functions defined in the Controller as part of the Controller s $scope will be available to the template (html) at the point where the Controller is declared: <div ng-controller= myController"> NOTE: regular javascript variables can also be used in a Controller, but they will not be visible to the template. A single (html) template may declare more than one Controller to help define scope boundaries. SE-2840 Dr. Mark L. Hornick 24

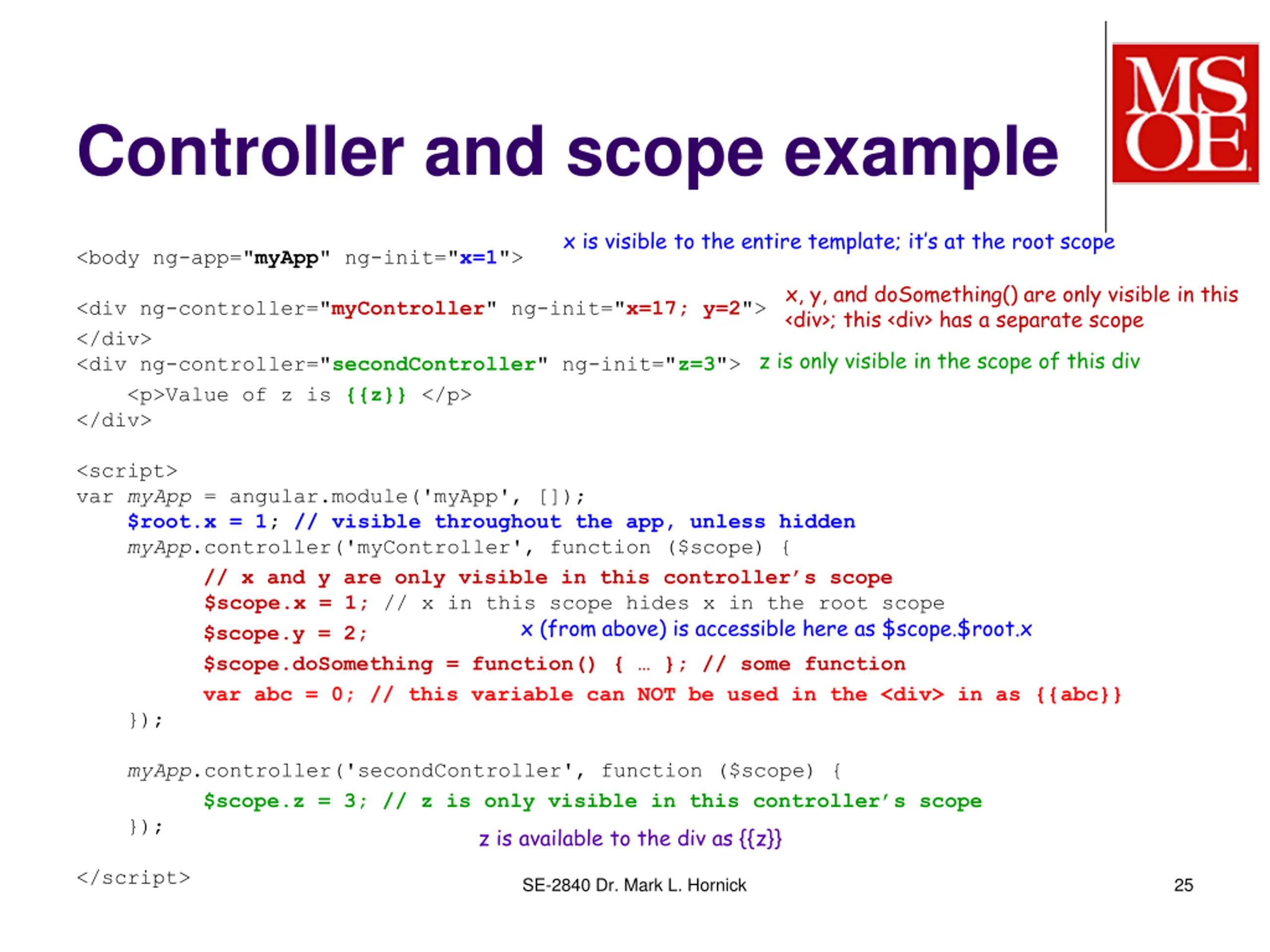

Controller and scope example x is visible to the entire template; it s at the root scope <body ng-app="myApp" ng-init="x=1"> x, y, and doSomething() are only visible in this <div>; this <div> has a separate scope <div ng-controller="myController" ng-init="x=17; y=2"> </div> <div ng-controller="secondController" ng-init="z=3"> <p>Value of z is {{z}} </p> </div> z is only visible in the scope of this div <script> var myApp = angular.module('myApp', []); $root.x = 1; // visible throughout the app, unless hidden myApp.controller('myController', function ($scope) { // x and y are only visible in this controller s scope $scope.x = 1; // x in this scope hides x in the root scope $scope.y = 2; $scope.doSomething = function() { }; // some function var abc = 0; // this variable can NOT be used in the <div> in as {{abc}} }); x (from above) is accessible here as $scope.$root.x myApp.controller('secondController', function ($scope) { $scope.z = 3; // z is only visible in this controller s scope }); z is available to the div as {{z}} </script> SE-2840 Dr. Mark L. Hornick 25

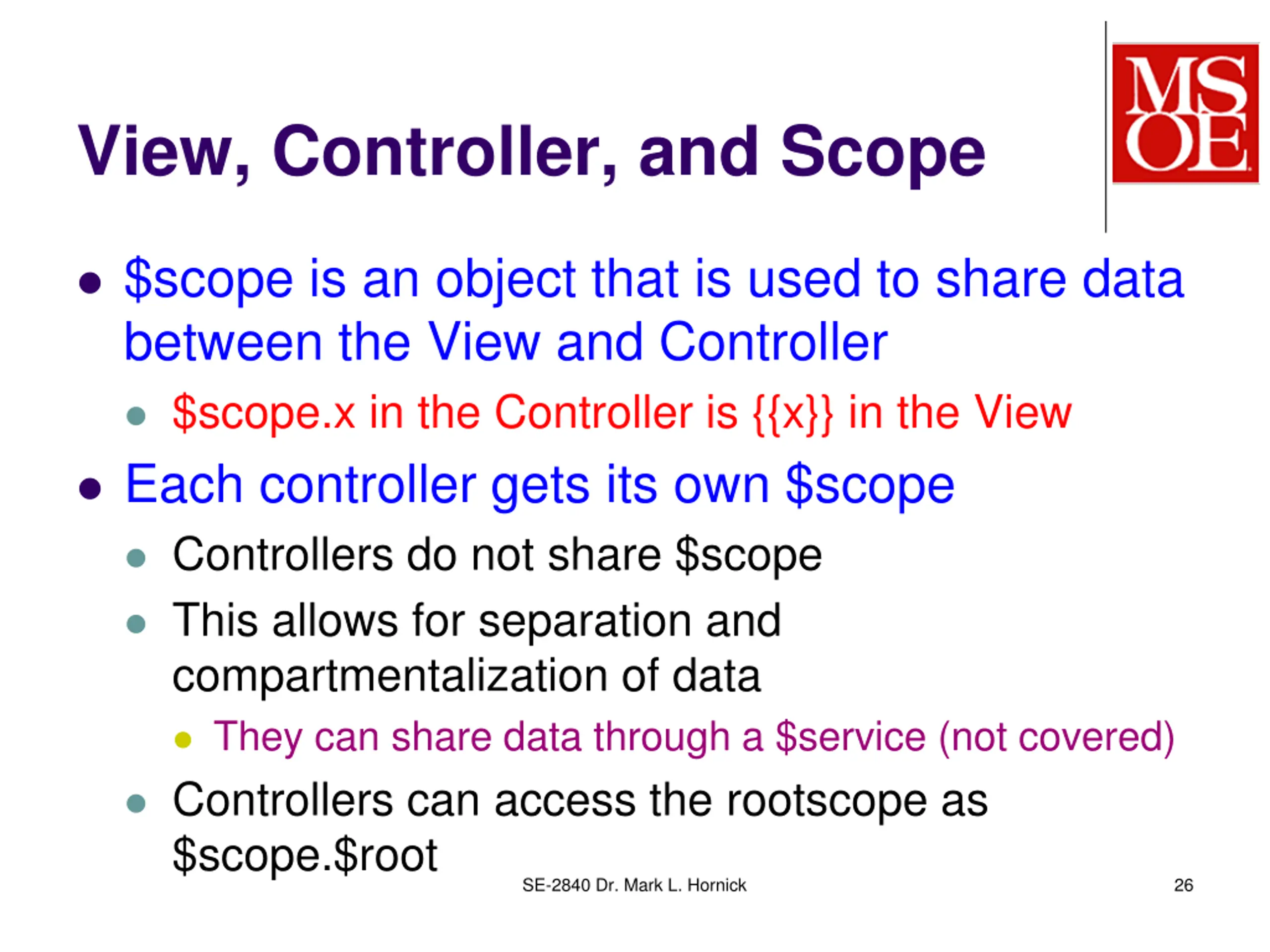

View, Controller, and Scope $scope is an object that is used to share data between the View and Controller $scope.x in the Controller is {{x}} in the View Each controller gets its own $scope Controllers do not share $scope This allows for separation and compartmentalization of data They can share data through a $service (not covered) Controllers can access the rootscope as $scope.$root SE-2840 Dr. Mark L. Hornick 26

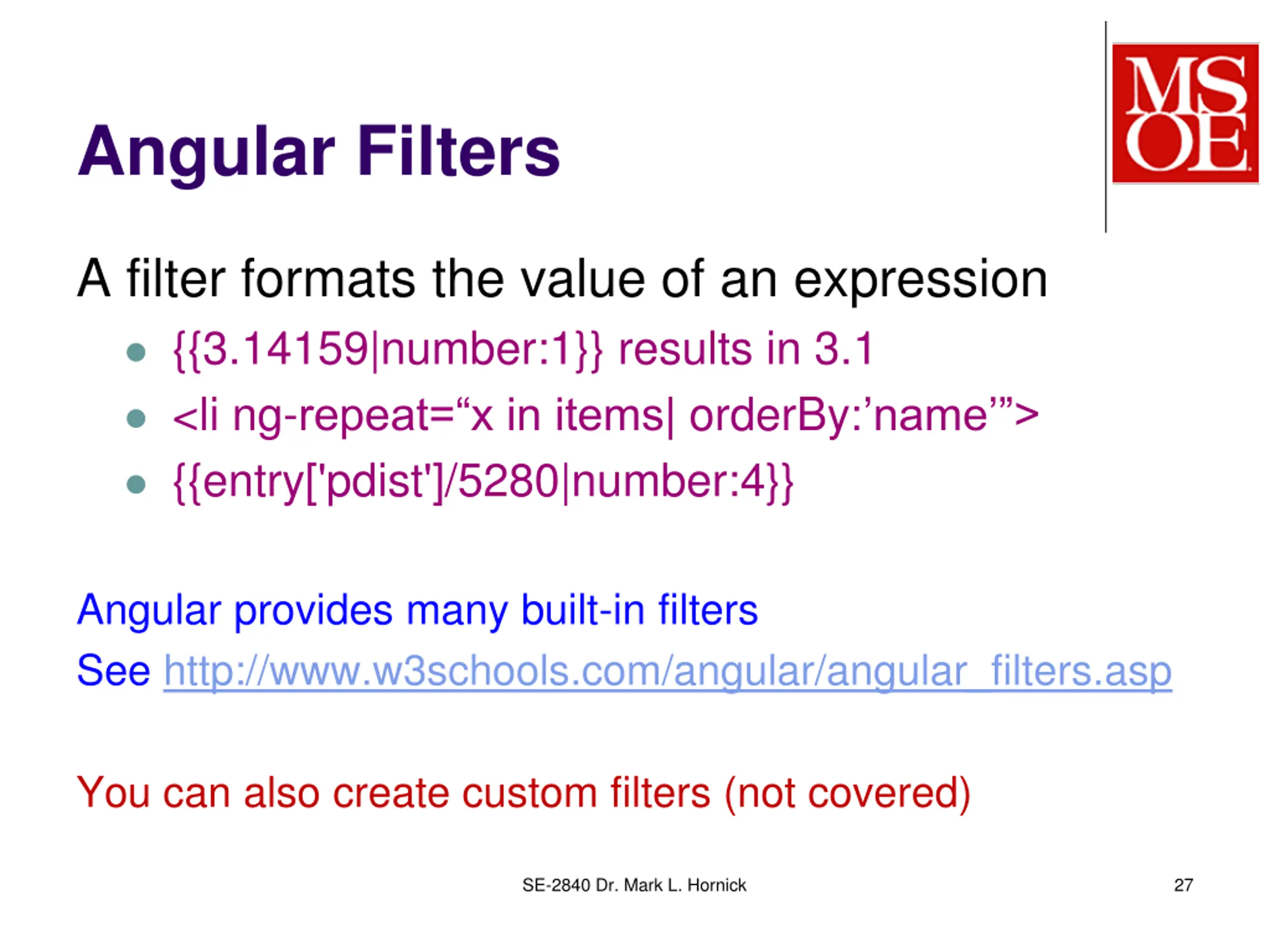

Angular Filters A filter formats the value of an expression {{3.14159|number:1}} results in 3.1 <li ng-repeat= x in items| orderBy: name > {{entry['pdist']/5280|number:4}} Angular provides many built-in filters See http://www.w3schools.com/angular/angular_filters.asp You can also create custom filters (not covered) SE-2840 Dr. Mark L. Hornick 27

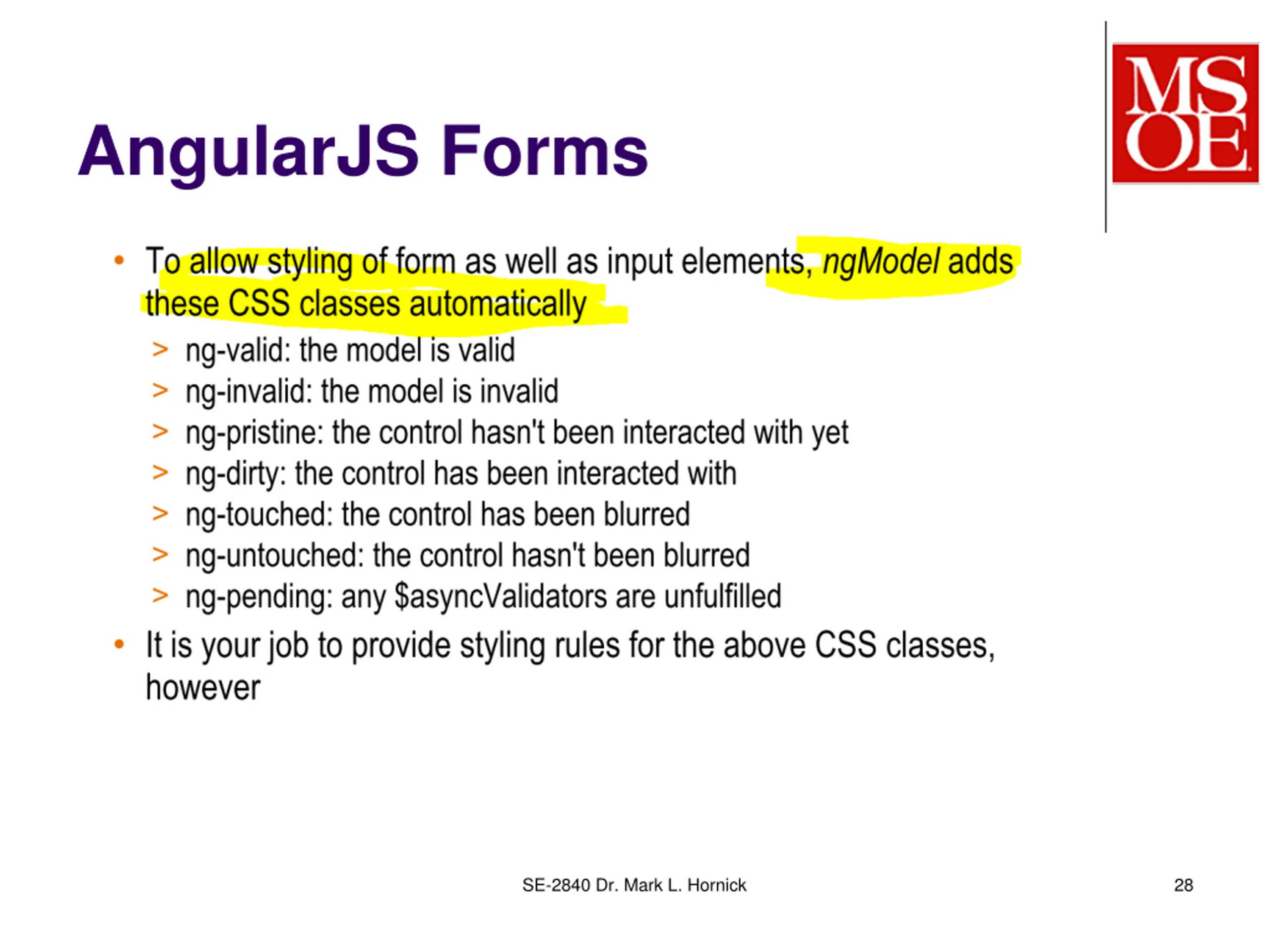

AngularJS Forms SE-2840 Dr. Mark L. Hornick 28

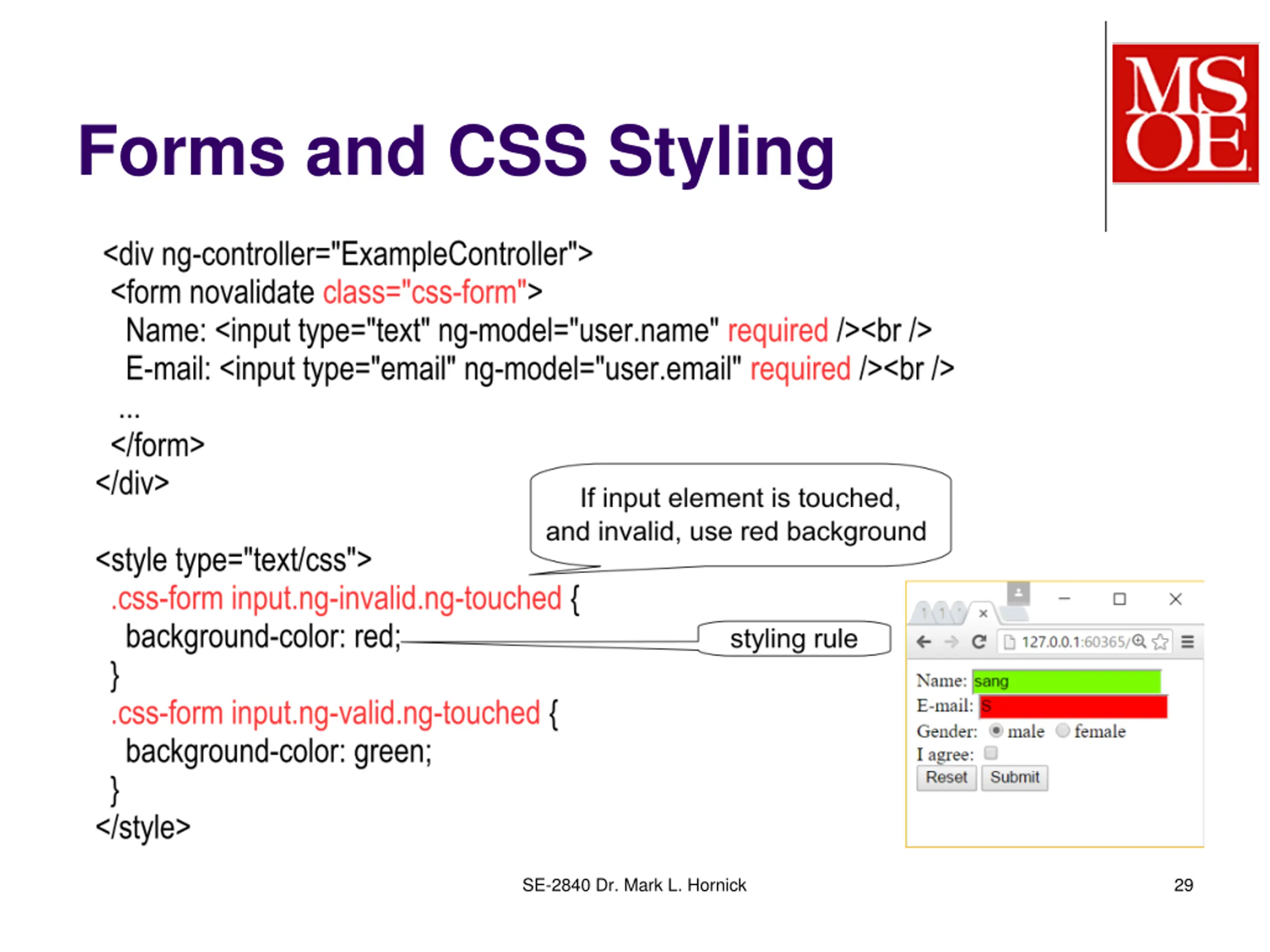

Forms and CSS Styling SE-2840 Dr. Mark L. Hornick 29

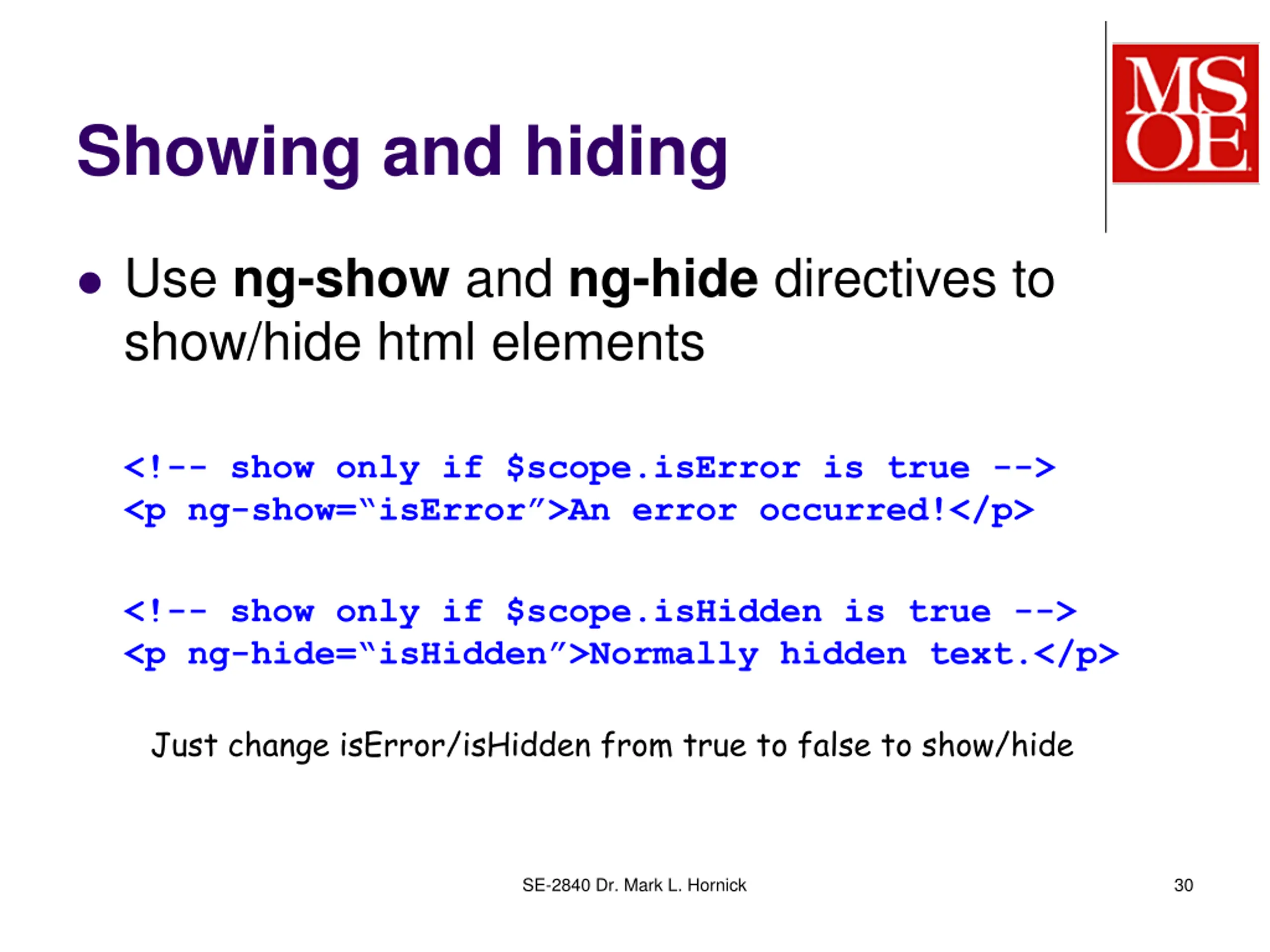

Showing and hiding Use ng-show and ng-hide directives to show/hide html elements  <p ng-show= isError >An error occurred!</p>  <p ng-hide= isHidden >Normally hidden text.</p> Just change isError/isHidden from true to false to show/hide SE-2840 Dr. Mark L. Hornick 30

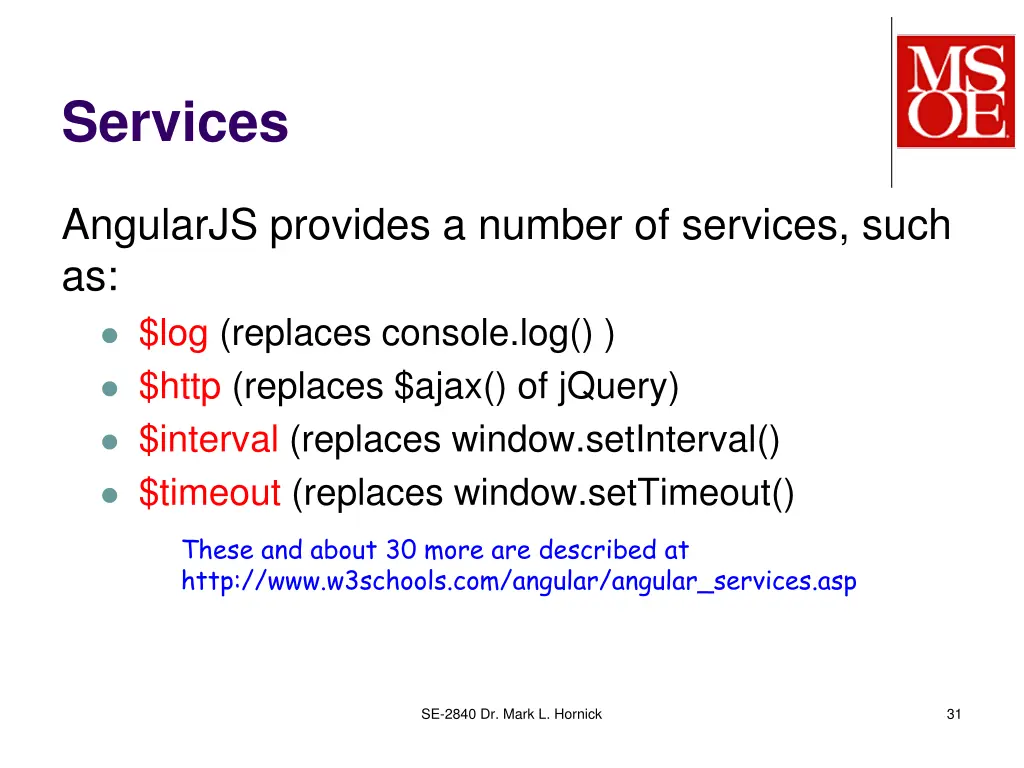

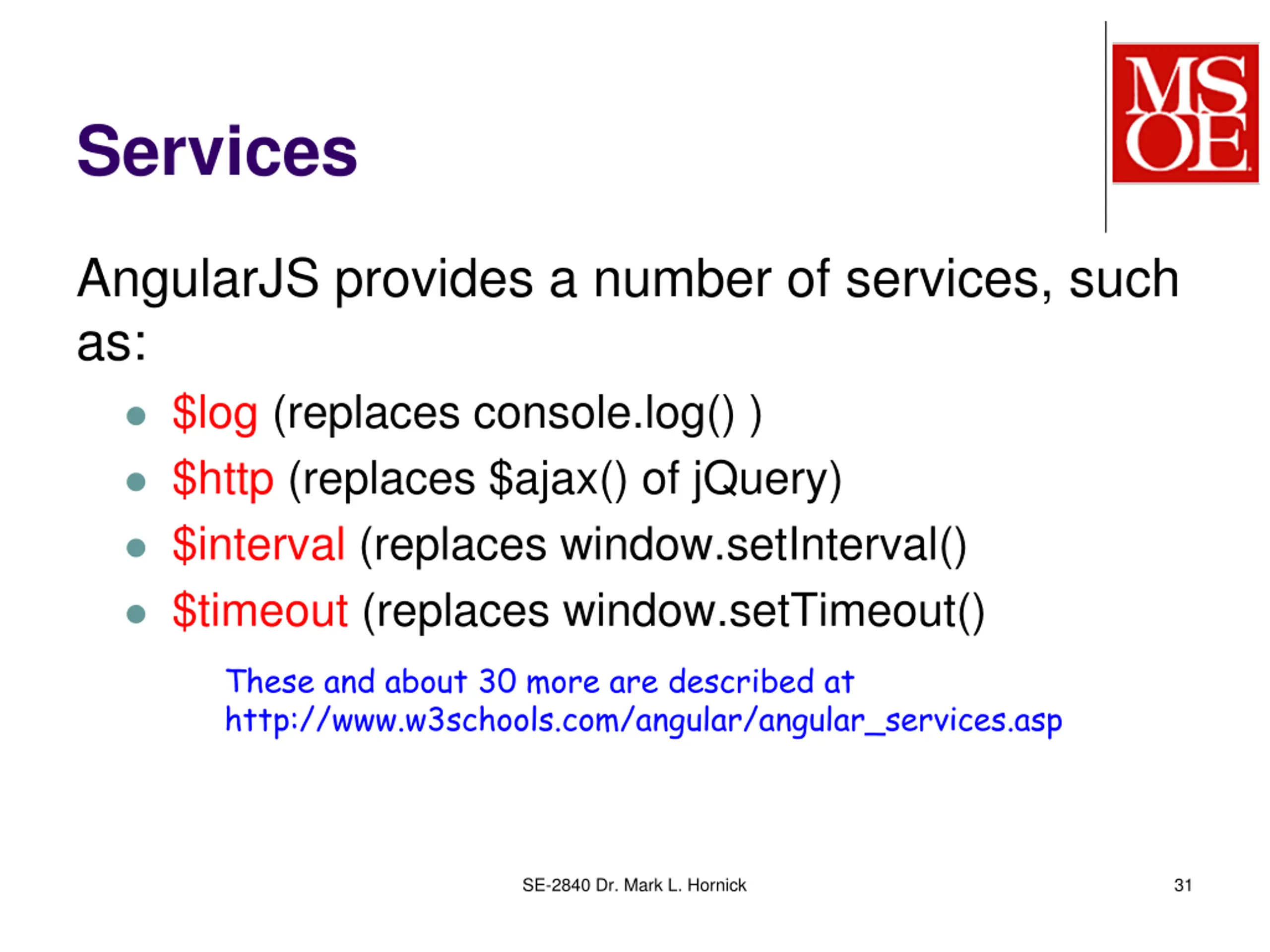

Services AngularJS provides a number of services, such as: $log (replaces console.log() ) $http (replaces $ajax() of jQuery) $interval (replaces window.setInterval() $timeout (replaces window.setTimeout() These and about 30 more are described at http://www.w3schools.com/angular/angular_services.asp SE-2840 Dr. Mark L. Hornick 31
