Modeling a Boiler System for Efficient Space Heating
This workshop outlines the modeling of a boiler system for efficient space heating, including system configurations, control logic, and nominal conditions. Learn how to design a heating system for specific load requirements and temperature conditions to optimize energy usage and indoor comfort.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Modelica Training Workshop 6 Wangda Zuo, Michael Wetter Simulation Research Group Energy and Environmental Technologies Division Lawrence Berkeley National Laboratory, USA 5/29/2012

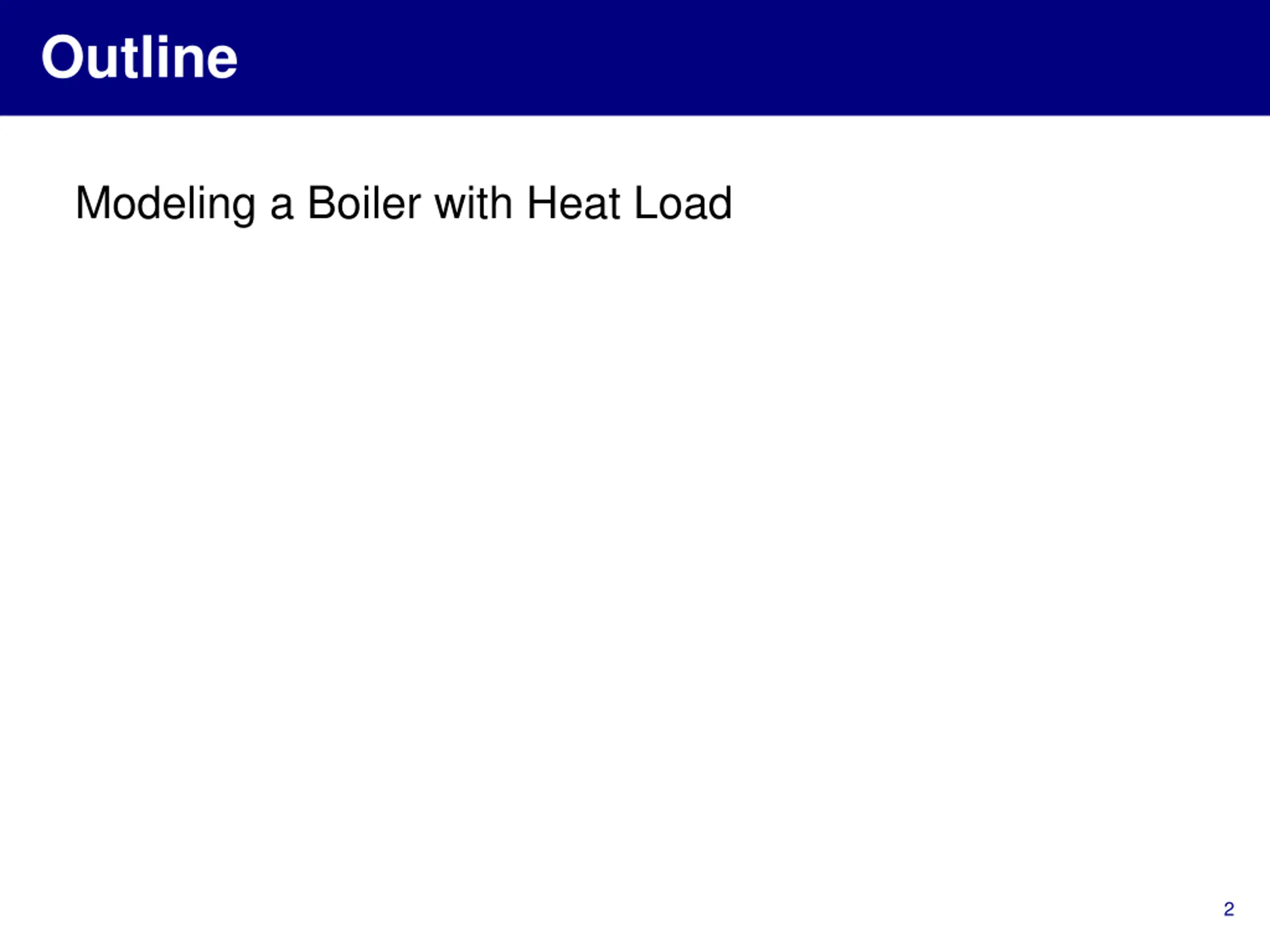

Outline Modeling a Boiler with Heat Load 2

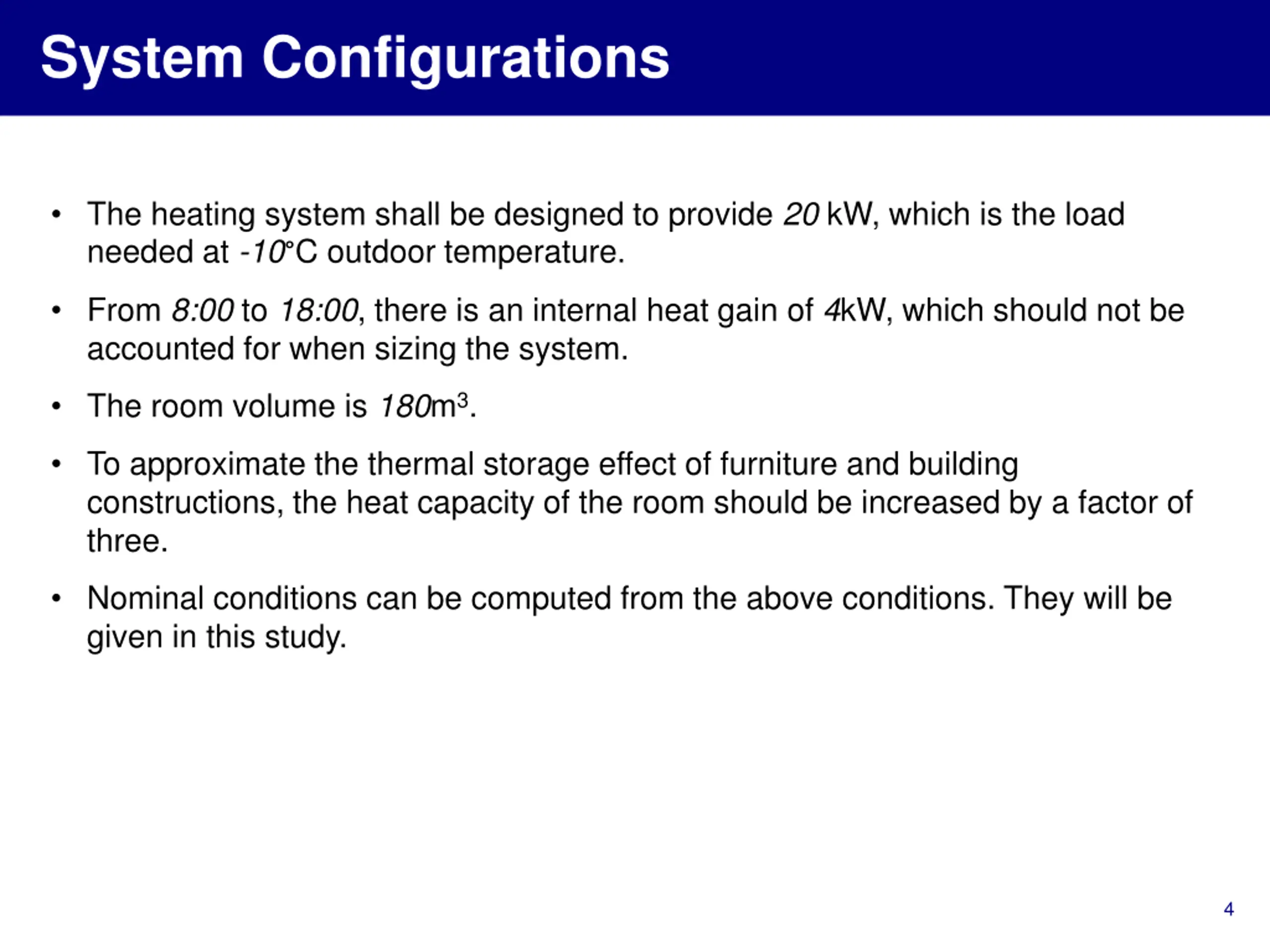

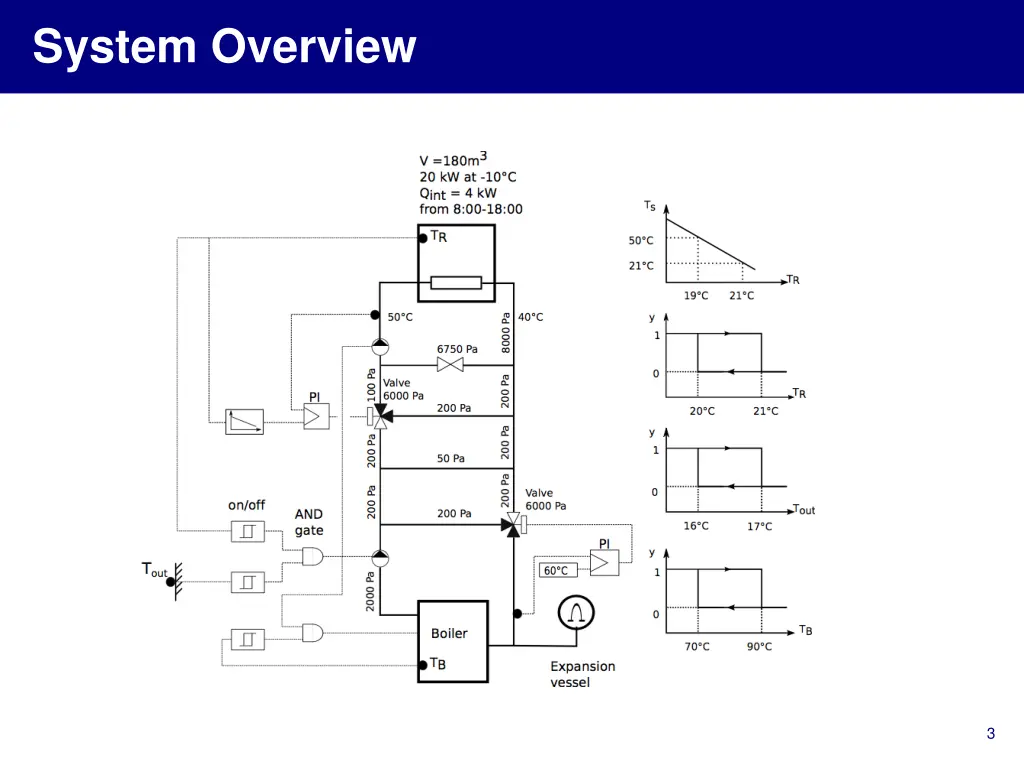

System Configurations The heating system shall be designed to provide 20 kW, which is the load needed at -10 C outdoor temperature. From 8:00 to 18:00, there is an internal heat gain of 4kW, which should not be accounted for when sizing the system. The room volume is 180m3. To approximate the thermal storage effect of furniture and building constructions, the heat capacity of the room should be increased by a factor of three. Nominal conditions can be computed from the above conditions. They will be given in this study. 4

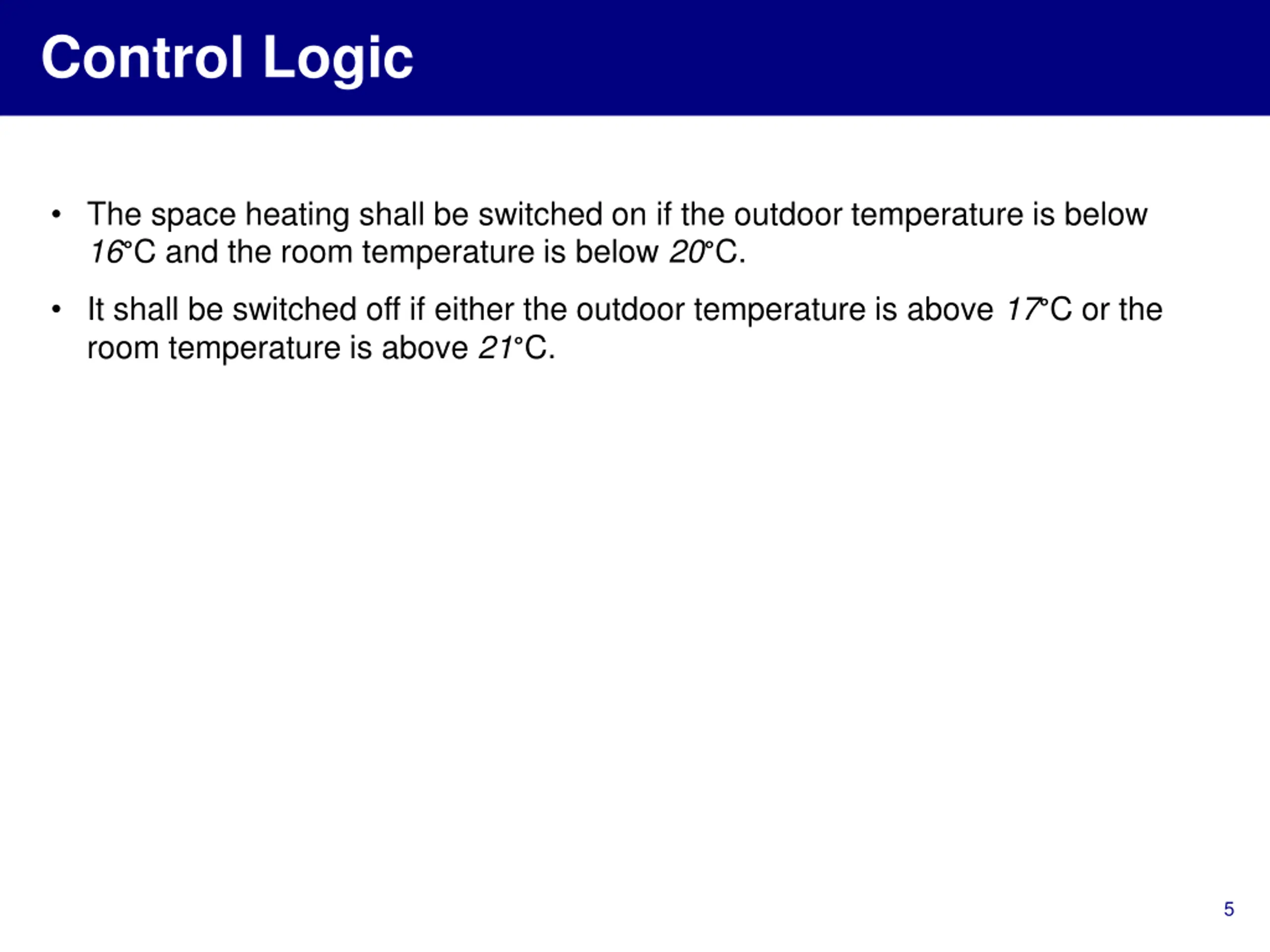

Control Logic The space heating shall be switched on if the outdoor temperature is below 16 C and the room temperature is below 20 C. It shall be switched off if either the outdoor temperature is above 17 C or the room temperature is above 21 C. 5
