Modeling sustainable bioenergy feedstock production in the Alps Sylvain Leduc(1), Florian Kraxner(1), Hern n Serrano Le n(1), Georg Kindermann(1), Sabine Fuss (1,2), Annika Marxen(2,3), Chris Walzer(4) (1) Ecosystems Services and Management Program, IIASA, Laxenburg, Austria (2) Working Group on Sustainable Resource Management and Global Change, Mercator Research Institute on Global Commons and Climate Change (MCC), Berlin, Germany (3) Technical University Berlin, Berlin, Germany (4) Research Institute of Wildlife Ecology, University of Veterinary Medicine, Vienna, Austria European Geosciences Union General Assembly 2016, Vienna, Austria, 17 22 April 2016

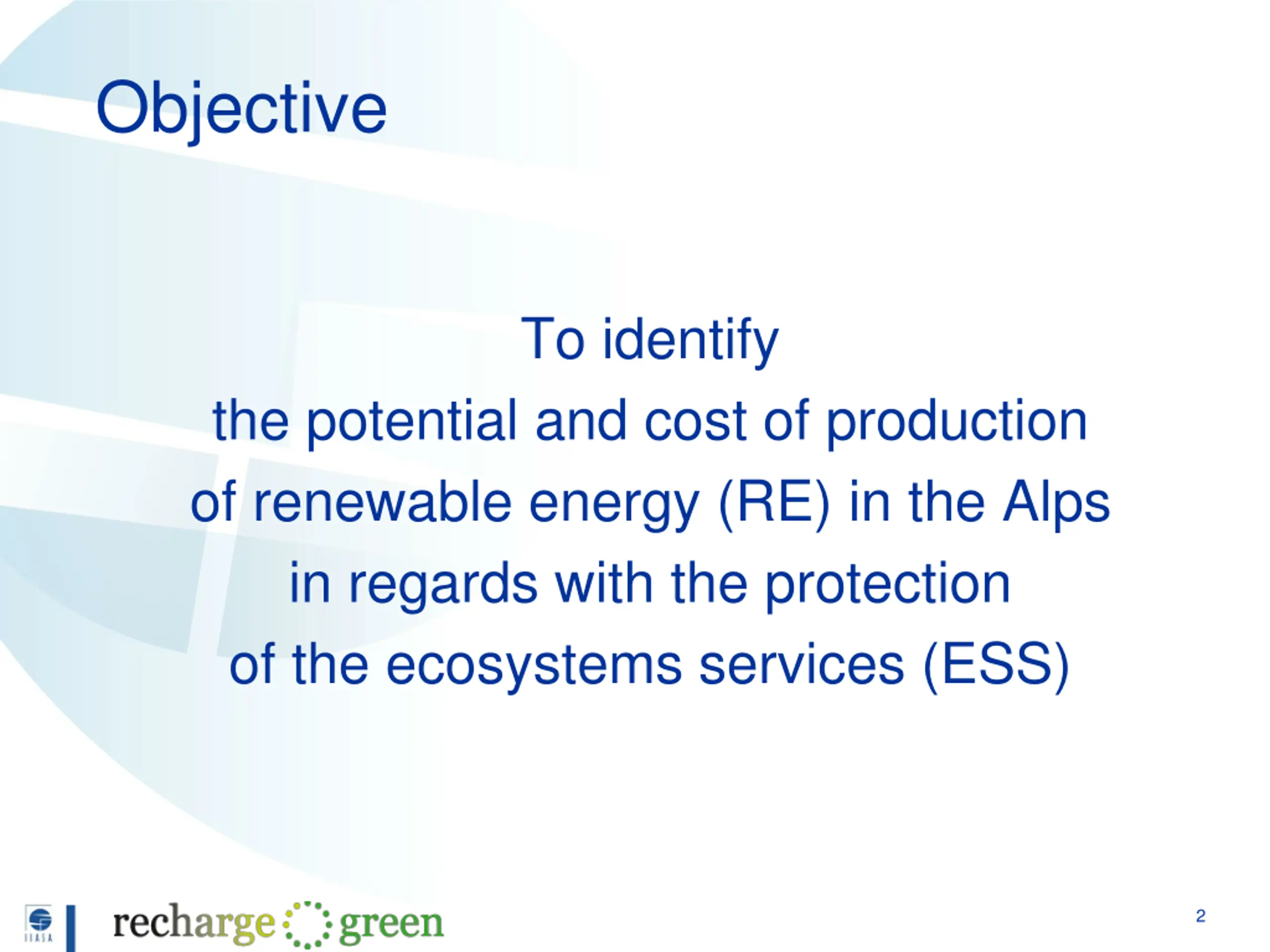

Objective To identify the potential and cost of production of renewable energy (RE) in the Alps in regards with the protection of the ecosystems services (ESS) 2

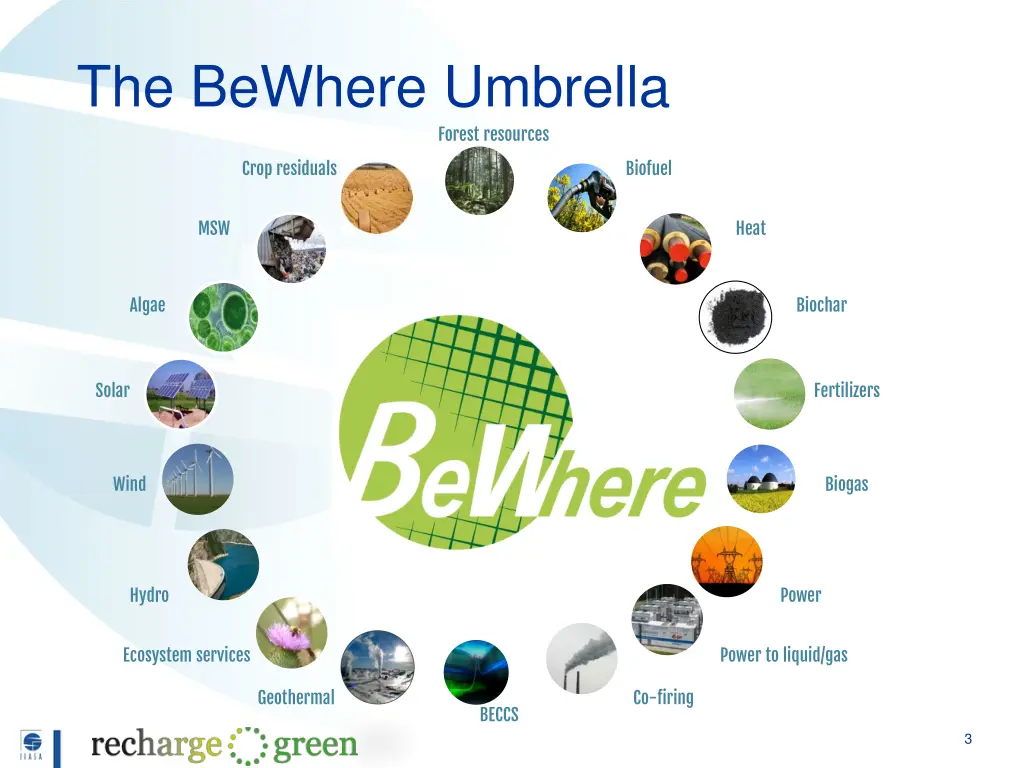

The BeWhere Umbrella Forest resources Crop residuals Biofuel MSW Heat Algae Biochar Solar Fertilizers Wind Biogas Hydro Power Ecosystem services Power to liquid/gas Geothermal Co-firing BECCS 3

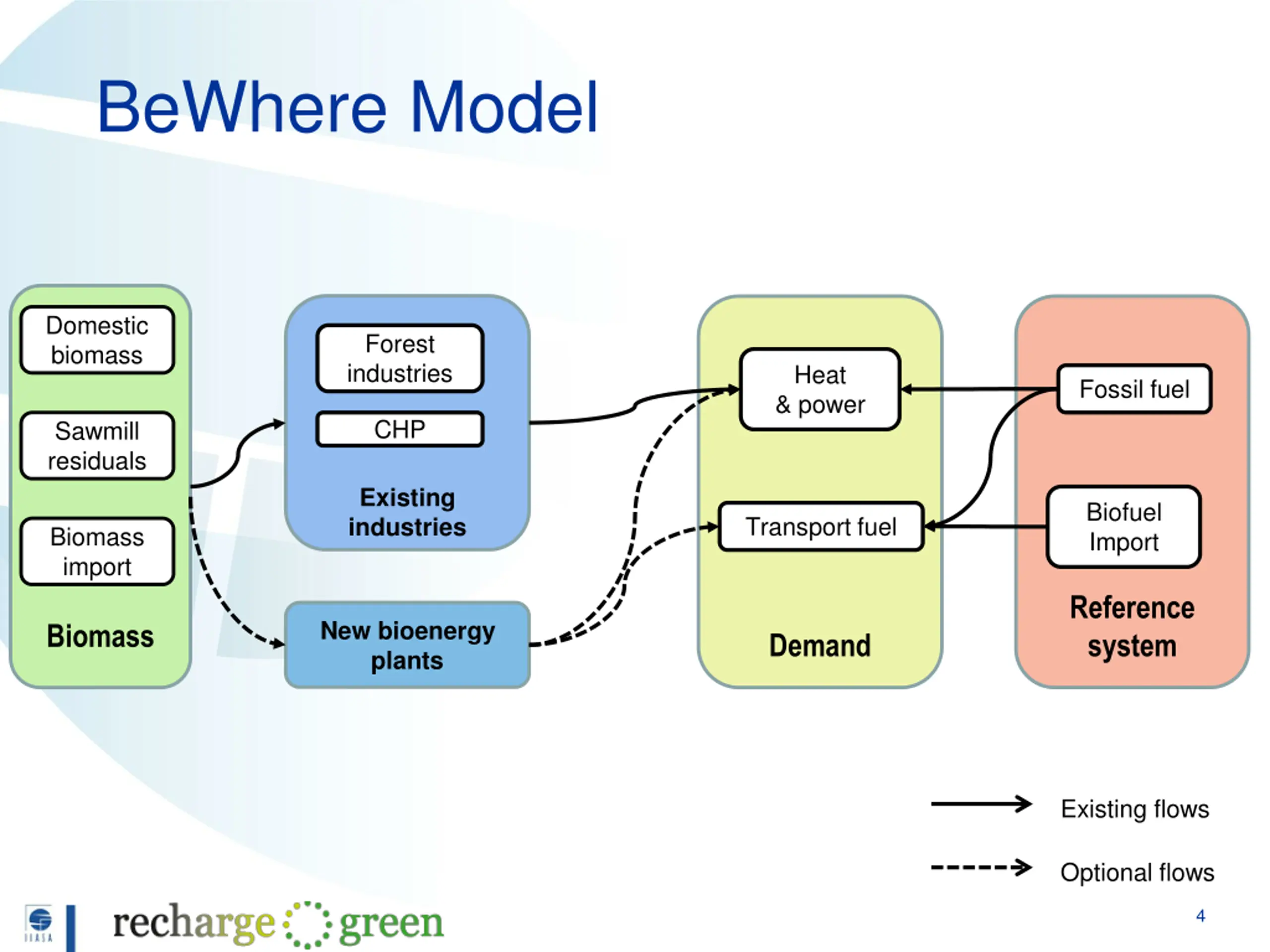

BeWhere Model Domestic biomass Forest industries Heat & power Fossil fuel CHP Sawmill residuals Existing industries Biofuel Import Transport fuel Biomass import Reference system New bioenergy plants Biomass Demand Existing flows Optional flows 4

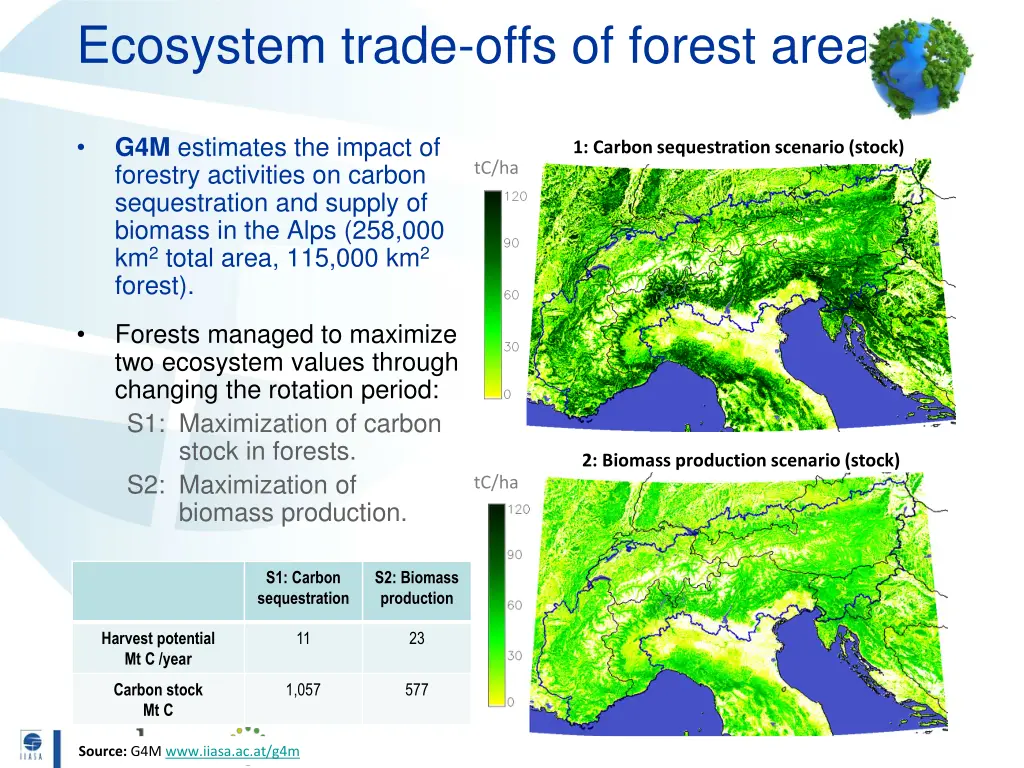

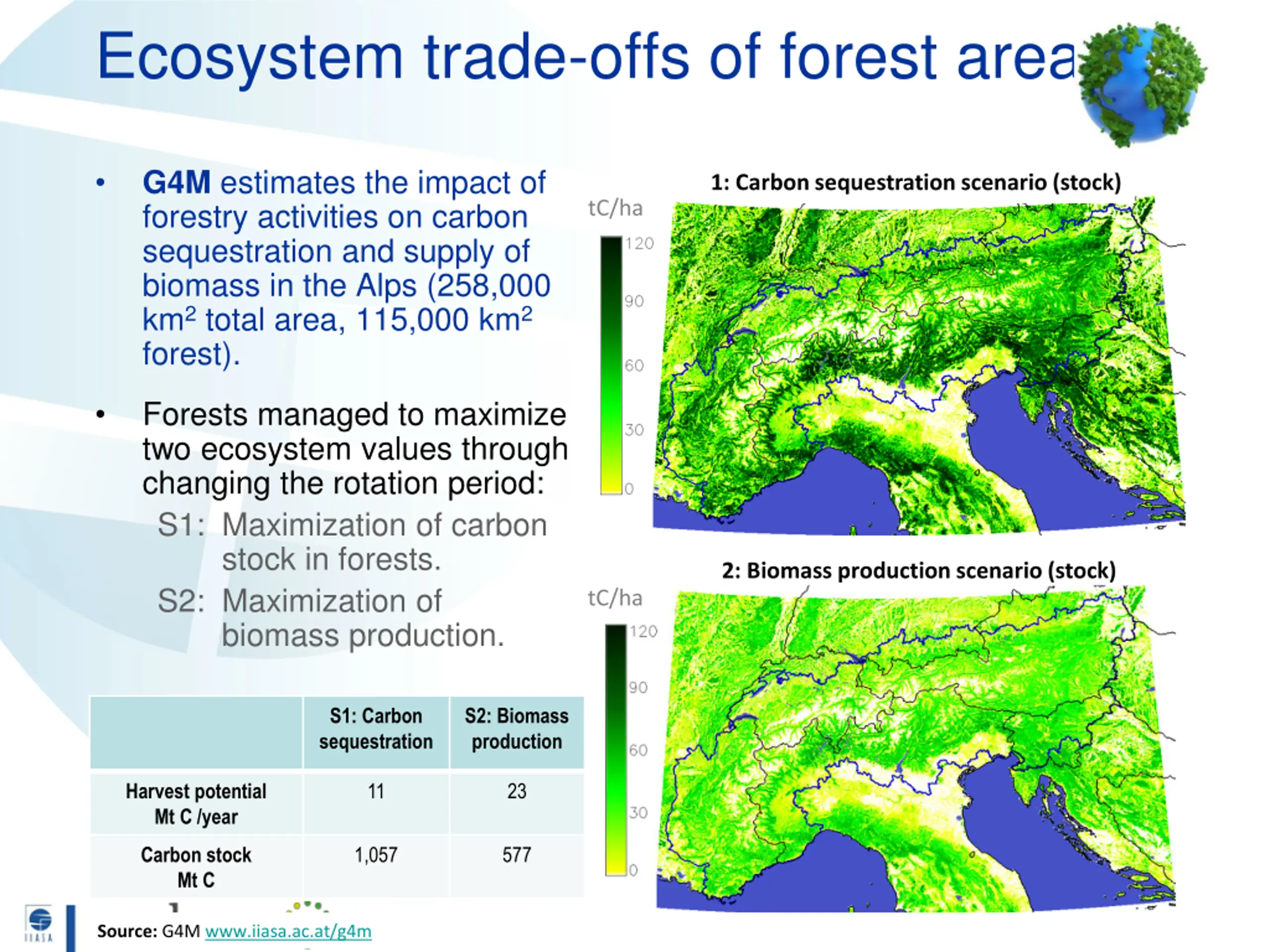

Ecosystem trade-offs of forest areas G4M estimates the impact of forestry activities on carbon sequestration and supply of biomass in the Alps (258,000 km2 total area, 115,000 km2 forest). 1: Carbon sequestration scenario (stock) tC/ha Forests managed to maximize two ecosystem values through changing the rotation period: S1: Maximization of carbon stock in forests. S2: Maximization of biomass production. 2: Biomass production scenario (stock) tC/ha S1: Carbon sequestration S2: Biomass production Harvest potential Mt C /year 11 23 Carbon stock Mt C 1,057 577 Source: G4M www.iiasa.ac.at/g4m

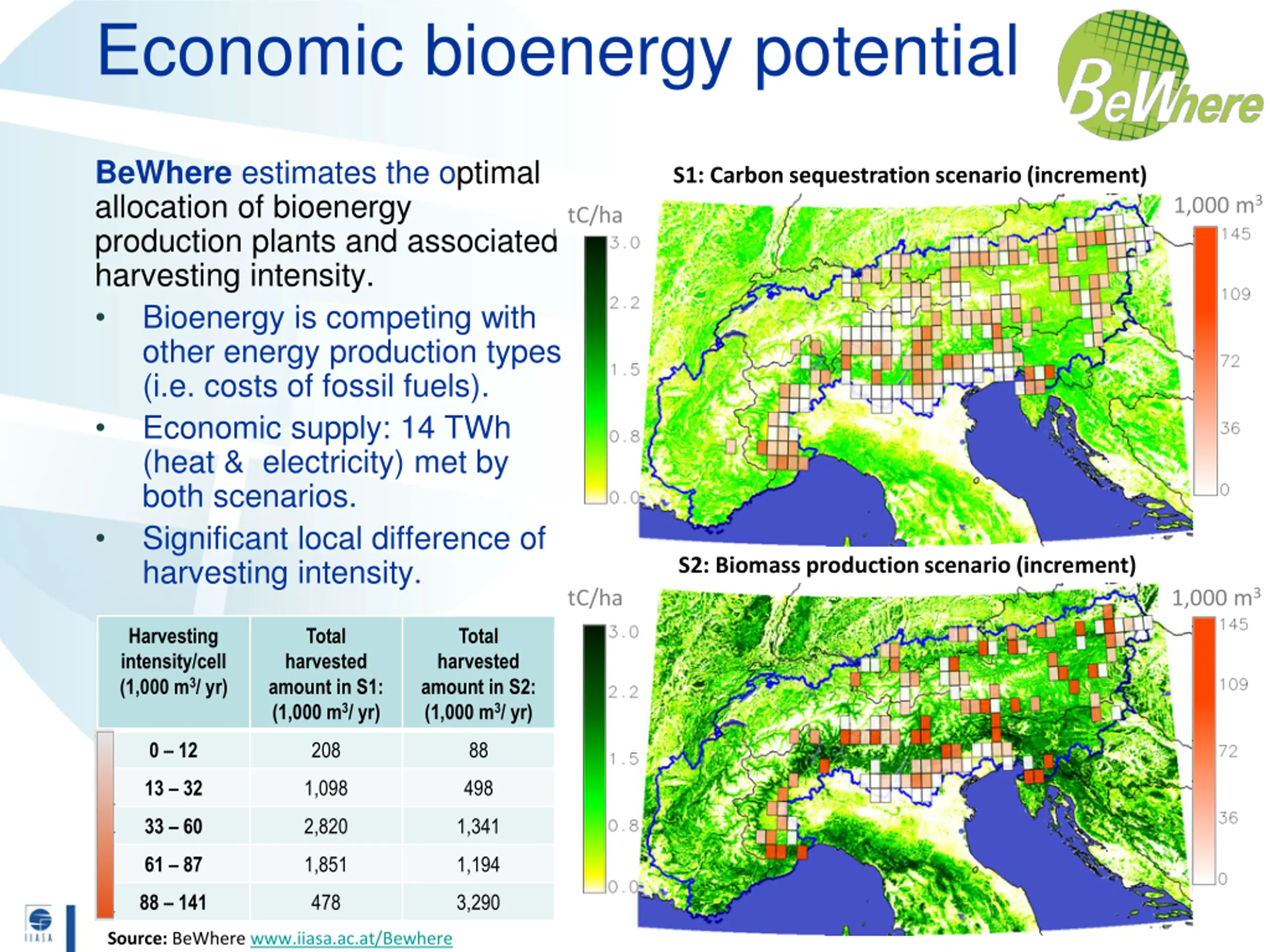

Economic bioenergy potential BeWhere estimates the optimal allocation of bioenergy production plants and associated harvesting intensity. Bioenergy is competing with other energy production types (i.e. costs of fossil fuels). Economic supply: 14 TWh (heat & electricity) met by both scenarios. Significant local difference of harvesting intensity. S1: Carbon sequestration scenario (increment) 1,000 m3 tC/ha S2: Biomass production scenario (increment) 1,000 m3 tC/ha Harvesting intensity/cell (1,000 m3/ yr) Total harvested amount in S1: (1,000 m3/ yr) Total harvested amount in S2: (1,000 m3/ yr) 0 12 208 88 13 32 1,098 498 33 60 2,820 1,341 61 87 1,851 1,194 88 141 478 3,290 Source: BeWhere www.iiasa.ac.at/Bewhere

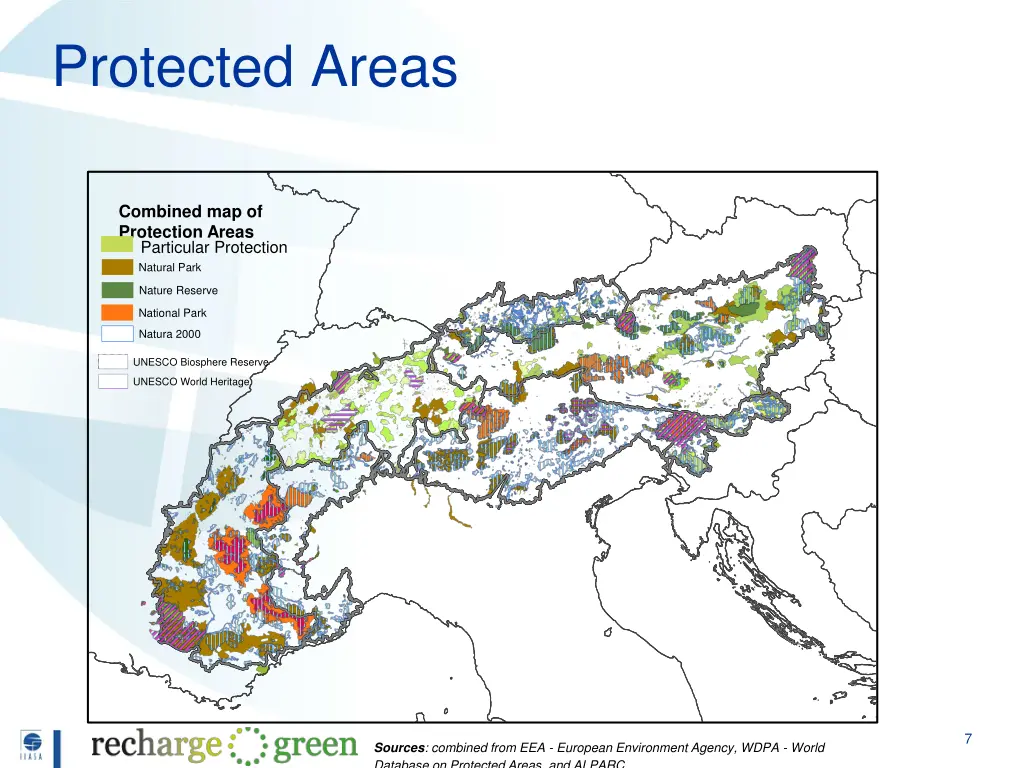

Legend Particular Protection DESIGN_ENG Biosphere Park Biosphere reserves Biotope Protection Order Dry Grasslands Ecological Important Area Emerald Sites Federal Hunting Reserves Federal Inventory of Alluvial Zones of National I* Federal Inventory of Amphibian Spawning Areas of * Protected Areas Federal Inventory of Raised and Transitional Mire* Federal Inventory of Dry Grasslands and Pastures * Federal Inventory of Fenlands of National Importa* Federal Inventory of Reserves for Waterbirds and * Fenlands of National Importance Flora Protection Area Legend Forest Biological Reserve Forest Reserve Nature Reserve DESIGN_ENG Legend Combined map of Protection Areas Land acquired by Conservatoire du Littoral (natio* Particular Protection Natural Park State Nature Reserve National Park DESIGN_ENG Legend UNESCO WH + BR iucn_prote Horticultural Monument Legend National Nature Reserve Land acquired by a regional conservatory of natur* Landscape Park Alps Convention Nature Reserve Legend Landscape Protection Area EU27 Natural reserve National Park Landscapes and Natural Monuments of National Impo* Croatia Regional/Provincial Nature Reserve National Park - Core Area Natura 2000 Mire Landscapes of National Importance Regional Nature Reserve National Park - Integrale Reserve Alps Convention UNESCO Biosphere Reserve National Hunting and Wildlife Reserve Alps Convention National Park - Buffer zone/Area of adhesion EU27 UNESCO World Heritage Natural Monument EU27 Swiss National Park Croatia Alps Convention Natural Monument or Site Croatia Alps Convention EU27 Other Protected Natural Regional Areas EU27 Croatia Particular protection Croatia Protected Area Protected Forest Protected Habitat Protected Landscape Section Protected Natural Objects of local importance Raised and Transitional Bogs of National Importan* Rest Area Sites for compensation of losses during use of us* Specialy Protected Area regional protected areas special conservation areas townscape protected area 7 Alps Convention Sources: combined from EEA - European Environment Agency, WDPA - World Database on Protected Areas, and ALPARC. EU27 Croatia

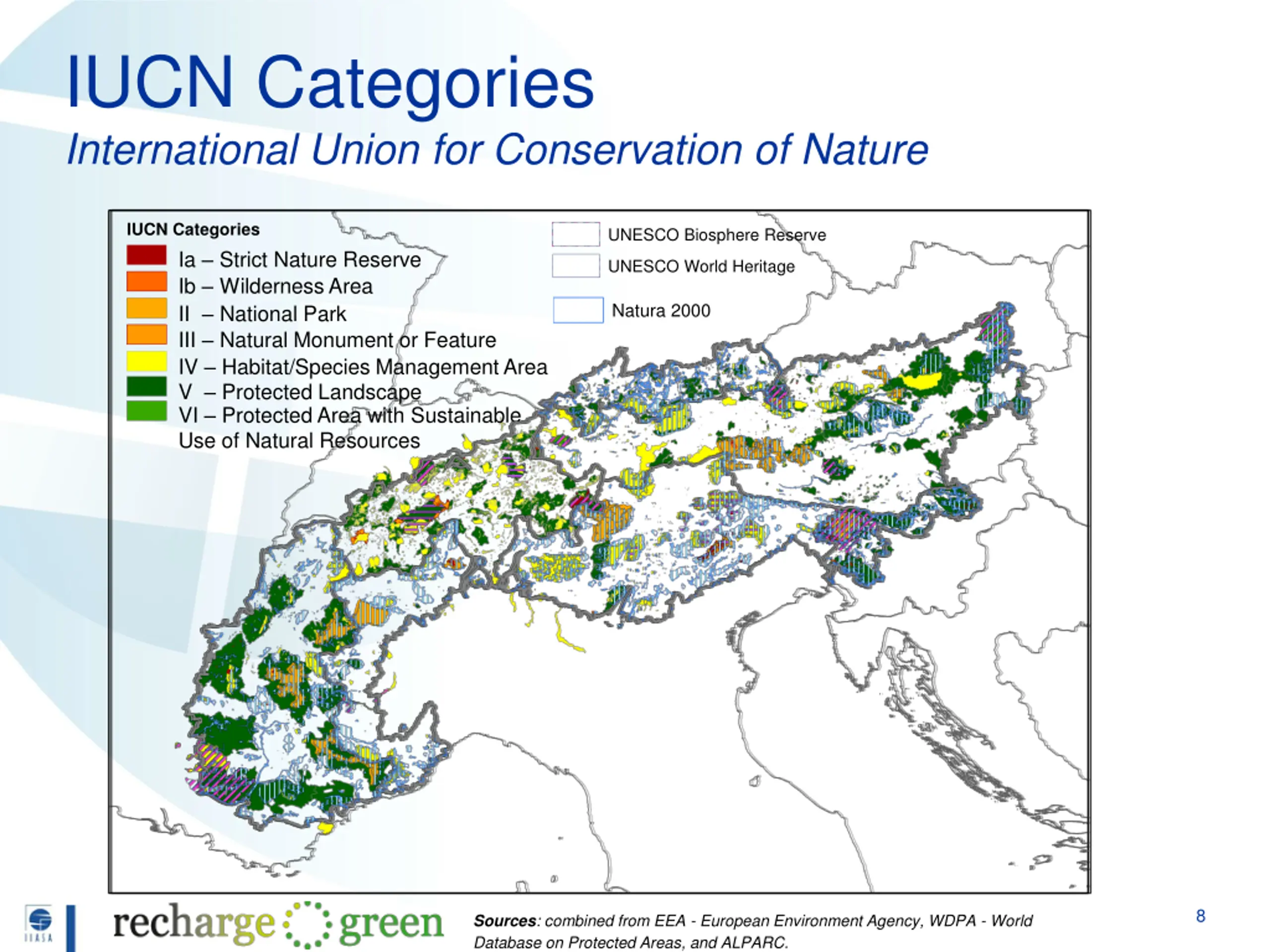

IUCN Categories Legend National Protection Designation International Union for Conservation of Nature Legend Legend Legend Legend IUCN Categories National Protection Designation IUCN Categories UNESCO WH + BR iucn_prote National Protection Designation IUCN Categories National Protection Designation IUCN Categories Ib Ia Strict Nature Reserve Ib Wilderness Area II National Park III Natural Monument or Feature IV Habitat/Species Management Area V Protected Landscape VI Protected Area with Sustainable Use of Natural Resources UA Ia UNESCO Biosphere Reserve Legend Ia Ia II Ib Ia UNESCO World Heritage Ib Ib III II Alps Convention Natura 2000 II II IV III EU27 Alps Convention III III VI IV Croatia EU27 IV IV V VI VI VI UA V Croatia V V NA UA UA Alps Convention NA NA NA EU27 Alps Convention Alps Convention Alps Convention EU27 EU27 EU27 8 Sources: combined from EEA - European Environment Agency, WDPA - World Database on Protected Areas, and ALPARC.

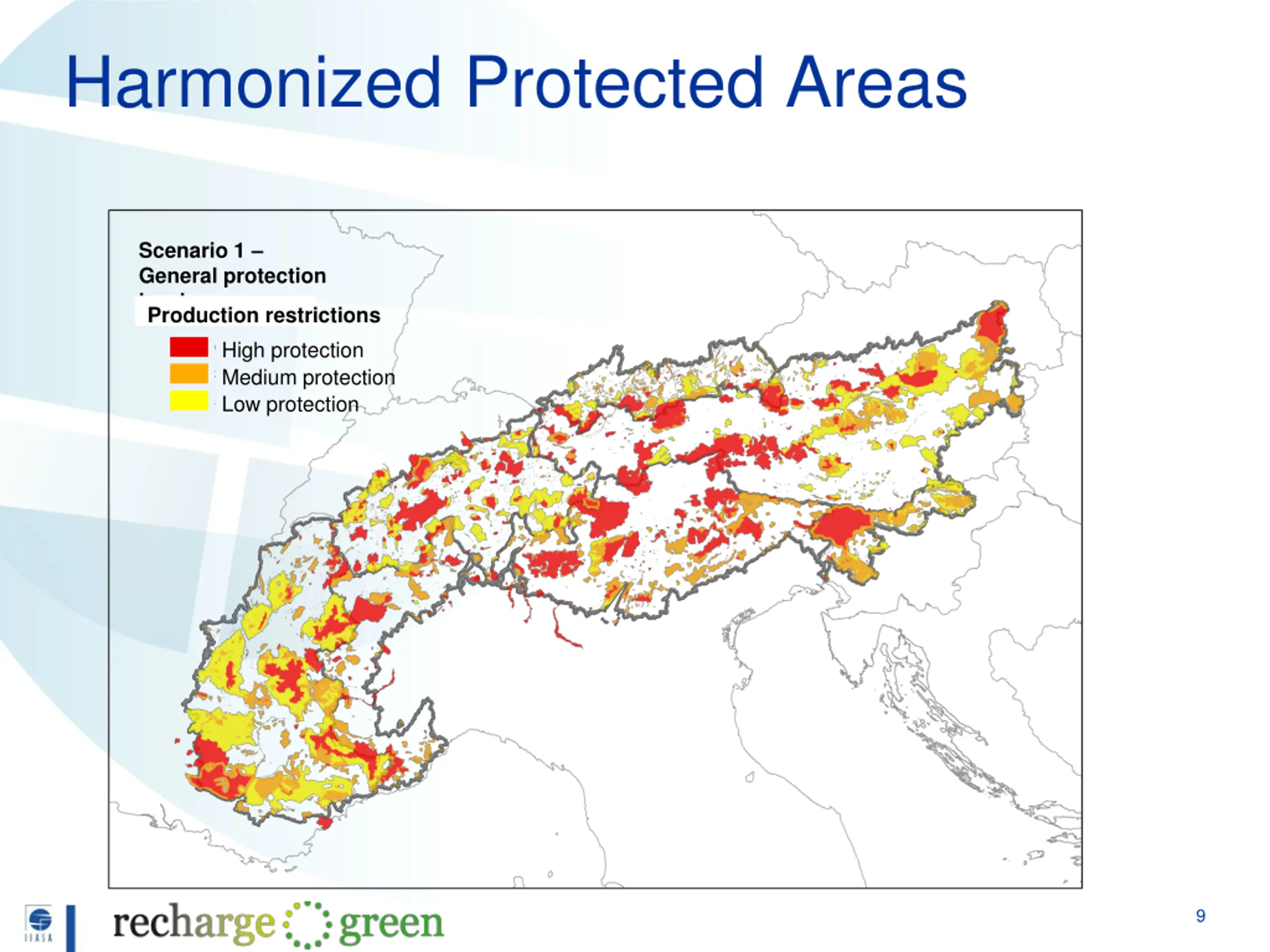

Harmonized Protected Areas Scenario 1 General protection level Sc1_medium Production restrictions High protection Medium protection Low protection Legend Prot_scenarios_class 0 30 50 100 9

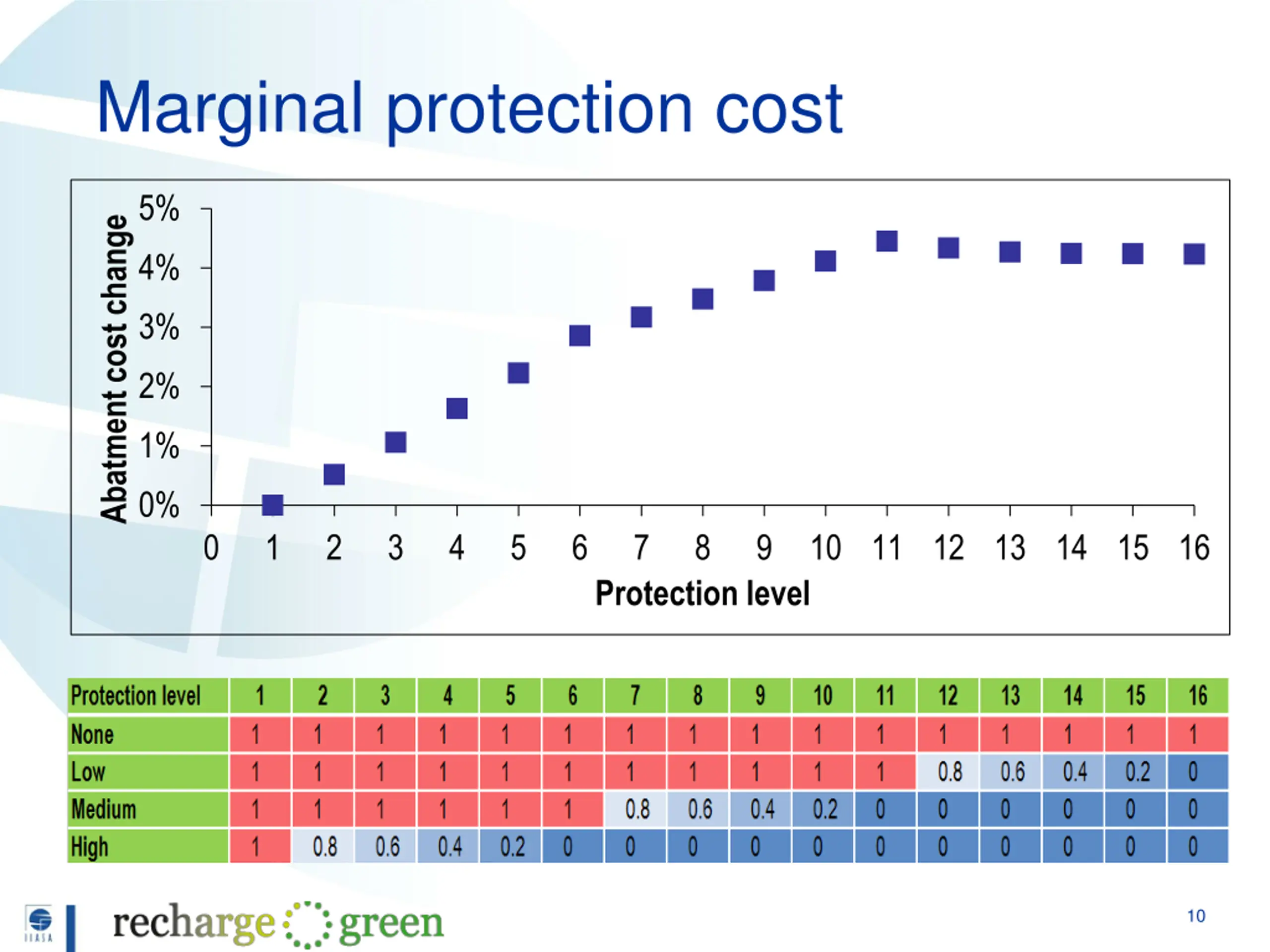

Marginal protection cost 5% Abatment cost change 4% 3% 2% 1% 0% 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Protection level 10

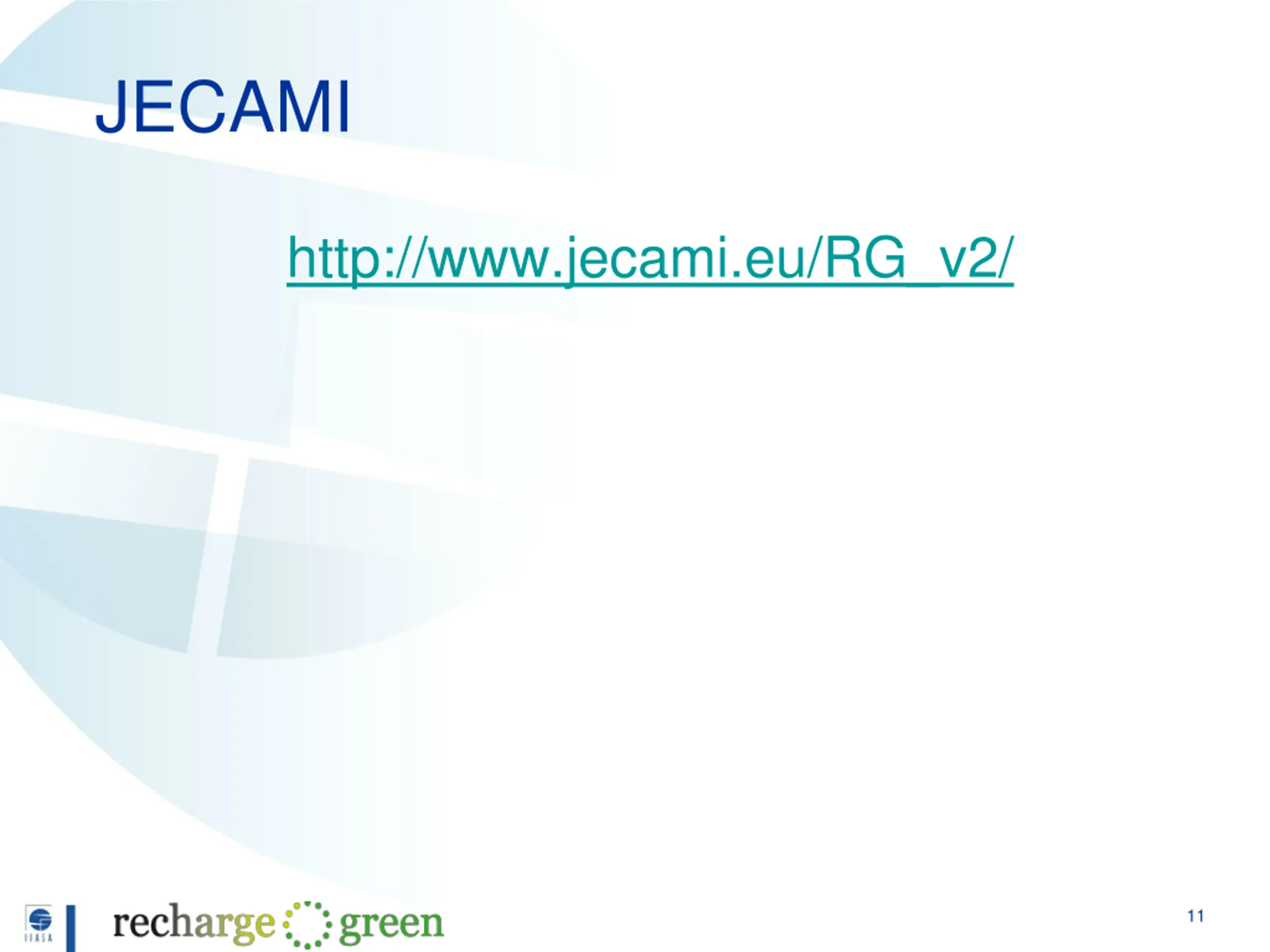

JECAMI http://www.jecami.eu/RG_v2/ 11

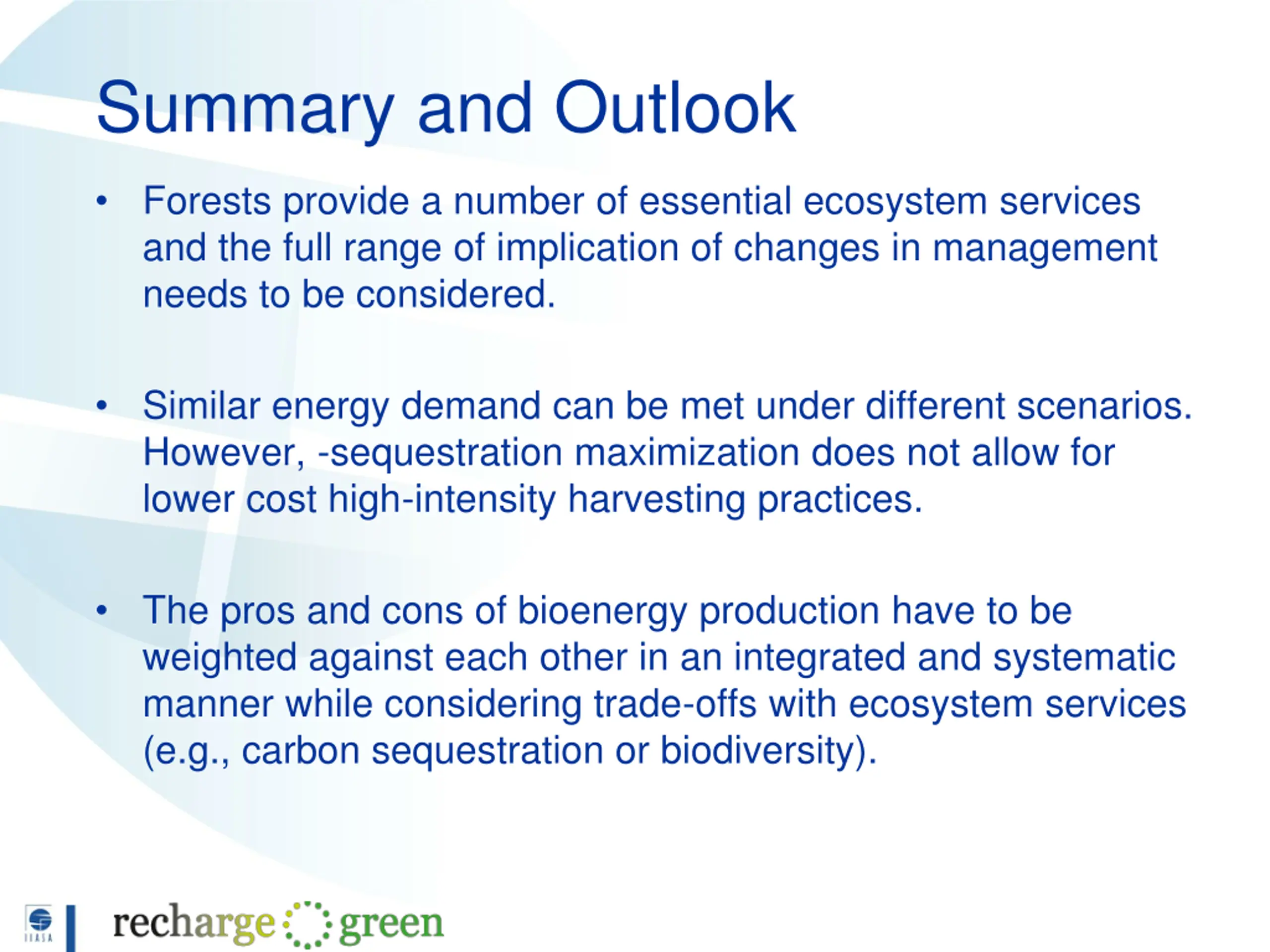

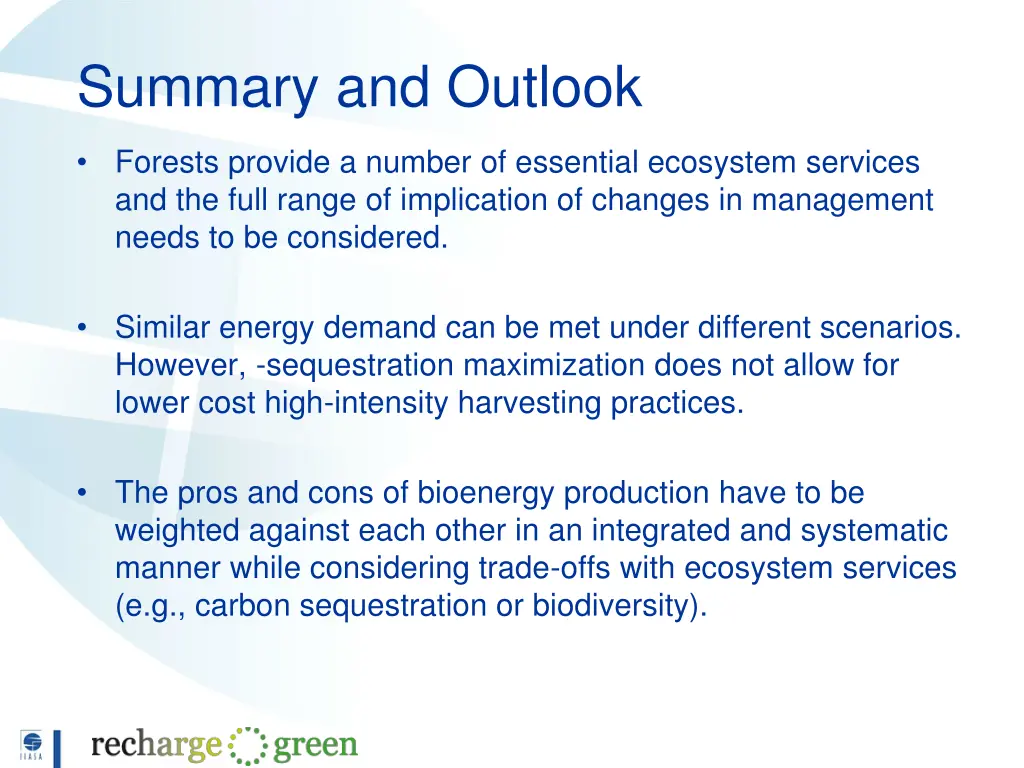

Summary and Outlook Forests provide a number of essential ecosystem services and the full range of implication of changes in management needs to be considered. Similar energy demand can be met under different scenarios. However, -sequestration maximization does not allow for lower cost high-intensity harvesting practices. The pros and cons of bioenergy production have to be weighted against each other in an integrated and systematic manner while considering trade-offs with ecosystem services (e.g., carbon sequestration or biodiversity).
Thank you! More information on IIASA www.iiasa.ac.at More on BeWhere www.iiasa.ac.at/bewhere Contact Sylvain Leduc, leduc@iiasa.ac.at 13
