Short introduction on 454 sequencing Variant Identification pipeline Possibilities of a DB oriented pipeline Examples Coverage Improving PCR Fast Q assessment Homopolymers

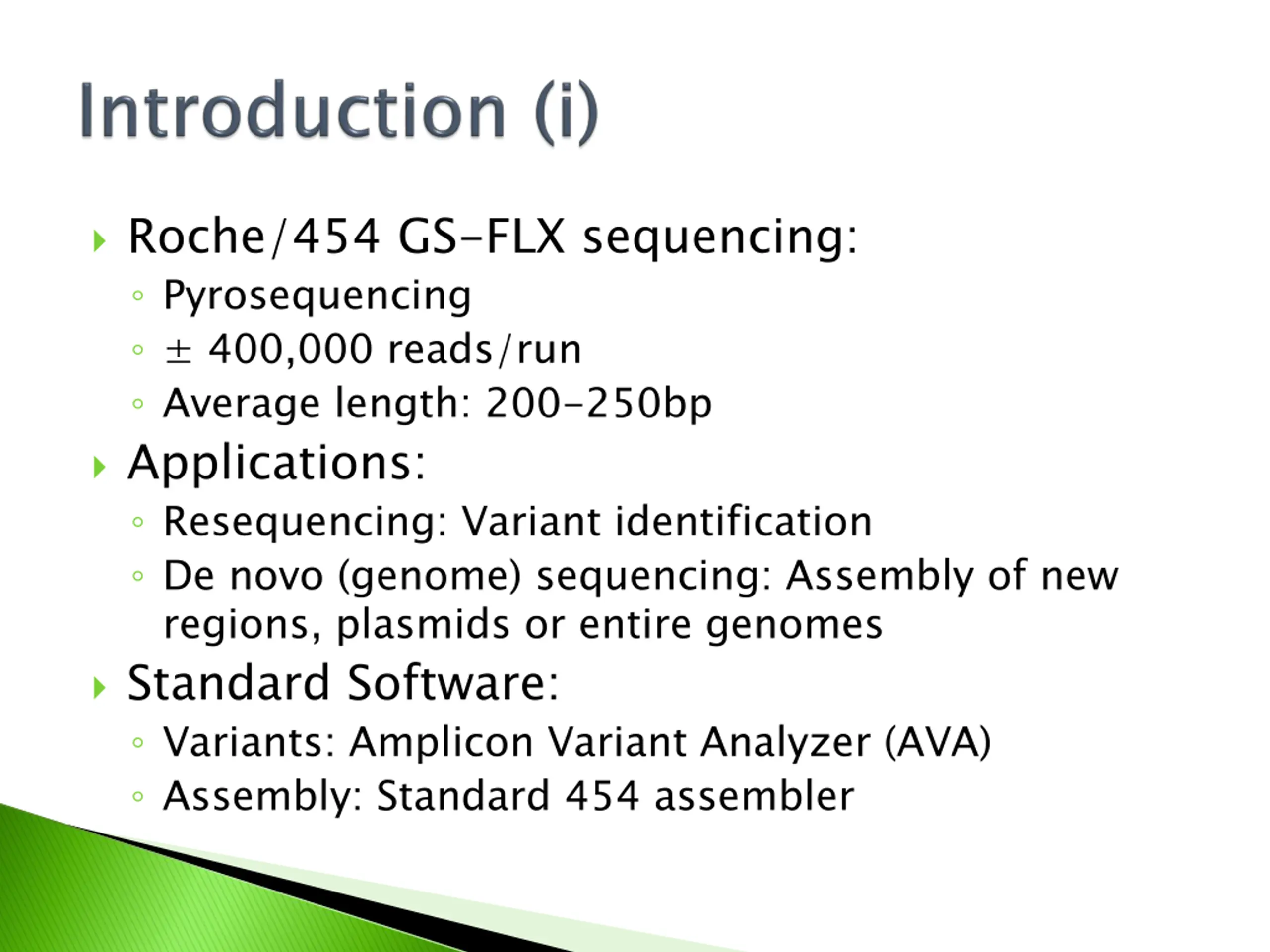

Roche/454 GS-FLX sequencing: Pyrosequencing 400,000 reads/run Average length: 200-250bp Applications: Resequencing: Variant identification De novo (genome) sequencing: Assembly of new regions, plasmids or entire genomes Standard Software: Variants: Amplicon Variant Analyzer (AVA) Assembly: Standard 454 assembler

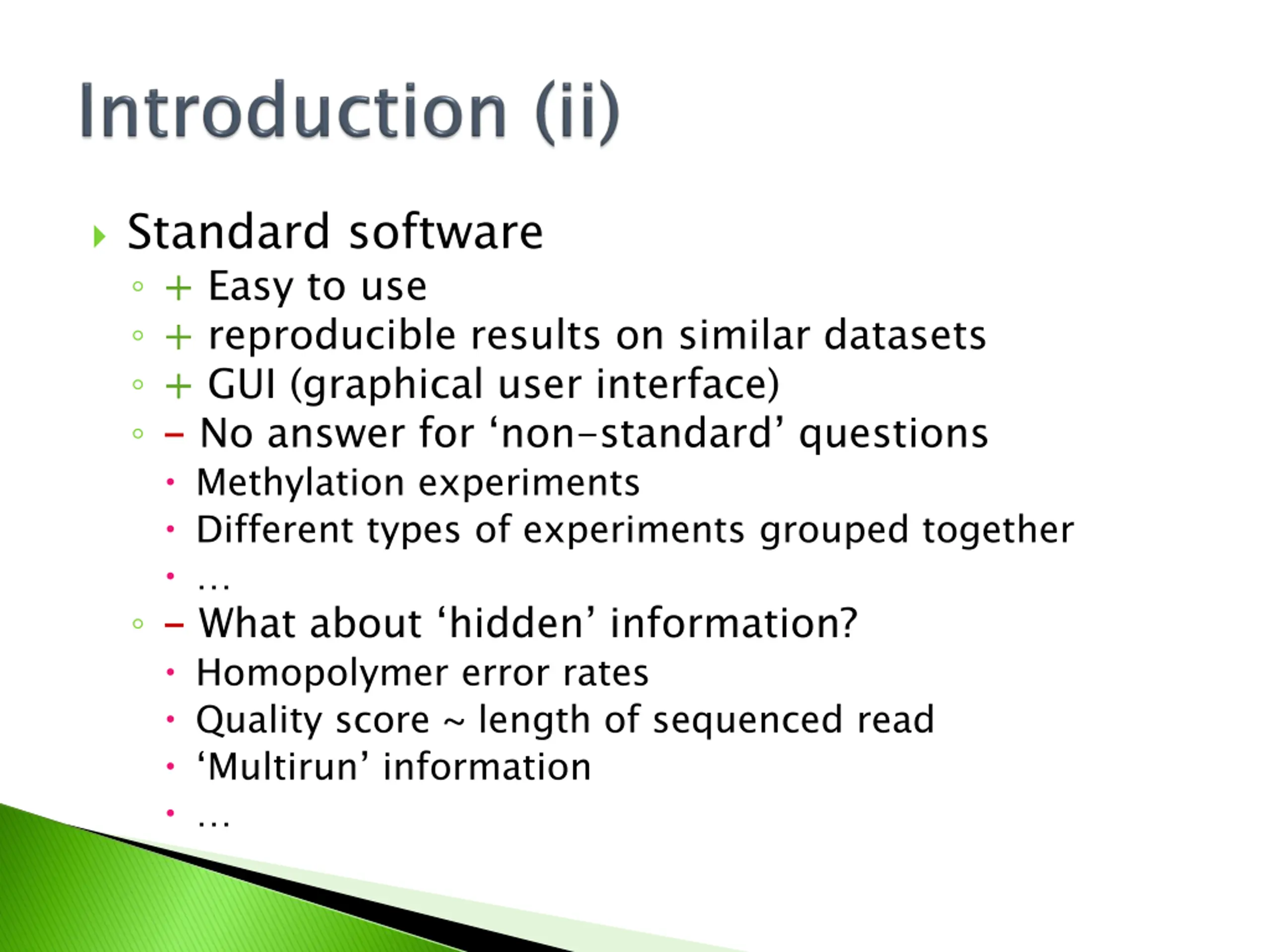

Standard software + + Easy to use + + reproducible results on similar datasets + + GUI (graphical user interface) - - No answer for non-standard questions Methylation experiments Different types of experiments grouped together - - What about hidden information? Homopolymer error rates Quality score ~ length of sequenced read Multirun information
Modular database pipeline Modular: Efficient planning Scalable Database (DB): No loss of data Grouping several runs together Modular and database oriented
Basic idea: Data is processed and stored in DB. Results (reports) are calculated on the fly using the DB data. Fast & efficient Calculations only happen once Everybody can access the database without risk of data modification Reporting is independent from the dataprocessing Paper: De Schrijver et al. 2009. Analysing 454 sequences with a modular and database oriented Variant Identification Pipeline

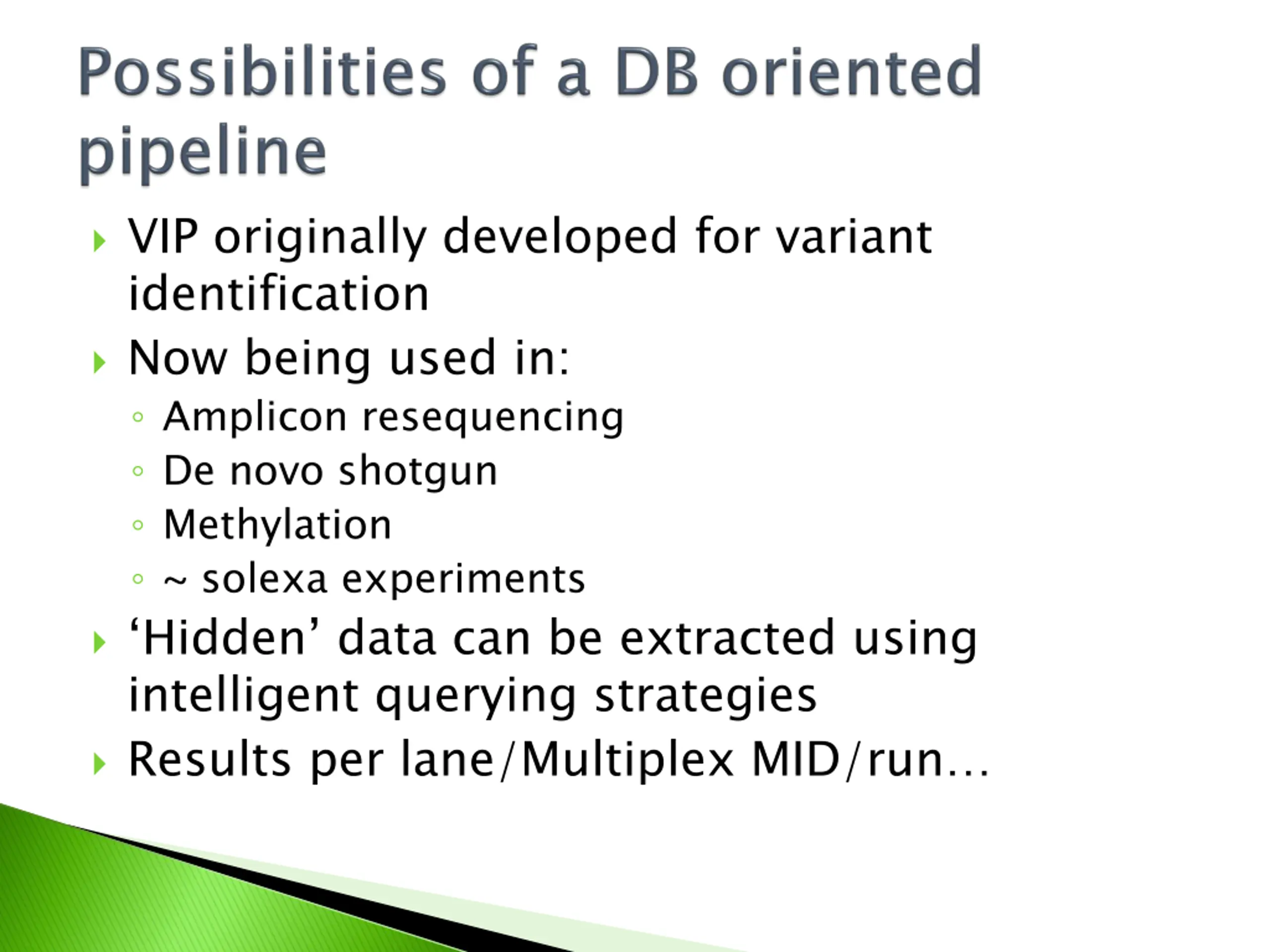

VIP originally developed for variant identification Now being used in: Amplicon resequencing De novo shotgun Methylation ~ solexa experiments Hidden data can be extracted using intelligent querying strategies Results per lane/Multiplex MID/run

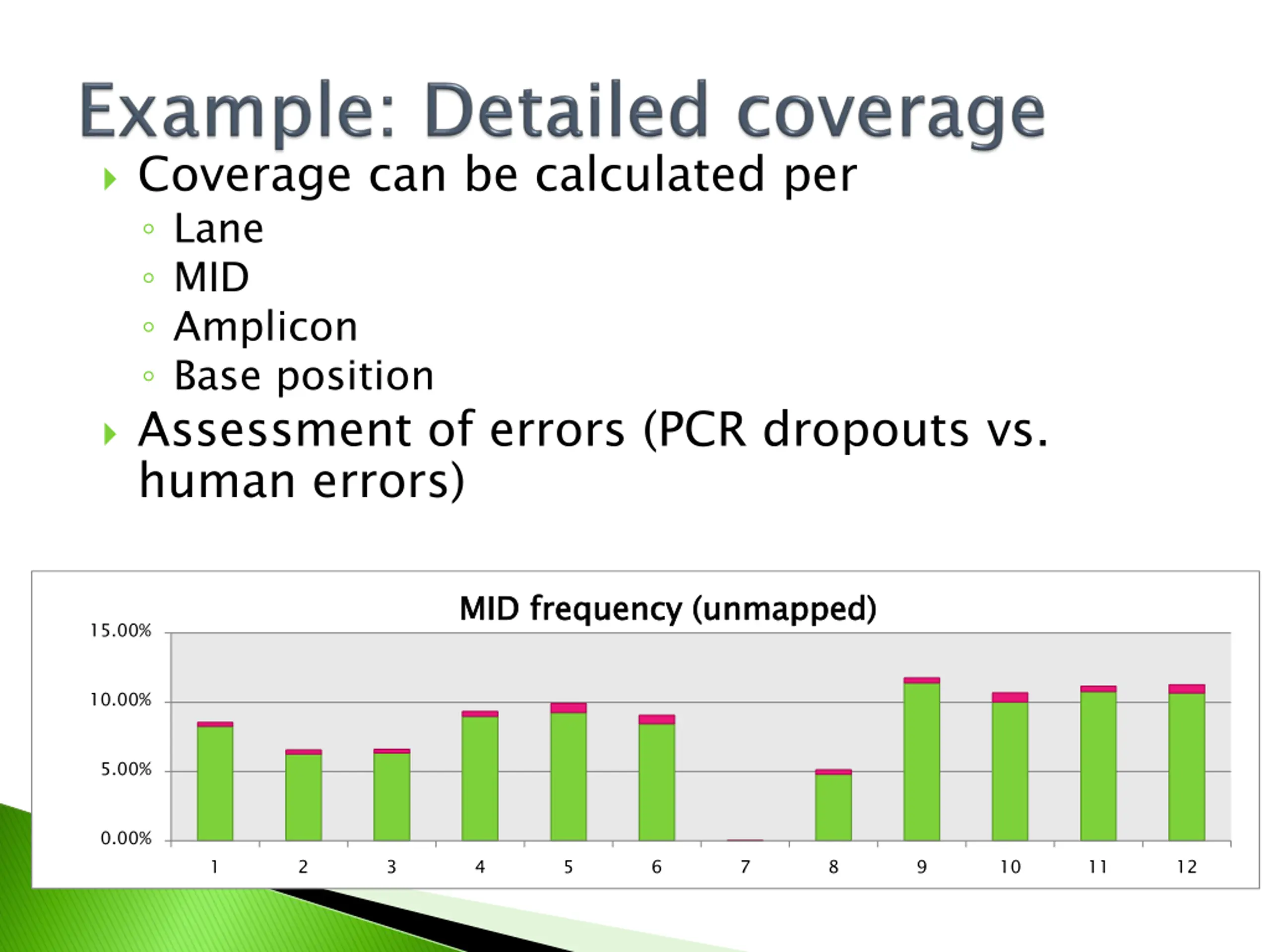

Coverage can be calculated per Lane MID Amplicon Base position Assessment of errors (PCR dropouts vs. human errors) MID MID frequency (unmapped) frequency (unmapped) 15.00% 10.00% 5.00% 0.00% 1 2 3 4 5 6 7 8 9 10 11 12

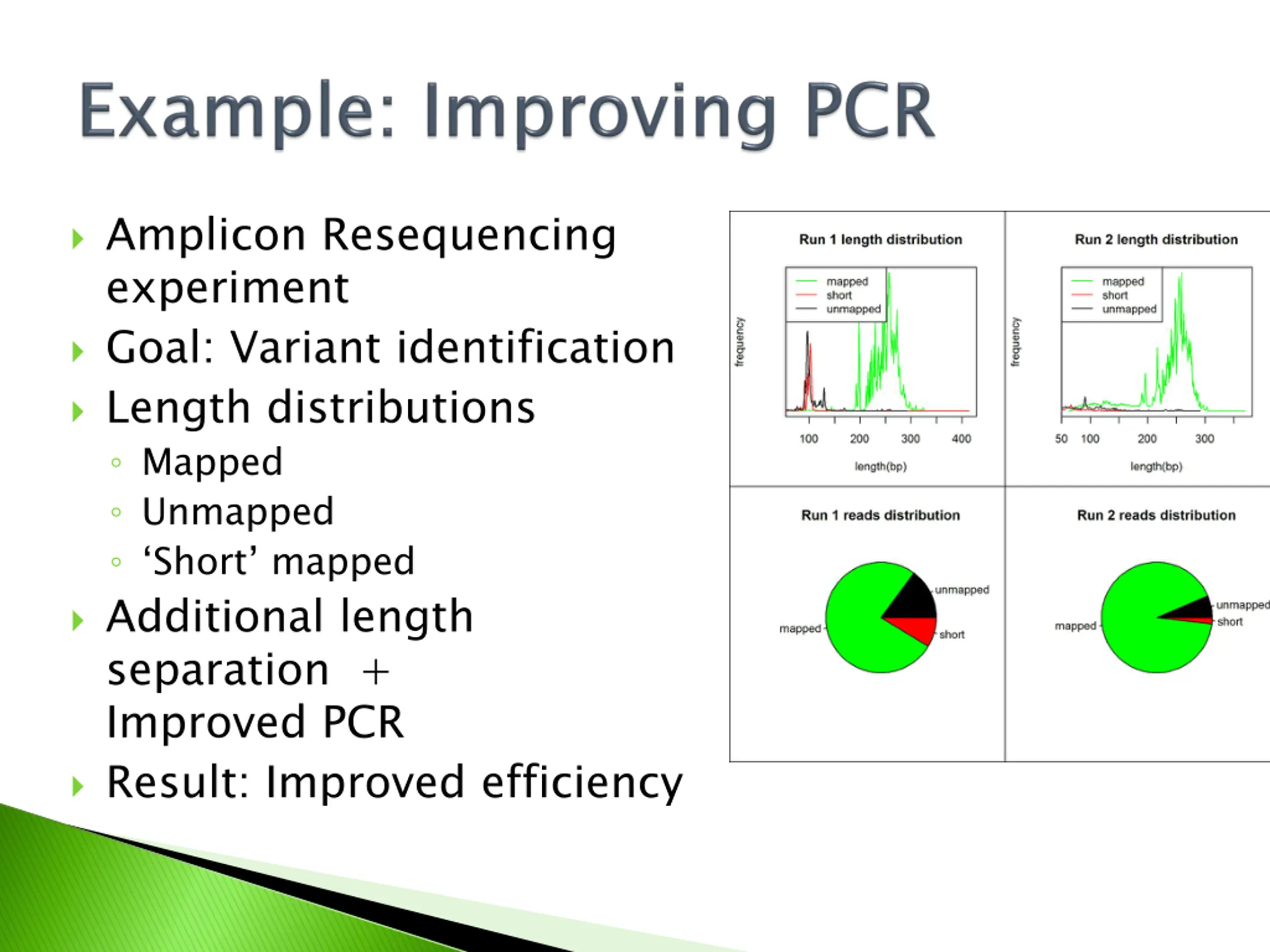

Amplicon Resequencing experiment Goal: Variant identification Length distributions Mapped Unmapped Short mapped Additional length separation + Improved PCR Result: Improved efficiency

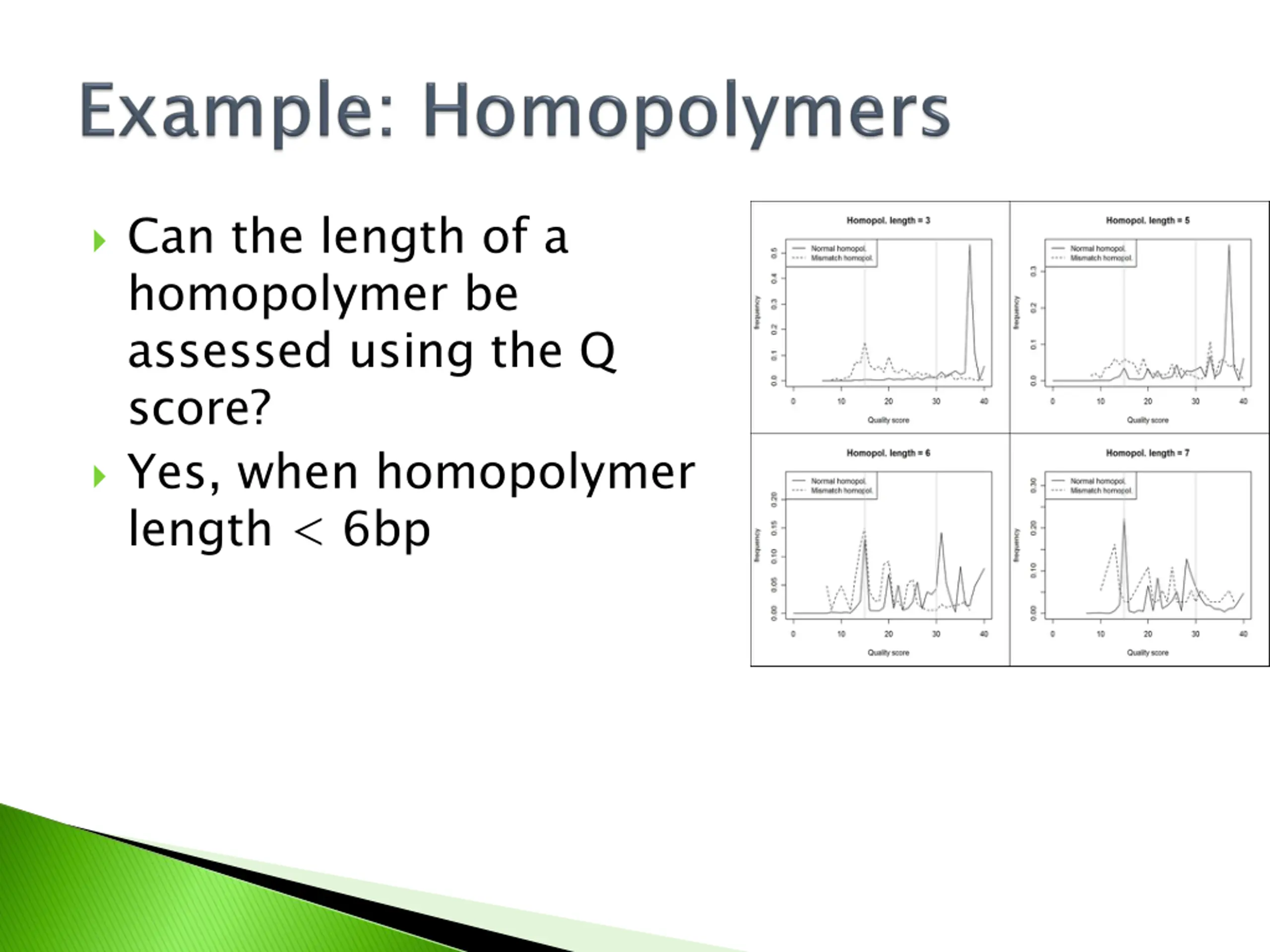

Can the length of a homopolymer be assessed using the Q score? Yes, when homopolymer length < 6bp

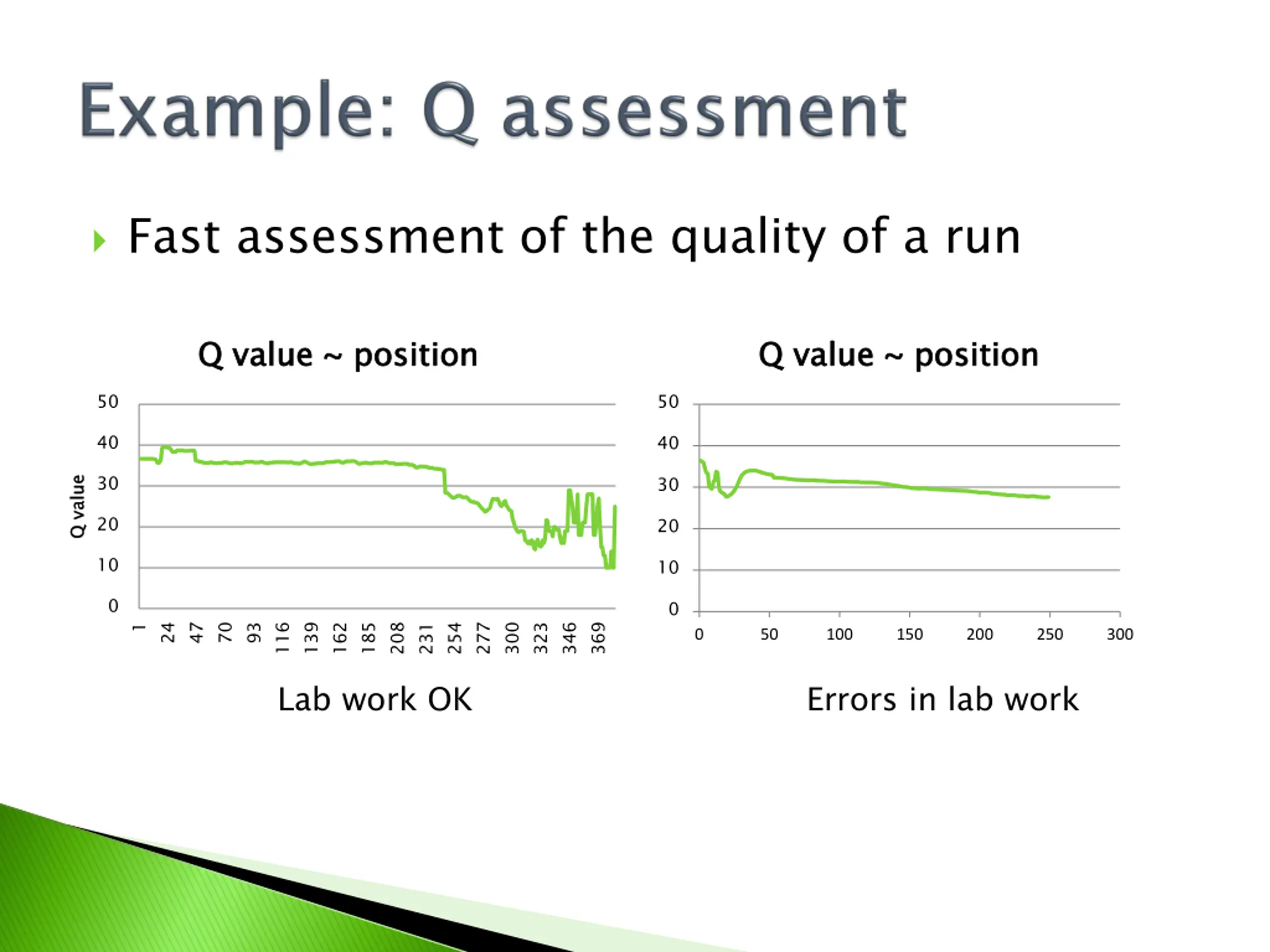

Fast assessment of the quality of a run Q value ~ position Q value ~ position Q value ~ position Q value ~ position 50 50 40 40 30 30 Q value Q value 20 20 10 10 0 0 24 47 70 93 1 116 139 162 185 208 231 254 277 300 323 346 369 0 50 100 150 200 250 300 Lab work OK Errors in lab work
Biobix Wim Van Criekinge Tim De Meyer Geert Trooskens Tom Vandekerkhove Leander Van Neste Gerben Mensschaert CMG UZ Gent Jo Vandesompele Jan Hellemans Filip Pattyn Steve Lefever Kim Deleeneer Jean-Pierre Renard Biobix Ugent Ugent NXT Paul Coucke Sofie Bekaert Filip Van Nieuwerburgh Dieter Deforce Wim Van Criekinge Jo Vandesompele NXT- -GNT GNT CMG UZ Gent

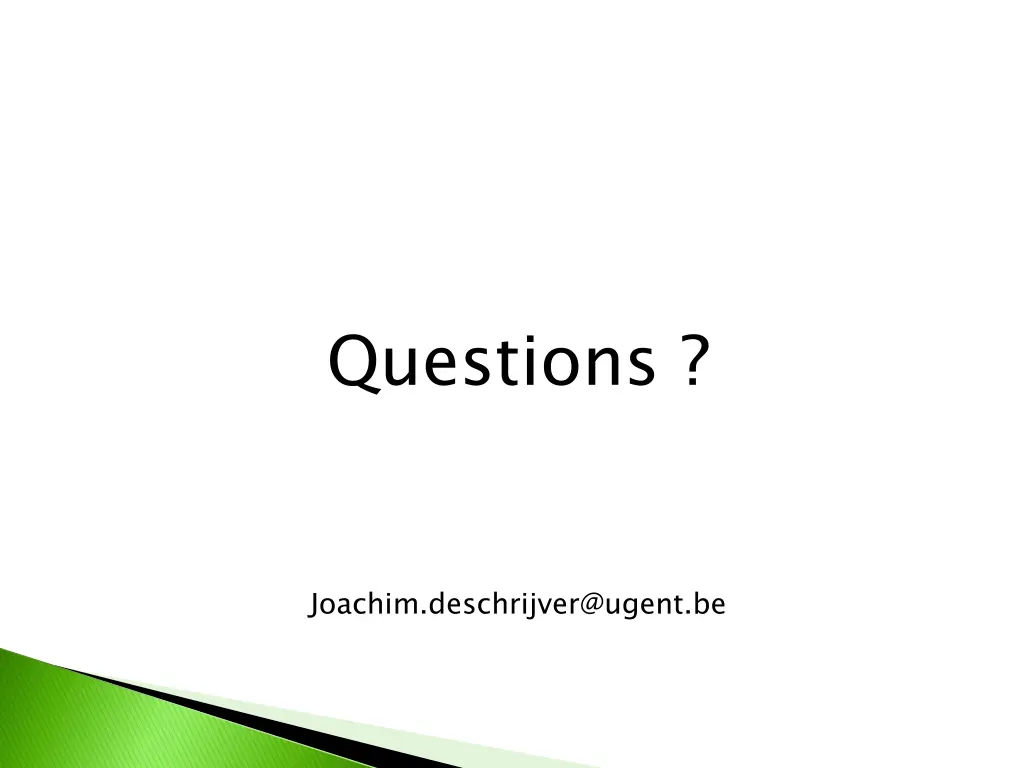

Questions ? Joachim.deschrijver@ugent.be
