Molecular Geometry Determination Based on Steric Number
Learn how to determine molecular geometry based on steric number. Understand the importance of electron groups and coordination number in predicting the shape of molecules. Explore different steric numbers and corresponding molecular geometries through detailed animations and examples.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

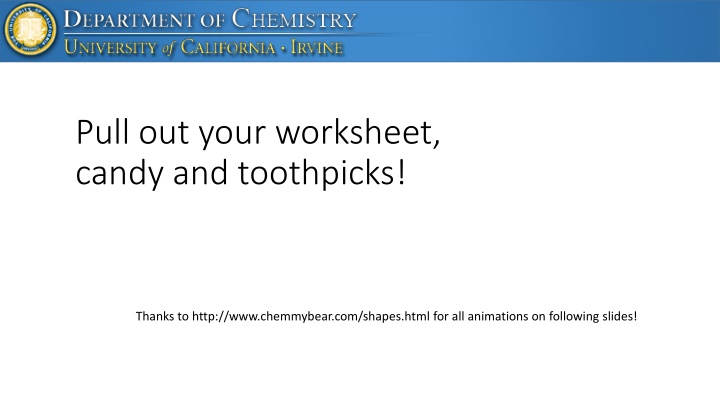

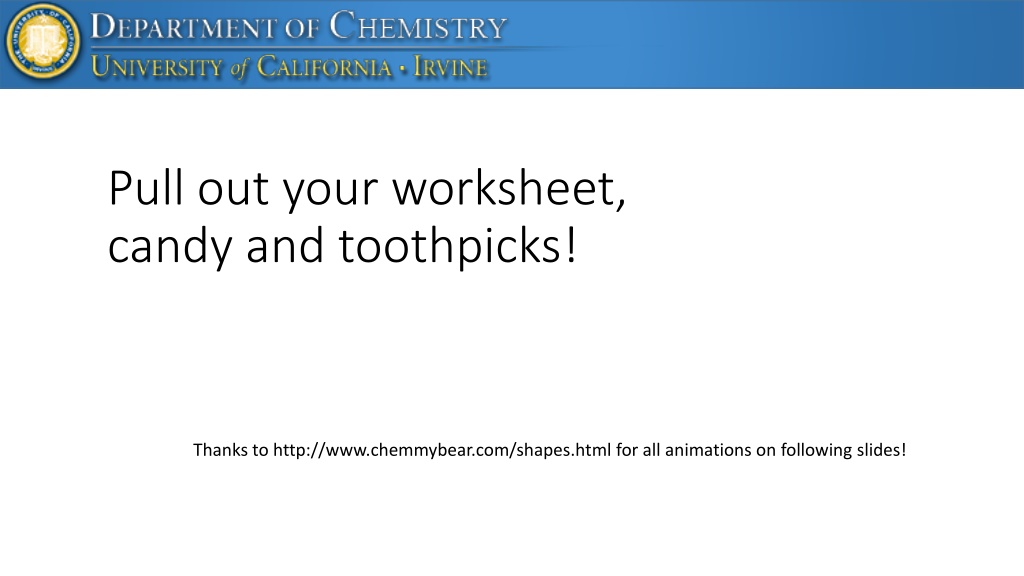

Pull out your worksheet, candy and toothpicks! Thanks to http://www.chemmybear.com/shapes.html for all animations on following slides!

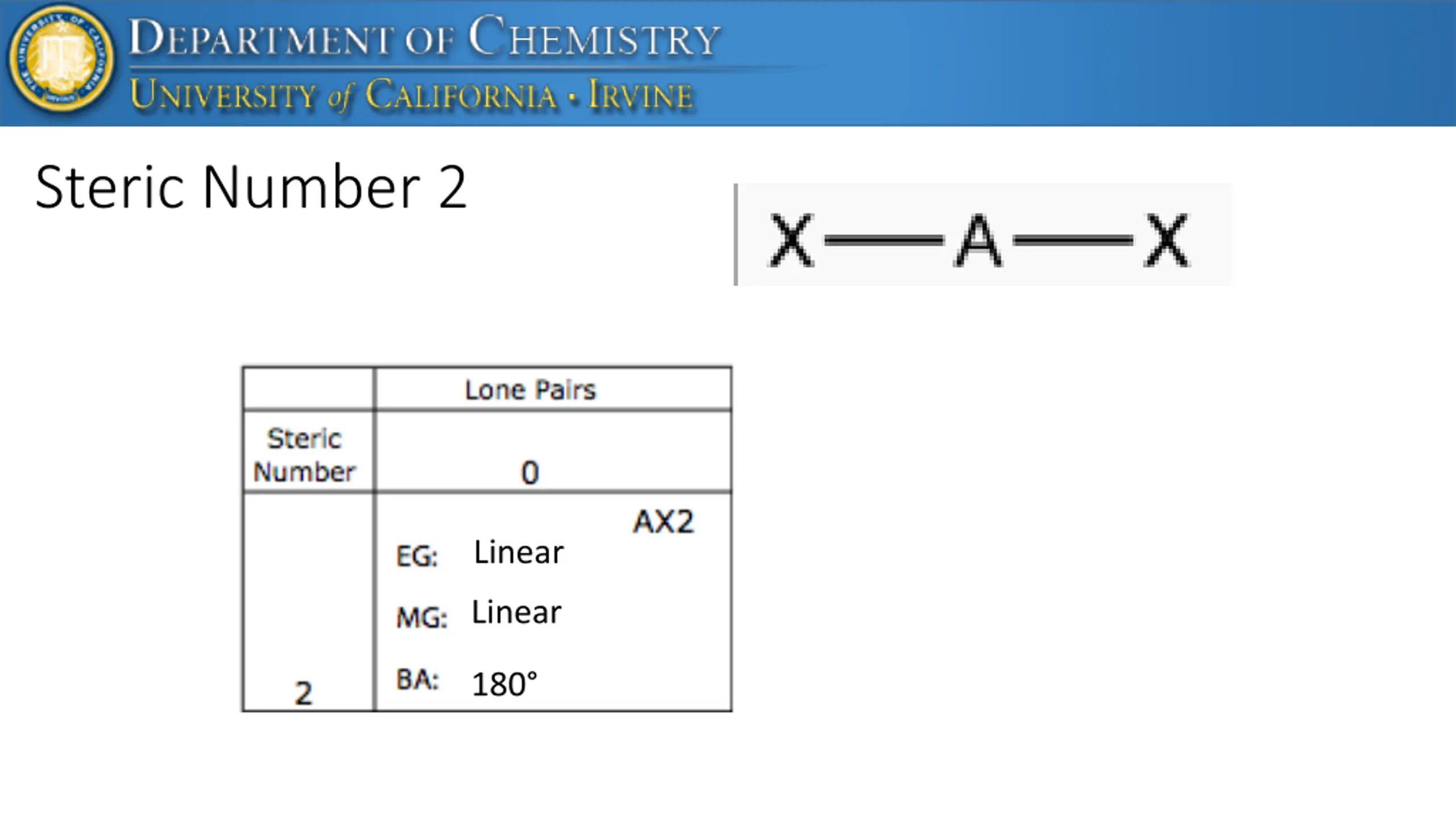

Steric Number 2 Linear Linear 180

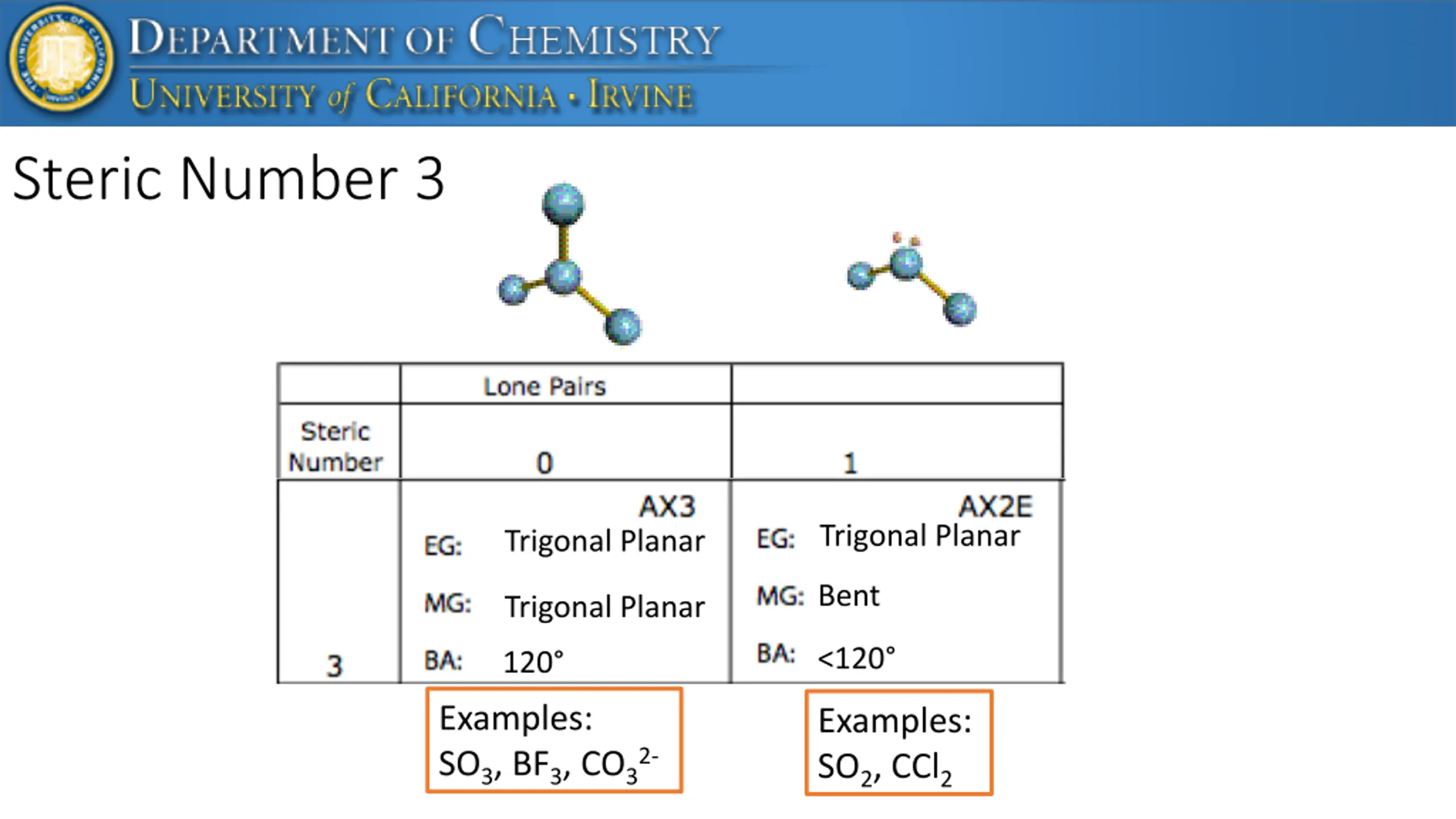

Steric Number 3 Trigonal Planar Trigonal Planar Bent Trigonal Planar <120 120 Examples: SO3, BF3, CO32- Examples: SO2, CCl2

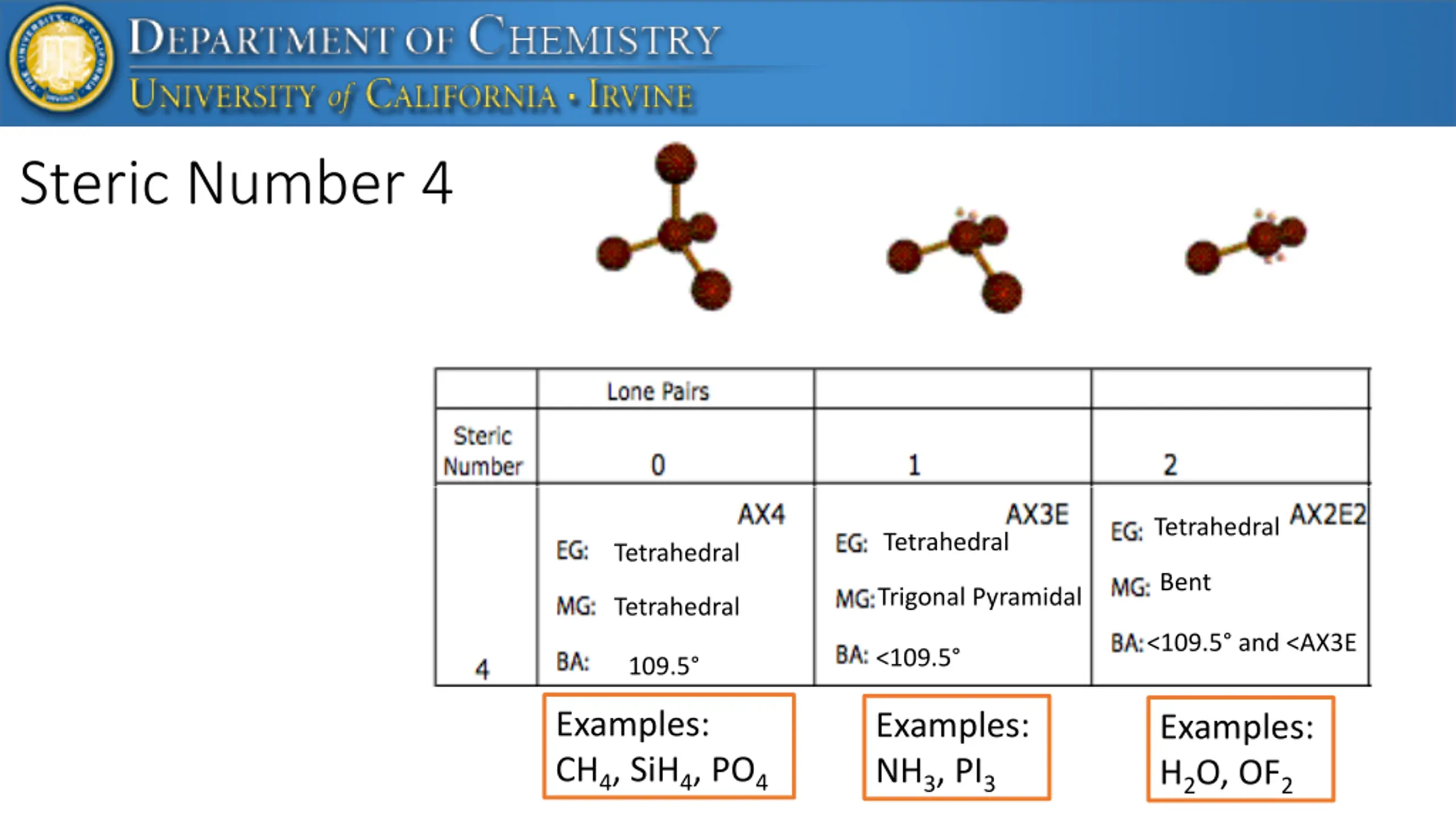

Steric Number 4 Tetrahedral Tetrahedral Tetrahedral Bent Trigonal Pyramidal Tetrahedral <109.5 and <AX3E <109.5 109.5 Examples: CH4, SiH4, PO4 Examples: NH3, PI3 Examples: H2O, OF2

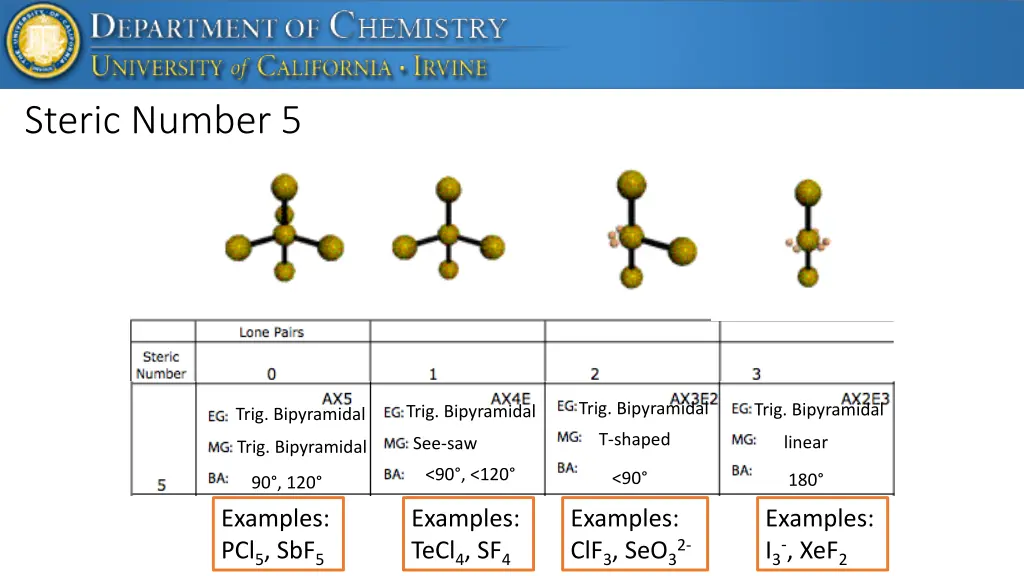

Steric Number 5 Trig. Bipyramidal Trig. Bipyramidal Trig. Bipyramidal Trig. Bipyramidal T-shaped linear See-saw Trig. Bipyramidal <90 , <120 <90 180 90 , 120 Examples: PCl5, SbF5 Examples: TeCl4, SF4 Examples: ClF3, SeO32- Examples: I3-, XeF2

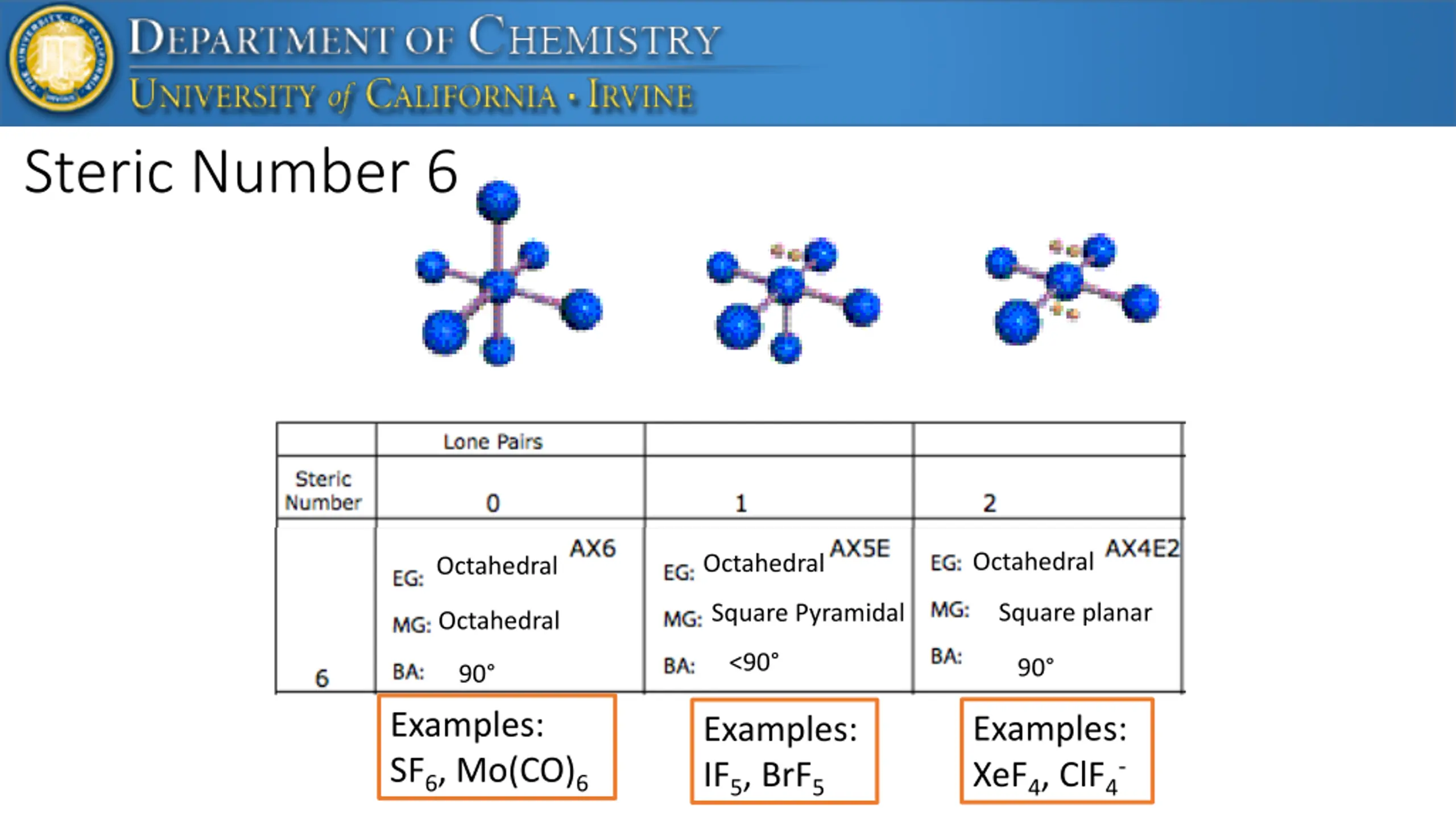

Steric Number 6 Octahedral Octahedral Octahedral Square planar Square Pyramidal Octahedral <90 90 90 Examples: SF6, Mo(CO)6 Examples: XeF4, ClF4- Examples: IF5, BrF5

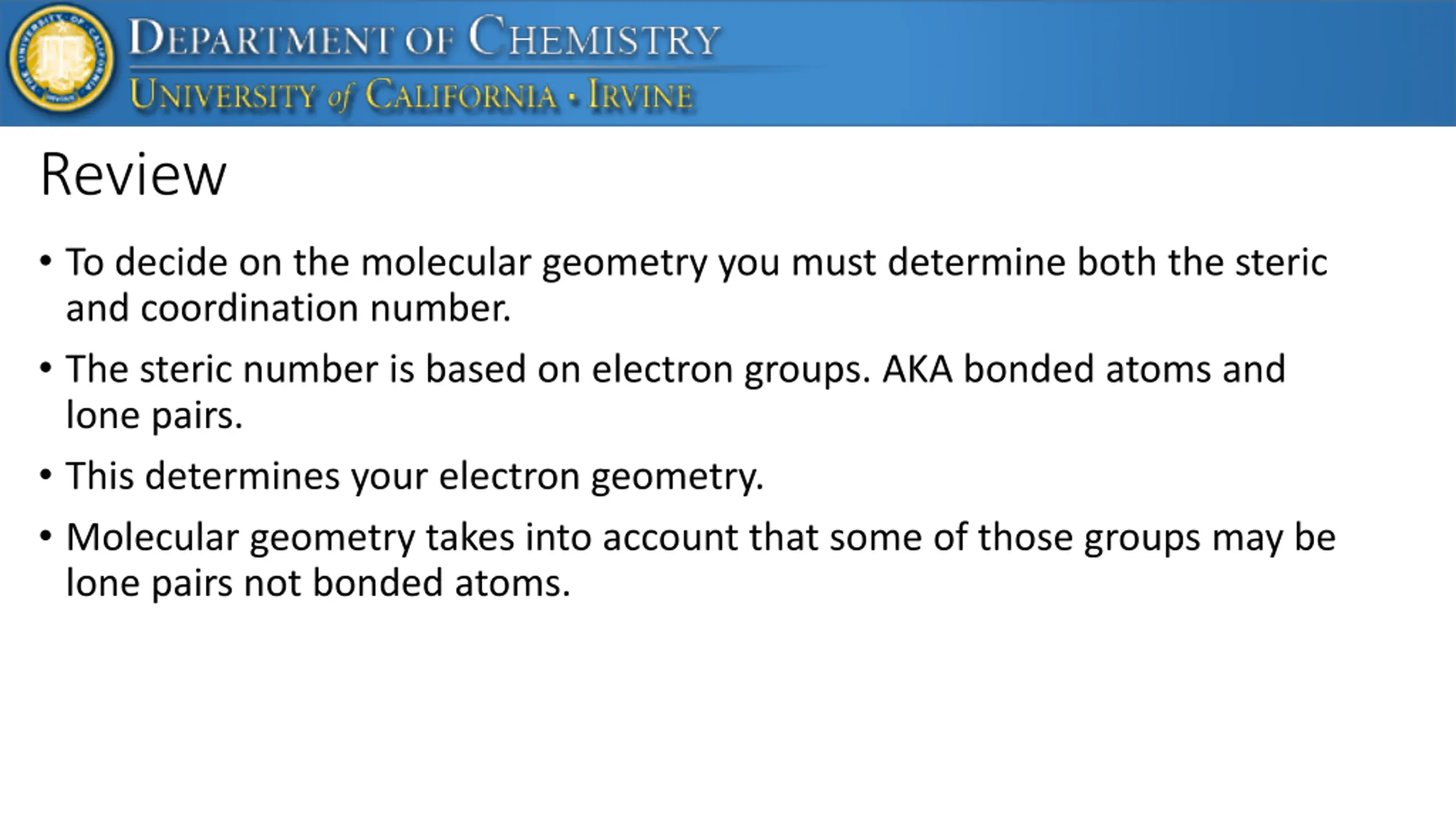

Review To decide on the molecular geometry you must determine both the steric and coordination number. The steric number is based on electron groups. AKA bonded atoms and lone pairs. This determines your electron geometry. Molecular geometry takes into account that some of those groups may be lone pairs not bonded atoms.
