Monitoring and Control for Reliability, Resilience, and Security
Maintaining reliability of the Bulk Electric System (BES) involves accurately monitoring system conditions in real-time and taking control actions as needed to ensure stability and security. Challenges such as loss of monitoring/control and lack of definitions can impact operations. The ability to assess frequency, generator status, operating reserves, power flows, and voltage profiles is crucial for effective monitoring and control. Control actions may include adjusting voltage profiles, managing facility line flows, and responding to unplanned events to uphold BES reliability. This document outlines the importance of monitoring and control in ensuring the reliability, resilience, and security of the BES.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

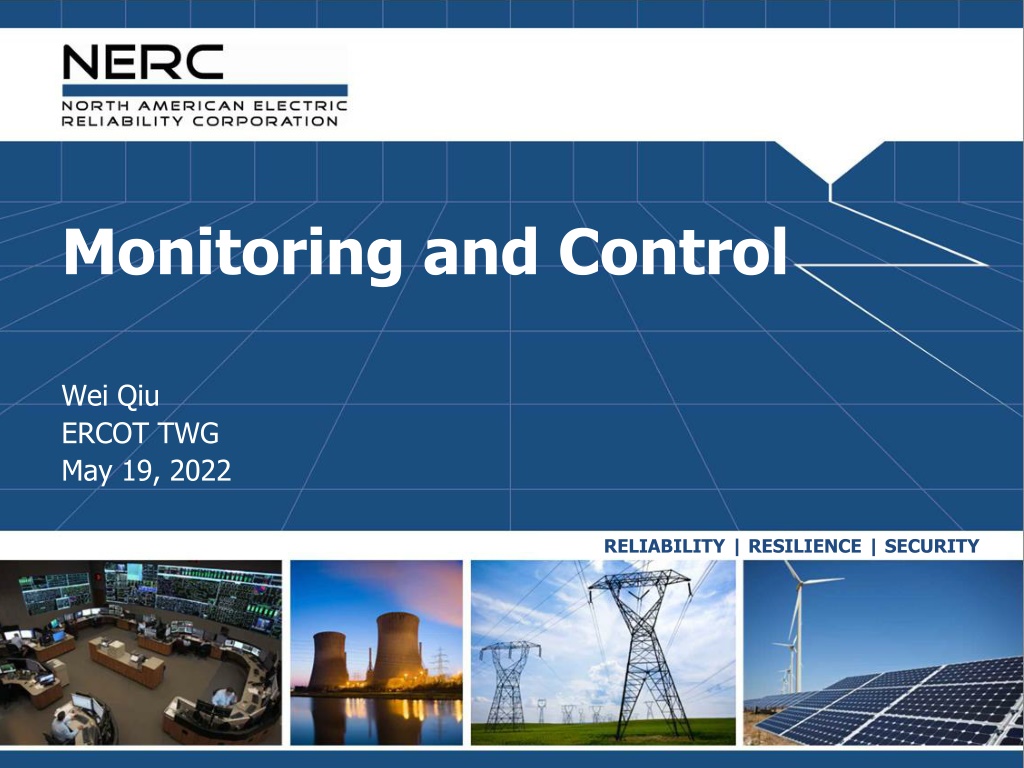

Monitoring and Control Wei Qiu ERCOT TWG May 19, 2022 RELIABILITY | RESILIENCE | SECURITY

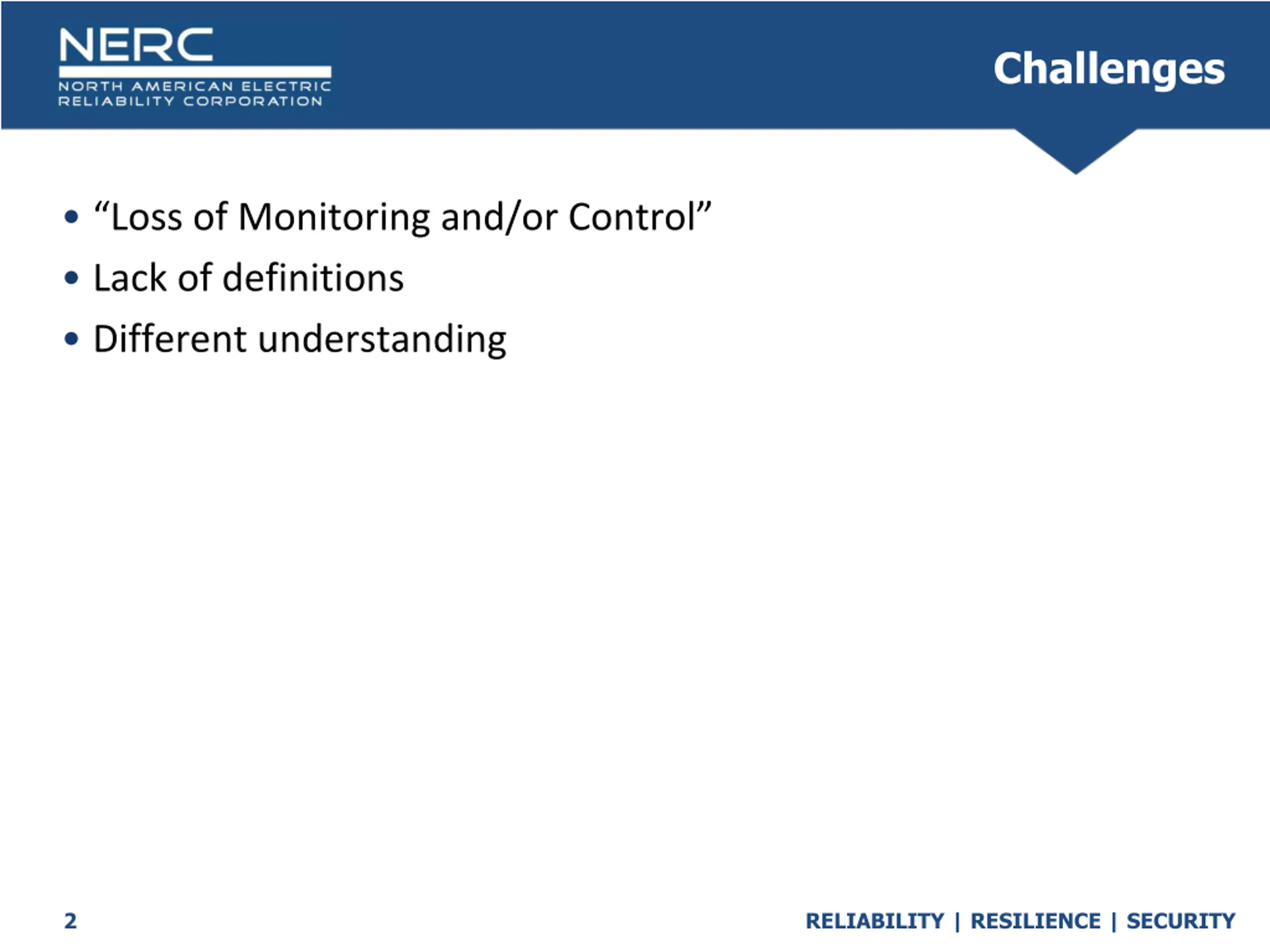

Challenges Loss of Monitoring and/or Control Lack of definitions Different understanding 2 RELIABILITY | RESILIENCE | SECURITY

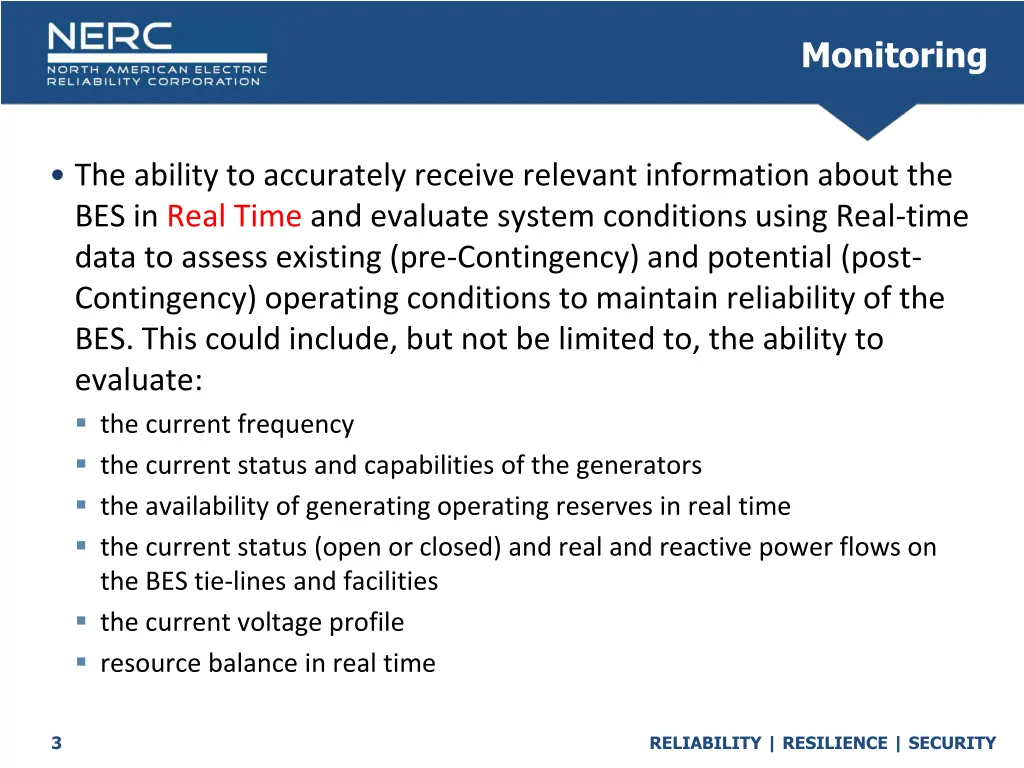

Monitoring The ability to accurately receive relevant information about the BES in Real Time and evaluate system conditions using Real-time data to assess existing (pre-Contingency) and potential (post- Contingency) operating conditions to maintain reliability of the BES. This could include, but not be limited to, the ability to evaluate: the current frequency the current status and capabilities of the generators the availability of generating operating reserves in real time the current status (open or closed) and real and reactive power flows on the BES tie-lines and facilities the current voltage profile resource balance in real time 3 RELIABILITY | RESILIENCE | SECURITY

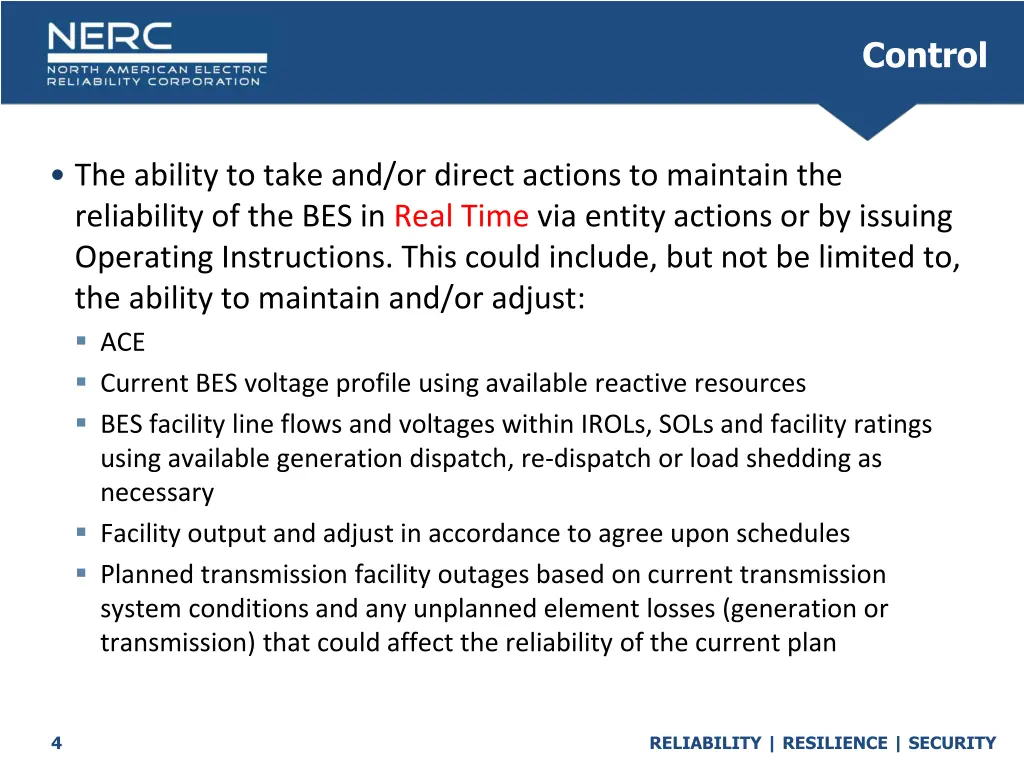

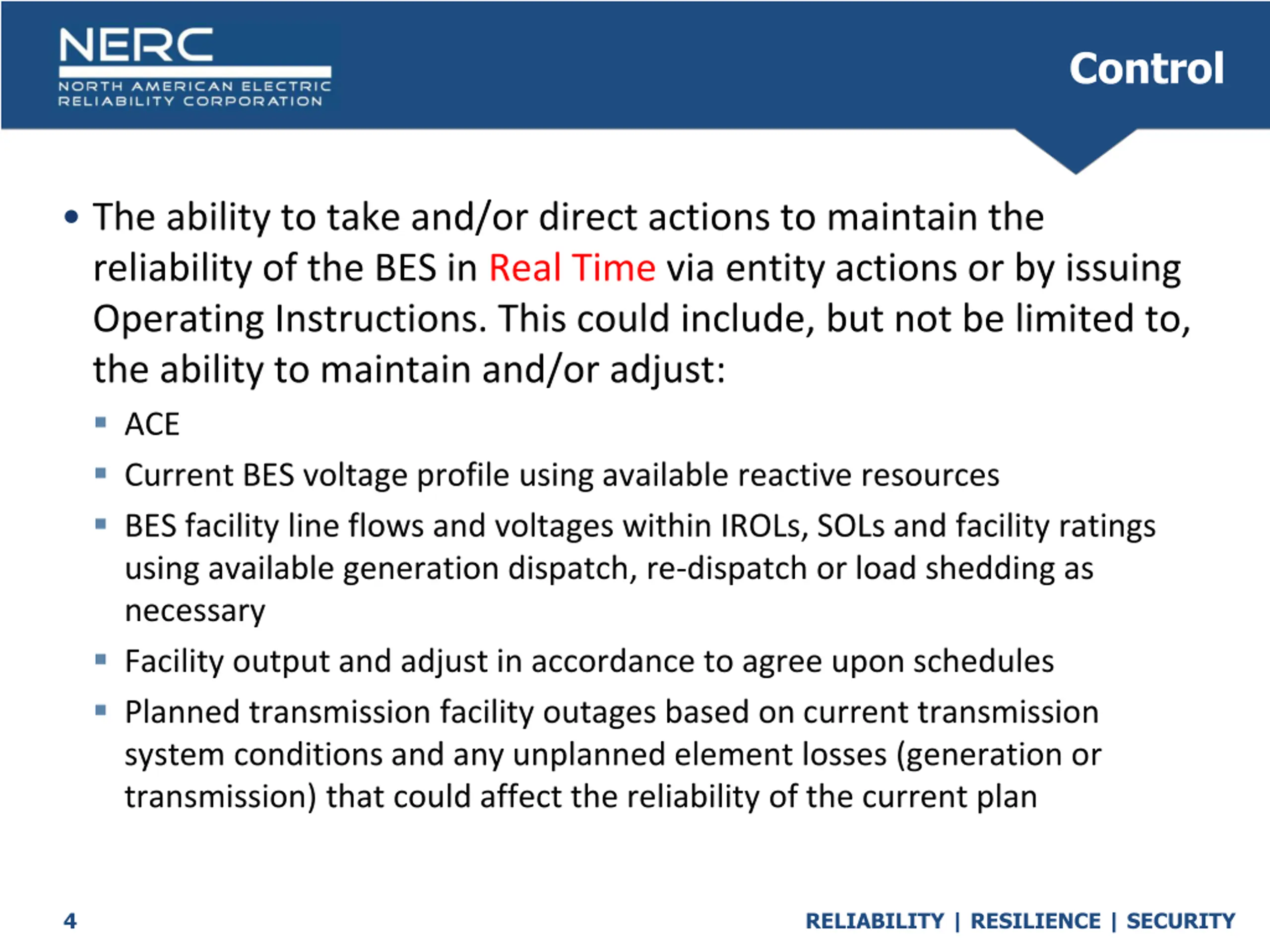

Control The ability to take and/or direct actions to maintain the reliability of the BES in Real Time via entity actions or by issuing Operating Instructions. This could include, but not be limited to, the ability to maintain and/or adjust: ACE Current BES voltage profile using available reactive resources BES facility line flows and voltages within IROLs, SOLs and facility ratings using available generation dispatch, re-dispatch or load shedding as necessary Facility output and adjust in accordance to agree upon schedules Planned transmission facility outages based on current transmission system conditions and any unplanned element losses (generation or transmission) that could affect the reliability of the current plan 4 RELIABILITY | RESILIENCE | SECURITY

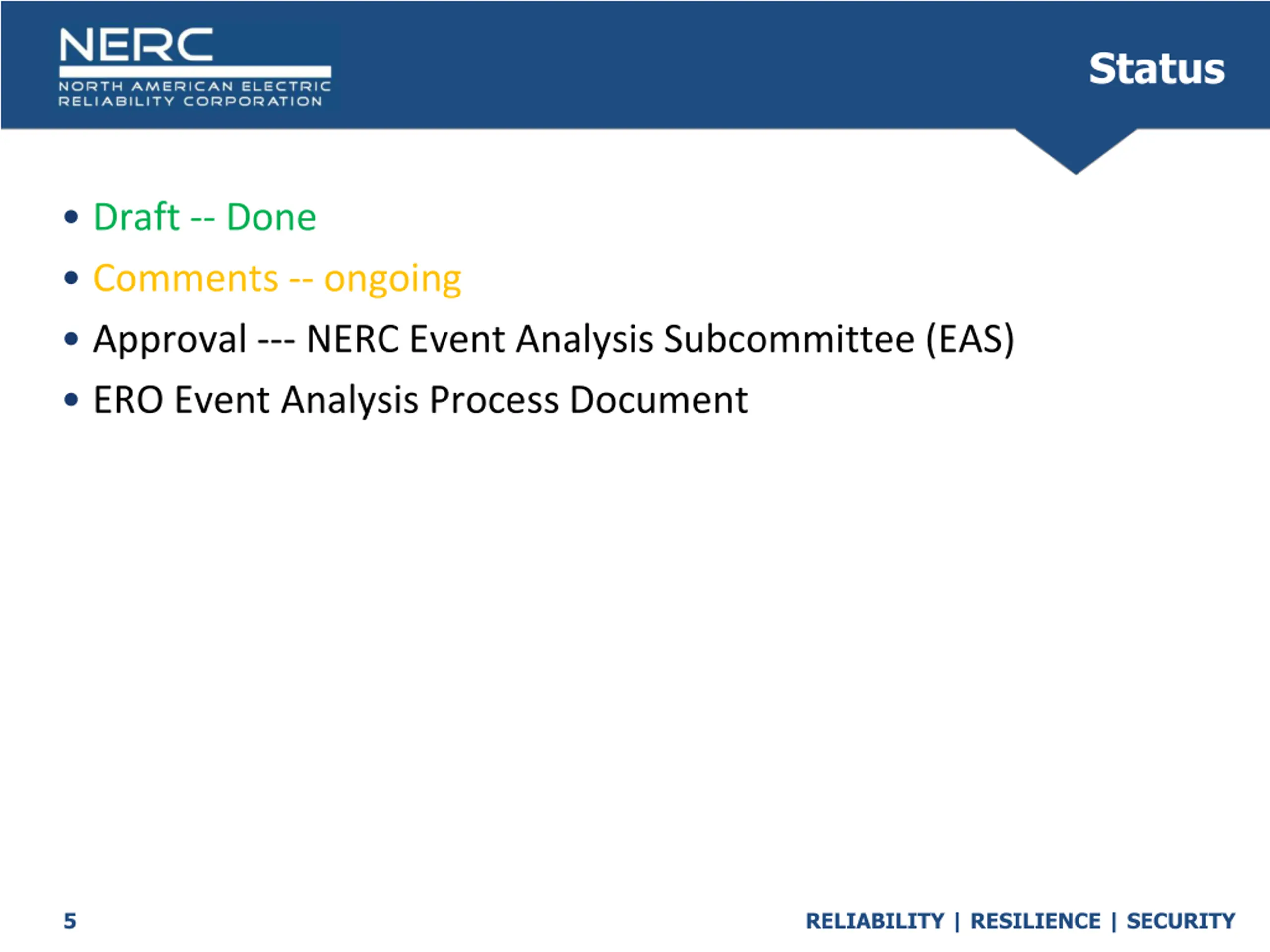

Status Draft -- Done Comments -- ongoing Approval --- NERC Event Analysis Subcommittee (EAS) ERO Event Analysis Process Document 5 RELIABILITY | RESILIENCE | SECURITY

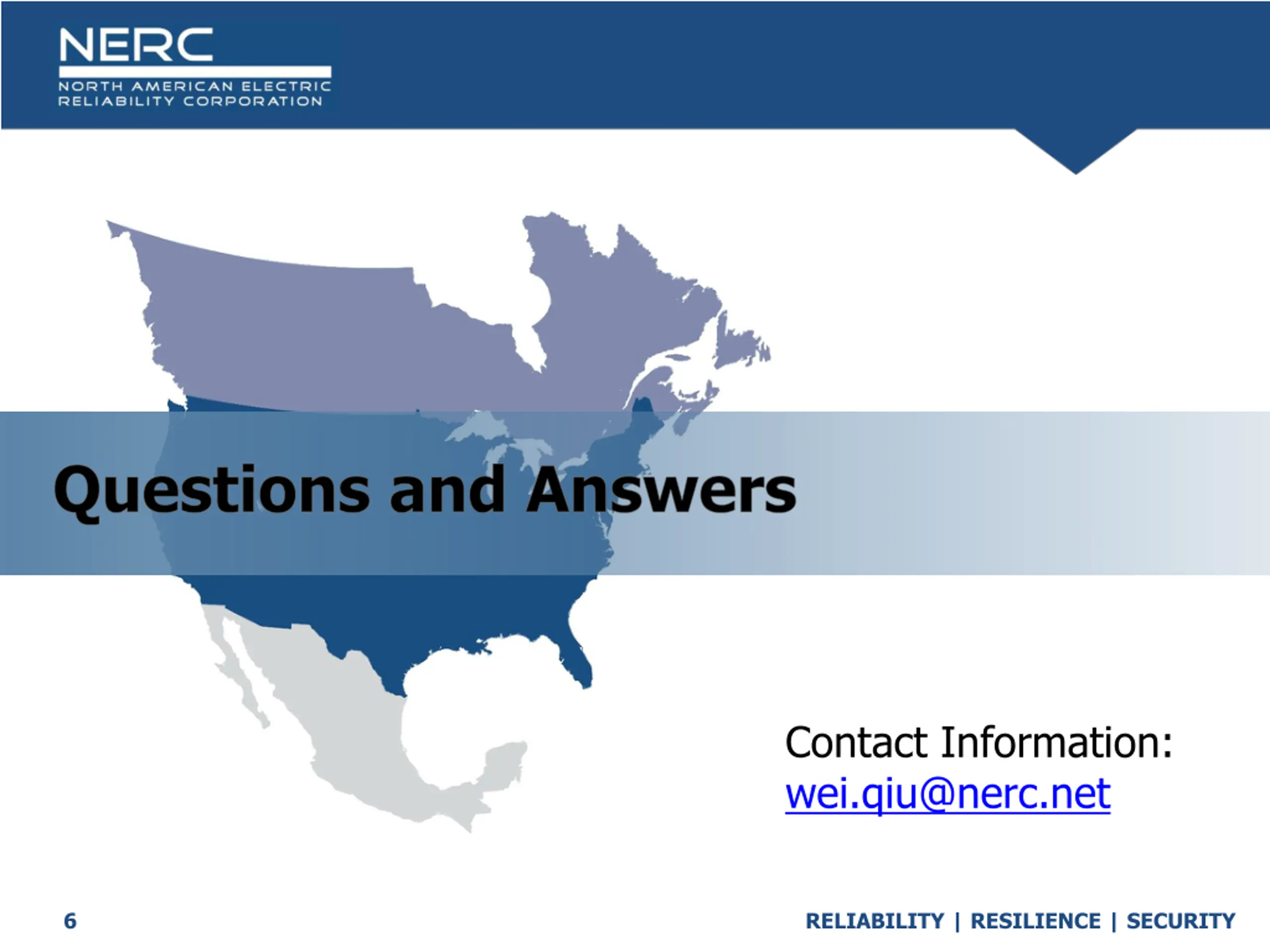

Questions and Answers Contact Information: wei.qiu@nerc.net 6 RELIABILITY | RESILIENCE | SECURITY
