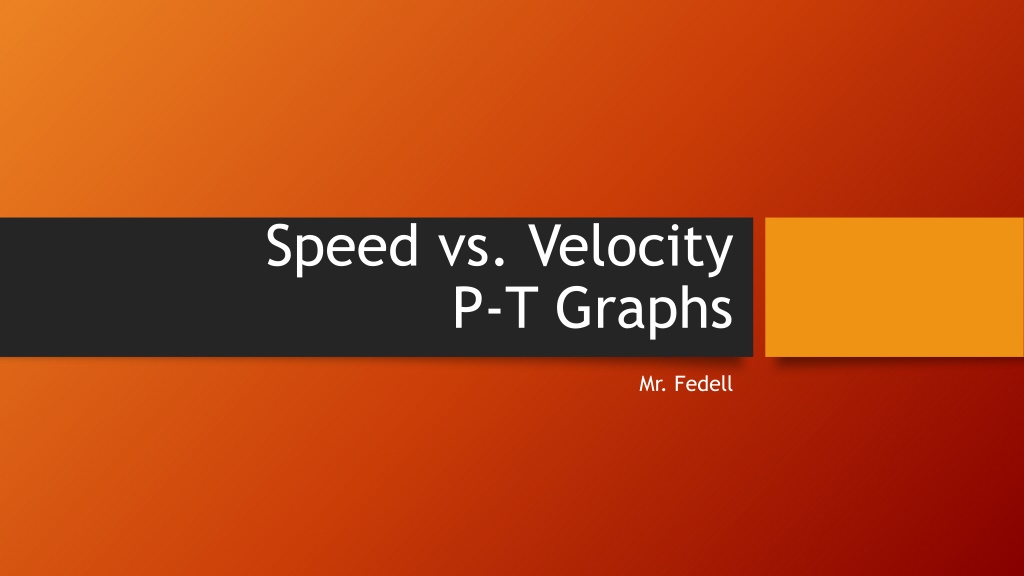

Speed vs. Velocity P-T Graphs Mr. Fedell

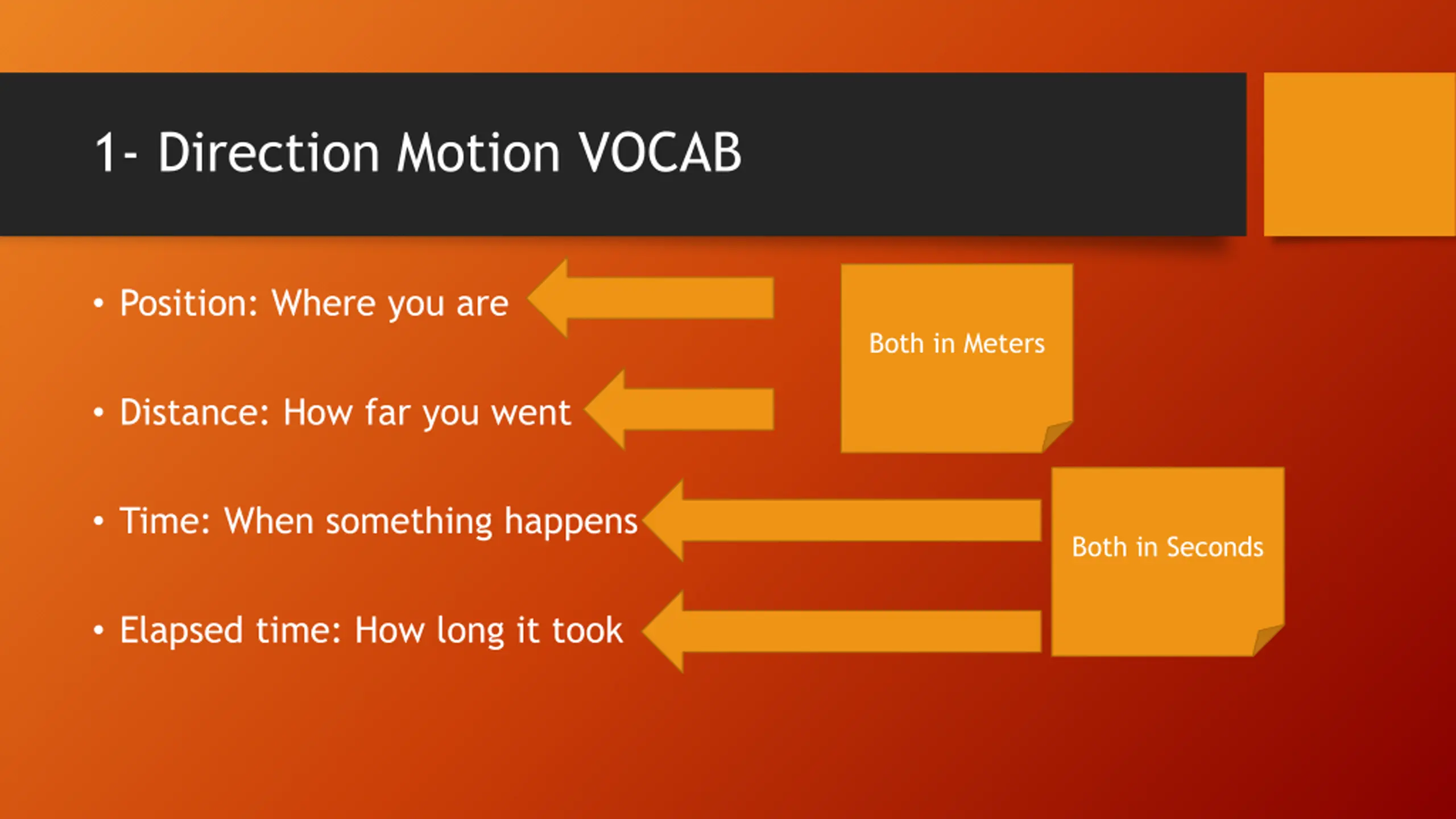

1- Direction Motion VOCAB Position: Where you are Both in Meters Distance: How far you went Time: When something happens Both in Seconds Elapsed time: How long it took
Distance vs. Displacement Total Distance = ________m - How far you go in any direction - Direction doesn t matter - Can never be NEGATIVE! Displacement = ________m - Final position & starting position - Direction DOES matter - Can be negative

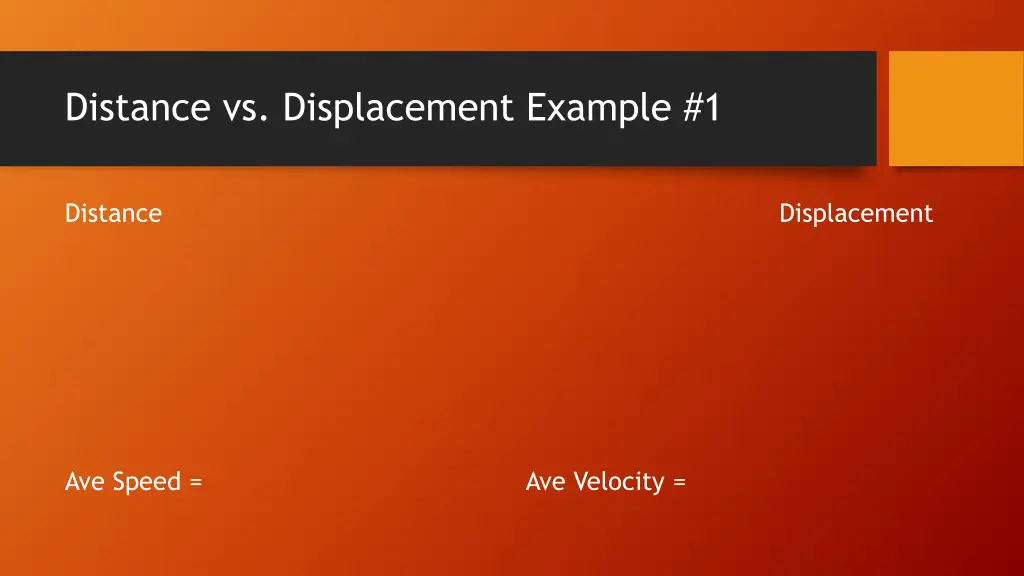

Distance vs. Displacement Example #1 Distance Displacement Ave Speed = Ave Velocity =

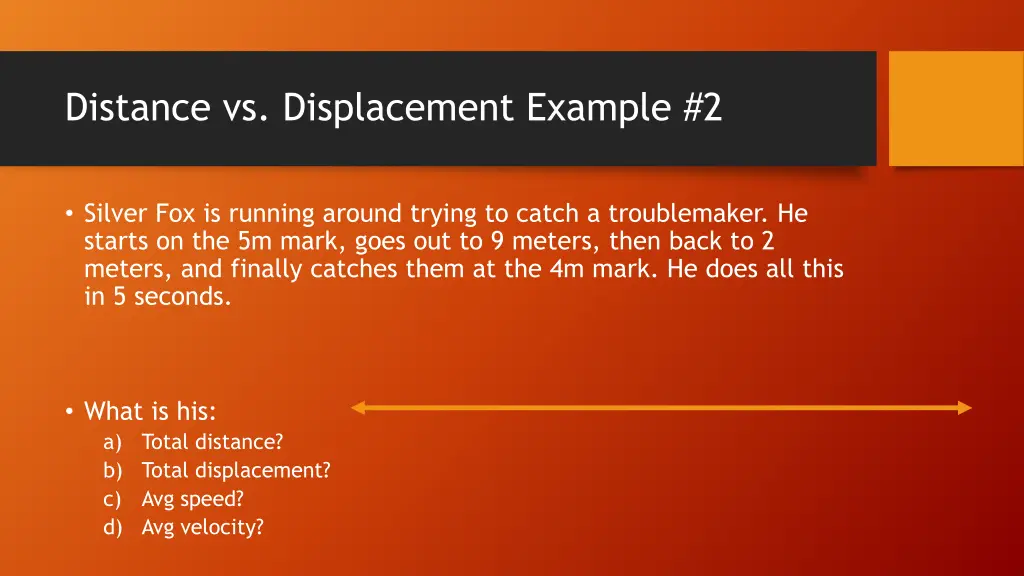

Distance vs. Displacement Example #2 Silver Fox is running around trying to catch a troublemaker. He starts on the 5m mark, goes out to 9 meters, then back to 2 meters, and finally catches them at the 4m mark. He does all this in 5 seconds. What is his: a) b) Total displacement? c) Avg speed? d) Avg velocity? Total distance?
Substituted Equation 1. Start with y=mx + b form 2. Get rid of (y) and (x) 3. Replace them with letters from the experiment 4. Keep the numbers the same

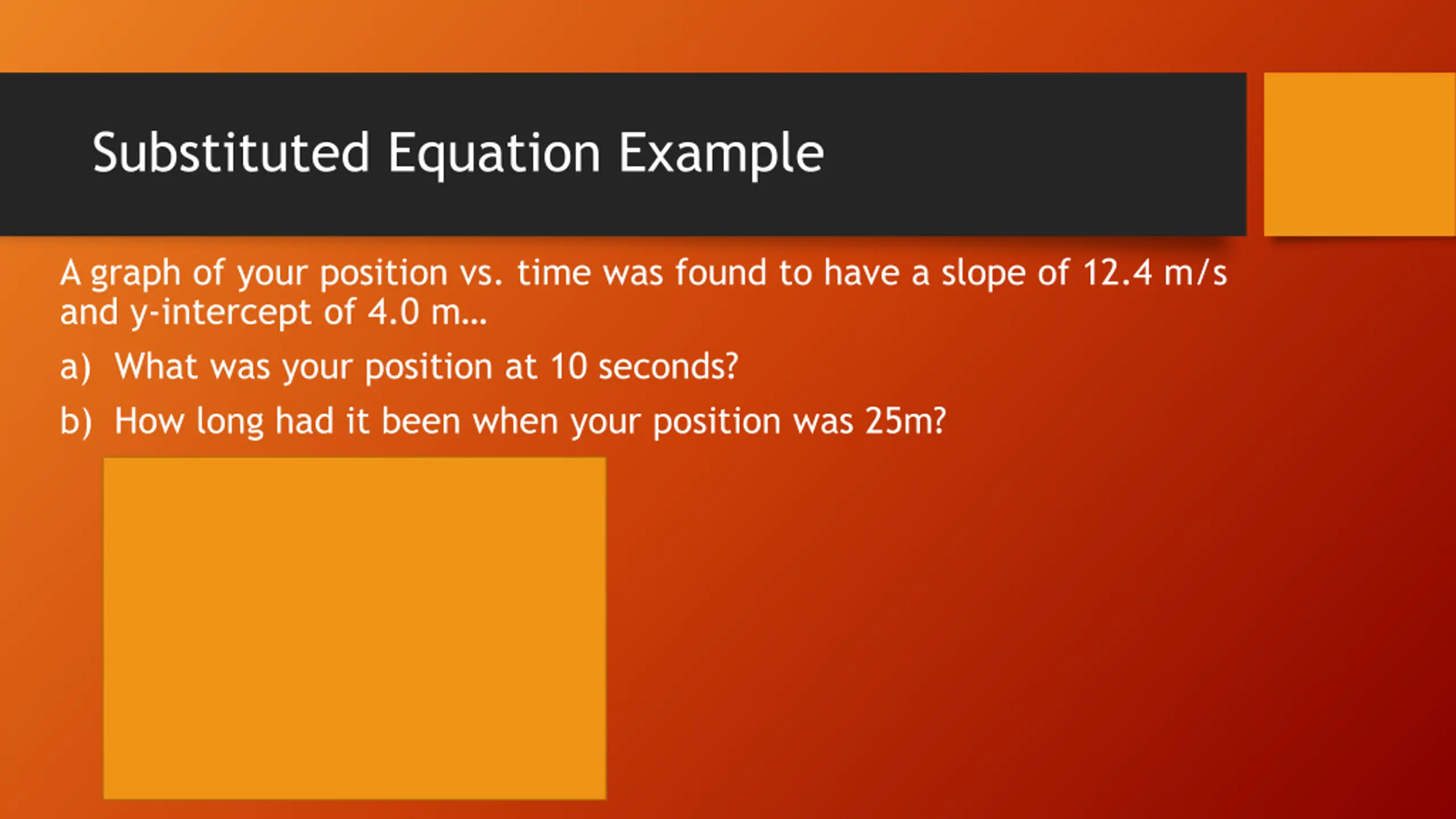

Substituted Equation Example A graph of your position vs. time was found to have a slope of 12.4 m/s and y-intercept of 4.0 m a) What was your position at 10 seconds? b) How long had it been when your position was 25m?

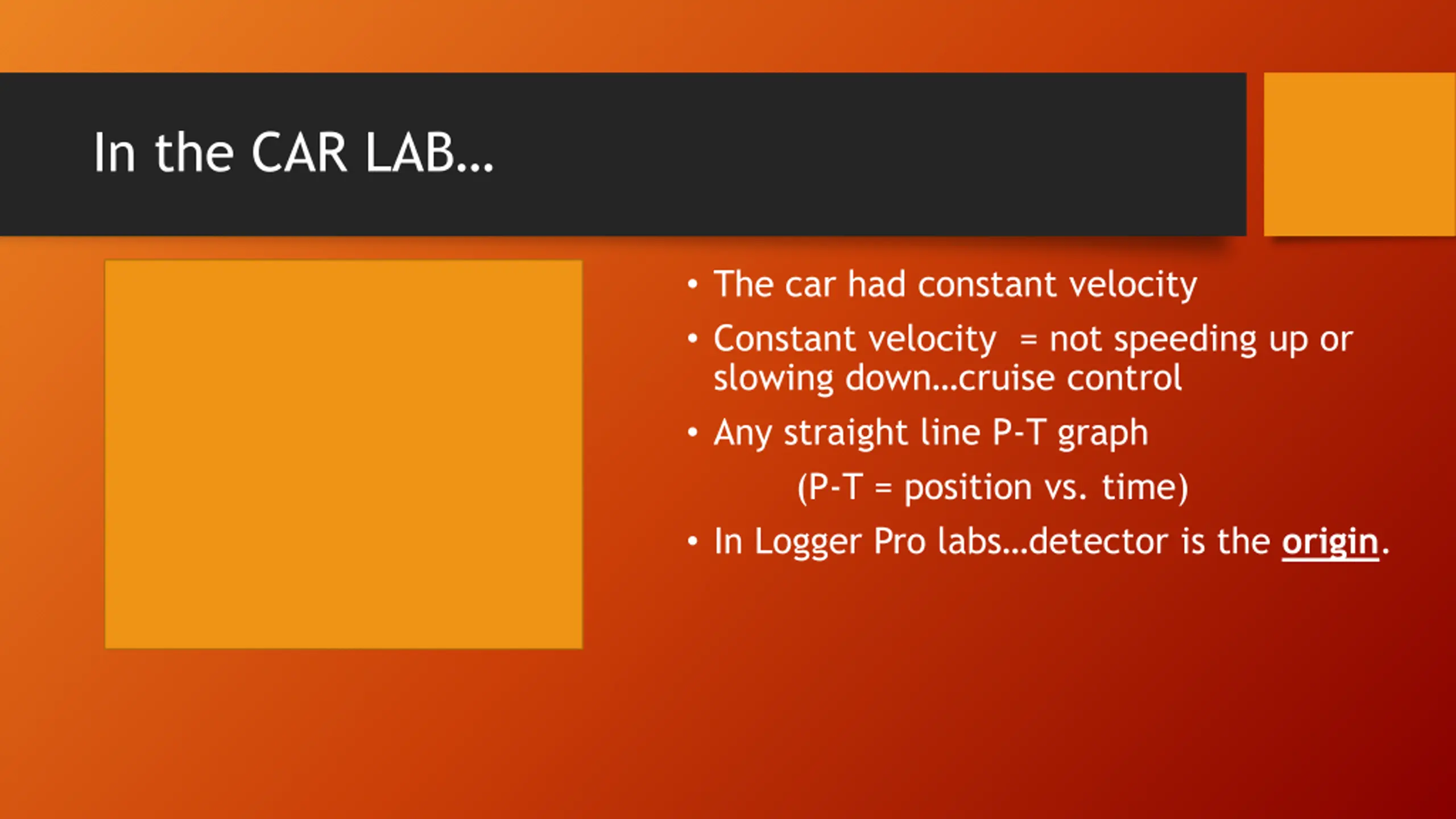

In the CAR LAB The car had constant velocity Constant velocity = not speeding up or slowing down cruise control Any straight line P-T graph (P-T = position vs. time) In Logger Pro labs detector is the origin.

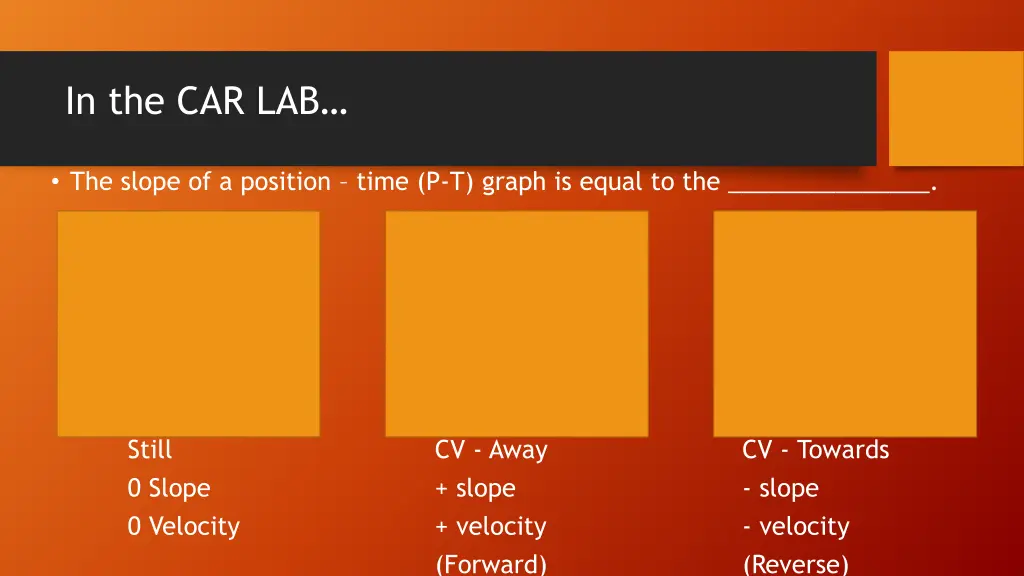

In the CAR LAB The slope of a position time (P-T) graph is equal to the _______________. Still 0 Slope 0 Velocity CV - Away + slope + velocity (Forward) CV - Towards - slope - velocity (Reverse)

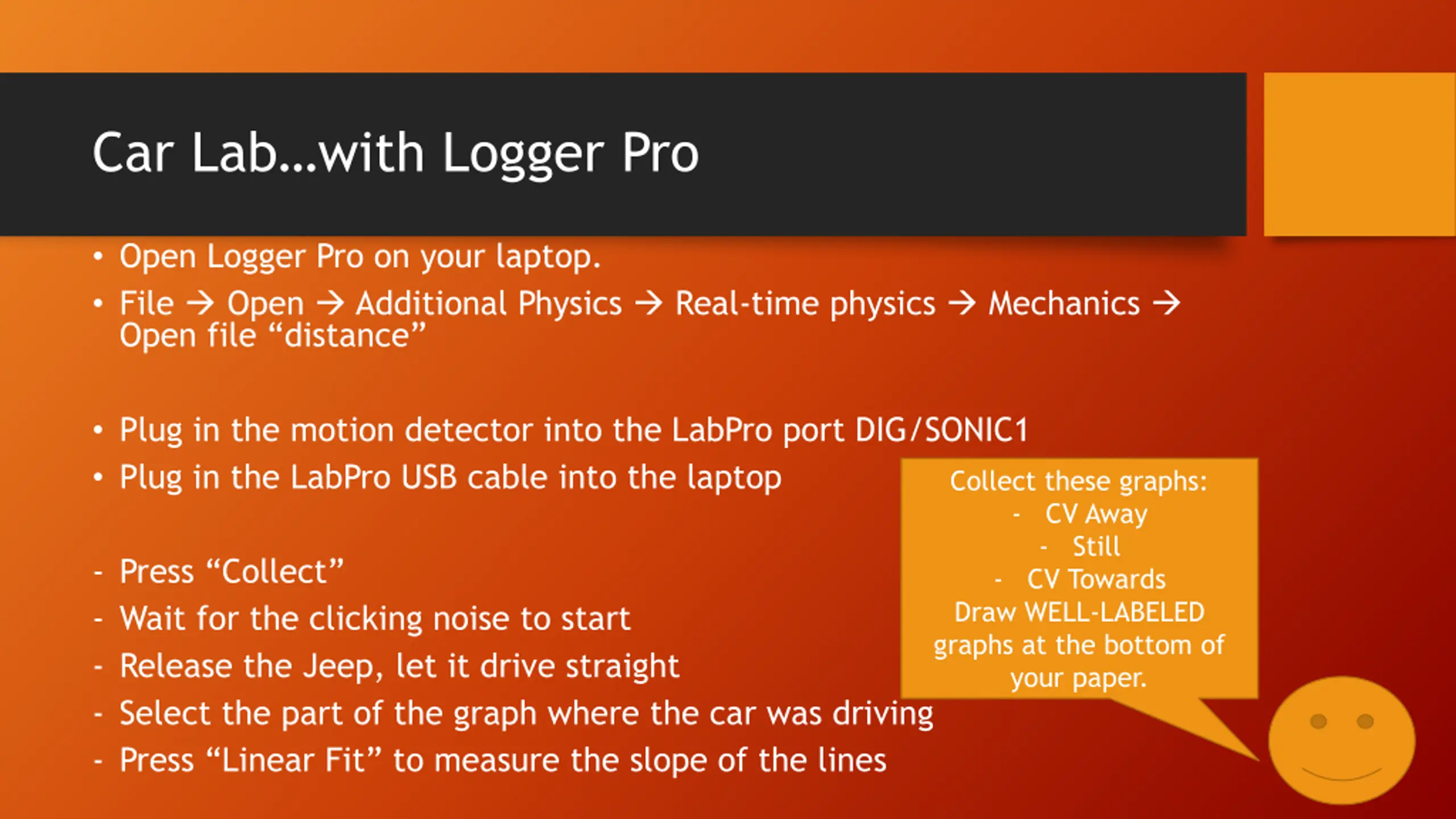

Car Labwith Logger Pro Open Logger Pro on your laptop. File Open Additional Physics Real-time physics Mechanics Open file distance Plug in the motion detector into the LabPro port DIG/SONIC1 Plug in the LabPro USB cable into the laptop Collect these graphs: - CV Away - Still - CV Towards Draw WELL-LABELED graphs at the bottom of your paper. - Press Collect - Wait for the clicking noise to start - Release the Jeep, let it drive straight - Select the part of the graph where the car was driving - Press Linear Fit to measure the slope of the lines

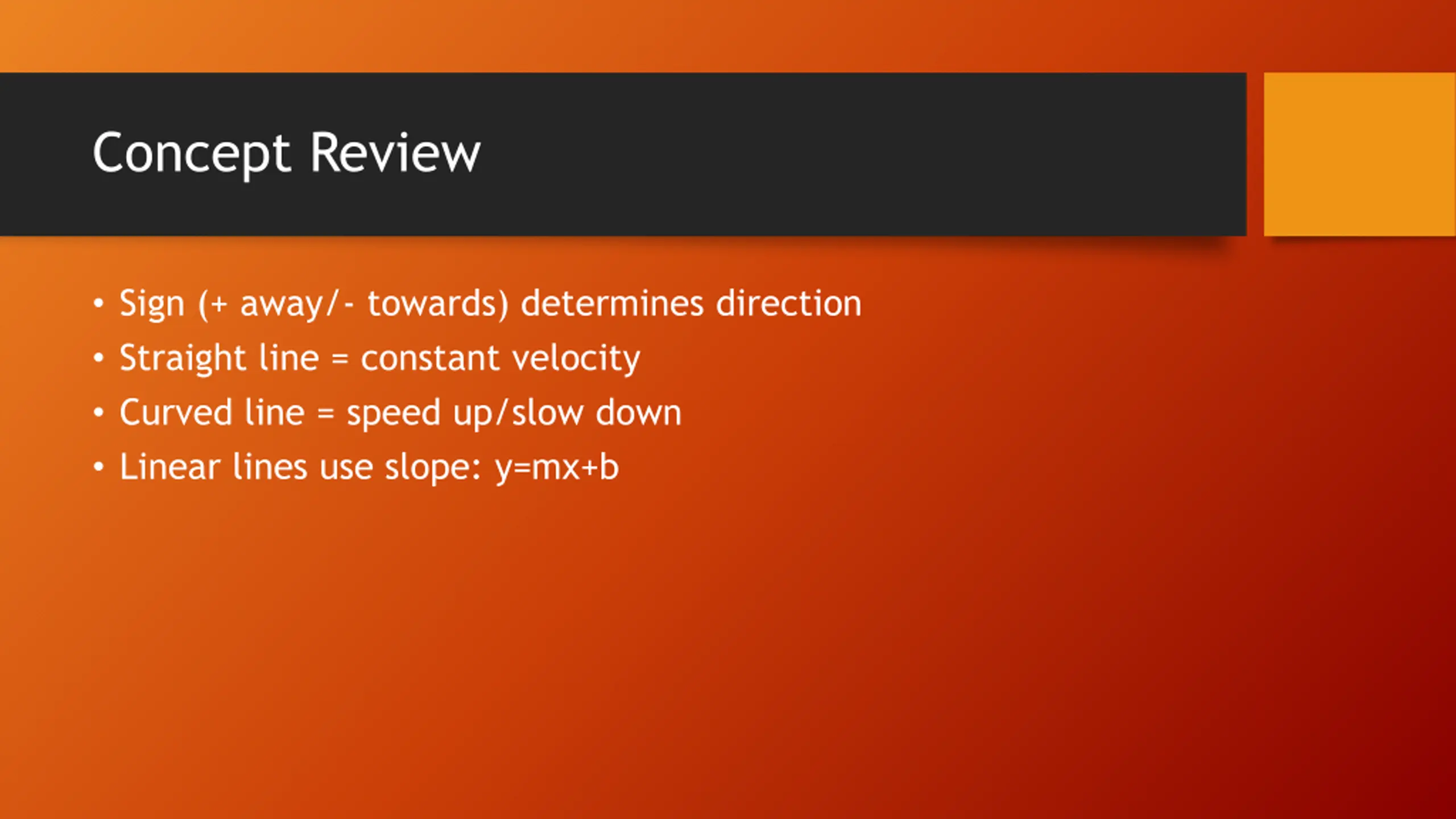

Concept Review Sign (+ away/- towards) determines direction Straight line = constant velocity Curved line = speed up/slow down Linear lines use slope: y=mx+b

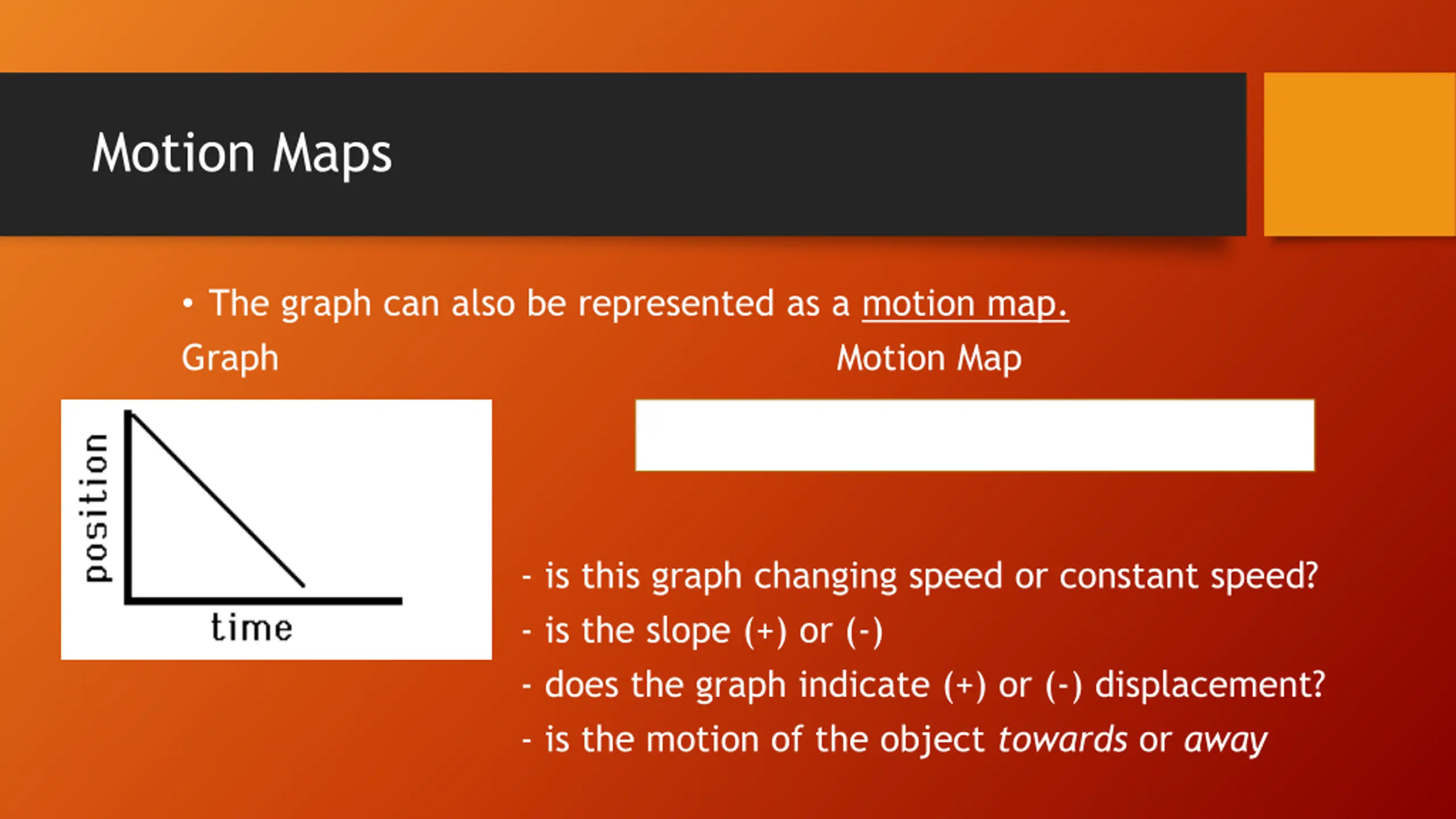

Motion Maps The graph can also be represented as a motion map. Graph Motion Map - is this graph changing speed or constant speed? - is the slope (+) or (-) - does the graph indicate (+) or (-) displacement? - is the motion of the object towards or away

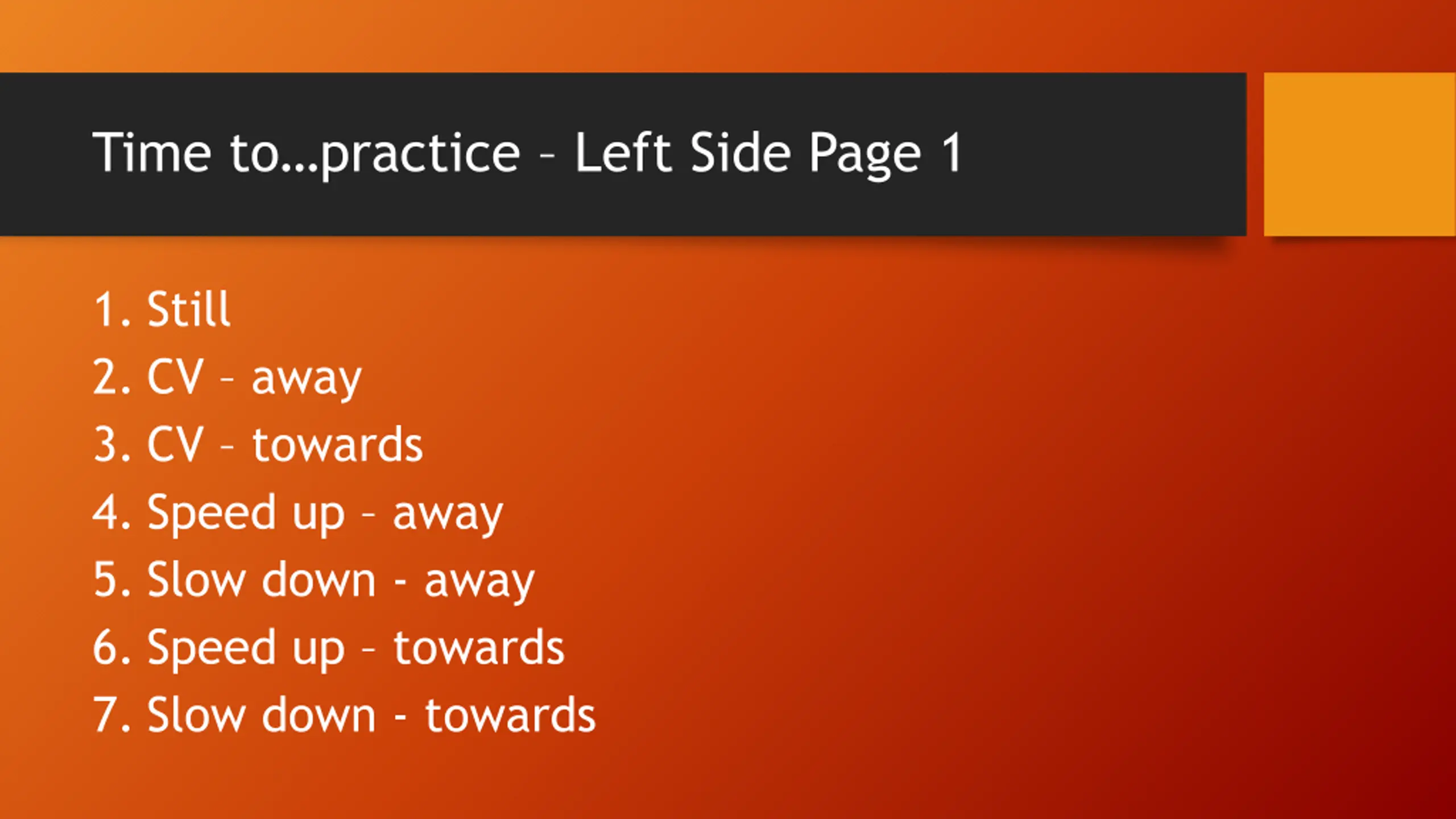

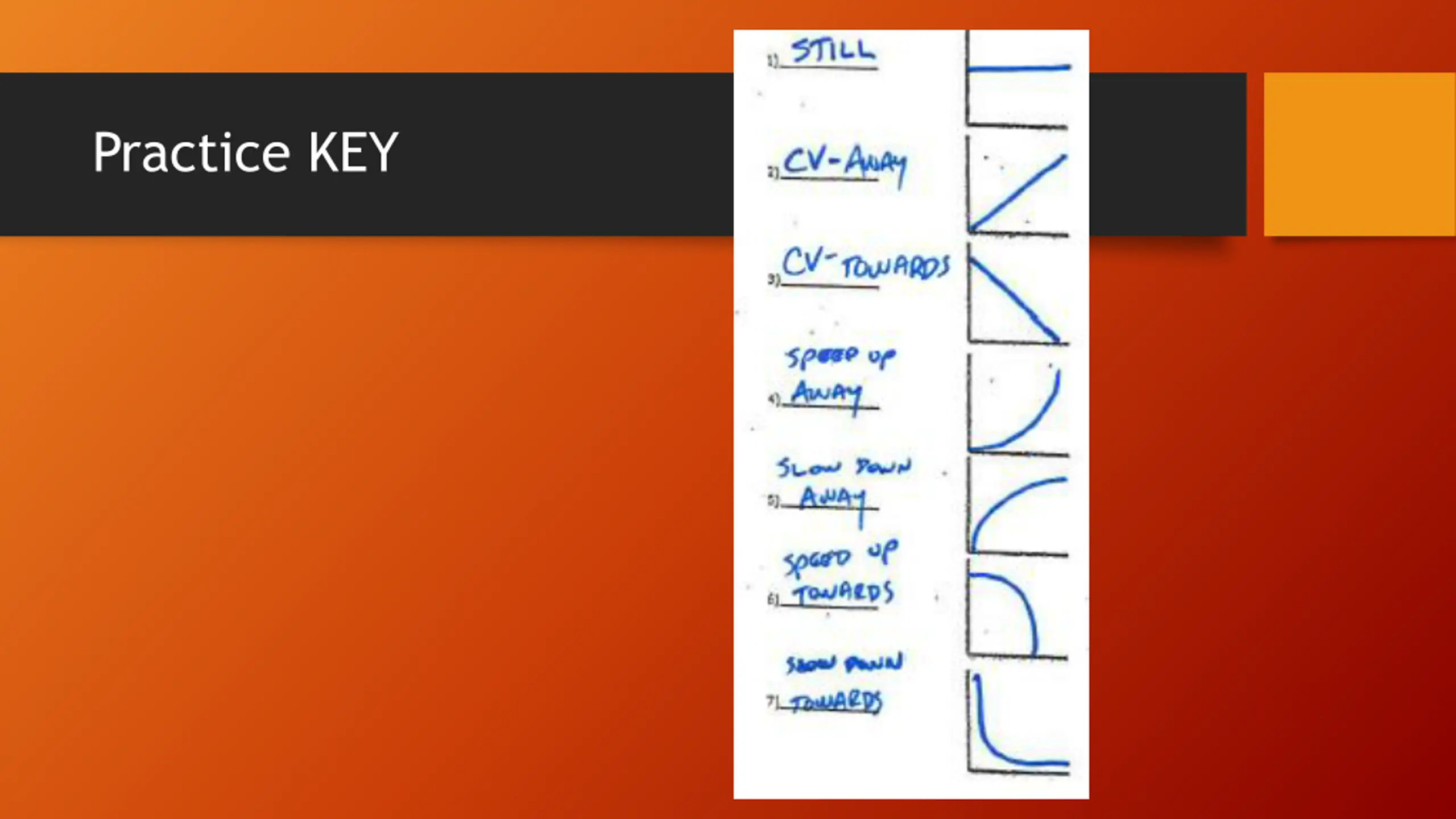

Time topractice Left Side Page 1 1. Still 2. CV away 3. CV towards 4. Speed up away 5. Slow down - away 6. Speed up towards 7. Slow down - towards
Racing Questions Which car is moving faster A or B? Head start & Foot race
Speeding up or Slowing down Speed up away Slow down away Horizontal: Vertical: Speed up toward Slow down - toward

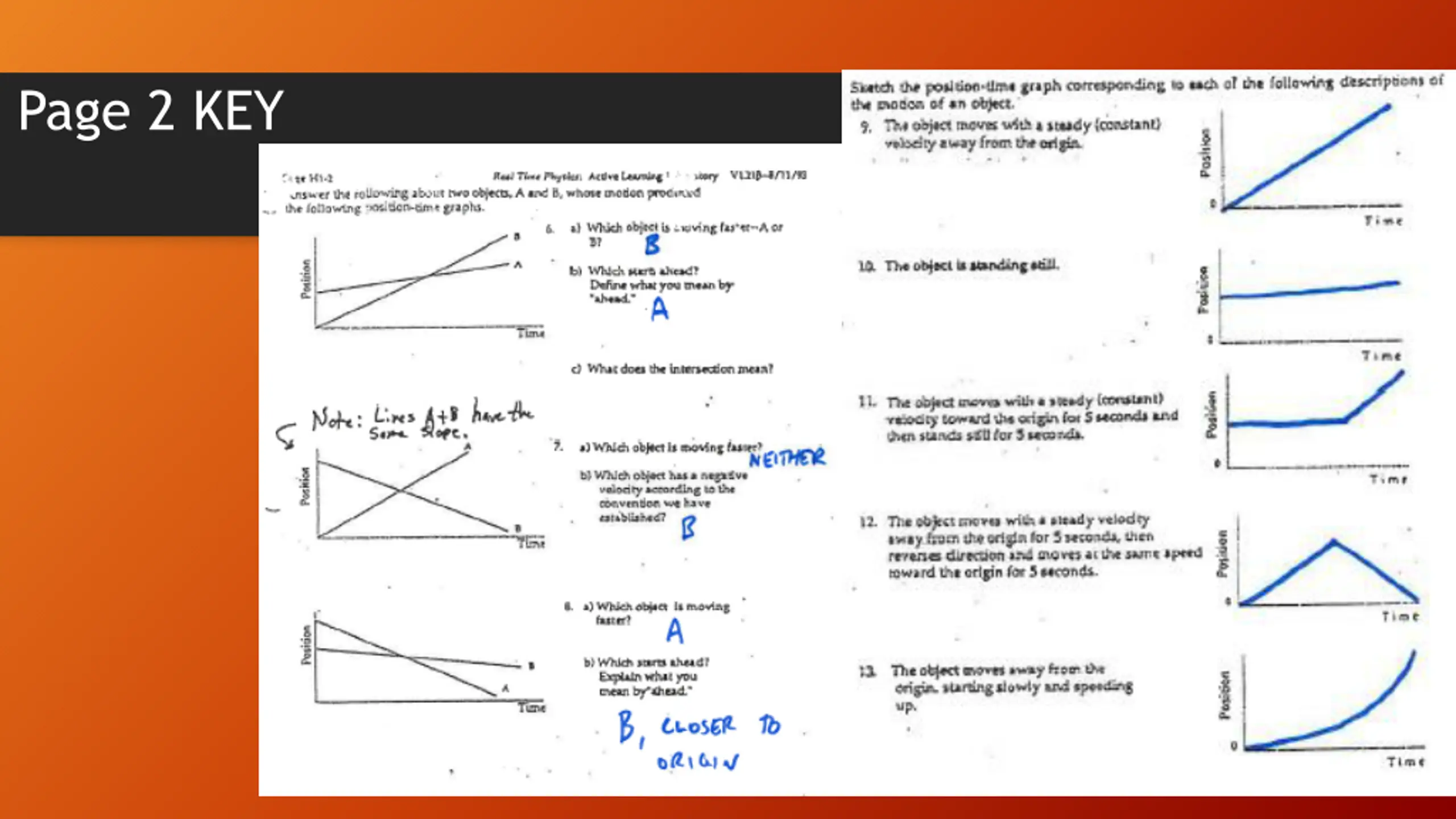

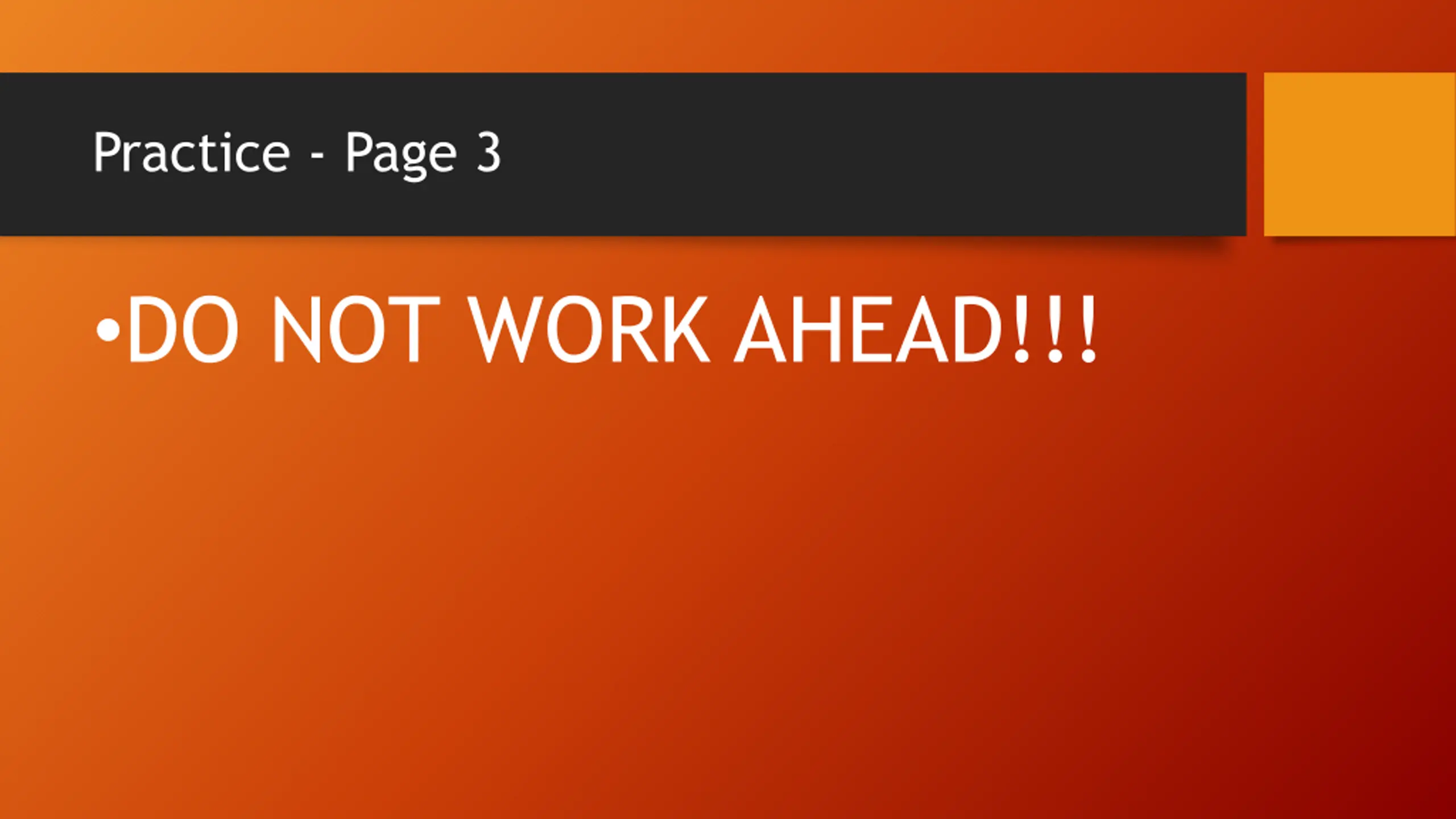

Practice - Page 3 DO NOT WORK AHEAD!!!

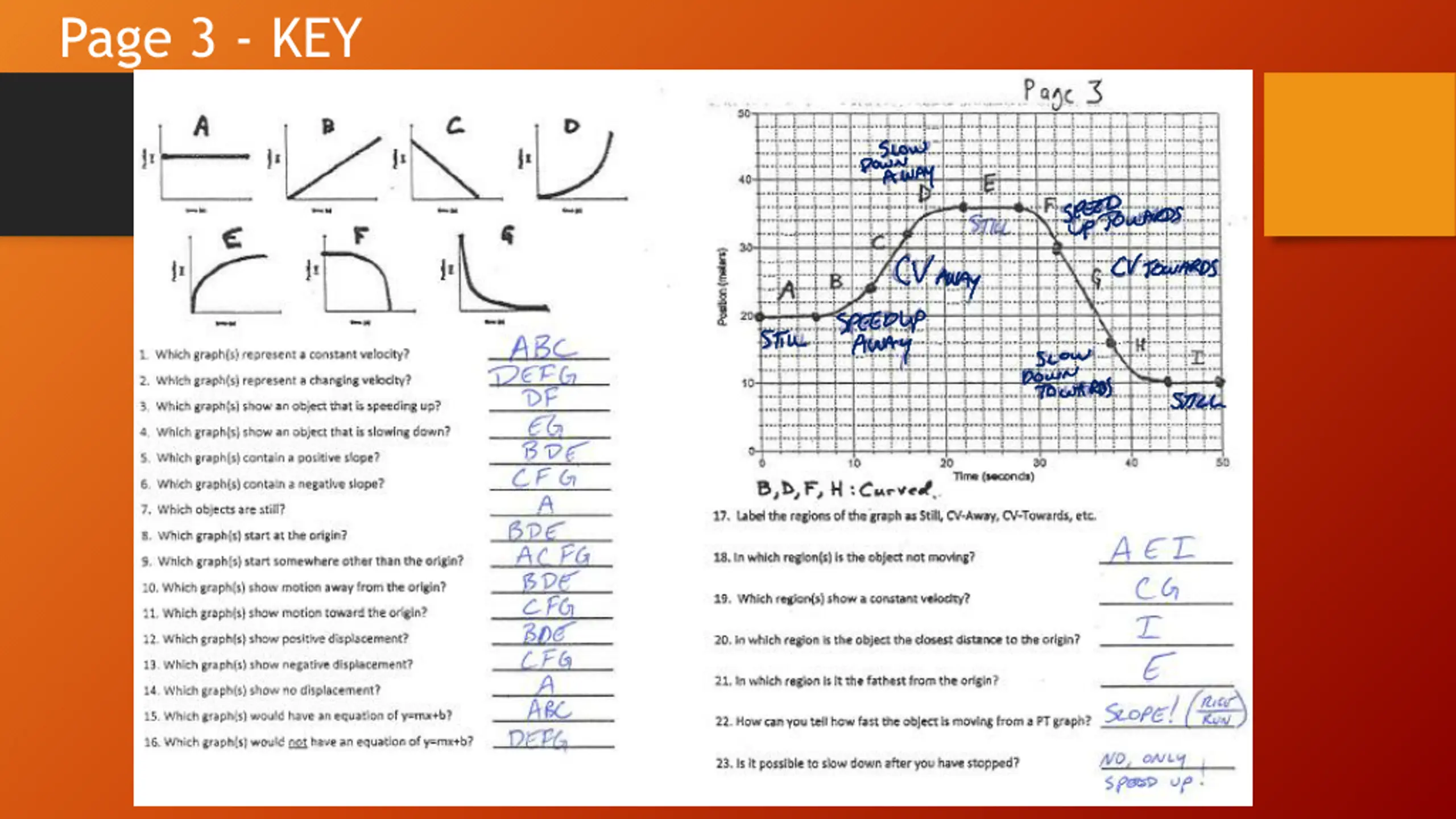

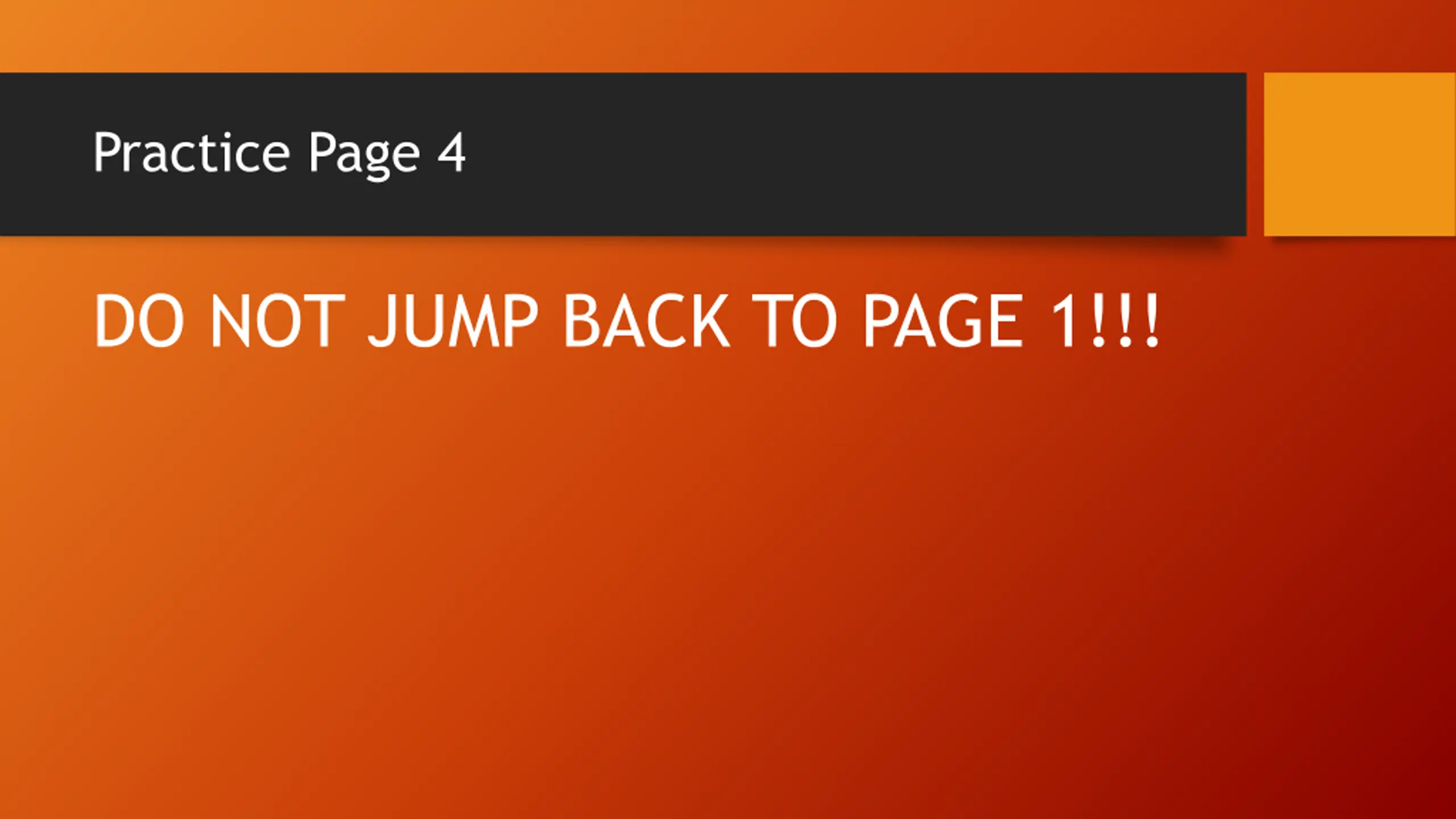

Practice Page 4 DO NOT JUMP BACK TO PAGE 1!!!

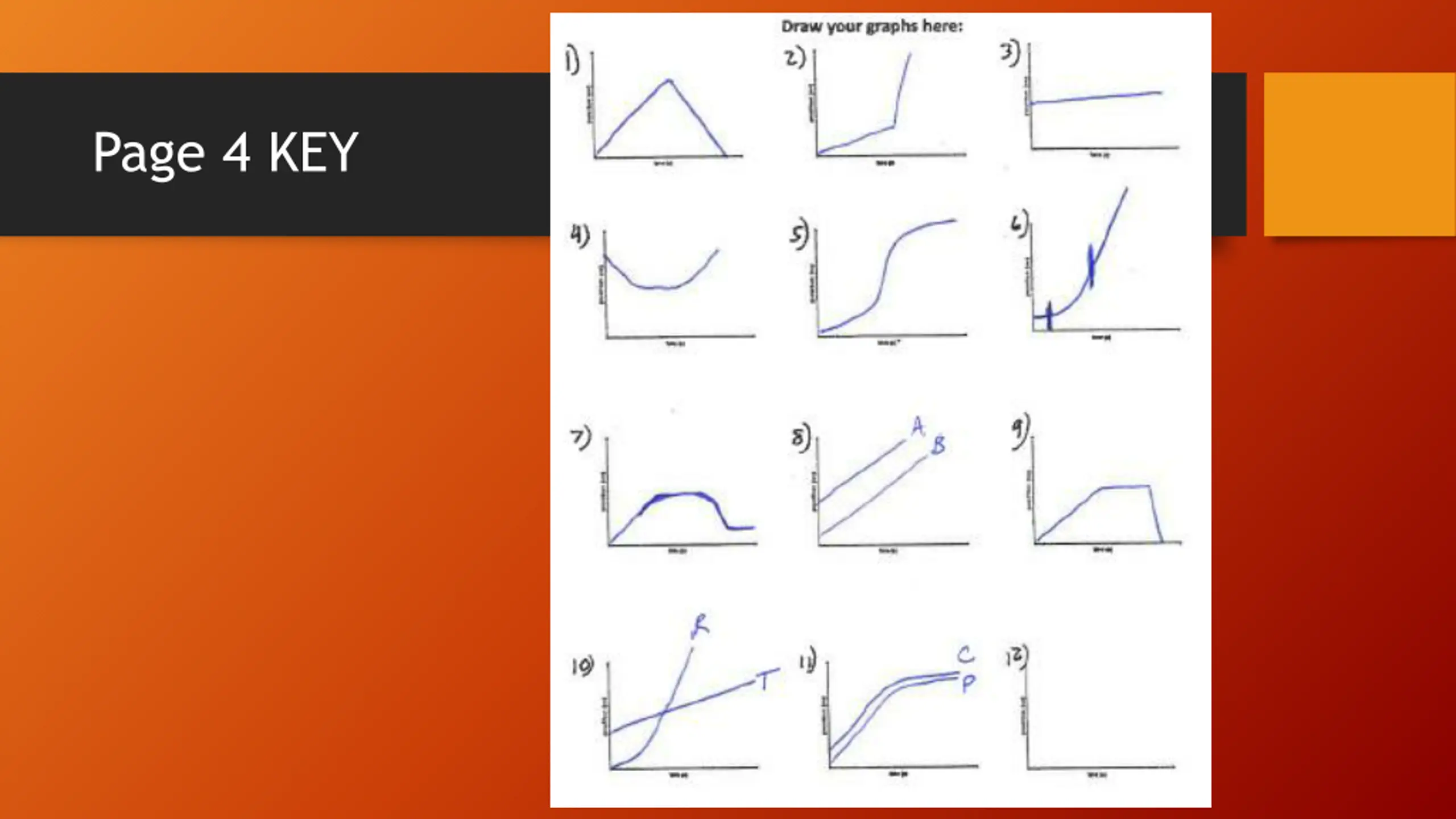

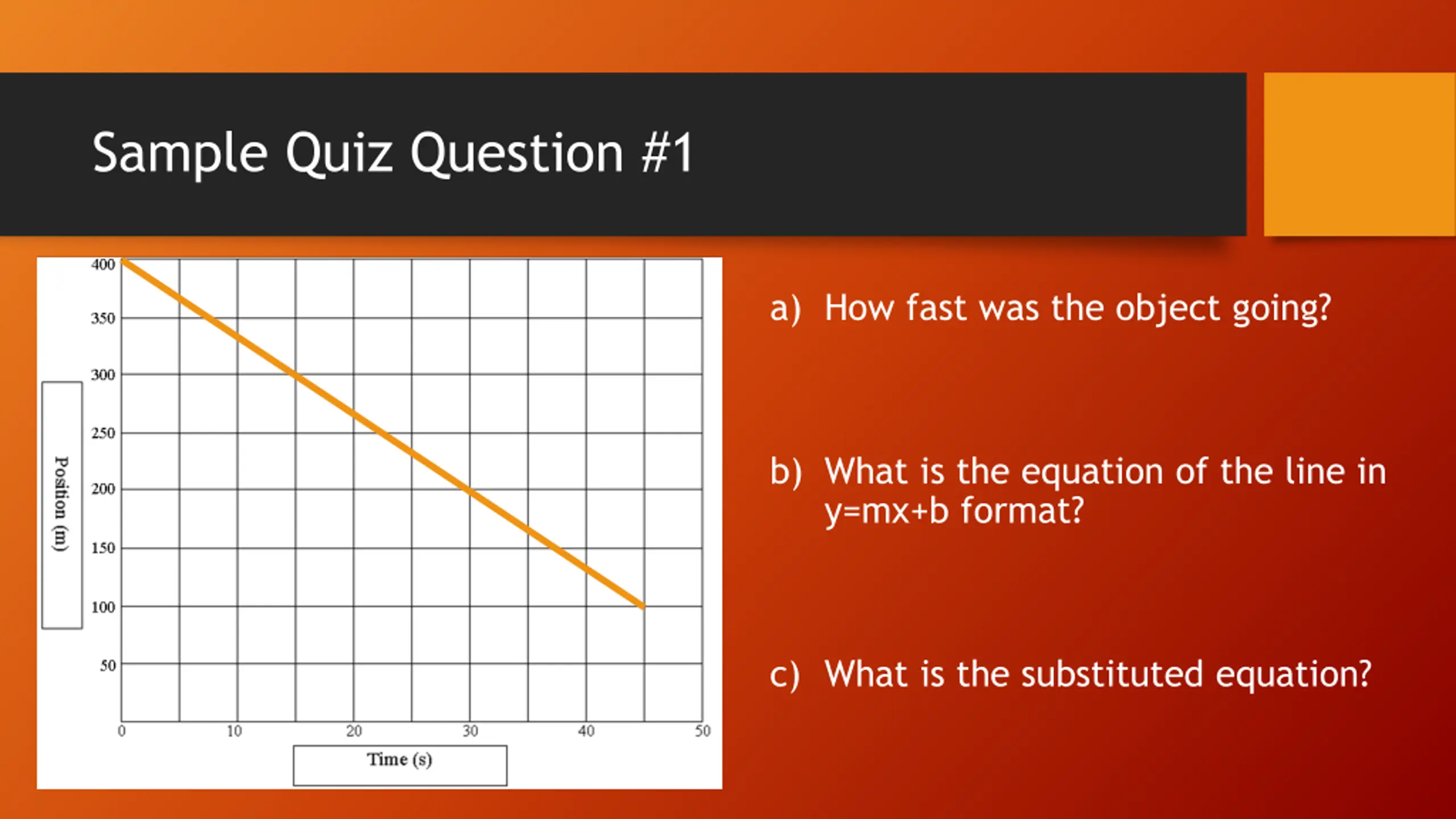

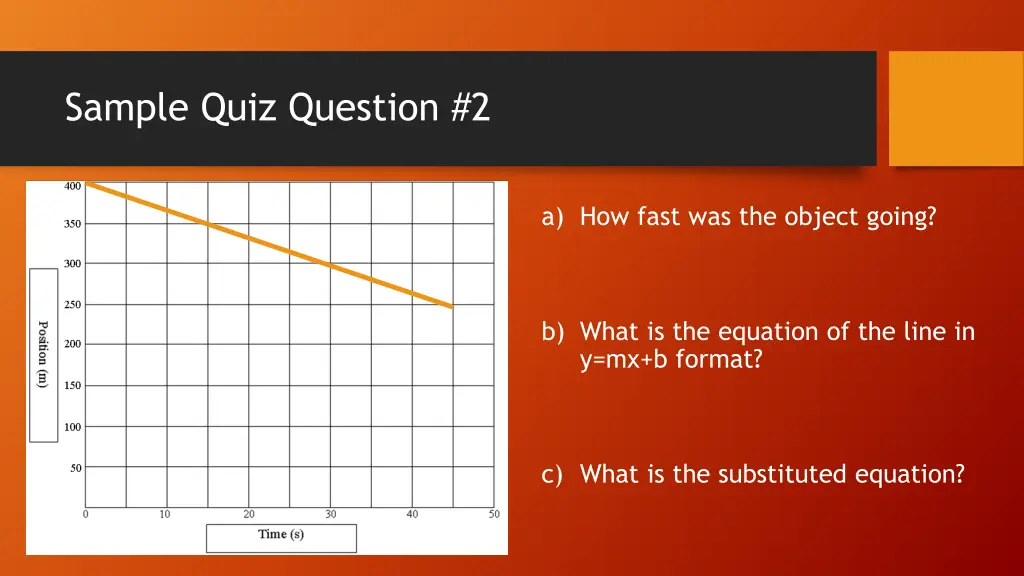

Sample Quiz Question #1 a) How fast was the object going? b) What is the equation of the line in y=mx+b format? c) What is the substituted equation?
Sample Quiz Question #2 a) How fast was the object going? b) What is the equation of the line in y=mx+b format? c) What is the substituted equation?

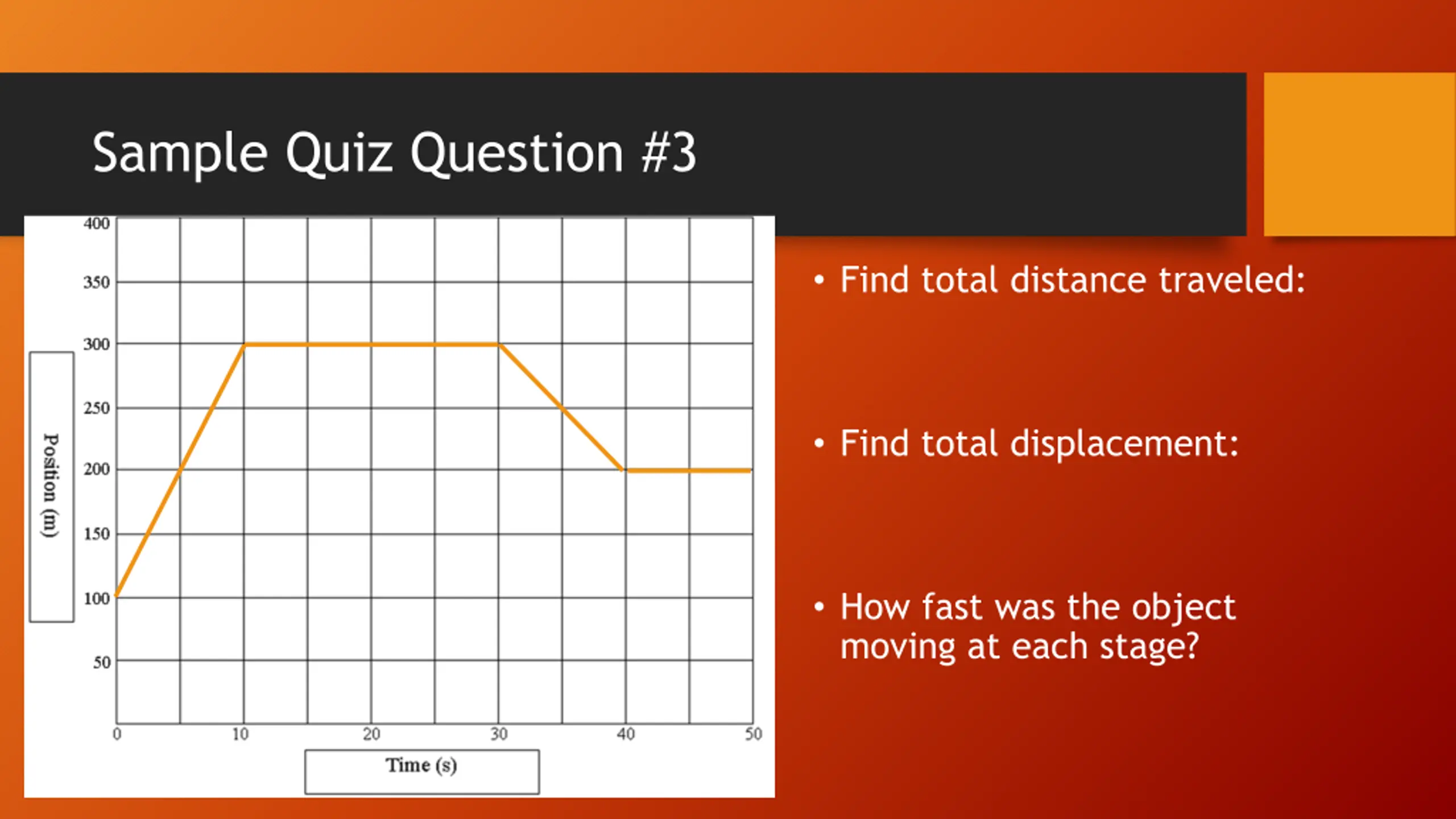

Sample Quiz Question #3 Find total distance traveled: Find total displacement: How fast was the object moving at each stage?

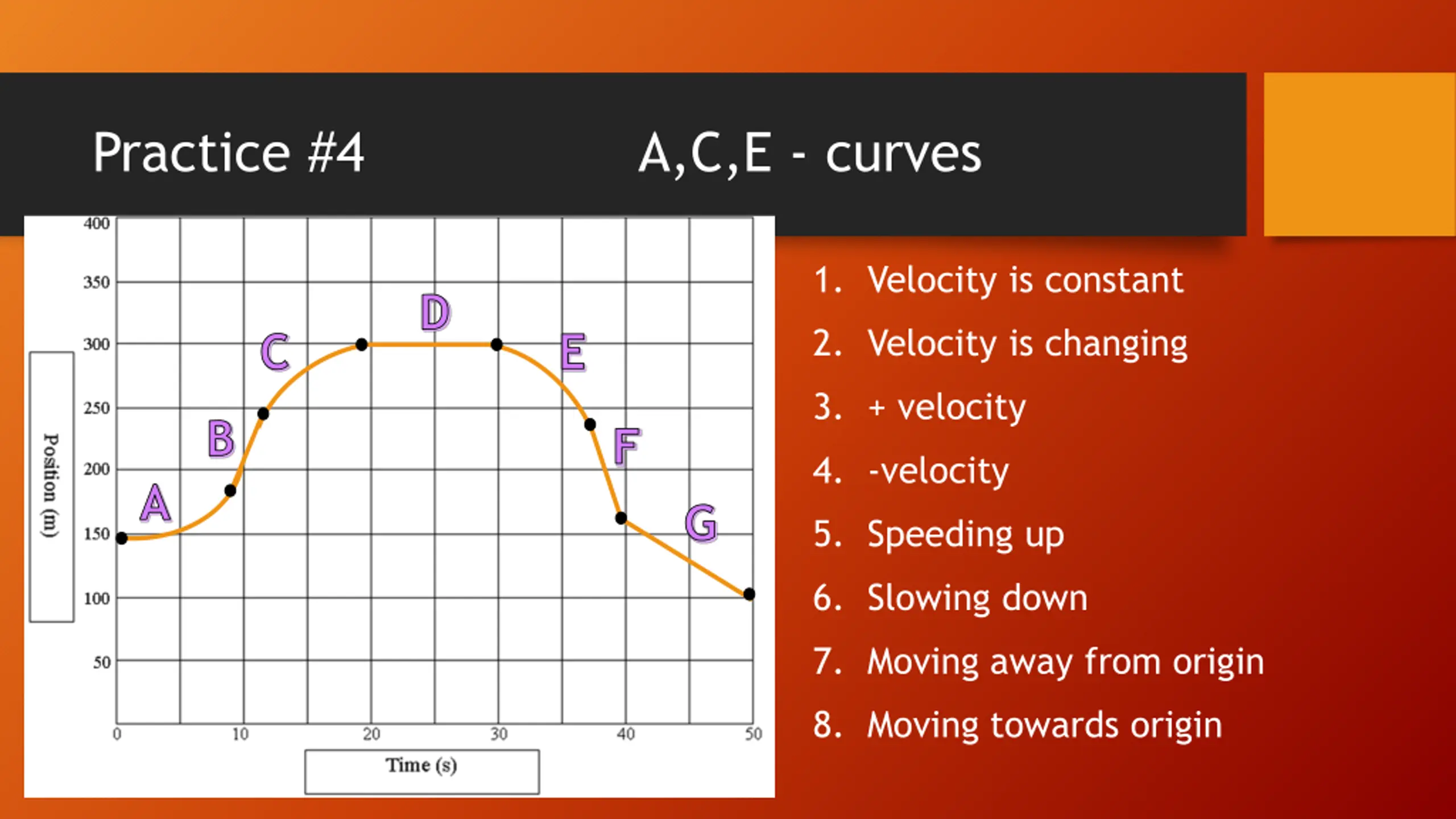

Practice #4 A,C,E - curves 1. Velocity is constant D 2. Velocity is changing C E 3. + velocity B F 4. -velocity A G 5. Speeding up 6. Slowing down 7. Moving away from origin 8. Moving towards origin
Graph Matching Lab 1. Go to a station with a laptop 2. Open Logger Pro. 3. Connect the LabPro and Motion Detector (Dig/Sonic1) 4. File Open EAS_SHARES Drive Bauer STU_SHARE Logger Pro Files Graph Matching Folder 5. Your group s job is to match graphs 1-8! One group member will perform the official version when I come by.
