MUTANT status
The firmware for MUTANT boards has been updated to version 1.11, bringing new features such as AUX input acting as INHIBIT in pure L1 trigger mode, L1B_timeout_ok, and L0_full_cycle added to inspection lines signal list, and more. The update also simplifies status readout of working CoBos. Documentation and available files for the V1.11 Firmware are provided along with resources for developing L2 trigger algorithms. Explore the enhanced functionality and improvements in the latest firmware release for MUTANT boards.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

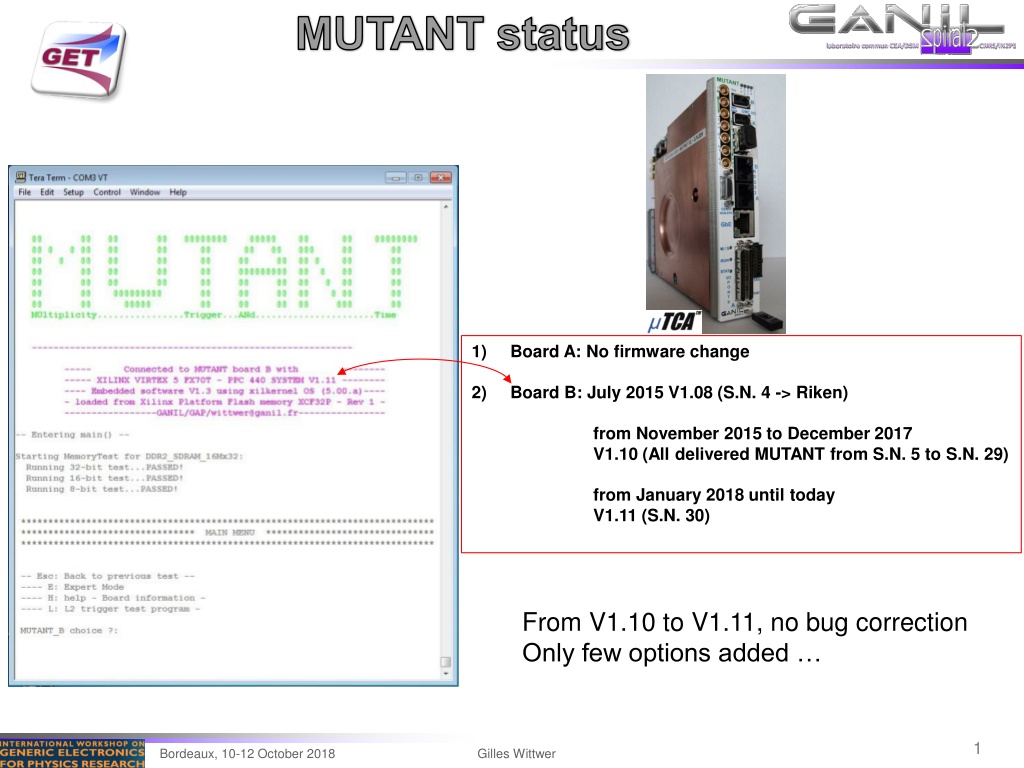

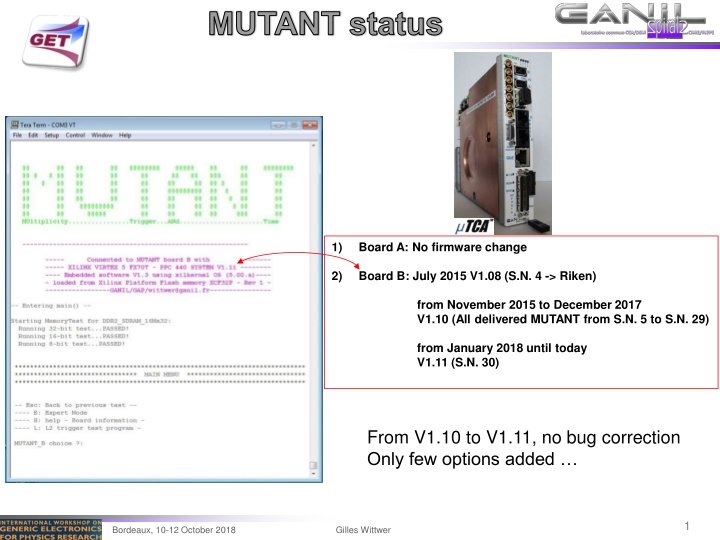

MUTANT status 1) Board A: No firmware change 2) Board B: July 2015 V1.08 (S.N. 4 -> Riken) from November 2015 to December 2017 V1.10 (All delivered MUTANT from S.N. 5 to S.N. 29) from January 2018 until today V1.11 (S.N. 30) From V1.10 to V1.11, no bug correction Only few options added 1 Bordeaux, 10-12 October 2018 Gilles Wittwer

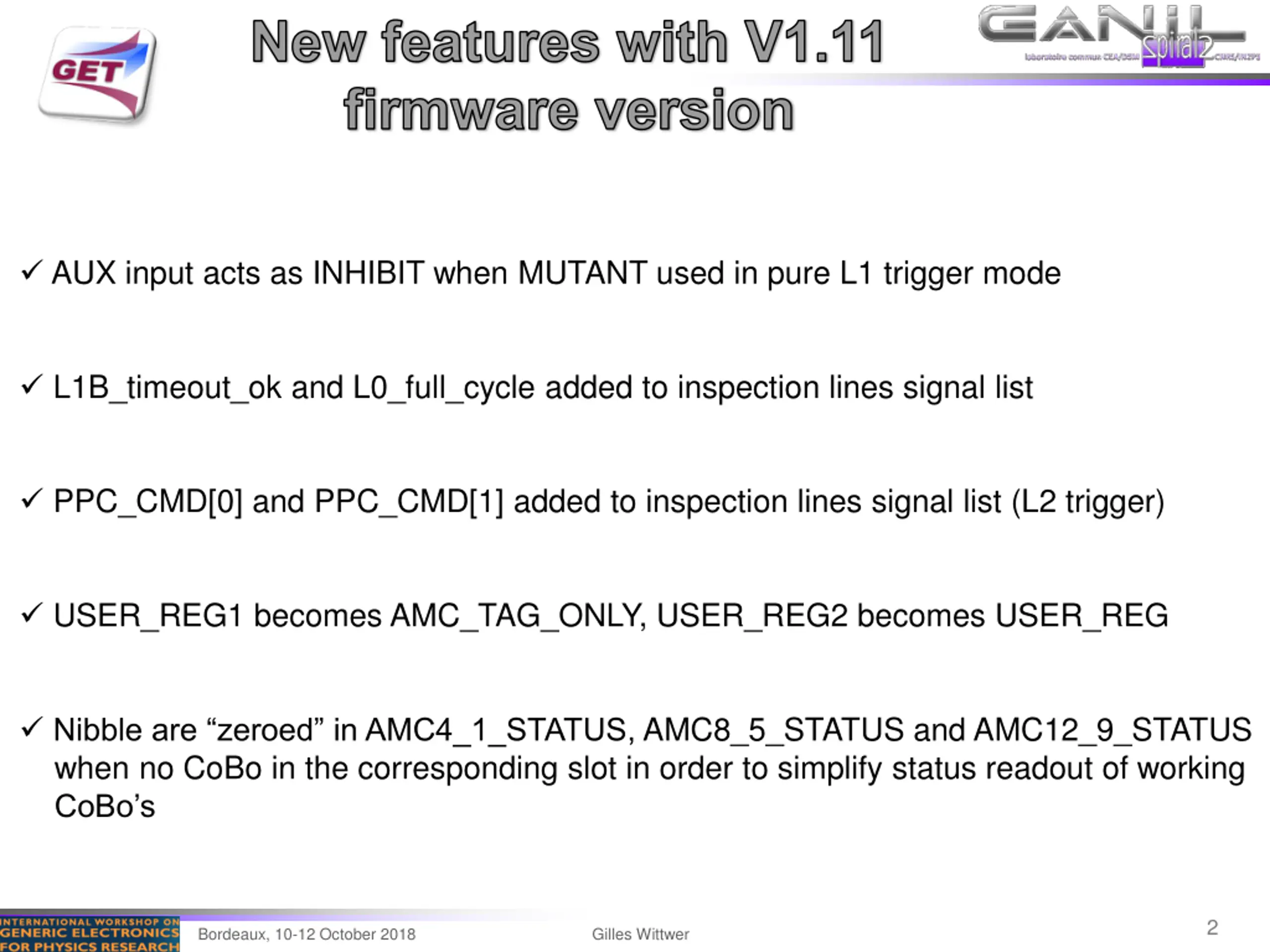

New features with V1.11 firmware version AUX input acts as INHIBIT when MUTANT used in pure L1 trigger mode L1B_timeout_ok and L0_full_cycle added to inspection lines signal list PPC_CMD[0] and PPC_CMD[1] added to inspection lines signal list (L2 trigger) USER_REG1 becomes AMC_TAG_ONLY, USER_REG2 becomes USER_REG Nibble are zeroed in AMC4_1_STATUS, AMC8_5_STATUS and AMC12_9_STATUS when no CoBo in the corresponding slot in order to simplify status readout of working CoBo s 2 Bordeaux, 10-12 October 2018 Gilles Wittwer

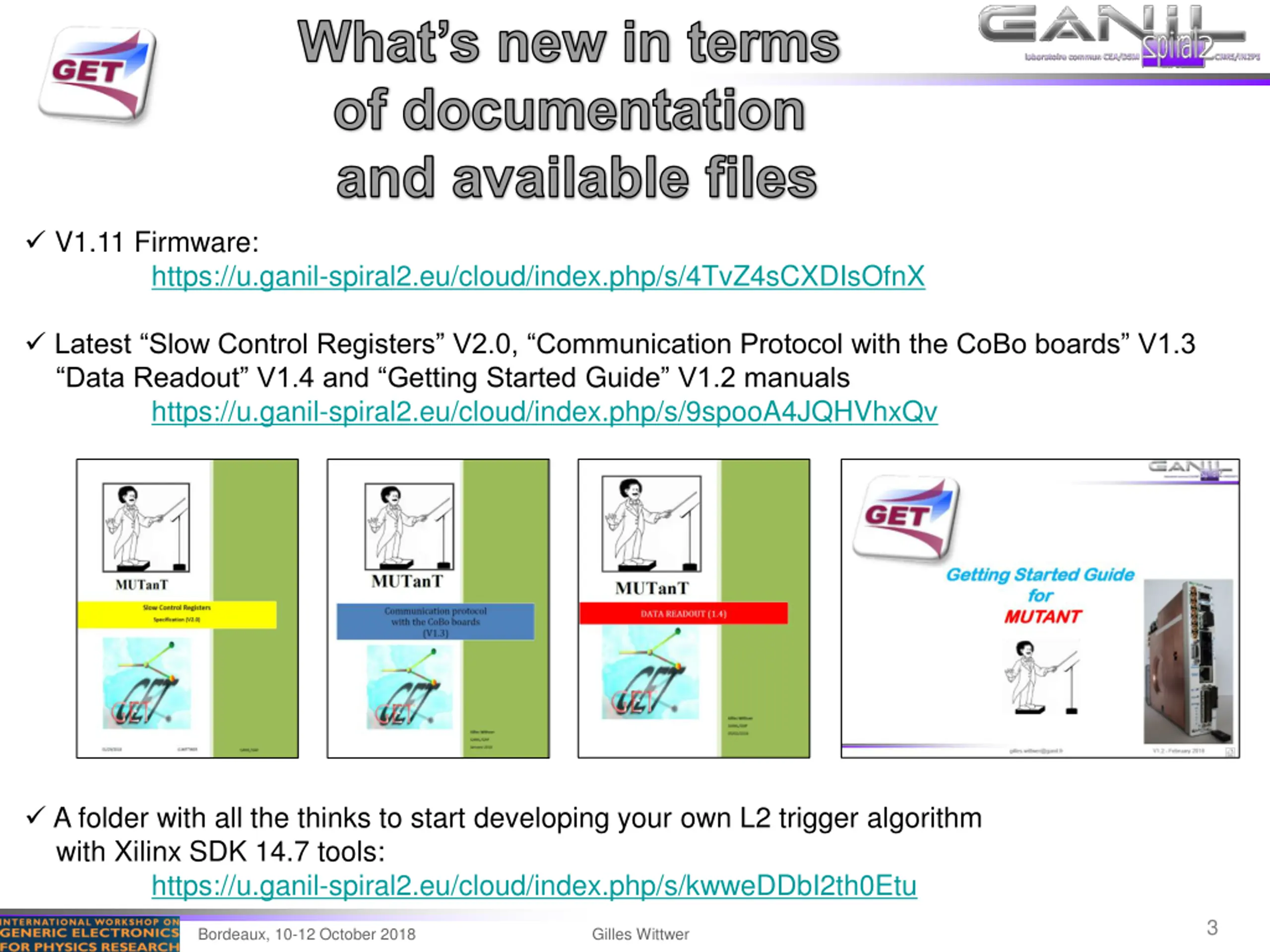

Whats new in terms of documentation and available files V1.11 Firmware: https://u.ganil-spiral2.eu/cloud/index.php/s/4TvZ4sCXDIsOfnX Latest Slow Control Registers V2.0, Communication Protocol with the CoBo boards V1.3 Data Readout V1.4 and Getting Started Guide V1.2 manuals https://u.ganil-spiral2.eu/cloud/index.php/s/9spooA4JQHVhxQv A folder with all the thinks to start developing your own L2 trigger algorithm with Xilinx SDK 14.7 tools: https://u.ganil-spiral2.eu/cloud/index.php/s/kwweDDbI2th0Etu 3 Bordeaux, 10-12 October 2018 Gilles Wittwer

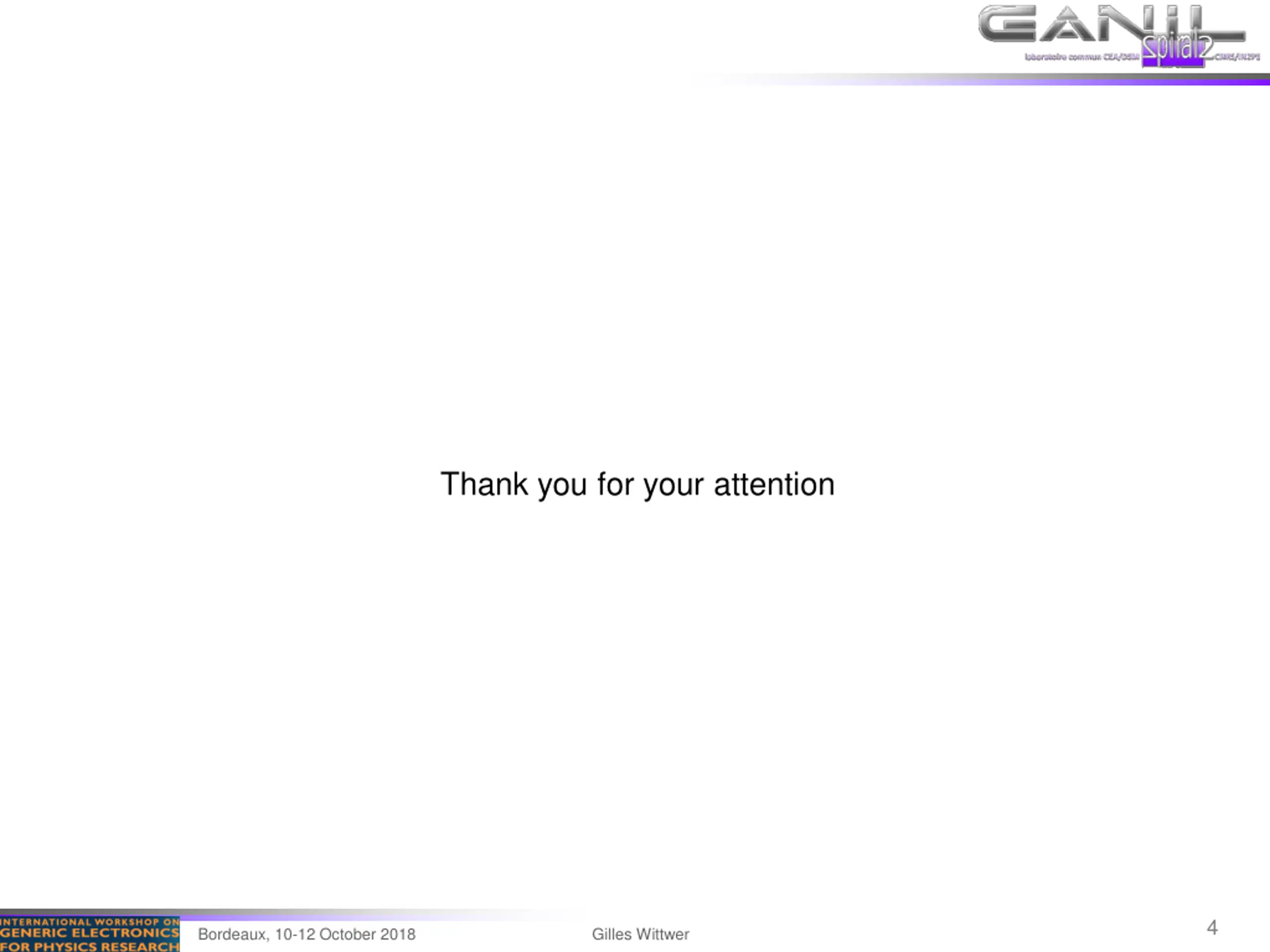

Thank you for your attention 4 Bordeaux, 10-12 October 2018 Gilles Wittwer
