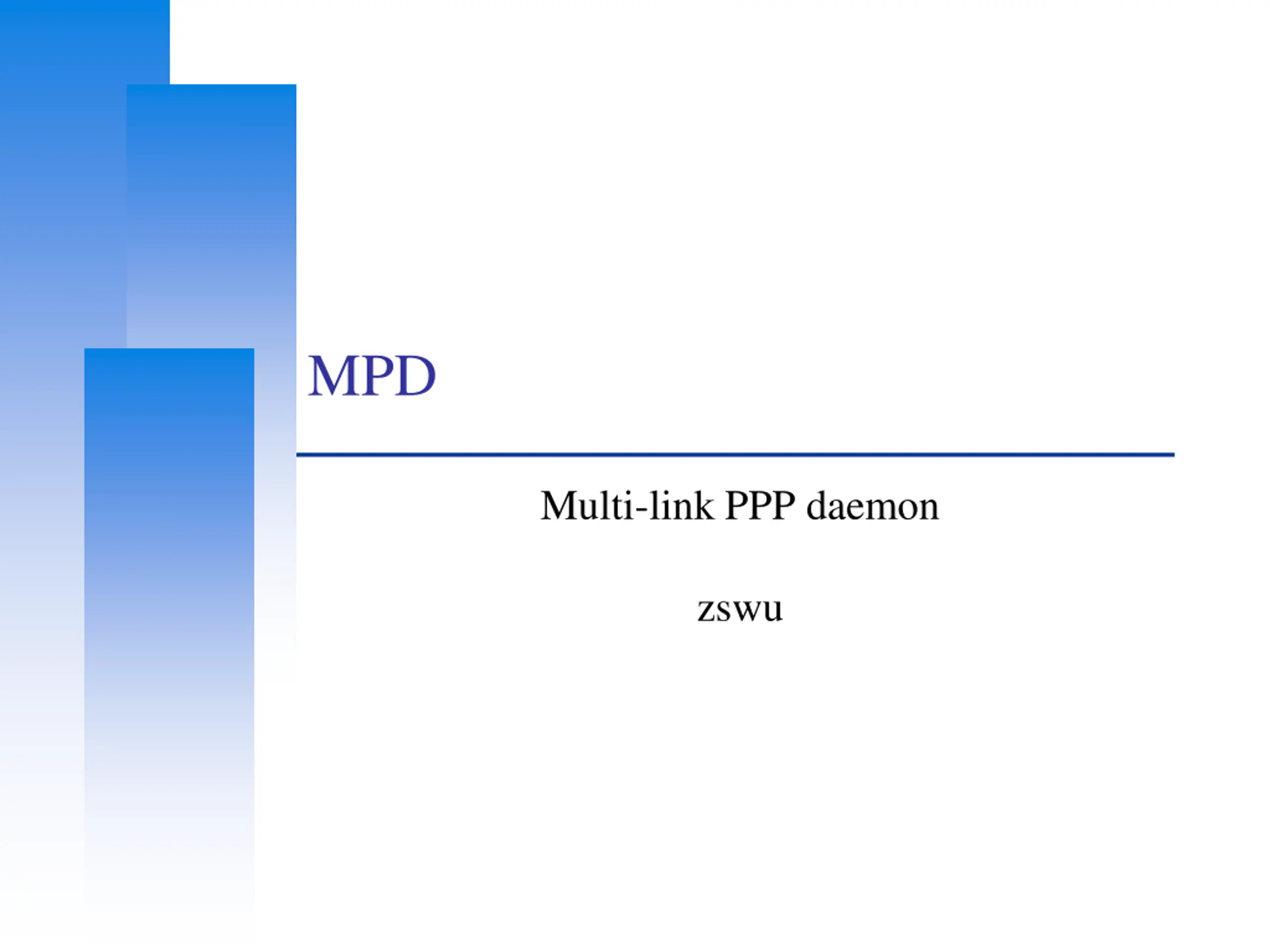

MPD Multi-link PPP daemon zswu

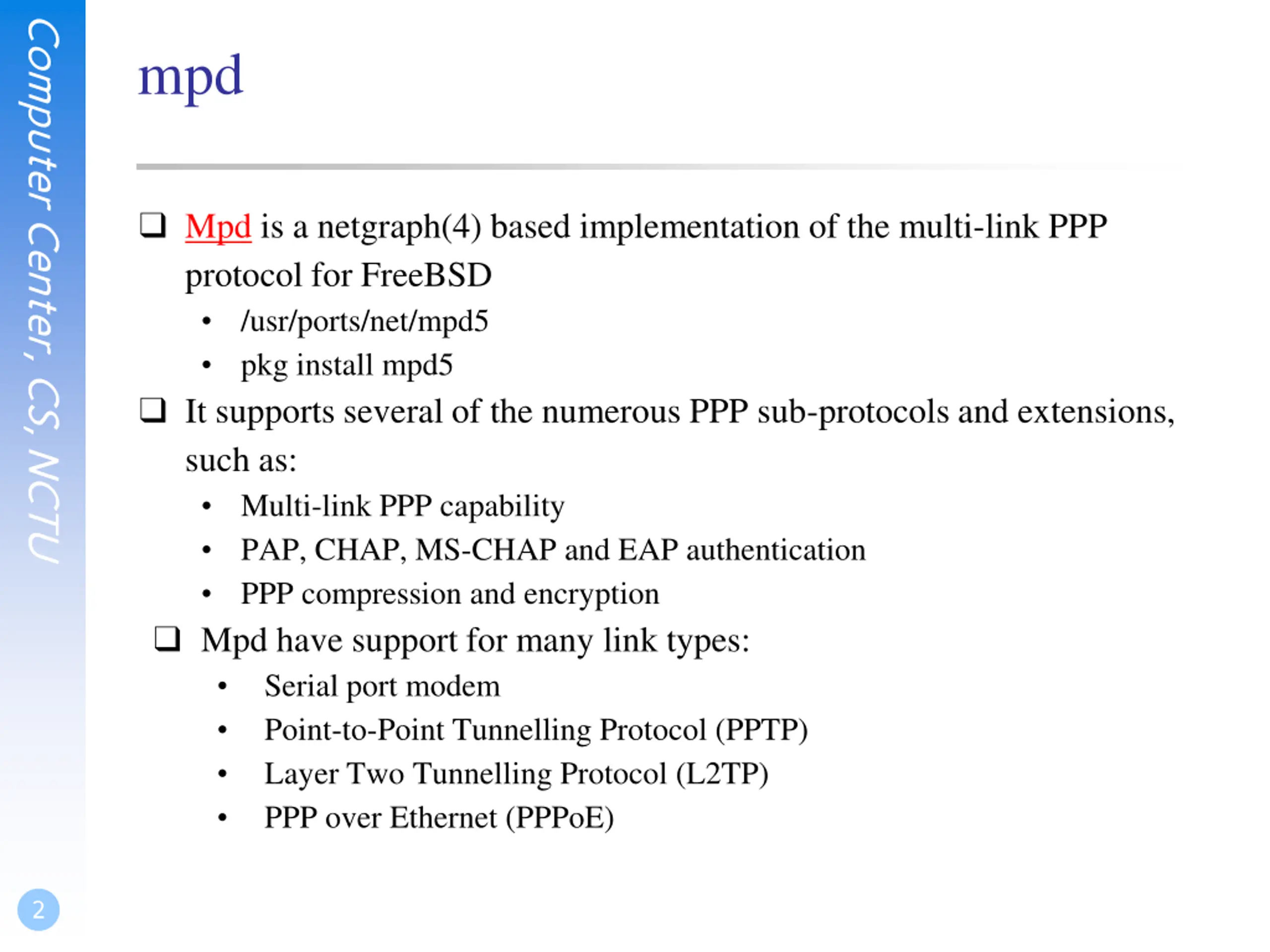

Computer Center, CS, NCTU mpd Mpd is a netgraph(4) based implementation of the multi-link PPP protocol for FreeBSD /usr/ports/net/mpd5 pkg install mpd5 It supports several of the numerous PPP sub-protocols and extensions, such as: Multi-link PPP capability PAP, CHAP, MS-CHAP and EAP authentication PPP compression and encryption Mpd have support for many link types: Serial port modem Point-to-Point Tunnelling Protocol (PPTP) Layer Two Tunnelling Protocol (L2TP) PPP over Ethernet (PPPoE) 2

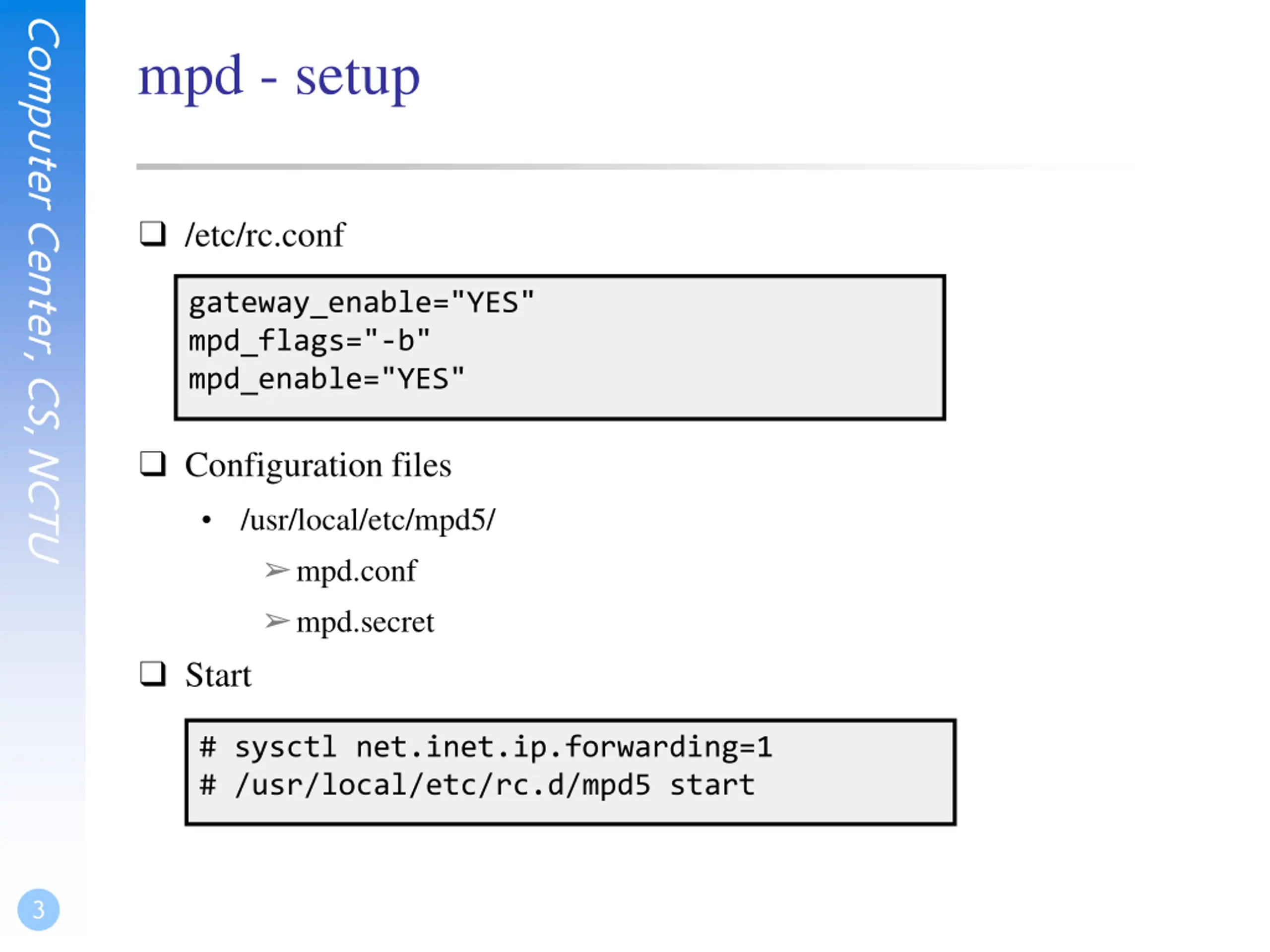

Computer Center, CS, NCTU mpd - setup /etc/rc.conf gateway_enable="YES" mpd_flags="-b" mpd_enable="YES" Configuration files /usr/local/etc/mpd5/ mpd.conf mpd.secret Start # sysctl net.inet.ip.forwarding=1 # /usr/local/etc/rc.d/mpd5 start 3

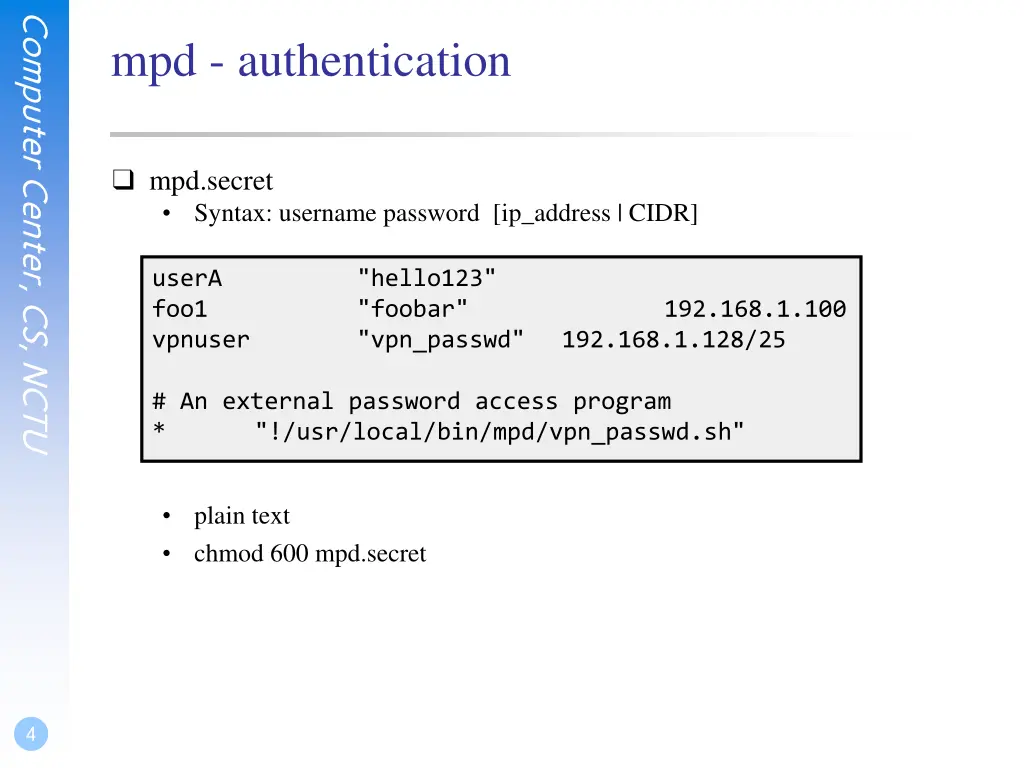

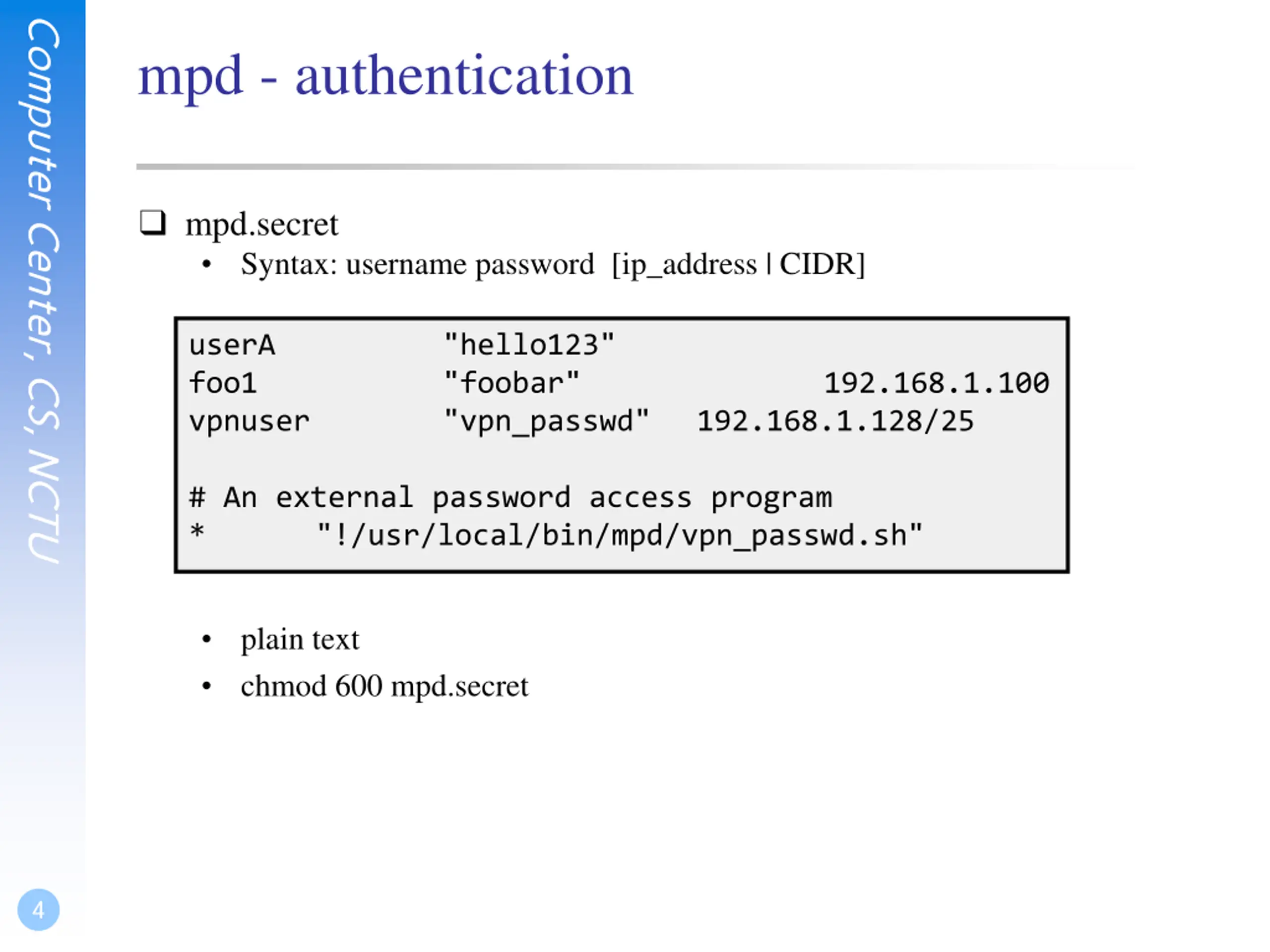

Computer Center, CS, NCTU mpd - authentication mpd.secret Syntax: username password [ip_address | CIDR] userA foo1 vpnuser "hello123" "foobar" "vpn_passwd" 192.168.1.100 192.168.1.128/25 # An external password access program * "!/usr/local/bin/mpd/vpn_passwd.sh" plain text chmod 600 mpd.secret 4

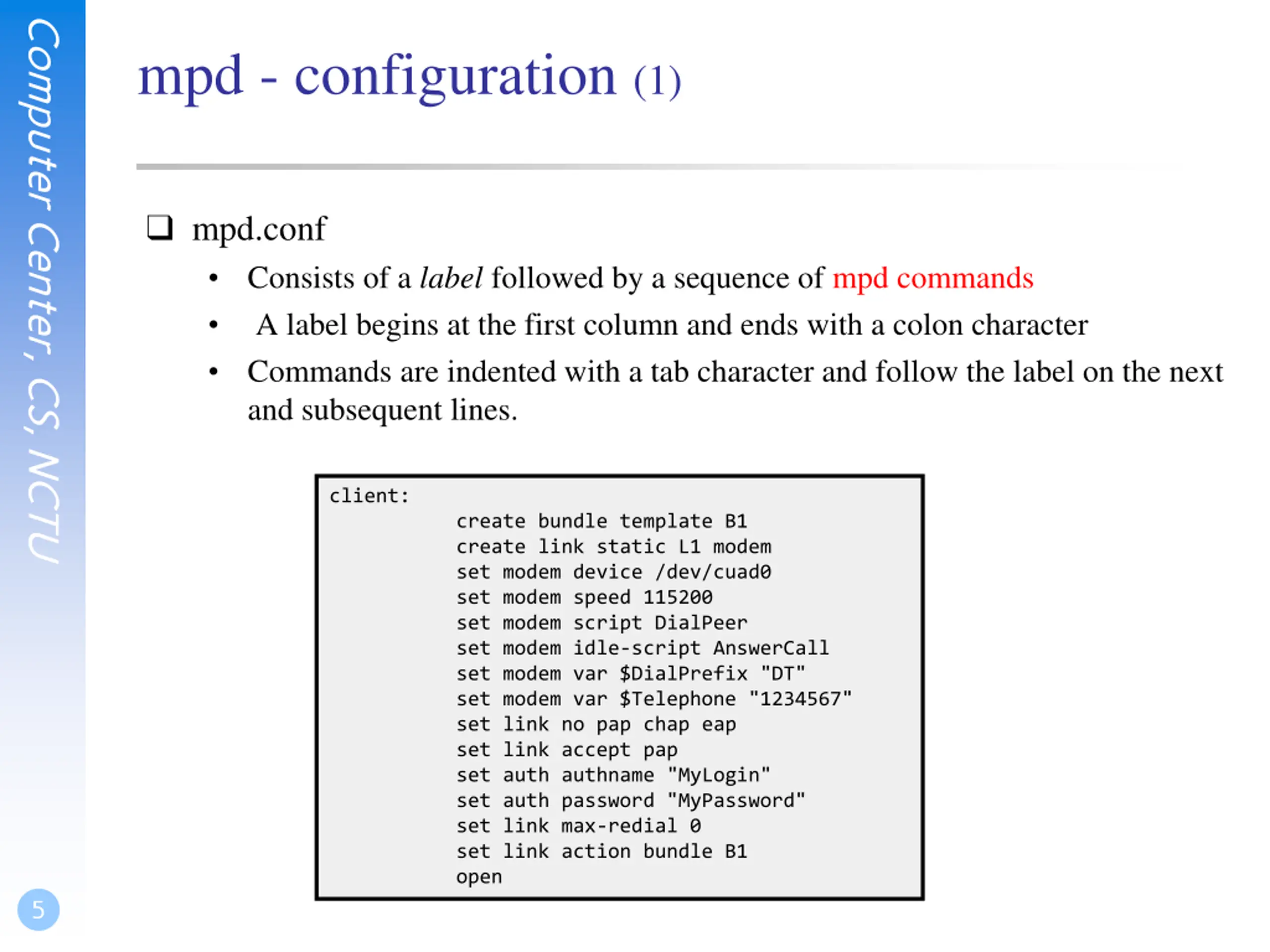

Computer Center, CS, NCTU mpd - configuration (1) mpd.conf Consists of a label followed by a sequence of mpd commands A label begins at the first column and ends with a colon character Commands are indented with a tab character and follow the label on the next and subsequent lines. client: create bundle template B1 create link static L1 modem set modem device /dev/cuad0 set modem speed 115200 set modem script DialPeer set modem idle-script AnswerCall set modem var $DialPrefix "DT" set modem var $Telephone "1234567" set link no pap chap eap set link accept pap set auth authname "MyLogin" set auth password "MyPassword" set link max-redial 0 set link action bundle B1 open 5

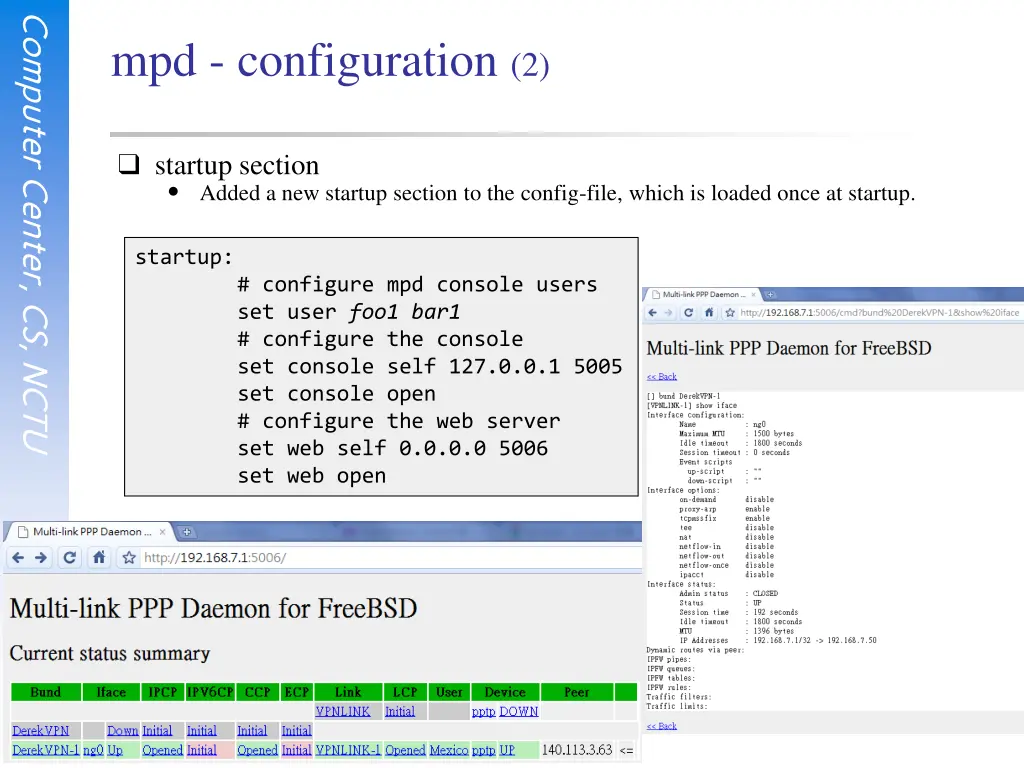

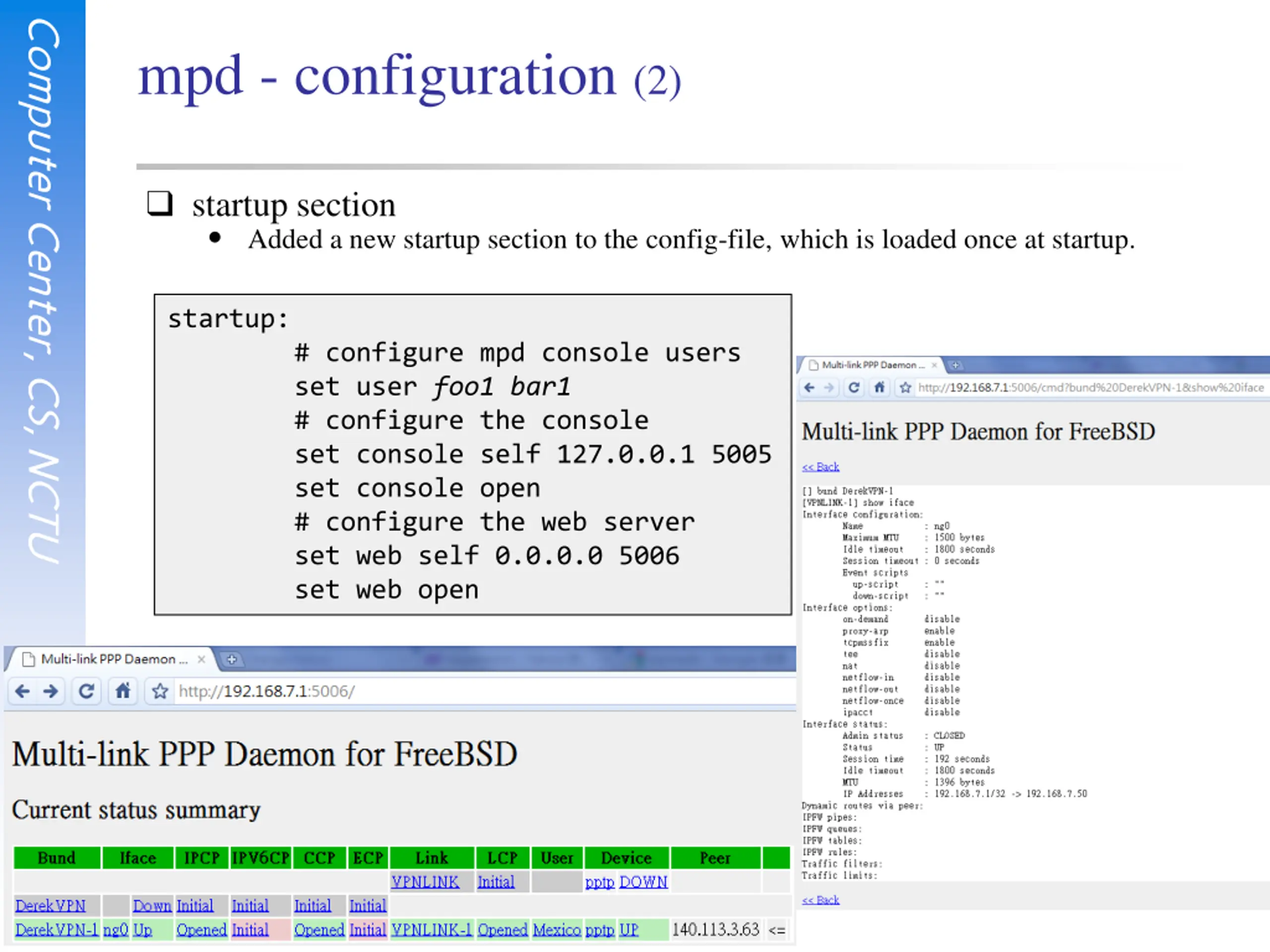

Computer Center, CS, NCTU mpd - configuration (2) startup section Added a new startup section to the config-file, which is loaded once at startup. startup: # configure mpd console users set user foo1 bar1 # configure the console set console self 127.0.0.1 5005 set console open # configure the web server set web self 0.0.0.0 5006 set web open 6

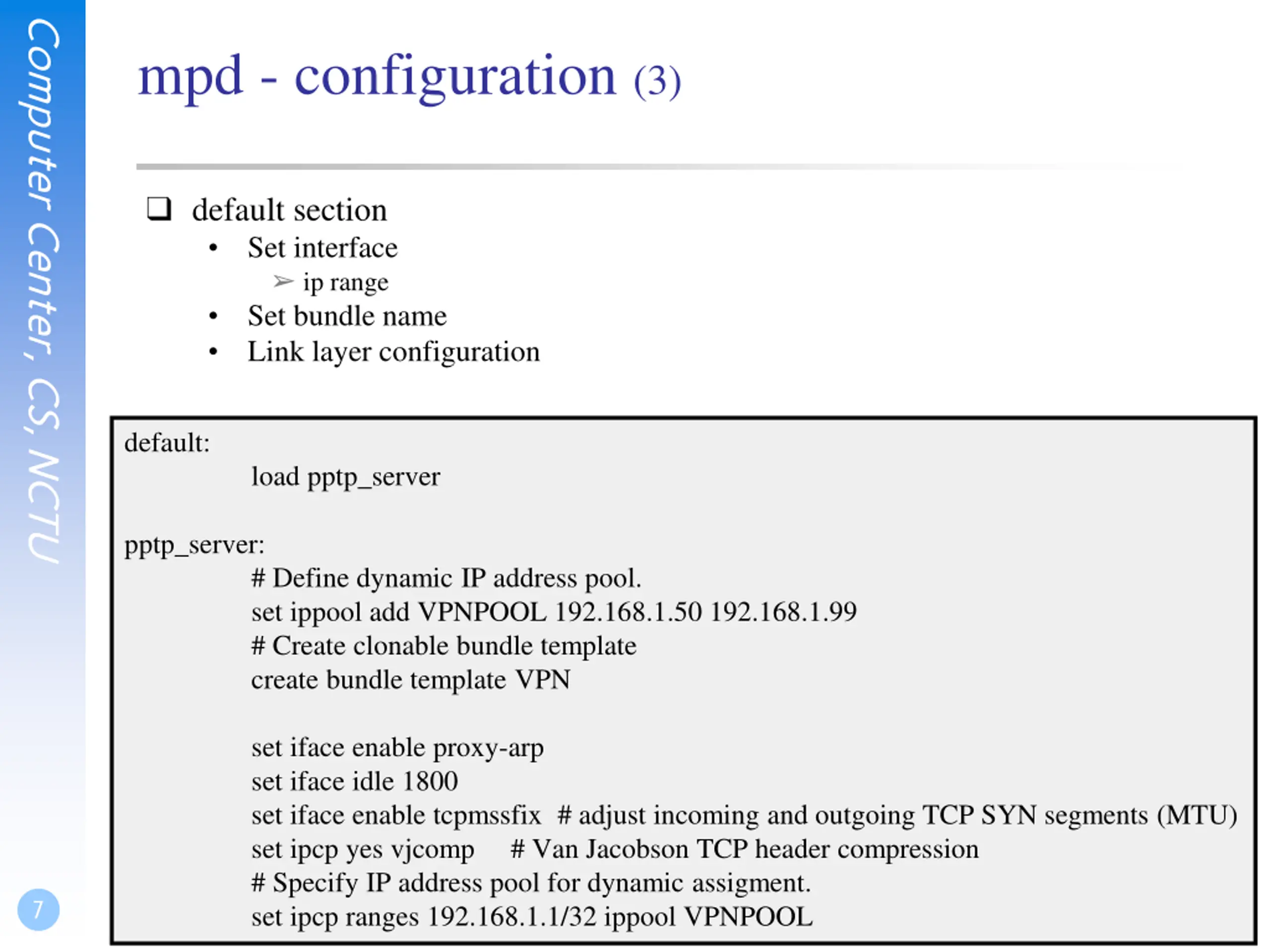

Computer Center, CS, NCTU mpd - configuration (3) default section Set interface ip range Set bundle name Link layer configuration default: load pptp_server pptp_server: # Define dynamic IP address pool. set ippool add VPNPOOL 192.168.1.50 192.168.1.99 # Create clonable bundle template create bundle template VPN set iface enable proxy-arp set iface idle 1800 set iface enable tcpmssfix # adjust incoming and outgoing TCP SYN segments (MTU) set ipcp yes vjcomp # Van Jacobson TCP header compression # Specify IP address pool for dynamic assigment. set ipcp ranges 192.168.1.1/32 ippool VPNPOOL 7

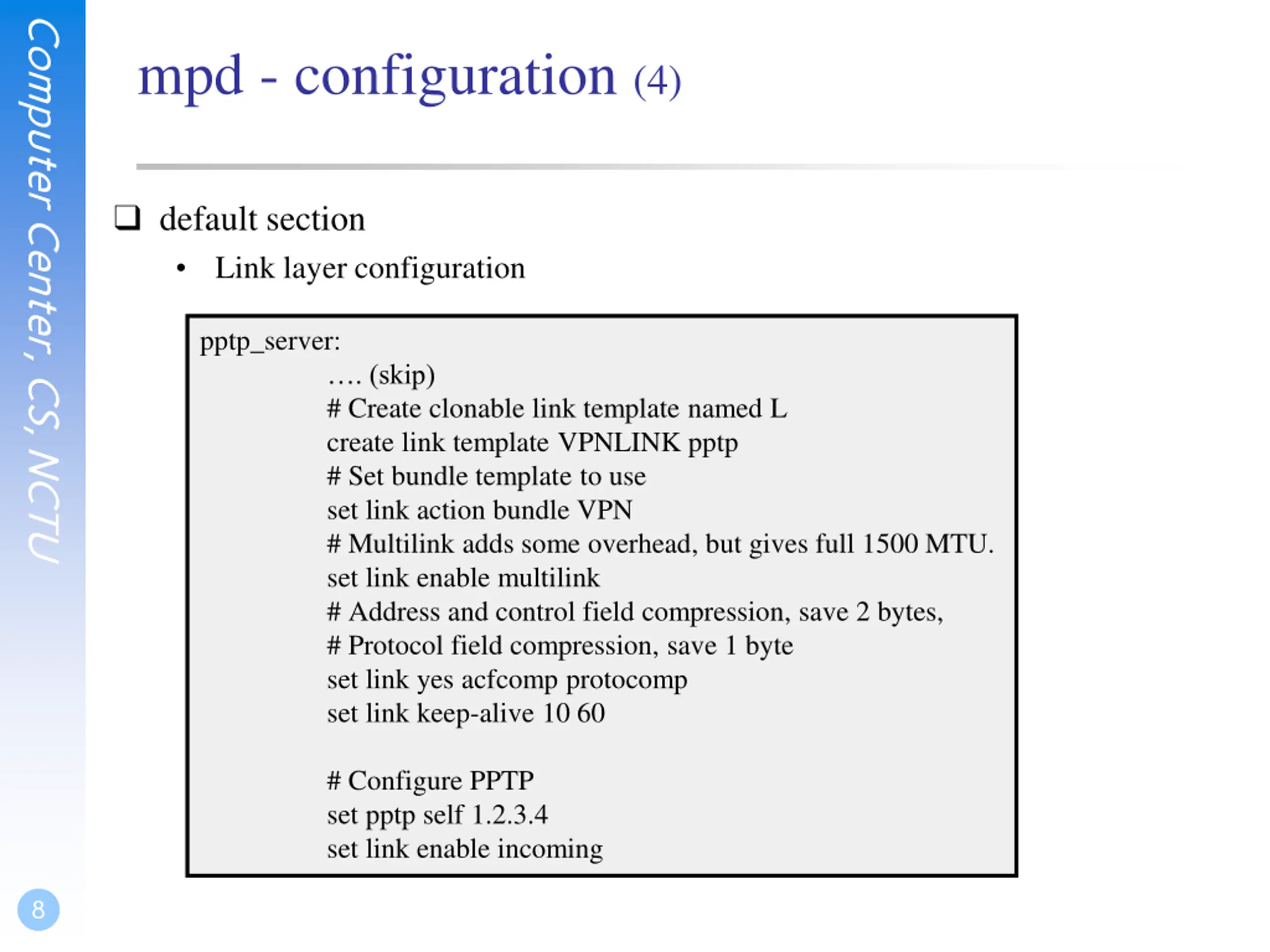

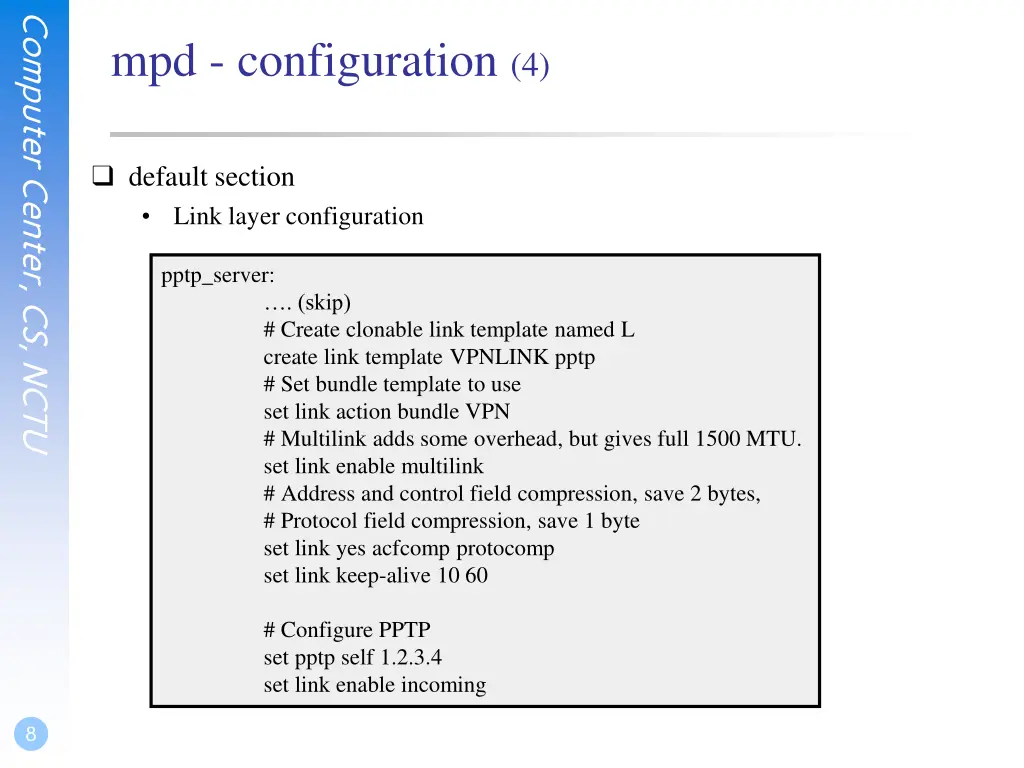

Computer Center, CS, NCTU mpd - configuration (4) default section Link layer configuration pptp_server: . (skip) # Create clonable link template named L create link template VPNLINK pptp # Set bundle template to use set link action bundle VPN # Multilink adds some overhead, but gives full 1500 MTU. set link enable multilink # Address and control field compression, save 2 bytes, # Protocol field compression, save 1 byte set link yes acfcomp protocomp set link keep-alive 10 60 # Configure PPTP set pptp self 1.2.3.4 set link enable incoming 8

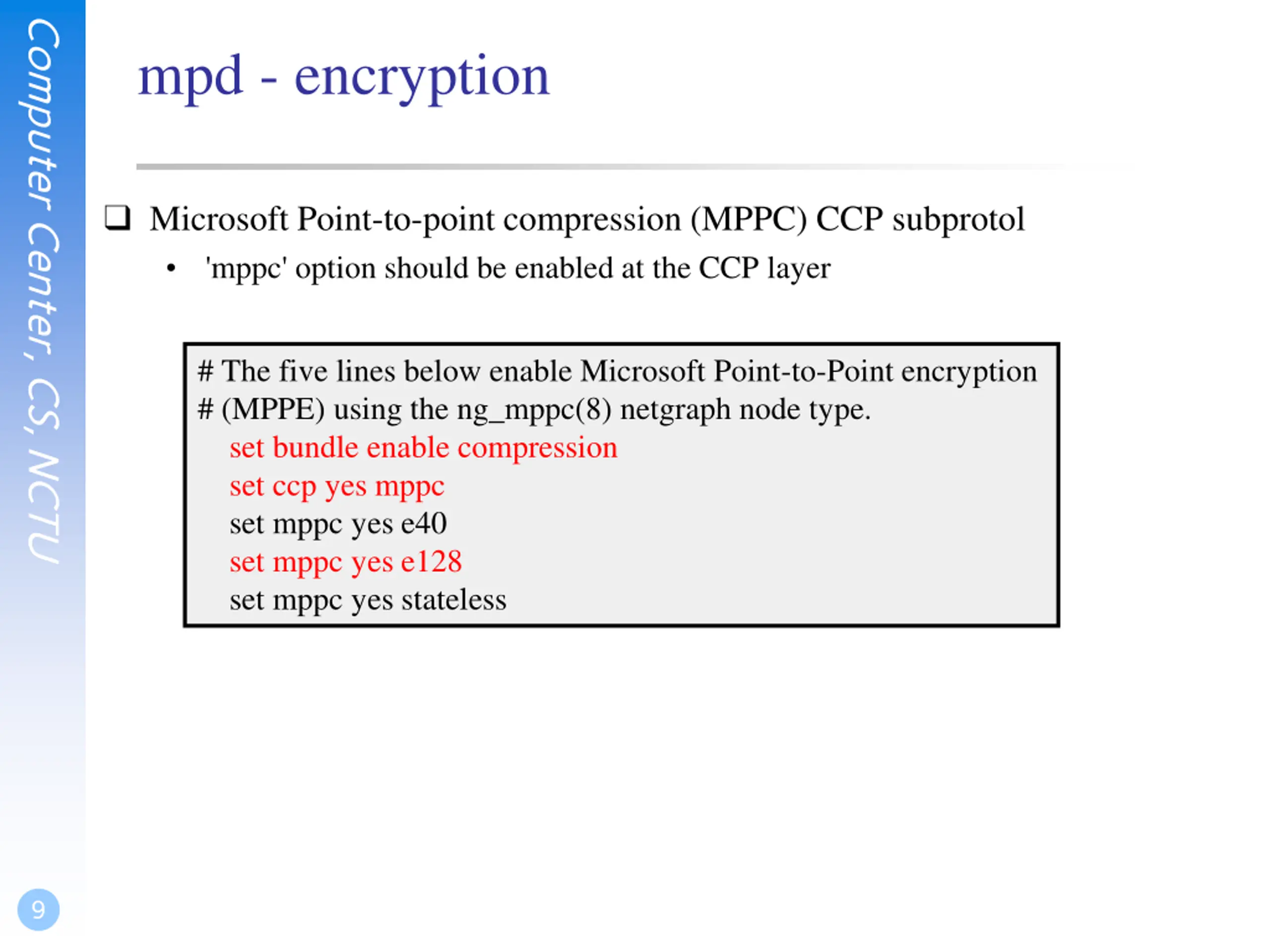

Computer Center, CS, NCTU mpd - encryption Microsoft Point-to-point compression (MPPC) CCP subprotol 'mppc' option should be enabled at the CCP layer # The five lines below enable Microsoft Point-to-Point encryption # (MPPE) using the ng_mppc(8) netgraph node type. set bundle enable compression set ccp yes mppc set mppc yes e40 set mppc yes e128 set mppc yes stateless 9

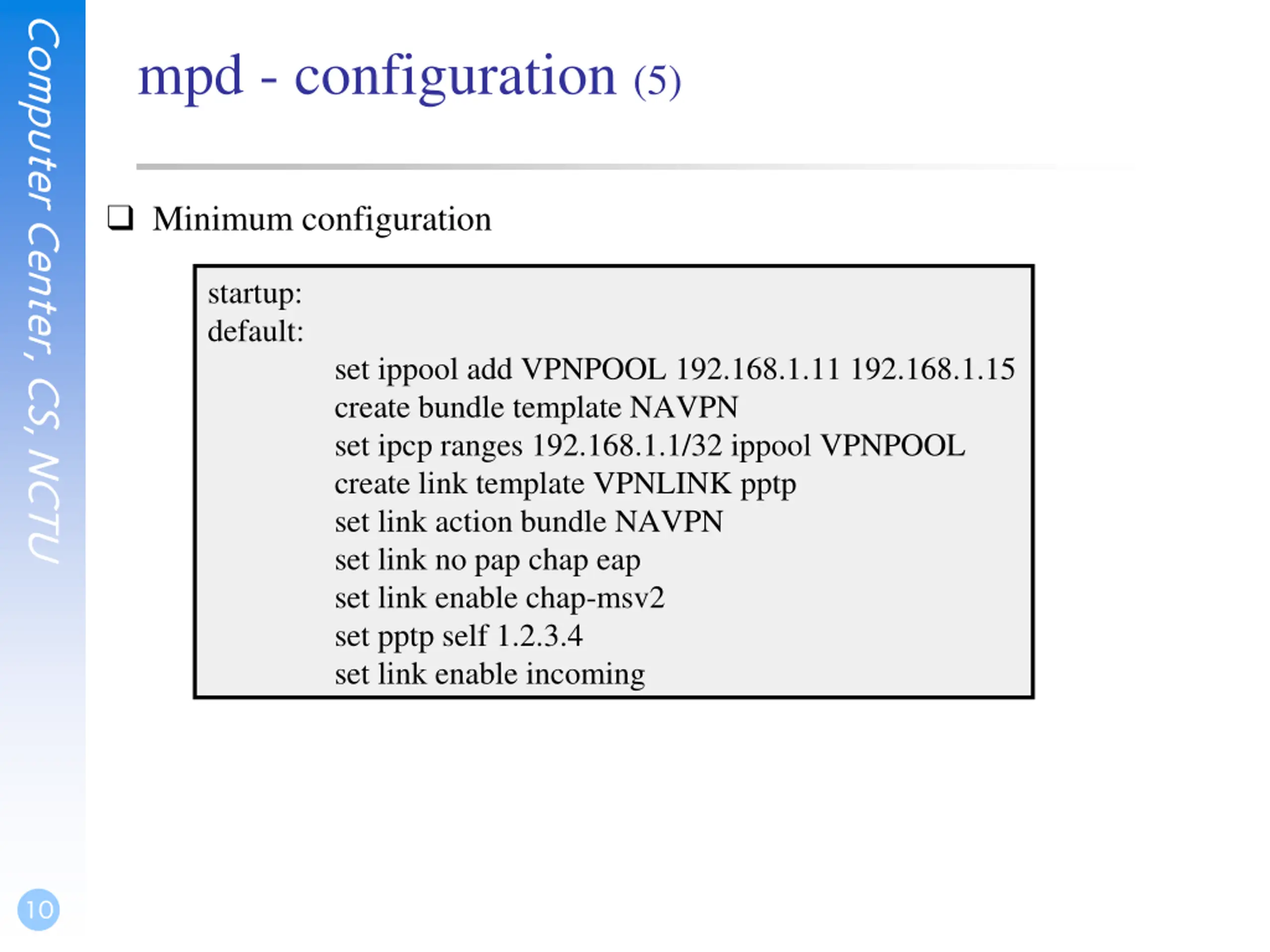

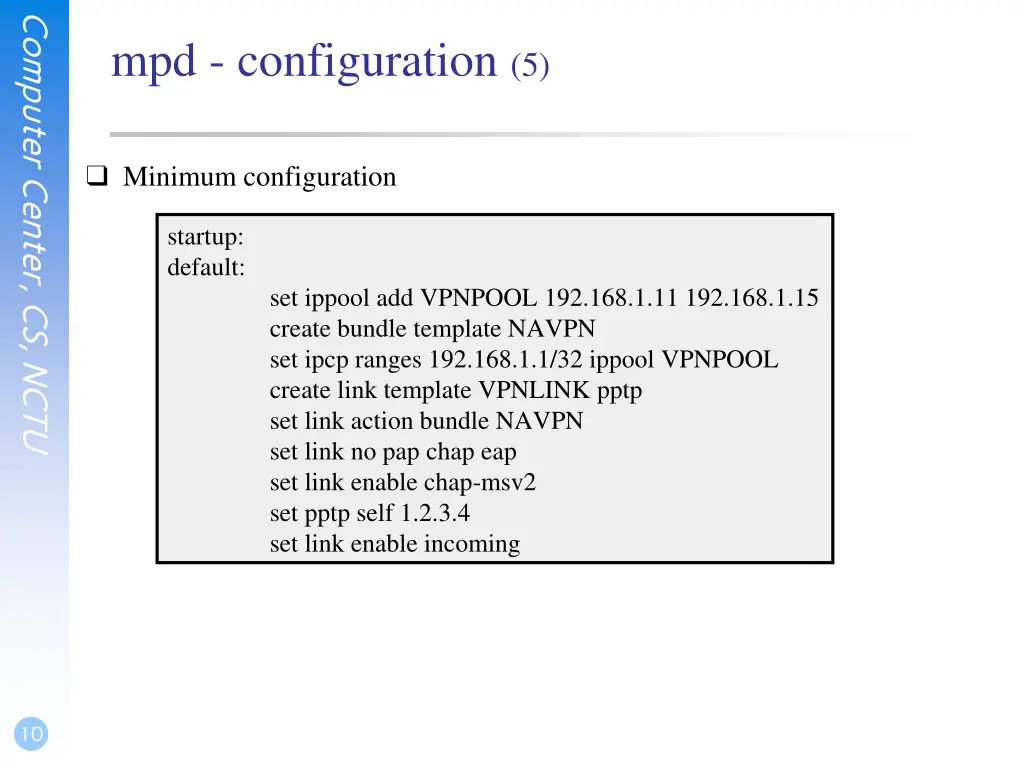

Computer Center, CS, NCTU mpd - configuration (5) Minimum configuration startup: default: set ippool add VPNPOOL 192.168.1.11 192.168.1.15 create bundle template NAVPN set ipcp ranges 192.168.1.1/32 ippool VPNPOOL create link template VPNLINK pptp set link action bundle NAVPN set link no pap chap eap set link enable chap-msv2 set pptp self 1.2.3.4 set link enable incoming 10

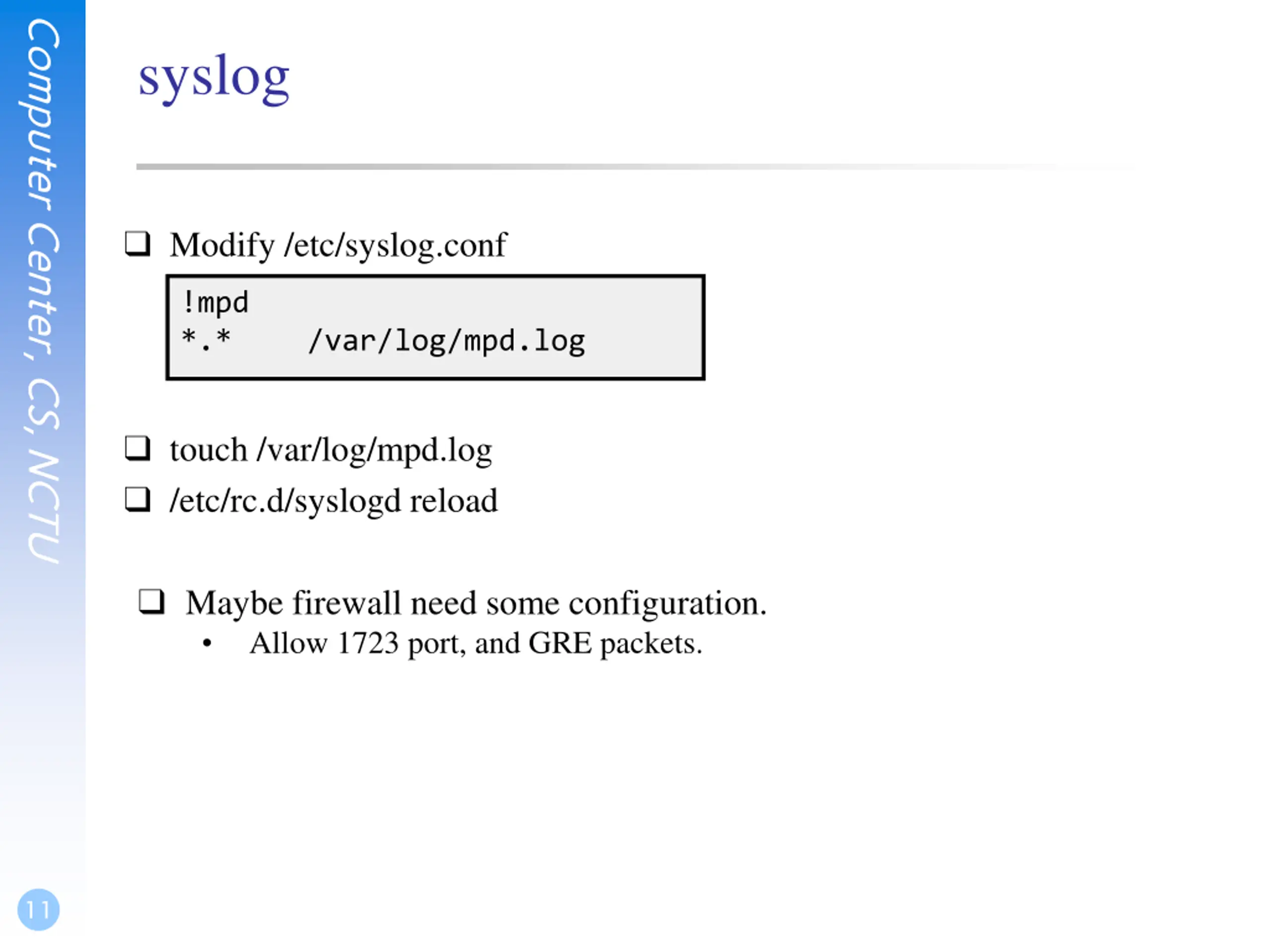

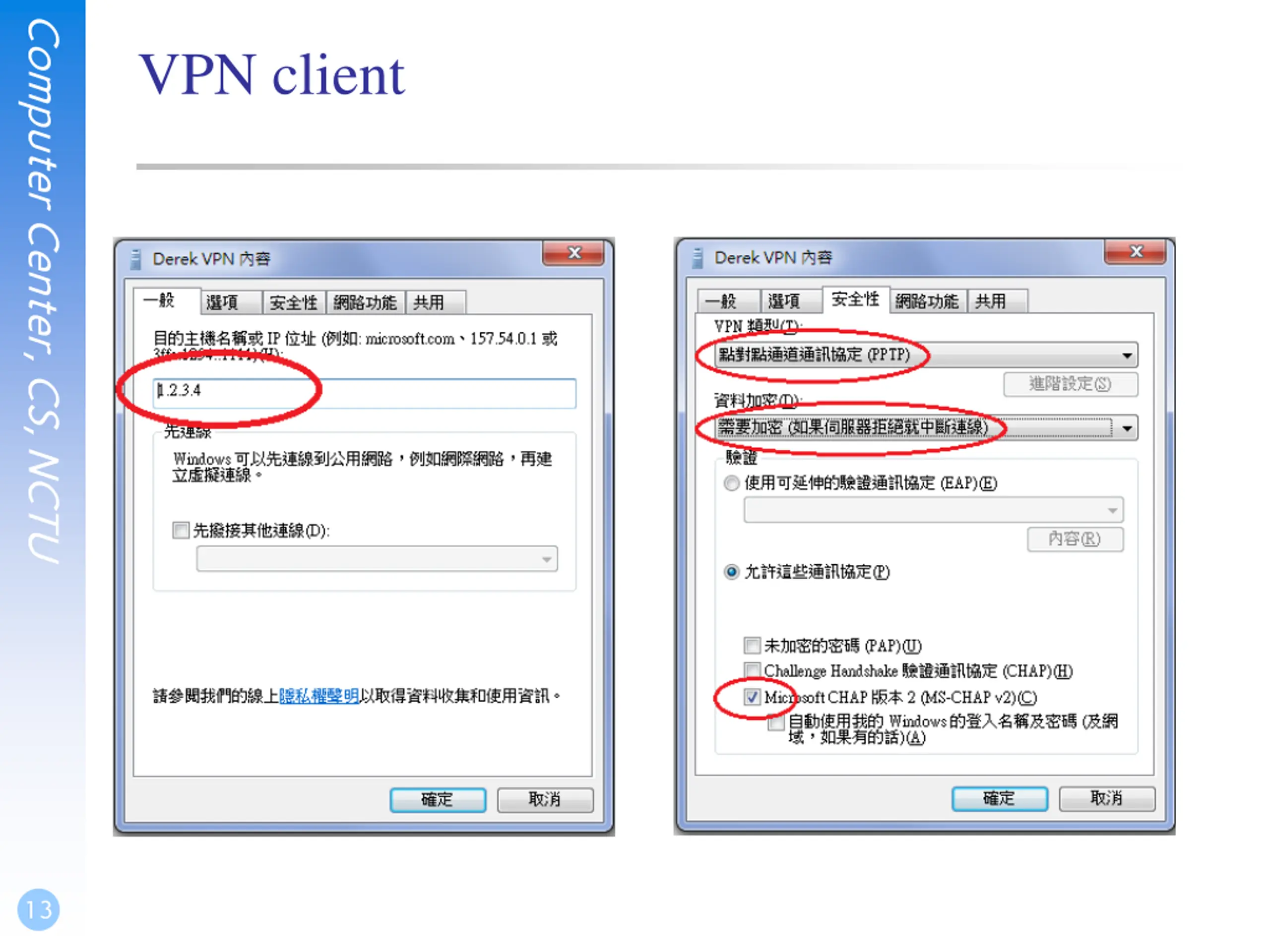

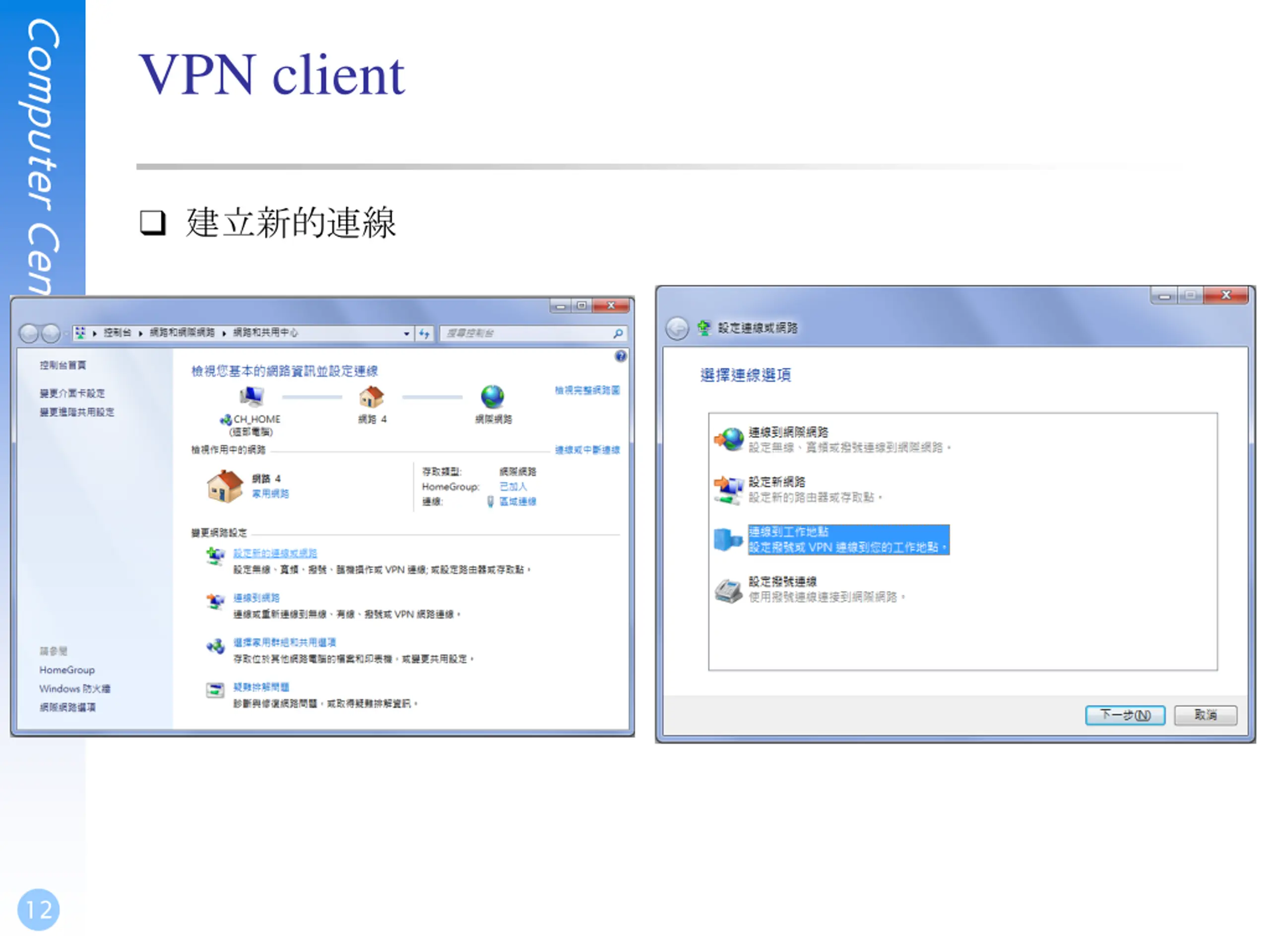

Computer Center, CS, NCTU syslog Modify /etc/syslog.conf !mpd *.* /var/log/mpd.log touch /var/log/mpd.log /etc/rc.d/syslogd reload Maybe firewall need some configuration. Allow 1723 port, and GRE packets. 11
