Computer Techniques Engineering Department College of Engineering and Technology Al-Mustaqbal University Network Simulation Course BY Dr. Muamer N. Mohammed 1
Lecture4 Internet Delay 2

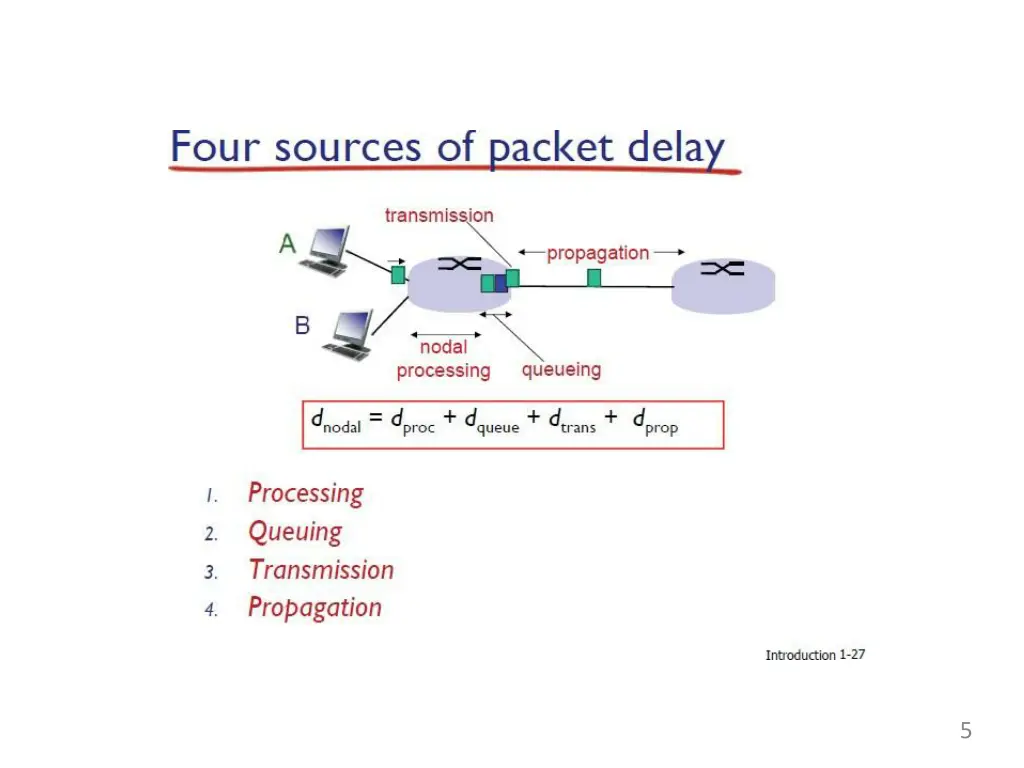

Nodal delay dnodal= dproc+dqueue+dtrans+dprop dproc = processingdelay dependes on time checking error, packet forwarding algorithem. dqueue = queuingdelay depends on congestion and packet on thelink. dtrans = transmissiondelay = L/R, significant for low-speedlinks dprop = propagationdelay The propagation speed depends on the physical medium of the link (that is, fibre optics, twisted-pair copper wire, and so on = d/s 6

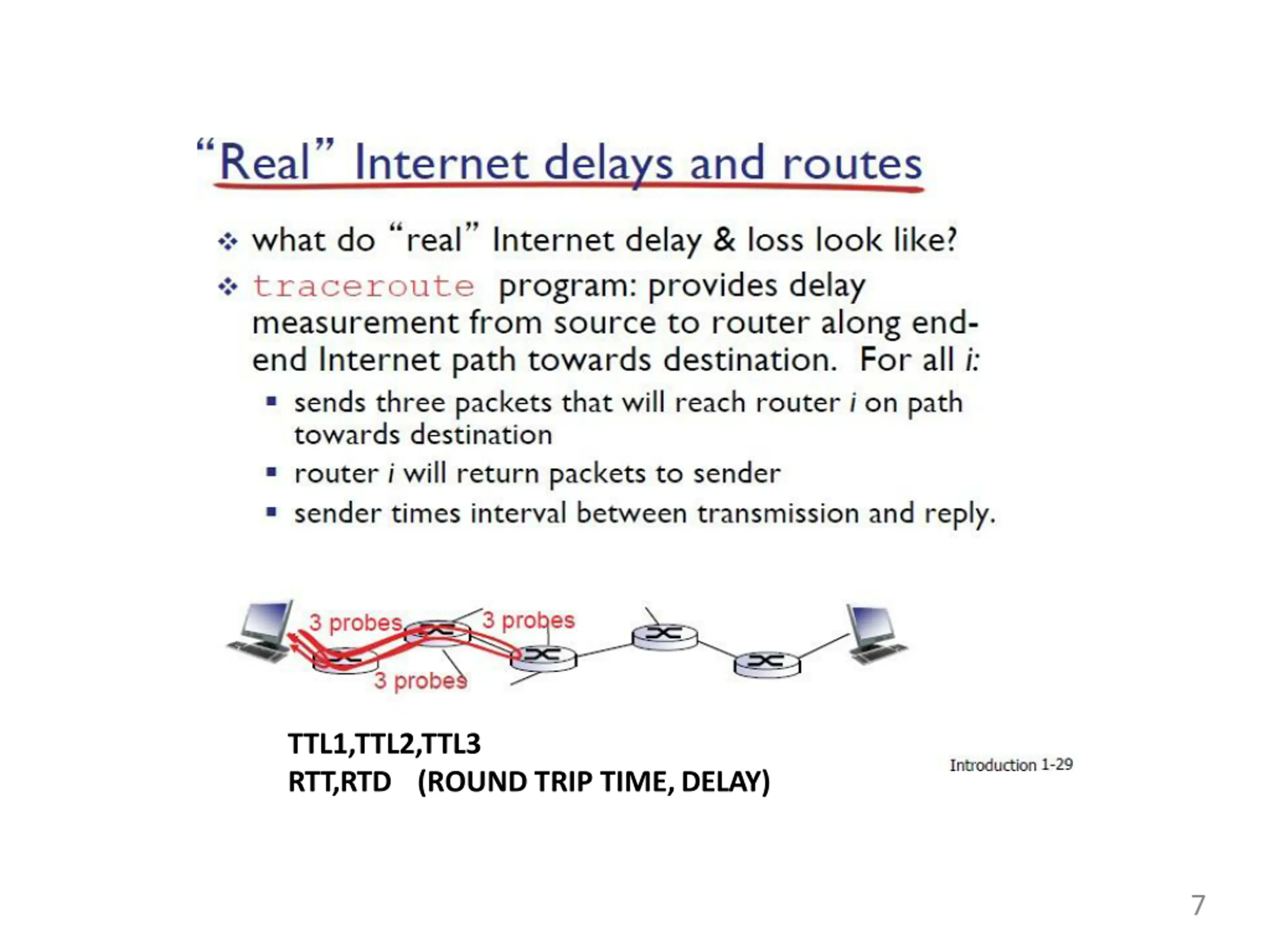

TTL1,TTL2,TTL3 RTT,RTD (ROUND TRIP TIME,DELAY) 7

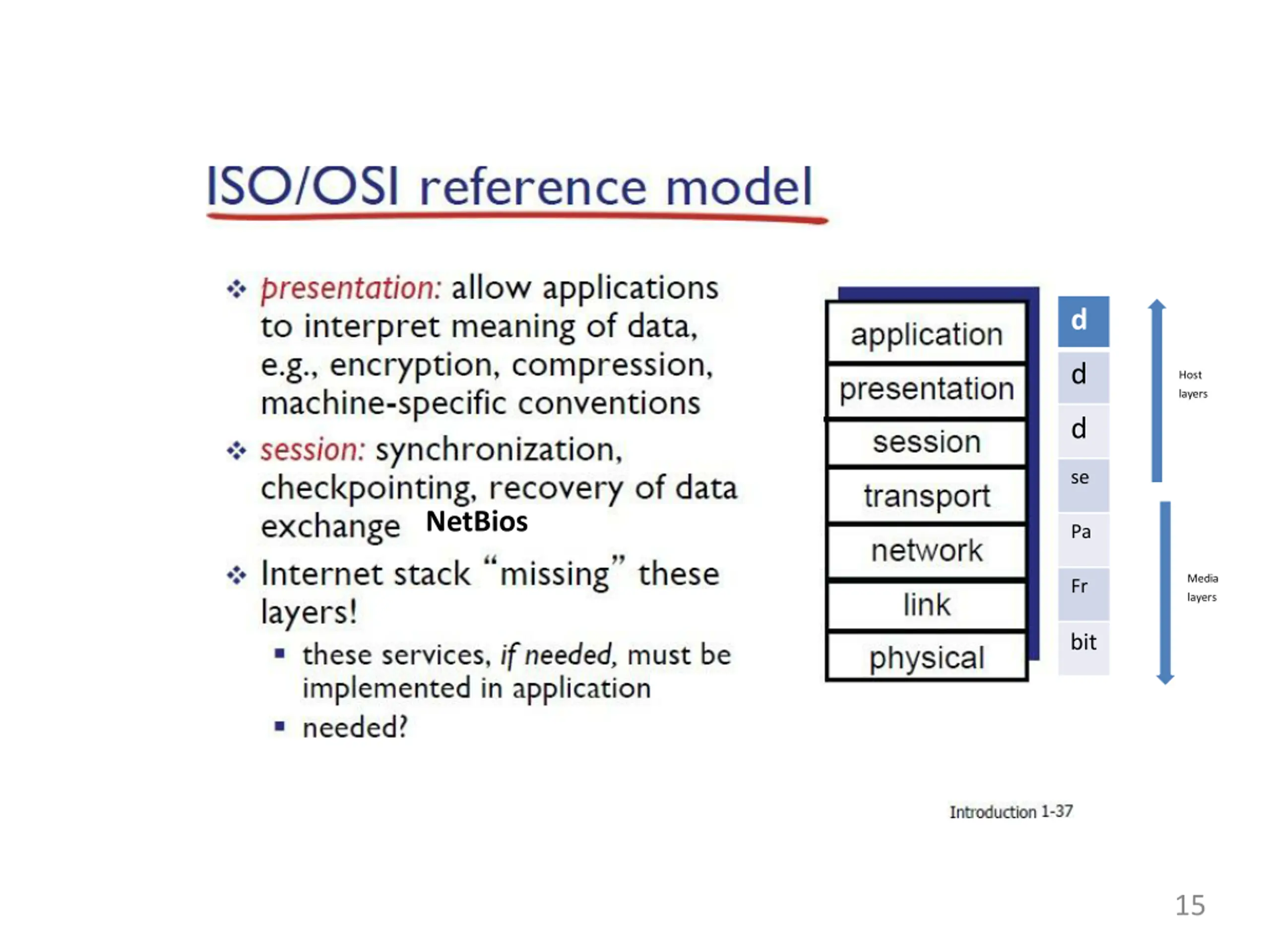

d d Host layers d se NetBios Pa Media Fr layers bit 15
