6.829 Computer Networks Lecture 6: Network Utility Maximization Mohammad Alizadeh Fall 2016 1

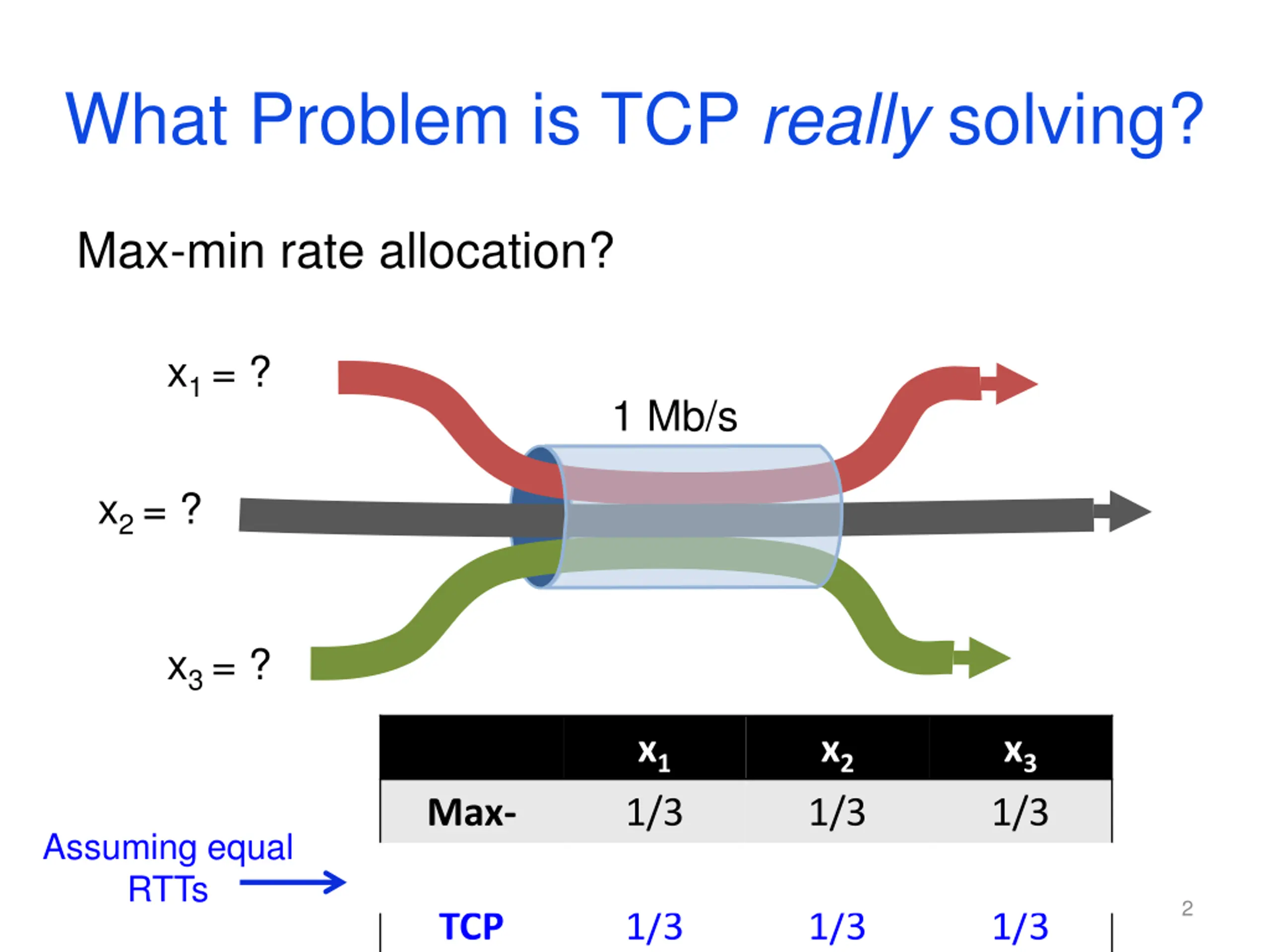

What Problem is TCP really solving? Max-min rate allocation? x1 = ? 1 Mb/s x2 = ? x3 = ? x1 1/3 x2 1/3 x3 1/3 Max- min TCP Assuming equal RTTs 2 1/3 1/3 1/3

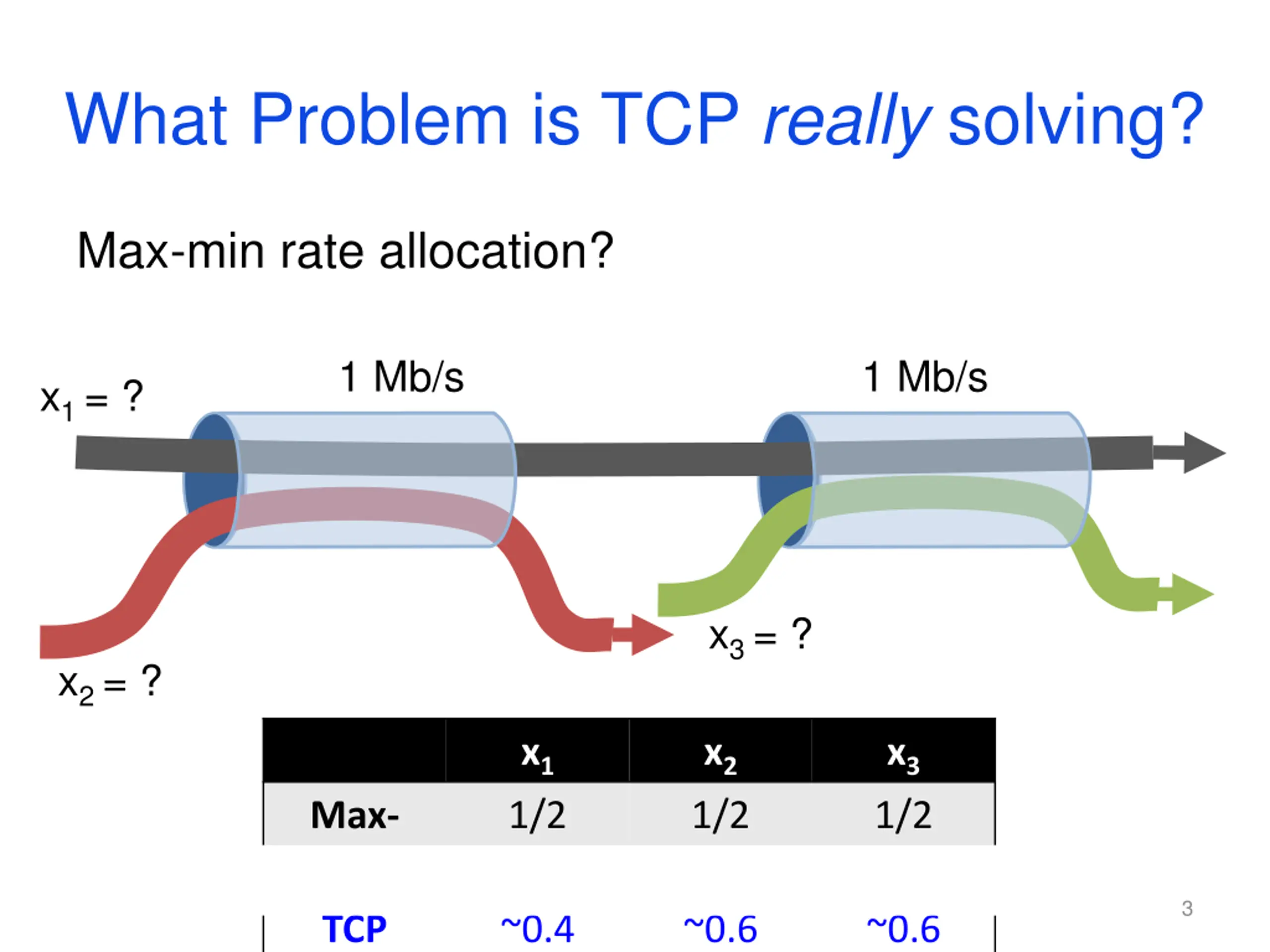

What Problem is TCP really solving? Max-min rate allocation? 1 Mb/s 1 Mb/s x1 = ? x3 = ? x2 = ? x1 1/2 x2 1/2 x3 1/2 Max- min TCP 3 ~0.4 ~0.6 ~0.6

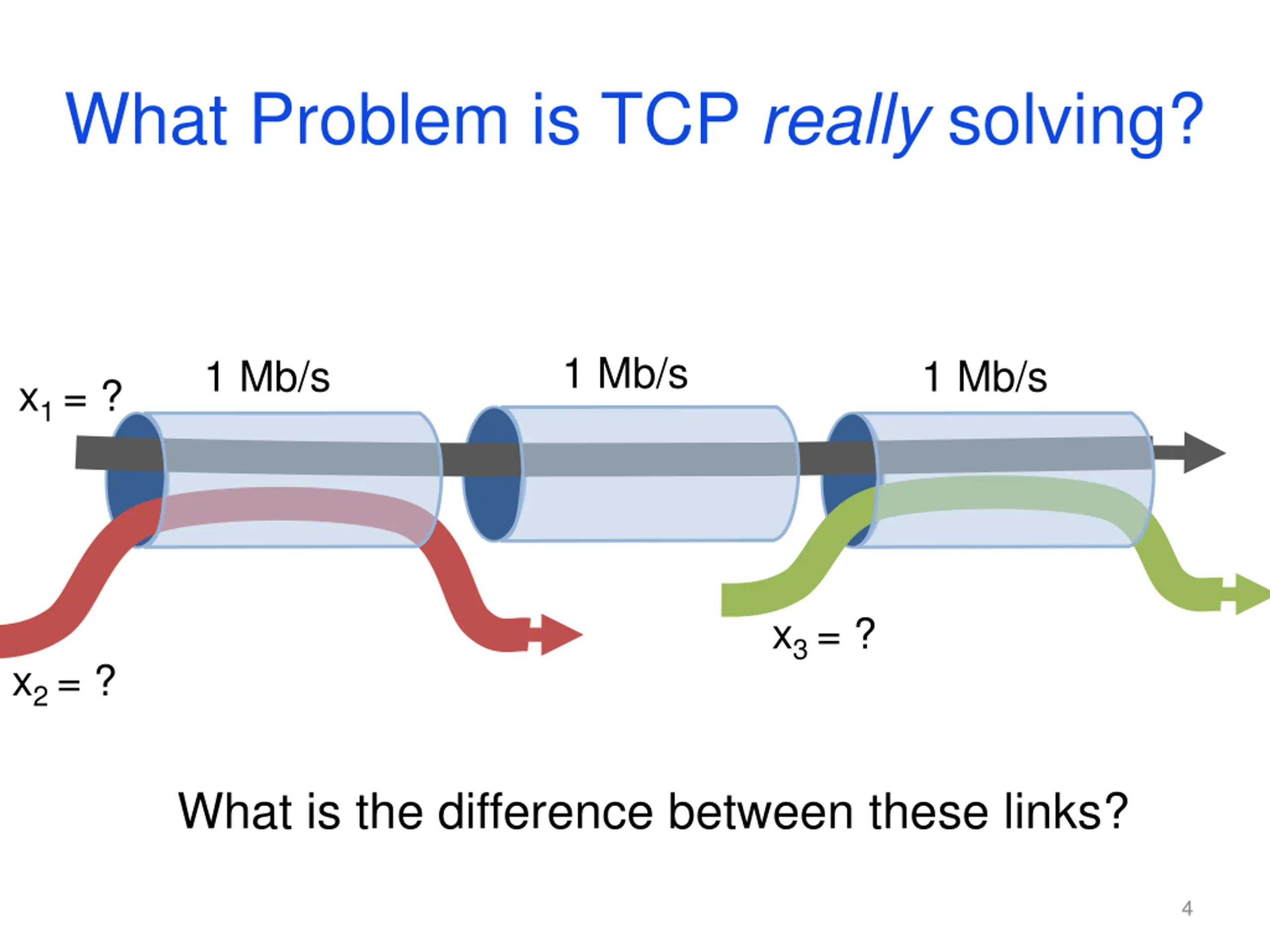

What Problem is TCP really solving? 1 Mb/s 1 Mb/s 1 Mb/s x1 = ? x3 = ? x2 = ? What is the difference between these links? 4

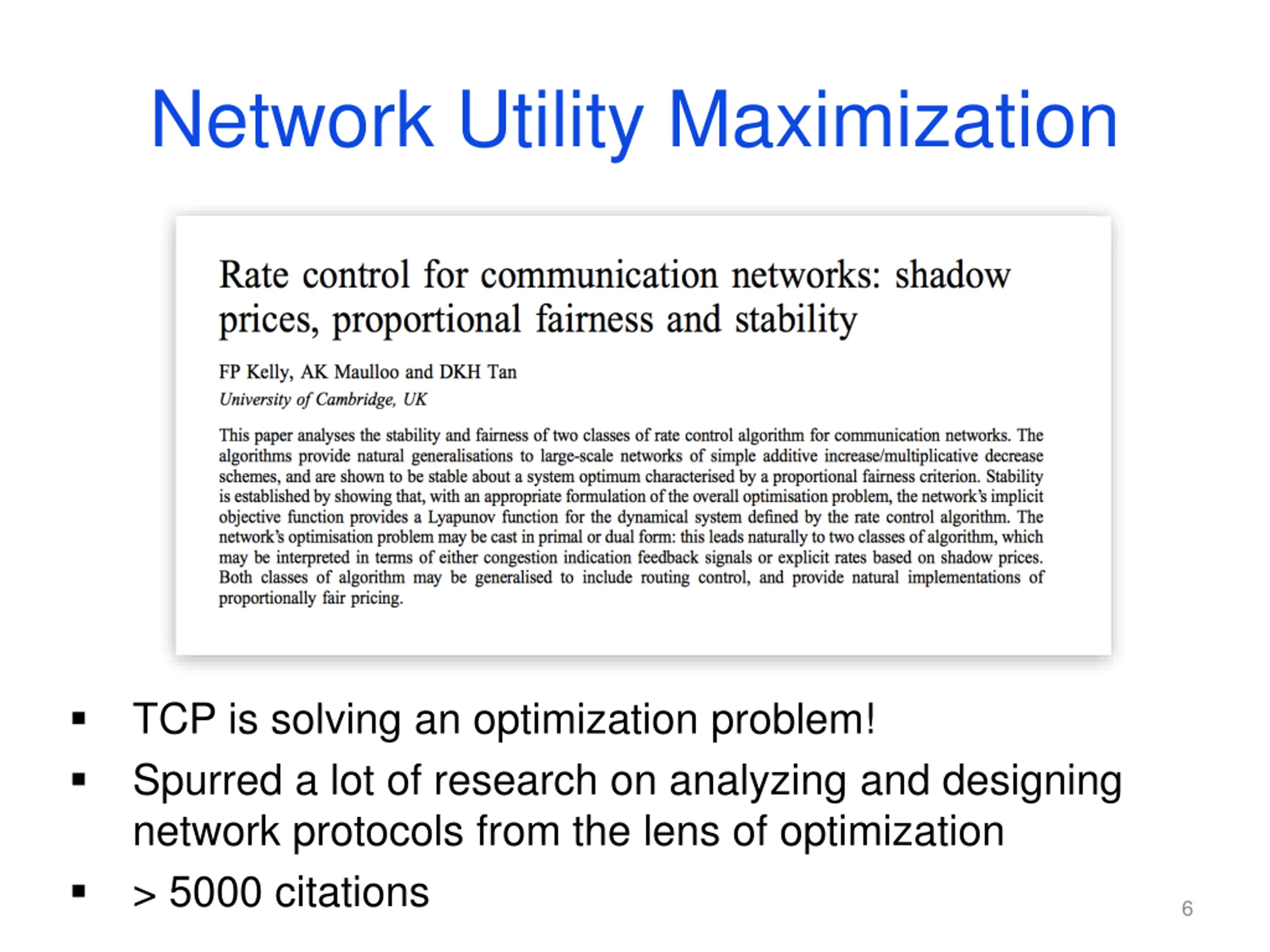

Network Utility Maximization TCP is solving an optimization problem! Spurred a lot of research on analyzing and designing network protocols from the lens of optimization > 5000 citations 6

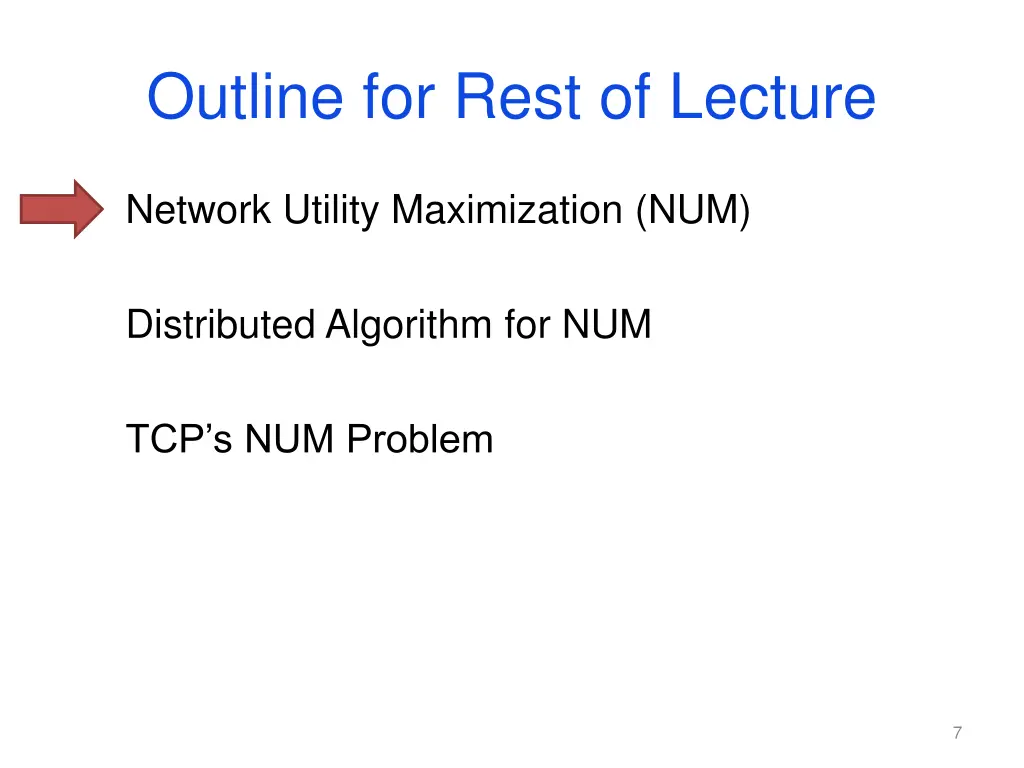

Outline for Rest of Lecture Network Utility Maximization (NUM) Distributed Algorithm for NUM TCP s NUM Problem 7

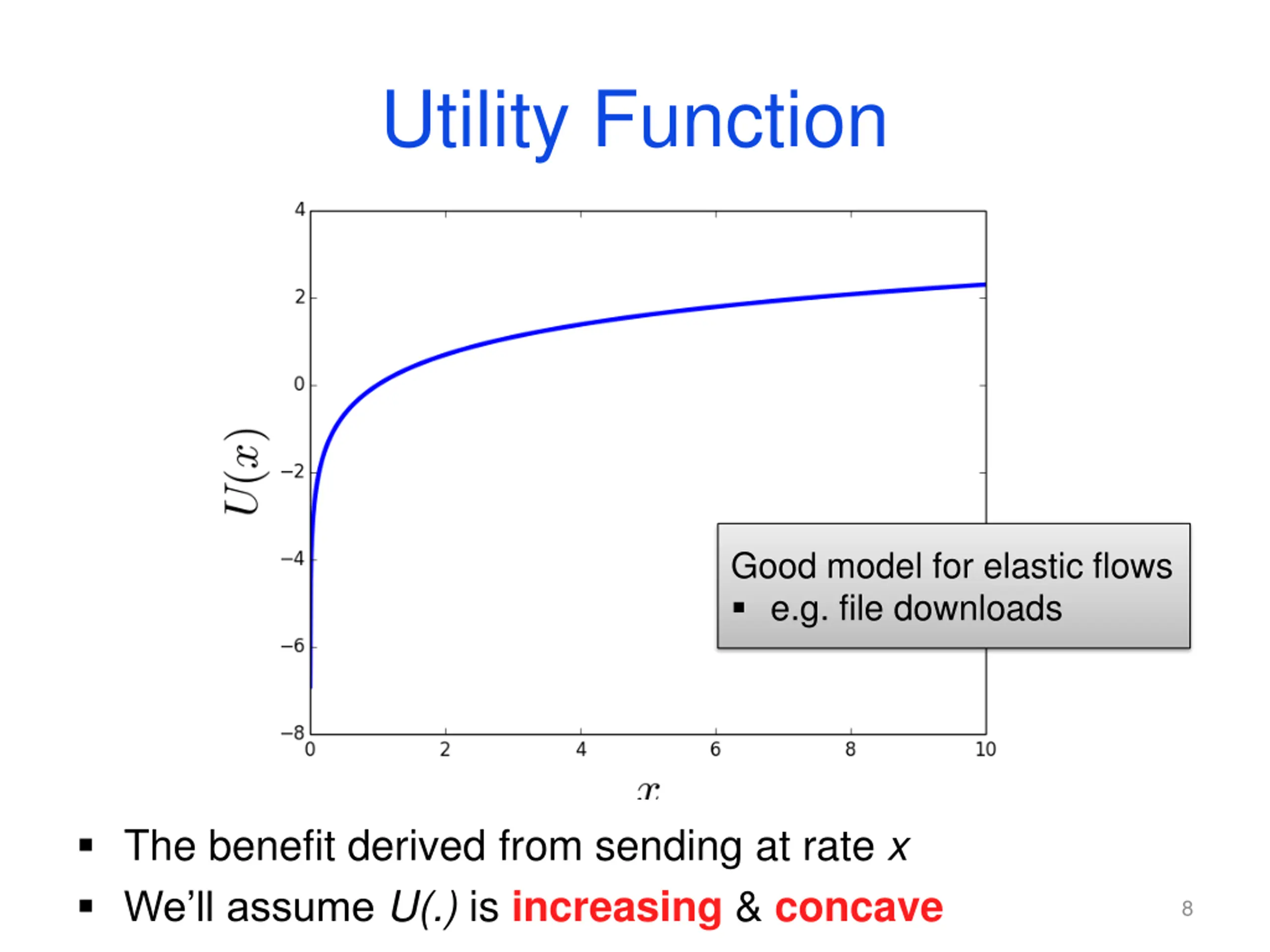

Utility Function Good model for elastic flows e.g. file downloads The benefit derived from sending at rate x We ll assume U(.) is increasing & concave 8

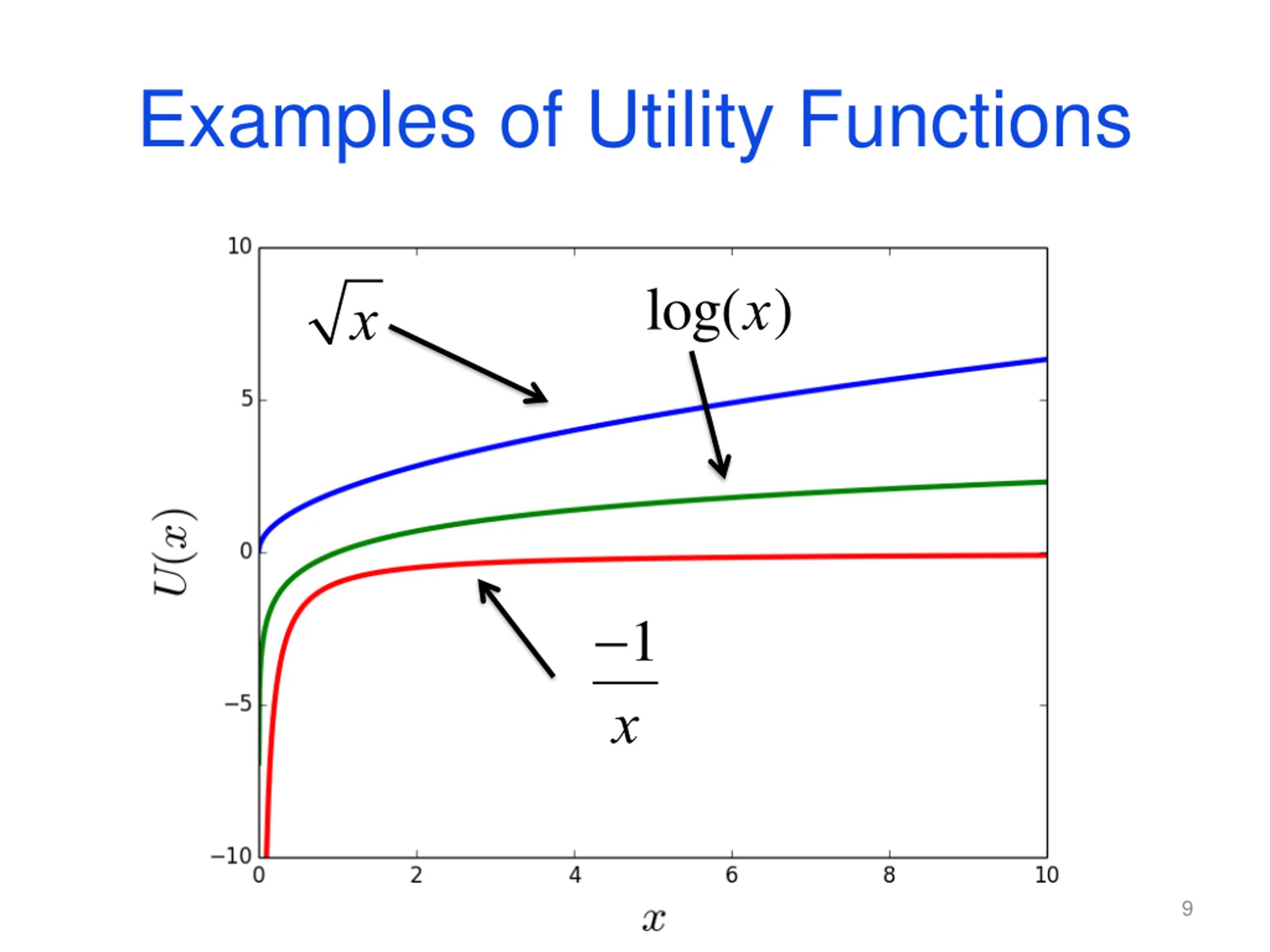

Examples of Utility Functions log(x) x -1 x 9

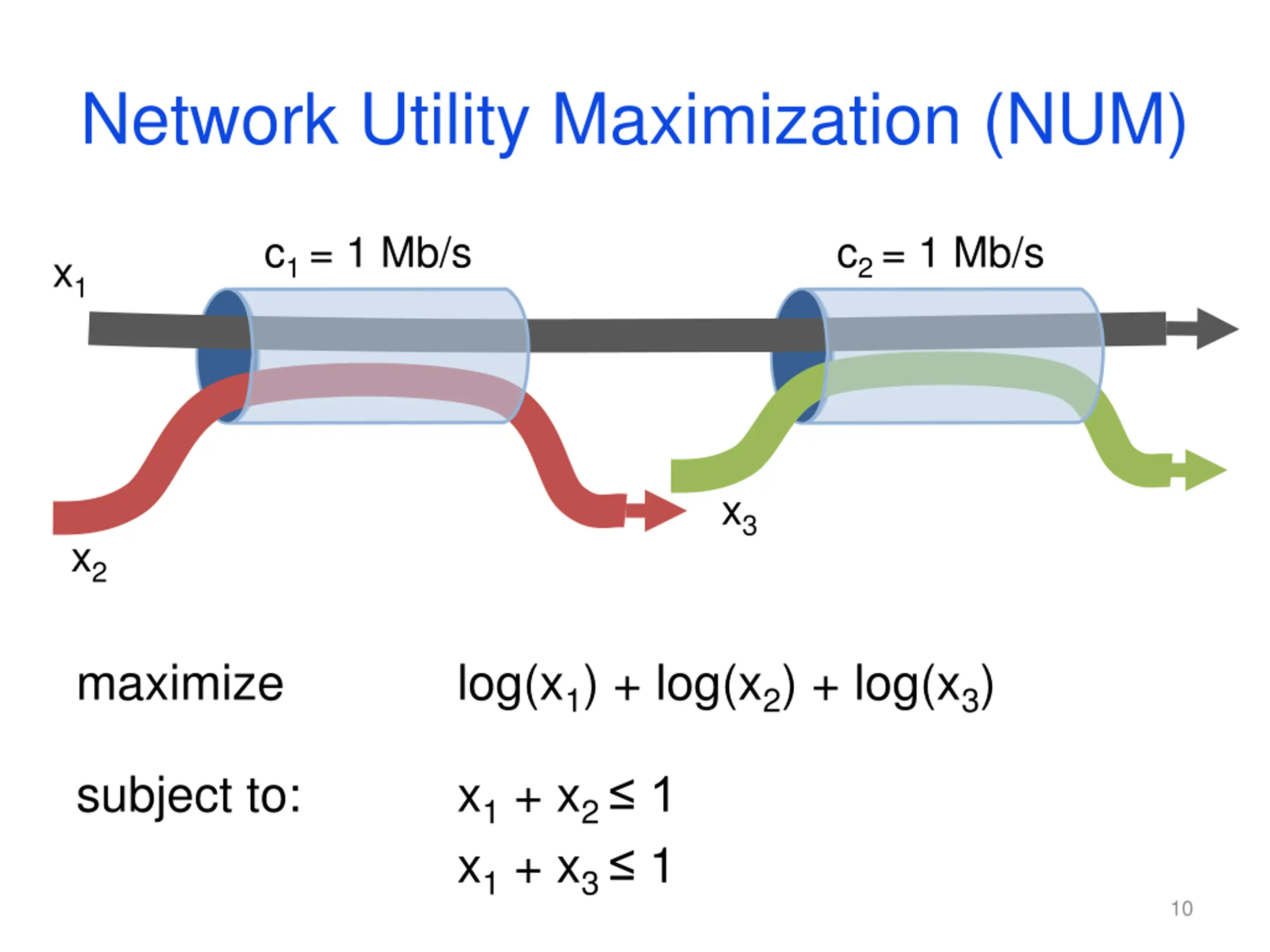

Network Utility Maximization (NUM) c1 = 1 Mb/s c2 = 1 Mb/s x1 x3 x2 maximize log(x1) + log(x2) + log(x3) subject to: x1 + x2 1 x1 + x3 1 10

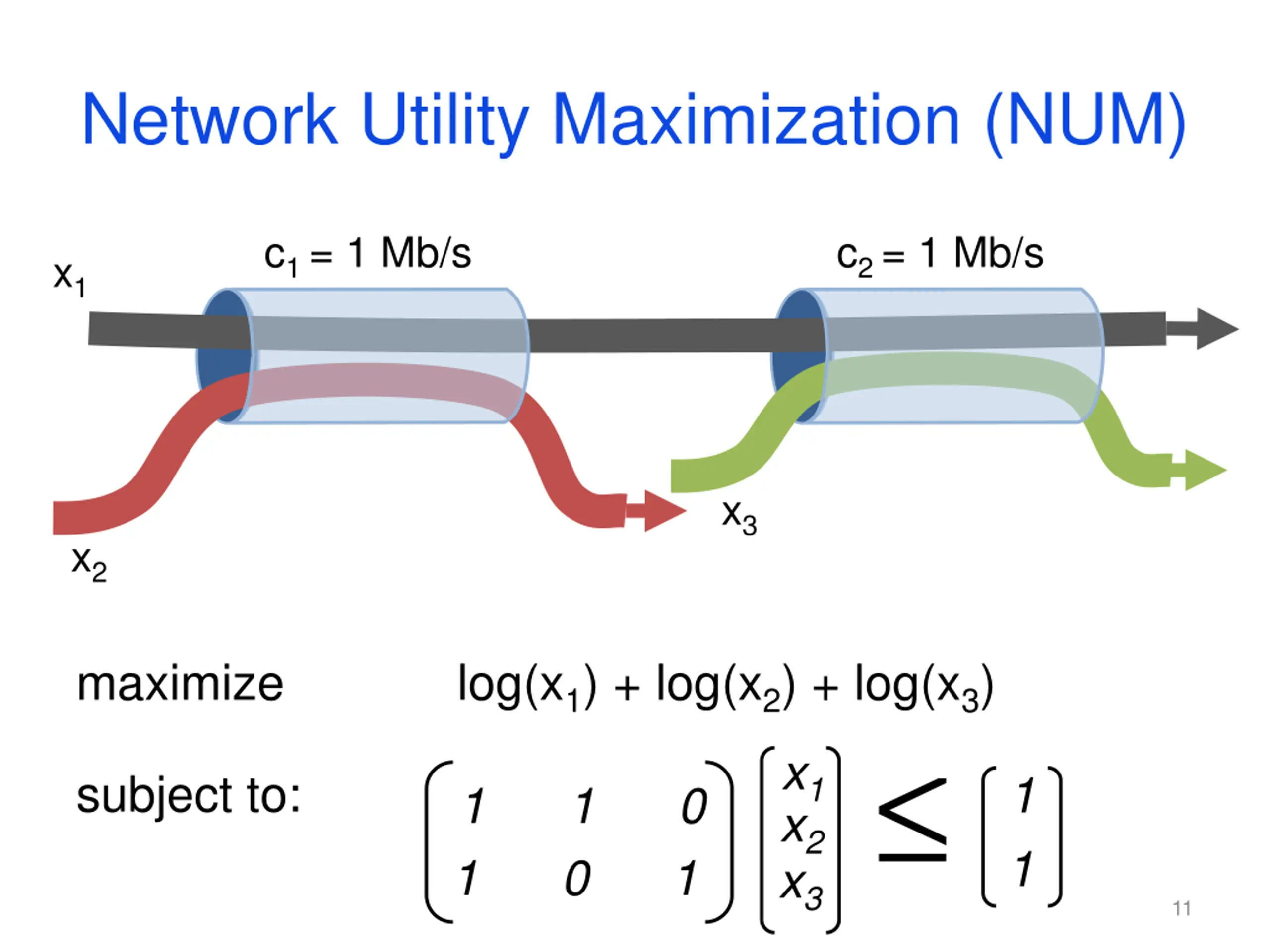

Network Utility Maximization (NUM) c1 = 1 Mb/s c2 = 1 Mb/s x1 x3 x2 maximize log(x1) + log(x2) + log(x3) x1 x2 x3 subject to: 1 1 1 1 0 1 0 1 11

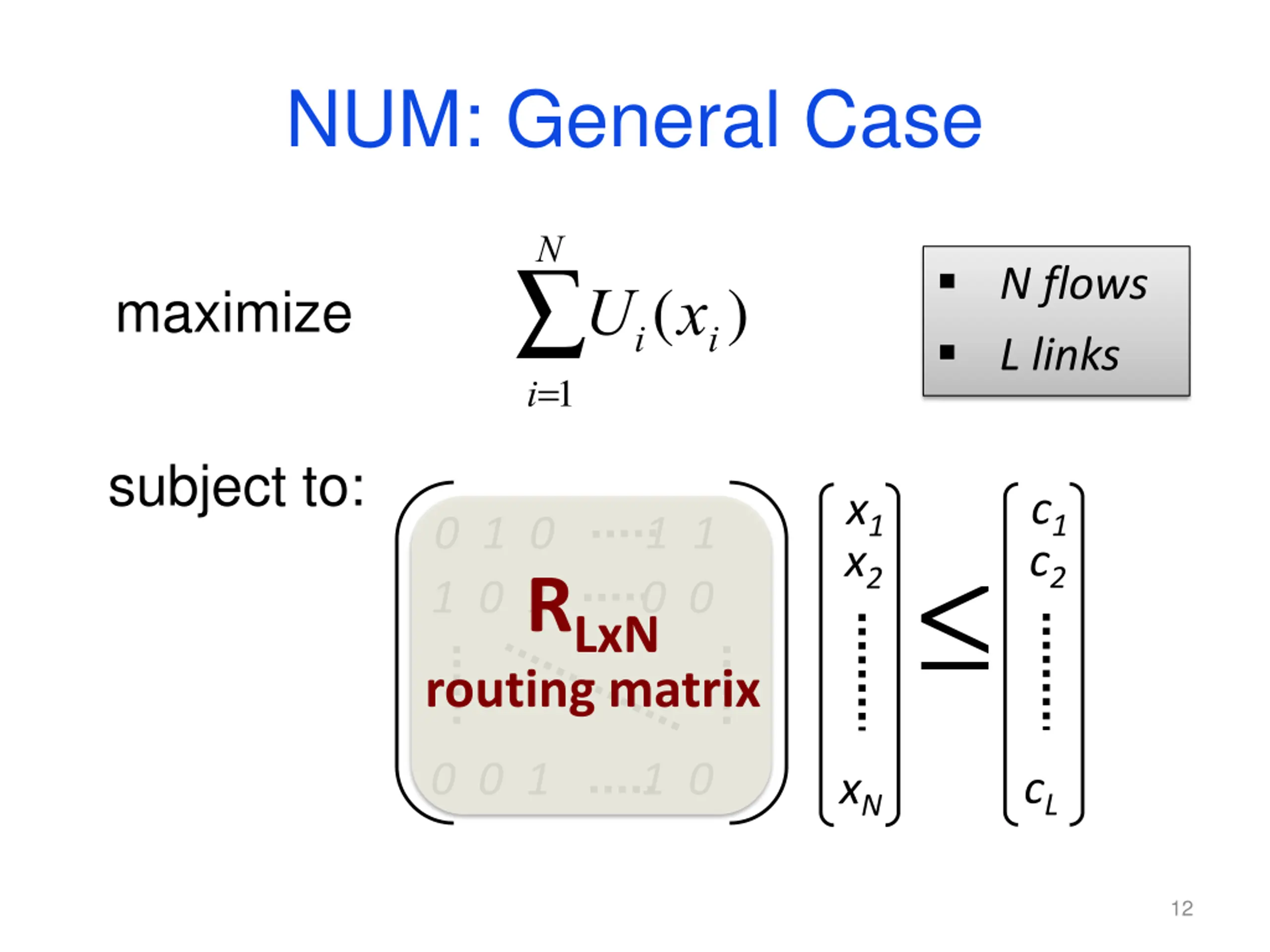

NUM: General Case N N flows L links (xi) Ui maximize i=1 subject to: c1 c2 x1 x2 0 1 0 1 1 1 0 1 0 0 RLxN routing matrix 0 0 1 1 0 cL xN 12

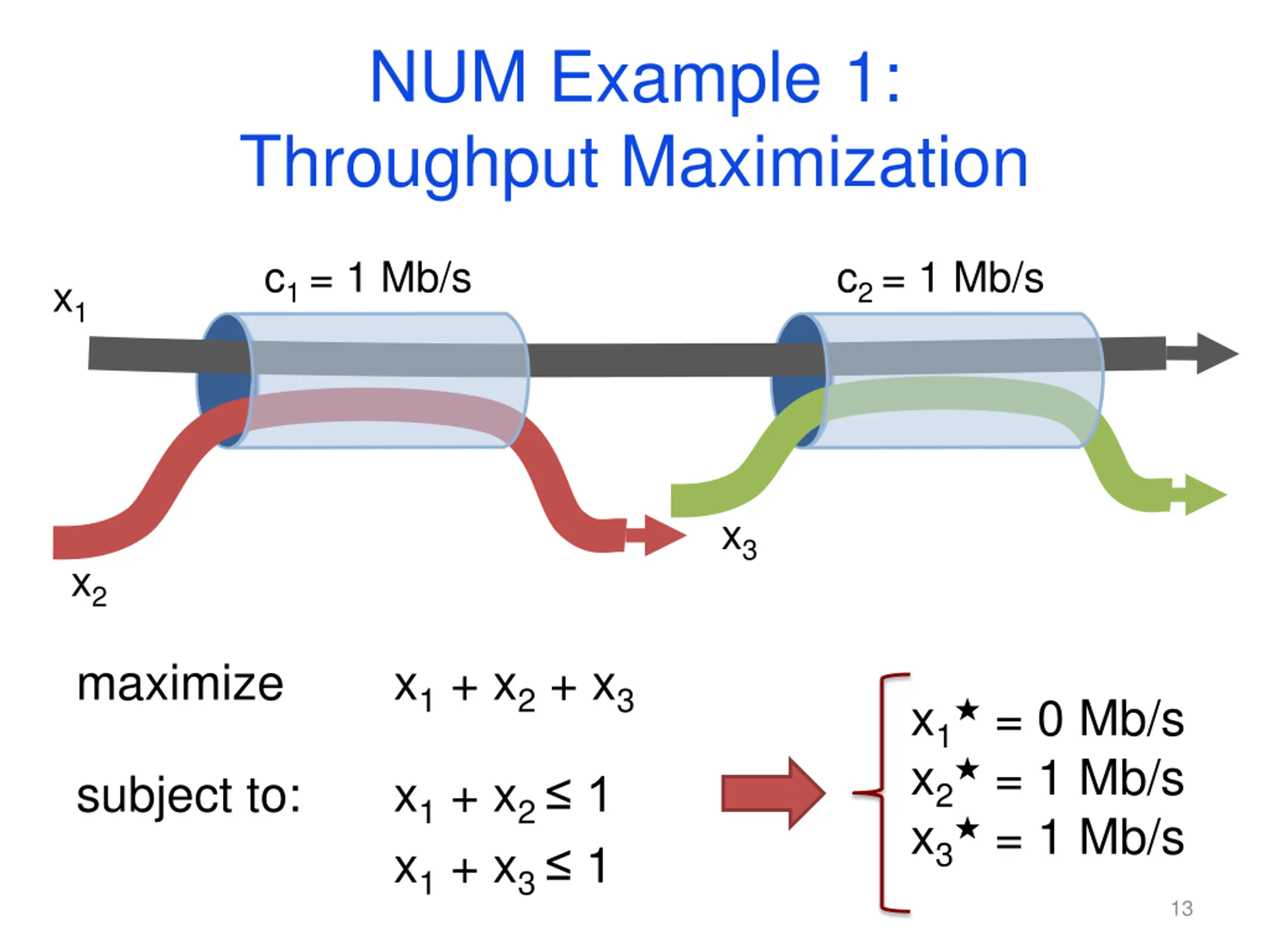

NUM Example 1: Throughput Maximization c1 = 1 Mb/s c2 = 1 Mb/s x1 x3 x2 maximize x1 + x2 + x3 x1 = 0 Mb/s x2 = 1 Mb/s x3 = 1 Mb/s subject to: x1 + x2 1 x1 + x3 1 13

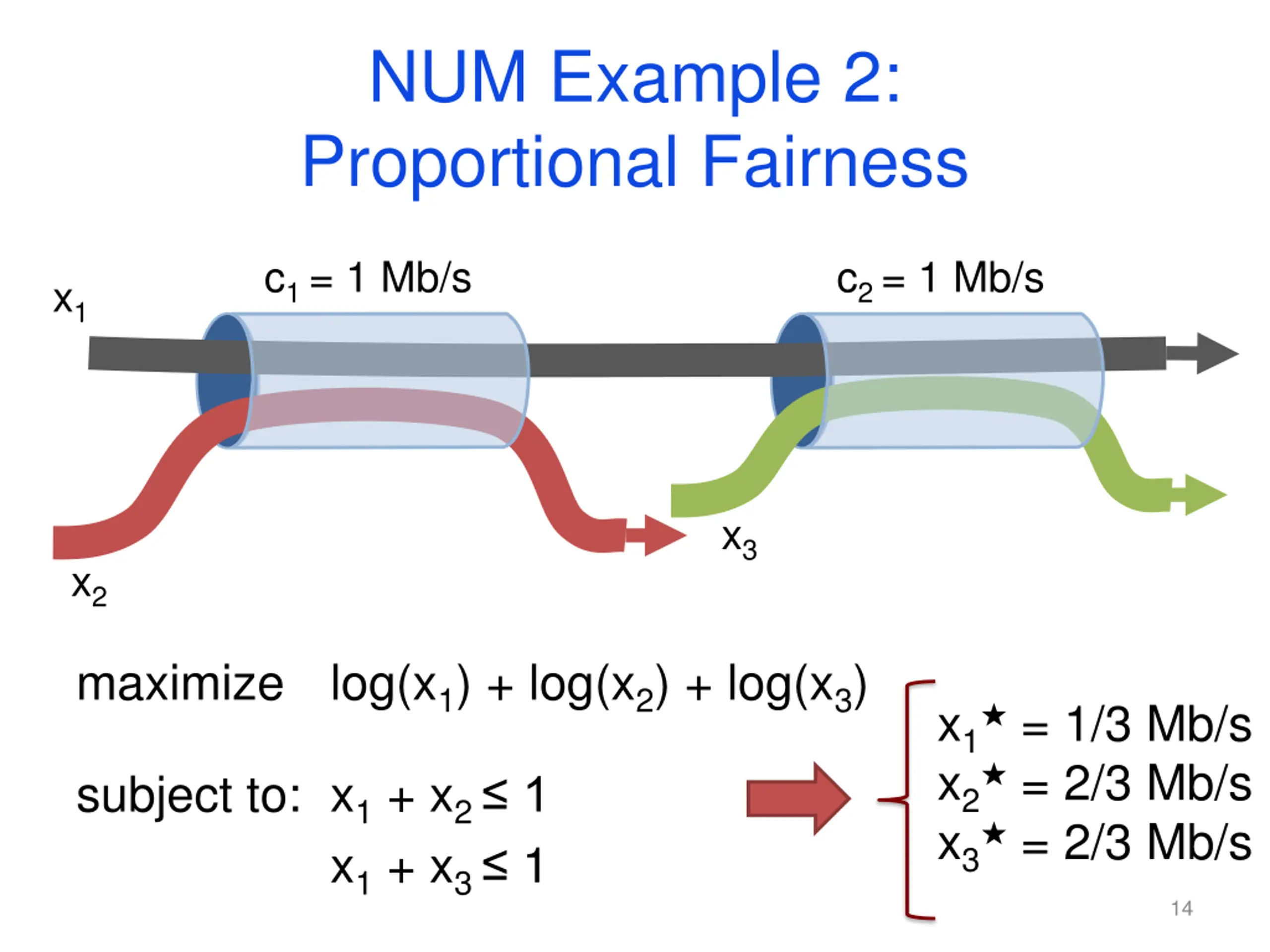

NUM Example 2: Proportional Fairness c1 = 1 Mb/s c2 = 1 Mb/s x1 x3 x2 maximize log(x1) + log(x2) + log(x3) x1 = 1/3 Mb/s x2 = 2/3 Mb/s x3 = 2/3 Mb/s subject to: x1 + x2 1 x1 + x3 1 14

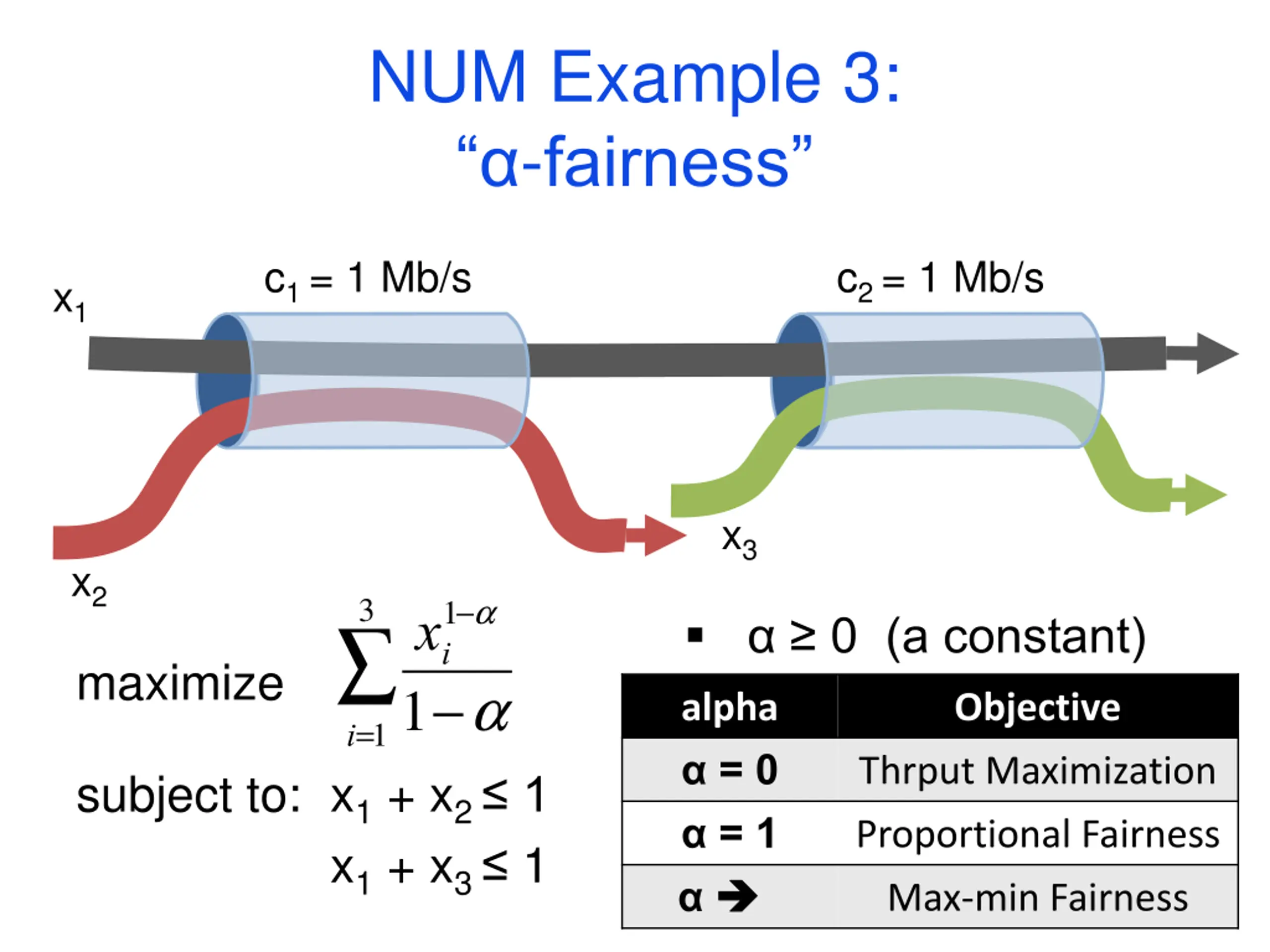

NUM Example 3: -fairness c1 = 1 Mb/s c2 = 1 Mb/s x1 x3 x2 1-a 3 xi 1-a 0 (a constant) maximize alpha = 0 = 1 Objective i=1 Thrput Maximization Proportional Fairness subject to: x1 + x2 1 x1 + x3 1 Max-min Fairness 15

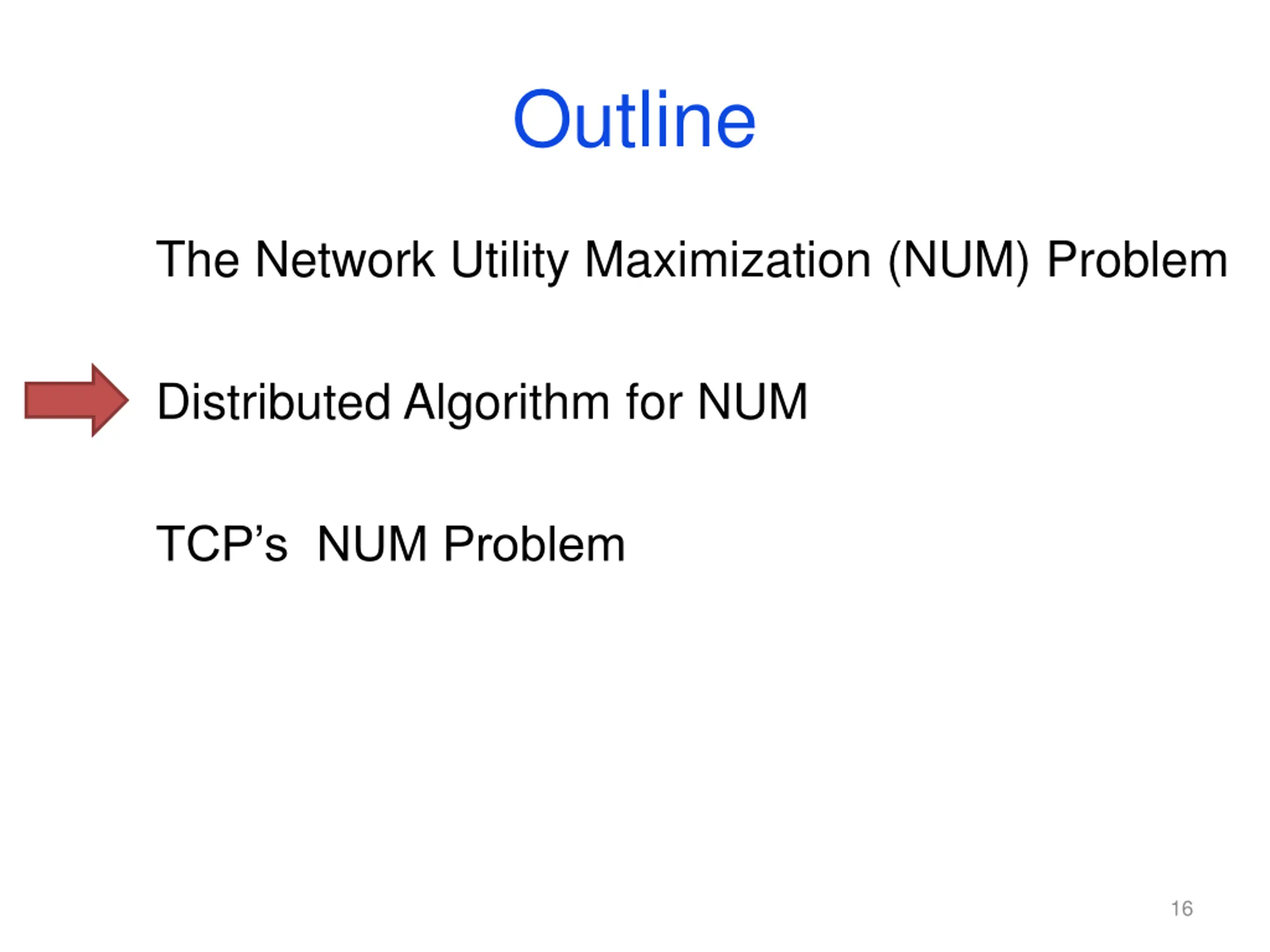

Outline The Network Utility Maximization (NUM) Problem Distributed Algorithm for NUM TCP s NUM Problem 16

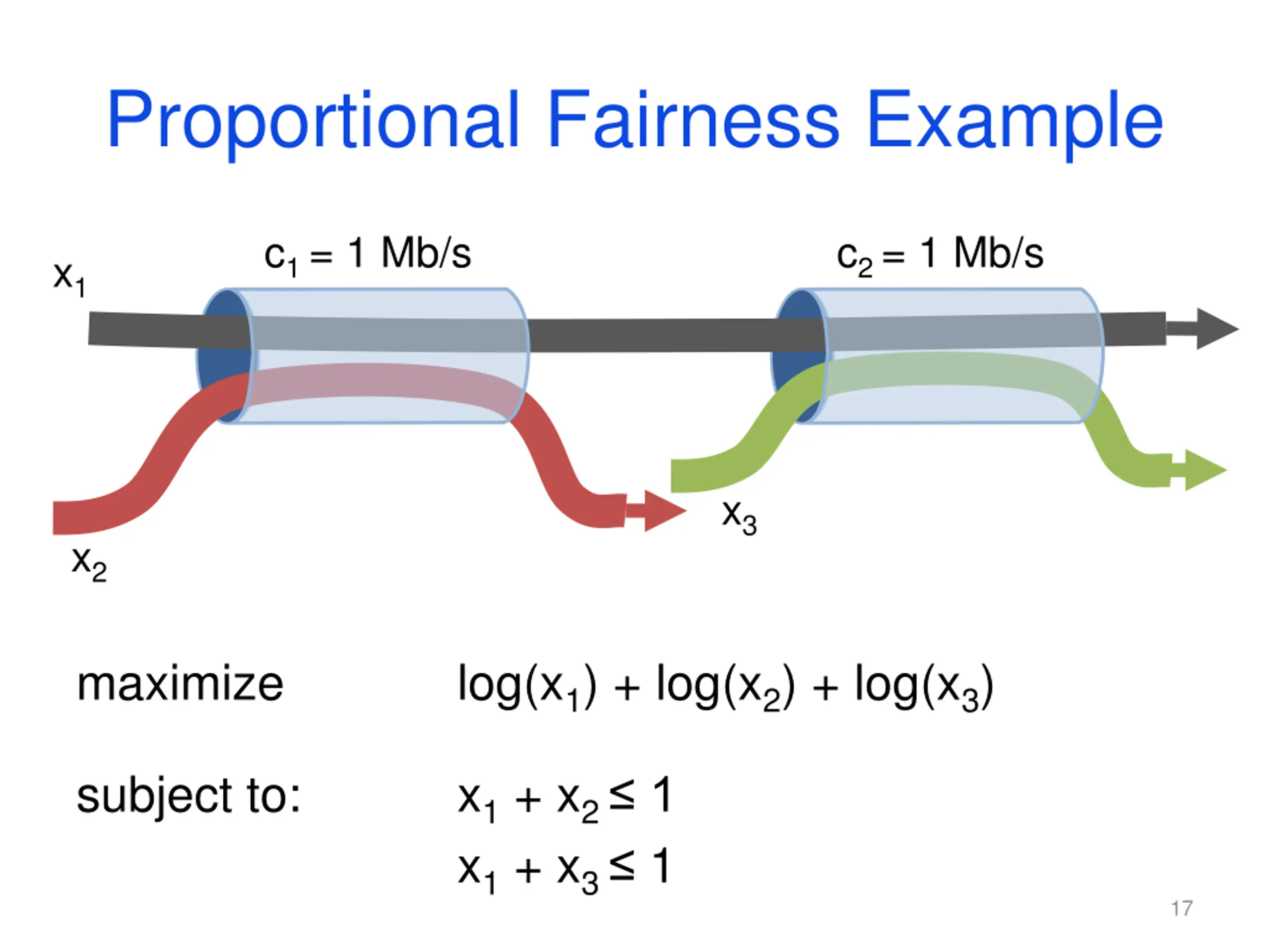

Proportional Fairness Example c1 = 1 Mb/s c2 = 1 Mb/s x1 x3 x2 maximize log(x1) + log(x2) + log(x3) subject to: x1 + x2 1 x1 + x3 1 17

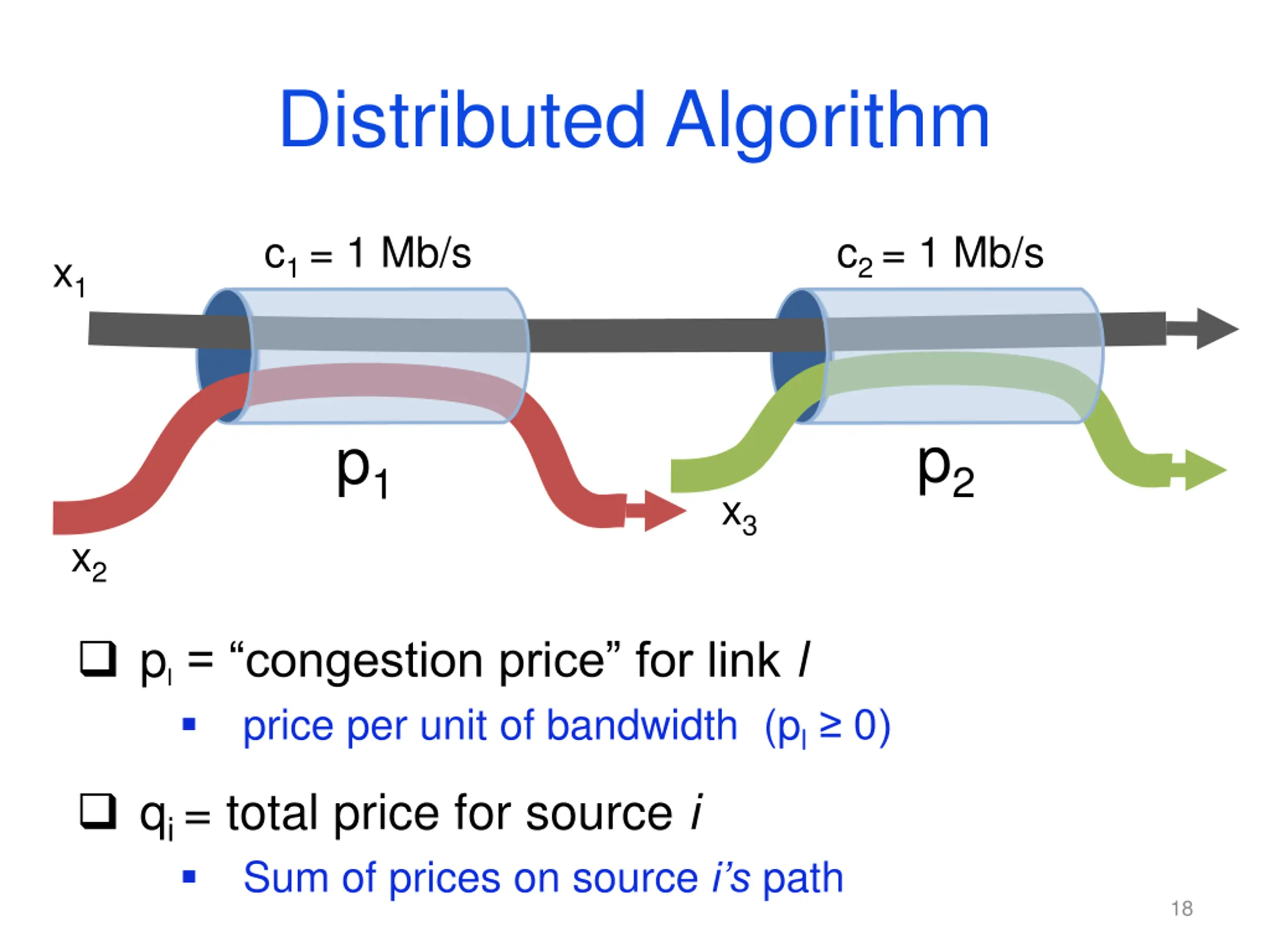

Distributed Algorithm c1 = 1 Mb/s c2 = 1 Mb/s x1 p2 p1 x3 x2 pl= congestion price for link l price per unit of bandwidth (pl 0) qi = total price for source i Sum of prices on source i s path 18

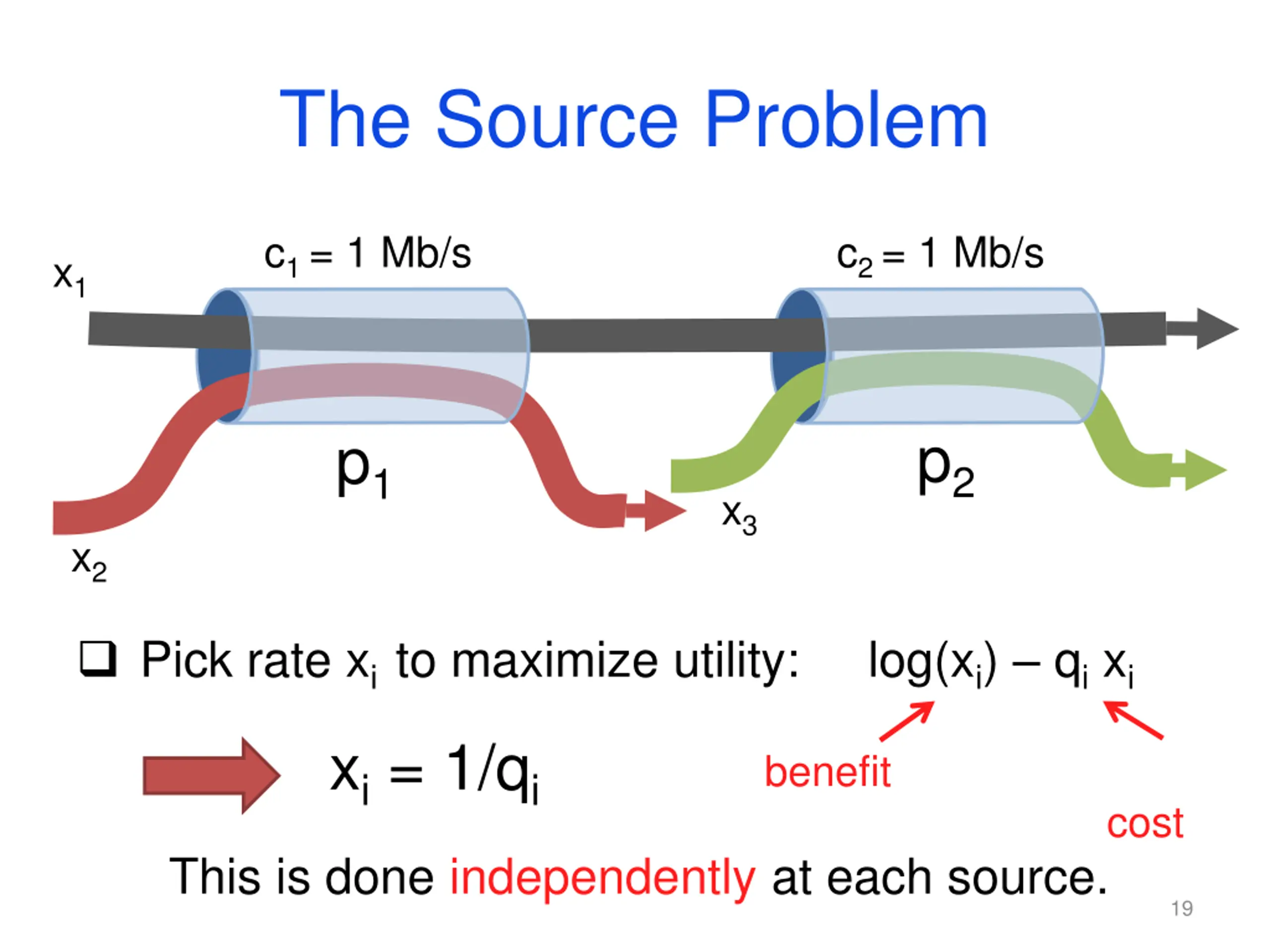

The Source Problem c1 = 1 Mb/s c2 = 1 Mb/s x1 p2 p1 x3 x2 Pick rate xi to maximize utility: log(xi) qi xi xi = 1/qi benefit cost This is done independently at each source. 19

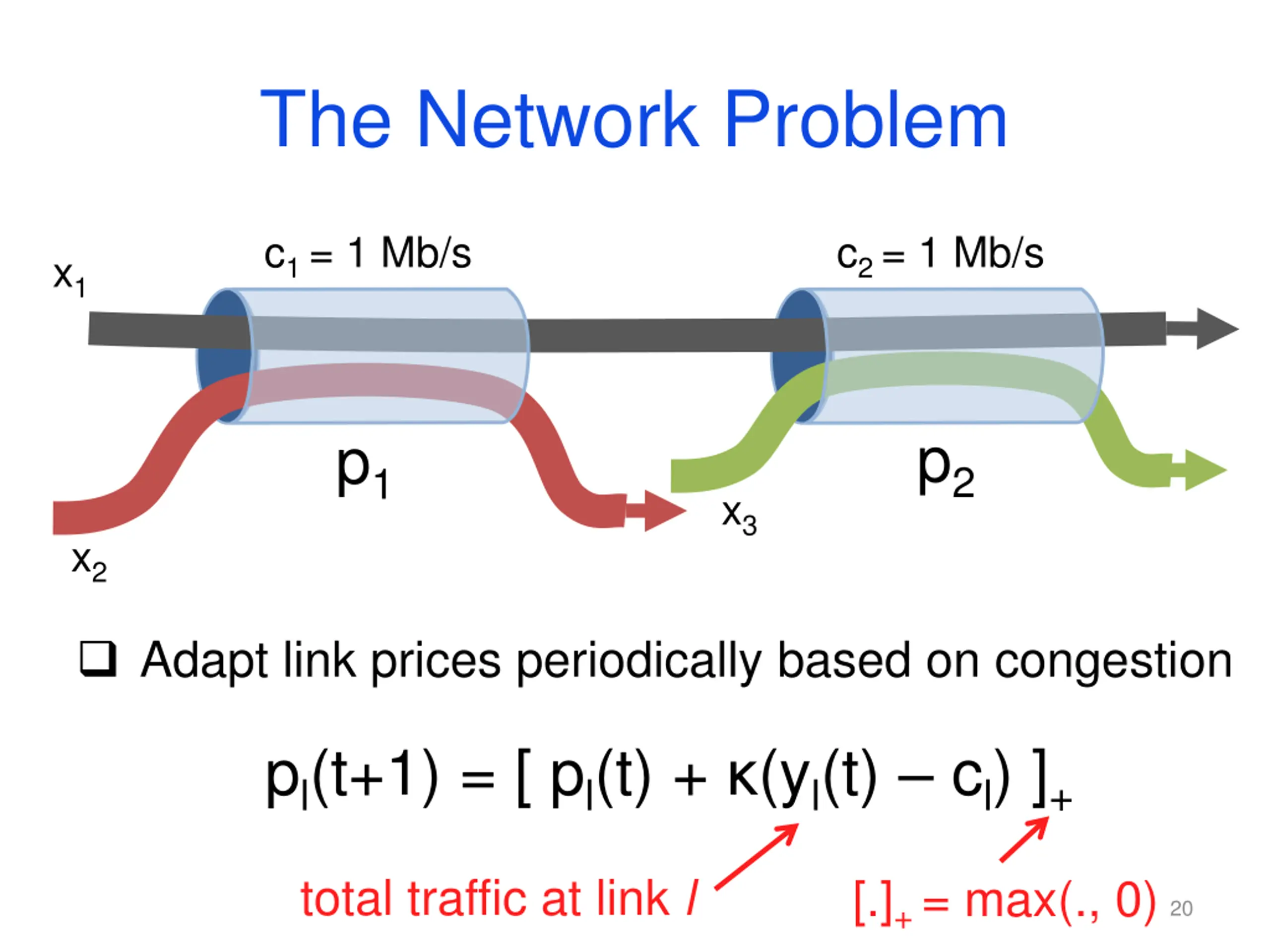

The Network Problem c1 = 1 Mb/s c2 = 1 Mb/s x1 p2 p1 x3 x2 Adapt link prices periodically based on congestion pl(t+1) = [ pl(t) + (yl(t) cl) ]+ total traffic at link l [.]+ = max(., 0) 20

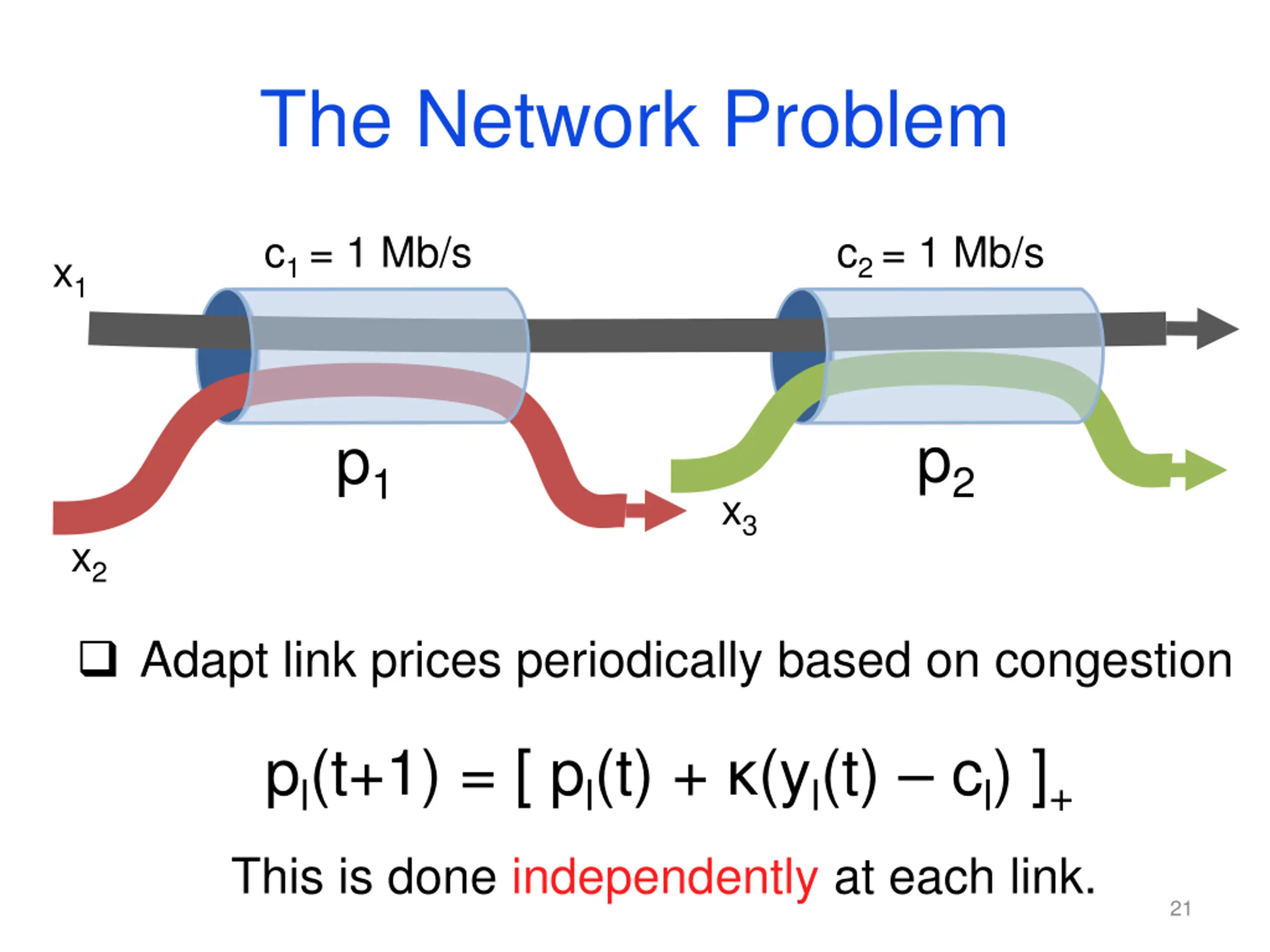

The Network Problem c1 = 1 Mb/s c2 = 1 Mb/s x1 p2 p1 x3 x2 Adapt link prices periodically based on congestion pl(t+1) = [ pl(t) + (yl(t) cl) ]+ This is done independently at each link. 21

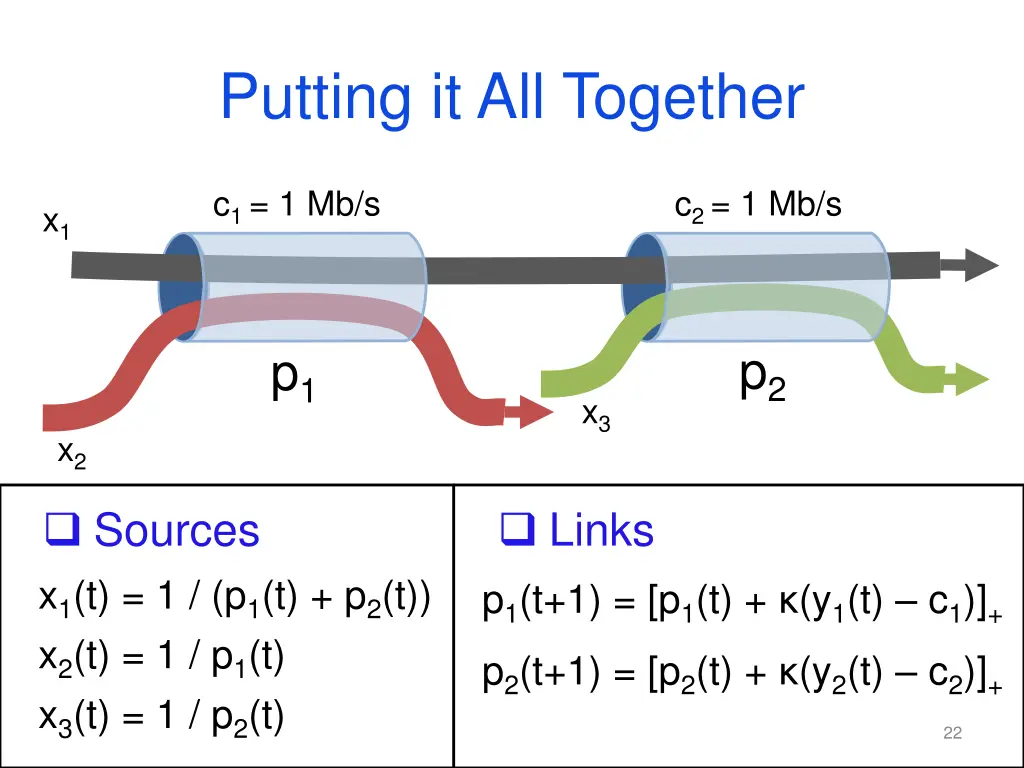

Putting it All Together c1 = 1 Mb/s c2 = 1 Mb/s x1 p2 p1 x3 x2 Sources x1(t) = 1 / (p1(t) + p2(t)) x2(t) = 1 / p1(t) x3(t) = 1 / p2(t) Links p1(t+1) = [p1(t) + (y1(t) c1)]+ p2(t+1) = [p2(t) + (y2(t) c2)]+ 22

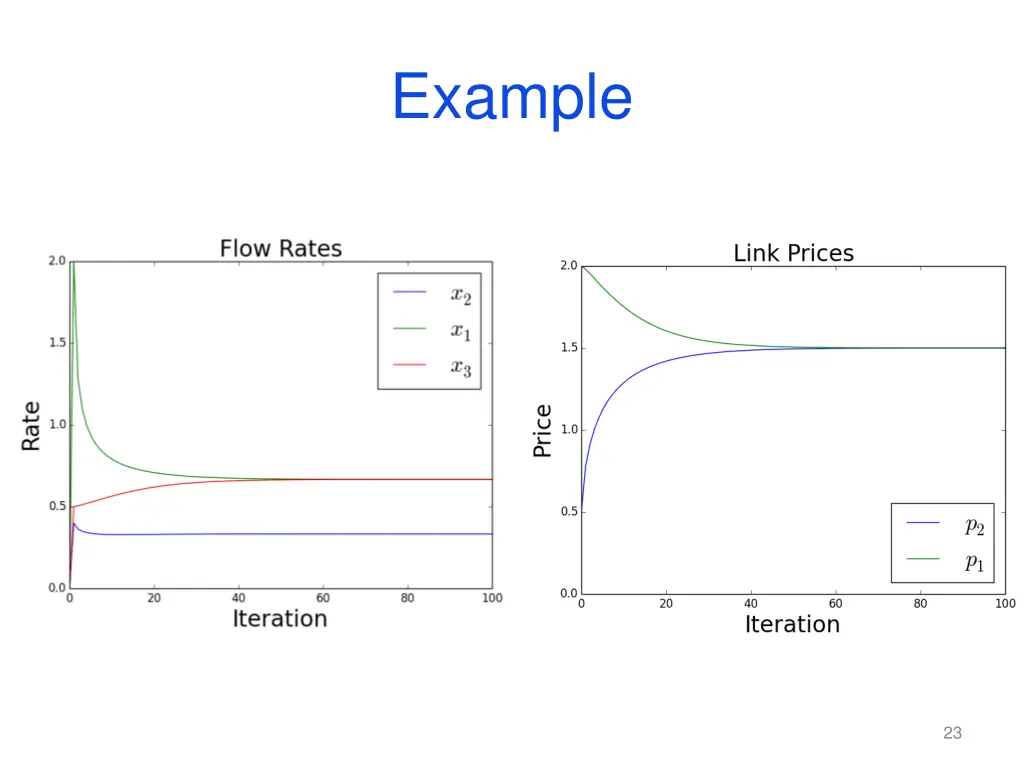

Example 23

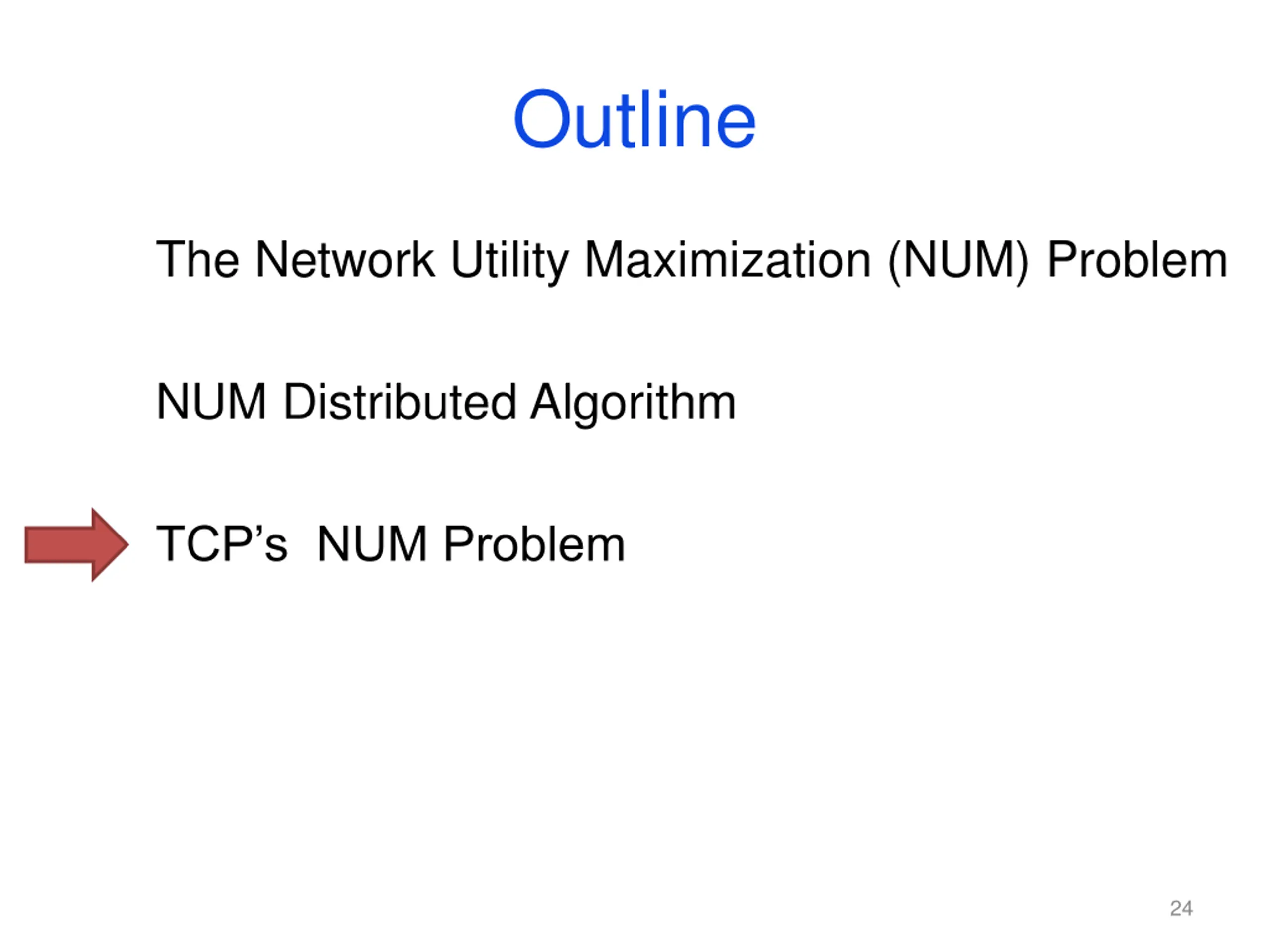

Outline The Network Utility Maximization (NUM) Problem NUM Distributed Algorithm TCP s NUM Problem 24

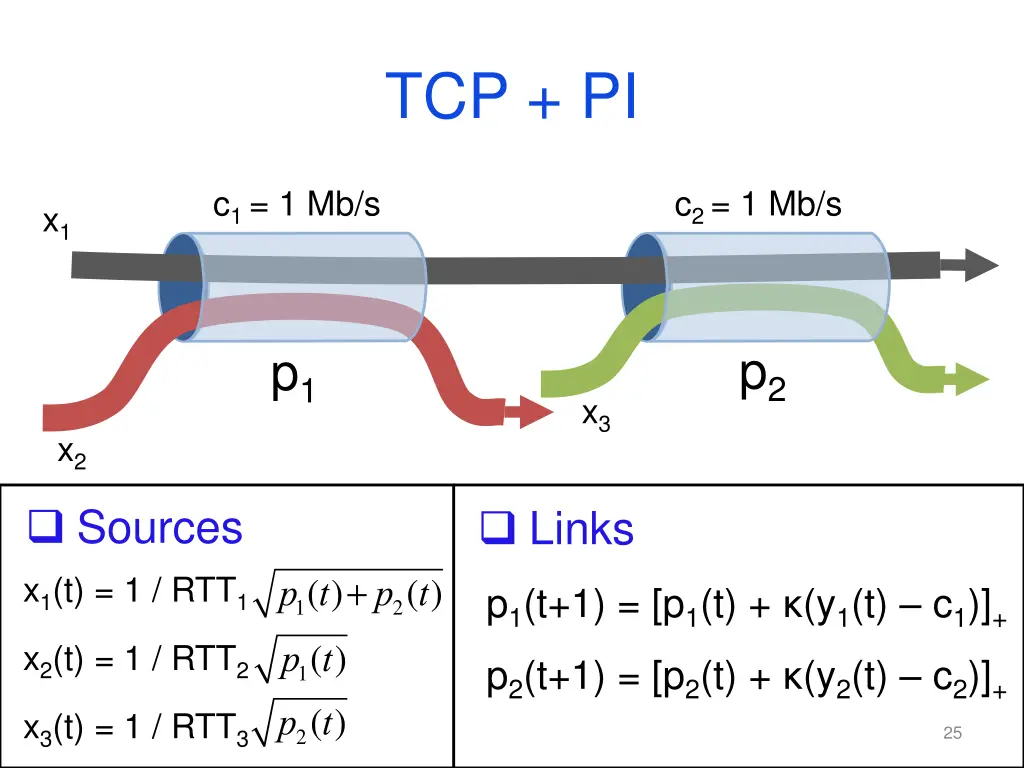

TCP + PI c1 = 1 Mb/s c2 = 1 Mb/s x1 p2 p1 x3 x2 Sources x1(t) = 1 / RTT1 Links p1(t)+ p2(t) p1(t) p2(t) p1(t+1) = [p1(t) + (y1(t) c1)]+ p2(t+1) = [p2(t) + (y2(t) c2)]+ x2(t) = 1 / RTT2 x3(t) = 1 / RTT3 25

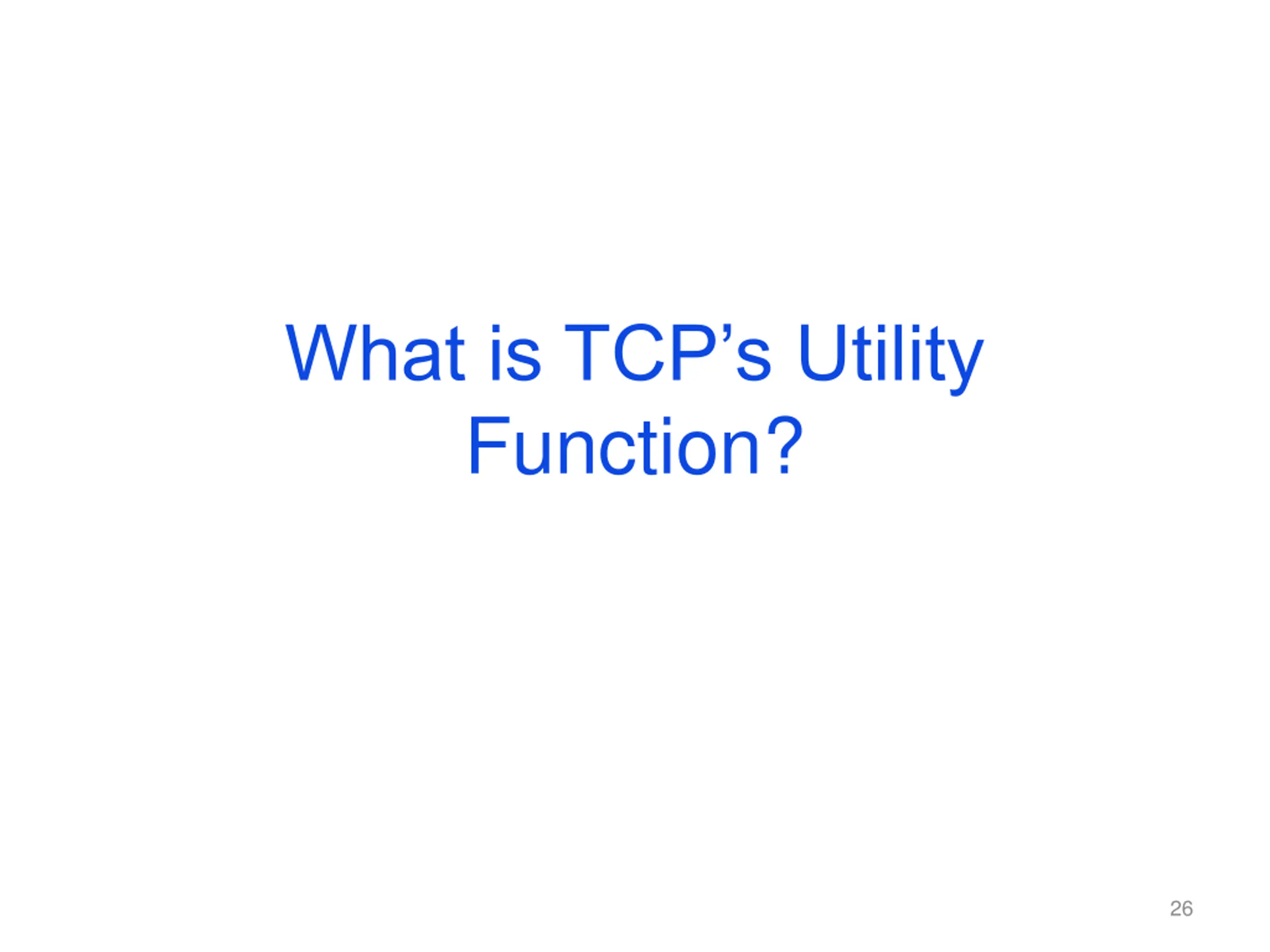

What is TCPs Utility Function? 26
