New SF packaging 4/2025

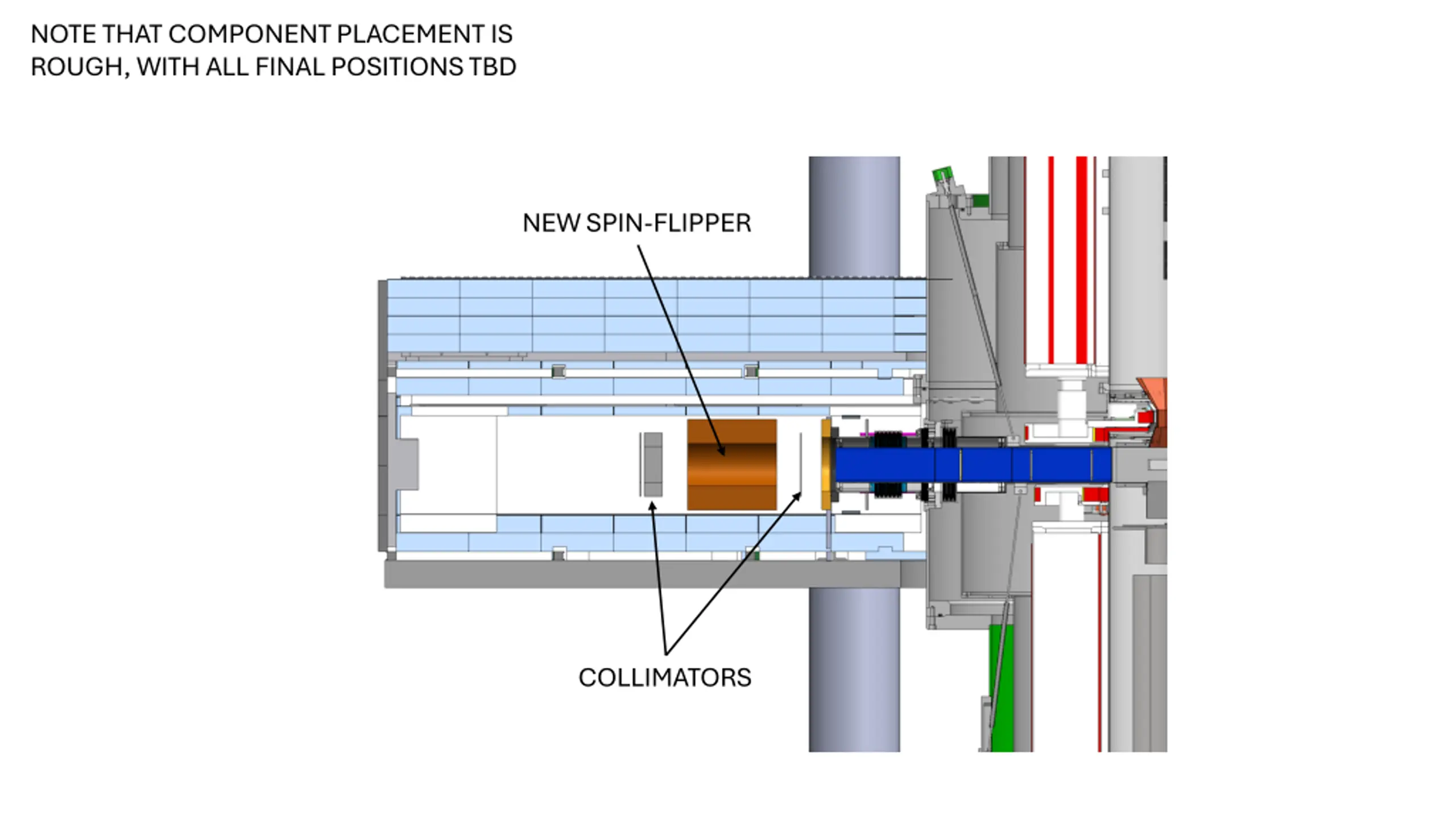

NOTE THAT COMPONENT PLACEMENT IS ROUGH, WITH ALL FINAL POSITIONS TBD NEW SPIN-FLIPPER COLLIMATORS

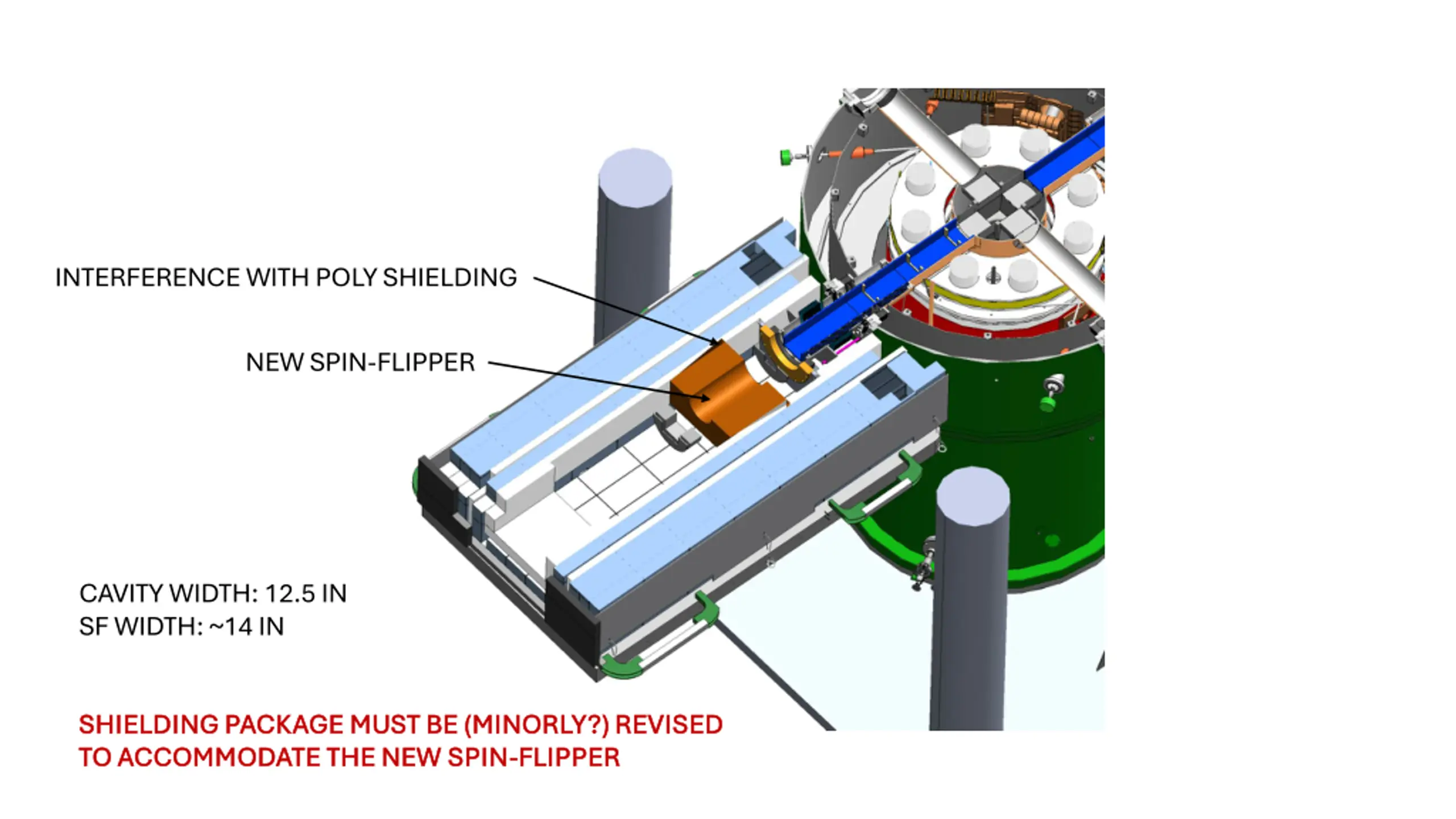

INTERFERENCE WITH POLY SHIELDING NEW SPIN-FLIPPER CAVITY WIDTH: 12.5 IN SF WIDTH: ~14 IN SHIELDING PACKAGE MUST BE (MINORLY?) REVISED SHIELDING PACKAGE MUST BE (MINORLY?) REVISED TO ACCOMMODATE THE NEW SPIN TO ACCOMMODATE THE NEW SPIN- -FLIPPER FLIPPER
