INDIGO DataCloud PaaS activities @INFN RIA-653549 marica.antonacci@ba.infn.it INFN-Bari

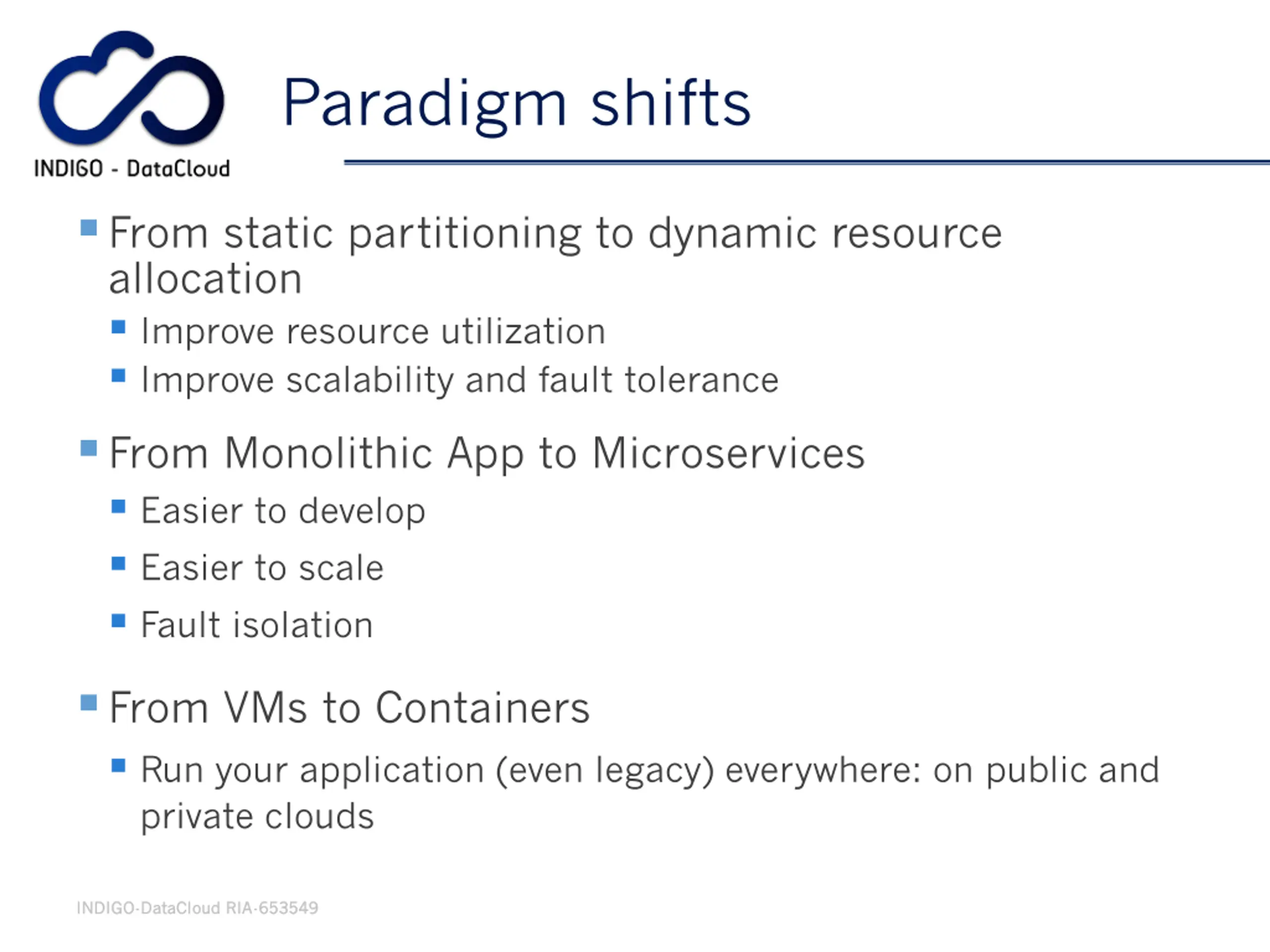

Paradigm shifts From static partitioning to dynamic resource allocation Improve resource utilization Improve scalability and fault tolerance From Monolithic App to Microservices Easier to develop Easier to scale Fault isolation From VMs to Containers Run your application (even legacy) everywhere: on public and private clouds INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

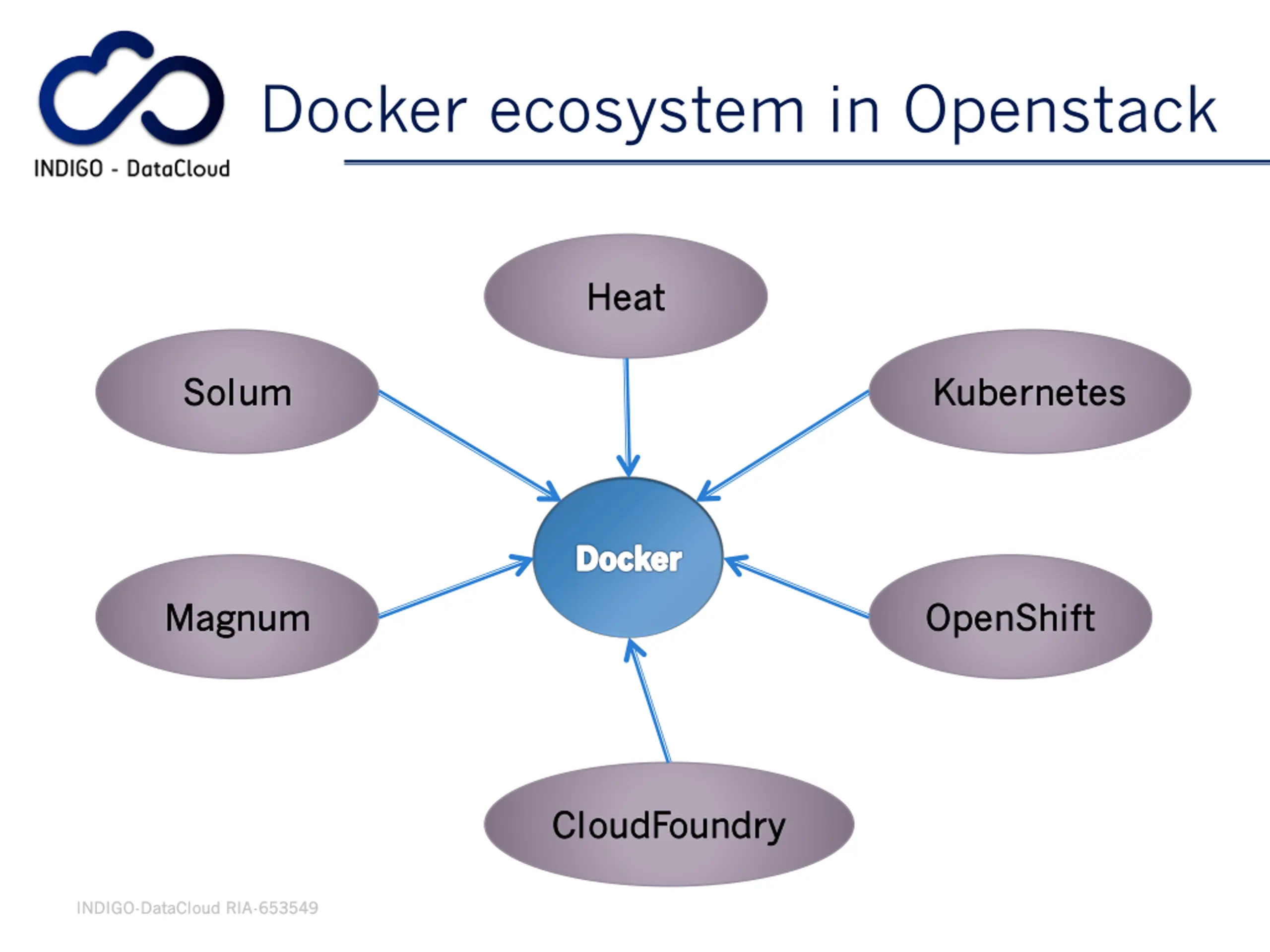

Docker ecosystem in Openstack Heat Heat Solum Solum Kubernetes Kubernetes Docker Docker Magnum Magnum OpenShift OpenShift CloudFoundry CloudFoundry INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

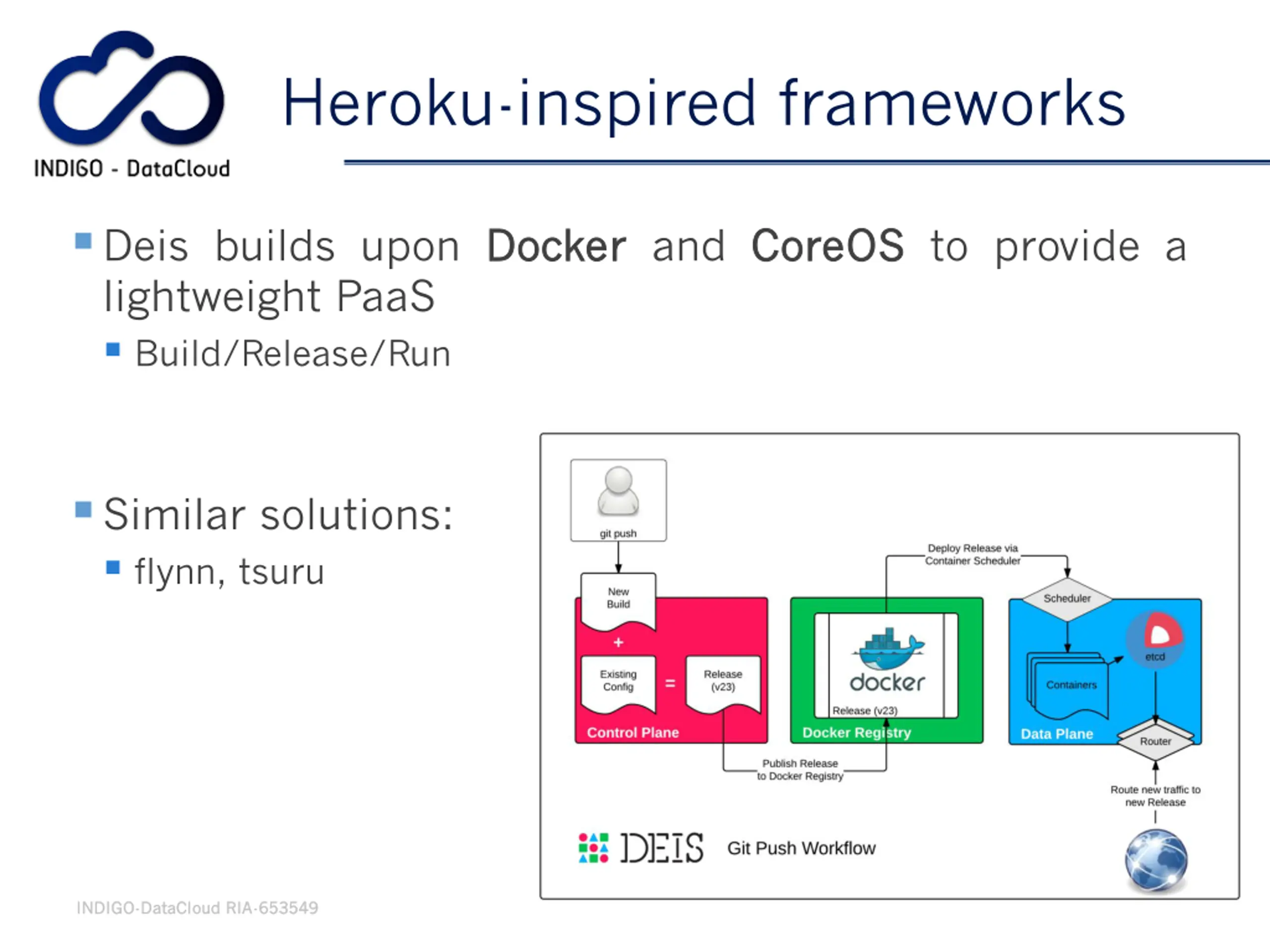

Heroku-inspired frameworks Deis builds upon Docker lightweight PaaS Build/Release/Run Docker and CoreOS CoreOS to provide a Similar solutions: flynn, tsuru INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

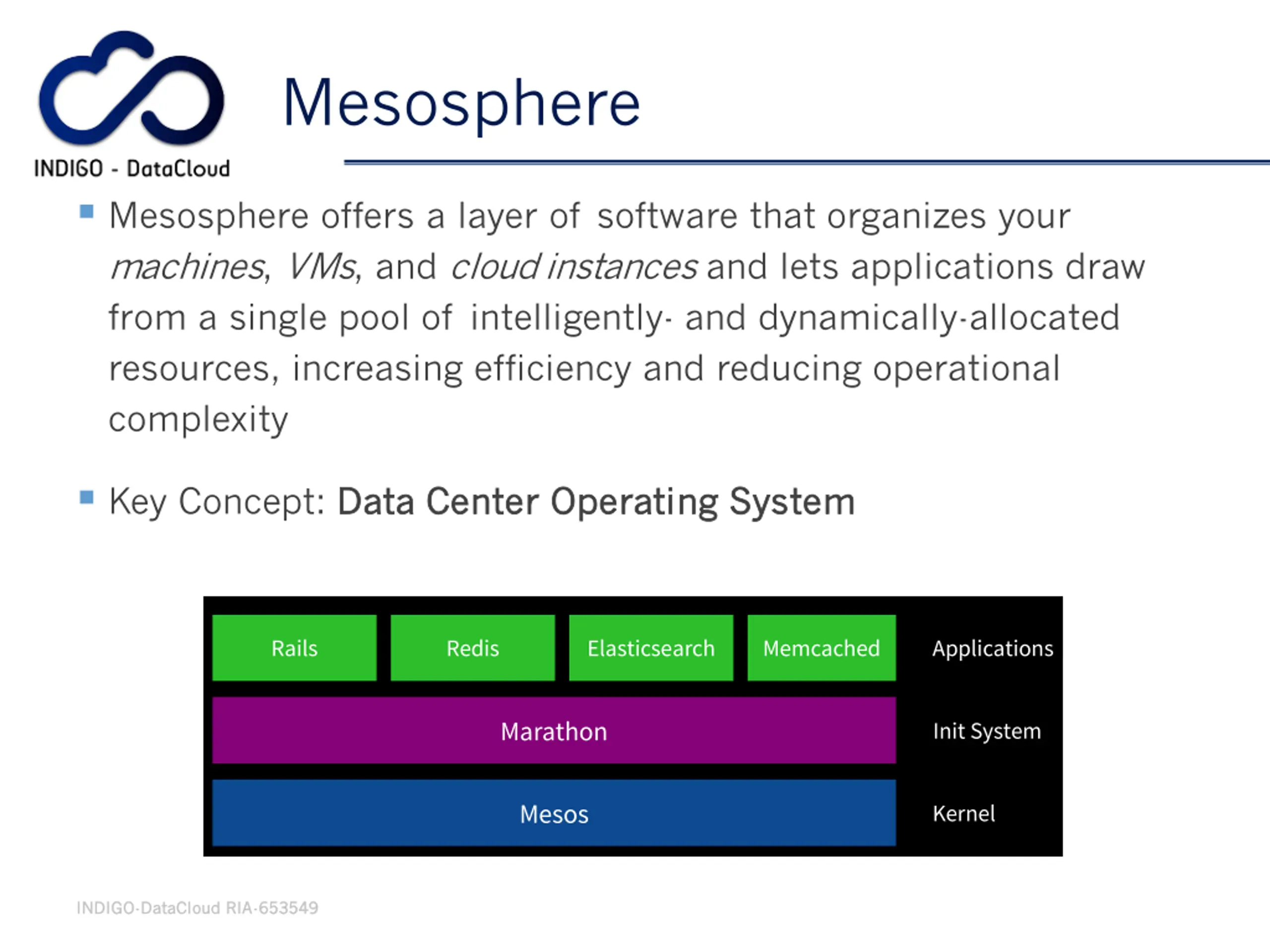

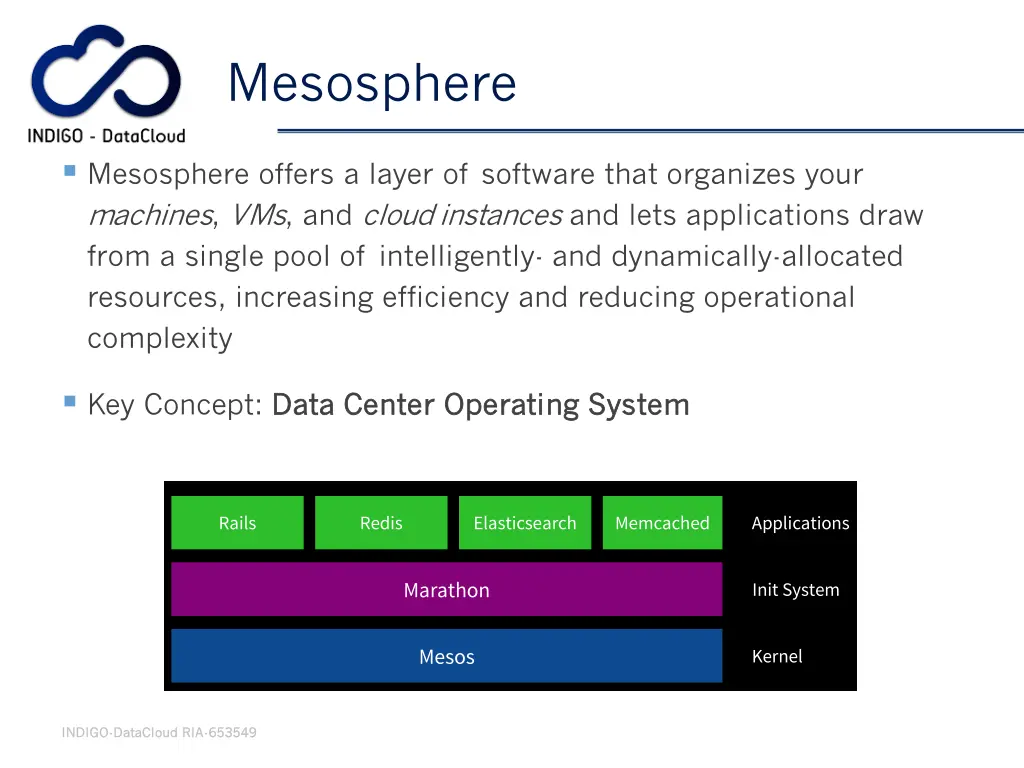

Mesosphere Mesosphere offers a layer of software that organizes your machines, VMs, and cloudinstances and lets applications draw from a single pool of intelligently- and dynamically-allocated resources, increasing efficiency and reducing operational complexity The Mesosphere Operating System Stack Key Concept: Data Center Operating System Data Center Operating System Rails Redis Elasticsearch Memcached Applications Marathon Init System Mesos Kernel INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

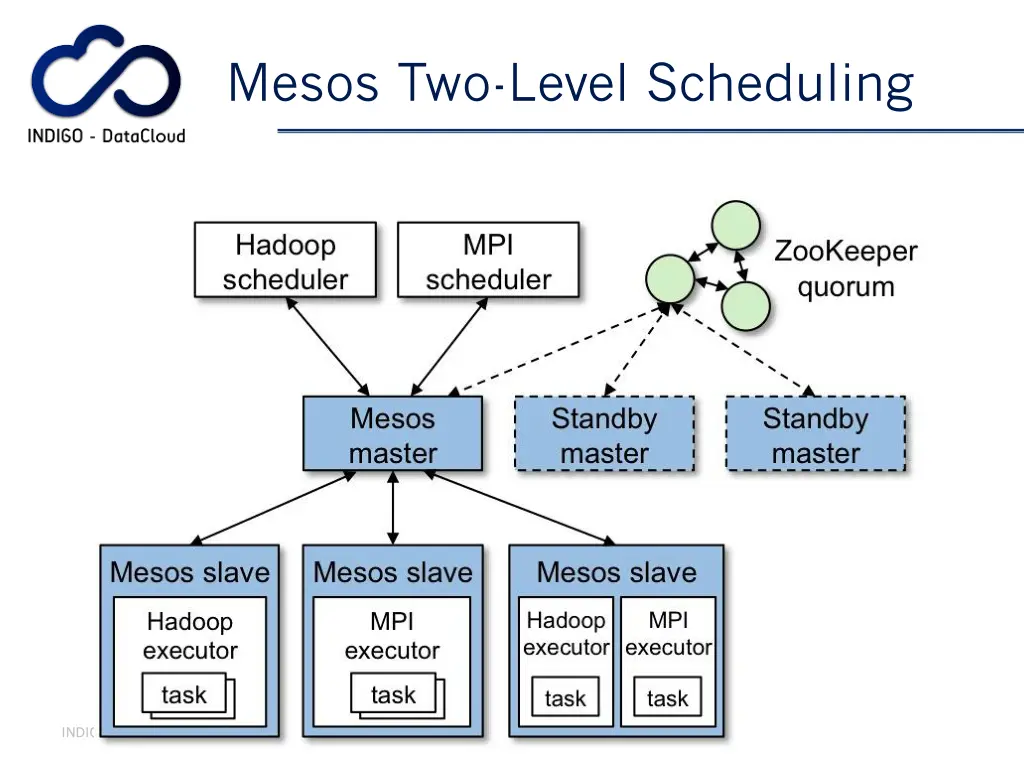

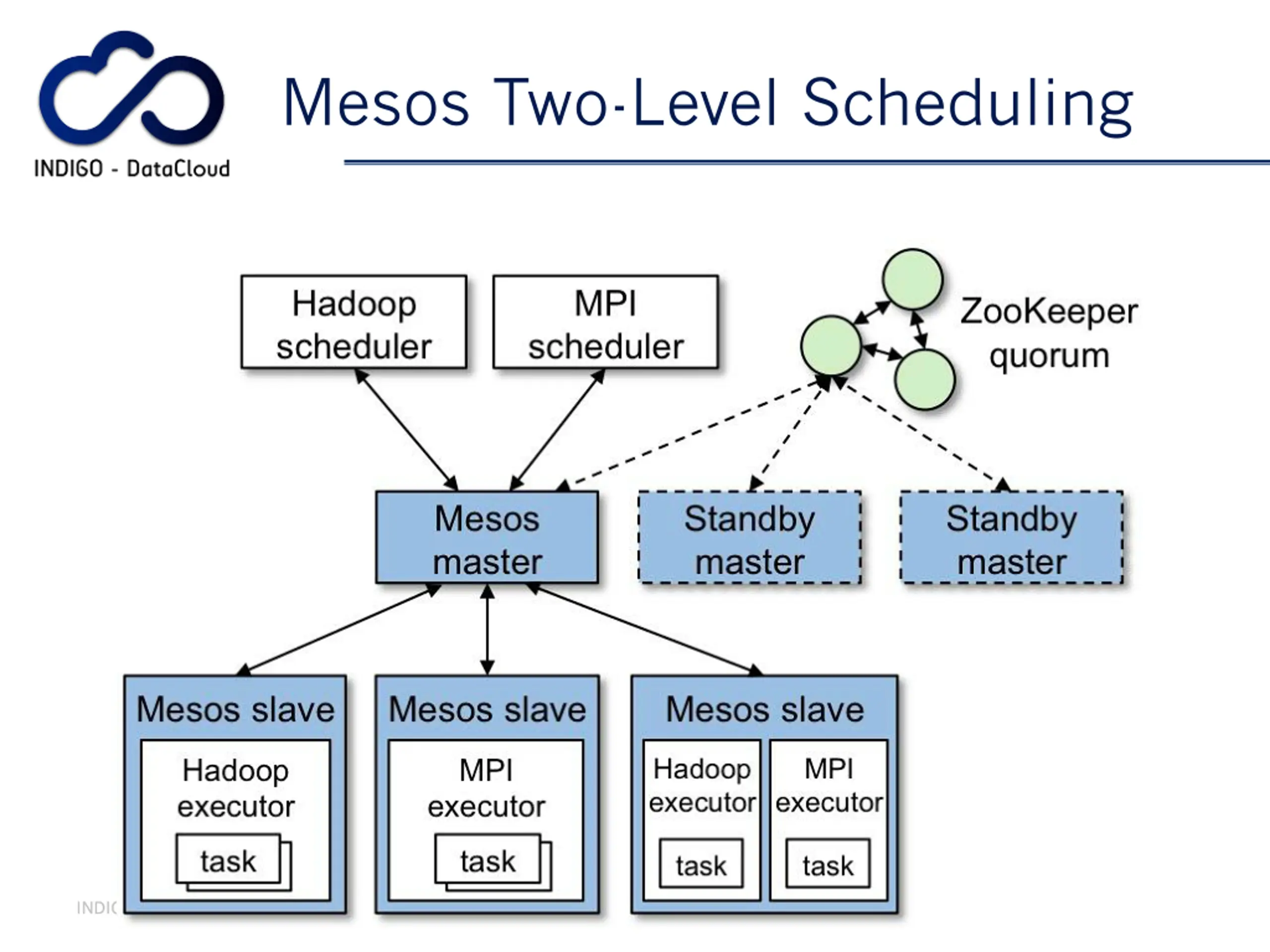

Mesos Two-Level Scheduling INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

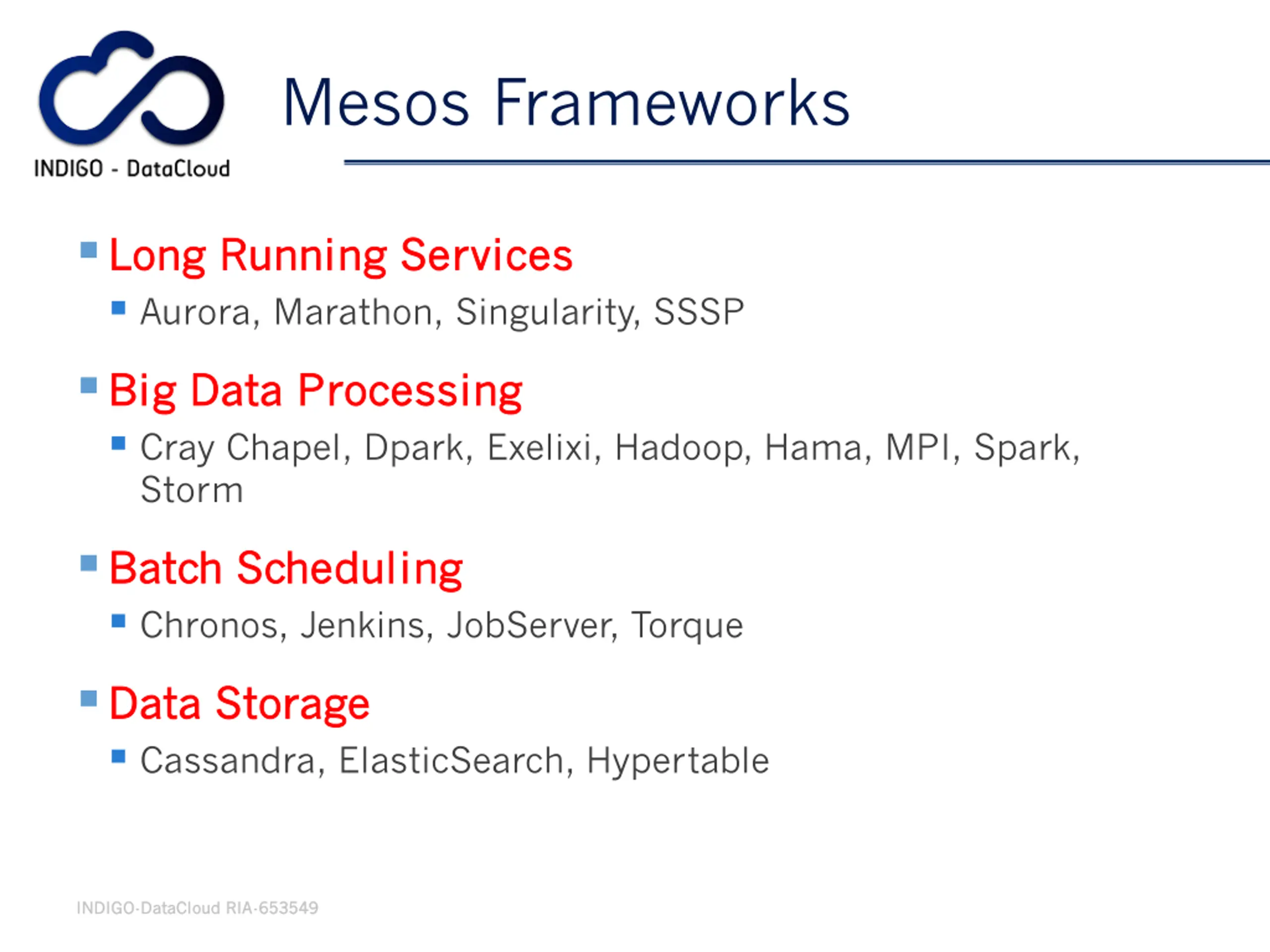

Mesos Frameworks Long Long Running Running Services Aurora, Marathon, Singularity, SSSP Big Data Processing Big Data Processing Cray Chapel, Dpark, Exelixi, Hadoop, Hama, MPI, Spark, Storm Batch Batch Scheduling Scheduling Chronos, Jenkins, JobServer, Torque Data Storage Data Storage Cassandra, ElasticSearch, Hypertable Services INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

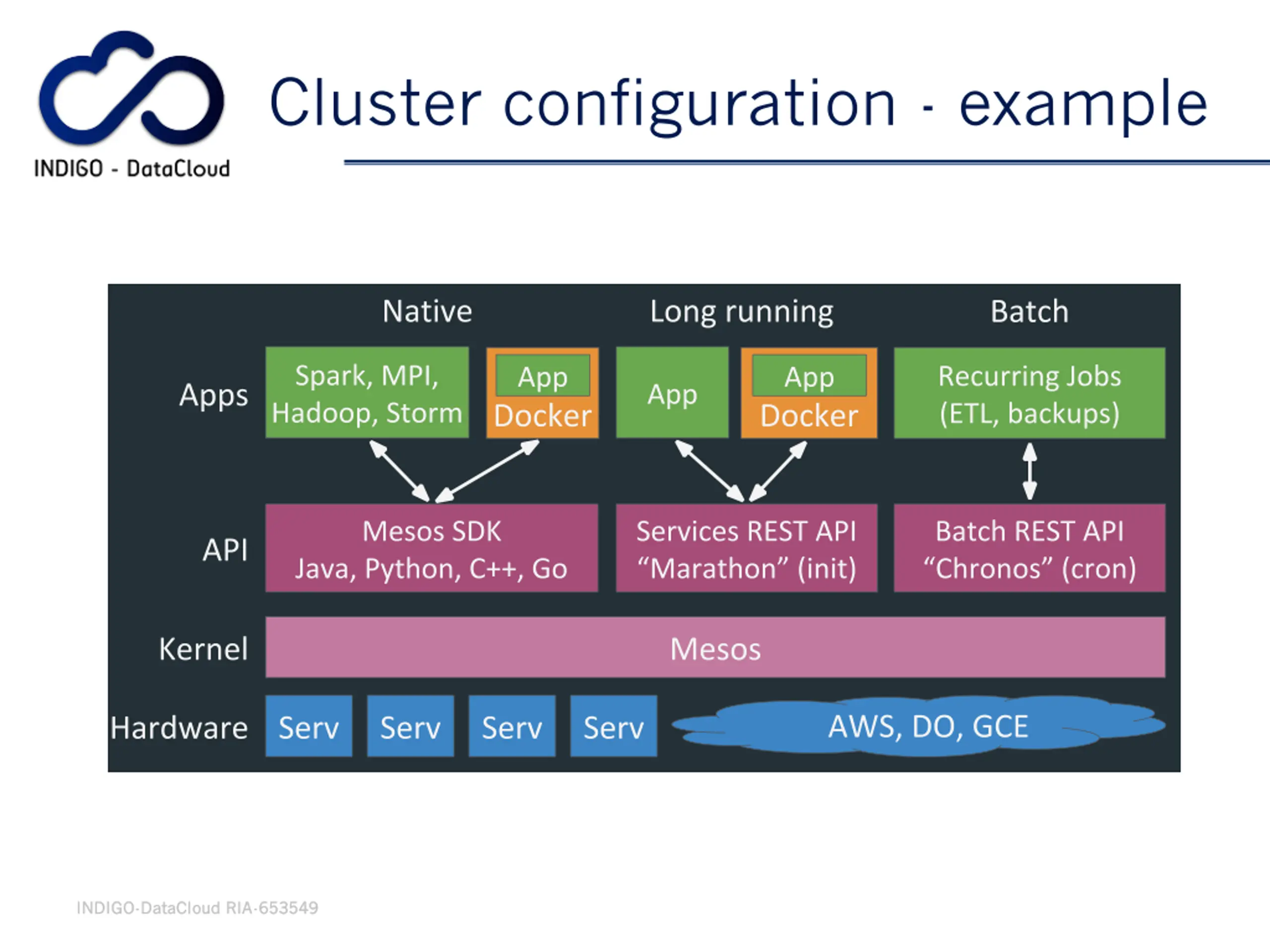

Cluster configuration - example INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

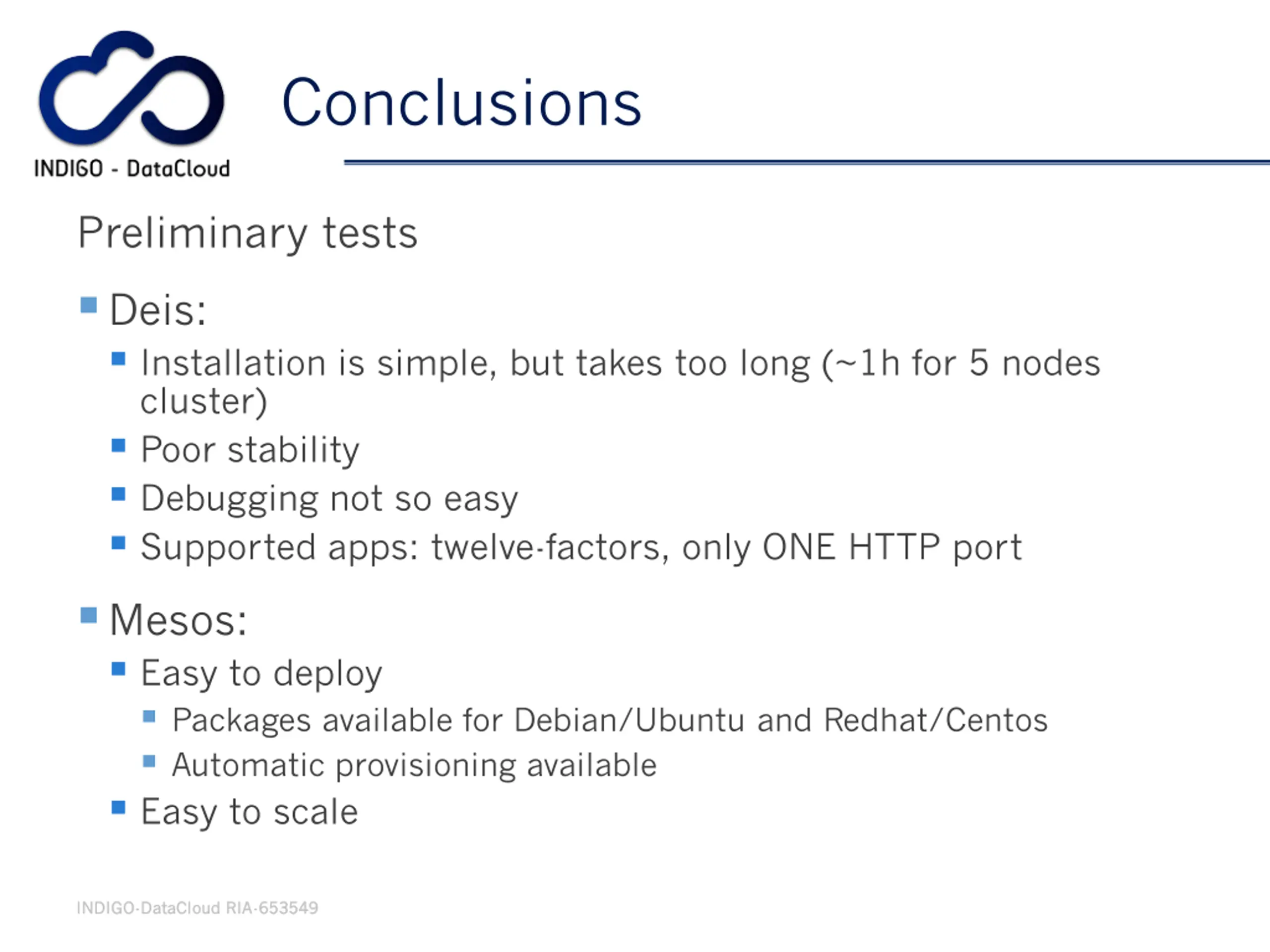

Conclusions Preliminary tests Deis: Installation is simple, but takes too long (~1h for 5 nodes cluster) Poor stability Debugging not so easy Supported apps: twelve-factors, only ONE HTTP port Mesos: Easy to deploy Packages available for Debian/Ubuntu and Redhat/Centos Automatic provisioning available Easy to scale INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549
Backup Slides INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

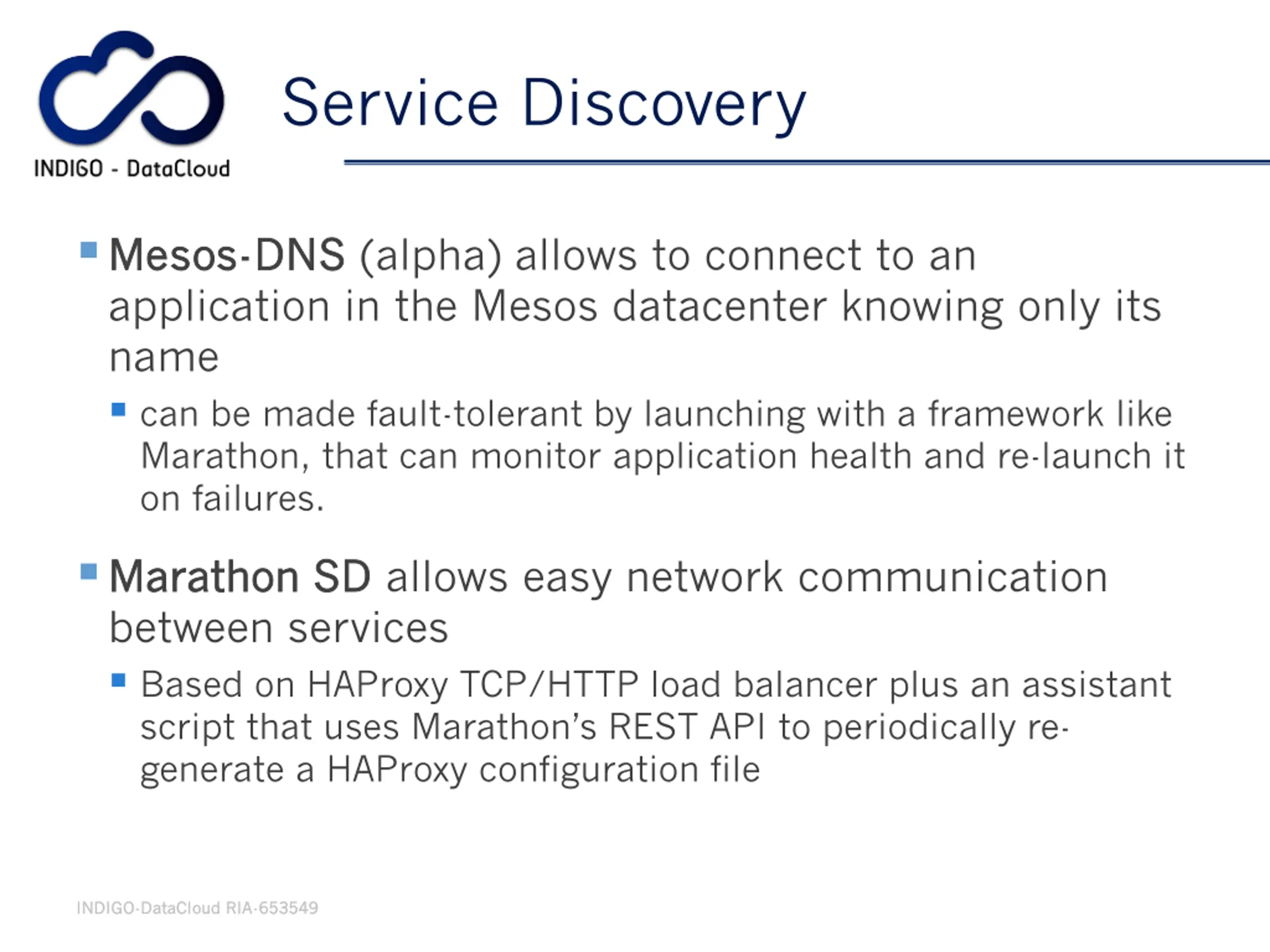

Service Discovery Mesos Mesos- -DNS application in the Mesos datacenter knowing only its name can be made fault-tolerant by launching with a framework like Marathon, that can monitor application health and re-launch it on failures. Marathon SD Marathon SD allows easy network communication between services Based on HAProxy TCP/HTTP load balancer plus an assistant script that uses Marathon s REST API to periodically re- generate a HAProxy configuration file DNS (alpha) allows to connect to an INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 653549

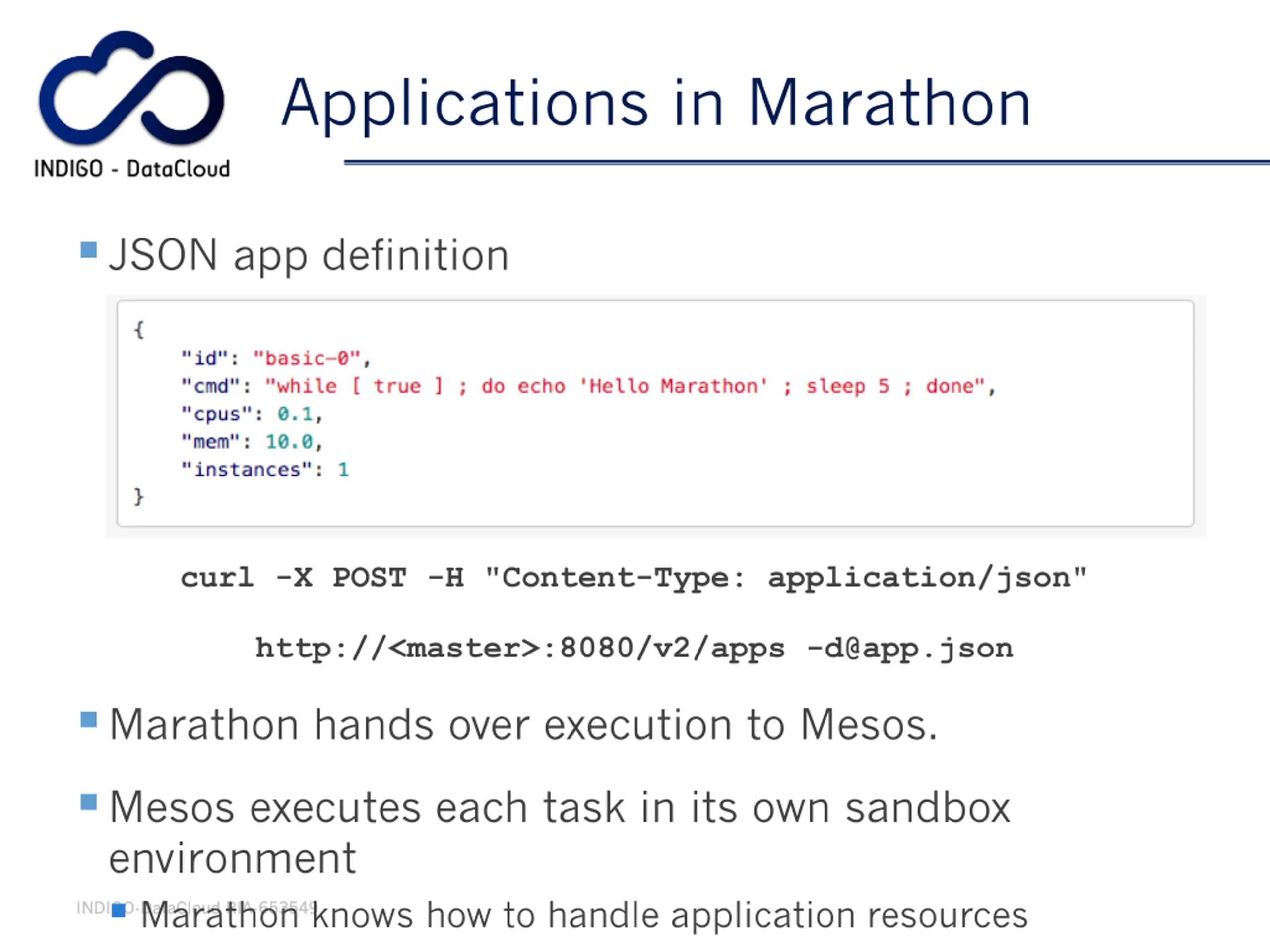

Applications in Marathon JSON app definition curl -X POST -H "Content-Type: application/json" http://<master>:8080/v2/apps -d@app.json Marathon hands over execution to Mesos. Mesos executes each task in its own sandbox environment INDIGO INDIGO- -DataCloud RIA DataCloud RIA- -653549 Marathon knows how to handle application resources 653549
