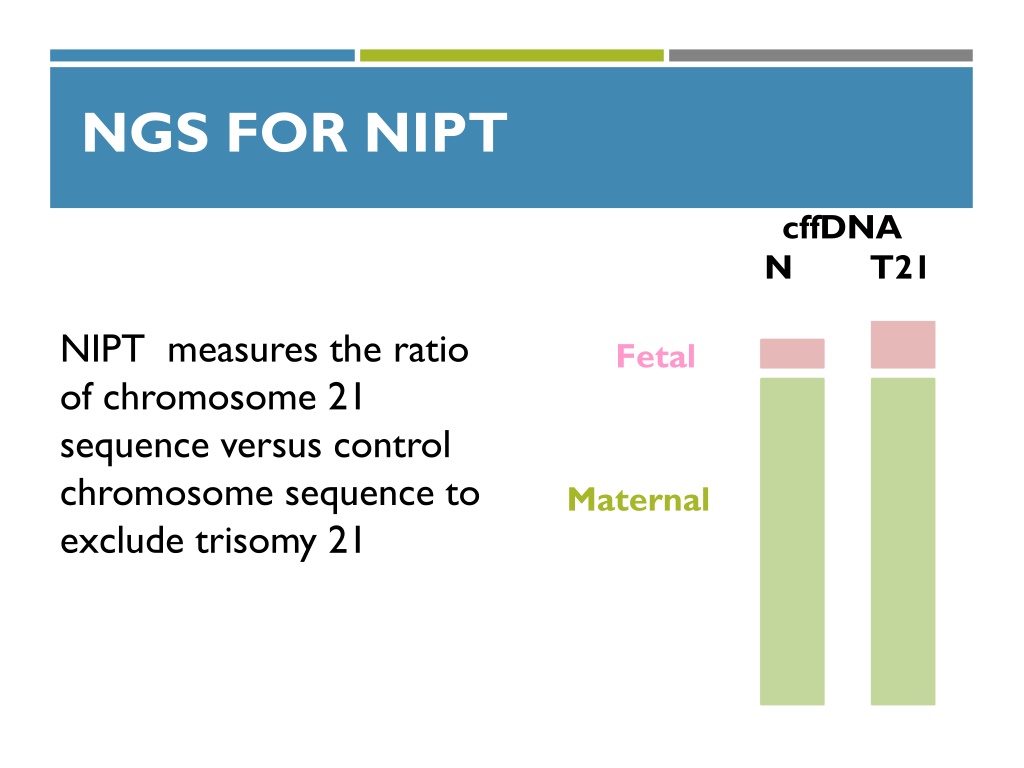

NGS FOR NIPT cffDNA N T21 NIPT measures the ratio of chromosome 21 sequence versus control chromosome sequence to exclude trisomy 21 Fetal Maternal

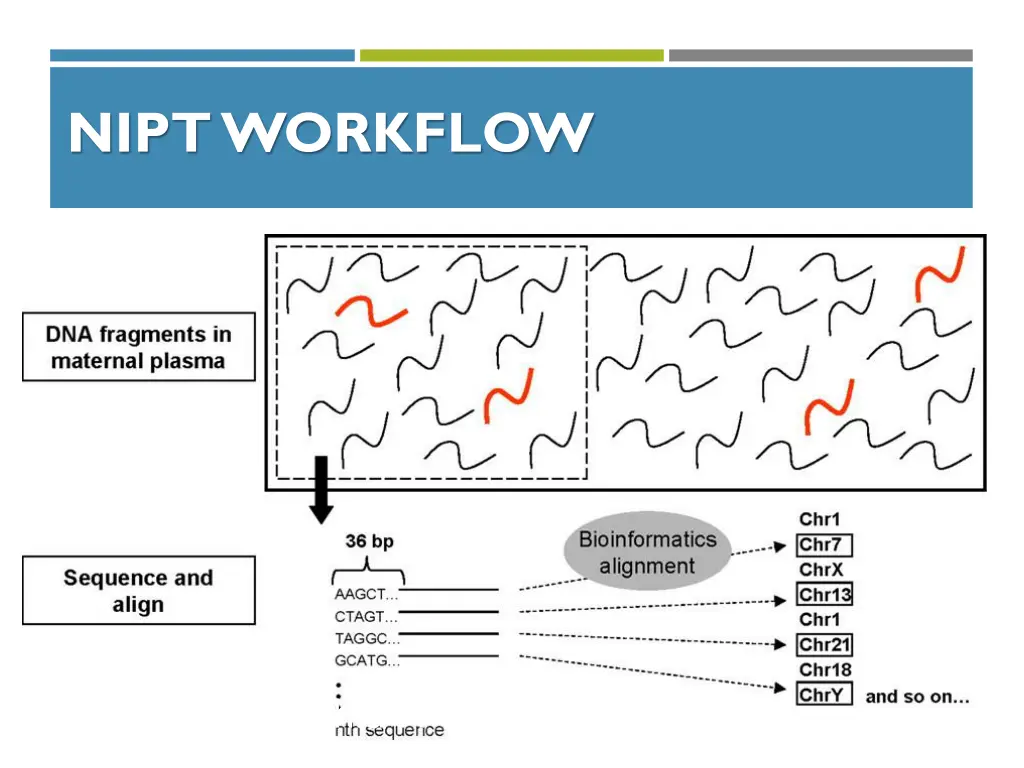

NIPT WORKFLOW Chiu R W K et al. PNAS 2008;105:20458

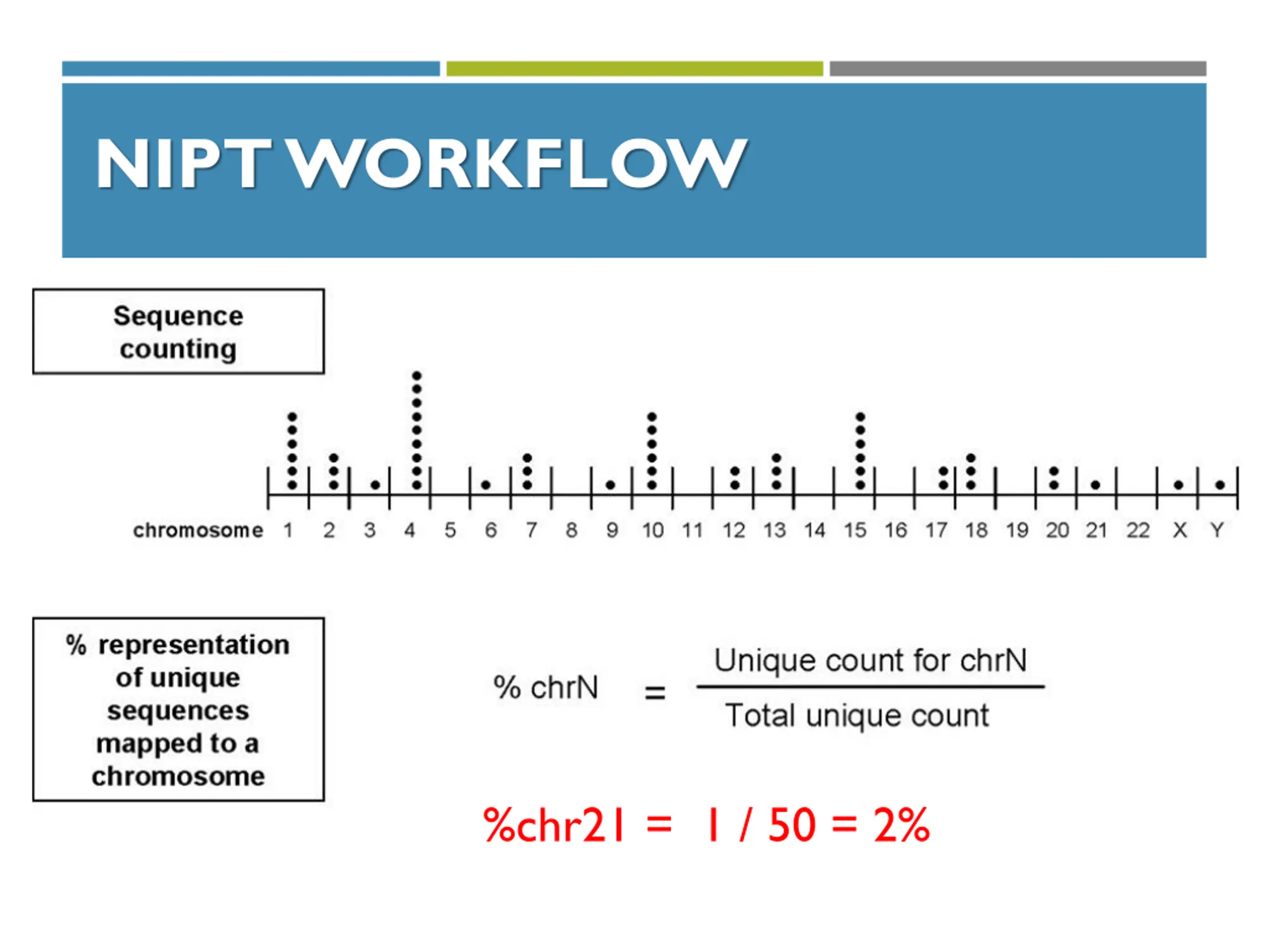

NIPT WORKFLOW %chr21 = 1 / 50 = 2% Chiu R W K et al. PNAS 2008;105:20458

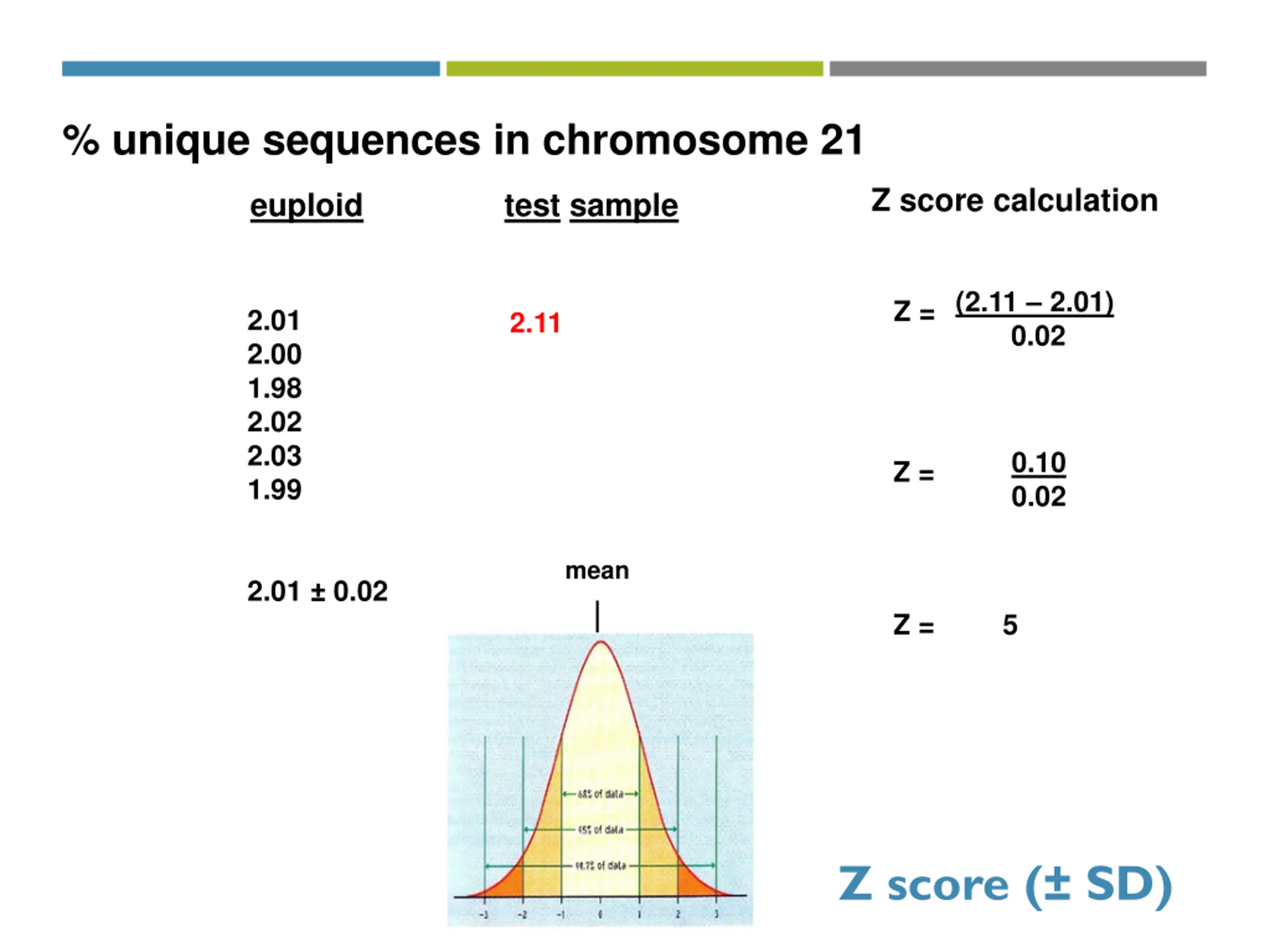

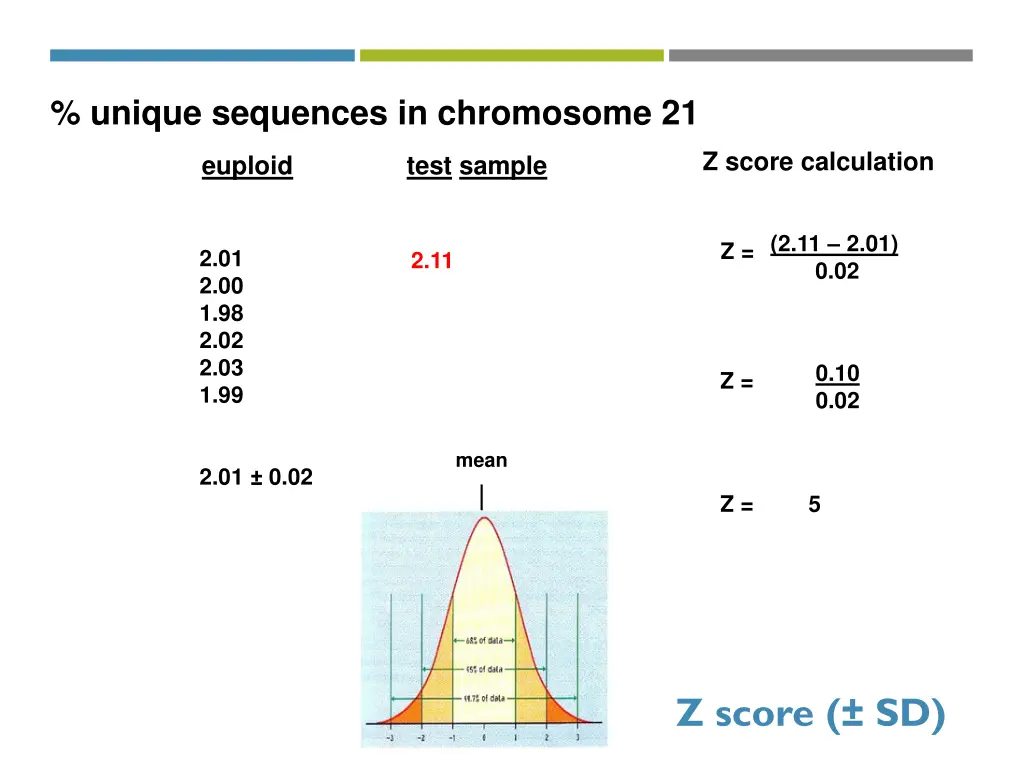

% unique sequences in chromosome 21 Z score calculation euploid test sample (2.11 2.01) 0.02 Z = 2.01 2.00 1.98 2.02 2.03 1.99 2.11 0.10 0.02 Z = mean 2.01 0.02 Z = 5 Z score ( SD)

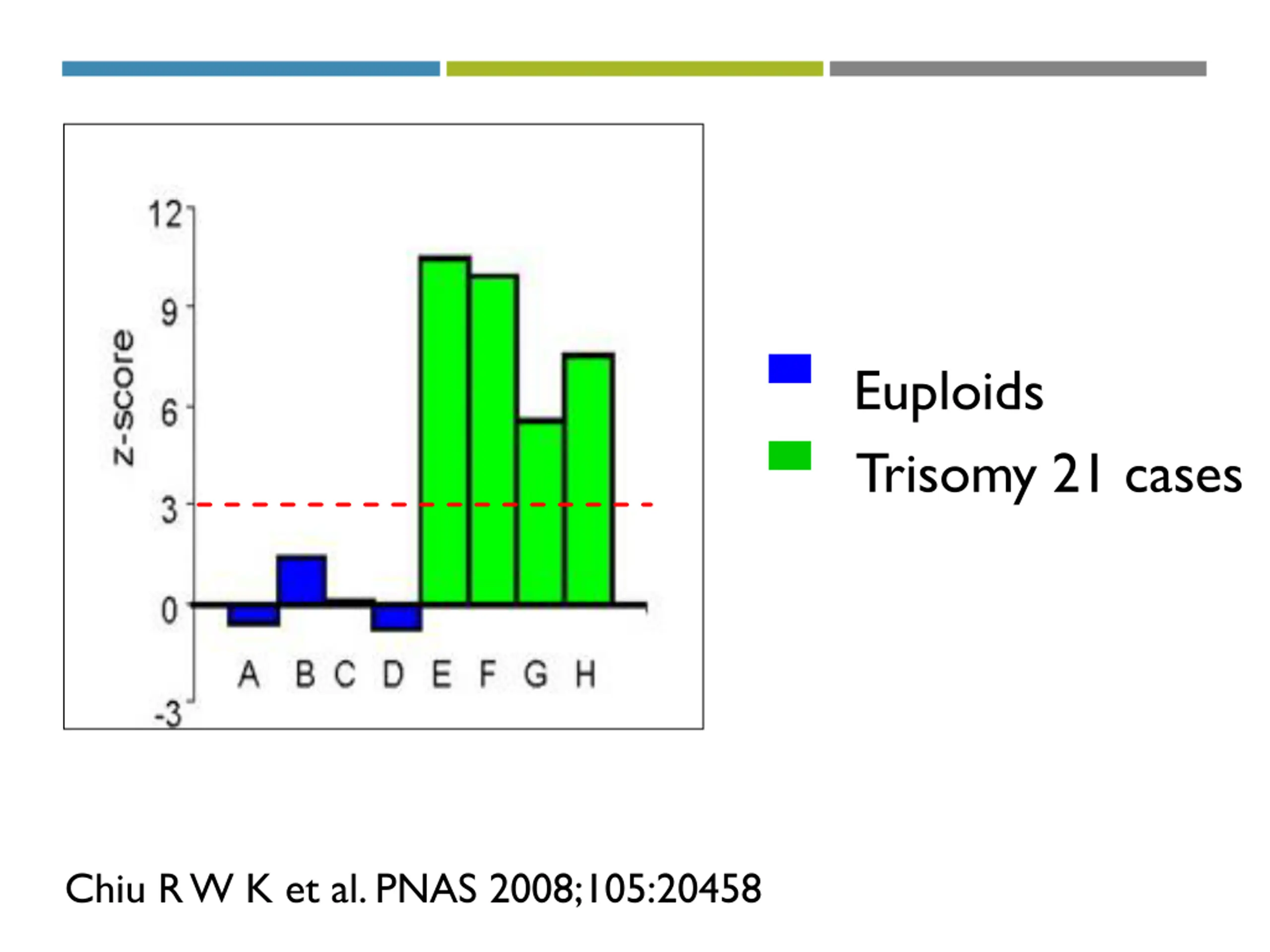

Euploids Trisomy 21 cases Chiu R W K et al. PNAS 2008;105:20458
