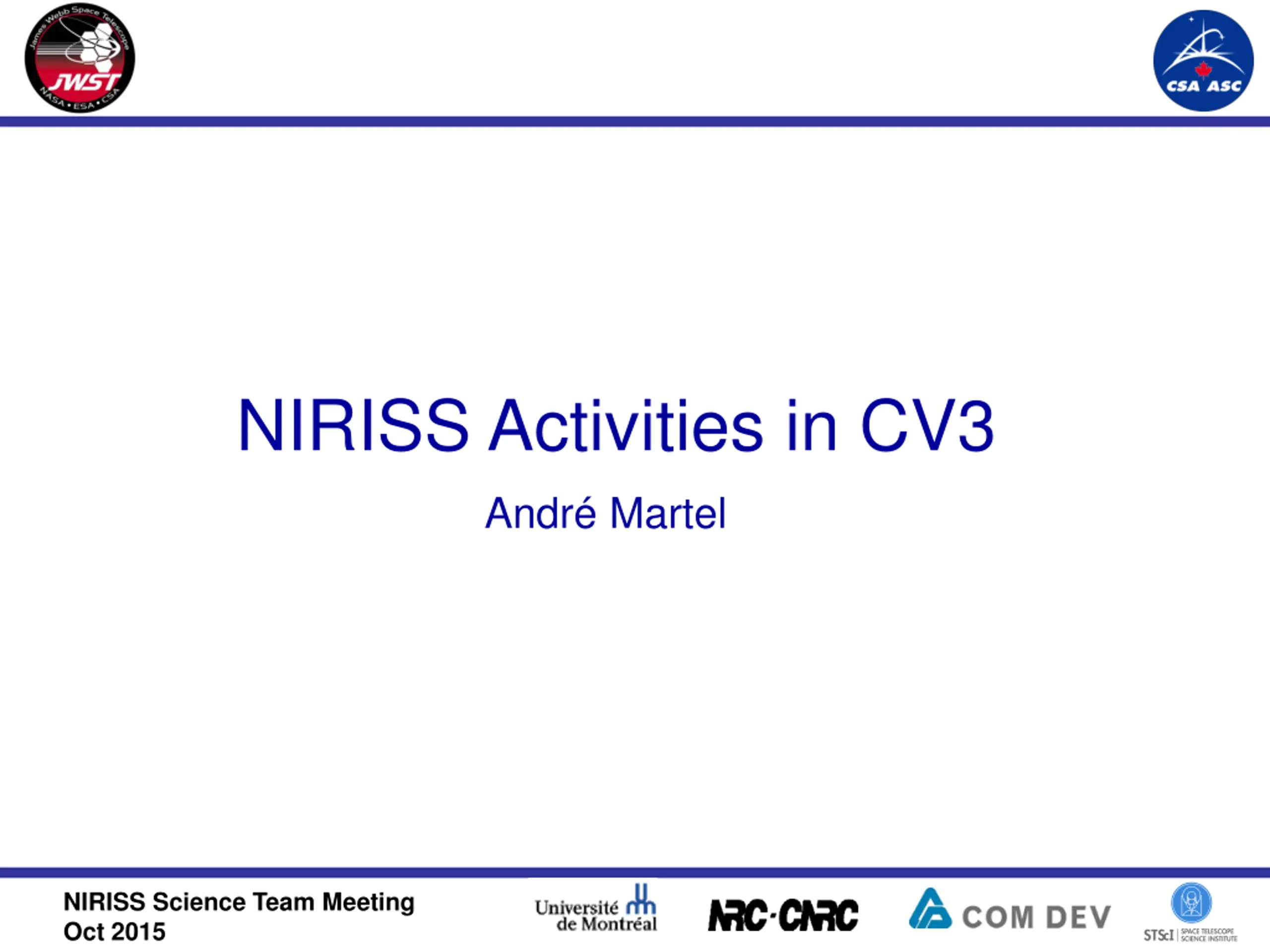

NIRISS Activities in CV3 Andr Martel NIRISS Science Team Meeting Oct 2015

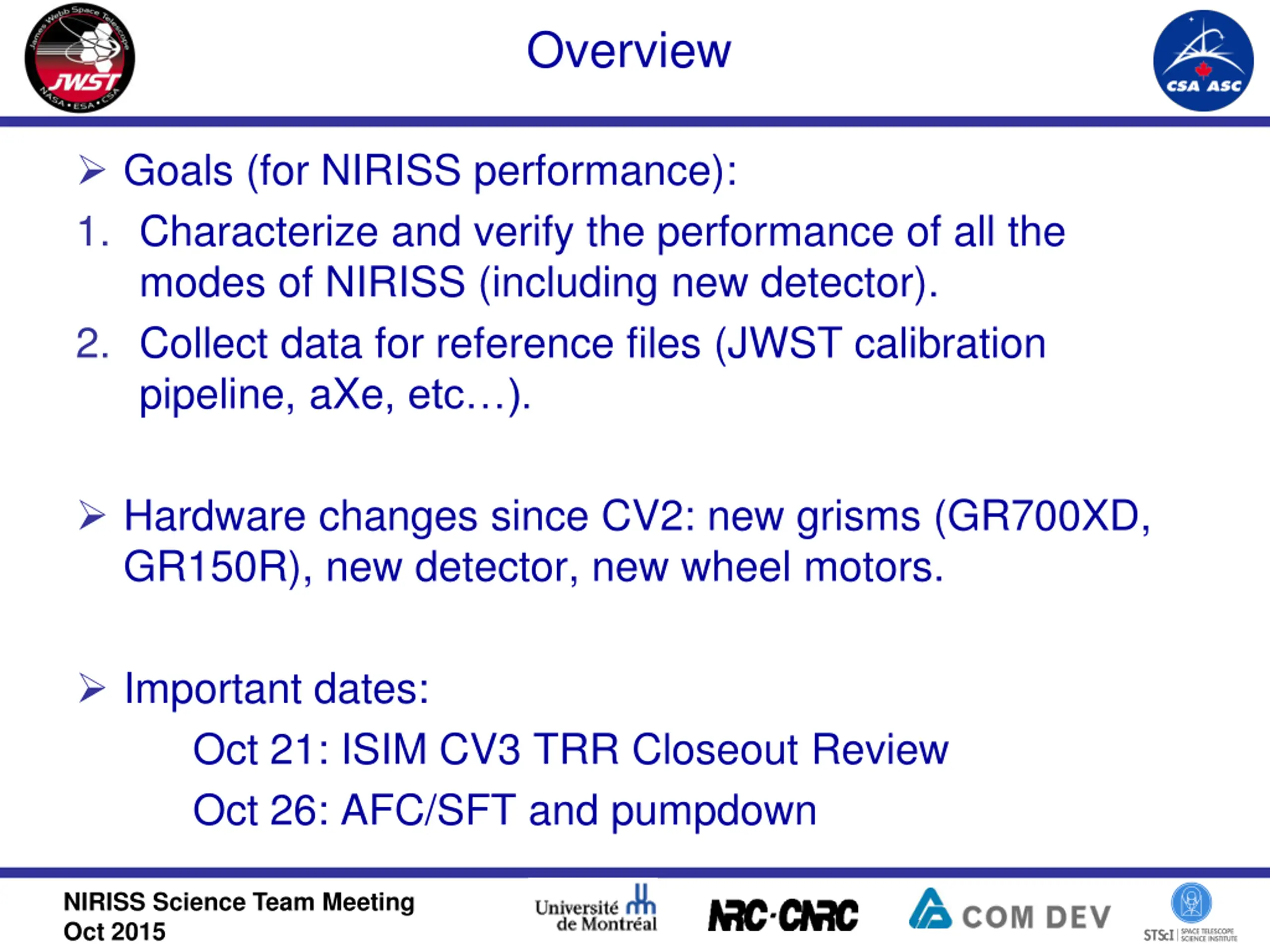

Overview Goals (for NIRISS performance): 1. Characterize and verify the performance of all the modes of NIRISS (including new detector). 2. Collect data for reference files (JWST calibration pipeline, aXe, etc ). Hardware changes since CV2: new grisms (GR700XD, GR150R), new detector, new wheel motors. Important dates: Oct 21: ISIM CV3 TRR Closeout Review Oct 26: AFC/SFT and pumpdown NIRISS Science Team Meeting Oct 2015

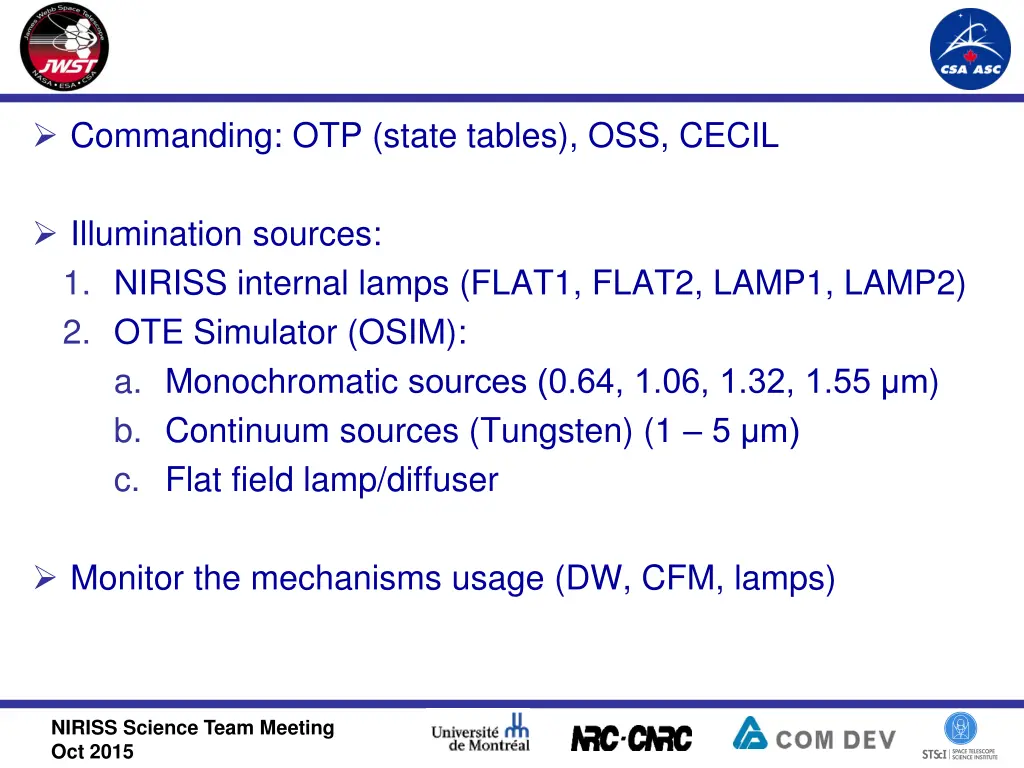

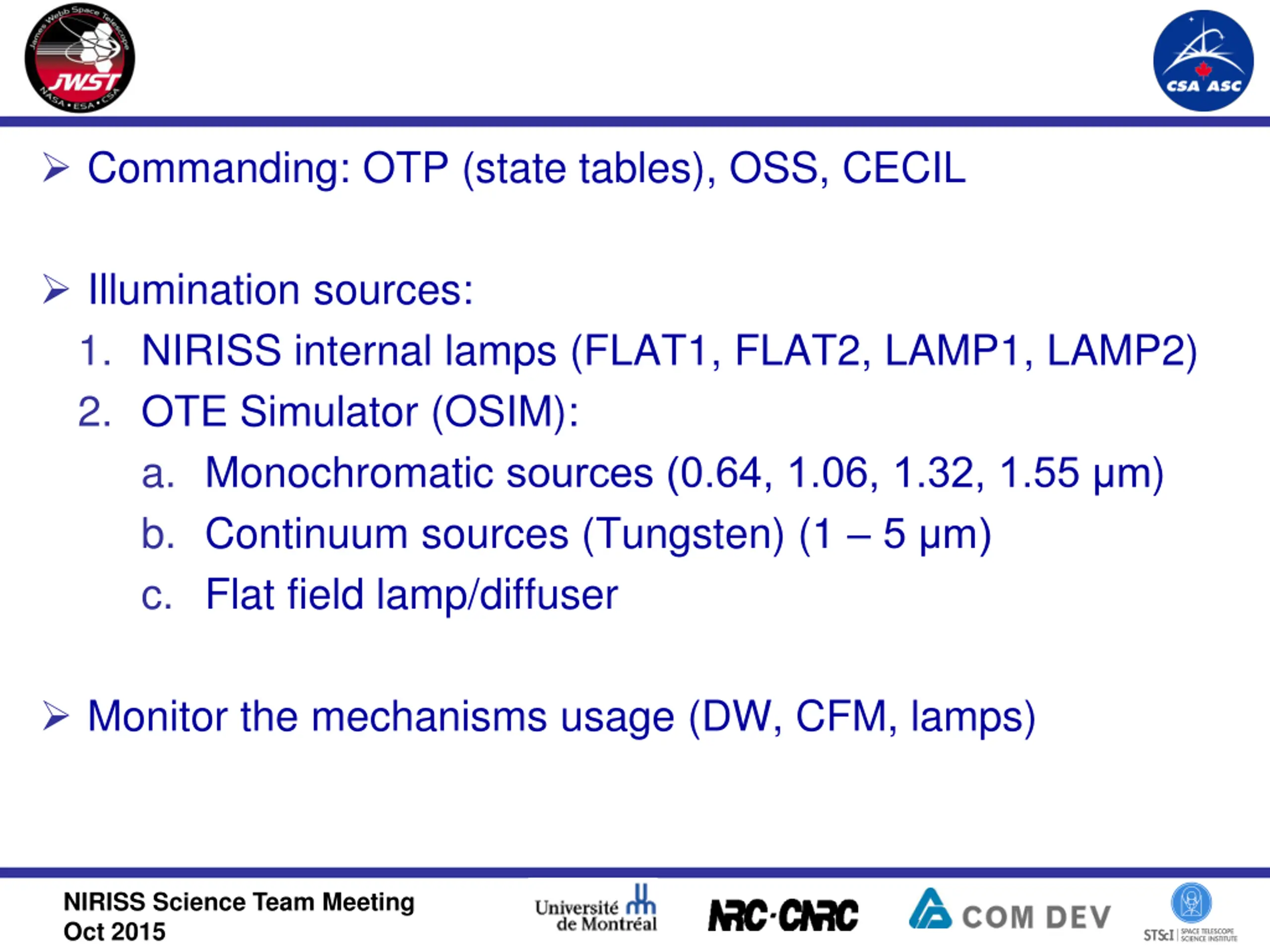

Commanding: OTP (state tables), OSS, CECIL Illumination sources: 1. NIRISS internal lamps (FLAT1, FLAT2, LAMP1, LAMP2) 2. OTE Simulator (OSIM): a. Monochromatic sources (0.64, 1.06, 1.32, 1.55 m) b. Continuum sources (Tungsten) (1 5 m) c. Flat field lamp/diffuser Monitor the mechanisms usage (DW, CFM, lamps) NIRISS Science Team Meeting Oct 2015

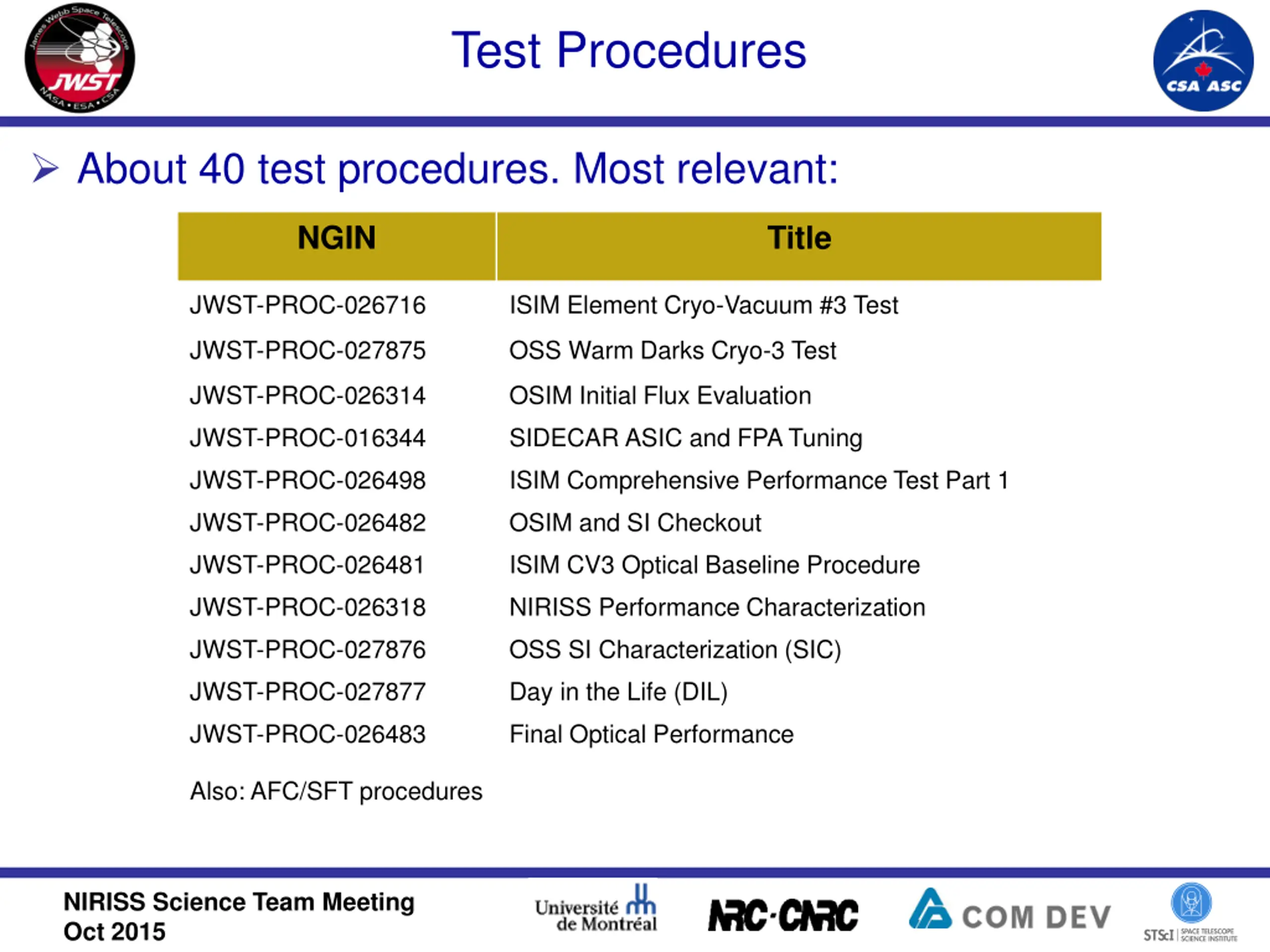

Test Procedures About 40 test procedures. Most relevant: NGIN Title JWST-PROC-026716 ISIM Element Cryo-Vacuum #3 Test JWST-PROC-027875 OSS Warm Darks Cryo-3 Test JWST-PROC-026314 OSIM Initial Flux Evaluation JWST-PROC-016344 SIDECAR ASIC and FPA Tuning JWST-PROC-026498 ISIM Comprehensive Performance Test Part 1 JWST-PROC-026482 OSIM and SI Checkout JWST-PROC-026481 ISIM CV3 Optical Baseline Procedure JWST-PROC-026318 NIRISS Performance Characterization JWST-PROC-027876 OSS SI Characterization (SIC) JWST-PROC-027877 Day in the Life (DIL) JWST-PROC-026483 Final Optical Performance Also: AFC/SFT procedures NIRISS Science Team Meeting Oct 2015

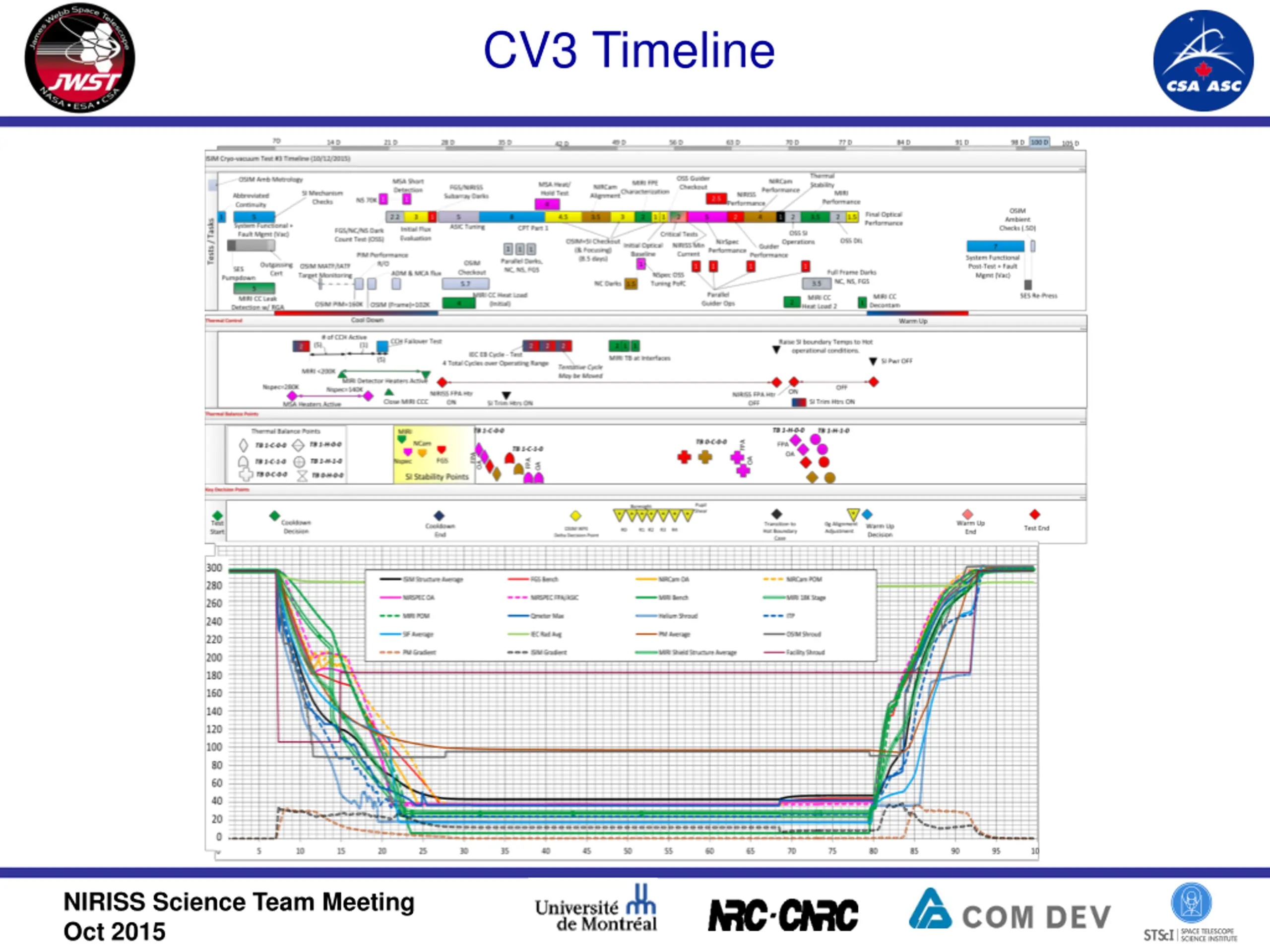

CV3 Timeline NIRISS Science Team Meeting Oct 2015

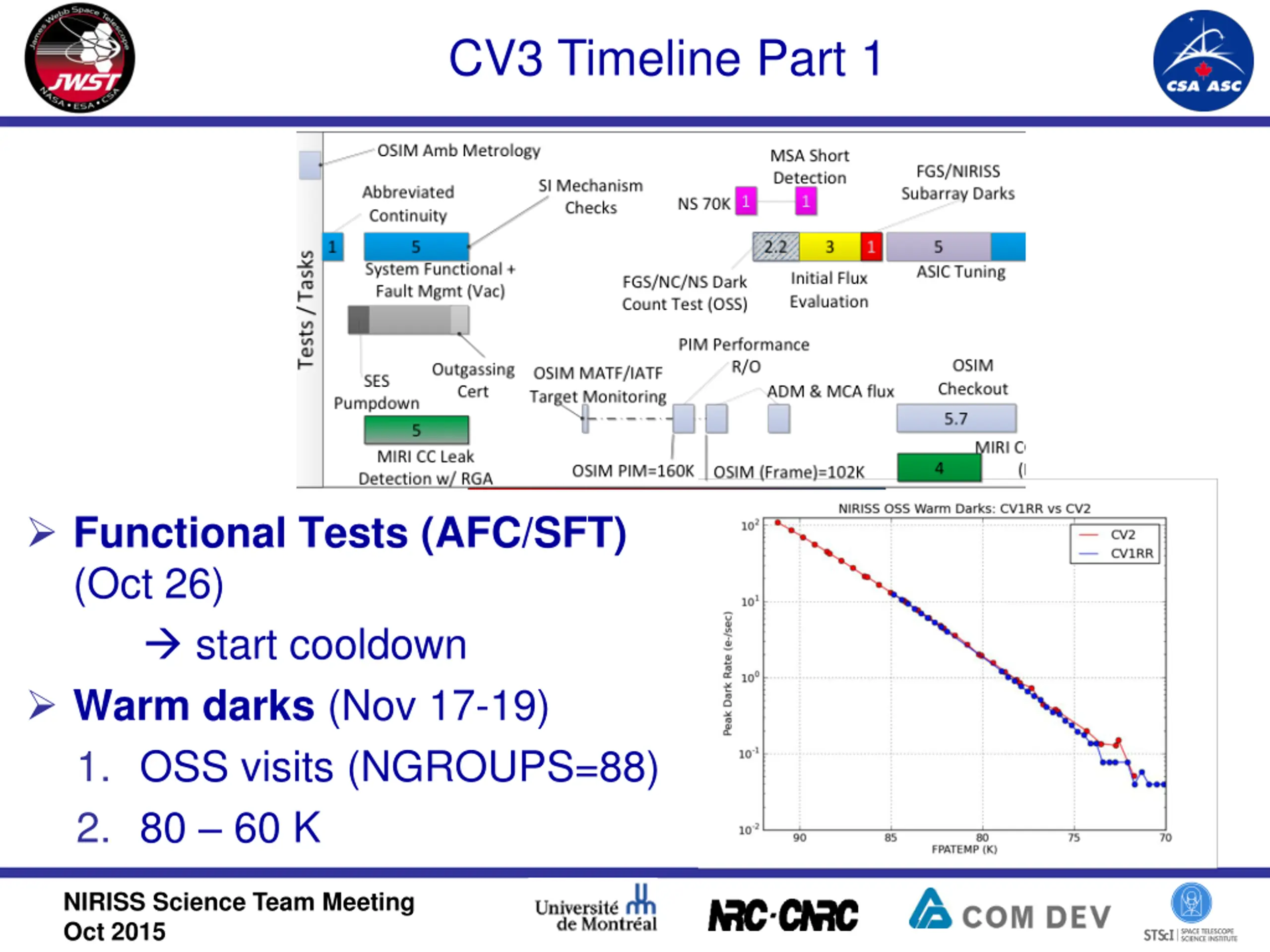

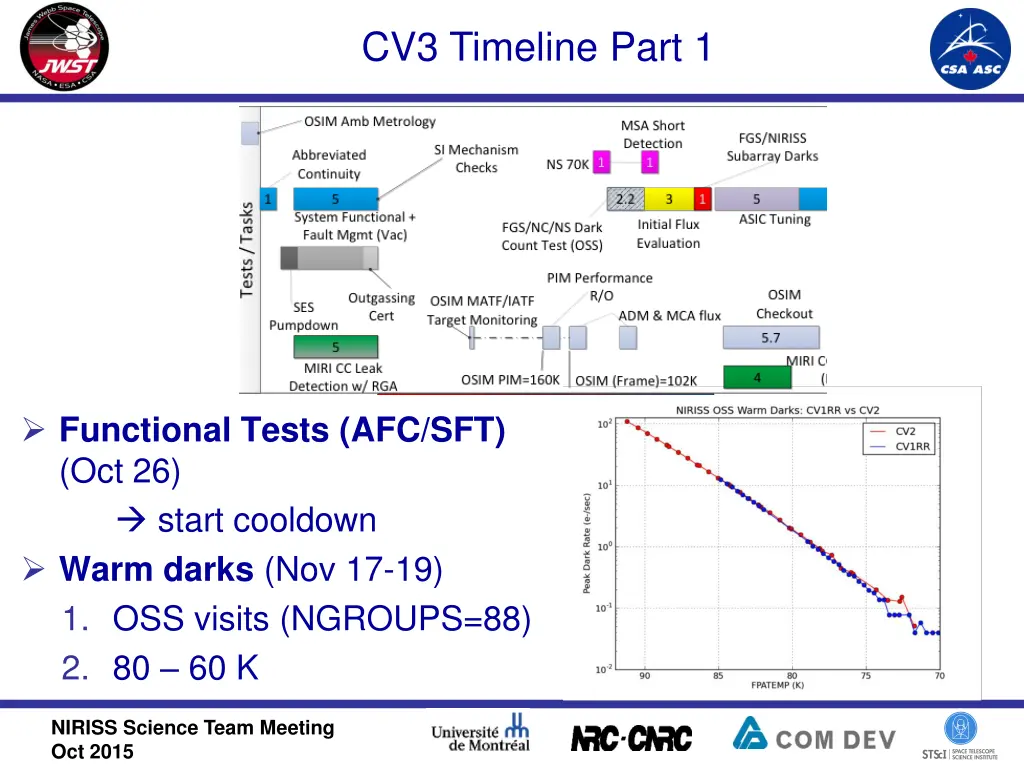

CV3 Timeline Part 1 Functional Tests (AFC/SFT) (Oct 26) start cooldown Warm darks (Nov 17-19) 1. OSS visits (NGROUPS=88) 2. 80 60 K NIRISS Science Team Meeting Oct 2015

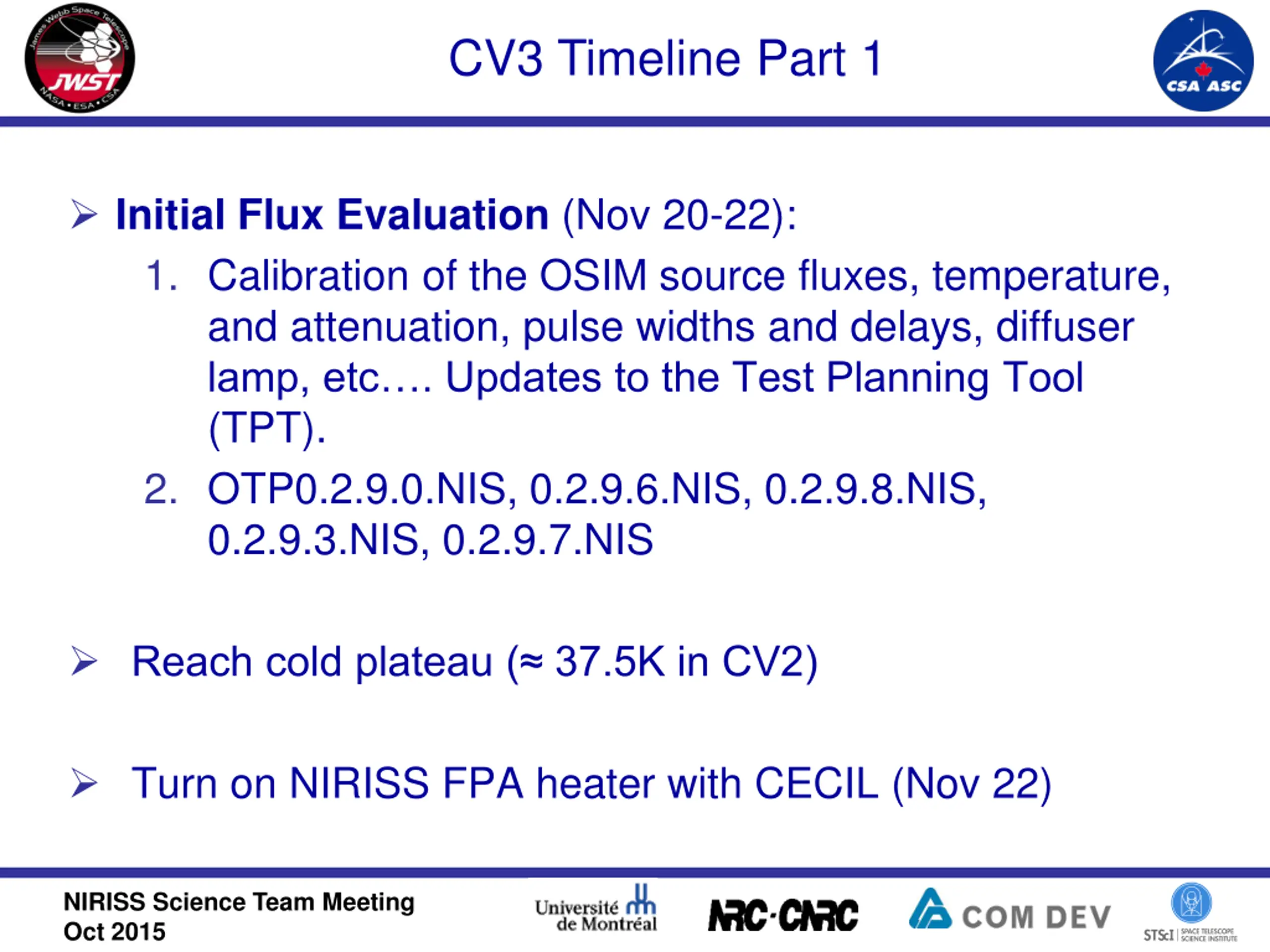

CV3 Timeline Part 1 Initial Flux Evaluation (Nov 20-22): 1. Calibration of the OSIM source fluxes, temperature, and attenuation, pulse widths and delays, diffuser lamp, etc . Updates to the Test Planning Tool (TPT). 2. OTP0.2.9.0.NIS, 0.2.9.6.NIS, 0.2.9.8.NIS, 0.2.9.3.NIS, 0.2.9.7.NIS Reach cold plateau ( 37.5K in CV2) Turn on NIRISS FPA heater with CECIL (Nov 22) NIRISS Science Team Meeting Oct 2015

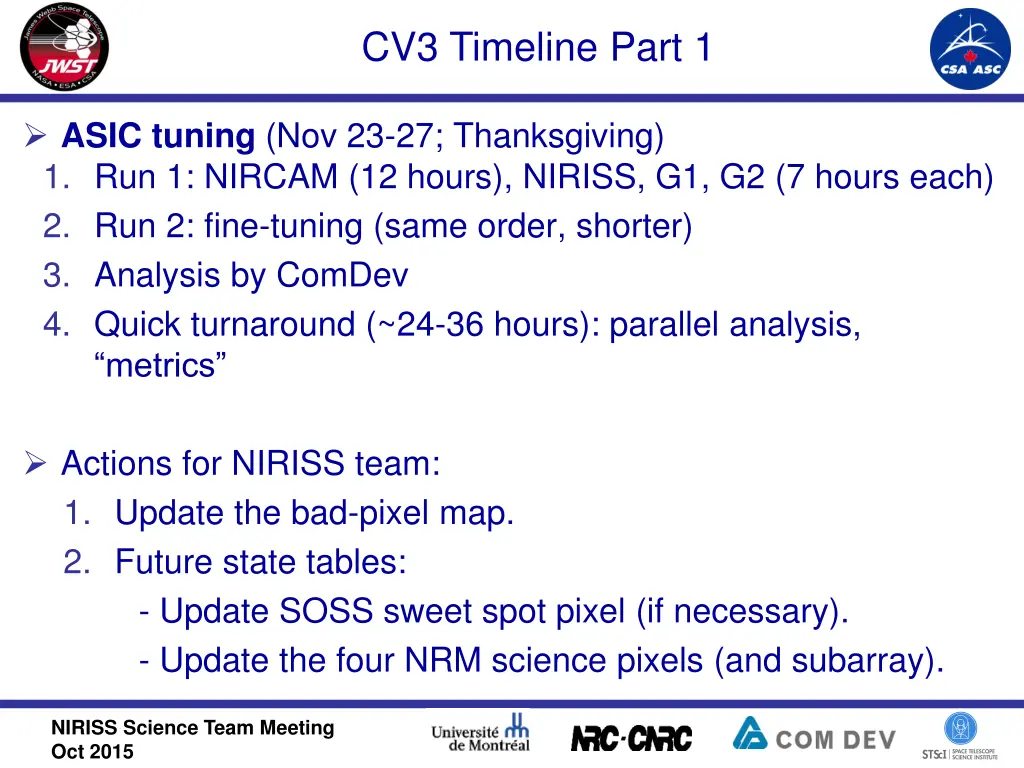

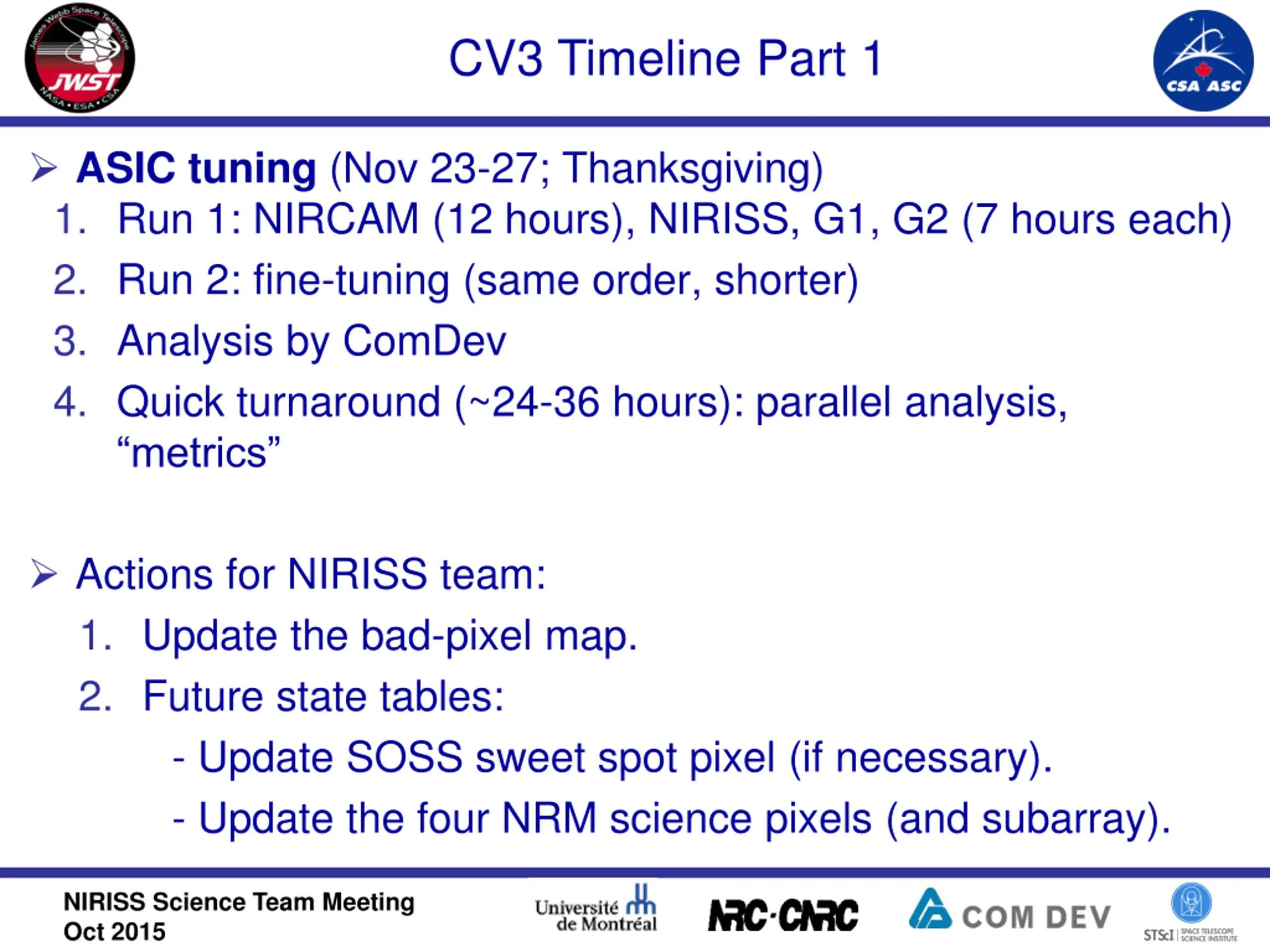

CV3 Timeline Part 1 ASIC tuning (Nov 23-27; Thanksgiving) 1. Run 1: NIRCAM (12 hours), NIRISS, G1, G2 (7 hours each) 2. Run 2: fine-tuning (same order, shorter) 3. Analysis by ComDev 4. Quick turnaround (~24-36 hours): parallel analysis, metrics Actions for NIRISS team: 1. Update the bad-pixel map. 2. Future state tables: - Update SOSS sweet spot pixel (if necessary). - Update the four NRM science pixels (and subarray). NIRISS Science Team Meeting Oct 2015

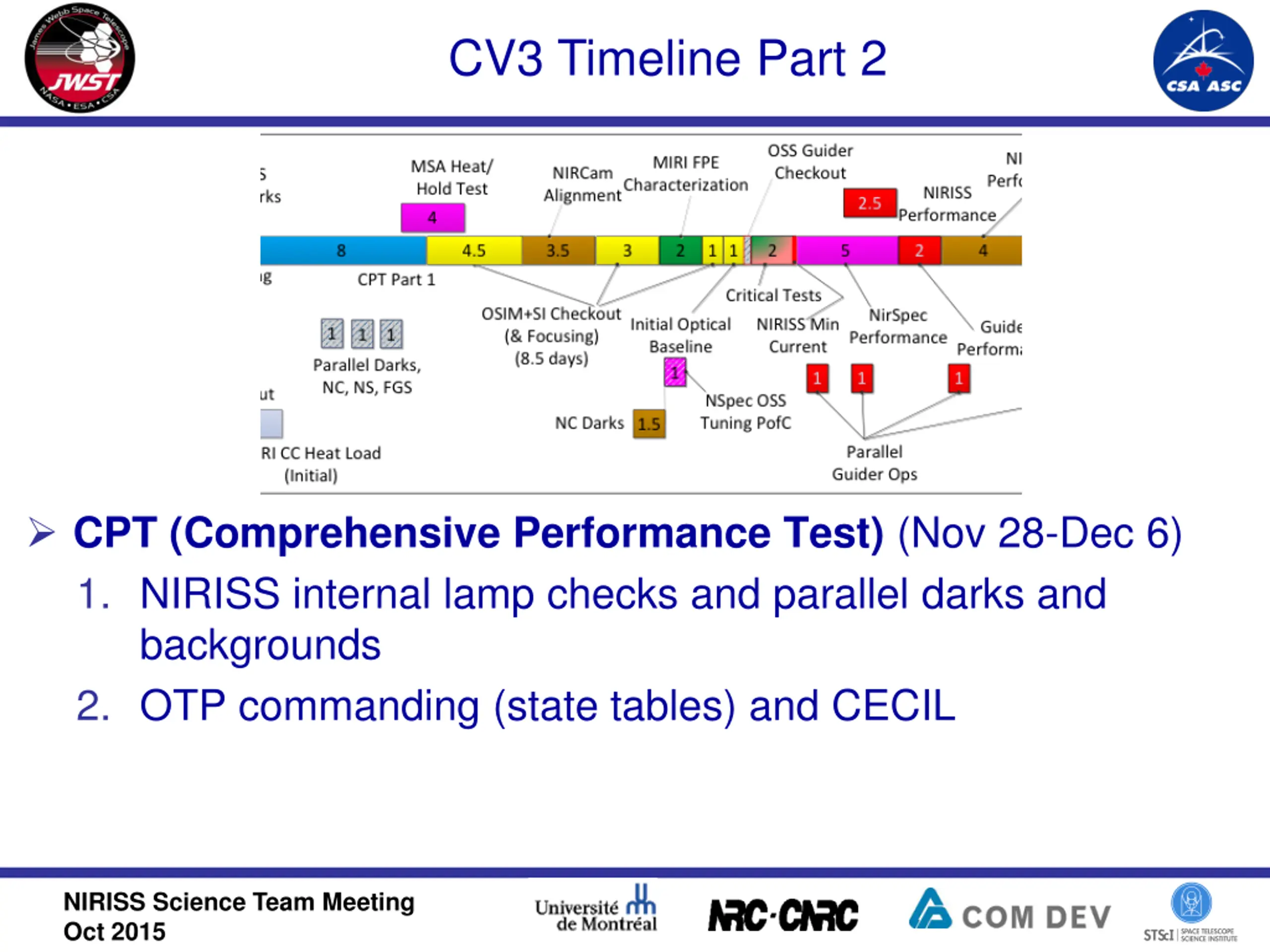

CV3 Timeline Part 2 CPT (Comprehensive Performance Test) (Nov 28-Dec 6) 1. NIRISS internal lamp checks and parallel darks and backgrounds 2. OTP commanding (state tables) and CECIL NIRISS Science Team Meeting Oct 2015

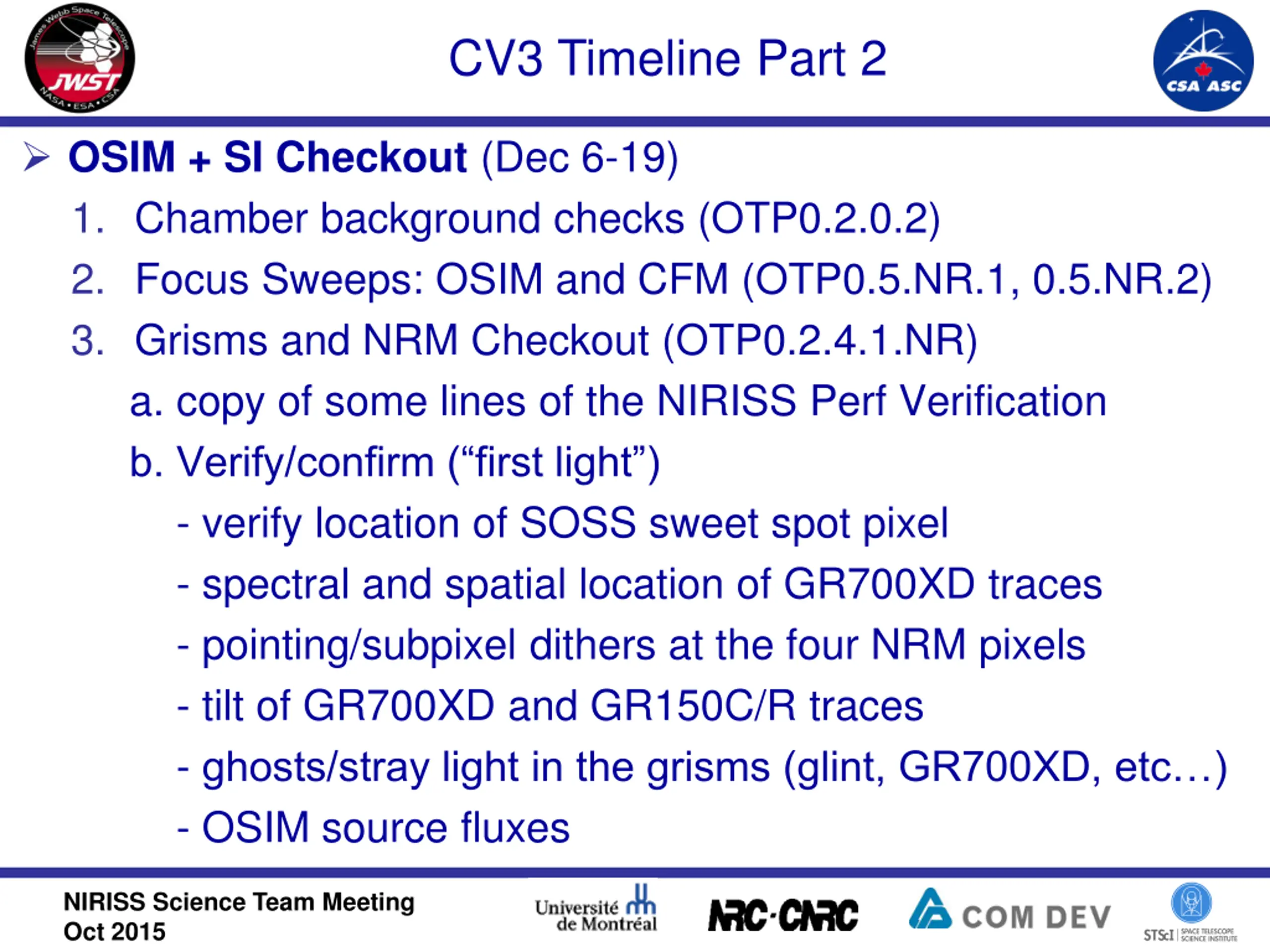

CV3 Timeline Part 2 OSIM + SI Checkout (Dec 6-19) 1. Chamber background checks (OTP0.2.0.2) 2. Focus Sweeps: OSIM and CFM (OTP0.5.NR.1, 0.5.NR.2) 3. Grisms and NRM Checkout (OTP0.2.4.1.NR) a. copy of some lines of the NIRISS Perf Verification b. Verify/confirm ( first light ) - verify location of SOSS sweet spot pixel - spectral and spatial location of GR700XD traces - pointing/subpixel dithers at the four NRM pixels - tilt of GR700XD and GR150C/R traces - ghosts/stray light in the grisms (glint, GR700XD, etc ) - OSIM source fluxes NIRISS Science Team Meeting Oct 2015

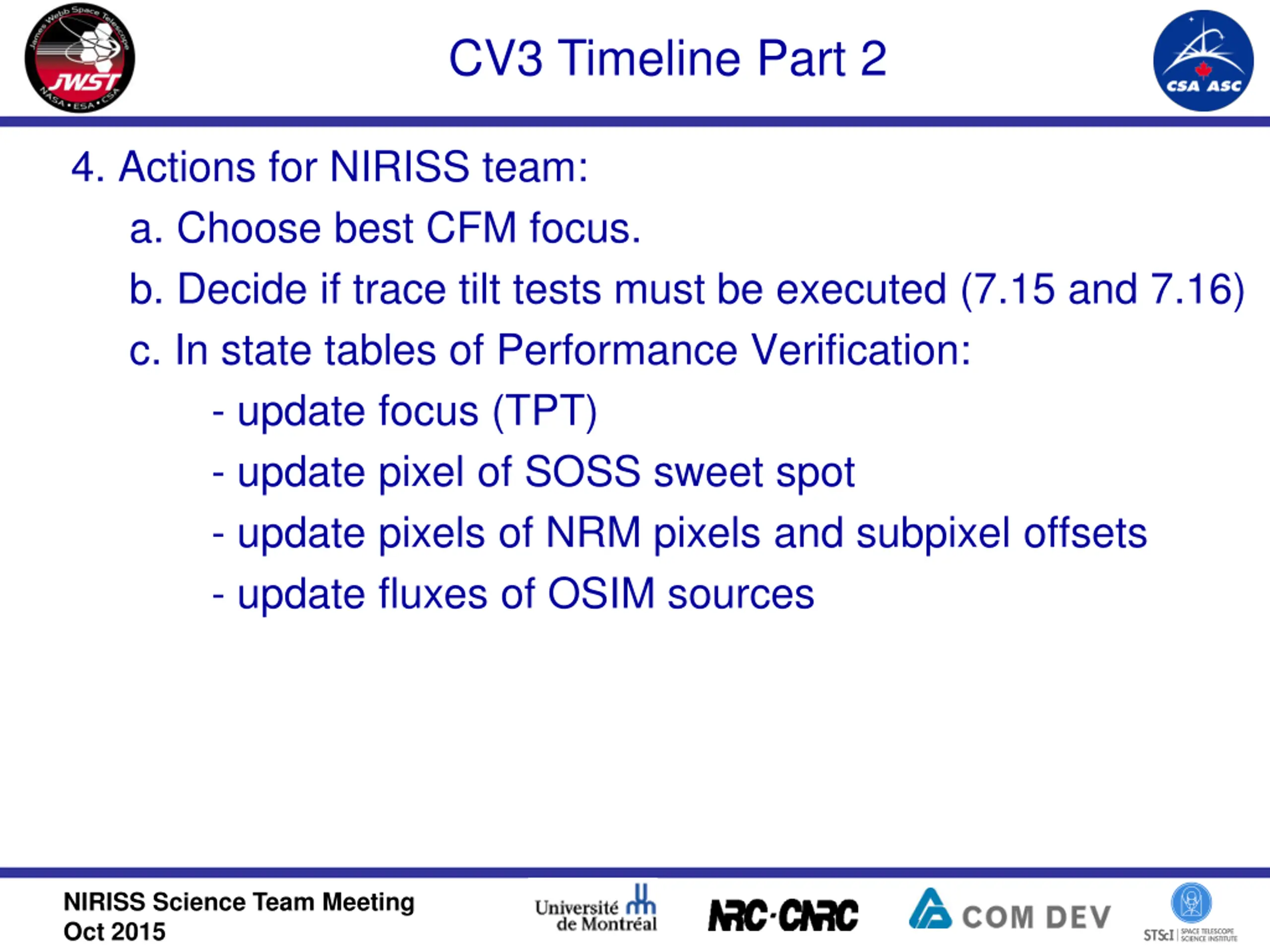

CV3 Timeline Part 2 4. Actions for NIRISS team: a. Choose best CFM focus. b. Decide if trace tilt tests must be executed (7.15 and 7.16) c. In state tables of Performance Verification: - update focus (TPT) - update pixel of SOSS sweet spot - update pixels of NRM pixels and subpixel offsets - update fluxes of OSIM sources NIRISS Science Team Meeting Oct 2015

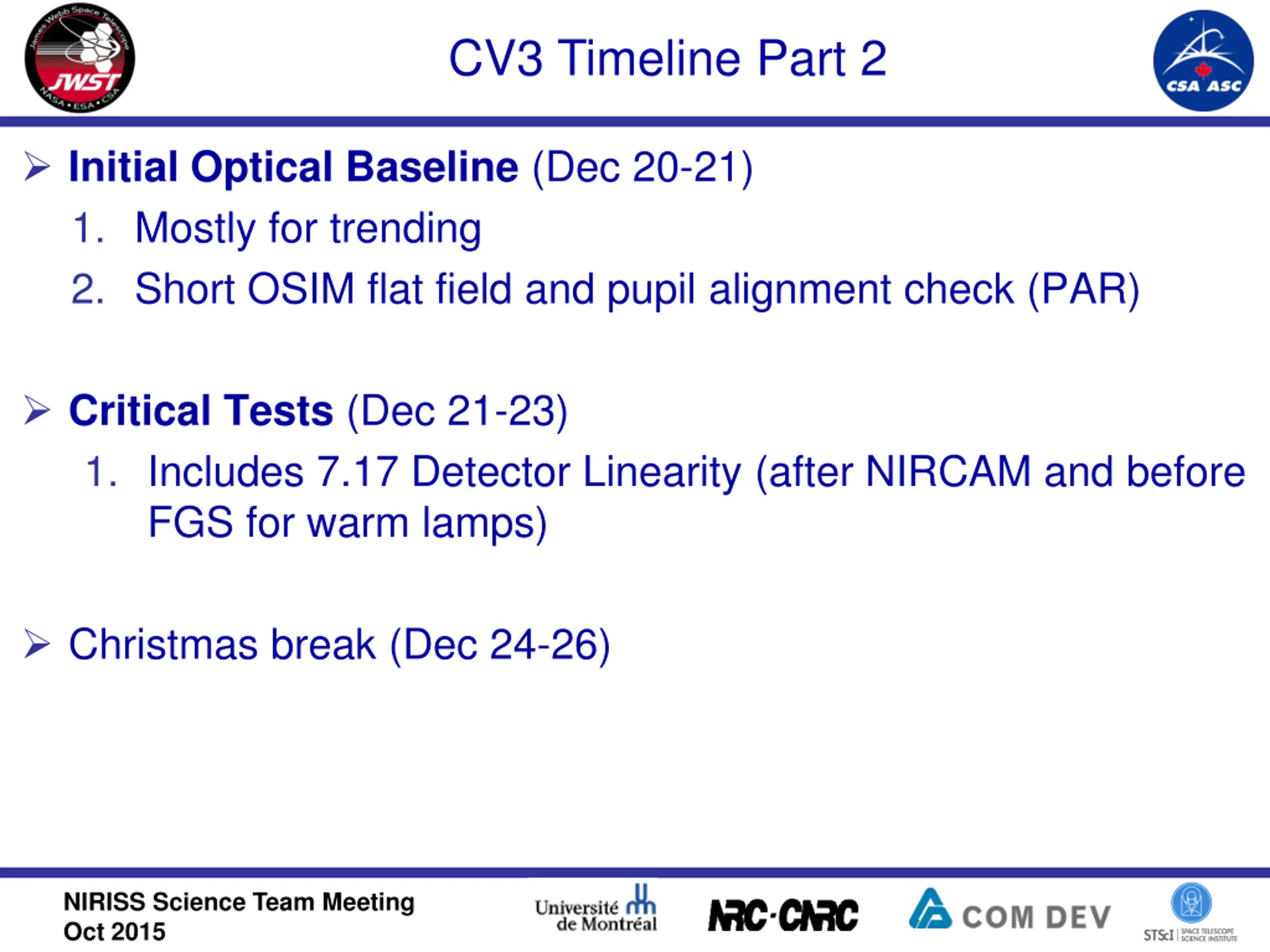

CV3 Timeline Part 2 Initial Optical Baseline (Dec 20-21) 1. Mostly for trending 2. Short OSIM flat field and pupil alignment check (PAR) Critical Tests (Dec 21-23) 1. Includes 7.17 Detector Linearity (after NIRCAM and before FGS for warm lamps) Christmas break (Dec 24-26) NIRISS Science Team Meeting Oct 2015

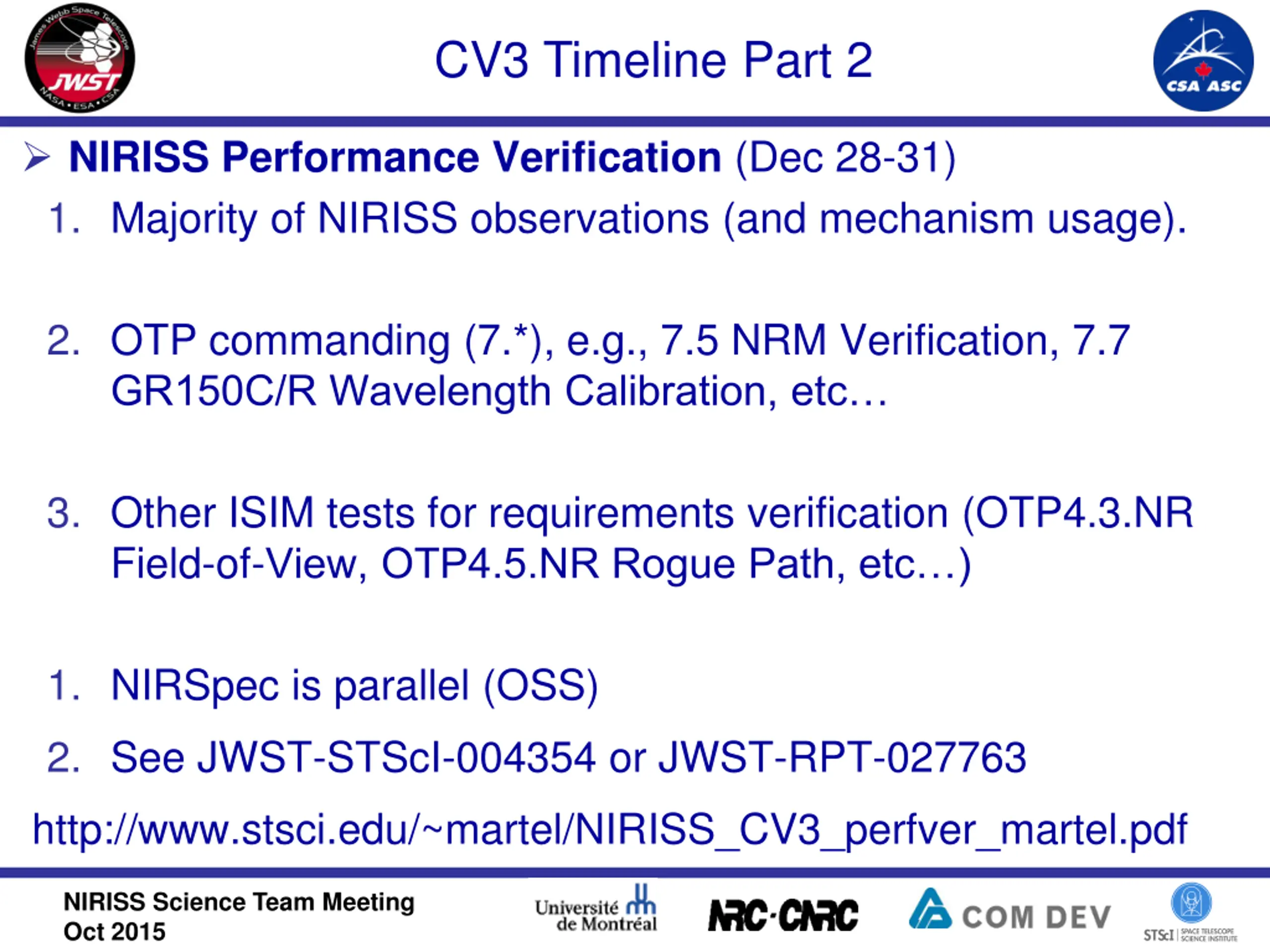

CV3 Timeline Part 2 NIRISS Performance Verification (Dec 28-31) 1. Majority of NIRISS observations (and mechanism usage). 2. OTP commanding (7.*), e.g., 7.5 NRM Verification, 7.7 GR150C/R Wavelength Calibration, etc 3. Other ISIM tests for requirements verification (OTP4.3.NR Field-of-View, OTP4.5.NR Rogue Path, etc ) 1. NIRSpec is parallel (OSS) 2. See JWST-STScI-004354 or JWST-RPT-027763 http://www.stsci.edu/~martel/NIRISS_CV3_perfver_martel.pdf NIRISS Science Team Meeting Oct 2015

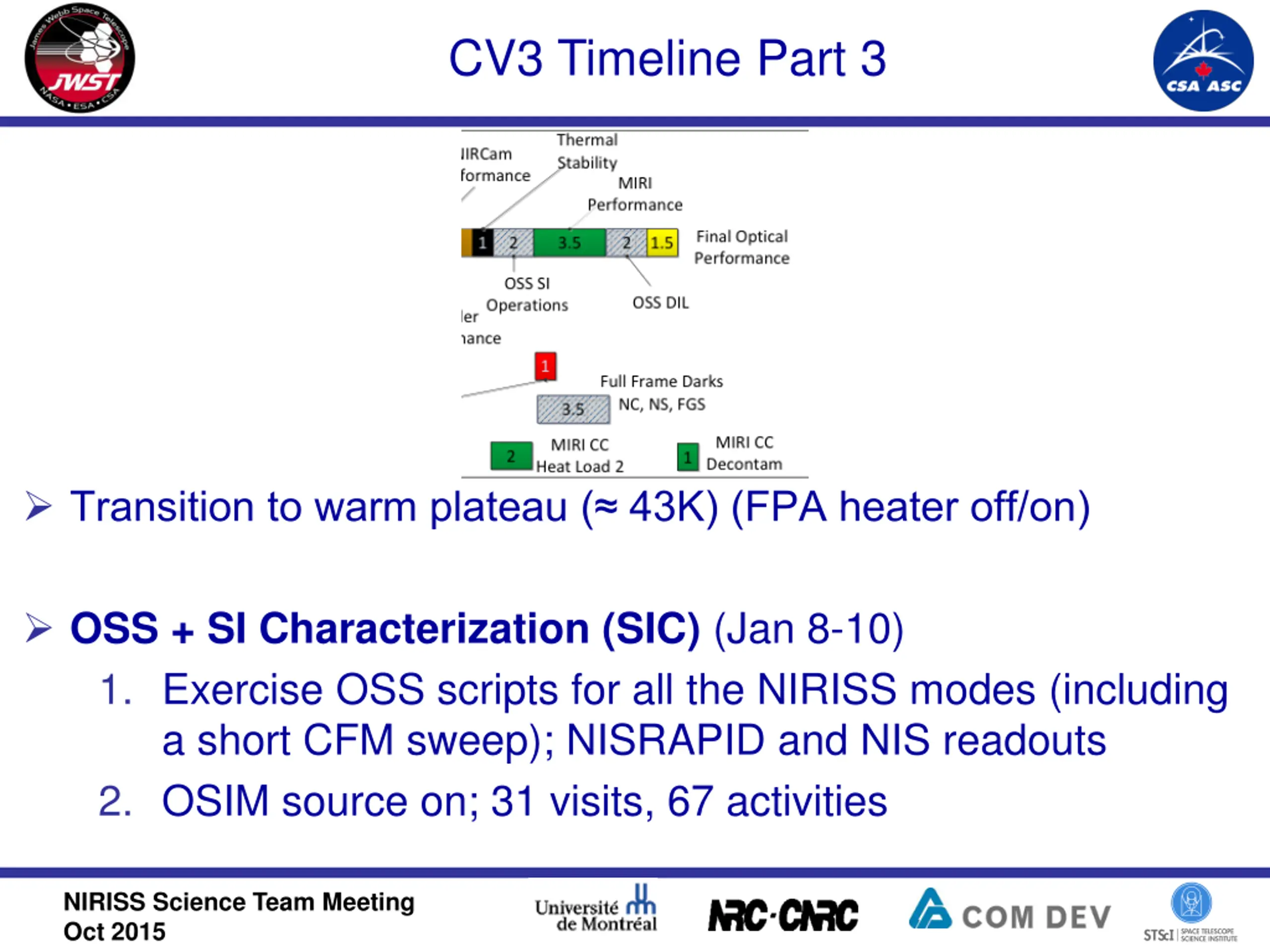

CV3 Timeline Part 3 Transition to warm plateau ( 43K) (FPA heater off/on) OSS + SI Characterization (SIC) (Jan 8-10) 1. Exercise OSS scripts for all the NIRISS modes (including a short CFM sweep); NISRAPID and NIS readouts 2. OSIM source on; 31 visits, 67 activities NIRISS Science Team Meeting Oct 2015

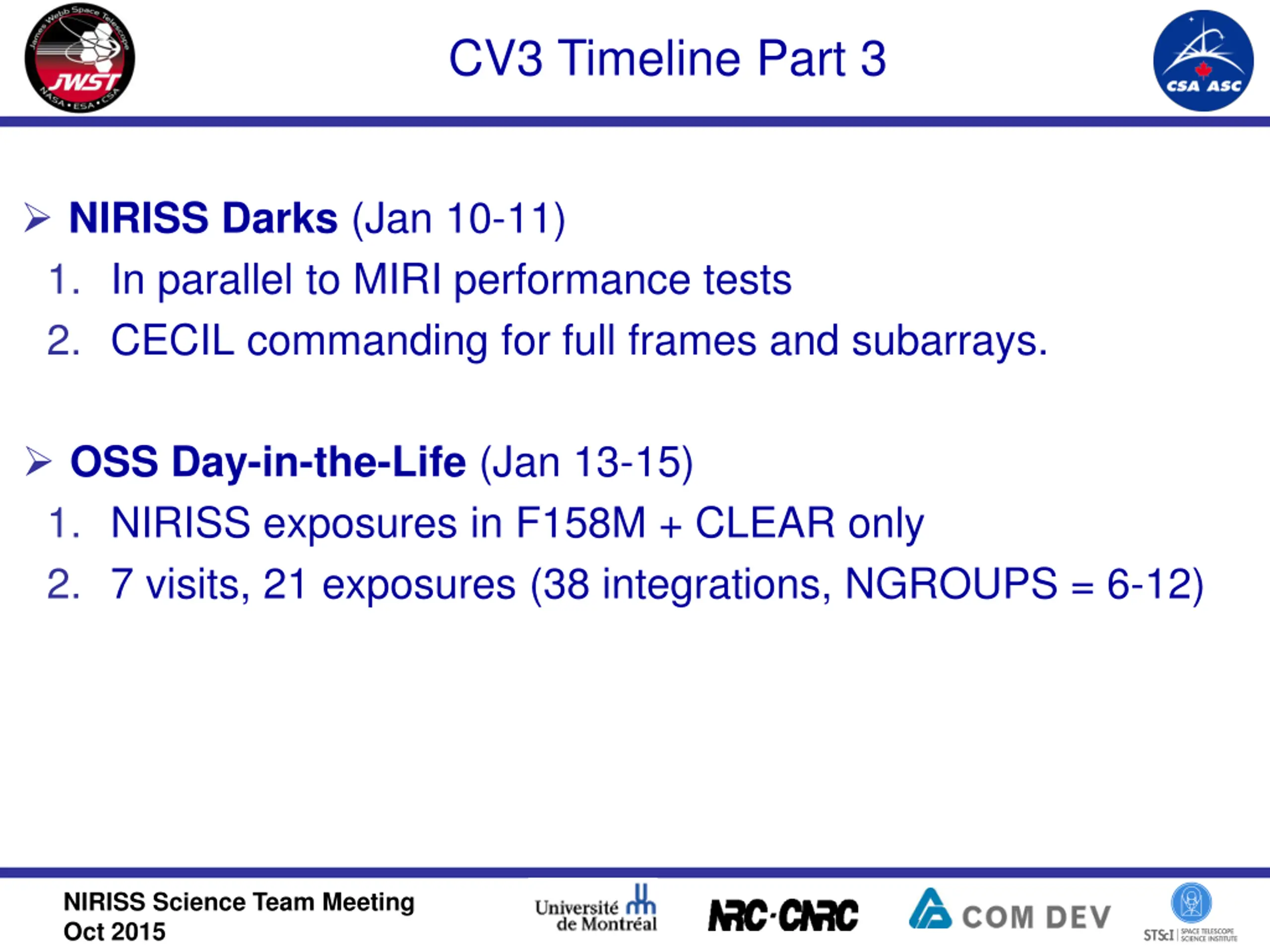

CV3 Timeline Part 3 NIRISS Darks (Jan 10-11) 1. In parallel to MIRI performance tests 2. CECIL commanding for full frames and subarrays. OSS Day-in-the-Life (Jan 13-15) 1. NIRISS exposures in F158M + CLEAR only 2. 7 visits, 21 exposures (38 integrations, NGROUPS = 6-12) NIRISS Science Team Meeting Oct 2015

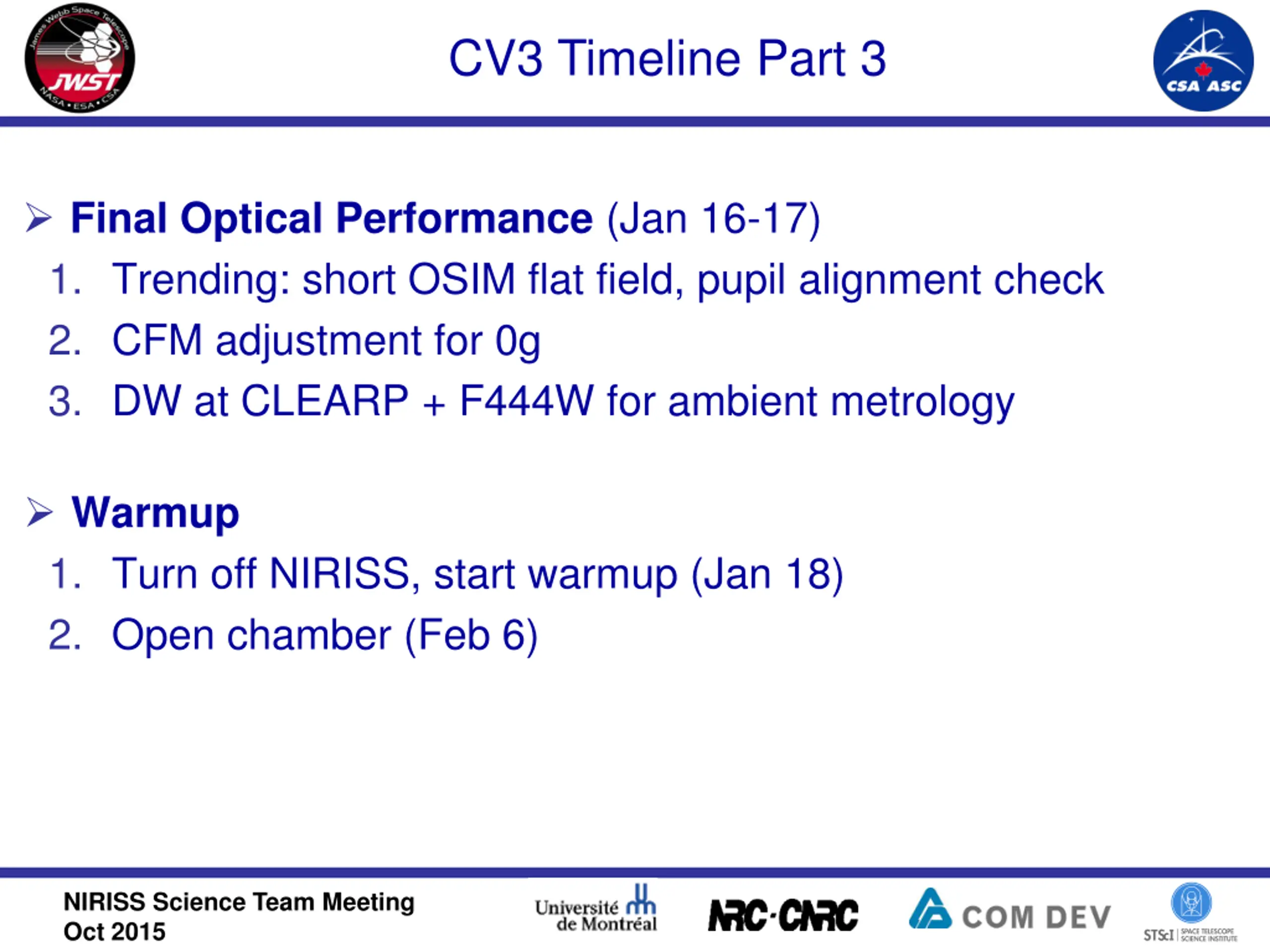

CV3 Timeline Part 3 Final Optical Performance (Jan 16-17) 1. Trending: short OSIM flat field, pupil alignment check 2. CFM adjustment for 0g 3. DW at CLEARP + F444W for ambient metrology Warmup 1. Turn off NIRISS, start warmup (Jan 18) 2. Open chamber (Feb 6) NIRISS Science Team Meeting Oct 2015

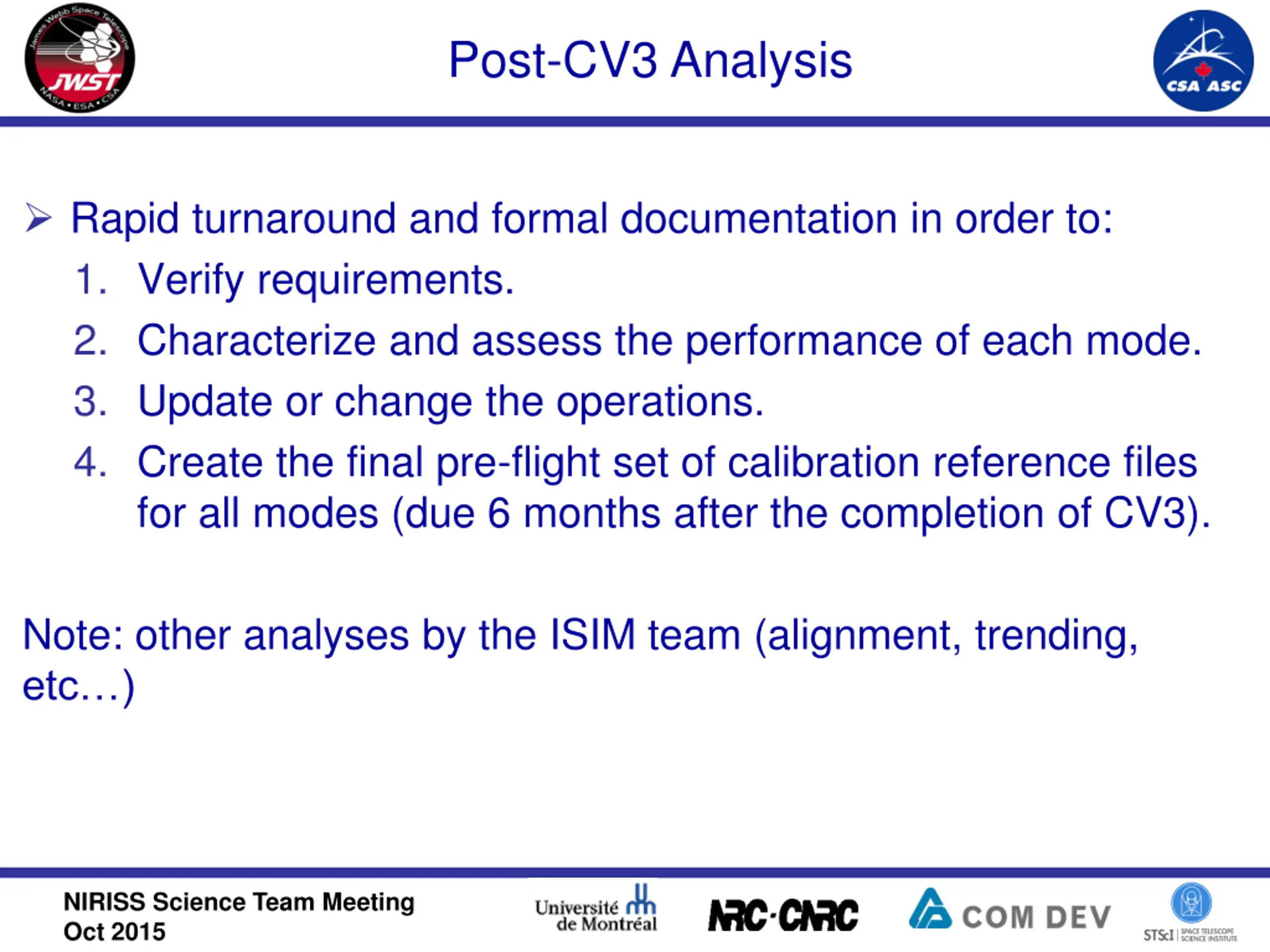

Post-CV3 Analysis Rapid turnaround and formal documentation in order to: 1. Verify requirements. 2. Characterize and assess the performance of each mode. 3. Update or change the operations. 4. Create the final pre-flight set of calibration reference files for all modes (due 6 months after the completion of CV3). Note: other analyses by the ISIM team (alignment, trending, etc ) NIRISS Science Team Meeting Oct 2015

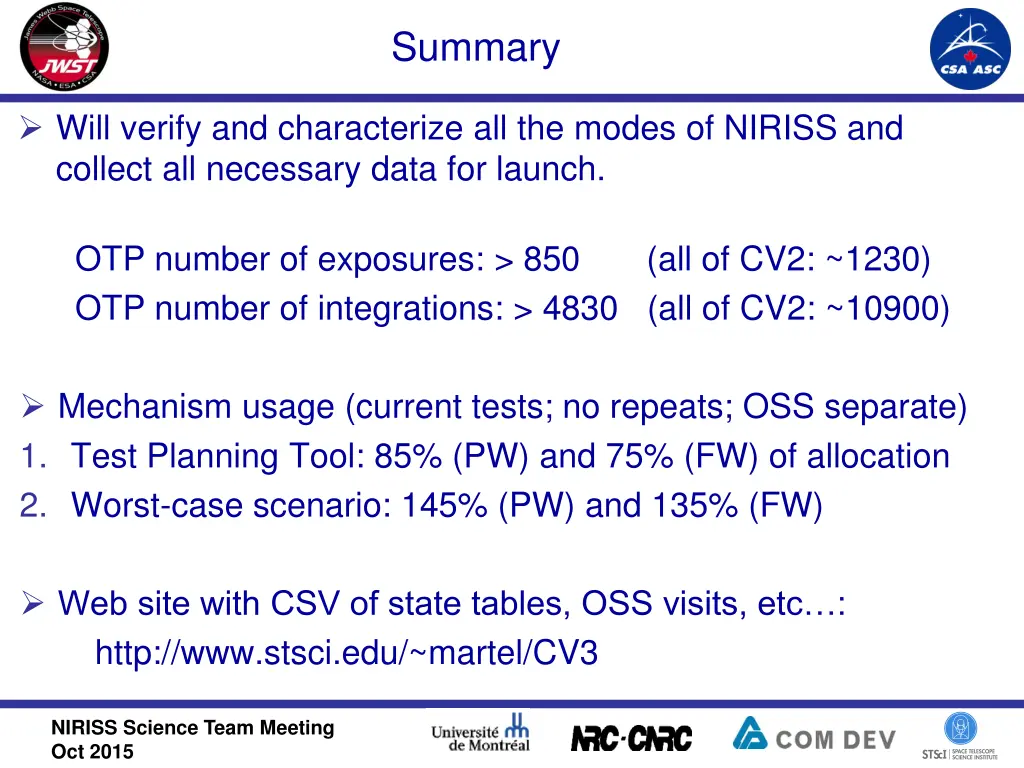

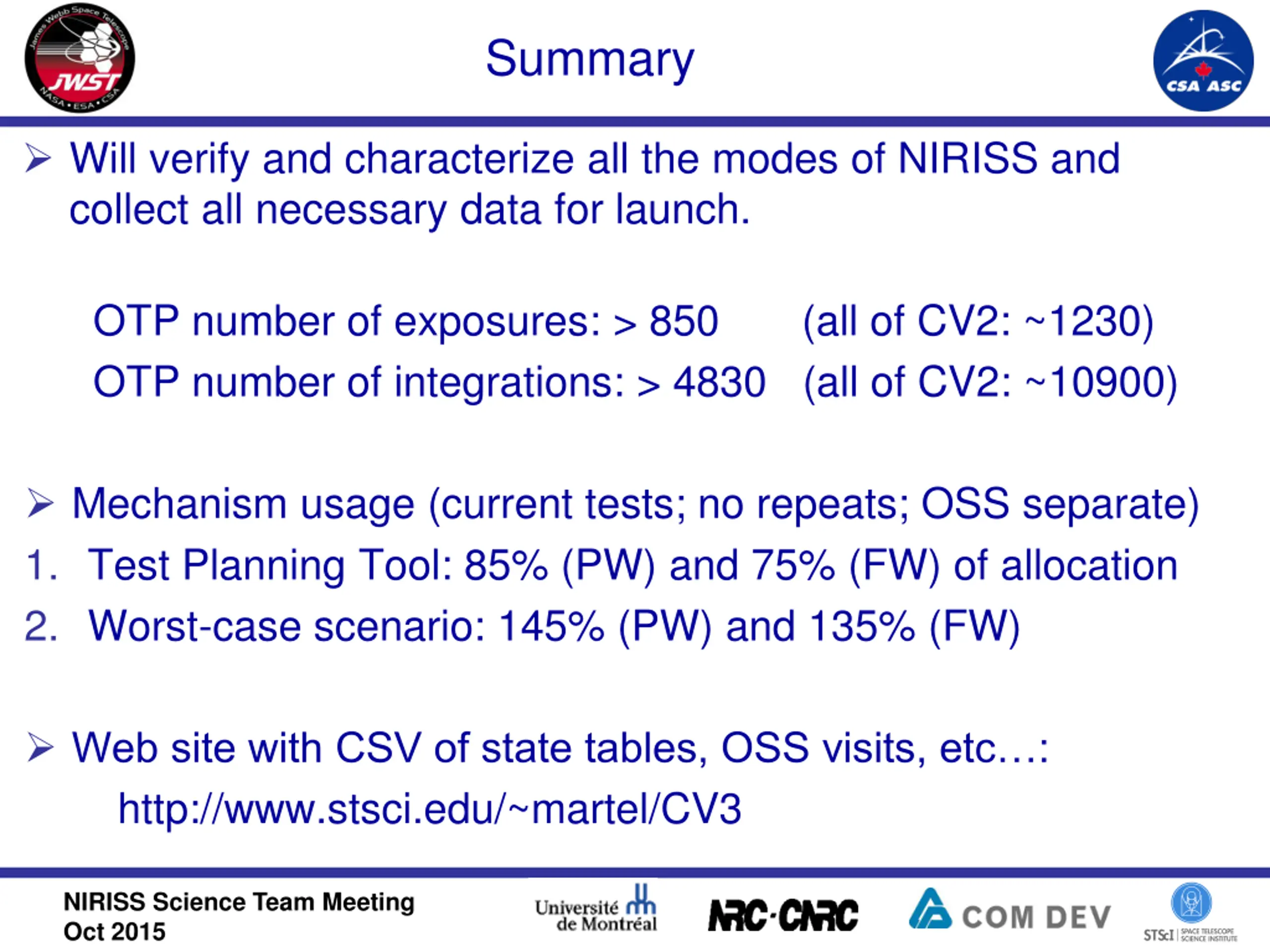

Summary Will verify and characterize all the modes of NIRISS and collect all necessary data for launch. OTP number of exposures: > 850 (all of CV2: ~1230) OTP number of integrations: > 4830 (all of CV2: ~10900) Mechanism usage (current tests; no repeats; OSS separate) 1. Test Planning Tool: 85% (PW) and 75% (FW) of allocation 2. Worst-case scenario: 145% (PW) and 135% (FW) Web site with CSV of state tables, OSS visits, etc : http://www.stsci.edu/~martel/CV3 NIRISS Science Team Meeting Oct 2015

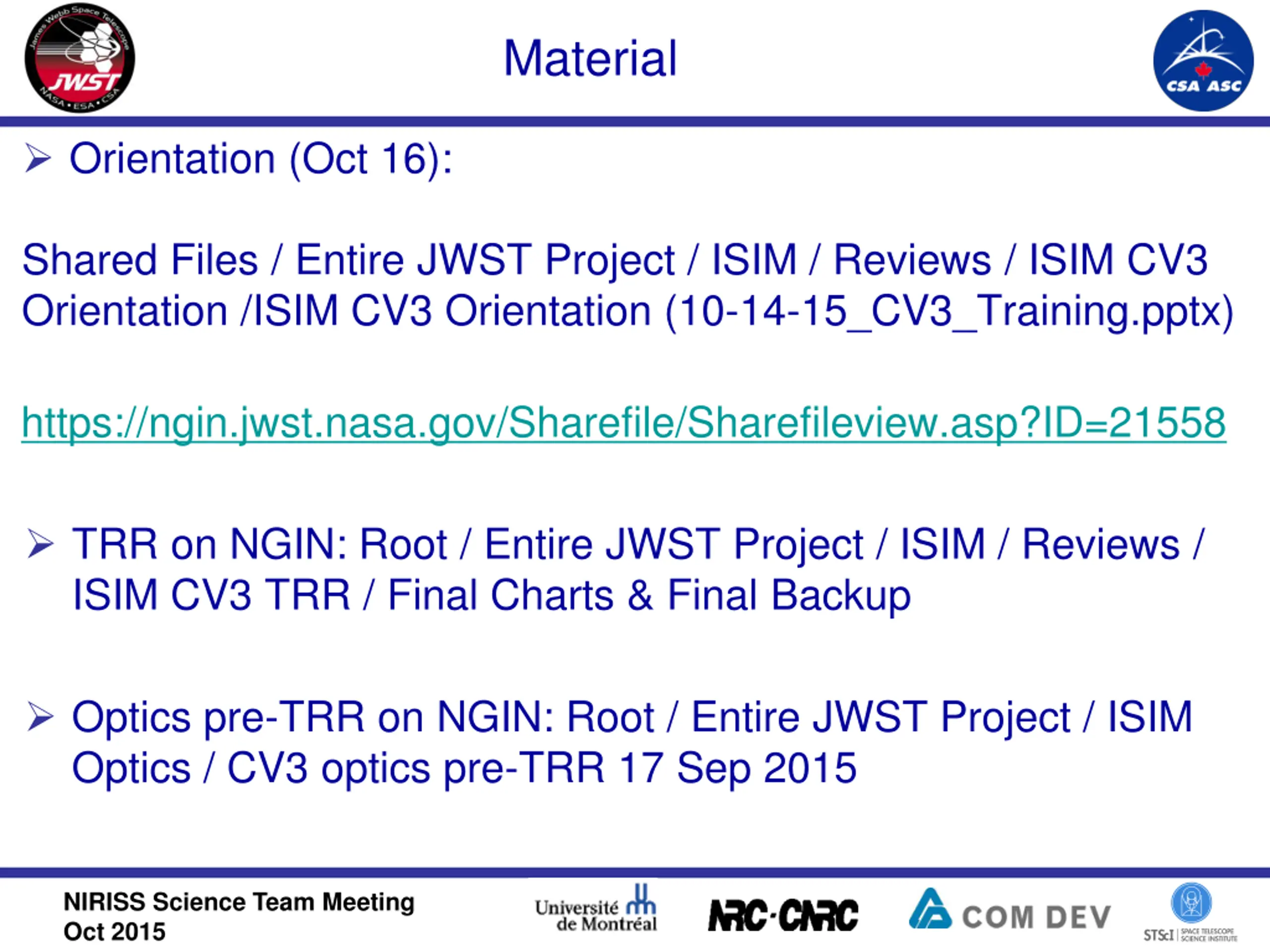

Material Orientation (Oct 16): Shared Files / Entire JWST Project / ISIM / Reviews / ISIM CV3 Orientation /ISIM CV3 Orientation (10-14-15_CV3_Training.pptx) https://ngin.jwst.nasa.gov/Sharefile/Sharefileview.asp?ID=21558 TRR on NGIN: Root / Entire JWST Project / ISIM / Reviews / ISIM CV3 TRR / Final Charts & Final Backup Optics pre-TRR on NGIN: Root / Entire JWST Project / ISIM Optics / CV3 optics pre-TRR 17 Sep 2015 NIRISS Science Team Meeting Oct 2015
