Nixie Tube Clock Critical Design Review

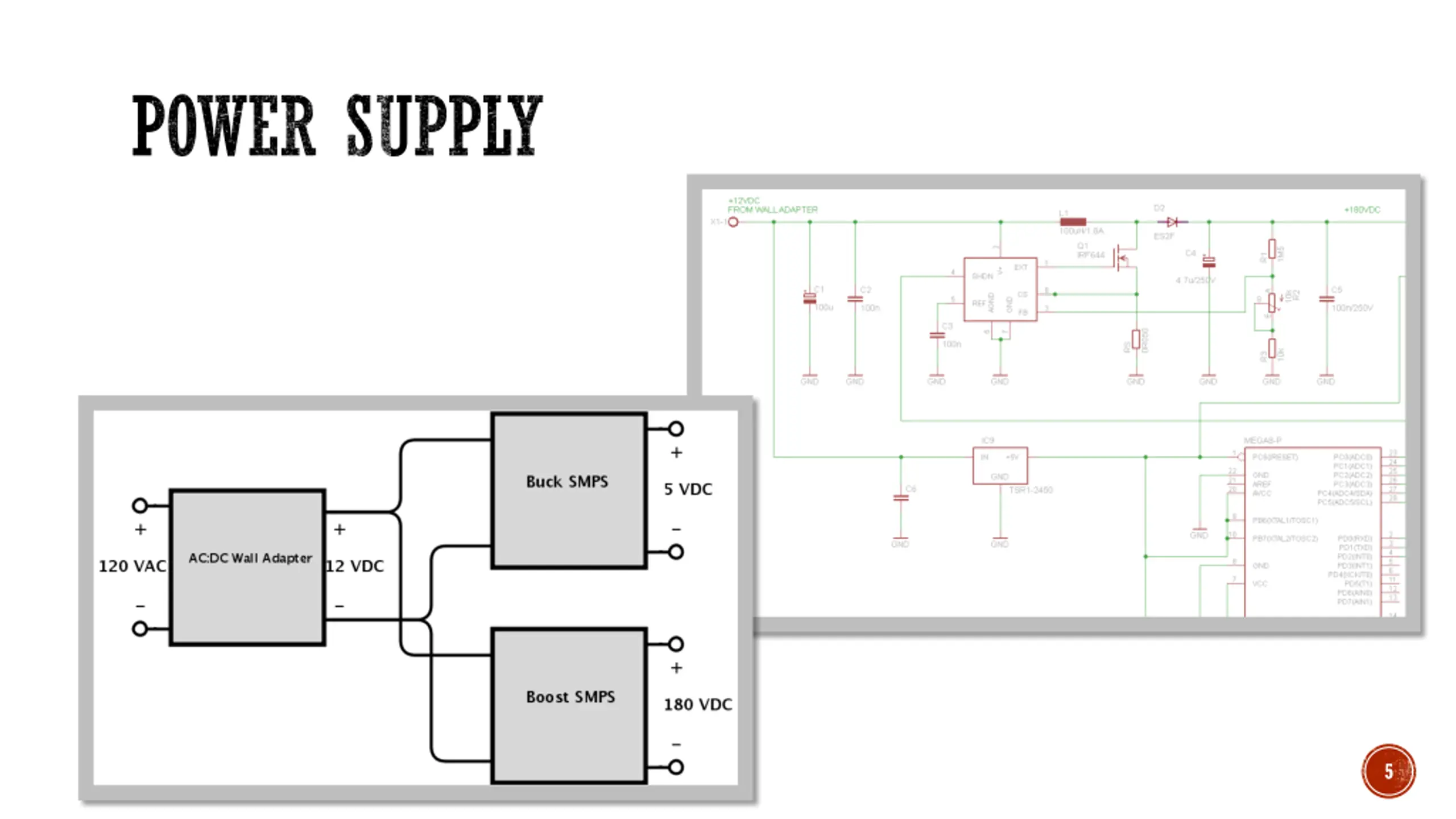

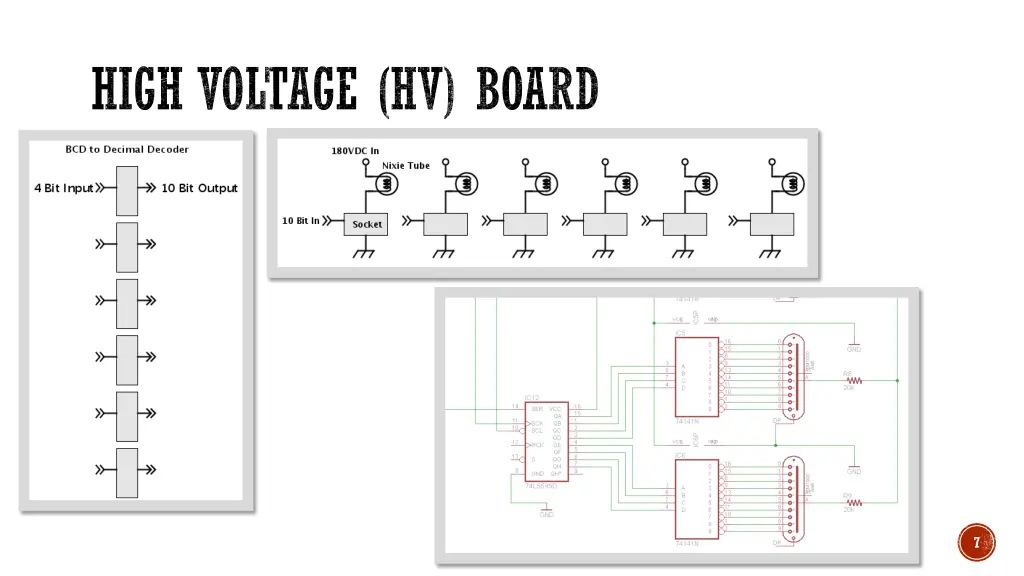

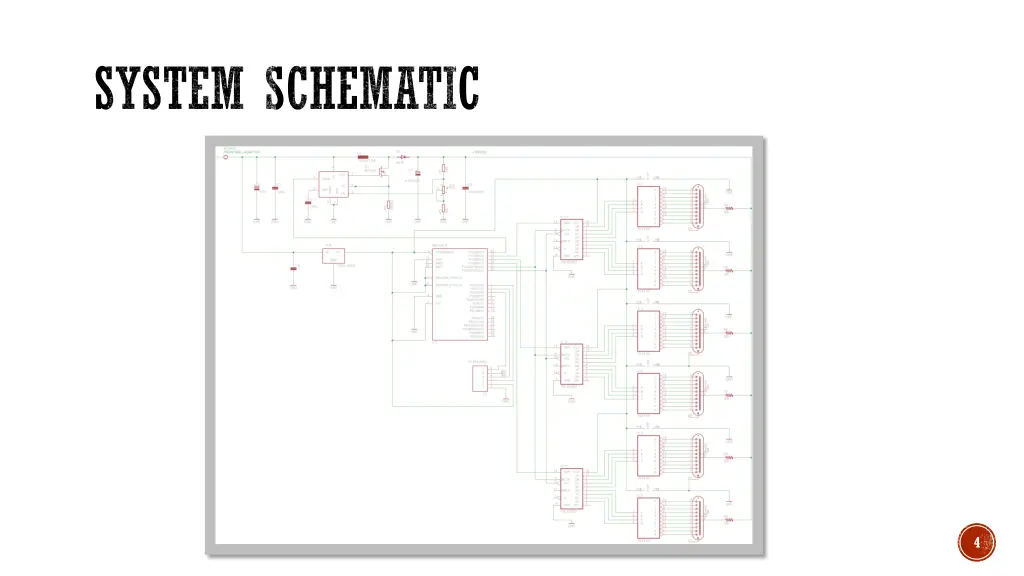

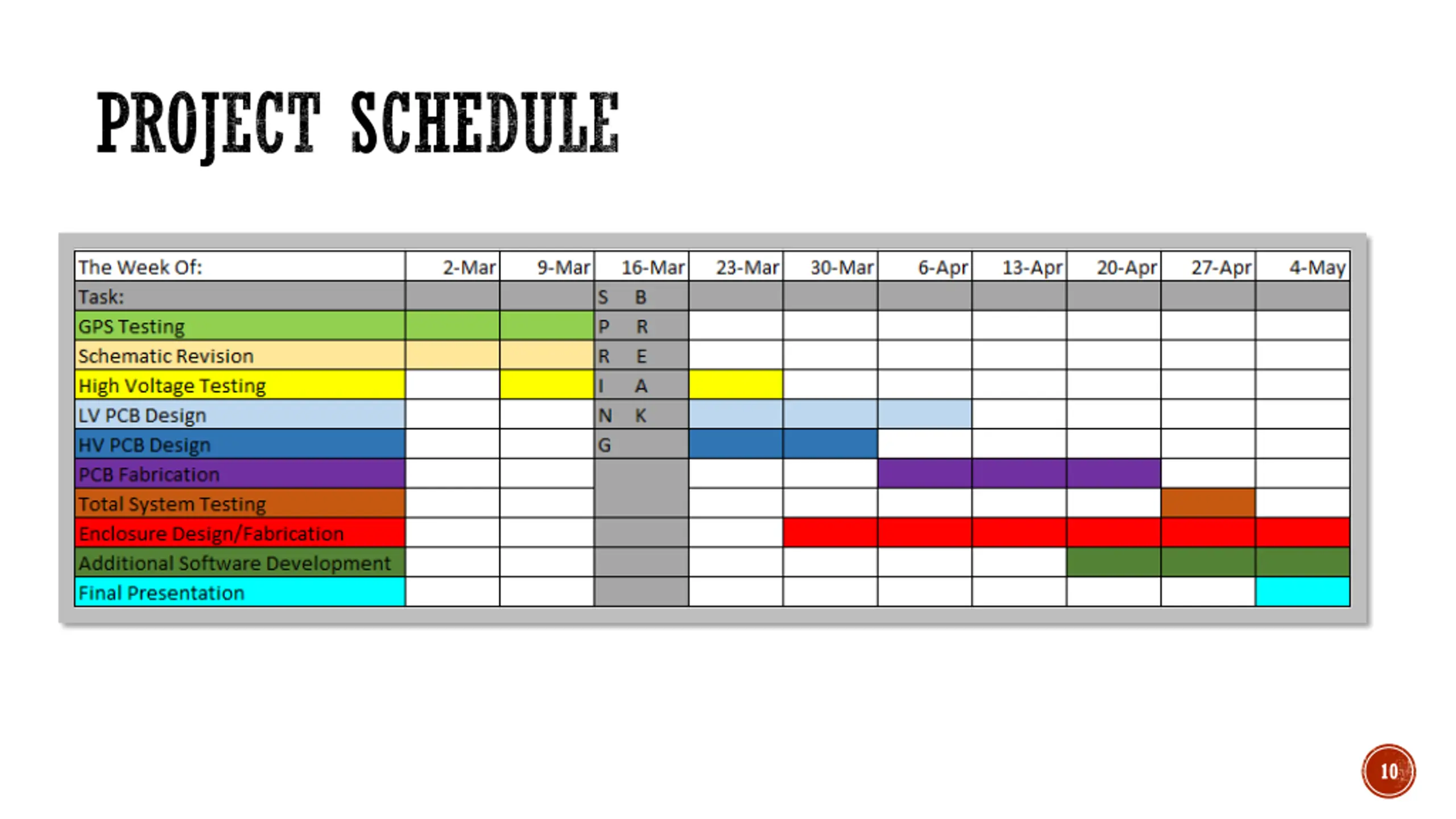

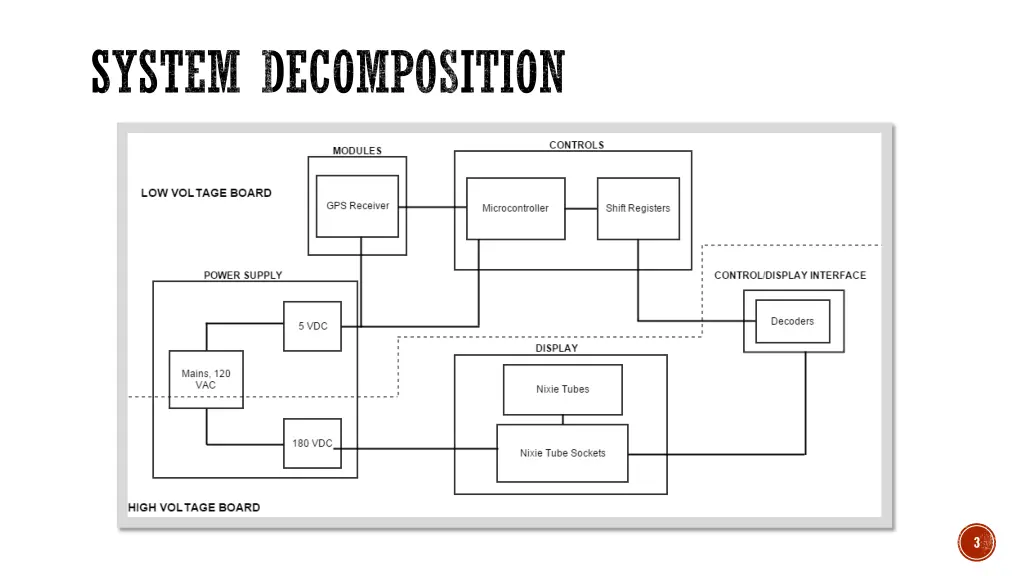

This critical design review of a Nixie tube clock conducted on March 9, 2015, by Team A highlights the system design, decomposition, schematic, power supply, LV and HV boards, testing, evaluation, project management, schedule, and key considerations including safety, stability, heat dissipation, and component ratings. It also discusses aspects like waveform smoothness, HV isolation, microcontroller performance, and lifetime indicators, culminating in key project management insights and questions for further exploration.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

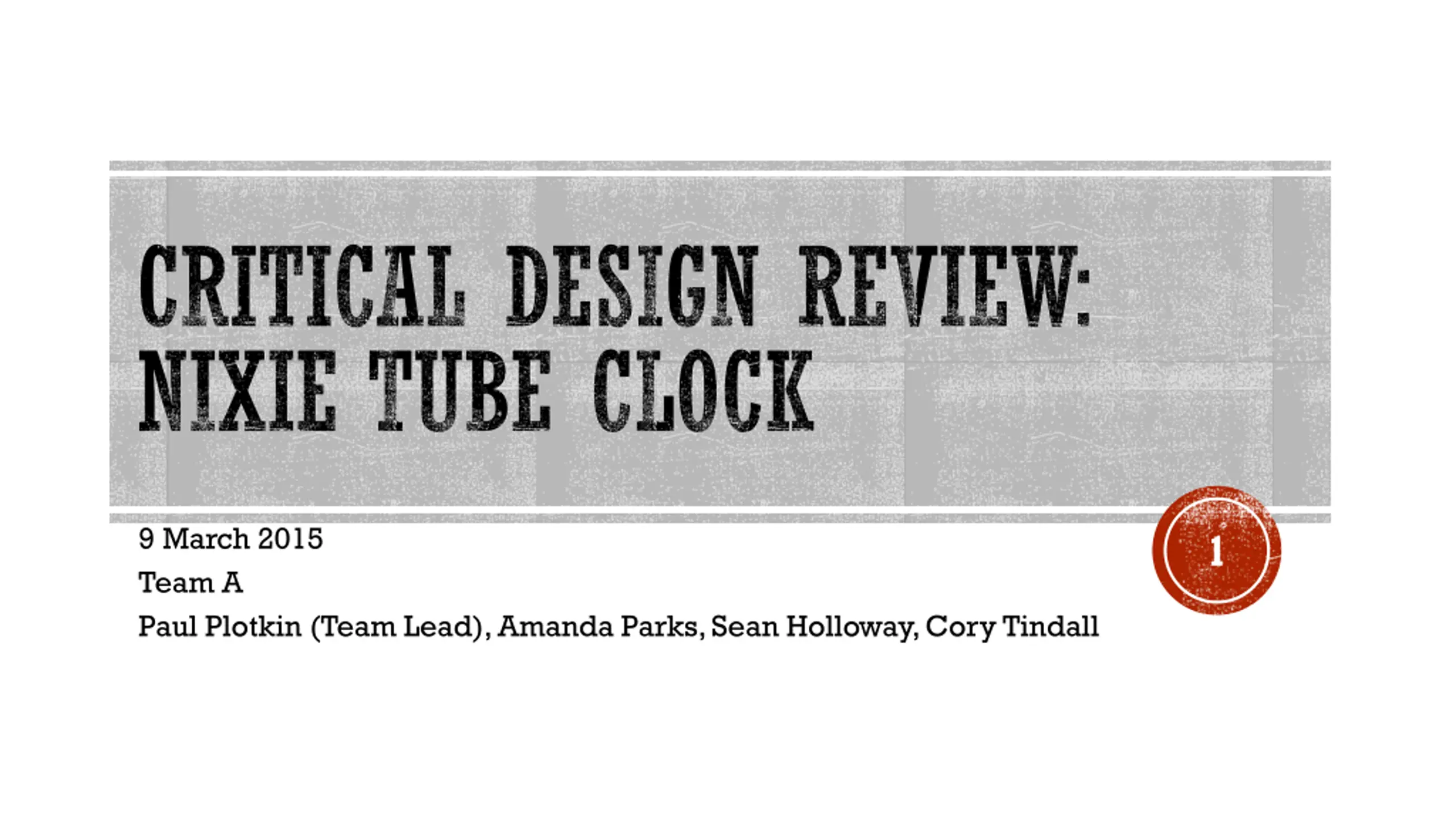

CRITICAL DESIGN REVIEW: NIXIE TUBE CLOCK 9 March 2015 Team A Paul Plotkin (Team Lead), Amanda Parks, Sean Holloway, Cory Tindall 1

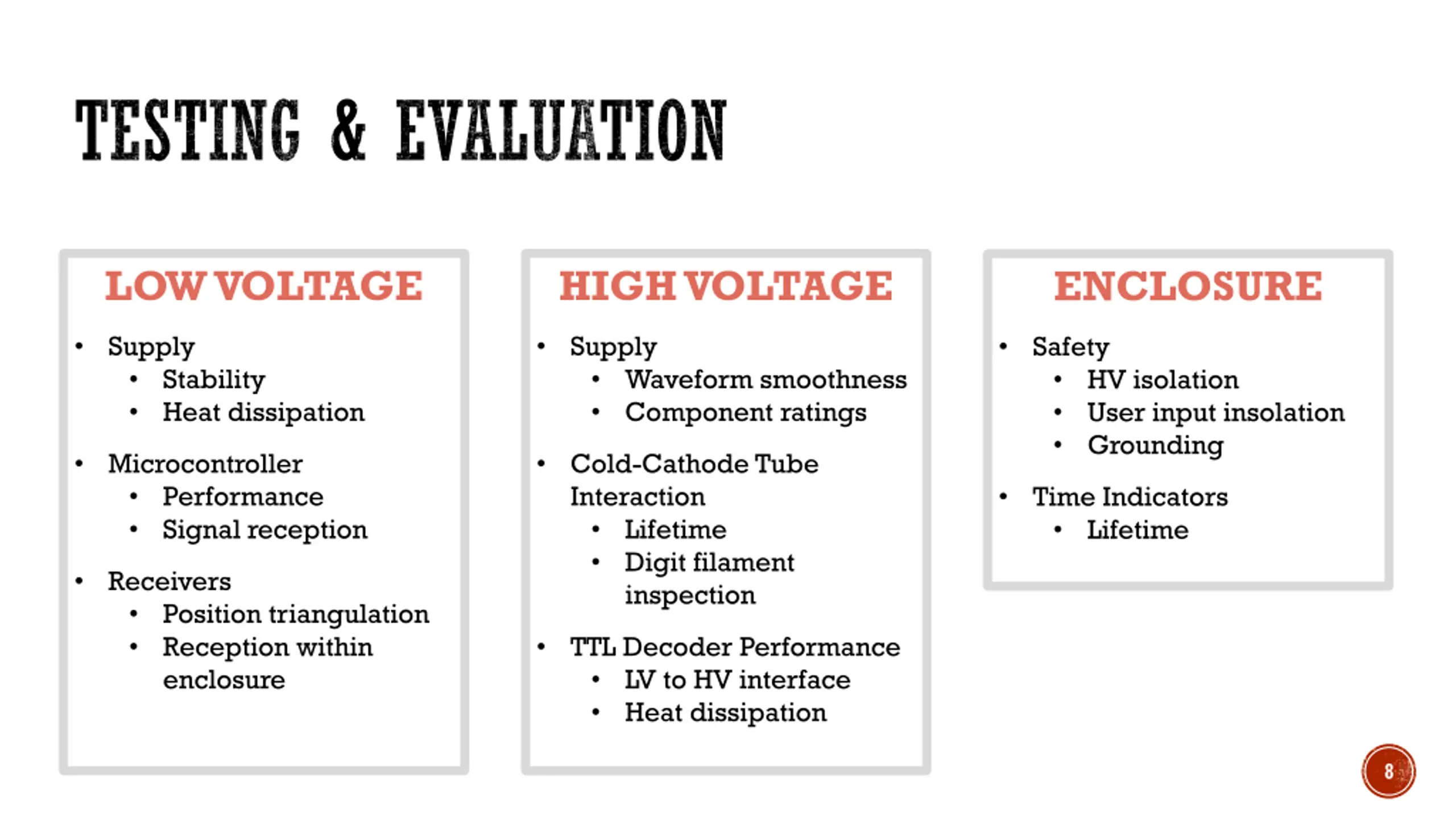

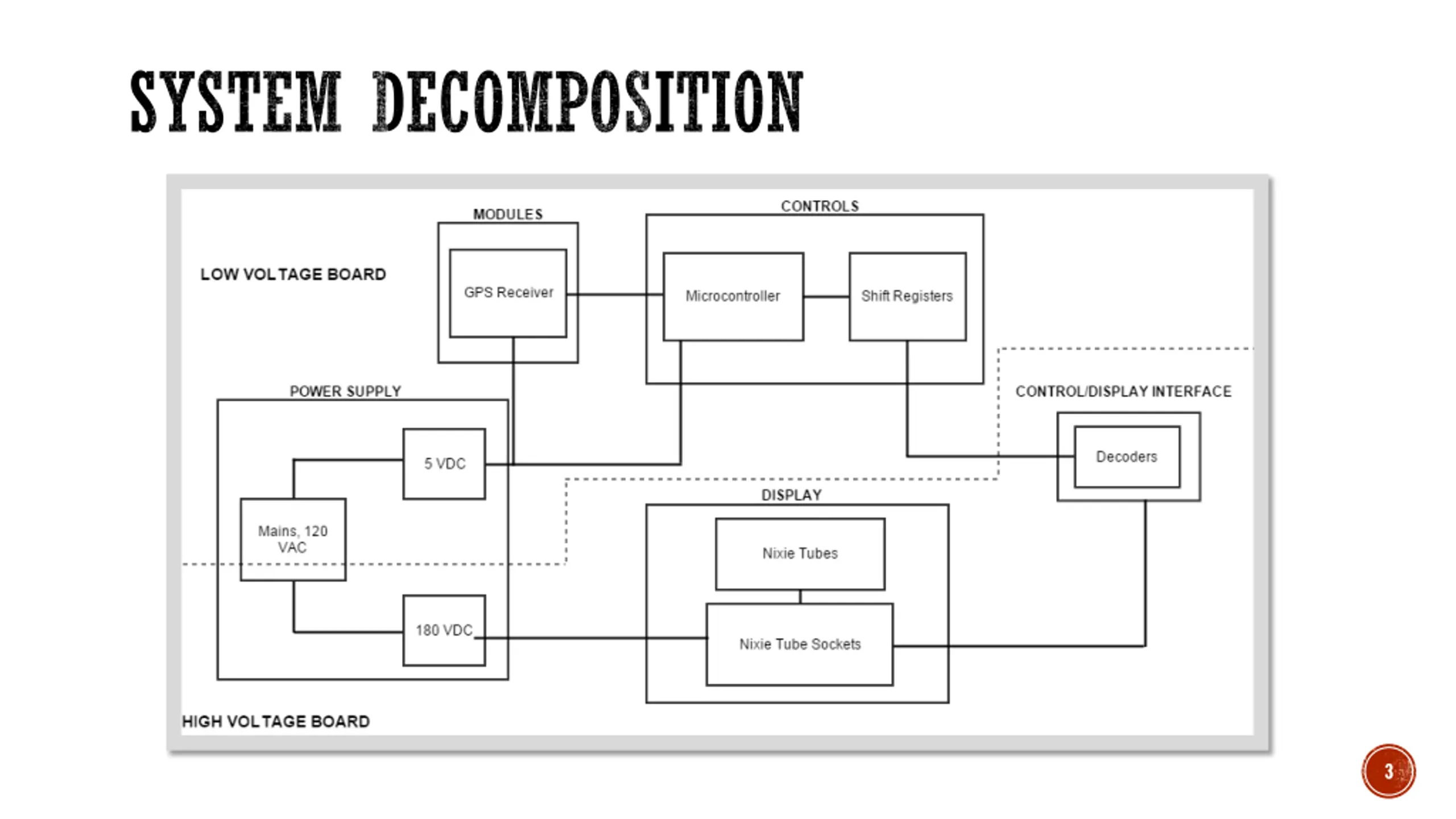

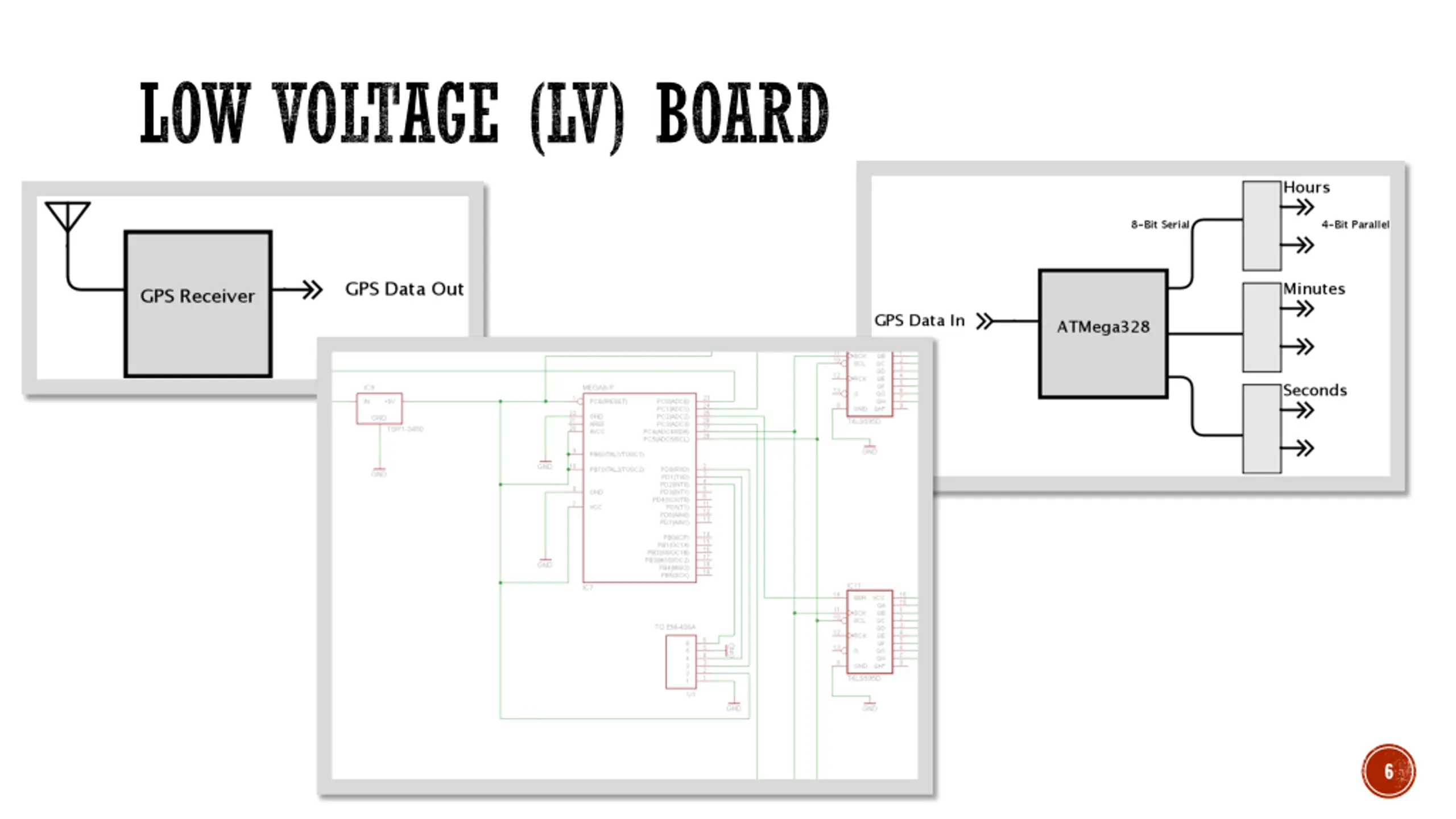

TESTING & EVALUATION LOW VOLTAGE HIGH VOLTAGE ENCLOSURE Supply Supply Safety Stability Heat dissipation Waveform smoothness Component ratings HV isolation User input insolation Grounding Microcontroller Performance Signal reception Cold-Cathode Tube Interaction Lifetime Digit filament inspection Time Indicators Lifetime Receivers Position triangulation Reception within enclosure TTL Decoder Performance LV to HV interface Heat dissipation 8
QUESTIONS? 11
