5G NTN PROF. KIRAN KUCHI IIT HYDERABAD

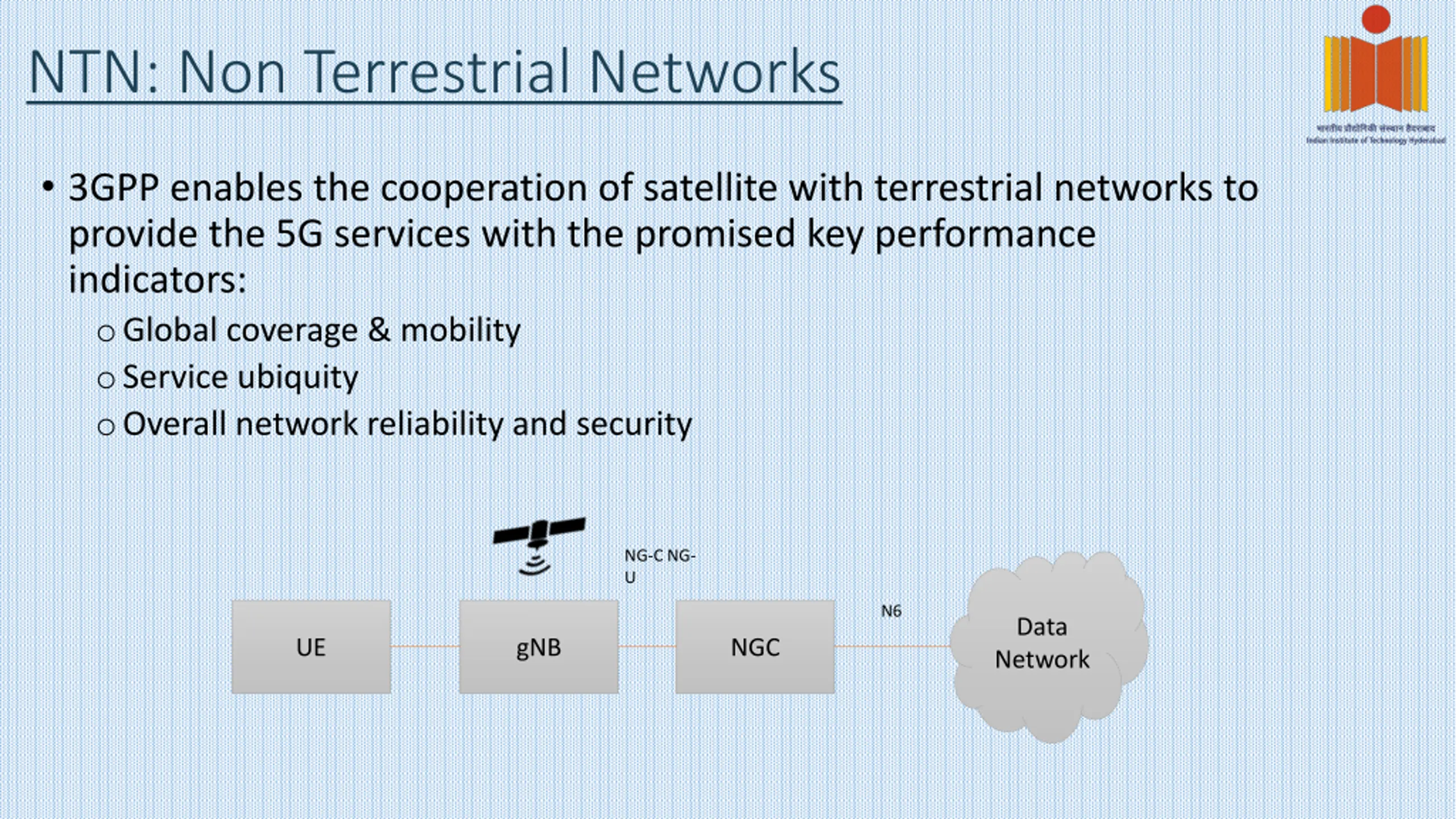

NTN: Non Terrestrial Networks 3GPP enables the cooperation of satellite with terrestrial networks to provide the 5G services with the promised key performance indicators: oGlobal coverage & mobility oService ubiquity oOverall network reliability and security NG-C NG- U N6 Data Network UE gNB NGC

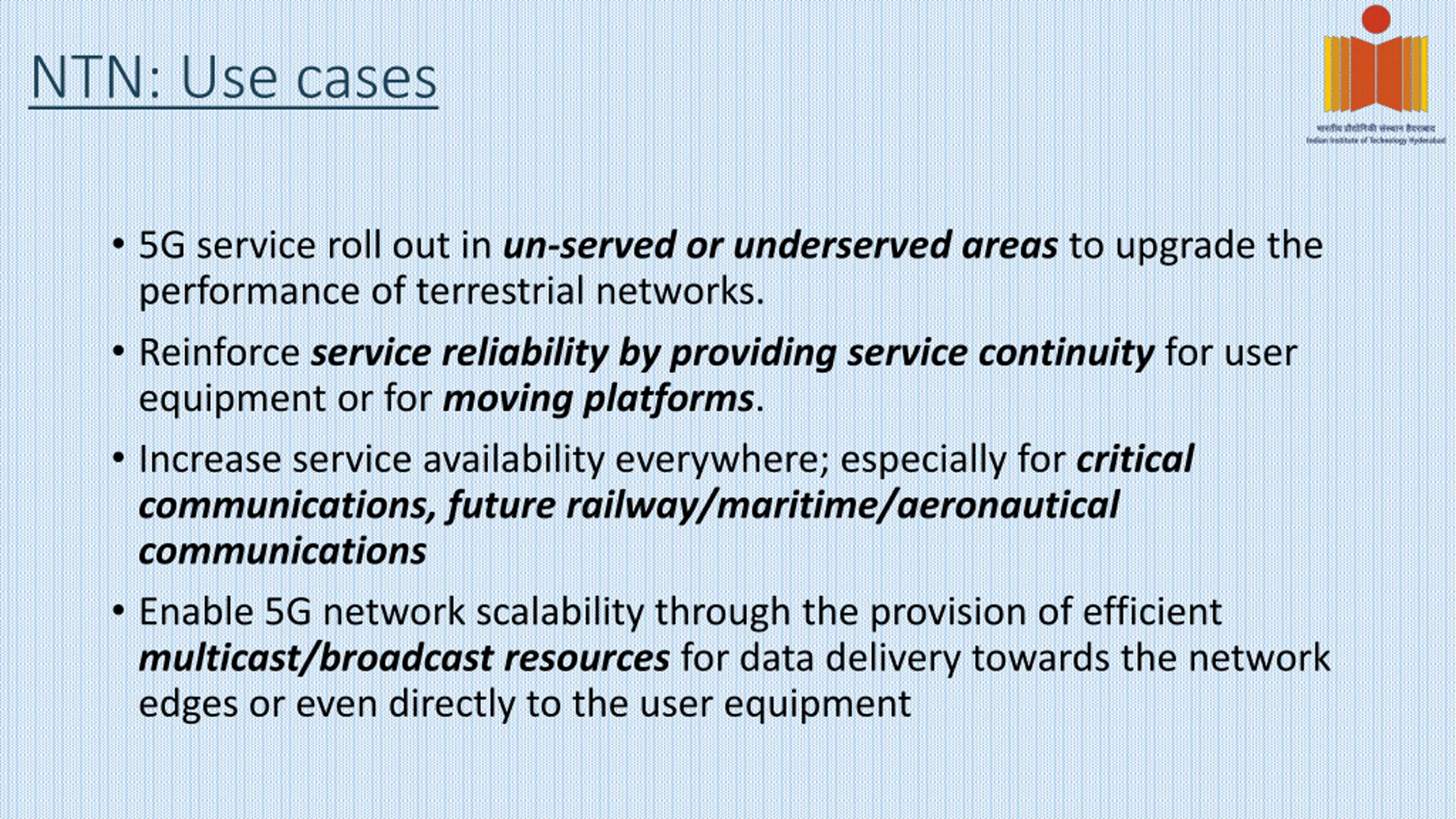

NTN: Use cases 5G service roll out in un-served or underserved areas to upgrade the performance of terrestrial networks. Reinforce service reliability by providing service continuity for user equipment or for moving platforms. Increase service availability everywhere; especially for critical communications, future railway/maritime/aeronautical communications Enable 5G network scalability through the provision of efficient multicast/broadcast resources for data delivery towards the network edges or even directly to the user equipment

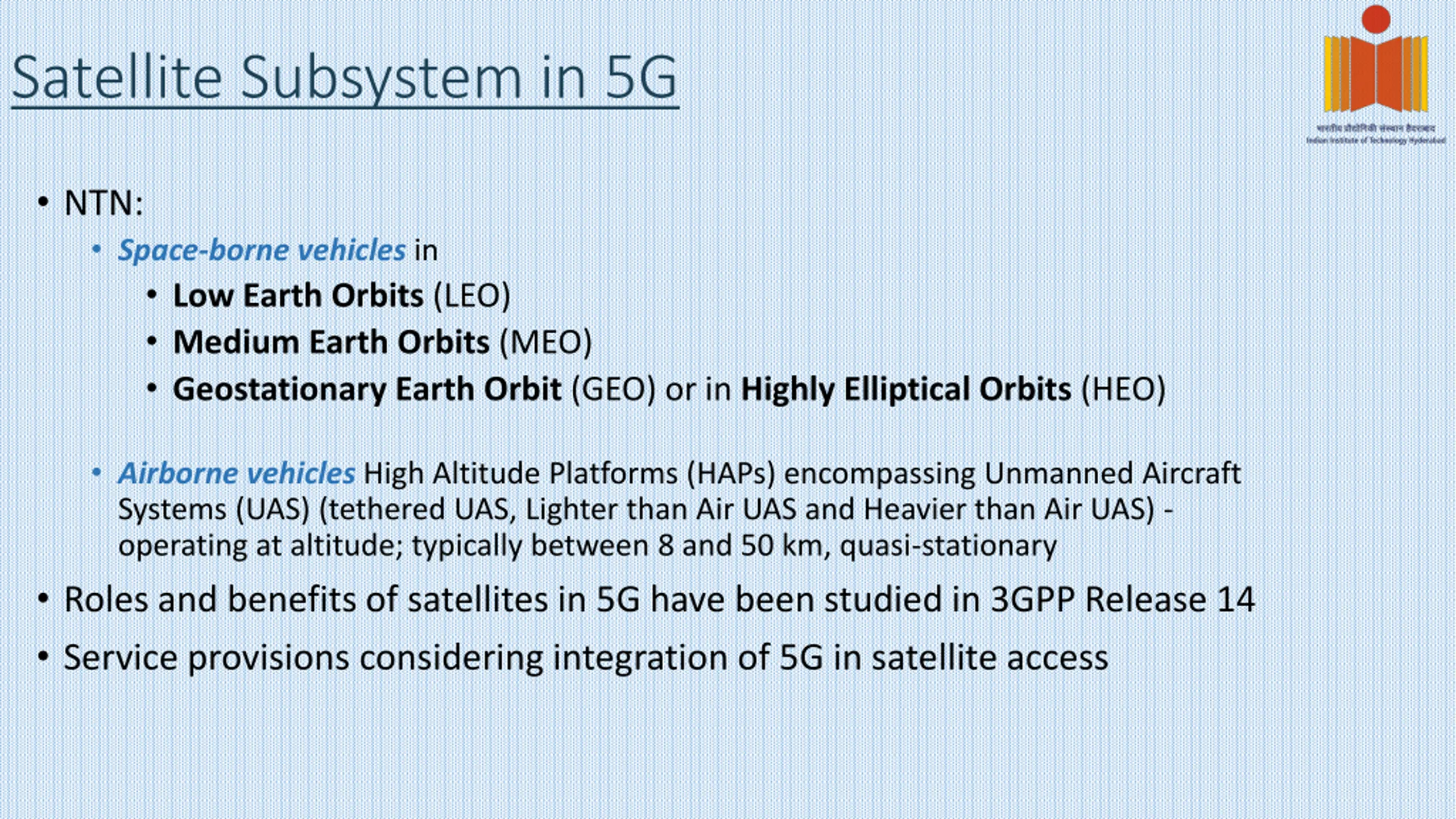

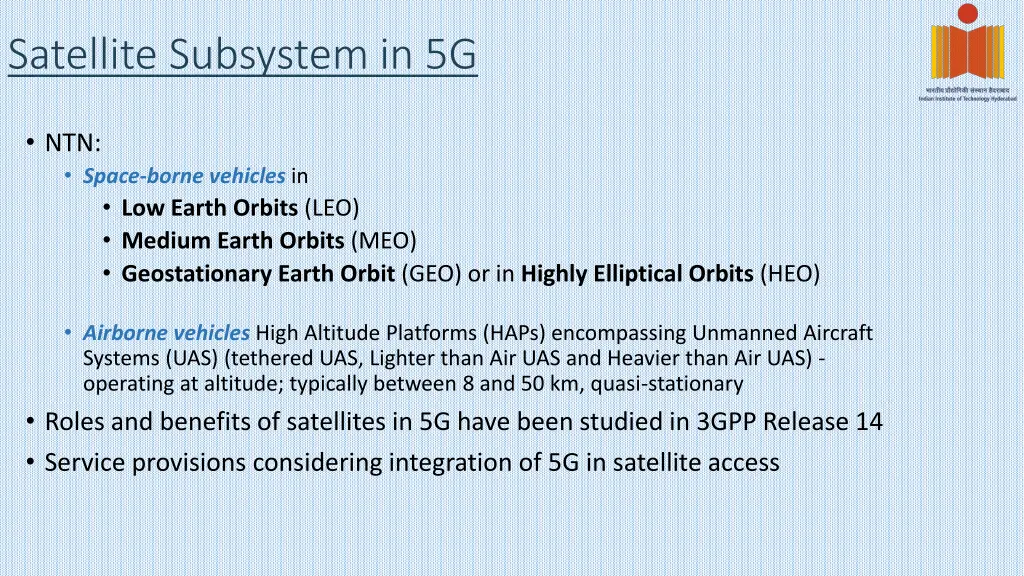

Satellite Subsystem in 5G NTN: Space-borne vehicles in Low Earth Orbits (LEO) Medium Earth Orbits (MEO) Geostationary Earth Orbit (GEO) or in Highly Elliptical Orbits (HEO) Airborne vehicles High Altitude Platforms (HAPs) encompassing Unmanned Aircraft Systems (UAS) (tethered UAS, Lighter than Air UAS and Heavier than Air UAS) - operating at altitude; typically between 8 and 50 km, quasi-stationary Roles and benefits of satellites in 5G have been studied in 3GPP Release 14 Service provisions considering integration of 5G in satellite access

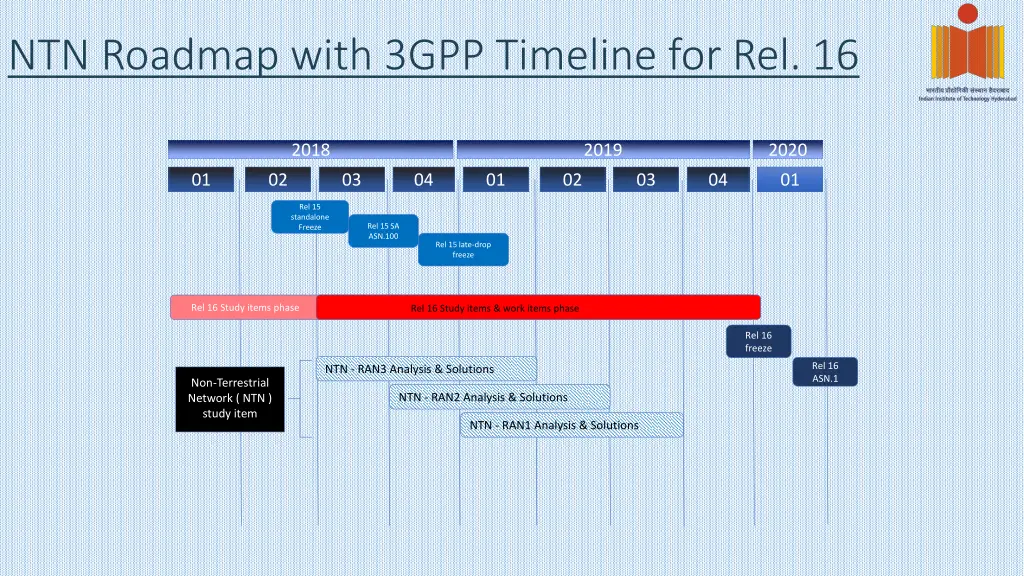

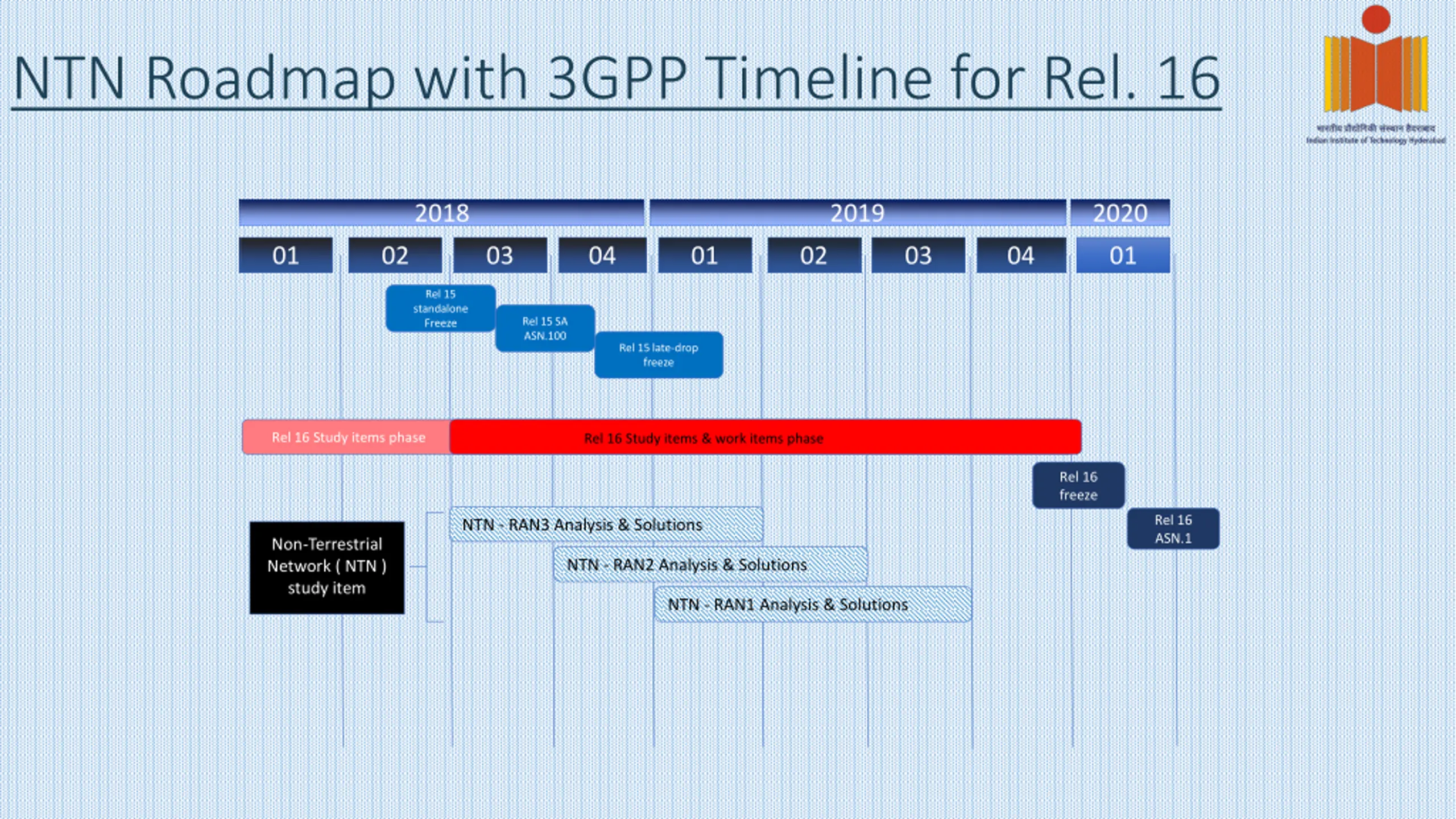

NTN Roadmap with 3GPP Timeline for Rel. 16 2018 2019 2020 01 02 03 04 01 02 03 04 01 Rel 15 standalone Freeze Rel 15 SA ASN.100 Rel 15 late-drop freeze Rel 16 Study items phase Rel 16 Study items & work items phase Rel 16 freeze Rel 16 ASN.1 NTN - RAN3 Analysis & Solutions Non-Terrestrial Network ( NTN ) study item NTN - RAN2 Analysis & Solutions NTN - RAN1 Analysis & Solutions

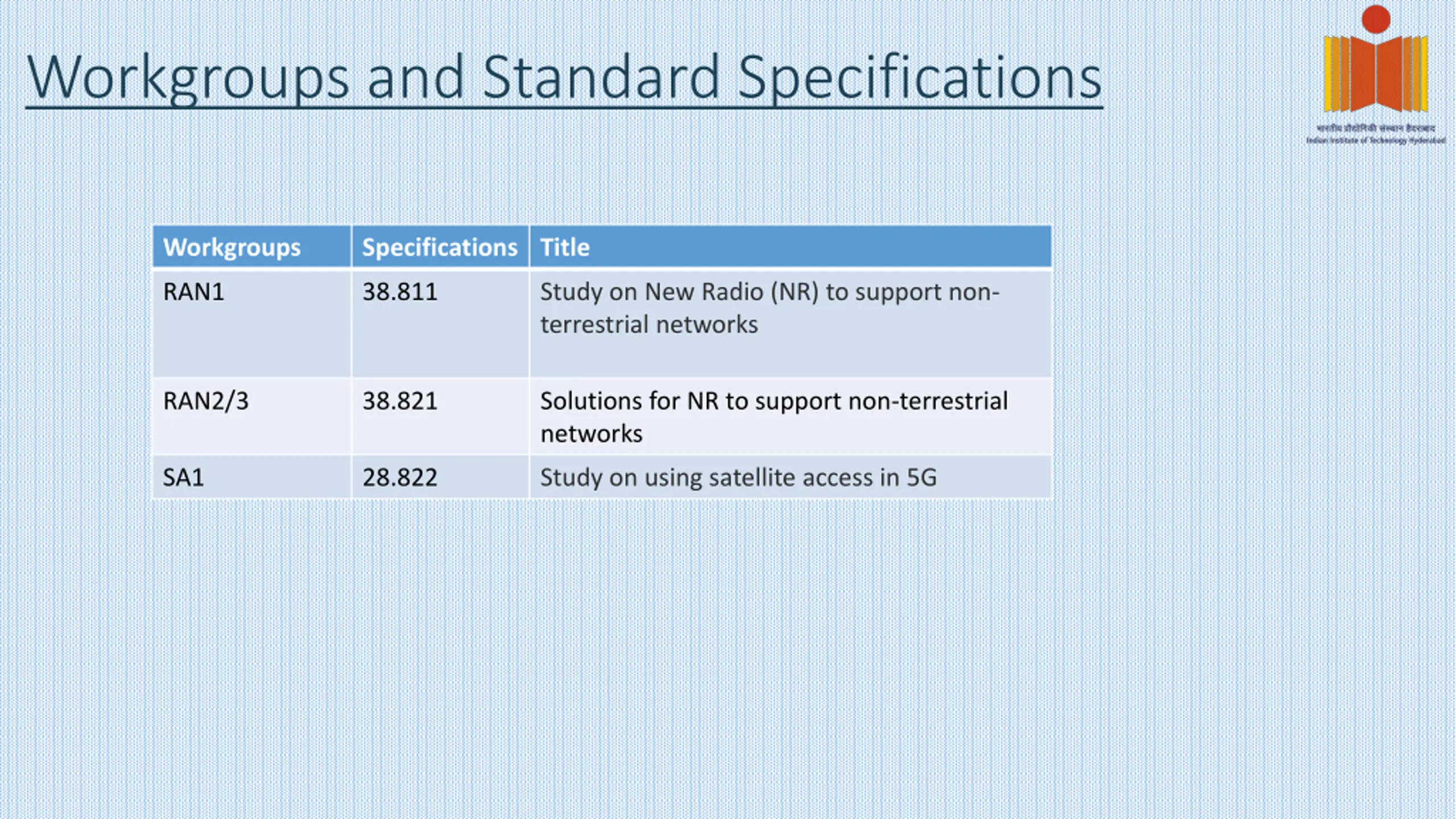

Workgroups and Standard Specifications Workgroups Specifications Title RAN1 38.811 Study on New Radio (NR) to support non- terrestrial networks RAN2/3 38.821 Solutions for NR to support non-terrestrial networks SA1 28.822 Study on using satellite access in 5G
