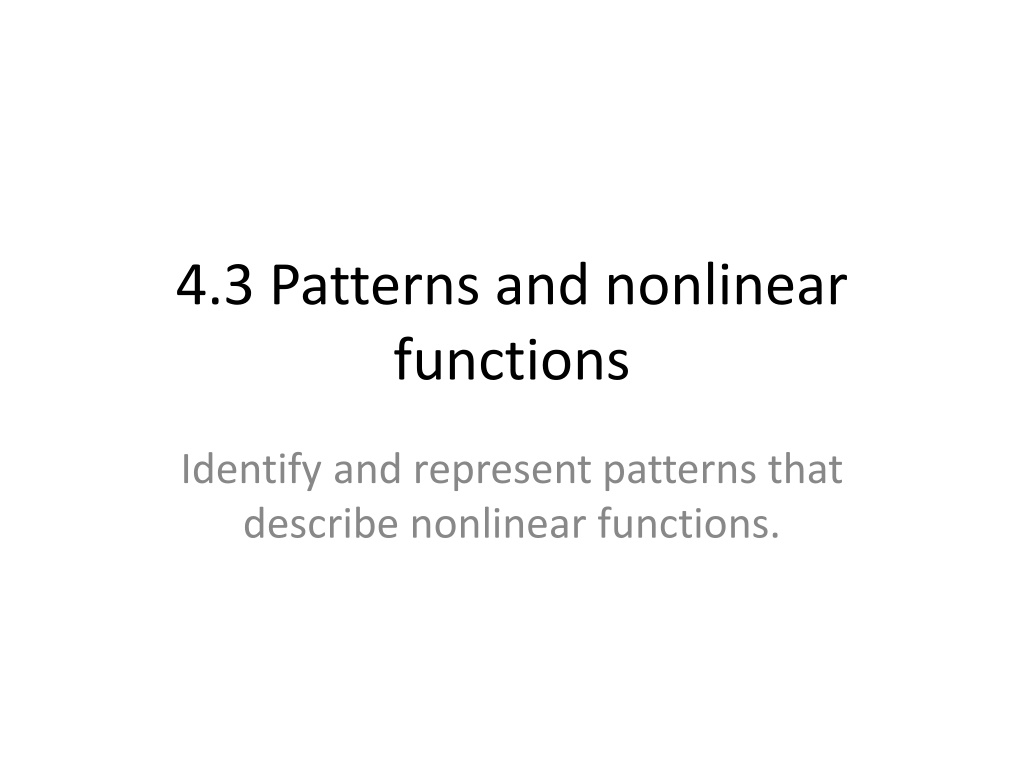

4.3 Patterns and nonlinear functions Identify and represent patterns that describe nonlinear functions.

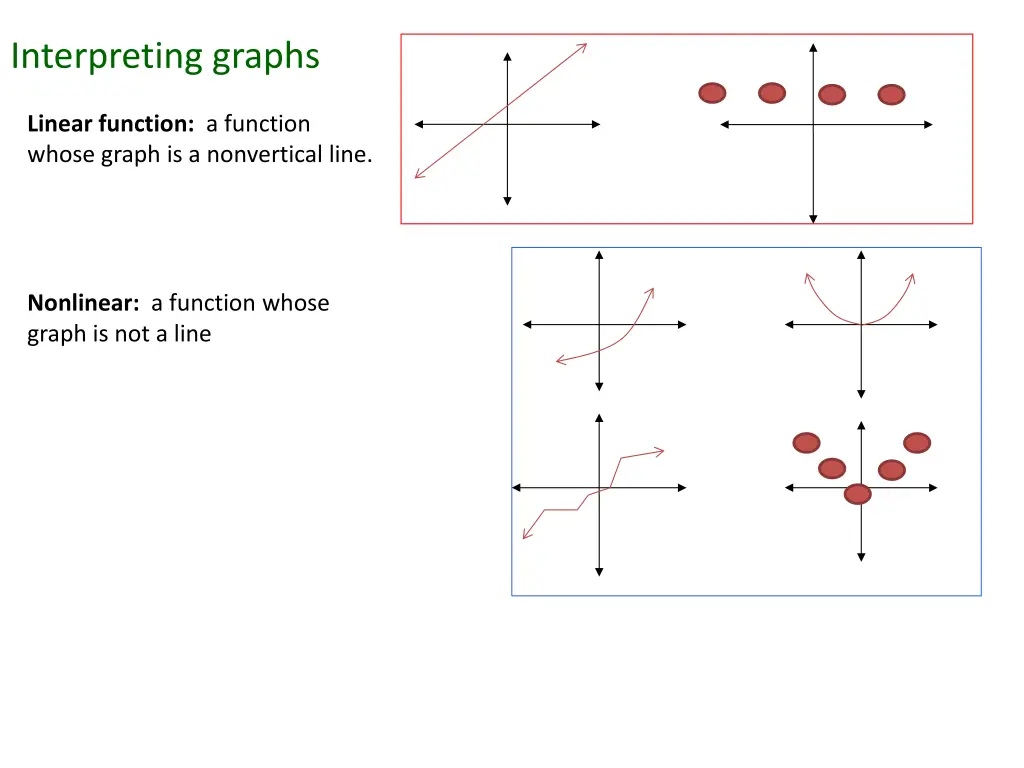

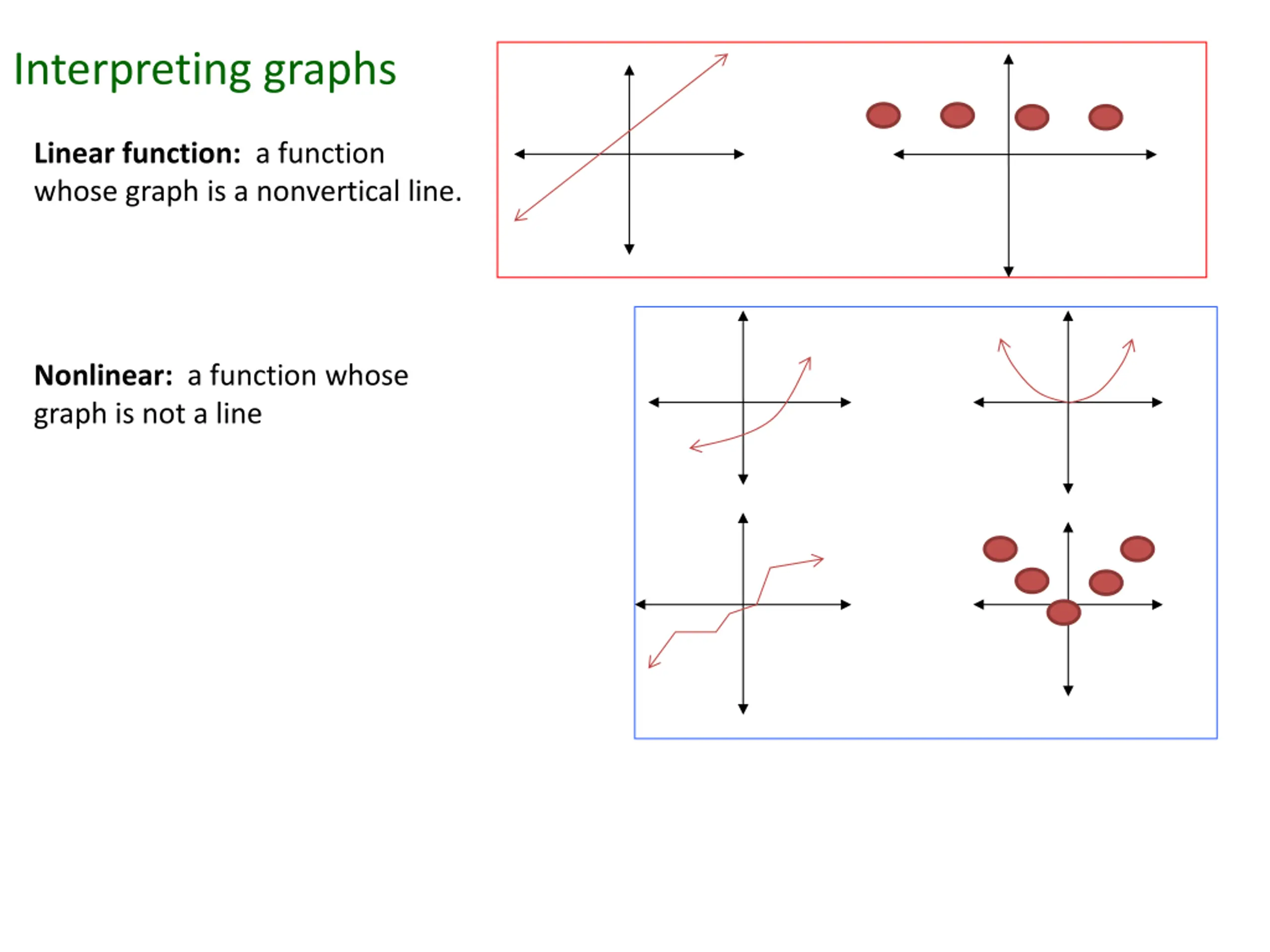

Interpreting graphs Linear function: a function whose graph is a nonvertical line. Nonlinear: a function whose graph is not a line

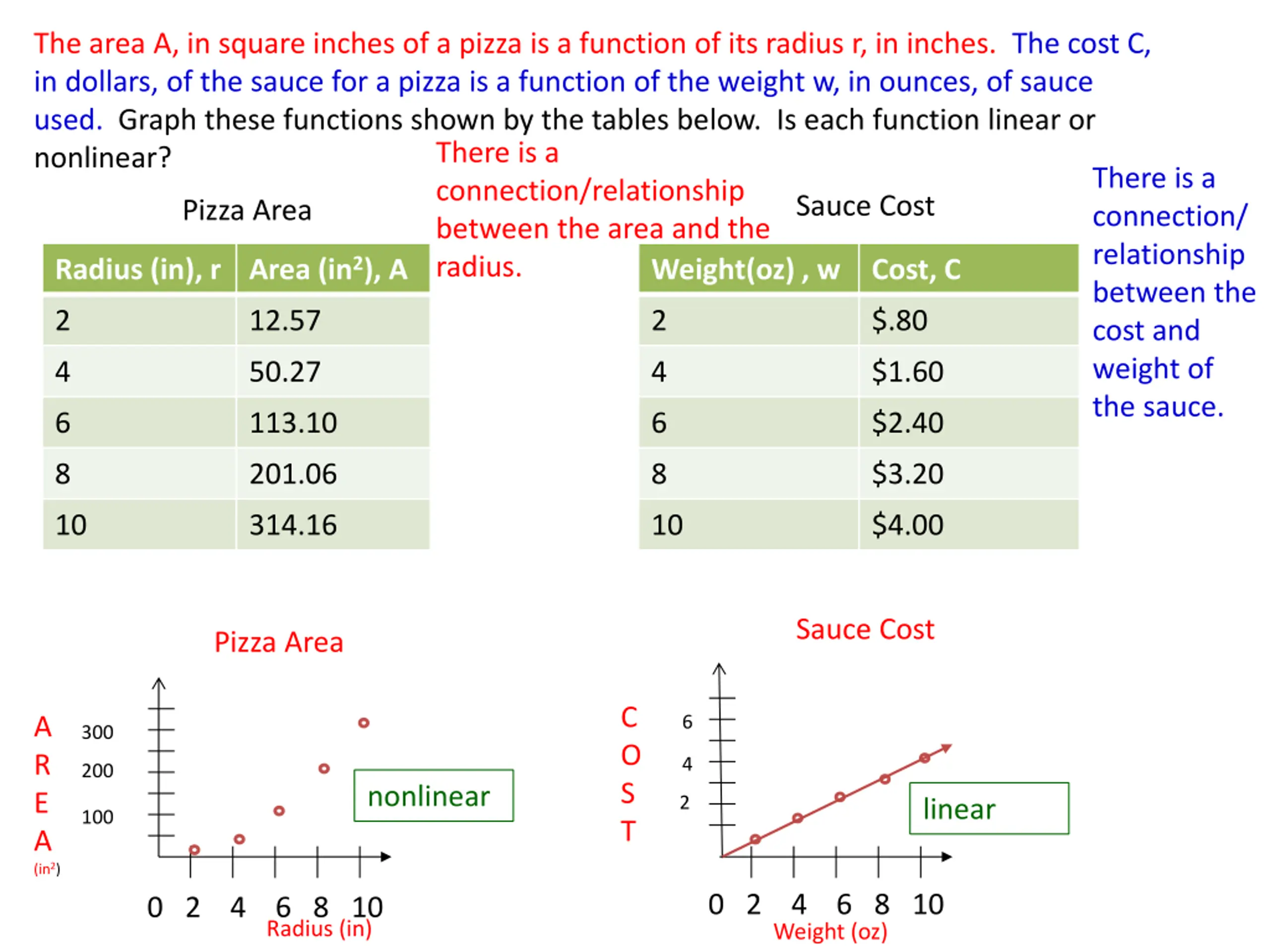

The area A, in square inches of a pizza is a function of its radius r, in inches. The cost C, in dollars, of the sauce for a pizza is a function of the weight w, in ounces, of sauce used. Graph these functions shown by the tables below. Is each function linear or nonlinear? There is a connection/relationship between the area and the radius. There is a connection/ relationship between the cost and weight of the sauce. Sauce Cost Pizza Area Radius (in), r Area (in2), A Weight(oz) , w Cost, C 2 12.57 2 $.80 4 50.27 4 $1.60 6 113.10 6 $2.40 8 201.06 8 $3.20 10 314.16 10 $4.00 Sauce Cost Pizza Area C O S T 6 A R E A (in2) 300 4 200 nonlinear 2 linear 100 0 2 4 6 8 10 Weight (oz) 0 2 4 6 8 10 Radius (in)

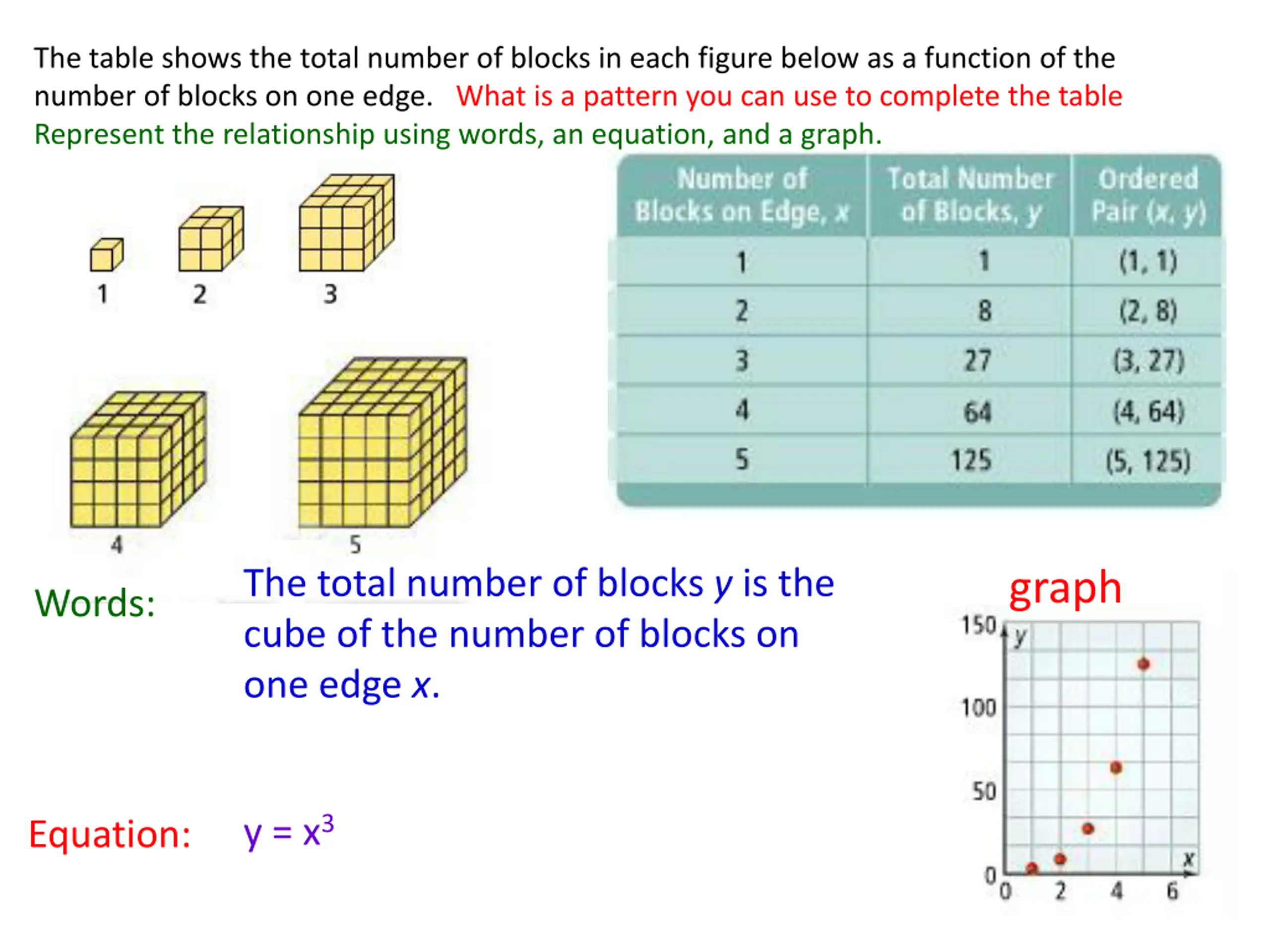

The table shows the total number of blocks in each figure below as a function of the number of blocks on one edge. What is a pattern you can use to complete the table Represent the relationship using words, an equation, and a graph. The total number of blocks y is the cube of the number of blocks on one edge x. graph Words: Equation: y = x3

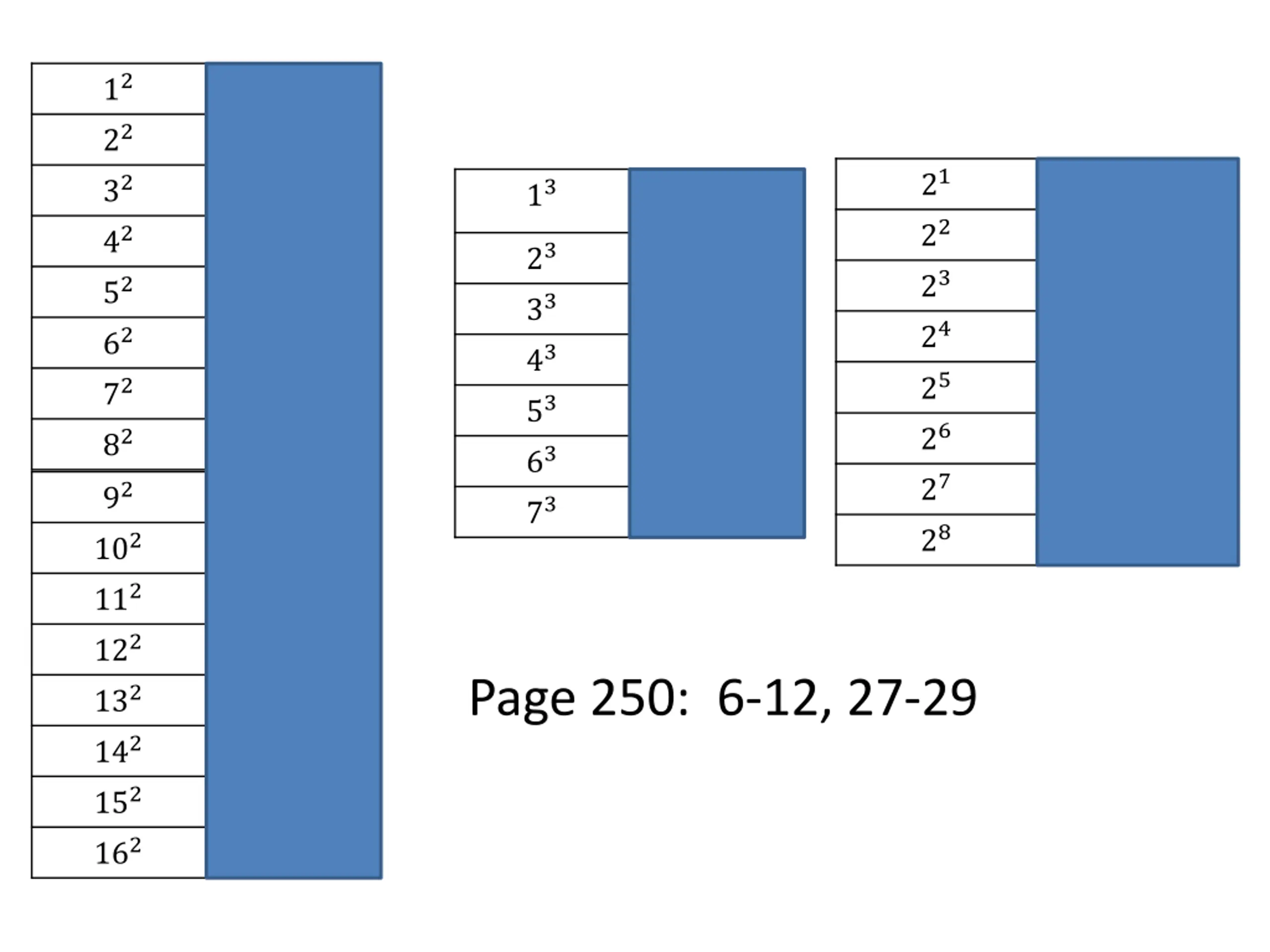

12 22 32 42 52 62 72 82 1 4 21 22 23 24 25 26 27 28 2 13 9 1 4 16 23 33 43 53 63 73 8 8 25 27 16 36 64 32 49 125 64 64 216 128 92 102 112 122 132 142 152 162 81 343 256 100 121 144 Page 250: 6-12, 27-29 169 196 225 256

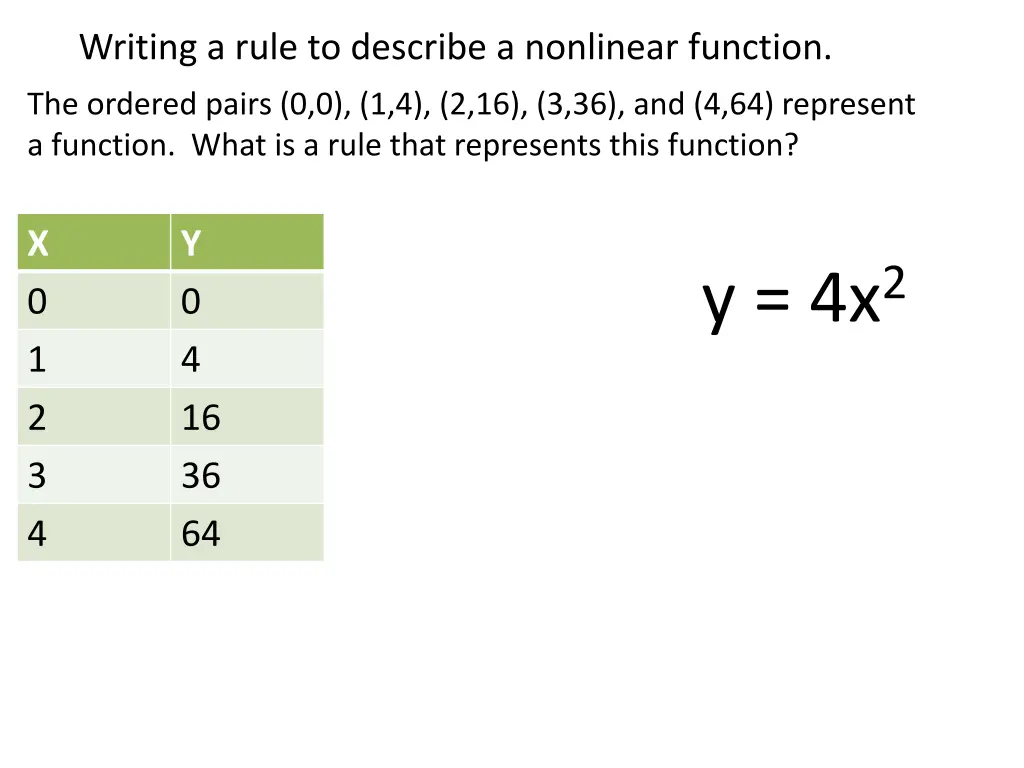

Writing a rule to describe a nonlinear function. The ordered pairs (0,0), (1,4), (2,16), (3,36), and (4,64) represent a function. What is a rule that represents this function? X 0 1 2 3 4 Y 0 4 16 36 64 y = 4x2

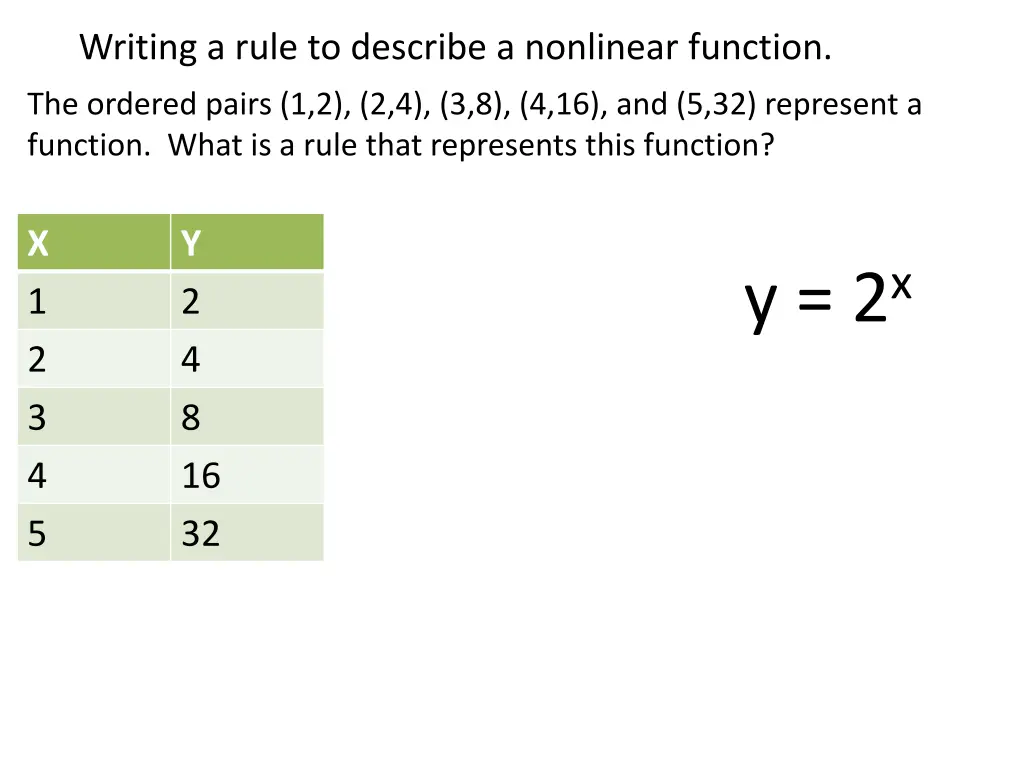

Writing a rule to describe a nonlinear function. The ordered pairs (1,2), (2,4), (3,8), (4,16), and (5,32) represent a function. What is a rule that represents this function? X 1 2 3 4 5 Y 2 4 8 16 32 y = 2x

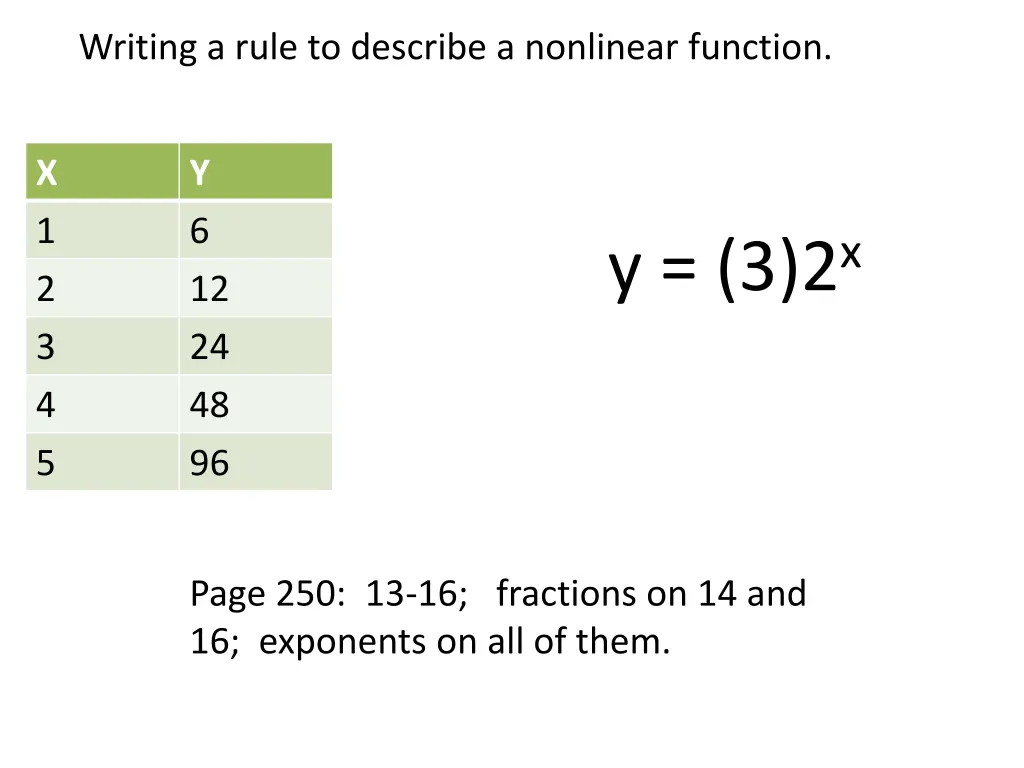

Writing a rule to describe a nonlinear function. X 1 2 3 4 5 Y 6 12 24 48 96 y = (3)2x Page 250: 13-16; fractions on 14 and 16; exponents on all of them.

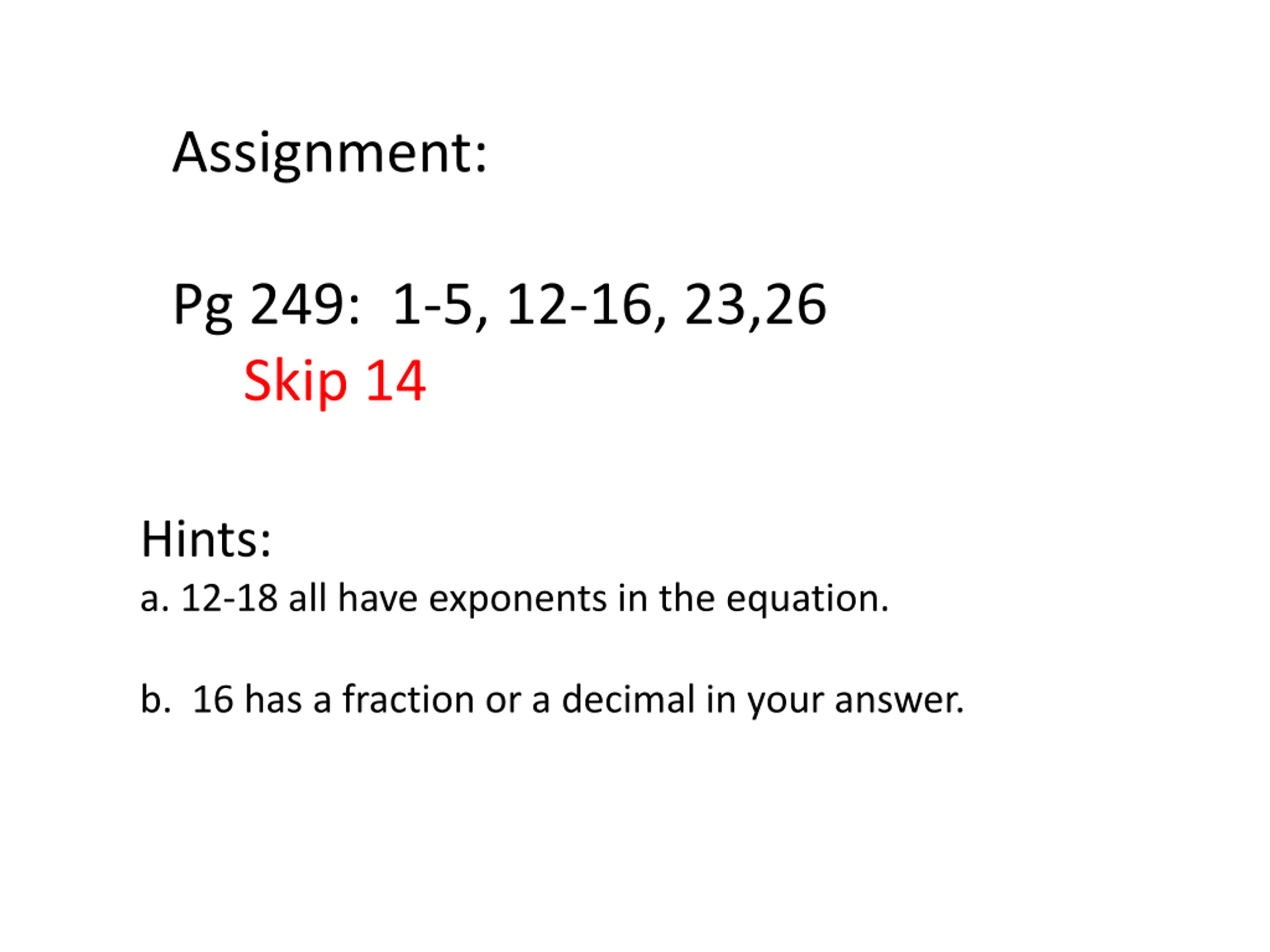

Assignment: Pg 249: 1-5, 12-16, 23,26 Skip 14 Hints: a. 12-18 all have exponents in the equation. b. 16 has a fraction or a decimal in your answer.
