Title Northwest Energy Coalition 1 Larry Bekkedahl May 1, 2014
Title 2

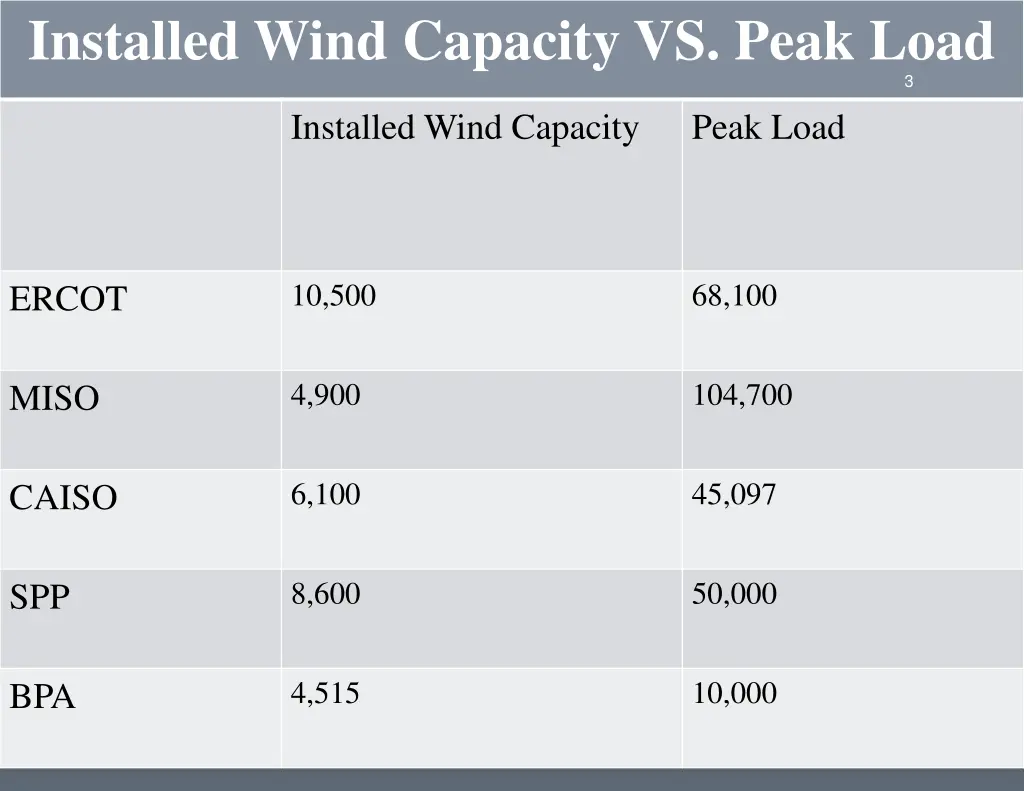

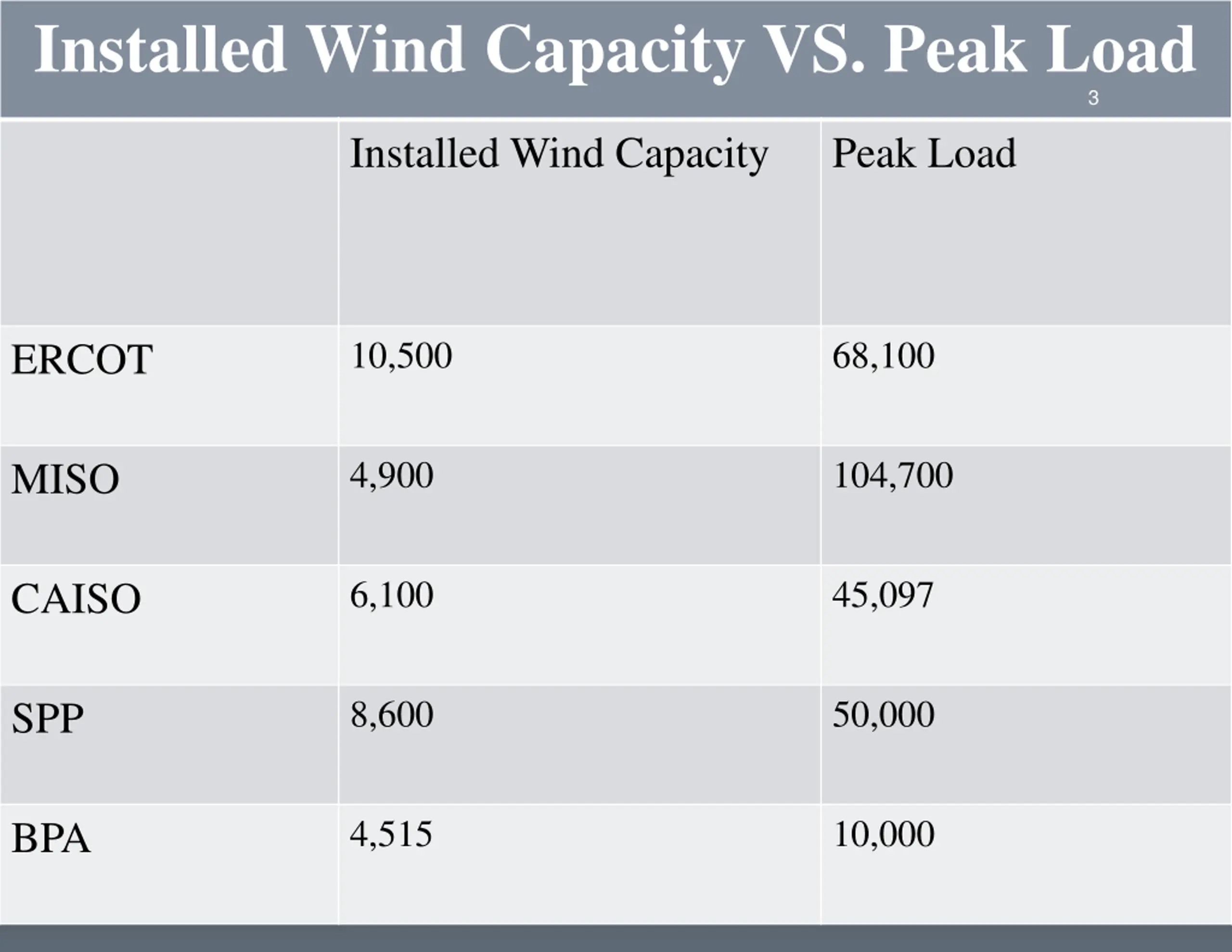

Installed Wind Capacity VS. Peak Load Title 3 Installed Wind Capacity Peak Load 10,500 68,100 ERCOT 4,900 104,700 MISO 6,100 45,097 CAISO 8,600 50,000 SPP 4,515 10,000 BPA
Title 4

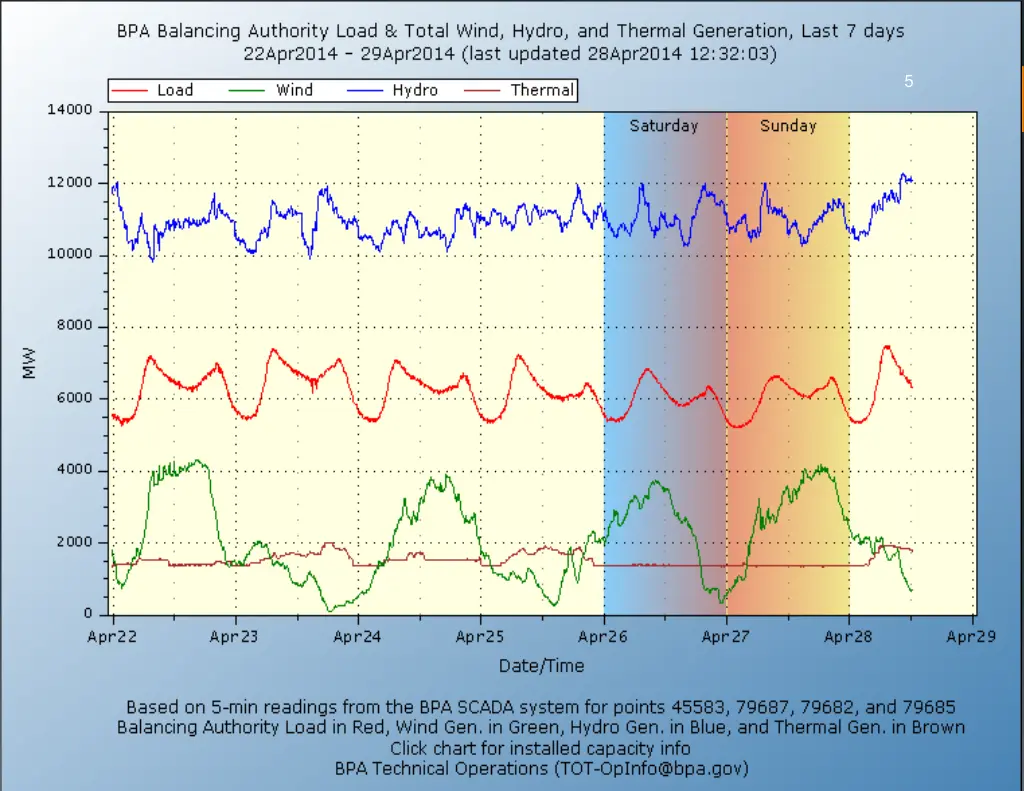

Title 5
Title Question #2 6 Larry Bekkedahl May 1, 2014

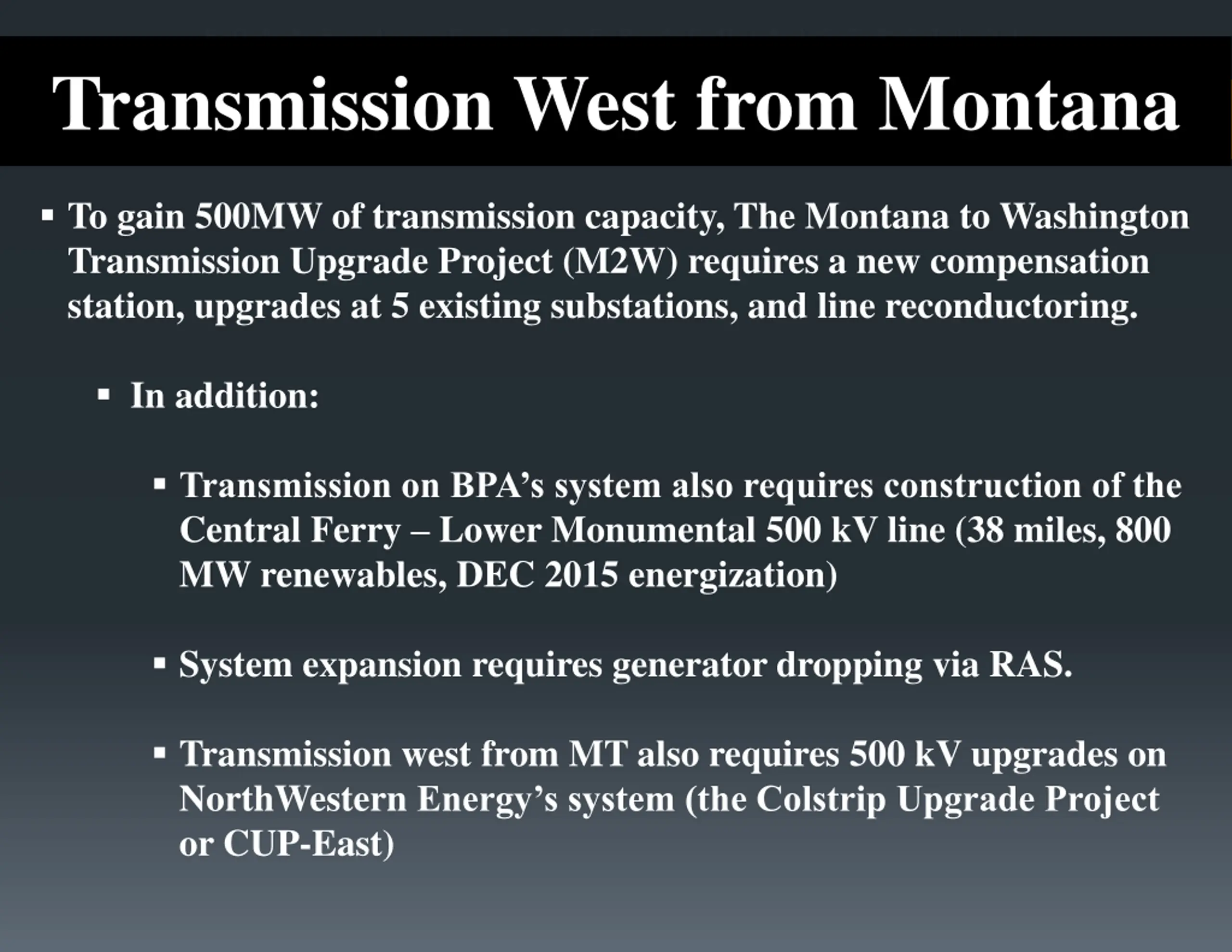

B O N N E V I L L E P O W E R A D M I N I S T R A T I O N Transmission West from Montana Title To gain 500MW of transmission capacity, The Montana to Washington Transmission Upgrade Project (M2W) requires a new compensation station, upgrades at 5 existing substations, and line reconductoring. In addition: Transmission on BPA s system also requires construction of the Central Ferry Lower Monumental 500 kV line (38 miles, 800 MW renewables, DEC 2015 energization) System expansion requires generator dropping via RAS. Transmission west from MT also requires 500 kV upgrades on NorthWestern Energy s system (the Colstrip Upgrade Project or CUP-East)

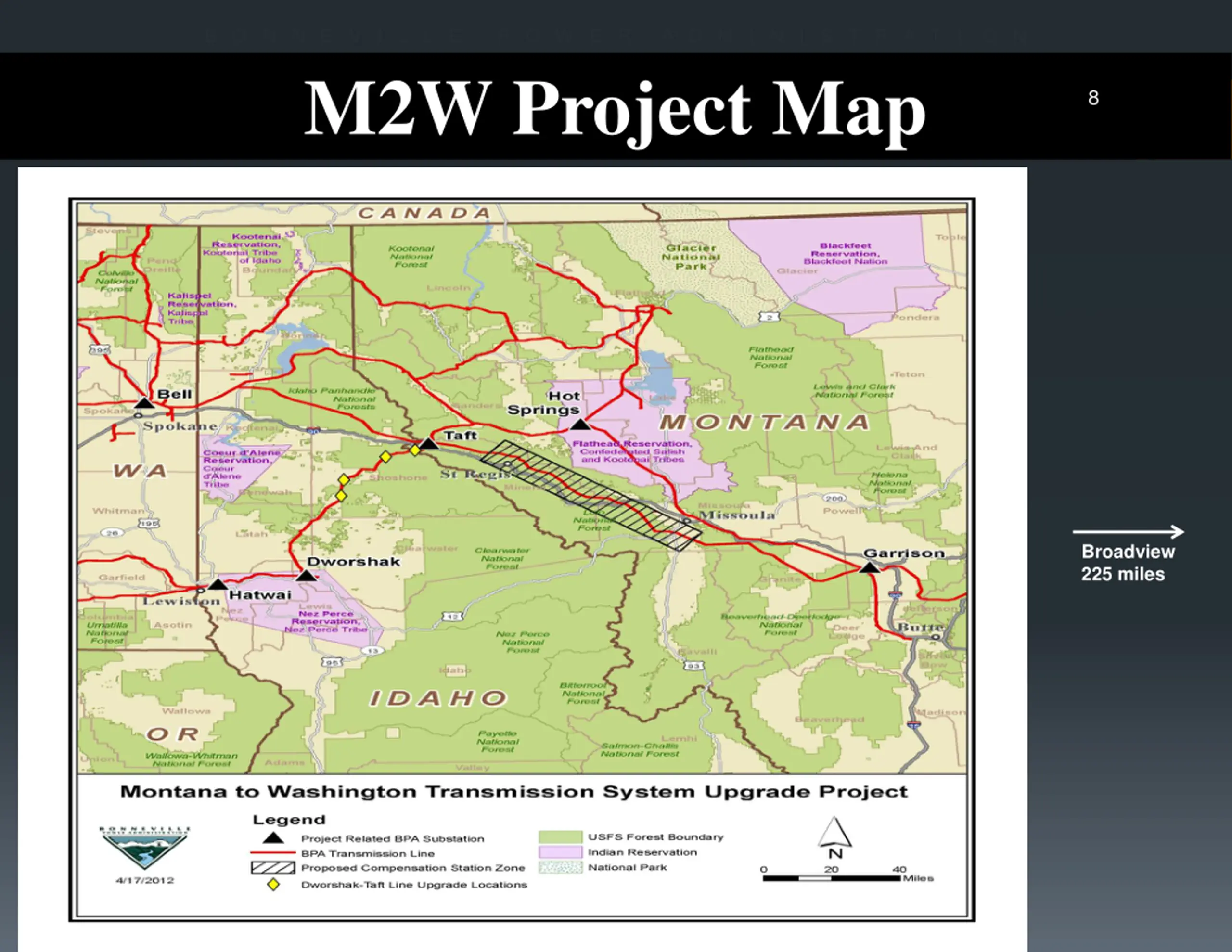

B O N N E V I L L E P O W E R A D M I N I S T R A T I O N Title M2W Project Map 8 Broadview 225 miles

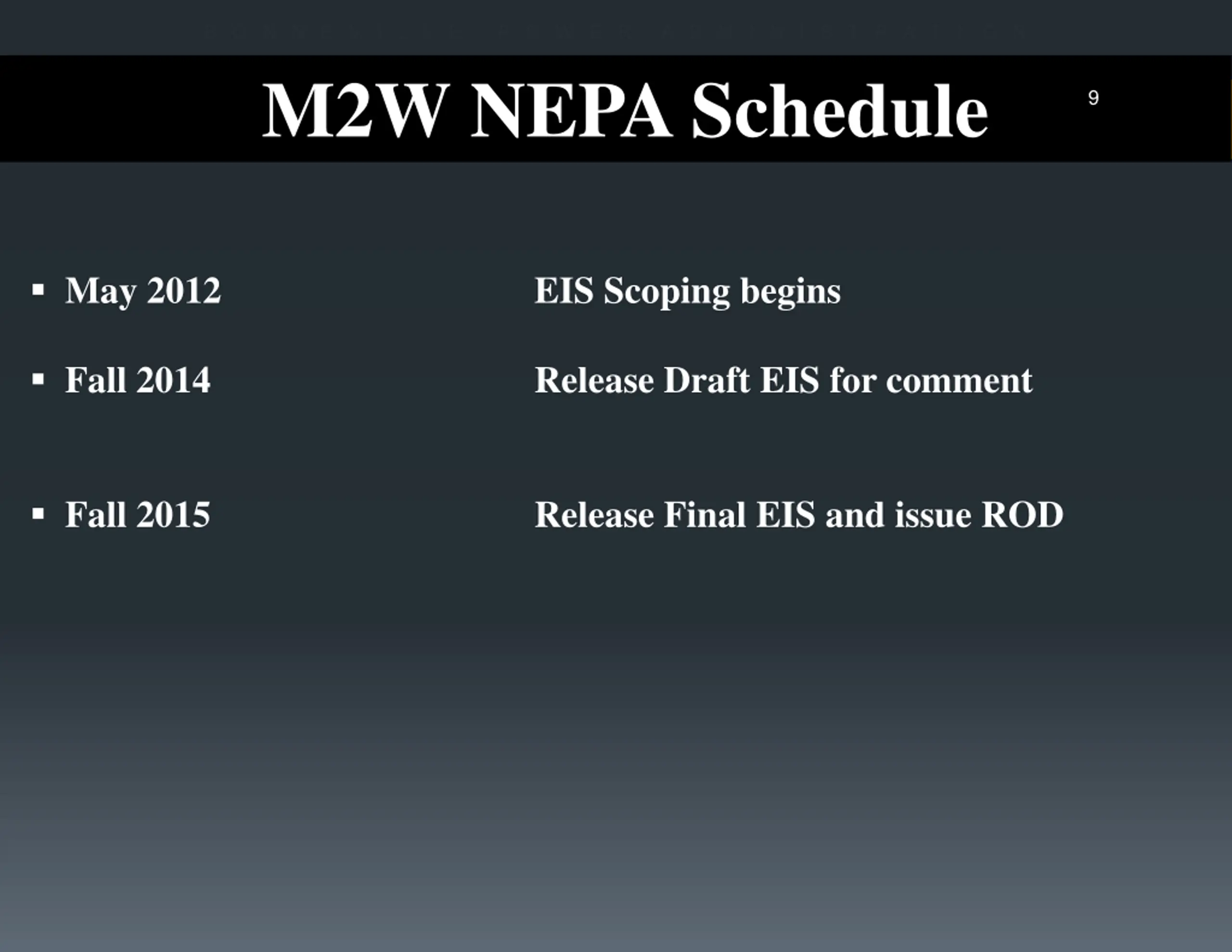

B O N N E V I L L E P O W E R A D M I N I S T R A T I O N Title M2W NEPA Schedule 9 May 2012 Fall 2014 EIS Scoping begins Release Draft EIS for comment Fall 2015 Release Final EIS and issue ROD
