conLSH: Context based Locality Sensitive Hashing for mapping of noisy SMRT reads Angana Chakraborty, Sanghamitra Bandyopadhyay Computational Biology and Chemistry Volume 85,April 2020, 107206 Presenter: Yuan-Hsiu Tsai Date: Sept. 22, 2020

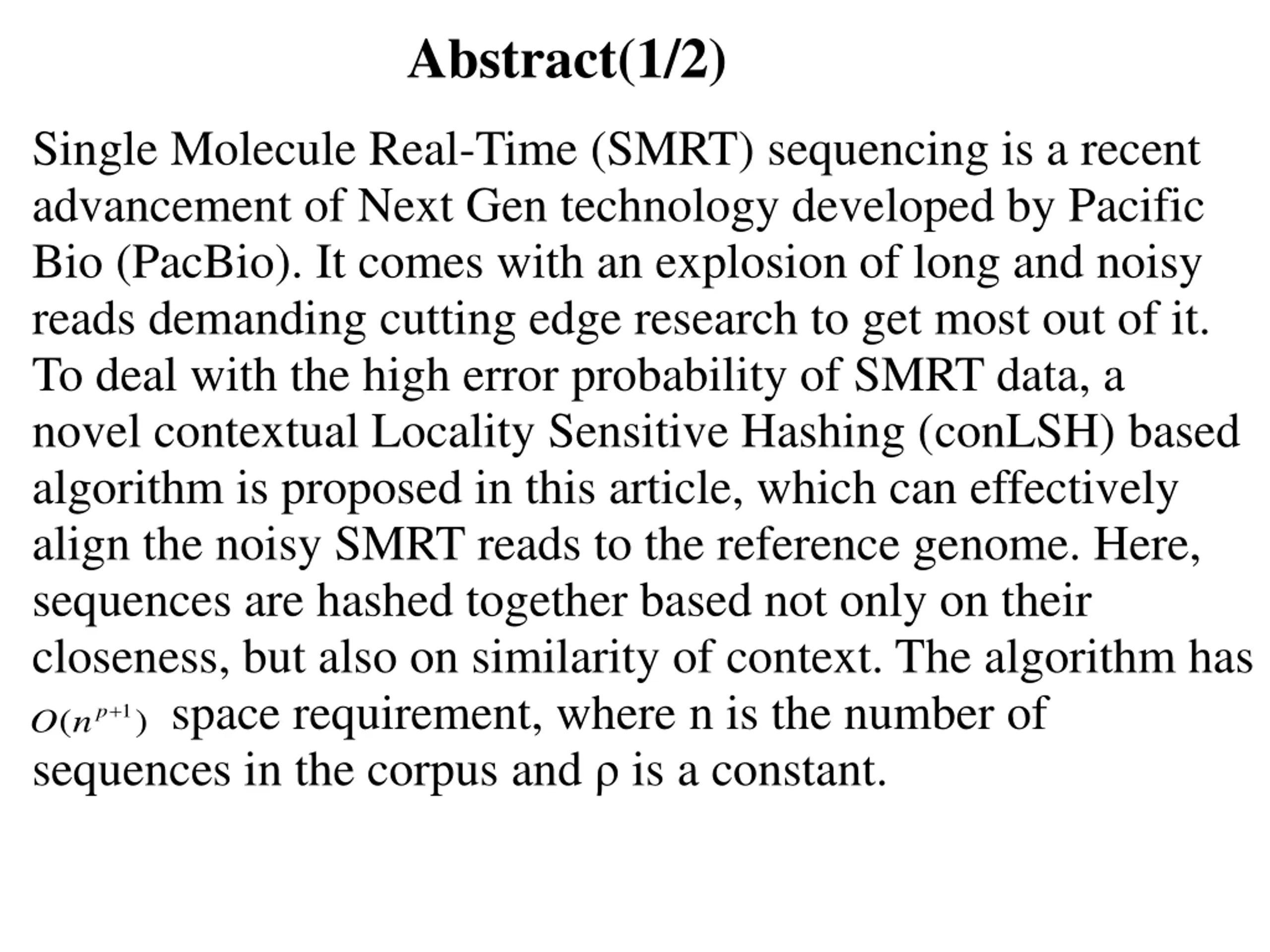

Abstract(1/2) Single Molecule Real-Time (SMRT) sequencing is a recent advancement of Next Gen technology developed by Pacific Bio (PacBio). It comes with an explosion of long and noisy reads demanding cutting edge research to get most out of it. To deal with the high error probability of SMRT data, a novel contextual Locality Sensitive Hashing (conLSH) based algorithm is proposed in this article, which can effectively align the noisy SMRT reads to the reference genome. Here, sequences are hashed together based not only on their closeness, but also on similarity of context. The algorithm has space requirement, where n is the number of sequences in the corpus and is a constant. + 1 p ( ) O n

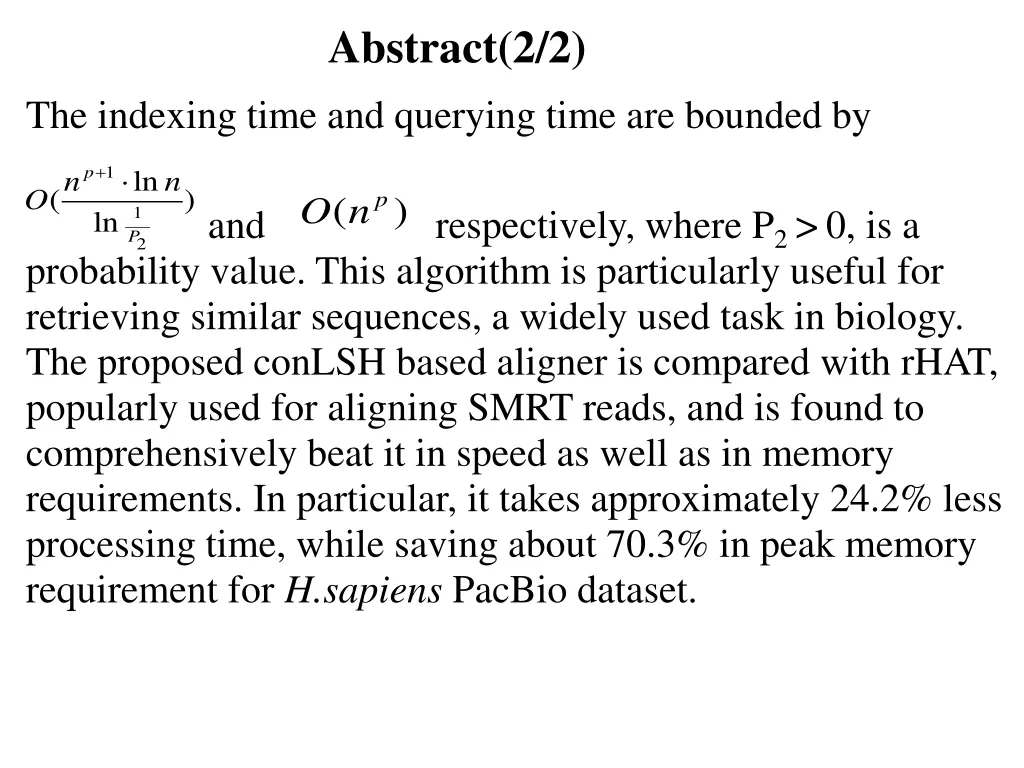

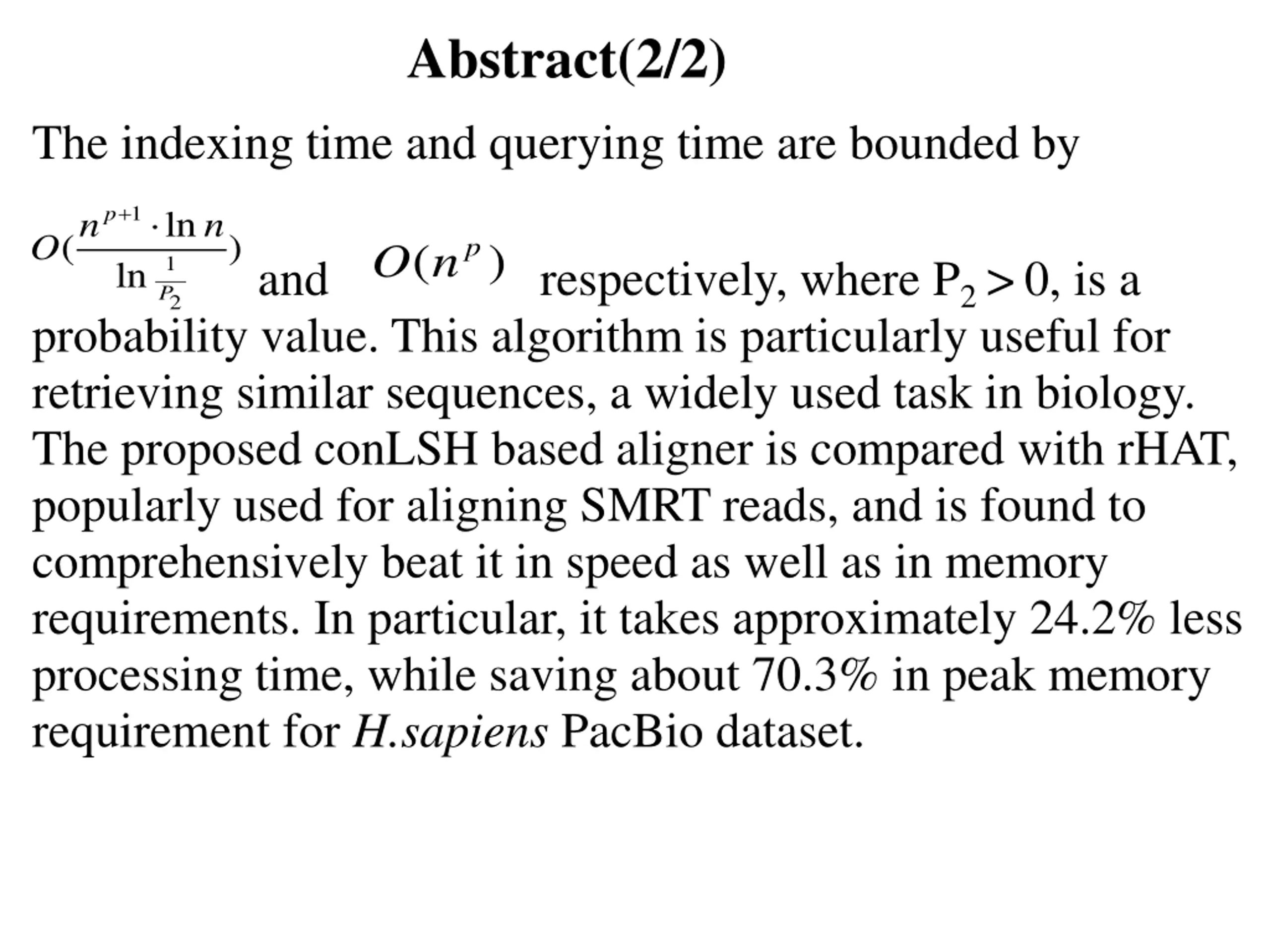

Abstract(2/2) The indexing time and querying time are bounded by + 1 p ln n n ( ) O p ( ) O n and respectively, where P2>0, is a 1 P ln 2 probability value. This algorithm is particularly useful for retrieving similar sequences, a widely used task in biology. The proposed conLSH based aligner is compared with rHAT, popularly used for aligning SMRT reads, and is found to comprehensively beat it in speed as well as in memory requirements. In particular, it takes approximately 24.2% less processing time, while saving about 70.3% in peak memory requirement for H.sapiens PacBio dataset.

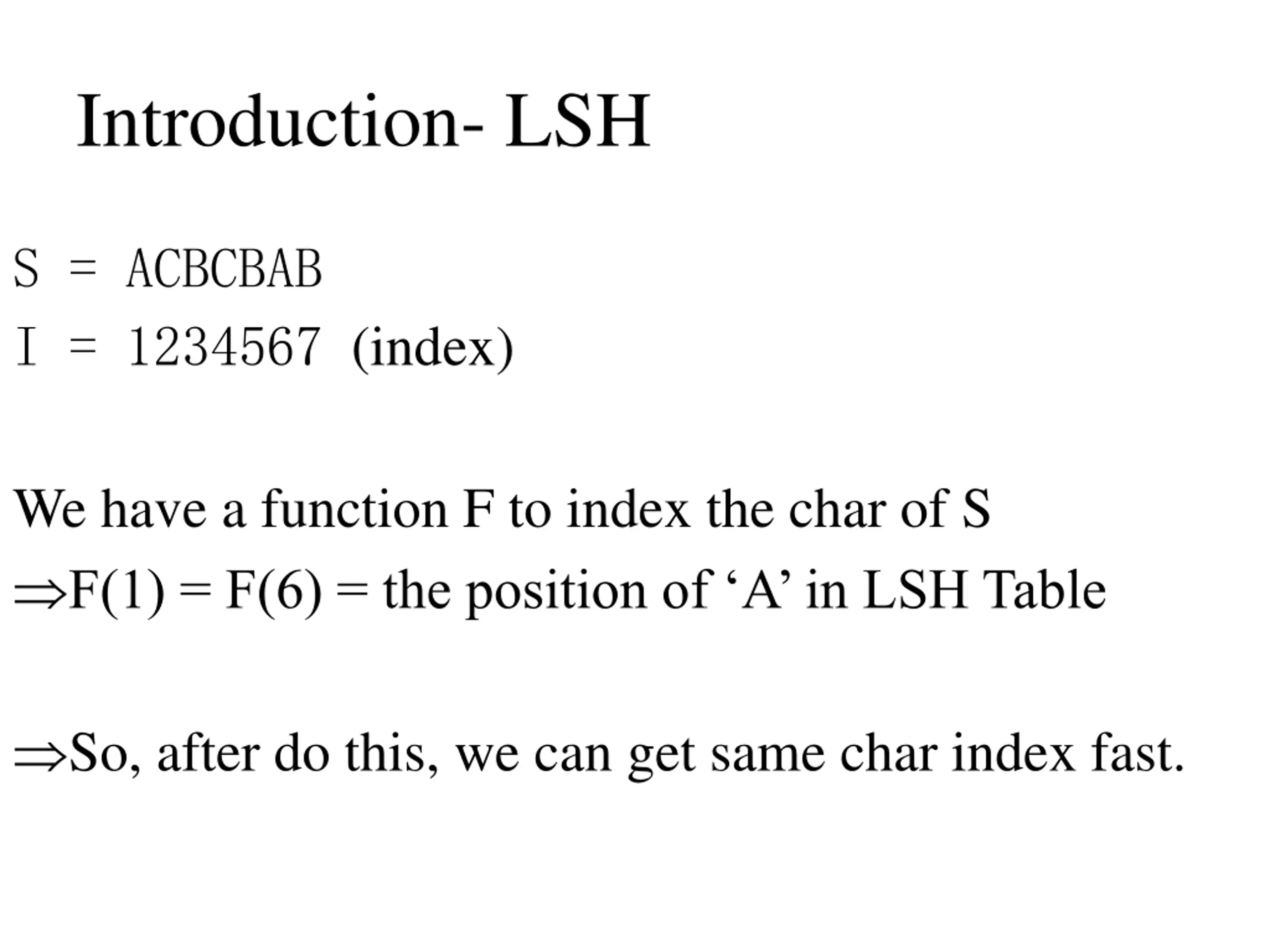

Introduction- LSH S = ACBCBAB I = 1234567 (index) We have a function F to index the char of S F(1) = F(6) = the position of A in LSH Table So, after do this, we can get same char index fast.
Function /Dataset conLSH rHAT1 rHAT2 BWA E.coli 1.38 (MB) 290 4317 9.7 0.01 (S) 4 49 8.7 H.sapiens 724.32 11755.34 15806.77 4523 49 785 1166 3904 A.thaliana 29.87 742.84 4770.16 209 1 35 115 114.7 S.cerevisiae 3.03 316.91 4343.47 21.3 0.01 3 50 10.16 O.sativa 93.18 1744.08 5804 652.4 7 122 253 543.3

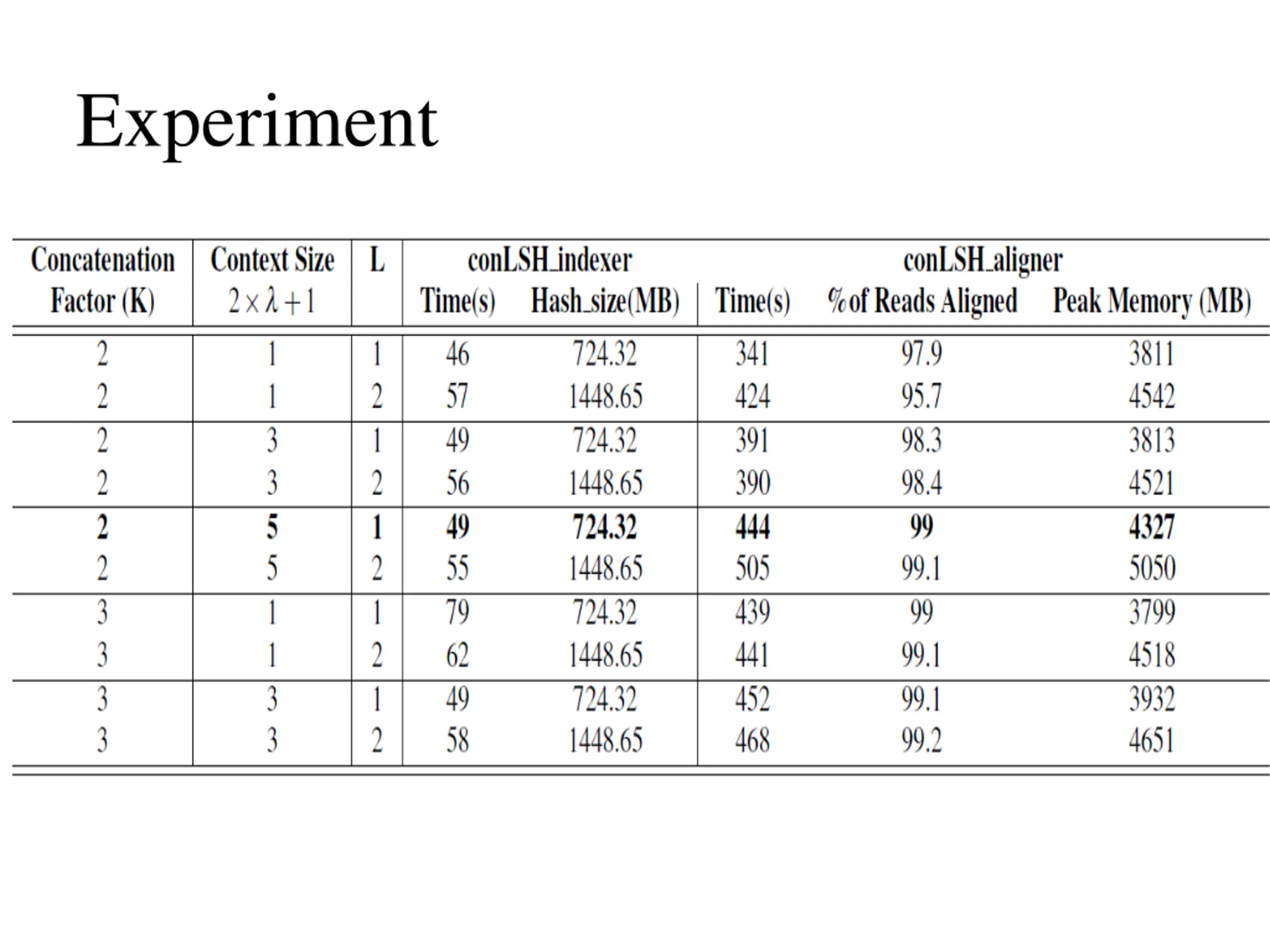

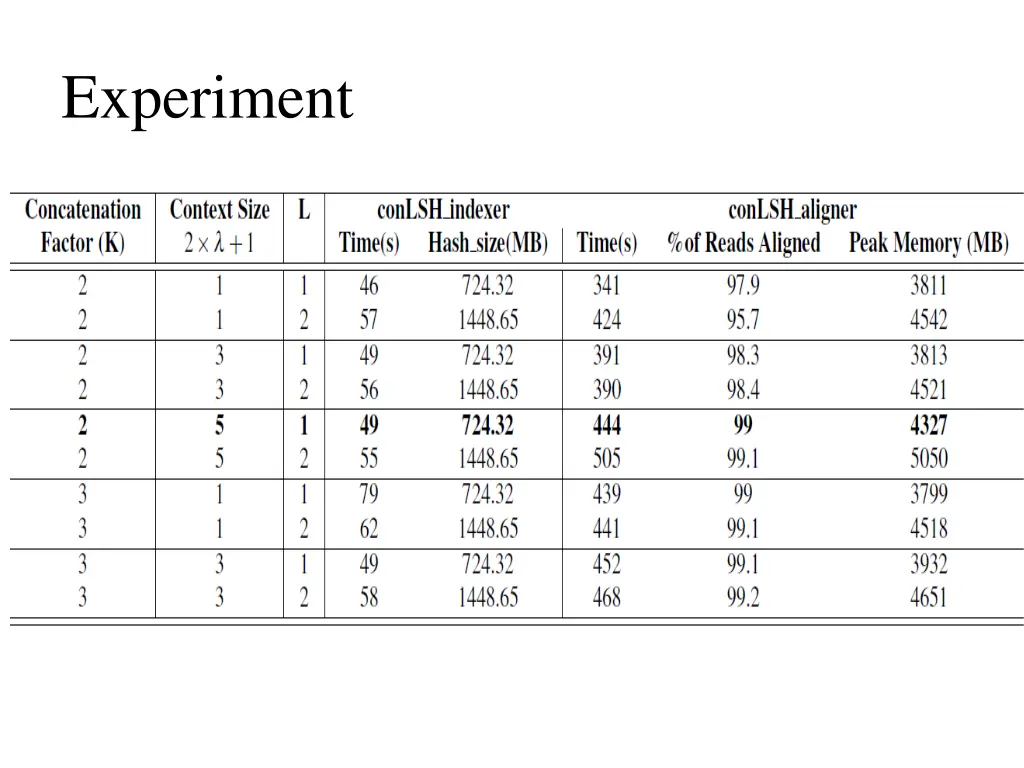

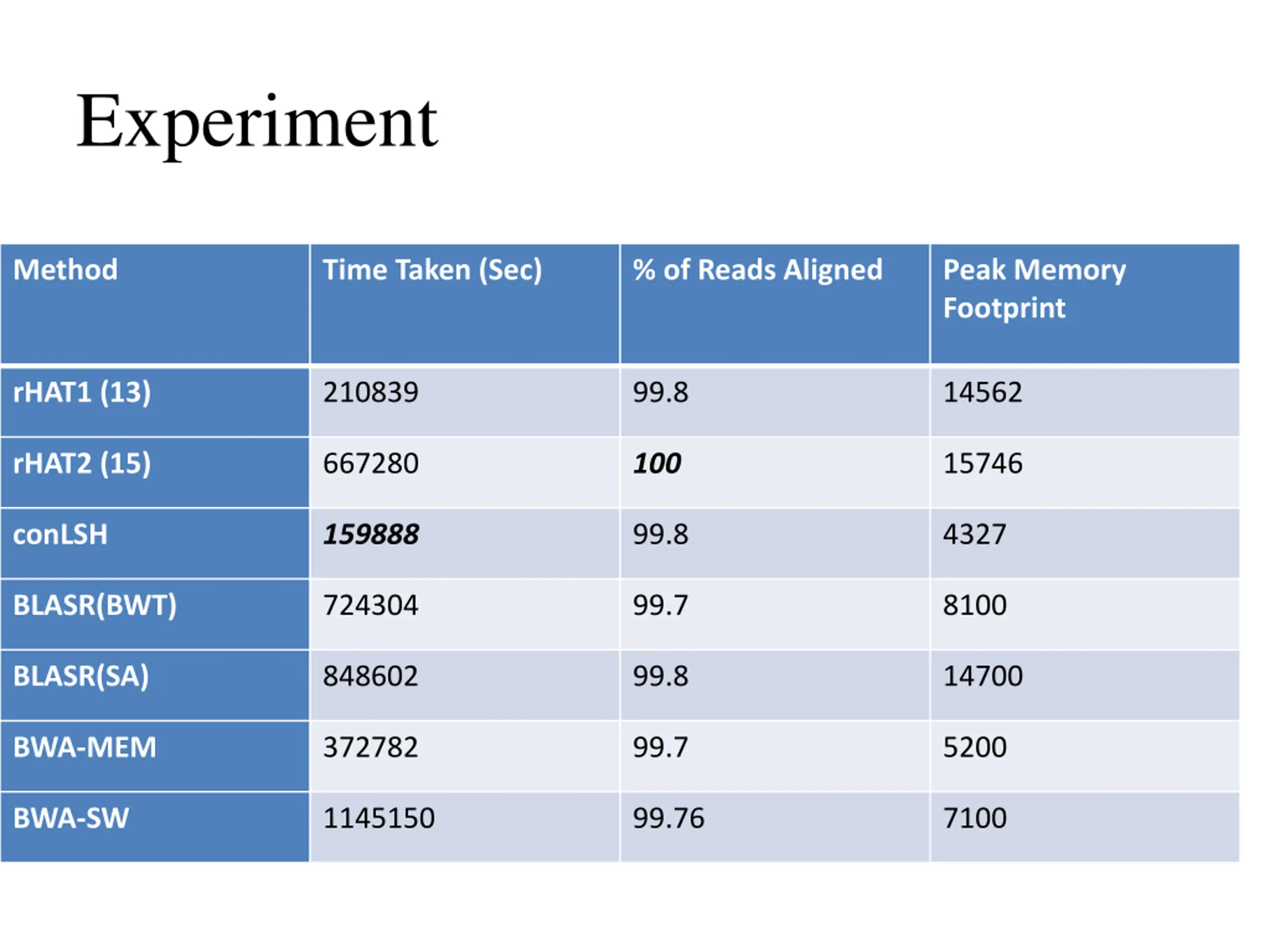

Experiment Method Time Taken (Sec) % of Reads Aligned Peak Memory Footprint rHAT1 (13) 210839 99.8 14562 rHAT2 (15) 667280 100 15746 conLSH 159888 99.8 4327 BLASR(BWT) 724304 99.7 8100 BLASR(SA) 848602 99.8 14700 BWA-MEM 372782 99.7 5200 BWA-SW 1145150 99.76 7100
Function /Dataset Method Time Taken(Sec) % of Reads Aligned Peak Memory Footprint (MB) E.coli_sim rHAT1 6 94.8 294 rHAT2 59 100 4225 conLSH 15 100 85 S.cerevisiae_sim rHAT1 9 100 326 rHAT2 85 100 4259 conLSH 45 100 156 A.thaliana_sim rHAT1 89 100 849 rHAT2 372 100 4781 conLSH 337 99.9 574 D.melanogaster_ sim rHAT1 139 100 1054 rHAT2 223 98 4987 conLSH 395 99 705
